and 5th Generation

NEC

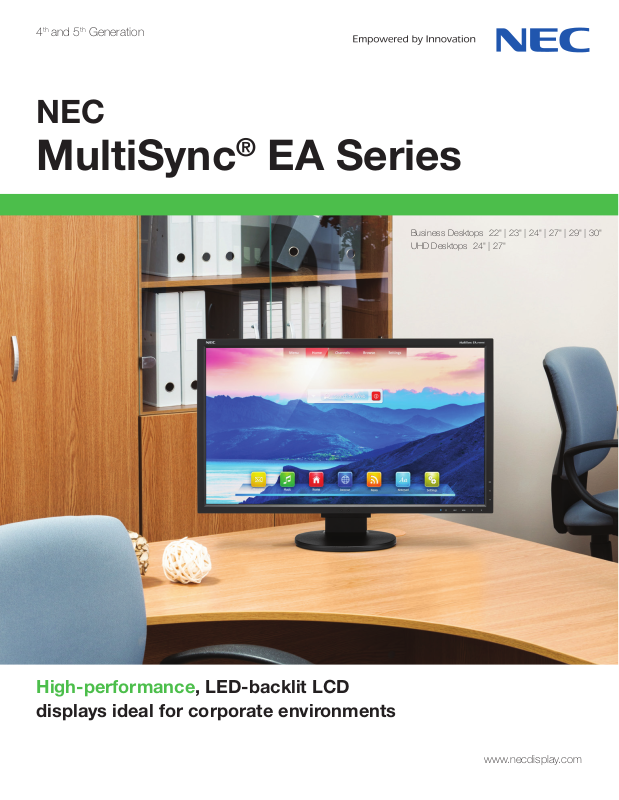

MultiSync® EA Series

Business Desktops 22" | 23" | 24" | 27" | 29" | 30" UHD Desktops 24" | 27"

High-performance, LED-backlit LCD

displays ideal for corporate environments

www.necdisplay.com

Reimagine your desktop computing experience.

With its 4

developed monitor solutions that push the boundaries of what

you’ve come to know as business-class screen performance.

The EA Series deliver a completely redesigned chassis with a

host of enhanced features, advanced technologies, future-proof

connectivity and environmentally friendly benefits. All models

utilize IPS LCD panels, which boast the best possible color

accuracy and minimal viewing angle shift.

These models also feature LED backlights, which not only

reduces power by up to 52% compared to their predecessors,

but leads to a 30% thinner and 25% lighter chassis. Other green

features include ECO Mode™, a carbon footprint meter and an ambient light sensor,

which automatically adjusts the brightness to the optimal setting depending on ambient

lighting, screen content or both, conserving power up to 87% compared to typical energy

consumption. In addition, the human sensor detects user activity in front of the monitor and

reduces display power up to 95% with inactivity.

The ground breaking ControlSync™ technology allows users to control up to six select

MultiSync EA Series units in a multi-monitor configuration. Upon establishing one unit as

the master, you will be able to simultaneously control many performance attributes of the

multi-monitor setup through the master monitor.

& 5th generation MultiSync EA Series, NEC has

EA Series Desktops

22" EA224WMi

23" EA234WMi

24" EA244WMi

24" EA244UHD

27" EA275UHD

27" EA274WMi

29" EA294WMi

30" EA304WMi

Highlights

• LED backlight technology provides for industry-leading low power consumption and less hazardous materials

• Four-way ergonomic stand boasts pivot, tilt, swivel and height adjustment up to 130mm to maximize your viewing comfort

• Touch-sensitive OSD® controls are integrated into the bezel, making display adjustments easier than ever

• Integrated USB hub easily connects you to your peripherals

• Comprehensive input panel, including DisplayPort, HDMI, DVI-D and 15-pin VGA *select models, connects you to the latest peripherals and future-proofs your investment

• Space saving, multimedia speakers, which enhance your computing experience, are hidden to maintain the monitor’s aesthetic appeal (headphone jack also included)

• ControlSync enables multi-monitor setups of up to six monitors and controls up to 26 settings

• Customize Setting allows both users and IT administrators to set and restore preferred settings with just one touch, contributing to a free-seating business environment

• Smart sensing technology includes ambient light and human sensors, which considerably reduce power consumption by automatically detecting your work conditions and adjusting to the proper display brightness or entering Power Saving Mode

• Carbon footprint meter helps track and calculate the reduction of green gas emissions, while the resettable cost meter (via On Screen Display) indicates electricity cost savings based on currency settings

• NaViSet™ software offers an intuitive graphical interface, allowing for easy adjustment of display settings via mouse and keyboard. NaViSet Administrator provides all the advanced control to remotely located IT professionals.

• EPEAT Gold compliance ensures the displays reduce hazardous waste and electricity usage, resulting in lower energy costs and increased protection for the environment

• ENERGY STAR and lowers total cost of ownership

compliance reduces electrical costs
