NCW TM170 Users Manual

TM170 ... SXGA

TM170 ... SXGA

Color TFT-LCD Monitor

User’s Manual

TM170

Color TFT-LCD Monitor

Notes On LCD Monitors

1.The LCD panel used in this monitor is a very high technology product with 3,932,160 thin film
transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the
screen as a fixed point of red, green, blue, white or black. Please note that this does not indicate a
defective panel.

2. Set your resolution to 1280 x 1024 pixels at 60Hz refresh rate for optimum display quality.

3. Due to the nature of the LCD screen, an afterimage of the previous screen may remain after

switching the image when the same image has been displayed for a long time. The monitor will
slowly recover from this.

4. The screen surface is very soft. Do not rub, touch or tap the screen surface with sharp object such

as pen or pencil. This contact may scratch or damage the screen. These damages are not covered
under the warranty.

CONTENTS

TM170

Color TFT-LCD Monitor

OPERATION MANUAL

SAFETY PRECAUTIONS
SUPPLIED ACCESSORIES

PREPARATION

Remote Control
TV Tuner
Cable Connection
Stand, Arm, Wall Mount

LOCATION OF USERS CONTROL
REMOTE CONTROL
MONITOR INSTALLATION

STATUS INFORMATION

………………………7

……………4,5

……………6

……………………8
……………………9

…………10

…………………12

.……13,14,15
……………16

…11

OSD USAGE
BEFORE CALLING FOR REPAIR SERVICE

SPECIFICATIONS

TM170
Available PC VGA Mode

WARRANTY STATEMENT….……….23,24
FCC & E
HOW TO CONTACT US………………….26

Appendix

V-Chip

NERGY STAR STATEMENTS ...25

…..….……………17,18,19

……20

…………………….………21

…………22

…………………….……27,28

SAFETY PRECAUTIONS

Improper use can result in electric shock and/or fire. In order to prevent potential danger,
please observe the following instructions when installing, operating and cleaning the
product. To ensure your safety and prolong the service life of your color
TFT-LCD monitor product, please read the following precautions carefully before
using the product.

J All operating instructions must be read and understood before the product is operated.
J These safety and operating instructions must be kept in safe place for future reference.
J All warnings on the product and in the instructions must be observed closely.
J All operating instructions must be followed.
J Do not use attachments not recommended by the manufacturer. Use of inadequate

attachments can result in accidents.

J This product must be operated on a power source specified on the specification label. If you are

not sure of the type of power supply used in your home, consult your dealer or local power
company. For units designed to operate on batteries or another power source, refer to the
operating instructions.

J The power cords must be routed properly to prevent people from stepping on them or objects

from resting on them. Check the cords at the plugs and product.

J If you plan to use a 12V DC power supply unit other than the AC adapter supplied with the

product, make sure the power supply unit provides stable voltage with minimum fluctuations.

J Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
J Never insert an object into the product through vents or openings. High voltage flows in the

product, and inserting an object can cause electric shock and/or short internal parts. For the
same reason, do not spill water or liquid on the product.

J Do not attempt to service the product yourself. Removing covers can expose you to high voltage

and other dangerous conditions. Request a qualified service person to perform servicing.

J If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a

qualified service person to perform repairs.

a. When the power cord or plug in damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions.
Improper adjustment of controls not described in the instructions can cause damage,

which often requires extensive adjustment work by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the

product indicates that the product needs servicing.

J In case the product needs replacement parts, make sure that the service person uses

replacement parts specified by the manufacturer, or those with the same characteristics and
performance as the original parts. Use of unauthorized parts can result in fire, electric shock
and/or other danger.

J Upon completion of service or repair work, request the service technician to perform safety

checks to ensure that the product is in proper operating condition.

J When mounting the product on a wall or ceiling, be sure to install the product according to the

method recommended by the manufacturer.

4

SAFETY PRECAUTIONS(Continued)

J Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean

the product. Do not use liquid cleaners or aerosol cleaners.

J Unplug the power cord from the AC outlet if you do not use the product for considerably long time.
J Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub,

swimming pool and in a wet basement.

J Keep the product away from direct rays of the Sun-light.
J Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an

unstable base can cause the product to fall, resulting in serious personal injuries as well as
damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the
manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the
manufacturer's instruction. Use only the mounting hardware recommended by the manufacturer.

J When relocating the product placed on a cart, it must be moved with the utmost care.

Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

J The vents and other openings in the cabinet are designed for ventilation. Do not cover or block

these vents and openings since insufficient ventilation can cause overheating and/or shorten the life
of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings. This product is not designed for built-in installation; do not place the
product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or
the manufacturer's instructions are followed.

J The LCD panel used in this product is made of glass. Therefore, it can break when the product is

dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD
panel breaks.

J Keep the product away from heat sources such as radiators, heaters, stoves and other heat-

generating products (including amplifiers).

5

SUPPLIED ACCESSORIES

Make sure the following accessories are provided with the product.

TM170

Quick Install Guide

Quick Start Guide (*1)

Size AAA Battery (*2)

Operation Manual

Monitor Driver (CD*1)

DC Adapter (*1)

Remote Control (*1)

PC VGA Cable(*1) TV Tuner(*1)

PC Stereo Cable (x1)

AC Cord (*1)

(Option)

6

PREPARATION - Remote Control

J Use the remote control by pointing it towards the remote sensor window.

Objects between the remote control and sensor window may prevent proper operation.

!

Cautions regarding use of remote control

J Do not expose the remote control to shock. In addition, do not expose the remote control

to liquids, and do not place in an area with high humidity.

J Do not install or place the remote control under direct sunlight. The heat may cause

deformation of the unit.

J The remote control may not work properly if the remote sensor window of the main unit is

under direct sunlight or strong lighting. In such case, change the angle of the lighting or
LCD TV monitor set, or operate the remote control closer to the remote sensor window.

Batteries for Remote Control

If the remote control fails to operate LCD TV monitor functions, r eplace the batteries in the
remote control.

1 Open the battery cover.
2 Insert batteries (t wo Size-AAA batteries, Supplied with product).

J Place batteries with their terminals corresponding to the (+) and (-) indications in the

battery compartment.

3 Close the battery cover

!

Cautions regarding batteries

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to
follow the instructions below.

• Place batteries with their terminals corresponding to the (+) and (-) indications.

• Different types of batteries have different characteristics. Do not mix batteries of different
types.

• Do not mix old and n ew batteries. Mixing old and new batteries can shorten the life of
new batteries and/or cause old batteries to leak chemicals.

• Remove batteries as soon as the y are no n-operable. Chemicals that leak from batteries
can cause a rash. If chemical leakage is found, wipe with a cloth.

• The batteries supplied with the product may have a shorter life expectancy due to storage
conditions.

• If the remote control is not used for an extended period of time remove batteries from the
remote control

7

PREPARATION – TV Tuner

TV Tuner Installation

2

1

Note :1) For your convenience, the TV Tuner module has been installed at the factory.

The illustration is shown for your reference only.

2) In case of re-installing(or uninstalling) the tuner, follow the f ollowing ste ps.

1 Screw the bolt.

2 Cover the tuner with the tuner cover.

(In case of uninstalling, proceed th e step in reverse .)

8

PREPARATION – Cable Connection

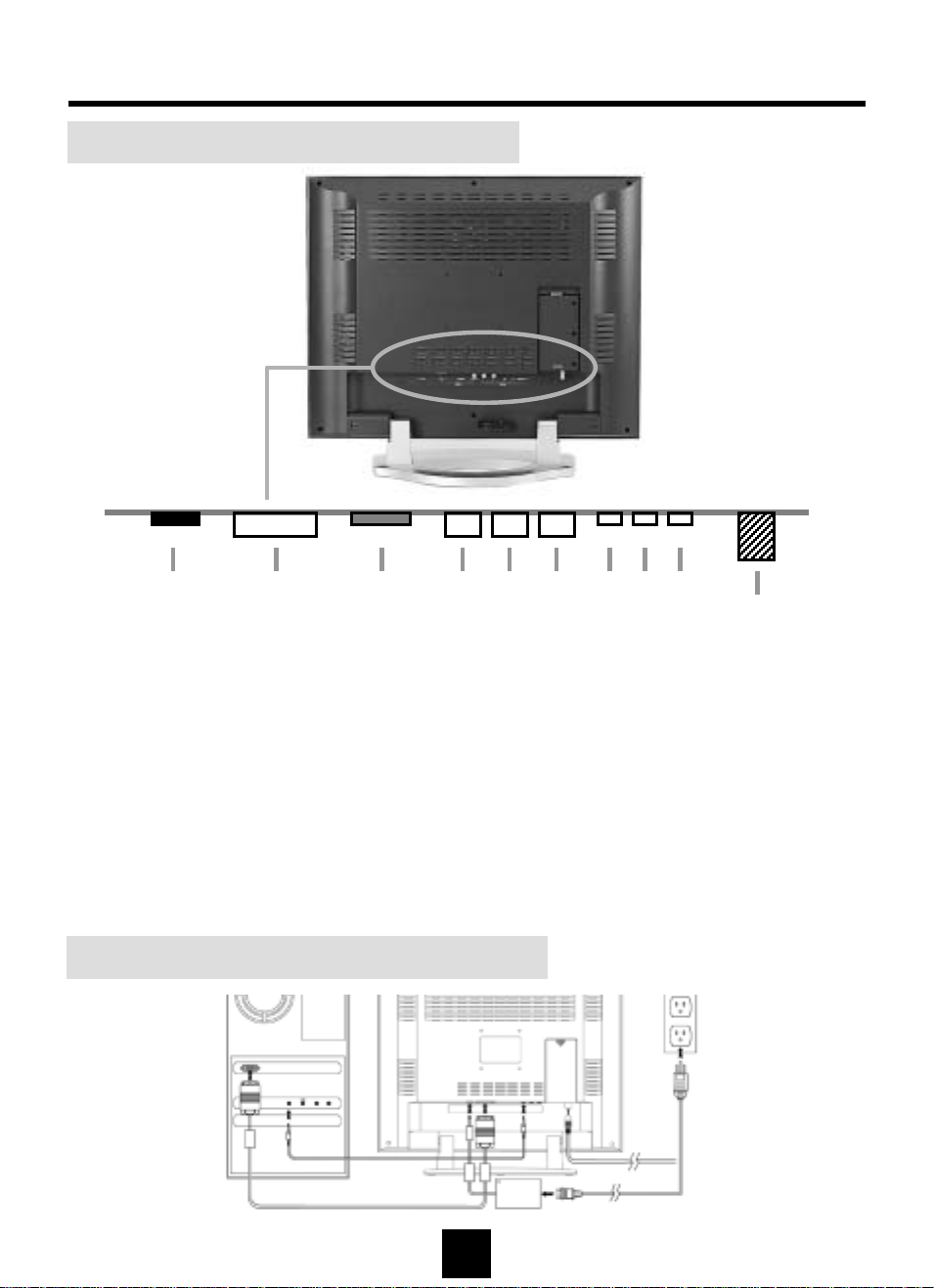

Cable Connector Description

1

VGA, Power & Antenna Cable Connection

2

1 Power Input : DC 12V
2 Analog RGB : PC VGA Cable
3 S-Video
4 Composite Video : Yellow
5 Video Sound (L) : White
6 Video Sound (R) : Red
7 PC Stereo Input
8 Headphone Output
9 Line Out : Connect to another speaker set
 Antenna

3 456

789



1

7



9

PREPARATION- Stand, Arm, Wall Mount

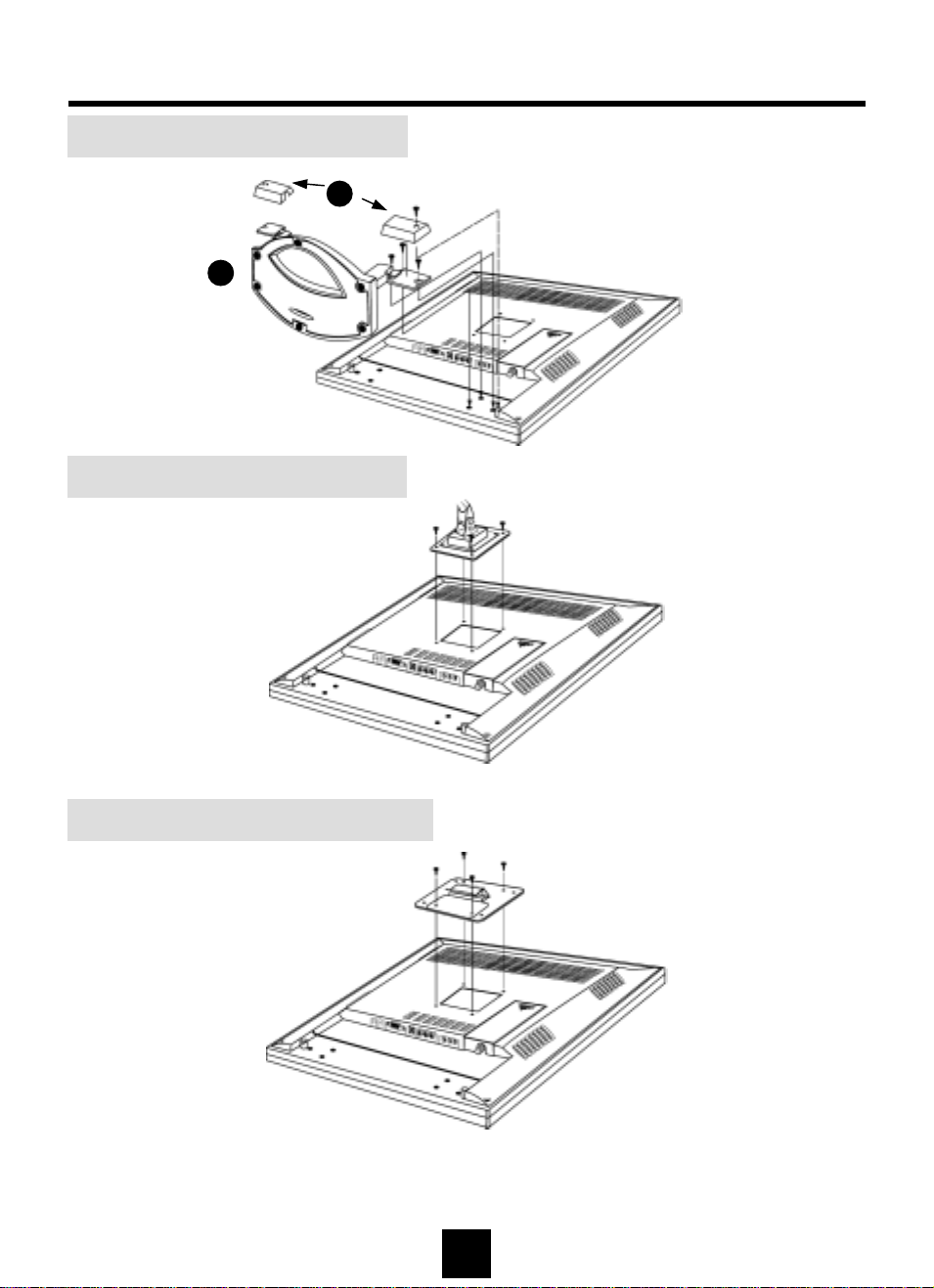

Stand Installation (Standard)

2

1

Arm Installation

Wall Mount Bracket Installation

Note : Arm and wall mount bracket are not supplied with the product.

10

LOCATION OF CONTROL PANEL

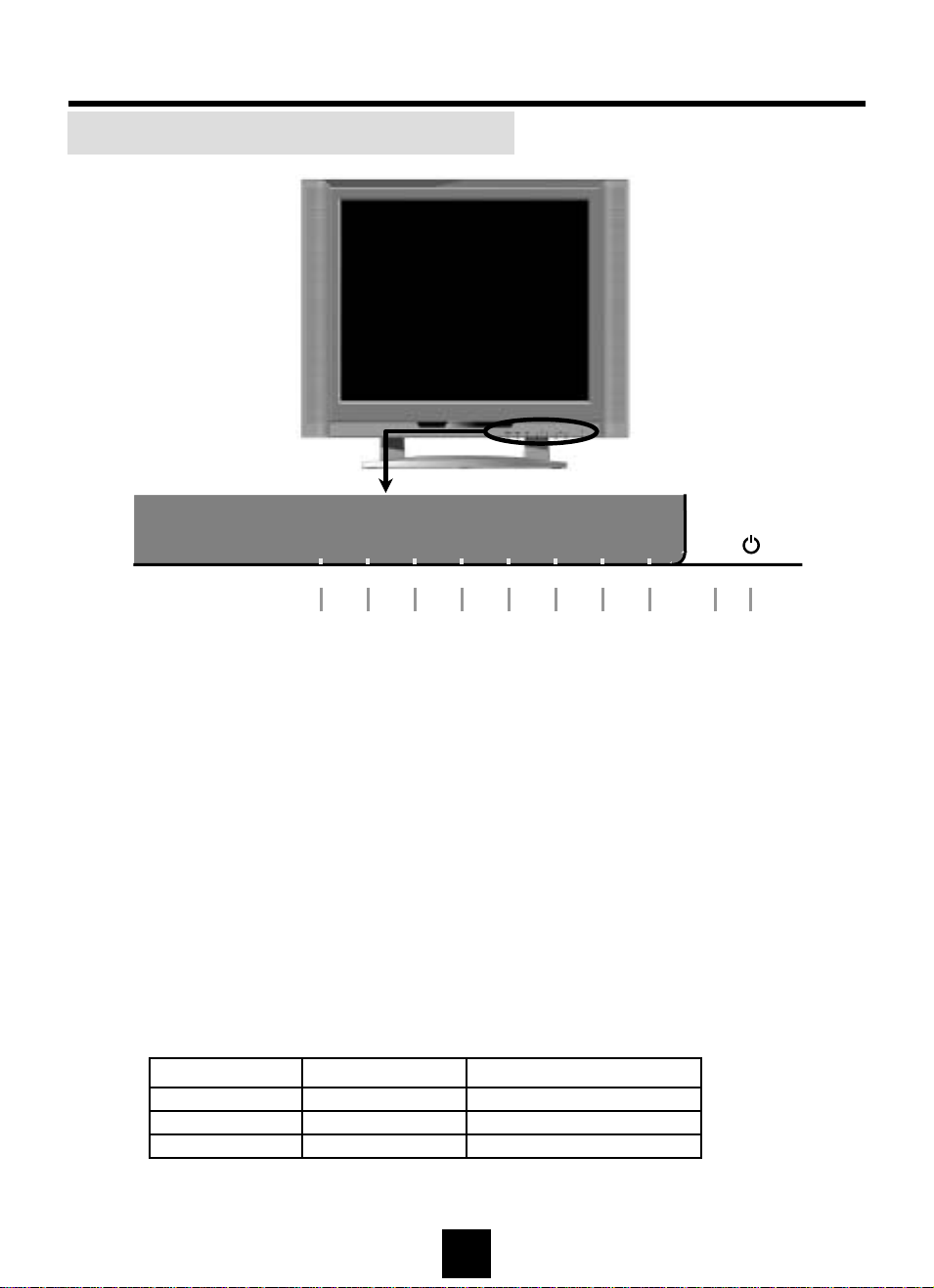

Control Panel on the front of main unit

1 34 6

5

7

VOL CH EXITMENUSOURCEPIP

82

9



1 PIP : Activate PIP menu window.
2 Signal Source Select : Signal source will be selected in sequence as

the button is pressed.

3 Menu : Display the menu windo w and used as Select button.
4 Exit : Return to previous OSD menu or exit from OSD menu window.
5 Channel down / Move down : Channel down or move downward in OSD menu.
6 Channel up / Move up : Channel up or move upward in OSD menu.
7 Decrease volume / Move left : Volume down or move leftward in OSD menu.
8 Increase volume / Move right : Volume up or move rightward in OSD menu.
9 Power Indicator :

Mode

Power on
Power off

Switch Off

LED Display

Green LED

Orange LED

Dark LED

Remark

-

No Signal (PC mode)

-

 Power On / Off

11

REMOTE CONTROL

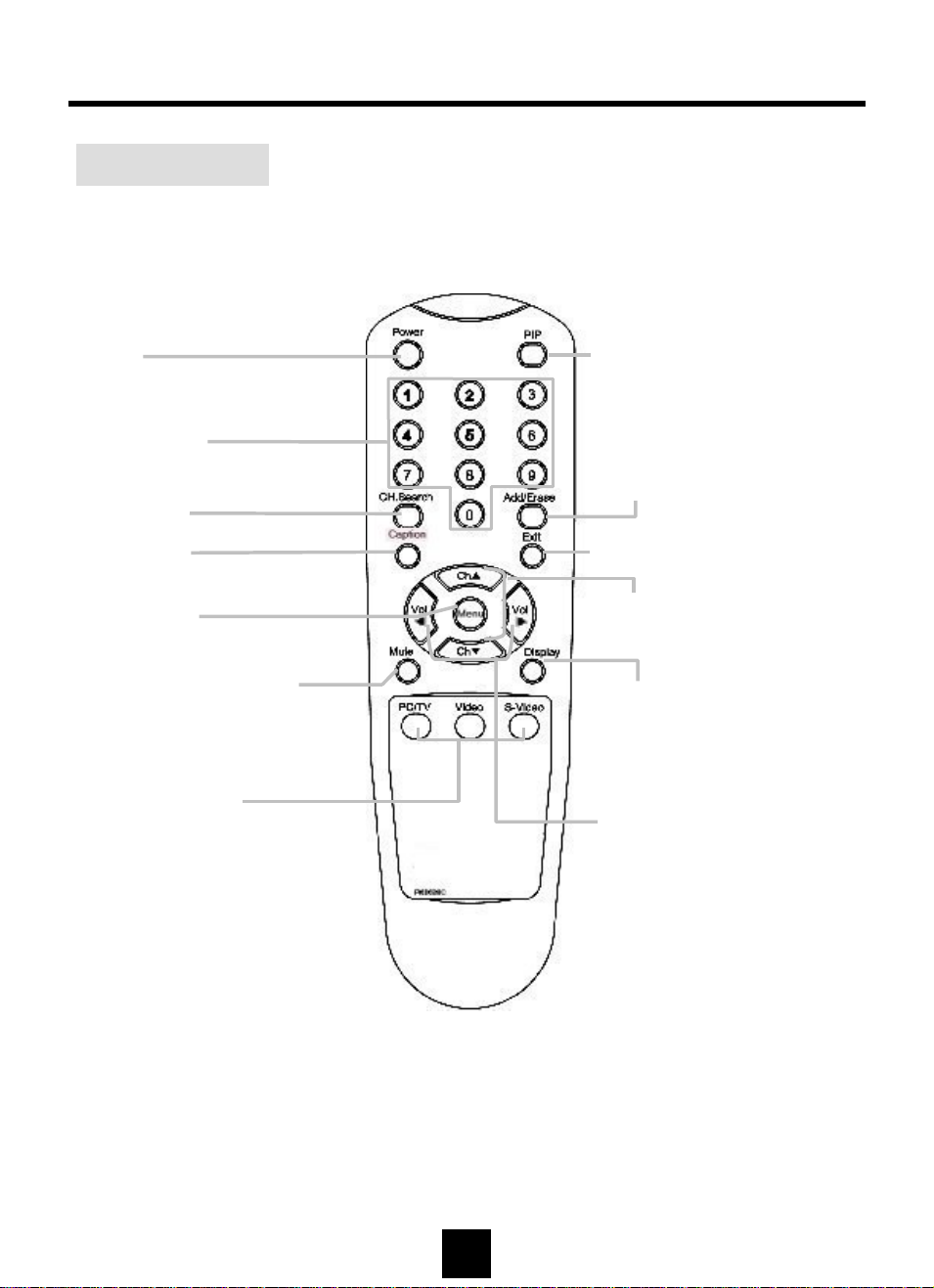

Remote Control

Power

Channel Select

Auto Program

Caption

Menu/Selection

Sound Mute

- Press – Sound off

- Press again –Resume Sound

Signal Source Select

PIP

Channel Add / Erase

Press – Display Channel Add Menu
Press again - Display Channel Erase Menu

Exit - Exit the OSD menu or move

to previous menu.

Ch ()/()

Selects next higher channel.


 Selects next lower channel.

Display

Press - Display signal source name.
Press again - Removes displayed

Vol ()/()


 Decrease volume (down)

channel number.

Increase volume (up)

12

MONITOR INSTALLATION

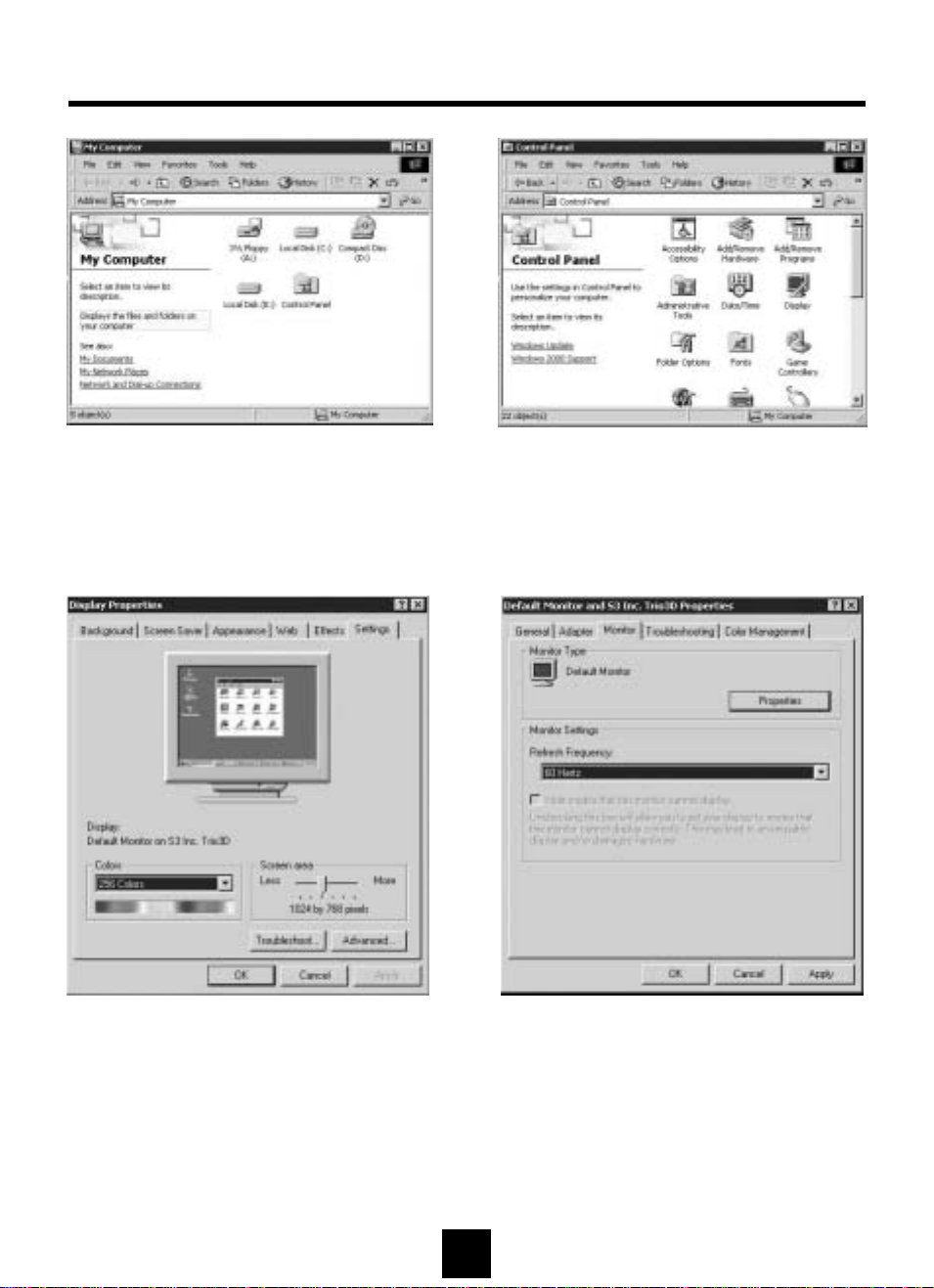

1 Double click [Control Panel ] icon

from [My Computer] folder

.

2 Double click [Display] icon from

[Control Panel] folder.

3 Select [Settings] in [Display Properties]

window.

4 Click [Advanced...].

5 Select [Monitor] in the window shown

above.

6 Click [Properties].

13

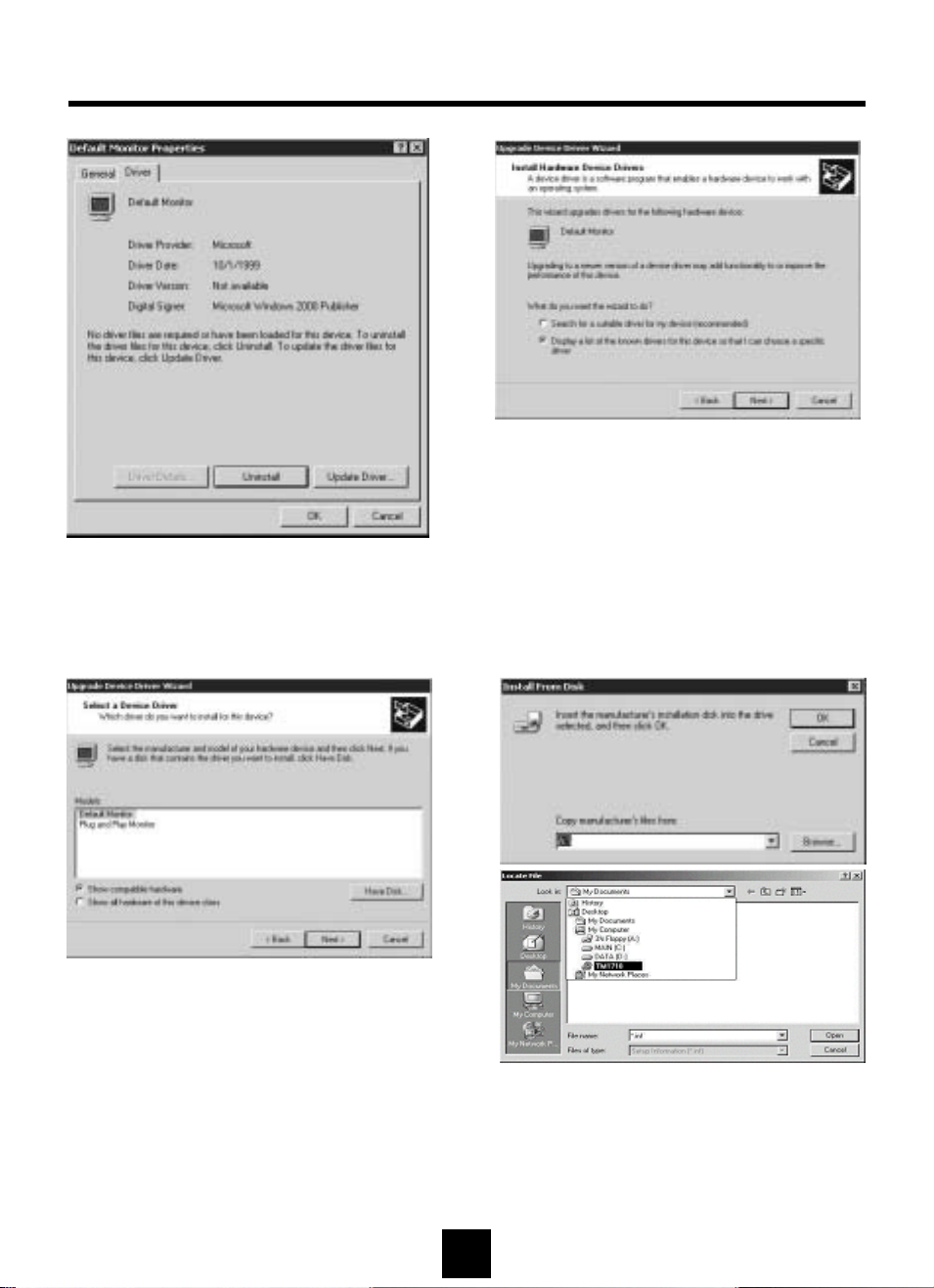

MONITOR INSTALLATION(Continued)

7 Select [Driver] and then click [Update

Driver...]

.

8 [Upgrade Device Driver Wizard] will be

appeared. Select the
then click [Next>].

second list and

9 Click [Have Disk...]. 10 When drive [A:] appears in default,

click [Browse…] to select CD-ROM drive.

14

MONITOR INSTALLATION(Continued)

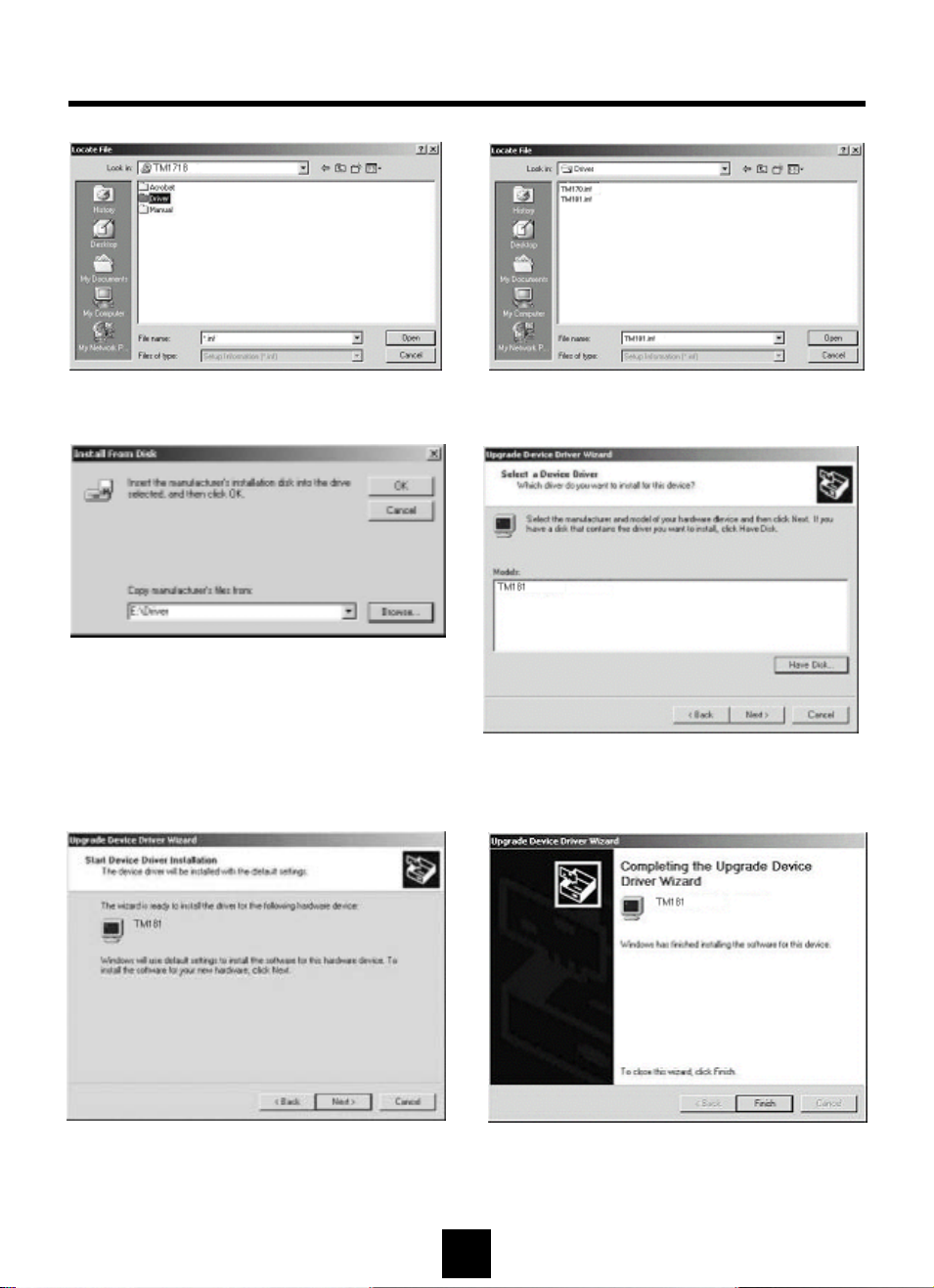

11 Double click the [Driver] folder. 12 Choose TM170.inf file then click [Open].

13 Click [OK] to proceed to the next step.

15 Click [Next>] to start installation. 16 Click [Finish].

14 Choose TM170, then click [Next>] to

proceed to the next step.

(Be sure the screen shows correct model name.)

15

STATUS INFORMATION

Status Infomation

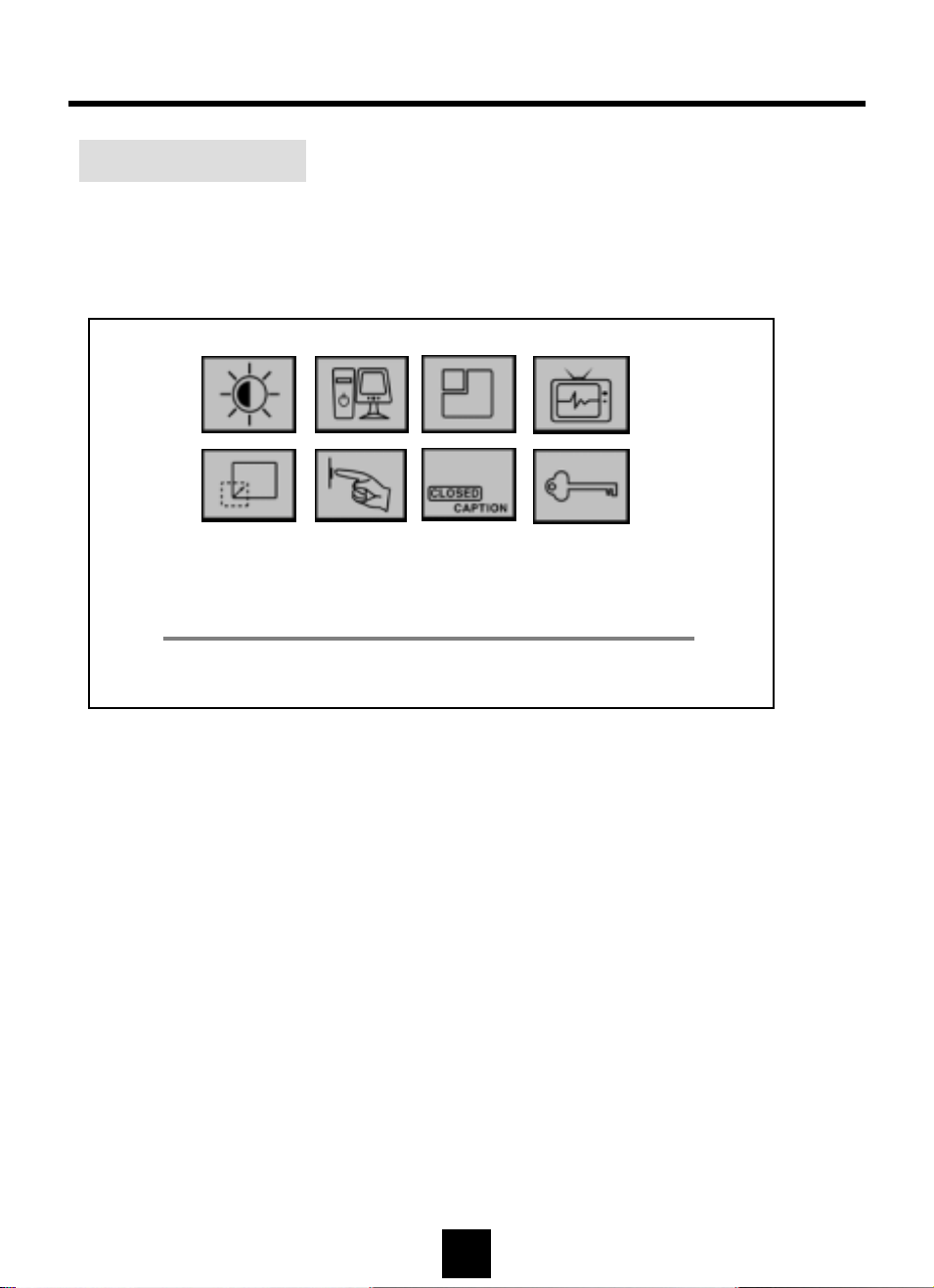

OSD Menu (Press “Menu” butto n on Control panel or Remote Control)

1

234

5678

9




 Move Menu : Select Exit



Resolution : 1280 x 1024
Frequency : 63.9 KHz 60Hz

1 Video
2 PC
3 PIP

4 TV
5 Scaling

6 Setup
7 Closed Caption

8 V-Chip
9 Number of horizontal and vertical pixels

 Horizontal and vertical frequency

16

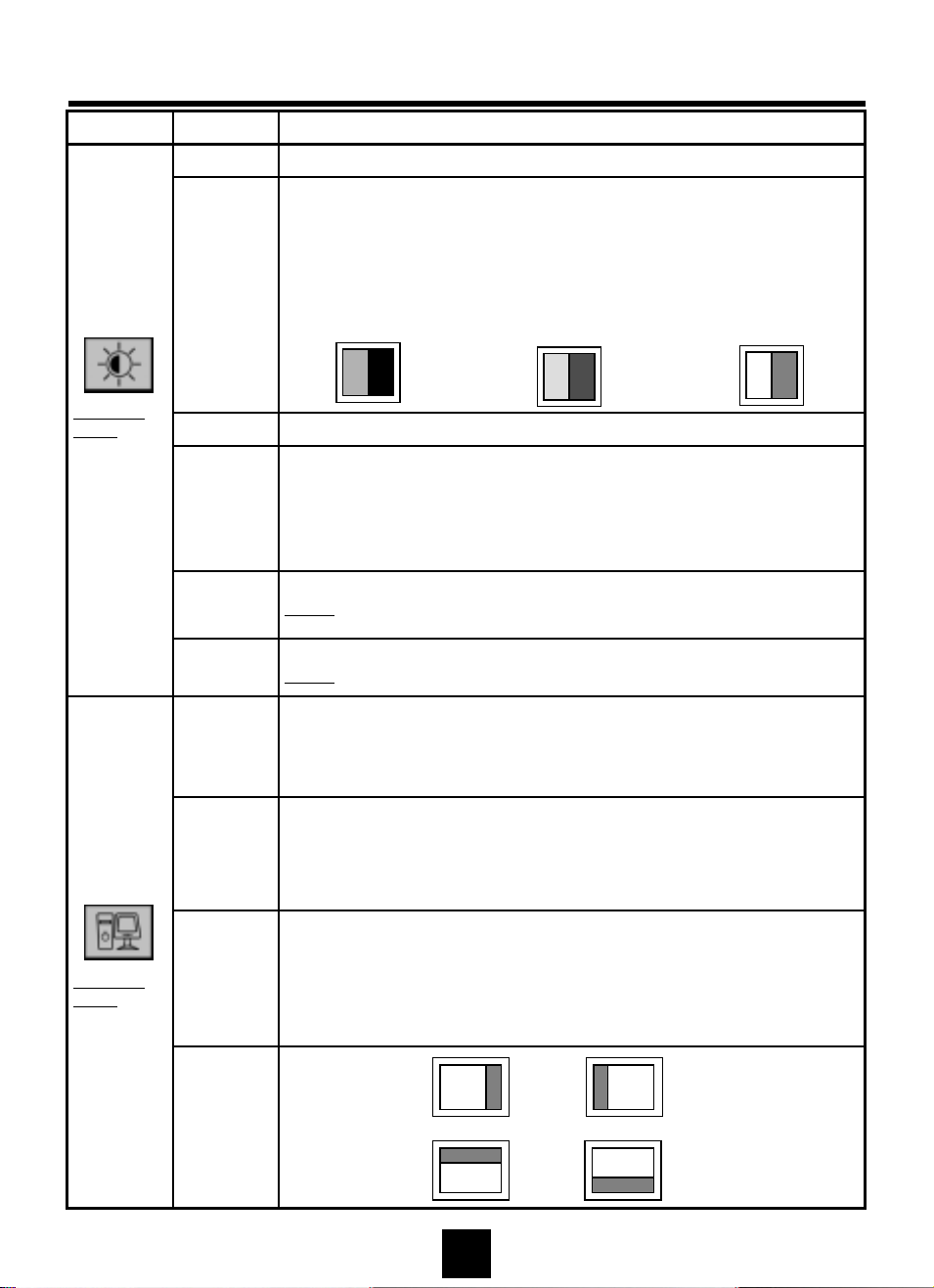

OSD USAGE

Brightness

Contrast

Video

OperationSub MenuMain Menu

 Button : Decrease Brightness  Button : Increase Brightness

J Contrast is ratio of luminance between black and white.
J When contrast is reduced( button), the luminance of white is

reduced and the display becomes darker.

J When contrast is increased( button), the luminance of black is

increased and the display becomes hazy.

 Button : Decrease Normal  Button : Increase

Contrast Contrast

Available
Mode

J PC
J TV
J Video
J S-Video

PC

Available
Mode
PC

Sharpness

Color

Control

Color

Tint

Auto

Adjustment

Frequency

Phase

W B

J Adjust the clearness of image by controlling its sharpness.
J Cold : Greenish white. Felt cold.

J Normal : Normal white
J Warm : Reddish white. Felt warm.
J Custom : Able to adjust the color by controlling Red, Green, and Blue

W B

W B

 Button : Lower color intensity  Button : Higher color intensity

Available in Video/TV mode only

Note :

 Button : Toward green  Button : Toward purple

Note :

Available in Video/TV mode only

J “Auto Adjustment” performs adjustment of image quality automatically.
J Automatically adjusted items are :

1) Clock 2) Phase 3) Position is centered

4) Turning a zoomed picture into its normal shape (100%)

 Button:Decrease horizontal size  Button:Increase horizontal size.

Caution
Perform this adjustment just in the case of having horizontally
unmatched picture after operating the "Auto".

J When noise remains on the screen after operating the "Auto Adjust",

adjust it by selecting

Caution
Do not make manual adjustment when the picture is in its normal

shape or you will create problem on it..

 or  button.

Position

 Button :

Move left

 Button :

Move down

deo

Video

17

Vid

Video

 Button :

Move right

 Button :

Move up

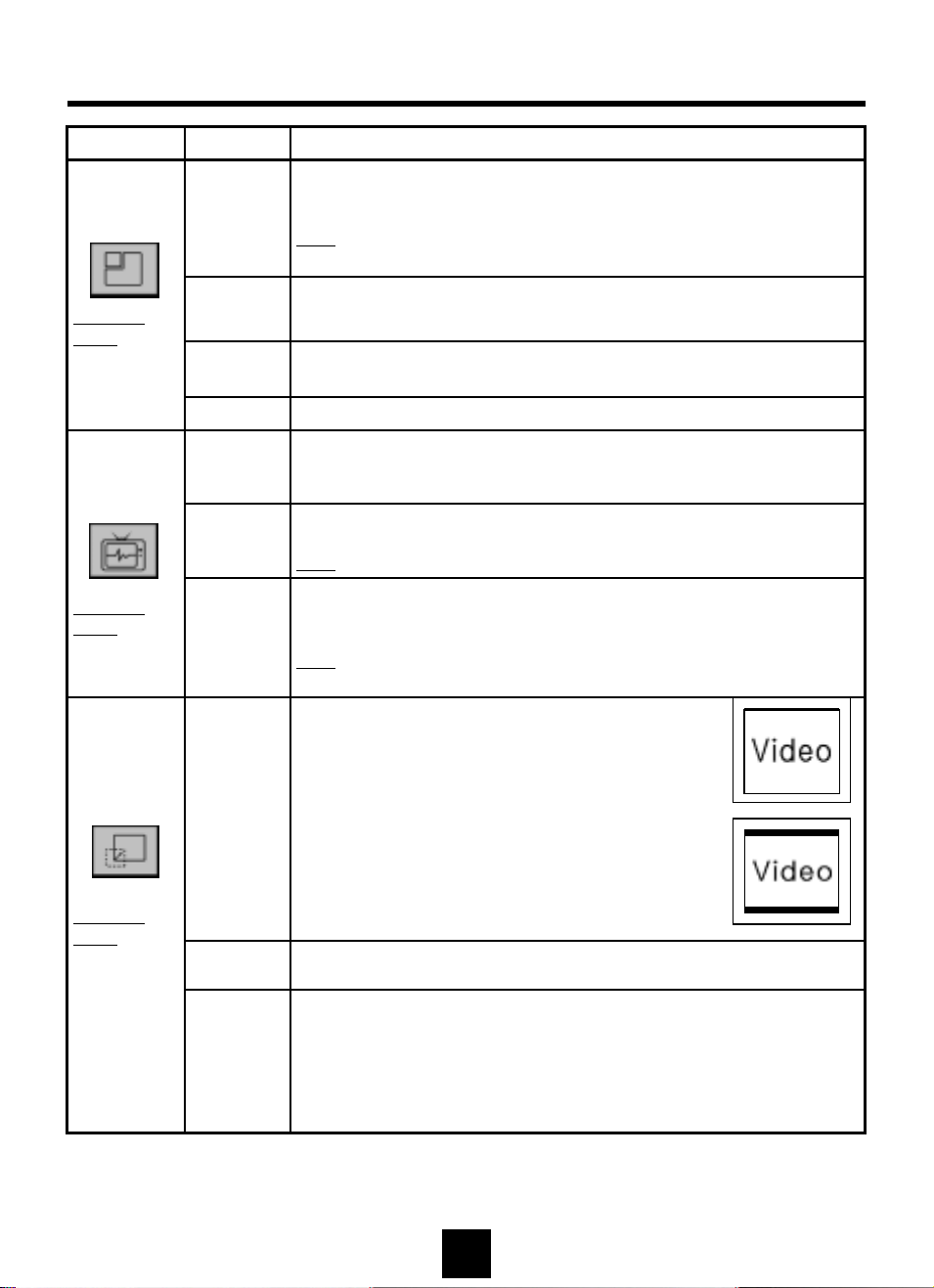

OSD USAGE(Continued)

J Select On to activate and Off to deactivate the PIP window.

PIP

Available
Mode

J PC

PIP

Source

Position

Note

: The channel(TV mode) and volume of PIP signal source can

be controlled without OSD menu on.

J Select a source for PIP display

- Video / S-Video / TV

J Move the PIP window with  buttons.

Keep pressing the button enable the PIP window move continuously.

J Swap the sound source between PIP and PC.Sound

OperationSub MenuMain Menu

Off / On

TV

Available
Mode

J TV

Scaling

Available
Mode

J PC
J TV
J Video
J S-Video

Channel

System

Auto

Prog.

Add/Erase

Scaling

Pan

J Press  or  button to select a channel system.

ANT / CATV

J Select OK to start auto program.

Note

: To stop auto program, press Exit key.

J Select “Add” to add current channel to channel table, and select

“Erase” to delete current channel from channe l table.

Note

: Use  buttons to select Add or Erase.

Add/Erase button of remote control does the same function.

J Normal

Display in normal format of pixels.
For example, XGA(1024x768 pixels) will be
displayed like the figure.(EN-7500 is SXGA
product with 1280x1024 pixels.)

J Aspect Ratio

Display in original aspect ratio of resolution.
For example, XGA(4:3) will be displayed like
the figure.(EN-7500 is SXGA product with
5:4 aspect ratio.)

J Able to zoom the screen by up to 64 times.Zoom
J Use  button to adjust the horizontal position of Zoomed

window.

J Use  button to adjust the vertical position of Z oomed window

Note: Not possible to move normal screen.Just works in Zoomed

window.

18

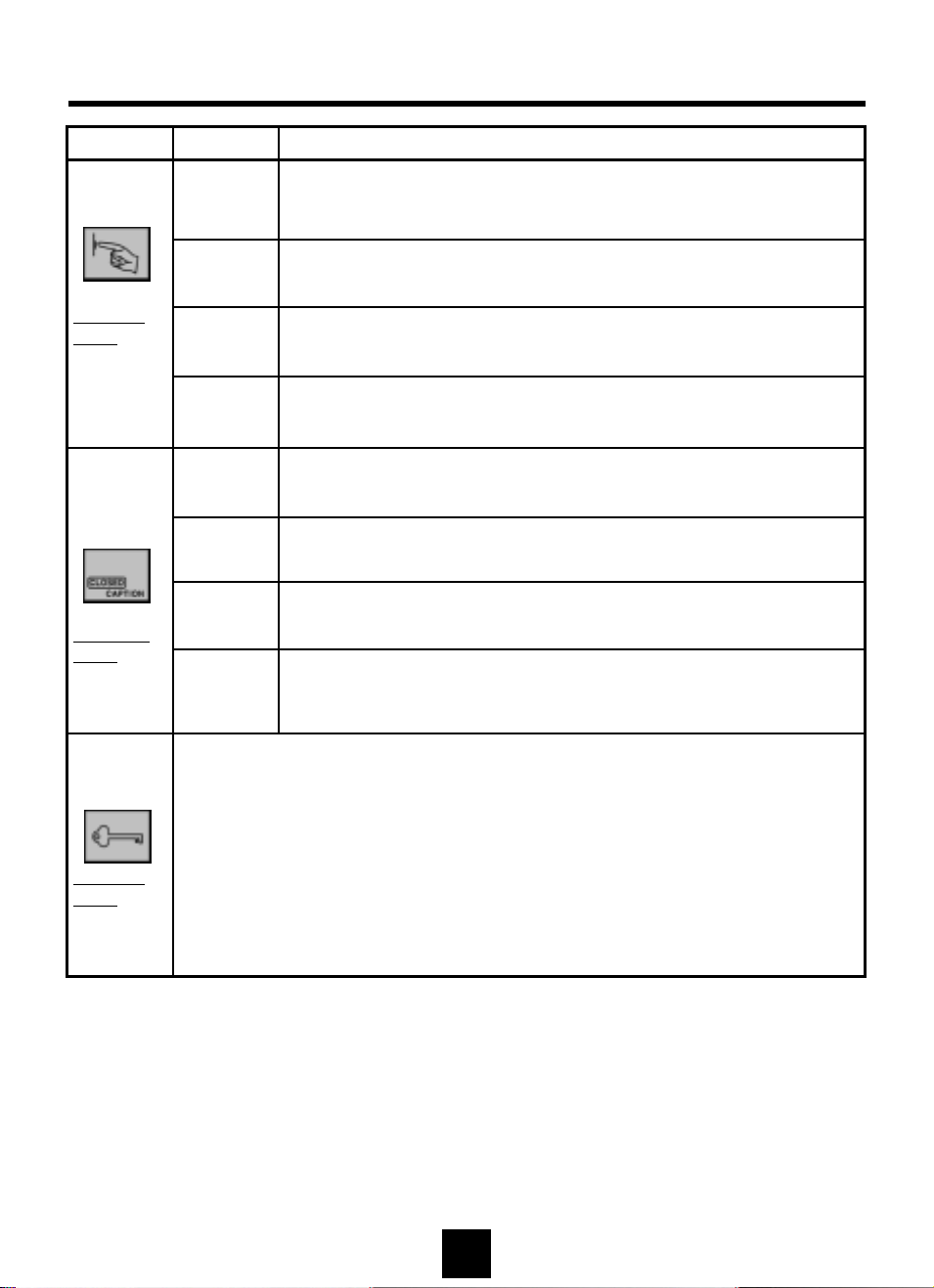

OSD USAGE(Continued)

OperationSub MenuMain Menu

Setup

Available
Mode

J PC
J TV
J Video
J S-Video

Closed

Caption

(US Only)

Availa ble
Mode

J TV
J Video
J S-Video

V-Chip

(US Only)

Language

Position

Timer

J Select the language of OSD menu

- English / Français / E spañol / Deutsch

J Adjust the OSD position by using  buttons.

J The range of controlling the duration time of the OSD menu is

from 5 sec. up to 50 sec.

J Select On to off the sound and Off to resume the soundMute

J Select On to enable caption, and Off to disable caption.Caption

J Select Caption or Text mode.Mode

J Select “1”or “2”.Channel

J Select “1”or “2”.Field

Refer to the page 27~28 for “V-Chip”

Available
Mode

J TV
J Video
J S-Video

19

BEFORE CALLING FOR REPAIR SERVICE…

J Before calling for repair service, check the following items for possible remedies to the

encountered symptoms.

Problem Check below

There is no
picture or sound
(TV,Video,PC).

There is no
sound (TV,Video
PC).

There is no
picture or sound,
just noise(TV).

Picture is not
clear (TV).

Picture is not
clear (PC).

• Make sure the AC adapter is properly inserted in the
power outlet.

• Make sure the main power button of the main unit is on.

• Make sure the signal cable i s free of connections.

• Make sure whether the power of an external input device
is on.

• Make sure the input mode is set to proper mode.

• Fluorescent lamp may have reached the end of service life.

• Make sure the volume is not set to minimum.

• Make sure the sound is not set to mute.

• Make sure the sound cable is free of conne ctions.

• Make sure the antenna cable is properly connected.

• Bad reception can be considered.

• Make sure the antenna cable is properly connected.

• Bad reception can be considered.

• Operate the "Auto Adjustment".

• Adjust the Frequency and the Phase.

Reference

Pages

9

11

9

-

11
21

11
12

9

9

-

9

-

17
17

The picture is not
sharp (TV).

The picture is
doubled or tripled
(TV).

There are stripes
on the screen or
color fade.

• The reception ma y be weak.

• The state of broadcast may also be bad.

• Make sure the outside antenna is not conn ected.

• Make sure the antenna is facing the right direction.

• There may be reflected electric waves from mountains
or buildings.

• Check this unit receiving interference from other devices.
Transmission antennas of radio broadcasting stations and
transmission antennas of amateur radios and cellular
phones may also cause interference.

• Use the unit as far apart as possible from devices that may
cause possible interference.

20

SPECIFICATIONS

Available PC VGA Mode

Resolution

640 x 480

800 x 600

Vertical

Frequency

(Hz)

Polarity

Horizontal

Frequency

(KHz)

Polarity

Pixel Rate

(MHz)

25.175N31.47N70.09640 x 350

28.322N31.47P70.09720 x 400

25.175N31.47N59.94

30.240N35.00N66.67

31.500N37.86N72.81

31.500N37.50N75.00

36.000N/P35.16N/P56.25

40.000P37.88P60.32

50.000P48.08P72.19

49.500P46.88P75.00

57.283N49.73N74.55832 x 624

65.000N48.36N60.00

Standard

Type

IBM
IBM

VESA

MAC
VESA
VESA
VESA
VESA
VESA
VESA

MAC
VESA

Remark

DOS

VGA

SVGA

1024 x 768

1280 x 1024

HDTV Input (From Set Top Box)

Vertical

Mode

Resolution

720 x 480

1280 x 720

1920 x 1080

Frequency

(Hz)

Horizontal

Frequency

(KHz)

21

Pixel Rate

(MHz)

74.17644.9659.94720p

74.17633.7229.971080i

75.000N56.48N70.07

80.000N60.24N74.93

108.000P63.98P60.02

135.000P79.98P75.03

Standard

SMPTE 296M
SMPTE 274M

Type

MAC64.000N48.78N60.00
VESA

XGA

IBM75.000P57.52P72.10

MAC
VESA78.750P60.02P75.03
VESA

SXGA

VESA

Remark

ProgressiveSMPTE 293M27.00031.4759.94480p
Progressive

Interlace

FCC & ENERGY STAR STATEMENTS

FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3.Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

4. Consult the dealer or an experienced radio/TV technician for help.

NOTICE

1. The changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the
emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this equipment. It is the responsibilities of the user to correct such interference.

As an ENERGY STAR Partner, Envision Peripherals, Inc. has determined that this product meets the

NERGY STAR guidelines for energy efficiency.

E

22

Appendix

V - Chip (US only)

1. Function of V-Chip

The V - Chip can block certain rated television shows off television (if chosen) so children cannot

watch programs that their parents do not approve. The chip in each television will decode
program-rating information which is transmitted along with the television signal. It will then
compare the rating codes with values preset by the viewer, which is meant to be the parents. If
the rating codes are higher than the preset values, the television signal will be blocked, and a
blank screen will be displayed.

2. Setting V-Chip

EN-7500 has V-Chip feature and you can set it up via OSD.

1. Select V -Chip on OSD, then enter 4 digits of pin number(Initial pin number is “0000”).
If you enter an incorrect pin number “Incorrect” m essage will be displayed for 3 seconds.

2. Use arrow keys to change or to activate the highlighted function.

3. Setting up TV Guidelines
Use arrow buttons to move around the matrix and press Menu button to change the
value from "U" to "B" or "B" to "U“.

All

TV-Y

TP-Y : Young Children
TV-Y7: Children 7 and over
TV-G: General Audience
TV-PG: Parent Guidance
TV-14: Viewers 14 and over
TV-MA: Mature Audience

B

BBTV-Y7

UTV-G

DLSVFV

U : Unblock
B : Block

UUUUUTV-PG
UUUUTV-14
UUUUTV-MA

FV : Fantasy Violence
V : Violence
S : Sexual Situation
L : Coarse Language
D : Suggestive Dialog

23

Appendix

4. Setting up MPAA rating
Use arrow buttons to move around the matrix and press Menu button to change the value
from "U" to "B" or "B" to "U".
(MPAA : Motion Picture Association of America (movie rating organization))

5. Entering a new pin number

- Use numeric keys to enter a new pin number. Pin number co nfirm menu appears.

- Again, use numeric ke ys to enter the pin number you entered at the previous step. If the
two pin numbers do not match, "Incorrect" message will be displayed for 3 seconds.

6. Blocking Screen

- If the incoming signal’s rating is higher than the one specified, the screen will be
blanked and "Excessive rating" message will be appeared.

General AudienceUG
Parental Guidance SuggestedUPG
Parents Strongly CautionedUPG-13

Restricted Under 17 RequiresUR
No Children Under 17 AdmittedUNC-17
Adult OnlyUX
Not RatedUMR

24
