Page 1

Installing Your

Explora Family

System

Part Number 9300385 Rev A November, 1995

About the Explora Family

Explora Product Line

Basic Installation

Selecting Screen

Resolution

Installing Optional

Equipment

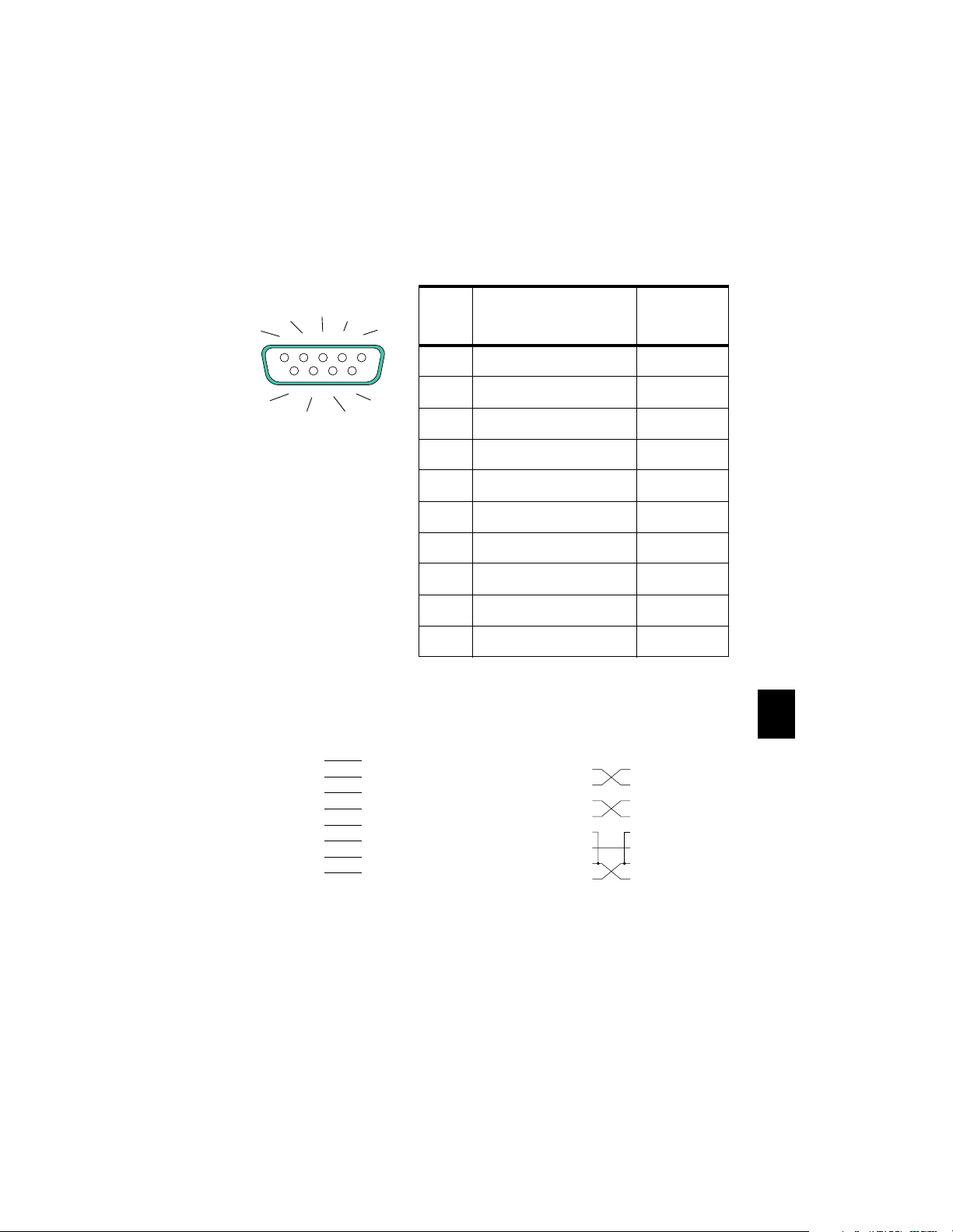

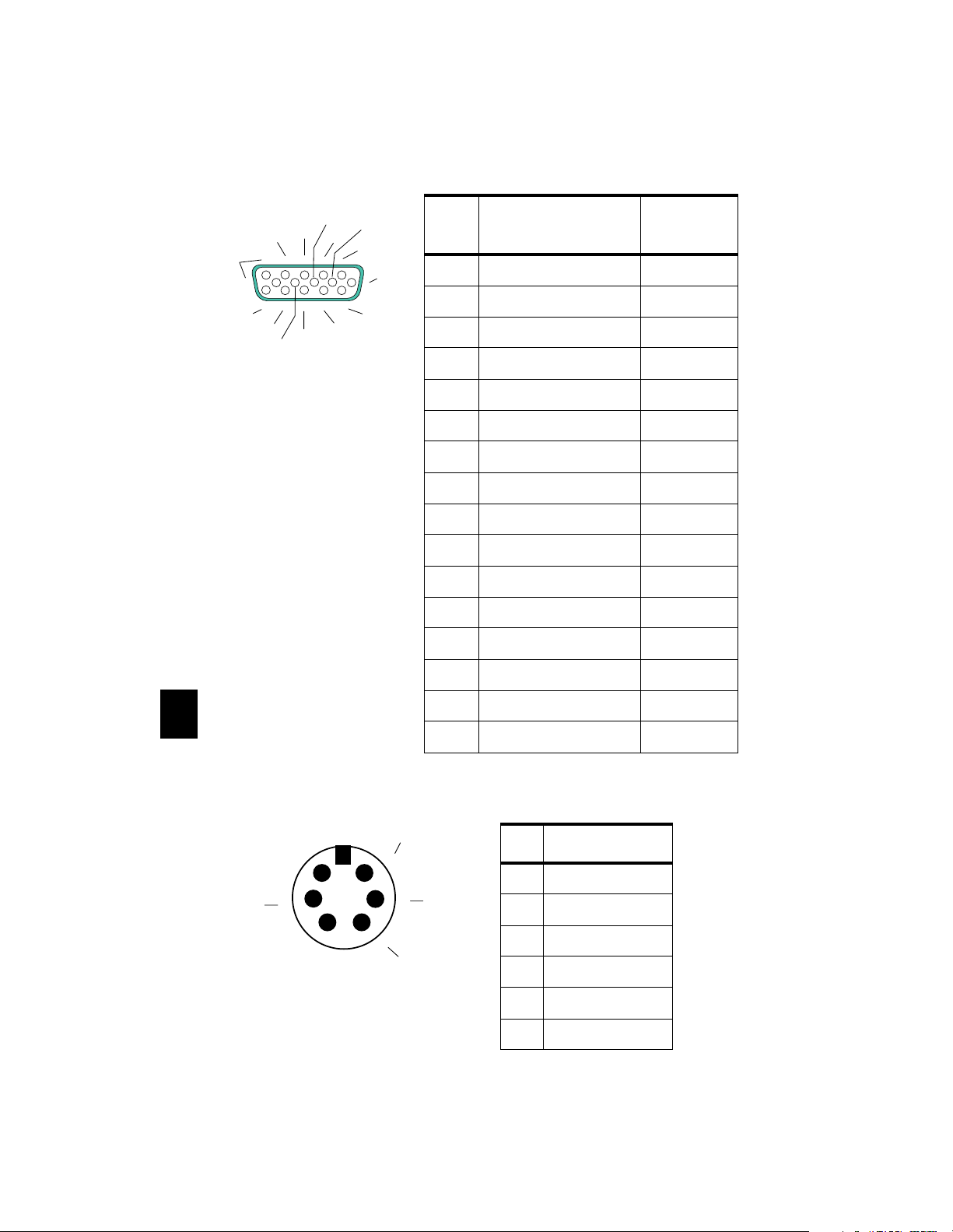

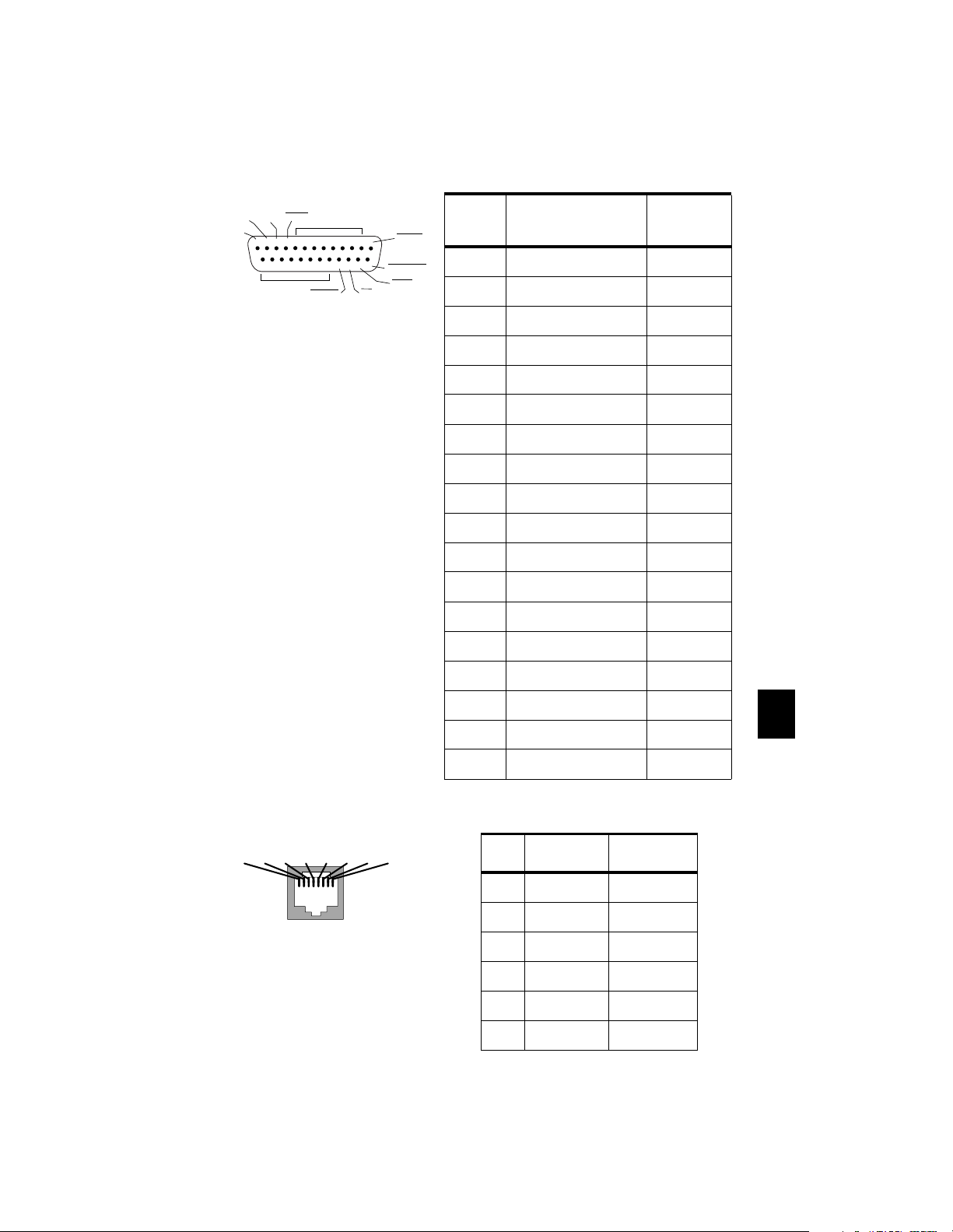

Pinout Diagrams

Network Computing Devices

350 North Bernardo Ave.

Mountain View California 94043

Specifications

Troubleshooting

Page 2

Warnings and Certifications

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

Declaratio n of Con fo r m ity

Manufacturer’s Name: Network Computing Devices, Inc. Manufacturer’s Address: 350 N. Bernardo Ave, Mountain View, CA 94043 Type of Equipment: X-Terminal Model No.: Xplora and Xplorapro family of System Bases and Systems Application of Council Directives: 89/336/EEC, 73/23/EEC Standards to which Conformity is Declared: EN 55022, EN 50082-1, EN 60950 Importer’s Name: Network Computing Devices (UK) Limited Importer’s Address: Unit 10, Grove Park 2, Waltham Road, White Waltham, Maiden-

head Berkshire, England SL6 3LW We hereby declare the equipment specified above conforms to the above Directives and

Standards.

____________________________________________________ Andrew Hall, Director, Technical Services Northern Europe, NCD (UK) Ltd.,August

1995

Page 3

About the Explora Family

The Explora family consists of a base unit, several different monitors, a mouse, and several keyboards. The base unit can be purchased alone or with a monitor. The base supports many standard VGA or SVGA third party monitors.

Explora Family Features

The Explora bases are advanced, small- signature X terminals that include the following features:

• VGA/SVGA monitor support

• PS/2 mouse support

• Multiple keyboard choices

• Serial (RS-232 C) connection

• Parallel connection

• Externally accessible PCMCIA card slot

• Built-in twisted-pair and/or thin Ethernet connections (depending on

model)

N C D

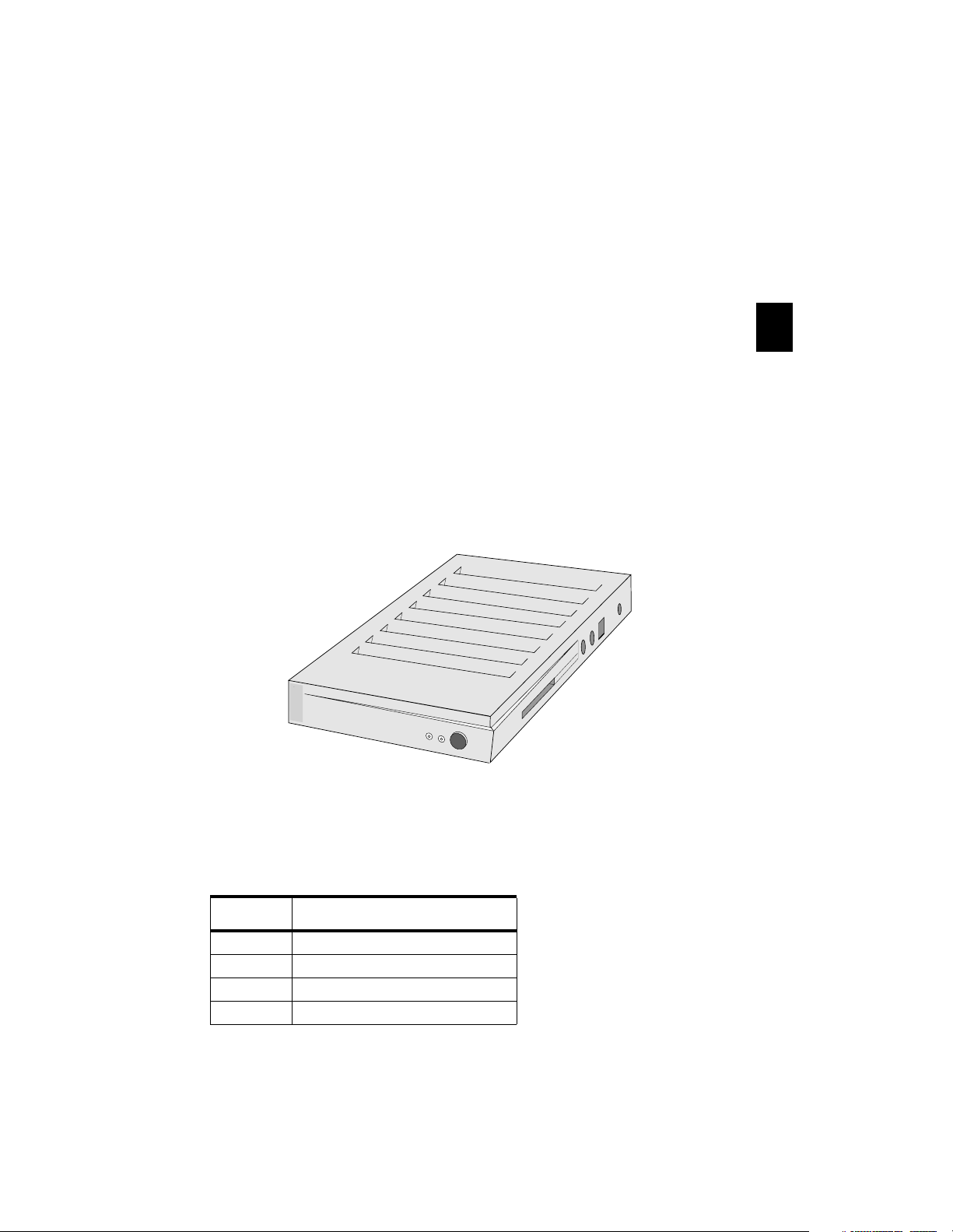

The base is ergonomically designed with as small a footprint as possible, making it ideal for environments where space is at a premium. Table 1 lists the physical dimensions of the base.

Table 1: Explora Dimensions

Dimension

Height 1.625 inches (4.13 cm) Width 7.25 inches (18.42 cm) Depth 10.00 inches (25.40 cm) Weight 1.51 pounds (0. 686 kg)

Explora

Page 4

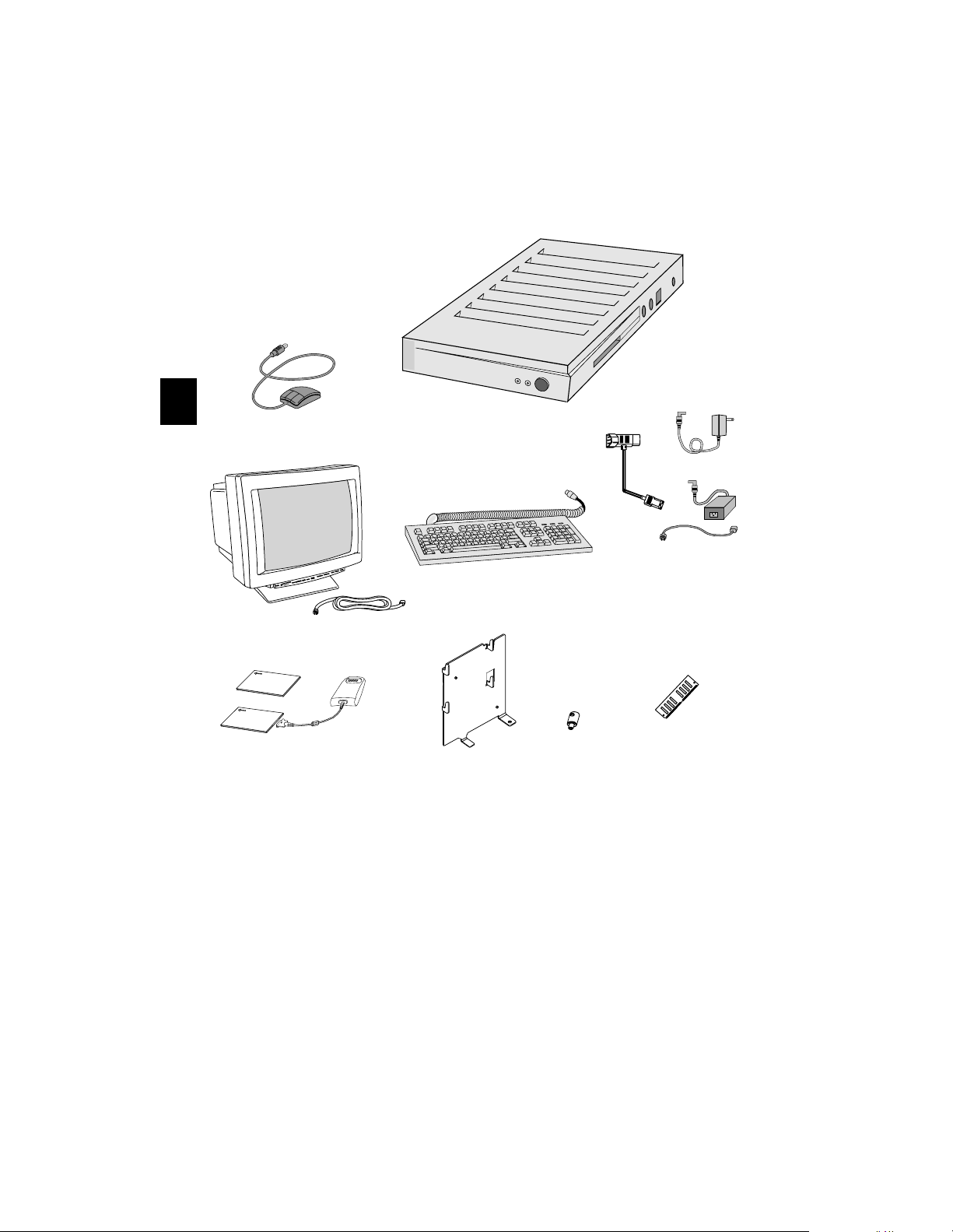

Explora Product Line

N C D

Explora

Power Supplies and Accessories

PS/2 Mouse

R O L O C

Monitor

PCMCIA Cards (Optional)

Keyboard

Wall Mounting Bracket with Screws (Optional)

Security Device with Screw (Optional)

Memory SIMM (Optional)

After unpacking the shipping cartons, make sure you have all of the standard components and any optional components you may have ordered. If any components are missing or appear damaged, contact NCD at (415) 694-0650 or your representative immediately.

Note

Optional equipment installation is covered in Section 5.

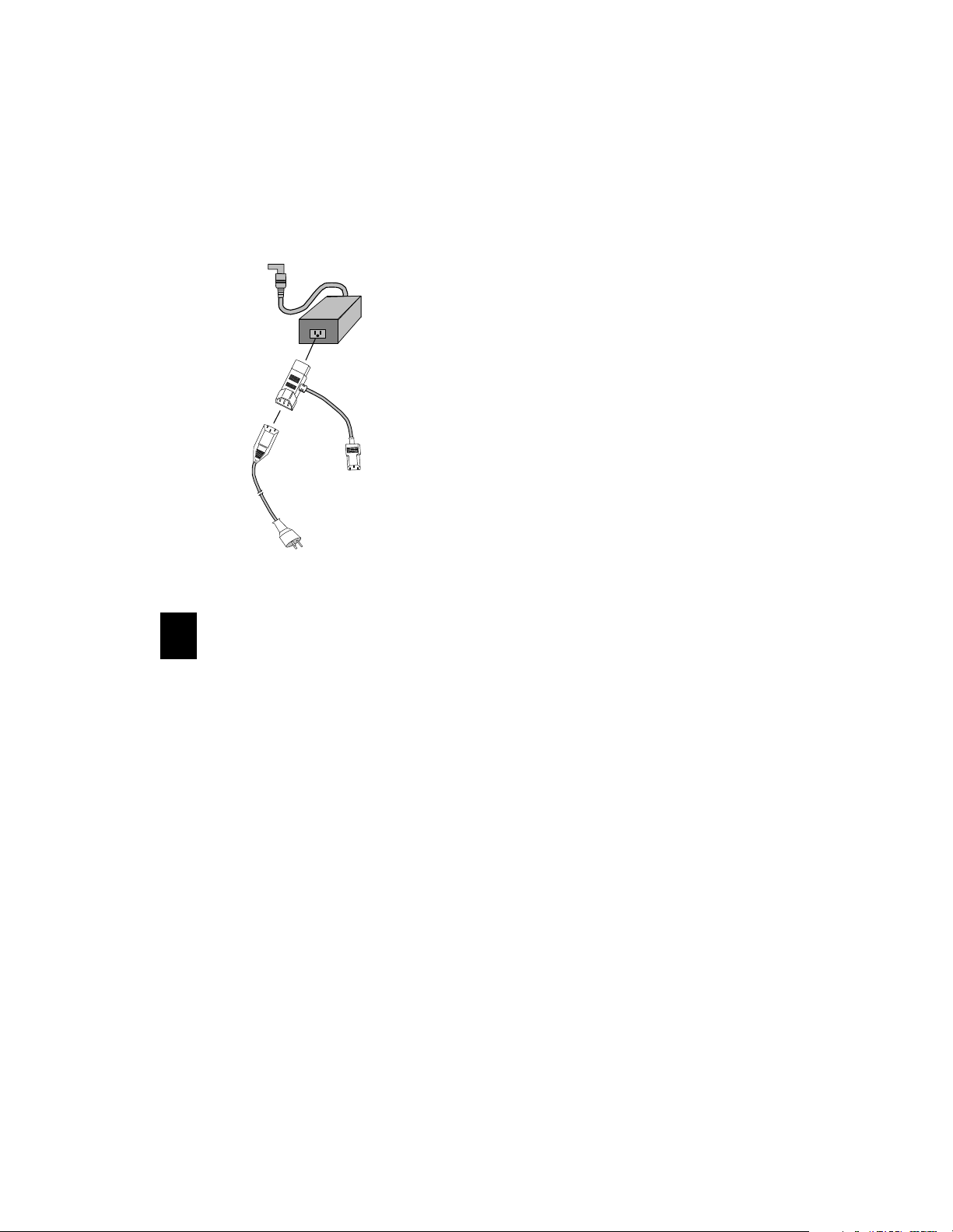

* Optional Single Power Source Attachment, see Section 5.

Page 5

Basic Installation

N C D

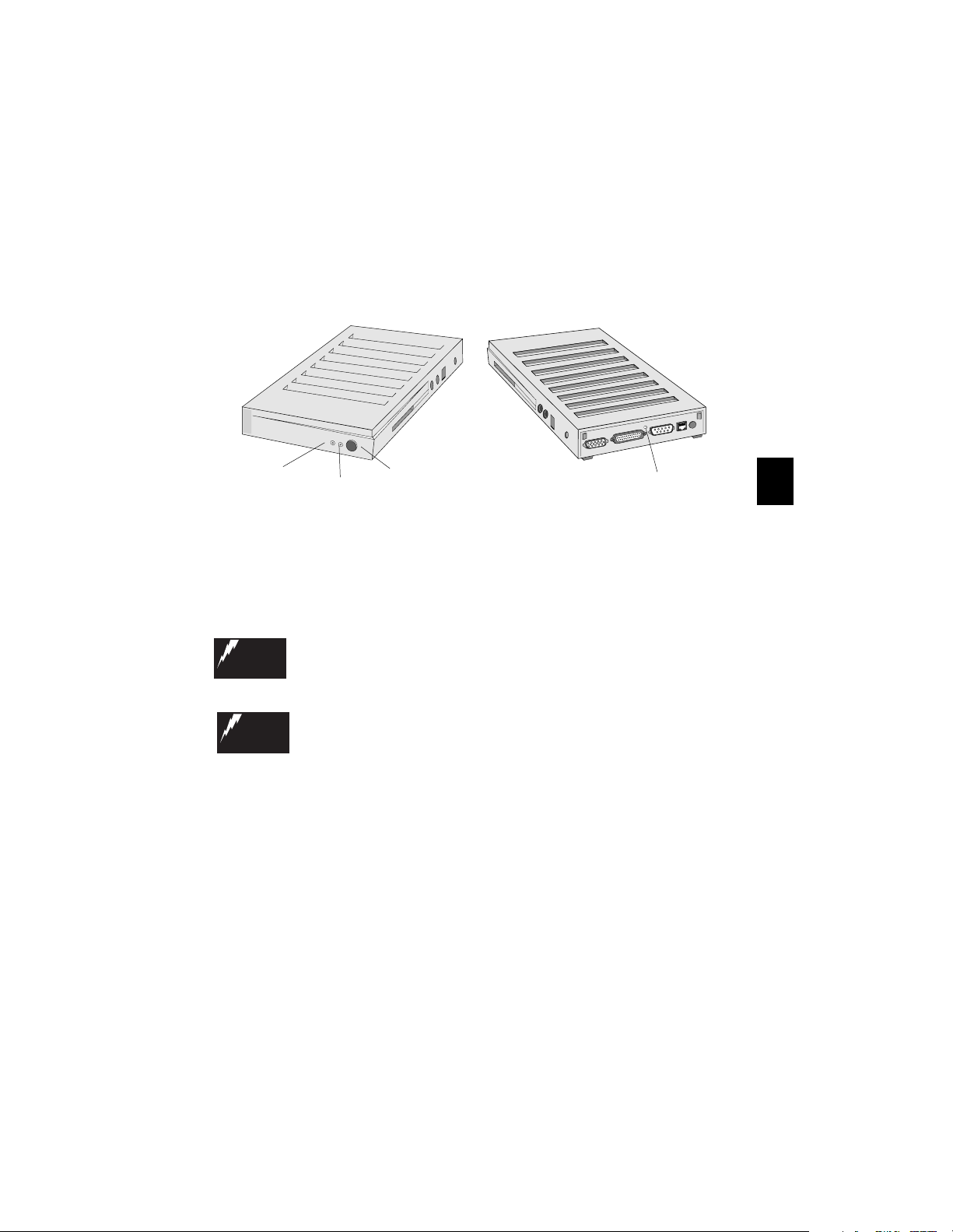

Controls and Indicators

The controls and indicators are the same for all the models in the Explora family.

Front View

N C D

Network

Note

Activity Indicator

If you are installing additional memory in your base, do not

Power Indicator

complete the basic installation until you have installed the memory. Go now to Section 5, Installing Optional Equipment.

Connections

Before connecting any cables, make sure the power is off.

WARNING

WA RNU NG

WARNING

WA RNU NG

Vor de m Anc h lie ßen von Kabeln sicherstellen, daß die Stromzufuhr unterbrochen ist

Do not connect any power cords to the Explora unless the monitor, keyboard, and mouse ar e properly connected.

Kein Netzkabel in den Explora stecken, sofern Monitor, Tastatur und Maus nicht ordnungsgemäß angeschlossen sind.

Power Switch

Back View

Twisted-Pair Link Look Through Hole

Note

Explorapro has both twisted-pair and thin Ethernet connectors for making network connections. Explora has only a twistedpair connector.

Page 6

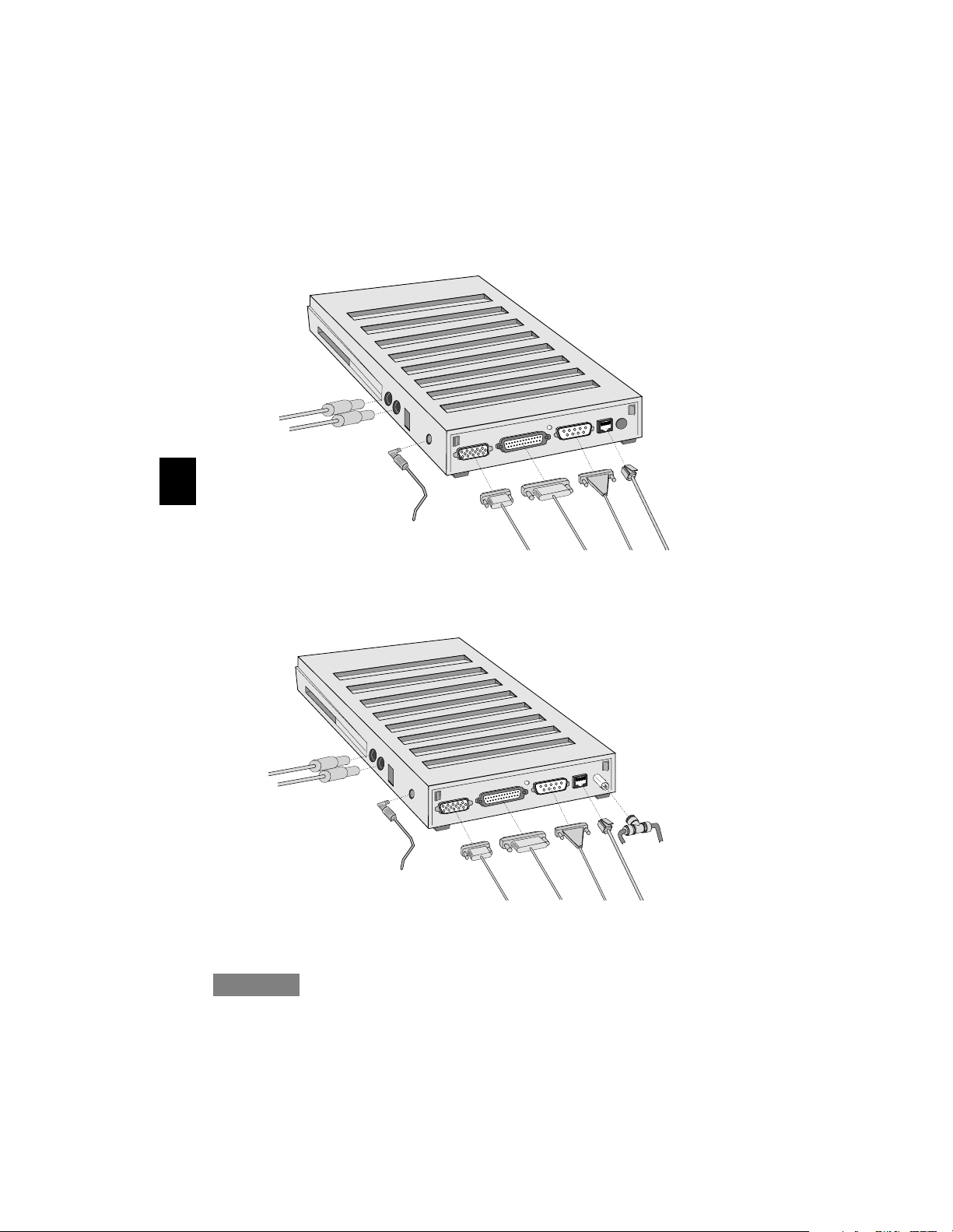

Look at the appropriate diagram for the model you have and make the following connections: keyboard, mouse, monitor, network, and your serial and/or parallel device. Connect the power supply last.

Explora

Serial

Power Supply

Monitor

Explorapro

Paral lel

Network Connection

Thin

Ethernet

Serial

Network Connection*

Power S upp ly

Monitor

Parallel

* Make only one network

connection at a time.

Caution

Do not set the monitor on top of the base. The base is not designed to hold a monitor.

Page 7

Selecting Screen Resolution

When the terminal is first turned on, the display uses a default resolution, depending on the installed video cable and monitor capabilities. This setting may not provide the highest resolution and refresh rate your monitor supports. See your monitor documentation for supported resolutions.

A menu is provided for selecting the correct resolution and changing the DPI (dots per inch) setting for the monitor. You access this menu through the Boot Monitor.

To change the resolution:

Caution

Selecting the wrong screen resolution can damage your monitor. Make sure your selection is supported by your monitor.

1. Turn on the system or reboot (if the system is already on).

2. After the Boot Monitor title and version number, messages similar to the following appear. Press the Escape key to interrupt the booting process.

Searching for IP address... Using IP address Searching for subnet mask Using subnet mask

...........................loaded

IP address of terminal

subnet mask

3. Depending on how the terminal’s booting parameters are set, you may see more than one of these messages. Press Escape each time one of them appears. This aborts the load process and puts the system into the Boot Monitor (> prompt).

4. When you’re in the Boot Monitor (> prompt), press the Setup key (or type se). The Main menu appears.

Esc

Setup

Help

Keyboard Monitor Network Boot Done

Help

Use the arrow keys to navigate through the menus listed across the top of the screen:

Left, Right Go to previous or next menus. Up, Down Go to previous or next field

Control-U Delete to beginninbg of line. Escape Restore previous value.

Help for each field within a menu is shown along the bottom of the screen.

Exit via the Done menu at the right of the screen.

within the current menu.

Page 8

5. Use the right arrow key to select Monitor. The screen now dis-

→

plays the available monitor resolution settings

Help

Keyboard Monitor

Network Boot Done

Monitor Resolution

640 x 480 60Hz

Dots Per Inch

640 x 480 72Hz 640 x 480 75Hz 800 x 600 60Hz 800 x 600 72Hz 800 x 600 75Hz

Suppor ted resolutions for Explora

1024 x 768 60Hz 1024 x 768 70Hz 1024 x 768 75Hz

Press Shift-T to rest new monitor parameters, Esc to stop test

Help

Keyboard Monitor

Monitor Resolution

640 x 480 60Hz 640 x 480 72Hz 640 x 480 75Hz 800 x 600 60Hz 800 x 600 72Hz 800 x 600 75Hz 1024 x 768 60Hz 1024 x 768 70Hz 1024 x 768 75Hz 1152 x 900 66Hz 1152 x 900 76Hz 1280 x 1024 70Hz 1280 x 1024 72Hz 1280 x 1024 75Hz

Network Boot Done

Dots Per Inch

Supported resolutions for Explorapro

Press Shift-T to rest new monitor parameters, Esc to stop test

6. Press the up or down arrow keys to select the correct

↓

setting for your monitor.

7. Press the right arrow key to select Dots Per Inch.

→

Page 9

8. Enter the numerical value that matches the resolution you have

Shift

selected. (Or leave the default value.)

9. To test the selected refresh rate, press Shift -T . Running this test generates a cross hatch test screen pattern. If the refresh rate you select is not supported by the monitor, the test pattern does not appear.

10. Press any key to return to the Monitor menu.

11. Press the right arrow key to select Done. The following menu

→

appears.

Help

Keyboard Monitor Network Boot Done

Done

Reboot

Exit

Undo

Save Parameters and reboot. Press <Return> to confirm

12. Use the up or down arrow keys to select one of the options

↓

from the Done menu.

Reboot Exit

-- saves the settings you changed and reboots the system.

-- saves the settings and returns you to the Boot Monitor.

Undo -- reloads the parameters that were in effect when you entered the menus. The system continues to display the menus.

13. Press .

Return

If you save your selection, you do not need to repeat this procedure unless you change to a different type or size of monitor.

Page 10

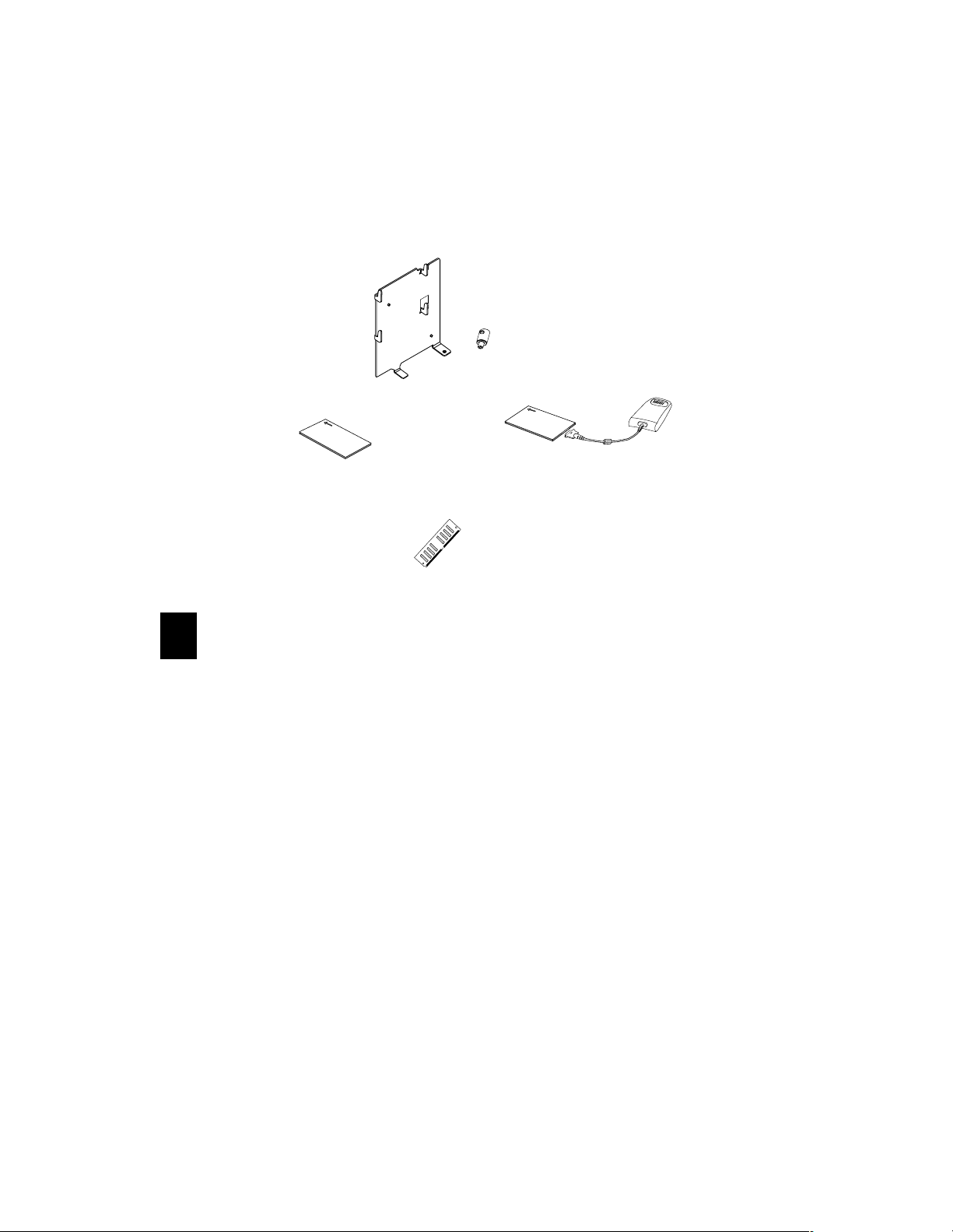

Installing Optional Equipment

The following optional equipment is available for your Explora.

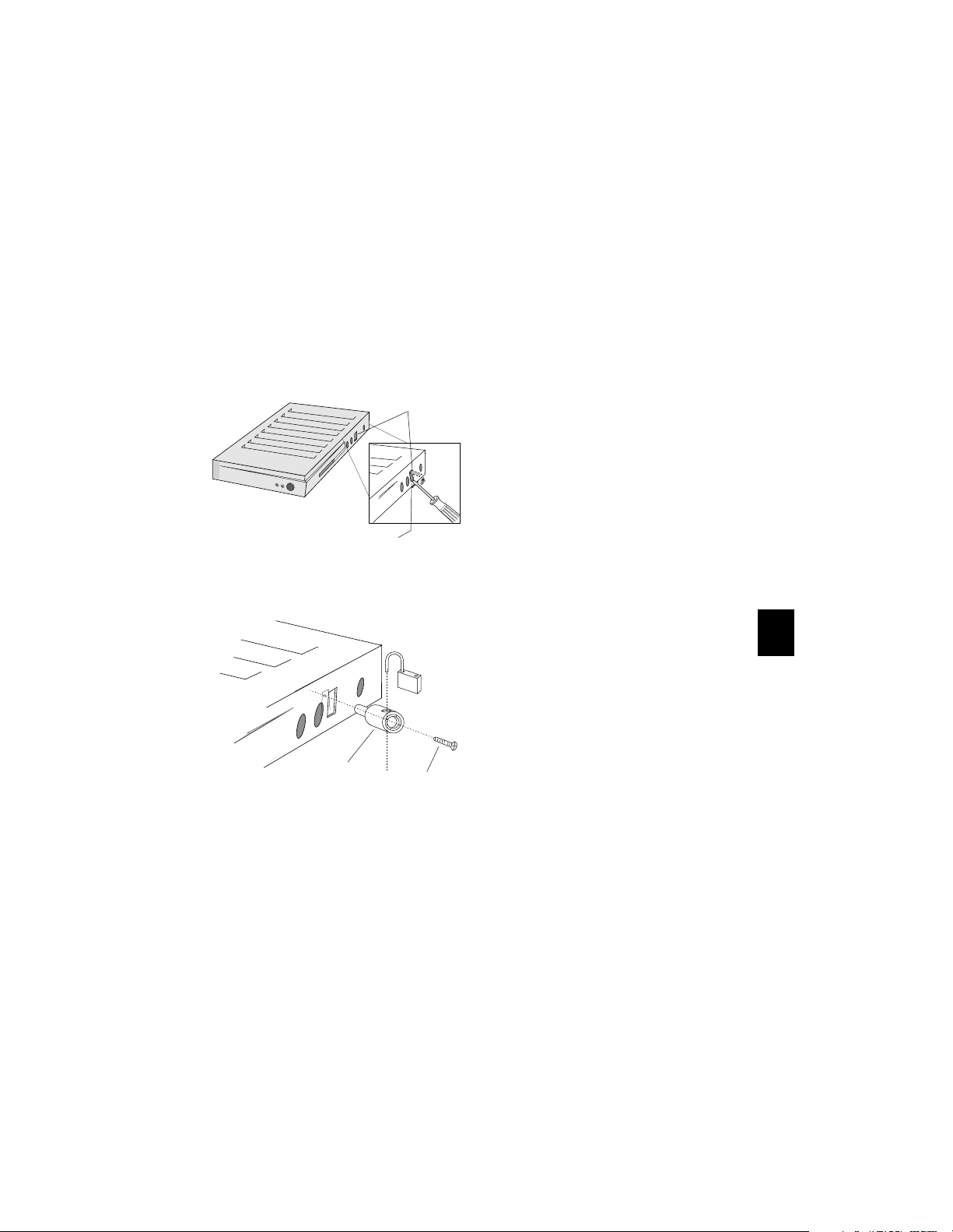

Security Device

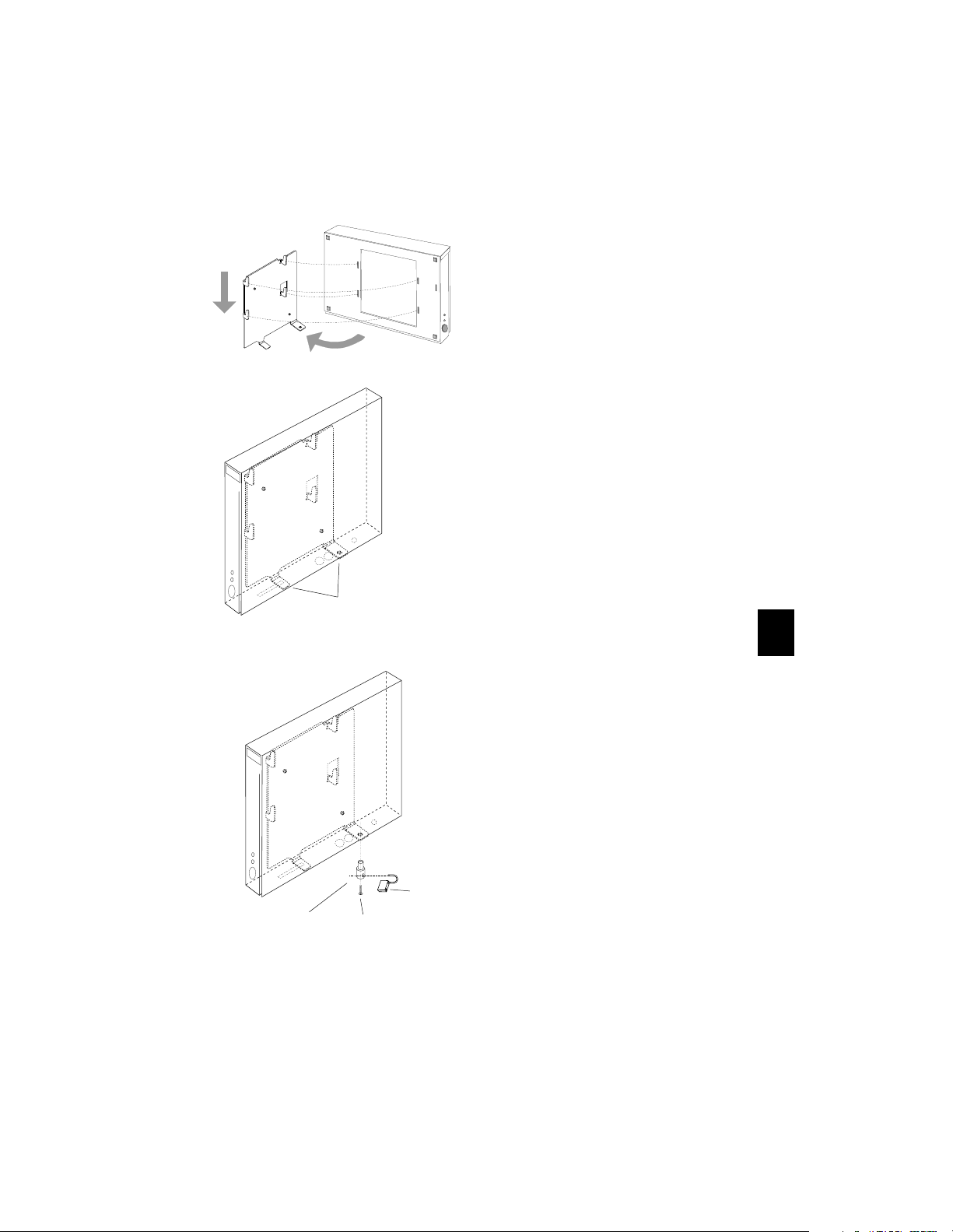

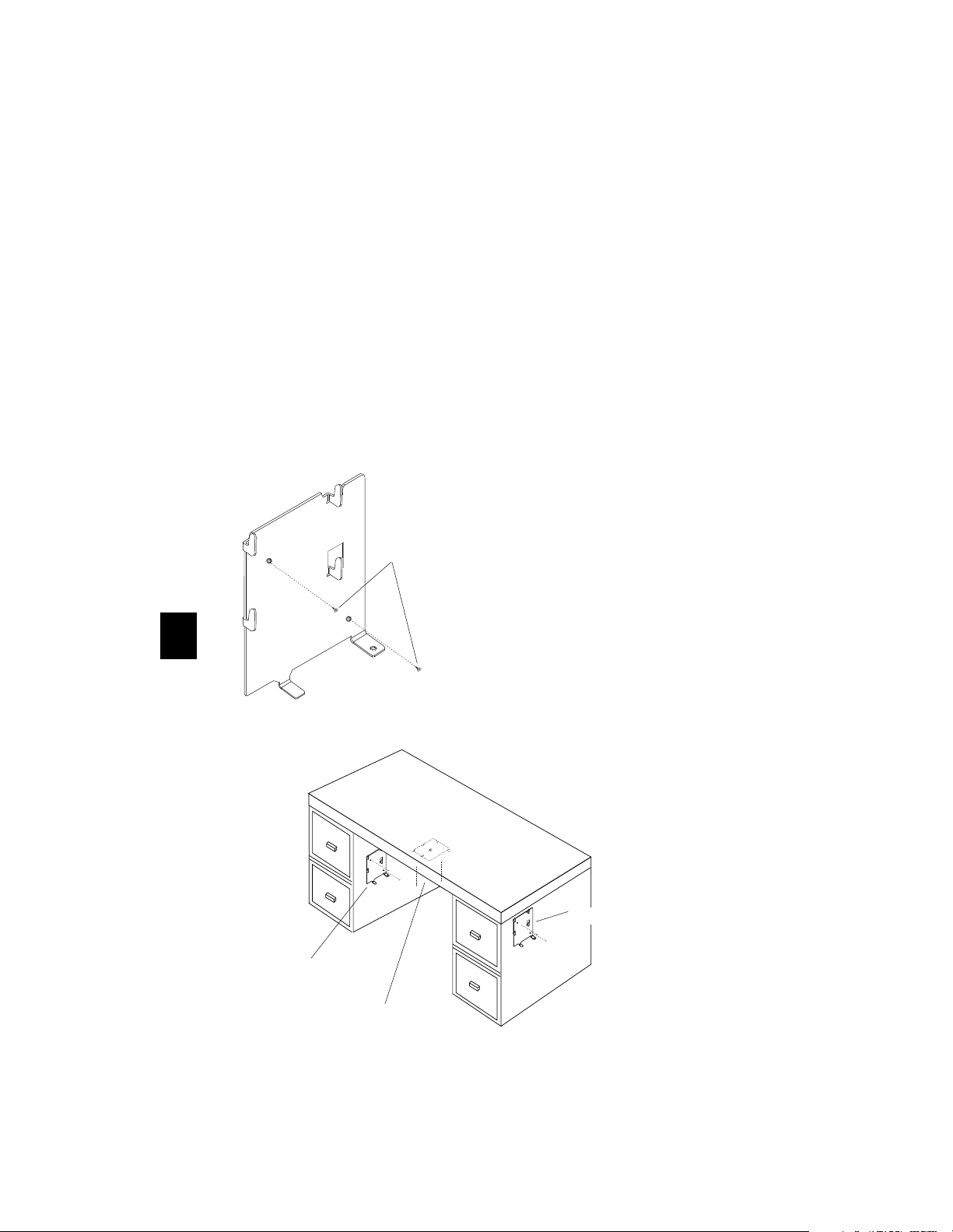

Wall Mount Bracket

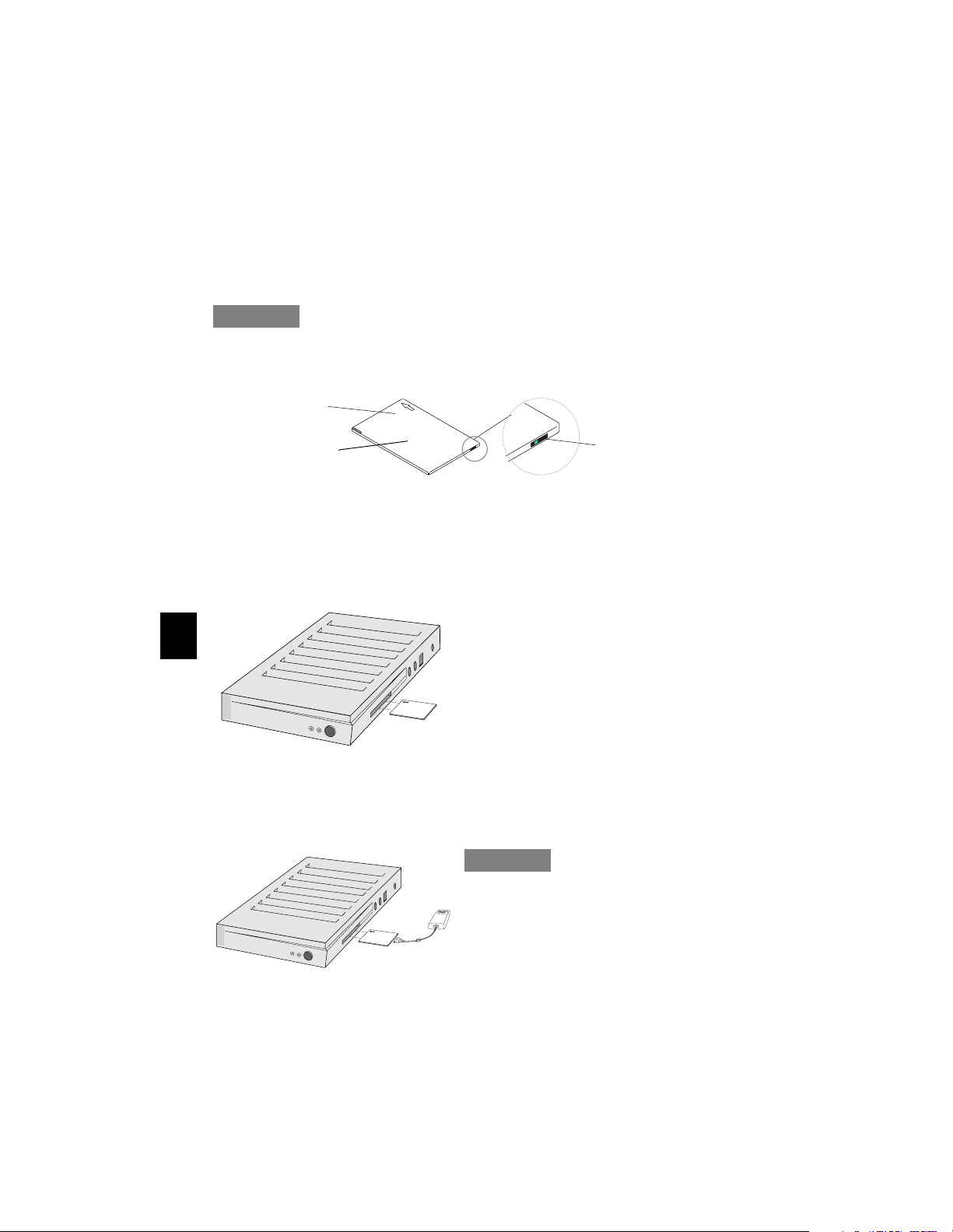

PCMCIA card

Memory SIMM

Audio PCMCIA Card with Audio Interface Module

Note

If you are adding additional memory, do so before doing the basic installation in the previous section.

Installing Additional Memory

You can add additional memory to your unit at any time. It can be purchased from NCD or other vendors. Contact NCD Technical Support for information about approved vendors. Only SIMMs supplied by NCD are covered under NCD’s warranty.

Notes

Table 2 lists the SIMM specifications.

Explora has 4 MB of built-in memory and 1 MB of built-in display memory.

Explorapro has 8 MB of built-in memory and 2 MB of built-in display memory.

You can add one additional SIMM to Explora, and two additional SIMMs to Explorapro.

Page 11

Table 2: SIMM Specifications

Speed Profile Thickness Size

Fast -page mode. 60 nanoseconds (ns) or fast er. (Low er ns ratings are faster.) 72-pin.

Notes

When installing additional memory in Explorapro, observe the

Low prof ile (maximum 1.1 inches tall). Tin-plated SIMM contacts should be used.

Board thickness of

0.047 to 0.054 (0.050 inch nominal). Installing SIMMs that are out of specifications may damage the SIMM socket or cause the terminal to beh ave erratically.

32-bits wide. 1M (256Kx32 SIMM) 2M (512Kx32 SIMM) 4M (1Mx32 SIMM) 8M (2Mx32 SIMM) 16M (4Mx32 SIMM) 32M (8Mx32 SIMM)

following rules:

If you are adding only one SIMM, use socket J9.

If you are adding two different size SIMMs, use socket J9 for the larger SIMM.

Adding more memory does not improve terminal operation, but may be required by your applications.

Caution

Installing additional memory is a four step procedure: 1) disassembling the terminal base, 2) installing the SIMM(s), 3) reassembling the terminal base, and 4) testing the memory after your terminal is up and running. If you don’t feel confident performing these procedures on your terminal, refer the unit to a qualified service center.

Page 12

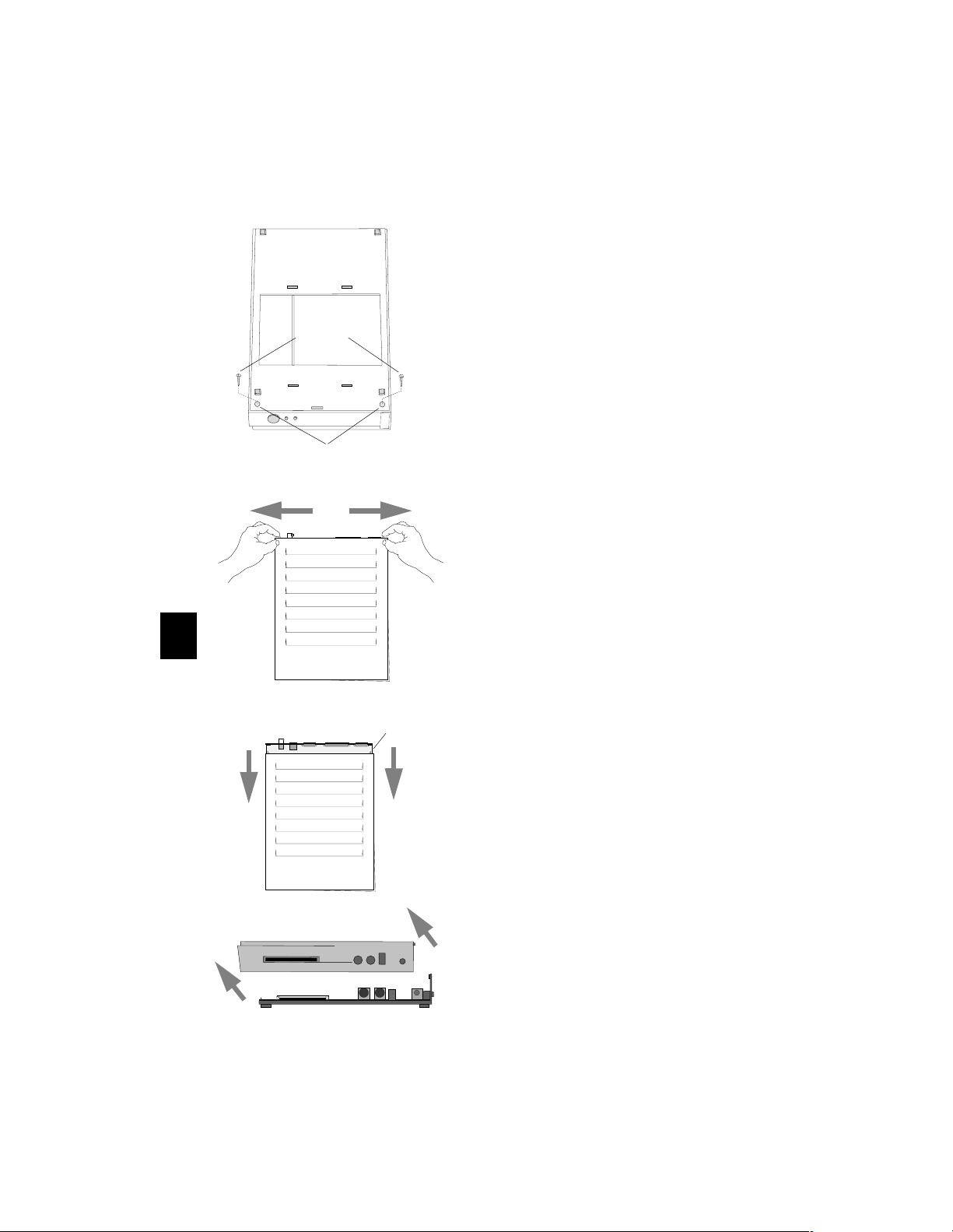

Disassembling the Base

Bottom of Base

Remove Screws

1. Remove all cables connected to the base.

2. Turn the base upside down, and place it on a flat surface, so that the base bottom is facing up and the front is facing you.

3. Locate the two phillips screws in the holes on the base bottom front corners.

4. Remove the two screws.

Screw holes

5. Turn the base over and place it on a flat surface, so that the base top is facing up and the front is facing you.

6. Grasp the tabs protruding from the back of the unit with your forefinger as shown.

7. Gently pull the tabs away from the center and at the same time:

1/2 Inch Gap

• apply pressure with your thumbs to the base top and

• using your thumbs, pull the top cover towards the front. (Towards you.)

8. When the cover is about one-half (

) inch from the back of the

1/2

bottom housing, pull up on the top cover and remove it.

Page 13

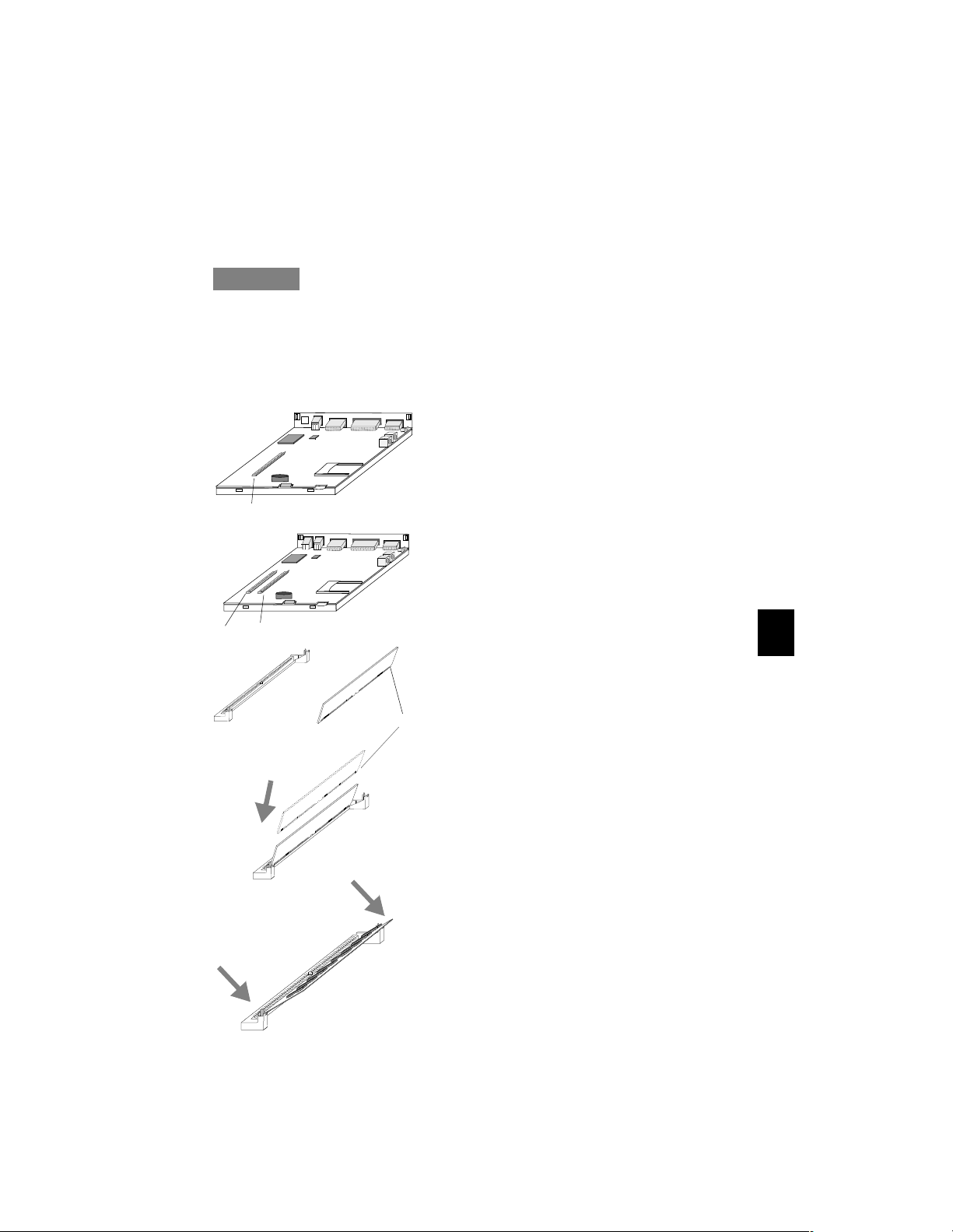

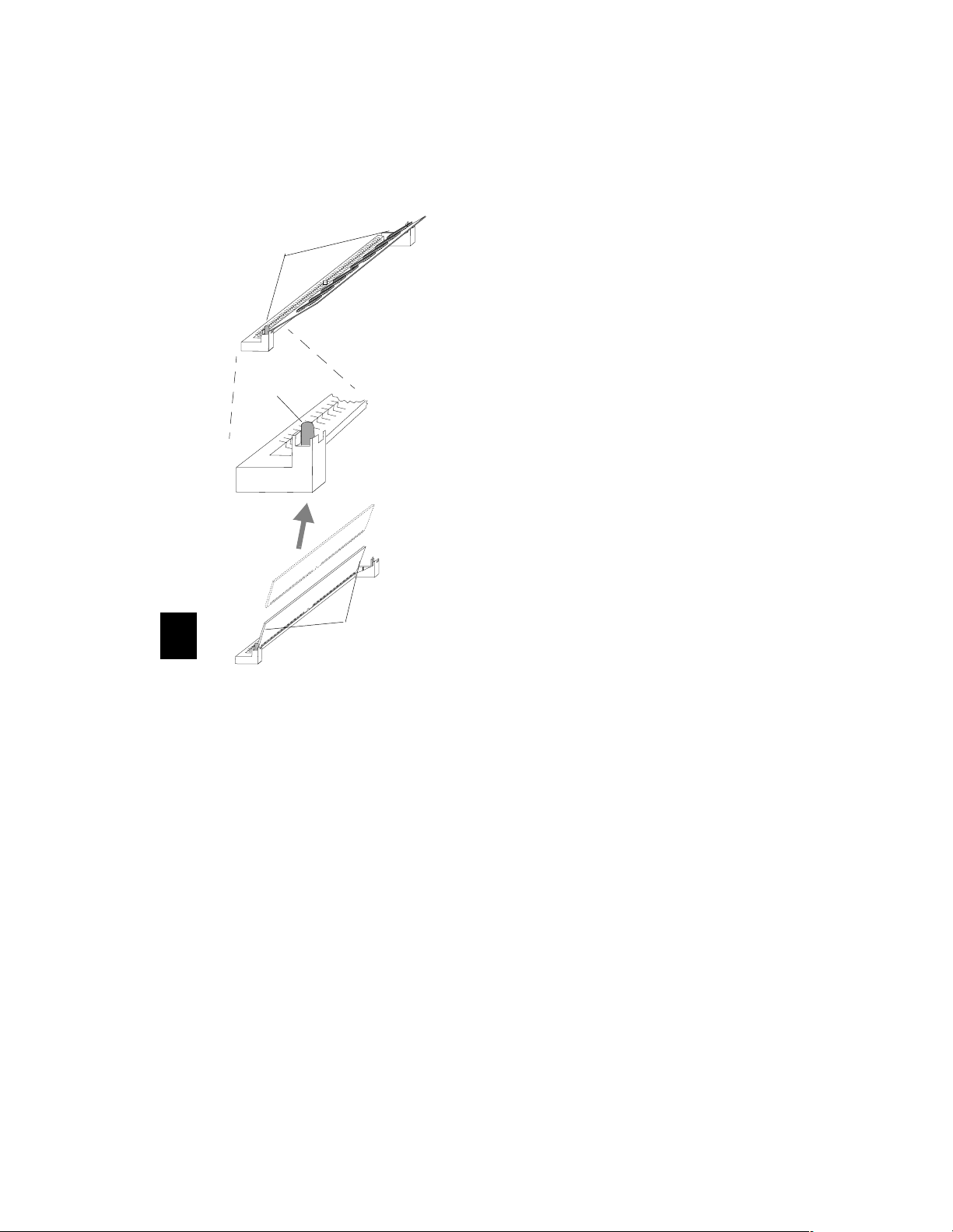

Installing SIMMs

If your base already has a SIMM or SIMMs installed, proceed to the next heading “Removing SIMMs” and then return to this section for installation instructions. If not, follow these steps.

Caution

SIMMs and other components located on the logic board can be damaged by Electrostatic Discharge (ESD). Make sure you touch a suitable ground before handling any SIMM. If possible, set the base on an anti-static mat and wear a grounding strap.

J10

Explora

Explorapro

The SIMM socket(s) are located on the left side of the logic board.

To install the SIMM(s):

1. Orient the SIMM so that the notch is facing towards the back of the logic board.

Notch

2. Insert the SIMM into the socket at about a 45 degree angle.

3. When you are certain the SIMM is inserted all the way, press down on both ends of the SIMM until it clicks into place. The SIMM should go past the metal tabs on each end of the socket.

The SIMM should lie at about a 25 to 30 degree angle in the socket.

Page 14

Removing SIMM

To Rem ove a SIMM

1. Using your two forefingers or your thumbs, pull back on the two metal tabs located on each end of the SIMM socket.

Metal Ta b

2. As you pull back on the tabs, the SIMM pops up past the metal tabs.

3. Hold the SIMM on both ends (you should always handle SIMMs by the edges only), and remove it from the socket.

Page 15

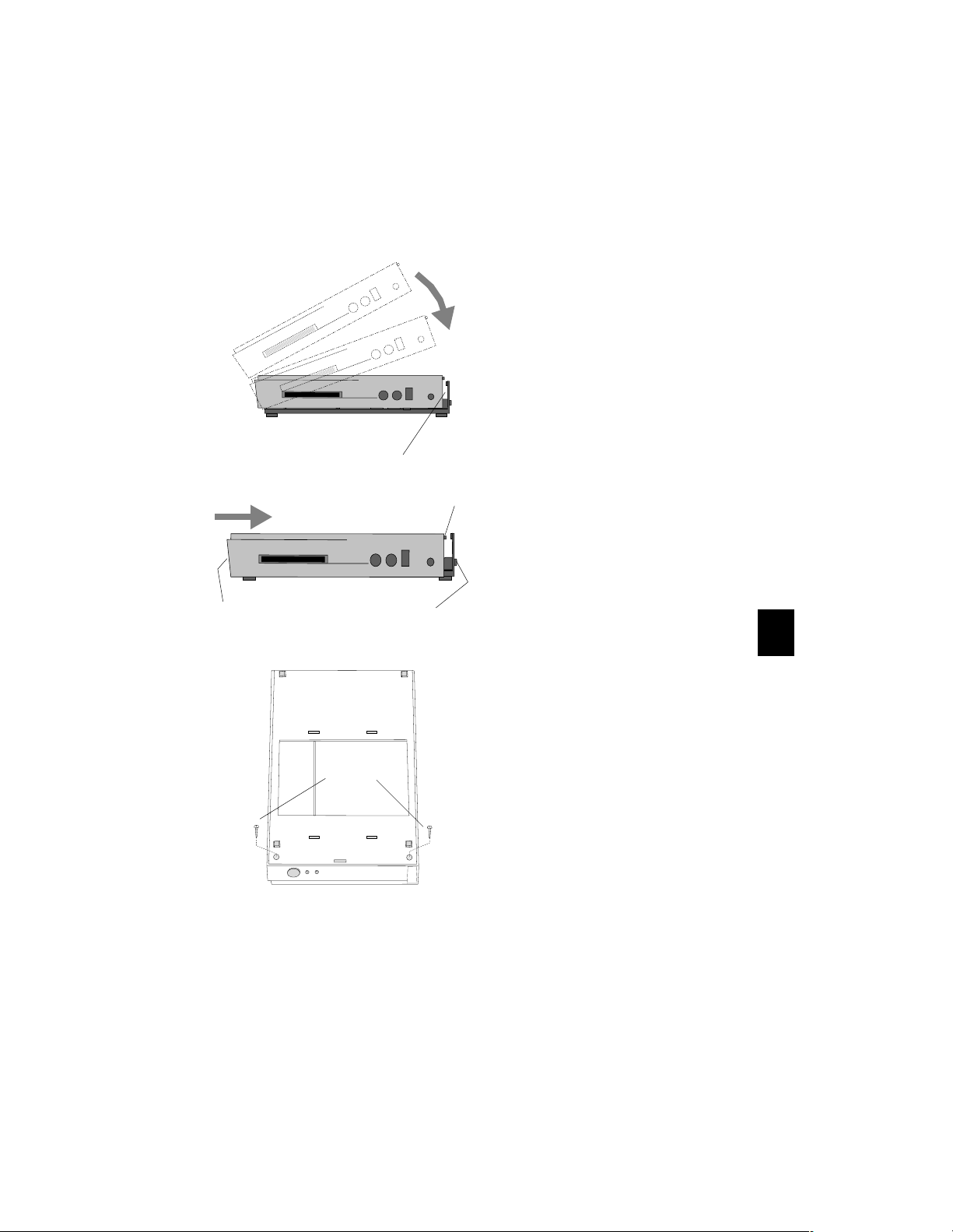

Reassembling the Base

To reassemble the base, follow these steps:

1. Swing the front of the top cover over the front edge of the bottom section and continue down with the rest of the top cover unit it covers the bottom section (this is a tight fit). There should be a one-half (1/2) inch gap between the bottom section back, and the top cover back.

Push Here

Side View

Bottom of Base

Insert

Screws

1/2 Inch Gap

Hold Here

Note

Make sure the top cover is resting completely flat on

Tab s

the bottom section before doing step 2.

2. Hold the back of the bottom section and push the top cover toward the back until the two tabs click through the two openings on the bottom section.

3. Once the top cover and bottom section are together as a unit (base), turn it upside down, so that the base bottom is facing up and the front is facing you.

4. Secure the base together by screwing in the two phillips screws into the two holes located at the front corners on the bottom.

5. Tighten the screws so they are snug, but do not over tighten.

6. Turn the base upright and refer to Section 3, to install the cabling.

7. After the system is installed, perform the memory test, presented next.

Page 16

Testing Memory

Before running the memory test, go to Section 3, “Basic Installation” and install the rest of the system. To run the memory test, you need to access the Boot Monitor.

Accessing the Boot Monitor

1. Turn on the system or reboot (if the system is already on).

2. After the Boot Monitor title and version number, messages similar to the following appear. Press the Escape key to interrupt the

Esc

booting process.

Searching for IP address... Using IP address Searching for subnet mask Using subnet mask

...........................loaded

IP address of terminal

subnet mask

Memory Test

Run the memory test as follows:

1. At the Boot Monitor prompt (>), type ex and press Return.

2. Type the number associated with the Test Available Memory test and press Return .

Enter test type? # (for Test Available Memory test) <CR>

3. Press Return to run the test once.

F Loop forever E Loop until error Q Main menu <cr> Test once Esc Abort testing Enter choice? <CR>

The diagnostic code displays either

Pass -00000001

to signify that the memory is good, or a message similar to the following if an error was detected:

Expected bad component is JXX.(Indicates socket number of bad SIMM.)

If there are no errors, go to Step 6.

If errors are reported, continue with Step 4.

Return

Page 17

4. Remove the bad SIMM from the socket indicated and rerun the memory test to confirm that the remaining memory is good.

5. Add a new SIMM, and rerun the memory test to confirm that the newly installed SIMM is good.

6. Exit from the test and return to the Boot Monitor by typing:

Enter test type? Q <CR>

7. Reset the terminal by typing:

> rs <CR>

For information about the Boot Monitor commands, refer to

software documentation

NCDware

Page 18

Installing PCMCIA Cards

N C D

The PCMCIA cards are 68-pin credit-card size devices that fit into the base PCMCIA slot. These cards can be ordered directly from NCD or from other vendors. Most PCMCIA cards have an arrow on the top face side showing the direction of insertion into the PCMCIA slot. The cards are keyed and cannot be installed upside down.

Caution

Do not insert or remove the PCMCIA card while the unit is running; always turn off the terminal first.

Directional Arrow

The rear edge of the PCMCIA card may have a write protect/enable switch. If your card has this switch, it should be in the OFF position. If write protect is enabled, data cannot be written to the card and an error message appears if you try to do so.

To install a PCMCIA card:

1. Shut off the terminal.

2. If your PCMCIA card has a write protect switch, set it to

N C D

PCMCIA Card

OFF.

3. With the arrow side facing up, slide the card into the PCMCIA slot until you feel the card make contact with the pins in the socket.

4. Firmly push the card into the socket to seat it.

Write Protect/Enable Switch set to OFF (If Applicable)

Caution

Do not force the card into the socket; the card should go

Xxx

N C D

Audio PCMCIA Card with Audio Interface Module

straight in.

5. If the PCMCIA is an audio card, attach the Audio Interface Module to the connector on the card.

Page 19

Installing the Security Device

N C D

Both models have a rectangular security cover located next to the keyboard connector. This is where the security device is located once the cover is removed. The security device can be used with or without the mounting bracket.

If you are using the optional mounting bracket and are going to use the security device with it, do step one of this procedure and then go to the next part in this section “Installing the Mounting Bracket.” Yo u do not have to return to this section.

Security Cover

1. To remove the security cover, insert a medium sized flat blade screwdriver into the

Xxx

N C D

bottom of the slot.

2. Gently pry out the security cover.

3. Insert the security device into

Pry Here

the slot so that the center of the device lines up with the screw hole in the chassis.

4. Insert an M2.5 machine screw (supplied) through the center

Lock

of the security device and into the hole.

5. Tighten down the machine bolt.

6. To secure the unit, insert a lock or cable through the outer hole in the security device.

Security Device

M2.5 Pan-Head Screw

Page 20

Installing the Mounting Bracket

There are various places the mounting bracket may be attached. Examples include attaching the bracket on a wall or on your desk, as shown in the illustration. In determining where to attach the bracket, keep the following in mind:

• Are the cables you have attached to the base long enough to reach from the bracket to the keyboard, mouse, and monitor?

• Is the fixture where you’re attaching the bracket secure enough to hold the bracket and base?

• Is the area where you’re placing this bracket and base out of the way of traffic, so that the unit will not be bumped?

• Is there enough clearance around the unit for cables and air circulation?

To mount the bracket:

1. Select the location to attach the bracket.

2. Use the two flathead

Use two screws

screws (supplied), and secure the bracket to the fixture.

Make sure the screw heads are flush with the bracket before attaching the base.

Inside of Desk

Possible areas for mounting the bracket.

Outside of Desk

Underneath Desk Top

Page 21

Securing the Base to the Mounting Bracket

To attach Explora to the bracket:

1. Align the tabs on the bracket with the slots on the bottom of the unit.

2. Insert the tabs into the slots and at the same time, gently push down on the unit.

Align tabs and slots

Side of unit resting on angle tabs

Security device and screw

M2.5 Pan-Head Screw

Lock

The side of the base should rest on the two angle tabs protruding from the bracket, shown in the diagram.

Using the Security Device

To use the security device with the mounting bracket, do the following:

1. Before attaching the base to the bracket, make sure you remove the security cover from the side of the terminal. If you have not done this, go back to step one in “Installing the Security Device” and remove the security cover.

2. Attach the base to the mounting bracket, using the steps above. Then return here to step 3.

3. Push the small part of the security device through the hole in the angle tab on bracket and through the security cover slot, so that the center hole of the device aligns with the threads on the inside of the chassis.

4. Insert the pan-head screw (M2.5, supplied) through the center of the security device, and screw it all the way in, until it is secure.

5. To lock the unit to the bracket, insert a lock or security cable through the hole in the large area of the security device.

Page 22

Single Power Source Attachment

To install the Single Power Source Attachment, follow these steps:

To Base

1. Insert one end of the Single Power Source Attachment into the power supply block.

2. Insert the power cable into the Single Power Source Attachment connector.

3. Insert the Single Power Source

Single Power Source Attachment

Attachment extension connector into the monitor.

4. Attach the power supply connector to the base unit.

To M on i t or

5. Connect the power cable to the power source.

To AC Power Source

Page 23

Pinout Diagrams

This section contains pinout diagrams for the base connectors.

Serial Connector (RS 232 C Serial Connector

DCD

DSR

RTS CTS

DTR

Pin Signal

1 Data Carrier Detect In

2 Receive Data In

N/C

3 Transmit Data Out

4 Data Terminal Ready Out

5 Signal Ground --

6 Data Set Ready In

7 Request To Send Out

8 Clear To Send In

9 Not Connected

Shell Protective GND

)

Signal

Direction

Modem

DCE 25-Pin

Transmit Data 2

Receive Data 3

Request to Send 4

Clear to Send 5

Data Set Ready 6

Signal Ground 7

Data Carrier Detect 8

Data Terminal Ready 20

Terminal

DTE 9-Pin

3 Transmit Data

2 Receive Data

7 Request to Send

8 Clear to Send

6 Data Set Ready

5 Signal Ground

1 Data Carrier Detect

4 Data Terminal Ready

DTE 25-Pin

Transmit Data 2

Receive Data 3

Request to Send 4

Clear to Send 5

Data Set Ready 6

Signal Ground 7

Data Carrier Detect 8

Data Terminal Ready 20

Host

Terminal

DTE 9-Pin

3 Transmit Data

2 Receive Data

7 Request to Send

8 Clear to Send

6 Data Set Ready

5 Signal Ground

1 Data Carrier Detect

4 Data Terminal Ready

Page 24

Monitor Connector

MD-3

MD-2

15 14 13

BVG

N/C

GVG

RVG

MD-0

MD-1

Pin Signal

1 Red Video Out

2 Green Video Out

3 Blue Video Out

Signal

Direction

4 Monitor Detect 2 In

5 Ground --

6 Red Video Ground --

7 Green Video Ground --

8 Blue Video Ground --

9 No Connection --

10 Ground --

11 Monitor Detect 0 In

12 Monitor Detect 1 In

13 Horizontal Sync Out

Keyboard and Mouse Connectors

Clock

+5V dc

Data

14 Vertical Sync Out

15 Monitor Detect 3 In

Shell Chassis Ground --

Pin Signal

1 Data

Ground

2 Reserved

3 Ground

4+5V dc

5Clock

6 Reserved

Page 25

Parallel Connector

ACKNLG

BUSY

SELECT

13 12 11 10 9 8 7 6 5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

GND

Data lines 0-7

SELECTIN

INIT

STROBE

AUOTFEEDXT

ERROR

Pin Signal

Signal

Direction

1STROBE In

2 Data 0 In

3 Data 1 In

4 Data 2 In

5 Data 3 In

6 Data 4 In

7 Data 5 In

8 Data 6 In

9 Data 7 In

10 ACKNLG Out

11 BUSY Out

12 PE Out

13 SELECT Out

14 AUTOFEEDXT In

15 ERROR Out

16 INIT In

17 SELECTIN In

18 - 25 GND N/A

RJ-45 Connector (Twisted-pair Ethernet)

TD+

RD+

TD-

345612 78

RD-

Pin Name Function

1 TPOP Transmit+

2 TPON Transmit-

3 TPIP Receive+

4/5 Not Used --

6 TPIN Receive-

7/8 Not Used --

Page 26

Specifications

The following table contains Explora family specifications.

Table 3: Explora Family Specifications

Category Topic Specification

Hardware architecture Microprocessor

Explora PPC 403GB

Explorapro PPC 403GA

Coprocessor S3 968 (both models)

DRAM

Explora 4 MB

Explorapro 8 MB

PROM 256KB (both models)

Memory upgrades 32-bit, 60ns, fast-page mode SIMMs

Explora 1 SIMM slot expandibility

Explorapro 2 SIMM slots expandibility

NVRAM 512 Bytes (both models)

Display memory

Explora 1 MB

Explorapro 2 MB

Display monitor Resolution

Explora 640x480, 800x600, 1024x768

Explorapro 640x480, 800x600, 1024x768, 1152x900,

1280x1024

Refresh rate Up to 76 Hz

Power Transformer

Power Consumption 19 Watts (maximum)

Environmental operating range

AC voltage and AC frequency

North America 90-132 VAC, 60 Hz (+/- 3 Hz)

European/Australian 180-265 VAC, 50 Hz (+/- 3 Hz)

Japanese 85-110 VAC, 47 - 63 Hz

Temperature 10× C (50× F) to 40× C (104× F)

Humidity 10% to 90% non-condensing

Altitude Up to 3,050 meters (10,000 feet)

Page 27

Table 3: Explora Family Specifi cations (Continued)

Category Topic Specification

Controls and indicators Base unit Power switch, Power LED, Network Activity,

and Twisted-Pair Link Indicator.

Keyboard N-97/Kana: Three configurable LEDs

(Unlabeled, Caps Lock, and Network Activity). N-101/N-102: Three configurable LEDs (Num Lock, Caps Lock and Scroll Lock) N-108LK: Four configurable LEDs (Hold Screen, Lock, Compose, and Network Activity) N-123 Sun Type 5 compatible: Four configurable LEDs (Caps Lock, Compose, Scroll Lock, and Number Lock) 3270 Lexmark: Three configurable LEDs (Network Activity, Caps Lock, and Number Lock)

Input Devices Keyboards 97-key UNIX style keyboard (N-97),

101-key PS /2 style keyboard (N101PS), 102-key international version (N-102), 108-key LK401-compatible keyboard (N108LK), 97-key Kana keyboard (Japanese characters) (N-97KAN) N-123 Sun Type 5 compatible keyboard (N-

123), 3270 Lexmark

Mouse Three-button, PS/2

Communications Thin (BNC) Built-in 10Base2 Thin Ethernet transceiver

Twisted-Pair Built-in 10BaseT Twisted-pair Ethernet trans-

ceiver

Serial port RS-232 C up to 115.2 K baud

Parallel port Connector: 25-pin

PCMCIA Standard PCMCIA PC card Standard

Physical Dimensions Height

Width Depth Weig ht

Data: 8-bit parallel Synchronization: STROBE pulse Handshaking: ACKNLG or BUSY signal Logic level: TTL level

Release 2.01, 68-pin connector

1.625 inches (4.13 cm)

7.25 inches (18.42 cm)

10.00 inches (25.40 cm)

1.51 pounds (0.686 kg)

Page 28

Troubleshooting

Problems Caused by Faulty Hardware

NCD terminals have four major components: base, monitor, keyboard, and mouse. If found to be faulty, the base and/or monitor must be returned for repair. The mouse and/or keyboard are replaceable.

Isolating Faulty Components

One of the best ways of tracking down hardware problems is to swap components among compatible terminals. Swapping components lets you determine which component is faulty.

For example, if a keyboard appears to be faulty, turn off the terminal, disconnect the keyboard, and connect a keyboard from another NCD terminal. If the second keyboard works, you know that the problem is with the first keyboard and not with another component, such as the keyboard controller in the base.

Mouse Troubleshooting

Most mouse problems are caused by a dirty mouseball or a loose connection between the mouse cable and the base. If you have problems using your mouse:

1. Check the mouse cable connector. Make sure it is firmly connected to the base’s mouse connector.

2. Turn the mouse upside down and remove the ball. Clean the ball and its socket, and reassemble the mouse.

3. Clean your mouse pad or the area of the desk where your mouse sits.

Monitor Troubleshooting

Generally, if the monitor is out of focus, too bright, or too dark, adjust the monitor’s brightness and contrast knobs. Each monitor model has its own set of controls. Check the monitor operating booklet for more information about your monitor.

Base Troubleshooting

A flashing power indicator indicates there is a hardware problem in the base.

If you find you must return a base for repair, send it in the same configuration as when it failed.

In Case of Trouble

If you encounter difficulties, you can send e-mail or a FAX to NCD Technical Support or contact them by phone.

For information on services available from NCD Technical Support, contact your NCD representative or send mail to [email protected].

Page 29

Phoning Technical Support

You can phone (415) 691-7445 and ask for Technical Support. Be prepared to provide at least the following information when you call:

• Model name of the terminal

• Full description of the problem

• Whether you have tried swapping components to isolate the problem

• How long has the terminal been working

• Whether the problem is constant or intermittent

• Amount of memory installed in the terminal

• Part number and serial number

• Release of NCDware you are running

• Host system

Sending E-Mail or FAXES to Technical Support

Note

Send e-mail to the Internet address [email protected], or send a FAX to (415) 961-7774. For both e-mail and FAX messages, use the following format. It is not necessary to fill out the form completely, but you must use this format for all e-mail requests. If you send e-mail in any other format, the automated support system returns your message along with a blank form to be completed and resent.

You can also submit a request through the NCD Web Services. Go to

http://www.ncd.com/NCD/techsupport/index.html

Terminal Software Support home page.

You may want to type the entire form and keep it on hand as a template to be filled if you need to contact Technical Support again.

NCD Technical Support uses an automated system for e-mail. To make sure that your e-mail is answered quickly, please follow the instructions given below.

, to reach the NCD X

Page 30

Fill in as much of this portion as you can

Problem type= enhancement,question,bug,crash... Problem area= hardware, server, document, network,

application, configuration,... Type of host = Host OS release= Window manager=

Boot method= MOP, TFTP, NFS, or PCMCIA NCD Customer ID= assigned by NCD the first time you send e-mail User name= Company/organization= Title= Phone number= FAX number= E-mail address= Shipping address=

for example,

mwm,host-based mwm

Sun

4.1.3

ncdwm,olwm,local

The first time you send e-mail to Technical Support, fill out this customer information section completely. For subsequent help requests, you can leave this information out, supplying only the NCD Customer ID.

Cut and paste the information displayed in the Console’s Show Version window, or provide the following information about the X terminal:

Model of terminal= Memory installed= NCDware version= Boot Monitor version=

for example,

HMX

2/4 = 6 total

4.0.100

2.7.0

Provide a detailed description of the problem.

Page 31

Returning Components

If you have to return a component, follow these steps.

1. Gather the information listed in “Phoning Technical Support.”

2. Contact NCD Service Operations to determine the faulty component and to obtain a Return Authorization Number (RMA).

• e-mail: [email protected]

• phone:(415) 691-7445

3. Once you have obtained an RMA number, package the component for return.

If possible, use the original cartons and packing materials. If the original cartons and materials are not available:

• Wrap each component in bubble wrap.

• Place each component in sturdy carton that leaves 4 inches of bubble

wrap and packing material around the component.

If you would rather not pack the component yourself, NCD recommends that you take it to a commercial packing and shipping company and ask that the content be wrapped according to these instructions.

4. Mark each return package with the assigned RMA number and address each package as shown below to avoid problems or delays:

Customer Service

Network Computing Devices

350 North Bernardo Avenue

Mountain View, CA 94043

RMA

Note

Equipment returned without an RMA number is subject to delays or may be returned to the sender.

Ethernet Address of Replacement Bases

If a base is replaced, its Ethernet address is different on the replacement base. You must change system files that contain Ethernet addresses.

Comments on the Booklet

You can send comments, suggestions, or questions about this booklet to the NCD Technical Publications Department by Internet e-mail. Write to [email protected].

Page 32

Guidelines for Productive and Healthy Use of Your X Terminal

You may have rea d or heard of articles which have lin ked prolonged viewing of co mputer video display termin als with eye fatigue, and prolonged use of computer keyboards and mouse devices with repetitive stress injuries such as carpal tunnel syndrome. One common example is the syndrome known as “tennis elbow.” Although a conclusive direct causal relationship between computer use and these adverse health effects has yet to be scientifically proven, NCD recommends that you read and follow these guidelines in setting up and using your new NCD X terminal.

• Set up your X terminal in a well lit, glare and shadow-free environment.

• Avoid using your X terminal in a position you find awkward or unnatural.

• Select a chair that provides good lower back support. Adjust your chair so that your feet rest flat on the floor with your

thighs in a horizontal position.

• Place your keyboard on a surface so that your wrists are not tilted, or only slightly tilt ed while using the keyboard. Many people find a comfortable keyboard height is at the same level as their elbows.

• If the height of your work surface cannot be adjusted, position the chair at a comfortable height and use a footrest to place your feet on a level surface.

• Place your mouse on a surface which is at the same height as your keyboard. Many people find using the mouse and keyboard within 16" inches of the body is comfortable.

• Avoid resting your arm on your work surface and merely bending your wrist when using your mouse. Consider using a wristrest to provide a padded surface for your wrists when working with your mouse.

• Place y our display monitor at a comfortable viewing dista nce. Many pe ople fa vor a distan ce of 16" to 28" from their e yes. Position the screen so that you are not looking up or down at the screen.

• Take breaks to rest your eyes , stretch your muscles, and move around.

• Vary your work patterns so that you alternate working at your X terminal with other tasks that use different muscle groups

and allow you to focus yo ur eyes at different distances.

• See your physician if you experience persistent muscle ache, joint pain, eye fatigue or other discomfort when using your X terminal.

These are guidelines. What is comfortable for some may not be comfortable for you. You are the only one who can decide if these guidelines are appropriated for your needs.

What about electromagnetic emissi ons from your monitor? Many objects we encounter in our everyda y lives produce very low frequency (VLF) and extremely low frequency (ELF) electro-

magnetic emissions. These objects include such common appliances as portable cellular telephones, televisions, toasters, electric blankets, and video display terminals (VD T) such as the monitor wh ich is part of your X terminal. VDTs, have been the focus of a growing controversy over the potential health effect of VLF and ELF emissions.

NCD is monitoring this issue and shares the public’s concern over the potential health consequences of exposure to VLF and ELF emissions from VDTs. To date, the research and testing on this subject is i nconclusive. Moreover, the link, if any between VDT emissions a nd adverse health effects is unproven a nd the subject of much debate. Stress, postural stra in and poor working conditions are frequently cited in addition to, and instead o f, VDT emissions as posing p otential healt h hazards to frequent users of VDTs.

The prevailin g professional opin ion to date is that VDTs are safe. NCD products comply with the applicable regul ati ons and standards for electromagnetic radiation set forth by the U.S. Code of Federal Regulations, Underwriters Laboratories, Inc., the Canadian Stan dards A ssociation and the German VDE Standa rd. Whe n and if n ew or ad ditional stand ards are adopted, NCD w ill take appropriate steps to comply with them.

Even though the preponderance of profession al opinion i s that VDTs are sa fe, som e of our cust omers have asked us fo r informatio n on how to reduce th eir exposure to VLF and EL F emissions. Although NCD does not endorse the following as having health benefits, the easiest and perhaps most economical and effective measures are to turn off your display when not in use, to position your display at arm’s length, and to avoid working in areas where you are po sitioned close to the rear of a VDT where the emissions are strongest. Also, shields are available from third party vendors that reduce glare and electric emi ss ions.

The information contained in this document is subject to change without notice. Network Computing Devices, Inc. shall not be liable for errors contained herein or for inci dental or consequential damages in connecti on with the furnishing, performance, or use of this material. This document contains information which is protected by copyright. All right are reserved. No part of this document may be photocopie d, reproduced, or translated t o another language without the pri or written consent of Network Computing Devices, Inc.

Trademarks

NCD, Network Computing Devices, and Explora are trademarks of Network Comput ing Devices, Inc. XRemote is a regist ered tradema rk of Network Computin g Devices Inc. LK-401 is a trademark of Digital Eq uipment Corpor ation. Ethern et is a trademark of Xerox Corporation. UNIX is a regi stered tra demark of UNIX System Laboratories, Inc. Token-Ring, PS/2, and IBM are registered trademarks of Internationa l Business Machines Corp. TROPIC is a trademark of National Semi-Conductor Inc. PCMCIA is a trademark of PC Memory Card International Association. X Window System is a trademark of X Consortium. SIMM is a trademark of

Wang Laboratories, Inc

Revision History

Part Number 9300351 Rev A, August 1995 -- First release of this document Part Number 9300385 Rev A, November 1995 -- Changed name to Explora
