FieldPoint Operating Instructions
OMPACTFIELDPOINTACCESSORIES
C
This document describes the wiring, mounting, and data storage
accessories available for use with National Instruments Compact
FieldPoint. To search for parts listed in this document, go to
ni.com
and enter the part number in the Search field. For
accessories not listed in this document, refer to the Distributed I/O
section of the NI catalog.
cFP-20xxController Wiring Accessories
NI offers several accessories for connecting to the serial ports on
the cFP-20xx controller.
DB-9 Right-Angle Cable for RS-232 Serial Port
The Compact FieldPoint RS-232 serial cable, part number
189284-02, is a DB-9 female to DB-9 male cable adapter for use
with COM 1 on the cFP-20xx controller. The right-angle connector
is well suited for low-profile applications with limited space in
front of the controller.
Figure 1. Compact FieldPoint DB-9 Cable Adapter for COM 1
FieldPoint™, National Instruments™, NI™, and ni.com™ aretrademarks of National Instruments Corporation.
Product and company names mentioned herein are trademarks or trade names of their respective companies.
For patents coveringNational Instrumentsproducts, refer tothe appropriate location:
patents.txt
the
323493A-01 October 2002
©
2002 National Instruments Corp. All rights reserved.
file on your CD, or
ni.com/patents
.
Help»Patents
in yoursoftware,
The Compact FieldPoint DB-9 cable adapter cannot be used with
the Compact FieldPoint rack-mount kit. Refer to the Serial Cables
section of the NI catalog or to
ni.com
for other DB-9 serial cables
that you can use with a rack-mounted Compact FieldPoint system.
RJ-50 Cable Adapters for Serial Ports
NI offers two wiring accessories for use with COM 2, COM 3,
andCOM4onthecFP-20xx controller. COM 2 and COM 3 are
RS-232 serial ports and COM 4 is an RS-485 serial port. All three
ports use RJ-50 10-position modular jacks. These modular jacks
are not compatible with Ethernet cables.
Part numbers 182845-01, -02, and -03 are RJ-50 to DB-9 cable
adapters in 1, 2, and 3 m lengths.
Figure 2. Compact FieldPoint RJ-50 to DB-9 Serial Cable Adapter
Compact FieldPoint Accessories 2 ni.com
Part number 778674-01 is a DIN rail–mountable screw terminal
adapter consisting of an RJ-50 serial cable and a 10-position screw
terminal block.
Figure 3. Compact FieldPoint DIN Rail–Mountable Terminal Block
Refer to the Serial Cables section of the NI catalog or to
ni.com
for other RJ-50 serial cables that you can use with Compact
FieldPoint controllers.
© National Instruments Corp. 3 Compact FieldPoint Accessories
Signal Assignments for Serial Cable Adapters
Table 1 lists the pins on all the cFP-20xx controller cable adapters
and the RS-232 and RS-485 signals assigned to them.
Table 1. Compact FieldPoint Serial Cable Pin Descriptions
RJ-50 Pin or
DB-9 Pin RS-232 Signal
1 DCD 10 GND
2 RX 9 CTS+(HSI+)
3 TX 8 RTS
4 DTR 7 RXD
5 CND 6 RXD–
6 DSR 5 CTS– (HSI–)
7 RTS 4 RTS – (HSO–)
8 CTS 3 TXD
9 RI 2 TXD–
— No Connect 1 No Connect
Screw Terminal
RS-485 Signal
+
(HSO+)
+
+
I/O Connector Cable Adapters
NI offers three cable adapters for use with the 37-pin I/O
connectors on the Compact FieldPoint backplane.
Caution
adapters are for use only with nonhazardous voltages.
Compact FieldPoint I/O connector cable
1
For hazardous voltage wiring, use cFP-CB-x connector
blocks and follow local electrical standards.
Part numbers 778621-01 and 778621-02 are 37-pin male to 37-pin
female cable adapters in 1 and 2 m lengths, respectively. They are
designed for connecting directly to DIN rail–mounted terminal
blocks, part numbers 778672-01 and 778673-01.
1
Nonhazardous voltage is voltage below 42.4 V
Compact FieldPoint Accessories 4 ni.com
or 60 VDC.
rms
Figure 4. Compact FieldPoint 37-Pin I/O Connector Cable
Figure5. Compact FieldPoint Systemwith DIN Rail–MountedTerminal Blocks
© National Instruments Corp. 5 Compact FieldPoint Accessories
Part number 778620-04 is a 37-pin female to loose-wires cable
adapter of 4 m length. You can use the loose wires to make cables
for connecting directly to sensors or to custom connectors.
Figure 6. Compact FieldPoint 37-Pin I/O Connector Cable
Table 2 lists the wire colors that correspond to the 37 pins on the
Compact FieldPoint I/O connectors. Signal names in parentheses
indicate signals common to all Compact FieldPoint I/O modules.
For all other signals, refer to the I/O module operating instructions.
Table 2. 37-Pin Cable Adapter Wire Identification
P1 Male Wire Color(s) P2 Female
1 Black 1
2 Brown 2
3 Red 3
4 Orange 4
5 Ye l l ow 5
6 Green 6
7 Blue 7
8 Purple 8
9 Gray 9
Compact FieldPoint Accessories 6 ni.com
Table 2. 37-Pin Cable Adapter Wire Identification (Continued)
P1 Male Wire Color(s) P2 Female
10 White 10
11 Pink 11
12 Light Green 12
13 Black/White 13
14 Brown/White 14
15 Red/White 15
16 Orange/White 16
17 Green/White 17
18 Blue/White 18
19 Purple/White 19
20 Red/Black 20
21 Orange/Black 21
22 Yellow/Black 22
23 Green/Black 23
24 Gray/Black 24
25 Pink/Black 25
26 Pink/Red 26
27 Pink/Blue 27
28 Pink/Green 28
29 Light Blue 29
30 Light Blue/Black 30
31 Light Blue/Red 31
32 Light Blue/Blue 32
33 (V) Light Blue/Green 33 (V)
34 (V) Gray/Red 34 (V)
35 (COM) Gray/Green 35 (COM)
36 (COM) Purple/Black 36 (COM)
37 (CJC) Blue/Black 37 (CJC)
© National Instruments Corp. 7 Compact FieldPoint Accessories
I/O Connector Protective Cover
NI offers a cover to protect unused slots on the backplane from
damage caused by dirt, tools, and other potential hazards. The
Compact FieldPoint protective cover is part number 778625-01.
Tighten the screws on the dust cover to 0.56 N ⋅ m(5lb⋅ in.)
of torque. The nylon coating on the screws prevents them from
loosening.
Figure 7. Compact FieldPoint Protective Cover
Mounting Accessories
NI offers several accessories for mounting the Compact FieldPoint
system on a DIN rail, in a standard 19 in. instrumentation rack, or
on a panel. All Compact FieldPoint mounting accessories will
work with either the cFP-BP-4 or the cFP-BP-8.
Refer to the cFP-20xx and cFP-BP-x User Manual for instructions
on using Compact FieldPoint mounting accessories. Follow the
cooling guidelines in the cFP-20xx and cFP-BP-x User Manual
when using any of the mounting options.
Compact FieldPoint Accessories 8 ni.com
Table 3. Compact FieldPoint Mounting Accessories
Description Product Name Part Number
cFP DIN Rail Clip
cFP Horizontal
1
cFP DIN Rail Clip 778614-01
cFP-PM-H 778616-01
Panel-Mount Kit
cFP Vertical
cFP-PM-V 778688-01
Panel-Mount Kit
cFP Rack-Mount Kit cFP-RM-8 778615-01
1
cFP-BP-8 requires two cFP DIN rail clip kits.
The cFP DIN rail clip kit is designed for quick, convenient
mounting on a 35 mm DIN rail. The kit includes the two screws
showninFigure8.
L
S
A
T
N
N
E
IO
T
M
A
U
N
R
T
S
IN
Figure 8. Compact FieldPoint DIN Rail Clip with cFP-BP-4
NI offers two kits for secure, permanent mounting on a panel.
Each kit includes four screws for mounting the brackets to the
backplane, as shown in Figures 9 and 12.
L
S
A
T
N
N
E
IO
T
M
A
U
N
TR
S
IN
Figure 9. Compact FieldPoint Horizontal Panel-Mount Kit with cFP-BP-4
© National Instruments Corp. 9 Compact FieldPoint Accessories

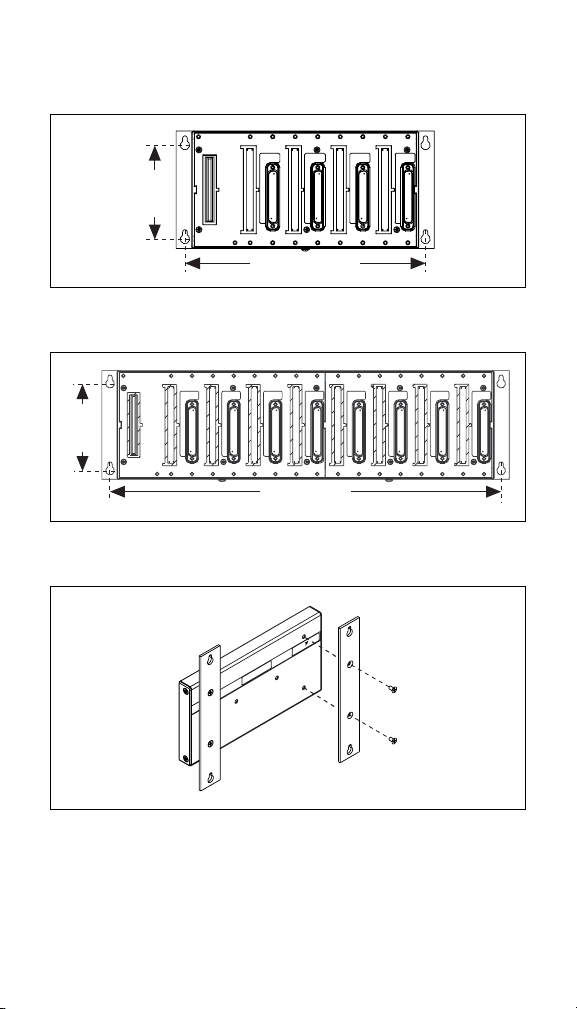

Figures 10 and 11 show the spacing between the mounting holes
of the horizontal panel-mount kit installed on a cFP-BP-4 and a
cFP-BP-8.
(4 in.)
102 mm
260 mm (10.25 in.)
Figure 10. Dimensions of Compact FieldPoint Horizontal Panel-Mount Kit
Installed on cFP-BP-4
(4 in.)
102 mm
457 mm (18 in.)
Figure 11. Dimensions of Compact FieldPoint Horizontal Panel-Mount Kit
Installed on cFP-BP-8
L
S
A
T
N
N
E
IO
T
M
A
U
N
R
T
S
IN
Figure 12. Compact FieldPoint Vertical Panel-Mount Kit with cFP-BP-4
Compact FieldPoint Accessories 10 ni.com
152 mm (6 in.)
178 mm (7 in.)
Figure 13. Dimensions of Compact FieldPoint Vertical Panel-Mount Kit
NATIONAL
INSTRUMENTS
Figure 14. Compact FieldPoint Rack-Mount Kit with cFP-BP-4
© National Instruments Corp. 11 Compact FieldPoint Accessories
L
A
TS
N
N
E
IO
T
M
A
U
N
TR
S
IN
Figure 15. Compact FieldPoint Rack-Mount Kit with cFP-BP-8
Data Storage Accessories
NI offers four industrially rated Compact Flash cards for use as
removable data storage devices with the cFP-2020. These
Compact Flash cards are designed for reliable performance from
–25 to 60 °C, the operating temperature range of the Compact
FieldPoint system.
Table 4. Compact Flash Accessories
Description Part Number
64 MB Compact Flash 778622-64
128 MB Compact Flash 778622-128
256 MB Compact Flash 778622-256
512 MB Compact Flash 778622-512
Refer to the cFP-20xx and cFP-BP-x User Manual for instructions
on using removable Compact Flash for data storage with the
cFP-2020.
Compact FieldPoint Accessories 12 ni.com
Where to Go for Support
For more information about setting up the Compact FieldPoint
system, refer to the following National Instruments documents:
• Compact FieldPoint controller module user manual
• I/O module operating instructions
• Compact FieldPoint connector block operating instructions
Go to
ni.com/support
and troubleshooting information.
For telephone support in the United States, create your service
request at
ni.com/ask
512 795 8248. For telephone support outside the United States,
contact your local branch office:
Australia 03 9879 5166, Austria 0662 45 79 90 0,
Belgium 02 757 00 20, Brazil 55 11 3262 3599,
Canada (Calgary) 403 274 9391,
Canada (Montreal) 514 288 5722,
Canada (Ottawa) 613 233 5949, Canada (Québec) 514 694 8521,
Canada (Toronto) 905 785 0085, China 86 21 6555 7838,
Czech Republic 02 2423 5774, Denmark 45 76 26 00,
Finland 09 725 725 11, France 01 48 14 24 24,
Germany 089 741 31 30, Greece 01 42 96 427,
Hong Kong 2645 3186, India 91 80 4190000,
Israel 03 6393737, Italy 02 413091, Japan 03 5472 2970,
Korea 02 3451 3400, Malaysia 603 9596711,
Mexico 001 800 010 0793, Netherlands 0348 433466,
New Zealand 09 914 0488, Norway 32 27 73 00,
Poland 22 3390 150, Portugal 210 311 210, Russia 095 238 7139,
Singapore 65 6 226 5886, Slovenia 3 425 4200,
South Africa 11 805 8197, Spain 91 640 0085,
Sweden 08 587 895 00, Switzerland 056 200 51 51,
Taiwan 02 2528 7227, United Kingdom 01635 523545
for the most current manuals, examples,
and follow the calling instructions or dial
