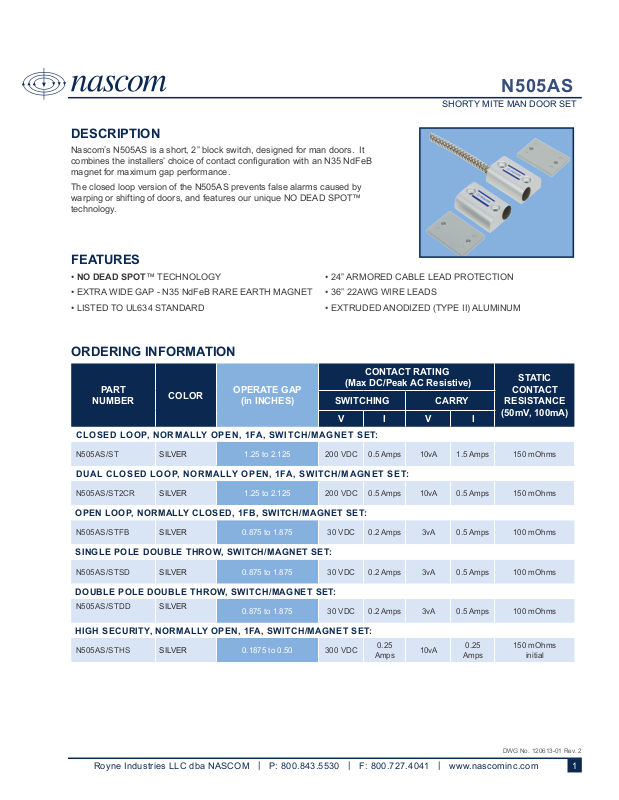

Nascom N505AS-STSD, N505AS-STFB, N505AS-ST Specsheet
N505AS
SHORTY MITE MAN DOOR SET
DESCRIPTION
Nascom’s N505AS is a short, 2” block switch, designed for man doors. It
combines the installers’ choice of contact conguration with an N35 NdFeB
magnet for maximum gap performance.
The closed loop version of the N505AS prevents false alarms caused by
warping or shifting of doors, and features our unique NO DEAD SPOT™
technology.
FEATURES
• NO DEAD SPOT™ TECHNOLOGY • 24” ARMORED CABLE LEAD PROTECTION
• EXTRA WIDE GAP - N35 NdFeB RARE EARTH MAGNET • 36” 22AWG WIRE LEADS
• LISTED TO UL634 STANDARD • EXTRUDED ANODIZED (TYPE II) ALUMINUM
ORDERING INFORMATION
CONTACT RATING
PART
NUMBER
COLOR
OPERATE GAP
(in INCHES)
(Max DC/Peak AC Resistive)
SWITCHING CARRY
V I V I
CLOSED LOOP, NORMALLY OPEN, 1FA, SWITCH/MAGNET SET:
N505AS/ST SILVER 1.25 to 2.125 200 VDC 0.5 Amps 10vA 1.5 Amps 150 mOhms
DUAL CLOSED LOOP, NORMALLY OPEN, 1FA, SWITCH/MAGNET SET:
N505AS/ST2CR SILVER 1.25 to 2.125 200 VDC 0.5 Amps 10vA 0.5 Amps 150 mOhms
OPEN LOOP, NORMALLY CLOSED, 1FB, SWITCH/MAGNET SET:
N505AS/STFB SILVER 0.875 to 1.875 30 VDC 0.2 Amps 3vA 0.5 Amps 100 mOhms
SINGLE POLE DOUBLE THROW, SWITCH/MAGNET SET:
N505AS/STSD SILVER 0.875 to 1.875 30 VDC 0.2 Amps 3vA 0.5 Amps 100 mOhms
DOUBLE POLE DOUBLE THROW, SWITCH/MAGNET SET:
N505AS/STDD SILVER
HIGH SECURITY, NORMALLY OPEN, 1FA, SWITCH/MAGNET SET:
N505AS/STHS SILVER 0.1875 to 0.50 300 VDC
0.875 to 1.875 30 VDC 0.2 Amps 3vA 0.5 Amps 100 mOhms
0.25
Amps
10vA
0.25
Amps
STATIC
CONTACT
RESISTANCE
(50mV, 100mA)
150 mOhms
initial
Royne Industries LLC dba NASCOM
|
P: 800.843.5530
|
F: 800.727.4041
|
www.nascominc.com
DWG No. 120613-01 Rev. 2
1
1.125
28.58
1.625
41.28
1.125
28.58
.500
12.70
END VIEW
FRONT VIEW
1.625
41.28
1.125
28.58
.500
12.70
1.125
28.58
FRONT VIEW
1.625
41.28
1.125
28.58
.125
3.18
1.125
28.58
FRONT VIEW
END VIEW
WIRING SCHEMATIC
N505AS
SHORTY MITE MAN DOOR SET
SWITCH
CONTACT
CLOSED LOOP,
NORMALLY OPEN CONTACT
COMMON
(BROWN)
COMMON
(BROWN)
DPDT, DOUBLE POLE DOUBLE THROW SPDT, SINGLE POLE DOUBLE THROW
OPEN LOOP,
NORMALLY CLOSED CONTACT
NC, OPEN LOOP (WHITE)
NO, CLOSED LOOP (RED)
NC, OPEN LOOP (WHITE)
NC, OPEN LOOP (WHITE)
SWITCH
CONTACT
COMMON
(BROWN)
DUAL CLOSED LOOP,
NORMALLY OPEN CONTACTS
DIMENSIONS - IN [mm]
NC, OPEN LOOP (WHITE)
NO, CLOSED LOOP (RED)
SWITCH
Royne Industries LLC dba NASCOM
MAGNET
SPACER
DWG No. 1200613-01 Rev. 2
|
P: 800.843.5530
|
F: 800.727.4041
|
www.nascominc.com
2
