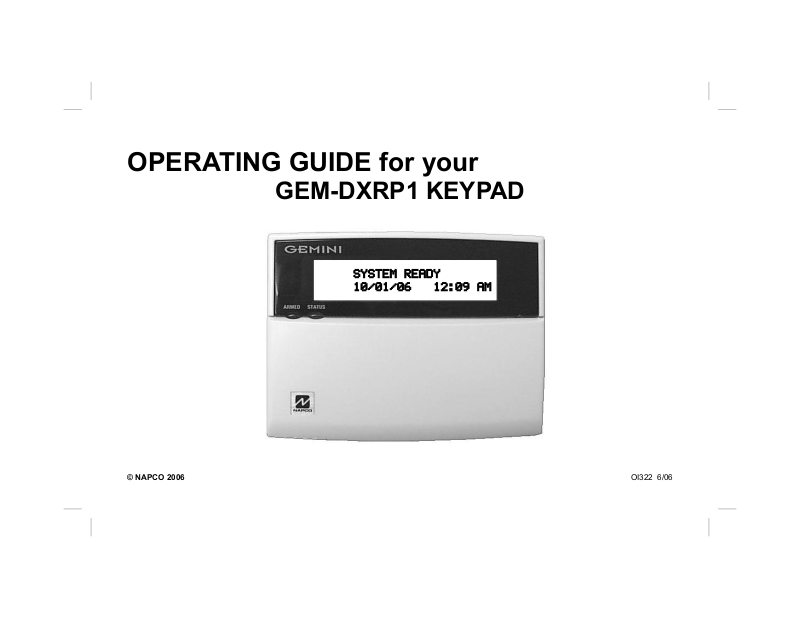

OPERATING GUIDE for your

GEM-DXRP1 KEYPAD

SYSTEM READY 10/01/06 12:09 AM

OI322 6/06

INTRODUCTION

The GEM-DXRP1 is a “smart” user- friendly, interactive menu-driven keypad designed for your Napco control panel. Its alphanumeric screen will not only display the status of your system, but will also give you step-by-step instructions to guide you through all operations.

This booklet contains important information about the operation of your system with this GEM-DXRP1 Keypad. Read it carefully and keep it handy for

future reference. Check the Glossary for an explanation of terms that may be unfamiliar to you.

You'll probably find subjects mentioned in this booklet that do not apply to your system. Napco control panels have such a wide variety of features that few security systems, if any, will ever need them all. Your alarm professional has chosen appropriate features for your particular needs.

IMPORTANT - TEST YOUR SYSTEM WEEKLY

Test your sounding device and backup battery

(These tests should only be performed on weekends or at a time

designated by your alarm company.)

1. While disarmed, press

2. Answer NO (press

the window.

3. Press YES (

about two seconds.

E) to execute the test. The alarm will sound for

F) until “ACTIVATE BELL TEST” appears in

• If the alarm does not sound, call for service.

• If the battery is low, “LOW BATTERY E02-00 SERVICE” will appear

in the display indicating a low battery condition. Allow 24 hours for the battery to recharge. If the trouble continues, call for service.

Regardless of how your system has been configured, rest assured that it has been carefully designed and engineered to the highest industry standards. To assure optimum safety and security, familiarize yourself with this equipment. Periodically check its condition and state of readiness by testing it at least once a week in both the ac/battery and battery-only modes (ask your alarm professional how to make these tests).

Test your central station communicator

(Activate Dialer Test programmed? YES NO)

1. Notify your Central Station of the impending test.

2. While disarmed, enter your User Code and press A.

3. Answer NO (press

in the window.

4. Press YES (

F) until “ACTIVATE DIALER TEST” appears

E) to send a test code to the central station.

• If the test is not successful, “COMM FAIL E03-00 SERVICE” will

display, indicating a communication failure. Call for service.

Note: Any subsequent successful transmission will clear a “Failure to Communicate” system trouble

TABLE OF CONTENTS

Section Page

KEYPAD CONTROLS & INDICATORS ............................................ 4

SETTING THE ALARM (ARMING) WHEN LEAVING ....................... 6

PROTECTING YOURSELF WHILE ON THE PREMISES ................ 8

TURNING OFF THE ALARM (DISARMING) WHEN RETURNING ...10

FIRE PROTECTION .........................................................................11

KEYPAD FUNCTIONS ..................................................................... 15

CENTRAL-STATION MONITORING ................................................20

ADVANCED FEATURES .................................................................21

PROGRAMMING USER CODES ..................................................... 22

ENTER ZONE DESCRIPTIONS -- "CELL PHONE STYLE" .............24

SETTING THE DATE AND TIME ...................................................26

KEYPAD MESSAGES ...................................................................... 27

GLOSSARY ..................................................................................... 30

SYSTEM TROUBLE ERROR CODES ............................................. 33

TROUBLESHOOTING .....................................................................38

TO SILENCE AN ALARM, ENTER YOUR

CODE, AND PRESS

FOR SERVICE, CALL: _____________________

CENTRAL STATION: _____________________

EXIT DELAY: ___________________________

ENTRY DELAY: _________________________

FIRE ALARM SOUND

___________________________________ __

BURGLAR ALARM SOUND

___________________________________ __

KEYPAD FIRE ENABLED? YES NO

KEYPAD PANIC ENABLED?

KEYPAD AUX. ENABLED?

YES NO

FIRE HAS PRIORITY OVER BURGLARY.

KEYPAD CONTROLS & INDICATORS

Window. Displays system status

messages, zone descriptions, etc.

STATUS Light. Lights (green) to

indicate that the system is ready for arming. If a zone is not secured the light will be off and the zone will display in the window. If a zone has been bypassed, the STATUS light will blink while armed.

ARMED Light. Lights (red) to

indicate that the system is armed. If an alarm has occurred, the ARMED LED will be flashing.

FUNCTION Button. Selects

available system functions as displayed in the window. The selected function is executed by pressing the J button.

BYPASS Button. (1) Deactivates selected zones from the system. (2) Unbypasses a bypassed zone

(GEM-P3200/9600 panels only).

RESET Button. (1) Resets

various system troubles, displays, etc. (See text.) (2) Resets residential smoke detectors.

Numerical Keys (1-9, 0). Used to

enter codes, zone numbers, etc.

ON/OFF Button. Entry key.

Causes the entered code or selected function to be executed.

INTERIOR Button. (1) Bypasses

all Interior Zones simultaneously to allow free movement within the premises. (2) Scrolls the window display forward (NEXT). (3) Answers “YES” to questions in the window display.

INSTANT Button. (1) Cancels

entry delay on Exit/Entry Zones, causing an instant alarm upon violation. (2) Scrolls window display backward (PRIOR). (3) Answers “NO” to questions in the window display.

AREA Button (*). Selects other

areas and is used with emergency buttons.

Emergency Buttons. Used with

the

G button to signal an

emergency, as follows:

Press the

7 and the G

buttons for Fire Emergency.

Press the

8 and the G

buttons for Auxiliary Emergency.

Press the

9 and the G

buttons for Police Emergency.

SETTING THE ALARM (ARMING) WHEN LEAVING

BYPASSED

SYSTEM READY

EXIT TIME 060 PLEASE LEAVE NOW

CAN’T ARM SYSTEM ZONES FAULTED

ZONE FAULTED

02 BACK DOOR

BYPASSED

02 BACK DOOR

Arming the System

1 Check the keypad. The green STATUS light must be on in order to arm. If the

green light is off, “ZONES FAULTED” will display in the window followed by the number and description of each faulted zone. Note each problem zone and secure it by closing a window, door, etc. When all zones are secure, the green STATUS light will come on and the window will display “SYSTEM READY”.

2 Arm the system. Enter your code and press J. The green STATUS light will go

ZONES FAULTED

off, the red ARMED light will come on and the window will display “EXIT TIME XXX”, “PLEASE LEAVE NOW” (where “XXX” represents the exit time remaining, in 10-second steps). Note: If you enter a wrong code, the keypad will display “INVALID ENTRY, TRY AGAIN”.

02 BACK DOOR

3 Leave the premises. Leave through the exit door before exit time expires.

Priority Arming

If you attempt to arm with a faulted Zone, a 3-second tone will sound at the keypad. “CAN'T ARM SYSTEM”, and “ZONES FAULTED” will display in the window, indicating that the faulted zone(s) must be secured before the panel can be armed.

Selectively Bypassing Zones

If you cannot locate or repair the problem yourself, call for assistance. If you cannot get immediate help, bypass the problem zone(s) from the system by pressing

then the zone number (or vice versa). Note: Bypassed zones are unprotected. If armed with zones bypassed, be sure to have the system checked as soon as possible

BYPASSED

02 BACK DOOR

SETTING THE ALARM (ARMING) WHEN LEAVING

SYS/TRBL

SYSTEM TROUBLE

LOW BATTERY E02-00 SERVICE

CAN’T ARM SYSTEM PRESS RESET KEY

EXIT TIME 060 PLEASE LEAVE NOW

CAN’T ARM SYSTEM AREA X IN TROUBLE

System Trouble

If you attempt to arm with a “SYSTEM TROUBLE” display alternating with an indicated trouble code (e.g. “E02-00” (low battery); see SYSTEM TROUBLE ERROR CODES), a 3-second tone will sound at the keypad. The window will display "CAN'T ARM SYSTEM, PRESS RESET KEY". If you cannot correct the problem immediately, pressing

C will enable you to arm in this

condition. Be sure to call for service as soon as possible.

Area Arming (Optional)

Some systems may be divided, or partitioned, into smaller independent subsystems, which are referred to as Areas. In a system that has been partitioned into multiple areas, one or more area may be armed while others remain disarmed.

Manager's Mode (Optional)

The Manager's Mode allows the user to arm / disarm other areas in a partitioned system. To

arm/disarm a different area:

1. Press the numerical key representing the other area number.

2. Press

3. Enter your User Code followed by

4. Press

Gfollowed by J. The keypad will now provide status and control of that area.

J to arm or disarm the area.

G followed by J to return to the home area.

Global Arming (Optional) (Not available with GEM-P1632/816 panels)

To arm all areas simultaneously, press 9, G and enter your code followed by J.

To disarm all areas simultaneously, press

0, G and enter your code followed by J.

• The User Code must be valid in all area(s).

• If any zone is not secured, the keypad will display “CAN’T ARM SYSTEM, AREA X IN

TROUBLE”, where X indicates the number of the Area in trouble. All faulted zones in the respective area(s) must be secured or bypassed. Note: If a system trouble is indicated, the system cannot be armed using this method.

PROTECTING YOURSELF WHILE ON THE PREMISES

BYPASSED

Your system may have provisions for two groups of Interior Zones. (Optional) (Interior Groups programmed?

Press

SYSTEM READY

E, followed by D to Bypass Interior Group 1: [ ____________________________________ ]

Bypassing Interior Zones

nterior Zones, when bypassed, allow free movement within the home while the

protection of armed perimeter zones is maintained. To bypass Interior Zones, press

E and enter your User Code followed by D.

YES NO)

• Press E twice followed by D to Bypass Interior Group 2: [ ______________________________ ] (GEM-P9600 Only)

• Press E three times followed by D to Bypass both Interior Groups 1 & 2.

Automatic Interior Bypass (Optional - Automatic Interior Bypass programmed? YES NO)

Your system may have been programmed for Automatic Interior Bypass, which allows it to recognize that you have armed the system and remained in the house, prompting it to automatically adjust the interior protection accordingly.

• If you arm the system and remain in the house, all Interior Zones are automatically bypassed. The keypad will display

“BYPASSED” indicating that it is safe to move about.

• If the system is armed and you leave, the Interior Zones will unbypass, providing complete interior protection.

SYSTEM ARMED I

to arming, or at any time after the system is armed. When armed with Instant Protection opening the entry door will cause an immediate alarm.

• When arming with Instant Protection, the exit delay will remain in effect, allowing exit of the house just after arming. While

armed, the window will display “SYSTEM ARMED” (“SYSTEM ARMED I” will display with the GEM-P9600/3200) and the red ARMED light will flicker rapidly to indicate instant protection.

Instant Protection

When retiring for the evening, after all family members are home, you can cancel the entry delay on the Entry Zone(s). To arm with instant protection, press

F just prior

PROTECTING YOURSELF WHILE ON THE PREMISES

Easy Exit (Optional - Easy Exit programmed? YES NO)

Your system may have been programmed for Easy Exit, which allows a user to exit the premises while the system is armed. By activating Easy Exit while the system is armed, the Exit Delay countdown will take place, during which time you are permitted to leave through the exit door. The Easy Exit Delay time will be identical to the Exit Delay time the system gives you each time it is armed. This will allow, for example, an early morning commuter to exit the house, without having to disarm and rearm the system, awaking the family.

 Press E to activate Easy Exit on your system. (GEM-P3200/GEM-P9600 V11D or less, GEM-P1632 V8G or less)  Press D to activate Easy Exit on your system. (GEM-P3200/GEM-P9600 V20 or greater, GEM-P816/P1632 V9A or greater)

Emergency Buttons (Only available if programmed)

The Blue Emergency Buttons (7,8& 9), if programmed, are always active, whether the system is armed or disarmed. The emergency signal will only be transmitted

when an Emergency Button and

• Fire Emergency Simultaneously press 7 and G to alert the central station of a fire

emergency. *(Fire Emergency programmed? YES NO)

• Auxiliary Emergency Simultaneously press 8 and G to alert the central station of

an Auxiliary emergency. *(Auxiliary Emergency programmed? YES NO)

• Police Emergency Simultaneously press 9 and G to alert the central station of a

police emergency. *(Police Emergency programmed? YES NO)

G are pressed at the same time.

TURNING OFF THE ALARM (DISARMING) WHEN RETURNING

DISARM SYSTEM ENTRY TIME XXX

Disarming the System

Enter your premises through the Entry/Exit door. The keypad will sound a steady or pulsing

tone to remind you to disarm the system before your Entry Delay time expires.

2 Enter your User Code and press D. The red ARMED light will go out, indicating that the

INVALID ENTRY TRY AGAIN

**** ALARM ****

02 - BACK DOOR

system has been disarmed. If you enter an invalid code, the keypad will beep 4 times, signifying an error. Re-enter your code immediately. 10 seconds before Entry Delay expires, the keypad will emit a pulsing warning tone.

Alarm Indication / Silencing an Alarm

If the red ARMED light is flashing and “ALARM” is displayed, an alarm occurred while you were out. Proceed with caution! If you suspect that an intruder may still be on the premises, leave immediately and call authorities from a neighbor's phone.

To silence an audible alarm:

1 Enter your code and press J. After the system is disarmed, the window will continue

to display “ALARM” followed by the zone(s) violated.

03 - LIVING ROOM

2 To reset the display, note the zones violated, then press C.

Ambush (Optional) Your Ambush Code Type is: TYPE 1 (Prefix) TYPE 2 (Unique)

My Ambush Code is ___________________

If an intruder forces you to disarm your system, enter your Ambush Code and press

J. There are two types of Ambush Codes:

(1) A 2-digit code (prefix) entered just prior to your normal User Code and (2) A separate and unique User Code.

Example Type 1 (Prefix): If your User Code is 1234 and your Ambush Code is 99, press 991234J. Example Type 2 (Unique): If your User Code is 1234 and your Ambush Code is 8899, press 8899J

Using your Ambush Code will send a silent alarm to the central station. The red ARMED light will go out and the window will display “SYSTEM READY” as if the system were normally disarmed. There will be no indication that a silent alarm has been sent.

FIRE PROTECTION

(Applicable only where local ordinance permits use of this alarm control panel for fire protection.)

FIRE

FIRE TBL

SYS/TBL

FIRE ALARM

FIRE TROUBLE

Fire-Zone Alarm

If a fire is detected, “FIRE ALARM” will be displayed and the keypad sounder will pulse.

1. If a fire is in progress, evacuate the premises immediately! If necessary, call the

Fire Department from an outside phone.

2. Press the C button to silence the keypad sounder.

3. If there is no evidence of a fire, enter your User Code and press J to turn off the

alarm.

4 Check smoke detector(s). If a smoke detector tripped, its red alarm indicator light will

be on.

After the alarm condition is corrected (thermostat cooled down; smoke cleared from

detector; etc.), pressing

NOTE: When the Fire Zone is reset, the FIRE icon on the left side of the display will go

out. If the FIRE icon is still displayed, the fire zone has not been properly reset. If you cannot clear this condition by pressing

C again will reset the keypad within about 10 seconds.

C, call for service.

Fire-Zone Trouble

If a problem in the fire-circuit is detected, “FIRE TROUBLE” will display and the

sounder will pulse to signal a malfunction.

2. Press C to silence the sounder. Call for service immediately!

FIRE PROTECTION

Preparing a Fire Escape Plan

Even with the most advanced fire alarm system, adequate protection requires an escape plan.

To prepare your plan, draw floor plans of your building. (Space is provided on the next page). Show two exits - a front or back door and a window from each room. (Make sure the window works. You may need a special fire-escape ladder if the window is high up). Write down your outside meeting place.

Family Rehearsal. Rehearse each of the following activities:

1. Everyone in his room with the doors closed.

2. One person sounds the alarm.

3. Each person tests his door.

4. Pretend the door is hot and use the alternate escape exit.

5. Everyone meets outdoors at the assigned spot.

Important! - Read Carefully

Discuss these escape procedures with all

those who use the building:

1. In a residence, sleep with the bedroom door closed. A closed door will hold back deadly smoke while you escape.

2. When the fire alarm signals, escape quickly. Do not stop to pack.

3. Test the door. If it is hot, use your alternate route through the window. If the door is cool, brace your shoulder

Would You Like More Safety Information?

For more information on home fire detection, burn safety, and home fire safety, write to the National Fire Protection Association, Public Affairs Dept. 05A, Batterymarch Plaza, Quincy, MA 02269.

against it and open it cautiously. Be ready to slam the door if smoke or heat rushes in. Crawl through smoke, holding your breath. Close the doors again on leaving to help prevent the fire from spreading.

4. Go to your specific outdoor meeting place so you can see that everyone is safe.

5. Assign someone to make sure nobody returns to the burning building.

6. Call the Fire Department from a neighbor's telephone.

+ 28 hidden pages

Napco Security Technologies GEM-DXRP1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
