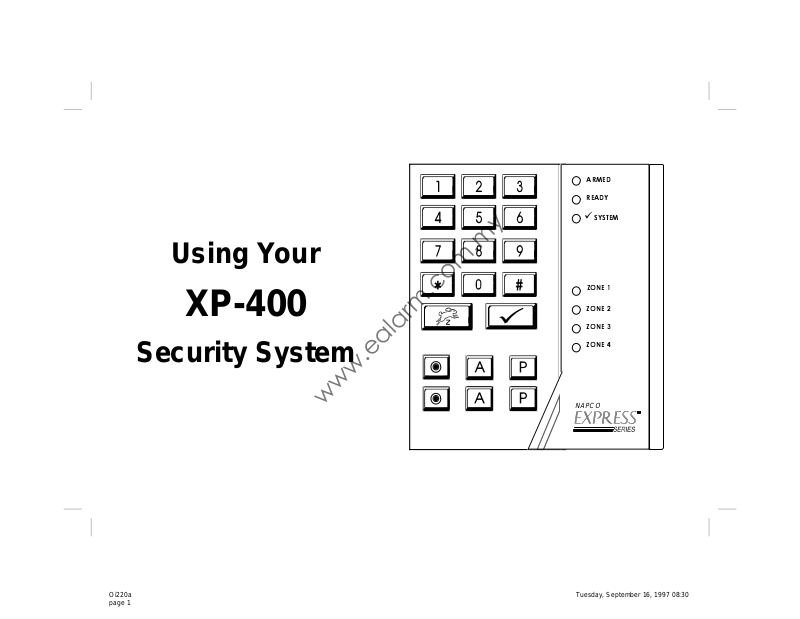

Using Your
www.ealarm.com.my
$50('
5($'<
6<67(0
9
=21(
XP-400
Security System
=21(
=21(
=21(
NAPCO
Introduction
www.ealarm.com.my
Table of Contents
Keypad Controls and Indicators ................................ 5
Arming your System (When Leaving) ....................... 6
Bypassing Zones ..................................................... 6
Protecting Yourself While Home ............................... 7
Emergency Keys ....................................................... 8
Disarming the System ............................................... 9
Silencing an Alarm..................................................... 9
Special Functions ..................................................... 10
Programming User Codes ......................................... 11
System Troubles ....................................................... 12
Glossary ................................................................... 15
Important - Test Your System Weekly !
1
Bell / Battery Test
Test your bell or siren by pressing
This will cause the bell, or siren to sound for 2 seconds and
also initiate a test of the battery .
2
Central Station Communication Test
(This test should only be performed on weekends or at a
time designated by your alarm company)
1. Notify Central Station of the impending test.
followed by
System Information
Central Station Phone Number: ____________________
Central Station Account Number: ____________________
For Service Call: ____________________
Entry Delay: ____________________
Exit Delay: ____________________
Alarm Time-out: ____________________
2. Secure all zones to light Ready Light on your keypad.
.
3. Enter your user code to Arm the system.
4. Violate your alarm by opening a window / door etc.
5. The siren or bell should sound and the system will send
the alarm signals to the Central Station
6. Enter your user code to silence the bell or sounder.
7. Call Central Station to insure that the alarm signals were
received properly.
www.ealarm.com.my
Key Used to enable
special functions and options. Press
the corresponding Special Function number Option (See Special Functions, Page 10)
and then
Numerical Keys 1-9, 0. Used to enter
User Codes, Zone numbers, etc.
$50('
5($'<
6<67(0
9
Keypad Controls and Indicators
Armed Light
and will flash when system is in Alarm
Ready Light
and system is ready to be Armed.
will light when system is Armed,
will light when all zones are secure
Bypass Key Used to
bypass zones. Press
Bypass and the corresponding zone number,
and then Arm system.
Emergency Keys Press
simultaneously to signal
an emergency condition.
Press
Auxiliary Emergency or
3+3
gency. (Programmable)
$+$
for Police Emer-
for
99 Key Press to display any present
System troubles. Only available when
99 System Light is lit.
(See System troubles, Page 12)
=21(
=21(
=21(
=21(
NAPCO
99 System Light will light and the Keypad
sounder will pulse to indicate that a system trouble is present.
(See System troubles, Page 12)
Zone Lights (
that the corresponding Zone is open, and will
flash to indicate a zone in alarm.
Key - (Reset) used to clear miss-entered
codes, reset Alarm Memory, etc..
1 through 4) will light to indicate
5
g
g
g
Arming Your System
www.ealarm.com.my
Arming Your System When Leaving
1
Before arming your system, make sure the Green
ective zones are secure. If any zones are open, the correspondin
zones before proceedin
2
Enter your user code. The Green
ARMED
READY
SYSTEM
ZONE 1
ZONE 2
ZONE 3
ZONE 4
Easy Arm
Bypassing Zones
•
If you make a mistake enterin
3
Leave the premises through the Exit/Entry door. If the keypad gives a steady tone you have taken
too long. Enter your code again to disarm system and then re-enter code and leave.
The Easy Arm feature allows the system to be armed by simply pressing
allow the easy arming of the system by someone who is not a regular system user.
If an open zone cannot be immediately fixed it can be left unprotected, or
system is Armed. To Bypass a zone:
1
Press
2
Enter your user code. The Green Ready light will go out and the Red Armed light will light.
3
Leave the premises through the Exit/Entry door.
Ready
light is ON. This indicates that all of your prot-
Zone light will be ON. Secure these
. If any zones cannot be secured, see Bypassing zones below.
Ready
light will go out, the Red
your code, press
followed by the zone number to be Bypassed. The Bypassed zone’s light will flash slowly.
Armed
and re-enter the code.
light will light.
followed by
Bypassed
,while the rest of the
. This will
When the system is subsequently disarmed, all bypassed zones will be reset, ready to be armed again.
If it is necessary to bypass any inoperative zone(s), it is important to have the zone(s) repaired as soon as
possible. A bypassed zone does not provide any protection, compromising system security.
Protecting Yourself While at Home
g
g
#
g
y
www.ealarm.com.my
1
Before arming your system, make sure the Green
protective zones are secure. If any zones are open, the correspondin
those zones before proceedin
2
Enter your user code. The Green
.
Ready
light will go out, and the red
Ready
light is ON. This indicates that all of your
Arming Your System
Zone light will be ON. Secure
Armed
light will light.
3
Before your exit delay expires, press
ARMED
READY
SYSTEM
as motion sensors, and allowing free movement throughout the premises. The Zone light of any
bypassed zones will flash slowly.
•
Your system may have been programmed for Automatic Interior Bypass , in which case it will
recognize that you have not left the premises and will automatically bypass any interior zones.
Instant Mode
!
ZONE 1
ZONE 2
ZONE 3
ZONE 4
Pressing
done in the evening when all family members are home for the night. Instant Mode can be activated at any
time after the system has been armed. The Red Armed light will flash rapidly while in the Instant Mode.
Easy Exit
Your System may have been programmed to allow Easy Exit, which allows a user to exit the premises
with the system armed. By pressing
zone for 3 minutes. This will allow, for example, an early morning commuter to exit the house in the
morning, without having to disarm and rearm the system, waking the family.
followed by
(optional)
will cancel the Entry delay , activating the “Instant” mode. This is typically
Arming With a System Trouble Present
If the XP400 has a system trouble present, the
pulsin
press
For more information, refer to page12. Note: System troubles should be repaired as soon as possible.
. If you cannot immediately clear the system trouble, the system can still be armed. Simpl
to view the trouble, press
to bypass any interior zones, deactivating devices such
followed by , the protection is removed from the Exit/ Entry
(the
9 System Light is Lit)
9
SYSTEM l
9
again to reset the trouble and then arm the system.
ight will be lit and the keypad sounder
7
Emergency Conditions
www.ealarm.com.my
&
Auxiliary
&
Emergency
Enabled?
Yes No
Police
Emergency
Enabled?
Yes No
Ambush
Alarm
Enabled?
Yes No
Emergency Buttons
The two sets of emergency buttons, if programmed, are always active whether the system is armed or
disarmed. Discuss these buttons with your installer. The emergency signal will only be activated when
the two respective buttons are pressed at the same time.
Auxiliary Alarm:
Police Emergency: Simultaneously press
Ambush Alarm
In the event that you are forced by an intruder to disarm your system, the ambush alarm can be
activated. Disarming the system with the Ambush Code will cause the system to disarm and
simultaneously send a silent ambush alarm signal to Central Station. If your system has the Ambush
feature enabled, the code assigned as the User 4 code will function as your Ambush Code.
Simultaneously press
emergency, if so programmed.
(The nature of this emergency alarm is to be determined by the installer)
the central station of a fire emergency, if so programmed.
&+
+
to alert the central station of an auxiliary
to sound a police emergency alarm, and to alert
g
ARMED
www.ealarm.com.my
READY
SYSTEM
ZONE 1
ZONE 2
ZONE 3
ZONE 4
Disarming Your System / Silencing an Alarm
Disarming Your System when Returning
1
Enter your premises through the Entry/Exit door. The keypad will sound a steady tone to remind you to
disarm the system before your Entry Delay time expires.
2
Enter your user code. The Red
Note: If you make a mistake enterin
Alarm Indication
If the Red
Proceed with caution!
For your own protection, leave immediately and call authorities from a neighbor’s phone .
Armed
light is flashing rapidly, an alarm occurred while you were away.
Silencing an Alarm
In the event that the system goes into alarm due to a violated burglary zone, the bell or siren will sound and
the keypad sounder will also activate. To silence the system, enter your User code. The zone light of the
zone which went into alarm continue flashing until
Armed
light will go out, indicating that the system has been disarmed.
your code, press the
key and re-enter the code.
is pressed to reset the alarm memory.
9
Special Functions
www.ealarm.com.my
By pressing
followed by the appropriate key, (do not press simultaneously) these special functions and features can
be enabled:
The Easy Arm feature allows the system to be armed by
pressing
Easy Arm (when system is disarmed)
!
followed by . This will allow the easy
arming of the system by someone who is not a regular
system user.
!
Easy Exit (when system is armed)
This function (if programmed) allows an occupant to leave
the premises without disarming the system. Pressing
followed by
while the system is armed will start a 3
minute period, during which you can leave through the
Exit/ Entry door.
Pressing
Bell / Battery Test
followed by will cause the bell, or siren to
sound for 2 seconds. This will also initiate a test of your
battery to make sure it is adequately charged. The XP-400
also performs an automatic battery test very 24 hours
If programmed, pressing
Access Output
followed by
the Access Output which may be configured to open a
door strike, turn on lighting, or activate some other special
feature your installer has provided.
will activate
Pressing
Instant Mode
followed by will cancel the Entry delay
and put the system into the “Instant” mode. This is typically done in the evening when all family members are home
for the night. When the system is disarmed, the Instant
mode will be canceled.
Pressing
Chime Mode On / Off
followed by
will activate / deactivate the
door chime. Activating this feature will cause any door
to beep the keypad sounder when it is opened.
Pressing
Program Mode
followed by will enable the “Program
Mode”, which will allow you to program and erase user
codes. (see Programming user codes, page 14)
Pressing
Kepad Sounder On / Off
followed by will deactivate / activate the
keypad sounder, depending on its present state. By
activating sleep mode on a keypad installed in a bedroom,
for example, you effectively turn off that keypad’s sounder.
However, any other keypads on the system will still sound
normally.
ARMED
www.ealarm.com.my
READY
SYSTEM
ZONE 1
ZONE 2
ZONE 3
ZONE 4
Programming User Codes
Your Installer has assigned a User 1 Code which may be used to not only Arm and Disarm the system, but
also to enter the User Program Mode, where you can program and/or reprogram up to 4 User Codes. The
following explains how you will use this code to program or erase additional user codes.
Entering the User Program Mode
Press
followed by
will flash, and the keypad will beep 4 times. You are now in the User Program mode.
Zone lights 1 through 4will light to indicate any User Codes presently programmed.
Programming / Reprogramming User Codes
1
Press the User number to be programmed. (For example, press
The keypad will beep 2 times and the corresponding Zone light will flash to indicate the user
number you are about to program.
2
Press in the 4 digits of the new User 2 code, the keypad will beep 4 times.
3
If there are more user codes to be programmed, return to step 1 above, otherwise, go to Exiting the
User Program Mode below.
Erasing a User Code
1
Press the User number to be erased. The keypad will beep 2 times and the corresponding Zone light
will flash to indicate the user number you are about to erase.
2
Press
3
If there are more user codes to be erased, return to step 1 above, otherwise, go to Exiting the user
Program Mode below.
. The zone light will go out to indicate that the user code has been erased.
and then enter the User 1 code. The Armed, Status and
to program the User 2 code.).
9
System Lights
Exiting the User Program Mode
When you are done programming or erasing User codes, press
to Exit the User Program Mode.
11
9
www.ealarm.com.my
System Troubles
The XP400 is constantly monitoring its own components, as well as all critical servic es, such as AC Power
and the Telephone line, to insure that it is always ready to provide the protection for which it was designed.
When a system trouble does occur, it will caution you by lighting the Yellow
keypad buzzer. If you cannot immediately clear the system trouble, the system can still be us ed. Simply
press
99SYSTEM light and beeping the
to view the trouble as described below, and then arm the system.
ARMED
READY
SYSTEM
ZONE 1
ZONE 2
ZONE 3
ZONE 4
the number of the illuminated zone light. Refer to the following table to determ ine the cause of the trouble.
If there is more than one trouble to be viewed, pressing
99SYSTEM mode if there are no additional troubles to view.
Keypad Beeps or
SYSTEM
9
9
1
Beep
1
Beep
1
Beep
1
Beep
Flashes
Zone lightONSystem Trouble
1 AC Power Failure This trouble will occur if AC power is not present. Make sure
2 Low Battery If there has been a recent power failure, the battery may be
3 Communication
Failure
4 Telephone Line Cut The telephone line has failed. If telephone service has been
In order to determine the nature of the trouble, press
Condition
, count the number of keypad beeps and observe
will scroll to the next, and then exit the
Action
system transformer is plugged into AC receptacle and check
circuit breaker, otherwise call installing company for service.
partially depleted and must be recharged by the control
panel. If the trouble does not go away in 24 hours, call installing company for service.
The system was not able to report to central station. If this is
due to a temporary interruption in the telephone service, the
trouble can be cleared when the service is restored by pressing
temporarily interrupted, the trouble will clear it is when restored. Otherwise, call installing company for service.
. Otherwise, call installing company for service.
9
www.ealarm.com.my
System Troubles
ARMED
READY
SYSTEM
ZONE 1
ZONE 2
ZONE 3
ZONE 4
Keypad Beeps or
SYSTEM
9
9
Flashes
2 Beeps 1 Bell / Siren Trouble There is a problem with the Bell or Siren. Call installing com-
2
Beeps
2
Beeps
3
Beeps
4
Beeps
7
Beeps
Zone lightONSystem Trouble
Condition
pany for service.
3 Wireless Receiver
Trouble
4 Wireless Receiver
Jam
1-4 Wireless
Transmitter Low
Battery
1-4 W ireless
Transmitter
Supervisory Failure
1-4 Zone Trouble Call installing company for service.
A problem has been detected with the wireless receiver.
Call installing company for service.
A problem has been detected with a wireless receiver.
Call installing company for service.
The battery in a wireless transmitter is low and should be replaced. This transmitter is on the zone corresponding to the
number of the lit zone light. The replacement battery for the
GEM-Trans2 door/window transmitter, GEM-PIR motion detector and GEM-GB glass break detector is the Duracell
DL123A. (2 required for the GEM-PIR and GEM-GB.) The
GEM-DT Dual Technology Sensor requires 4 C-Cell Duracell
MN1400 Alkaline batteries.
Warning: Replace batteries only with the same type as specified above. Use of another battery may present a risk of fire or
explosion. Do not recharge or disassemble battery, or dispose
of in fire.
A problem has been detected with a wireless transmitter.
Call installing company for service
Action
13
Loading...
