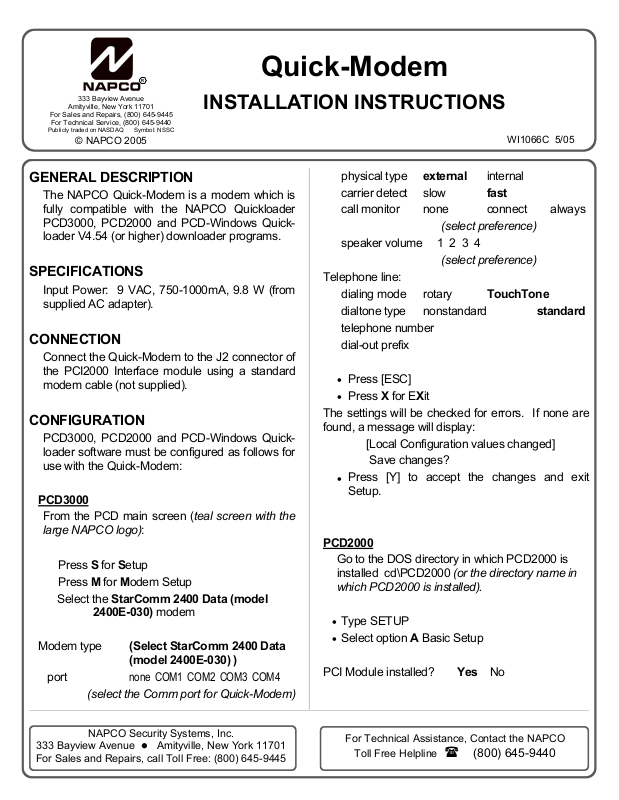

NAPCO QuickModem Owners Manual

R

333 Bayview Avenue

Amityville, New York 11701

For Sales and Repairs, [phone]

For Technical Service, [phone]

Publicly traded on NASDAQ Symbol: NSSC

© NAPCO 2005

Quick-Modem

INSTALLATION INSTRUCTIONS

WI1066C 5/05

GENERAL DESCRIPTION

The NAPCO Quick-Modem is a modem which is
fully compatible with the NAPCO Quickloader
PCD3000, PCD2000 and PCD-Windows Quick­loader V4.54 (or higher) downloader programs.

SPECIFICATIONS

Input Power: 9 VAC, 750-1000mA, 9.8 W (from
supplied AC adapter).

CONNECTION

Connect the Quick-Modem to the J2 connector of
the PCI2000 Interface module using a standard
modem cable (not supplied).

CONFIGURATION

PCD3000, PCD2000 and PCD-Windows Quick­loader software must be configured as follows for
use with the Quick-Modem:

PCD3000

From the PCD main screen (teal screen with the
large NAPCO logo):

Press S for Setup
Press M for Modem Setup

Select the StarComm 2400 Data (model

2400E-030) modem

Modem type (Select StarComm 2400 Data

(model 2400E-030) )

port none COM1 COM2 COM3 COM4

(select the Comm port for Quick-Modem)

physical type external internal
carrier detect slow fast
call monitor none connect always
(select preference)
speaker volume 1 2 3 4
(select preference)
Telephone line:
dialing mode rotary

TouchTone

dialtone type nonstandard

standard

telephone number
dial-out prefix

Press [ESC]

•

Press X for EXit

•

The settings will be checked for errors. If none are
found, a message will display:

[Local Configuration values changed]
Save changes?

Press [Y] to accept the changes and exit

•

Setup.

PCD2000

Go to the DOS directory in which PCD2000 is
installed cd\PCD2000 (or the directory name in

which PCD2000 is installed).

Type SETUP

•

Select option A Basic Setup

•

PCI Module installed? Yes No

NAPCO Security Systems, Inc.
333 Bayview Avenue
For Sales and Repairs, call Toll Free: [phone]



Amityville, New York 11701

For Technical Assistance, Contact the NAPCO

Toll Free Helpline

[phone]



PCI Module serial port? COM1 COM2 COM3 COM4

(select the Comm port for PCI2000 Interface

module)

Modem installed? Yes No
Modem type? Internal

External

Modem serial port? COM1 COM2 COM3 COM4

(select the Comm port for Quick-Modem)

Modem dialing mode?

TouchTone

Rotary

Monitor call through speaker? Always Connect No

(select preference)

Speaker volume? 1 2 3 4

(select preference)

Modem Model?

StarComm 2400 Data

(model 2400E-030)

Dialing Prefix
Display type?

RGB/Monochrome LCD/Composite

(select preference)

Time Zone offset (hours) 08

(set time zone - press [F2] for list of settings)

Daylight savings observed Yes No

Press [ESC]

•

A dialog box will now pop up with the question: "Is
PCI2000 clicking" and you should hear a clicking
sound coming from the PCI2000.

If you hear the PCI clicking, press [Y]. If not press
[N], and you will see a list of possible causes.

PCD-Windows Quickloader

PCD-Windows Quickloader download software
must be configured as follows for use with the
Quick-Modem:

Click File, Modem Settings to open the Serial

Communication Setup

low).

NOTE: Although image below displays "Com 1"
in the Port fields, the Port number may be differ­ent in your system.

Select a Port to be used with the Quick-Modem.
Enter a Dial-out Prefix (if required) and the Tele-
phone Number. Select a PCI Port from the drop­down menu.

For Modem Type. select "Napco Quick-

modem - StarComm 2400 Data (Model 2400E-

030)".

dialog (see image be-
