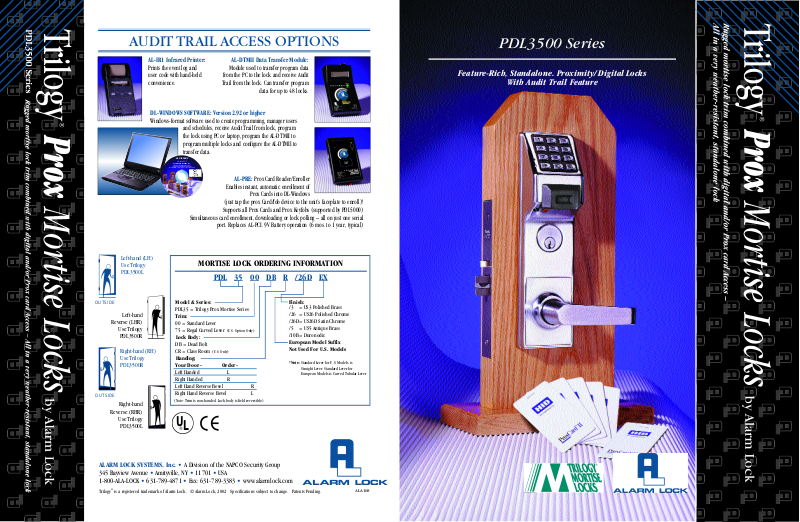

Napco PDL 3500 DATASHEET

AUDIT TRAIL ACCESS OPTIONS

PDL3500 Series

AL-IR1 Infrared Printer:

Prints the event log and
user code with hand-held
convenience.

AL-DTMII Data Transfer Module:

Module used to transfer program data

from the PC to the lock and receive Audit

Trail from the lock. Can transfer program

data for up to 48 locks.

DL-WINDOWS SOFTWARE: Version 2.92 or higher

Windows-format software used to create programming, manager users

and schedules, receive Audit Trail from lock, program
the lock using PC or laptop, program the AL-DTMII to
program multiple locks and configure the AL-DTMII to
transfer data.

DL-WINDOWS

Version 2.5.3

ALARM LOCK SYSTEMS INC.

A Division of the NAPCOSecurity Group

345 Bayview Avenue, Amityville, NY 11701

1-800-ALA-LOCK• [phone] • www.alarmlock.com

MX993

AL-PRE: Prox Card Reader/Enroller

Enables instant, automatic enrollment of

Prox Cards into DL-Windows

(just tap the prox Card/fob device to the unit’s faceplate to enroll)!

Supports all Prox Cards and Prox Keyfobs (supported by PDL5000)

Simultaneous card enrollment, downloading or lock polling – all on just one serial

port. Replaces AL-PCI. 9V Battery operation (6 mos. to 1 year, typical)

Feature-Rich, Standalone. Proximity/ Digital Locks

With Audit Trail Feature

OUTSIDE

Reverse (LHR)

OUTSIDE

Reverse (RHR)

Left-hand (LH)
Use Trilogy
PDL3500L

Left-hand

Use Trilogy

PDL3500R

Right-hand (RH)
Use Trilogy
PDL3500R

Right-hand

Use Trilogy

PDL3500L

MORTISE LOCK ORDERING INFORMATION

PDL 35 00 DB R /26D EX

Model & Series:

PDL35 = Trilogy Prox Mortise Series

Trim:

00 = Standard Lever
75 = Regal Curved Lever (U.S. Option Only)

Lock Body:

DB = Dead Bolt
CR = Class Room (U.S. Only)

Handing:
Your Door - Order -

Left Handed L
Right Handed R
Left Hand Reverse Bevel R
Right Hand Reverse Bevel L

(Note: Trim is non-handed. Lock body is field reversible.)

U

L

®

Finish:

/3 = US3 Polished Brass
/26 = US26 Polished Chrome
/26D= US26D Satin Chrome
/5 = US5 Antique Brass
/10B= Duronodic

European Model Suffix
Not Used For U.S. Models

*Note: Standard Lever for U.S. Models is

Straight Lever. Standard Lever for
European Models is Curved Tubular Lever

ALARM LOCK SYSTEMS, Inc. • A Division of the NAPCO Security Group

345 Bayview Avenue • Amityville, NY • 11701 • USA
1-800-ALA-LOCK • 631-789-4871 • Fax: [phone] • www.alarmlock.com

Trilogy®is a registered trademark of Alarm Lock. ©Alarm Lock, 2002 Specifications subject to change. Patents Pending.

ALA168

AUDIT TRAIL ACCESS OPTIONS

AL-IR1 Infrared Printer:

Prints the event log and
user code with hand-held
convenience.

DL-WINDOWS SOFTWARE: Version 2.94 or higher

Windows-format software used to create programming, manager users

and schedules, receive Audit Trail from lock, program
the lock using PC or laptop, program the AL-DTMII to
program multiple locks and configure the AL-DTMII to
transfer data. DL-WINDOWSis packed with AL-PCI2

DL-WINDOWS

Version 2.5.3

ALARM LOCK SYSTEMS INC.

A Division of the NAPCOSecurity Group

345 Bayview Avenue, Amityville, NY 11701

1-800-ALA-LOCK• [phone] • www.alarmlock.com

MX993

DL-Windows (just tap the prox Card/fob device to the unit’s faceplate to enroll)!

AL-DTMII Data Transfer Module:

Module used to transfer program data

from the PC to the lock and receive Audit

Trail from the lock. Can send program

data for up to 96 locks.

For Prox Models, AL-PRE:

Prox Card Reader/Enroller Enables instant,

automatic enrollment of Prox Cards into

Supports all Prox Cards and Prox Keyfobs. Simultaneous card enrollment,

downloading or lock polling – all on just one serial port.

(Replaces AL-PCI2.) 9V Battery operation.

Add Proven Trilogy Convenience,

Programming, Flexibilty

and Audit Trail To Most Maufacturers’

Panic Exit Devices

EXTERIOR DOOR

ORDERING INFORMATION

EXIT TRIM ORDERING INFORMATION

ETPDL- 1/ S/ 26D V99

TYPE:

DL = Digital Only

PDL = Digital with Prox

DOOR THICKNESS:

1 = 13/4” Standard
2 = 2”, Special Order
3 = 21/4”, Special Order
4 = 21/2”, Special Order

HANDLE:

R = Regal

S = Straight (ADA Compliant;

Meets Titles 19 & 24, C.S.F.M.)

IMPORTANT: See separately ordered Cylinder Adapter Kits Pg.3
NOTE: All ETPDL & ETDL Series Models are dependably Weather-Resistant.

Finish:

26D = US26D Satin Chrome

10B = Duronodic

26 = US26 Polished Chrome

3 = US3 Polished Brass
5 = US5 Antique Brass

PANIC EXIT DEVICE BRANDS

V99 = Von Duprin 99
C50 = Corbin ED5000 & Yale

D93 = Dorma 9300

A38 = Arrow 3800

S88 = Sargent 8800

For other Exit Devices call the factory.

INTERIOR DOOR

ALARM LOCK SYSTEMS, Inc. • A Division of the NAPCO Security Group

345 Bayview Avenue • Amityville, NY • 11701 • USA
1-800-ALA-LOCK • 631-789-4871 • Fax: [phone] • www.alarmlock.com

Sweets File# 08710 /ALA Buy Line 3425

Trilogy®is a registered trademark of Alarm Lock. ©Alarm Lock, 2002 Specifications subject to change. Patents Pending
All other brands trademarks are of their respective companies.

ALA169

(Panic Exit Device Not Included)
