NAPCO LIB-P432EX, GEM-DXRP3, GEM-DXK2, LIB-P432EXT, GEM-DXK3 Programming Instructions Manual

PROGRAMMING

R

HARDWIRE

INSTRUCTIONS

WIRELESS

™

LIBRA-P432EX Series

CONTROL PANEL/COMMUNICATOR

Programming the LIBRA LIB-P432EX, LIB-P432EXT, LIB-P432EXT-230 control panels with the

GEM-DXRP2, GEM-DXRP3, GEM-DXK2, GEM-DXK3 and GEM-DXK4RF Series Keypads

DXK4RF-319 Keypad DXK4RF-433 Keypad

GEM-DXK2

Quick Start (for GEM-DXK2):

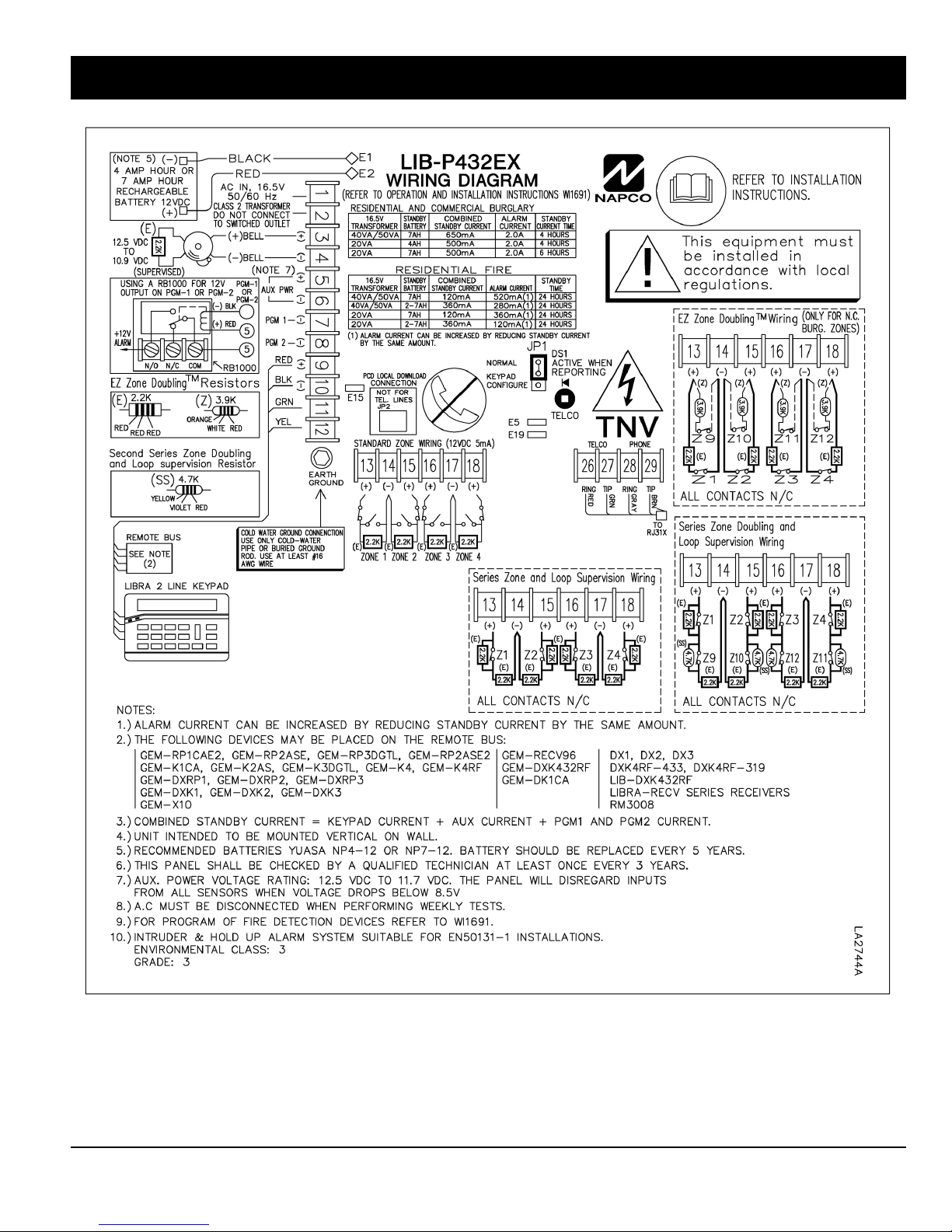

1. Refer to the wiring diagram, connect Siren, Aux. Power, PGM Output, Remote Bus, Earth Ground, Zone and Telephone Wiring. NOTE: See Installation Instructions (WI1691).

2. Connect AC power first and then the battery.

3. Configure the keypad (see page 55).

4. Access the Easy Menu Driven (Dealer Program) Mode:

Press

456789 w

Press NO ("X" or q) until "TURNON PROG Y/N" appears on the keypad.

Dealer Code

Press YES ("r" or p) to enter Dealer Program Mode. See page 5.

32

GEM-DXK3

Quick Start (for GEM-DXK3):

1. Refer to the wiring diagram, connect Siren, Aux. Power, PGM Output, Remote Bus, Earth Ground, Zone and Telephone Wiring. NOTE: See Installation Instructions (WI1691).

2. Connect AC power first and then the battery.

3. Configure the keypad (see page 55).

4. Access the Easy Menu Driven (Dealer Program) Mode:

Press

456789 w

Press NO ("X" or q) until "17" appears on the keypad.

Press YES ("r" or p) to enter Dealer Program Mode. See page 5.

Dealer Code

Publicly traded on NASDAQ Symbol: NSSC

WI1771 9/08

THIS MANUAL INCLUDES FEATURES WHICH ARE ONLY AVAILABLE IN

CONTROL PANEL FIRMWARE VERSION 30K OR LATER.

IMPORTANT NOTE

This manual supports the keypad programming of the LIB-P432EX series control panels with the NAPCO GEMDXRP2, GEM-DXRP3, GEM-DXK2, GEM-DXK3 and GEM-DXK4RF Series Keypads. Compared with the "DXRP"

models, the "DXK Series" models offer simplified functionality with STAY (

p) and AWAY (q) buttons, and a

different icon printed on the ENTER (

u) button.

While the programming instructions in this manual are depicted using the "DXK Series" models, this manual also applies to the "DXRP" models because keypad Program Mode is identical for both types of keypads--only the button icons are different, as follows:

• The v button and the u button operate identically (in Program Mode) for both keypads.

• The "Interior" (p) button and the "STAY" (p) button operate identically (in Program Mode) for both key-

pads. These buttons are also used to answer "YES" or "NEXT" to questions that appear on the keypad display; on occasion, a checkmark "r" or a down arrow "ª" may be used in this manual as well.

• The "Instant" (z) button and the "AWAY" (q) button operate identically (in Program Mode) for both key-

pads. These buttons are also used to answer "NO" or "PRIOR" to questions that appear on the keypad display; on occasion, an "X" symbol or an up arrow "©" may be used as well.

 For consistency, it is recommended that all keypads used in one alarm system either be all type "DXRP" or all

"DXK Series" -- both keypad types should not be used in one alarm system.

The following applies to the LIB-P432EXT and LIB-P432EXT-230 control panels only:

Telephone Connection

The LIB-P432EXT and LIB-P432EXT-230 products under the R&TTE Directive 99/5/EC complies with the CTR21 regulation and may be used on the PUBLIC network with the following restrictions:

• Do NOT use the ROTARY Dialing feature as this is not evaluated in CTR21.

Special Programming

• Pulse dialing is NOT to be used. Programming location 0788 CS SYSTEM REPORT OPTIONS shall have the right digit entry always a 2 (= Touch-Tone Dialing only). If using the option of "Disable Dial Tone Detect" in location 0788 then a 3 second pause must precede the "CS receiver telephone number" by entering a D before the telephone number.

• Note: Address 1424, "Disable Code Required for EZ Bypass", the default panel configuration is "OFF".

WARNING: If using the EZ Driven Program Mode, be aware that all EN501 defaults will be deleted. Refer to page 56 of the Installation Instructions (WI1691) for setting the EN50131-1 features.

For direct line to Technical Service, call toll free: (800) 645-9440

NAPCO Security Systems, Inc.

333 Bayview Avenue, Amityville, New York 11701

For Sales and Repairs, call toll free: (800) 645-9445

Internet: http://www.napcosecurity.com

TABLE OF CONTENTS

Page 3

SYSTEM PROGRAMMING OPTIONS .....................................................4

Introduction ......................................................................................... 4

Downloading From a Computer .......................................................... 4

EASY MENU DRIVEN PROGRAM MODE ............................................... 5

Dealer Program - Preliminary Information .......................................... 5

Accessing Dealer Program Mode .......................................................5

Customizing a Default Program .......................................................... 5

GEM-DXRP2 / GEM-DXK2 Keypad Easy Program Menu ...........6

Total Number of Zones in Area 1 ............................................ 6

Panel Zone Doubling ............................................................... 6

Fire Zones in Area 1 ................................................................ 6

2-Wire Fire Zones in Area 1 .................................................... 6

Local or Central Station Reporting System ............................. 6

Exit/Entry Zones in Area 1 .......................................................6

Interior (Stay) Bypass Zones in Area 1 ...................................7

24 Hour Zones in Area 1 ........................................................ 7

Chime Zones in Area 1 ...........................................................7

Chime 2 Zones in Area 1 ........................................................7

Exit/Entry2 Zones in Area 1 ....................................................7

50 mS Loop Response Zones ................................................ 7

Aux Output Activated on Alarm Zones ................................... 7

Sensor Watch Zones .............................................................. 7

Keypad Sounder On Alarm Zones .........................................7

Auto Bypass Re-entry Zones ..................................................8

Enable No EOLR Zones .......................................................... 8

Enable Telco Line Fault Test? ................................................ 8

Enable Burg Output Chirp on KeyFob? ................................... 8

Enable CP1? ........................................................................... 8

Number of Keypads in Area 1 ................................................. 8

Central Station Receiver 1 Tel. Number ..................................8

Central Station Receiver 1 Account Number ...........................9

Central Station Receiver 1 Format .......................................... 9

Enter User Codes .................................................................... 9

RF Transmitter Points ...........................................................10

Key Fob Transmitters ............................................................ 11

Dealer Code .......................................................................... 11

Clear Program ....................................................................... 12

Cold Start ..............................................................................12

GEM-DXRP3 / GEM-DXK3 and GEM-DXK4RF KEYPAD Easy

Program Menu ...........................................................................13

Total Number of Zones ..........................................................13

Panel Zone Doubling ............................................................ 13

Fire Zones ............................................................................. 13

2-Wire Fire Zones ..................................................................13

Local or Central Station Reporting System ........................... 13

Exit/Entry Zones .................................................................... 13

Interior Zones ........................................................................ 14

24 Hour Zones in Area 1 ...................................................... 14

Chime Zones in Area 1 .........................................................14

Chime 2 Zones in Area 1 ......................................................14

Exit/Entry2 Zones in Area 1 ..................................................14

50 mS Loop Response Zones .............................................. 14

Aux Output Activated on Alarm Zones ................................. 14

Sensor Watch Zones ............................................................ 15

Keypad Sounder On Alarm Zones .......................................15

Auto Bypass Re-entry Zones ...............................................15

Enable No EOLR Zones ....................................................... 15

Enable Telco Line Fault Test? .............................................. 15

Enable Burg Output Chirp on KeyFob? ................................. 15

Enable CP-01? ...................................................................... 15

Number of Keypads ...............................................................16

Central Station Receiver 1 Tel. Number ............................... 16

Central Station Receiver 1 Account Number ........................ 16

Central Station Receiver 1 Format ....................................... 16

Enter User Codes ................................................................. 16

RF Transmitter Points ........................................................... 17

Key Fob Transmitters ........................................................... 18

Dealer Code .......................................................................... 19

Clear Program ...................................................................... 19

DIRECT ADDRESS PROGRAM MODE ................................................. 20

Keypad Programming Overview ....................................................... 20

Accessing Direct Address Program Mode ........................................ 20

Keypad Address Program Mode Display .......................................... 21

Direct Address Program Mode Keypad Commands ......................... 21

Direct Address Programming Example ............................................ 22

Conventions Used in this Manual ..................................................... 23

SYSTEM DELAYS & TIMEOUTS ..................................................... 24

SYSTEM OUTPUT TIMEOUTS ....................................................... 25

DOWNLOAD/CALLBACK OPTIONS .............................................. 25

PAGER FORMAT OPTIONS ............................................................ 25

SYSTEM OPTIONS ......................................................................... 26

GLOBAL AMBUSH CODE ............................................................... 26

SYSTEM OPTIONS .......................................................................... 27

SYSTEM OPTIONS .......................................................................... 28

CS RECEIVER OPTIONS ................................................................ 30

CS SUBSCRIBER ID OPTIONS ..................................................... 31

CS SYSTEM REPORTING OPTIONS ............................................. 32

CS AREA & SYSTEM REPORTING OPTIONS ............................... 32

ZONE ANDING TIME WINDOW ..................................................... 33

KEYPAD UNBLANKING TIME WINDOW ........................................ 33

CLOCK ADJUSTMENTS .................................................................. 33

CS ZONE REPORTING OPTIONS .................................................. 34

PULSE EVENT CODE .................................................................... 34

CS USER REPORTING OPTIONS .................................................. 35

AREA BELL CONTROL OPTIONS .................................................. 38

KEYPAD OPTIONS .......................................................................... 42

AREA ARMING OPTIONS ............................................................... 44

ZONE INTEGRATION TIME ............................................................ 44

ZONE OPTIONS - ZONES 1 TO 16 ................................................. 45

ZONE OPTIONS - ZONES 17 TO 32 ............................................... 46

EXTERNAL RELAY CONTROL ...................................................... 49

RF RECEIVER & SUPERVISORY TIMER OPTIONS ..................... 52

CLEAR PROGRAM OPTIONS ......................................................... 53

USER PROGRAM MODE ....................................................................... 53

Preliminary Information ..................................................................... 53

Accessing User Program Mode ........................................................ 53

User Codes ....................................................................................... 54

KEYPAD CONFIGURATION MODE ...................................................... 55

Keypad Installation ........................................................................... 55

Configuring the Keypads .................................................................. 55

ALPHABETICAL INDEX ........................................................................ 56

ADDRESS NUMBER LOCATION INDEX .............................................. 61

WIRING DIAGRAMS ......................................................................... 64-66

Refer to accompanying LIB-P432EX Installation Instructions (WI1691) for installation information.

NOTE: THESE PROGRAMMING INSTRUCTIONS ARE INTENDED AND WRITTEN FOR THE PROFESSIONAL INSTALLER HAVING SUITABLE EXPERIENCE AND INSTALLATION EQUIPMENT. THE UNIT IS DESIGNED TO BE PROGRAMMED USING AN IBM-COMPATIBLE COMPUTER WITH NAPCO PCD-WINDOWS SOFTWARE. AFTER PROGRAMMING, BE SURE TO RUN THE PCD-WINDOWS ERROR-CHECK UTILITY TO GUARD AGAINST PROGRAMMING CONFLICTS FOR THE TYPE OF SERVICE SELECTED FOR THE INSTALLATION.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 4

SYSTEM PROGRAMMING OPTIONS

INTRODUCTION

The LIB-P432EX control panel may be programmed by various means, each of which will be covered in detail in the sections that follow. Keypad displays shown are for a GEM-DXK2, GEM-DXRP2, GEM-DXK3, GEM-DXRP3 and GEMDXK4RF series keypads. With the GEM-DXK2 and GEM-DXRP2 keypads, because of their reduced display capabilities, messages are abbreviated and will scroll through two or more screens. Zone descriptions cannot be programmed using the GEM-DXK2 or GEM-DXRP2 keypads, therefore a GEM-DXRP1 / GEM-DXK1 must be used (see WI1690).

 Downloading From a Computer. This is the preferred method of programming. The panel may be downloaded

from (or uploaded to) an IBM PC-compatible computer, either locally or remotely. Napco's PCD-Windows Quickloader software features context-sensitive help screens as well as an error-checking utility that prevents programming of incompatible or conflicting data to ensure proper panel operation.

 Easy Menu-Driven Program (Dealer Program) Mode - Keypad Programming. The Easy Menu-Driven

Program Mode allows keypad programming of number of zones in area 1, panel zone doubling, number of fire zones (both 4-wire and 2-wire), local or Central Station reporting, number of exit/entry zones, number of interior zones, number of 24 hour zones, number of chime zones, Chime 2 zones, Exit/Entry2 zones, 50ms loop response zones, aux output activated on alarm zones, sensor watch zones, keypad sounder on alarm zones, auto bypass re-entry zones, EOLR zones, number of keypads in area 1, Central Station telephone number, Central Station account number, Central Station receiver format, User Codes, RF transmitter points, RF keyfob transmitters, zone descriptions, dealer code, Telco line fault test, Burg output chirp on keyfob, enable CP-01, and clear dealer program/cold start. For new panels, a custom default program may be created at the keypad. A menu-driven utility prompts the installer to configure the system. Further detailed customization is accomplished in the Direct Address Program Mode.

 Direct Address (Dealer Program) Program Mode - Keypad Programming. The Direct Address Program Mode

is an extension of the Dealer Program Mode wherein data is entered at the keypad by specific location. This mode is accessed from the Easy Menu Driven Program Mode by pressing the

 User Program Mode - Keypad programming. The User Program Mode is intended for authorized users and is

limited to keypad programming of User Codes.

DOWNLOADING FROM A COMPUTER

The control-panel program may be downloaded from the computer by any of the following methods.

Local Downloading

(Note: This procedure should be used after installation, after peripheral devices are connected). For direct high-speed data transfer to the control panel from a desktop computer, connect the download jack (JP2) on the panel to the LOCAL jack (J3) on the Napco PCI2000/3000 computer interface using the supplied 6conductor cable. (Refer to PCI2000/3000 Installation Instructions WI443 for wiring diagram and procedures). Similarly, a high-speed local download may be made in the field using a notebook or laptop computer. Connect JP2 on the control panel to a Napco PCI-MINI computer interface using the 6-conductor cable supplied. (Refer to PCI-MINI Installation Instructions WI767).

Remote Downloading

(Also see PCI2000/3000 Installation Instructions WI443).

Function Mode.

Start by establishing a Telco connection between the computer operator and the installer. During this procedure, voice contact will be lost, therefore both the installer and the computer operator should be familiar with the operation. When a steady high-pitched tone is heard at the site phone, access the “ACTIVATE DOWNLOAD” Function

(see Keypad Programming Modes), then press the

go dead. Hang up the phone and wait for a call from the central station confirming a successful download.

Callback Method.

An installed, unattended panel may be programmed or reprogrammed remotely using the Callback-Method Download feature of the PCD Windows software. Remote downloading requires a modem compatible with the PCI2000/3000. Upon answering the call from the computer, the panel will verify the Download Security Code and, if confirmed, will establish a connection. If a Callback Number is programmed into the panel, the panel will automatically disconnect and call the computer at this number before establishing a connection.

u button or the YES ("r" or p) button; the site phone will

y button at any time.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

EASY MENU DRIVEN PROGRAM MODE

DEALER PROGRAM - PRELIMINARY INFORMATION



The Default Dealer Code is 456789. Use this code to enter the Dealer Program Mode to

program a custom Dealer Code, which replaces the Default Dealer Code. If you clear your Dealer Code, use the Default Dealer Code once again to enter programming.

 After entering codes or data, press the save u button. Data will not be stored into memory unless u is pressed.

 If the keypad is in the Program Mode and no activity is detected for longer than 4 minutes, a steady tone will sound.  Silence the sounder by the G button to continue, or by pressing the y button to exit.

 A panel that has been COLD STARTED (Address Location 2286) performs identically to a new panel.  When programming a Multiple Area System, Direct Address Programming Mode must be used to complete the program.

ACCESSING DEALER PROGRAM MODE

Page 5

1. Press 456789 w

2. Press PRIOR ("X" or q) until "TURNON PROG Y/N" (GEM-DXRP2 / GEM-

DXK2) or "17" (GEM-DXRP3 / GEM-DXK3 or GEM-DXK4RF) appears on the LCD screen.

3. Press YES ("r" or p) to Enter Dealer Program Mode.

4. Press y y to exit Dealer Program Mode when finished.

Dealer Code (Default = 456789)

CUSTOMIZING A DEFAULT PROGRAM

For new panels, you can design a default program that will best suit your application. Using this procedure, you will configure the panel for:

• Number of Zones in Area 1

• Panel Zone Doubling

• Fire Zones in Area 1

• 2-Wire Fire Zones in Area 1

• Local or Central Station Reporting System

• Exit/Entry Zones in Area 1

• Interior Zones in Area 1

• 24 Hour Zones in Area 1

• Chime Zones in Area 1

• Chime 2 Zones in Area 1

• Exit/Entry2 Zones in Area 1

• 50mS Loop Response Zones

• Aux Output Activated on Alarm Zones

• Sensor Watch Zones

• Keypad Sounder on Alarm Zones

• Auto Bypass re-entry Zones

• Enable no EOLR Zones

• Enable Telco Line Fault Test

• Enable Burg Output Chirp on Keyfob

• Enable CP-01

• Number of Keypads in Area 1

• Central Station Receiver 1 Tel. Number

• Central Station Receiver 1 Account Number

• Central Station Receiver 1 Format

• Enter User Codes

• RF Transmitter Points

• Quick Enroll Method

• Key Fob Transmitters

• Enter Zone Descriptions

• Dealer Code

• Test Timer

This procedure will automatically set up system keypads, wireless transmitters, etc. After your basic default program has been loaded, you may alter it as necessary in the Direct Address Program Mode.

NEW PANELS: The custom default program may be created for new panels only. Once the panel has been programmed by any means, the number zones will be suppressed and cannot be changed. Should it be necessary to create a new custom default program, (a) from the Dealer Program Mode, press the

2285 (Clear Program); (c) press the

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

u button and start over.

y button to enter the Direct Address Program Mode; (b) access Location

Page 6

GEM-DXRP2 / GEM-DXK2 Keypad Easy Program Menu

GEMINI

SYSTEM ARMED

ENT A1

01/01/97 12:00AM

S

U T A

T S

D

E M R

A

1243

A

D

56

B

7890

C

COMPUTERIZED SECURITY SYSTEM

(Direct Entry)

(Press YES "r" or NO "X")

(Direct Entry)

(Press YES "r" or NO "X")

(Direct Entry)

Enter the Dealer Security Code (default = 456789) for a new panel or enter your custom Dealer Program Code if

ENT A1

programmed. Press the PRIOR/NO button repeatedly until “TURNON/PROG” is displayed. NOTE: If you pass “TURNON/

NEXT/YES

E

PROG”, you can scroll back by pressing

PRIOR/NO

F

AREA

G

each of the following steps, press

R

x. Press NEXT ("r" or p) to enter the Dealer Program Mode. In

w to jump to the next screen, NEXT ("r" or p) to go forwards, PRIOR

("X" or q) to go backwards, u to save and y twice to exit at any time.

Ent A1

Total Number of Zones in Area 1 (Appears for New Panel Only)

Directly enter the total number of zones to be programmed for Area 1. Valid entries are from 01 to 32. Directly enter the total number of zones, including leading zeros. Use number buttons

#ZnXX

9. NOTE: Press 0 for a zero. The system is based on groups of 4 zones each (after the first 8

zones), and will automatically round up to the next group of 4. For example, if you enter 18, it will

automatically convert this to 20 zones. Press u to save. Press NEXT ("r" or p) to proceed.

Zn Dbl

Panel Zone Doubling (Appears for New Panel Only)

If the total number of zones in Area 1 entered was 16 or greater, press NEXT ("r" or

double the capacity of the control panel's hard wired zones from 8 to 16. The 16 zones will remain EOL

Enabl?

terminated zones, but will be designated for Normally Closed devices only. The terminal for Zone 1 will now support Zones 1 and 9 with the use of the supplied EZ Zone Doubling

Y/N

Ent Fr

Zn#XX

(Refer to Wiring Diagram and Installation Instructions). If Panel Zone doubling is not desired, press PRIOR ("X" or q) .

Fire Zones in Area 1 (Appears for New Panel Only)

Enter the zone number of any zones which are to be used as Fire Zones (both 2-wire, 4-wire or wireless).

Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros, and press to save, and then repeat for any additional zone(s). Press NEXT ("r" or

NOTE: If you are programming a multiple Area system, enter all the zone numbers required for Areas 1 through 4. The Direct Address Program Mode can then be used to remove zones from Area 1 and place them in the other areas. See Zone Options.

Report

all Zn

Local or Central Station Reporting System (Appears for New Panel Only)

Press NEXT ("r" or

p) for all zones to report; press PRIOR ("X" or q) for no zones to report

(LOCAL SYSTEM).

Y/N

Exit/Entry Zones in Area 1 (Appears for New Panel Only)

EntEE1

Zn#XX

Directly enter the zone number of any zones which are to be used as Exit/Entry zones. Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros. Use number buttons

through additional zone(s). Press NEXT ("r" or

9. NOTE: Press the 0 button for a zero. Press u to save and then repeat for any

p) to proceed.

NOTE: Chime will automatically be programmed for all E/E zones. If you are programming a multiple area system, enter all exit/entry zone numbers required for Areas 1-4. The Direct Address Program Mode can then be used to remove zone from Area 1 and place them in Areas 2, 3 or 4. See Zone Options.

1 through

p) to effectively

TM

resistors, E & Z supplied.

p) to proceed.

u

1

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

EntFol

Zn#XX

(Direct Entry)

Ent24H

Zn#XX

(Direct Entry)

EntCZ1

Zn#XX

(Direct Entry)

EntCZ2

Zn#XX

(Direct Entry)

EntEE2

Zn#XX

(Direct Entry)

Ent50m

Zn#XX

(Direct Entry)

EntAux

Zn#XX

(Direct Entry)

Ent SW

Zn#XX

(Direct Entry)

EntKPS

Zn#XX

(Direct Entry)

Page 7

Interior (Stay) Bypass Zones in Area 1 (Appears for New Panel Only)

Directly enter the zone number of any zones which are to be used as Interior Follower Zones. Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros. Use number buttons

9. NOTE: Press 0 for a zero. Press u to save and then repeat for any additional zone(s). Press

NEXT ("r" or p) to proceed. NOTE: All Interior Follower zones will also be automatically programmed as

“Exit/Entry Follower” and "Power Up Delay" zones. If you are programming a multiple Area system, enter the total number of zones required for Areas 1-4. The Direct Address Program Mode can then be used to remove zones from Area 1 and place them in Areas 2, 3 or 4. See Zone Options.

24 Hour Zones in Area 1 (New Program Only)

1 through

• Enter the zone numbers of zones to be used as 24 Hour zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and repeat for any additional zone(s); press NEXT ("r" or p) to proceed.

Chime Zones in Area 1 (New Program Only)

• Enter the zone numbers which are to be used as Chime Zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), press NEXT ("r" or p) to proceed.

NOTE: A chime time of 2 seconds will be automatically programmed.

Chime 2 Zones in Area 1 (New Program Only)

• Enter the zone numbers which are to be used as Chime 2 Zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), Press NEXT ("r" or p) to proceed.

NOTE: A chime time of 2 seconds will be automatically programmed. Chime 2 zones give a distinct pulsating tone when zone is faulted.

Exit/Entry2 Zones in Area 1 (New Program Only)

• Enter the zone numbers of zones to be used as Exit/Entry 2 zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and repeat for any additional zone(s); press NEXT ("r" or p) to proceed.

NOTE: An Exit/Entry 2 Entry Time of 30 sec. will automatically be programmed.

50 mS Loop Response Zones (New Program Only)

• Enter the zone numbers of zones to be have a 50mS loop response. Note: Time can also be adjusted

via address 2280.

• Valid entries are from 01 to 08. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), Press NEXT ("r" or p) to proceed.

AUX Output Activated on Alarm Zones (New Program Only)

• Enter the zone numbers of zones to activate the PGM2 output upon alarm.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), Press NEXT ("r" or p) to proceed.

NOTE: An Aux Output Timeout of 15 Minutes will automatically be programmed.

Sensor Watch Zones (New Program Only)

• Enter the zone numbers of zones to be Sensor Watch zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), Press NEXT ("r" or p) to proceed.

NOTE: A Sensor Watch Time of 24 hours will automatically be programmed.

Keypad Sounder On Alarm Zones (New Program Only)

• Enter the zone numbers of all zones to activate the Keypad Sounder upon alarm.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), press NEXT ("r" or p) to proceed.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 8

EntAUB

Zn#XX

(Direct Entry)

EnNEOL

Y/N

(Press YES "r" or NO "X")

Telco

Ln Fit

Y/N

(Press YES "r" or NO "X")

KF Out

Chirp

Y/N

(Press YES "r" or NO "X")

Enable

CP01?

Y/N

(Press YES "r" or NO "X")

Ent A1

#KP 01

(Direct Entry)

Phone#

______

(Direct Entry)

Auto Bypass Re-entry Zones (New Program Only)

• Enter the zone numbers of zones to be Auto Bypass Re-entry zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), press NEXT ("r" or p) to proceed.

•

Auto Bypass Re-entry Zones allow the system to be armed with the zone faulted but come back into the system (armed) when the zone is subsequently secured.

Enable No EOLR Zones (New Program Only)

• Press NEXT ("r" or p) to program all zones except 24 Hr & fire zones for No End Of Line Resis-

tor. Press

Enable Telco Line Fault Test? (New Program Only)

PRIOR ("X" or q) to continue.

• Press NEXT ("r" or p) to enable Telco Line Fault Test.

• Press PRIOR ("X" or q) to continue.

NOTE: If enabled, a Telco Line Fault Test Delay of 60 seconds will automatically be programmed.

Enable Burg Output Chirp on KeyFob? (New Program Only)

• Press NEXT ("r" or p) to enable Burg Output Chirp on KeyFob Arm / Disarm.

• Press PRIOR ("X" or q) to continue.

NOTE: The Burg Output will chirp once on Keyfob Arm and twice on Keyfob Disarm.

Enable SIA CP01? (New Program Only)

• Press NEXT ("r" or p) to enable.

• Press PRIOR ("X" or q) to continue.

The SIA CP-01 Features are designed to reduce the incidence of false alarms. See WI1691, "Installer Programming Quick Reference Chart SIA False Alarm Reduction" and "LIB-P432EX Factory Default Description" for more information. NOTE: Do not enable unless reporting, otherwise system trouble Fail to Communi- cate may occur.

Number of Keypads in Area 1

Directly enter the total number of Keypads to be installed in Area 1. Valid entries are from 01 to 07. Directly enter the number of keypads, including leading zeros. Use number buttons

Press

0 for a zero. Press u to save. Press NEXT ("r" or p) to proceed. NOTE: Area 2, 3 or 4

keypads can only be assigned in Direct Address Programming. See Keypad Options.

Central Station Receiver 1 Telephone Number

Using number buttons, enter telephone number of up to 16 digits including prefix letters, if necessary, for receiver 1. Use number buttons

G1 through G5 for letters B–F, respectively. NOTE: Pre-Dial Delay = “D”; Dial-Tone

and

Detection = “E”. Pressing

1 through 9 for digits 1–9; press the G0 buttons for a zero

0 will produce a blank space (•). Press u to save. Press NEXT ("r" or p)

to proceed. NOTE: Central Station Receiver 2 and 3 Telephone Numbers can only be entered in Direct Address Programming. See CS Receiver Options.

1 through 9. NOTE:

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 9

Acc #

(____)

(Direct Entry)

RecFmt

( )

(Direct Entry)

User01

______

(Direct Entry)

OPT__

(Direct Entry)

ACC __

(Direct Entry)

Central Station Receiver 1 Account Number

Enter an account number of up to four digits. Use number buttons 1 through 9 for digits 1–9.

NOTE: Press the G0 buttons for a zero and press 0 for a blank space (•). Press u to save. Press YES ("r" or

p) to proceed.

NOTE: Central Station Receiver 2-4 Account Numbers can only be entered in Direct Address Programming. See CS Reporting Options.

Central Station Receiver 1 Format

From the table below, enter the central station's receiver format. Use number buttons

9. NOTE: Press the G0 buttons for a zero and press 0 for a blank space (•). Press

G1 through G4 for letters B–E, respectively. Press u to save. Press YES ("r" or

p) to proceed.

1 through

NOTE: Central Station Receiver 2 and 3 Formats can only be entered in Direct Address Programming. See CS Receiver Options.

DATA ENTRY CS RECEIVER 1 FORMAT

•(blank) Ademco Slow, Silent Knight Slow

2 Radionics Fast

3 Silent Knight Fast

4 Radionics, DCI, Franklin Slow

Enter User Codes (Press the (

w) button to set cursor.)

DATA ENTRY CS RECEIVER 1 FORMAT

5 Universal High Speed

B SIA

C Ademco Point ID

E Pager

For default program, enter up to 64 User Codes, with Area 1-4 Options. Press w once to set the cursor to the User Code. Use the number buttons 1 through 9 to enter a code from 3 to 6 digits. Enter up to 6 digits (4 digits is recommended) in the first six boxes from

left to right for each user code. Valid entries are: 0-9. NOTE: Press 0 for a zero and press

G0 for a blank space (•). No blank spaces in between; leave blank (•) any trailing boxes. If

“Enable Global Ambush Code” (Address 0720) is enabled and “Global Ambush Code” (Address 1054) is not left blank(•), do not program the first two digits of ANY User Code the same as the “Global Ambush Code”. Note: If the programmed code was less than 6 digits, press w to set the cursor to the Area 1

Options Level (OPT). Refer to the table on the next page for the available area options. Note: Duplicate User Codes are not allowed; therefore a duplicate Code entered in the LCD Window will erase when

u is pressed.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 10

USER CODE

(UP TO 6 DIGITS)

AREA OPTIONS EXPLANATION

Disabled User Code not active in this area.

Arm/Di sarm Allows User Code to arm/disarm this area.

Arm Only Prevents User Code from disarming this area.

Service

Access

Ambush

* User Program

Bypass Enable Security Bypass--Bypass is enabled only with a security code.

USER OPTIONS

AREA 1

AREA 2

OPTIONS

AREA 3

OPTIONS

A Service Code has restricted arm/disarm rights; if an area is armed with a Service Code, a "MONITOR ON " appears on the GEM-DXRP2 keypad and the area can be disarmed with any valid User Code, including a Service Code. If the area is armed with OTHER than a Service Code, it CANNOT be disarmed with a Service Code. This is typically used to allow tradesmen access to premises under control of the owner.

This is normally used to activate a door strike while an area is disarmed. Also program "Access Control on PGM2 Output" (Address 0719) and "PGM2 Output Access Control Timeout" (Address 0711).

There are two types of Ambush Codes: (1) A 2-digit code (prefix) that is entered immediately prior to (and as part of) the regular User Code and (2) A separate and unique User Code. Disarming with an Ambush Code will cause a silent report to be sent to a central station. Thus, should a user be forced to disarm, he can silently signal an emergency while appearing to be merely disarming the system.

User Program Option is enabled for Keypad 1 only, wherever it is connected (Area 1 or Area 2). To enable User Program Option for any user add 8 to the data entry for Area 1 Option (see example). Then, User Programming can be performed onl y at Keypad 1 by a user code with user program enabled.

AREA 4

OPTIONS

USER AREA OPTIONS

DATA ENTRIES

L R

blank(•) blank(•) Disabled

blank(•) 1 Arm/Disarm

blank(•) 2 Arm Only

blank(•) 3 Service

blank(•) 4 Access

blank(•) 5 Ambush

blank(•) Add 8 * User Program

4 blank(•) Bypass Enable

OPTION

ENABLED

AREA OPTIONS: Area 1-4 Options may be programmed for all 64 users.

 Select the desired Area Options (Area 1-4)

from the table shown and enter in the remaining four boxes for each user code.

Example: Program a code of “2222” for user 02, with area 1 options of “Arm/Disarm” and “User Program”. Enter “2222” for a user code, “•(blank) 9” for area 1 options and “•(blank) •(blank)” for area 2 options.

 For Area 2-4 Options (ACC), press w

again. Refer to the table above for available options. NOTE: Press

0 for blank space (•).

 Press u to save. To proceed to the next User

Code, press

Number and change it using the number buttons.

Program a new User Code as previously described. Remember to record your user codes in the Easy Menu Programming Worksheet at the back of this manual.

Related User Options: “Enable Global Ambush Code” (Address 1422), “Global Ambush Code” (Address

2045) & “Enable Manager's Mode” (Address 1421).

w to set the cursor to the User

CHANGING OR CANCELING A CODE: To change any code, merely program over the existing code as described above and press

u to save. Similarly, to cancel a code, blank out each number of the code press u to save.

Zn# 01

RF Transmitter Points (Press the ( (For wireless systems only. Also see Quick Method, which follows)

000000

For each transmitter (key fob transmitters also), enter the zone number (01–32) to which the transmitter will be mapped, the 6-digit RF ID #:1-digit checksum number printed on the transmitter and box, the point number (1–2); enter “9” for unsupervised (all points). NOTE: When programming the ID Code

(Direct Entry)

:0 Pt

number, “0” through ”9” =

G2; “D” = G3; “E” = G4 and “F” = G5. Press u to save. Press

NEXT ("r" or p) button to proceed.

(Direct Entry)

Quick Enroll Method.

If a receiver is already installed in the panel, Napco transmitter wireless points can be programmed automatically ("enrolled") using the following procedure. NOTE: The transmitter point will be enrolled only if the signal strength is 3 or greater.

1. Enter the zone number to which the transmitter point will be

mapped.

2. Press the

x button to enter the Enroll Mode. The red and

green LEDs on the keypad will flash.

3. Open the loop of the point that is to be programmed (GEM-

TRANS2 only).

4. Install the transmitter battery. The keypad will beep to indicate

that the point has been successfully enrolled. Multi-point transmitters can be mapped to successive zones simultaneously (see example).

w) button to set cursor.)

0 through 9; “A” = G0; “B” = G1; “C” =

Example. A 2-point transmitter has the RF ID number 287613:1. Map point 1 to Zone 6 and point 2 to Zone 9.

1. Enter the Enroll mode as described above.

2. Enter Zone "06".

3. Open point-1 loop.

4. Install the battery. The keypad will beep once to indicate that one point has been programmed. (Transmitter 287613:1, point 1 will be mapped to Zone 6).

5. Enter Zone "09".

6. Close point-1 loop and open point-2 loop.

7. Remove the transmitter battery, then re-install it. The keypad will beep once to indicate that one point has been programmed. (Transmitter 287613:1, point 2 is mapped to Zone 9).

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 11

KEY FOB ZONE ASSIGNMENT: Key fobs can also be assigned to zones to allow multiple wireless panic buttons on one alarm system, each reporting to a central station, a pager or having a description on the keypad that describes the person holding the key fob, the location where the person holding the key fob is stationed, or the special purpose of the key fob button being depressed.

See Key Fob Transmitters as Zone Input Devices .

KFob01

Area

Key Fob Transmitters as Arm/Disarm & Control Devices

w to set cursor).

(Press

Keyfobs can be programmed as "Arm/Disarm" devices using their On/Off buttons (refer to WI752). For each Key Fob Transmitter, enter:

 The Key Fob Transmitter number (01–08). Press 01 through 08 for 01-08.

(Direct Entry)

000000

(Direct Entry)

:0 0 0

(Direct Entry)

9, respectively; "A" = G0; "B" = G1; "C" = G2 and "D" = G3.

If the Key Fob is converted for Two Button "Emergency Use" (by cutting an internal jumper), both top

or bottom buttons must be depressed to activate an alarm. In this case, the Aux-1 and Aux-2

cannot be programmed. Press

Key Fob Transmitters as Zone Input Devices

(refer to display as shown above: press the PRIOR/NO button to go backwards).

Each of the 4 key fob buttons can be assigned to a zone. For example, On button = point 1; Off button = point 2; A1 = point 3; A2 = point 4. Up to 64 key fobs (using 1 button) or 32 key fobs (using 2 buttons) or 16 key fobs (using all 4 buttons) or any combination up to a maximum of 64 controlled zones can be assigned, providing multiple wireless panic buttons on a system, each reporting to a Central Station or a pager and/or annunciating on a keypad the key fob zone number with description/location. To assign a key fob to a zone: program the keyfob as you would a transmitter, entering the keyfob's ID code, check sum and point number at the appropriate zone. The "Quick Method" is not allowed. The zone may be hardwired to an electrical sensor as well as assigned to a key fob (either one will activate the zone alarm output). NOTE: If assigning a key fob to a zone, the "ON/OFF" buttons on the key fob will no longer arm/disarm the system. The key fob is converted to a "panic only" device.

ZONE DESCRIPTIONS: GEM-DXRP2 cannot be used to enter Zone Descriptions. To enter Zone Descriptions, you must use the

GEM-DXRP1 Keypad / GEM-DXK1 Keypad (See WI1690) or the Napco PCD-Windows Quickloader Software.

 Area number to which transmitter is assigned (0 to disable keyfob, 1 - 4). Press 0, 1 and

2 for 0, 1 and 2, respectively.

 The 6-digit RF ID # printed on the transmitter (enter all numbers and/or letters, including leading "0"s,

if any): "0" through "9" = "D" = G3; "E" = G4 and "F" = G5.

 1-digit checksum number printed on the transmitter.  Aux 1 Option (see key fob aux 1 & aux 2 options).  Aux 2 Option (see key fob aux 1 & aux 2 options).

For Aux 1/Aux 2 Options: "0", "1", "2" and "9" =

u to save. Press NEXT ("r" or p) to proceed.

0 through 9; "A" = G0; "B" = G1; "C" = G2;

0, 1, 2 and

DATA

ENTRY

0 None

1 Relay Group 1 Toggle

2 Relay Group 2 Toggle

9 Keypad Panic

A Keypad Aux.

B Instant

C PGM2 Ouput Toggle

D Access on PGM2 Output

E Arm Stay

F Interior Button

AUX 1/AUX 2

OPTIONS

D Code

(Direct Entry)

456789

(Direct Entry)

Dealer Code

Directly enter the Dealer Code (default = 456789), including leading zeros. Use the

buttons. NOTE: Press 0 for a zero. Press u to save. Re-enter the Dealer Code to verify the

previous code. Press

u to save. Press NEXT ("r" or p) to proceed.

1 through 9

RE-ENT

(Direct Entry)

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 12

EXIT DEALER PROGRAM MODE: This completes the custom default program. Press the y button to enter the Direct Address Program Mode for further programming or press operation.

CLEAR PROGRAM: Should it be necessary to create a new custom default program, (a) from the Dealer Program Mode, press

y to enter the Address Program Mode; (b) access Location 2285 (Clear Program) or 2286 (Cold Start); (c) press u and then

(d) press keypad.

y to exit the Dealer Program Mode. A “SYSTEM TROUBLE/E09-00 SERVICE” will occur. Press y to silence the

y once again to end all programming and resume normal keypad

2285 XX

(Direct Entry)

2286 XX

(Direct Entry)

Clear Dealer Program (Erases Dealer Program)

This erases the dealer program. Use this feature to start a customized default program. Program Data and System Status Memory is erased where Scheduled Data and Zone Descriptions are maintained.

Access address 2285, then press the

Driven Program Mode to program system again.

Cold Start (Erases Entire Program)

This erases the entire program including Dealer Program by erasing Program Data, Zone Description Data and System Status Data (similar to a new panel).

Access address 2286, then press the

(schedules) can only be programmed again with the Downloading Software.

u button. Data entry is not allowed. NOTE: Enter Easy Menu

u button. Data entry is not allowed. NOTE: Some features

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 13

GEM-DXRP3 / GEM-DXK3 and GEM-DXK4RF Keypad Easy Program Menu

Enter the Default Dealer Program Code ("456789") for a new panel or enter your custom Dealer Program Code if programmed. Press

w, followed by PRIOR ("X" or q) repeatedly until "17" is displayed (you can scroll back by pressing x). Press NEXT ("r"

or p) to enter Dealer Program Mode. For the GEM-DXRP3 / GEM-DXK3 and GEM-DXK4RF, questions are in the form of a 2-

digit number flashing in the display. Press through each segment, and press NEXT ("r" or p) to go to the next question. To review your Easy Program Mode responses

(before pressing

u to save), press w until the 2-digit question number flashes in the display again. If the data is correct, press u

to save. If the data is incorrect, press Program Mode responses after the initial programming of the control, except for questions marked "For New Panel Only". These ques-

tions set up the basic structure of the panel program ("Number of Zones in an Area", etc.) and cannot be viewed or altered once set. To exit the Dealer Program Mode, press RESET (y) twice to resume normal keypad operation. To return the panel to the factory

default, enter the Direct Address Program Mode, go to location 2286 and press

w to set the cursor into the next field to answer the question, press w again to scroll

w to set the cursor into the next field and again enter your data. Note: Review your Easy

u.

Flashing

01

INTERIOR

H

BYPASS

INTERIOR

(Direct Entry)

03

INTERIOR

BYPASS

(Press YES "r" or NO "X")

04

INTERIOR

H

BYPASS

INTERIOR

(Direct Entry)

06

INTER IOR

BYPASS

(Press YES "r" or NO "X")

07

INTERIOR

H

BYPASS

INTERIOR

(Direct Entry)

FIRE/TBL SYS TBL

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL CHIME

FIRE/TBL SYS TBL

BYPASS

FIRE/TBL SYS TBL

FIRE/TBL SYS TBL CHIME

FIRE/TBL SYS TBL

BYPASS

Total Number of Zones (Appears for New Panel Only)

Directly enter the total number of zones to be programmed. Valid entries are from 01 to 32.

CHIME

Directly enter the total number of zones, including leading zeros. Use number buttons through 9. NOTE: Press the 0 button for a zero. The system is based on groups of 4 zones each (after the first 8 zones), and will automatically round up to the next group of 4. For

example, if you enter 18, it will automatically convert this to 20 zones. Press u to save. Press NEXT ("r" or

p) to proceed.

Panel Zone Doubling (New Program Only)

• To double the number of hardwired panel zones from 8 to 16, press NEXT ("r" or p).

• If Panel Zone doubling is not desired, press PRIOR ("X" or q).

• The 16 zones will remain EOL terminated zones, requiring Normally Closed devices only.

• Refer to Wiring Diagram and Installation Instructions for wiring instructions

Fire Zones (Appears for New Panel Only)

Enter the zone number of any Fire Zones (both 2-wire, 4-wire or wireless). Valid entries are from

CHIME

01 to 32. Directly enter each zone number, including leading zeros, and press then repeat for any additional zone(s). Press NEXT ("r" or

NOTE: If you are programming a multiple Area system, enter the zone number of zones required

CHIME

p) to proceed.

for Areas 1-4. The Direct Address Program Mode can then be used to remove zones from Area 1 and place them in Areas 2-4. See Zone Options.

Local System or C.S. Reporting System (Appears for New Panel Only)

Press NEXT ("r" or

CHIME

report (LOCAL SYSTEM).

p) for all zones to report; press PRIOR ("X" or q) for no zones to

Exit/Entry Zones (Appears for New Panel Only)

Directly enter the zone numbers which are to be used as Exit/Entry zones. Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros. Use number buttons

through 9. NOTE: Press the 0 button for a zero. Press u to save and then repeat for any additional zone(s). Press NEXT ("r" or

CHIME

NOTE: Exit/Entry Zones will have an entry delay of 30 seconds and an exit delay of 60 seconds.

p) to proceed.

u to save, and

1

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 14

08

H

09

H

10

H

11

H

12

H

13

H

14

H

INTER IOR

INTERIOR

INTER IOR

INTERIOR

INTER IOR

INTERIOR

INTER IOR

INTERIOR

INTER IOR

INTERIOR

INTER IOR

INTERIOR

INTER IOR

INTERIOR

FIRE/TBL SYS TBL

BYPASS

FIRE/TBL SYS TBL

BYPASS

(Direct Entry)

FIRE/TBL SYS TBL

BYPASS

FIRE/TBL SYS TBL

BYPASS

(Direct Entry)

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL CHI ME

BYPASS

(Direct Entry)

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL CHI ME

BYPASS

(Direct Entry)

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL

BYPASS

(Direct Entry)

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL

BYPASS

(Direct Entry)

FIRE/TBL SYS TBL

BYPASS

FIRE/TBL SYS TBL CHI ME

BYPASS

(Direct Entry)

Interior Zones (Appears for New Panel Only)

Directly enter the zone numbers which are to be used as Interior Zones. Valid entries are from 01 to

CHIME

32. Directly enter each zone number, including leading zeros. Use number buttons

1 through

9. NOTE: Press the 0 button for a zero. Press u to save and then repeat for any

additional zone(s). Press NEXT ("r" or

CHIME

p) to proceed.

NOTE: All Interior zones will also be automatically programmed as “Exit/Entry Follower” and "Power Up Delay" zones.

24 Hour Zones in Area 1 (New Program Only)

• Enter the zone numbers of zones to be used as 24 Hour zones.

CHIME

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and repeat for any additional zone(s); press NEXT ("r" or p) to proceed.

CHIME

Chime Zones in Area 1 (New Program Only)

• Enter the zone numbers which are to be used as Chime Zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), press NEXT ("r" or p) to proceed.

NOTE: A chime time of 2 seconds will be automatically programmed.

Chime 2 Zones in Area 1 (New Program Only)

• Enter the zone numbers which are to be used as Chime 2 Zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), Press NEXT ("r" or p) to proceed.

NOTE: A chime time of 2 seconds will be automatically programmed. Chime 2 zones give a distinct pulsating tone when zone is faulted.

Exit/Entry2 Zones in Area 1 (New Program Only)

• Enter the zone numbers of zones to be used as Exit/Entry zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and repeat for any additional zone(s); press NEXT ("r" or p) to proceed.

CHIME

NOTE: An Exit/Entry 2 Entry Time of 30 sec. will automatically be programmed.

50 mS Loop Response Zones (New Program Only)

• Enter the zone numbers of zones to be have a 50mS loop response.

• Valid entries are from 01 to 8. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), press NEXT ("r" or p) to pro-

CHIME

ceed. Note: Time can also be adjusted via address 2280.

Aux Output Activated on Alarm Zones (New Program Only)

• Enter the zone numbers of zones to activate the PGM2 Output upon alarm.

CHIME

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), Press NEXT ("r" or p) to pro-

ceed. NOTE: A PGM2 Output Timeout of 15 Minutes will automatically be programmed.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

15

H

16

H

17

H

18

INTERIOR

INTER IOR

(Direct Entry)

INTERIOR

INTER IOR

(Direct Entry)

INTERIOR

INTER IOR

(Direct Entry)

INTERIOR

(Press YES "r" or NO "X")

19

INTERIOR

(Press YES "r" or NO "X")

20

INTERIOR

(Press YES "r" or NO "X")

21

INTERIOR

(Press YES "r" or NO "X")

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL

BYPASS

FIRE/TBL SYS TBL

BYPASS

FIRE/TBL SYS TBL

BYPASS

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL

BYPASS

FIRE/TBL SYS TBL

BYPASS

Sensor Watch Zones (New Program Only)

• Enter the zone numbers of zones to be Sensor Watch zones.

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), press NEXT ("r" or p) to proceed.

NOTE: A Sensor Watch Time of 24 hours will automatically be programmed.

Keypad Sounder On Alarm Zones (New Program Only)

• Enter the zone numbers of all zones to activate the Keypad Sounder upon alarm.

CHIME

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), press NEXT ("r" or p) to proceed.

CHIME

Auto Bypass Re-entry Zones (New Program Only)

• Enter the zone numbers of zones to be Auto Bypass Re-entry zones.

CHIME

• Valid entries are from 01 to 32. Directly enter each zone number, including leading zeros.

• Press u to save and then repeat for any additional zone(s), press NEXT ("r" or p) to proceed.

•

Auto Bypass Re-entry Zones allow the system to be armed with the zone faulted but come back

into the system (armed) when the zone is subsequently closed.

Enable No EOLR Zones (New Program Only)

• Press NEXT ("r" or p) to program all zones except 24 Hr & fire zones for No End Of Line

Resistor. Press the PRIOR/NO button to continue.

Enable Telco Line Fault Test?

• Press NEXT ("r" or p) to enable Telco Line Fault Test.

• Press the PRIOR/NO button to continue.

NOTE: There is a preset 60 second Telco Line Fault Test Delay.

Enable Burg Output Chirp on KeyFob?

• Press NEXT ("r" or p) to enable Burg Output Chirp on KeyFob Arm / Disarm.

CHIME

• Press the PRIOR/NO button to continue.

NOTE: The Burg Output will chirp once on Keyfob Arm and twice on Keyfob Disarm.

Enable SIA CP-01?

• Press NEXT ("r" or p) to enable.

CHIME

• Press the PRIOR/NO button to continue.

The SIA CP-01 Features are designed to reduce the incidence of false alarms. NOTE: Do not enable unless reporting, otherwise system trouble Fail to Communicate may occur.

Page 15

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 16

Number of Keypads

22

INTER IOR

BYPASS

FIRE/TBL SYS TBL

CHIME

Directly enter the total number of Keypads to be installed. Valid entries are from 01 to 07. Directly enter the number of keypads, including leading zeros. Use number buttons

NOTE: Press

_ H

INTERIOR

FIRE/TBL SYS TBL CHI ME

BYPASS

(Direct Entry)

Central Station Receiver 1 Telephone Number

24

_ 3

INTER IOR

BYPASS

INTERIOR

(Direct Entry)

BYPASS

FIRE/TBL SYS TBL

CHIME

Using number buttons, enter telephone number of up to 16 digits including prefix letters, if necessary, for receiver 1. Use number buttons

G0 for a zero and G1 through G5 for letters B–F, respectively. NOTE:

Pre-Dial Delay = “D”; Dial-Tone Detection = “E”. Pressing

Press

3 Telephone Numbers can only be entered in Direct Address Programming. See CS Receiver Options.

Central Station Receiver 1 Account Number

25

INTER IOR

BYPASS

FIRE/TBL SYS TBL

CHIME

Enter an account number of up to four digits. Use number buttons 1 through 9 for digits 1–9. NOTE: Press the

space (•). Press

_ 3

INTERIOR

(Direct Entry)

BYPASS

FIRE/TBL SYS TBL

CHIME

Receiver 2 and 3 Account Numbers can only be entered in Direct Address Programming. See CS Reporting Options.

Central Station Receiver 1 Format

26

8

INTERIOR

INTER IOR

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL

BYPASS

CHIME

(Direct Entry)

DATA ENTRY CS RECEIVER 1 FORMAT

blank(•) Ademco Slow, Silent Knight Slow

1 Sescoa, Vertex, DCI, Franklin Fast

2 Radionics Fast

3 Silent Knight Fast

4 Radionics, DCI, Franklin Slow

5 Universal High Speed

8 Radionics BFSK

From the table below, enter the central station's receiver format. Use number buttons through 9. NOTE: Press the 0 button for a zero and press G0 for a blank space

(•). Press NEXT ("r" or

Enter User Codes (Press the (w) button to set cursor)

27

INTER IOR

BYPASS

FIRE/TBL SYS TBL

CHIME

Enter up to 64 User Codes with User Options for each code. Refer to the tables below for

 Press w once to set cursor to the User Number and enter the desired User Number.

INTERIOR

(Direct Entry)

BYPASS

FIRE/TBL SYS TBL

CHIME

 If the programmed code is less than 6 digits, press w to set the cursor to USER

 Refer to the tables on the next page for the available User Option data entries.

1 through 9.

0 for a zero. Press u to save. Press NEXT ("r" or p) to proceed.

1 through 9 for digits 1–9; press

0 will produce a blank space (•).

u to save. Press NEXT ("r" or p) to proceed. NOTE: Central Station Receiver 2 and

0 button for a zero and press the G0 buttons for a blank

u to save. Press NEXT ("r" or p) to proceed. NOTE: Central Station

1

G1 through G4 for letters B–E, respectively. Press u to save. Press

p) to proceed.

DATA ENTRY

9 FBI 4/3/1

0 Radionics Modem 2

B SIA

C Ademco Point ID

D Ademco Express

E Pager

available data entries for User Options.

Press

w once again to set the cursor to the User Code. Use the number buttons 1

through 9 to enter a code from 3 to 6 digits. Enter up to 6 digits (4 digits are recommended) in the first six boxes from left to right for each user code. Valid entries are: 0-

9. Note: Press

0 for a zero. No blank spaces in between; leave blank (•) any trailing

boxes. If an “Ambush Prefix” (Address 0495) is entered, do not program the first two digits of ANY User Code as the same digits entered for the “Ambush Prefix”.

OPTIONS.

CS RECEIVER 1 FORMAT

NOTE: Modem IIe is available only

in Direct Address Programming. Central Station Receiver 2 and 3 Formats can only be entered in Direct Address Programming. See CS Receiver Options.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 17

USER CODE

(UP TO 6 DIGITS)

CODE TYPE EXPLANATION

Disabled User Code not active.

Arm/D isarm Allows User Code to arm/disarm.

Arm Only Prevents User Code from disarming.

Service

Access

Ambush

* User Program

Bypass Enable Security Bypass--Bypass is enabled only with a security code.

Related User Options: “Enable Global Ambush Code” (Address 1422) & “Global

Ambush Code” (Address 2045).

USER OPTIONS

AREA 1

AREA 2

AREA 3

OPTIONS

A Service Code has restricted arm/disarm rights; if an area is armed with a Service Code, a “SERVICE ON” appears on the GEM-DXRP2 keypad and the area can be disarmed with any valid User Code, including a Service Code. If the area is armed with OTHER than a Service Code, it CANNOT be disarmed with a Service Code. This is typically used to allow tradesmen access to premises under control of the owner. This is normally used to activate a door strike. Also program “Access Control on PGM2 Output” (Address 0719) and “PGM2 Output Access Control Timeout” (Address 0711). There are two types of Ambush Codes: (1) A 2-digit code (prefix) that is entered immediately prior to (and as part of) the regular User Code and (2) A separate and unique User Code. Disarming with an Ambush Code will cause a silent report to be sent to a central station. Thus, should a user be forced to disarm, he can silently signal an emergency while appearing to be merely disarming the system. User Program Option is enabled for Keypad 1 only, wherever it is connected. To enable User Program Option for any user add 8 to the data entry Option (see example). Then, User Programming can be performed only at Keypad 1 by a user code with user program enabled.

OPTIONS

AREA 4

OPTIONS

USER AREA OPTIONS

DATA ENTRIES

L R

blank(•) blank(•) Disabled

blank(•) 1 Arm/Disarm

blank(•) 2 Arm Only

blank(•) 3 Service

blank(•) 4 Access

blank(•) 5 Ambush

blank(•) Add 8 * User Program

4 blank(•) Bypass Enable

OPTION

ENABLED

USER OPTIONS: Area 1-4 options for 64 Us-

ers:

 Select the desired options from the table

shown and enter in the remaining boxes for each user code.

Example: Program a code of “1234” for user 02, with Area 1 options of “Arm/Disarm” and “User Program”:

With “27” displayed in keypad window, press

w, 0 2 (User 2), w 1234

(User Code), 09 (User Area 1

0

options), 00 (User Area 2 Options), and

u (save).

Notes: (1) For User Code, press G 0 for Blank Space; (2) For User Options, press

0 for Blank Space.

CHANGING OR CANCELING A CODE: To change any code, merely program over the existing code as

described above and press

cancel a code, blank out each number of the code

and press

are not allowed; therefore a duplicate Code entered in the

LCD Window will erase when

u to save. Note: Duplicate User Codes

, G 0 G

u to save. Similarly, to

u is pressed.

RF Transmitter Points (Press the (w) button to set cursor)

28

INTERIOR

FIRE/TBL SYS TBL CHIME

BYPASS

(For wireless systems only. Also see Quick Method, which follows). For each transmitter (key fob transmitters also), enter the zone number (01–64) to which the transmitter will be mapped, the 6-digit RF ID#: 1-digit checksum number printed on the transmitter and

INTERIOR

FIRE/TBL SYS TBL CHIME

BYPASS

box, the point number (1–4); enter “9” for unsupervised (all points). NOTE: When programming the ID Code number, “A” =

G4; “F” = G5. Press u to save. Press NEXT ("r" or p) to proceed.

G0; “B” = G1; “C” = G2; “D” = G3; “E” =

Quick Enroll Method

If a receiver is already installed in the panel, Napco transmitter wireless points can be programmed automatically (“enrolled”) using the following procedure. NOTE: The transmitter point will be enrolled only if the signal strength is 3 or greater.

1. Enter the zone number to which the transmitter point will be mapped.

2. Press the and green LEDs on the keypad will flash and the window will

display as shown at left.

3. Open the loop of the point that is to be programmed (GEMTRANS2 or GEM-TRANS4 only).

4. Install the transmitter battery. The keypad will beep to indicate that the point has been successfully enrolled. Multipoint transmitters can be mapped to successive zones simultaneously (Example 1) or to selected zones point by point (Example 2).

Example 1. A 4-point transmitter has the RF ID number

410078:1. Map the first three points to Zones 11–13, respectively.

1. Enter the Enroll mode as described in step 2 above.

2. Enter Zone “11”.

x button to enter the Enroll Mode. The red

3. Open the loops of points 1, 2 and 3.

4. Install the transmitter battery. The keypad will beep 3 times to indicate that three points have been programmed.

 Transmitter 410078:1, point 1 will be mapped to Zone 11.  Transmitter 410078:1, point 2 will be mapped to Zone 12.  Transmitter 410078:1, point 3 will be mapped to Zone 13.

The keypad will now display Zone 13, the last zone enrolled.

Example 2. A 2-point transmitter has the RF ID number

287613:1. Map point 1 to Zone 6 and point 2 to Zone 9.

1. Enter the Enroll mode as described above.

2. Enter Zone “06”.

3. Open point-1 loop.

4. Install the battery. The keypad will beep once to indicate that one point has been programmed. (Transmitter 287613:1, point 1 will be mapped to Zone 6).

5. Enter Zone “09”.

6. Close point-1 loop and open point-2 loop.

7. Remove the transmitter battery, then re-install it. The keypad will beep once to indicate that one point has been programmed. (Transmitter 287613:1, point 2 is mapped to Zone 9).

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 18

KEY FOB ZONE ASSIGNMENT: Key fobs can also be assigned to zones to allow multiple wireless panic buttons on one alarm system, each reporting to a central station, a pager or having a description on the keypad that describes the person holding the key fob, the location where the person holding the key fob is stationed, or the special purpose of the key fob button being depressed. See the next page on key fob Zone Assignment.

w to set cursor).

29

INTERIOR

INTER IOR

FIRE/TBL SYS TBL CHIME

BYPASS

FIRE/TBL SYS TBL CHIME

BYPASS

Key Fob Transmitters (Press

Keyfobs can be programmed as "Arm/Disarm" devices (refer to WI752). For each Key Fob Transmitter, enter:

 The Key Fob Transmitter number (01–08).  Area number to which transmitter is assigned (1 - 4); enter 0 to disable keyfob.  The 6-digit RF ID # printed on the transmitter (enter all numbers and/or letters, including

leading "0"s, if any).

 1-digit checksum number printed on the transmitter (enter all numbers and/or letters, including leading "0"s, if any).  Aux-1 Option (see key fob aux 1 & aux 2 options).  Aux-2 Option (see key fob aux 1 & aux 2 options).

Press u to save. Press NEXT ("r" or p) to proceed.

DATA

ENTRY

0 None

1 Relay Group 1 Toggle

2 Relay Group 2 Toggle

9 Panic

A Auxiliary

B Instant

C PGM2 Output Toggle

D

E Arm Stay

F Interior Button

AUX 1/AUX 2

OPTIONS

Access on PGM2

Output

NOTE: Key fobs 1-8 report openings and closings as Users 57-64.

Note: If the Key Fob is converted for Two Button "Emergency Use" (by cutting an internal

jumper), both top or bottom buttons must be depressed to activate an alarm. In this case, the Aux-1 and Aux-2 cannot be programmed.

Key Fob Transmitters as Zone Input Devices (refer to display above: press PRIOR ("X" or

q) to go backwards).

Each of the 4 key fob buttons can be assigned to a zone. For example, On button = point 1; Off button = point 2; A1 = point 3; A2 = point 4. Up to 64 key fobs (using 1 button) or 32 key fobs

(using 2 buttons) or 16 key fobs (using all 4 buttons) or any combination up to a maximum of 64 controlled zones can be assigned, providing multiple wireless panic buttons on a system, each reporting to the Central Station or a pager and/or annunciating on a keypad the key fob zone number with description/location. To assign a key fob to a zone: program the key fob as you would a transmitter, entering the key fob's ID code, check sum and point number at the appropriate zone. The "Quick Method" is not allowed. The zone may be hardwired to a sensor as well as assigned to a key fob (either one will activate the zone alarm output). NOTE: If assigning a key fob to a zone, the "ON/OFF" buttons on the key fob will no longer arm/disarm the system. The key fob is converted to a "panic only" device.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

ZONE DESCRIPTIONS: GEM-DXK3 or GEM-DXRP3 cannot be used to enter Zone Descriptions. To enter Zone Descriptions, you must use

the GEM-DXK1 or GEM-DXRP1 keypad or the Napco Quickloader Software.

DATE ENTRY: GEM-DXK3 or GEM-DXRP3 cannot be used to enter the date. To enter Date, you must use the GEM-DXK1 or GEM-DXRP1

keypad (Version 5 or later) or the Napco Quickloader Software.

TIME ENTRY: GEM-DXK3 or GEM-DXRP3 cannot be used to enter the time. To enter Time, you must use the GEM-DXK1 or GEM-DXRP1

keypad (Version 5 or later) or the Napco Quickloader Software.

Dealer Code

33

INTERIOR

FIRE/TBL SYS TBL CHIME

BYPASS

Directly enter the Dealer Code, including leading zeros. Use the 1 through 9 buttons.

NOTE: Press

0 for a zero. Press u to save.

Page 19

rE

INTERIOR

(Direct Entry)

BYPASS

FIRE/TBL SYS TBL

Re-enter the Dealer Code to verify the previous code. Press

CHIME

p) to proceed. NOTE: The Dealer Code can be two or more digits (up to 6 digits).

u to save. Press NEXT ("r" or

EXIT DEALER PROGRAM MODE: This completes the custom default program. Press y to enter the Direct Address Program Mode for further programming or press

y once again to end all programming and resume normal keypad operation.

CLEAR PROGRAM: Should it be necessary to create a new custom default program, (a) from the Dealer Program Mode, press

y to enter the Address Program Mode; (b) access Location 2285 (Clear Program) or 2286 (Cold Start); (c) press u and then

(d) press

y to exit the Dealer Program Mode. A System Trouble Condition will occur. Press y to silence the keypad.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 20

DIRECT ADDRESS PROGRAM MODE

This is an extension of the Dealer Program Mode. This method of programming is used in conjunction with the Keypad Programming Worksheets that follow. Refer to these worksheets to identify the 4-digit location (address) of the feature to be programmed. An illustrative example is provided on the next page.

ADDRESS

LOCATIONS

0000

TO

2287

LEFT DIGIT RIGHT DIGIT

DATA ENTRY

LOCATIONS

3 C

HEXADECIMAL DATA:

•

BLANK (•) = No Options

• 1 to 9 = Entries 1 to 9

• 0 = Entry of 10

• B to F = Entries 11 to 15

KEYPAD PROGRAMMING OVERVIEW

Direct Address Programming allows you to go directly to the address locations and change the data entries to customize your control panel options. Whereas the Easy Menu Program Mode is a simple quick start guide with limited options, the Direct Address Program Mode is more flexible allowing you to change all the options. It consists of multiple address locations with two data entry locations each (left and right) as shown in the adjacent diagram.

ACCESSING DIRECT ADDRESS PROGRAM MODE

1. Press EEEEEE

Dealer Security Code

(Default is 456789)

2. Press PRIOR ("X" or q) until "TURNON PROG Y/N" (GEM-DXRP2 / GEM-DXK2) or

"17" (GEM-DXRP3 / GEM-DXK3 or GEM-DXK4RF) appears on the LCD screen.

3. Press YES ("r" or p) to Enter Dealer Program Mode. (The panel and keypad

version appears briefly on the keypad display).

4. Press y to exit Easy Menu Driven Program Mode & enter Direct Address Program

Mode. (For keypad display examples when in Program Mode, see next page).

w

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

KEYPAD ADDRESS PROGRAM MODE DISPLAY

1

2

1 2 = DATA ENTRY LOCATION (Left and Right Digits)

00003C

GEM-DXRP2 / GEM-DXK2 Keypads

(Direct Entry)

3P

3C

GEM-DXRP3 / GEM-DXK3 Keypads

1

2

= ADDRESS LOCATION

P

3C

GEM-DXK4RF Series Keypads

BYPASS FIRE/TBL SYS TBL CHIME

INTERIO R

BYPASS SYS TBL CHIME

INTERIO R

1 2

Flashing

Press w followed by (1) the 4 digit address location, and (2) the corresponding

data shown.

FIRE/TBL

Press w followed by (1) the 4 digit address location, and (2) the corresponding

data shown. Note: A long beep sounds when in Address Program Mode.

DIRECT ADDRESS PROGRAM MODE KEYPAD COMMANDS

A. GEM-DXK2 (and GEM-DXRP2) Keypad

Page 21

To access, press y in

Dealer Program Mode.

1. Toggle Cursor to 4-digit ad-

dress field using the w

button.

2. Enter address Number directly using number buttons (0-9).

3. Enter Data directly using number buttons.*

4. Press the

u button to save.

00003C

To exit, press y.

GEM-DXK2

NOTE: Press 0 button to clear character at cursor.

Select NEXT/PRIOR Address. Press Gp to jump to next programming block.

*

Press G0 through G5 for 10-15, respectively.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 22

B. GEM-DXK3 / GEM-DXRP3 Keypads

To access Direct Address Program

Flashing

Mode, press RESET (

y) in the

Easy Menu Mode.

1. Press

w.

2. Enter the 4 digit Address location directly using number buttons (0-9).

3. Enter the 2 digit data directly using number buttons (0-9).

Press here to Select NEXT/ PRIOR address

4. Press U to save.

To exit, press RESET (

y).

GEM-DXK3

Example: Direct Address Programming

Program Zones 6, 7 and 8 as Exit/Entry Follower Zones.

DETERMINE THE DATA ENTRIES

1. Referring to ZONE FEATURES in the Programming Worksheets that follow, Exit/Entry Follower for Zones 6 through 8 are located at address 0916, left digit. With a pencil, circle the data values for Zones 6–8.

2. Add the data values for Zones 6, 7 and 8: 2+4+8=14. From Tables 1 and 2, "14" (E) is entered as press

G4. The right digit (for Zones 1 through 4, none of which are Exit/Entry Follower Zones) is entered as

a blank (•).

ZONE OPTION

EXIT/ENTRY FOLLOWER 8 4 2

ZN08 ZN07 ZN06 ZN05

ZONES

LEFT DATA VALUES

SUM = 14 (CIRCLE

)

1

PROGRAM THE DATA ENTRIES

1. Enter the panel's Dealer Security Code, then press

ADDRESS 0916

L ADDR R

E

w.

BLANK (•) 8 4 2

0916

ENTER THIS

DATA

ZN04 ZN03

ZONES

RIGHT DATA VALUES

SUM = 0 (CIRCLE

)

ZN02 ZN01

1

2. Answer NO ("

p). NOTE: If you pass "ACTIVATE PROGRAM", scroll backward using x.

3. Press

4. Press

y to enter the Address Program Mode. Address "0000" will display.

0916 to access Address 0916. The data for both digits will display and the cursor will

X" or q) to all questions until "ACTIVATE PROGRAM Y/N" is displayed; then press NEXT ("r" or

advance to the data field.

5. Press

6. Press

G4 to enter an "E" in the left digit and press 0 to enter a blank (•) in the right digit.

u to save. Address 0916 is now programmed with "E •".

7. Enter another 4-digit address to continue programming or press

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

y to exit and resume normal keypad operation.

Page 23

The displays shown on the previous pages will appear after a brief delay.

 Use w to toggle the cursor between the 4-digit address field and the data entry locations.

 Enter the address directly using the number buttons.  The contents of the address will be read automatically, along with the feature name and programming information.

The cursor will advance to the data field. Enter the required data directly using the number buttons.

 Press u to save the contents of each address.

EXIT DIRECT ADDRESS PROGRAM MODE: When done, press RESET (y) to exit and resume normal keypad operation.

CONVENTIONS USED IN THIS MANUAL

The Keypad Programming Worksheets in the back are provided as an address-programming reference to help the installer modify his custom default program or to make

G

DATA ENTRY SELECTIONS

(BINARY VALUE CIRCLED)

8 4 2 1 blank

8 4 2

8 4

8

& & & & & " & "

 " "

2 1 4

2

" " 

4 2 1 8

4 2

4



2 1 12

2

& " & " 

ENTRY TOTAL





1 2



1 6



1 10



1 14

1

3

5

7

9

11

13

15

PRESS

N

0

1

2

3

4

5

6

7

8

9

G 0

G 1

G 2

G 3

G 4

G 5

KEYPAD

DISPLAYS

•

1

2

3

4

5

6

7

8

9

0

B

C

D

E

F

Table 1 (above). Determining data entry for a location (each

“nibble”). Numbers in parentheses indicate data for selected zones or features. (See Programming Worksheets that follow).

minor field alterations to an existing panel program. It is recommended that the panel be uploaded to NAPCO's PCD-Windows software following any keypad programming and that the PCD-Windows error-check feature be utilized to reduce the possibility of programming omissions or conflicts.

Note: Most of the addresses shown comprise two data entry locations, left and right digits. Program the left digits on the left data-display segment, and the right digit on the right segment. For those addresses having only one programmable nibble, program the right segment only; the left segment should display a blank (•).

3

Keep the Keypad Programming Worksheets on file for future reference.

General Programming Steps

1. Contact the central station to ascertain receiver format, data format, event codes, subscriber numbers and telephone number(s).

2. Select the desired features by circling respective “address” boxes. Refer to the Programming Options and Worksheets for guidance in selecting the “data” (1,2,4,8) to be entered into those boxes.

3. Program the data entered in the boxes on the worksheets into the respective addresses. The display will show the entry numerically, but will display “0” for the number 10, and letters “B”, “C”, “D”, “E”, and “F” for the numbers 11 through 15, respectively. To program a 10, press

0. To program 11 through 15, press G 1 through G5, respectively.

 the

NOTE: See the Direct Address Programming Example on the previous page.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 24

SYSTEM DELAYS & TIMEOUTS (ADDRESS 0000-0002, 1413, 1417, 2050 & 2055)

EXIT

DELAY

(sec.)

ADDRESS 0000

LEFT RIGHT

[Default = 3 C]

ENTRY

DELAY 1

(sec.)

ADDRESS 0001

LEFT RIGHT

[Default = 1 E]

ENTRY

DELAY 2

(sec.)

ADDRESS 0002

LEFT RIGHT

[Default = 1 E]

PGM2 Output

Access Cntrl

Timeout (sec.)

ADDRESS 1413

[Default = blank (•) blank (•)]

1. Select delay/timeout (0-255 sec.) from the table shown.

DATA ENTRIES

LEFT RIGHT

blank (•) blank (•) 0 sec.

blank (•) F 15 sec.

1 E 30 sec.

2 D 45 sec.

3 C 60 sec.

5 0 90 sec.

7 8 120 sec.

F F 255 min.

PROGRAMMING TIMEOUTS: Either use the tables provided or calculate your own timeout using the steps indicated. WARNING: second may actually timeout IMMEDIATELY.

DELAY/

TIMEOUT

2. Enter in corresponding address locations above (left and right digits). 3. For a desired delay/timeout not listed do the following:

A. Choose a desired delay/timeout, ex: 20 sec. B. Divide it by 16

4. Press U or D to save.

EXIT/ENTRY DELAYS: Apply only to zones programmed with the following options “Exit/ Entry 1, Exit/Entry 2, Exit/Entry Follower”. to above table, except in hours.

Timers have uncertainty of +/-1sec, so a "time" of 1

1 Quotient Left Digit 16 20 16 4 Remainder Right Digit

NOTE: Sensor Watch Time Options are similar

SYSTEM DELAYS & TIMEOUTS (ADDRESS 1418 & 1419)

LEFT RIGHT

ABORT DELAY

(sec.)

ADDRESS 1417

LEFT RIGHT

[Default = 1 E]

Sensor Watch

(Hrs.)

Time

ADDRESS 2050

LEFT RIGHT

[Default = 24 HRS = 1 8

Report Cancel

Window

(min.)

[Default = zero minutes =

ADDRESS 2055

LEFT RIGHT

blank (•) blank (•)]

CHIME

(¼sec.)

TIME

ADDRESS 1418

LEFT RIGHT

[Default = 2 sec. = blank (•) 8]

CHIME TIMEOUT OPTIONS

DATA ENTRIES

LEFT RIGHT

TIMEOUT

blank (•) blank (•) (0) ¼sec. = 0 sec.

blank (•) 2 (2) ¼sec. = ½ sec.

blank (•) 3 (3) ¼sec. = ¾ sec.

blank (•) 4 (4) ¼sec. = 1 sec.

blank (•) 5 (5) ¼sec. = 1.25 sec.

blank (•) 6 (6) ¼sec. = 1.5 sec.

blank (•) 7 (7) ¼sec. = 1.75 sec.

blank (•) 8 (8) ¼sec. = 2 sec.

F F (255) ¼sec. = 63.25

blank (•) blank (•) blank (•)

blank (•) 1 1

blank (•) 2 2

blank (•) 3 3

blank (•) 4 4

blank (•) 5 5

blank (•) 6 6

blank (•) 7 7

AC Fail

Report Delay

(min.)

ADDRESS 1419

LEFT RIGHT

[Default = 60 mins. = 3 C]

AC FAIL REPORT DELAY OPTIONS

DATA ENTRIES

LEFT RIGHT

TIMEOUT

F F 255 min. = 4 Hr., 30 min.

 1. Select delay/timeout from the table shown.  2. Enter in corresponding address locations above (left and right digits).  3. For a desired delay/timeout not listed do the following:

A. Choose a desired delay/timeout, ex: 20 B. Divide it by 16

 4. Press u to save.

1 Quotient Left Digit 16 20 16 4 Remainder Right Digit

DEFAULTS: The defaults shown on this

page and on the following pages are automatically set after exiting the Easy Menu Driven Mode.

ADDRESS LOC.

Program

Option

LEFT RIGHT

ENTER DATA 

PROGRAMMING STEPS:

1. Lookup desired Programming Option by Address Location (highlighted in black).

2. Select the programming option data entry from the tables shown.

3. Enter the selected data entry in the boxes shown.

4. For more information on a programming option refer to the Glossary at the end of this manual.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

SYSTEM OUTPUT TIMEOUTS (ADDRESS 1412 & 1414-1416)

Page 25

PGM2

Output

Timeout (min.)

[Default = blank (•) blank (•)]

ADDRESS 1412

LEFT RIGHT

DATA ENTRIES DELAY/

LEFT RIGHT

blank (•) blank (•) 0 min.

blank (•) 1 1 min.

blank (•) 2 2 min.

blank (•) 3 3 min.

blank (•) 4 4 min.

blank (•) 5 5 min.

blank (•) 6 6 min.

1 blank (•) 16 min.

F F 255 min.

TIMEOUT

DOWNLOAD/CALLBACK OPTIONS (ADDRESS 2059 & 0526-0545)

No. Rings

Before

Pickup

[Default = blank (•) blank (•)]

ADDRESS 2059

LEFT RIGHT

blank (•)

Alarm

Output

Timeout (min.)

[Default = 15 mins. = (blank) F]

ADDRESS 1414

LEFT RIGHT

Pulse Alarm

Output

Timeout (min.)

[Default = 15 mins. = (blank) F]

ADDRESS 1415

LEFT RIGHT

PGM1

Output

Timeout (min.)

[Default = blank (•) blank (•)]

ADDRESS 1416

LEFT RIGHT

 1. Select delay/timeout (0-255 min.) from the table shown.  2. Enter in corresponding address locations above (left and right digits).  3. For a desired delay/timeout not listed do the following:

A. Choose a desired delay/timeout, ex: 20 min. B. Divide it by 16

 4. Press u to save.

1 Quotient Left Digit 16 20 16 4 Remainder Right Digit

OUTPUT TIMEOUTS: If a timeout of “0 min.” is selected, then the output will remain active (ON) until the system is reset or disarmed.

NUM BER OF RINGS BEFORE PICKUP: Enter the number of rings before automatic pickup by the control panel when downloading from a computer (see installation instructions WI1691 for more information).

 1. Enter in right digit only (left digit is not used).  2. Valid entries are: 3-9, 0 = 10, B = 11, C = 12, D = 13, E = 14, F = 15

NOTE: Default is 15 Rings. Dark shaded data shows option not available.

 3. Press u to save.

CALLBACK

Telephone

Number

(Digits 1-20)

[Default = blank (•) for all digits 1-20]

0526 0527 0528 0529 0530 0531 0532 0533 0534 0535 0536 0537 0538 0539 0540 0541 0542 0543 0544 0545

R R R R R R R R R R R R R R R R R R R R

CALLBACK TELEPHONE NUMBER: Enter telephone number to be used when downloading from a computer (see installation instructions WI1691 for more information).

ADDRESS 0526-0545 (RIGHT DIGITS 1-20)

 1. Enter in right digit only (left digit is not used).  2. Enter up to 20 digits from left to right. NOTE: Leave trailing boxes blank (•). For a zero, press G0.

 3. Valid entries are: 1-9, B = *button, C = #button, D = 3 sec. pause, E = Wait for dial tone, F = ignore location.  4. Press u to save.

PAGER FORMAT OPTIONS (ADDRESS 0546 & 0547)

Leading Digits for

Pager Format

(1st Digit) blank (•)

Leading Digits for

Pager Format

(2nd Digit) blank (•)

[Default = blank (•) blank (•)]

ADDRESS 0546

LEFT RIGHT

ADDRESS 0547

LEFT RIGHT

LEADING DIGITS FOR PAGER FORMAT: In Pager Format reporting, the message typically begins with “00”. However, for some pager services, this will cause the Pager's Voice Mail feature to activate. This option allows you to program these digits to any number desired. A typical Pager report is “003 22 1234”, where 3 is the Event, 22 is the zone, and 1234 is the Subscriber ID number. For example, if the Leading Digits are programmed as “98”, the Pager report will now appear as “983 22 1234”. NOTE: See CS Receiver Options to select Pager Format.

1. Enter in 1st and 2nd Leading Digits in right digit only (left digit is not used) as shown. 2. Valid entries are: 0-9.

3. Press u to save.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 26

SYSTEM OPTIONS (ADDRESS 0836-0871 & 2045)

GLOBAL SYSTEM EVENT/TROUBLE

SYSTEM RESPONSE

ACTIVATED BY GLOBAL

EVENT/TROUBLE

Alarm Output 8 4 2 1

Pulsed Alarm Output 8 4 2 1

PGM1 Output 8 4 2 1

PGM2 Output 8 4 2 1

Report Event Telco 1 8 4 2 1

Report Restore Telco 1 8 4 2 1

Report Event Telco 3 8 4 2 1

Report Restore Telco 3 8 4 2 1

LEFT DATA VALUES (CIRCLE )

Bell

Superv.

TAMPER

EZM

AC FAIL LOW

BATTERY

ADDRESS 0836-0843

LEFT ADDR RIGHT

0836

0837

0838

0839

0840

0841

0842

0843

8 4 2 1

GLOBAL SYSTEM EVENT/TROUBLE

RIGHT DATA VALUES (CIRCLE )

MEMORY FAILURE

RF RCVR.

TROUBLE

TELCO

FAILURE

[Default = blank (•) blank (•) from address 0836-0843] Note: If Test Timer is enabled (above), Digital Dialer Test is also enabled.

AREA 1 SYSTEM EVENT/TROUBLE

SYSTEM RESPONSE

ACTIVATED BY AREA 1

EVENT/TROUBLE

Pulsed Alarm Output 8 4 2 1

Alarm Output 8 4 2 1

PGM1 Output 8 4 2 1

PGM2 Output 8 4 2 1

Report Event Telco 1 8 4 2 1

Report Event Telco 3 8 4 2 1

LEFT DATA VALUES (CIRCLE )

Keyfob

Low Batt.

FAIL TO

CLOSE

FAIL TO

OPEN

KEYPAD TAMPER

[Default = blank (•) blank (•) from address 0856-0863]

ADDRESS 0856-0863

LEFT ADDR RIGHT

0856

0857

0858

0860

0861

0863

8 4 2 1

AREA 1 SYSTEM EVENT/TROUBLE

RIGHT DATA VALUES (CIRCLE )

KEYPAD

AUX.

KEYPAD

FIRE

KEYPAD

PANIC

TEST

TIMER

AMBUSH

AREA 2 SYSTEM EVENT/TROUBLE

SYSTEM RESPONSE

ACTIVATED BY AREA 2

EVENT/TROUBLE

Pulsed Alarm Output 8 4 2 1

Alarm Output 8 4 2 1

PGM1 Output 8 4 2 1

PGM2 Output 8 4 2 1

Report Event Telco 1 8 4 2 1

Report Event Telco 3 8 4 2 1

LEFT DATA VALUES (CIRCLE )

Keyfob

Low Batt.

FAIL TO

CLOSE

FAIL TO

OPEN

KEYPAD TAMPER

[Default = blank (•) blank (•) from address 0864-0871]

ADDRESS 0864-0871

LEFT ADDR RIGHT

0864

0865

0866

0868

0869

0871

AREA 2 SYSTEM EVENT/TROUBLE

RIGHT DATA VALUES (CIRCLE

KEYPAD

AUX.

KEYPAD

FIRE

8 4 2 1

1. Select the desired option by circling  the data values for each digit (left

and right).

2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23). 3. Enter in address location (left and right digits). NOTE: Dark shaded data value box shows option not available. 4. Press u to save.

Global

Ambush Code

ADDRESS 2045

LEFT RIGHT

[Default = blank (•) blank (•)]

GLOBAL AMBUSH CODE: It is the 2-digits entered immediately prior to the regular disarm code. If “Enable Global Ambush Code” (Address 1422) is selected and Address 2045 is left blank (•), then the 2-digit Global Ambush Code is “99”. If “Enable Global Ambush Code” is selected and Address 2045 is not left blank (•), then the 2-digit Global Ambush Code is the two digits entered in address

2045.

 Enter in address location (both left and right digits) ; valid entries are 1-9.  Press u to save.

KEYPAD

PANIC

)

AMBUSH

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

SYSTEM OPTIONS (ADDRESS 0872-0887)

Page 27

AREA 3 SYSTEM EVENT/TROUBLE

SYSTEM RESPONSE

ACTIVATED BY AREA 3

EVENT/TROUBLE

Pulsed Alarm Output 8 4 2 1

Alarm Output 8 4 2 1

PGM1 Output 8 4 2 1

PGM2 Output 8 4 2 1

Report Event Telco 1 8 4 2 1

Report Event Telco 3 8 4 2 1

LEFT DATA VALUES (CIRCLE )

Keyfob

Low Batt.

FAIL TO

CLOSE

FAIL TO

OPEN

KEYPAD TAMPER

[Default = blank (•) blank (•) from address 0872-0879]

AREA 4 SYSTEM EVENT/TROUBLE

SYSTEM RESPONSE

ACTIVATED BY AREA 4

EVENT/TROUBLE

Pulsed Alarm Output 8 4 2 1

Alarm Output 8 4 2 1

PGM1 Output 8 4 2 1

PGM2 Output 8 4 2 1

Report Event Telco 1 8 4 2 1

Report Event Telco 3 8 4 2 1

LEFT DATA VALUES (CIRCLE )

Keyfob

Low Batt.

FAIL TO

CLOSE

FAIL TO

OPEN

KEYPAD TAMPER

[Default = blank (•) blank (•) from address 0880-0887]

ADDRESS 0856-0863

LEFT ADDR RIGHT

0872

0873

0874

0876

0877

0879

ADDRESS 0864-0871

LEFT ADDR RIGHT

0864

0865

0866

0868

0869

0871

8 4 2 1

AREA 3 SYSTEM EVENT/TROUBLE

RIGHT DATA VALUES (CIRCLE

KEYPAD

AUX.

KEYPAD

AUX.

KEYPAD

FIRE

AREA 4 SYSTEM EVENT/TROUBLE

RIGHT DATA VALUES (CIRCLE

KEYPAD

FIRE

8 4 2 1

KEYPAD

PANIC

KEYPAD

PANIC

)

AMBUSH

)

AMBUSH

1. Select the desired option by circling  the data values for each digit (left and right). 2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23). 3. Enter in address location (left and right digits). NOTE: Dark shaded data value box shows option not available. 4. Press u to save.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 28

SYSTEM OPTIONS (ADDRESS 1420-1424)

SYSTEM OPTIONS

RESERVED

Enable AutoArm if not

closed at end of Window

Enable Keypad Time/

Date Display

Disable Zone Fault

Scrolling

SYSTEM OPTIONS

Access Control on

PGM2 Output

Maintained Keyswitch

Arming

Enable Manager's Mode

Disable Keypad Instant

Mode

SYSTEM OPTIONS

Disable Keypad Function

Mode Download Disable Callback

Download

Chirp Output on Keyfob

Arm/Disarm

Change Pulse Output to

Temporal Output

SYSTEM OPTIONS

Line-Fault Test only

when Armed**

Enable Line-Fault Test**

Inhibit System Trouble

Audible at Keypad

Select Alarm Output for

Keyfob Chirp

§

SYSTEM OPTIONS

Don't Clear PGM2 Output

with Disarm

Disable 2nd Call Ans.

Machine Override

Enable Loop Supervision

Disable Code Required

for Bypass (Enable EZ Bypass)

LEFT DATA

VALUES

(CIRCLE

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

)

ADDRESS 1420

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM OF DATA VALUES)

[Default = blank (•) blank (•)]

ADDRESS 1421

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM OF DATA VALUES)

[Default = blank (•) blank (•)]

ADDRESS 1422

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM OF DATA VALUES)

[Default = blank (•) blank (•)]

ADDRESS 1423

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM OF DATA VALUES)

[Default = blank (•) blank (•)]

For Address 1423: Default depends on Easy Menu Question “

If yes, then [Default = •(blank) 1]. If no, then [Default = •(blank) •(blank)].

LEFT DIGIT (SUM

OF DATA VALUES)

EZ ZONE DOUBLING? Y/N”.

ADDRESS 1424

RIGHT DIGIT (SUM OF DATA VALUES)

[Default = (4) blank (•)]

RIGHT DATA

VALUES

(CIRCLE

)

1

2

4

8

RIGHT DATA

VALUES

(CIRCLE

)

1

2

4

8

RIGHT DATA

VALUES

)

1

2

4

8

RIGHT DATA

VALUES

)

1

2

4

8

RIGHT DATA

VALUES

)

1

8

SYSTEM OPTIONS

Opening Report Only after

Alarm Report

Closing Report Only on

Conditional Close

Incl. Sel./Grp. Bypass in

Cond. Close /Status

Status Report

SYSTEM OPTIONS

Auto Bell Test

on Arming

Auto Reset after Burglary

Output Timeout Suppress Bypass

Reminder when Armed Enable Local Alarm on

First Zone AND Trip

SYSTEM OPTIONS

Interior Normally By-

passed

Enable Global Ambush

Code ***

Reset Day Zone with Arm/

Disarm Only

Enable Residential Fire

SYSTEM OPTIONS

Enable Zone Doubling

(Zones 9-12)

Wireless Trouble Activates Telco 1

Wireless Trouble Activates Telco 3

Enable Alarm Output on Telco

Fail only when Armed

SYSTEM OPTIONS

Automatic Interior Bypass/

Easy Exit

RESERVED

Resound on Wireless

Smoke Low Battery

 1. Select the desired option by circling the data values for

each digit (left and right).

 2. Add the data values (ex: F=15=(1+2+4+8) from the selected

options. See page 23).

 3. Enter in address location (left and right digits). NOTE: Dark

shaded data value box shows option not available.

 4. Press u to save.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

*NOTE: Address 1423: Default depends on Easy Menu Question :"EZ

ZONE DOUBLING? Y/N". If yes, then [Default = 1]. If no, then [Default =

blank (•)].

**NOTE: To select "Line-Fault Test only when Armed", you must also

select "Enable Line-Fault Test" at address 1423.

***NOTE: If "Enable Global Ambush Code" in Address 1422 is selected, then

program the 2-digit "Global Ambush Code" in Address 2045. If Address 2045 is left blank (•), then, the 2-digit "Global Ambush Code" will be "99".

§This feature must be programmed in Fire Alarm applications.

SYSTEM OPTIONS (ADDRESS 2051-2054)

Page 29

SYSTEM OPTIONS LEFT DATA

RESERVED 1

RESERVED 2

Disable System Trouble

Audible Timeout

Enable "K Series" Style

††

NOTE: This option is for reference only and cannot be changed.

SYSTEM OPTIONS

RESERVED 1

RESERVED

RESERVED 8

Keypads

E15 LUG/

††

VALUES (CIRCLE

)

4

8

LEFT DATA

VALUES

(CIRCLE

2

4

LEFT DIGIT (SUM

OF DATA VALUES)

[Default = blank (•) blank (•)]

)

LEFT DIGIT (SUM

OF DATA VALUES)

[Default = blank (•) blank (•)]

ADDRESS 2051

RIGHT DIGIT (SUM

OF DATA VALUES)

ADDRESS 2052

RIGHT DIGIT (SUM

OF DATA VALUES)

RIGHT DATA

VALUES

(CIRCLE

)

1

2

4

RIGHT DATA

VALUES

)

1 RESERVED

2

4

8

SYSTEM OPTIONS

Enable Keypad Set Time/

Date Message

Enable Cancel Report to

Telco 3

Disable [ON/OFF] as Easy

Lug E15 Area 1 Armed

PGM on RF Transmitter

Exit

RESERVED

E15 LUG/

SYSTEM OPTIONS

RESERVED

Away Only*

Tamper

*Note: (Address 2052) If this feature

is not selected, the E15 Lug will, by default, activate when the system is armed (all areas).

LEFT DATA

SYSTEM OPTIONS

Digital Dialer Rpt Enter /

Exit Test Mode

Disable Call Waiting on

1st Attempt

Enable Keypad 1 Only

Programming

Enable CP-01 Egress

Tones Only

SYSTEM OPTIONS

Enable EN501 Grade 3

Operation

RESERVED 2

Enable 2-Count Swinger

Shutdown

Enable Keypad Blanking 8

VALUES

(CIRCLE

LEFT DATA

VALUES

1

2

4

8

1

4

)

ADDRESS 2053

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM

OF DATA VALUES)

[Default = blank (•) blank (•)]

ADDRESS 2054

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM

OF DATA VALUES)

[Default = 13 (D) 10 (0)]

RIGHT DATA

VALUES

(CIRCLE

RIGHT DATA

)

1

2

4

8

VALUES

1 Enable TCP/IP Commu-

2 Enable EN501 User Code

4 RESERVED

8 Enable Display Time On

SYSTEM OPTIONS

Sound Alarm On Exit Error

Rpt Exit Err/Recent Close

Enable CP-01 Limits

SYSTEM OPTIONS

Blanked Keypads

 1. Select the desired option by circling the data values for each digit (left and right).  2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23).  3. Enter in address location (left and right digits). NOTE: Dark shaded data value box shows option not available.  4. Press u to save.

Exit Time Restart

nications

Access Level

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 30

CS RECEIVER OPTIONS (ADDRESS 0460-0525)

ADDRESS 0460

CS Receiver 1

Format blank (•)

Default for CS Receiver 1 Format depends on Easy Menu Question “RCVR FORMAT”. [Default = •(blank) •

(blank)] for CS Receivers 2 and 3 Formats.

LEFT RIGHT

CS Receiver 2

Format blank (•)

ADDRESS 0482

LEFT RIGHT

CS Receiver 3

ADDRESS 0504

Format blank (•)

LEFT RIGHT

CS RECEIVER FORMATS: Up to 3 CS Formats may be programmed.

 1. Select the desired CS Receiver Format from the table shown.  2. Enter in the corresponding right digit address location (left digit is not used) for each CS

Receiver. NOTE: Dark shaded data value box shows option not available.

 3. Press u to save.

CS RECEIVER TELCO 1 OPTIONS

Sum Check

3/1 with Extended Restores

RESERVED

CS RECEIVER TELCO 2 OPTIONS

Sum Check

3/1 with Extended Restores

RESERVED

CS RECEIVER TELCO 3 OPTIONS

Sum Check

3/1 with Extended Restores

RESERVED

LEFT DATA

VALUES

(CIRCLE

)

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

)

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

)

1

2

4

8

LEFT DIGIT (SUM

OF DATA VALUES)

[Default = blank (•) blank (•)]

LEFT DIGIT (SUM

OF DATA VALUES)

[Default = blank (•) blank (•)]

LEFT DIGIT (SUM

OF DATA VALUES)

[Default = blank (•) blank (•)]

ADDRESS 0461

RIGHT DIGIT (SUM

OF DATA VALUES)

ADDRESS 0483

RIGHT DIGIT (SUM

OF DATA VALUES)

ADDRESS 0505

RIGHT DIGIT (SUM

OF DATA VALUES)

CS RECEIVER OPTIONS: Select options for any of the three CS Receivers.

RIGHT DATA

(CIRCLE

RIGHT DATA

(CIRCLE

RIGHT DATA

(CIRCLE

 1. Select the desired option by circling  the data values for each digit (left and right).  2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23).  3. Enter in address location (left and right digits).  NOTE: Dark shaded data value box shows option not available. Press u to save.

DATA

ENTRY

blank (•) Ademco Slow, Silent Knight Slow

2 Radionics Fast 3 Silent Knight Fast 4 Radionics, DCI, Franklin Slow

5 Universal High Speed B SIA C Ademco Point ID E Pager *

VALUES

CS RECEIVER 1 FORMAT

*See Pager Format Options to program Leading Digits for Pager Format.

CS RECEIVER TELCO 1 OPTIONS

)

1

2

4

8

VALUES

1400Hz Handshake/Kissoff *

2300Hz Handshake/Kissoff *

Enable Zone Number on Pulse Alarm

Single Digit Only

CS RECEIVER TELCO 2 OPTIONS

)

1

2

4

8

VALUES

1400Hz Handshake/Kissoff *

2300Hz Handshake/Kissoff *

Enable Zone Number on Pulse Alarm

Single Digit Only

CS RECEIVER TELCO 3 OPTIONS

)

1

2

4

8

1400Hz Handshake/Kissoff *

2300Hz Handshake/Kissoff *

Enable Zone Number on Pulse Alarm

Single Digit Only

NOTE: * If both are selected,

1400Hz has priority over 2300Hz.

CS Receiver 1 ADDRESS 0462-0481 (RIGHT DIGITS 1-20)

Telephone

Number

(Digits 1-20)

CS Receiver 2 ADDRESS 0484-0503 (RIGHT DIGITS 1-20)

Telephone

Number

(Digits 1-20)

CS Receiver 3 ADDRESS 0506-0525 (RIGHT DIGITS 1-20)

Telephone

Number

(Digits 1-20)

0462 0463 0464 0465 0466 0467 0468 0469 0470 0471 0472 0473 0474 0475 0476 0477 0478 0479 0480 0481

R R R R R R R R R R R R R R R R R R R R

0484 0485 0486 0487 0488 0489 0490 0491 0492 0493 0494 0495 0496 0497 0498 0499 0500 0501 0502 0503

R R R R R R R R R R R R R R R R R R R R

0506 0507 0508 0509 0510 0511 0512 0513 0514 0515 0516 0517 0518 0519 0520 0521 0522 0523 0524 0525

R R R R R R R R R R R R R R R R R R R R

CS RECEIVER TELEPHONE NUMBERS: Enter telephone numbers for any of the three CS Receivers (Telco 1, 2 & 3).

 1. Enter in right digit only (left digit is not used).  2. Enter up to 20 digits from left to right. NOTE: Leave trailing boxes blank (•). For a zero, press G0.

 3. Valid entries are: 1-9, B = *button, C = #button, D = 3 sec. pause, E = Wait for dial tone, F = ignore location. Press u to save.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Default for CS Receiver 1 Telephone Number depends on Easy Menu Question “CENTRAL PHONE #”.

[Default = blank (•)] across digits 1-20 for CS Receiver Telephone Numbers 2 and 3.

CS SUBSCRIBER ID OPTIONS (ADDRESS 0560-0667)

Page 31

CS Telco 1 Sub-

scriber Opening/

Closing ID Number

(Area 1)

CS Telco 1 Sub-

scriber Opening/

Closing ID Number

(Area 3)

CS Telco 1 Subscriber Event ID

Number (Area 1)

CS Telco 1 Subscriber Event ID

Number (Area 3)

CS Telco 2 Sub-

scriber Opening/

Closing ID Number

(Area 1)

CS Telco 2 Sub-

scriber Opening/

Closing ID Number

(Area 3)

CS Telco 2 Subscriber Event ID

Number (Area 1)

CS Telco 2 Subscriber Event ID

Number (Area 3)

ADDRESS 0560-0563

(RIGHT DIGITS 1-4)

0560 0561 0562 0563

ADDRESS 0568-0571

(RIGHT DIGITS 1-4)

0568 0569 0570 0571

ADDRESS 0576-0579

(RIGHT DIGITS 1-4)

0576 0577 0578 0579

ADDRESS 0584-0587

(RIGHT DIGITS 1-4)

0584 0585 0586 0587

ADDRESS 0596-0599

(RIGHT DIGITS 1-4)

0596 0597 0598 0599

ADDRESS 0604-0607

(RIGHT DIGITS 1-4)

0604 0605 0606 0607

ADDRESS 0612-0615

(RIGHT DIGITS 1-4)

0612 0613 0614 0615

ADDRESS 0620-0623

(RIGHT DIGITS 1-4)

0620 0621 0622 0623

CS Telco 1 Sub-

scriber Opening/

Closing ID Number

(Area 2)

CS Telco 1 Sub-

scriber Opening/

Closing ID Number

(Area 4)

CS Telco 1 Subscriber Event ID Number (Area 2)

CS Telco 1 Subscriber Event ID Number (Area 4)

CS Telco 2 Subscriber Opening/

Closing ID Number

(Area 2)

CS Telco 2 Subscriber Opening/

Closing ID Number

(Area 4)

CS Telco 2 Subscriber Event ID Number (Area 2)

CS Telco 2 Subscriber Event ID Number (Area 4)

ADDRESS 0564-0567

(RIGHT DIGITS 1-4)

0564 0565 0566 0567

ADDRESS 0572-0575

(RIGHT DIGITS 1-4)

0572 0573 0574 0575

ADDRESS 0580-0583

(RIGHT DIGITS 1-4)

0580 0581 0582 0583

ADDRESS 0588-0591

(RIGHT DIGITS 1-4)

0588 0589 0590 0591

ADDRESS 0600-0603

(RIGHT DIGITS 1-4)

0600 0601 0602 0603

ADDRESS 0608-0611

(RIGHT DIGITS 1-4)

0608 0609 0610 0611

ADDRESS 0616-0619

(RIGHT DIGITS 1-4)

0616 0617 0618 0619

ADDRESS 0624-0627

(RIGHT DIGITS 1-4)

0624 0625 0626 0627

CS Telco 1 Subscriber Event ID

Number (System)

CS Telco 2 Subscriber Event ID

Number (System)

ADDRESS 0592-0595

(RIGHT DIGITS 1-4)

0592 0593 0594 0595

ADDRESS 0628-0631

(RIGHT DIGITS 1-4)

0628 0629 0630 0631

CS Telco 3 Sub-

scriber Opening/

Closing ID Number

(Area 1)

CS Telco 3 Sub-

scriber Opening/

Closing ID Number

(Area 3)

CS Telco 3 Subscriber Event ID

Number (Area 1)

CS Telco 3 Subscriber Event ID

Number (Area 3)

ADDRESS 0632-0635

(RIGHT DIGITS 1-4)

0632 0633 0634 0635

ADDRESS 0640-0643

(RIGHT DIGITS 1-4)

0640 0641 0642 0643

ADDRESS 0648-0651

(RIGHT DIGITS 1-4)

0648 0649 0650 0651

ADDRESS 0656-0659

(RIGHT DIGITS 1-4)

0656 0657 0658 0659

CS Telco 3 Sub-

scriber Opening/

Closing ID Number

(Area 2)

CS Telco 3 Sub-

scriber Opening/

Closing ID Number

(Area 4)

CS Telco 3 Sub-

scriber Event ID

Number (Area 2)

CS Telco 3 Sub-

scriber Event ID

Number (Area 4)

ADDRESS 0636-0639

(RIGHT DIGITS 1-4)

0636 0637 0638 0639

ADDRESS 0644-0647

(RIGHT DIGITS 1-4)

0644 0645 0646 0647

ADDRESS 0652-0655

(RIGHT DIGITS 1-4)

0652 0653 0654 0655

ADDRESS 0660-0663

(RIGHT DIGITS 1-4)

0660 0661 0662 0663

CS Telco 3 Subscriber Event ID

Number (System)

ADDRESS 0664-0667

(RIGHT DIGITS 1-4)

0664 0665 0666 0667

Default for CS Telco 1 Subscriber Event ID Number (Area 1) depends on Easy Menu Question “ACCOUNT #”. [Default = blank (•) blank (•) blank (•) blank (•)] for all other ID Numbers.

CS TELCO SUBSCRIBER ID NUMBERS: Enter the Subscriber Opening/Closing and Event ID Numbers for any of the 3 CS Receivers.

 1. Enter in corresponding right digit address location (left digit is not used).  2. Enter 3 or 4 digits (depending on the CS receiver format) for each subscriber number from left to right. NOTE: Leave trailing boxes blank

(•). For a zero, press G0. Valid entries are: 1-9, 0 and B-F. NOTE: A is not permitted. Press

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

u to save.

Page 32

CS SYSTEM REPORTING OPTIONS (ADDRESS 0670-0705)

CS SYSTEM

REPORTING CODES

Xmitter Low Battery Xmitter Supervision

Opening after Alarm

[Default = blank (•) blank (•) from address 0670-0682] [Default = blank (•) blank (•) from address 0683-0705]

Alarm Restore blank (•) 0670

Trouble

Trouble Restore

Xmitter Tamper

RESERVED

Opening

Closing

Conditional Close

Cancel

Test Timer

ADDRESS 0670-0682

ADDR

blank (•) 0671 blank (•) 0672

blank (•) 0673 blank (•) 0674 blank (•) 0675

blank (•) 0676 blank (•)

blank (•) 0677 blank (•) 0678 blank (•) 0679 blank (•) 0680

blank (•) 0681

0682

CS SYSTEM

REPORTING CODES

Alarm Output Superv.

Keyfob Low Battery

ADDR

Telco Fail 0683

RF Rec. Trouble

Memory Fail

Low Battery

Panel AC Fail

RESERVED

Ambush

Panic

Fire

Auxiliary

Tamper Fail to Open Fail to Close

blank (•) 0688 blank (•)

ADDRESS 0683-0708

0684 0685 0686 0687

0689 bl 0698 0699

0700 0701 0702 0703 0704 0705

CS SYSTEM REPORTING CODES:

1. Enter in corresponding address location (left and right digits).

NOTE: Left digit is the first digit and

right digit is the second digit in a two digit CS receiver format.

2. Valid entries are: 1-9, 0 and B-F.

NOTE: A is not permitted.

3. To disable a code leave boxes blank (•).

NOTE: Dark shaded data value box

shows option not available.

4. Press

u to save.

CS AREA & SYSTEM REPORTING OPTIONS (ADDRESS 0785, 0786 & 0788)

DISABLE OPENING REPORTS

ADDRESS 0785

LEFT DIGIT RIGHT DIGIT (SUM

blank (•)

OF DATA VALUES)

[Default = blank (•) blank (•)]

CS SYSTEM REPORT OPTIONS

(CIRCLE

Cancel Next Test Timer on any Report 1

Disable Wait for Silence (Pager Format)

Disable Wait for Handshake on Transmit

Disable Auto Dial Tone Detect 8

RIGHT DATA

(CIRCLE

LEFT DATA

VALUES

)

2

4

VALUES

)

1

2

4

8

AREA

AREA 1

AREA 2

AREA 3

AREA 4

DISABLE CLOSING REPORTS

ADDRESS 0786

LEFT DIGIT RIGHT DIGIT (SUM

blank (•)

[Default = blank (•) blank (•)]

ADDRESS 0788

LEFT DIGIT (SUM RIGHT DIGIT (SUM

[Default = blank (•) blank (•)]

OF DATA VALUES)

CS AREA & SYSTEM REPORTING OPTIONS:

 1. Select the desired option by circling  the data values for each digit (left and right).  2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23).  3. Enter in address location (left and right digits).

NOTE: Dark shaded data value box shows option not available. Press u to save.

RIGHT DATA

VALUES

(CIRCLE

)

1 Backup Report on Telco 1 & 2

2 Touch-tone Dialing Only *

4 Touch-tone Dialing w/Rotary Backup *

8 RESERVED

* NOTE: If neither Touch-tone Dialing

nor Touch-tone w/Rotary Backup is selected, then system defaults automatically to Rotary Dialing. Leave blank (•) to select Rotary Dialing.

RIGHT DATA

VALUES

(CIRCLE

1

2

4

8

CS SYSTEM REPORT OPTIONS

AREA

)

AREA 1

AREA 2

AREA 3

AREA 4

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

ZONE ANDING TIME WINDOW (ADDRESS 2061)

Page 33

Zone

ANDing

Time

Window

(seconds)

ADDRESS 2061

LEFT RIGHT

[Default = 3 C]

DATA ENTRIES

LEFT RIGHT

DELAY/

TIMEOUT

blank (•) blank (•) 0 sec.

blank (•) F 15 sec.

1 E 30 sec.

2 D 45 sec.

3 C 60 sec.

5 0 90 sec.

7 8 120 sec.

F F 255 min.

KEYPAD UNBLANKING TIME WINDOW (ADDRESS 2060)

Keypad

Unblanking

Time

Window

(seconds)

[Default = 8 blank (•)]

ADDRESS 2060

LEFT RIGHT

ZONE ANDING TIME WINDOW: With Zone ANDing enabled, the system will go into alarm

only if any two zones in a group are tripped within a specified period of time. With this address, this time window is adjustable between 1 and 255 seconds. The factory default is 60 seconds. Note: If the address is programmed to 0, the panel defaults to 60 seconds.

1. Select time window (0-255 sec.) from the table shown at left. 2. Enter in corresponding address locations above (left and right digits). 3. For a desired delay/timeout not listed do the following:

A. Choose a desired delay/timeout, ex: 20 sec. B. Divide it by 16

4. Press u to save.

EXIT/ENTRY DELAYS: Apply only to zones programmed with the following options “Exit/Entry 1, Exit/Entry 2, Exit/ Entry Follower”. tables provided or calculate your own timeout using the steps indicated. WARNING: Timers have

uncertainty of +/-1sec, so a "time" of 1 second may actually timeout IMMEDIATELY.

KEYPAD BLANKING TIME WINDOW: If a keypad (RP1, RP2) is Blanked/System

event mode, enabling the keypad to normal requires a Set/Unset code + Enter (level2/3/4) to come alive. The keypad will stay alive (Normal) for 128 seconds (default) or for a time in a programmable in an EEProm location in seconds. This location, 2060, contains a 3 digit decimal and is called Keypad Un-blanking Period. During exit/entry delay all keypads will always come ALIVE (Normal).

See "Zone ANDing Time Window" (above) for programming procedure.

NOTE: Sensor Watch Time Options are similar to above table, except in hours. Either use the

1 Quotient Left Digit 16 20 16 4 Remainder Right Digit

CLOCK ADJUSTMENTS (ADDRESS 2281)

CLOCK ADJUSTMENTS

RESERVED 1

RESERVED 2

RESERVED 4

RESERVED 8

CLOCK ADJUSTMENTS:

LEFT DATA

VALUES

(CIRCLE

)

LEFT DIGIT (SUM

OF DATA VALUES)

*[Default = AC Source used] **[Default = 60Hz]

ADDRESS 2281

RIGHT DIGIT (SUM OF DATA VALUES)

RIGHT DATA

VALUES

(CIRCLE

)

CLOCK ADJUSTMENTS

1 Enable Daylight Saving Time

2 Clock Source (Internal Panel )*

4 Line Frequency--Enable 50Hz **

8 RESERVED

 1. Select the desired option by circling  the data values for each digit (left and right).  2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23).  3. Enter in address location (left and right digits).

NOTE: Dark shaded data value box shows option not available. Press u to save.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 34

CS ZONE REPORTING OPTIONS (ADDRESS 0720-0751)

ADDRESS 0720-0727

CONTROL PANEL ZONES REPORT CODE

ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8

0720 0721 0722 0723 0724 0725 0726

L R L R L R L R L R L R L R L R

ADDRESS 0736-0739

ZONES REPORT CO DE

ZONE 17 ZONE 18 ZONE 19 ZONE 20

0736 0737 0738

L R L R L R L R

0739

ADDRESS 0740-0743

ZONES REPORT CO DE

ZONE 21 ZONE 22 ZONE 23 ZONE 24

0740 0741 0742

L R L R L R L R

0727

0743

Default for Group Zone Report Codes depends on Easy Menu Question “RCVR. FORMAT”.

ZONE REPORT

CODE OPTIONS

DATA ENTRIES

LEFT RIGHT

NOTE: If "Zone Doubling" (Address 1423) is not enabled, then Zones 1-4 are included in the control panel and Zones

5-32 are wireless Zones. If "Zone Doubling" is enabled, then Zones 1-4 and 9-12 are included in the control panel; Zones 5 through 32 are available as wireless--however--Zones 9-12 would be ORed with the hardwired zones.

PULSE EVENT CODE will be the first digit of the 2 digit reporting code. The second digit will be the

DATA

ENTRIES MODEM CODE

LEFT

1 Fire 2 Panic 3 Burglary 4 Hold up 7 Gas Alarm 8 Heat Alarm 0 Auxiliary Alarm

B 24 Hour Auxiliary

second digit of the reporting zone. For example, for zone 9 (address 0728), if the right digit is “3", then the reporting code is ”39". For example, for zone 15 (address 0734), if the right digit is “4", then the reporting code is ”45".

MODEM CODES determine the zone types reported for the following formats: SIA and ADEMCO Point ID.

 1. Select the desired Modem Code for each zone from the table shown.  2. Press u to save.

ADDRESS 0728-0731

ZONES REPORT CODE

ZONE 9 ZONE 10 ZONE 11 ZONE 12

0728 0729 0730

L R L R L R L R

ADDRESS 0744-0747

ZONES REPORT CODE

ZONE 25 ZONE 26 ZONE 27 ZONE 28

0744 0745 0746

L R L R L R L R

0731

0747

ADDRESS 0732-0735

ZONES REPORT CODE

ZONE 13 ZONE 14 ZONE 15 ZONE 16

0732 0733 0734

L R L R L R L R

ADDRESS 0748-0751

ZONES REPORT CODE

ZONE 29 ZONE 30 ZONE 31 ZONE 32

0748 0749 0750

L R L R L R L R

0735

0751

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

CS USER REPORTING OPTIONS (ADDRESS 0800-0817)

Page 35

LEFT DATA VALUE ADDRESS 0800

User Opening

Telco 1

User Opening

Telco 1

User Opening

Telco 1

User Opening

Telco 1

User Opening

Telco 1

User 8 User 7 User 6 User 5 LEFT RIGHT User 4 User 3 User 2 User

LEFT DATA VALUE ADDRESS 0802

LEFT DATA VALUES ADDRESS 0804

LEFT DATA VALUE ADDRESS 0806

ADDRESS 0808

8 4 2 1 8 4 2 1

User

24

23

22

8 4 2 1

User

39

User

55

User

38

User

54

40

8 4 2 1

User

56

8 4 2 1 8 4 2 1

LEFT RIGHT User

blank (•)

LEFT RIGHT User

21

User

LEFT RIGHT User

37

User

LEFT RIGHT User

53

RIGHT DATA VALUES

User

68

8 4 2 1

RIGHT DATA VALUES LEFT DATA VALUE ADDRESS 0801

RIGHT DATA VALUES LEFT DATA VALUES ADDRESS 0803

User

19

User

35

User

51

User

18

User

34

User

50

20

8 4 2 1

RIGHT DATA VALUES

36

8 4 2 1

RIGHT DATA VALUES LEFT DATA VALUES ADDRESS 0807

52

User 65 = Auto Arming/Disarming

67

User

66

User 66 = Quickloader Remote Arming/Disarming

User

65

User 67 = Easy Arming User 68 = Keyswitch Arming

RIGHT DATA VALUES

User

1

16

15

14

8 4 2 1 8 4 2 1

User

17

32

8 4 2 1 8 4 2 1

LEFT DATA VALUE ADDRESS 0805

User

48

33

8 4 2 1 8 4 2 1

User

49

64

8 4 2 1

31

User

47

User

63

User

30

User

46

User

62

(Opening not applicable)

LEFT RIGHT User

13

User

LEFT RIGHT User

29

User

LEFT RIGHT User

45

User

LEFT RIGHT User

61

8 4 2 1

12

RIGHT DATA VALUES

28

RIGHT DATA VALUES

44

RIGHT DATA VALUES

60

NOTE: These opening events will report

as the user number shown. Also, Keyfobs 1-8 (see Easy Menu Program Driven Mode) will report as Users 57-64, respectively.

User

11

User

27

User

43

User

59

User

10

User

26

User

42

User

58

User

9

User

25

User

41

User

57

LEFT DATA VALUE ADDRESS 0809

User Opening

Telco 1

User Opening

Telco 1

User Opening

Telco 1

User Opening

Telco 1

User Opening

Telco 1

User 8 User 7 User 6 User 5 LEFT RIGHT User 4 User 3 User 2 User

LEFT DATA VALUE ADDRESS 0811

LEFT DATA VALUES ADDRESS 0813

LEFT DATA VALUE ADDRESS 0815

ADDRESS 0817

8 4 2 1 8 4 2 1

User

24

23

22

8 4 2 1

User

39

User

55

User

38

User

54

40

8 4 2 1

User

56

8 4 2 1 8 4 2 1

LEFT RIGHT User

blank (•)

LEFT RIGHT User

21

User

LEFT RIGHT User

37

User

LEFT RIGHT User

53

RIGHT DATA VALUES

User

68

8 4 2 1

User

67

66

RIGHT DATA VALUES LEFT DATA VALUE ADDRESS 0810

User

1

16

15

14

8 4 2 1 8 4 2 1

RIGHT DATA VALUES LEFT DATA VALUES ADDRESS 0812

User

20

19

18

17

32

8 4 2 1 8 4 2 1

RIGHT DATA VALUES

User

35

User

51

User

34

User

50

36

RIGHT DATA VALUES LEFT DATA VALUES ADDRESS 0816

52

LEFT DATA VALUE ADDRESS 0814

User

48

33

8 4 2 1 8 4 2 1

User

49

64

8 4 2 1

31

User

47

User

63

User

30

User

46

User

62

LEFT RIGHT User

13

User

LEFT RIGHT User

29

User

LEFT RIGHT User

45

User

LEFT RIGHT User

61

User 65 = Auto Arming/Disarming User 66 = Quickloader Remote Arming/Disarming

User

65

User 67 = Easy Arming

(Opening not applicable)

User 68 = Keyswitch Arming

RIGHT DATA VALUES

User

12

11

RIGHT DATA VALUES

User

28

27

RIGHT DATA VALUES

User

44

43

RIGHT DATA VALUES

User

60

59

8 4 2 1

NOTE: These opening events will report

as the user number shown. Also, Keyfobs 1-8 (see Easy Menu Program Driven Mode) will report as Users 57-64, respectively.

CS USER REPORTING OPTIONS: [Default = blank (•) blank (•) from address 0800-0817]

1. Select the desired option by circling  the data values for each digit (left and right). 2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23). 3. Enter in address location (left and right digits). NOTE: Dark shaded data value box shows option not available. 4. Press u to save.

User

10

User

26

User

42

User

58

User

9

User

25

User

41

User

57

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 36

CS USER REPORTING OPTIONS (ADDRESS 0818-0835)

LEFT DATA VALUE ADDRESS 0818

User Opening

Telco 3

LEFT DATA VALUE ADDRESS 0820

User Opening

Telco 3

LEFT DATA VALUES ADDRESS 0822

User Opening

Telco 3

LEFT DATA VALUE ADDRESS 0824

User Opening

Telco 3

User Opening

Telco 3

User 8 User 7 User 6 User 5 LEFT RIGHT User 4 User 3 User 2 User

8 4 2 1 8 4 2 1

User

24

23

8 4 2 1

User

40

39

8 4 2 1

User

56

55

8 4 2 1 8 4 2 1

ADDRESS 0826

LEFT RIGHT User

blank (•)

User

22

21

User

38

37

User

54

53

RIGHT DATA VALUES

User

68

8 4 2 1

RIGHT DATA VALUES LEFT DATA VALUE ADDRESS 0819

RIGHT DATA VALUES LEFT DATA VALUES ADDRESS 0821

LEFT RIGHT User

8 4 2 1

LEFT RIGHT User

8 4 2 1

LEFT RIGHT User

User

19

User

35

User

51

User

18

User

34

User

50

20

RIGHT DATA VALUES

36

RIGHT DATA VALUES LEFT DATA VALUES ADDRESS 0825

52

User 65 = Auto Arming/Disarming

67

User

66

User 66 = Quickloader Remote Arming/Disarming

User

65

User 67 = Easy Arming User 68 = Keyswitch Arming

RIGHT DATA VALUES

User

1

16

15

14

8 4 2 1 8 4 2 1

User

17

32

8 4 2 1 8 4 2 1

LEFT DATA VALUE ADDRESS 0823

User

48

33

8 4 2 1 8 4 2 1

User

49

64

8 4 2 1

31

User

47

User

63

User

30

User

46

User

62

(Opening not applicable)

LEFT RIGHT User

13

User

LEFT RIGHT User

29

User

LEFT RIGHT User

45

User

LEFT RIGHT User

61

8 4 2 1

12

RIGHT DATA VALUES

28

RIGHT DATA VALUES

44

RIGHT DATA VALUES

60

NOTE: These opening events will report

as the user number shown. Also, Keyfobs 1-8 (see Easy Menu Program Driven Mode) will report as Users 57-64, respectively.

User

11

User

27

User

43

User

59

User

10

User

26

User

42

User

58

User

9

User

25

User

41

User

57

LEFT DATA VALUE ADDRESS 0827

User Opening

Telco 3

LEFT DATA VALUE ADDRESS 0829

User Opening

Telco 3

LEFT DATA VALUES ADDRESS 0831

User Opening

Telco 3

LEFT DATA VALUE ADDRESS 0833

User Opening

Telco 3

User Opening

Telco 3

User 8 User 7 User 6 User 5 LEFT RIGHT User 4 User 3 User 2 User

8 4 2 1 8 4 2 1

User

24

23

22

8 4 2 1

User

39

User

55

User

38

User

54

40

8 4 2 1

User

56

8 4 2 1 8 4 2 1

ADDRESS 0835

LEFT RIGHT User

blank (•)

LEFT RIGHT User

21

User

LEFT RIGHT User

37

User

LEFT RIGHT User

53

RIGHT DATA VALUES

User

68

8 4 2 1

User

67

66

RIGHT DATA VALUES LEFT DATA VALUE ADDRESS 0828

User

1

16

15

14

8 4 2 1 8 4 2 1

RIGHT DATA VALUES LEFT DATA VALUES ADDRESS 0830

User

20

19

18

17

32

8 4 2 1 8 4 2 1

RIGHT DATA VALUES

User

35

User

51

User

34

User

50

36

RIGHT DATA VALUES LEFT DATA VALUES ADDRESS 0834

52

LEFT DATA VALUE ADDRESS 0832

User

48

33

8 4 2 1 8 4 2 1

User

49

64

8 4 2 1

31

User

47

User

63

User

30

User

46

User

62

LEFT RIGHT User

13

User

LEFT RIGHT User

29

User

LEFT RIGHT User

45

User

LEFT RIGHT User

61

User 65 = Auto Arming/Disarming User 66 = Quickloader Remote Arming/Disarming

User

65

User 67 = Easy Arming

(Opening not applicable)

User 68 = Keyswitch Arming

RIGHT DATA VALUES

User

12

11

RIGHT DATA VALUES

User

28

27

RIGHT DATA VALUES

User

44

43

RIGHT DATA VALUES

User

60

59

8 4 2 1

NOTE: These opening events will report

as the user number shown. Also, Keyfobs 1-8 (see Easy Menu Program Driven Mode) will report as Users 57-64, respectively.

CS USER REPORTING OPTIONS: [Default = blank (•) blank (•) from address 0818-0835]

1. Select the desired option by circling  the data values for each digit (left and right). 2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23). 3. Enter in address location (left and right digits). NOTE: Dark shaded data value box shows option not available. 4. Press u to save.

User

10

User

26

User

42

User

58

User

9

User

25

User

41

User

57

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

This page left blank intentionally

Page 37

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 38

AREA BELL CONTROL OPTIONS (ADDRESS 1473-1476)

Burglary Output Turns Off upon Disarm

RESERVED

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

)

Burglary Output Turns Off upon Disarm

ADDRESS 1473

LEFT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

Burglary Output Turns Off upon Disarm

LEFT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

Burglary Output Turns Off upon Disarm

LEFT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

Burglary Output Turns Off upon Disarm

LEFT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

RIGHT DIGIT (SUM

OF DATA VALUES)

ADDRESS 1474

RIGHT DIGIT (SUM

OF DATA VALUES)

ADDRESS 1475

RIGHT DIGIT (SUM

OF DATA VALUES)

ADDRESS 1476

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DATA

VALUES

(CIRCLE

)

1

2

4

8

RIGHT DATA

VALUES

)

1

2

4

8

RIGHT DATA

VALUES

)

1

2

4

8

RIGHT DATA

VALUES

)

1

2

4

8

Disarming Area 1

Area 1 Burg Output Silenced

Area 2 Burg Output Silenced

Area 3 Burg Output Silenced

Area 4 Burg Output Silenced

Disarming Area 2

Area 1 Burg Output Silenced

Area 2 Burg Output Silenced

Area 3 Burg Output Silenced

Area 4 Burg Output Silenced

Disarming Area 3

Area 1 Burg Output Silenced

Area 2 Burg Output Silenced

Area 3 Burg Output Silenced

Area 4 Burg Output Silenced

Disarming Area 4

Area 1 Burg Output Silenced

Area 2 Burg Output Silenced

Area 3 Burg Output Silenced

Area 4 Burg Output Silenced

OUTPUT TURNS OFF UPON DISARM: Select options for any of the 4 Outputs.

 1. Select the desired option by circling  the data values for right digit only (left is not used).  2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23).  3. Enter in right digit address location. NOTE: Dark shaded data value box shows option not available.  4. Press u to save.

OUTPUT TURNS OFF UPON DISARM:

Select options for any of the 4 Outputs. By default, the ability to turn off an output upon disarm is not allowed. For example, the ability to silence an Area 1 through Area 4 output via an Area 1 keypad is not enabled by default. To enable selected area output control, enter the number (1,2,3,4) accordingly. For example, if you wish to grant an Area 1 keypad the ability to turn off an Area 2 PGM2 output, enter "2" in Address 1485.

 Enter digit in address location. NOTE: Dark shaded data value box shows option not available. Press u to save.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

AREA BELL CONTROL OPTIONS (ADDRESS 1477-1480)

Pulsed Burg Output Turns Off upon Disarm

Page 39

RESERVED

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

)

Pulsed Burg Output

Turns Off upon Disarm

ADDRESS 1477

LEFT DIGIT (SUM

OF DATA VALUES)

•

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DATA

VALUES

[Default = blank (•) one (1)]

RESERVED

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

)

Pulsed Burg Output

Turns Off upon Disarm

ADDRESS 1478

LEFT DIGIT (SUM

OF DATA VALUES)

•

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DATA

VALUES

[Default = blank (•) one (1)]

RESERVED

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

)

Pulsed Burg Output

Turns Off upon Disarm

ADDRESS 1479

LEFT DIGIT (SUM

OF DATA VALUES)

•

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DATA

VALUES

[Default = blank (•) one (1)]

RESERVED

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

)

Pulsed Burg Output

Turns Off upon Disarm

ADDRESS 1480

LEFT DIGIT (SUM

OF DATA VALUES)

•

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DATA

VALUES

[Default = blank (•) one (1)]

OUTPUT TURNS OFF UPON DISARM: Select options for any of the 4 Outputs.

 1. Select the desired option by circling  the data values for right digit only (left is not used).

Disarming Area 1

1

2

4

8

1

2

4

8

1

2

4

8

1

2

4

8

Area 1 Pulsed Burg Output

Area 2 Pulsed Burg Output

Area 3 Pulsed Burg Output

Area 4 Pulsed Burg Output

Area 1 Pulsed Burg Output

Area 2 Pulsed Burg Output

Area 3 Pulsed Burg Output

Area 4 Pulsed Burg Output

Area 1 Pulsed Burg Output

Area 2 Pulsed Burg Output

Area 3 Pulsed Burg Output

Area 4 Pulsed Burg Output

Area 1 Pulsed Burg Output

Area 2 Pulsed Burg Output

Area 3 Pulsed Burg Output

Area 4 Pulsed Burg Output

Silenced

Disarming Area 2

Silenced

Disarming Area 3

Silenced

Disarming Area 4

Silenced

 2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23).  3. Enter in right digit address location. NOTE: Dark shaded data value box shows option not available.  4. Press u to save.

OUTPUT TURNS OFF UPON DISARM:

Select options for any of the 4 Outputs. By default, the ability to turn off an output upon disarm is not allowed. For example, the ability to silence an Area 1 through Area 4 output via an Area 1 keypad is not enabled by default. To enable selected area output control, enter the number (1,2,3,4) accordingly. For example, if you wish to grant an Area 1 keypad the ability to turn off an Area 2 PGM2 output, enter "2" in Address 1485.

 Enter digit in address location. NOTE: Dark shaded data value box shows option not available. Press u to save.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 40

AREA BELL CONTROL OPTIONS (ADDRESS 1481-1484)

PGM1 Output Turns Off upon Disarm

RESERVED

LEFT DATA

VALUES

(CIRCLE

)

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

)

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

)

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

)

1

2

4

8

PGM1 Output Turns Off upon Disarm

ADDRESS 1481

LEFT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

PGM1 Output Turns Off upon Disarm

ADDRESS 1482

LEFT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

PGM1 Output Turns Off upon Disarm

ADDRESS 1483

LEFT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

PGM1 Output Turns Off upon Disarm

ADDRESS 1484

LEFT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DIGIT (SUM

OF DATA VALUES)

(1)

RIGHT DATA

VALUES

(CIRCLE

)

1

2

4

8

RIGHT DATA

VALUES

(CIRCLE

)

1

2

4

8

RIGHT DATA

VALUES

(CIRCLE

)

1

2

4

8

RIGHT DATA

VALUES

(CIRCLE

)

1

2

4

8

Disarming Area 1

Area 1 PGM1 Output Silenced

Area 2 PGM1 Output Silenced

Area 3 PGM1 Output Silenced

Area 4 PGM1 Output Silenced

Disarming Area 2

Area 1 PGM1 Output Silenced

Area 2 PGM1 Output Silenced

Area 3 PGM1 Output Silenced

Area 4 PGM1 Output Silenced

Disarming Area 3

Area 1 PGM1 Output Silenced

Area 2 PGM1 Output Silenced

Area 3 PGM1 Output Silenced

Area 4 PGM1 Output Silenced

Disarming Area 4

Area 1 PGM1 Output Silenced

Area 2 PGM1 Output Silenced

Area 3 PGM1 Output Silenced

Area 4 PGM1 Output Silenced

OUTPUT TURNS OFF UPON DISARM: Select options for any of the 4 Outputs.

 1. Select the desired option by circling  the data values for right digit only (left is not used).  2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23).  3. Enter in right digit address location. NOTE: Dark shaded data value box shows option not available.  4. Press u to save.

OUTPUT TURNS OFF UPON DISARM:

Select options for any of the 4 Outputs. By default, the ability to turn off an output upon disarm is not allowed. For example, the ability to silence an Area 1 through Area 4 output via an Area 1 keypad is not enabled by default. To enable selected area output control, enter the number (1,2,3,4) accordingly. For example, if you wish to grant an Area 1 keypad the ability to turn off an Area 2 PGM2 output, enter "2" in Address 1485.

 Enter digit in address location. NOTE: Dark shaded data value box shows option not available. Press u to save.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

AREA BELL CONTROL OPTIONS (ADDRESS 1485-1488)

PGM2 Output Turns Off upon Disarm

Page 41

RESERVED

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

)

PGM2 Output

Turns Off upon Disarm

ADDRESS 1485

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

PGM2 Output

Turns Off upon Disarm

ADDRESS 1486

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

PGM2 Output

Turns Off upon Disarm

ADDRESS 1487

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

(1)

RIGHT DATA

VALUES

1

2

4

8

RIGHT DATA

VALUES

1

2

4

8

RIGHT DATA

VALUES

1

2

4

8

Disarming Area 1

Area 1 PGM2 Burg Output

Silenced

Area 2 PGM2 Burg Output

Silenced

Area 3 PGM2 Burg Output

Silenced

Area 4 PGM2 Burg Output

Silenced

Disarming Area 2

Area 1 PGM2 Burg Output

Silenced

Area 2 PGM2 Burg Output

Silenced

Area 3 PGM2 Burg Output

Silenced

Area 4 PGM2 Burg Output

Silenced

Disarming Area 3

Area 1 PGM2 Burg Output

Silenced

Area 2 PGM2 Burg Output

Silenced

Area 3 PGM2 Burg Output

Silenced

Area 4 PGM2 Burg Output

Silenced

RESERVED

LEFT DATA

VALUES

(CIRCLE

1

2

4

8

)

PGM2 Output

Turns Off upon Disarm

ADDRESS 1488

LEFT DIGIT (SUM

OF DATA VALUES)

RIGHT DIGIT (SUM

OF DATA VALUES)

•

[Default = blank (•) one (1)]

(1)

RIGHT DATA

VALUES

1

2

4

8

Disarming Area 4

Area 1 PGM2 Burg Output

Silenced

Area 2 PGM2 Burg Output

Silenced

Area 3 PGM2 Burg Output

Silenced

Area 4 PGM2 Burg Output

Silenced

OUTPUT TURNS OFF UPON DISARM: Select options for any of the 4 Outputs.

 1. Select the desired option by circling  the data values for right digit only (left is not used).  2. Add the data values (ex: F=15=(1+2+4+8) from the selected options. See page 23).  3. Enter in right digit address location. NOTE: Dark shaded data value box shows option not available.  4. Press u to save.

OUTPUT TURNS OFF UPON DISARM:

Select options for any of the 4 Outputs. By default, the ability to turn off an output upon disarm is not allowed. For example, the ability to silence an Area 1 through Area 4 output via an Area 1 keypad is not enabled by default. To enable selected area output control, enter the number (1,2,3,4) accordingly. For example, if you wish to grant an Area 1 keypad the ability to turn off an Area 2 PGM2 output, enter "2" in Address 1485.

 Enter digit in address location. NOTE: Dark shaded data value box shows option not available. Press u to save.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 42

KEYPAD OPTIONS (ADDRESS 0723-0736 & 1055-1058)

KEYPAD OPTIONS (ADDRESS 1425-1431, 1440-1446)

Keypad 1 Type

ADDRESS 1425

LEFT RIGHT

Keypad 2 Type

ADDRESS 1426

LEFT RIGHT

Keypad 3 Type

ADDRESS 1427

LEFT RIGHT

[Default = blank (•) blank (•)] [Default = blank (•) blank (•)]

Keypad 5 Type

ADDRESS 1429

LEFT RIGHT

Keypad 6 Type

ADDRESS 1430

LEFT RIGHT

Keypad 7 Type

[Default = blank (•) blank (•)]

ADDRESS 1431

LEFT RIGHT

[Default = blank (•) blank (•)] [Default = blank (•) blank (•)] [Default = blank (•) blank (•)]

KEYPAD TYPE

LEFT OPTION

blank

Burg Keypad

(•)

Wizard Keypad

2

KEYPAD

ASSIGNMENT

RIGHT OPTION

blank (•) Disabled

Active

1

Keypad

KEYPAD TYPE: Up to 7 keypads may be programmed, if they are connected.

NOTE: See Keypad Configuration Mode.

1. Select keypad type for each keypad from the tables shown. 2. Enter in corresponding right and left digit address locations above. 3. Press u to save.

KEYPAD OPTIONS

KEYPAD

NO.

1 8 4 2 1

2 8 4 2 1

3 8 4 2 1

4 8 4 2 1

5 8 4 2 1

6 8 4 2 1

7 8 4 2 1

LEFT DATA VALUES (CIRCLE )

RSRVD

PANEL

ACCESS

EASY

ARMING

[Default = blank (•) blank (•) from address 1440-1446]

ADDRESS 1440-1446

AMBUSH LEFT ADDR RIGHT RSRVD

1440

1441

1442

1443

1444

1445

1446

KEYPAD OPTIONS

RIGHT DATA VALUES (CIRCLE )

KEYPAD

PANIC

8 4 2 1

KEYPAD

AUX.

Keypad 4 Type

ADDRESS 1428

LEFT RIGHT

[Default = blank (•) blank (•)] [Default = blank (•) blank (•)]

KEYPAD

FIRE

KEYPAD OPTIONS: Select options for any of the 7 keypads.

 1. Select the desired option entering the option number (1-8) for each digit.  2. Enter corresponding option number in address location.

NOTE: Dark shaded data value box shows option not available.

 3. Press u to save.

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

This page left blank intentionally

Page 43

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 44

AREA ARMING OPTIONS (ADDRESS 1469-1472)

Priority ADDRESS 1469

Arming

Area 1 blank (•)

[Default = blank (•) blank (•)]

PRIORITY ARMING/AREA 1

DATA ENTRIES

LEFT RIGHT blank (•) blank (•) Not Used blank (•) 1 Enabled

LEFT RIGHT

OPTION

PRIORITY AREA ARMING:

 1. Select option from the table shown.  2. Enter in corresponding right digit address location (left digit is not used).

NOTE: Dark shaded data value box shows option not available.

 3. Press u to save.

Zone

Integration

Time (x 10ms)

[Default = 075 x 10ms = 750ms]

ADDRESS 2280

LEFT RIGHT

Priority ADDRESS 1470 Arming

Area 2 blank (•)

[Default = blank (•) blank (•)]

PRIORITY ARMING/AREA 2 DATA ENTRIES

LEFT RIGHT blank (•) blank (•) Not Used blank (•) 1 Enabled

LEFT RIGHT

OPTION

Priority ADDRESS 1471

Arming

Area 3 blank (•)

[Default = blank (•) blank (•)]

PRIORITY ARMING/AREA 1

DATA ENTRIES

LEFT RIGHT blank (•) blank (•) Not Used blank (•) 1 Enabled

LEFT RIGHT

ZONE INTEGRATION TIME (ADDRESS 2062)

Zone Integration Time: The panel Zone Integration (Response) time can be adjusted to a

new global value. Address 2062 accepts three decimal digits which are multiplied by 10 milliseconds to get a new value that replaces the default value of 750ms. If the location is set to 000, the system will default to 750ms internally. The maximum value is 255. If a value above 255 is entered the system will display 000 to request a re-entry.

Note: Only the panel zones’ integration times are programmable. In addition, zone responses are enabled only when armed.

OPTION

Priority ADDRESS 1472

Arming

Area 4 blank (•)

[Default = blank (•) blank (•)]

PRIORITY ARMING/AREA 2 DATA ENTRIES

LEFT RIGHT blank (•) blank (•) Not Used blank (•) 1 Enabled

LEFT RIGHT

OPTION

ZONE INTEGRATION TIME

DATA ENTRIES

LEFT RIGHT

blank (•) blank (•)

blank (•) 2 blank (•) 3 blank (•) 4 blank (•) 5

blank (•) 6 blank (•) 7 blank (•) 8

F F

(0) 1/100 sec. = 0 will

(2) 1/100 sec. = 20ms. (3) 1/100 sec. = 30ms. (4) 1/100 sec. = 40ms. (5) 1/100 sec. = 50ms.

(6) 1/100 sec. = 60ms. (7) 1/100 sec. = 70ms. (8) 1/100 sec. = 80ms.

(255) 1/100 sec. = 2.55

TIMEOUT

default to 750ms.

sec.

 1. Select delay/timeout from the table shown at left.  2. Enter in corresponding address locations above (left and right digits).  3. For a desired delay/timeout not listed do the following:

A. Choose a desired delay/timeout, ex: 20 B. Divide it by 16

 4. Press u to save.

1 Quotient Left Digit 16 20 16 4 Remainder Right Digit

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

ZONE OPTIONS - ZONES 1 TO 16 (ADDRESS 0900-1016)

§

50ms Loop Response 8 4 2 1 0964 8 4 2 1 8 4 2 1 0900 8 4 2 1 Priority 8 4 2 1 0965 8 4 2 1 8 4 2 1 0901 8 4 2 1



Priority with Bypass 8 4 2 1 0966 8 4 2 1 8 4 2 1 0902 8 4 2 1 Auto-Bypass 8 4 2 1 0967 8 4 2 1 8 4 2 1 0903 8 4 2 1 Selective Bypass 8 4 2 1 0968 8 4 2 1 8 4 2 1 0904 8 4 2 1



Keyswitch Arming 8 4 2 1 0969 8 4 2 1 8 4 2 1 0905 8 4 2 1 Auto-Bypass Re-entry 8 4 2 1 0970 8 4 2 1 8 4 2 1 0906 8 4 2 1 Pre-Alarm Warning 8 4 2 1 0971 8 4 2 1 8 4 2 1 0907 8 4 2 1 Never Arm 8 4 2 1 0972 8 4 2 1 8 4 2 1 0908 8 4 2 1 24-Hour Zone 8 4 2 1 0973 8 4 2 1 8 4 2 1 0909 8 4 2 1 Alarm Output 8 4 2 1 0974 8 4 2 1 8 4 2 1 0910 8 4 2 1

 

Pulsed Alarm Output 8 4 2 1 0975 8 4 2 1 8 4 2 1 0911 8 4 2 1 PGM1 Output 8 4 2 1 0976 8 4 2 1 8 4 2 1 0912 8 4 2 1 PGM2 Output 8 4 2 1 0977 8 4 2 1 8 4 2 1 0913 8 4 2 1



Entry/Exit 1 8 4 2 1 0978 8 4 2 1 8 4 2 1 0914 8 4 2 1 Entry/Exit 2 8 4 2 1 0979 8 4 2 1 8 4 2 1 0915 8 4 2 1



Exit/Entry Follower 8 4 2 1 0980 8 4 2 1 8 4 2 1 0916 8 4 2 1 Auto Reset 8 4 2 1 0981 8 4 2 1 8 4 2 1 0917 8 4 2 1



Swinger Shutdown 8 4 2 1 0982 8 4 2 1 8 4 2 1 0918 8 4 2 1

 

Chime 8 4 2 1 0983 8 4 2 1 8 4 2 1 0919 8 4 2 1 Abort Delay 8 4 2 1 0984 8 4 2 1 8 4 2 1 0920 8 4 2 1 Power-up Delay 8 4 2 1 0985 8 4 2 1 8 4 2 1 0921 8 4 2 1 Day Zone Open 8 4 2 1 0986 8 4 2 1 8 4 2 1 0922 8 4 2 1 Day Zone Short 8 4 2 1 0987 8 4 2 1 8 4 2 1 0923 8 4 2 1 Alarm on Day Zone 8 4 2 1 0988 8 4 2 1 8 4 2 1 0924 8 4 2 1



Alarm Tel co 1 8 4 2 1 0989 8 4 2 1 8 4 2 1 0925 8 4 2 1 Alarm Restore 1 8 4 2 1 0990 8 4 2 1 8 4 2 1 0926 8 4 2 1 Trouble Telco 1 8 4 2 1 0991 8 4 2 1 8 4 2 1 0927 8 4 2 1 Trouble Restore 1 8 4 2 1 0992 8 4 2 1 8 4 2 1 0928 8 4 2 1 Alarm Tel co 3 8 4 2 1 0993 8 4 2 1 8 4 2 1 0929 8 4 2 1 Alarm Restore 3 8 4 2 1 0994 8 4 2 1 8 4 2 1 0930 8 4 2 1 Trouble Telco 3 8 4 2 1 0995 8 4 2 1 8 4 2 1 0931 8 4 2 1 Trouble Restore 3 8 4 2 1 0996 8 4 2 1 8 4 2 1 0932 8 4 2 1 No EOL Resistor 8 4 2 1 0997 8 4 2 1 8 4 2 1 0933 8 4 2 1 Trouble on Open 8 4 2 1 0998 8 4 2 1 8 4 2 1 0934 8 4 2 1 Trouble on Short 8 4 2 1 0999 8 4 2 1 8 4 2 1 0935 8 4 2 1



Zone Area 1 8 4 2 1 1000 8 4 2 1 8 4 2 1 0936 8 4 2 1 Zone Area 2 8 4 2 1 1001 8 4 2 1 8 4 2 1 0937 8 4 2 1 Zone Area 3 8 4 2 1 1002 8 4 2 1 8 4 2 1 0938 8 4 2 1 Zone Area 4 8 4 2 1 1003 8 4 2 1 8 4 2 1 0939 8 4 2 1 Interior (Stay) Bypass 8 4 2 1 1004 8 4 2 1 8 4 2 1 0940 8 4 2 1 Keypad Sounder on Alarm 8 4 2 1 1005 8 4 2 1 8 4 2 1 0941 8 4 2 1



2-Wire Smoke Detectors 8 4 2 1 (•) 1006 (•) 8 4 2 1 8 4 2 1 0942 (•) 8 4 2 1



Fire 8 4 2 1 1007 8 4 2 1 8 4 2 1 0943 8 4 2 1 Fire Alarm Verification 8 4 2 1 1008 8 4 2 1 8 4 2 1 0944 8 4 2 1 RESERVED 8 4 2 1 (•) 1009 (•) 8 4 2 1 8 4 2 1 (•) 0945 (•) 8 4 2 1 Zone ANDing Group 1 8 4 2 1 1010 8 4 2 1 8 4 2 1 0946 8 4 2 1 Zone ANDing Group 2 8 4 2 1 1011 8 4 2 1 8 4 2 1 0947 8 4 2 1 Zone ANDing Group 3 8 4 2 1 1012 8 4 2 1 8 4 2 1 0948 8 4 2 1 Zone ANDing Group 4 8 4 2 1 1013 8 4 2 1 8 4 2 1 0949 8 4 2 1 Sensor Watch 8 4 2 1 1014 8 4 2 1 8 4 2 1 0950 8 4 2 1 RESERVED 8 4 2 1 1015 8 4 2 1 8 4 2 1 0951 8 4 2 1 Chime 2 8 4 2 1 1016 8 4 2 1 8 4 2 1 0952 8 4 2 1

See steps listed at bottom of page

§ 50ms Loop Response only available for zones 1-4. If Zone Doubling is enabled, Zones 9-12 will follow the loop response programming for Zones 1-4.

 When the Eas y Program Menu is us ed, these features are enabled by default.

 Enabled when "Enable SIA CP-01 Features?" is activated (Answer "Yes" in the EZ Programming Menu).  Disabled when "Enable SIA CP-01 Features?" is activated (Answer "Yes" in the EZ Programming Menu). Disable Auto-Reset on non-fire zones for SIA CP-01 installations.

NOTE: (Address Location 0942 can only be programmed as "blank (•) blank (•)", "4 blank (•)", "8 blank (•)" or "C blank (•)".

1. Select the desired zone option.

ZONE OPTIONS

§

50ms Loop Response Priority



Priority with Bypass Auto-Bypass Selective Bypass



ZONE OPTI ONS

Step 1 Step 4 Step 4 Step 4 Step 4 Step 2 Step 2 Step 2 Step 2

ZONES 13-16

LEFT DATA VALUES

(CIRCLE

)

ADDRESS

ZONES 9-12

RIGHT DATA VALUES

(CIRCLE

)

ZONES 5-8

LEFT DATA VALUES

(CIRCLE

)

ADDRESS

ZONES 1-4

RIGHT DATA VALUES

(CIRCLE

ZN16 ZN15 ZN14 ZN13 L ADDR R ZN12 ZN11 ZN10 ZN9 ZN8 ZN7 ZN6 ZN5 L ADDR R ZN4 ZN3 ZN2 ZN1

2. Enable desired options for each zone by drawing a circle  around its corresponding binary data value. NOTE:

s

No circle = feature disabled.

3. Search table below for data entry. 4. Enter data in address locations (left and right

DIGIT VALUE DATA ENTRY

4821

8124

4821 4821 4821 4821

Blank (.)

1

2

3

4

5

6

7

DIGIT VALUE DATA ENTRY

8

421 421

8 8

421 8 8

4 21 8

4 2 1 8

4 2 1

8

9

0

B

124

C

D

E

F

digits). Press [Enter] or [ON/OFF] to save.

ADDRESS LOCATION

L ADDR R

blank (•) 0490 1

NOTE: Dark shaded boxes = option not available. See Direct Address Programming Example page 22.

Page 45

)

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 46

ZONE OPTIONS - ZONES 17 TO 32 (ADDRESS 1029-1144)



 

See Steps listed at bottom of page 44

 When the Easy Program Menu is used, these features are enabled by default.

 Enabled when "Enable SIA CP-01 Features?" is activated (Answer "Yes" in the EZ Programming Menu).  Disabled when "Enable SIA CP-01 Features?" is activated (Answer "Yes" in the EZ Programming Menu). Disable Auto-Reset on non-fire zones for SIA CP-01

ZONE OPTI ONS ZONES 29-32

LEFT DATA VALUES

(CIRCLE

ZN32 ZN31 ZN30 ZN29 L ADDR R ZN28 ZN27 ZN26 ZN25 ZN24 ZN23 ZN22 ZN21 L ADDR R ZN20 ZN19 ZN18 ZN17

)

ADDRESS

ZONES 25-28

RIGHT DATA VALUES

(CIRCLE

)

ZONES 21-24

LEFT DATA VALUES

(CIRCLE

)

ADDRESS

ZONES 17-20

RIGHT DATA VALUES

(CIRCLE

Priority 8 4 2 1 1093 8 4 2 1 8 4 2 1 1029 8 4 2 1 Priority with Bypass 8 4 2 1 1094 8 4 2 1 8 4 2 1 1030 8 4 2 1 Auto-Bypass 8 4 2 1 1095 8 4 2 1 8 4 2 1 1031 8 4 2 1 Selective Bypass 8 4 2 1 1096 8 4 2 1 8 4 2 1 1032 8 4 2 1 Keyswitch Arming 8 4 2 1 1097 8 4 2 1 8 4 2 1 1033 8 4 2 1 Auto-Bypass Re-entry 8 4 2 1 1098 8 4 2 1 8 4 2 1 1034 8 4 2 1 Pre-Alarm Warning 8 4 2 1 1099 8 4 2 1 8 4 2 1 1035 8 4 2 1 Never Arm 8 4 2 1 1100 8 4 2 1 8 4 2 1 1036 8 4 2 1 24-Hour Zone 8 4 2 1 1101 8 4 2 1 8 4 2 1 1037 8 4 2 1 Alarm Output 8 4 2 1 1102 8 4 2 1 8 4 2 1 1038 8 4 2 1



Pulsed Alarm Output 8 4 2 1 1103 8 4 2 1 8 4 2 1 1039 8 4 2 1 PGM1 Output 8 4 2 1 1104 8 4 2 1 8 4 2 1 1040 8 4 2 1 PGM2 Output 8 4 2 1 1105 8 4 2 1 8 4 2 1 1041 8 4 2 1



Entry/Exit 1 8 4 2 1 1106 8 4 2 1 8 4 2 1 1042 8 4 2 1 Entry/Exit 2 8 4 2 1 1107 8 4 2 1 8 4 2 1 1043 8 4 2 1



Exit/Entry Follower 8 4 2 1 1108 8 4 2 1 8 4 2 1 1044 8 4 2 1 Auto Reset 8 4 2 1 1109 8 4 2 1 8 4 2 1 1045 8 4 2 1 Swinger Shutdown 8 4 2 1 1110 8 4 2 1 8 4 2 1 1046 8 4 2 1



Chime 8 4 2 1 1111 8 4 2 1 8 4 2 1 1047 8 4 2 1 Abort Delay 8 4 2 1 1112 8 4 2 1 8 4 2 1 1048 8 4 2 1 Power-up Delay 8 4 2 1 1113 8 4 2 1 8 4 2 1 1049 8 4 2 1 Day Zone Open 8 4 2 1 1114 8 4 2 1 8 4 2 1 1050 8 4 2 1 Day Zone Short 8 4 2 1 1115 8 4 2 1 8 4 2 1 1051 8 4 2 1 Alarm on Day Zone 8 4 2 1 1116 8 4 2 1 8 4 2 1 1052 8 4 2 1



Alarm Tel co 1 8 4 2 1 1117 8 4 2 1 8 4 2 1 1053 8 4 2 1 Alarm Restore 1 8 4 2 1 1118 8 4 2 1 8 4 2 1 1054 8 4 2 1 Trouble Telco 1 8 4 2 1 1119 8 4 2 1 8 4 2 1 1055 8 4 2 1 Trouble Restore 1 8 4 2 1 1120 8 4 2 1 8 4 2 1 1056 8 4 2 1 Alarm Tel co 3 8 4 2 1 1121 8 4 2 1 8 4 2 1 1057 8 4 2 1 Alarm Restore 3 8 4 2 1 1122 8 4 2 1 8 4 2 1 1058 8 4 2 1 Trouble Telco 3 8 4 2 1 1123 8 4 2 1 8 4 2 1 1059 8 4 2 1 Trouble Restore 3 8 4 2 1 1124 8 4 2 1 8 4 2 1 1060 8 4 2 1 No EOL Resistor 8 4 2 1 1125 8 4 2 1 8 4 2 1 1061 8 4 2 1 Trouble on Open 8 4 2 1 1126 8 4 2 1 8 4 2 1 1062 8 4 2 1 Trouble on Short 8 4 2 1 1127 8 4 2 1 8 4 2 1 1063 8 4 2 1



Zone Area 1 8 4 2 1 1128 8 4 2 1 8 4 2 1 1064 8 4 2 1 Zone Area 2 8 4 2 1 1129 8 4 2 1 8 4 2 1 1065 8 4 2 1 Zone Area 3 8 4 2 1 1130 8 4 2 1 8 4 2 1 1066 8 4 2 1 Zone Area 4 8 4 2 1 1131 8 4 2 1 8 4 2 1 1067 8 4 2 1 Interior (Stay) Bypass 8 4 2 1 1132 8 4 2 1 8 4 2 1 1068 8 4 2 1 Keypad Sounder on Alarm 8 4 2 1 1133 8 4 2 1 8 4 2 1 1069 8 4 2 1



Fire 8 4 2 1 1135 8 4 2 1 8 4 2 1 1071 8 4 2 1 Fire Alarm Verification 8 4 2 1 1136 8 4 2 1 8 4 2 1 1072 8 4 2 1 Zone ANDing Group 1 8 4 2 1 1138 8 4 2 1 8 4 2 1 1074 8 4 2 1 Zone ANDing Group 2 8 4 2 1 1139 8 4 2 1 8 4 2 1 1075 8 4 2 1 Zone ANDing Group 3 8 4 2 1 1140 8 4 2 1 8 4 2 1 1076 8 4 2 1 Zone ANDing Group 4 8 4 2 1 1141 8 4 2 1 8 4 2 1 1077 8 4 2 1 Sensor Watch 8 4 2 1 1142 8 4 2 1 8 4 2 1 1078 8 4 2 1 RESERVED 8 4 2 1 1143 8 4 2 1 8 4 2 1 1079 8 4 2 1 Chime 2 8 4 2 1 1144 8 4 2 1 8 4 2 1 1080 8 4 2 1

Step 1 Step 4 Step 4 Step 4 Step 4 Step 2 Step 2 Step 2 Step 2

installations.

)

DEFAULTS: The zone options indicated are automatically set after exiting the Easy Menu Driven Mode.

--Priority, Selective Bypass, Alarm Output, Auto Reset, Swinger Shutdown and Zone Area 1 are enabled for the total number of zones entered in "# OF ZONES IN AREA1 ENTER # ZONES".

--Alarm Telco 1 is enabled for the zone number(s) entered in "REPORT ALL ZONES TO CENTRAL ZONES? Y/N".

--Entry/Exit 1 and Chime are enabled for the zone number(s) entered in "ENTRY/EXIT ZONES ENTER ZONE #".

--Exit/Entry Follower and Interior Bypass are enabled for the zone number(s) entered in "INTERIOR ZONES ENTER ZONE #".

--Pulse Alarm Output is enabled for the zone number(s) entered in "FIRE ZONES ENTER ZONE #".

--Fire is enabled for the zone number(s) entered in "FIRE ZONES ENTER ZONE #".

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

This page left blank intentionally

Page 47

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 48

This page left blank intentionally

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

EXTERNAL RELAY CONTROL (ADDRESS 1489-1608)

Page 49

ADDRESS 1489-1493 (RELAY EVENT 1)

1489 1490 1491 1492

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1504-1508 (RELAY EVENT 4)

1504 1505 1506 1507

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1519-1523 (RELAY EVENT 7)

1519 1520 1521 1522

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1534-1538 (RELAY EVENT 10)

1534 1535 1536 1537

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

1493

1508

1523

1538

ADDRESS 1494-1498 (RELAY EVENT 2)

1494 1495 1496 1497

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1509-1513 (RELAY EVENT 5)

1509 1510 1511 1512

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1524-1528 (RELAY EVENT 8)

1524 1525 1526 1527

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1539-1543 (RELAY EVENT 11)

1539 1540 1541 1542

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

1498

1513

1528

1543

ADDRESS 1499-1503 (RELAY EVENT 3)

1499 1500 1501 1502

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1514-1518 (RELAY EVENT 6)

1514 1515 1516 1517

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1529-1533 (RELAY EVENT 9)

1529 1530 1531 1532

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1544-1548 (RELAY EVENT 12)

1544 1545 1546 1547

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

1503

1518

1533

1548

ADDRESS 1549-1553 (RELAY EVENT 13)

1549 1550 1551 1552

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1564-1568 (RELAY EVENT 16)

1564 1565 1566 1567

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1579-1583 (RELAY EVENT 19)

1579 1580 1581 1582

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1594-1598 (RELAY EVENT 22)

1594 1595 1596 1597

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

1553

1568

1583

1598

ADDRESS 1554-1558 (RELAY EVENT 14)

1554 1555 1556 1557

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1569-1573 (RELAY EVENT 17)

1569 1570 1571 1572

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1584-1588 (RELAY EVENT 20)

1584 1585 1586 1587

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1599-1603 (RELAY EVENT 23)

1599 1600 1601 1602

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

1558

1573

1588

1603

ADDRESS 1559-1563 (RELAY EVENT 15)

1559 1560 1561 1562

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1574-1578 (RELAY EVENT 18)

1574 1575 1576 1577

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1589-1593 (RELAY EVENT 21)

1589 1590 1591 1592

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1604-1608 (RELAY EVENT 24)

1604 1605 1606 1607

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

1563

1578

1593

1608

CONTINUED ON

[Default = blank (•) blank (•) from address 1489-1608]

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 50

(CONT'D) EXTERNAL RELAY CONTROL (ADDRESS 1609-1648)

ADDRESS 1609-1613 (RELAY EVENT 25)

1609 1610 1611 1612

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1624-1628 (RELAY EVENT 28)

1624 1625 1626 1627

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1639-1643 (RELAY EVENT 31)

1639 1640 1641 1642

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

1613

1628

1643

ADDRESS 1614-1618 (RELAY EVENT 26)

1614 1615 1616 1617

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1629-1633 (RELAY EVENT 29)

1629 1630 1631 1632

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1644-1648 (RELAY EVENT 32)

1644 1645 1646 1647

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

 To program, follow the 5 steps below:

To program, follow the 5 steps below:

STEP 1: RELAY # OPTIONS: The LIB-P432EX supports 8 external relays

from Relay Module RM3008. Multiple events may be "mapped" to each relay, up to a maximum of 16 events.

 Select the relay number from Table 1 (shown on next page); enter in

corresponding right digit address location (left digit is not used).

ADDRESS 1619-1623 (RELAY EVENT 27)

1618

1633

1648

1619 1620 1621 1622

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

ADDRESS 1634-1638 (RELAY EVENT 30)

1634 1635 1636 1637

RELAY # AREA Timeout Event ID COND.

L R L R L R L R L R

(•)

[Default = blank (•) blank (•) from address 1609-1648]

RELAY # AREA Timeout Event ID

L R L R L R L R L R

(•)

RELAY EVENT OPTIONS

Step

1

(•)

Step

2

(•)

COND.

Step

Step 4 Step

3

1623

1638

5

STEP 2: AREA OPTIONS: Each relay event can be assigned to Area 1, Area 2 or both Area 1 &

Area 2.

 Select the area from Table 2 (shown on next page); enter in corresponding right digit address

location (left digit is not used).

STEP 3: TIMEOUTS: Each relay event can be assigned a timeout depending on Alarm Type option.

 If Alarm Type (see next page) is selected for timeout in minutes or seconds, select the timeout from Table

3 (shown on next page) in minutes or seconds and enter in corresponding address location (left digit and

right digits). To choose seconds or minutes, see step 5A below. 254 is maximum entry.

STEP 4: EVENT ID CODES: Each relay event can be assigned any of the available event IDs from the table.

 Select 2-digit Event ID from Table 4 (see next page); enter in corresponding address locations (left and right digit).

STEP 5: RELAY EVENT CONDITION OPTIONS: Each relay event can be assigned an alarm type; and an activation

condition; also, select a timeout type for each.

 5A. Select Alarm Type and Timeout Type from Table 5A (shown on next page); enter in corresponding address location (left

digit).

 5B. Select Activation from from Table 5B (shown on next page); enter in corresponding address location (right digit).

Continued

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 51

Table 1

DATA ENTRY

Left

Nibble blank (•) blank (•) NONE blank (•) 1 1 blank (•) 2 2 blank (•) 3 3 blank (•) 4 4 blank (•) 5 5 blank (•) 6 6 blank (•) 7 7 blank (•) 8 8 blank (•) 9 9 blank (•) 0 10 blank (•) B 11 blank (•) C 12 blank (•) D 13 blank (•) E 14 blank (•) F 15

1 blank (•) 16

Right

Nibble

RELAY #

Table 4

DATA ENTRIES OPTION

LEFT RIGHT blank (•) blank (•) Area 1 Arm blank (•) 1 Area 2 Arm blank (•) 2 Area 3 Arm blank (•) 3 Area 4 Arm blank (•) 8 Zone 1 blank (•) 9 Zone 2 blank (•) 0 Zone 3 blank (•) B Zone 4 blank (•) C Zone 5 blank (•) D Zone 6 blank (•) E Zone 7 blank (•) F Zone 8

EVENT ID CODES

1 blank (•) Zone 9 1 1 Zone 10 1 2 Zone 11 1 3 Zone 12 1 4 Zone 13 1 5 Zone 14 1 6 Zone 15 1 7 Zone 16 1 8 Zone 17 1 9 Zone 18 1 0 Zone 19 1 B Zone 20 1 C Zone 21 1 D Zone 22 1 E Zone 23 1 F Zone 24 2 blank (•) Zone 25 2 1 Zone 26 2 2 Zone 27 2 3 Zone 28 2 4 Zone 29 2 5 Zone 30 2 6 Zone 31 2 7 Zone 32

RESERVED RESERVED RESERVED RESERVED RESERVED

RELAY # AREA TIMEOUT EVENT ID COND.

See

Table 1 below

Table 2 below

(right nibble)

RELAY EVENT OPTIONS

See

Enter a Time

period, in seconds

or minutes

See

Table 4 below

Tables 5A & 5B

below

Table 2

DATA

ENTRY

blank (•) NONE

TURN OFF ON AREA

DISARM

1 Area 1 2 Area 2 3 Area 1 & Area 2 4 Area 3 5 Area 1 & Area 3 6 Area 2 & Area 3 7 Areas 1, 2 & 3 8 Area 4 9 Area 1 & Area 4 0 Area 2 & Area 4 B Areas 1, 2 & 4 C Areas 3 & 4 D Areas 1, 3 & 4 E Areas 2, 3 & 4 F Areas 1-4

LEFT DATA

ENTRIES

blank (•) Burglary Minutes

1 Fire Minutes 4 Day Zone Minutes 8 Burglary Seconds 9 Fire Seconds C Day Zone Seconds

RELAY EVENT ACTIVATION CONDITIONS

RIGHT DATA

ENTRIES

1 Alarm 2 Restore 3 Trouble 4 Trouble Restore 5 Follow Zone

Table 4 (cont'd)

DATA ENTRIES OPTION

LEFT RIGHT

RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED RESERVED

RESERVED

6 8 Area 1 KP Ambush 6 9 Area 1 KP Panic 6 0 Area 1 KP Fire 6 B Area 1 KP Aux 6 C Area 1 KP Tamper 6 D Area 1 Fail to Open 6 E Area 1 Fail to Close 7 blank (•) Area 2 KP Ambush 7 1 Area 2 KP Panic 7 2 Area 2 KP Fire 7 3 Area 2 KP Aux 7 4 Area 2 KP Tamper 7 5 Area 2 Fail to Open 7 6 Area 2 Fail to Close

EVENT ID CODES

DATA ENTRIES OPTION

LEFT RIGHT

7 8 Area 3 KP Ambush 7 9 Area 3 KP Panic 7 0 Area 3 KP Fire 7 B Area 3 KP Aux 7 C Area 3 KP Tamper 7 D Area 3 Fail to Open 7 E Area 3 Fail to Close 7 F Area 4 KP Ambush 8 1 Area 4 KP Panic 8 2 Area 4 KP Fire 8 3 Area 4 KP Aux 8 4 Area 4 KP Tamper 8 5 Area 4 Fail to Open 8 6 Area 4 Fail to Close 0 8 Test Timer 0 B Memory Fail 0 C Low Battery 0 D AC Fail 0 E EZM Tamper

0 F Alarm Supervisory B 5 RF Receiver Trouble (Tamper/Fail) B 6 Wireless TX Tamper B 7 Wireless TX Trouble (LB/Supervisory) C 8 Area 1 Arming AWAY C 9 Area 2 Arming AWAY C 0 Area 3 Arming AWAY C B Area 4 Arming AWAY D blank (•) Keypad Fail D 1 EZM Fail D 2 Quickloader Device Control D 5 General System Alarm D 8 Area 1 General System Alarm D 9 Area 2 General System Alarm D 0 Area 3 General System Alarm D B Area 4 General System Alarm

F blank (•) Relay Control Group 1

F 1 Relay Control Group 2

F 8 Entry Relay Area 1

F 9 Entry Relay Area 2

F 0 Entry Relay Area 3

F B Entry Rela y Area 4

Table 4 (cont'd)

EVENT ID CODES

See

Table 5A

RELAY EVENT

ALARM TYPE OPTIONS

ALARM TYPE TIMEOUT TYPE

Table 5B

OPTIONS

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 52

RF RECEIVER & SUPERVISORY TIMER OPTIONS (ADDRESS 2029-2044 & 2056)

Number of RF

Receivers blank (•)

Default for Number of Receivers depends on Easy Menu Question for RF Transmitters.

RF SUPERVISORY

TIMER

Type 0 Window/Door, 2 Pt. blank (•) 2029 Type 1 Window/Door, 2 Pt.

Type 2 Window/Door, 2 Pt.

Type 3 Window/Door, 2 Pt.

Type 4 RESERVED

Type 5 PIR

Type 6 PIR

Type 7 Smoke Detector

RF SUPERVISORY TIMERS

DATA ENTRIES

LEFT RIGHT

blank (•) 3 90 min. blank (•) 4 120 min. blank (•) 5 150 min. blank (•) 6 180 min. blank (•) 7 210 min. blank (•) 8 240 min. blank (•) 9 270 min. blank (•) 0 300 min. blank (•) B 330 min. blank (•) C 360 min. blank (•) D 390 min. blank (•) E 420 min. blank (•) F 450 min.

ADDRESS 2056

LEFT RIGHT

RF TRANSMITTER

DELAY

DATA

ENTRIES

RIGHT

blank (•) None

1 1 2 2

LEFT ADDR RIGHT

blank (•) 2030

blank (•) 2031

blank (•) 2032

blank (•) 2033

blank (•) 2034

blank (•) 2035

blank (•) 2036

RF SUPERVISORY TIMERS: RF Supervisory Timers may be programmed for each type of transmitter used. A transmitter will send a transmission every time it is tripped, when there is NO activity, the transmitter sends a status transmission about once an hour. If the receiver does NOT receive ANY signal (a trip or a status) from a transmitter in the time specified for transmitter type, a system trouble “WIRELESS TROUBLE/E04-NN SERVICE” will be displayed at the keypad.

1. Select timer delay from the table shown. Timers are programmed in increments of 30 minutes

each. Valid entries are [blank (•)3]-[blank (•)F], 90 minutes-450 minutes.

2. Enter in corresponding address locations above right digit only (left digit is not used). 3. Press u to save.

NOTE: These timers apply only to Supervised RF Transmitters (see RF Transmitters in Easy Menu Driven Mode Programming).

RF Receiver(s)

ADDRESS

2029-2036

RF SUPERVISORY

RF RECEIVERS: Up to 2 RF Receivers may be programmed.

 1. Select the number of receivers from the table shown.  2. Enter in corresponding right digit address location shown

(left digit is not used).

 3. Press u to save.

TIMER

Type 8 Smoke Detector blank (•) 2037 Type 9 RESERVED

Type A Dual Tech.

Type B RESERVED

Type C Window/Door, 4 Pt.

Type D PIR

Type E Smoke Detector

Type F Napco Glass Break

RF TRANSMITTER

[Default = blank (•) blank (•) from address 2029-2044]

ADDRESS 2037-2044

LEFT ADDR RIGHT

blank (•) 2038

blank (•) 2039

blank (•) 2040

blank (•) 2041

blank (•) 2042

blank (•) 2043

blank (•) 2044

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

CLEAR PROGRAM OPTIONS (ADDRESS 2285 & 2286)

Page 53

2285 XX

GEM-DXRP1 Keypad

2285 XX

GEM-DXRP2 Keypad

2286 XX

GEM-DXRP1 Keypad

2286 XX

GEM-DXRP2 Keypad

Clear Dealer Program (Erases Dealer Program)

This erases the dealer program. Use this feature to start a customized default program. Program Data and System Status Memory is erased where Scheduled Data and Zone Descriptions are maintained.

Access address 2285, then press the

u button. Data entry is not allowed.

NOTE: Enter Easy Menu Driven Program Mode to program system again.

Cold Start (Erases Entire Program)

This erases the entire program including Dealer Program by erasing Program Data, Zone Description Data and System Status Data (similar to a new panel).

Access address 2286, then press the

NOTE: Some features (schedules) can only be programmed again with the Downloading Software. NOTE: Some features (schedules) can only be programmed again with the Downloading Software. If power fails, time and date restarts at 00:00:00 and a date of 01-01-04 (January 1, 2004).

u button. Data entry is not allowed.

USER PROGRAM MODE

PRELIMINARY INFORMATION

The User Program Mode is covered in detail in the operating instructions for the keypad in use.

 The Program Mode cannot be accessed while the communicator is transmitting except during the first three minutes after power-up.  After entering codes or data, press the save u button. Data will not be stored into memory unless this button is pressed.

 If the keypad is in the Program Mode and no activity is detected for longer than 4 minutes, a steady tone will sound.  Press RESET (y) to silence the sounder and exit the User Program Mode.

Use the

ACCESSING USER PROGRAM MODE

w button to manually scroll the display at the end of each programming line.

1. Press EEEEEE

New Panel (Default User Code = 123) Existing

Panel (Any Code with User Program Option

Enabled)

w

2. Press PRIOR ("X" or q) until "TURNON PROG Y/N" (GEM-DXRP2 / GEM-DXK2) or

"17" (GEM-DXRP3 / GEM-DXK3 or GEM-DXK4RF) appears on the LCD screen.

3. Press YES ("r" or p) to Enter User Program Mode.

4. Press y y to exit User Program Mode when finished.

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 54

USER CODES

GEM-DXK2 Keypad

USER01

123___

(Direct Entry)

GEM-DXK3 Keypad

UP

0 I

INTERIOR

BYPASS

User Program Mode

INTERIOR

BYPASS

User Number

1

INTERIOR

BYPASS

User Code (Direct Entry)

FIRE/TBL SYS TBL

FIRE/TBL SYS TBL CHIME

CHIME

To Program User Codes

1. Enter 2-digit User Number (01-64) directly using number

buttons (0-9).

2. Press the

3. Enter Code (1-6 digits) directly using number buttons (0-9).

4. Press the

each code.

NOTE: Press G 0 button to clear character at cursor.

To continue, press the p or q button.

To Program User Codes

1. Enter 2-digit User Number

(01-64) directly using number

buttons (0-9).

2. Press the

3. Enter Code (1-6 digits) directly using number buttons (0-9).

4. Press the

each code.

NOTE: Press G 0 button to clear character at cursor.

To continue, press the p or q button.

w button.

u button to save

w button.

u button to save

User 01

Programming User Codes with GEM-DXK2 Keypad

Flashing

UP

Programming User Codes with GEM-DXK3 Keypad

GEM-DXK4RF Series Keypad

UP

01

-

User Code (Direct Entry)

FIRE

User Program Mode

FIRE

User Number

FIRE

TROUBLE

BYPASS

TROUBLE

BYPASS

TROUBLE

BYPASS

CHIME

To Program User Codes

1. Enter 2-digit User Number

(01-64) directly using number

buttons (0-9).

2. Press the

3. Enter Code (1-6 digits) directly using number buttons (0-9).

4. Press the

each code.

NOTE: Press G 0 button to clear character at cursor.

To continue, press the p or q button.

w button.

u button to save

Flashing

Programming User Codes with GEM-DXK4RF Series Keypad

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 55

KEYPAD CONFIGURATION MODE

This section will focus on configuring the GEM-DXRP2 / GEM-DXK2, GEM-DXRP3 / GEM-DXK3 and GEM-DXK4RF series keypads. For ease of programming, it is recommended that a GEM-DXRP1 or a GEM-DXK1 be selected (see WI1690 for Programming Instructions using the GEM-DXRP1 or GEM-DXK1 keypads).

KEYPAD INSTALLATION

Each keypad must be assigned an address number (1–7) and each requires its own configuration procedure (see CONFIGURING THE KEYPADS, which follows, and DIRECT ADDRESS KEYPAD AREA OPTIONS). At least 1 keypad must be used; only 1 is required for a single-area Commercial Burglary installation.

GEM-DXRP2 / GEM-DXK2 - Are utility LCD keypads combining several preset LCD words with a limited message line. NOTE: Due to space constraints, available messages are abbreviated and will scroll automatically.

CONFIGURING THE KEYPADS

Configuring the GEM-DXRP2 / GEM-DXK2, GEM-DXRP3 / GEM-DXK3 and GEM-DXK4RF Keypads

Up to 7 GEM-DXRP2 / GEM-DXK2, GEM-DXRP3 / GEM-DXK3 and/or GEM-DXK4RF keypads may be connected to the panel (Keypads 1–7). Each must be configured for a keypad address. In addition, the keypad may be configured to disable (a) touchpad backlight; (b) LCD backlight; and (c) entry sounder. Keypads are configured by the proper selection of jumpers. Refer to the label on the circuit board insulation paper for jumper locations and a summary of settings.

KEYPAD ADDRESS

If more than one keypad is installed:

 Each must be assigned a unique address (that is, no two keypads

may be numbered alike).

 Keypads must be addressed consecutively (that is, missing

numbers are not permitted).

Assign the keypad address number by selecting Jumpers J1–3 in accordance with the table at right.

TOUCHPAD BACK LIGHT

Cut Jumper A to disable touch pad backlighting to conserve 11mA standby current.

LCD BACKLIGHT

Cut Jumper B to disable LCD backlighting.

DISABLE SOUNDER

Cut Jumper C to disable the sounder.

KEYPAD

NUMBER

1 OFF or

2

3 ON ON

4

5 ON

6

7 ON ON ON

KEYPAD ADDRESS SETTING

1 2 3

OFF OFF

ON

OFF

OFF OFF OFF

OFF

ON

OFF

ON ON

JUMPER AT THIS

ON

PARK

STORE SPARE

POSITION

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 56

ALPHABETICAL INDEX

2

24 HOUR ZONES IN AREA 1: EASY PROGRAM MENU, 7, 14,

15 24-HOUR ZONE--ZONE OPTION, 45, 46, 47, 48 2-WIRE FIRE ZONES: EASY PROGRAM MENU, 13 2-WIRE FIRE ZONES IN AREA 1: EASY PROGRAM MENU, 6 2-WIRE SMOKE DETECTORS--ZONE OPTION, 45, 47

3

3/1 WITH EXTENDED RESTORES (CS RECEIVER OPTIONS),

30

8, 14, 15

AUTO RESET AFTER BURGLARY OUTPUT TIMEOUT

ADDRESS 1421, 28 AUTO RESET--ZONE OPTION, 45, 46, 47, 48 AUTO-BYPASS RE-ENTRY--ZONE OPTION, 45, 46, 47, 48 AUTO-BYPASS--ZONE OPTION, 45, 46, 47, 48 AUTOMATIC INTERIOR BYPASS/EASY EXIT ADDRESS 1424,

28 AUX 1/AUX 2 OPTIONS: EASY PROGRAM MENU, 11 AUX OUTPUT ACTIVATED ON ALARM ZONES: EASY

PROGRAM MENU, 14 AUX OUTPUT ACTIVATED ON ALARM ZONES: EASY

PROGRAM MENU, 7 AUXILIARY REPORTING OPTIONS ADDRESS 0701, 32

5

50 MS LOOP RESPONSE ZONES: EASY PROGRAM MENU,

14, 15

50MS LOOP RESPONSE--ZONE OPTION, 45, 47

A

ABORT DELAY ADDRESS 1417, 24 ABORT DELAY--ZONE OPTION, 45, 46, 47, 48 AC FAIL, 26 AC FAIL REPORT DELAY ADDRESS 1419, 24 ACCESS CONTROL ON PGM2 OUTPUT ADDRESS 1421, 28 ACCESSING DEALER PROGRAM MODE, 5 ADEMCO EXPRESS RECEIVER FORMAT, 16 ADEMCO POINT ID FORMAT, 30 ADEMCO POINT ID RECEIVER FORMAT, 16 ADEMCO SLOW FORMAT, 30 ADEMCO SLOW RECEIVER FORMAT, 16 ALARM ON DAY ZONE--ZONE OPTION, 45, 46, 47, 48 ALARM OUTPUT ADDRESS 0836, 26 ALARM OUTPUT ADDRESS 0857, 26 ALARM OUTPUT ADDRESS 0865, 26, 27 ALARM OUTPUT ADDRESS 0873, 27 ALARM OUTPUT SUPERV. REPORTING OPTIONS ADDRESS

0689, 32 ALARM OUTPUT TIMEOUT ADDRESS 1414, 25 ALARM OUTPUT--ZONE OPTION, 45, 46, 47, 48 ALARM RESTORE 1--ZONE OPTION, 45, 46, 47, 48 ALARM RESTORE 3--ZONE OPTION, 45, 46, 47, 48 ALARM RESTORE REPORTING OPTIONS ADDRESS 0670, 32 ALARM TELCO 1--ZONE OPTION, 45, 46, 47, 48 ALARM TELCO 3--ZONE OPTION, 45, 46, 47, 48 AMBUSH, 26, 27 AMBUSH (KEYPAD OPTIONS), 42 AMBUSH CODE, GLOBAL, 26 AMBUSH REPORTING OPTIONS ADDRESS 0698, 32 AREA 1 SYSTEM EVENT/TROUBLE, 26 AREA 2 SYSTEM EVENT/TROUBLE, 26 AREA 3 SYSTEM EVENT/TROUBLE, 27 AREA 4 SYSTEM EVENT/TROUBLE, 27 AREA ARMING OPTIONS (ADDRESS 1469-1472), 44 AREA BELL CONTROL OPTIONS (ADDRESS 1473-1476), 38 AREA BELL CONTROL OPTIONS (ADDRESS 1477-1480), 39 AREA BELL CONTROL OPTIONS (ADDRESS 1481-1484), 40 AREA BELL CONTROL OPTIONS (ADDRESS 1485-1488), 41 AREA OPTIONS: EASY PROGRAM MENU, 10 AUTO BELL TEST ON ARMING ADDRESS 1421, 28 AUTO BYPASS RE-ENTRY ZONES: EASY PROGRAM MENU,

B

BACKLIGHTING, 55 BACKUP REPORT ON TELCO 1 & 2 ADDRESS 0788, 32 BELL SUPERVISION, 26 BURGLARY OUTPUT TURNS OFF UPON DISARM, 38

C

CALLBACK METHOD, 4 CALLBACK TELEPHONE NUMBER ADDRESS 0526-0545, 25 CANCEL NEXT TEST TIMER ON ANY REPORT ADDRESS

0788, 32 CANCEL REPORTING OPTIONS ADDRESS 0681, 32 CENTRAL STATION RECEIVER 1 ACCOUNT NUMBER: EASY

PROGRAM MENU, 9, 16 CENTRAL STATION RECEIVER 1 FORMAT: EASY PROGRAM

MENU, 9, 16 CENTRAL STATION RECEIVER 1 TELEPHONE NUMBER: EASY

PROGRAM MENU, 8, 16 CHANGE PULSE OUTPUT TO TEMPORAL OUTPUT

ADDRESS 1422, 28 CHANGING OR CANCELING A CODE, 10, 17 CHIME 2 ZONES IN AREA 1: EASY PROGRAM MENU, 7, 14, 15 CHIME 2--ZONE OPTION, 45, 46, 47, 48 CHIME TIME ADDRESS 1418, 24 CHIME ZONES IN AREA 1: EASY PROGRAM MENU, 7, 14, 15 CHIME--ZONE OPTION, 45, 46, 47, 48 CHIRP OUTPUT ON KEYFOB ARM/DISARM ADDRESS 1422,

28 CLEAR DEALER PROGRAM (ERASES DEALER PROGRAM),

53 CLEAR PROGRAM, 19 CLEAR PROGRAM ADDRESS 2285, 12 CLEAR PROGRAM OPTIONS (ADDRESS 2285 & 2286), 53 CLOCK ADJUSTMENTS (ADDRESS 2281), 33 CLOCK SOURCE (INTERNAL PANEL) ADDRESS 2281, 33 CLOSING REPORT ONLY ON CONDITIONAL CLOSE

ADDRESS 1420, 28 CLOSING REPORTING OPTIONS ADDRESS 0678, 32 COLD START ADDRESS 2286, 12, 18 COLD START (ERASES ENTIRE PROGRAM), 53 CONDITIONAL CLOSE REPORTING OPTIONS ADDRESS

0680, 32 CONFIGURING THE KEYPADS, 55 CONTROL PANEL PROGRAMMING: INTRODUCTION, 4 CONTROL PANEL ZONES REPORT CODE, 34 CONVENTIONS USED IN THIS MANUAL, 23 CS AREA & SYSTEM REPORTING OPTIONS (ADDRESS 0785,

0786 & 0788), 32

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 57

ALPHABETICAL INDEX (CONT'D)

CS RECEIVER 1 FORMAT: EASY PROGRAM MENU, 16 CS RECEIVER 1 FORMAT ADDRESS 0460, 30 CS RECEIVER 1 TELEPHONE NUMBER ADDRESS 0462-

0481, 30 CS RECEIVER 2 FORMAT ADDRESS 0482, 30 CS RECEIVER 2 TELEPHONE NUMBER ADDRESS 0484-

0503, 30 CS RECEIVER 3 FORMAT ADDRESS 0504, 30 CS RECEIVER 3 TELEPHONE NUMBER ADDRESS 0506-

0525, 30 CS RECEIVER OPTIONS (ADDRESS 0460-0525), 30 CS RECEIVER TELCO 1 OPTIONS ADDRESS 0461, 30 CS RECEIVER TELCO 2 OPTIONS ADDRESS 0483, 30 CS RECEIVER TELCO 3 OPTIONS ADDRESS 0505, 30 CS SUBSCRIBER ID OPTIONS (ADDRESS 0560-0667), 31 CS SYSTEM REPORT OPTIONS, 32 CS SYSTEM REPORTING OPTIONS (ADDRESS 0670-0705),

32 CS USER REPORTING OPTIONS (ADDRESS 0800-0817), 35 CS USER REPORTING OPTIONS (ADDRESS 0818-0835), 36 CS ZONE REPORTING OPTIONS (ADDRESS 0720-0751), 34 CUSTOMIZING A DEFAULT PROGRAM, 5

D

DAY ZONE OPEN--ZONE OPTION, 45, 46, 47, 48 DAY ZONE SHORT--ZONE OPTION, 45, 46, 47, 48 DCI FORMAT, 30 DCI RECEIVER FORMAT, 16 DEALER CODE, 18, 19; DEFAULT, 5; EASY PROGRAM MENU,

11 DEALER PROGRAM: PRELIMINARY INFORMATION, 5 DEALER PROGRAM CODE, 6 DEALER PROGRAM MODE, 4 DEFAULT DEALER CODE, 5 DEFAULT DEALER PROGRAM CODE, 13 DEFAULT PROGRAM: CUSTOMIZING, 5 DIGITAL DIALER RPT ENTER /EXIT TEST MODE ADDRESS

2053, 29 DIRECT ADDRESS PROGRAM MODE, 4 DIRECT ADDRESS PROGRAM MODE, 21; ACCESSING, 20 DISABLE [ON/OFF] AS EASY EXIT ADDRESS 2051, 29 DISABLE 2ND CALL ANS. MACHINE OVERRIDE ADDRESS

1424, 28 DISABLE AUTO DIAL TONE DETECT ADDRESS 0788, 32 DISABLE CALL WAITING ON 1ST ATTEMPT ADDRESS 2053,

29 DISABLE CALLBACK DOWNLOAD ADDRESS 1422, 28 DISABLE CLOSING REPORTS ADDRESS 0786, 32 DISABLE CODE REQUIRED FOR EZ BYPASS ADDRESS

1424, 28 DISABLE KEYPAD FUNCTION MODE DOWNLOAD ADDRESS

1422, 28 DISABLE KEYPAD INSTANT MODE ADDRESS 1421, 28 DISABLE OPENING REPORTS ADDRESS 0785, 32 DISABLE SOUNDER, 55 DISABLE SYSTEM TROUBLE AUDIBLE TIMEOUT ADDRESS

2051, 29 DISABLE WAIT FOR HANDSHAKE ON TRANSMIT ADDRESS

0788, 32 DISABLE WAIT FOR SILENCE (PAGER FORMAT) ADDRESS

0788, 32 DISABLE ZONE FAULT SCROLLING ADDRESS 1420, 28 DON'T CLEAR PGM2 OUTPUT WITH DISARM ADDRESS

1424, 28 DOWNLOAD/CALLBACK OPTIONS (ADDRESS 2059 & 0526-

0545), 25

DOWNLOADING FROM A COMPUTER, 4

E

EASY ARMING (KEYPAD OPTIONS), 42 EASY MENU DRIVEN PROGRAM MODE, 5 EASY MENU-DRIVEN PROGRAM MODE, 4 EASY PROGRAM MENU: 13 ENABLE "K SERIES" STYLE KEYPADS ADDRESS 2051, 29 ENABLE 2-COUNT SWINGER SHUTDOWN ADDRESS 2054,

29

ENABLE ALARM OUTPUT ON TELCO FAIL ONLY WHEN

ARMED ADDRESS 1423, 28

ENABLE AUTOARM IF NOT CLOSED AT END OF WINDOW

ADDRESS 1420, 28

ENABLE BURG OUTPUT CHIRP ON KEYFOB?: EASY

PROGRAM MENU, 8, 14, 15 ENABLE CANCEL REPORT TO TELCO 3 ADDRESS 2051, 29 ENABLE CP-01 EGRESS TONES ONLY ADDRESS 2053, 29 ENABLE CP-01 LIMITS ADDRESS 2053, 29 ENABLE DAYLIGHT SAVING TIME ADDRESS 2281, 33 ENABLE DISPLAY TIME ON BLANKED KEYPADS ADDRESS

2054, 29 ENABLE EN501 GRADE 3 OPERATION ADDRESS 2054, 29 ENABLE EN501 USER CODE ACCESS LEVEL ADDRESS

2054, 29 ENABLE GLOBAL AMBUSH CODE ADDRESS 1422, 28 ENABLE KEYPAD 1 ONLY PROGRAMMING ADDRESS 2053,

29 ENABLE KEYPAD BLANKING ADDRESS 2054, 29 ENABLE KEYPAD SET TIME/DATE MESSAGE ADDRESS

2051, 29 ENABLE KEYPAD TIME/DATE DISPLAY ADDRESS 1420, 28 ENABLE LINE-FAULT TEST ADDRESS 1423, 28 ENABLE LOCAL ALARM ON FIRST ZONE AND TRIP

ADDRESS 1421, 28 ENABLE LOOP SUPERVISION ADDRESS 1424, 28 ENABLE MANAGER'S MODE ADDRESS 1421, 28 ENABLE NO EOLR ZONES: EASY PROGRAM MENU, 8, 14, 15 ENABLE RESIDENTIAL FIRE ADDRESS 1422, 28 ENABLE SIA CP-01?: EASY PROGRAM MENU, 8, 14, 15 ENABLE TCP/IP COMMUNICATIONS ADDRESS 2054, 29 ENABLE TELCO LINE FAULT TEST?: EASY PROGRAM MENU,

8, 14, 15 ENABLE ZONE DOUBLING (ZONES 9-16) ADDRESS 1423, 28 ENABLE ZONE NUMBER ON PULSE ALARM (CS RECEIVER

OPTIONS), 30 ENTER USER CODES: EASY PROGRAM MENU, 9, 16 ENTRY DELAY 1 ADDRESS 0001, 24 ENTRY DELAY 2 ADDRESS 0002, 24 ENTRY/EXIT 1--ZONE OPTION, 45, 46, 47, 48 ENTRY/EXIT 2--ZONE OPTION, 45, 46, 47, 48 ERASE DEALER PROGRAM, 12, 18 ERASE ENTIRE PROGRAM, 12, 18 EXIT DEALER PROGRAM MODE, 12, 19 EXIT DELAY ADDRESS 0000, 24 EXIT TIME RESTART ADDRESS 2053, 29 EXIT/ENTRY FOLLOWER--ZONE OPTION, 45, 46, 47, 48 EXIT/ENTRY ZONES: EASY PROGRAM MENU, 13 EXIT/ENTRY ZONES IN AREA 1: EASY PROGRAM MENU, 6 EXIT/ENTRY2 ZONES IN AREA 1: EASY PROGRAM MENU, 7,

14, 15 EXTERNAL RELAY CONTROL (ADDRESS 1489-1608), 49 EXTERNAL RELAY CONTROL (ADDRESS 1609-1648), 50

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 58

ALPHABETICAL INDEX (CONT'D)

F

FAIL TO CLOSE, 26, 27 FAIL TO CLOSE REPORTING OPTIONS ADDRESS 0704, 32 FAIL TO OPEN, 26, 27 FAIL TO OPEN REPORTING OPTIONS ADDRESS 0703, 32 FBI 4/3/1 RECEIVER FORMAT, 16 FIRE ALARM VERIFICATION--ZONE OPTION, 45, 46, 47, 48 FIRE REPORTING OPTIONS ADDRESS 0700, 32 FIRE ZONES: EASY PROGRAM MENU, 13 FIRE ZONES IN AREA 1: EASY PROGRAM MENU, 6 FIRE--ZONE OPTION, 45, 46, 47, 48 FRANKLIN FAST RECEIVER FORMAT, 16 FRANKLIN SLOW FORMAT, 30 FRANKLIN SLOW RECEIVER FORMAT, 16 FUNCTION MODE, 4

G

LIB-P432EX WIRING DIAGRAM, 64 GENERAL PROGRAMMING STEPS, 23 GLOBAL AMBUSH CODE ADDRESS 2045, 26 GLOBAL SYSTEM EVENT/TROUBLE, 26

H

HANDSHAKE/KISSOFF 1400HZ (CS RECEIVER OPTIONS), 30 HANDSHAKE/KISSOFF 2300HZ (CS RECEIVER OPTIONS), 30

I

INCL. SEL./GRP. BYPASS IN COND. CLOSE /STATUS

ADDRESS 1420, 28

INHIBIT SYSTEM TROUBLE AUDIBLE AT KEYPAD ADDRESS

1423, 28

INTERIOR (STAY) BYPASS ZONES IN AREA 1: EA SY PRO GRAM

MENU, 7 INTERIOR (STAY) BYPASS--ZONE OPTION, 45, 46, 47, 48 INTERIOR NORMALLY BYPASSED ADDRESS 1422, 28 INTERIOR ZONES: EASY PROGRAM MENU, 14, 15

K

K SERIES KEYPADS, 2 KEY FOB TRANSMITTERS, 18, 19 KEY FOB TRANSMITTERS AS ARM/DISARM & CONTROL

DEVICES: EASY PROGRAM MENU, 11 KEY FOB TRANSMITTERS AS ZONE INPUT DEVICES, 18, 19;

EASY PROGRAM MENU, 11 KEY FOB ZONE ASSIGNMENT, 18; EASY PROGRAM MENU,

11 KEYFOB LOW BATTERY, 26, 27 KEYFOB LOW BATTERY REPORTING OPTIONS ADDRESS

0705, 32 KEYPAD ADDRESS, 55 KEYPAD ADDRESS PROGRAM MODE DISPLAY, 21 KEYPAD AUX., 26, 27 KEYPAD AUX. (KEYPAD OPTIONS), 42 KEYPAD CONFIGURATION MODE, 55 KEYPAD FIRE, 26, 27 KEYPAD FIRE (KEYPAD OPTIONS), 42 KEYPAD INSTALLATION, 55 KEYPAD OPTIONS (ADDRESS 1425-1431, 1440-1446), 42 KEYPAD PANIC, 26, 27 KEYPAD PANIC (KEYPAD OPTIONS), 42

KEYPAD PROGRAMMING OVERVIEW, 20 KEYPAD SOUNDER ON ALARM ZONES: EASY PROGRAM

MENU, 7, 14 KEYPAD SOUNDER ON ALARM--ZONE OPTION, 45, 46, 47, 48 KEYPAD TAMPER, 26, 27 KEYPAD TYPE, 42 KEYPAD UNBLANKING TIME WINDOW ADDRESS 2060, 33 KEYSWITCH ARMING--ZONE OPTION, 45, 46, 47, 48

L

LCD BACKLIGHT, 55 LEADING DIGITS FOR PAGER FORMAT (1ST DIGIT)

ADDRESS 0546, 25 LEADING DIGITS FOR PAGER FORMAT (2ND DIGIT)

ADDRESS 0547, 25 LINE FREQUENCY--ENABLE 50HZ ADDRESS 2281, 33 LINE-FAULT TEST ONLY WHEN ARMED ADDRESS 1423, 28 LOCAL DOWNLOADING, 4 LOCAL OR CENTRAL STATION REPORTING SYSTEM: EASY

PROGRAM MENU, 6 LOCAL SYSTEM OR C.S. REPORTING SYSTEM: EASY

PROGRAM MENU, 13 LOW BATTERY, 26 LOW BATTERY REPORTING OPTIONS ADDRESS 0686, 32 LUG E15 AREA 1 ARMED AWAY ONLY ADDRESS 2052, 29

M

MAINTAINED KEYSWITCH ARMING ADDRESS 1421, 28 MEMORY FAIL REPORTING OPTIONS ADDRESS 0685, 32 MEMORY FAILURE, 26 MODEM CODES, 34

N

NEVER ARM--ZONE OPTION, 45, 46, 47, 48 NO EOL RESISTOR--ZONE OPTION, 45, 46, 47, 48 NO. RINGS BEFORE PICKUP ADDRESS 2059, 25 NUMBER OF KEYPADS: EASY PROGRAM MENU, 16 NUMBER OF KEYPADS IN AREA 1: EASY PROGRAM MENU, 8 NUMBER OF RF RECEIVERS ADDRESS 2056, 52 NUMBER OF RINGS BEFORE PICKUP, 25 NUMBER OF RINGS BEFORE PICKUP ADDRESS 2059, 25

O

OPENING AFTER ALARM REPORTING OPTIONS ADDRESS

0679, 32 OPENING REPORT ONLY AFTER ALARM REPORT ADDRESS

1420, 28 OPENING REPORTING OPTIONS ADDRESS 0677, 32 OUTPUT TIMEOUTS, 25 OUTPUT TURNS OFF UPON DISARM, 38, 39

P

PAGER FORMAT, 30 PAGER FORMAT OPTIONS (ADDRESS 0546 & 0547), 25 PAGER RECEIVER FORMAT, 16 PANEL AC FAIL REPORTING OPTIONS ADDRESS 0687, 32 PANEL ACCESS (KEYPAD OPTIONS), 42 PANEL ZONE DOUBLING: EASY PROGRAM MENU, 6, 13 PANEL ZONES REPORT CODE, 34 PANIC REPORTING OPTIONS ADDRESS 0699, 32

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 59

ALPHABETICAL INDEX (CONT'D)

PCI-MINI COMPUTER INTERFACE, 4 PGM ON RF TRANSMITTER TAMPER ADDRESS 2052, 29 PGM1 OUTPUT ADDRESS 0838, 26 PGM1 OUTPUT ADDRESS 0858, 26 PGM1 OUTPUT ADDRESS 0866, 26, 27 PGM1 OUTPUT ADDRESS 0874, 27 PGM1 OUTPUT TIMEOUT ADDRESS 1416, 25 PGM1 OUTPUT TURNS OFF UPON DISARM, 40 PGM1 OUTPUT--ZONE OPTION, 45, 46, 47, 48 PGM2 OUTPUT ADDRESS 0839, 26 PGM2 OUTPUT ADDRESS 0860, 26 PGM2 OUTPUT ADDRESS 0868, 26, 27 PGM2 OUTPUT ADDRESS 0876, 27 PGM2 OUTPUT ACCESS CNTRL TIMEOUT ADDRESS 1413,

24 PGM2 OUTPUT TIMEOUT ADDRESS 1412, 25 PGM2 OUTPUT TURNS OFF UPON DISARM, 41 PGM2 OUTPUT--ZONE OPTION, 45, 46, 47, 48 POWER-UP DELAY--ZONE OPTION, 45, 46, 47, 48 PRE-ALARM WARNING--ZONE OPTION, 45, 46, 47, 48 PRIORITY AREA ARMING, 44 PRIORITY ARMING AREA 1 ADDRESS 1469, 44 PRIORITY ARMING AREA 2 ADDRESS 1470, 44 PRIORITY ARMING AREA 3 ADDRESS 1471, 44 PRIORITY ARMING AREA 4 ADDRESS 1472, 44 PRIORITY WITH BYPASS--ZONE OPTION, 45, 46, 47, 48 PRIORITY--ZONE OPTION, 45, 46, 47, 48 PROGRAMMING DATA ENTRIES, 22 PROGRAMMING TIMEOUTS, 24 PROGRAMMING USER CODES, 54 PULSE ALARM OUTPUT TIMEOUT ADDRESS 1415, 25 PULSE EVENT CODE, 34 PULSED ALARM OUTPUT ADDRESS 0837, 26 PULSED ALARM OUTPUT ADDRESS 0856, 26 PULSED ALARM OUTPUT ADDRESS 0864, 26, 27 PULSED ALARM OUTPUT ADDRESS 0872, 27 PULSED ALARM OUTPUT--ZONE OPTION, 45, 46, 47, 48 PULSED BURG OUTPUT TURNS OFF UPON DISARM

ADDRESS 1477-1480, 39

Q

QUICK ENROLL METHOD, 17; EASY PROGRAM MENU, 10

R

RADIONICS FAST FORMAT, 30 RADIONICS FAST RECEIVER FORMAT, 16 RADIONICS FORMAT, 30 RADIONICS MODEM 2 RECEIVER FORMAT, 16 RADIONICS RECEIVER FORMAT, 16 RELAY EVENT OPTIONS ADDRESS 1489-1608, 49 RELAY EVENT OPTIONS ADDRESS 1609-1648, 50 REMOTE DOWNLOADING, 4 REPORT CANCEL WINDOW ADDRESS 2055, 24 REPORT EVENT TELCO 1 ADDRESS 0840, 26 REPORT EVENT TELCO 1 ADDRESS 0861, 26 REPORT EVENT TELCO 1 ADDRESS 0869, 26, 27 REPORT EVENT TELCO 1 ADDRESS 0877, 27 REPORT EVENT TELCO 3 ADDRESS 0842, 26 REPORT EVENT TELCO 3 ADDRESS 0863, 26 REPORT EVENT TELCO 3 ADDRESS 0871, 26, 27 REPORT OPTIONS: CS SYSTEM, 32 REPORT RESTORE TELCO 1 ADDRESS 0841, 26

REPORT RESTORE TELCO 3 ADDRESS 0843, 26 RESET DAY ZONE WITH ARM/DISARM ONLY ADDRESS

1422, 28

RESOUND ON WIRELESS SMOKE LOW BATTERY ADDRESS

1424, 28 RF RCVR. TROUBLE, 26 RF REC. TROUBLE REPORTING OPTIONS ADDRESS 0684,

32 RF RECEIVER & SUPERVISORY TIMER OPTIONS (ADDRESS

2029-2044 & 2056), 52 RF SUPERVISORY TIMERS, 52 RF TRANSMITTER, 52 RF TRANSMITTER POINTS, 17; EASY PROGRAM MENU, 10 RPT EXIT ERR/RECENT CLOSE ADDRESS 2053, 29

S

SELECT ALARM OUTPUT FOR KEYFOB CHIRP ADDRESS

1423, 28 SELECTIVE BYPASS--ZONE OPTION, 45, 46, 47, 48 SENSOR WATCH TIME ADDRESS 2050, 24 SENSOR WATCH ZONES: EASY PROGRAM MENU, 7, 14, 15 SENSOR WATCH--ZONE OPTION, 45, 46, 47, 48 SESCOA RECEIVER FORMAT, 16 SIA FORMAT, 30 SIA RECEIVER FORMAT, 16 SILENT KNIGHT FAST FORMAT, 30 SILENT KNIGHT FAST RECEIVER FORMAT, 16 SILENT KNIGHT SLOW FORMAT, 30 SILENT KNIGHT SLOW RECEIVER FORMAT, 16 SINGLE DIGIT ONLY (CS RECEIVER OPTIONS), 30 SOUND ALARM ON EXIT ERROR ADDRESS 2053, 29 SOUNDER: DISABLE, 55 STATUS REPORT ADDRESS 1420, 28 SUM CHECK (CS RECEIVER OPTIONS), 30 SUPPRESS BYPASS REMINDER WHEN ARMED ADDRESS

1421, 28 SWINGER SHUTDOWN--ZONE OPTION, 45, 46, 47, 48 SYSTEM DELAYS & TIMEOUTS (ADDRESS 0000-0002, 1413,

1417, 2050 & 2055), 24 SYSTEM DELAYS & TIMEOUTS (ADDRESS 1418 & 1419), 24 SYSTEM OPTIONS (ADDRESS 0836-0871 & 2045), 26 SYSTEM OPTIONS (ADDRESS 1420-1424), 28 SYSTEM OUTPUT TIMEOUTS (ADDRESS 1412 & 1414-1416),

25 SYSTEM PROGRAMMING OPTIONS, 4 SYSTEM RESPONSE ACTIVATED BY AREA 1 EVENT/

TROUBLE, 26 SYSTEM RESPONSE ACTIVATED BY AREA 2 EVENT/

TROUBLE, 26 SYSTEM RESPONSE ACTIVATED BY AREA 3 EVENT/

TROUBLE, 27 SYSTEM RESPONSE ACTIVATED BY AREA 4 EVENT/

TROUBLE, 27 SYSTEM RESPONSE ACTIVATED BY GLOBAL EVENT/

TROUBLE, 26

T

TAMPER REPORTING OPTIONS ADDRESS 0702, 32 TELCO FAIL REPORTING OPTIONS ADDRESS 0683, 32 TELCO FAILURE, 26 TEST TIMER, 26 TEST TIMER REPORTING OPTIONS ADDRESS 0682, 32

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 60

ALPHABETICAL INDEX (CONT'D)

TOTAL NUMBER OF ZONES: EASY PROGRAM MENU, 13 TOTAL NUMBER OF ZONES IN AREA 1: EASY PROGRAM

MENU, 6 TOUCHPAD BACK LIGHT, 55 TOUCH-TONE DIALING ONLY ADDRESS 0788, 32 TOUCH-TONE DIALING W/ROTARY BACKUP ADDRESS 0788,

32 TROUBLE ON OPEN--ZONE OPTION, 45, 46, 47, 48 TROUBLE ON SHORT--ZONE OPTION, 45, 46, 47, 48 TROUBLE REPORTING OPTIONS ADDRESS 0671, 32 TROUBLE RESTORE 1--ZONE OPTION, 45, 46, 47, 48 TROUBLE RESTORE 3--ZONE OPTION, 45, 46, 47, 48 TROUBLE RESTORE REPORTING OPTIONS ADDRESS 0672,

32 TROUBLE TELCO 1--ZONE OPTION, 45, 46, 47, 48 TROUBLE TELCO 3--ZONE OPTION, 45, 46, 47, 48

U

UNIVERSAL HIGH SPEED FORMAT, 30 UNIVERSAL HIGH SPEED RECEIVER FORMAT, 16 USER CODES: PROGRAMMING, 54 USER OPTIONS, 17 USER PROGRAM MODE, 4 USER PROGRAM MODE, 53

V

VERTEX RECEIVER FORMAT, 16

ZONES REPORT CODE, 34

W

WIRELESS TROUBLE ACTIVATES TELCO 1 ADDRESS 1423,

28 WIRELESS TROUBLE ACTIVATES TELCO 3 ADDRESS 1423,

28 WIRING DIAGRAM, 64

X

XMITTER LOW BATTERY REPORTING OPTIONS ADDRESS

0673, 32 XMITTER SUPERVISION REPORTING OPTIONS ADDRESS

0674, 32 XMITTER TAMPER REPORTING OPTIONS ADDRESS 0675,

32

Z

ZONE ANDING GROUP 1--ZONE OPTION, 45, 46, 47, 48 ZONE ANDING GROUP 2--ZONE OPTION, 45, 46, 47, 48 ZONE ANDING GROUP 3--ZONE OPTION, 45, 46, 47, 48 ZONE ANDING GROUP 4--ZONE OPTION, 45, 46, 47, 48 ZONE ANDING TIME WINDOW ADDRESS 2061, 33 ZONE AREA 1--ZONE OPTION, 45, 46, 47, 48 ZONE AREA 2--ZONE OPTION, 45, 46, 47, 48 ZONE AREA 3--ZONE OPTION, 45, 46, 47, 48 ZONE AREA 4--ZONE OPTION, 45, 46, 47, 48 ZONE DESCRIPTIONS, 19; EASY PROGRAM MENU, 11 ZONE INTEGRATION TIME ADDRESS 2062, 44 ZONE OPTIONS - ZONES 1 TO 16 (ADDRESS 0900-1016), 45 ZONE OPTIONS - ZONES 17 TO 32 (ADDRESS 1029-1144), 46 ZONE RESPONSE TIME ADDRESS 2062, 44

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 61

ADDRESS NUMBER LOCATION INDEX

ADDRESS NUMBER DESCRIPTION PAGE

ADDRESS 0000 EXIT DELAY 24

ADDRESS 0001 ENTRY DELAY 1 24

ADDRESS 0002 ENTRY DELAY 2 24

ADDRESS 0460 CS RECEIVER 1 FORMAT 30 ADDRESS 0461 CS RECEIVER TELCO 1 OPTIONS 30

ADDRESS 0462-0481 CS RECEIVER 1 TELEPHONE NUMBER 30

ADDRESS 0482 CS RECEIVER 2 FORMAT 30 ADDRESS 0483 CS RECEIVER TELCO 2 OPTIONS 30

ADDRESS 0484-0503 CS RECEIVER 2 TELEPHONE NUMBER 30 ADDRESS 0504 CS RECEIVER 3 FORMAT 30

ADDRESS 0505 CS RECEIVER TELCO 3 OPTIONS 30 ADDRESS 0506-0525 CS RECEIVER 3 TELEPHONE NUMBER 30 ADDRESS 0526-0545 CALLBACK TELEPHONE NUMBER 25

ADDRESS 0546 LEADING DIGITS FOR PAGER FORMAT (1ST DIGIT) 25 ADDRESS 0547 LEADING DIGITS FOR PAGER FORMAT (2ND DIGIT) 25

ADDRESS 0670 ALARM RESTORE REPORTING OPTIONS 32 ADDRESS 0671 TROUBLE REPORTING OPTIONS 32

ADDRESS 0672 TROUBLE RESTORE REPORTING OPTIONS 32

ADDRESS 0673 XMITTER LOW BATTERY REPORTING OPTIONS 32 ADDRESS 0674 XMITTER SUPERVISION REPORTING OPTIONS 32

ADDRESS 0675 XMITTER TAMPER REPORTING OPTIONS 32

ADDRESS 0677 OPENING REPORTING OPTIONS 32 ADDRESS 0678 CLOSING REPORTING OPTIONS 32

ADDRESS 0679 OPENING AFTER ALARM REPORTING OPTIONS 32 ADDRESS 0680 CONDITIONAL CLOSE REPORTING OPTIONS 32

ADDRESS 0681 CANCEL REPORTING OPTIONS 32 ADDRESS 0682 TEST TIMER REPORTING OPTIONS 32

ADDRESS 0683 TELCO FAIL REPORTING OPTIONS 32 ADDRESS 0684 RF REC. TROUBLE REPORTING OPTIONS 32

ADDRESS 0685 MEMORY FAIL REPORTING OPTIONS 32

ADDRESS 0686 LOW BATTERY REPORTING OPTIONS 32 ADDRESS 0687 PANEL AC FAIL REPORTING OPTIONS 32

ADDRESS 0689 ALARM OUTPUT SUPERV. REPORTING OPTIONS 32

ADDRESS 0698 AMBUSH REPORTING OPTIONS 32 ADDRESS 0699 PANIC REPORTING OPTIONS 32

ADDRESS 0700 FIRE REPORTING OPTIONS 32

ADDRESS 0701 AUXILIARY REPORTING OPTIONS 32

ADDRESS 0702 TAMPER REPORTING OPTIONS 32 ADDRESS 0703 FAIL TO OPEN REPORTING OPTIONS 32 ADDRESS 0704 FAIL TO CLOSE REPORTING OPTIONS 32

ADDRESS 0705 KEYFOB LOW BATTERY REPORTING OPTIONS 32 ADDRESS 0785 DISABLE OPENING REPORTS 32

ADDRESS 0786 DISABLE CLOSING REPORTS 32 ADDRESS 0788 BACKUP REPORT ON TELCO 1 & 2 32

ADDRESS 0788 CANCEL NEXT TEST TIMER ON ANY REPORT 32

ADDRESS 0788 DISABLE AUTO DIAL TONE DETECT 32 ADDRESS 0788 DISABLE WAIT FOR HANDSHAKE ON TRANSMIT 32

ADDRESS 0788 DISABLE WAIT FOR SILENCE (PAGER FORMAT) 32 ADDRESS 0788 TOUCH-TONE DIALING ONLY 32 ADDRESS 0788 TOUCH-TONE DIALING W/ROTARY BACKUP 32

ADDRESS 0836 ALARM OUTPUT 26

ADDRESS 0837 PULSED ALARM OUTPUT 26

ADDRESS 0838 PGM1 OUTPUT 26 ADDRESS 0839 PGM2 OUTPUT 26

ADDRESS 0840 REPORT EVENT TELCO 1 26

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions

Page 62

ADDRESS NUMBER LOCATION INDEX (CONT'D)

ADDRESS NUMBER DESCRIPTION PAGE

ADDRESS 0841 REPORT RESTORE TELCO 1 26 ADDRESS 0842 REPORT EVENT TELCO 3 26 ADDRESS 0843 REPORT RESTORE TELCO 3 26 ADDRESS 0856 PULSED ALARM OUTPUT 26 ADDRESS 0857 ALARM OUTPUT 26 ADDRESS 0858 PGM1 OUTPUT 26 ADDRESS 0860 PGM2 OUTPUT 26 ADDRESS 0861 REPORT EVENT TELCO 1 26 ADDRESS 0863 REPORT EVENT TELCO 3 26 ADDRESS 0864 PULSED ALARM OUTPUT 26, 27 ADDRESS 0865 ALARM OUTPUT 26, 27 ADDRESS 0866 PGM1 OUTPUT 26, 27 ADDRESS 0868 PGM2 OUTPUT 26, 27 ADDRESS 0869 REPORT EVENT TELCO 1 26, 27 ADDRESS 0871 REPORT EVENT TELCO 3 26, 27 ADDRESS 0872 PULSED ALARM OUTPUT 27 ADDRESS 0873 ALARM OUTPUT 27 ADDRESS 0874 PGM1 OUTPUT 27 ADDRESS 0876 PGM2 OUTPUT 27 ADDRESS 0877 REPORT EVENT TELCO 1 27 ADDRESS 1412 PGM2 OUTPUT TIMEOUT 25 ADDRESS 1413 PGM2 OUTPUT ACCESS CNTRL TIMEOUT 24 ADDRESS 1414 ALARM OUTPUT TIMEOUT 25 ADDRESS 1415 PULSE ALARM OUTPUT TIMEOUT 25 ADDRESS 1416 PGM1 OUTPUT TIMEOUT 25 ADDRESS 1417 ABORT DELAY 24 ADDRESS 1418 CHIME TIME 24 ADDRESS 1419 AC FAIL REPORT DELAY 24 ADDRESS 1420 CLOSING REPORT ONLY ON CONDITIONAL CLOSE 28 ADDRESS 1420 DISABLE ZONE FAULT SCROLLING 28 ADDRESS 1420 ENABLE AUTOARM IF NOT CLOSED AT END OF WINDOW 28 ADDRESS 1420 ENABLE KEYPAD TIME/DATE DISPLAY 28 ADDRESS 1420 INCL. SEL./GRP. BYPASS IN COND. CLOSE /STATUS 28 ADDRESS 1420 OPENING REPORT ONLY AFTER ALARM REPORT 28 ADDRESS 1420 STATUS REPORT 28 ADDRESS 1421 ACCESS CONTROL ON PGM2 OUTPUT 28 ADDRESS 1421 AUTO BELL TEST ON ARMING 28 ADDRESS 1421 AUTO RESET AFTER BURGLARY OUTPUT TIMEOUT 28 ADDRESS 1421 DISABLE KEYPAD INSTANT MODE 28 ADDRESS 1421 ENABLE LOCAL ALARM ON FIRST ZONE AND TRIP 28 ADDRESS 1421 ENABLE MANAGER'S MODE 28 ADDRESS 1421 MAINTAINED KEYSWITCH ARMING 28 ADDRESS 1421 SUPPRESS BYPASS REMINDER WHEN ARMED 28 ADDRESS 1422 CHANGE PULSE OUTPUT TO TEMPORAL OUTPUT 28 ADDRESS 1422 CHIRP OUTPUT ON KEYFOB ARM/DISARM 28 ADDRESS 1422 DISABLE CALLBACK DOWNLOAD 28 ADDRESS 1422 DISABLE KEYPAD FUNCTION MODE DOWNLOAD 28 ADDRESS 1422 ENABLE GLOBAL AMBUSH CODE 28 ADDRESS 1422 ENABLE RESIDENTIAL FIRE 28 ADDRESS 1422 INTERIOR NORMALLY BYPASSED 28 ADDRESS 1422 RESET DAY ZONE WITH ARM/DISARM ONLY 28 ADDRESS 1423 ENABLE ALARM OUTPUT ON TELCO FAIL ONLY WHEN ARMED 28 ADDRESS 1423 ENABLE LINE-FAULT TEST 28 ADDRESS 1423 ENABLE ZONE DOUBLING (ZONES 9-16) 28 ADDRESS 1423 INHIBIT SYSTEM TROUBLE AUDIBLE AT KEYPAD 28 ADDRESS 1423 LINE-FAULT TEST ONLY WHEN ARMED 28 ADDRESS 1423 SELECT ALARM OUTPUT FOR KEYFOB CHIRP 28 ADDRESS 1423 WIRELESS TROUBLE ACTIVATES TELCO 1 28 ADDRESS 1423 WIRELESS TROUBLE ACTIVATES TELCO 3 28 ADDRESS 1424 AUTOMATIC INTERIOR BYPASS/EASY EXIT 28 ADDRESS 1424 DISABLE 2ND CALL ANS. MACHINE OVERRIDE 28 ADDRESS 1424 DISABLE CODE REQUIRED FOR EZ BYPASS 28 ADDRESS 1424 DON'T CLEAR PGM2 OUTPUT WITH DISARM 28 ADDRESS 1424 ENABLE LOOP SUPERVISION 28 ADDRESS 1424 RESOUND ON WIRELESS SMOKE LOW BATTERY 28

LIBRA LIB-P432EX Series Programming Instructions NAPCO Security Systems

Page 63

ADDRESS NUMBER LOCATION INDEX (CONT'D)

ADDRESS NUMBER DESCRIPTION PAGE

ADDRESS 1469 PRIORITY ARMING AREA 1 44 ADDRESS 1470 PRIORITY ARMING AREA 2 44 ADDRESS 1471 PRIORITY ARMING AREA 3 44 ADDRESS 1472 PRIORITY ARMING AREA 4 44 ADDRESS 1477-1480 PULSED BURG OUTPUT TURNS OFF UPON DISARM 39 ADDRESS 1489-1608 RELAY EVENT OPTIONS 49 ADDRESS 1609-1648 RELAY EVENT OPTIONS 50 ADDRESS 2045 GLOBAL AMBUSH CODE 26 ADDRESS 2050 SENSOR WATCH TIME 24 ADDRESS 2051 DISABLE [ON/OFF] AS EASY EXIT 29 ADDRESS 2051 DISABLE SYSTEM TROUBLE AUDIBLE TIMEOUT 29 ADDRESS 2051 ENABLE "K SERIES" STYLE KEYPADS 29 ADDRESS 2051 ENABLE CANCEL REPORT TO TELCO 3 29 ADDRESS 2051 ENABLE KEYPAD SET TIME/DATE MESSAGE 29 ADDRESS 2052 LUG E15 AREA 1 ARMED AWAY ONLY 29 ADDRESS 2052 PGM ON RF TRANSMITTER TAMPER 29 ADDRESS 2053 DIGITAL DIALER RPT ENTER /EXIT TEST MODE 29 ADDRESS 2053 DISABLE CALL WAITING ON 1ST ATTEMPT 29 ADDRESS 2053 ENABLE CP-01 EGRESS TONES ONLY 29 ADDRESS 2053 ENABLE CP-01 LIMITS 29 ADDRESS 2053 ENABLE KEYPAD 1 ONLY PROGRAMMING 29 ADDRESS 2053 EXIT TIME RESTART 29 ADDRESS 2053 RPT EXIT ERR/RECENT CLOSE 29 ADDRESS 2053 SOUND ALARM ON EXIT ERROR 29 ADDRESS 2054 ENABLE 2-COUNT SWINGER SHUTDOWN 29 ADDRESS 2054 ENABLE DISPLAY TIME ON BLANKED KEYPADS 29 ADDRESS 2054 ENABLE EN501 GRADE 3 OPERATION 29 ADDRESS 2054 ENABLE EN501 USER CODE ACCESS LEVEL 29 ADDRESS 2054 ENABLE KEYPAD BLANKING 29 ADDRESS 2054 ENABLE TCP/IP COMMUNICATIONS 29 ADDRESS 2055 REPORT CANCEL WINDOW 24 ADDRESS 2056 NUMBER OF RF RECEIVERS 52 ADDRESS 2059 NO. RINGS BEFORE PICKUP 25 ADDRESS 2059 NUMBER OF RINGS BEFORE PICKUP 25 ADDRESS 2060 KEYPAD UNBLANKING TIME WINDOW 33 ADDRESS 2061 ZONE ANDING TIME WINDOW 33 ADDRESS 2062 ZONE INTEGRATION TIME 44 ADDRESS 2062 ZONE RESPONSE TIME 44 ADDRESS 2281 CLOCK ADJUSTMENTS 33 ADDRESS 2281 CLOCK SOURCE (INTERNAL PANEL) 33 ADDRESS 2281 ENABLE DAYLIGHT SAVING TIME 33 ADDRESS 2281 LINE FREQUENCY--ENABLE 50HZ 33 ADDRESS 2285 CLEAR PROGRAM 12 ADDRESS 2286 COLD START 12, 18

NAPCO Security Systems LIBRA LIB-P432EX Series Programming Instructions
