NAPCO F-64TPG Operating Manual
1
© NAPCO 2006 PATENTED OI320A 9/06
R
OPERATING GUIDE for your
NAPCO FREEDOM F-64TPG Garage Touchpad
Home Security System
Freedom F-64TPG Touchpad
SYSTEM READY
10/15/06 12:05PM
2
Congratulations on your purchase of a
new Freedom Garage Door Security System. This revolutionary new concept in
residential security makes using your system easier than ever before possible, because the system uses its computerized
control panel to continually monitor the
status of your garage door. It actually
anticipates what command it should expect from you next--simply requiring just
one button to press to effortlessly operate
your security system, whether you’re going, returning or staying in for the night.
Now everyone in your family, young and
old alike, will enjoy the true peace-of-mind
you would expect from a quality, state-ofthe-art NAPCO Security System, without
the fuss of remembering confusing numerical codes to operate it.
Simplicity and convenience begin with
your System’s one-touch STAY or AWAY
buttons, then just open or close the garage
door as usual! Day in and day out, that’s
all there is to it.
This booklet contains important information about the operation of your
NAPCO Freedom Security System.
Please read it through and retain it for
handy reference. Because your system is
customized for your home and lifestyle,
you may find subjects mentioned here,
that do not apply to your system. Rest
assured your security system has been
configured by your Security Professional
to best suit you and the system itself has
been meticulously designed and engineered to the highest industry standards.
Please test your system at least once a
week as described below.
INTRODUCTION
1 Test your sounding device and backup battery
(Perform these tests only on weekends or at a time designated by your
alarm company)
1. While disarmed, press MENU.
2. Press MENU until ACTIVATE SIREN TEST appears in the display.
3. Press YES to execute the test. The alarm will sound for about two
seconds.
• If the alarm does not sound, call for service.
• If the battery is low, LOW BATTERY E02-00 SERVICE will appear
in the display indicating a low battery condition. Allow 24 hours for
the battery to recharge. If the trouble continues, call for service.
2 Test your central station communicator
(Activate Dialer Test programmed? YES NO)
1. Notify your Central Station of the impending test.
2. While disarmed, insert your I-FOB into the Touchpad. Press MENU.
3. Press MENU until ACTIVATE DIALER TEST appears in the display.
4. Press YES to send a test code to the central station.
• If the test is not successful, COMM FAIL E03-00 SERVICE will
display, indicating a communication failure. Call for service.
Note: Any subsequent successful transmission will clear a Failure to
Communicate system trouble.
IMPORTANT - TEST YOUR SYSTEM WEEKLY
From a Ready Condition (Disarmed State)
3
TABLE OF CONTENTS
TABLE OF CONTENTS
INTRODUCTION................................................................................ 2
TESTING THE SYSTEM.................................................................... 2
GARAGE TOUCHPAD INDICATORS AND CONTROLS .................. 4
ARMING WHEN LEAVING ................................................................ 6
BYPASSING FAULTED ZONES ....................................................... 7
ARMING STAY: PROTECTING YOURSELF AT HOME................... 8
ARMING AND LEAVING WITH OTHERS STAYING ......................... 9
EXITING WITH THE SYSTEM ALREADY ARMED ........................ 10
EMERGENCY BUTTONS................................................................ 12
DISARMING THE SYSTEM.............................................................13
SILENCING AN ALARM................................................................... 14
FIRE PROTECTION......................................................................... 15
TOUCHPAD MENU MODE.............................................................. 17
USER PROGRAM MODE................................................................ 21
SYSTEM TROUBLE ERROR CODES ............................................. 24
USER I-FOB LIST ............................................................................ 29
LOST GARAGE DOOR OPENER MODE........................................ 30
FCC PART 68 STATEMENT ........................................................... 31
LIMITATIONS OF THIS ALARM SYSTEM....................................... 32
LIMITED WARRANTY...................................................................... 34
FCC PART 15 STATEMENT............................................................ 36
ALARM TIME OUT: _________ Minutes
FOR SERVICE, CALL: _____________________
TO CANCEL AN
ALARM REPORT, CALL: ____________________
IF THE ALARM IS SOUNDING:
To silence an alarm, insert your I-FOB key into
the slot on the Touchpad
and remove when alarm
has silenced. Proceed
with caution! (See
pages 13 & 14).
R
4
F-64TPG TOUCHPAD CONTROLS & INDICATORS
1
4
5
6
7
8
9
13
14
20
15
17
18
19
21
22
10
11
12
16
4
SYSTEM READY
10/15/06 12:05PM
BYPASS
FIRE
FIRE TBL
SYS TBL
2
3
5
F-64TPG TOUCHPAD CONTROLS & INDICATORS
LCD Window – 32 character LCD displays
system status messages, zone
descriptions, system troubles, etc.
STATUS Light. Lights (green) to indicate
that the system is ready for arming. If a
zone is not secured, the light will be off
and the zone will display in the window. If
a zone has been bypassed, the STATUS
light will blink while armed.
ARMED Light. Lights (red) to indicate that
the system is armed. If an alarm has
occurred, the ARMED LED will be
flashing.
Alarm Speaker – Will sound a LOUD
steady sweep tone when intrusion is
detected or a distinct pulsating tone for a
fire alarm condition. Also chirps to
indicate armed AWAY, and provides for
audible voice prompts.
STAY Button – Press once to initiate the
arm Stay sequence. Stay Mode
bypasses all interior zones
simultaneously to allow free movement
within the premises. Hold down for 2
seconds if all zones secure to eliminate
60-second pre-arm delay.
AWAY Button – Press to initiate arm
AWAY sequence when no one is to
remain home. Exit and close garage
door from outside the premises. System
will be fully armed with all perimeter and
interior devices activated.
BYPASS Button – Press to enter the
Bypass Menu, where system functions
are displayed in the LCD window. Press
YES to select the desired function; press
RESET to exit. Bypassing a zone
deactivates the zone from the system.
MENU Button – Press to enter Function
Mode, in which available system
functions are displayed in the LCD
window. The desired function is then
selected by pressing the YES button.
Press RESET to exit.
RESET Button – Press to silence Fire
alarms, troubles and exits Function Mode
(see MENU Button).
YES Button – Press to select the desired
function in menus (see MENU Button,
above).
NO Button – Press to answer no to menu
questions and proceed to the next
question (see MENU Button, above).
ENTER Button – Press to accept displayed
value and to move cursor to next
position.
Integral PIR – Used to detect intruders and
your presence near the Touchpad during
arming and disarming. Do not block.
FIRE Button – Press and hold down for
2 seconds to alert the Central Station of a
fire emergency.
+ AUX Button – Press and hold down for 2
seconds to alert the Central Station of a
auxiliary emergency.
Police Button – Press and hold down
for 2 seconds to alert the Central Station
of a police emergency.
I-FOB – The I-FOB is a uniquely coded
digital key. Insert the I-FOB into its
keyhole to disarm the system and silence
the siren in case of an alarm.
Slide Plate – Lift to view brief descriptions
of Touchpad buttons and procedures.
Bypass Icon – Appears as a reminder that
zones have been bypassed (by pressing
the BYPASS button). If it is necessary to
bypass any inoperative zones, it is
important to have the zones repaired as
soon as possible.
Fire Icon – Steady indicates a fire alarm
condition. Flashing indicates fire alarm
sounding.
Fire TBL Icon – Indicates a problem on a
fire zone is detected.
System TBL Icon – Indicates a trouble
condition exists on the system. Press
SILENCE to silence sounder and display
the trouble.
1
20
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
17
18
19
21
22
6
ARMING WHEN LEAVING
If you are leaving with no other family members remaining home:
1
Check the Touchpad indicators. The green STATUS light must be ON-STEADY, and the LCD
display will read "SYSTEM READY", indicating that the system is ready to arm.
• If the green STATUS light is off and zones are scrolling in the display, a perimeter zone is faulted or a
monitored deadbolt (other than your exit door) is unlocked. Check the open zones listed and close the
door, window, or lock the deadbolts as needed. If you cannot immediately secure the zones or lock the
deadbolts, they may be bypassed (see page 7).
2
Press the AWAY button.
The Touchpad will voice prompt the correct action.
•
If you change your mind after pressing AWAY, press RESET to clear arming.
3
Open the garage door and exit within 3 minutes. (Note: If your garage door motor fails, see page
13).
4
When the garage door closes, the Touchpad will sound one chirp indicating the system is armed.
If the garage door has not been closed within the pre-exit delay time, the system will revert
back to a disarmed state.
If the system detects movement inside the premises during the exit delay time, it will automati-
cally revert to Stay mode, providing perimeter protection with the interior protection (motion
sensors) turned off. (See ARMING STAY: PROTECTING YOURSELF AT HOME- page 8).
SYSTEM READY
AWAY
"To arm Away, exit and
close garage door."
7
BYPASSING FAULTED ZONES
If you are trying to arm with a faulted zone or zones, the LCD display will clearly indicate which zone(s) are faulted. If you
cannot repair the zone(s), they may be temporarily removed from the system, or bypassed, using the following procedure:
1
Press the BYPASS button.
2
The LCD window will list all zones in your system. Scroll forward or backward through the zone list
using the YES × and NO Ø buttons. As you scroll through your zones, the Bypass or Trouble
icons will appear (or not appear) depending on the status of each zone.
3
As you scroll through the zone list using the YES × and NO Ø buttons, when the zone that you
wish to bypass appears on the Touchpad LCD screen, press BYPASS. The Bypass icon will
appear on the LCD screen.
4
Press either the STAY or AWAY button. If arming AWAY, open the garage door and exit.
(Note: See page 13 if your garage door motor fails).
The system will arm with the faulted zones bypassed.
When the garage door closes, the Garage Touchpad will give one chirp to indicate the system has
armed. Warning: Bypassed zones are unprotected. If a faulted zone cannot be secured, have the
system checked as soon as possible.
BYPASS
"Press down arrow to scroll through zone list
and press BYPASS to select zone to bypass"
NOØ
YES×
BYPASS
"Please exit and lock
door to arm system"
8

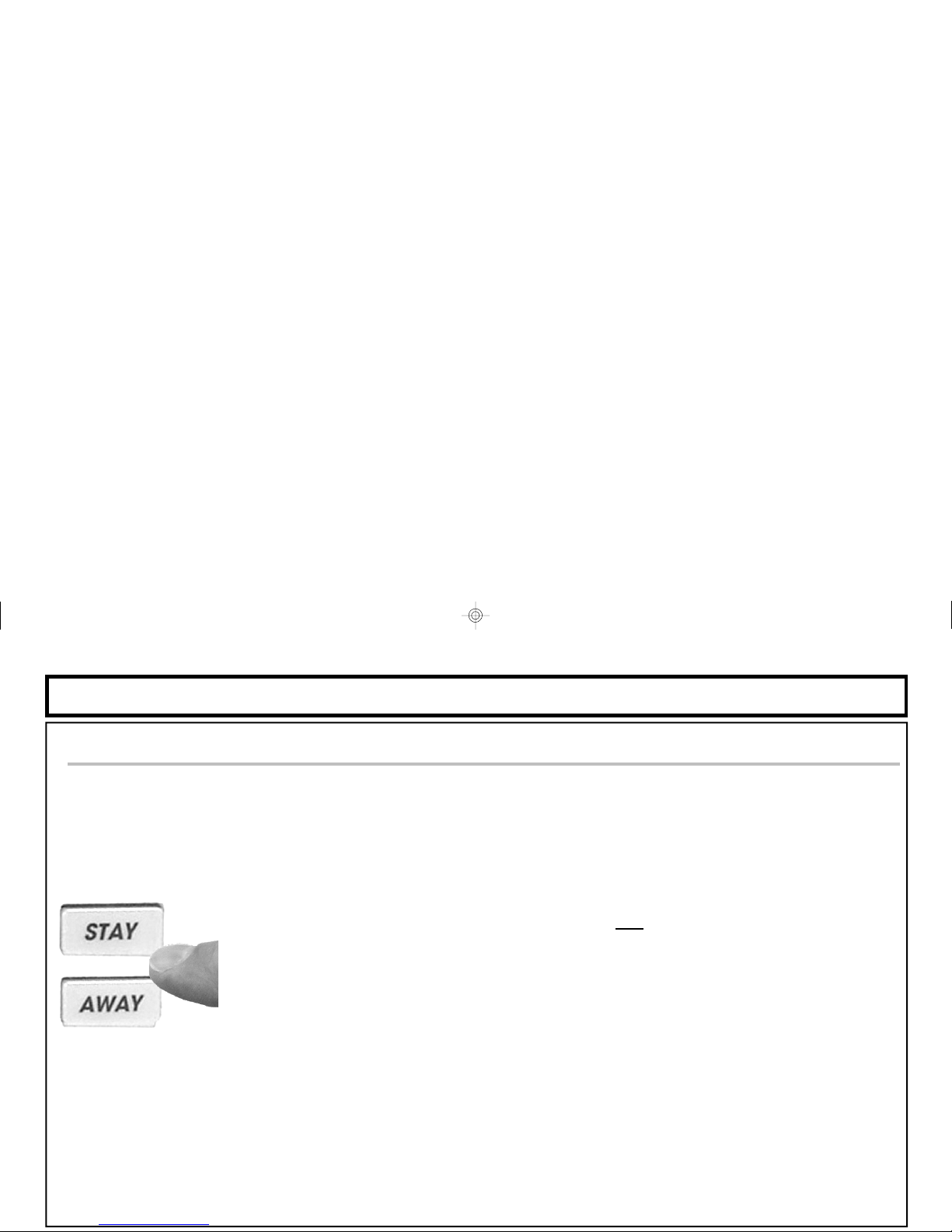

ARMING STAY: PROTECTING YOURSELF AT HOME
Arming in the Stay mode allows you to remain home with the perimeter protection active but with the interior protection off,
so that you may move freely within the premises. Arm Stay at the Garage Touchpad as follows:
1
Check the Touchpad indicators. The green STATUS light must be ON-STEADY, and the LCD display will read "SYSTEM READY", indicating that the system is ready to arm.
• If the green STATUS light is off and zones are scrolling in the display, a perimeter zone is faulted or a moni-
tored deadbolt (other than your exit door) is unlocked. Check the open zones listed and close the door,
window, or lock the deadbolts as needed. If you cannot immediately secure the zones or lock the deadbolts,
they may be bypassed (see page 7).
2
Press the STAY button.
The Touchpad will voice prompt the correct action.
•
If you change your mind after pressing AWAY, press RESET to clear arming.
3
If the garage door is already closed, the ARMED indicator will light and the LCD display will read
"ARMING STAY". The system will arm in the Stay mode within 3 minutes.
4
If the garage door is NOT closed, close the garage door from the inside to arm the system.
If the garage door has not been closed within the exit delay time period (usually within 3 min-
utes of pressing STAY, but this time period can be changed by your installer), the system will
revert back to a disarmed state. (Note: See page 13 if your garage door motor fails).
SYSTEM READY
STAY
ARME D
"The system is arm-
ing in Stay mode"
9
ARMING AND LEAVING WITH OTHERS STAYING
1
Check the Touchpad indicators. The green STATUS light must be ON-STEADY, and the LCD display will read "SYSTEM READY", indicating that the system is ready to arm.
• If the green STATUS light is off and zones are scrolling in the display, a perimeter zone is faulted or a moni-
tored deadbolt (other than your exit door) is unlocked. Check the open zones listed and close the door,
window, or lock the deadbolts as needed. If you cannot immediately secure the zones or lock the deadbolts, they may be bypassed (see page 7).
2
Press the STAY button.
The Touchpad will voice prompt the correct action.
•
If you change your mind after pressing AWAY, press RESET to clear arming.
3
Open the garage door and exit. (Note: See page 13 if your garage door motor fails).
4
Close the garage door from the outside to arm the system (with your existing garage door opener
remote control).
If the garage door has not been closed within the exit delay time period (usually within 3
minutes of pressing STAY, but this time period can be changed by your installer), the system will revert back to a disarmed state.
If you are arming and leaving with other family members remaining home:
The red ARMED light will turn on steady, indicating the 3 minute exit delay period.
STAY
SYSTEM READY
ARMED
"The system is arm-
ing in Stay mode"
10
EXITING WITH THE SYSTEM ALREADY ARMED
1
Press the STAY button.
The Touchpad will voice prompt the correct action.
The red ARMED light will turn on steady, indicating that you have up to 3 minutes to exit through
the garage and close the door.
2
Open the garage door from the inside. System will disarm.
3
Exit the garage.
If the system is Armed STAY and you are leaving with other family members remaining home:
4
Close the garage door from the outside to arm the system (with your existing garage door opener
remote control).
If the garage door has not been closed (usually within 3 minutes of arming, but this time pe-
riod can be changed by your installer), the system will revert back to a disarmed state.
(Note: See page 13 if your garage door motor fails).
STAY
"The system is arming
in Stay mode"
ARMED
11
EXITING WITH THE SYSTEM ALREADY ARMED
1
Press the AWAY button.
The Touchpad will voice prompt the correct action.
•
If you change your mind after pressing AWAY, press SILENCE to clear arming.
The red ARMED light will turn on steady, indicating that you have up to 3 minutes to exit through the
garage and close the door.
2
Open the garage door from the inside. System will disarm.
3
Exit the garage.
If the system is Armed STAY and you are leaving with NO other family members remaining home:
4
Close the garage door from the outside (with your existing garage door opener remote control) to arm
the system. The Garage Touchpad will give one chirp to indicate the system has armed.
If the garage door has not been closed within the exit delay time period, the system will revert
back to a disarmed state.
If the system detects movement inside the premises (usually within 3 minutes of arming, but this
time period can be changed by your installer), it will automatically revert to Armed STAY mode,
providing perimeter protection with the interior protection (motion sensors) turned off. (See
ARMING STAY: PROTECTING YOURSELF AT HOME- page 8). (Note: See page 13 if your
garage door motor fails).
AWAY
ARMED
12
EMERGENCY BUTTONS
Emergency Buttons (Only available if programmed).
Fire Emergency Hold down the Fire button to alert the central station of a fire
emergency. *
(Fire Emergency programmed? YES NO)
Auxiliary Emergency Hold down this button to alert the central station of an auxiliary
emergency. *
(Auxiliary Emergency programmed? YES NO)
Auxiliary Emergency: _______________________________________
Police Emergency Hold down the Police Emergency button to alert the central station of
a police emergency. *
(Police Emergency programmed? YES NO)
The Emergency Buttons, if programmed, are always active, whether the system is armed or disarmed. The Emergency
Button must be Held Down for 2 seconds to activate the emergency alarm and transmit the signals to central station.
Loading...
