Welcome
Thank you for choosing the Mustek GSm@rt S40 Digital Camera.
This camera is not resistant to water and should not be used
outdoors in snow or rain. If accidentally dropped in water,
please quickly dry it in sunlight or an air-blower.
Protect this camera from excessive humidity, as it might wet the
lens and produce blurry pictures.
Do not attempt to disassemble the camera yourself. Always take it
to an authorized service facility for repair.
To store the camera, wrap it in a clean, soft cloth and place
it in a cool, dry, dust-free place.
1.
Package Contents
Getting Started Guide
Strap
USB Cable
Carry Bag
Digital Camera
Installation CD (including camera drivers,
software and User's Manual)
Video Cable
2.
System Requirements
PC/Notebook computer with Pentium 166 Mhz minimun processor
and USB port.
Windows 98SE/ME/2000/XP, CD- ROM drive, color monitor, mouse
and keyboard.
NOTE:
For transferring still images or for video conferening,your computer
must have a modem, and communication software and an internet
connection.
3.
Identifying The Parts
Menu
OSD Menu ON / OFF
DISPLAY
LCD, Status Icons ON / OFF
Up / Zoom in / Previous
Menu Enter / Playback
Down / Zoom out / Next
4.
Camera Settings
LCD Screen Display Definition
2368X1776
2048X1536
1600X1200
1280X960
5.
Power Up
Battery Installation
1. Open the battery cover.
2. Insert batteries in correct polarity(+ and -) as shown on the inside
of the battery door.
3. Close the battery cover.
Turning the Power ON/OFF
1. Push the Power button to turn the camera on.
2. To turn the camera OFF, press the Power button until the camera beeps
and the LCD screen goes blank.
Sleep Mode
1. When the camera is ON and is not used for 60 seconds, it will
automatically enter sleep mode to save battery power.
2. To re-activate the camera from sleep mode :
Press the Power button once.
The camera is ready to take pictures.
6.
Taking & Playback Pictures on the Camera
Taking Pictures
1. Power on the Camera. By default,
the camera will be in DSC (picture)
mode every time it is powered on.
2. Frame your target through the LCD
display or through the viewfinder.
3. Press the UP or DOWN button to
zoom in or out on your subject.
4. Press the Shutter Button to take a
picture.
5. To change exposure settings, hit
the "Menu" button and change the
"Exposure" option to the desired
setting.
6. You can also enter "Setup", as
shown in Page 5 (Camera Settings)
to change picture options.
NOTE:
The camera stores all pictures in the built-in
memory or memory card.
Playback Pictures
1. Press the "Enter" button. You can
view your files by using the "Previous"
and "Next" buttons.
2. Press "Enter" button again to return to
Camera or Video mode.
7.
Taking & Playback Videos on the Camera
Taking Videos
1. Power on the camera.
2. Hit the "Menu" button and select
"MODE".
3. Choose AVI and hit the "ENTER"
button.
4. Press the Shutter button to start
recording.
5. Press the Shutter button again to
stop recording.
Playback Videos
1. Press the "Enter" button. You can
view your files by using the "Previous"
and "Next" buttons.
2. Use the "Enter" button to playback
an AVI movie file.
3. Press "Enter" button for 3 secs again
to return to Camera or Video mode.
8.

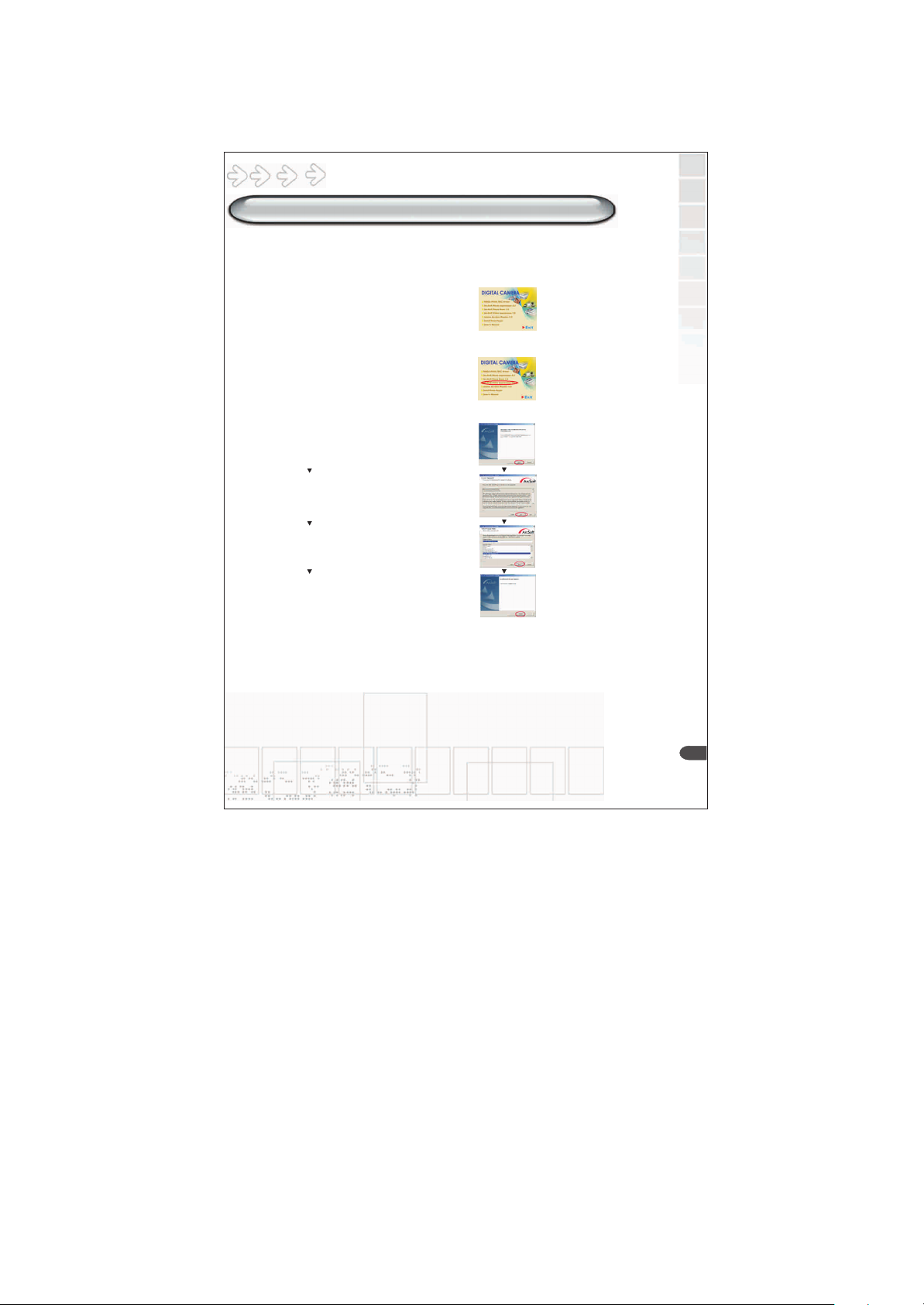

Driver and Software Installation
1. Insert Installation Disc and Select
"MEGA PIXEL DSC Driver" .
2. Click "Next" .
3. Click "Next" .
4. Click "Install" .
5. Click "Finsh" .
8.
9.
Install ArcSoft PhotoImpression 4.0
1. Insert installation CD into your PC's
CD-ROM drive.
2. Introduction screen will appear
automatically.
3. Click "ArcSoft PhotoImpression 4.0".
4. Follow on-screen instructions.
Click "Next"
Click "Yes"
Click "Next"
Click "Finish"
5. Re-starting your computer is
recommended.
NOTE: To find out more about
PhotoImpression 4.0
Or how to use it, consult
Online help by clicking"?"
Icon or "help" on the pull
-Down menu.
Click "Next"
10.
Install ArcSoft PhotoBase 3.0
1. Insert installation CD into your PC's
CD-ROM drive.
2. Introduction screen will appear
automatically.
3. Click "ArcSoft PhotoBase 3.0".
4. Follow on-screen instructions.
Click "Next"
Click "Yes"
Click "Next"
Click "Finish"
5. Re-starting your computer is
recommended.
NOTE: To find out more about
PhotoBase 3.0 or how
to use it, consult online
help by clicking"?" Icon
or "help" on the pull down menu.
11.
Install ArcSoft VideoImpression 1.6
1. Insert installation CD into your PC's
CD-ROM drive.
2. Introduction screen will appear
automatically.
3. Click "ArcSoft VideoImpression 1.6 ".
4. Follow on-screen instructions.
Click "Next"
Click "Yes"
Click "Next"
Click "Finish"
5. Re-starting your computer is
recommended.
NOTE: To find out more about
VideoImpression 1.6 or
how to use it, consult
online help by clicking
"?" Icon or "help" on the
pull-down menu.
12.
Install QuickTime Player 6
1. Insert installation CD into your PC's
CD-ROM drive.
2. Introduction screen will appear
automatically.
3. Click "QuickTime Player".
4. Follow on-screen instructions.
Click "Next"
Click "Yes"
Click "Next"
Click "Finish"
5. Re-starting your computer is
recommended.
Finish
NOTE: To find out more about
QuickTime Player 6 or
how to use it, consult
online help by clicking
"?" Icon or "help" on the
pull-down menu.
12.
13.

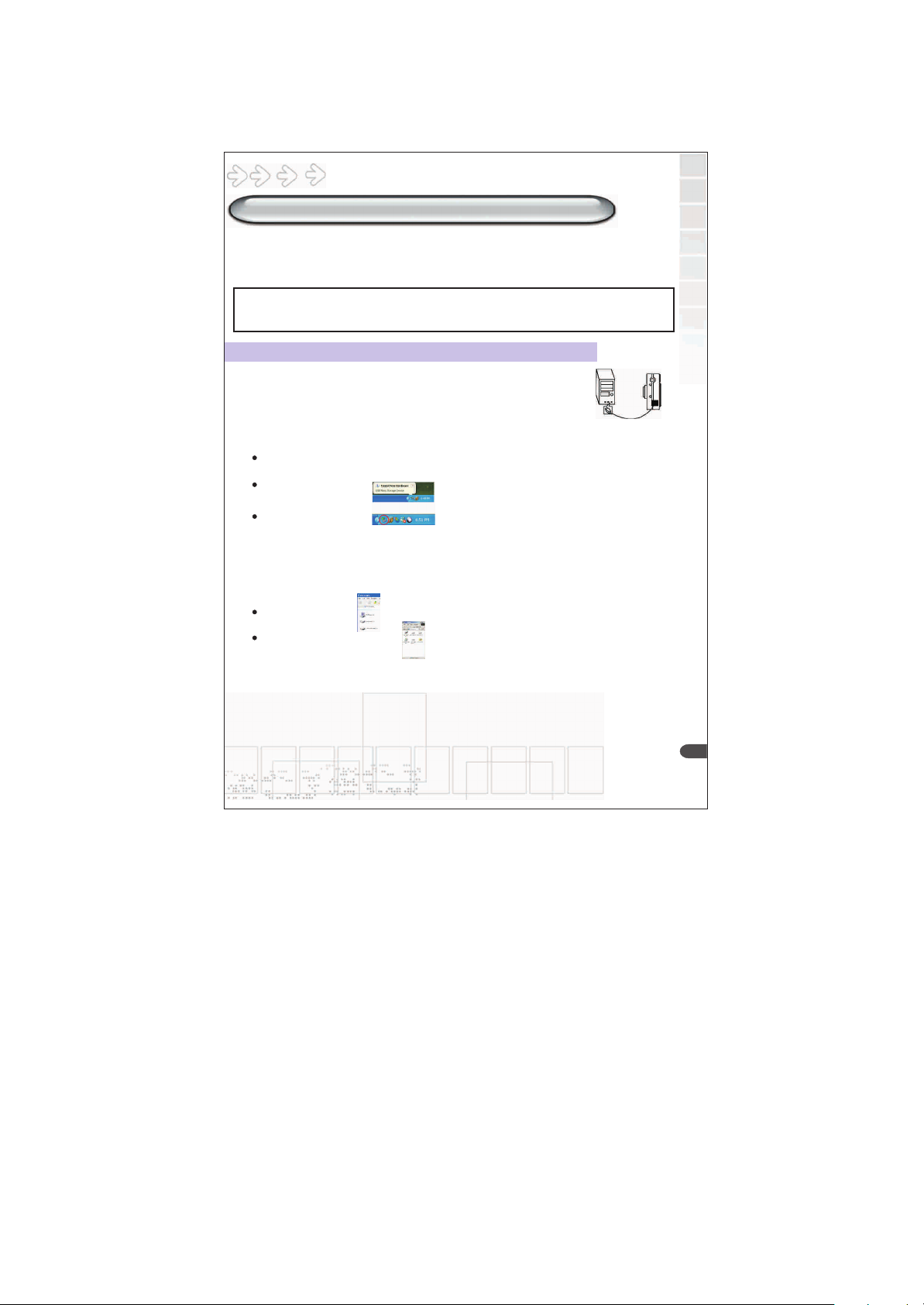

Transferring Images
When connected to a computer in Mass Storage mode, the
camera will appear as a Removable Disk in the computer. Files can then
be copied from the camera to the computer.
(Turn on the camera and connect with USB cable .
The camera will set to Mode.)"Mass Storage"
Transferring pictures and video to your computer
1. Turn the camera on, then connect your
camera to a computer via USB cable.
2. In Windows (ME/2000/XP), your PC will
detect the camera after connection.
NOTE:
For Windows 98SE users, please install the
installation CD first.
For Windows XP
For Windows ME/2000
3. Double click My Computer on the Desktop.
4. A removable disk drive appears.
NOTE:
For Windows XP
For Windows 98SE/ME/2000
5. Double click on the Removable Disk.
6. Double click on the DCIM folder.
7. You can now drag-and-drop files to your PC.
14.
Transferring Images (Cont.)
Downloading photo via "PhotoImpression 4.0"
1. Double-click the "PhotoImpression 4.0" icon
on the desktop.
2. PhotoImpression 4.0 introduction screen will appear.
3. Click "From Folder" button.
4. Click "Browse".
5. Click "Removable Disk DCIM" and OK.
6. Use editing tools available on-screen to modify image(s).
15.
Photo and Sharing Management Using
PhotoBase 3.0
1. Double-click the "PhotoBase 3.0"
icon on the desktop.
2. PhotoBase 3.0 introduction screen will appear.
3. Open Album menu bar.
4. Select "Create New" and enter file name.
5. Open Album menu bar and select "Add Image".
6. Save the pictures to your computer.
7. Share and manage your pictures.
16.
16.
Video Playback Using
VideoImpression 1.6
(Please change camera to PC Camera Mode)
MENU \ Mode\ PC Camera
1. Double-click the "VideoImpression 1.6"
icon on the desktop.
2. VideoImpression 1.6 introduction screen will appear.
3. Click "New" button.
4. Click "Capture".
5. Video will begin playing.
16.
17.
Playing Movie Clips Using
QuickTime Player 6
(Please change camera to Mass Storage Mode)
MENU \ Mode\ Mass Storage
1. Double-click the "QuickTime Player"
icon on the desktop.
2. "QuickTime Player" introduction screen will appear.
3. Open "File" menu bar and
Select "Open Movie in New Player".
4. Select "My Computer".
5. Click "Removable Disk".
6. Click on the video that you wish to play. (ex. SVI-0001)
7. Movie will begin playing .
18.
Uninstall Application Programs
Uninstalling ArcSoft PhotoImpression 4.0
1. Proceed to Start > Programs > ArcSoft> PhotoImpression 4.0
>Uninstall.
2. Follow on-screen instructions to uninstall software.
Uninstalling ArcSoft PhotoBase 3.0
1. Proceed to Start > Programs > ArcSoft> PhotoBase 3.0
>Uninstall.
2. Follow on-screen instructions to uninstall software.
Uninstalling ArcSoft VideoImpression 1.6
1. Proceed to Start > Programs > ArcSoft>VideoImpression 1.6
>Uninstall.
2. Follow on-screen instructions to uninstall software.
19.
13.
Specifications
Image Sensor
Lens Specification
O/S
White Balance
Exposure Control
Frame Rate-Video Mode
Resolution
PC Interface
Fixed Focus Lens
Storage
Compression
Display
Zoom
Movie Clip
CMOS 2048 x 1536 pixels
F2.8, Sensor area 1/2"
f=8.45mm, view angle 53.2
Microsoft Windows 98SE/2000/ME/XP
Auto/Manual(day light/cloudy/tungsten/fluorescent)
Auto
QVGA: 320 x 240 pixels (25-30 fps)
2368 x 1776 pixels
2048 x 1536 pixels
1600 x 1200 pixels
1280 x 960 pixels
USB
1m~infinity
Internal 16MB, External MMC/SD Card Slot
(card not included)
JPEG ; MJPEG
1.5" Color TFT LCD
4X Digital Zoom
QVGA 320 x 240 pixels up to 110 seconds at 27fps
Video Output
Power Source
Dimensions
NTSC or PAL
AAA1.5V x 2
88mm x 60mm x 20mm
