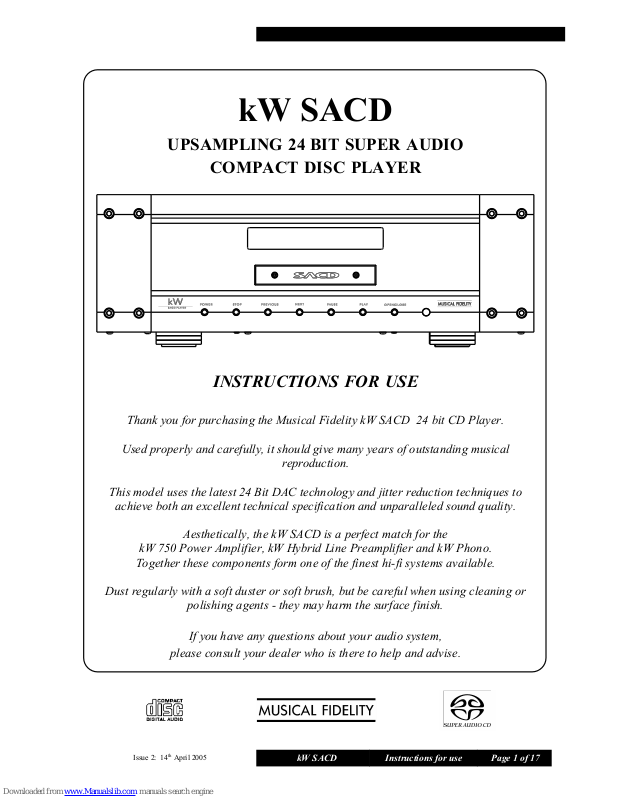

Musical Fidelity kW SACD User Manual

Issue 2: 14th April 2005

kW SACD Instructions for use Page 1 of 17

kW SACD

UPSAMPLING 24 BIT SUPER AUDIO

COMPACT

DISC PLAYER

INSTRUCTIONS FOR USE

Thank you for purchasing the Musical Fidelity kW SACD 24 bit CD Player.

Used properly and carefully, it should give many years of outstanding musical

reproduction.

This model uses the latest 24 Bit DAC technology and jitter reduction techniques to

achieve both an excellent technical specification and unparalleled sound quality.

Aesthetically, the kW SACD is a perfect match for the

kW 750 Power Amplifier, kW Hybrid Line Preamplifier and kW Phono.

Together these components form one of the finest hi-fi systems available.

Dust regularly with a soft duster or soft brush, but be careful when using cleaning or

polishing agents - they may harm the surface finish.

If you have any questions about your audio system,

please consult your dealer who is there to help and advise.

Issue 2: 14th April 2005

kW SACD Instructions for use Page 2 of 17

CONTENTS

PAGE

3 Safety Information : - Mains plug (U.K. only)

- Modification warning

4 Safety Information : - Laser product labelling

5 User Information : - Laser type

- Radio-frequency interference

6 General Advice : - Installation precautions

- User information

7 Introduction and Installation : - Introduction

- Notes on using discs

- Cleaning

- Installation

- Audio connection

8 Facilities and Connections : - Illustrations – front and rear panels

9 Remote Control : - Operation and illustration

10 Connections and - Output connection

Power Control : - Mains power connection

- Power operation

11 Basic Operation – 1 : - Loading and playing discs

- Pause function

- Stop

12 Basic Operation – 2 : - Track selection

- Search

- Displaying playback time

13 Advanced Features – 1 : - Repeat playback

- Repeat A-B playback

- Shuffle playback

14 Advanced Features – 2 : - Scan introduction

- Adjusting display brightness

15 Problems ? - Basic problem solving

16 Specifications

Issue 2: 14th April 2005

kW SACD Instructions for use Page 3 of 17

SAFETY INFO

K. only)

This unit is supplied i ains lead f e amp plug. If the plug, plea r and dispose of the plug safely, out of reach of children.

ust not be plugged into a m

RMATION

MPORTANT

(U.

n the U.K. with a m itt d with a moulded 13

, for any reason, you need to cut off se remove the fuse holde

It m ains outlet.

The wires in the mains lead supplied with this appliance are coloured in accordance with the f code:

en and yellow

Blue................................Neutral

WARNING - This appliance must be earthed

A ns lead of this rrespond with the c ls in your s follows:

T -yellow must erminal in the plug which is m rked with the tter een ol

The wire which is col t be connect s marked with the letter L

The wire which s col be connected marked with the letter N o

If onnecting to S1 fuse mus e

ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MU A S THE P NSIBLE FOR CE COULD HORITY TO ENT.

s the colours of the wires of the mai appliance may not co

oloured markings identifying the termina plug, proceed a

he wire which is coloured green-and be connected to the t

a le E or coloured green or gr -and-yellow, or by the earth symb

oured brown mus ed to the terminal which i

or coloured red.

i oured blue must to the terminal which is

r coloured black.

c a B 363 plug, a 13 amp t b used.

ARNING:

SIC L FIDELITY WHO I ARTY RESPO STANDARDS COMPLIAN VOID THE USER'S AUT OPERATE THIS EQUIPM

ollowing

Gre ..............Earth

Brown.................................Live

Issue 2: 14th April 2005

kW SACD Instructions for use Page 4 of 17

SAFETY INFORMATION

CLASS 1 LASER PRODUCT

This SACD player has been designed and manufactured according to FDA regulations "title 21,

FR, chapter 1, sub-chapter J, based on the Radiation Control for Health and Safety Act of 1968",

al use

R USES INVISIB AYER OPERATES, LASER LIGHT

IS RADIATED INTERNALLY. DO HOUSINGS.

USE OF CONTROLS OR ADJUSTM CEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT POSURE CAUSING EYE INJURY.

THIS PRODUCT DEV ORISED MUSICAL

IDELITY SERVICE AG LF AND DO NOT

ONTINUE TO USE THIS PRODUCT IN A FAULTY STATE.

C and is classified as a Class 1 laser product. There is no hazardous radiation during norm because invisible radiation emitted inside this product is completely confined within the protective housing. However you must observe the following important warnings:

CAUTION!

THIS DISC PLAYE LE LASER LIGHT. WHEN THE PL

NOT REMOVE THE PROTECTIVE

ENTS OR PERFORMANCE OF PR

IN HAZARDOUS RADIATION EX

IF ELOPS A FAULT, PLEASE CONTACT YOUR AUTH F ENT. DO NOT ATTEMPT TO SERVICE IT YOURSE C

REAR PANEL :

THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR, CHAPTER 1, SUBCHAPTER J, PART 1040 AT DATE OF MANUFACTURE.

THIS PRODUCT COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO TWO CONDITIONS:

1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

WARNING AND INFORMATION LABELS :

(

Fitted internally to SACD player chassis)

Issue 2: 14th April 2005

kW SACD Instructions for use Page 5 of 17

USER INFORMATION

LASER INFORMATION:

Optical pick-up : Manufacturer : Sanyo Pick-up type : SF-HD60 Wavelength : 790nm nominal

RADIO - FREQUENCY INTERFERENCE (RFI)

and operated in

th of the

ble protection against excessive

interference in a residential installation.

• Re-orientate or relocate the receiving aerial.

CD player away from the receiver.

• Connect the SACD player to a mains outlet on a different circuit from the receiver.

• Consult a dealer or experienced TV/radio technician for help.

If a problem pe ct Musical Fidelity's service department.

can radiate radio frequency energy, and if not installedThis equipment uses and

accordance with the instructions, may cause interference to radio communications.

However, it is designed to radiate minimal levels of RFI, and accordingly been tested to Nor American standards (FCC regulations - limits for a class B digital device pursuant to part 15 rules). These requirements are intended to provide reasona

Conversely, the product has also been checked to ensure that its own operation is not adversely affected by normal background levels of RFI received externally.

However, if interference is experienced, for instance to radio or TV broadcasts, the user is recommended to try one or more of the following measures:

• Identify the source of interference by turning off power to the SACD player or other equipment individually, and checking whether the problem disappears.

• Move the SA

rsists, please conta

Issue 2: 14th April 2005

kW SACD Instructions for use Page 6 of 17

GENERAL ADVICE

INSTALLATION PRECAUTIONS and USER INFORMATION

Your new kW SACD is designed and built to provide trouble-free performance, but as with all electronic devices it is necessary to observe a few precautions:

• Heed all warnings shown on the back of the product.

• Only connect the kW SACD to a mains outlet having the same voltage as marked at the back

of the unit.

• Always ensure that when disconnecting and reconnecting your audio equipment the mains supply is switched off.

• Position the mains lead and signal interconnects where they are not likely to be walked on or trapped by items placed on them.

• Do not use near water, or place water-filled containers on the SACD player, for example, a flower vase or potted plants. If water does spill inside, immediately pull out the mains

plug from the wall socket and inform your dealer, who should then check the unit before further use. Entry of liquid into the player is dangerous, and may cause electric shock or fire hazard.

• Do not place the unit near direct heat sources such as radiators, direct sunlight or other equipment.

• Do not remove any covers or try to gain access to the inside. There are no internal adjustments or fuses you can replace yourself. Refer all service work to an authorised Musical Fidelity agent.

• Note: Unauthorised opening of the equipment will invalidate any warranty claim.

• Dust regularly with a soft cloth or soft brush but be careful when using cleaning or polishing

agents - they may harm the surface finish.

The electronics in modern hi-fi equipment is complex and may, therefore, be adversely affected or damaged by lightning. For protection of your audio system during electrical storms, remove the mains plugs and disconnect any aerial lead.

If after-sales service is required, to help your dealer identify the kW SACD player please quote the serial number located on the rear panel of the unit.
