Murray TM6100X5A User Manual

WEED TRIMMER

INSTRUCTION BOOK

Model

TM6100x5A

This Instruction Book contains information for several models.
Read and keep this book for future reference.
This book contains important information on

SAFETY, ASSEMBLY, OPERATION, AND MAINTENANCE.

PRODUCT INFORMATION

The owner must be certain
that all the product information
is included with the unit.
This information includes the
INSTRUCTION BOOKS, the
REPLACEMENT PARTS and the
WARRANTIES. This information must
be included to make sure state laws and
other laws are followed.

RECORD THE FOLLOWING INFORMATION ABOUT YOUR UNIT. THIS INFORMA−
TION IS NECESSARY WHEN ORDERING PARTS OR IN CASE OF LOSS OR THEFT.

F-050204L

MURRAY, INC. Two Year Limited Warranty

Murray, Inc. warrants to the original purchaser that this unit shall be free from defects
in material and workmanship under normal use and service for a period of Two (2)
Years from the date of purchase; however, this warranty does not cover Normal
Wear Parts (except as noted below) or engines as the engine companies that man­ufacture these items furnish their own warranties and provide service through their
authorized field service facilities. For additional information, see the warranties cov­ering these particular parts. If you are uncertain whether your unit contains or is
equipped with one or more of these parts, consult your dealer prior to purchase. Sub­ject to the terms and conditions noted in this Limited Warranty, we shall, at our option,
repair or replace at no cost to the original purchaser any part covered by this Limited
Warranty during the applicable warranty period.

Normal Wear Parts are defined as belts and trimmer line. These parts are warranted
to be free from defects in material and workmanship as delivered with the product.
Any claim for repair or replacement of Normal Wear Parts must be made within thirty
(30) days of the date of purchase. No claims involving damage caused from material
use, abuse or misuse will be honored.

This Murray, Inc. Two (2) Year Limited Warranty is your exclusive remedy; howev-
er, this warranty is void or does not apply to any unit that has been tampered with,
altered, misused, abused or used for rental or other commercial and/or professional
(non-homeowner) uses. Your warranty does not cover minor mechanical adjust­ments which are not due to any defect in material or workmanship. For assistance
in making such adjustments, consult your Instruction Book.

To make a claim under this Murray, Inc. Two (2) Year Limited Warranty, return the
unit (or if authorized in advance, the defective part) along with your proof of purchase
to an Authorized Service Center near you. To locate the nearest Authorized Service
Center, call the Central Parts Distributor for your area shown in the list provided with
your unit or check the Yellow Page listings in your local telephone directory. If you
return the entire unit, we will repair the unit. If we authorize the return of the defective
part only, we will either replace or repair the part.

This Murray, Inc. Two (2) Year Limited Warranty gives you specific legal rights, and
you may also have other rights which vary from state to state. This Limited Warran-

ty is given in lieu of all other expressed and implied warranties including the
implied warranty of merchantability and warranty of fitness for a particular
purpose. If you need additional information on this written warranty or assistance in

obtaining service, call or write to the address below. The model number along with
the CUSTOMER CARE Center 1-800 number is on the Model Number Nameplate
attached to the unit.

MURRAY, INC.

Outdoor Power Equipment

Customer Service Department

Brentwood, Tennessee 37027

P.O. Box 268

F-050204L

2

SAFETY RULES

Safe Operation Practices for Trimmer.

WARNING: Look for this symbol to point out important safety precautions.
It means: “Attention! Become Alert! Your Safety Is Involved.”

I. General Operation

1. Read, understand, and follow all instruc­tions on the machine and in the manual(s).
Be thoroughly familiar with the controls and
the proper use of the trimmer before start­ing.

2. Familiarize yourself with all of the safety
and operating decals on this equipment
and on any of its attachments or accesso­ries.

3. Do not put hands or feet near or under rotat­ing parts.

4. Only allow responsible individuals, who are
familiar with the instructions, to operate the
trimmer.

5. Inspect the area where the trimmer is to be
used. Your equipment can propel small ob­jects at high speed causing personal injury
or property damage. Stay away from
breakable objects, such as house win­dows, auto glass, greenhouses, etc.

6. Keep the area of operation clear of all per­sons, particularly small children, and pets.

7. Wear appropriate clothing such as a long­sleeved shirt or jacket. Also wear long trou­sers or slacks. Do not wear shorts.

8. Do not wear loose clothing which could get
caught in this equipment.

9. Always wear safety goggles or safety
glasses with side shields when operating
trimmer to protect your eyes from foreign
objects which can be thrown from the unit.

10. Always wear work gloves and sturdy foot­wear. Leather work shoes or short boots
work well for most people. These will pro­tect the operator’s ankles and shins from
small sticks, splinters, and other debris,
and improve traction.

11. It is advisable to wear protective headgear
to prevent the possibility of being struck by
small flying particles, or being struck by low
hanging branches, twigs, or other objects
which may be unnoticed by the operator.

12. Do not operate the trimmer without proper
guards or other safety protective devices
in place.

13. Use this equipment for its intended pur­pose only.

14. See manufacturer’s instructions for proper
operation and installation of accessories.

F-050204L

Only use accessories approved by the
manufacturer.

15. Operate only in daylight or good artificial
light.

16. Do not operate the trimmer while under the
influence of alcohol, drugs or other medica­tion which can cause drowsiness or affect
your ability to operate this machine safely.

17. Never operate trimmer in wet grass. Al­ways be sure of your footing; keep a firm
hold on the handle and walk; never run.

18. Before each use, inspect the throttle con­trol lever and cable. Make sure that the
cable is free and that the lever is not dam­aged. Also check the cable linkage running
to the carburetor for kinks, loose fittings,
and obstructions. Verify that the control
bail is working properly.

19. Stop the rotating trimmer head when cross­ing gravel drives, walks, or roads. Wait for
the cutting lines to stop rotating.

20. Watch for traffic when operating near, or
when crossing roads.

21. Stop the engine (motor) whenever you
leave the equipment, before cleaning re­pairing or inspecting the unit, be sure the
trimmer head and all moving parts have
stopped. Let the engine cool, disconnect
the spark plug wire and move it away from
the spark plug.

22. If the equipment should start to vibrate ab­normally, stop the engine (motor), discon­nect the spark plug wire and prevent it from
touching the spark plug. Check immediate­ly for the cause. Vibration is generally a
warning of trouble.

23. After striking a foreign object, stop the en­gine (motor). Remove the wire from the
spark plug. Inspect the trimmer for dam­age. If damaged, repair before starting and
operating the trimmer.

24. Never leave the trimmer unattended when
the engine is running. Remove the wire
from the spark plug.

25. Regularly inspect the trimmer. Make sure
parts are not bent, damaged or loose.

II. Slope Operation

Slopes are a major factor related to slip and fall
accidents which can result in severe injury. All

3

slopes require extra caution. If you feel uneasy

SAFETY RULES

on a slope, do not trim it.
Do trim across the face of slopes; never up and

down. Do not trim excessively steep slopes
(maximum 15 degrees) or areas where the
ground is very rough. See the “Guide” in the
back of this manual to check a slope. Exercise
extreme caution when changing direction on
slopes.

Do remove objects such as rocks, tree limbs,
etc.

Do watch for holes, ruts, or bumps. Tall grass
can hide obstacles.

Do not trim near drop-offs, ditches, or embank­ments. The operator could lose footing or bal­ance.

Do not trim excessively steep slopes.
Do not trim on wet grass. Reduced footing

could cause slipping.

III. Children

Tragic accidents can occur if the operator is not
alert to the presence of children. Children are
often attracted to the trimmer and the trimming
activity. Never assume that children will remain
where you last saw them.

1. Keep children out of the trimming area and
under the watchful care of a responsible
adult.

2. Be alert and turn trimmer off if children en­ter the area.

3. Before and while moving backwards, look
behind and down for small children.

4. Never allow children to operate the trim­mer.

5. Use extra care when approaching blind
corners, shrubs, trees, or other objects that
may obscure vision.

IV. Service

1. Use extra care in handling gasoline and
other fuels. They are flammable and va­pors are explosive.

a. Use only an approved container.

b. Never remove gas cap or add fuel with

the engine running. Allow engine to
cool before refueling. Do not smoke.

c. Never refuel the machine indoors.

d. Never store the machine or fuel con-

tainer inside where there is an open
flame, such as a water heater.

2. Never run an engine indoors or inside a
closed area.

3. Never make adjustments or repairs with
the engine (motor) running. Disconnect the
spark plug wire, and keep the wire away
from the plug to prevent accidental starting
(remove the ignition key if equipped with an
electric start). Always wear eye protection
when you make adjustments or repairs.

4. Check the trimmer head and engine
mounting bolts at frequent intervals for
proper tightness.

5. Keep all nuts and bolts tight and keep
equipment in good condition. Check
mounting hardware on trimmer head every
time you change trimmer line and prior to
each use.

6. Never tamper with safety devices. Check
their proper operation regularly.

7. When servicing or repairing the trimmer, do
not tip the machine over or up unless spe­cifically instructed to do so in this Manual.
Service and repair procedures can be done
with the trimmer in an upright position.
Some procedures will be easier if the ma­chine is lifted on a raised platform or work­ing surface.

8. To reduce fire hazard, keep trimmer free of
grass, leaves, or other debris build-up.
Clean up oil or fuel spillage. Allow trimmer
to cool before storing.

9. Stop and inspect the equipment if you
strike an object. Repair, if necessary, be­fore restarting.

10. Always disconnect spark plug wire before
cleaning, repairing, or adjusting.

11. Do not change the engine governor setting
or over-speed the engine.

12. Clean and replace safety and instruction
decals as necessary.

13. To guard against engine over-heating, al­ways have engine debris filter mounted
and clean.

14. Inspect trimmer before storage.

15. Use only original equipment or authorized
replacement parts.

F-050204L

4

SAFETY RULES

INTERNATIONAL SYMBOLS

IMPORTANT: Many of the following symbols are located on your unit or on literature sup­plied with the product. Before you operate the unit, learn and understand the purpose for
each symbol.

Control And Operating Symbols

Slow Fast

Safety Warning Symbols

WARNING

Thrown Objects.

Keep Bystanders Away.

IMPORTANT

Read Owner’s Manual

Before Operating

This Machine.

Disconnect Spark Wire Before

Fuel Oil

Rotating Parts. Stop Engine.

WARNING

Making Adjustments.

WARNING

Wear Eye Protection

WARNING

STOP

WARNING

Never Operate Up Or

Down Slopes. Operate

Across Slopes.

F-050204L

5

ASSEMBLY

CONTENTS OF PARTS BAG

1 - Owner’s Manual
1 - Parts Bag
1 - Fuel Stabilizer

(Not shown actual size)

ASSEMBLY

1 - T-Handle Wrench

WARNING: Always wear safety
glasses or eye shields while as­sembling the trimmer.

1 - Safety Glasses 1 - 20 oz. Bottle Oil

TOOLS REQUIRED

1 - Knife to cut carton.

1 - T-Handle Wrench.

Figure 1 shows the trimmer completely as­sembled and positioned in the carton for ship­ment.

References to the right or left hand side of the
trimmer are from the viewpoint of the opera­tor’s position behind the unit.

2 Sets - Trimmer Lines

(0.155 inch diameter)

TO REMOVE THE
TRIMMER FROM CARTON

1. Remove the bottle of oil and parts bag
from the carton.

2. Remove the packing material positioned
around the unit.

3. Cut down all four corners of the carton and
lay the side panels flat.

4. Pull the trimmer out of the carton and off
the base pad.

5. Remove packing material from around the
trimmer head.

6. Remove protective plastic from front of
frame.

F-050204L

Figure 1

6

ASSEMBLY

HOW TO RAISE THE HANDLE

1. Hold the handle with one hand and loosen both handle adjustment knobs until the ratchet
teeth are disengaged. Do not remove the handle adjustment knobs. See Figure 2.

2. Raise the handle to the
operating position.

3. Stand in the operator’s
position behind the trim­mer. Put the handle in a
comfortable position.
Make sure both sides of
the handle are level.

NOTE: Make sure the
cables are not caught
between the upper and
lower handle.

4. Tighten the handle ad­justment knobs. Make

sure the handle pivots
are locked in place.

NOTE: The handle
height is adjustable.
See “How To Adjust
The Height Of The Han­dle” in the Adjustment
section.

5. To attach the recoil start handle to the rope guide, twist the rope through
the rope guide mounted on the right side of the handle.

Recoil Start

Handle

Handle Adjustment

Handle

Pivot

Knob

Rope

Guide

Handle

Figure 2

ENGINE PREPARATION

Note: Engine does not contain OIL or
GASOLINE.

WARNING: Follow the engine
manufacturer’s instructions for

the type of gasoline and oil to
use. Always use a safety gasoline con­tainer. Do not smoke when adding gaso­line to the engine. When inside an en­closure, do not fill with gasoline. Before
you add gasoline, stop the engine. Let
the engine cool for several minutes.

See the engine manufacturer’s instructions
for the type of gasoline and oil to use. Before
you use the unit, read the information on
safety, operation, maintenance, and storage.

Note: Actual sustained horsepower will
likely be lower due to operating limita­tions and environmental factors.

F-050204L

Fill Crankcase With Oil

1. Remove the oil fill cap/dipstick shown in
Figure 3. Fill the crankcase to the FULL
line on oil fill cap/dipstick. DO NOT OVER-

FILL.

2. Install the oil fill cap/dipstick and tighten
securely.

Fill Fuel Tank With Gasoline

See the engine manufacturer’s instructions for
the type of gasoline to use.

Oil Fill

Cap/Dipstick

Fuel
Cap

Figure 3

7

OPERATION

KNOW YOUR TRIMMER

READ THE OWNER’S MANUAL AND ALL SAFETY RULES BEFORE YOU OPERATE the trim­mer. To familiarize yourself with the location of the controls, compare the illustrations with your trim­mer. Save this manual for future reference.

Control Bail

Upper Handle

Throttle Control Lever

Recoil Starter Handle

Handle Adjustment Knob

Fuel Cap

Shield Edge Guard

Trimmer Head Drive Lever

Trimmer Head Drive Lever - Engages

the rotation of the trimmer head.

Control Bail - Release to stop the rotation

of the trimmer head.

Throttle Control Lever - Controls the

speed or stops the engine.

Primer Button - Injects fuel directly into the

Dipstick

Trimmer Head

Trimmer Line

Figure 4

carburetor manifold for faster starts. See
Figure 7.

Recoil Starter Handle - The engine is

equipped with an easy pull recoil starter.

Shield Edge Guard - Protects the shield

by automatically cutting the line to the correct
length.

EYE PROTECTION

WARNING: Debris thrown from
the trimmer can result in foreign

objects being thrown into the
eyes, which can cause severe eye dam­age. Always wear safety glasses or eye
shields when operating the trimmer.

Always wear safety glasses. If you wear eye
glasses, put a Wide Vision Safety Mask over
your eye glasses.

F-050204L

HOW TO STOP
THE TRIMMER HEAD

1. Release the control bail. It will return to its
open position and disengage the trimmer
head.

HOW TO STOP THE ENGINE

WARNING: The trimmer head will
continue to rotate for several sec­onds after the engine has

stopped

1. Move the throttle control lever com­pletely back to the STOP position.

8

OPERATION

HOW TO USE THE
TRIMMER HEAD DRIVE LEVER

1. To engage the trimmer head, hold the con­trol bail against the handle. Move the
trimmer head drive lever forward to en-

gage the trimmer head. See Figure 5. The
faster the engine runs, the faster the trim­mer head will rotate.

2. Once the trimmer head is rotating, push
the trimmer forward to trim.

HOW TO USE THE
THROTTLE CONTROL

1. During normal use, set the throttle con­trol lever in the FAST position to run the

engine at full speed.

2. Pull the throttle control lever back to de-
crease engine speed. Push the throttle
control lever forward to increase engine
speed.

3. To stop the engine, pull the throttle con-
trol lever completely back to the STOP
position.

Control Bail

Handle

Trimmer Head

Drive Lever

Throttle Control

Lever

Figure 5

Figure 6

HOW TO USE
THE PRIMER BUTTON

1. Push the primer button five times. See
Figure 7 for location. Wait approximately
two seconds between each push.

NOTE: Do not use the primer button to re­start a warm engine after a short shutdown.

F-050204L

Primer
Button

Figure 7

9

OPERATION

HOW TO START THE ENGINE

NOTE: DO NOT BE ALARMED, your engine
will smoke the first time it is started. It is
burning off the protective coating that is on
the internal engine parts.

WARNING: Never leave the trim­mer unattended while the engine
is running. Wait for the trimmer
lines to stop rotation.

1. Before each use, remove debris from the
debris screen shown in NO TAG. Debris
can cause the engine to overheat. Wipe
the debris screen with a cloth or paper
towel.

2. Move the throttle control lever forward to
the START or FAST position.

3. To start a cold engine, push the primer but­ton five times. Wait two seconds between
each push of the primer button.

NOTE: Do not use the primer to start a
warm engine.

4. Firmly hold the recoil starter handle with
your right hand. See Figure 8.

5. Pull back sharply on the recoil starter
handle. DO NOT allow the starter rope to
snap back. Let the starter rope slowly re­wind as you hold the recoil starter handle.

NOTE: If engine fails to start after three
pulls, push the primer button two times and
again pull the recoil starter handle.

WARNING: Never run the en­gine indoors or in a poorly venti­lated area. Engine exhaust con­tains carbon monoxide, an
odorless and deadly gas. Keep
hands, feet, hair and loose
clothing away from the trimmer
and any moving parts on the en­gine. Avoid the muffler and sur­rounding areas. Temperatures
may exceed 150°F.

Recoil Starter Handle

Figure 8

TRIMMER TIPS

WARNING: Debris such as sticks,
gravel or rocks, can be thrown
with sufficient force to cause per­sonal injury or property damage.

S Set the throttle control in the FAST posi-

tion. If the weeds or grass are tall and
thick, operate the trimmer at a slower
walking speed.

S Frequently clean the underside of the trim-

mer to remove any grass build up. See the
Maintenance section for details.

S For best results and longer lasting line,

use the ends of the line to do the cutting.
This is easily done by moving slowly
through very thick or heavy weeds.

S If the trimmer lines become too short, it will

F-050204L

take longer to complete the job. If the trim­mer lines are worn to less than half their
original length, change to a new trimmer
line. “See How To Change The Trimmer
Line” in the Service And Adjustment sec­tion.

S Do not trim on excessively steep slopes. If

a slope is difficult to stand on, do not trim.
Do not trim on slopes when the ground is
slippery or wet. Trim across the face of a
slope, not up and down.

S Trimmer head contact to concrete, asphalt

and harder services may create prema­ture wear to the height guide (See
Figure 13).

10

MAINTENANCE

CUSTOMER RESPONSIBILITIES

SERVICE RECORDS

Before

Fill in dates as you

complete regular service.

Check Engine Oil Level

Check trimmer Lines

Check Trimmer Head
Engagement

Engine/Machine Cleaning

Check Nuts and Bolts

Check Spark Plug

Change Engine Oil

Service Air Filter

Lubricate Jackshaft Assembly

Lubricate Wheel Bearings

Note 1 - When old line is half the original length, replace with new line.
Note 2 - Clean daily if used in extremely dusty or dirty conditions.
Note 3 - Change more often if used in extremely dusty or dirty conditions.

√

√

√

√

Each

Use

√

Every

5

Hours

Every

25

Hours

√

√

√

√

√

Every

100

Hours

As

Noted

1

2

3

SERVICE

DATES

PRODUCT SPECIFICATIONS

Trimmer Line Diameter 0.155 inch

Trimmer Line Length 21.5 inches

Horse Power 6

F-050204L

GENERAL RECOMMENDATIONS

The warranty on this trimmer does not cover
items that have been subjected to operator
abuse or negligence. To receive full value from
the warranty, the operator must maintain the
trimmer as instructed in this manual.

Some adjustments must be made periodically
to properly maintain your trimmer.

All adjustments in the Service and Adjust­ments section of this manual must be checked
at least once each season.

11

LUBRICATION

MAINTENANCE

How To Lubricate
The Jackshaft Assembly

A grease fitting is provided to lubricate the
jackshaft assembly. Use a grease gun with au­tomotive type grease to lubricate the jackshaft
assembly as shown in Figure 9.

How To Change Engine Oil

Change the engine oil when the engine is
warm. For the proper oil capacity, see the en­gine manufacturer’s instructions.

1. Disconnect spark plug wire from the spark
plug.

2. Remove the oil drain plug as shown in
Figure 10.

3. Drain all the engine oil into a flat pan.

4. Install the oil drain plug. Make sure the
oil drain plug is tight.

5. Remove the dipstick.

6. Fill the engine crankcase. DO NOT
OVERFILL. For proper oil capacity, see
the engine manufacturer’s instructions.

Grease Fitting

Figure 9

7. Connect the spark plug wire to the spark
plug.

Oil Drain Plug

Figure 10

F-050204L

12

SERVICE AND ADJUSTMENT

SERVICE AND ADJUSTMENT

WARNING: Before you inspect, clean or service the trimmer, stop the engine.
Make sure that all moving parts have stopped. Disconnect the wire from the
spark plug.

HOW TO
REPLACE THE TRIMMER LINE

For the best performance, use a heavy
gauge (0.155” diameter) trimmer line. Cut
the length of the trimmer line to 21.5 inches.
Use the length guide, located on the shield,
to make sure the trimmer line is the correct
length. See Figure 11. Do not allow the
length of the lines to vary more than one
inch. This is important to make sure the trim­mer head is balanced and does not vibrate.

IMPORTANT: To extend the life of the trim­mer line, keep the trimmer line moist. If not
kept moist, the nylon trimmer line will be­come dry and brittle. Keep extra trimmer
line in a can of water. The line will then stay
flexible and easy to change. A flexible line
will also last much longer.

HOW TO CHANGE TRIMMER LINES

When the trimmer line becomes worn to half the original length, replace the trimmer line as
follows:

Trimmer Line

Shield

Figure 11

Line

Retainer

1. Stop the engine. Wait for
all moving parts to stop.

2. Remove worn trimmer
line from line retainer.

3. First, thread the ends of
the new trimmer line
through the outside
loops.

F-050204L

Trimmer

Line

Line

Retainer

4. Next, take the ends of the
line, cross over the line
retainer, and thread the
ends through the center
hole.

13

5. Then, check to make
sure that the ends of the
line are even.

SERVICE AND ADJUSTMENT

HOW TO ADJUST
THE HEIGHT OF THE HANDLE

Use the knobs, on each side of the handle, to
adjust the height of the handle.

1. Hold the handle with one hand and loosen
both knobs until the ratchet teeth are dis­engaged. Do not remove the knobs. See
Figure 12.

2. Move the handle up or down to the de­sired position, then align the ratchet
teeth. Make sure both sides of the handle
are level.

3. Tighten the knobs.

HOW TO SET THE HEIGHT OF CUT

CAUTION: Before you set the
height of cut: stop the engine.
Wait for all moving parts to stop.
Allow the engine to cool and dis­connect the spark plug wire.

The height of cut can be set from 1-1/2 inches
to 3 inches. Recommended cutting height for
the average yard is 2”.

1. Use the T-wrench , found in the parts bag,
to loosen the set screw shown in
Figure 13.

2. Set the trimmer head at the desired
height.

3. Tighten the set screw.

Handle

Knob

Height Of Cut Positions

Set Screw

Height Guide

Ratchet

Teeth

Figure 12

Trimmer

Head

T-W rench

F-050204L

Figure 13

14

SERVICE AND ADJUSTMENT

e
e

HOW TO
REPLACE THE DRIVE BELT

To replace the drive belt, the trimmer head
and shield must be removed as follows.

WARNING: Before you remov
the drive belt, disconnect the wir
from the spark plug.

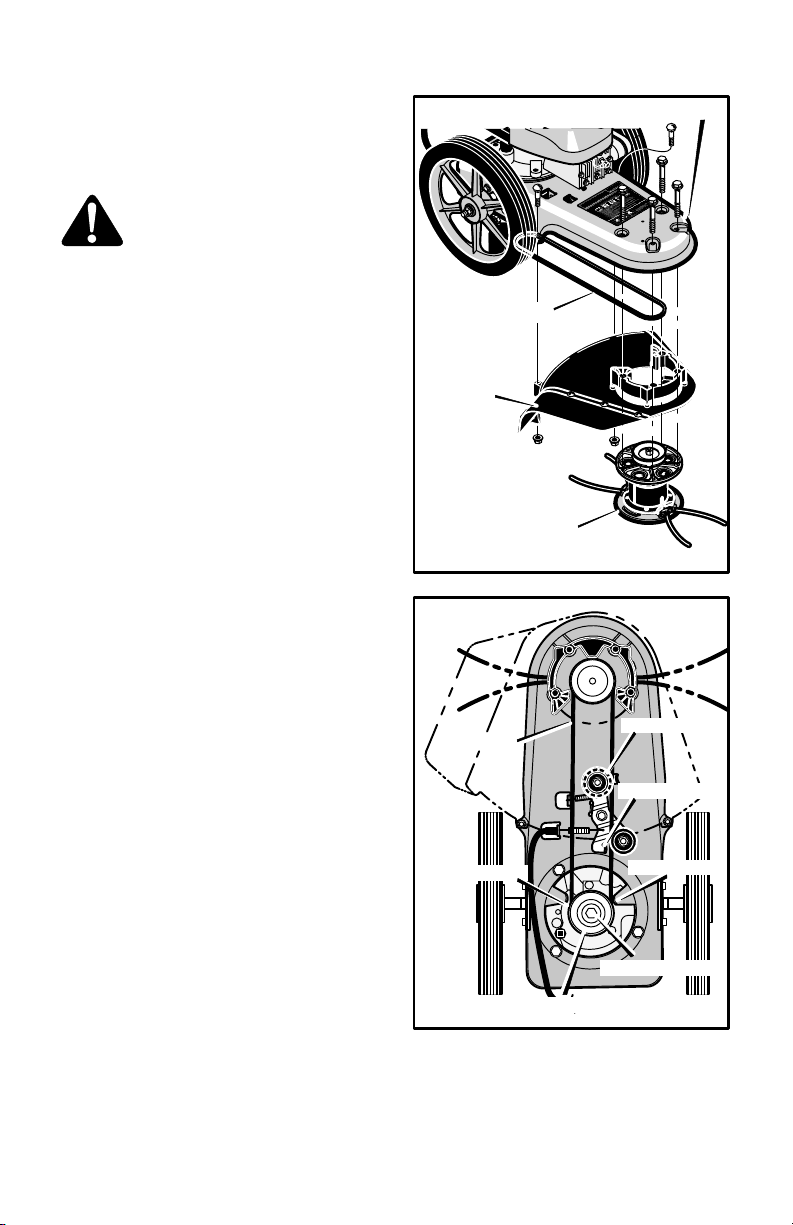

1. Remove the two fasteners that hold the
rear of the shield to the trimmer housing
(See Figure 14).

2. Remove the four fasteners that hold the
front of the shield and trimmer head to
the trimmer housing.

3. Remove the “V” pulley from the idler
bracket.

4. Raise the front of the trimmer housing
and remove the drive belt. On some mod­els, it is necessary to loosen the mount-
ing bolt for the drive pulley to remove the
drive belt (see Figure 15). Do not bend the
belt guides.

NOTE: Make sure you replace the drive
belt only with a replacement belt from
the factory.

5. To assemble the drive belt, reverse the
above steps. Make sure all fasteners are
tight. Make sure the mounting bolt for the
drive pulley is tight.

6. Check the routing of the drive belt. Make
sure the drive belt is inside of all belt

guides shown in Figure 15.

IMPORTANT: Test the drive system. Start
the engine and move the throttle control to
the FAST position. Engage and disengage
the trimmer head several times. When dis­engaged, make sure the trimmer head com­pletely stops when resting on the ground. If
the trimmer head continues to rotate, take
the trimmer to an authorized Service Cen­ter.

Drive Belt

Shield

Trimmer Head

Drive Belt

Belt Guide

Trimmer Housing

Drive Pulley

Figure 14

“V” Pulley

Belt Guide

Belt Guide

Mounting Bolt

Figure 15

F-050204L

15

SERVICE AND ADJUSTMENT

STORAGE

WARNING: Do not remove gaso­line while inside a building, near
a fire, or while you smoke. Gaso­line fumes can cause an explo­sion or a fire.

When the trimmer is put in storage for thirty
days or more, follow the steps below to
make sure the trimmer is in good condition
the following season.

Trimmer

S Completely clean the trimmer.

S Put the trimmer in a building that has good

ventilation.

NOTE: A yearly checkup or tune-up at an
authorized service center will make sure
that the trimmer will provide maximum per­formance for the next season.

Engine

IMPORTANT: It is important to prevent gum
deposits from forming in fuel system parts
such as the carburetor, fuel filter, fuel hose,
and tank during storage. Also, using alco­hol-blended fuels (called gasohol, ethanol
or methanol) can attract moisture which
leads to separation and formation of acids

during storage. Acidic gas can damage the
fuel system of an engine while in storage.

To prevent engine damage when the trimmer
is in storage for 30 days or more, follow the
steps below:

S Let the engine run until it is out of gasoline.

S Drain the oil from the warm engine. Fill the

engine crankcase with new oil.

S Remove the spark plug from the cylinder.

Pour one ounce of oil into the cylinder.
Slowly pull the recoil starter handle so that
the oil will protect the cylinder. Install a new
spark plug in the cylinder.

S Clean dirt and debris from the cylinder

cooling fins and the engine housing.

S If you do not want to remove gasoline, add

a fuel stabilizer to any gasoline left in the
tank. Fuel stalibizer will minimize the
formation of gum deposits and acids. If the
tank is almost empty, mix the fuel stabilizer
with fresh gasoline in a separate container
and add the mixture to the tank. Always
follow the instructions on the stabilizer
container. Run the engine at least ten min­utes after stabilizer is added to allow the
mixture to reach the carburetor.

F-050204L

16

TROUBLE SHOOTING CHART

TROUBLE CAUSE CORRECTION

Engine does not start Spark plug wire

disconnected.

Engine not primed. Prime engine.

Defective or incorrectly
gapped spark plug.

Fuel tank empty. Add fuel.

Dirty carburetor or fuel line. Clean carburetor or fuel line.

Dirty air filter. Replace air filter.

Carburetor out of adjustment. For carburetor adjustment,

Engine flooded. Wait several minutes before

Throttle control lever in
incorrect position.

Stale gasoline. Drain old gasoline and add

Defective throttle control
lever or wire.

Engine runs poorly. Bad spark plug. Replace spark plug.

Connect spark plug wire.

Inspect or replace spark
plug.

take the unit to an authorized
Service Center.

starting.

Move throttle lever to FAST
or START position.

fresh gasoline.

Inspect lever and wire.
Replace if damaged or
defective.

F-050204L

Dirty air filter. Replace air filter.

Carburetor out of adjustment. Adjust carburetor. Take the

Stale gasoline. Drain old gasoline. Add fresh

Engine cooling system
clogged.

17

unit to an authorized Service
Center.

gasoline.

Clean engine screen and
cooling fins.

TROUBLE SHOOTING CHART

Engine overheats. Engine cooling system

clogged.

Clean debris screen and
engine cooling fins.

Carburetor out of adjustment. Adjust carburetor. Take the

Oil level is low. Add oil.

Engine will not stop
running.

Poor trimming
performance.

Trimmer vibrates. Set screw for trimmer head

Trimmer head does not
retain line

Defective throttle control
lever or wire.

Throttle not adjusted
properly.

Trimmer line length is too
short.

Engine not set at FAST
speed.

is loose.

Trimmer line lengths are
substantially different.

Loose nuts or bolts. Check all bolts and nuts,

Broken trimmer head. Replace broken part.

Trimmer line not properly
attached.

unit to an authorized Service
Center.

Inspect and replace
damaged parts.

Move throttle to the full OFF
position.

Correct line length is 21.5
inches. When less than 1/2
this length, replace the line.

Move engine throttle lever to
FAST position.

Tighten set screw with
T-handle wrench.

Adjust trimmer line to
approximately equal lengths.

including engine bolts.

Follow instructions on decal
or in the Service section of
the owner’s manual.

F-050204L

Broken line retainer. Replace trimmer head

assembly.

Trimmer line not correct size. Use a 0.155 inch diameter

trimmer line.

18

Use this guide and do not trim on a slope greater than 15 degrees.

A 10 degree slope is a hill that increases in height at approximately 1.7 feet in 10 feet..

A 15 degree slope is a hill that increases in height at approximately 2.5 feet in 10 feet..

Use extreme care at all times and avoid sudden turns or maneuvers. Follow other instructions in this

manual for safety in trimming on slopes. Operate a trimmer across the face of slopes, never up or down

slopes. Use extra care when operating on or near slopes and obstructions.

10 DEGREES

SIGHT AND HOLD THIS GUIDE LEVEL WITH A VERTICAL

TREE, A CORNER OF A STRUCTURE, A POWER LINE

15 DEGREES

Operate a trimmer across the face

of slopes, never up or down slopes.

POLE, OR A FENCE.

SLOPE GUIDE

F-050204L

19

MODEL TM6100x5A REPAIR PARTS

1

2

13

3

4

28

6

2

7

8

14

19

4

10

11

12

31

27

30

21

6

9

4

11

16

18

33

32

5

9

10

16

17

20

19

18

22

29

14

15

17

F-050204L

26

23

24

25

20

6

20

MODEL TM6100x5A REPAIR PARTS

Key

No. Part No. Description

1 740198E276 Lever, Stop

2 323035 Bolt

3 740193 Cable, Control Latching

4 071372 Tie, Cable

5 740196E701 Handlebar

6 15x116 Nut

7 1601039 Control, Throttle

8 672510 Guide, Rope

9 740202 Knob, Handlebar

10 783000 Washer

11 711936 Washer, Spring

12 711937 Bolt

13 672292 Spacer

14 740158 Pivot, Handlebar

15 740195E701 Handlebar, Lower

16 740185 Wheel & Tire

17 015x84 Nut, Axle

18 0020x3 Washer, Spring

19 740190 Spacer

20 740188 Assembly, Axle & Bracket

21 26x274 Screw

22 711935 Bolt, Carriage

23 740150E276 Frame

24 025x6 Bolt

25 740192 Shield, Trailing

26 001x45 Bolt

27 26x267 Screw

28 - - - - - - Engine

29 711890 Glasses, Safety

30 015x88 Nut

31 1601040 Support, Handle

32 26x268 Screw

33 042294 Clamp, Throttle

-- F-050204L Instruction Book & Parts List

F-050204L

21

MODEL TM6100x5A REPAIR PARTS

1

2

3

27

31

33

26

25

24

29

31

30

15

38

17

18

4

20

19

5

22

7

14

13

23

6

16

1

8

9
10

11

12

F-050204L

22

MODEL TM6100x5A REPAIR PARTS

KEY

NO. PART NO. DESCRIPTION

1 015x84 Nut

2 025x11 Screw

3 740150E276 Deck

4 26x256 Screw

5 740231 Z Bracket, Idler Assembly

6 009x48 Bolt

7 712403 Spring, Extension

8 740292 Spacer Assembly, Jackshaft

9 712148 Nut

10 17x104 Washer, Flat

11 740171 Pulley, Cutting Head

12 740173 Spacer, Upper Pulley

13 711933 Belt, Trimmer

14 740244 “V” Pulley

15 740179 Pulley, Engine

16 740183 Pulley, Idler

17 018x31 Lockwasher

18 001x20 Bolt

19 26x235 Screw

20 740167 Flap, Debris

22 740205 Shield, Trimmer

23 26x294 Screw

24 1001049 Housing, Jackshaft

25 740300 Shaft, Cutting Head

26 740163 Wrap, Weed

27 712126 Screw

29 740175E276 Assembly, Cutter Head & Wrap

30 712127 Screw, Set

31 740165 Line, Trimmer 0.155 X 21.25

33 740299 Guide, Metal Height

38 712128 Wrench, T-Handle (found in parts bag)

F-050204L

23

Only use a factory repair part. Repair parts, except for the engine or the transmission, are available

HOW TO ORDER REPAIR PARTS

from the store where the unit was purchased, a service shop recommended by the store, or an
authorized service shop found in the yellow pages of the telephone directory. If you cannot get a
repair part or service as described above, call or write to the Central Parts Distributor shown below.
When you order, include the following information: (1) Complete Model Number (see nameplate),
(2) Date of Manufacture, (3) Complete Part Number, (4) Description, (5) Quantity.
Repair parts for the engine or the transmission are available from the manufacturer’s authorized
service center found in the yellow pages of the telephone directory. See the individual engine or
transmission warranties.

MURRAY, INC. LAWN MOWER CENTRAL PARTS DISTRIBUTORS

BILLIOU’S, INC.

1343 South Main St.
Porterville, CA 93257
(559)784−41021−877−245−5468
FAX 1−800−266−7337
www.billious.com

Arizona, California, Hawaii,
Nevada

BROWN & WISER, INC.

9991 S.W. Avery Street
Tualatin, OR 97062
(503)692−03301−800−882−4782
FAX (503)691−2041
Alaska, Idaho (counties Ada,
Adams, Benewah, Boise, Bonner,
Boundry, Canyon, Clearwater,
Elmore, Gem, Idaho, Kooten,
Latah, Lewis, NEZ Perce, Owyee,
Payette, Ravalli, Shoshone, Valley,
Washington), Montana (counties
Flathead, Lake, Lincoln, Mineral,
Missoulo, Ravalli, Sanders),

Oregon, Washington

CPT CANADA POWER
TECHNOLOGY LIMITED

Mississauga

161 Watline Avenue
Mississauga, Ontario
L4Z−1P2
(905)890−69001−800−861−9559

Edmonton

101−10411−178 Street
Edmonton, Alberta
T5S 1R5
(780)453−57911−800−861−9559

Ville St−Laurent

234 Migneron Street
Ville St−Laurent, Quebec
H4T 1Y7
(514)731−35591−800−861−9559

Canada

GARDNER, INC.

3641 Interchange Road
Columbus, OH 43204
1−800−848−8946
FAX 1−800−626−4735

Alabama, Connecticut, Delaware,
District of Columbia, Florida,
Georgia, Illinois, Indiana,
Kentucky, Louisiana, Maine,
Maryland, Massachusetts,
Michigan (except upper
Peninsula), Mississippi, New
Hampshire, New Jersey, New
York, North Carolina, Ohio,
Pennsylvania, Rhode Island,
South Carolina, Tennessee,
Vermont, Virgina, West Virginia

GULF COAST ENGINE, INC.

4202 Russell Dr.
Corpus Christi, TX 78408
1−800−825−6999
FAX (888)888−7036

New Mexico, Oklahoma, Texas,
Mexico

OSCAR WILSON ENGINE &
PARTS, INC. ENGINE, INC.

826 Lone Star Drive.
O’Fallon, MO 63366
1−800−873−6722 or
1−634−978−1313
FAX: 1−800−873−6720

Arkansas, Iowa, Kansas,
Missouri, Nebraska

WISCONSIN MAGNETO

1000 W. Donges Bay Road
Suite 100
Mequon, WI 53092−5920
1−800−733−7388
FAX 1−800−733−0127

Michigan (upper Peninsula),
Minnesota, North Dakota, South
Dakota, Wisconsin

F-050204L

Puerto Rico
