Murray 22506x9A, F-98526 User Manual

Specifications and Main Features

  • Product Number: 22506x9A
  • Warranty: Two Year Limited Warranty
  • Engine: Internal Combustion Engine
  • Starting System: Recoil Start
  • Engine Stop Level: Controls the engine from functioning
  • Height Settings: Two Settings (High and Low)
  • Cutting Height Adjustment: Each wheel has an adjustable lever for the cutting height above the wheel.
  • Blades: Should be replaced after every couple of years for safety reasons
  • Mulcher Kit: Can be changed from mulcher to side discharge kit.
  • Handle: Adjustable height with a lock.
  • Safety features: Care safety guards and shields provided for the operator
  • Operation: Walk behind type with an option of self propelled.
  • Deck Material: Steel
  • Easy Clean: Mowing housing crafted for easy cleaning of unit.
  • Maintenance: Checking routine of blades and engine parts required.
  • Recommended Time Between Lubrication: 25 hours usage.

Frequently Asked Questions

Q: What do I need to do to mow with this mower?

A: Ensure oil is checked and the fuel tank is filled with fresh gasoline, keep the engine stop lever in the working position where it cannot move against it, throughout the process the recoil-start grip will need to be swiftly pulled, and priming buttons need to be pressed multiple times.

Q: The engine won’t come to life, what do I do?

A: Start by filling the fuel tank with fresh gasoline, make sure the spark plug wire is connected, and also push the primer button. If it still doesn't kick into life, you may need to get the carburetor settings looked at.

Q: It’s been a while, does the blade still need replacing?

A: I would advise you again it’s been over two years get the blade replaced and make sure it’s been sharpened to ensure it cuts efficiently.

Q: Is it intelligent to mow wet grass?

A: It is not recommended to mow over wet grass due to the increase of slipping while trying to mow which ultimately decreases the mowers performance.

Q: The cutting height is a bit off, how can I fix this?

A: Adjust the height of the height adjuster arm on each of the wheels to the desired position. Each has to be set equally to ensure the cut is uniform.

Q: If something were to break or malfunction where would I go to fix it?

A: Repairing parts can either be purchased through the Authorized Service Center or at the store where you bought the product from.

User Manual

Model
22506x9A
This InstructionBookcontainsinformationfor severalmodels.
Readandkeepthis bookforfuturereference. Thisbookcontainsimportantinformationon
SAFETY,,ASSEMBLY,OPERATION,AND MAINTENANCE.
PRODUCTINFORMATION
Theownermustbecertainthat all the productinformationis includedwiththe unit.
Thisinformationincludes the INSTRUCTIONBOOKS,
the REPLACEMENTPARTSandthe WARRANTIES.
Thisinformationmustbeincludedto makesurestatelaws andotherlawsarefollowed.
RECORD THE FOLLOWING INFORMATION ABOUT YOUR UNIT.
THIS INFORMATION IS NECESSARYWHEN ORDERING PARTS
ORIN CASE OF LOSS ORTHEFT.
WHEREPURCHASED: DATEPORCHASB):Month Day. .Year.
MODELNO,: DATEOFMANUFACTURE:
F-98526
BUILT IN THE
MURRAY, INC. TwoYearLimitedWarranty
Murray, Inc.warrants to the originalpurchaserthat this unitshall be free from defects in ma-
terial and workmanship under normal use and service for a period of Two (2) Years from
the date of purchase; however, this warranty does not cover engines, accessories (such as snow blowers, snow blades, grass baggers and plows), transmissions, batteries and Nor-
mal Wear Parts (except as noted below) or transaxles as the companies that manufacture
these items furnish their own warranties and provide service through their authorized field
service facilities. For additional information, see the warranties covering these particular parts. If you are uncertain whether your unit contains or is equipped with one or more of
these parts, consult your dealer priorto purchase. Subject to the terms and conditions noted in this Limited Warranty, we shall, at our option, repair or replace at no cost to the original
purchaser any part covered by this Limited Warranty during the applicable warranty period. In the event the battery proves defective within ninety (90) days from the date of purchase,
we will replace itwithout charge. Ifthe battery proves defective after (90) days but within one
hundred twenty (120) days from the date of purchase, we will replace it for acharge of one half (1/2) of the retail price of the battery in effect at the time of return.
Normal Wear Pads are defined as belts, blades, blade adapters, pneumatic tires, headlights and seat covers. These pads are warranted to be free from defects in material and work-
manship as delivered with the product. Any claim for repair or replacement of Normal Wear
Parts must be made within thirty (30) days of the date of purchase. No claims involving dam- age caused from material use, abuse or misuse will be honored.
This Murray, Inc. Two (2) Year Limited Warranty isyour exclusive remedy; however, this
warranty isvoid or does not applyto any unitthat has been tampered with,altered, misused,
abused or used forrental orother commercial and/or professional (non-homeowner) uses. Yourwarranty does not cover minor mechanical adjustments which are not due to any de-
fect inmaterial or workmanship. For assistance in making such adjustments, consult your
Instruction Book.
To make a claim under this Murray, Inc. Two (2) Year Limited Warranty, returnthe unit (or
ifauthorized in advance, the defective part) along with your proof of purchase to an Autho- rized Service Center near you. To locate the nearest Authorized Service Center, call the
Central Parts Distributorforyour area shown in the listprovidedwithyour unitor check the
Yellow Page listings in your local telephone directory. If you return the entire unit, we will
repair the unit. If we authorize the return of the defective part only,we will either replace or repair the part. In the case ofa defect ina transmissionor differential(as distinguishedfrom a transaxle), the entire transmission or differential must be returned since they do not in- clude user serviceable parts.
This Murray, Inc. Two (2) Year Limited Warranty gives you specific legal rights,and you may alsohave other rightswhichvary from state to state. This Limited Warranty is given in lieu of all other expressed and implied warranties including the implied warranty of merchantability and warranty of fitness for a particular purpose. Ifyou need addi- tional information on this written warranty or assistance in obtaining service, write or call:
MURRAY, INC.
Outdoor Power Equipment
Customer Service Department
P.O. Box 268
Brentwood, Tennessee 37027
1-800-251-8007
F-98526 2
OWNER'S INFORMATION
This instructionbook iswritten for a person with some mechanical ability.Like mostservice books,
not all the steps are described. Steps on how to loosen or tighten fasteners are steps anyone can follow with some mechanical ability. Read and follow these instructions before you use the unit.
Know your product: If you understand the unit and how the unit operates, you will get the best performance. Asyou read this manual, comparethe illustrationsto the unit. Learn the locationand
the functionof the controls.To help prevent an accident, follow the operating instructionsand the safety rules. Keep this manual for future reference.
IMPORTANT: Many unitsare not assembled and are sold in cartons. It isthe responsibility of the owner to make sure the assembly instructionsinthis manual are exactly followed.Other unitsare purchased in an assembled condition. On assembled units,it isthe responsibilityof the owner to make sure the unitis correctly assembled. The owner must carefully check the unit according to
the instructionsin this manual before it is first used.
RESPONSIBILITY OF THE OWNER
The responsibility of the owner is to follow the instructions below.
1. Carefully read and follow the rules for safe operation.
2. Follow all the assembly and preparation instructions.
3. Inspect the unit.
4. Make sure thatthe operator of the unit knows howto correctlyuse all standard and accessory
equipment.
5. Operate the unitonly with guards, shields, and other safety items in placeand workingcorrectly.
6. Correctly adjust the unit.
7. Service the unitonly with authorized or approved replacement parts.
8. Complete all maintenance on the unit.
The engine exhaust from this product
contains chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
F-98526 3
IMPORTANT
Safe Operation Practices for Walk-Behind Mowers.
This cuttingmachine is capable of amputating hands and feet and throwingobjects.Failure to ob- serve the following safety instructions could result in serious injury or death.
I. General Operation
. Read, understand, and follow all instruc-
tions on the machine and inthe manual(s).
Be thoroughlyfamiliar with the controls and
the proper use ofthe mower beforestarting.
2. Do notputhandsor feet near orunder rotat-
ingparts. Keep clear of the discharge open- ing at all times.
3. Only allow responsible individuals, who are familiar with the instructions,tooperate the
mower.
4. Thoroughly inspect the mower and area where the equipment is to be used. Clear
the area of objectssuchas rocks,toys,wire, bones, sticksetc., which couldbe picked up
and thrown by the blade.
5. Be sure the area isclear of other people be- fore mowing. Stop mower if anyone enters
the area.
6. Do not operate the mower when barefoot or wearing open sandals. Always wear sub-
stantial foot wear.
7. Do not pull mower backwards unless abso-
lutely necessary. Look downand behindbe- fore and while movingbackwards.
8. Do not operate the mower without proper
guards, plates, grass catcher or other safety
protective devices in place.
9. See manufacturer's instructions for proper
operation and installation of accessories.
Only use accessories approved by the manufacturer.
10. Stop the blade(s) when crossing gravel drives, walks, or roads.
11. Stop the engine (motor) whenever you leave the equipment, before cleaning the
mower or unclogging the chute.
12. Shut the engine (motor)offandwait untilthe blade comes to complete stop before re- moving grass catcher.
13. Mow only in daylight or good artificiallight.
14. Do not operate the mower while under the
influence of alcohol, drugs or other medica-
F-98526
tionwhich can cause drowsiness or affect your ability to operate this machine safely.
15. Never operate mower in wet grass. Always be sureof your footing; keep a firm holdon the handle and walk; never run.
16. Disengage the self-propelled mechanism or drive clutchon mowers so equipped be- fore starting the engine (motor).
17. If the equipment should start to vibrate ab- normally, stopthe engine (motor) and check immediately forthe cause. Vibration isgen- erally a warning of trouble such as a blade
that is damaged, a loose blade, or the en- gine mounting bolts are loose.
18. Always wear safety goggles or safety glasses with side shields when operating
mower to protectyour eyes from foreignob-
jects which can be thrown fromthe unit.
19. Plan your mowing pattern to avoid dis- charge of matedal toward roads, sidewalks,
bystanders and the like.
20. After striking a foreign object, stop the en- gine. Remove the wire from the spark plug.
Inspect the blade and mower for damage. If
damaged, repair before startingandoperat-
ing the mower.
21. Keep any washout portsand other mower
housing service openings dosed when
mowing.
II. Slope Operation Slopes are a majorfactor related to slip and fall
accidents which can result in severe injury.All slopes requireextra caution. If you feel uneasy
on a slope, do not mow it.
DO:
Mow across the face of slopes; never up and down. Do not mow excessively steep
slopes (maximum 15 degrees) or areas where the ground is very rough. See the
"Guide" in the back of this manual to check a slope. Exercise extreme caution when
changing direction on slopes. Remove objects such as rocks, tree limbs,
etc. Watch for holes, ruts, or bumps. Tall grass
can hide obstacles.
(Continued Following Page)
4
IMPORTANT
DONOT:
Do notmow near drop-offs, ditches, or em- bankments. The operator couldlosefooting or balance.
Do not mow excessively steep slopes.
Do notmow on wet grass. Reduced footing
could cause slipping.
IlL Children Tragic accidentscan occur if the operator is not
alert to the presence of children. Children are often attracted to the mower and the mowing
activity.Never assume that childrenwill remain
where you last saw them.
1. Keep childrenout of the mowing area and
under the watchful care of a responsible
adult.
2. Be alert and turnmower oft if children enter the area.
3. Before and white moving backwards, look behind and down for small children.
4. Never allow children to operate the mower.
5. Use extra care when approaching blind cor-
ners, shrubs, trees, or other objects that may obscure vision.
IV. Service
"1. Use extra care in handlinggasolineand oth-
er fuels.They areflammable and vapors are explosive.
a. Use only an approved container.
nect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Always wear eye protectionwhen
you make adjustments or repairs.
4. Keep all nuts and bolts,especiallyblade at-
tachment bolts, tightand keep equipment in good condition.
5. Never tamper with safety devices. Check their proper operation regularly.
6.
To reduce fire hazard, keep mower free of grass, leaves, or other debris build-up.
Clean up oilor fuel spillage.Allow mower to cool before storing.
7. Stop and inspect the equipmentif you strike an object. Repair, if necessary, before ra-
starting.
8. Never attemptto make wheel height adjust- ments while the engine (motor) is running.
9. Always disconnectelectricmowers (live op- erated) before cleaning, repaidng, or ad-
justing.
10.
Grass catcher components are subject to
wear, damage, and deterioration, which
could expose moving partsor allowobjects to be thrown. Frequently check components and replace with manufacturer's recom-
mended parts, when necessary. For stor- age, always make sure grass catcher is empty.
11. Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra
caution when servicing them.
b. Never remove gas cap or add fuel with
the engine running.Allow engineto cool
before refueling. Do not smoke.
c. Never refuel the machine indoors. d. Never storethe machine orfuel contain-
er inside where there is an open flame, such as a water heater.
*2. Never run an engine indoors or inside a
closed area.
3. Never make adjustmentsor repairs to items
such asthe heightadjusters or grass catch-
er with the engine (motor) running. Discon-
*Asterisked items do not apply to electric mowers.
F-98526 5
12. Do not change the engine governor setting or over-speed the engine.
13. Frequently checkthe blade for wear or dam- ages such as cracksand nicks.A blade that
is bent or damaged must be immediately re- placed with a factory replacement blade.
For safety and good cutting performance,
replace the blade every two years. Fre-
quently check _e blade bolt and the engine
mounting bolts. Replace damaged bolts and tighten loose bolts.
14. Use only original equipment or authorized replacement parts.
SAFE MOWING GUIDE
Every person who uses power equipment must learn the difference between proper and
improper use, safe and unsafe mowing prac- tices. Read the next few pages carefully.
They can help you learn. Too often the mow- er user is inexperienced, not properly in- structed, or has not read the Instruction Book
and instructionson the unit before using itfor the first time. This can result in unsafe use en-
dangering the operator, bystanders, and the equipment. Another result can be a poor ap- pearance of the area mowed.
Read this Instruction Book. Read the in- structions on the unit. Operate the mower ac-
cording to the Safe Mowing Guide and other safety rules and recommendations in this In-
structionBook and on the uniLMake sure any- one who uses the unithas read the instructions and has been told how to operate the mower
safely.
Your mower is designed to provide good ser-
vice and durability in normal residential cut- ting. Ifthe mower isnot propertyserviced and
maintained or used on unsuitable terrain or in conditions not suitable for mowing, product
performance and safety will be reduced. Proper attireis an important part of safe mow-
ing. Safety glasses protect the eyes from thrown objects. Safety shoes with steel toes can protecta foot from being cut by the blade. Shirts and pants that cover the arms and legs can stop or deflect a thrown object.
gency. Learn how to cut and how to keep con- trol of the mower at all times.
Many mowers are started manually.When us- ing a pull start or rope start, place your feet
firmly and away from the blade. Hold the rope
handle securely, but never wrap the rope around your arm orfingers for a =better gdp".
The mower is designedfor use byone person. Always mow alone. Never carry passengers.
Carrying a passenger is dangerous for the passenger andthe operator.A mower isnotfor amusement or for carrying objects.
Is the area you are planningto mow wet? Nev- er cuta wet lawn. Cuttingwet grass can cause an accident. Itcan affect mower performance and also cause problems with future lawn growth and appearance. Wet grass is slippery
and might cause the operator to fall or the mower to slip. Someone could be hurt by
touching the blade.Wet grass tendsto clogthe
mower, causing poordischarge. Wet clippings bunch upon the lawn retarding the growth of grass. A wet mower can cause parts to rust
and reduce the useful life of the unit.
Practice usingthe mower before you actually begin cuttinggrass. Select a large open level
area. Learn the location and function of the controlsand how they work. Itis important that
the blade can be stopped quickly in an emer-
F-98526
When you look over the lawn, refresh your memory about hard, immovable obstacles
such as pipes, stumps, and rocks and avoid them. They can cause damage tothe mower or an accident injuring the operator or a by- stander. Take a litterbag along and walk over the area to be cut. Pick up any stones, toys, wire, bones, or other loose objects. These
items can damage the mower or they can be-
come dangerous flying objects if the mower
blade hits them. The blade of a power mower travels very fast. It can throw rocks and other objects with force over long distances. Objects
thrown by mowers can break windows, cause
SAFE MOWING GUIDE
bruises, or even put out an eye. Oftenthe per- son hurtby a thrown objectisa bystander such as a child, another family member or a neigh- bor. Keep people and pets completely away from the mowing area. Direct the mower's dis- charge away from areas where peoplecan be.
Planning your mowing pattern has a double
benefit. It can reducechances of an injury and make the clean up after mowing eas=er.
Are there ditches, walls, or major in- _)
clines inthe area to be .,,,_ cut?.Plan the mowing [. t(_ pattern to avoid such / / v |\ danger areas. In- _,_ J_J clines and rough ter- _ _
rain must be mowed _ _\_, carefully and some _\_ _i_='_,_t_'_
areas must not be cut ! \_1_ _'_._ _,
with a mower at all./1 _\t_ _,_i'.'_._ _1
WLth walk behind"I
equipment, mow It-t__JJ_}, across the incline so _r._t,L_,, ._ ._
that ifyouor the mow- _,l _ er slip, you won't run -_}_..._,_J:_;;,
into each other. ,r,,_,..;,,. _, Never mow slopes greater than 15 degrees.
See the "Guide" in the back of this Instruction Book to check any slopes.
Ready to start cutting? Not yet. Be sure the mower has been fullyassembled according to directions in the Instruction Book. Even if as-
sembly was done by a lawn and garden shop or the store where the unit was purchased, it
must be checked. Are all nuts, bolts and screws tight'?.Does the engine have oil?These
items mustbe checked periodicallythroughout the life of the mower.
Your mower has a gasoline engine. Gas is dangerous. Store fuel only in a approved gas container. Do not store large amounts of gas. Put out all cigarettes, pipes and cigars before working with gasoline. Store fuel and the mow- er itselfina well ventilatedarea away from any
possible source of ignitionsuch a pilotlighton
a furnace. Ifthe mower isto be storedforan ex- tended time, remove the gas from the tank.
This minimizes the chance of a fire and keeps the tank clear of deposits and old gasoline,
thus improvingmower performance.Move the mower outside before addinggasoline. Use a
funnel andwipe up any spilledfuel beforestart-
ing. Remember, gasoline expands when heated so leave some expansion room. Also, most mower gas caps are vented to allow for expansion. Alwaysuse the propercap. People are needlessly burned by fires, hurt in explo-
sions, mowers and other property are dam- aged because of failure to follow basic safety
rules related to gasoline and fueling. Never addgasolineto an enginethat isrunning
or that ishotfrom recent use, thiscan cause an
accident. Remove dry grass and other debris
from the mower. Keeping the mowerclean will
F-98526
improve the performance, help the engine stay cooler, extend the life of moving parts, and
minimize the danger offire. People get burned
working with and around their mowers for oth-
er reasons than fire and explosions. It takes only a few seconds ofoperation for the engine
and the muffler to become hot. Do not touch these parts when the mower is running. Stop
the engine and letit cooldown before servicing the mower. Remember, exhaust fumes can be
dangerous. Never operate the engine indoors or in an enclosed area.
Getting a new mower can be a big event for a
family. Let family members satisfytheir curios-
ity about the mower and at the same time, tell them about its dangers. Remember, a mower
isnot a toy and is notforuseby childrenorany-
one lacking in age, strength or experience. As withany power equipment,a mower can be
dangerous if not assembled, misused, or not propedy maintained. The most important rule isto always use goodjudgement and common
sense. Your mower will cut thick grass and heavy
plant stems with ease. Fingersand toes are no more resistant to the mower's blade. Many people are injured because they =forgot" and
reached intothe dischargechute.Always treat
_our lawn mower as if the blade is rotating.
ever perform any service or try to make any
adjustment,except carburetor, while the en-
gine is running.
Use only accessories suited for your mower.
Use of improper accessories can reduce the
safety designed into both the mower and the
accessory, itcan even damage the unit. Read
and followthe instructionswhich come withthe
accessory and the mower.
SAFE MOWING GUIDE
Use only original equipment or approved sub- in the reinis nofun and it isdangerous.Always stitutionsas service parts. Ifyou need profes- seek shelter in an electricalstorm. In extreme-
sional service, select a shop that is an ly dry mowing conditions,your safetyglasses Authorized Service Center for your brand of can serve a dual purpose by protecting your
mower. Ifyou plan to service the unit yourself, eyes fromdustand thrownobjects, also a dust
follow directions in the Instruction Book. or pollen mask can be helpful.
As you mow, remember children and pets are sometimes attracted to the activity.Be espe-
cially carefulwhen trimmingaround shrubbery or when backing up. If at all possible, don't mow when moving backwards.It isdangerous
because vision is restricted. Also, blades are designed to cut while the unit is moving for-
ward so cutting performance is reduced when
mowing in reverse. Never leave the mower running and unat-
tended. Shut off the engine. Put the mower in
a position so that it can not roll If the unit is self-propelled, make sure the drive control is
disengaged.
When mowing, be aware of yourcondition and the weather conditions. After mowing a long
time, you will be tired. This is the time when reactions slow down, your attention wanders;
the time when you are wide open for an acci- dent. Take a short break. If temperatures are high, take precautions to avoid becoming de- hydrated. If you are angry, tired, or unable to give your full attention to mowing, if you have been consuming alcohol, medicines, or drugs, do not use your mower or any type of power equipment.
If weather conditions become worse while you are cutting, stop and finish later. Cutting grass
F-98526
Your moweris equippedwith a numberof safe-
ty features which are important to the safetyof the operator and bystanders and must never
be altered or removed. If a safety feature be- comes inoperable,lost,or damaged, itmustbe
repairedor replaced before themower isused. Engine speed is a key to safe mowing and a
nice lookinglawn. The maximum speed ofthe engine on your mowerhas been set at the fac- tory. Do notchangethe engine governorinany
way.
Select the maximum engine and ground speed
that is right for the terrain and the height of grass. You get the best cutting and bagging
performance when using a grass catcher by operating the engine atmaximum speed. Nev- erwalk fastor runjust toget thejob done soon- er. On inclines, reduce ground speed and
exercise extreme care.
It is best to mow only during daylight hours;
however, ifyou must mow in the late afternoon or evening, make sure there is good artificial
light.
Your mower willrequiremaintenance including service and adjustments before and after use
as with any machine. The frequency of the maintenance is generally based on hours of use, however,thefrequency can vary because of mowing conditions. Check the Instruction
Book for more detailed instructions. Proper maintenance protects your investment in the mower and helps insure that it will function
safely and reliably. Never attempt any
service (withthe pos- sible exceptionofcar-
with the engine run-
ning.After turning the
buretor adjustment) /_
engine off, always
disconnect the spark
plug wire to prevent
accidental restarting
while the unit is being
serviced.
8
SAFE MOWING GUIDE
While mowing, if you hit a foreign object, stop the engine. Remove the spark plugwire. Care- fully and thoroughly inspect the mower for damage. Make necessary repairs before re-
starting. Ifthe unitstartsto vibrate abnormally, stopthe engine immediatelyand checkfor the
cause. Vibration is generally a warning of trouble. Keep all nuts, bolts, and screws tight.
The blade is the most dangerous part of the mower and also the most importantpart in ob- taining a nice lawn appearance. Check the
blade and the blade mounting hardware fre- quently. Keep it tight. If the blade hits a solid
object, check it thoroughly for deformation or cracks and replace if damaged. For safety,re-
place the bladeevery two years.A sharpblade reduces the work load on the engine and cuts
grass morecleanly, for a betterlookingcutwith lesswork.The blade is alwayscloseto theout-
side of the mower housing. For best trimming on side discharge mowers, cut with the left side ofthe housingtoward the area that needs trimming.
A useful accessory for your mower isa grass catcher. There are grasscatchers availablefor
most models. For best performance and safe- ty, be sure the grass catcher is approved for
use with your mower. Assemble as directed and follow operating and safety instructions
with the catcher and in the instruction Book.
Before mounting, checking or emptying the
grass catcher, always turn the engine off. Re-
member to check the grass catcher before
each usefor cracks, wear, or deterioration.Re-
place any part that is damaged with the man- ufacturer's recommended replacement part before using the grass catcher again.
Proper cutting technique is important if you want your lawn to look good.Avoidthe tempta-
tion to cut grass too short. Cutting grass too short can kill the plant, cause grass to tum yel-
low, ormake the lawn lookbrown and thatchy.
Use the lower cutting heights in cool months
when the grass is lush. Use the highercutting heights in extremely dry periods. Cutting with a dull blade or low engine speed bruises, shreds, and can uproot some grass making the lawn look dull and brown a few days after
cutting.Always put the throttle controlin FAST
F-98526
position when mowing and bagging. When bagging, slower ground speed will provide the
best results. Change the mowing pattern slightlyeach time
you cut. If you always cut the same way, the grass willdevelop a =set"and clippingswill ac- cumulate more heavily in some areas more than inothers causing grass to get thinner in those areas. Do not service your mower over the grass. Spilled oiland gas can killthe grass.
In tall grass or very heavy grass, do not tryto
cut itall at once. Raise the height of cut on the first cuttingand lower it for the next cuttingthe
same day or withina few days. Another way is
to cut only part of the width of the mower and
adjust your ground speed (not the engine) to move more slowly so the mower can clear it-
self as it moves forward.
When cutting with a walk behind mower, al- ways push the unit. Do not pull it. Pushing the
unit keeps the operator behind the mower in the "operator's zone" for better control.Push-
ing the unit also gives you a chanceto see ex-
actly where and what you are mowing. There will be times while you are mowingthat you will
have to pull the mower backwards (such as when the front of the mower has come up
against a wall or fence). If you must back up,
make sureyour feet are int_e clear.Stand well
back from the mower, plantyourfeet firmly with
each step and back up beingcareful to lookbe-
hind you. Resume normal mowing as soon as
possible.
If your unit is self-propelled, remember that
the drive mechanism is not designed to do all
the work, but the unit can move without your
help. Always keep your hands on the handle
near the controlswhen the engine is running.
Remember too that the self-propelled mecha-
nism can be dangerous. Keep hands and feet
away frombeltsand chains.Always turnoffthe
engine before attempting to remove anything
that becomes entangled in the self-propelled
system.
Remember, your mower is a useful tool, but it
can be dangerous. Follow the instructions in
this Instruction Book. Use the mower properly
and carefully and itwillgive you manyhours of
trouble free, accident free operations.
9
STEPS TO FOLLOW
BEFORE MOWING
Be sure to dress correctly. Wear hard shoes, not sandals or tennis shoes.
Examine the blade. A blade that isbent, cracked, or damaged must be replaced with a factory
replacement blade.
Fill the fuel tank outside. Clean off spilled fuel.
Read andfollowthe Owner's Manual, the insbuctionswith the engine, and the instructionswith
any attachments. Owner's Manual instructionsare for your safety and the safety of others.
Exhaust fumes are dangerous. Start the engine outside.
Make sure all safety devices are in place and working correctly.
Operation of the mower is onlyfor a person that has experience.
Wet grass can be dangerous. Let the grass dry.
Instruct children and others to keep away from the work area.
Never cut the grass without good light.
Pick up loose objects. Remove them from the mowing area.
WHILE MOWING
Watch for fixed objects and avoid them. They can damage the mower or cause injury.
A hot engine and mufflerwill cause a burn. Do not touch.
Inclines and slopesmust be carefullymowed. See the =Guide_inthe back ofthis bookto check
a slope.
Lack of daylight or good artificial light is cause to stop mowing.
Examine the mower,the blade, and other partsfor damage after hittingaforeign object or ifthe
unit vibrates excessively.
Do notmake adjustments or repairswithout stopping the engine (except for carburetor). Dis- connect the spark plug wire.
On or near roads, watch out for traffic. Direct discharge away from reads.
When mowing, avoid areas where tractionis unsure. Beforeand whilemoving backwards,look
behind and down for small children.
In heavy grass, raise the cutting height.Cut slower. Stop the engine to remove clogged grass
from the mower.
Never remove any safety related parts.
Do notpour gasoline into a engine that is hot or running.
AFTER MOWING
Always let the mower coot before storing in an enclosed area.
Foreign material on the mower is dangerous. Clean off grass, leaves, grease and oil before
storing.
Tighten all loose nuts, bolts and screws before you use the unit.
Empty and clean any grass catcher or other accessory.
Remove the key or disconnect the spark plugwire to prevent unauthorized use.
Make sure the mower isnot kept near a source of ignition.Gas fumes can cause an explosion.
Only original parts orfactory approved substitutes can be used to service the mower.
When storingthe mower for an extended period, remove the fuel from the fuel tank.
Instruct children to leave the mower alone. It is not a toy.
Never keep gasoline near a source of ignition. Always use an approved container. Keep
gasoline away from children.
Lubricate according to the InstructionBook. See =Lubrication'.
IMPORTANT--Read the Instruction Book. Keep this book for future use and reference.
safety precautions, It means: "Attention! Become
WARNING: Look for this symbol to point out important Alert! Your Safety Is Involved."
F-98526 10
PREPARATION
UNPACKING INSTRUCTIONS
The mower was fully assembled at the factory.
When the mower was put in the carton, the
handle was put in the storage position. To put the handle in the operating position, follow the
steps below.
Handle
_gnut
Lower Handle
Offset Hole
Locking
Tabs
Handle
1. Remove the mower from the carton.
2. Put the lower handle in the opereting posi-
tion. Make sure the lower handle is be- tween the locking tabs (Figure 1).
3. Put the upper handle in the operating position. Tighten the wingnuts.
CAUTION: Be careful when you fold or
raise the handle. Do not damage the cables. A cable that is bent will not work
correctly. Before you use the unit, re- place a bent or damaged cable.
4. To attach the recoil-start griptothe rope guide, twist the rope through the rope
guide mounted on the rightside of the han- dle (Figure 2).
NOTE: If you cannot attach the recoil-start grip because the rope is too
short, hold the engine stop lever against the handle. Slowly pull the recoil-start grip.
_/Wingnut
Figure 1
Axle Knob
Rear Wheel
Washer _X
Rear Wheels (Hi-Wheel Models With
Axle Knobs)
1. Remove the washers and axle knobs from the axle bolts (Figure 3).
2. Mount therear wheels ontothe axle bolts
and fasten with the washers and axle knobs.
F-98526 11
Axle Bolt
Figure 3

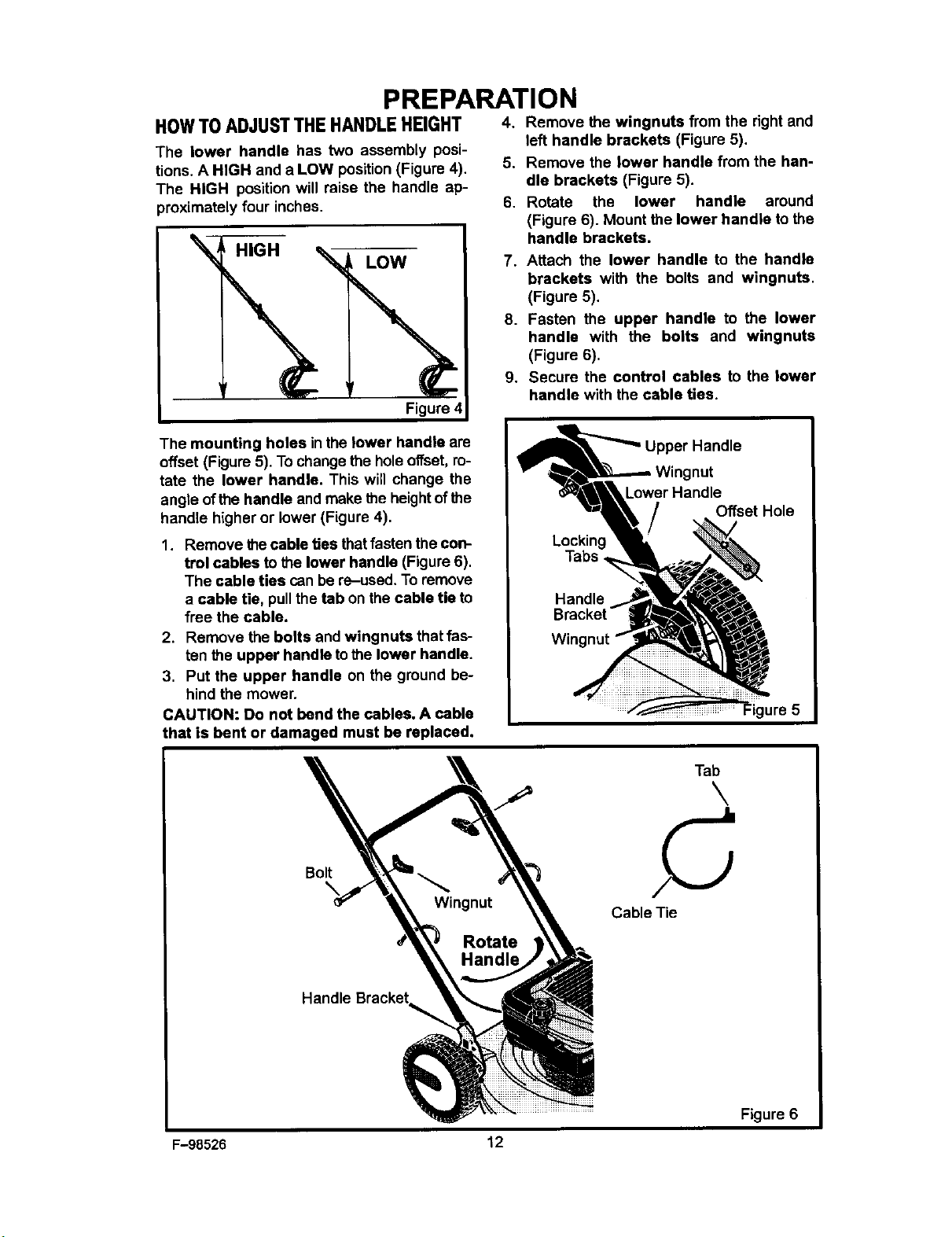

PREPARATION
HOWTOADJUSTTHEHANDLEHEIGHT 4. Remove the wingnutsfromtherightand
The lower handle has two assembly posi-
tions. A HIGH and a LOW position(Figure 4). The HIGH position will raise the handle ap-
_roxirnately four inches.
_, HIGH
LOW
Figure 4
left handle brackets (Figure 5).
5. Remove the lower handle from the han- dle brackets (Figure 5).
6. Rotate the lower handle around
(Figure 6). Mount the lower handle to the handle brackets.
7. Attach the lower handle to the handle brackets with the bolts and wingnuts.
(Figure 5).
8. Fasten the upper handle to the lower
handle with the bolts and wingnuts (Figure 6).
9. Secure the control cables to the lower handle with the cable ties.
The mounting holes in the lower handle are offset (Figure 5). Tochange the holeoffset, ro-
tate the lower handle. This will change the
angle ofthe handle and make the heightofthe handle higher or lower (Figure 4).
1. Remove the cable ties thatfasten the con- trol cables to the lower handle (Figure 6).
The cable ties can be re-used. To remove a cable tie, pullthe tab on the cable tie to
free the cable.
2. Remove the botts and wingnuts that fas- ten the upper handle tothe lower handle.
3. Put the upper handle on the ground be- hind the mower.
CAUTION: Do not bend the cables. A cable that is bent or damaged must be replaced.
Bolt
\
pper Handle
ignut
Lower Handle
Offset Hole
Locking
Tabs
Handle
Tab
\
Cable Tie
Ha
F-98526 12
Figure 6
PREPARATION
HOW TO PREPARE THE ENGINE
ENGINE DOES NOT CONTAIN
OIL OR GASOLINE
See the engine manufacturer's instructionsfor the type of gasoline and oilto use. Before you
use the unit, read the informationon safety,op- eration, maintenance, and storage.
WARNING: Follow the engine manufacturer's instructions for
the type of gasoline and oil to
use. Always use a safety gaso-
when adding gasoline to the en-
line container. Do not smoke gine. When inside an enclosure,
do not fill with gasoline. Before you add gasoline, stop the engine. Let the engine cool for
several minutes. IMPORTANT: This unit is equipped with an Internal combustion engine and must not
be used on or near any unimproved forest- covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it must be main-
tained in effective working order by the op- erator.
In the State of California the above is re- quired by law (Section 4442 of the CalIfor-
nia Public Resources Code). Other states may have similar laws. Federal laws apply
on federal lands. See an Authorized Ser- vice Center for a spark arrester for the
muffler.
FINAL ASSEMBLY
Before you use the mower, check the assem- bly of the wheels, the handle, and the controls.
Make sure all the fasteners are tight. Make sure the throttlecontroland the engine stop le- ver work correctly.
F-98526 13

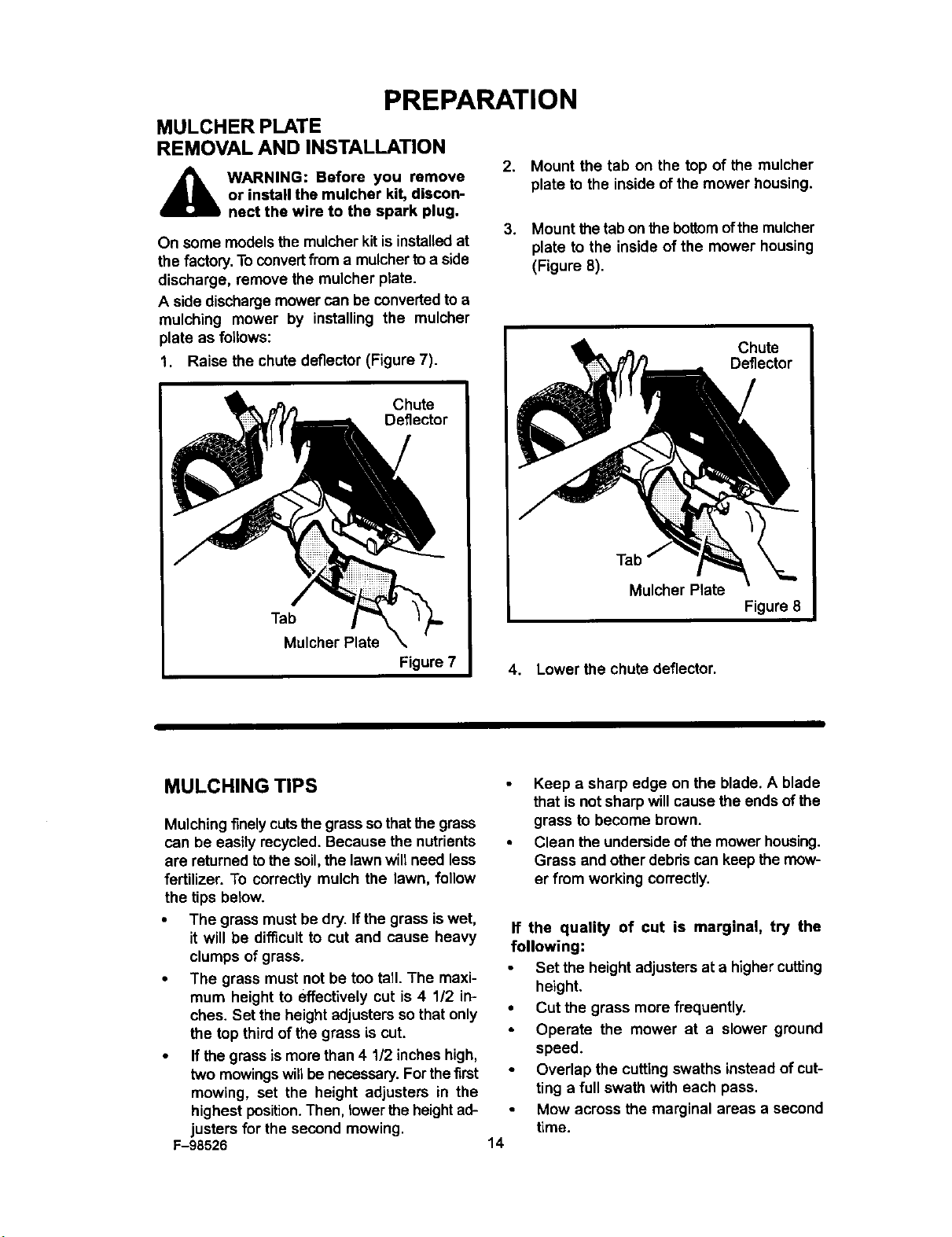

PREPARATION
MULCHER PLATE
REMOVAL AND INSTALLATION
_1= WARNING: Before you remove
On some models the mulcher kitis installed at
the factory. To convert from a mulcherto a side discharge, remove the mulcher plate.
A side discharge mower can be converted to a
mulching mower by installing the mulcher plate as follows:
1. Raise the chute deflector (Figure 7).
or install the mulcher kit, discon-
nect the wire to the spark plug.
Chute
Deflector
2. Mount the tab on the top of the mulcher plate to the inside of the mower housing.
3. Mount thetab on the bottomofthe mulcher plate to the inside of the mower housing
(Figure 8).
Chute
Deflector
Tab
Mulcher Plate
Figure 7
MULCHING TIPS
Mulching finely cuts the grass so that the grass can be easily recycled. Because the nutrients are returnedto thesoil, the lawnwill need less
fertilizer. To correctly mulch the lawn, follow the tips below.
The grass must be dry. If the grass is wet,
it will be difficult to cut and cause heavy clumps of grass.
The grass must not be too tall. The maxi-
mum height to effectively cut is 4 112 in- ches. Set the heightadjusters so that only
the top third of the grass is cut.
If the grass is more than 4 1/2 inches high,
two mowingswillbe necessary. For thefirst mowing, set the height adjusters in the
highest position.Then, towerthe heightad-
justera for the second mowing.
F-98526
Mulcher Plate
Figure 8
4. Lower the chute deflector.
Keep a sharp edge on the blade. A blade that is not sharp will cause the ends ofthe
grass to become brown. Clean the undersideof the mower housing.
Grass and other debris can keep the mow- er from working correctly.
If the quality of cut is marginal, try the
following:
Set the height adjusters at a highercutting height.
Cut the grass more frequently.
Operate the mower at a slower ground speed.
Overlap the cutting swaths instead of cut-
ting a full swath with each pass.
Mow across the marginal areas a second time.
14
OPERATION
ENGINE STOP LEVER
Release theengine stop lever and the engine and the blade will automatically stop. To run
the engine, hold the engine stop lever in the Operating position (Figure 9).
Before you start the engine, operate the en- gine stop lever several times. Make sure the cable moves easily.
Position
Engine Stop
Lever
Figure 9
HOW TO STOP THE ENGINE
To stop the engine, release the engine stop lever. Disconnectthe wirefrom the spark plug to prevent the engine from starting.
If the engine will not stop, hold a screwdriver against the spark plug and against the engine cooling fins. The spark will go to ground and
the engine will stop. Before you start the en- gine, check the engine stop cable. Make sure
the engine stop cable is assembled correcfiy.
Before you operate the unit, replace a bent or
damaged engine stop cable.
HOW TO START ENGINE
WARNING: The blade will rotate
when the engine runs.
IMPORTANT: Before you start the engine,
operate the engine stop lever several
times. Make sure the engine stop cable
moves freely. NOTE: A two speed throttle control is lo-
cated on the engine. Set the throttle control in the FAST position for cutting grass, bag-
ging grass, and for extended engine life.
1. Check the oil.
2.
Fill the fuel tank with regular unleaded gasoline. Make sure the gasoline isclean.
Leaded gasoline will increase deposits
and shorten the lifeof the valves.
NOTE: Do not use gasohol or methanol. Do
not use premium unleaded gasoline.
F-98526 15
WARNING: Always use a safety
gasoline container. Do not smoke
_IL hen adding gasoline to the fuel
3.
4.
5.
NOTE: Do not use the primer button to start a warm engine.
6. Stand behind the mower(Figure 11). Use
7, Rapidly pull the recoil-start grip. Slowly
8. If the engine does not start in 5 or6 tries,
tank. When inside an enclosure, do not add gasoline. Before you
add gasoline, stop the engine and let the engine cool for several
minutes.
Make sure the spark plug wire is con- nected to the spark plug.
Move the throttle control, located on the engine, to the FAST position.
The primer button isonthe sideofthe en-
gine (Figure 10). Pushthe primer button.
Every time you push the primer button,
wait two seconds. For the numberoftimes
required to push the primer button, see
the engine manufacturer's instructions.
one handto holdthe engine stop lever in the operating position as shown, Use the
other hand to holdthe recoil-start grip.
return the recoil-start grip. See the =Problem and Repair" Instruc-
tions.
ENGINE MAINTENANCE
MAINTENANCE
Use thefollowingmaintenance sectionto keep
your unit in good operating condition. All the
maintenance information for the engine is in the "Engine InstrucUonBook". Beforeyou start the engine, read this book.
WARNING: Before you make an inspection, adjustment (except
carburetor), or repair, stop the engine and disconnect the wlre
from the spark plug.
ENGINE TIPPING
When you service the engine, inspect the
blade, or clean the underside of the mower housing; make sure to always tip the engine
with the spark plugup (see Figure 12). Trans-
porting or tipping the engine with the spark plug down will cause:
HOW TO CLEAN THE MOWER HOUSING
Hard starting. Engine smoking.
Spark plug fouling. Oil or gas saturation of the air filter.
Figure 12
HOW TO ADJUST
THE HEIGHT OF CUT
WARNING: The blade will rotate when the engine runs. Before you clean the mower housing,
stop the engine and disconnect the wire from the spark plug.
Grass and other debris can keep the mower
from working correctly. After you mow, clean the mower housing as follows.
1. Stop the engine.
2. Disconnect the wire from the spark plug.
3. Clean the top and me bottom of the mower housing.
LUBRICATION
1. For maximum performance, lubricate the wheels and all pivot pointswith engine oil
every 25 hours.
2. To lubricate the engine, refer to the =En-
gine Instruction Book".
NOTE: Do not lubricate the engine stop cable. Lubricants will damage the cable and prevent the cable from moving freely.
Replace the cable if bent or damaged.
1=-98526
WARNING: The blade will rotate when the engine runs. Before
you change the height of cut, stop the engine and disconnect the wire from the spark plug.
To change the height of cut, move the position ofthe adjuster arm at each wheel (Figure 13). Make sure each adjuster arm is in the same position so that the mower will cut level.
1. Disengage the adjuster arm.
2. Move the adjuster arm to another posi- tion.
Arm
Figure 13
16
MAINTENANCE
BLADE SERVICE
WARNING: Before you inspect the blade or the blade adapter,
,_ disconnect the wire to the spark
Frequently check the blade for wear or dam- age such as cracks. Frequently check the bolt that holds the blade. Keep the bolttight. Ifthe
blade hits an object, stop the engine. Discon- nect the wire to the spark plug. Check the
blade adapter for damage. Check for a bentor damaged blade, a badly worn blade, or other damage. Before you operate the unit, dam-
aged parts must be replaced with factory re-
placement parts. For safety, replace the blade
every two years. Keep a sharp edge on the
blade. A blade that is notsharp wilt cause the
ends of the grass to become brown. Remove the blade as follows.
HOW TO REMOVE THE BLADE
1. Drain the fuel tank.
2. Lift the side of the mower that has the
3. Use a piece of wood to keep the blade
4. Remove the bolt that holds the blade.
plug. ff the blade hits an object, stop the engine. Disconnect the
wire to the spark plug. Check the unit for damage.
WARNING: Before you remove
the spark plug. The blade has the blade, disconnect the wire to
sharp edges. When you hold the blade, use gloves or cloth materi- al to protect your hands.
muffler or spark plug.
from rotating.
5. Check the blade according to the "Blade Service" instructions. Replace a badly
worn or damaged blade with a factory re-
placement blade.
6. Mount the blade with the curved edges to-
ward the housing. If the blade is upside
down, the blade will not cut correctly and can cause an accident.
7. Fasten the blade with the original wash-
ers and bolt. Make sure the outside rims of the Belleville washers are toward the
blade (Figure 14).
8. Tighten the bolt that holdsthe blade to a
torque of 30 foot pounds.
WARNING: Always keep the bolt
that holds the blade tight. A loose
bolt or blade can cause an acci- dent.
HOW TO SHARPEN THE BLADE
WARNING: Vibration is the result
if the blade is not correctly bal- anced. A blade that is damaged
with cracks can break and cause
an accidenL
1. Sharpen the blade two timesa year or ev- ery 25 hours.
2. If the blade is on the unit, do not sharpen. Remove the blade according to the in-
structions in"How To Remove The Blade".
3. Clean the blade with a brush, soap, and water. Check the blade. Look for cracks,
nicks, or other damage. Replace a blade that is badly worn, bent, ordamaged with
a factory replacement blade.
4. Sharpen the blade with a file. Make sure you keep the originalbeveled cuttingedge (Figure 15).
Continued following page)
J
Blade Adapter
Blade Adapter
F-98526
Blade
Belleville
Washer
Mulching
Blade
Belleville Washer
Flat Washer
Bolt Figure 14
17
Blade
Screwdriver
Blade is balanced
when parallel to
the ground.
I I
I Ground I Figure 15
File
MAINTENANCE
5. Make sure the blade is balanced. Use a screwdriver and holdthe bladeparallel to
the ground as shown. A blade that is bal-
anced will stay parallelto the ground. Ifthe blade is not balanced, the heavy end will rotate toward the ground. Sharpen the heavy end untilthe blade is balanced.
6. A new blade will cut better than a badly worn blade. Every two years replace the
old blade with a factory replacement blade.
CHECK THE LEVEL OF CUT
Test the unit in a small area. Ifthe heightof cut
is not levelor ifthe cutgrass isnot discharged,
the cause can be:(1) the bladeis bentor darn-
aged, (2) the blade is not sharp, (3) a worn blade, (4) or a broken blade adapter. Before
you use the unit, correct the problem.
Push in on
lower handle.
Figure 16
FOLDING HANDLE STORAGE
CAUTION: Be careful when you fold or
raise the handle. Do not damage the cables. A cable that is bent will not work
correctly. Before you use the unit, replace a bent or damaged cable.
How To Fold The Handle
1. Loosen the knobsthat hold the upper part
of the handle to the lower part of the han- dle. As you fold the handle, make sure the
cables are not around the loosefasteners and do not become damaged. Rotate the
upper partof the handle toward the back of the unit (Figure 16).
2. Loosen the knobs on the lower handle (Figure 17). Push in on the ends of the
lower handle. Move the ends of the lower handle past the locking tabs.
3. Rotate the handle forward over the en- gine. Make sure the cables are not dam-
aged.
HOW TO PREPARE THE MOWER FOR STORAGE
WARNING: Do not remove gaso-
,_ line while inside a building, near
1. Drain the fuel tank.
2. Let the engine run untititisout of gasoline.
3. Drain theoilfrom the warm engine. Fillthe
F-98526
a fire, or while you smoke. Gasoline fumes can cause an
explosion or a fire.
engine crankcase with new oil.
Lower Handle
Locking
Tabs
Knob.
Figure 17
How To Raise The Handle
1. Pull the handle back until the ends of the lower handle lock into position.
2. Lift the upper partofthe handle intothe op-
erator's position. Tighten the fasteners that hold the handle.
4. Remove the spark plug from the cylinder.
Pour one ounce of oil into the cylinder.
Slowly pull the recoil-start grip so that the
oil will protect the cylinder. Install a new
spark plug in the cylinder.
5. Clean the dirt and debris from the cylinder cooling fins and the engine housing.
6. Clean the bottom of the mower housing.
7. Completely clean the mower to protect the paint.
8. Put the unit in a building that has good ven-
18
tilation.
TROUBLE SHOOTING CHART
The Engine will not start.
1. Move the throttle control lever to the FAST or START position.
2. Make sure the fuel tank istilled with clean gasoline. Do not use old gasoline.
3. On a cold engine, push the primer button(optional on some models) five times.
4. Make sure the wire for the spark plug is connected to the spark plug.
5. Adjust the Carburetor. See the =Engine Instruction Book'.
6. There is too much gasoline in the engine cylinder. Remove and dry the spark plug. Put the
throttle control in the SLOW position. Pull the recoil-start grip several times. Installthe spark
plug. Connect the wire to the spark plug. Start the engine.
7. The engine is difticultto start in heavy or high grass. Move the mower to a clean drysurface.
8. Make sure the engine stop lever is in the operating position.
9. Make sure the fuel valve is in the ON position. See the =Engine Instruction Book'.
10. On electdc start models, make sure the wiring harness is connected. Charge the battery.
The Engine will not stop.
1. Release the engine stop lever.
2. Check the engine stop cable. Replace the cable if bent or damaged. The Engine performance is bad.
1. Check the height of cut settings. Raise the height of cut ifthe grass is high.
2. Check the bottom of the blade housing. Clean the blade housing of grass and other debris.
3. Check the wire to the spark plug. Make sure the wire is connected.
4. Clean the engine cooling fins of grass and other debris.
5. Check the carburetor adjustments. See the =Engine Instruction Book'.
6. Check the spark plug gap. Set the spark plug gap at 0.030".
7. Check the amount ofoil in the engine. Fill with oil if necessary.
8. Check the engine air cleaner. See the =Engine Instruction Book".
9. The gasoline is bad, Drain and clean the fuel tank. Fill the fuel tank with clean gasoline.
10. Check the throttle control. Make sure the lever is not in the CHOKE position.
Excessive Vibration.
1. Remove the blade. Check the blade and balance if necessary. See the blade maintenance
instructions.
2. Check for a bent or broken blade. A DAMAGED BLADE IS DANGEROUS AND MUST BE REPLACED.
3. Check the blade adapter. REPLACE A BROKEN BLADE ADAPTER.
4. Ifthe vibration continues, take the mower to an Authorized Service Center.
The grass will not discharge correctly.
1. Clean the bottom of the mower housing.
2. Check for a badly worn blade. Remove and sharpen the blade. For safety, replace the blade
every two years witha factory replacement blade.
3. Move the throttlecontrol lever to the FAST position. Check the speed of the engine according
to the =Engine InstructionBook".
The grass is not cut even.
1. Check the height adjustmentat each wheel. The height adjustment mustbe the same for each
wheel.
2. Make sure the blade is sharp.
3. Check for a bent or broken blade. A DAMAGED BLADE IS DANGEROUS AND MUST BE REPLACED.
4. Check for a broken blade adapter. REPLACE A BROKEN BLADE ADAPTER.
1=-98526 19
MODEL 22506x9A
REPAIR PARTS
32
21
Lrj I
18
/
19
27
5
7
2
!
/
/
/
/
25
26 _
15
F-98526 20
11 5
MODEL 22506x9A REPAIR PARTS
KEY
NO. DESCRIPTION PART NO.
1 Engine _: 2 Housing 776022
3 Height Adjuster, Left Rear 672645A 4 Knob 71495
5 Wheel and Tire # 6 Locknut, Flange 15x84
7 Bolt, Carriage 2x81 9 Bolt, Engine 25x6
10 Nut 15x68 11 Height Adjuster, Left Front 672639A
12 Washer, Belleville 17xl 37 13 Washer 17x124
14 Bolt, Hex lx142 15 Blade 71849E701
16 Adapter, Blade 71056 17 Height Adjuster, Right Front 672638A
18 Height Adjuster, Right Rear 672644A 19 Guard, Rear 672500
20 Screw 26x245 21 Deflector, Chute 672421 22 Push-On Cap 28x42
23 Pin, Pivot 215xll Z 24 Spring 166x5
25 Baffle 672332E701 26 Plate, Mulcher 672422 Z 27 Bracket, Left Handle 672349E701
29 Bracket, Right Handle 672348E701 30 Brace 672504E701 31 Screw 26x263
32 Washer 17x67 Z 33 Knob, Axle 672449
- Book, Instruction F-98526
:[: Parts are available from an Authorized Engine Service Center. See "Engines,
Gasoline" or "Gasoline Engines" in the yellow pages of the telephone directory.
# See the "Wheel And Tire Parts List" page.
F-98526 21
MODEL 22506x9A
REPAIR PARTS
13
14
8
12
7
15
15
2
KEY KEY
NO. DESCRIPTION PARTNO, NO. DESCRIPTION
1 Handle,Upper (Black) 672666E701 8 EngineStop Cable
2 Handle, Lower (Black) 71137E701 12 Guide, Rope
3 Bolt 2x77 13 EngineStop Lever
4 Knob,Plastic 71294 14 Bracket,StopLever
7 Locknut 15x116 15 Fastener,Cable
F-98526 22
PARTNO. 672558
71530
43653E700
43628 BC
71372
MODEL 22506x9A REPAIR PARTS
Look at the illustrations. Select the wheel and the tire you want and order
from the following chart.
B
WHEELSIZE& TYPE
6-inchPlastic,White
7-inchPlastic,White 7-inchPlastic,UghtGray
7-inchPlastic,DarkGray 8-inchPlastic,White
8-inchPlastic,UghtGray
8-inchPlastic,DarkGray 8-inchMetal,White
8-inchBallBeadng,White 8-inchBallBeadng,UghtGray 8-inchBallBearing,DarkGray
14-inch,White 14-inch,LightGray 14-inch,DarkGray
14-inch,BallBearing,White 14-in,BallBearing,UghtGray
14-in, BallBearing,DarkGray
F-98526
m
F
m
A
.... 71148 20270 42172
.... 71596 672086 ....................
.... 71596 672085 ....................
20104 .... 20271 42173 20105 43618
20104 .... 672080 672081 .... 672082
71598 .... 672060 71599 71600 71132
43273 .... 43414 .... 43274
.................... 672087
.... 71134
........................ 672073 672063
........................ 672075 672077
........................ 672074 71841
........................ 71902 672064
........................ 672076 672978
........................ 71841 71840
B
C D E F G H
42174 ....................
43724
23
NOTES
F-98526 24
NOTES
F-98526 25
NOTES
F-98526 26
neverupordownslopes.
I
J mowerup or down slopes, never
across the face of slopes.
On s riding mower to determine if a slope is safe to mow: (1) disengage the blade(s), (2) put the unit in reverse, and (3) try to back straight up the slope. If you can back up the slope, It is generally safe to mow. However, If you do not feel safe, or if you are not completely sure, use this guide anddo not mow slope that Is greeter than 15 degrees. If the riding mower is used with a pull-behind or rear mounted attachment,
do not operate the unit on a slope that Is greater than 10 degrees. A 15 degree slope Is hill that increases in height at approximately 2.5 feet In 10 feet.
A 10 degree slope Is a hill that increases In height at approximately 1.7 feet In 10 feet.
r..
A se extreme care at all times, and avoid sudden turns or maneuvers. Follow other Instructions in this manual for safety In mowing on
slopes. Operate a riding mower up or down slopes, never across the face of slopes. Operate a walk-behind mower across the face of slopes, never up or down slopes. Use extra care when operstlng on or near slopes and obstructions.
............................... gutAE'Rg:I"O'U§E'S_gP__U_D'E.................................
(0
cO o3
HOW TO ORDER REPAIR PARTS
Onlyuseafactoryrepairpad.Repairparts,exceptfortheengineorthetransmission,areavailableffemthestorewhere
theunitwaspuronased,.aserviceshoprecommendedbythestore,oranauthorizedsen_ceshopfoundintheyellow
Eagas.ofthetelephoneairectory,ffyoucannotgetarepairpadorserviceasdescribedabovecallorwritetotheCenbal tarts uistributorshownbelow.Whenyouorder,includethefollowinginformation:(1)CompleteModelNumber(see nameplate),(2)DateofManufacture,(3)CompletePartNumber,(4) Descdptlen,(5) Quantk'y.
Repairpartsfortheengineorthetransmissionareavailablefl'omthemanufacturer'sauthodzedservicecenterfound intheyellewpagesofthetelephonedkectory.Seethe individualengineortransmissionwarranties.
MURRAY,INC.LAWNMOWERCENTRALPARTSDISTRIBUTORS
REBCO,INC. GULFCOASTENGINE,INC.
22212rid.Ave.
SouthBirmingham,AL. 35233
210aSh)251..46001-800-828-6094
ams,Rorlda, Georgia,
PuertoRico
BILLIOU'S,INC.
1343SouthMainSt. Poztervitle,CA. 93257
_AX59)784-41021-877-245-5468
1-800-266-7337
Arizona,California,Hawaii, Nevada
BROWN&WISER,INC. 9991S.W.AveryStreet
P.O.Box1109
Tuaietin,OR. 97062
(503)692-03301-800-882-4782
Alaska,Idaho(countiesAda, Adams,Benewah,Boise,Banner,
Boundry,Canyon,Clearwater, Elmere,Gem,Idaho,Kooten, Latah,Lewis,NEZPeroe,Owyee, Payette,Ravalli,Shoshone,Valley,
Washington),Montana(counties
Flathead,Lake,Lincoln,Mineral, Missouio,Ravaili,Sanders),
Oregon,WashingtOn
CPTCANADAPOWER
TECHNOLOGYLIMITED
161WatlineAvenue Mississauga,Ontario
L4Z-1P2 (935)890-69001-800-861-9559
13315-146Street Edmonton,AJbeda
T5L4S8 (403)453-57911-800~661-9559
234 MigneronSkeet VillaSt-Laurent,Quebec
H4T 1Y7 (514)731-3559 1-800-661-9559
Canada CHILTONAIRCOOLEDENGINE
3194th.Ave.South P.O.Box150806
Nashv)ile,TN. 372t5 (615)254-16371-800-621-6934 www,chilluncompanlas.com
F-98526
Arkansas(countiesClay,
Craighead,Crittendan,Cross, Greene,Jackson,Lawrence,Lee, Miss}ssippi,MonroePMlips, Poinsett,Randolph,St. Francis,
Woodruff),Mississippi(counties
Desota,Panola,Quitman,late,
Tun_a),_so_r! _countias
Dunkin,NewMadrid,Pemiscot), Tennessee,Wrglnla(counties Bland,Buchanan,9lckenann,Lee,
Russell,Scott,Smyth,TazeweJI, Washington,Wise)
ENGINESSOUTHWEST 1255NorthHearne
Shreveport,LA. 71107 POBox67
Shreveport,LA.71161
(318)222-38711-800-388-6995
www.engioessw.coro Arkansas(exceptthesecounties:
Clay,Cmigheed,Crittendan,Cross, Greene,Nempstead,Howard,
Jackson,Lafayette,Lawrence,Lee,
LittleRiver,Miller,Mississippi,
Monroe,Nevada,Phillips,Pike
Poinsett,Randoph,Sayer,SL Francis,Woodruff)Louisiana,
Mississippi(exceptthese
counties:Desota,Panoia,Quitroan
"rate,Tunica,)
FRANKEDWARDSCO.
3626ParkwayBlvd. WestValleyC_, UT 84120 (801)736-8060 1~800-318-0201
FAX 1-800-570-0491 Colorado,Idaho (counties
BannockBeadake,Bingham, Blaine,Booneville,Butte,Comas,
Caribou,Cassia,Custer,Frank_, Fremont,Goading,Jefferson, Jerome,Lemhi,Litlcoln,Madison,
Minidoka,Oneida,Power,Talon,
TwinFalLs)Montana(allc_Jntles exceptBrownandWiser),Utah,
Wyoming
GARDNER,INC. 1150ChesapeakeAve.
Columbus,OH. 43212 t6ndlan14}488-79511-808-848-6946
a, Kontuck_,Michigan
(exceptupperPenlasula),Ohio, WesternPennsylvaniawithz_
codesuptoandincluding16999,
WestVirginia
4202 RussellDr.
P.O.Box9724 CorpusChristi,"IX.78406
(512)088-69991-8oo-a25-6999
Arkansas(countiesHempsteed,
Howard,Lafayette,LittleRiver,
MJ_er,Nevada,Pike,Sevler)Hew
Mexico,Oklahoma,Texas, Mexico
OSCARW1LSON
ENGINE& PARTS 826 LoneStarDr.
O'Failon,MO. 63366
Iiiin314)978-13131-800-673-6722
o/s (S.ofHwy.eo),fawa,
Kansas,Missouri(allcounties
exceptDunkin,NewMadrid,
Peroiscot)Nebraska
R.B.I.CORPORATION
P.O.Box9316 Richmond,VA. 23227
_804)550-22101-808-888-7149
1-800-947-1935
Connectlcu_Delaware,District of Columbia,Maine,Maryland, Massachusetts,NewHampshire, NewJersey,,NewYork,N.&S. Carolina,Pennsylvaniazips 17000&up,RhodeIsland,
Vormon_Virginia(aftcounties
except9land,Buchanan, Dickenson,Lee,Russell,Scott,
Smyth,Tazewell,Washington,
Wise)
WISCONSINMAGNETO 4727N.TeutoniaAve.
Milwaukee,WL 53209
Iiiin414)445-28001-808-733~7308
ofa IN. ofHwy.80),Michigan
(upperPaninsuie),Wisconsin 800McKinleySt.
Anoka,MN. 55303
(612)323-7477t-800-248~4016
Mlnneeots,North& South
Dakota
Loading...
