Multi-Tech Systems, Inc. RF820/RF830/RF825 Port Forwarding Setup – A Reference Guide 2

Port Forwarding

Port Forwarding

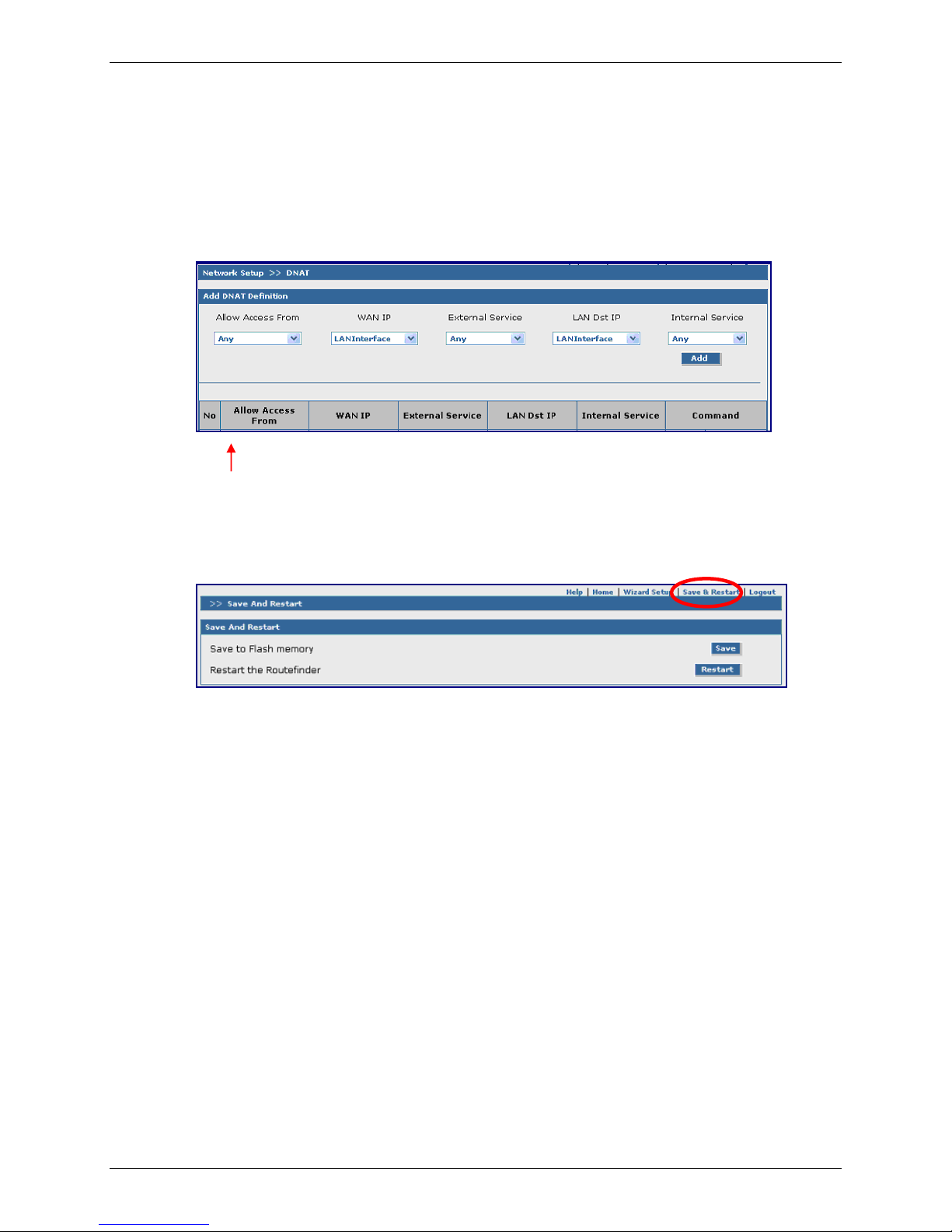

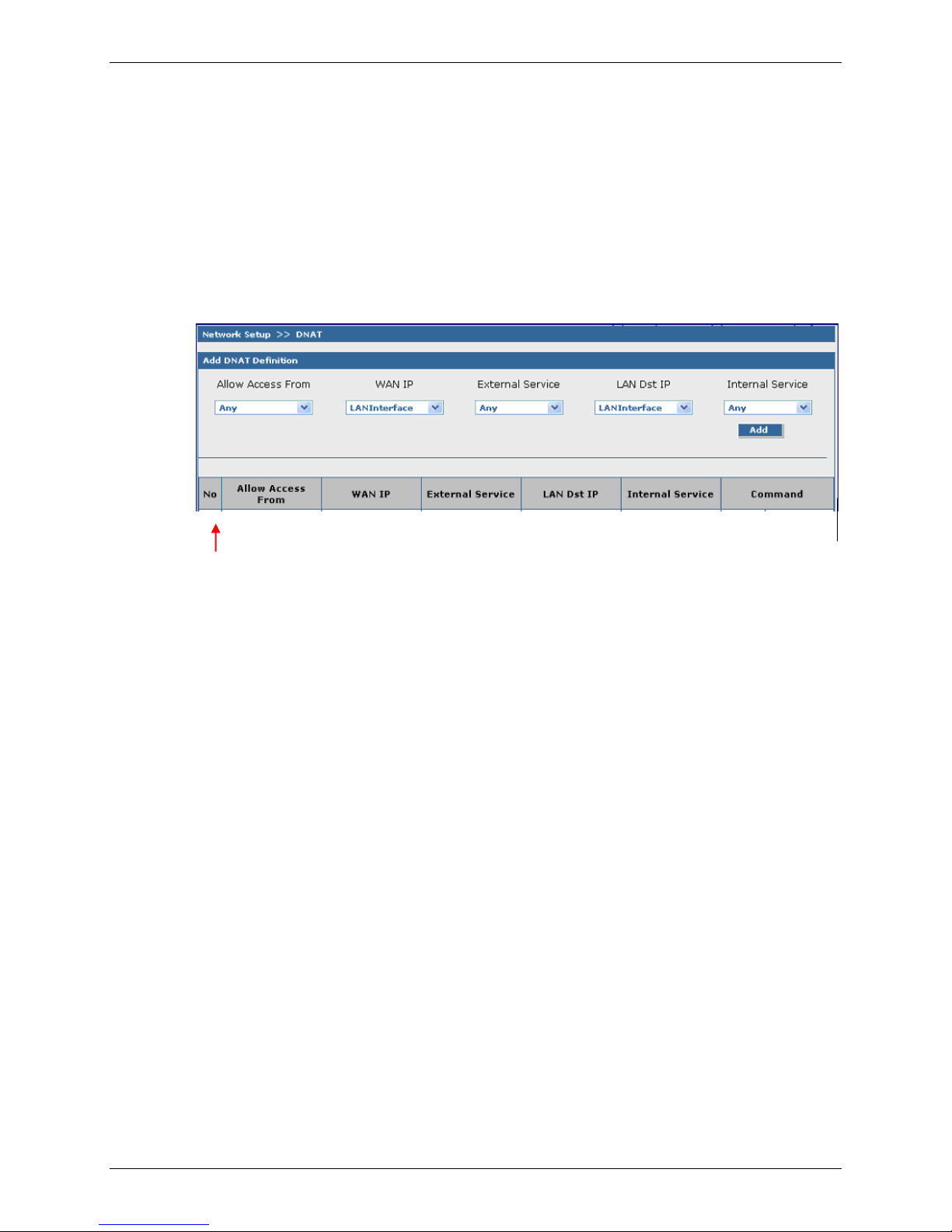

Create DNAT Rules Using the WANInterface
IP Address

Create an Internal Server Name

1. Go to the Networks & Services > Network Configuration screen.

2. Enter the Name of the network that you want to create.

Example: private1.

3. Enter the IP Address of this new network.

Example: 192.168.2.20

4. Enter the Subnet Mask for this network. The same address/mask pair should not be present

in the current list displayed on the screen.
Example: 255.255.255.255

5. Click the Add button to add the new network.

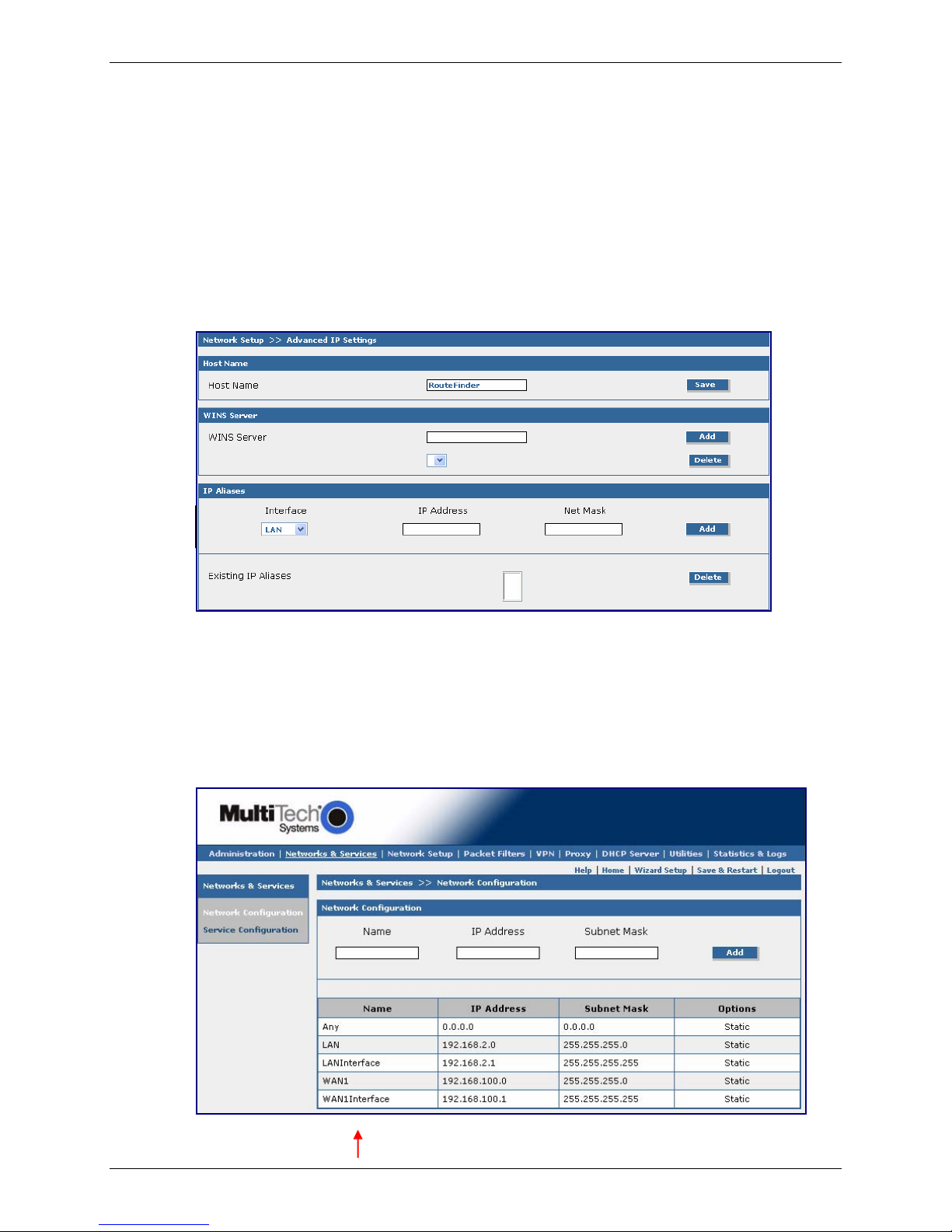

Note: Pictured below is an RF820 screen with the single WAN ports. The RF830 screen i s the
same except for the addition of WAN2 and WAN2Interface.

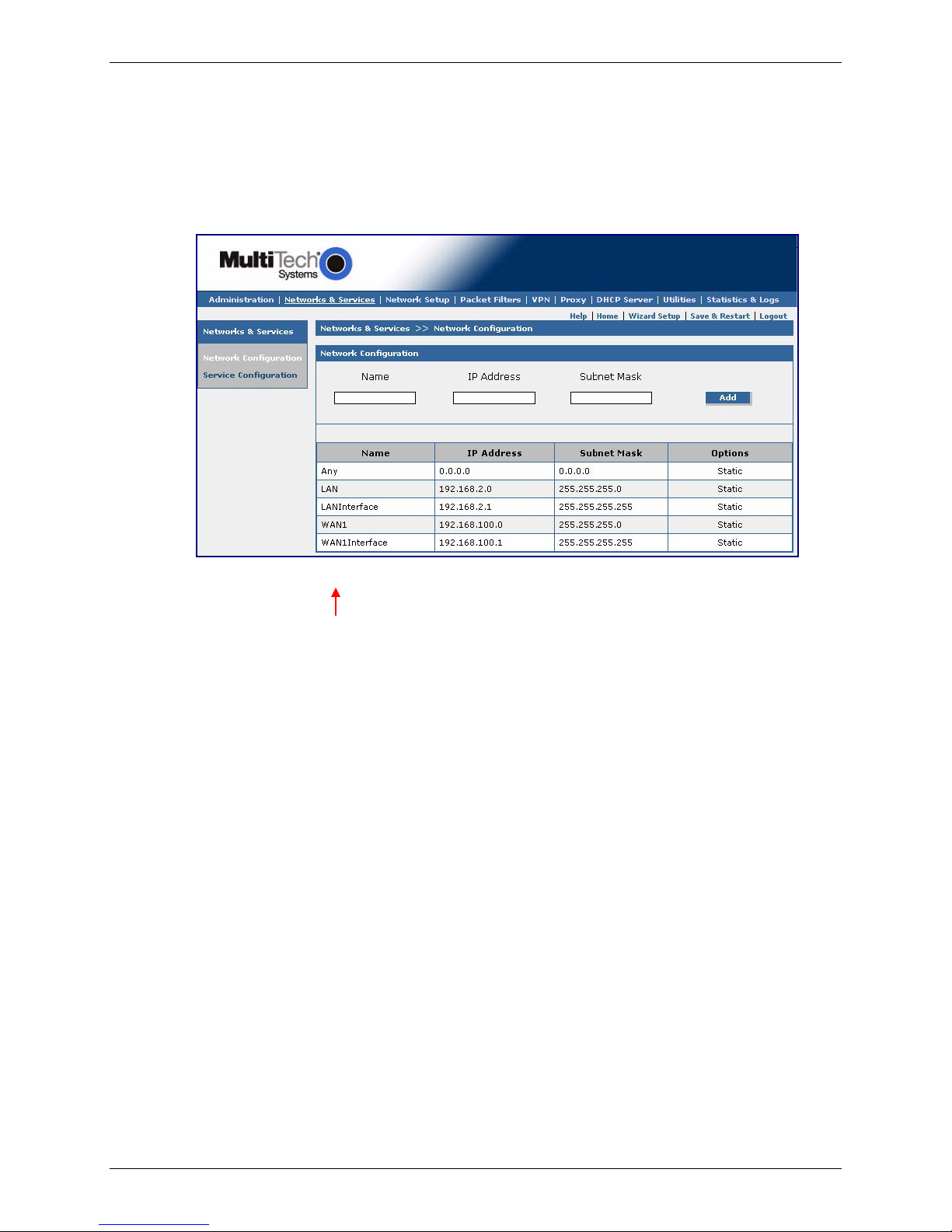

private1 192.168.2.20 255.255.255.255

The new network name displays at the bottom of the screen.

Multi-Tech Systems, Inc. RF820/RF830/RF825 Port Forwarding Setup – A Reference Guide 3

Port Forwarding

Create a Service Port

1. Go to the Networks & Services > Service Configuration screen to creating your own port.

2. Enter a Service Name, select a Protocol, enter a range of ports for the SNAT Client, and

enter a port number for DNAT server.

Example:
Service Name: RDP
Protocol: TCP+UDP
S-Port/Client: 1:65535
D-Port/Server: 3389

3. Click the Add button.

The new port displays at the bottom of the screen:

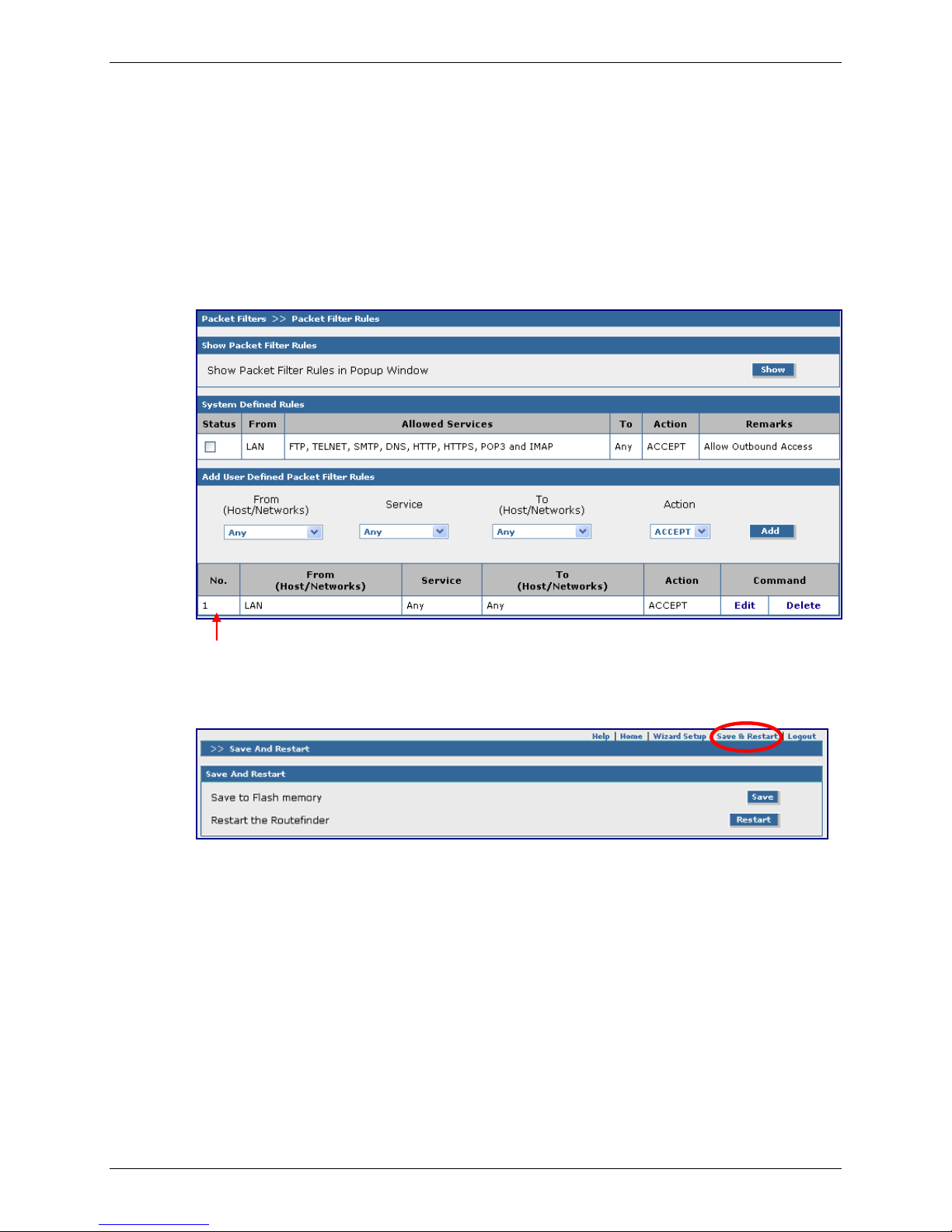

Multi-Tech Systems, Inc. RF820/RF830/RF825 Port Forwarding Setup – A Reference Guide 4
