Multiquip QP-2TZ User Manual

OPERATION AND PARTS MANUAL

MODEL QP-2TZ

TRASH PUMP

(Diesel Engine)

Revision #0 (03/25/05)

THIS MANUAL MUST ACCOMPANY

THE EQUIPMENT AT ALL TIMES.

PAGE 2 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

HERE'S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER

MULTIQUIP CORPORATE OFFICE

18910 Wilmington Ave. 800-421-1244 Carson, CA 90746 Email: mq@multiquip.com Internet: www.multiquip.com

PARTS DEPARTMENT

800-427-1244 310-537-3700

MAYCO PARTS

800-306-2926 310-537-3700

SERVICE DEPARTMENT

800-421-1244 310-537-3700

TECHNICAL ASSISTANCE

800-478-1244

WARRANTY DEPARTMENT

800-421-1244, 310-537-3700,

ON-HAND

EXT.

279

EXT.

279

WHEN CALLING

FAX:

310-537-3927

FAX:

800-672-7877

FAX:

310-637-3284

FAX:

800-672-7877

FAX:

310-637-3284

FAX:

310-537-4259

FAX:

310-631-5032

FAX:

310-537-1173

permission. All other trademarks are the property of their respective owners and used with permission. This manual

remain with the unit if resold. The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations are

based on the for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published in this publication at any time without notice and without incurring any obligations.

MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should

MQ Model QP-2TZ Trash Pump.

Illustrations, descriptions, references and technical data contained in this manual are

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 3

QP-2TZ — TABLE OF CONTENTS

MQ QP-2TZ Trash Pump

Here’s How To Get Help ............................................ 3

Table of Contents ...................................................... 4

Parts Ordering Procedures ....................................... 5

Safety Message Alert Symbols .............................. 6-7

Rules For Safe Operation ...................................... 8-9

Pump Specifications/Dimensions .............................10

Engine Specifications ...............................................11

General Information .................................................12

Pump Components .................................................. 13

Refueling .................................................................. 14

Basic Engine ............................................................15

Pre-Inspection (Engine) ...........................................16

Pre-Setup (Pump) .................................................... 17

Initial Start-up (Engine) ............................................ 18

Maintenance (Pump) ......................................... 19-20

Maintenance (Engine)........................................ 21-22

Preparation for Long-Term Storage .........................23

Troubleshooting (Engine) .........................................24

Troubleshooting (Pump)........................................... 25

Explanation Of Code In Remarks Column ...............26

Suggested Spare Parts ............................................27

Pump Assy. ........................................................ 28-31

Hatz 1B20 Diesel Engine

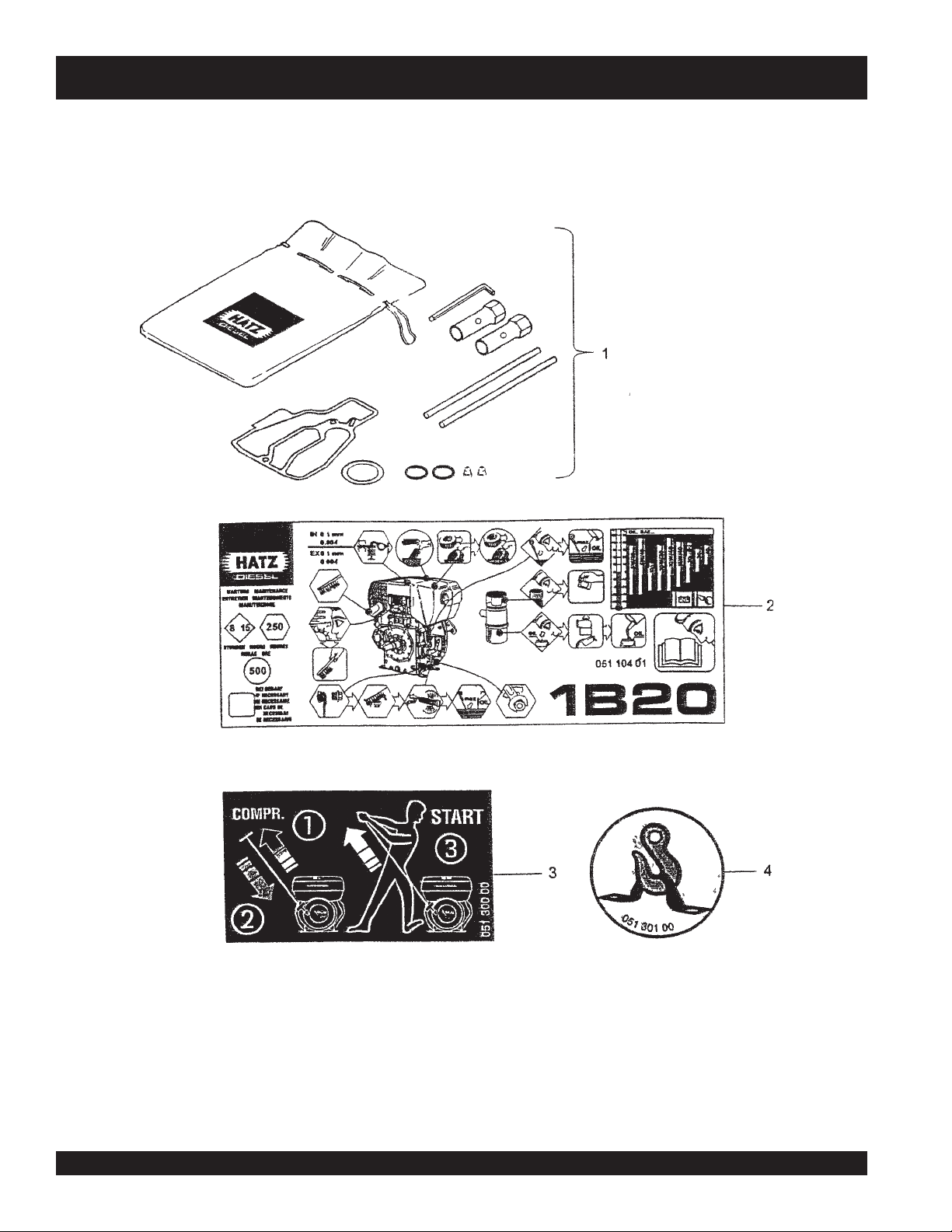

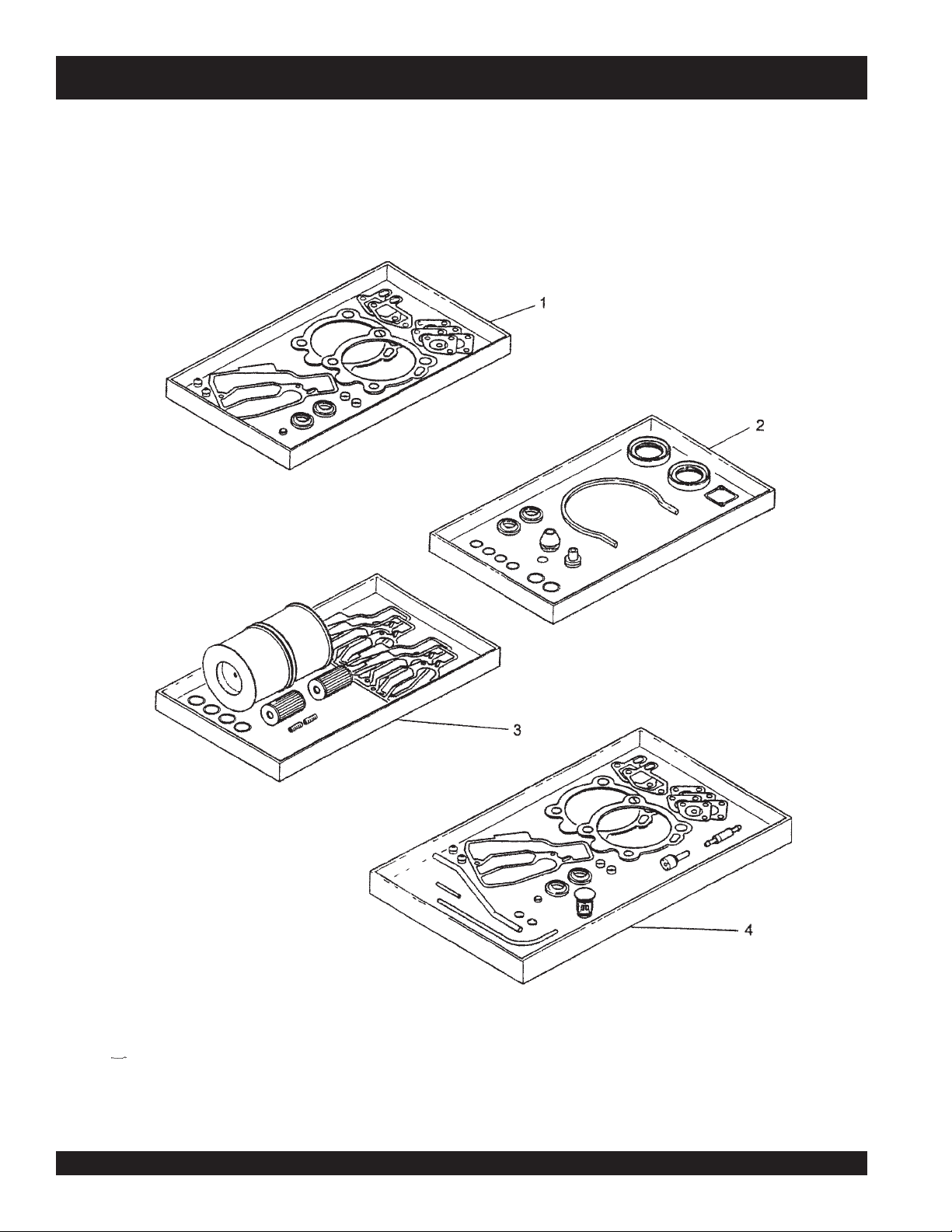

Spare Parts Kit Assembly ................................. 32-33

Accessories Assembly...................................... 34-35

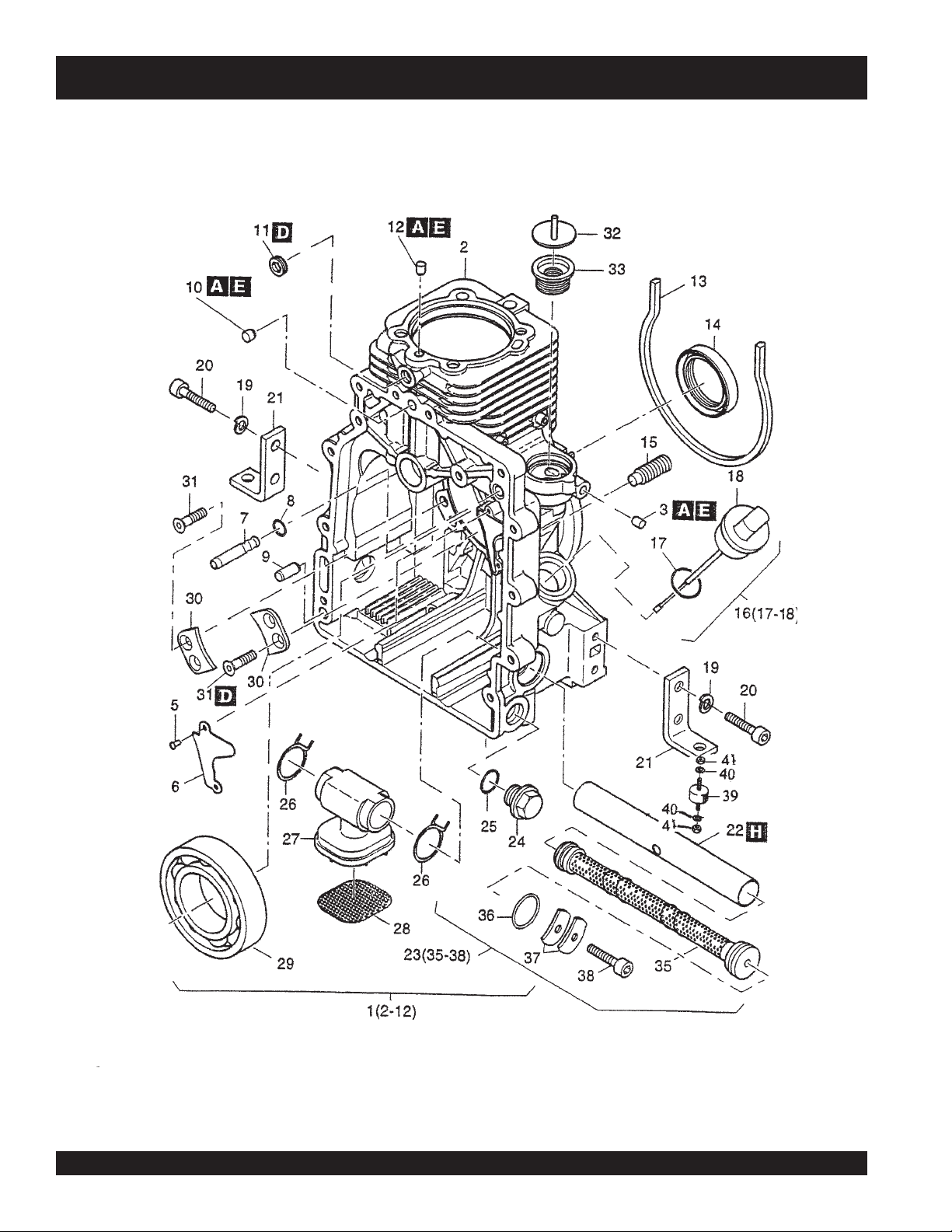

Crankcase and Engine Mount Assembly ......... 36-37

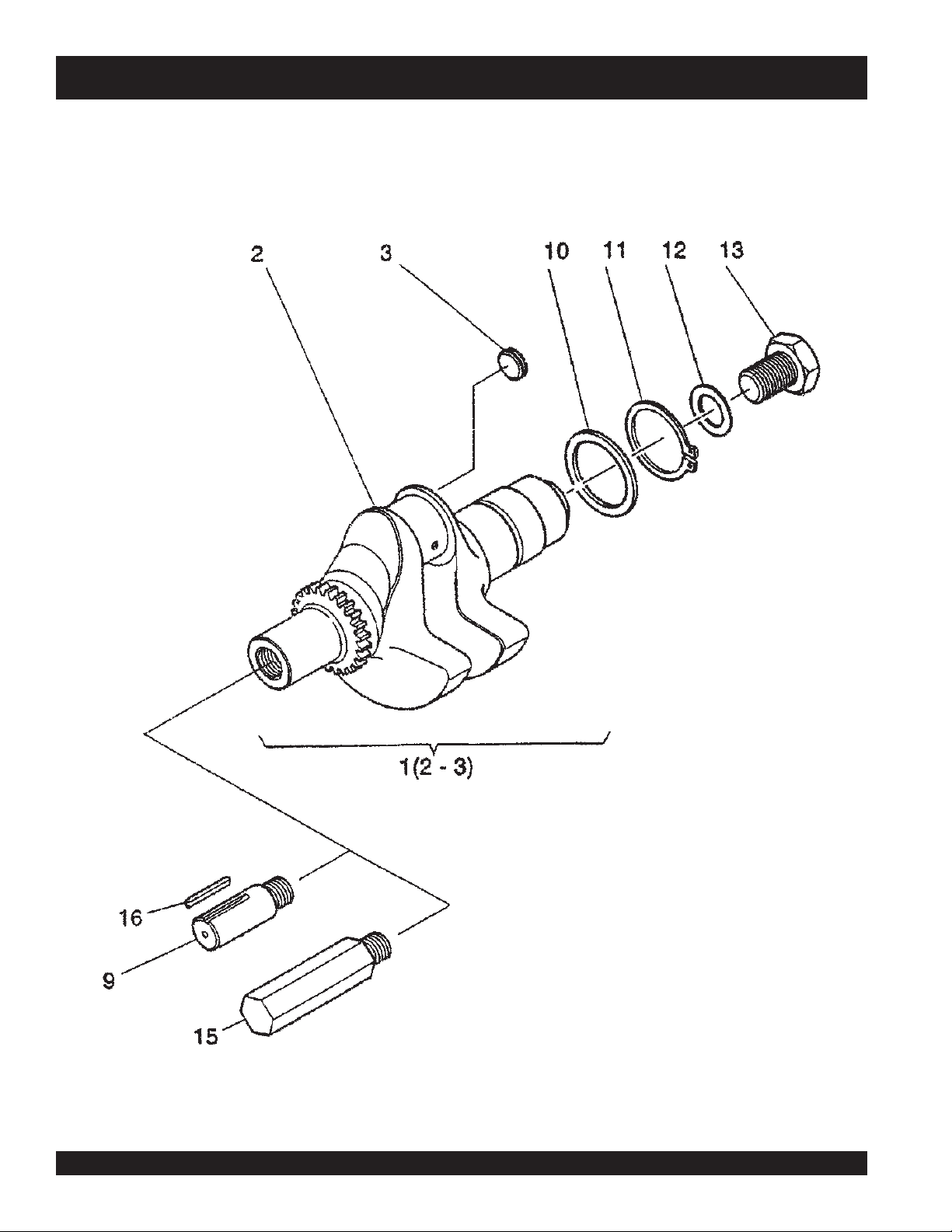

Crankshaft Assembly ....................................... 38-39

Camshaft Assembly ......................................... 40-41

Piston Assembly ............................................... 42-43

Cylinder Head Assembly .................................. 44-45

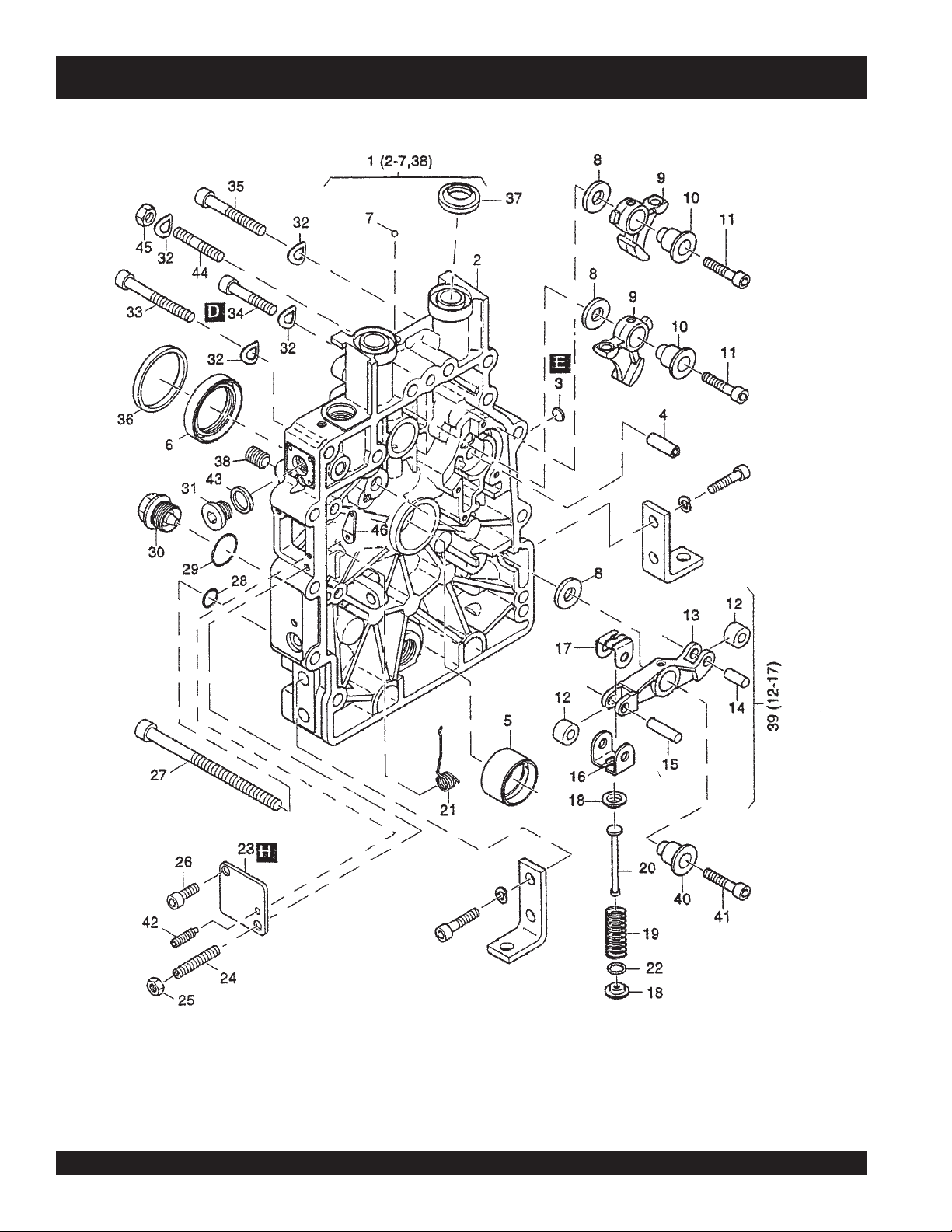

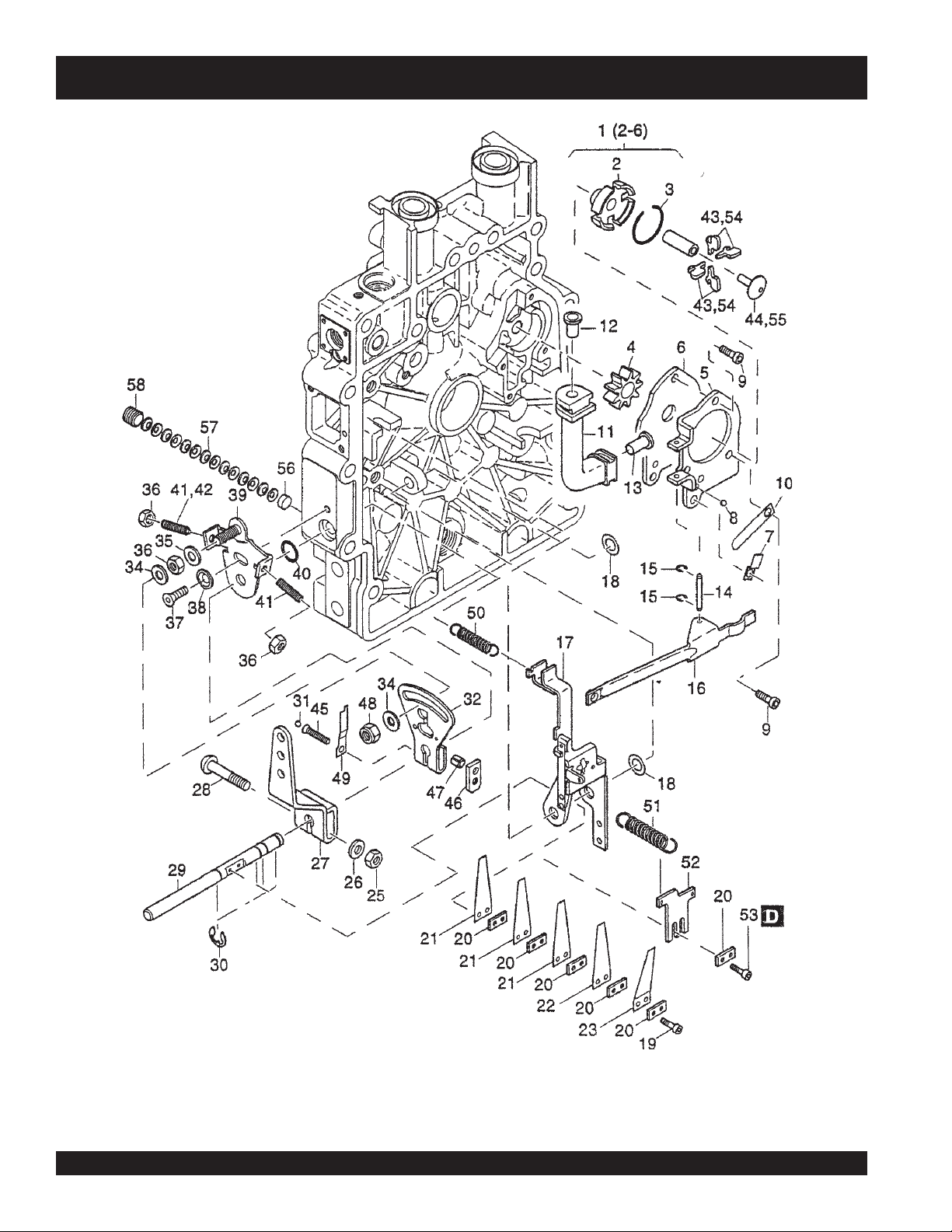

Oil Pump/Governor Assembly .......................... 46-49

Timing Cover Assembly ................................... 50-51

Flywheel Assembly ........................................... 52-53

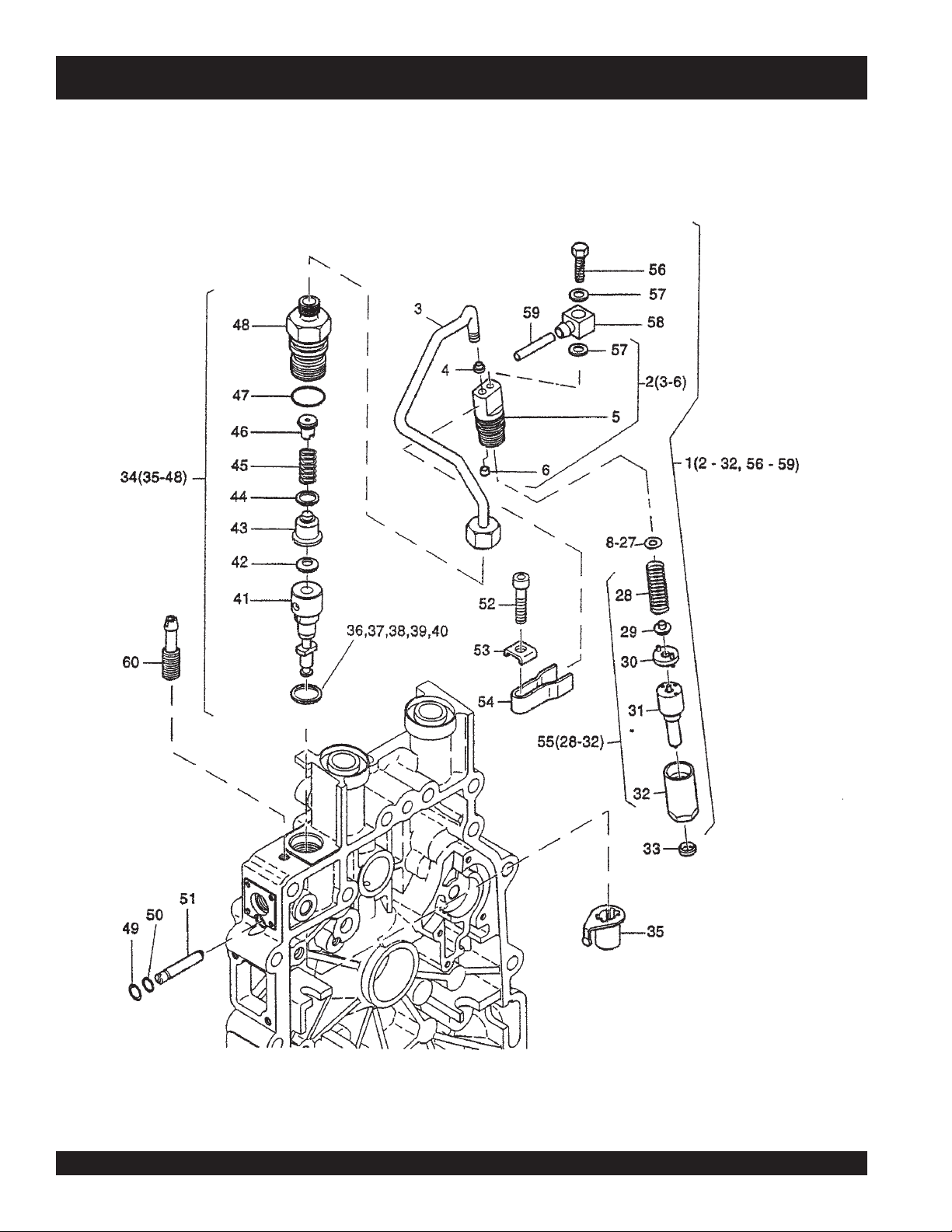

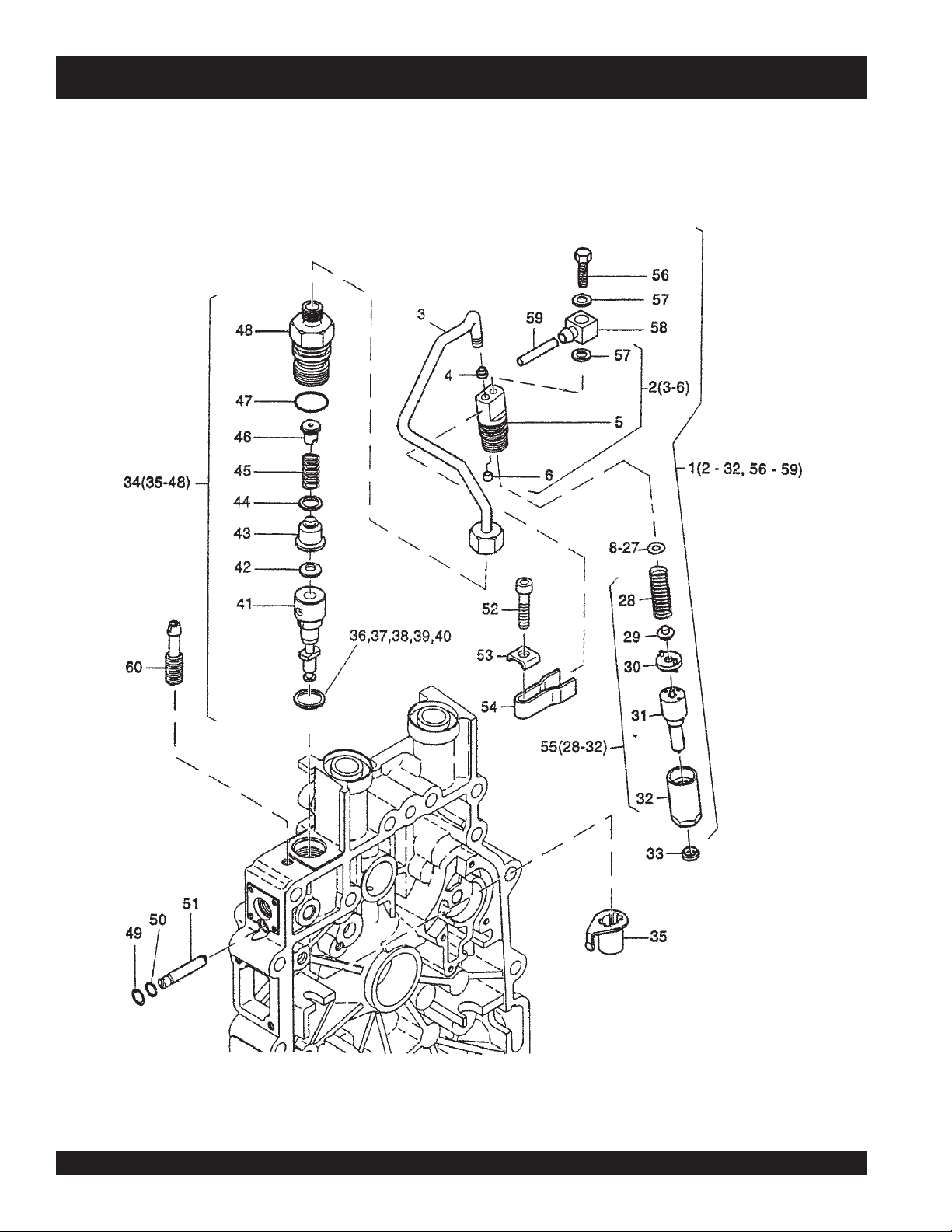

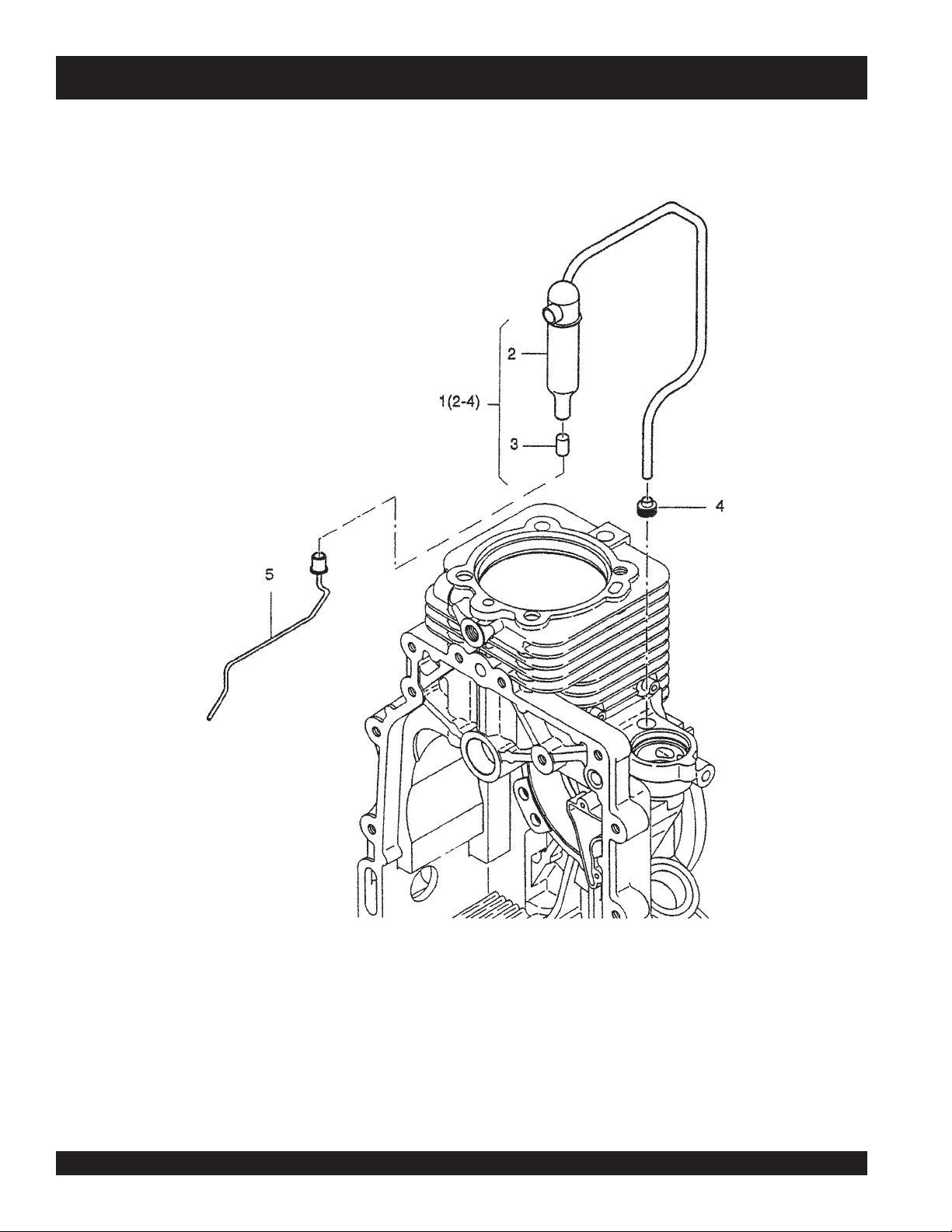

Fuel Injection Assembly ................................... 54-57

Recoil Starter Assembly ................................... 58-59

Air Duct Assembly ............................................ 60-63

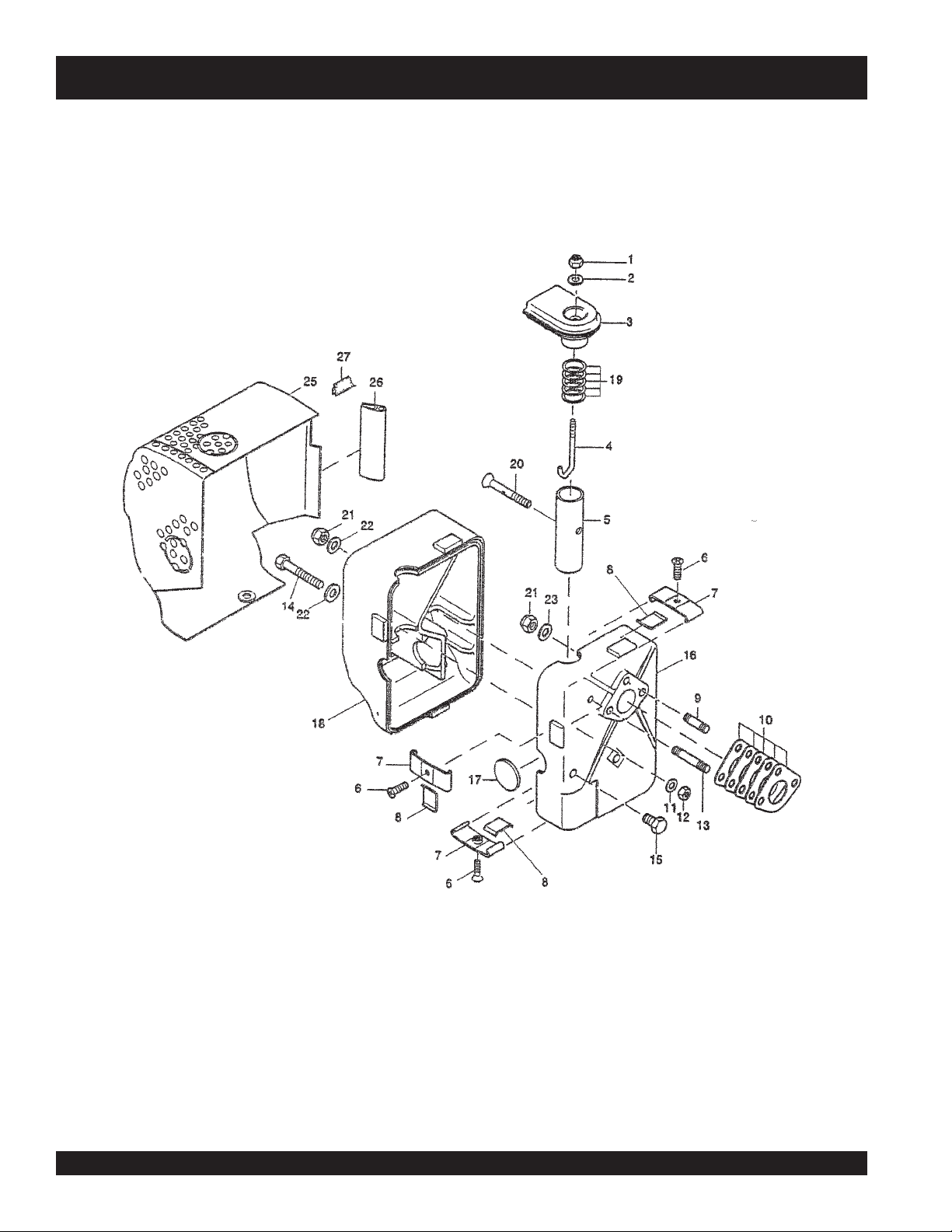

Crankcase Breather Assembly......................... 64-65

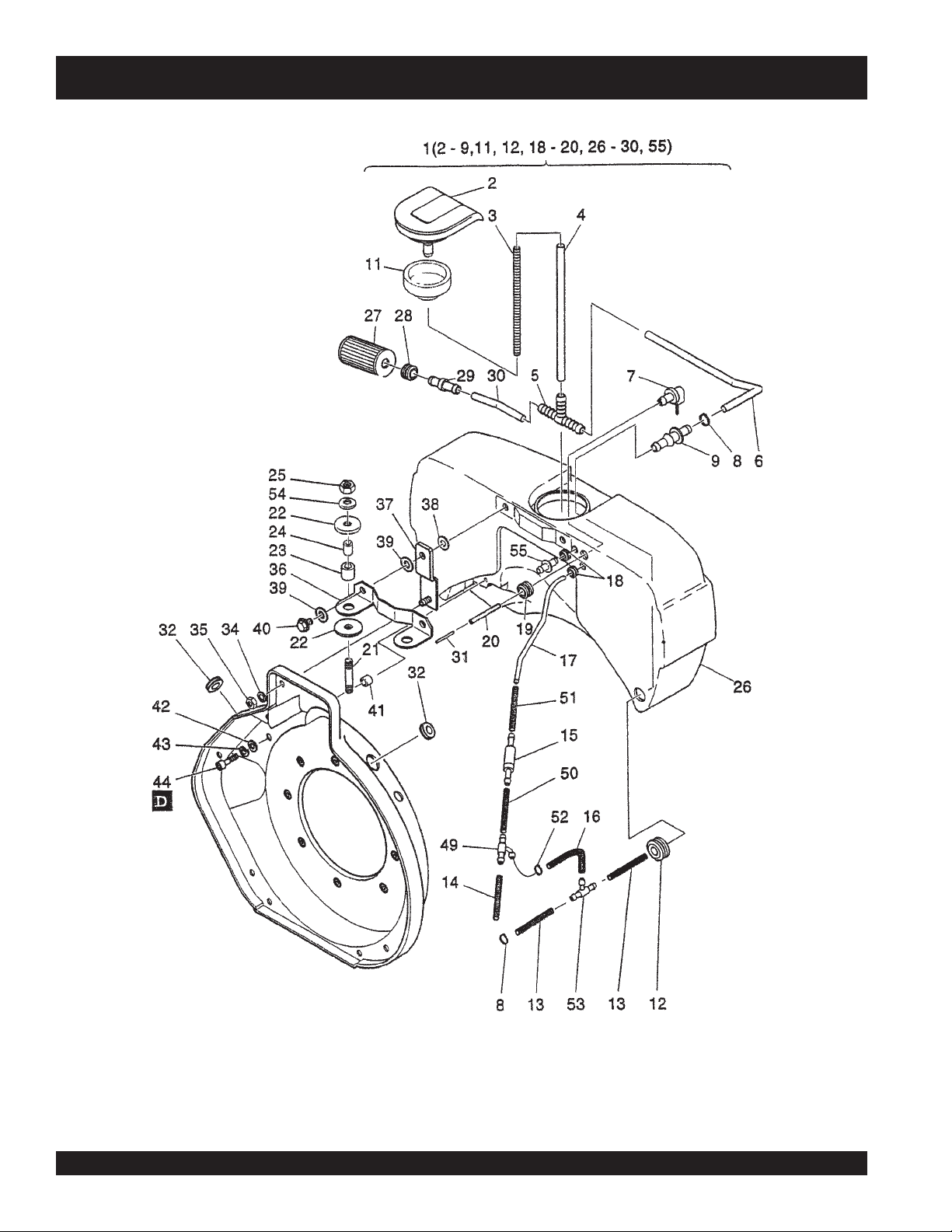

Fuel Tank Assembly ......................................... 66-67

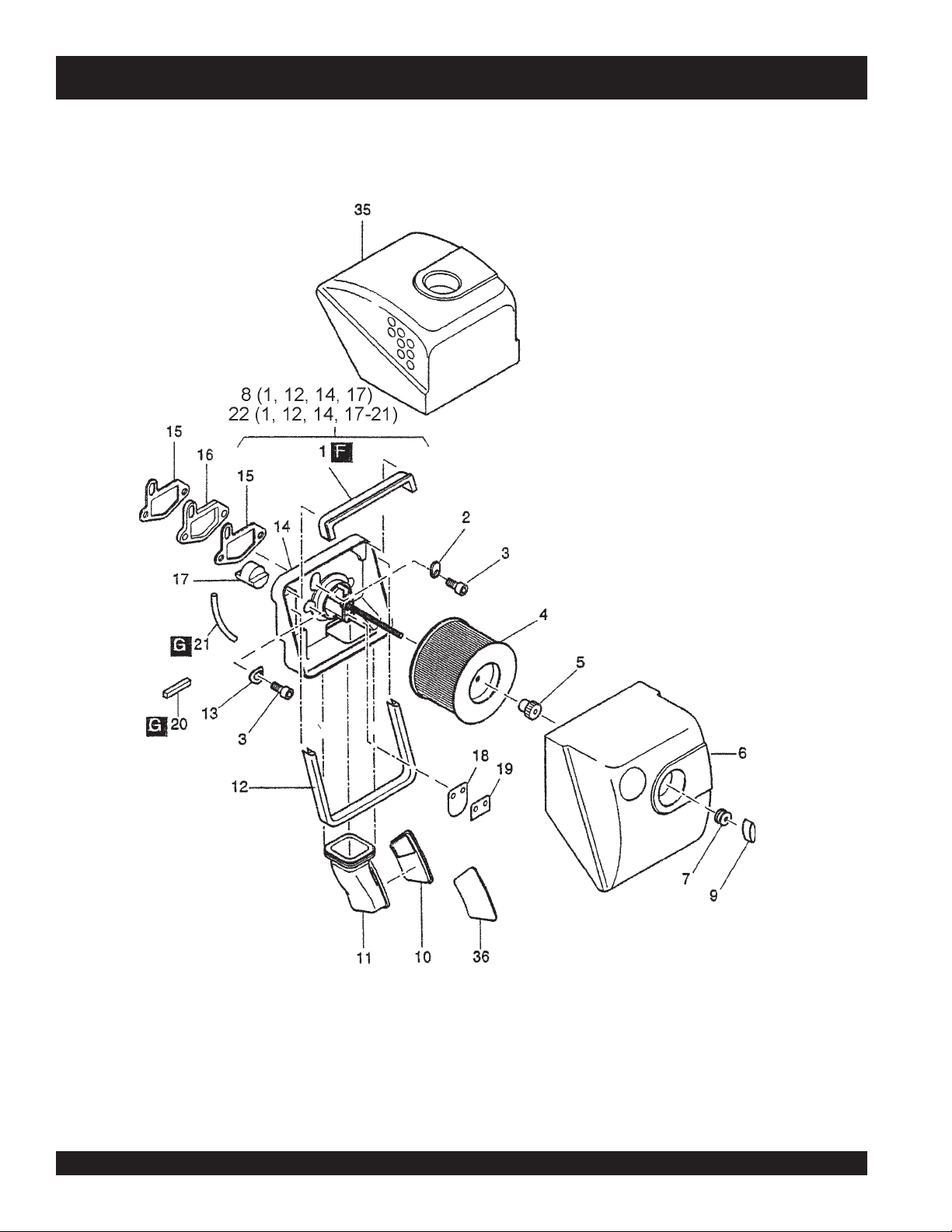

Air Filter Assembly ........................................... 68-69

Muffler Assembly .............................................. 70-71

Sealing and Bonding Adhesives............................ 72

Terms and Condition Of Sale — Parts .................. 73

NOTE

PAGE 4 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

Specification and part number are subject to change without notice.

PARTS ORDERING PROCEDURES

When ordering parts,

please supply the following information:

❒❒

❒ Dealer account number

❒❒ ❒❒

❒ Dealer name and address

❒❒ ❒❒

❒ Shipping address (if different than billing address)

❒❒ ❒❒

❒ Return fax number

❒❒ ❒❒

❒ Applicable model number

❒❒ ❒❒

❒ Quantity, part number and description of each part

❒❒ ❒❒

❒ Specify preferred method of shipment:

❒❒

✓ FedEx or UPS Ground ✓ FedEx or UPS Second Day or Third Day ✓ FedEx or UPS Next Day ✓ Federal Express Priority One ✓ DHL ✓ Tr u c k

Note: Unless otherwise indicated by customer, all orders are treated as “Standard Orders”, and will ship within 24 hours. We will make every effort to ship “Air Shipments” the same day that the order is received, if prior to 2PM west coast time. “Stock Orders” must be so noted on fax or web forms.

Here’s how to get help...

Please have the model and serial number on hand when calling.

MULTIQUIP CORPORATE OFFICE

18910 Wilmington Ave. 800-421-1244

FAX:

Carson, CA 90746 Email: mq@multiquip.com Internet: www.multiquip.com

PARTS DEPARTMENT

800-427-1244 310-537-3700

MAYCO PARTS

800-306-2926 310-537-3700

SERVICE DEPARTMENT

800-421-1244 310-537-3700

TECHNICAL ASSISTANCE

800-478-1244

WARRANTY DEPARTMENT

800-421-1244, 310-537-3700,

EXT. EXT.

279 279

310-537-3927

FAX:

800-672-7877

FAX:

310-637-3284

FAX:

800-672-7877

FAX:

310-637-3284

FAX:

310-537-4259

FAX:

310-631-5032

FAX:

310-537-1173

Place Your Parts Order Via Web or Fax

For Even More Savings!

(Domestic USA Dealers Only)

Extra Discounts!

All parts orders which include complete part numbers and are received by our automated web parts order system, or by fax qualify for the following extra discounts:

Ordered Standard Stock orders

via orders ($750 list and above)

Fax 3% 10%

Web 5% 10%

Special freight allowances when you order 10 or more line items via Web or Fax!**

FedEx Ground Service

No other allowances on freight shipped by any other carrier. **Common nuts, bolts and washers (all items under $1.00

list price) do not count towards the 10+ line items.

NOTE: DISCOUNTS ARE SUBJECT TO CHANGE

at no charge for freight

MULTIQUIP INC.

18910 WILMINGTON AVENUE POST OFFICE BOX 6254 CARSON, CALIFORNIA 90749 310-537-3700 • 800-421-1244 FAX: 310-537-3927 E-MAIL: mq@multiquip.com INTERNET: www.multiquip.com

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 5

Direct TOLL-FREE access

to our Parts Department:

Toll-free nationwide — 800-427-1244

Toll-free FAX — 800-6-PARTS-7

(800/672-7877)

QP-2TZ — SAFETY MESSAGE ALERT SYMBOLS

FOR YOUR SAFETY AND THE SAFETY OF OTHERS!

Safety precautions should be followed at all times when operating this equipment. Failure to read and understand the Safety Messages and Operating Instructions could result in injury to yourself and others.

This Owner's Manual has been developed to provide complete instructions for the safe and efficient

NOTE

operation of the Multiquip

QP-2TZ Trash Pump.

engine manufacturers instructions for data relative to its safe operation.

Before using this pump, ensure that the operating individual has read and understands all instructions in this manual.

Model

Refer to the

HAZARD SYMBOLS

SAFETY MESSAGE ALERT SYMBOLS

The three (3) Safety Messages shown below will inform you about potential hazards that could injure you or others. The Safety Messages specifically address the level of exposure to the operator, and are preceded by one of three words: DANGER,

WARNING, or CAUTION.

Lethal Exhaust Gases

Engine exhaust gases contain poisonous carbon monoxide. This gas is colorless and

odorless, and can cause death if inhaled. NEVER operate this equipment in a confined

area or enclosed structure that does not provide ample free flow air.

Explosive Fuel

GASOLINE is extremely flammable, and its vapors can cause an explosion if ignited. DO NOT start the engine near spilled fuel or

combustible fluids. DO NOT fill the fuel tank while the engine is running or hot. DO NOT overfill tank, since spilled fuel could ignite if it comes into contact with hot engine parts or

sparks from the ignition system. Store fuel in approved containers, in well-ventilated areas and away from sparks and flames. NEVER

DANGERDANGER

DANGER

DANGERDANGER

You WILL be if you DO NOT follow these directions.

WARNINGWARNING

WARNING

WARNINGWARNING

You CAN be KILLED or you DO NOT follow these directions.

CAUTICAUTI

CAUTION

CAUTICAUTI

You CAN be these directions.

Potential hazards associated with the QP-2TZ Trash Pump operation will be referenced with Hazard Symbols which appear throughout this manual, and will be referenced in conjunction with Safety Message Alert Symbols.

KILLED

INJURED

if you DO NOT follow

SERIOUSLY INJURED

Burn Hazards

Engine components can generate extreme heat. To prevent burns, DO NOT touch these areas while the engine is running or immediately after operations. Never operate the engine with heat shields or heat guards removed.

Rotating Parts

NEVER operate equipment with covers, or

guards removed. Keep fingers, hands, hair and clothing away from all moving parts to prevent injury.

PAGE 6 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

QP-2TZ — SAFETY MESSAGE ALERT SYMBOLS

Accidental Starting

ALWAYS place the engine ON/OFF switch in the OFF position when the pump is not in use.

Sight and Hearing hazard

ALWAYS wear approved eye and hearing

protection.

Respiratory Hazard

ALWAYS wear approved respiratory

protection.

Equipment Damage Messages

Other important messages are provided throughout this manual to help prevent damage to your pump, other property, or the surrounding environment.

This pump, other property, or the surrounding environment could be

NOTE

damaged if you do not follow instructions.

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 7

RULES FOR SAFE OPERATION

■

DANGERDANGER

DANGER

DANGERDANGER

Failure to follow instructions in this manual may lead to serious injury or even death! This equipment is to be operated by trained and qualified personnel only! This equipment is for industrial use only.

The following safety guidelines should always be used when operating the

GENERAL SAFETY

■

DO NOT operate or service this equipment before reading this entire manual.

■

This equipment should not be operated by persons under 18 years of age.

■

NEVER operate this equipment without proper protective clothing, shatterproof glasses, steel-toed boots and other protective devices required by the job.

trash pump

NEVER touch the hot exhaust manifold, muffler or cylinder. Allow these parts to cool before servicing engine or pump.

■

High Temperatures – Allow the engine to cool before adding fuel or performing service and maintenance functions. Contact

hot

with

■

The engine of this pump requires an adequate free flow of cooling air.

NEVER!

pump in any enclosed or narrow area where free flow of the air is restricted. If the air flow is restricted it will cause serious damage to the pump or engine and may cause injury to people and property. Remember the pump's engine gives off DEADLY gases.

components can cause serious burns.

operate the

■

NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.

■

NEVER operate this equipment under the influence or drugs or alcohol.

■

Whenever necessary, replace nameplate, operation and safety decals when they become difficult read.

■

ALWAYS check the machine for loosened threads or bolts before starting.

■

ALWAYS wear proper respiratory (mask) hearing and eye protection equipment when operating the pump.

■

ALWAYS refuel in a well-ventilated area, away from sparks and open flames.

■

ALWAYS use extreme caution when working with flammable liquids. When refueling, stop the engine and allow it to cool.

DO NOT

could result from fuel vapors, or if fuel is spilled on a hot engine.

■

NEVER operate the pump in an

atmosphere

materials. An explosion or fire could result causing severe

death.

■

Topping-off to filler port is dangerous, as it tends to spill fuel.

■

Refer to the questions or information.

■

NEVER use accessories or attachments, which are not recommended by Multiquip for this equipment. Damage to the equipment and/or injury to user may result.

■

Manufacturer does not assume responsibility for any accident due to equipment modifications.

smoke around or near the machine. Fire or explosion

explosive

or near combustible

bodily harm or even

Engine Owner's Manual

for engine technical

PAGE 8 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

■

NEVER Run engine without air cleaner. Severe engine

damage may occur.

■

ALWAYS read, understand, and follow procedures in Operator’s Manual before attempting to operate equipment.

■

ALWAYS be sure the operator is familiar with proper safety precautions and operation techniques before using pump.

■

ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children.

High Temperatures – Always stop engine and allow the engine to cool before adding fuel, oil or performing service and maintenance functions. Contact with cause serious burns.

■

NEVER disconnect any

These devices are intended for operator safety. Disconnection of these devices can cause severe injury, bodily harm or even death! Disconnection of any of these devices will void all warranties.

Maintenance Safety

■

NEVER leave the pump unattended, turn off engine when unattended.

■

Unauthorized equipment modifications will void all warranties.

■

NEVER pump volatile, explosive, flammable or low flash point fluids. These fluids could ignite or explode.

■

NEVER operate the pump in an

■

Before starting the pump, check that the clean-out cover is

explosive

atmosphere.

securely fasten.

■

ALWAYS ensure pump is on level ground before use.

■

Become familiar with the components of the pump before operating.

■

NEVER pump corrosive chemicals or water containing toxic substances. These fluids could create serious health and environmental hazards. Contact local authorities for assistance.

■

NEVER open the priming plug when pump is hot. Hot water

inside could be pressurized much like the radiator of an automobile. Allow pump to cool to the touch before loosening plug.

■

NEVER open the pump housing during operation or start the

pump with the clean-out cover removed. The rotating impeller inside the pump can cut or sever objects caught in it.

■

NEVER block or restrict flow from discharge hose. Remove

kinks from discharge line before starting pump. Operation with a blocked discharge line can cause water inside pump to overheat.

■

ALWAYS fill the pump casing with water before starting the engine. Failure to maintain water inside the pump housing will cause severe damage to the pump.

■

Emergencies

■

ALWAYS know the location of the

nearest

■

ALWAYS know the location of the nearest

first aid kit

■

RULES FOR SAFE OPERATION

hot

components can

"emergency or safety devices"

NEVER lubricate components or attempt service on a running

machine.

ALWAYS allow the machine a proper amount of time to cool

before servicing. Keep the machinery in proper running condition. Fix damage to the machine immediately and always replace

broken parts, or missing decals. Dispose of hazardous waste properly. Examples of potentially

hazardous waste are used motor oil, fuel and fuel filters. DO NOT use food or plastic containers to dispose of

hazardous waste. DO NOT pour waste, oil or fuel directly onto the ground,

down a drain or into any water source.

fire extinguisher

In emergencies

nearest phone or

always

know the location of the

keep a phone on the job site

Also know the phone numbers of the nearest

ambulance, doctor

and

fire department

. This information will be invaluable in case of an emergency.

■

In winter drain water from pump housing to prevent freezing.

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 9

QP-2TZ — SPECIFICATIONS/DIMENSIONS (PUMP)

)pmuP(snoitacificepS.1elbaT

ledoMZT2-PQ

epyTpmuPhsarT

eziSegrahcsiD&noitcuS).mm05(.ni00.2

pmuP

nemiD

nois

)HxWxL(

thgieWteNyrD

yticapaC

tfiL.xaM)sretem26.7(.tf52

daeH.xaM)sretem0.92(.tf59

gnipmuPmumixaM

retemaiDsdiloS.xaM).mm4.52(.ni05.1

18.3 IN.

(46.5 CM.)

etunim/snollag891

tunim/sretil057(

.ni2.32X3.81x5.62

).mc0.95X5.64X5.76(

).gK5.95(.sbl131

23.2 IN.

(59 CM.)

26.5 IN.

(67.5 CM.)

Figure 1. QP-2TZ Dimensions

PAGE 10 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

QP-2TZ — SPECIFICATIONS (ENGINE)

)02B1ZTAH(snoitacificepSenignE.2elbaT

leseiDZTAH

02B1ledoM

delooC-riA

liOenignE

epyT

leuFepyT

.oN

srednilyC

1ni5.41

tnemecalpsiDeldI

)sretil232.(

liOebuL

deepS

MPR008

yticapaC

.stq59.0

)sretil9.0(

DPHSroGC-FC-EC

D2/D1-579DMTSA

riAepyT

renaelC

yrD

tnemelE

-DC-IPAro@DP-5D-4D-CMCC

-2A/1A9682SB10615NID-095NE

gnitratS

dohteM

lioceR

tratS

thgieW

.sbl27

).gk33(

110 100

TOTAL

HEAD

FT.

90 80 70 60 50 40 30 20 10

050

US GALLONS PER MINUTE

23.3 FT.

100

16.7 FT. 10.0 FT.

150 200

1.6 FT.

3.3 FT.

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 11

QP-2TZ — GENERAL INFORMATION

APPLICATION

QP-2TZ Trash Pump

The

is designed to be used for dewatering applications. Both the suction and discharge ports on the QP-2TZ trash pump use a 2-inch diameter opening, which allows the pump to pump at a rate of approximately 211 gallons/ minute (gpm) or 800 liters/minute (lpm).

Trash or self-priming pumps are designed to purge air from the suction line and create a partial vacuum in the pump body. The reduced atmospheric pressure inside the pump allows water to flow through the suction line and into the pump body. The centrifugal force created by the rotating impeller pressurizes the

Elevation

Higher elevations will effect the performance of the pump. Due to less atmospheric pressure at higher altitudes, pumps DO NOT have the priming ability that they have at sea level. This is due to the “thinner air” or lack of oxygen at higher altitudes.

A general rule of thumb is that for every 1,000 feet of elevation above sea level a pump will lose one foot of priming ability.

For example, in Flagstaff, Arizona where the elevation is approximately 7,000 feet, the pump would have a suction lift of 25 feet rather than the 18 feet at sea level. Table 3 shows suction lift at various elevations.

water and expels it from the pump.

Engine

This trash pump is powered by a 4.6 horsepower, air-cooled,

HATZ 1B20

Trash Pump

Trash pumps derive their name from their ability to handle a

diesel engine.

leveLaeS)840.3(0.01)275.4(0.51)690.6(0.02)026.7(0.52

,2)086.2(08.8)320.4(2.31)463.5(6.71)507.6(0.22

greater amount of debris and solids than standard centrifugal pumps. This pump generally handle solids up to 1/2 the size of the discharge opening making them less likely to clog. Also trash

000,6)301.2(09.6)961.3(4.01)602.4(8.31)372.5(3.71

pumps are capable of handling water with 25% solids by weight.

edutitlA

)sreteM(teeF

)016(000

)912,1(000,4)773.2(08.7)665.3(7.11)457.4(6.51)349.5(5.91

)928,1(

)834,2(000,8)988.1(02.6)438.2(03.9)977.3(4.21)427.4(5.51

snoitavelEsuoiraVtatfiLnoitcuS.3elbaT

)sreteM(teeFnitfiLnoitcuS

The advantage of using a trash pump is that it can be quickly and easily disassembled in the field "

without tools

cleaned when clogged.

Suction Lift

" and easily

Table 4 shows percentage drops in performance as elevation increases.

,3(000,01)737.1(07.5)126.2(06.8)474.3(4.11)853.4(3.41

This pump is intended to be used for dewatering applications and is capable of suction lifts up to 25 feet at sea level. For optimal suction lift performance, keep the suction hose or line as short as possible. In general, always place the pump as close to the water as possible.

Pump Support

The pump should always be placed on

solid stationary ground

in a level position.

NEVER place the pump on

soft soil

. The suction hose or pipe connection should always be checked for tightness and leaks. A small suction leak in the hose or fittings could prevent the pump from priming.

)840

snoitavelE

edutitlA

sreteM(teeF

leveLaeS%001%001

)016(000,2%79%59

)912,1(000,4%59%19

)928,1(000,6%3

9%78

)834,2(000,8%19%38

)840,3(000,01%88%87

wolFegrahcsiDdaeHegrahcsiD

suoiraVtassoLecnamrofreP.4elbaT

PAGE 12 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

QP-2TZ — PUMP COMPONENTS

Figure 2 shows a typical application using the QP-2TZ Trash pump. Please note that this pump is intended for the removal of clean water and water containing some debris and solids. Maximum size of solids should not exceed 1.0 inch (25 mm) in diameter. DO NOT set strainer on bottom of water bed. Placing the strainer above the water bed will prevent the pump from drawing in excessive amounts of sand and foreign debris.

Figure 2. QP-2TZ Pump Application

1. Pump – The model QP-2TZ is a 2-inch trash pump used in general dewatering applications. Typical dewatering applications consist of manholes, septic tanks, fast and slow seepage ditch water, silt water, mud water and muck water.

2. Fill Cap – Prior to operation, the pump casing should be filled with water. Remove this cap to add water to the pump. After the initial prime, a sufficient amount of water will be retained in the casing so that the operator will not need to re-prime later.

If the casing is dry or has insufficient water, the pump will have difficulty in priming which could lead to premature mechanical seal wear thus causing damage to the pump.

3. Discharge Port – Connect a 2-inch discharge hose to this port.

4. Worm Clamp – Used to secure the hose to the inlet and outlet ports on the pump. Use two clamps to secure the hose on the inlet side of the pump.

5. Discharge Hose – Connect this flexible rubber hose to the discharge port on the pump. Make sure that the hose lays flat and is not kinked. Use only recommended type discharge hose. Contact Multiquip Parts Department for ordering information.

6. Suction Port – Connect a 2-inch inlet hose to this port.

7. Suction Hose – Connect this flexible rubber hose to the

8. Clean-out Cover Handles – To gain access to the pump's

9. Drain Plug – Remove this plug to drain water from the

10. Clean-out Cover – Remove cover to gain access to the

11. Locking Knobs – Turn both knobs clockwise to secure

12. Strainer – Always attach a strainer to the bottom side of

Use two worm clamps to secure the hose.

suction portion the pump. Make sure that the hose lays flat and is not kinked. Use only recommended type suction hose. Contact Multiquip Parts Department for ordering information.

clean-out area, grip both handles, then pull to remove cover. Make sure both locking knobs have been released before attempting to remove clean-out cover.

pump.

clean-out area.

clean-out cover, turn counterclockwise to release cover.

the suction hose to prevent large objects and debris from entering the pump. Strainer should be positioned so that it will remain completely under water. Running the pump with the strainer above water for long periods can damage pump.

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 13

DANGER

Adding fuel to the tank should be done only when

the engine is stopped and has had an opportunity to cool down. In the event of a fuel spill, DO NOT attempt to start the engine until the fuel residue has been completely wiped up, and the area surrounding the engine is dry. If pump is placed in a truck bed with a plastic liner, REMOVE pump from truck bed and place on ground (Figure 3) to refuel. The possibility of exists, due to static electricity.

fire

explosion

QP-2TZ — REFUELING

PLASTIC

TRUCK-BED

LINER

DANGER

DO NOT ADD FUEL

TO TRASH PUMP IF TRASH PUMP IS PLACED INSIDE TRUCK-BED WITH

PLASTIC LINER. POSSIBILITY EXISTS

OF EXPLOSION OR FIRE DUE TO

.STATIC ELECTRICITY

Figure 3. Pump Refueling

PAGE 14 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

Figure 4. Engine Controls and Components

INITIAL SERVICING

The engine (Figure 4) must be checked for proper lubrication and filled with fuel prior to operation. Refer to the manufacturer’s Engine manual for instructions & details of operation and servicing.

1. Fuel Filler Cap/Fuel Tank – Pull this latch to add fuel to the tank. After refueling, always make sure the fuel cap is latched properly. DO NOT over fill. For additional information refer to engine owner's manual.

diesel

WARNING

Adding fuel to the tank should be accomplished only when the engine is stopped and has had an opportunity to cool down. In the event of a fuel spill,

DO NOT attempt to start the engine until the fuel residue has been completely wiped up, and the area surrounding the engine is dry.

6. Engine Motor Mounts – Attach these engine mounts to the pump frame. Tighten securely.

7. Oil Filter – Remove this bolt to gain access (internal) to the engine oil filter. Service the oil filter as recommended in the maintenance section of this manual.

8. Oil Drain Plugs – There are two oil drain plugs, one is underneath the flywheel, the other on the side of the engine. Remove these plugs to drain engine oil from the engine crankcase.

9. Crankshaft – Connect this shaft to the input of the transmission.

10. Muffler – Used to reduce noise and emissions.

11. Nameplate – Contains information about the engine.

QP-2TZ — BASIC ENGINE

WARNING

2. Engine Lifting Straps/Cover – Remove the air cleaner cover, then lift this cover (the one with decals on it) to gain access to the engine lifting straps.

3. Air Cleaner/Cover – Prevents dirt and other debris from entering the fuel system. Remove wing-nut on side of air filter cover to gain access to filter element.

4. Speed Control Lever – This lever is connected to the throttle control which is located on the side of the engine compartment cover. Use this lever to control engine speed.

5. Dip Stick – Remove dipstick to determine if the engine oil level is low. If low add oil as specified.

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 15

while the engine is running or immediately after operating. NEVER operate the engine with the muffler removed.

NOTE

Engine components can generate extreme heat. To prevent burns, DO NOT touch these areas

Operating the engine without an air filter, with a damaged air filter, or a filter in need of replacement will allow dirt to enter the engine, causing rapid engine wear.

QP-2TZ — PRE-INSPECTION (ENGINE)

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

NEVER operate the pump in a confined area or enclosed area structure that does not provide ample

ALWAYS wear approved eye and hearing protection before operating the pump.

Before Starting

1. Read safety instructions at the beginning of manual.

2. Clean the pump, removing dirt and dust, particularly the engine cooling air inlet, carburetor and air cleaner.

3. Check the air filter for dirt and dust. If air filter is dirty, replace air filter with a new one as required.

4. Check carburetor for external dirt and dust. Clean with dry compressed air.

free flow of air

3. Insert and remove the dipstick without screwing it into the filler neck. Check the oil level shown on the dipstick.

4. If the oil level is low (Figure 6), fill to the edge of the oil filler hole with the recommended oil type (Table 5). Maximum oil capacity is 1.16 quarts (1.1 liters)

Figure 6. Engine Oil Dipstick (Oil Level)

epyTliO.5elbaT

nosaeS erutarepmeT epyTliO

remmuS rehgiHroC°52 03-W01EAS

5. Check fastening nuts and bolts for tightness.

Engine Oil Check

1. To check the engine oil level, place the pump on secure level ground with the engine stopped.

2. Remove the filler dipstick from the engine oil filler hole (Figure 5) and wipe clean.

Motor fuels are highly flammable and can be dangerous if mishandled. DO NOT smoke while refueling. DO NOT attempt to refuel the pump if the engine is

Fuel Check

1. Remove the gasoline cap located on top of fuel tank.

2. Visually inspect to see if the fuel level is low. If fuel is low, replenish with unleaded fuel.

Figure 5. Engine Oil Dipstick (Removal)

3. When refueling, be sure to use a strainer for filtration. DO NOT top-off fuel. Wipe up any spilled fuel

llaF/gnirpS C°01~C°52 02/03-W01EAS

retniW rewoLroC°0 01-W01EAS

Explosive Fuel

DANGERDANGER

DANGER

DANGERDANGER

hot! or running

immediately!

PAGE 16 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

QP-2TZ — PRE-SETUP (PUMP)

Before Starting

1. Read safety instructions at the

beginning of manual.

2. Place pump as near to water as possible, on a firm flat, level surface.

3. To prime pump, remove fill cap (Figure 2) and fill pump casing with water. If the pump casing is not filled with water before starting, it will not begin pumping.

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

Pump casing Otherwise pump will not be able to begin pumping.

DO NOT open under pressure.

must

be filled with water before using pump.

WARNINGWARNING

WARNING

WARNINGWARNING

fill cap

if pump is hot! Water inside may be

5. The discharge hose is usually a

6. Make sure the

The strainer should be positioned so it will remain completely

under water

for long periods can damage the pump.

Suction and discharge hoses are

NOTE

hose, however if a thin-walled discharge hose is not available, a rigid suction hose can be substituted in its place.

securely attached to the water end of the suction hose. The strainer is designed to protect the pump by preventing large objects from being pulled into the pump.

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

. Running the pump with the strainer above water

available from Multiquip. Contact your nearest dealer for more information.

suction strainer

collapsible

(Figure 2) is clean and

(thin-walled)

4. Check for between the pump and engine housing, the seal inside the pump may be worn or damaged. Continued operation of the pump is not recommended. Further usage of the pump under these conditions may cause severe water damage to engine.

Hoses and Clamps

1. Check that all hoses are Make certain suction hose (Figure 2) does not have any air leakage. Tighten hose clamps and couplings as required.

2. It is recommended that 2 clamps be used when securing the suction hose to the inlet side (suction) of the pump.

3. Remember suction hoses must be collapse when the pump is in operation.

4. Check that

Place hose so that it lays as straight as it is possible on the ground. Remove any twists or sharp bends from hose which may block the flow of water.

leaks

between pump and engine. If water is leaking

the

discharge

securely

hose (Figure 2) is not restricted.

attached to the pump.

rigid

enough not to

DO NOT pump flammable fluids, corrosive chemicals or fluids containing toxic substances. These fluids can create potentially dangerous health and environmental hazards. Contact local authorities for assistance.

This pump uses a water-cooled water from seeping into the engine. The passage of water through the pump casing lubricates the seal and prevents it from overheating. the casing as this will cause damage to the mechanical seal.

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

NEVER!

mechanical seal

operate the pump without water in

to prevent

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 17

QP-2TZ — INITIAL START-UP (ENGINE)

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

DO NOT attempt to operate the pump until the Safety, General Information and Inspection sections of this manual have been

understood

This section is intended to assist the operator with the

start-up

section be read carefully before attempting to use the pump in the field.

Starting the Engine (

3. Move the engine speed lever to the START position

of the trash pump. It is extremely important that this

HATZ

(Figure 8).

read and thoroughly

initial

engine)

Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter.

5. Pull the starter grip again, hard and fast, pulling it all the way out to start engine.

6. If the engine does not start, repeat steps 4 and 5.

ALWAYS run engine at

Stopping The Engine

Normal Shutdown

1. Move the engine speed lever to the low speed and run the engine for about three minutes with no load.

2. After the engine cools, move the engine speed lever to the STOP position (Figure 11).

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

CAUTICAUTI

CAUTION

CAUTICAUTI

full speed

while pumping.

Figure 8. Engine Speed Lever (START position)

4. Grasp the starter grip (Figure 9) and slowly pull it out until you feel the strongest resistance then return the starter grip to the initial position.

Figure 9. Starter Grip

PAGE 18 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

Figure 11. Engine Speed Lever (STOP Position)

4. Slowly pull the starter grip (Figure 9) until strong resistance is felt and leave it in this position. This prevents rust from forming while the engine is not in use.

When stopping the engine, reduce the load slowly. Do not stop engine suddenly since it may cause the temperature to rise abnormally.

Emergency Shutdown

1. To stop engine immediately, quickly place the engine speed lever to the STOP position.

CAUTICAUTI

CAUTION

CAUTICAUTI

QP-2TZ — MAINTENANCE (PUMP)

Pump Vacuum Test

CAUTICAUTI

CAUTION

CAUTICAUTI

DO NOT attempt to start the engine unless the pump has previously been will occur if pump has not been primed.

To perform the pump vacuum test do the following:

1. Remove the pump fill cap (Figure 2), and fill the pump with water.

2. Start the engine as outlined in the initial start-up section, and wait for the pump to begin pumping.

3. As shown in Figure 13, place a water hose inside the discharge opening of the pump, and turn on the water. This flow of water into the discharge opening will pump from running dry.

4. Place the pump suction (inlet) opening (Figure 13) with the vacuum gauge facing upwards. It may be necessary to apply a small amount of water around the rubber seal of the vacuum tester to make a good suction fit.

5. Check and make sure that there are no air leaks between the vacuum tester and the inlet port on the pump. If air leaks are present reset vacuum tester.

6. Run the pump for a few minutes while monitoring the vacuum gauge. If the gauge indicates a reading between -25 and

-20 in. Hg. (inches of mercury), then it can be assumed that the pump is working correctly.

primed

Pump Vacuum Tester

with water. Severe pump damage

prevent

(P/N 7000030) over the

Adjusting Impeller Clearance

1. If it is necessary to replace impeller or volute, be sure clearance between impeller and volute is adjusted correctly.

2. The impeller should be as close to the volute as possible without rubbing against it. Clearance is adjusted by adding or removing

3. Check clearance between impeller and insert by slowly pulling starter rope to turn impeller. Remove spark plug to make it easier to turn impeller.

NOTE

the

down, additional shims may be required to maintain the clearance between the impeller and insert.

4. Check the impeller clearance between the impeller face and the volute. Also check the shaft seal for wear, as well as the shaft sleeve.

Pump Cleaning

After pumping water containing large amounts of dirt and debris, perform the following:

1. Remove the drain plug from the pump housing (Figure 2) and drain any water left in the pump.

2. Loosen the two locking hand knobs (turn counterclockwise) and remove

shims

from behind the impeller.

It is important not to remove too many shims or the clearance between the impeller and volute will become performance will be reduced. Remember as the impeller wears

every six months

clean-out cover

too wide

and pump

for wear, and for

25 in. Hg. (inches of mercury)

NOTE

7. If the vacuum tester gauge indicates a reading

-20 in. Hg, it can then be assumed that the pump is not functioning correctly, and corrective action needs to be taken.

6. To test the tester should remain attached to the pump suction inlet port by vacuum. This indicates the pump's flapper valve is seating properly to hold water in the suction hose when the engine is stopped. This prevents backflow and allows for faster priming when the engine is restarted.

flapper valve

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 19

translates into 25 feet of lift at

level

, shut down the engine. The vacuum

sea

below

3. Clean and remove dirt, debris from pump casing. Inspect impeller and volute for wear. Replace any damaged or worn parts.

CAUTICAUTI

CAUTION

CAUTICAUTI

The impeller may develop when cleaning around the impeller to prevent being cut.

sharp edges

. Use extreme care

QP-2TZ — MAINTENANCE (PUMP)

NOTE

Pressure reading may vary depending on altitude. See Tables 3 and 4 on page 12.

Figure 13. Pump Vacuum Tester

PAGE 20 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

Engine Maintenance

Perform engine maintenance procedures as referenced by Table 6 below:

QP-2TZ — MAINTENANCE (ENGINE)

eludehcSecnanetniaMenignE.6elbaT

TSRIF

)3(NOITPIRCSEDNOITAREPOEROFEB

KCEHCX

liOenignE

EGNAHCX

KCEHCX

renaelCriA

EGNAHC)1(X

stloB&stuNllA

sniFgnilooCKCEHCX

retserrAkrapSNAELC X

knaTleuFNAELC X

retliFleuFKCEHC X

deepSeldITSUJDA-KCEHC )2(X

fInethgit-eR

yrasseceN

HTNOM

.SRH01

YREVE

SHTNOM3

.SRH52

YREVE

SHTNOM6

.SRH05

YREVE

RAEY

.SRH0

YREVE

SRAEY2

.SRH002

NOTE

ecnaraelCevlaVTSU

senilleuFKCEHC )2()yrassecenfiecalper(sraey2yrevE

JDA-KCEHC )2(X

nidesunehwyltneuqerferomecivreS)1( YTSUD .s

osruohgol,esulaicremmocroF)3(

aera

yllacinahcemeradnaslootreporpehtevahuoysselnu,relaedecivresruoyybdecivresebdluohssmetiesehT)2(

.se

rudecorpecivresroflaunampohsZTAHehtotrefeR.tneiciforp

.slavretniecnanetniamreporpenimretedotnoitarepof

Reference manufacturer engine manual for specific servicing instructions.

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 21

QP-2TZ — MAINTENANCE (ENGINE)

Maintenance

Perform the engine maintenance procedures as indicated below:

DAILY

■

Thoroughly remove dirt and oil from the engine and control area. Clean or replace the air cleaner elements as necessary. Check and retighten all fasteners as necessary. Check the spring box and bellows for oil leaks. Repair or replace as needed.

WEEKLY

■

Remove the fuel filter cap and clean the inside of the fuel tank.

■

Remove or clean the filter at the bottom of the tank.

ENGINE OIL

warm

1. Drain the engine oil when the oil is Figure 14.

2. Remove the oil drain bolt and sealing washer and allow the oil to drain into a suitable container.

as shown in

DO NOT use gasoline as a cleaning solvent, because that would create a risk of fire or explosion.

ENGINE AIR CLEANER

1. Loosen the wing nut and detach the cover of the air cleaner shown in Figure 15.

2. Tap the element (Figure 15) several times on a hard surface to remove dirt, or blow compressed air [not exceeding 30 psi (207 kPa, 2.1 kgf/cm wash the element with detergent because the element is oilsoaked type. Replace the element when the output decreases or bad exhaust color is noticed.

DANGERDANGER

DANGER

DANGERDANGER

)] through the element side.

NEVER

3. Replace engine oil with recommended type oil as listed in Table 5. Engine oil capacity is 0.95 quarts (0.9 liters). DO NOT overfill.

4. Install drain bolt with sealing washer and tighten securely.

Figure 14. Engine Oil (Draining)

Figure 15. Engine Air Cleaner

PAGE 22 — QP- 2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05)

QP-2TZ — PREPARATION FOR LONG -TERM STORAGE

Pump Storage

For storage of the pump for over 30 days, the following is required:

Drain the fuel tank completely.

Run the engine for about 3 minutes and then stop.

Stop the engine. Drain the engine crankcase oil while the engine is still warm. Fill engine crankcase with fresh oil.

Pull the recoil starter grip (Figure 17) 2 or 3 times. DO NOT start the engine.

Figure 17. Recoil Starter Grip

Pull the recoil starter grip slowly. STOP when it feels tight. This closes the intake and exhaust valves (compression position) , and helps prevents rust from forming.

Wipe any oil or dirt that may have accumulated on the engine.

Remove the drain plug from the pump and drain out any water left in the housing.

Remove the pump cover and clean the inside of pump housing. Coat the inside of pump housing with a light film of oil to reduce corrosion. A spray can of oil works well for this application.

Cover suction and discharge ports with duct tape to prevent any foreign matter from falling into pump.

Cover pump and engine with plastic covering or equivalent and store in a clean, dry place.

To protect the water cooled-seals, place one-half pint of lubricating oil (new or used) through the discharge opening on the pump and crank the engine several times. This will prevent excessive corrosion and also keep the mechanical seal lubricated.

QP-2TZ TRASH PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/25/05) — PAGE 23

+ 51 hidden pages
