PARTS MANUAL

STAY-LEVEL HANDLEBAR SERIES

MODELS

PS706016 PS706020 PS706026 PS706030 PS706036

PAVEMENT SAW

(DEUTZ BF3L2011 DIESEL ENGINE)

Revision #8 (07/26/10)

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

P/N 37558

PROPOSITION 65 WARNING

Engine exhaust and some of its constituents, and some dust created by power sanding, sawing, grinding, drillingandotherconstructionactivities contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Some examples of these chemicals are:

Leadfromlead-basedpaints. Crystallinesilicafrombricks. Cementandothermasonryproducts. Arsenicandchromiumfrom chemically treatedlumber.

Your risk from these exposures varies, dependingonhowoftenyoudothistype of work. To reduce your exposure to these chemicals: work in aALWAYS well ventilated area, and work with

approved safety equipment, such as

dust masks that are specially designed to filter out microscopic particles.

PAGE 2 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

SILICOSIS/RESPIRATORY WARNINGS

WARNING

SILICOSIS WARNING RESPIRATORY HAZARDS

Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In addition, California and some other authorities have listed respirable crystalline silica as a substance known to cause cancer. When cutting such materials, always follow the respiratory precautions mentioned above.

WARNING

Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheet and/or consult your employer, the material manufacturer/supplier, governmental agencies such as OSHA and NIOSH and other sources on hazardous materials. California and some other authorities, for instance, have published lists of substances known to cause cancer, reproductive toxicity, or other harmful effects.

Control dust, mist and fumes at the source where possible. In this regard use good work practices and follow the recommendations of the manufacturers or suppliers, OSHA/NIOSH, and occupational and trade associations. Water should be used for dust suppression when wet cutting is feasible. When the hazards from inhalation of dust, mists and fumes cannot be eliminated, the operator and any bystanders should always wear a respirator approved by NIOSH/MSHA for the materials being used.

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 3

PS7060 SERIES SAWS

Proposition 65 Warning .................................................. 2

Silicosis/Respiratory Warnings ...................................... 3

Table of Contents ........................................................... 4

Parts Ordering Procedures ............................................ 5

Explanation of Code in Remarks Column ...................... 6

Suggested Spare Parts ................................................. 7

Nameplates and Decals ............................................. 8-9

Control Panel Decals .............................................. 10-11

Electrical Control Assembly ................................... 12-13

Console Mounts Assembly ..................................... 14-15

Rear Console Access Panel Assembly .................. 16-17

Light Connector/Dash Access Assembly ............... 18-19

Belt and Engine Guards Assembly ......................... 20-21

Depth Indicator/Stop Switch Assy. (Old Style) ....... 22-23

Depth Indicator/Stop Switch Assy. (New Style) ...... 24-25

F-N-R Assembly ..................................................... 26-27

Fuel Assembly ....................................................... 28-29

Battery Assembly ................................................... 30-31

Stay-Level Handlebars Assembly .......................... 32-33

Handlebar Boot Assembly ...................................... 34-35

Water System Assembly ........................................ 36-37

Engine Assembly ................................................... 38-39

Throttle Control Assembly ...................................... 40-41

Engine Mounts Assembly ...................................... 42-43

Air Cleaner Assembly ............................................. 44-45

Muffler Assembly ................................................... 46-47

Lift Bail Assembly .................................................. 48-49

Platform Guards/Rear Pointer Assembly ................ 50-51

Wheel Drive Assembly ........................................... 52-53

Front Axle Assembly .............................................. 54-55

Hydraulic System Assembly .................................. 56-57

Engine Pivot Cylinder Assembly ............................ 58-59

Hydraulic Hoses Assembly .................................... 60-61

Hydraulic Fttings and Clamps Assembly ................ 62-63

Front Pointer Assembly .......................................... 64-65

Belt Drive Assembly ............................................... 66-69

Drive Pulley Assembly ........................................... 70-71

Bladeshaft Assembly ............................................. 72-73

16", 20", 26" Bladeguard Assembly ...................... 74-75

30", 36" Bladeguard Assembly .............................. 76-77

Optional Weight Kit Assembly ................................ 78-79

TABLE OF CONTENTS

NOTICE

Specification and part number are subject to change without notice.

Terms and Conditions of Sale — Parts........................ 80

PAGE 4 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

PARTS ORDERING PROCEDURES

Ordering parts has never been easier!

Choose from three easy options:

January 1

Effective:

, 2006

Best Deal!

Order via Internet

Order parts on-line using Multiquip’s SmartEquip website!

N View Parts Diagrams N Order Parts N Print Speciﬁcation Information

Goto www.multiquip.com and click on

Order Par ts

Order via Fax

All customers are welcome to order parts via Fax. Domestic (US) Customers dial: 1-800-6-PARTS-7 (800-672-7877)

Non-Dealer Customers: Contact your local Multiquip Dealer for parts or call 800-427-1244 for help in locating a dealer near you.

(Dealers Only)

to log in and save!

(Dealers Only)

Order via Phone:

If you have an MQ Account, to obtain a Username and Password, E-mail us at: parts@multiquip.

com.

To obtain an MQ Account, contact you District Sales Manager for more information.

Use the internet and qualify for a 5% Discount on Standard orders for all orders which include complete part numbers.*

Note: Discounts Are Subject To Change

Domestic (US) Dealers Call:

1-800-427-1244

Fax your order in and qualify for a 2% Discount on Standard orders for all orders which include complete part numbers.*

Note: Discounts Are Subject To Change

International Customers should contact their local Multiquip Representatives for Parts Ordering information.

R Dealer Account Number R Dealer Name and Address R Shipping Address (if different than billing address) R Return Fax Number R Applicable Model Number R Quantity, Part Number and Description of Each Part

www.multiquip.com

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 5

When ordering parts, please supply:

R Specify Preferred Method of Shipment: UPS/Fed Ex DHL

N Priority One Truck  N Ground N Next Day N Second/Third Day

NOTICE

All orders are treated as Standard Orders and will

ship the same day if received prior to 3PM PST.

WE ACCEPT ALL MAJOR CREDIT CARDS!

EXPLANATION OF CODE IN REMARKS COLUMN

The following section explains the different symbols and remarks used in the Parts section of this manual. Use the help numbers found on the back page of the manual if there are any questions.

NOTICE

The contents and part numbers listed in the parts section are subject to change without notice. Multiquip does not guarantee the availability of the parts listed.

SAMPLE PARTS LIST

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%

2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY

2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY

3 12348 HOSE ..................A/R ...MAKE LOCALLY

4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE

NO. Column

Unique Symbols — All items with same unique

symbol

QTY. Column

Numbers Used — Item quantity can be indicated by a

number, a blank entry, or A/R.

A/R (As Required) is generally used for hoses or other parts that are sold in bulk and cut to length.

A blank entry generally indicates that the item is not sold separately. Other entries will be clariﬁed in the “Remarks” Column.

REMARKS Column

Some of the most common notes found in the “Remarks” Column are listed below. Other additional notes needed to describe the item can also be shown.

Assembly/Kit — All items on the parts list with the same unique symbol will be included when this item is purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

(@, #, +, %, or >) in the number column belong to the same assembly or kit, which is indicated by a note in the “Remarks” column.

Duplicate Item Numbers — Duplicate numbers indicate multiple part numbers, which are in effect for the same general item, such as different size saw blade guards in use or a part that has been updated on newer versions of the same machine.

NOTICE

When ordering a part that has more than one item number listed, check the remarks column for help in determining the proper part to order.

PART NO. Column

Numbers Used — Part numbers can be indicated by a

number, a blank entry, or TBD.

TBD (To Be Determined) is generally used to show a part that has not been assigned a formal part number at the time of publication.

A blank entry generally indicates that the item is not sold separately or is not sold by Multiquip. Other entries will be clariﬁed in the “Remarks” Column.

Serial Number Break — Used to list an effective serial number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW” “S/N XXXX AND ABOVE” “S/N XXXX TO S/N XXX”

Speciﬁc Model Number Use — Indicates that the part is used only with the speciﬁc model number or model number variant listed. It can also be used to show a part is NOT used on a speciﬁc model or model number variant.

Indicated by:

“XXXXX ONLY” “NOT USED ON XXXX”

“Make/Obtain Locally” — Indicates that the part can be purchased at any hardware shop or made out of available items. Examples include battery cables, shims, and certain washers and nuts.

“Not Sold Separately” — Indicates that an item cannot be purchased as a separate item and is either part of an assembly/kit that can be purchased, or is not available for sale through Multiquip.

PAGE 6 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

SUGGESTED SPARE PARTS

SS7060 SANDERS SAW

1 TO 3 UNITS WITH DEUTZ TURBO DIESEL ENGINE

Qty. P/N Description

1 ....... 37094 .................. SWITCH, TOGGLE F-N-R

1 ....... 37203 .................. SWITCH, ROLLER PLUNGER

2 ....... 406000 ................ SWITCH, ROCKER

2 ....... 37132 .................. FRONT WHEEL ASSEMBLY

2 ....... 37095 .................. REAR WHEEL

1 ....... 29509 .................. CAP, FUEL TANK

2 ....... 560017 ................ GRIPS, HANDLEBAR

1 ....... H9406 .................. BULB, GE H9406

1 ....... 15503 .................. KNOB, COMFORT

1 ....... 37311 .................. BALL VALVE, WATER SYSTEM

2 ....... 570005 ................ CLAMP, MUFFLER

2 ....... 37048 .................. SPRING, WHEEL DRIVE

2 ....... 582012 ................ BUSHING, QD

2 ....... 915316 ................ SCREW, 5/8 - 11 X 3 LH GR8

2 ....... 915315 ................ SCREW, 5/8 - 11 X 3 GR8

1 ....... 574003 ................ ROPE, POINTER

1 ....... 37212 .................. THROTTLE ASSEMBLY

2 ....... 200019 ................ MUDFLAP, BLADEGUARD

FOR SAWS WITH 16", 20", AND 26" BLADEGUARDS

2 ....... 37168 .................. FLANGE, INNER 5.0"

2 ....... 37169 .................. FLANGE ASSEMBLY, OUTER 5.0"

2 ....... 926790 ................ PIN, DOWEL

2 ....... 362000 ................ HOSE, WATER #6LP (16" BLADEGUARD)

2 ....... 362005 ................ HOSE, WATER #6LP (20" BLADEGUARD)

2 ....... 362006 ................ HOSE, WATER #6LP (26" BLADEGUARD)

ENGINE PARTS FOR DEUTZ TURBO DIESEL ENGINE

2 ....... 1174416 .............. OIL FILTER, DEUTZ BF3L2012

2 ....... 304010 ................ FUEL FILTER, DEUTZ BF3L2011

2 ....... P772579 .............. PRIMARY AIR FILTER ELEMENT

2 ....... P775300 .............. SAFETY AIR FILTER, DEUTZ BF3L2014

2 ....... 21004-003 ........... FAN BELT, AX-35

2 ....... 520007 ................ DRIVE BELT, 5G 3VX-530

1 ....... 406017 ................ IGNITION SWITCH, W/KEY

2 ....... 406017-1 ............. KEY, IGNITION

2 ....... 306006 ................ FILTER, TRANSMISSION

FOR SAWS WITH 30" AND 36" BLADEGUARDS

2 ....... 37177 .................. FLANGE, INNER 6.0"

2 ....... 37176 .................. FLANGE ASSEMBLY, OUTER 6.0"

2 ....... 926790 ................ PIN, DOWEL

2 ....... 362007 ................ HOSE, WATER #6LP (30" BLADEGUARD)

2 ....... 362008 ................ HOSE, WATER #6LP (36" BLADEGUARD)

NOTICE

Part numbers on this Suggested Spare Parts List may supercede/replace the P/N's shown in the text pages of this manual.

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 7

NAMEPLATES AND DECALS

PAGE 8 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

NAMEPLATES AND DECALS

NO. PART NO. PART NAME QTY. REMARKS

1 37362 DECAL, STAY LEVEL HANDLE WHITE 2 2 20936 DECAL, MQ MULTIQUIP 5.93 X 7.45 2 3 37365 DECAL, MQ PS7060 2

4 SERIAL TAG ............................................................ 1 .................. CONTACT PARTS DEPT.

5 M600002 DECAL, DIESEL FUEL ONLY 1 6 25482 DECAL, MQ LOGO 3.0 X 3.75 1

7 37161 DECAL, HOT ISO HI-TEMPERATURE .................... 1 .................. SAFETY ITEM

8 13118 DECAL, POWDER COATED 1

9 20525 DECAL, WARNING "PROP 65" 3.25 X 4.25 ............ 1 .................. SAFETY ITEM

10 36092 DECAL, WARNING DIESEL FUEL 3.5 X 1.75 ......... 1 .................. SAFETY ITEM

11 36090 DECAL, WARNING VENTILATION 2 X 4 ................. 1 .................. SAFETY ITEM

12 11912 DECAL, PATENT PENDING 1 13 25282 DECAL, ATTENTION BATTERY DISCONNECTED 1

14 35137 DECAL, WARNING READ MANUAL ........................ 1 .................. SAFETY ITEM

15 36099 DECAL, PROTECTIVE CLOTHING ISO BLUE ........ 1 .................. SAFETY ITEM

16 37540 DECAL, HYDRAULIC RESERVOIR 1

17 21302 DECAL, WARNING KEEP GUARDS IN PLACE ...... 2 .................. SAFETY ITEM

18 22122-001 DECAL, WARNING RX-W ........................................ 2 .................. SAFETY ITEM

19 25249-001 DECAL, WARNING KEEP HANDS CLEAR ............. 2 .................. SAFETY ITEM

20 25250-001 DECAL, WARNING KEEP FEET CLEAR ................ 2 .................. SAFETY ITEM

21 25678 DECAL, BLADE ROTATION CCW ............................ 1 .................. SAFETY ITEM

22 23330-001 DECAL, CAUTION BELT DRIVE 2

23 606004 DECAL, GUARD REMOVAL ..................................... 2 .................. SAFETY ITEM

24 25491 DECAL, BLADE ROTATION CW 1 25 11092 DECAL, CE 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 9

INCH

100

125

150

175

200

230

255

280

305

330

355

380

WATERPUMP

OFF

WATER

OFF

BRAKES:

Thissaw is equipped with parking brakes. Brakesare applied automatically when engine isoff and dis-engaged when engine is running.

BEFORE STARTING:

WATER SUPPLY:

BLADES:

STARTING ENGINE:

STOPPING ENGINE:

FWD-

NEUTRAL-

REV CONTROL:

RAISE-

LOWER FUNCTION:

Checkall fluid levels. Secure blade firmly to bladeshaft.Make sure all protective guards arein place and properly mounted. Wear eye, earprotection and protective clothing.

Connectwater supply to water inlet. Move waterON/OFF CONTROL to ON position. AdjustWATER FLOW CONTROL lever to desiredposition. Drain watering system in coldweather to prevent damage due to freezing.

Alwaysfollow blade manufacturer's recommendationsfor blade selection, speedand application. NEVERexceed blade manufacturer's maximumrated RPM. See operator's manual fordetailed blade mounting instructions.

SetCONTROL HANDLE to NEUTRAL position. SetTHROTTLE to IDLE. Turn start switch to ONposition. Wait for glow plug indicator light togo out. Momentarily turn switch to start position;release switch as soon as engine starts.Allow engine to warm up for several minutesbefore increasing engine speed. Use approveddiesel fuel only.

Donot stop engine abruptly when hot! Reduce THROTTLEto IDLE and allow engine to run 1 to2 minutes before turning ignition switch off. Damageto engine may occur if not allowed to cooladequately.

Thepanel mounted handle controls FORWARD,NEUTRAL and REVERSE operation.Neutral position stops or holds saw ina stationary position. Incremental movementin the FORWARD or REVERSE directionwill increase speed proportionate toamount of movement.

RAISE-LOWERfunction is controlled by the switchmounted at the right side of the CONTROLHANDLE. Push toggle switch leverforward to lower saw. Pull toggle switch leverbackward to raise saw.

OPERATINGINSTRUCTIONS

FORWARD

NEUTRAL

REVERSE

WARNING

BLADESHAFTROTATIONDIS-ENGAGEMENT SYSTEM

Enginemust be at idle when engaging or dis-engagingbladeshaft drive.

Tostop bladeshaft rotation: Pushrocker switch labeled BLADESHAFT forward. Enginewill tilt forward, dis-engaging the belt drive.

Tostart bladeshaft rotation: Pushrocker switch labeled BLADESHAFT backward. Enginewill tilt back, engaging belt drive.

ENGINEMUST BE SHUT OFF

whenremoving or installing bladeor bladeguard or performing any type of service tobladeshaft or any other component on machine!

NEVER

attemptto remove or install blade or bladeguard

withengine running by dis-engaging the belt drive!

NEVER

attemptto service any component with the

enginerunning!

NEVER

leavesaw unattended while engine is running!

RAISE/LOWER

SWITCH

FWD-NEUTRAL-REV

CONTROL

NEVEREXCEED BLADE MANUFACTURER'S RECOMMENDED RPM'S

ADJUSTWATER FLOW VALVE FORDESIRED WATER FLOW

WATER

FLOW

CONTROL

TOADJUST CUT DEPTH INDICATOR: LOWERSAW UNTIL BLADE CONTACTS SURFACE,ADJUST DIAL TO ZERO.

DEPTH

INDICATOR

ToControl Depth of Cut with Saw Runningand Blade Mounted:

Step1:

Raisesaw above desired cutting depth.

Step2:

Turndepth control knob counterclockwise untilsaw cannot be lowered by pushing raise/lower switchforward. Step3:

Holdraise/lower switch in the lowering positionand rotate the depth control knob clockwise untildesired cutting depth is achieved. The saw will repeatto the same depth until re-adjusted.

ToRe-adjust for Full Cutting Depth:

Holdraise/lower switch in the lowering position and rotatethe depth control knob clockwise until saw is fullylowered. Rotate depth control knob clockwise additional1 turn.

DEPTH STOP CONTROL

CONTROL PANEL DECALS

ADJUSTWATER FLOW VALVE FORDESIRED WATER FLOW

ENGINE

Airfilter: Replace outer element when the SYSTEMS

airfilter restriction light comes on.STATUS

Replaceinner element every fourth outer element.

Oil: Check oil level daily, do not overfill.

SeeEngine Manual.

Oiltype: OilService: Change oil and filter every 125 hours

ofoperation. Changefuel filter every 250 hours of operation.

FuelFilter:

THROTTLE

TURNKNOB COUNTERCLOCKWISE.

TOINCREASE ENGINE SPEED:

TURNKNOB CLOCKWISE.

TOREDUCE ENGINE SPEED: FORQUICK THROTTLE ACTION: DEPRESS RED BUTTON AND

PUSHOR PULL KNOB.

DEPTH STOP CONTROL

ToControl Depth of Cut with Saw Runningand Blade Mounted:

Step1:

Raisesaw above desired cutting depth.

Step2:

Turndepth control knob counterclockwise untilsaw cannot be lowered by pushing raise/lower switchforward. Step3:

Holdraise/lower switch in the lowering positionand rotate the depth control knob clockwise untildesired cutting depth is achieved. The saw will repeatto the same depth until re-adjusted.

ToRe-adjust for Full Cutting Depth:

Holdraise/lower switch in the lowering position and rotatethe depth control knob clockwise until saw is fullylowered. Rotate depth control knob clockwise additional1 turn.

NEVEREXCEED BLADE MANUFACTURER'S RECOMMENDED RPM'S

HYDRAULICSYSTEM

OilLevel: Check reservoir daily. Fill reservoir to

FULLCOLD.

linemarked

Oiltype:

15W-40premium grade engine oil. Changeoil and filter every 500 hours of

OilService:

operationor annually, whichever occurs first.

Reservoir Reservoir is located inside console. Remove

rearpanel for access.

Location:

LIGHTS

AUXILIARY

OFF

TOADJUST CUT DEPTH INDICATOR: LOWERSAW UNTIL BLADE CONTACTS SURFACE,ADJUST DIAL TO ZERO.

BLADESHAFT DIS-ENGAGE

ENGAGE

MAINTENANCE INSTRUCTIONS

Note: Wheeldrive propulsion system, lift pump, andoil bath bladeshaft share common hydraulicoil reservoir, thus are maintained asa single system.

IGNITION SWITCH

START

ENGINE PRE-HEAT

OFF

BLADESHAFTROTATIONDIS-ENGAGEMENT SYSTEM

Enginemust be at idle when engaging or dis-engagingbladeshaft drive.

Tostop bladeshaft rotation: Pushrocker switch labeled BLADESHAFT forward. Enginewill tilt forward, dis-engaging the belt drive.

Tostart bladeshaft rotation: Pushrocker switch labeled BLADESHAFT backward. Enginewill tilt back, engaging belt drive.

ENGINEMUST BE SHUT OFF bladeor bladeguard or performing any type of service tobladeshaft or any other component on machine!

withengine running by dis-engaging the belt drive!

enginerunning!

attemptto remove or install blade or bladeguard

attemptto service any component with the

leavesaw unattended while engine is running!

whenremoving or installing

Service: Type:

Locations:

ENGINEPRE-HEAT GLOWPLUG

SYSTEMS STATUS

LUBRICATION

Greaseevery 125 hrs. of operation. Usepremium grade waterproof EP(extreme pressure) grease. Frontaxle pivot bearings (2), lift cylinderpins (2), engine tilt cylinder pin(1).

BLADE SPEED

BeltTension:

ToAdjust DriveBelt Tension:

DRIVEBELTS

Bladeshaftdrive belt tension is applied hydraulically when bladeshaftdrive is engaged.

Performfollowing procedure with saw fully lowered.

Loosenjam nut on belt tension limiting bolt. Turn belt tension limiting bolt counterclockwiseto create ½” minimum distance between end of bolt and frame. Startengine and engage belt drive; increase engine speed to full throttle position for 15seconds minimum. Slowengine speed to idle and shut engine off. Turn belt tensionlimiting bolt clockwise until bolt lightly contacts frame. Tighten locknut.

TACHOMETER

NEUTRAL-

RAISE-

OPERATINGINSTRUCTIONS

Checkall fluid levels. Secure blade firmly to bladeshaft.Make sure all protective guards arein place and properly mounted. Wear eye, earprotection and protective clothing.

Connectwater supply to water inlet. Move waterON/OFF CONTROL to ON position. AdjustWATER FLOW CONTROL lever to desiredposition. Drain watering system in coldweather to prevent damage due to freezing.

Donot stop engine abruptly when hot! Reduce THROTTLEto IDLE and allow engine to run 1 to2 minutes before turning ignition switch off. Damageto engine may occur if not allowed to cooladequately.

RAISE-LOWERfunction is controlled by the switchmounted at the right side of the CONTROLHANDLE. Push toggle switch leverforward to lower saw. Pull toggle switch leverbackward to raise saw.

Thissaw is equipped with parking brakes. Brakesare applied automatically when engine isoff and dis-engaged when engine is running.

ENGINEWILL NOT CRANK ORSTART WHEN E-STOP BUTTONIS DEPRESSED

WATERPUMP

PAGE 10 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

CONTROL PANEL DECALS

NO. PART NO. PART NAME QTY. REMARKS

1 37361 DECAL, MAINTENANCE, 7000 SERIES 1 2 37354 DECAL, INSTRUMENT PANEL, 7000 SERIES 1 3 37353 DECAL, OPERATION CONSOLE PANEL 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 11

ELECTRICAL CONTROL ASSY.

PAGE 12 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

ELECTRICAL CONTROL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 406000 SWITCH, ROCKER CH# M-58031-01 2

2 406017 IGNITION SWITCH, WITH KEYS ............................ 1................... INCLUDES ITEMS W/

3 37198 EMERGENCY STOP SWITCH ................................ 1 .................. SAFETY ITEM

4 37094 SWITCH, TOGGLE SPDT MOMENTARY ON-ON 1 5 37203 SWITCH, SNAP ACTION ROLLER PLUNGER 1 6 37490 HARNESS, RELAYS AND CIRCUIT BREAKERS 1 7 406021 INDICATOR, ENGINE 1 8 37243 SWITCH, ROLLER ARM 1 9 933240 WASHER, FLAT SAE 1/4 GRD 9 YZ 3 10 405000 CONNECTOR, 4-WAY SOCKET 1 11 37368 TACHOMETER, ELECTRIC 0-3000 RPM 1 12 8381 BOOT, TOGGLE SWITCH 1 13 406020 BLANK, ROCKER SWITCH 2 14 973752 SCREW, BHHC 1/4 - 20 X 5/8 SS 3 15 37325 SCREW, SHC M5 - 0.8 X 30MM 2 16 37324 NUT, NYLOC M5 - 0.8 2 17 28922-058 WASHER, M5 2 18 19 25628 SOLENOID, LIFT PUMP 1

406017-1 KEY, IGNITION 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 13

CONSOLE MOUNTS ASSY.

PAGE 14 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

CONSOLE MOUNTS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 20742 ISOLATOR, RB2 RING/BUSHING 4 2 20743 WASHER, ISO SNUB KROFUND DYN 148099-18 4 3 575001 RUBBER ISOLATOR, TPC# 60166-1 4 4 37231-753 MOUNT, ISOLATOR FRONT 2 5 37233-753 MOUNT, ISOLATOR SIDE 2 6 37227-753 MOUNT, CONSOLE ISOLATOR FRONT 2 7 12832 WASHER, SNUBBING 4 8 06503-026 SCREW, HHC 1/2 - 13 X 3-1/4 4 9 1665 SCREW, HHC 3/8 - 16 X 2 4 10 37116-753 CONSOLE W/A 1 11 933242 WASHER, FLAT SAE 3/9 GRD 9 Y 8 12 0205 SCREW, HHC 3/8-16 X 1 8 13 TBD SCREW 4 14 TBD WASHER 4

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 15

REAR CONSOLE ACCESS PANEL ASSY.

PAGE 16 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

REAR CONSOLE ACCESS PANEL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

5 37219 STRIP, BACKING PLATE SAW CONSOLE 1 6 37220 STRIP, VERTICAL SAW CONSOLE 2 7

9 37253 PANEL ASSEMBLY, REAR SAW ACCESS ............. 1 .................. INCLUDES ITEMS W/

10024 NUT, NYLOC 1/4 X 20 4 10930 WASHER, FENDER 1/4 X 1-1/4 4 12287 SCREW, THP 1/4 - 20 X 3/4 SS 4 29057 DOCUMENT BOX 1

37254-753 PANEL, REAR SAW ACCESS 1 560020 LATCH, REAR SAW ACCESS PANEL 2

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 17

LIGHT CONNECTOR/DASH ACCESS ASSY.

PAGE 18 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

LIGHT CONNECTOR/DASH ACCESS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0655 SCREW, HHC 5/16 - 18 X 3/4 8 2

5 13287 NUT, NYLOC 8-32 2

6 25865 HARNESS, LIGHT KIT ............................................ 1 .................. INCLUDES ITEMS W/

7 37234-753 COVER W/A, CONSOLE DASH ACCESS 1 8 923114 SCREW, SHC 8-32 X 1/2 2 9 933241 WASHER, FLAT SAE 5/16 GRD 9YZ 8 10

11+# 0161 C WASHER, LOCK 5/16 MED 2 12+# 0161 D NUT, HEX 5/16 - 18 2 13+# 0300 A SCREW, HHC 5/16 - 18 X 2 1

14+ 2532 LIGHT ASSEMBLY .................................................. 1 .................. INCLUDES ITEMS W/#

15+ 15503 KNOB, COMFORT GRIP STAR 1 16+ 120206 LIGHT BAR 1 17+ 405001 CONNECTOR PLUG, 4-PIN FEMALE 1 18+ 405002 CORD, LIGHT EXTENDABLE 1 19+# H9406 BULB, GE H9406 1

20 M18004 LIGHT KIT, SAW ...................................................... 1 .................. INCLUDES ITEMS W/+

21# 11963 BOLT, CARRIAGE 5/16 - 18 X 1 1

12171 SEAL, WEATHERPACK 16-18 GA,GREEN 2 12176 CONNECTOR, WEATHERPACK 2 PIN MALE 1 12179 TERMINAL, WEATHERPACK MALE 14-16 GA 2

405000 CONNECTOR, 4-WAY SOCKET CHROME 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 19

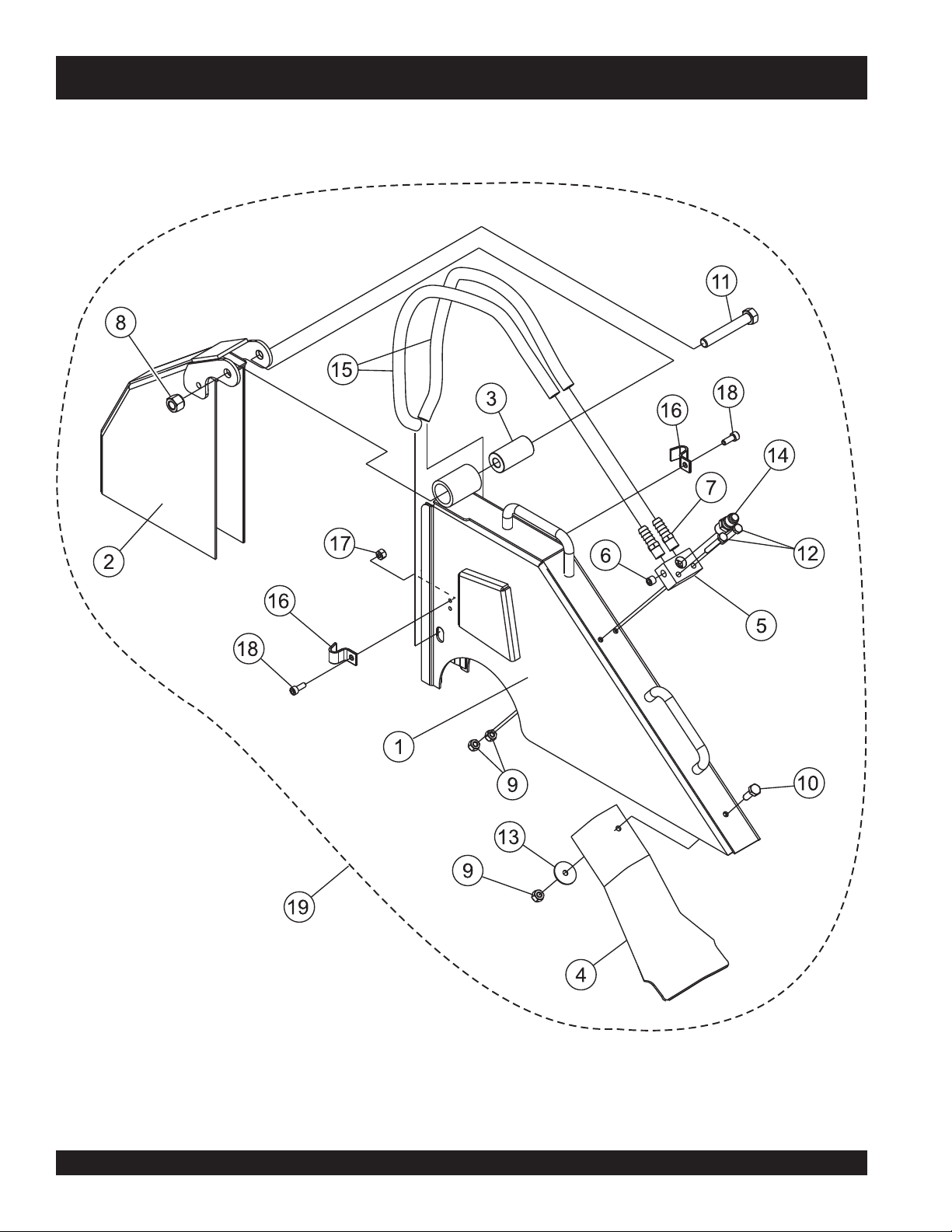

BELT AND ENGINE GUARDS ASSY.

PAGE 20 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

BELT AND ENGINE GUARDS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0166 SCREW, HHC 3/8 - 16 X 7/8 5 3 15503 KNOB, COMFORT 1

4 37202-753 GUARD, BELT DRIVE .............................................. 1 .................. SAFETY ITEM

5 37209-753 GUARD, ENGINE ..................................................... 1 .................. SAFETY ITEM

8 584011 WRENCH, 15/16 BLADE CLOSED END 1 9 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 5

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 21

DEPTH INDICATOR/STOP SWITCH ASSY. (OLD STYLE)

PAGE 22 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

DEPTH INDICATOR/STOP SWITCH ASSY. (OLD STYLE)

NO. PART NO. PART NAME QTY. REMARKS

1 10024 NUT, NYLOC 1/4 - 20 2 2 37155 PULLEY, CABLE .75 OD 1 3 37235 BASE, SAW DEPTH INDICATOR 1 4 37240 PULLEY, CABLE .75 OD 2 5 37241 SHAFT, DEPTH INDICATOR 1 6 37332 RING, 3/16 E-STYLE EXTERNAL 2 7 37401 SCREW, SH SHLDR 1/2-20, 5/16 OD X 1/4 L 1 8 37504 CABLE, NYLON COAT SS .049 1 9 110031 POINTER, CONCRETE SAW DEPTH 1 10 460019 FLANGE, BEARING 0.25 ID X 0.75 OD 1 11 560025 KNOB, SAW DEPTH INDICATOR 1 12 565005 SPRING, EXTENSION 1 13 583059 SHIM, 0.375 OD X 0.25 ID X .020 THK 5 14 584025 STUD, 1/4 - 20 X 1-3/4 NO PLT 1 15 933240 WASHER, FLAT SAE 1/4 GRD 9 YZ 1 16 973752 SCREW, BHSC 1/4 - 20 X 5/8 SS 2 17 37248 MOUNT, SWITCH PIVOT PLATE 1 18 37246 NUT, SWIVEL DEPTH STOP 1 19 37247 KNOB, DEPTH STOP CONTROL 1 20 37249 COLLAR, SHAFT THREADED 3/8 - 16 1 21 37250 WASHER, BELLEVIEW .317 X .625 2 22 19470 WASHER, FLAT 5/16 USS 2 23 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 1 24 5283 NUT, NYLOC 5/16 - 18 2 25 10133 NUT, NYLOC 3/8 - 16 1 26 37251 WASHER, BELLEVIEW .389 X .750 2 27 37375 STUD, 3/8 - 16 X 4 1 28 4001 WASHER, FLAT USS 3/8 PLD 3

NOTICE

Parts on this page are no longer available. See Depth Indicator/Stop Switch Assy. (New Style).

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 23

DEPTH INDICATOR/STOP SWITCH ASSY. (NEW STYLE)

PAGE 24 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

DEPTH INDICATOR/STOP SWITCH ASSY. (NEW STYLE)

NO. PART NO. PART NAME QTY. REMARKS

1 37544 SHAFT, DEPTH INDICATOR 1 2 37545 BUSHING, FLANGED 2 3 37547 SHAFT, IDLER PULLEY 2 4 37548 PULLEY, IDLER 2 5 110031 POINTER, CONCRETE SAW DEPTH 1 6 560025 KNOB, SAW DEPTH INDICATOR 1 7 37549 PULLEY, DUAL GROOVE 1 8 37550 BELT, INDICATOR DRIVE 1 9 0948 WASHER, FLAT SAE 1/4 3 10 37332 RING, 3/16 E-STYLE EXTERNAL 6 11 926149 SCREW, SHDLR 1/4D X 5/16L, 10-24 SCKT HD 1 12 37162 SPRING, EXTENSION 1 13 973752 SCREW, BHSC 1/4 - 20 X 5/8 SS 2 14 37551 HOUSING, DEPTH INDICATOR 1 15 37557 BRACKET, CABLE INDICATOR 1 16 2295 SCREW, HHC 1/4 - 20 X 7/8 1 17 10024 NUT, NYLOC 1/4 - 20 2 18 37401 SCREW, SH SHLDR 1/2-20, 5/16 OD X 1/4 L 1 19 37679 RING, SNAP SH 87 2 20 37678 CABLE ASSY., DEPTH INDICATOR 1

NOTICE

Parts on this page replace those listed on Depth Indicator/Stop Switch Assy. (Old Style).

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 25

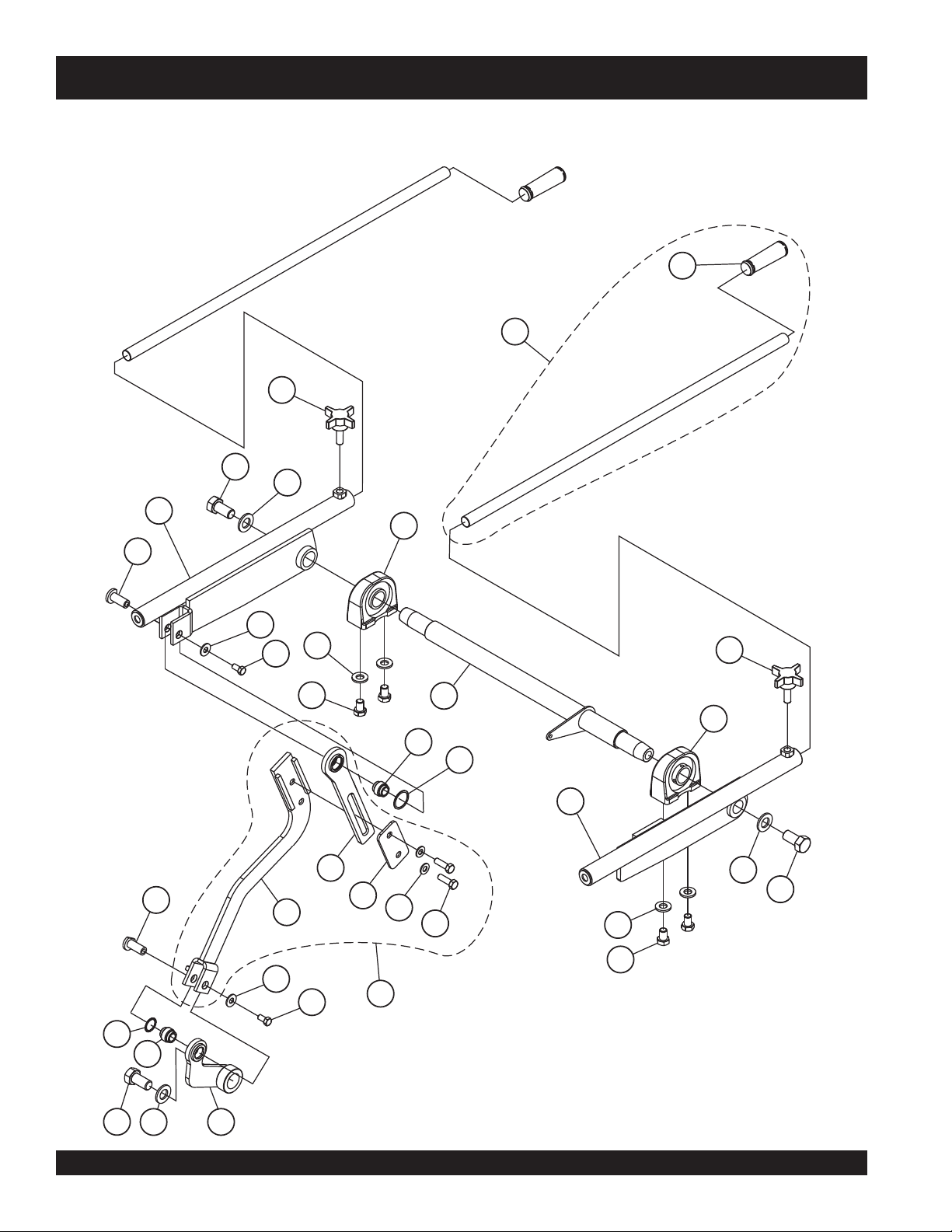

F-N-R ASSY.

PAGE 26 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

F-N-R ASSY.

NO. PART NO. PART NAME QTY. REMARKS

10 11 12 13 14

15 37021 FNR ASSEMBLY ...................................................... 1 .................. INCLUDES ITEMS W/

16 2153 ROD END 2 17 37136 CABLE, PUSH PULL 56" 1 18 37299 STANDOFF, PUMP CONTROL 1 19 07469-004 SCREW, SHC 10-32 X 1/2 1 20 4683 SCREW, HHC 5/16 - 18 X 5/8 1 21 933241 WASHER, FLAT SAE 5/16 GRD 9 YZ 1 22 2203 WASHER, FLAT #10 1 23 10019 NUT, NYLOC 10-32 1 24 3513 SCREW, HHC 10 - 32 X 1 1

576003 SNAP RING - HO-185 1 460021 BEARING, ROLLER # 6204 2RS 2 20842 SCREW, PAN HD 6-32 X 1/4 4 579072 GROMMET, 1/2" ID 1 926917 PIN, DOWEL 1/4 X 1/2 2 37015 SPACER, FNR PIVOT 1 37014 DISC, FNR FRICTION BRAKE 1 37013 PLATE, FNR ACCESS COVER 1 37022 WELDMENT, FNR HANDLE 1 37016 PLATE, FNR BRAKE 1

37091 SPRING, SMALLEY WAVO RW-0250 1

37024 WELDMENT, FNR SPRING PLATE 1

37025 NUT, HEX FINISH M20-2.5 2

37026 SCREW, HHC M20 X 2.5 X 120 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 27

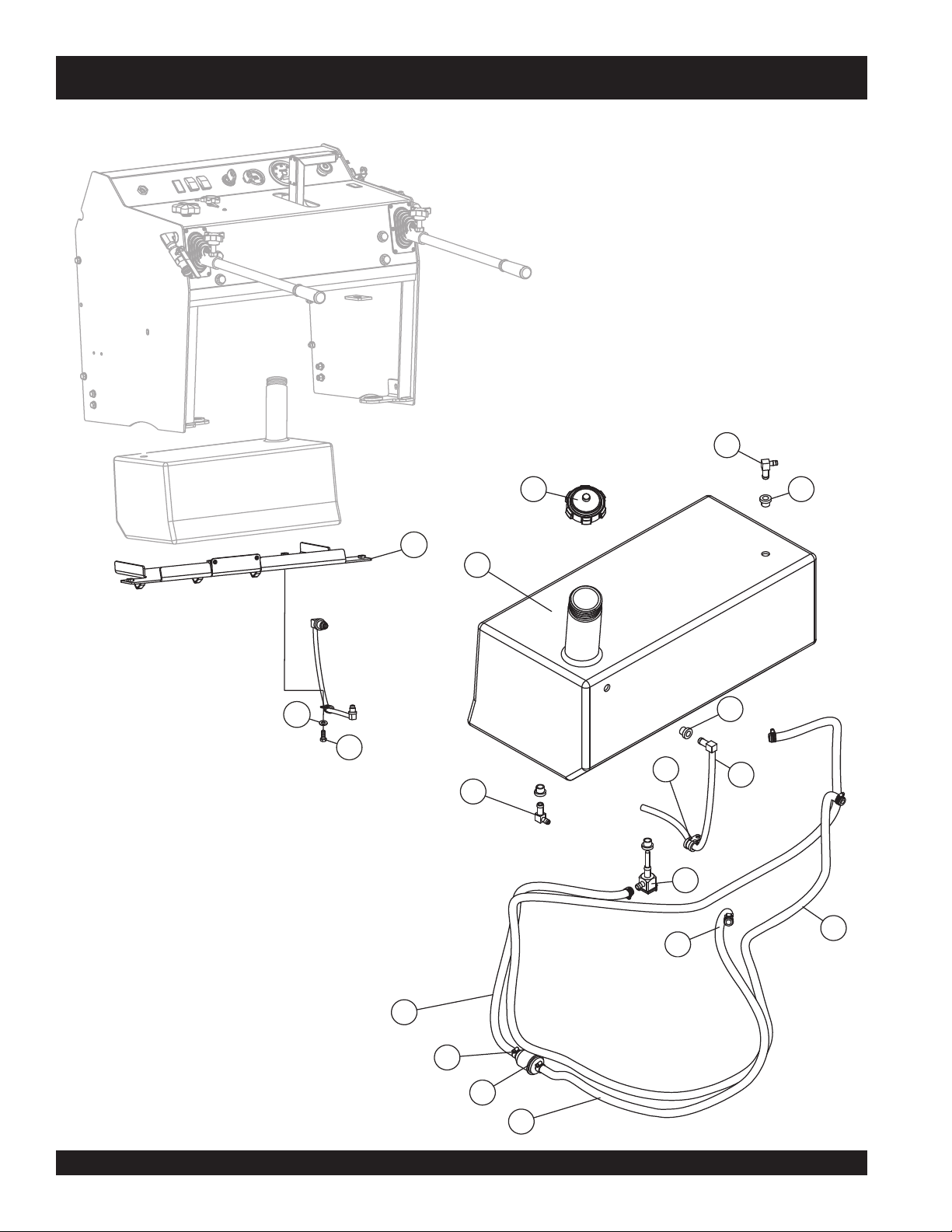

FUEL ASSY.

PAGE 28 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

FUEL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0205 SCREW, HHC 3/8 - 16 X 1.0 5

2 19473 CLAMP, WORM HOSE 2" ......................... 8 ..................S/N ZC3700225 AND BELOW

3 19633 BUSHING, RUBBER FUEL DAPCO 4 4 35022 CLAMP, LOOP CUSHIONED #8 1

5 29338 PRIMER BULB 5/16 HOSE BARB ............ 1 .................. S/N ZC3700225 AND BELOW

6 29509 CAP, FUEL TANK 1

7 37128 BALL VALVE, 90 W/SCREEN #5 .............. 1 ..................S/N ZC3700225 AND BELOW

8 37191 FUEL TANK 1 9 37195-753 MOUNT, FUEL TANK 1

10 37809 FILTER, FUEL DEUTZ IN-LINE ................ 1 .................. S/N ZC3700225 AND BELOW

11 368006 FITTING, FUEL 90 DEG 3 12 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 5

13 60058 HOSE, 1/4 X 3/8 PVC YELLOW ..............1.2 ................. SOLD BY FOOT

14 2111897 HAND PUMP, INTEGRATED ..................... 1 .................. S/N ZC3700226 AND ABOVE

15 1287773 O-RING SEAL ........................................... 1 ..................S/N ZC3700226 AND ABOVE

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 29

BATTERY ASSY.

PAGE 30 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

BATTERY ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0166 SCREW, HHC 3/8 - 16 X 7/8 1 2 0655 SCREW, HHC 5/16 - 18 X 3/4 4 3 37088 BOX, BATTERY 1 4 37098 RETAINER, BATTERY HOLD-DOWN 1 5 37258-753 CLIP, BATTERY RETAINER 1 6 37284 SCREW, HHC M14 - 2.0 X 20MM GRD 8.8 PLTD 1 7 37326 CABLE, POSITIVE BATTERY STARTER 1 8 37327 CABLE, POSITIVE BATT. SOLENOID LIFT PUMP 1 9 37328 CABLE, NEGATIVE BATTERY ENGINE 1 10 37329 CABLE, NEGATIVE BATTERY LIFT PUMP 1 11 37355 CABLE, POSITIVE BATT. SOLENOID LIFT PUMP 1 12 404006 BATTERY, EXIDE ORB75DT-84 1 13 915101 SCREW, HHC 3/8 - 16 X 1/2 GRD 8 2 14 933241 WASHER, FLAT SAE 5/16 GRD 9 YZ 4 15 933245 WASHER, FLAT SAE 9/16 GRD 9 YZ 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 31

STAY-LEVEL HANDLEBARS ASSY.

PAGE 32 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

STAY-LEVEL HANDLEBARS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37085 BEARING, 1.25" TAP BASE 1 2 37239 SHAFT, CROSSDRIVE SLH 1 3 37119 RECEIVER, SLH HANDLEBAR LH 1 4 37120 RECEIVER, SLH HANDLEBAR RH 1 5 37125 BEARING, PLAIN 1.0625 ULTRASERT UC200 2

6 560023 HANDLEBAR ASSY., CONCRETE SAW ................. 2................... INCLUDES ITEMS W/

7 37174 LINK ASSY., SLH CONTROL COUPLER ................ 1................... INCLUDES ITEMS W/#

8 37139 SLH CONTROL LEVER 1 9 16523 SCREW, HHC 3/4 - 10 X 1-1/2 GD 8 3 10 933245 WASHER, FLAT SAE 9/16 GRD 9 YZ 4 11 933247 WASHER, FLAT SAE 3/4 GRD 9 YZ 3 12 37284 SCREW, HHC M14-2.0 X 20MM GRD 8.8 PLTD 4 13 37312 RING, RETAINING WHM-106 2 14 19977 KNOB, CLAMP 1/2 - 13 THREAD 2 15# 37123 LINK, SLH CONTROL COUPLER LOWER 1 16# 37173 LINK, SLH CONTROL COUPLER UPPER 1 17# 37297 PLATE, SLH CLAMP 1 18# 16526 SCREW, HHC 1/2 - 13 X 1-3/4 GRD 8 2 19 4196 SCREW, HHC 3/8 - 16 X .75 2 20# 933244 WASHER, FLAT SAE 1/2 GRD 9 YZ 2 21 4001 WASHER, FLAT USS 3/8 PLD 2 22 37133 PIN, SLH COUPLER PIVOT 2 23

560017 GRIP, HANDLEBAR 2

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 33

HANDLEBAR BOOT ASSY.

PAGE 34 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

HANDLEBAR BOOT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37117 BOOT ASSY., HANDLEBAR .................................... 1 .................. INCLUDES ITEMS W/

37105 BOOT, SLH HANDLEBAR 1 37061 PLATE, RETAINER 1 5065 B SCREW, PHP 10 - 32 X 1/2 6

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 35

WATER SYSTEM ASSY.

PAGE 36 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

WATER SYSTEM ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 38313 FITTING, BRASS (F) 3/4 GHT SWIVEL 3/8 MNPT 1 2 37813 FITTING, 90 1/2MP - 3/8FP 2 3 37311 BALL VALVE, BRASS 3/8 MNPT X FNPT 2 4 37533 HOSE ASSEMBLY, WATER SYSTEM 76.5" 1 5 37397 FITTING, 8MJ X 1/2 MP 1 6 37532 FITTING, QC FEMALE 1 7 37296 HOSE ASSEMBLY, CROSSOVER 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 37

ENGINE ASSY.

PAGE 38 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

ENGINE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 35396 ENGINE, DEUTZ 60HP BF3L2011 TRBO DSL 1 2 2299 SCREW, HHC M8 - 1.25 X 16MM 2 3 933241 WASHER, FLAT SAE 5/16 GRD 9 YZ 2 4 10024 NUT, NYLOC 1/4 X 20 2 5 933240 WASHER, FLAT SAE 1/4 GR 9 YZ 2 6 915004 SCREW, HHC 1/4 - 20 X 7/8 2

7 37473 HEAT SHIELD .......................................................... 1 .................. SAFETY ITEM

8 37255 THROTTLE LEVER 1

9 1174696 FILTER, FUEL DEUTZ ............................................. 1................... REPLACES 304010

10 1174416 FILTER, OIL DEUTZ ................................................ 1................... REPLACES 306012

11 21004-003 V-BELT, AX-35 1 12 37256 BRACKET, THROTTLE/FNR CABLE 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 39

THROTTLE CONTROL ASSY.

PAGE 40 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

THROTTLE CONTROL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37212 THROTTLE 1 2 37256 BRACKET, THROTTLE/FNR CABLE 1 3 37255 LEVER, THROTTLE 1 4 933240 WASHER, FLAT SAE 1/4 GRD 9 YZ 1 5 25624 SWIVEL, CABLE END W/ WASHER 1 6 923113 SCREW, SHC 8 - 32 X 3/8 GRD 8 1 7 23942-097 WASHER, M6 2 8 12464 SCREW, HHC M6 - 1.0 X 16MM 2 9 25634 BULK HEAD ADAPTOR 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 41

ENGINE MOUNTS ASSY.

PAGE 42 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

ENGINE MOUNTS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37491 MOUNT, RH ENGINE 1 2 37100 MOUNT, LH ENGINE 1 3 37099 PIN, ENGINE PIVOT 2 4 37031 BUSHING, SPHERICAL-ULTRASERT UC200 2 5 37147 PIN, UPPER ENGINE PIVOT 1 6 37313 RING, SPIRAL RETAINING WHM-200 2 7 37310 SCREW, HHC M14-2.0 X 40MM GRD 10.9 NP 6 8 37146 SCREW, HHC M14-2.0 X 35MM GRD 10.9 NP 2 9 913838 SCREW, HHC 3/4 - 10 X 4 GRD5 ZINC 1 10 933245 WASHER, FLAT SAE 9/16 GRD 9 YZ 8 11 4389 NUT, HEX 3/4 - 10 1 12 16530 SCREW, HHC 7/16 - 14 X 1 2 13 933243 WASHER, FLAT SAE 7/16 GRD 9 YZ 2 14 37037 WASHER, ENGINE PIVOT PIN 4 15 21376 SCREW, HHC 5/8 - 11 X 1-1/2 4

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 43

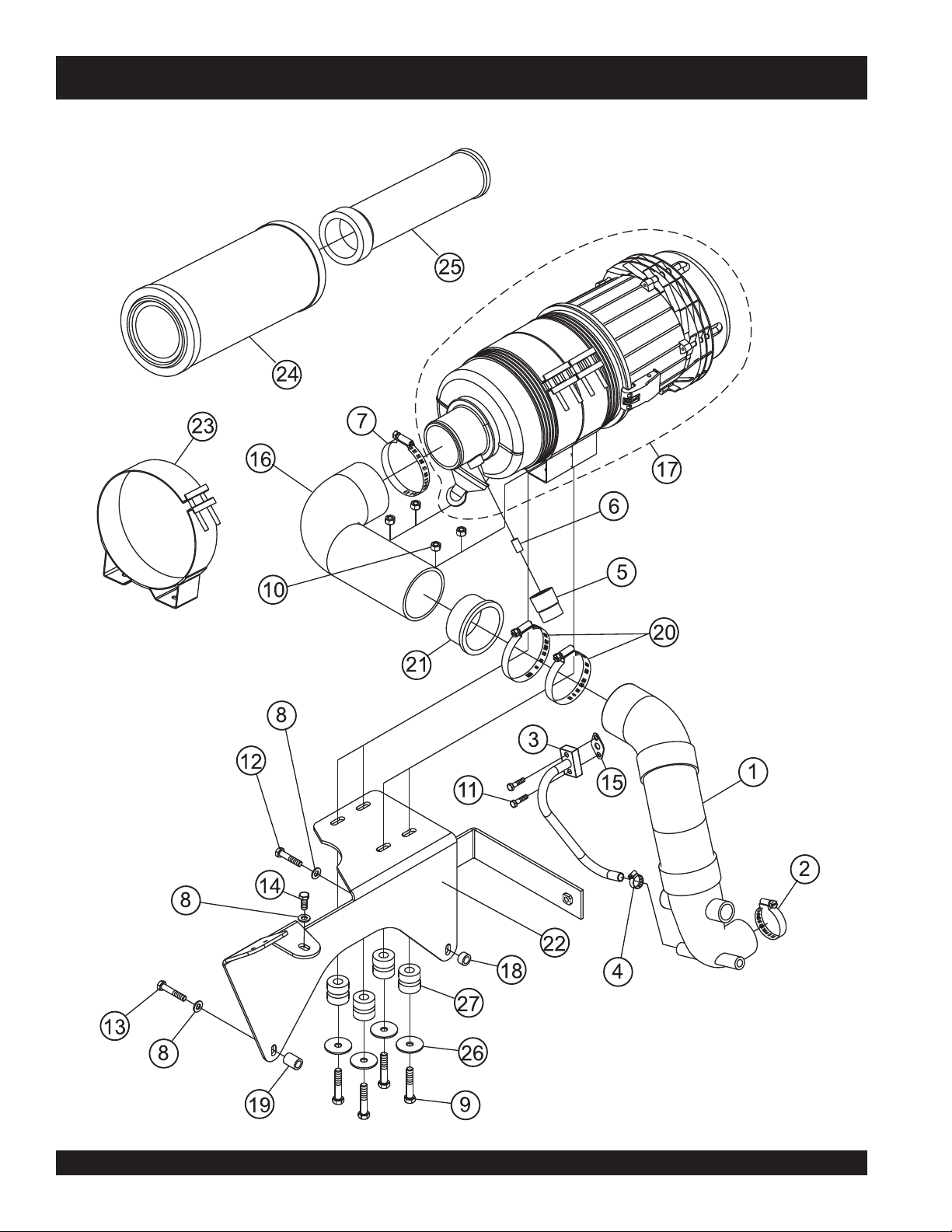

AIR CLEANER ASSY.

PAGE 44 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

AIR CLEANER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37151 HOSE ASSY, AIR INTAKE 1 2 10434 CLAMP, HOSE WORM # 32 1-9/16 TO 2" 1 3 35309 TUBE, AIR INTAKE BREATHER 1 4 15538 CLAMP, HOSE WORM # 6 1 5 406018 INDICATOR, ELECTRICAL SERVICE 1 6 65516 FITTING, NIPPLE 1/8" MP 1 7 29218 CLAMP, HOSE WORM # 48 2 8 933241 WASHER, FLAT SAE 5/16 GRD 9 YZ 3 9 1665 SCREW, HHC 3/8 - 16 X 2 4 10 10133 NUT, NYLOC 3/8 - 16 4 11 M940653 SCREW, HHC M6 - 1.0 X 25MM GRD 10.9 2 12 1928 SCREW, HHC M8 - 1.25 X 40MM 1 13 9182 SCREW, HHC M8 - 1.25 X 45MM 1 14 2866 SCREW, HHC M8 - 1.25 X 20MM 1 15 35399 GASKET, AIR INTAKE TUBE 1 16 37153 HOSE, 3.00 ID MOLDED 90 DEGREE 1 17 37199 AIR CLEANER ASSEMBLY 3 INCH #7VLR 1 18 37307 SPACER, AIR CLEANER MOUNT .375L 1 19 37309 SPACER, AIR CLEANER MOUNT .875L 1 20 962019 CLAMP, HOSE WORM # 44 2 21 37317 BUSHING, AIR INTAKE 2.75 X 3.00 1 22 37112 MOUNT, AIR FILTER 1 23 37761 BRACKET, AIR INTAKE BODY 2 24 P772579 PRIMARY FILTER, DEUTZ BF3L2013 1 25 P775300 SAFETY FILTER, DEUTZ BF3L2014 1 26 12832 WASHER, SNUBBING 4 27 575001 RUBBER ISOLATOR, TPC #60166-1 4

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 45

MUFFLER ASSY.

PAGE 46 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

MUFFLER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2*# 570005 CLAMP, MUFFLER 2-1/2" 5/16 U-BOLT 2 3*# 8131 NUT, FINISH L.H. 5/16 - 24 4 4*# 933241 WASHER, FLAT SAE 5/16 GRD 9 YZ 4

5*# 280005 MUFFLER ................................................................ 1 ................... INCLUDES ITEMS W/%

6*#% 940693 SCREW, HHC M10 - 1.5 X 25MM GRD 10.9 NP 2 7*#% 940358 WASHER, M10 X 21MM ZINC 2 8*#$ 25592 NUT, M8 - 1.25" 3 9*#$ 25591 WASHER, M8 3 10*#$ 25642 GASKET, TURBO INLET DEUTZ 1 11*#$ 25593 STUD, M8 - 1.25 X 30MM 3

12 37143 MUFFLER ASSEMBLY COMPLETE ....................... 1................... INCLUDES ITEMS W/

14*# 280004 FLEX KIT ASSEMBLY ............................................. 1................... INCLUDES ITEMS W/$

285003 EXHAUST, 12" EXTENSION 1

280002 MUFFLER AND FLEX KIT ASSEMBLY ................... 1................... INCLUDES ITEMS W/#

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 47

LIFT BAIL ASSY.

PAGE 48 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

LIFT BAIL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37114 SPACER, DEUTZ ENGINE LIFTING BRACKET 1

2 37115 BRACKET, DEUTZ ENGINE LIFTING ..................... 1 .................. SEE NOTE BELOW

3 940694 SCREW, HHC M10 - 1.5 X 30MM FT 10.9 NP 1 4 37314 SCREW, HHC M12 - 1.75 X 120MM TAP BOLT 1 5 37315 SCREW, HHC M12 - 1.75 X 120MM 10.9 NP 1 6 940358 WASHER, M10 X 21MM ZINC 1 7 933244 WASHER, FLAT SAE 1/2 GRD 9 YZ 3 8 933241 WASHER, FLAT SAE 5/16 GRD 9 YZ 1 9 16083 NUT, HEX M12 - 1.75 NO PLATE 1 10 06500-007 SCREW, HHC 5/16 - 18 X 7/8 1

NOTICE

Type 2 Rope Guide System supercedes Type 1 Rope Guide System. See Front Pointer Assy.

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 49

PLATFORM GUARDS/REAR POINTER ASSY.

PAGE 50 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

PLATFORM GUARDS/REAR POINTER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37185 GUARD, BLADESHAFT PULLEY ............................ 1 .................. SAFETY ITEM

2 583091 STRAP, LOWER BELT GUARD 1 3 583092 WASHER, LOWER BELT PROTECTOR 1 4 933244 WASHER, FLAT SAE 1/2 GRD 9 YZ 4 5 3214 SCREW, HHC 1/2 - 13 X 1-1/4 4 6 915105 SCREW, HHC 3/8 - 16 X 1.0 GRD 8 1 7 110020 POINTER, REAR SAW 1 8 37360 SHIELD, CONCRETE SLURRY 1 9 915105 SCREW, HHC 3/8 - 16 X 1.0 GRD 8 3 10 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 6 11 37122 PLATFORM, W/A 1 12 37450 STRIP, SLURRY CONTROL 1 13 10133 NUT, NYLOC 3/8 - 16 3 14 20982 SCREW, FHSC 3/8 - 16 X 1-1/2 PLATED 3 15 M200000 GUARD, SAW BLADE COLLAR 1 16 35030 GUARD W/A, SAW BLADE COLLAR, RH 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 51

WHEEL DRIVE ASSY.

PAGE 52 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

WHEEL DRIVE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37102 MOUNT, WHEEL MOTOR 1 2 37095 WHEEL, 12 X 3 TAPERED BORE 2 3 37096 BRAKE PAD 2 4 37097 BRAKE ARM 1 5 37138 CAP, WHEEL DUST 2 6 0655 SCREW, HHC 5/16 - 18 X 3/4 2 7 0205 SCREW, HHC 3/8 - 16 X 1.0 8 8 3214 SCREW, HHC 1/2 - 13 X 1-1/4 5 9 933213 WASHER, FENDER 5/16 X 1 ZINC 2 10 37048 SPRING, 1.125 X .187 X 4 W/EYELET 2 11 23858-001 EYEBOLT, 3/8 - 16 X 2.0 2 12 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 10 13 933244 WASHER, FLAT SAE 1/2 GRD 9 YZ 7 14 933247 WASHER, FLAT SAE 3/4 GRD 9 YZ 3 15 10133 NUT, NYLOC 3/8 - 16 2 16 968011 NUT, HEX FINISH 1/2 - 13 2 17 19974 PIN, CLEVIS 1/2 X 1.25 3 18 966166 PIN, CLEVIS 3/4 X 2 1 19 965105 PIN, COTTER 5/32 X 1-1/2 1 20 965103 PIN, COTTER 5/32 X 1 3 21 37322 SPRING, CREST TO CREST 4 22 1456 NUT, HEX FINISH 3/8 - 16 2 24 12426 NUT, SLOTTED 3/4-16 2 26 0126 KEY, WOODRUFF #606 3/16 X 3/4 2

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 53

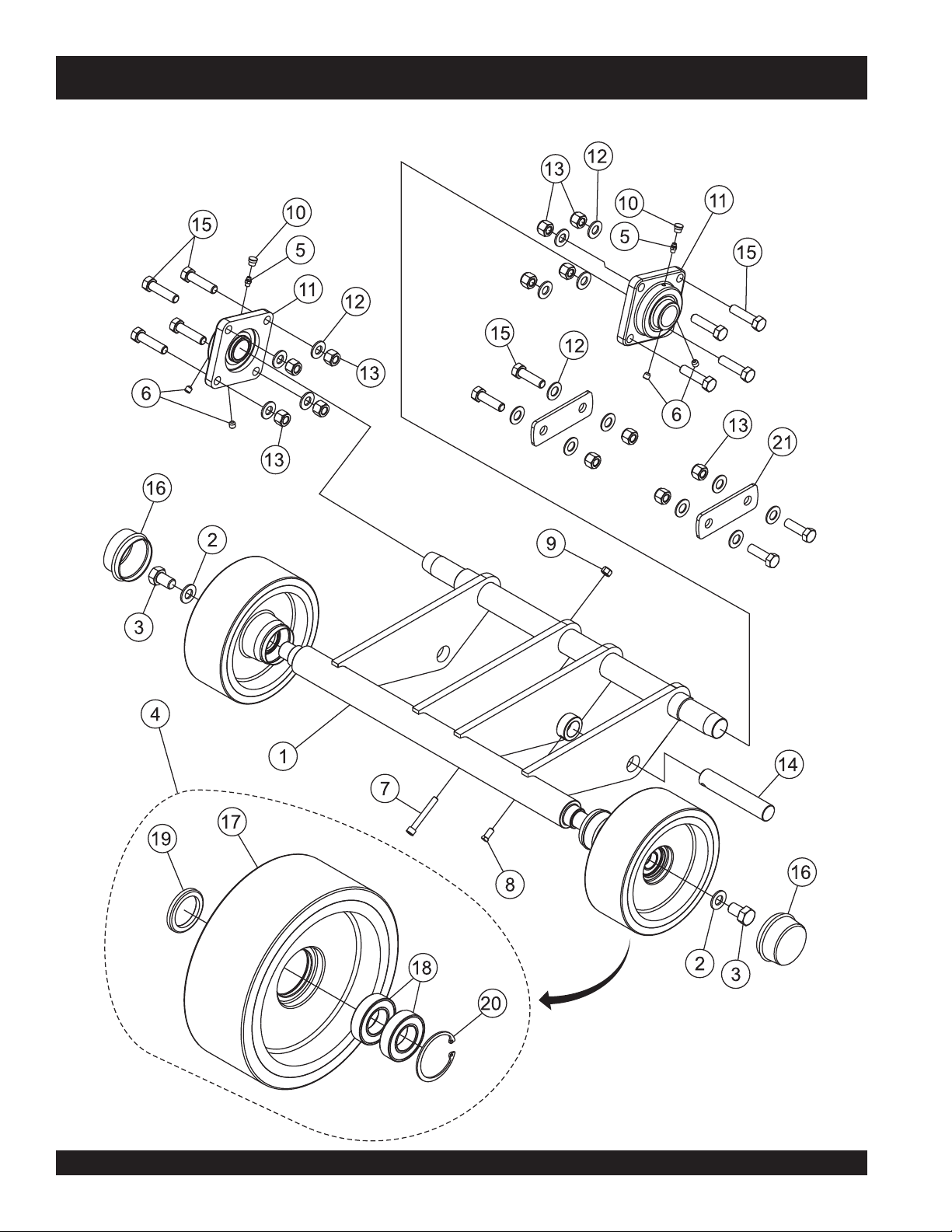

FRONT AXLE ASSY.

PAGE 54 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

FRONT AXLE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37106 FRONT AXLE W/A 1 2 933246 WASHER, FLAT 5/8 SAE GRD9 YZ 2 3 06505-008 SCREW, HHC 5/8 - 11 X 1.00 2

4 37132 WHEEL ASSEMBLY, FRONT ................................... 2.................. INCLUDES ITEMS W/

5 2621 FITTING, GREASE ZERK STR 1/4 - 28 2 6 26091 SCREW, SHS 1/4 - 28 X 1/4 CUP POINT 4 7 2186 SCREW, SHC 5/16 - 18 X 2-1/4 PLTD 1 8 926064 SCREW, SQHS CUP POINT 5/16 - 24 X 5/8 1 9 5283 NUT, NYLOC 5/16 - 18 1 10 1162 A CAP, GREASE ZERK #2 YELLOW 2 11 37040 BEARING, 1.250" FLANGE 2 12 933244 WASHER, FLAT SAE 1/2 - 13 GD 8 16 13 16629 NUT, NYLOC 12 - 13 GD 8 12 14 37260 PIN, LIFT CYLINDER 1 15 915211 SCREW, HHC 1/2 - 13 X 2 GRD8 YZ 12 16 37138 CAP, WHEEL DUST 2 17 18 19 20 21 37165 PLATE, BACKING 2

37131 WHEEL, 8 X 3 POLYURETHANE 2

460002 BEARING, BALL KOYO # 6005 SRS 4

485002 SEAL, OIL CR # 28655 2

576003 SNAP RING, - HO-185 2

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 55

HYDRAULIC SYSTEM ASSY.

PAGE 56 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

HYDRAULIC SYSTEM ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37113 PUMP, 24V DC LIFT - HYDROGEAR 1 2 306006 FILTER, TRANSAXLE 1 3 25617 FILTER HEAD, TRANSAXLE 1 4 37121 LIFT CYLINDER ASSEMBLY 1 5 37211 CYLINDER, BRAKE 2" X 1.5" STROKE 1 6 37213 RESERVOIR, 350ML HYDROGEAR 71327 1 7 37104 PUMP, HYDROGEAR 1 8 37056 MOTOR, WHEEL - HYDROGEAR HGM-15P-7131 2 9 37162 EXTENSION SPRING, 1.8" - 8.1 LB RATE 1 10 933240 WASHER, FLAT SAE 1/4 GRD 9 YZ 4 11 1579 SCREW, HHC 1/4 - 20 X .5 2 12 4514 SCREW, HHC 1/4 - 20 X 5/8 GRD 5 2

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 57

ENGINE PIVOT CYLINDER ASSY.

PAGE 58 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

ENGINE PIVOT CYLINDER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

8 37495 CYLINDER AND VALVE ASSEMBLY .................. 1 ............... INCLUDES ITEMS W/

9 37260 PIN, LIFT CYLINDER 1 10 37166 PIN, LOWER ENGINE PIVOT 1 11 933243 WASHER, FLAT SAE 7/16 GRD 9 YZ 2 12 16530 SCREW, HHC 7/16 - 14 X 1 2

37445 VALVE, CHECK 2 37446 VALVE, CARTRIDGE 4-WAY 2-POSITION 1 37447 SOLENOID COIL 12VDC 1 37448 PISTON, PILOT 1

37449 PISTON, BACKUP RING ..................................... 2 ............... S/N ZD3700241 AND BELOW

37492 O-RING ................................................................ 1 ............... S/N ZD3700241 AND BELOW

37390 CYLINDER, HYDRAULIC 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 59

HYDRAULIC HOSES ASSY.

PAGE 60 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

HYDRAULIC HOSES ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37475 HOSE ASSEMBLY, #4 LP 1 2 37476 HOSE ASSEMBLY, #4 LP 1 3 37477 HOSE ASSEMBLY, #4 LP 1 4 37290 HOSE ASSEMBLY, #4 HP PARFLEX 1 5 37295 HOSE ASSEMBLY, #6-8 LP 1 6 37294 HOSE ASSEMBLY, #6 LP 1

7 37347 HOSE ASSEMBLY, #6 LP ....................................... 1 ................... SEE NOTE BELOW

8 37291 HOSE ASSEMBLY, #4 PARFLEX 1 9 37292 HOSE ASSEMBLY, #4 LP 1 10 37278 HOSE ASSEMBLY, #6 PARFLEX 1 11 37279 HOSE ASSEMBLY, #6 PARFLEX 1 12 37283 HOSE ASSEMBLY, #8 LP 1 13 37281 HOSE ASSEMBLY, #6 LP 1 14 37282 HOSE ASSEMBLY, #6 LP 1 15 37293 HOSE ASSEMBLY, #4 LP 1 16 37280 HOSE ASSEMBLY, DRIVE MOTOR CROSSOVER 1

NOTICE

FOR SAWS up to S/N ZD3700238 ONLY.

this hose (P/N 37347 item 7 on this page), also order two (2) each fittings (P/N 11887, item 22 shown on Hydraulic Fittings and Clamps Assy.).

When Ordering

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 61

HYDRAULIC FITTING AND CLAMPS ASSY.

HYDRAULIC FITTINGS AND CLAMPS ASSY.

2424

PAGE 62 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

HYDRAULIC FITTINGS AND CLAMPS ASSY.

HYDRAULIC FITTING AND CLAMPS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 21095 FITTING, STR 4MJ - 4MO 1 2 368817 FITTING, 90 4MJ - 4MO 2 3 11722 FITTING, 90 6MJ - 6MO 4 4 15538 CLAMP, HOSE WORM #6, 7/16" TO 7/8" 2 5 37793 CLAMP ASSEMBLY, HOSE 1 6 37352 CLAMP ASSEMBLY, 5/16 HOSE 1 7 37792 CLAMP ASSEMBLY, HOSE 1 8 37433 CLAMP ASSEMBLY, HOSE 1 9 366437 FITTING, BULKHEAD #4 JIC 1 10 11721 FITTING, STR 6MJ - 6MO 4 11 12431 FITTING, 90 8MJ - 6MO 1 12 21115 FITTING, STR 6MJ - 6MO LONG 2 13 37405 FITTING, 10MO X - 6FO - ST 2 14 37406 FITTING, 6MJ X 10MO - ST 2 15 21159 FITTING, 45 4MJ - 4MO 1 16 367470 FITTING, STR 4MJ - 6MO 3 17 37788 FITTING, TEE 4MO - 4MO - 4MJ 1 18 12147 FITTING, QD 6MO DIAGN PARKER PD 361 1 19 12148 CAP, DUST DIAG PARKER PD6 - 285 1 20 35022 CLAMP, LOOP CUSHIONED #8 1 21 37493 FITTING, ORIFICE 4MJ - 4MO X .100 1

22 11887 FITTING, STR 6MJ - 4MO ....................................... 2 .................. SEE NOTE BELOW

NOTICE

FOR SAWS up to S/N ZD3700238 ONLY.

hose (P/N 37347 item 7 on Hydraulic Hoses Assy.), also order two (2) each fittings (P/N 11887, item 22 shown on this page.

When Ordering

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 63

FRONT POINTER ASSY.

PAGE 64 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

FRONT POINTER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37182 POINTER 1 2 582008 BUSHING, FLANGE 1.0 OD X .75 ID 4 3 500005 WHEEL, POINTER 6" X 1" 1 4 37178 AXLE, POINTER WHEEL 1 5 926006 SCREW, SQHS CP 1/4 - 20 X1/2 2 6 15503 KNOB, COMFORT GRIP STAR 1 7 110038 SAW POINTER 15" RH FRONT 1 8 1456 NUT, HEX FINISH 3/8 - 16 1

9 10133 NUT, NYLOC 3/8 - 16 ............................................... 1 .................. SEE NOTE BELOW

10 5070 B NUT, NYLOC 3/4 - 10 2 11 933247 WASHER, FLAT SAE 3/4 GRD 9 YZ 2 12 3233 WASHER, FENDER 1.50 OD X 3/8 ID 2 13 37261 PLUG, FINISHING 3/4" 2

14 544002 SHOULDER, ADAPTER........................................... 1 .................. SEE NOTE BELOW

15 125043-3 RETAINER, SAW POINTER CABLE........................ 1 .................. SEE NOTE BELOW

16 540039 PULLEY, POINTER ROPE ....................................... 1 .................. SEE NOTE BELOW

17 10136 WASHER, FLAT SAE 3/8 ......................................... 2 .................. SEE NOTE BELOW

18 1665 SCREW, HHC 3/8 - 16 X 2 ....................................... 1 .................. SEE NOTE BELOW

19 0205 SCREW, HHC 3/8 - 16 X 1.0 1

20 574003 ROPE, POINTER ASSY. ......................................... 1 .................. INCLUDES BALL & CRIMP

21 574002 CAM CLEAT 1 22 15173 WASHER, FLAT #8 2 23 13287 NUT, NYLOC 8 - 32 2 24 923199 SCREW, SHC 8 - 32 X 1-1/4 2 25 37112 MOUNT, AIR FILTER 1

NOTICE

These parts are used only on "Type 1" Rope Guide Systems shown in illustration on Lift Bail Assy.

Type 2 Rope Guide System supercedes Type 1 Rope Guide System. See illustration.

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 65

BELT DRIVE ASSY.

PAGE 66 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

BELT DRIVE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37001 PLATE, ENGINE ADAPTER-DEUTZ 1 3# SHAFT, ENGINE DRIVE-DEUTZ 1 4 37019 PLATE, PULLEY DRIVE COVER 1 5# FLANGE, ENGINE DRIVE-DEUTZ 1 6# FLANGE, PULLEY DRIVE-DEUTZ 1

7 37137 BELT TENSIONER ASSY. ....................................... 1................... INCLUDES ITEMS W/

8 37002 PULLEY, PUMP DRIVE 3.75" A-SECTION 1 9 37319 WASHER, THRUST 1.00 OD X .265 L X .265 H 1 10 37320 SCREW, SHC 10-32 X 3/4 1 11 923201 SCREW, SHC 1/4 - 20 X 1/2 8 12 37267 SPACER, BELT TENSIONER 1 13 21004-003 BELT, AX-35 1 14 37755 SHOE, LOWER BELTSIDE 1

15 460016 BUSHING, TAPER-LOCK 2517 X 1-7/8 ................... 1 .................. FITS 20", 26", 30", 36"

15 460023 BUSHING, TAPER-LOCK 2012 X 1-7/8 ................... 1 .................. FITS 16"

16 10057-061 KEY, 1/2" SQ X 3-1/2" 1 17 37269 KEY, SQUARE 1/8 X 3/4 1 18

19 37218 GUARD, PUMP DRIVE ............................................ 1 .................. SAFETY ITEM

20 582012 BUSHING, QUICK DISCONNECT BLADE SHAFT 2 21 915315 SCREW, HHC 5/8 - 11 X 3 GR8 1 22 915316 SCREW, HHC 5/8 - 11 X 3 LH GR8 1 23 10138 SCREW, SHS 1/4 - 20 X 1/2 NP 1 24 926919 PIN, DOWEL 1/4 X 3/4 1 25 37268 STUD, 3/8 - 16 X 3 SELF-LOCKING 1 26 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 5 27 1456 NUT, HEX FINISH 3/8 - 16 4 28 37762 STUD, 1/2 - 13 X 1-3/4 1 29 924289 SCREW, FHSC 3/8 - 16 X 1-3/4 2 30 10133 NUT, NYLOC 3/8 - 16 2 31 939978 SCREW, FHSC M10 - 1.5 X 25MM NP 11 32 938422 SCREW, HHC M10 - 1.0 X 50MM 10.9 NP 8

33 37177 FLANGE ASSY, 6.0" OUTER BLADE ...................... 2 ............. FITS 30", 36" BELT DRIVE

33 37169 FLANGE ASSY, 5.0" OUTER BLADE ...................... 2 ............. FITS 16", 20", 26" BELT DRIVE

34 37176 FLANGE ASSY, 6.0" INNER BLADE ....................... 2 ............. FITS 30", 36" BELT DRIVE

34 37168 FLANGE ASSY, 5.0" INNER BLADE ....................... 2 ............. FITS 16", 20", 26" BELT DRIVE

35 520007 V-BELT, 5G 3 VX 530 POWERBAND 2

36 540047 PULLEY, 5.6 10G 3V X 2517 TAPER ....................... 1 ............. FITS 36" BELT DRIVE

36 540041 PULLEY, 5.3 10G 3V X 2517 TAPER ....................... 1 ............. FITS 30" BELT DRIVE

36 540040 PULLEY, 5.0 10G 3V X 2517 TAPER ....................... 1 ............. FITS 26" BELT DRIVE

36 540035 PULLEY, 4.75 10G 3V X 2517 TAPER ..................... 1 ............. FITS 20" BELT DRIVE

36 540046 PULLEY, 4.2 10G 3V X 2012 TAPER ....................... 1 ............. FITS 16" BELT DRIVE

37266 SCREW, MODIFIED HEAD 3/8 X 1-3/4 1

CONTINUED NEXT PAGE

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 67

BELT DRIVE ASSY. (CONTINUED)

BELT DRIVE ASSY.

PAGE 68 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

BELT DRIVE ASSY.

BELT DRIVE ASSY. (CONTINUED)

NO. PART NO. PART NAME QTY. REMARKS

37 37134 BLADE SHAFT ASSY. 1

38 926790 PIN, DOWEL 3/8 X 1-3/4 ..................................... 2 ................. INCLUDED W/ ITEM 33

39 25992 SCREW, SHC 12 - 24 X 1/2 4 40 37735 RING, FAN MOUNT 1 41 37734 FAN, CW 8" 10 BLADE 1 42 37763 STUD, 1/2 - 13 X 5-1/2 1 43 915103 SCREW, HHC 3/8 - 16 X 3/4 GR8 YZ 2 44 37756 SHOE, UPPER BELTSIDE 1

45 37833 SPLINED DRIVE ASSY. ...................................... 1 ................. INCLUDES ITEMS W/#

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 69

DRIVE PULLEY ASSY.

PAGE 70 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

DRIVE PULLEY ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1# 37154 PULLEY, 4.1 3V 4.5 1A ............................................ 1 ............. FITS 16", 20" BELT DRIVE

2*# 37003 SUPPORT, ENGINE DRIVE BEARING 1 3*# 37028 BEARING, TAPERED ROLLER NSK #32007XJ 2 4*# 37090 SPRING, SMALLEY WAVO RW-0162 1 5*# 37017 FLANGE, ENGINE DRIVE BEARING SUPPORT 1 6*# 37092 SEAL, CR 17753 2 7*# 37035 SCREW, SHC 4-40 X 3/8 4 8*# 915004 SCREW, HHC 1/4 - 20 X 7/8 GR8 YZ 8 9*# 933240 WASHER, FLAT SAE 1/4 GRD 9 YZ 8

10 37103 DRIVE PULLEY ASSY., 3.3 10 3V 4.5 1A ............... 1 ............. FITS 26", 30", 36" BELT DRIVE

10 37321 DRIVE PULLEY ASSY., 4.1 3V 4.5 1A .................... 1 ............. FITS 16", 20" BELT DRIVE

37011 PULLEY, 3.3 10 3V 4.5 1A ....................................... 1 ............. FITS 26", 30", 36" BELT DRIVE

.................................................................................................. INCLUDES ITEMS W/

.................................................................................................. INCLUDES ITEMS W/#

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 71

BLADE SHAFT ASSY.

BLADESHAFT ASSY.

PAGE 72 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

BLADESHAFT ASSY.

BLADE SHAFT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

10 11 12 13 14 15 16 17 18 19 20

21 37134 BLADESHAFT ASSEMBLY ..................................... 1 .................. INCLUDES ITEMS W/

37108 HOUSING, BLADESHAFT 1 37111 BLADESHAFT, 7000 SERIES 1 06502-010 SCREW, HHC 7/16 - 14 X 1-1/4 6 933243 WASHER FLAT SAE 7/16 GRD 9 YZ 6 421001 SENSOR, HALL EFFECT SPEED PICKUP 1 583026 DRAIN PLUG, MAGNETIC 1/2 - 20 1 577009 GASKET, DRAIN PLUG 1 25695 WASHER, SEAL 3/4" 1 25690 GEAR, SAW BLADE SHAFT SPEED PICKUP 1 460010 BEARING, ROLLER KOYO # 7210BGC3 2

39460011 BEARING, BALL KOYO # NU2210RC3 1

480006 SEAL, OIL CR# 28655 2

480007 SEAL, OIL CR- 19599 2

485003 SLEEVE, BLADE SHAFT SEAL 2

486001 WASHER, THRUST 6000 SERIES 2

576006 SNAP RING, VITON # AS-135 2

578135 O-RING, VITON # AS-135 2

576007 SNAP RING, VHO-354 1

10138 SCREW, SHS 1/4 - 20 X 1/2 6

927048 KEY, WOODRUFF #807 1/4 X 7/8 2

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 73

16", 20", 26" BLADEGUARD ASSY.

PAGE 74 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

16", 20", 26" BLADEGUARD ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1# 200008 BLADEGUARD W/A, 20" REAR HALF 1 1$ 200010 BLADEGUARD W/A, 26" REAR HALF 1 2

2# 200007 BLADEGUARD W/A, 20" FRONT HALF 1 2$ 200009 BLADEGUARD W/A, 26" FRONT HALF 1 3*#$ 582040 BUSHING, BLADEGUARD HINGE DELRIN 1

4*#$ 200019 FLAP,MUD BLADEGUARD ...................................... 1 .................. SAFETY ITEM

5*#$ 37394 MANIFOLD, WATER SMALL 1 6*#$ 2113 FITTING, PLUG 1/8MP HEX SKT HD 1 7*#$ 370456 FITTING, BRASS 6BARB-1/4MP 2 8*#$ 10176 NUT, NYLOC 1/2-13 1 9*#$ 10024 NUT, NYLOC 1/4-20 3 10*#$ 0131 A SCREW, HHC 1/4 - 20 X 3/4 1 11*#$ 06503-026 SCREW, HHC 1/2 - 13 X 3-1/4 1 12*#$ 26250 SCREW, HHC 1/4 - 20 X 1-3/4 2 13*#$ 10930 WASHER, FENDER 1/4 X 1-1/4 1 14*#$ 37396 3/8" QC MALE 1 15*# 37506 HOSE, WATER #6 LP, 16", 20" BLADEGUARD 2 15$ 37508 HOSE, WATER #6 LP, 26" BLADEGUARD 2 16*#$ 22129-001 PIPE STRAP 3/8 2 17*#$ 1618 NUT, NYLOC 10-24 2 18*#$ 923144 SCREW, SHC 10-24 X 1/2 2

19 37335 BLADEGUARD ASSY., 16" STD SYS ..................... 1 .................. SAFETY ITEM

19 37336 BLADEGUARD ASSY., 20" STD SYS ..................... 1 .................. SAFETY ITEM

19 37337 BLADEGUARD ASSY., 26" STD SYS ..................... 1 .................. SAFETY ITEM

200004 BLADEGUARD W/A, 16" REAR HALF 1

200003 BLADEGUARD W/A, 16" FRONT HALF 1

....................................................................................................... INCLUDES ITEMS W/

....................................................................................................... INCLUDES ITEMS W/#

....................................................................................................... INCLUDES ITEMS W/$

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 75

30", 36" BLADE GUARD ASSY.

30", 36" BLADEGUARD ASSY.

PAGE 76 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

30", 36" BLADEGUARD ASSY.

30", 36" BLADE GUARD ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1# 200014 BLADEGUARD W/A, 36" REAR HALF 1 2

2# 200013 BLADEGUARD W/A, 36" FRONT HALF 1 3*# 582039 BUSHING, BLADEGUARD HINGE DELRIN 1 4*# 37395 MANIFOLD, WATER LARGE 1

5*# 200019 FLAP,MUD BLADEGUARD ...................................... 1 .................. SAFETY ITEM

6*# 0131 A SCREW, HHC 1/4 - 20 X 3/4 1 7*# 26250 SCREW, HHC 1/4 - 20 X 1-3/4 2 8*# 06503-030 SCREW, HHC 1/2 - 13 X 3-3/4 1 9*# 10176 NUT, NYLOC 1/2-13 1 10*# 10024 NUT, NYLOC 1/4-20 3 11*# 10930 WASHER, FENDER 1/4 X 1-1/4 1 12*# 370456 FITTING, BRASS 6BARB-1/4MP 2 13*# 2113 FITTING, PLUG 1/8MP HEX SKT HD 1 14*# 37396 3/8" QC MALE 1 15*# 1618 NUT, NYLOC 10-24 2 16*# 923144 SCREW, SHC 10-24 X 1/2 2 17*# 22129-001 PIPE STRAP 3/8 2 18 18# 37510 HOSE, WATER #6 LP, 36" BLADEGUARD 2

19 37338 BLADEGUARD ASSY., 30" STD SYS ..................... 1 .................. SAFETY ITEM

19 37339 BLADEGUARD ASSY., 36" STD SYS ..................... 1 .................. SAFETY ITEM

200012 BLADEGUARD W/A, 30" REAR HALF 1

200011 BLADEGUARD W/A, 30" FRONT HALF 1

37509 HOSE, WATER #6 LP, 30" BLADEGUARD 2

....................................................................................................... INCLUDES ITEMS W/

....................................................................................................... INCLUDES ITEMS W/#

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 77

OPTIONAL WEIGHT KIT ASSY.

PAGE 78 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

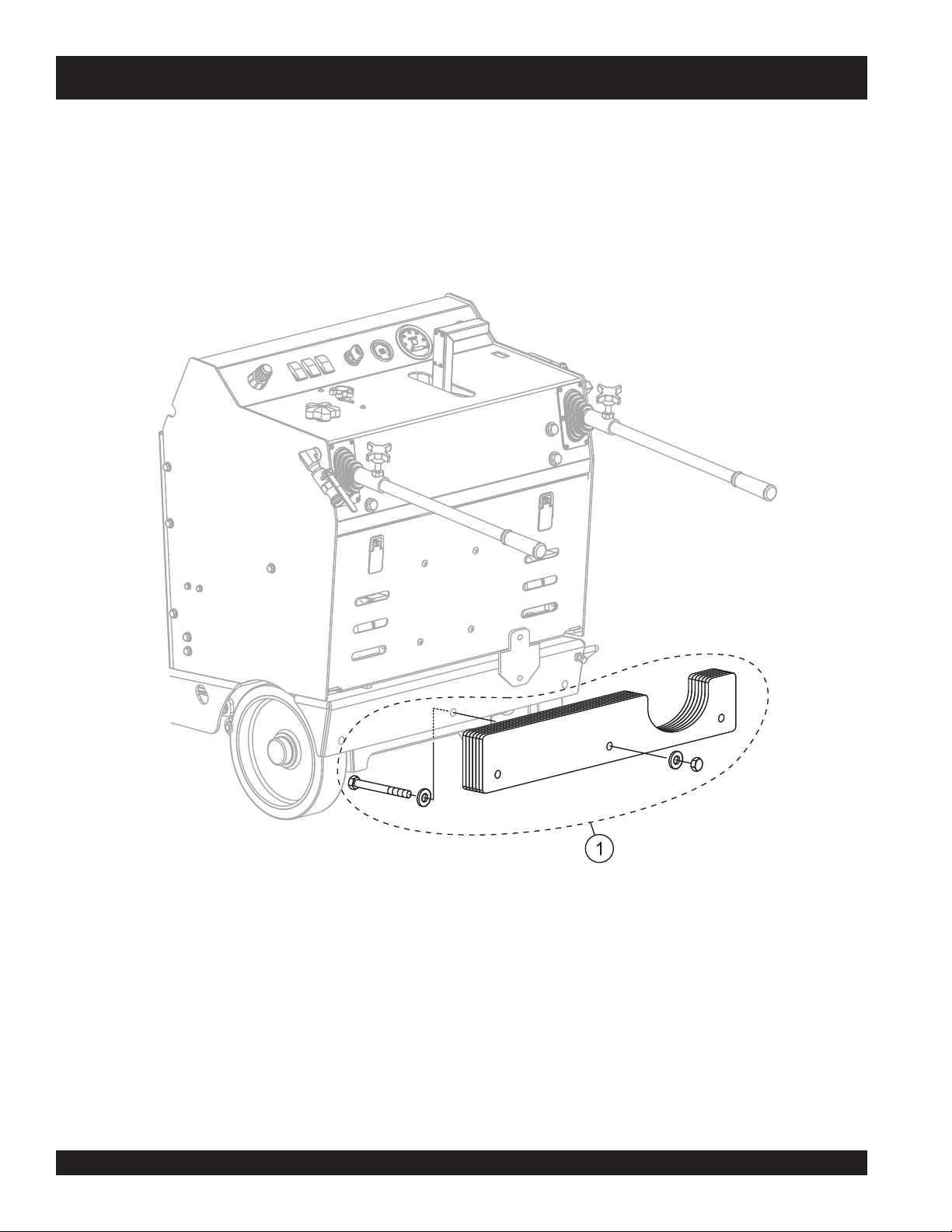

OPTIONAL WEIGHT KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 37829 WEIGHT KIT 1

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 79

TERMS AND CONDITIONS OF SALE — PARTS

PAYMENT TERMS

Terms of payment for parts are net 30 days.

FREIGHT POLICY

All parts orders will be shipped collect or prepaid with the charges added to the invoice. All shipments are F.O.B. point of origin. Multiquip’s responsibility ceases when a signed manifest has been obtained from the carrier, and any claim for shortage or damage must be settled between the consignee and the carrier.

MINIMUM ORDER

The minimum charge for orders from Multiquip is $15.00 net. Customers will be asked for instructions regarding handling of orders not meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and credit will be allowed, subject to the following provisions:

A Returned Material Authorization 1. must be approved by Multiquip prior to shipment.

To obtain a Return Material Authorization, 2. a list must be provided to Multiquip Parts Sales that deﬁnes item numbers, quantities, and descriptions of the items to be returned.

The parts numbers and descriptions a. must match the current parts price list.

The list must be typed or computer b. generated.

The list must state the reason(s) c. for the return.

The list must reference the sales d. order(s) or invoice(s) under which the items were originally purchased.

The list must include the name e. and phone number of the person requesting the RMA.

A copy of the Return Material Authorization 3. must accompany the return shipment.

Freight is at the sender’s expense. All 4. parts must be returned freight prepaid to Multiquip’s designated receiving point.

Parts must be in new and resalable 5. condition, in the original Multiquip package (if any), and with Multiquip part numbers clearly marked.

The following items are not returnable:6.

Obsolete parts. (If an item is in the a. price book and shows as being replaced by another item, it is obsolete.)

Any parts with a limited shelf life b. (such as gaskets, seals, “O” rings, and other rubber parts) that were purchased more than six months prior to the return date.

Any line item with an extended c. dealer net price of less than $5.00.

Special order items.d.

Electrical components.e.

Paint, chemicals, and lubricants.f.

Decals and paper products.g.

Items purchased in kits.h.

The sender will be notiﬁed of any material 7. received that is not acceptable.

Such material will be held for five 8. working days from notiﬁcation, pending instructions. If a reply is not received within five days, the material will be returned to the sender at his expense.

Credit on returned parts will be issued 9. at dealer net price at time of the original purchase, less a 15% restocking charge.

In cases where an item is accepted, for 10. which the original purchase document can not be determined, the price will be based on the list price that was effective twelve months prior to the RMA date.

Credit issued will be applied to future 11. purchases only.

PRICING AND REBATES

Prices are subject to change without prior notice. Price changes are effective on a speciﬁc date and all orders received on or after that date will be billed at the revised price. Rebates for price declines and added charges for price increases will not be made for stock on hand at the time of any price change.

Multiquip reserves the right to quote and sell direct to Government agencies, and to Original Equipment Manufacturer accounts who use our products as integral parts of their own products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the invoice for special handling including bus shipments, insured parcel post or in cases where Multiquip must personally deliver the parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder fo damages in excess of the purchase price of the item with respect to which damages are claimed, and in no event shall Multiquip be liable for loss of proﬁt or good will or for any other special, consequential or incidental damages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are made in connection with the sale of parts or trade accessories nor as to any engine not manufactured by Multiquip. Such warranties made in connection with the sale of new, complete units are made exclusively by a statement of warranty packaged with such units, and Multiquip neither assumes nor authorizes any person to assume for it any other obligation or liability whatever in connection with the sale of its products. Apart from such written statement of warranty, there are no warranties, express, implied or statutory, which extend beyond the description of the products on the face hereof.

Effective: February 22, 2006

PAGE 80 — PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10)

NOTES

PS7060 SERIES MULTIQUIP SAW — PARTS MANUAL — REV. #8 (07/26/10) — PAGE 81

PARTS MANUAL

HERE’S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER

UNITED STATES

Multiquip Corporate Office MQ Parts Department

18910 Wilmington Ave. Tel. (800) 421-1244 800-427-1244 Fax: 800-672-7877 Carson, CA 90746 Fax (800) 537-3927 310-537-3700 Fax: 310-637-3284 Contact: mq@multiquip.com

Mayco Parts Warranty Department

800-306-2926 Fax: 800-672-7877 800-421-1244, Ext. 279 Fax: 310-537-1173 310-537-3700 Fax: 310-637-3284 310-537-3700, Ext. 279

Service Department Technical Assistance

800-421-1244 Fax: 310-537-4259 800-478-1244 Fax: 310-631-5032 310-537-3700

MEXICO UNITED KINGDOM

MQ Cipsa Multiquip (UK) Limited Head Office

Carr. Fed. Mexico-Puebla KM 126.5 Tel: (52) 222-225-9900 Hanover Mill, Fitzroy Street, Tel: 0161 339 2223 Momoxpan, Cholula, Puebla 72760 Mexico Fax: (52) 222-285-0420 Ashton-under-Lyne, Fax: 0161 339 3226 Contact: pmastretta@cipsa.com.mx Lancashire OL7 0TL

CANADA BRAZIL

Multiquip Multiquip

4110 Industriel Boul. Tel: (450) 625-2244 Av. Evandro Lins e Silva, 840 - grupo 505 Tel: 011-55-21-3433-9055 Laval, Quebec, Canada H7L 6V3 Fax: (450) 625-8664 Barra de Tijuca - Rio de Janeiro Fax: 011-55-21-3433-9055

Contact: jmartin@multiquip.com Contact: cnavarro@multiquip.com.br, srentes@multiquip.com.br

ON-HAND

WHEN CALLING

Contact: sales@multiquip.co.uk

Multiquip Inc and the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published in this publication at any time without notice and without incurring any obligations.

Your Local Dealer is:

Multiquip PS706020, PS706036, PS706030, PS706026, PS706016 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
