Multiquip P33, P24 User Manual

PARTS MANUAL

MODEL P33/24:

HHM

HHMR

HHMR-BD (OPTION)

VARIABLE EXCENTRIC WEIGHT (OPTION)

STARTING SERIAL NO. 1534189

VIBRATORY TRENCH ROLLER

Revision #0 (03/10/06)

To find the latest revision of this
publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 1

P33/24 HHM-HHMR — TABLE OF CONTENTS

MQ RAMMAX P33/24
Vibratory Trench Roller

Table Of Contents ..................................................... 2

Here's How To Get Help ............................................ 3

Parts Ordering Procedures ....................................... 3

Explanation Of Code In Remarks Column ................ 4

Suggested Spare Parts ............................................. 5

Componet Drawings

Standard Drum Assembly ...................................... 6-7

Universal Drum Assembly ...................................... 8-9

Smooth Drum 24” Assembly .............................. 10-11

Smooth Drum 33” Assembly .............................. 12-13

Hydraulic Motor 1 Assembly .............................. 14-15

Hydraulic Motor 2 Assembly .............................. 16-17

Vibrator Assembly .............................................. 18-19

Vibrator Motor Assembly ................................... 20-21

Mounting Frame Assembly ................................ 22-23

Engine Cover Plate Assembly ............................ 24-25

Insulating Board Assembly ................................ 26-27

Cyclone Filter Assembly.....................................28-29

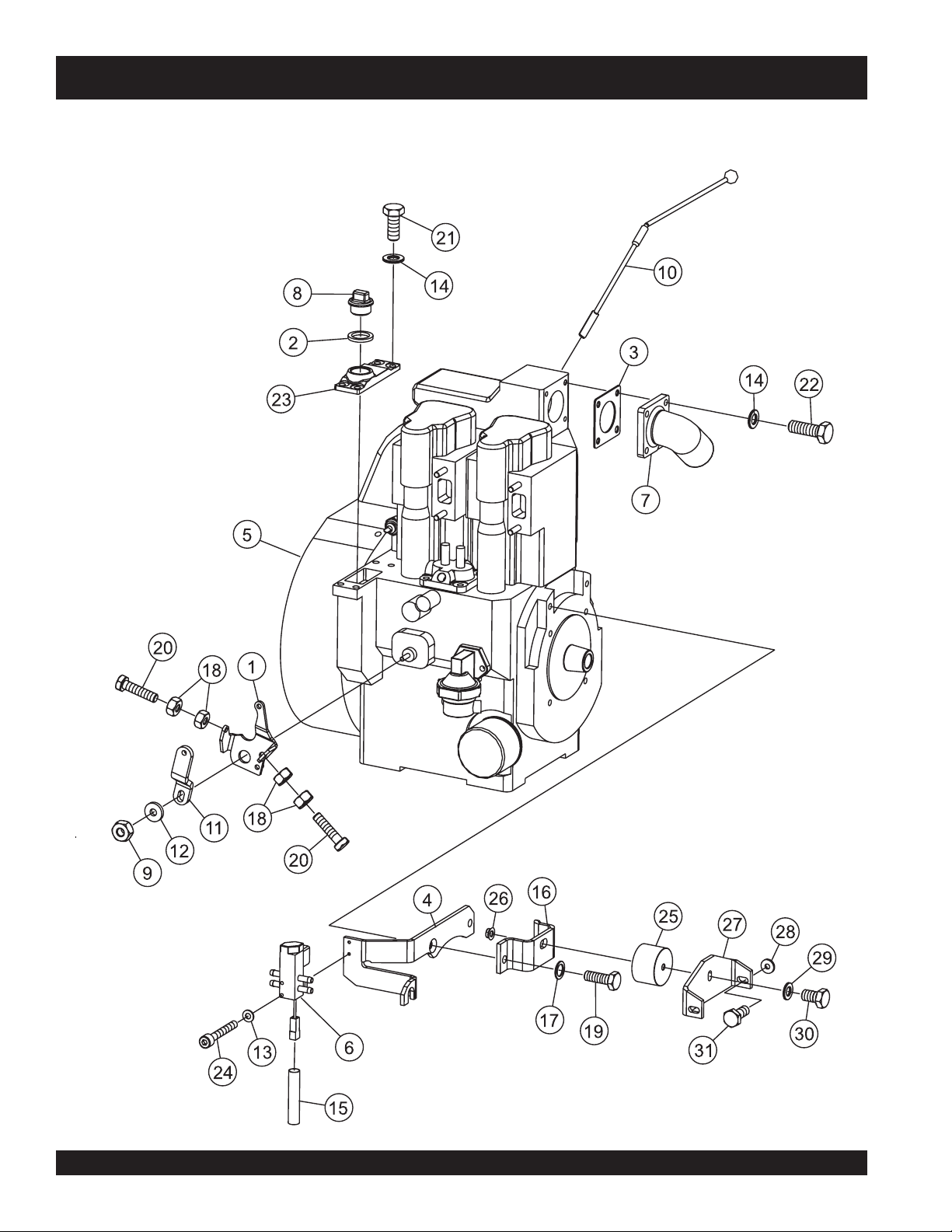

Diesel Engine Assembly.....................................30-31

Engine Shock Mount Assembly ......................... 32-33

Exhaust Silencer Assembly ................................ 34-35

Air Cleaner Assembly ......................................... 36-37

Pump Assembly ................................................. 38-39

Air Intake/Oil Drain Hose Assembly ................... 40-41

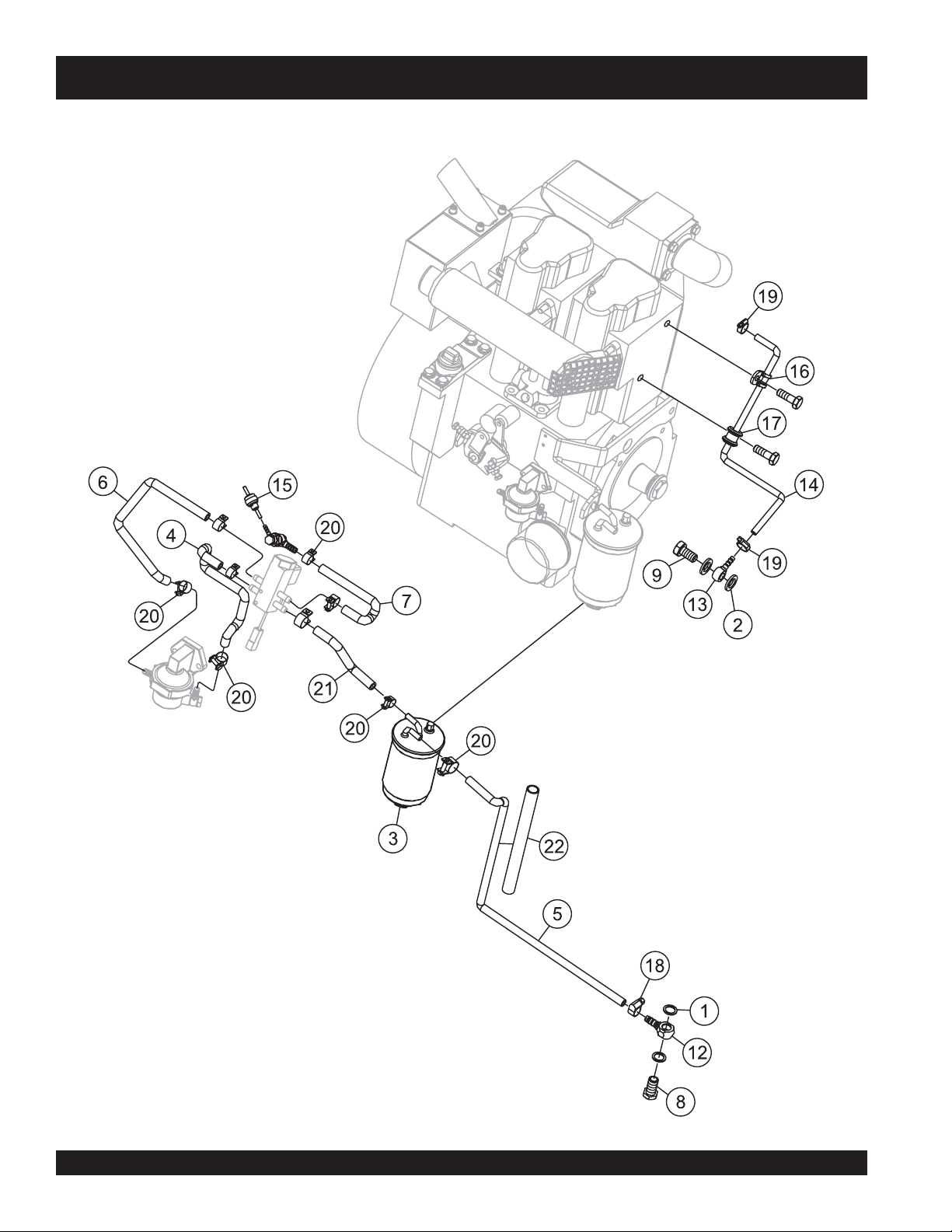

Fuel Lines Assembly .......................................... 42-43

Console Cockpit Assembly ................................ 44-45

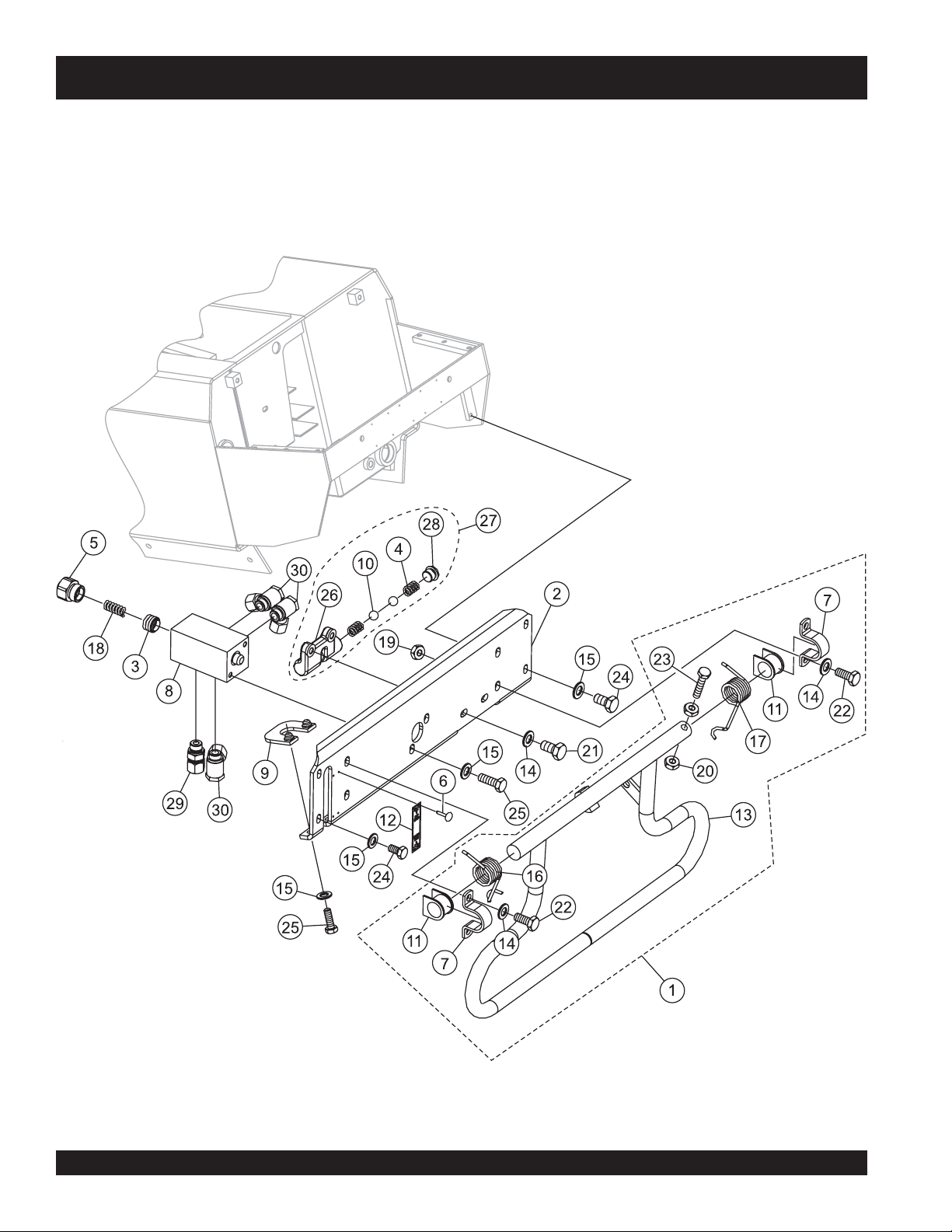

Emergency Stop Bumper Assembly .................. 46-47

Valves Assembly ................................................ 48-49

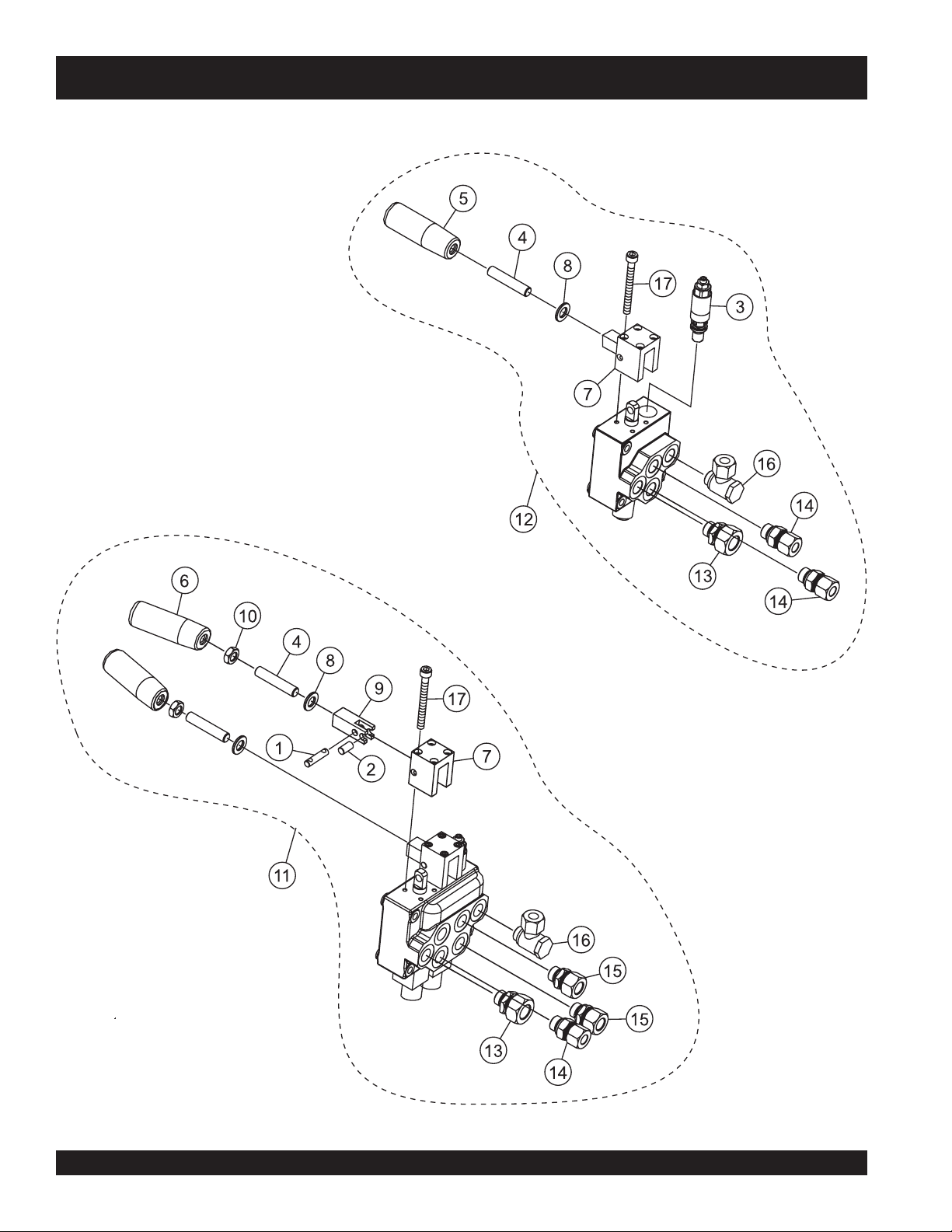

Manual Operation Valves Assembly .................. 50-51

Remote Control Operation Valves Assembly ..... 52-53

Valve Block (Var. Excentric Weight) Assembly ... 54-55

Throttle Cable Assembly .................................... 56-57

Receiver/Console Assembly .............................. 58-59

Console Components 1 Assembly ..................... 60-61

Console Components 2 Assembly ..................... 62-63

Transmitter Control Box 1 Assembly.................. 64-65

Transmitter Control Box 2 ................................. 66-67

Battery Assembly ............................................... 68-69

Optional Battery Disconnecting Switch Assy ..... 70-71

Suction Filter Assembly...................................... 72-73

Dozer Blade Assembly ....................................... 74-75

Lift Cylinder Assembly........................................ 76-77

Valves Assembly ................................................ 78-79

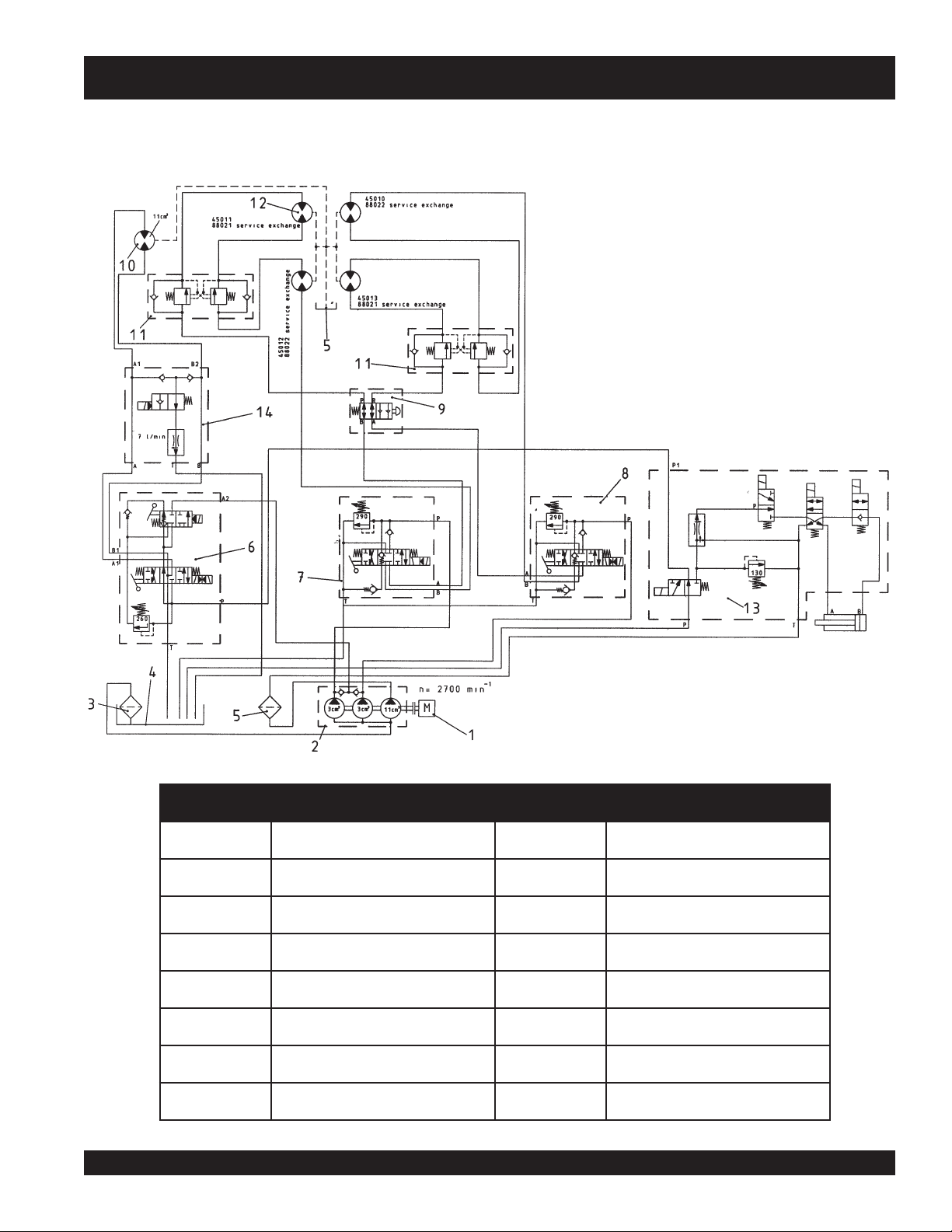

HHM-HHMR Hydraulic Schematic ........................... 80

HHMR-BD Hydraulic Schematic...............................81

Hydraulic Hose Layout ....................................... 82-83

Hydraulic Hose Locator Chart ................................. 84

Component Locator .................................................85

HHM Electrical Component Locator ........................86

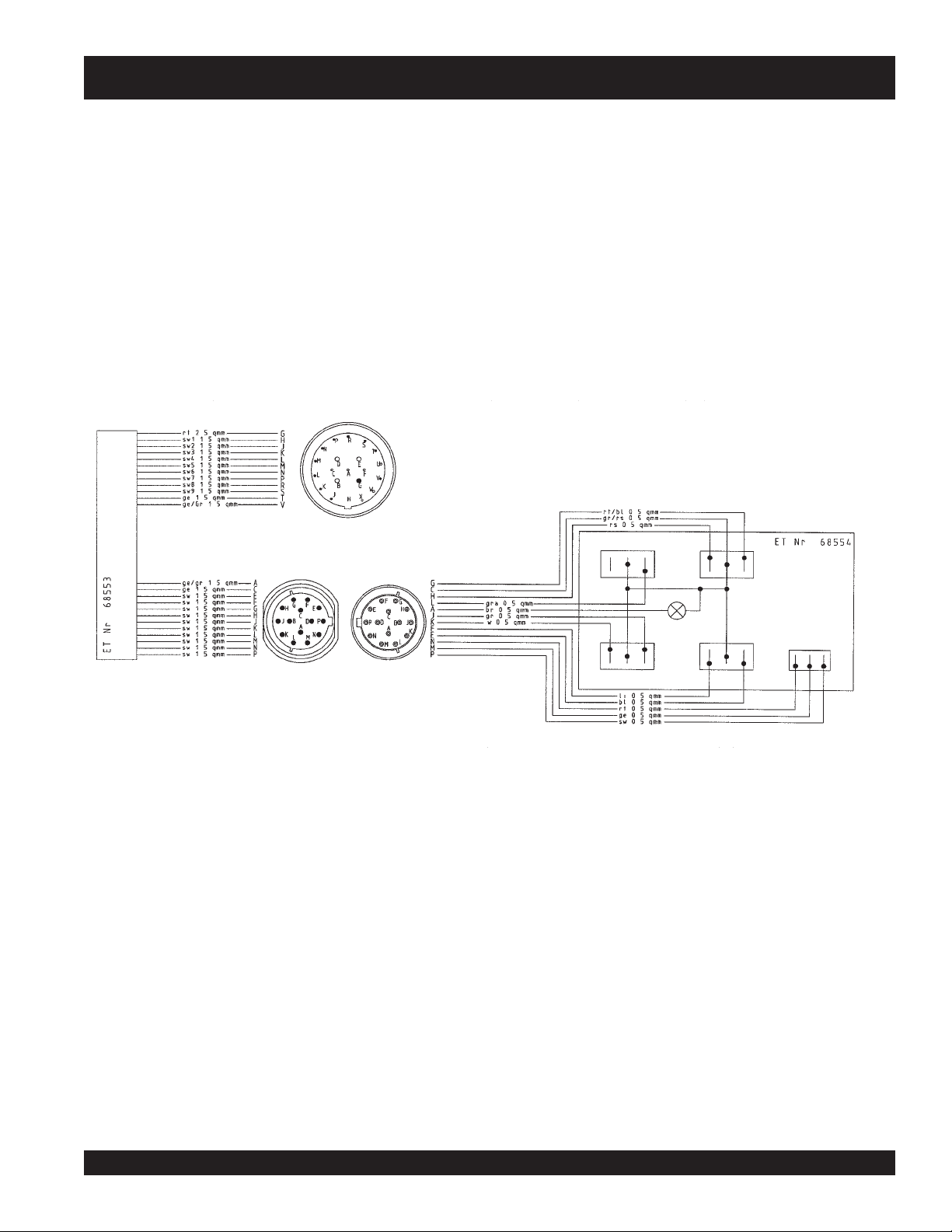

HHM Wiring Schematic ............................................87

HHMR Electrical Component Locator ......................88

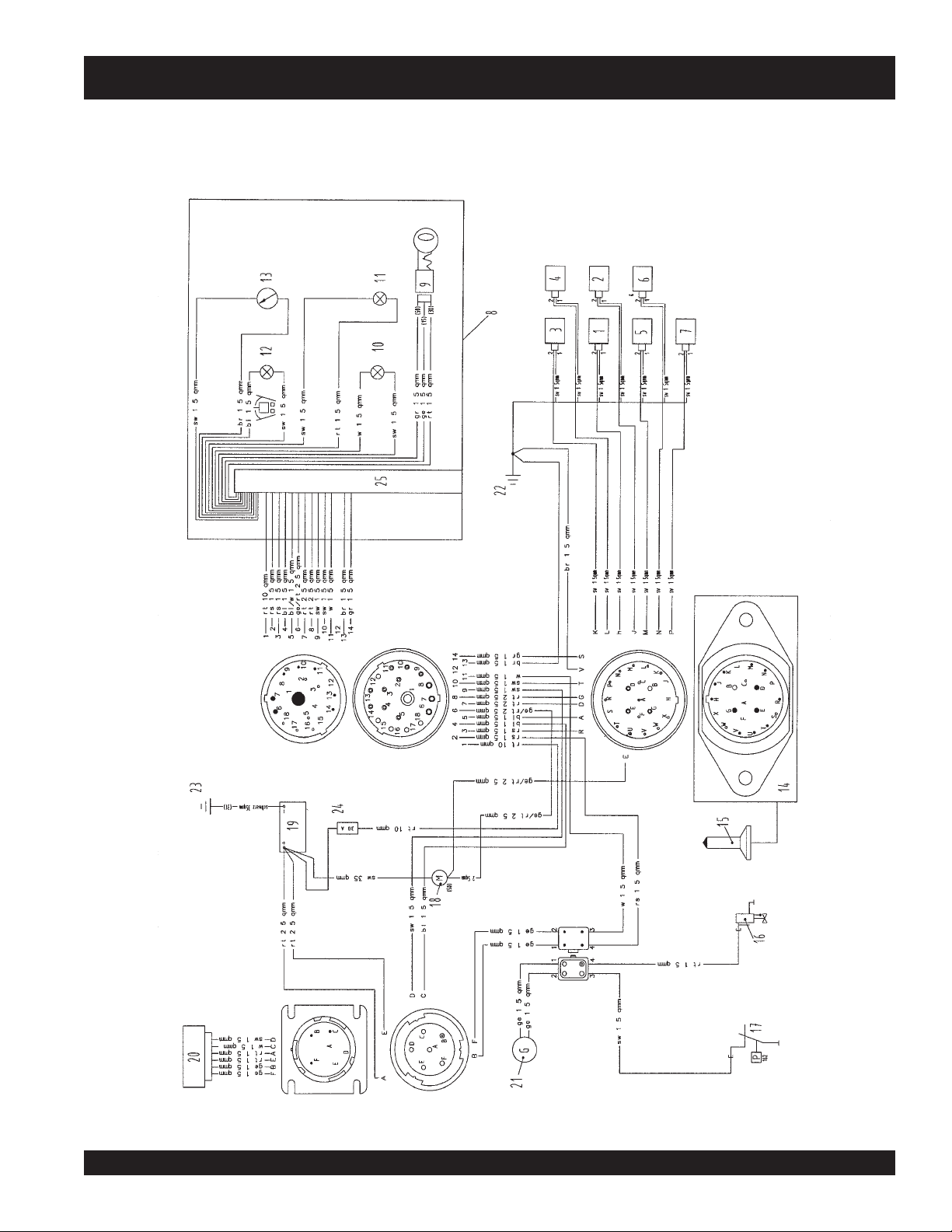

HHMR Wiring Schematic ..........................................89

Var. Exc. Weight Electrical Component Locator .......90

Var. Exc. Weight Wiring Schematic ...........................91

HHMR-BD Wiring Schematic ....................................92

Terms and Conditions of Sale ..................................94

NOTE

Specification and part number
are subject to change without
notice.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 2

PARTS ORDERING PROCEDURES

PARTS ORDERING PROCEDURES

When ordering parts,

please supply the following information:

❒❒

❒ Dealer account number

❒❒
❒❒

❒ Dealer name and address

❒❒
❒❒

❒ Shipping address (if different than billing address)

❒❒
❒❒

❒ Return fax number

❒❒
❒❒

❒ Applicable model number

❒❒
❒❒

❒ Quantity, part number and description of each part

❒❒
❒❒

❒ Specify preferred method of shipment:

❒❒

✓ FedEx or UPS Ground
✓ FedEx or UPS Second Day or Third Day
✓ FedEx or UPS Next Day
✓ Federal Express Priority One
✓ DHL
✓ Truck

Note: Unless otherwise indicated by customer, all
orders are treated as “Standard Orders”, and will
ship within 24 hours. We will make every effort to
ship “Air Shipments” the same day that the order is
received, if prior to 2PM west coast time. “Stock
Orders” must be so noted on fax or web forms.

Here’s how to get help...

Please have the model and serial number
on hand when calling.

MULTIQUIP CORPORATE OFFICE

18910 Wilmington Ave. 800-421-1244

FAX:

Carson, CA 90746
Email: [e-mail]
Internet: www.multiquip.com

PARTS DEPARTMENT

800-427-1244
310-537-3700

MAYCO PARTS

800-306-2926
310-537-3700

SERVICE DEPARTMENT

800-421-1244
310-537-3700

TECHNICAL ASSISTANCE

800-478-1244

WARRANTY DEPARTMENT

800-421-1244,
310-537-3700,

EXT.
EXT.

279
279

310-537-3927

FAX:

800-672-7877

FAX:

310-637-3284

FAX:

800-672-7877

FAX:

310-637-3284

FAX:

310-537-4259

FAX:

310-631-5032

FAX:

310-537-1173

Place Your Parts Order Via Web or Fax

For Even More Savings!

(Domestic USA Dealers Only)

Extra Discounts!

All parts orders which include complete part numbers and
are received by our automated web parts order system, or
by fax qualify for the following extra discounts:

Ordered Standard Stock orders

via orders ($750 list and above)

Fax 3% 10%

Web 5% 10%

Special freight allowances
when you order 10 or more
line items via Web or Fax!**

FedEx Ground Service

No other allowances on freight shipped by any other
carrier.

**Common nuts, bolts and washers (all items under $1.00
list price) do not count towards the 10+ line items.

NOTE: DISCOUNTS ARE SUBJECT TO CHANGE

at no charge for freight

MULTIQUIP INC.

18910 WILMINGTON AVENUE
POST OFFICE BOX 6254
CARSON, CALIFORNIA 90749
310-537-3700 • 800-421-1244
FAX: [phone]
E-MAIL: [e-mail]
INTERNET: www.multiquip.com

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 3

Direct TOLL-FREE access

to our Parts Department:

Toll-free nationwide — 800-427-1244

Toll-free FAX — 800-6-PARTS-7

(800/672-7877)

P33/24 HHM-HHMR — EXPLANATION OF PARTS SECTION REMARKS

The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the help
numbers found on the back page of the manual if there are
any questions.

The contents and part numbers listed in the parts section
are subject to change
guarantee the availibility of the parts listed.

Sample Parts List:

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ....................... 1 .... INCLUDES ITEMS W/

2

*

2*12347 WASHER, 3/8 IN. ....1 ....

3 12348 HOSE .................... A/R.. MAKE LOCALLY

4 12349 BEARING ................1 .... S/N 2345B AND ABOVE

NO. Column

Unique Symbols - All items with same unique symbol

, #, +, %, or >) in the number column belong to the same

(

*

assembly or kit, which is indicated by a note in the “Remarks”
column.

Duplicate Item Numbers - Duplicate numbers indicate
multiple part numbers are in effect for the same general
item, such as different size saw blade guards in use or a
part that has been updated on newer versions of the same
machine.

NOTE

without notice

WASHER, 1/4 IN. ...........

When ordering a part that has more
than one item number listed, check
the remarks column for help in
determining the proper part to order.

. Multiquip does not

NOT SOLD SEPARATELY
MQ-45T ONLY

*

QTY. Column

Numbers Used - Item quantity can be indicated by a

number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other parts

that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold

separately. Other entries will be clarified in the “Remarks”
Column.

REMARKS Column

Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed to
describe the item can also be shown.

Assembly/Kit

unique symbol will be included when this item is purchased.
Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

Serial Number Break

number range where a particular part is used.
Indicated by:

“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”

Specific Model Number Use

used only with the specific model number or model number
variant listed. It can also be used to show a part is NOT
used on a specific model or model number variant.

Indicated by:

“XXXXX ONLY”
“NOT USED ON XXXX”

- All items on the parts list with the same

- Used to list an effective serial

- Indicates that the part is

PART NO. Column

Numbers Used - Part numbers can be indicated by a

number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a part

that has not been assigned a formal part number at time of
publication.

A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will be
clarified in the “Remarks” Column.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 4

“Make/Obtain Locally”

purchased at any hardware shop or made out of available
items. Examples include battery cables, shims, and certain
washers and nuts.

“Not Sold Separately”

purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available for
sale through Multiquip.

- Indicates that the part can be

- Indicates that an item cannot be

P33/24 HHM-HHMR — SUGGESTED SPARE PARTS

MQ RAMMAX P33/24 HHM-HHMR VIBRATORY TRENCH
ROLLER 1 TO 3 UNITS W/HATZ 2 G40

Qty. ... P/N ...................... Description

3 ....... 49061600 ............ AIR FILTER

3 ....... 50379100 ............ FUEL FILTER

3 ....... 50302800 ............ OIL FILTER

3 ....... 51619 .................. HIGH-PRESSURE FILTER

1 ....... 68232 .................. VOLTAGE REGULATOR

1 ....... 100105108 .......... SAFETY BUMPER

1 ....... 64548 .................. THROTTLE ASSY. (W/LEVER & CABLE)

1 ....... 52012 .................. STARTER SWITCH

6 ....... 52007 .................. STARTER KEYS

1 ....... 1010615126 ......... RECEIVER EYE

1 ....... 68752 .................. HOUR METER

1 ....... 68552 .................. COCKPIT

3 ....... 68744 .................. FUSES

NOTE

Part numbers on this
Suggested Spare Parts List
may supercede/replace the P/
N's shown in the test pages of
this manual.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 5

STANDARD DRUM ASSY.

RW 1504 01

P33/24 HHM-HHMR — STANDARD DRUM ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 6

RW 1504 01

P33/24 HHM-HHMR — STANDARD DRUM ASSY.

STANDARD DRUM ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 00288 SCRAPER, 33” F/R-F/L....................................... 4 ........... USE WITH FRONT DRUM 00422

2 00289 SCRAPER, 33” R/R-R/L ...................................... 4........... USE WITH REAR DRUM 00422

3 00290 SCRAPER, 24” F/R-F/L....................................... 4 ........... USE WITH FRONT DRUM 00423

4 00291 SCRAPER, 24” R/R-R/L ...................................... 4........... USE WITH REAR DRUM 00423

5 00422 DRUM, 33” SMALL PADS ...................................4 ........... DIA. 2.78 FT. (850 MM)

6 00423 DRUM, 24” SMALL PADS ...................................4 ........... DIA. 2.06 FT. (630 MM)

11 58332 RETAINING WASHER, S-18 32
12 55946 HEX BOLT, M12 X 25 24
13 54153 ALLEN HEAD CAP SCREW, M18 X 40 32

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 7

UNIVERSAL DRUM ASSY.

RW 1504 02

P33/24 HHM-HHMR — UNIVERSAL DRUM ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 8

RW 1504 02

P33/24 HHM-HHMR — UNIVERSAL DRUM ASSY.

UNIVERSAL DRUM ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1

*

2

*

3# 00344 SCRAPER, 33” F/L-R/R ................................... 4 ........ USE WITH FRONT DRUM 00400

4# 00345 SCRAPER, 33” F/R-L/R ................................... 4 ........ USE WITH REAR DRUM 00400

5

*

6# 00400 DRUM, 33” LARGE PADS ................................ 4 ........ DIA. 2.78 FT (850 MM)

11 58332 RETAINING WASHER, S-18 32
12 55946 HEX BOLT, M12 X 25 24
13 54153 ALLEN HEAD CAP SCREW, M18X40 32

14 KIT24A DRUM AND SCRAPER KIT ............................. 1 ........ CONTACT UNIT SALES

15 KIT33A DRUM AND SCRAPER KIT ............................. 1 ........ CONTACT UNIT SALES

00342 SCRAPER, 24” F/L-R/R ................................... 4 ........ USE WITH REAR DRUM 00300

00343 SCRAPER, 24” F/R-L/R ................................... 4 ........ USE WITH FRONT DRUM 00300

00300 DRUM, 24” LARGE PADS ................................ 4 ........ DIA. 2.06 FT. (630 MM)

INCLUDES ITEMS W/

INCLUDES ITEMS W/#

*

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 9

SMOOTH DRUM 24” ASSY.

P33/24 HHM-HHMR — SMOOTH DRUM 24” ASSY.

RW 1504 Option Smooth Drum 01-1

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 10

P33/24 HHM-HHMR — SMOOTH DRUM 24” ASSY.

SMOOTH DRUM 24” ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 05456 SCRAPER 2
2 05457 SCRAPER 2
3 3-10615 SCRAPER 2
4 3-10616 SCRAPER 2
5 3-10614 DRUM, DIA. 24” 4
6 05454 CLAMPING LATH 8
7 58332 RETAINING WASHER, S-18 32
8 55946 HEX BOLT, M12X25 24
9 55902 HEX BOLT, M8X30 32
10 58222 LOCK WASHER, 8.4X18X2 32
11 05455 SCRAPER LATH, 3-74102 VULKOLLAN

90ºSHORE T=8MM 8

12 54153 ALLEN HEAD CAP SCREW, M18X40 32

RW 1504 Option Smooth Drum 01-1

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 11

SMOOTH DRUM 33” ASSY.

P33/24 HHM-HHMR — SMOOTH DRUM 33” ASSY.

RW 1504 Option Smooth Drum 01

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 12

P33/24 HHM-HHMR — SMOOTH DRUM 33” ASSY.

SMOOTH DRUM 33” ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 05428 SCRAPER 2
2 05429 SCRAPER 2
3 3-10612 SCRAPER 2
4 3-10613 SCRAPER 2
5 05426 SCRAPER LATH 8
6 3-10611 DRUM, DIA. 33” 4
7 05427 CLAMPING LATH, B6.4 8
8 58332 RETAINING WASHER, S-18 32
9 55946 HEX BOLT, M12X25 24
10 55902 HEX BOLT, M8X30 48
11 58222 LOCK WASHER, 8.4X18X2 48
12 54153 ALLEN HEAD CAP SCREW 32

RW 1504 Option Smooth Drum 01

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 13

HYDRAULIC MOTOR 1 ASSY.

RW 1504 03

P33/24 HHM-HHMR — HYDRAULIC MOTOR 1 ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 14

P33/24 HHM-HHMR — HYDRAULIC MOTOR 1 ASSY.

HYDRAULIC MOTOR 1 ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 88022 HYDRAULIC MOTOR, R/F WITHOUT BRAKE 1
2 88021 HYDRAULIC MOTOR, L/F WITH BRAKE 1
3 88022 HYDRAULIC MOTOR, L/R WITHOUT BRAKE 1
4 88021 HYDRAULIC MOTOR, R/R WITH BRAKE 1
5 58329 RETAINING WASHER, S-14 48
6 54110 ALLEN HEAD CAP SCREW, M14 X 40 48

RW 1504 03

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 15

HYDRAULIC MOTOR 2 ASSY.

RW 1504 04

P33/24 HHM-HHMR — HYDRAULIC MOTOR 2 ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 16

P33/24 HHM-HHMR — HYDRAULIC MOTOR 2 ASSY.

HYDRAULIC MOTOR 2 ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 58618 COPPER RING, 10 X 14 X 1 4
2 58605 COPPER RING 8
3 58606 COPPER RING, 16 X 22 X 1.5 8
4 46203 BONNET, COVER 4
5 58429 SPRING WASHER 32
10 51215 BALL, RB-16 KI.5 4
11 67000 OIL OVER FLOW HOSE 4
12 62031 O-RING, 14 X 3 AU 90º SHORE 12
13 62166 O-RING 4
14 46222 PIPE 2
15 46223 PIPE 2
16 46224 PIPE 4
17 63250 BRACKET, ABA 8- 12 X 9 4
18 57775 HOSE STEM, M14 X 1.5 4
19 57682 CUTTING RING, 12-L/S 4
20 55901 HEX BOLT, M8 X 20 32
21 57689 HEX NUT, 12-S 4
22 58800 DRAIN PLUG, M10 X 1 4
23 58814 DRAIN PLUG, M14 X 1.5 8
24 58813 DRAIN PLUG, M16 X 1.5 8
25 57475 HYDRAULIC FITTING, G3 12 LM 8
26 57529 HYDRAULIC FITTING, SWVE 12 LM 4

RW 1504 04

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 17

VIBRATOR ASSY.

RW 1504 05

P33/24 HHM-HHMR — VIBRATOR ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 18

P33/24 HHM-HHMR — VIBRATOR ASSY.

VIBRATOR ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 58603 COPPER RING, 12 X 18 X 1.5 2
2 00405 SPACER RING 1
3 00374 VENT SCREW 2
4 58429 SPRING WASHER 8
5 3-10146 PAPER SEAL 1
6 3-10144 BEARING HOUSING 1
7 58974 RING, I 170 1
8 58335 RETAINING WASHER, S-12 VERZ. 6
9 55903 HEX BOLT, M8 X 25 8

10 3-10142 EXCENTRIC WEIGHT ................................. 1.............. STANDARD

10 3-10486 EXCENTRIC WEIGHT ................................. 1.............. VARIABLE

11 3-10143 EXCENTRIC HOUSING 1
12 3-10145 COVER 1
13 62503 SHAFT SEAL, 135 X 170 X 12 B1 2
14 54648 ALLEN HEAD CAP SCREW, M12 X 30 6
15 51102 ROLLER BEARING, NJ 316 2

RW 1504 05

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 19

VIBRATOR MOTOR ASSY.

RW 1504 06

P33/24 HHM-HHMR — VIBRATOR MOTOR ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 20

P33/24 HHM-HHMR — VIBRATOR MOTOR ASSY.

VIBRATOR MOTOR ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 05421 MANIFOLD 1
2 58428 SPRING WASHER 8
3 58429 SPRING WASHER 4
4 58277 SPRING WASHER, B 12 1
5 00397 COUPLING 1
6 62039 O-RING, DURCHM. 18 X 25 2
7 64100 PAPER SEAL, KM 1/11 1
8 58025 WASHER, B 6.4 4
9 59027 WOODRUFF KEY, 3 X 6.5 1
10 63152 STRAP, GR.3 DURCHM. 18 1
11 63175 STRAP, GR.3 18 X 18 X 18 2
12 3-10184 SHEET METAL GUARD 1
13 58335 RETAINING WASHER, S-12 VERZ. 2
14 58331 RETAINING WASHER, S-16 VERZ. 9
15 57171 HEX NUT, BM 12 X 1.5 1
16 57503 HYDRAULIC FITTING, GE 10 SM 2
17 57526 HYDRAULIC FITTING, SWVE 8 LM 2
18 57635 HYDRAULIC FITTING, WF-35LK-L15-250 2
19 50104 GEAR MOTOR, KM 1/11 1
20 54649 ALLEN HEAD CAP SCREW, M12 X 35 2
21 54516 ALLEN HEAD CAP SCREW, M16 X 55 9
22 54604 ALLEN HEAD CAP SCREW, M6 X 20 4
23 54605 ALLEN HEAD CAP SCREW, M6 X 25 2
24 54606 ALLEN HEAD CAP SCREW, M6 X 30 2
25 54607 ALLEN HEAD CAP SCREW, M6 X 35 4
26 54619 ALLEN HEAD CAP SCREW, M8 X 25 4
27 54621 ALLEN HEAD CAP SCREW, M8 X 35 2
28 59524 PARALLEL PIN, 10M6 X 40 2

RW 1504 06

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 21

MOUNTING FRAME ASSY.

RW 1504 07

P33/24 HHM-HHMR — MOUNTING FRAME ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 22

P33/24 HHM-HHMR — MOUNTING FRAME ASSY.

MOUNTING FRAME ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 63093 COVER PLATE, GR.3 GD 1
2 58431 SPRING WASHER, A 12 8
3 58025 WASHER, B 6.4 8
4 63154 STRAP, GR.3 DURCHM. 22 4
5 63171 STRAP, GR.3D 22X22 1
6 63533 SHOCK MOUNT, 90 X 50 - 45°SHORE 8
7 55721 HEX BOLT, M12 X 18 8
8 55706 HEX BOLT, M8 X 45 1
9 05281 MOUNTING FRAME COMPL. 1
10 57484 HYDRAULIC FITTING, TH 10 PLM 1
11 57577 HYDRAULIC FITTING, WHO 10 LM 1
12 57578 HYDRAULIC FITTING, WHO 12 SM 8
13 54606 ALLEN HEAD CAP SCREW, M6 X 30 8
14 05267 CONSOLE COMPL. 1

RW 1504 07

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 23

ENGINE COVER PLATE ASSY.

RW 1504 08

P33/24 HHM-HHMR — ENGINE COVER PLATE ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 24

P33/24 HHM-HHMR — ENGINE COVER PLATE ASSY.

ENGINE COVER PLATE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

4 59143 GAS PRESSURE SPRING 1
5 63930 ARTICULATED EYE, AG 36 2
6 05239 WIRE CABLE 1
7 07254 PRESS-SCREW 2
8 07253 PRESS-NUT 2
9 3-10028 HINGE 2
10 58125 WASHER, A 10.5 ST 18
12 58026 WASHER, B 8.4 2
13 57103 HEX NUT, M10 6
14 57079 HEX NUT, M 8 4
15 55911 HEX BOLT, M10 X 20 6
16 55914 HEX BOLT, M10 X 35 6
18 55908 HEX BOLT, M8 X 35 2
19 05725 TOGGLE - TYPE FASTENER 1
20 54803 ALLEN HEAD CAP SCREW, M8 X 20 2
21 05246 COVER PLATE, ENGINE 1

RW 1504 08

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 25

INSULATING BOARD ASSY.

RW 1504 09

P33/24 HHM-HHMR — INSULATING BOARD ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 26

P33/24 HHM-HHMR — INSULATING BOARD ASSY.

INSULATING BOARD ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 05312 STOP PLATE 2
2 05223 SEAL LATH 1
3 05254 SEAL LATH 2
4 05255 SEAL LATH 6
5 05522 SEAL LATH 1
6 05594 SEAL LATH 4
7 3-10021 SEAL LATH 1
8 3-10156 SEAL LATH 1
9 3-10109 SOUND DAMPENING PLATE 1
10 3-10112 SOUND DAMPENING PLATE 1
11 3-10120 SOUND DAMPENING PLATE 1
12 3-10116 SOUND DAMPENING PLATE 1
13 3-10117 SOUND DAMPENING PLATE 1
14 3-10337 SOUND DAMPENING PLATE 1
15 3-10338 SOUND DAMPENING PLATE 1
16 3-10339 SOUND DAMPENING PLATE 1
17 56055 SCREW, M6 X 12 4

RW 1504 09

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 27

CYCLONE FILTER ASSY.

RW 1504 10

P33/24 HHM-HHMR — CYCLONE FILTER ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 28

P33/24 HHM-HHMR — CYCLONE FILTER ASSY.

CYCLONE FILTER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10443 CYCLONE FILTER COMPL. 1
2 3-10331 GASKET 1
3 3-10332 GASKET 1
4 3-10328 FILTER SUPPORT 1
5 3-10341 EDGE PROTECTION 1
6 3-10342 EDGE PROTECTION 1
7 3-10343 EDGE PROTECTION 1
8 3-10344 EDGE PROTECTION 1
11 58176 WASHER, A 6.4 8
12 58025 WASHER, B 6.4 3
13 55892 HEX BOLT, M6 X 16 11
16 3-10333 COVER ANGLE 1
17 3-10331 GASKET 1
18 3-10332 GASKET 1

RW 1504 10

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 29

DIESEL ENGINE ASSY.

RW 1504 11

P33/24 HHM-HHMR — DIESEL ENGINE ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 30

P33/24 HHM-HHMR — DIESEL ENGINE ASSY.

DIESEL ENGINE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10214 MANIFOLD 1
2 05341 GASKET 1
3 01285600 GASKET 1
4 05408 VALVE PLATE 1
5 49531 ENGINE 2 G40 1
6 01178100 VALVE SHUTOFF 1
7 05975 AIR SUCTION MANIFOLD 1
8 00632101 ENGINE OIL CAP 1
9 50328300 SCREW NUT 1
10 50469200 GAUGE OIL 1
11 05658 LEVER COMPL. 1
12 58107 WASHER, A 6.4 ST 1
13 58038 WASHER, B 4.3 2
14 58026 WASHER, B 8.4 8
15 3-10160 SHRINKABLE SLEEVE 1
16 3-10335 SHOCK MOUNT FASTENING 1
17 58334 RETAINING WASHER, S-10 2
18 57028 HEX NUT, M 6 4
19 55913 HEX BOLT, M10 X 30 2
20 55895 HEX BOLT, M6 X 25 2
21 55901 HEX BOLT, M8 X 20 4
22 55903 HEX BOLT, M8 X 25 4
23 05959 COVER 1
24 54192 ALLEN HEAD CAP SCREW, M4 X 30 2
25 63501 SHOCK MOUNT, 75 X 50 FORM D/45º SHORE 1
26 57270 HEX NUT, M 12 1
27 3-10334 HOLDING ANGLE 1
28 58125 WASHER, A 10.5 ST 2
29 58028 WASHER, B 13 1
30 55920 HEX BOLT, M12 X 20 1
31 55912 HEX BOLT, M10 X 25 2

RW 1504 11

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 31

ENGINE SHOCK MOUNT ASSY.

RW 1504 12

P33/24 HHM-HHMR — ENGINE SHOCK MOUNT ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 32

P33/24 HHM-HHMR — ENGINE SHOCK MOUNT ASSY.

ENGINE SHOCK MOUNT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10227 COVER SHEET 1
3 55959 HEX BOLT, M6 X 12 9
4 3-10135 SHOCKMOUNT 1
7 05420 ENGINE TUB 1
8 58125 WASHER, A 10.5 ST 6
10 63521 SHOCK MOUNT, 60X30 FORM B 5
14 58334 RETAINING WASHER, S-10 13
15 57030 HEX NUT, M10 5
16 55911 HEX BOLT, M10 X 20 6
18 55913 HEX BOLT, M10 X 30 8

RW 1504 12

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 33

EXHAUST SILENCER ASSY.

RW 1504 13

P33/24 HHM-HHMR — EXHAUST SILENCER ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 34

RW 1504 13

P33/24 HHM-HHMR — EXHAUST SILENCER ASSY.

EXHAUST SILENCER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1

*

2

*

3

*

5

*

6 90215 EXHAUST SILENCER WITH HARDWARE ........ 1 ................ INCLUDES ITEMS W/

7

*

8

*

9

*

10
11
12
13
14
15
16

05613 GASKET 1
01285500 GASKET 2
05610 OUTPUT TUBE 1
40028400 COPPER HEX NUT, M8 4

05290 EXHAUST SILENCER SUPPORT 1
58028 WASHER, B 13 2
58025 WASHER, B 6.4 8
3-10027 PROTECTIVE GRATING 1

*

58325 RETAINING WASHER, S-8 VERZINKT 4

*

57131 HEX NUT, M 12 2

*

57028 HEX NUT, M 6 2

*

54604 ALLEN HEAD CAP SCREW, M6 X 20 4

*

54632 ALLEN HEAD CAP SCREW, M10 X 25 1

*

58027 WASHER, B 10.5 1

*

*

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 35

AIR CLEANER ASSY.

RW 1504 14

P33/24 HHM-HHMR — AIR CLEANER ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 36

P33/24 HHM-HHMR — AIR CLEANER ASSY.

AIR CLEANER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 68723 BEARING BUSH, HD 16-6-12 S-BO10 1
2 3-10026 CELLULAR RUBBER PLATE 1
3 3-10136 PIPE INLET 1
4 3-10209 HOLDING ANGLE 1
5 3-10025 CLAMP PIECE 1
7 69209 AIR CLEANER COMPL. 1
8 3-10315 AIR FILTER HOLDING DEVICE 1
9 69210 AIR CLEANER CARTRIDGE 1
10 68232 VOLTAGE REGULATOR 1
11 3-58180 WASHER, A 3.2 4
12 63268 BRACKET, ABA 44-56X12.2 2
13 63281 BRACKET, NORMA 142 2
14 58325 RETAINING WASHER, S-8 2
15 55924 HEX BOLT, M12 X 25 3
16 58224 LOCK WASHER, 13X29X3 3
17 69205 RUBBER CAP 1
18 68722 CONNECTOR, HD 10-6-12P 1
19 58302 TOOTHED LOCK WASHER, I 8.2 2
20 56130 ALLEN HEAD CAP SCREW, M3X8 4
21 54619 ALLEN HEAD CAP SCREW, M8X25 2
22 69218 AIR FILTER COVER W/ WING NUT 1

RW 1504 14

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 37

PUMP ASSY.

RW 1504 15

P33/24 HHM-HHMR — PUMP ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 38

P33/24 HHM-HHMR — PUMP ASSY.

PUMP ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 50340 HYDRAULIC PUMP, KP 1/8 - 6 +3+3 .................... 1 ............. STANDARD

1 50319 HYDRAULIC PUMP, KP1/11 +3+3 ........................ 1 ............. VARIABLE

2 58277 SPRING WASHER, B 12 1
4 51038 COUPLING BOX, BOWEX M38 1
5 05952 HOUSING 1
6 51036 COUPLING HUB, L.0012280004 1
7 51037 COUPLING HUB, L.0012280005 1
8 3-10492 COUPLING HALF 1
9 05462 VENTILATOR, ART.-NR.: 4402 2
10 62039 O-RING, DURCHM. 18 X 2.5 3
11 62050 O-RING, DURCHM. 24 X 2.5 1
13 58076 WASHER, 13 1
14 59027 WOODRUFF KEY, 3X6.5 1
15 05955 SCREW 1
16 58324 RETAINING WASHER, S-6 VERZINKT 16
17 58334 RETAINING WASHER, S-10 4
18 58325 RETAINING WASHER, S-8 4
19 57171 HEX NUT, BM 12X1.5 2
20 58220 LOCK WASHER, 19X42X4.5 1
21 3-10230 COUPLING 1
22 57456 HYDRAULIC FITTING 1
23 57644 HYDRAULIC FITTING, WF-35LK-12L-315 3
24 54632 ALLEN HEAD CAP SCREW 4
25 54604 ALLEN HEAD CAP SCREW 8
26 54607 ALLEN HEAD CAP SCREW 8
27 54620 ALLEN HEAD CAP SCREW 4
28 59501 PARALLEL PIN 2

RW 1504 15

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 39

P33/24 HHM-HHMR — AIR INTAKE/OIL DRAIN HOSE ASSY.

AIR INTAKE/OIL DRAIN HOSE ASSY.

RW 1504 16

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 40

P33/24 HHM-HHMR — AIR INTAKE/OIL DRAIN HOSE ASSY.

AIR INTAKE/OIL DRAIN HOSE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 05424 DISTANCE 1
3 3-10157 EDGE PROTECTION 1
4 05240 FAN COVER 1
5 05720 OIL DRAIN HOSE, 2 TEM DN 12X165 1
6 58077 WASHER, 8.4 7
7 58176 WASHER, A 6.4 2
8 58025 WASHER, B 6.4 2
9 63079 BRACKET, RSGU 1. 25/20 1
10 3-10221 APRON 1
11 58325 RETAINING WASHER, S-8 1
12 57078 HEX NUT, M 6 2
13 55894 HEX BOLT, M6X20 2
14 55906 HEX BOLT, M8X12 7
15 57438 DRAIN PLUG 1
16 57476 HYDRAULIC FITTING, GE 12-PLM (14X1.5) 1
17 54040 ALLEN HEAD CAP SCREW, M8X22 1

RW 1504 16

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 41

FUEL LINES ASSY.

RW 1504 17

P33/24 HHM-HHMR — FUEL LINES ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 42

P33/24 HHM-HHMR — FUEL LINES ASSY.

FUEL LINES ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 58605 COPPER RING, 14X20X1.5 2
2 58601 COPPER RING, 8X13X1.5 2
3 50379100 DIESEL FILTER 1
4 05718 DIESEL HOSE 1
5 3-10158 DIESEL HOSE 1
6 3-10161 DIESEL HOSE 1
7 05589 HOSE 1
8 57728 BANJO BOLT, M14X1.5 1
9 57848 BANJO BOLT 1
12 57729 BANJO UNION, M14X1.5 NW8 1
13 57849 BANJO UNION 1
14 3-10163 VALVE PLATE 1
15 50354600 VALVE 1
16 63050 BRACKET, RSGU 1. 10/15 1
17 63068 BRACKET, RSGU 1. 10/20 1
18 63250 BRACKET, ABA 8-12X9 1
19 63255 BRACKET, D7-11 2
20 63275 BRACKET, ABA 11-13 STANDARD W1

MINABA ART.-NR. 8864013009 9
21 05589 HOSE 1
22 3-10159 INSULATING TUBE 1

RW 1504 17

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 43

CONSOLE COCKPIT ASSY.

RW 1504 18

P33/24 HHM-HHMR — CONSOLE COCKPIT ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 44

RW 1504 18

P33/24 HHM-HHMR — CONSOLE COCKPIT ASSY.

CONSOLE COCKPIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 39725 ADHESIVE PLATE ............................... 1 ....... DRIVING RIGHT, MOVING

BLADE UP ON P33/24 HHMR-BD

2 39725 ADHESIVE PLATE ............................... 1 ....... DRIVING LEFT, MOVING

BLADE DOWN ON P33/24 HHMR-BD

3 39724 ADHESIVE PLATE ............................... 1 ....... FAST FORWARD, VIBRATION

4 63618 LIMIT STOP, D-25 KONISCH 2
5 56251 PARKER SCREW, 3.5X6.5 6
6 68552 COCKPIT 1
7 3-10593 DISTANCE 1

8 59142 GAS PRESSURE SPRING ...................1 ....... WITHOUT ARTICULATED EYE

9 3-10485 EDGE PROTECTION 1
10 3-10263 EDGE PROTECTION 1
11 52026 HINGED COVER 1
12 51927 CONTROL LAMP, RED 1
13 51928 CONTROL LAMP, RED 1
14 51929 CONTROL LAMP, GREEN 1
15 56229 SCREW, M4X18 2
16 56222 SCREW, M5X20 4
17 05261 FRAME PLATE FOR VALVES 1
18 68263 GRIP, HANDLE, KIPP 06960-11821 1
19 58125 WASHER, A10.5 ST 4
20 58039 WASHER, B5.3 4
21 63066 BRACKET 1
22 52007 KEY 2
23 57076 HEX NUT, M4 2
24 57077 HEX NUT, M5 4
25 57078 HEX NUT, M6 2
26 57079 HEX NUT, M8 1
27 57129 HEX NUT, M8 2
28 55912 HEX BOLT, M10X25 2
29 55914 HEX BOLT, M10X35 2
30 55901 HEX BOLT, M8X20 1
31 55902 HEX BOLT, M8X30 1
32 55908 HEX BOLT, M8X35 1
33 58219 LOCK WASHER, 6.4X14X2 1
34 58222 LOCK WASHER, 8.4X18X2 1
35 68752 HOUR COUNTER 1
36 52012 STARTER SWITCH 1
37 54600 ALLEN HEAD CAP SCREW, M6X12 1
38 63930 ARTICULATED EYE 2

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 45

P33/24 HHM-HHMR — EMERGENCY STOP BUMPER ASSY.

EMERGENCY STOP BUMPER ASSY.

RW 1504 19

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 46

P33/24 HHM-HHMR — EMERGENCY STOP BUMPER ASSY.

EMERGENCY STOP BUMPER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 90256 EMERGENCY STOP BUMPER ..................... 1 ......... INCLUDES ITEMS W/

2 3-10318 COVER PLATE 1
3 50749 GASKET SET 1
4% 59090 PRESSURE SPRING, D-283A-15 2
5 50993 SPRING BARREL, NR. 01/101/4E 1
6 59301 PIN, 2.3X6 4
7
8 50748 HYDRAULIC VALVE 1
9 3-10187 CLAMPING PLATE COMPL. 1
10% 51215 BALL 2
11
12 39653 OPERATING PLATE 1
13
14
15 58026 WASHER, B8.4 8
16
17
18 50992 SPRING PRESSURE, NR. 3/11.8/36/77.7 1
19 57080 HEX NUT, M10 4
20
21 55911 HEX BOLT, M10X20 2
22
23
24 55900 HEX BOLT, M8X16 4
25 55903 HEX BOLT, M8X25 4
26% 05487 STOPPER 1

27 3-10545 STOPPER COMPL. ........................................ 1 ......... INCLUDES ITEMS W/%

28% 58804 DRAIN PLUG, M18X1.5 1
29 57504 HYDRAULIC FITTING, GE 12 SM 1
30 57540 HYDRAULIC FITTING, SWVE 12 SM 3

3-10295 MOUNTING BOW 2

*

05628 BEARING BUSH 2

*

3-10319 SWITCHING BAR 1

*

58027 WASHER, B10.5 6

*

05625 LEG SPRING 1

*

05626 LEG SPRING 1

*

57030 HEX NUT, M10 2

*

55912 HEX BOLT, M10X25 4

*

55671 HEX BOLT, M10X50 1

*

*

RW 1504 19

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 47

VALVES ASSY.

RW 1504 20

P33/24 HHM-HHMR — VALVES ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 48

P33/24 HHM-HHMR — VALVES ASSY.

VALVES ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10596 COVER SHEET 1
2 51619 FILTER INSERT, V3.0510-08 1
3 05225 THREADED BLOCK 1
4 59304 PIN, 2.3X8 4
5 51617 HIGH PRESSURE FILTER 1
6 51620 O-RING, N 007.0543/1 1
7 58027 WASHER, B10.5 6
8 58325 RETAINING WASHER, S-8 2
9 55714 HEX BOLT, M10X20 4
10 55912 HEX BOLT, M10X25 13
11 58221 LOCK WASHER, 10.5X23X2.5 11
14 05259 VALVE PLATE 1
15 57540 HYDRAULIC FITTING, SWVE 12 SM 2
16 54047 ALLEN HEAD CAP SCREW, M8X55 2

17 50933 CONTROL VALVE .......................................... 2 ......... MANUAL OPERATION

18 50932 CONTROL VALVE, IDENT.-NR. 300210 ......... 1 ......... MANUAL OPERATION

RW 1504 20

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 49

P33/24 HHM-HHMR — MANUAL OPERATION VALVES ASSY.

MANUAL OPERATION VALVES ASSY.

RW 1504 21

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 50

P33/24 HHM-HHMR — MANUAL OPERATION VALVES ASSY.

MANUAL OPERATION VALVES ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 50956 PIN 4
2 50957 PIN 4
3 50935 PRESSURE VALVE COMPLETE 3
4 59660 HEADLESS PIN M12 X 60 DIN 913 4
5 3-10594 GRIP STRAIGHT 2
6 3-10595 GRIP BEVELED 2
7 50954 HOLDING DEVICE 4
8 58028 WASHER B13 4
9 50955 LEVER 4
10 57131 HEX NUT 2
11 50932 VALVE, HIGH SPEED/VIBRATION 1
12 50933 VALVE, STEERING 2
13 57477 HYDRAULIC FITTING GE 18 LM 3
14 57504 HYDRAULIC FITTING GE 12 LM 5
15 57515 HYDRAULIC FITTING GE 15 LM 2
16 57540 HYDRAULIC FITTING SWVE 12 SM 3
17 54558 ALLEN HEAD CAP SCREW M5 X 50 16

RW 1504 21

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 51

P33/24 HHM-HHMR — REMOTE CONTROL OPERATION VALVES ASSY.

REMOTE CONTROL OPERATION VALVES ASSY.

RW 1504 21

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 52

RW 1504 21

P33/24 HHM-HHMR — REMOTE CONTROL OPERATION VALVES ASSY.

REMOTE CONTROL OPERATION VALVES ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1*# 50956 PIN 4
2*# 50957 PIN 4
3*# 50935 VALVE 3
4 59660 HEADLESS PIN, M12X60 4
5 3-10594 GRIP, HANDLE 2
6 3-10595 GRIP, HANDLE 2
7*# 50954 HOLDING DEVICE 4
8*# 50978 MAGNET COIL, DPSA 1 B20-12C-18H 7
9*# 50977 O-RING, 12.48X1.78 14
10*# 50979 NUT 7
11 58028 WASHER, B13 4
12*# 50955 LEVER 4
13 57131 HEX NUT, M12 2

14 48012 CONTROL VALVE, HIGH SPEED/VIBRATION ... 1 ....... REMOTE CONTROL OPERATION

INCLUDES ITEMS W/

15 50981 CONTROL VALVE, STEERING ........................... 2 ....... REMOTE CONTROL OPERATION

INCLUDES ITEMS W/#
16 57477 HYDRAULIC FITTING, GE 18 LM 3
17 57504 HYDRAULIC FITTING, GE 12 SM 5
18 57515 HYDRAULIC FITTING, GE 15 LM 2
19 57540 HYDRAULIC FITTING, SWVE 12 SM 3
20*# 54558 ALLEN HEAD CAP SCREW, M5X50 16

*

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 53

P33/24 HHM-HHMR — VALVE BLOCK (VARIABLE EXCENTRIC WEIGHT) ASSY.

VALVE BLOCK (VARIABLE EXCENTRIC WEIGHT) ASSY.

RW 1504 HFVS 01

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 54

RW 1504 HFVS 01

P33/24 HHM-HHMR — VALVE BLOCK (VARIABLE EXCENTRIC WEIGHT) ASSY.

VALVE BLOCK (VARIABLE EXCENTRIC WEIGHT) ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 39726 ADHESIVE PLATE 1
2 59304 PIN, 2.3X8 4
3 58077 WASHER, 8.4 2
4 58177 WASHER, A8.4 2
5 57682 CUTTING RING, 12-L/S 2
6 68356 PROTECTING CAP, CO 700894 1
7 55900 HEX BOLT, M8X16 4

8 48072 CONTROL BLOCK ....................................... 1 .............. FOR VARIABLE EXCENTRIC WEIGHT

9 57686 HEX NUT, 12-L (M18X1.5) 2
10 3-10269 VALVE SUPPORT 1
11 05259 VALVE PLATE 1
12 57527 HYDRAULIC FITTING, SWVE 10 LM 1
13 57535 HYDRAULIC FITTING, SWVE 15 LM 2
14 57727 HYDRAULIC FITTING, EVGE 12 LM 1
15 68357 SWITCH, CO 70045 1

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 55

THROTTLE CABLE ASSY.

RW 1504 22

P33/24 HHM-HHMR — THROTTLE CABLE ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 56

P33/24 HHM-HHMR — THROTTLE CABLE ASSY.

THROTTLE CABLE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 05224 FASTENING PLATE 1
2 63819 LOCKING BOLT, 6X24 SXN 01 1
3 58251 TOOTHED LOCK WASHER, A 5.3 4
4 64026 ROD HEAD BOLT, G6X24 1
5 64548 THROTTLE CABLE 1
6 64551 GRIP, HANDLE 1
7 56222 SCREW, M5X20 4
8 58325 RETAINING WASHER, S-8 2
9 55909 HEX BOLT, M8X14 2

RW 1504 22

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 57

RECEIVER/CONSOLE ASSY.

RW 1504 23-1

P33/24 HHM-HHMR — RECEIVER/CONSOLE ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 58

RW 1504 23-1

P33/24 HHM-HHMR — RECEIVER/CONSOLE ASSY.

RECEIVER/CONSOLE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10309 SPRING 1
2 58618 COPPER RING, 10X14X1 1
3 3-10280 BONNET, COVER 1

4 3-10279 COVER, COMPL. ........................................... 1 .........RW 1504 HF/HFS/HFVS

4 3-10310 COVER, COMPL. ........................................... 1 ......... RW 1504 /HK/HFK

5 3-10060 RECEIVER CONE SUPPORT
6 51618 AERATION 1
7 58252 TOOTHED LOCK WASHER, A6.4 1
8 69713 SPRING BOLT WITH TOP 1
9 3-10172 EDGE PROTECTION 1
10 51219 BALL, DURCH. 12 1
11 56218 SCREW, M6X10 4
12 62029 O-RING, DURCHM. 14X2 1
13 58027 WASHER, B10.5 4
14 58026 WASHER, B8.4 4
15 63092 BRACKET, RSGU 1/2X14/15 3
16 3-10085 PROTECTING CAP 1
17 58324 RETAINING WASHER, S-6 VERZINKT 3
18 58325 RETAINING WASHER, S-8 2
19 57161 HEX NUT, BM 20X1.5 2
20 57079 HEX NUT, M8 2
21 55911 HEX BOLT, M10X20 4
22 55901 HEX BOLT, M8X20 2
23 58830 DRAIN PLUG, PG-13.5 1
24 68333 RECEIVER CONE 1
25 3-10119 CELLULAR RUBBER PLATE 1
26 3-10303 CELLULAR RUBBER PLATE 1
27 54560 ALLEN HEAD CAP SCREW, M5X8 2
28 54600 ALLEN HEAD CAP SCREW, M6X12 2
29 54018 ALLEN HEAD CAP SCREW, M6X14 1
30 54048 ALLEN HEAD CAP SCREW, M8X60 2
31 3-10627 REINFORCING RING 1

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 59

P33/24 HHM-HHMR — CONSOLE COMPONENTS 1 ASSY.

CONSOLE COMPONENTS 1 ASSY.

RW 1504 23-2

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 60

P33/24 HHM-HHMR — CONSOLE COMPONENTS 1 ASSY.

CONSOLE COMPONENTS 1 ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10129 DIESEL INDICATION TUBE 1
3 3-10225 FOAM RUBBER 1
4 69411 CABLE BUSHING 1
5 69410 CABLE BUSHING 1
6 3-10266 EDGE PROTECTION 1
7 3-10222 AIRDUCT 1
8 58077 WASHER, 8.4 8
9 58177 WASHER, A 8.4 4
10 63084 BRACKET, RSGU 1. 80/25 1
11 63255 BRACKET, D 7-11 2
12 3-10223 APRON 1
13 58334 RETAINING WASHER, S-10 2
14 57079 HEX NUT, M8 4
15 55911 HEX BOLT, M10X20 2
16 55900 HEX BOLT, M8X16 4
17 55901 HEX BOLT, M8X20 4
18 8480062 TANK CAP, FUEL 1

RW 1504 23-2

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 61

P33/24 HHM-HHMR — CONSOLE COMPONENTS 2 ASSY.

CONSOLE COMPONENTS 2 ASSY.

RW 1504 23-3

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 62

P33/24 HHM-HHMR — CONSOLE COMPONENTS 2 ASSY.

CONSOLE COMPONENTS 2 ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 63093 COVER PLATE, GR.3 GD 4
2 58025 WASHER, B6.4 2
3 63152 STRAP, GR.3 DURCHM. 18 1
4 63165 STRAP, GR.3D 18X18 4
5 55527 HEX BOLT, M8X45 4
6 58808 DRAIN PLUG, M40X1.5 1
7 57507 HYDRAULIC FITTING, GE 18 LM 2
8 57577 HYDRAULIC FITTING, WHO 10 LM 1
9 57583 HYDRAULIC FITTING, WHO 18 LM 1
10 54606 ALLEN HEAD CAP SCREW, M6X30 2

RW 1504 23-3

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 63

P33/24 HHM-HHMR — TRANSMITTER CONTROL BOX 1 ASSY.

TRANSMITTER CONTROL BOX 1 ASSY.

RW 1504 24

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 64

P33/24 HHM-HHMR — TRANSMITTER CONTROL BOX 1 ASSY.

TRANSMITTER CONTROL BOX 1 ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10114 FOAM RUBBER 1
2 68328 RECEIVER 1
3 3-10458 PLASTIC LATH 1
4 3-10459 PLASTIC LATH 1
5 58077 WASHER, 8.4 5
6 63061 BRACKET, RSGU 1. 20/20 1
7 3-10455 TRANSMITTER COMPL. 1
8 3-10007 TRANSMITTER HOLDING SHEET 1
9 58325 RETAINING WASHER, S-8 7
10 55900 HEX BOLT, M8X16 4
11 55901 HEX BOLT, M8X20 7
12 55903 HEX BOLT, M8X25 1
13 3-10075 HOLDING LATH 1

RW 1504 24

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 65

P33/24 HHM-HHMR — TRANSMITTER CONTROL BOX 2 ASSY.

TRANSMITTER CONTROL BOX 2 ASSY.

RW 1504 25

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 66

P33/24 HHM-HHMR — TRANSMITTER CONTROL BOX 2 ASSY.

TRANSMITTER CONTROL BOX 2 ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1
2 3-10056 BOW 1
3
4
5
6
7 39593 PVC-STICKER, ENGLISH 1
10 39631 PVC-STICKER, ENGLISH 1
13 39634 PVC-STICKER, ENGLISH 1
14 39651 PVC-STICKER, ENGLISH 1
15 39690 PVC-STICKER, ENGLISH 1
16 39691 PVC-STICKER, ENGLISH 1

19 3-10455 TRANSMITTER COMPL. ............................... 1 .........INCLUDES ITEMS W/

20 56004 SCREW, M4X16 4
21 3-10456 STRAP 1
22

68334 BATTERY 1

*

68511 RUBBER COLLAR 2

*

68305 RUBBER PROTECTING CAP 3

*

39668 STICKER 1

*

68542 KNOB 2

*

68675 DRAIN PLUG, PG-7 1

*

RW 1504 25

*

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 67

BATTERY ASSY.

RW 1504 26

P33/24 HHM-HHMR — BATTERY ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 68

P33/24 HHM-HHMR — BATTERY ASSY.

BATTERY ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 50657VP BATTERY, DRY 1
2 3-10447 BATTERY VENT TUBE 1
3 3-10300 BATTERY HOLDING SHEET 1
4 05241 BATTERY HOLDER 1
5 68751 FASTENING PLATE, 1011-026-0205 1
6 3-10327 STEEL PLATE 1
7 05267 CONSOLE COMPL. 1
9 3-10366 FUSE BACKFIRE, 305 002 0502 1

10 ACID PACKAGE BIG, FOR DRY BATTERY .. 1 ..........SOURCE LOCALLY

11 58125 WASHER, A 10.5 ST 2
12 58053 WASHER, B 10.5 2
13 58039 WASHER, B 5.3 2
14 63074 BRACKET, RSGU 1 2X 16/15 2
15 56012 SCREW, M5X10 1
16 56092 SCREW, M6X16 2
17 68744 FUSE, 30A 1
18 68745 FUSE HOLDER 1
19 57101 HEX NUT, M6 2
20 55910 HEX BOLT, M10X16 1
21 55911 HEX BOLT, M10X20 1
22 55912 HEX BOLT, M10X25 4
23 58221 LOCK WASHER, 10.5X23X2.5 2
24
25
26
27
28 54550 ALLEN HEAD CAP SCREW, M5X12 2

29 90208HHMR BATTERY FOAM KIT..................................... 1 .......... INCLUDES ITEMS W/

3-10304 CELLULAR RUBBER PLATE 2

*

3-10305 CELLULAR RUBBER PLATE 2

*

3-10306 CELLULAR RUBBER PLATE 1

*

3-10307 CELLULAR RUBBER PLATE 1

*

RW 1504 26

*

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 69

P33/24 HHM-HHMR — OPTIONAL BATTERY DISCONNECTING SWITCH ASSY.

OPTIONAL BATTERY DISCONNECTING SWITCH ASSY.

RW 1504 27

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 70

P33/24 HHM-HHMR — OPTIONAL BATTERY DISCONNECTING SWITCH ASSY.

OPTIONAL BATTERY DISCONNECTING SWITCH ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1
2

3 90271 BATTERY DISCONNECTING SWITCH COMPL. ...... 1 ........ INCLUDES ITEMS W/

4
5
8
9
10
11
12
13

50661 BATTERY SWITCH KEY 1

*

05373 BATTERY DISCONNECTING SWITCH 1

*

3-10391 WIRE CABLE 1

*

05209 HOLDING ANGLE 1

*

58025 WASHER, B6.4 2

*

57028 HEX NUT, M6 1

*

57078 HEX NUT, M6 2

*

57079 HEX NUT, M8 2

*

55894 HEX BOLT, M6X20 1

*

55901 HEX BOLT, M8X20 2

*

*

RW 1504 27

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 71

SUCTION FILTER ASSY.

RW 1504 28

P33/24 HHM-HHMR — SUCTION FILTER ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 72

P33/24 HHM-HHMR — SUCTION FILTER ASSY.

SUCTION FILTER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

14 54604 ALLEN HEAD CAP SCREW, M6X20 6
15 58324 RETAINING WASHER, S-6 VERZINKT 6
16 3-10568 HOSE 1
17 62115 O-RING, DURCHM. 80X4 1
18 51601 SUCTION FILTER, AS 040-01K 1
19 51750 OIL LEVEL GAGE, MOD. 240/AS R1 1
20 62951 GASKET 1
21 58808 DRAIN PLUG, M40X1.5 1

RW 1504 28

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 73

DOZER BLADE ASSY.

RW 1504 HHMR-BD 01

P33/24 HHMR-BD — DOZER BLADE ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 74

P33/24 HHMR-BD — DOZER BLADE ASSY.

DOZER BLADE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10275 SPUD, LEFT 1
2 3-10276 SPUD, RIGHT 1
3 3-10251 FASTENING PLATE 1
4 3-10237 BONNET, COVER, DD 11 4MM STANDARD 1
5 3-10252 GUIDANCE TUBE 1
6 3-10258 SLIDING PLATE, BACK POM-DELRIN 3
7 3-10235 SLIDING PLATE, SIDE POM-DELRIN 2
8 3-10274 SLIDING PLATE, FRONT POM-DELRIN 2
9 3-10247 RAIL, ST 37 K 2
10 3-10253 SLIDING TUBE 1
11 3-10324 SHEET METAL GUARD, COMPL. 1
12 56055 SCREW, M6X12 14
13 58334 RETAINING WASHER, S-10 4
14 58325 RETAINING WASHER, S-8 6
15 57030 HEX NUT, M10 6
16 55910 HEX BOLT, M10X16 4
17 55912 HEX BOLT, M10X25 14
18 55901 HEX BOLT, M8X20 2
19 58221 LOCK WASHER, 10.5X23X2.5 4
20 54620 ALLEN HEAD CAP SCREW, M8X30 4

RW 1504 HHMR-BD 01

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 75

LIFT CYLINDER ASSY.

RW 1504 HHMR-BD 02

P33/24 HHMR-BD — LIFT CYLINDER ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 76

RW 1504 HHMR-BD 02

P33/24 HHMR-BD — LIFT CYLINDER ASSY.

LIFT CYLINDER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 3-10236 POSITIONING BLOCK, S 235 JR 2
2 66928 HD-HOSE, 2SNDN 08X280 RSL/RSL 1

3 3-10487 LIFT CYLINDER COMPL. ............................. 1 .............. INCLUDES ITEMS W/

4 3-10386 CLAMPING PLATE 2
6 52070 SWITCH, HELLA 6DF 003263001 1
7 3-10380 HOSE 1
8 58334 RETAINING WASHER, S-10 4
9 55914 HEX BOLT, M10X35 2
10 58221 SPRING WASHER, 10.5X23X2.5 2
11 3-10389 MOUNTING FRAME COMPL. 1
12 3-10387 TRANSPORT STRAP 2
13 57502 HYDRAULIC FITTING, GE 10 LM 2
14 57577 HYDRAULIC FITTING, WHO 10 LM 4
15 54070 ALLEN HEAD CAP SCREW, M10X50 4
16
18
19
20
21
22
23
24

3-10241 BEARING BUSH, GC-CU SN7 ZN PB 2

*

64201 PILOT, 3-03-40/30 1

*

63914 BOLT HEAD ROD, GK 1-20 1

*

58906 PISTON ROD 2

*

64202 RETAINING RING, SB 35 2

*

63913 JOINT BEARING 1

*

3-10242 PIN, S 235 JR 1

*

62904 GASKET SET, DO-40/30/1 1

*

*

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 77

VALVE ASSY.

RW 1504 HHMR-BD 03

P33/24 HHMR-BD — VALVE ASSY.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 78

RW 1504 HHMR-BD 03

P33/24 HHMR-BD — VALVE ASSY.

VALVE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 52025 PRESS SWITCH, BOSCH 0 340 000 001 2

3 3-10461 LEVER COMPL. ................................................ 1 .............. INCLUDES ITEMS W/

4 59635 HEADLESS PIN, M4X5 4
5 3-10294 GRIP, HANDLE 2
7
8
9
12 55901 HEX BOLT, M8X20 4
13 58222 LOCK WASHER, 8.4X18X2 4
14 48011 CONTROL BLOCK, ART. NR. 401504 1
18 3-10312 VALVE PLATE 1
19 57456 HYDRAULIC FITTING, GE 12 LM M18X1.5 1
20 57515 HYDRAULIC FITTING, GE 15 LM 1
21 57540 HYDRAULIC FITTING, SWVE 12 SM 1
22 57577 HYDRAULIC FITTING, WHO 10 LM 2

69413 CABLE BUSHING, ART.-NR.: 0842690 1

*

68846 CABLE FITTING, PG 07 2

*

62001 O-RING, DURCHM. 6X2 4

*

*

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 79

HYDRAULIC SCHEMATIC

P33/24 HHM-HHMR — HYDRAULIC SCHEMATIC

noitpircseDtnenopmoC.1elbaT

.ONMETINOITPIRCSED.ONMETINOITPIRCSED

1enignElesieD8 )tfeLevirD(evlaV

2pmuPciluardyH9 )t

4retliFnoitcuS01evlaVnwoD-tuhSytefaS

5knaTliO11rotoMraeG

6retliFerusserP-hgiH21ekarBeuqrotretnuoC

7)deepShgiH/noitarbiV(evlaV31rotoMciluardyH

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 80

hgiRevirD(evlaV

HYDRAULIC SCHEMATIC

P33/24 HHMR-BD — HYDRAULIC SCHEMATIC

noitpircseDtnenopmoC.2elbaT

.ONMETINOITPIRCSED.ONMETINOITPIRCSED

1enignElesieD8 )thgiRevirD(evlaV

2pmuPciluardyH9 e

3retliFnoitcuS01rotoMraeG

4knaTliO11ekarBeuqrotretnuoC

5retliFerusserP-hgiH21rotoMciluardyH

6)d

7)tfeLevirD(evlaV41)thgieWcirtnecxE(evlaV

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 81

eepShgiH/noitarbiV(evlaV31)edalBrezoD(evlaV

vlaVnwoD-tuhSytefaS

HYDRAULIC HOSE LAYOUT

P33/24 HHM-HHMR — HYDRAULIC HOSE LAYOUT

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 82

P33/24 HHM-HHMR — HYDRAULIC HOSE LAYOUT

HYDRAULIC HOSE LAYOUT

NO. PART NO. PART NAME QTY. REMARKS

1 66996 HD-HOSE 1 2 SN DN 10X850 RSL/RSL 90°
2 66790 HD-HOSE 1 2 SN DN 10X1010 RSL 90° SL 65/RSL 90° V-225°
3 66791 HD-HOSE 1 2 SN DN 10X825 RSL 90° /RSL 90° V-245°
4 66620 HD-HOSE 1 2 SN DN 10X250 RSL 90° /RSL 45°
5 66995 HD-HOSE 1 2 SN DN 10X770 RSL 45° /RSL 90° SL 65 V-240°
6 66691 HD-HOSE 1 2 SN DN 10X360 RSL 90° /RSL 90° SL 65 V-225°
7 66519 HD-HOSE 1 2 SN DN 10X360 RSL/RSL 90°
8 66519 HD-HOSE 1 2 SN DN 10X360 RSL/RSL 90°
9 66519 HD-HOSE 1 2 SN DN 10X360 RSL/RSL 90°
10 66681 HD-HOSE 1 2 SN DN 10X1440 RSL/RSL
11 65344 HD-HOSE 1 2 SN DN 10X1410 RSL/RSL
12 66697 HD-HOSE 1 2 SN DN 10X680 RSL/RSL
13 66698 HD-HOSE 1 2 SN DN 10X810 RSL/RSL
14 66692 HD-HOSE 1 2 SN DN 12X1000 RSL/RSL 45° Ø15
15 66693 HD-HOSE 1 2 SN DN 12X840 RSL/RSL 45° Ø15
16 66406 HD-HOSE 1 1 SN DN 06X380 RSL/RSL
17 66405 HD-HOSE 1 1 SN DN 08X405 RSL/RSL 90°
18 66405 HD-HOSE 1 1 SN DN 08X405 RSL/RSL 90°
19 66684 HD-HOSE 1 1 SN DN 08X360 RSL 45° /RSL 90°
20 66694 HD-HOSE 1 1 SN DN 16X465 RSL 45° /RSL 90° V-270°
21 66695 HD-HOSE 1 1 SN DN 16X335 RSL 90° /RSL 90° V-270°
22 66696 HD-HOSE 1 1 SN DN 16X250 RSL /RSL 90°

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 83

P33/24 HHM-HHMR — HYDRAULIC HOSE LOCATOR CHART

HYDRAULIC HOSE LOCATOR CHART

.ONMETI

1BTROPPMUPCILUARDYH ETROP).BIV(EVLAVLORTNOC

tuoyaLesoHciluardyH.3elbaT

NOITANITSED

MORFOT

2DTROPPMUPCI

3CTROPPMUPCILUARDYH DTROP)THGIR(EVLAVLORTNOC

4ATROPRETLIFERUSSERP-HGIH DTRO

5ATROPPMUPCILUARDYH BTROP)TFEL(EVLAVLORTNOC

6ATROPEVLAVNWOD-TUHSYTEFAS C)EDISTIPKCOC(TR

7DTROPEVLAVNWOD-TUHSYTEFAS ATROP)TFEL(EVLAVLORTNOC

8BTROPEVLAVNWOD-TUHSYTEFAS B)EDISTIPKCOC(TRO

9CTROPEVLAVNWOD-TUHSYTEFAS CTROP)THGIR(EVLAVLORTNOC

01E)EDISENIGNE(TROPCILUARDYH BTROP)THGIR(EVL

11D)EDISENIGNE(TROPCILUARDYH CTROP)TFEL(EVLAVLORTNOC

21B)EDISENIGNE(TROPCILUARDYH E)EDISTIPKCOC(T

31C)EDISENIGNE(TROPCILUARDYH D)EDISTIPKCOC(TROPCILUARDYH

LUARDYH BTROPRETLIFERUSSERP-HGIH

P).BIV(EVLAVLORTNOC

OPCILUARDYH

PCILUARDYH

AVLORTNOC

ROPCILUARDYH

41ATROPROTOMRAEG CTROP).BIV(EVLAVLORT

51CTROPROTOMRAEG BTROP).BIV(EVLAVLORTNOC

61BTROPROTOMRAEGBTROPDLOFINAM

71CTROPDLOFINAM A)EDISTIPKCOC(TROPC

81ATROPDLOFINAM A)EDISENIGNE(TROPCILUARDYH

91F)EDISTIPKCOC(TROPCILUARDYH ATROPTIPKCOC

02ATROP).BIV(E

12DTROP)TFEL(EVLAVLORTNOC BTROPKNATLIOCILUARDYH

22ATROP)THGIR(EVLAVLORTNO

C CTROPKNATLIOCILUARDYH

VLAVLORTNOC ATROPKNATLIOCILUARDYH

NOC

ILUARDYH

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 84

COMPONENT LOCATOR

P33/24 HHM-HHMR — COMPONENT LOCATOR

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 85

P33/24 HHM —ELECTRICAL COMPONENT LOCATOR

ELECTRICAL COMPONENT LOCATOR (P33/24 HHM)

NOTE

Position 8: Cockpit
Position 9: Starter Switch
Position 10: Generator Control
Position 11: Oil Control
Position 12: Inclinometer Indicator
Position 13: Hour counter
Position 16: Shut-off Solenoid
Position 17: Oil Pressure Switch
Position 18: Starter
Position 19: Battery
Position 20: Regulator
Position 21: Alternator
Position 22: Ground Cockpit/Valve Control Device
Position 23: Central Ground
Position 24: Central Fuse
Position 25: Engine Control
Position 27: Engine
Position 28: Battery Section Switch

See next page for corresponding
wiring schematic.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 86

WIRING SCHEMATIC (P33/24 HHM)

P33/24 HHM — WIRING SCHEMATIC

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 87

P33/24 HHMR — ELECTRICAL COMPONENT LOCATOR

ELECTRICAL COMPONENT LOCATOR (P33/24 HHMR)

NOTE

Position 1: Drive Left Forward
Position 2: Drive Left Backward
Position 3: Drive Right Forward
Position 4: Drive Right Backward
Position 5: Vibration Forward
Position 6: Vibration Backward
Position 7: High Speed
Position 8: Cockpit
Position 9: Starter Switch
Position 10: Generator Control
Position 11: Oil Control
Position 12: Inclinometer Indicator
Position 13: Hour Counter
Position 14: Valve Control Device
Position 15: Pre-amplifier
Position 16: Shut-off Solenoid
Position 17: Oil Pressure Switch
Position 18: Starter
Position 19: Battery
Position 20: Regulator
Position 21: Alternator
Position 22: Ground Cockpit/Valve Control Device
Position 23: Central Ground
Position 24: Central Fuse
Position 25: Engine Control
Position 26: Transmitter
Position 27: Engine
Position 28: Battery Section Switch

wiring schematic.

See next page for corresponding

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 88

WIRING SCHEMATIC (P33/24 HHMR)

P33/24 HHMR — WIRING SCHEMATIC

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 89

P33/24 (VAR. EXC. WEIGHT) — ELECTRICAL COMPONENT LOCATOR

ELECTRICAL COMPONENT LOCATOR (P33/24 VAR. EXC. WEIGHT)

NOTE

Position 1: Drive Left Forward
Position 2: Drive Left Backward
Position 3: Drive Right Forward
Position 4: Drive Right Backward
Position 5: Vibration Forward
Position 6: Vibration Backward
Position 7: High Speed
Position 8: Cockpit
Position 9: Starter Switch
Position 10: Generator Control
Position 11: Oil Control
Position 12: Inclinometer Indicator
Position 13: Hour Counter
Position 14: Valve Control Device
Position 15: Pre-amplifier
Position 16: Shut-off Solenoid
Position 17: Oil Pressure Switch
Position 18: Starter
Position 19: Battery
Position 20: Regulator
Position 21: Alternator
Position 22: Ground Cockpit/Valve Control Device
Position 23: Central Ground
Position 24: Central Fuse
Position 25: Engine Control
Position 26: Transmitter
Position 27: Engine
Position 28: Battery Section Switch
Position 29: Control Box
Position 30: Manual Control Box

wiring schematic.

See next page for corresponding

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 90

P33/24 (VAR. EXC. WEIGHT) — WIRING SCHEMATIC

WIRING SCHEMATIC (P33/24 VAR. EXC. WEIGHT)

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 91

WIRING SCHEMATIC (P33/24 HHMR-BD)

P33/24 HHMR-BD— WIRING SCHEMATIC

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 92

NOTE PAGE

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 93

Effective: October 1, 2002

TERMS AND CONDITIONS OF SALE — PARTS

PAYMENT TERMS

Terms of payment for parts are net 30 days.

FREIGHT POLICY

All parts orders will be shipped collect or
prepaid with the charges added to the in­voice. All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a
signed manifest has been obtained from the
carrier, and any claim for shortage or dam­age must be settled between the consignee
and the carrier.

MINIMUM ORDER

The minimum charge for orders from Mul­tiquip is $15.00 net. Customers will be asked
for instructions regarding handling of orders
not meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and credit
will be allowed, subject to the following pro­visions:

1. A Retur ned Material Authorization must
be approved by Multiquip prior to ship­ment.

2. To obtain a Return Material Authoriza­tion, a list must be provided to Multiquip
Parts Sales that defines item numbers,
quantities, and descriptions of the items
to be returned.

a. The parts numbers and descrip-

tions must match the current parts
price list.

b. The list must be typed or computer

generated.

c. The list must state the reason(s) for

the return.

d. The list must reference the sales

order(s) or invoice(s) under which
the items were originally purchased.

e. The list must include the name and

phone number of the person re­questing the RMA.

3. A copy of the Return Material Authori­zation must accompany the return
shipment.

4. Freight is at the sender’s expense. All
parts must be returned freight prepaid
to Multiquip’s designated receiving point.

5. Parts must be in new and resalable

6. The following items are not returnable:

7. The sender will be notified of any mate-

8. Such material will be held for five work-

9. Credit on returned parts will be issued

10. In cases where an item is accepted, for

11. Credit issued will be applied to future

PRICING AND REBATES

Prices are subject to change without prior
notice. Price changes are effective on a
specific date and all orders received on or
after that date will be billed at the revised
price. Rebates for price declines and added
charges for price increases will not be made
for stock on hand at the time of any price
change.

Multiquip reserves the right to quote and sell

condition, in the original Multiquip pack­age (if any), and with Multiquip part
numbers clearly marked.

a. Obsolete parts. (If an item is in the

price book and shows as being re­placed by another item, it is
obsolete.)

b. Any parts with a limited shelf life

(such as gaskets, seals, “O” rings,
and other rubber parts) that were
purchased more than six months
prior to the return date.

c. Any line item with an extended

dealer net price of less than $5.00.

d. Special order items.

e. Electrical components.

f. Paint, chemicals, and lubricants.
g. Decals and paper products.

h. Items purchased in kits.

rial received that is not acceptable.

ing days from notification, pending
instructions. If a reply is not received
within five days, the material will be
returned to the sender at his expense.

at dealer net price at time of the original
purchase, less a 15% restocking charge.

which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.

purchases only.

direct to Government agencies, and to Origi­nal Equipment Manufacturer accounts who
use our products as integral parts of their
own products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the
invoice for special handling including bus
shipments, insured parcel post or in cases
where Multiquip must personally deliver the
parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder for
damages in excess of the purchase price of
the item with respect to which damages are
claimed, and in no event shall Multiquip be
liable for loss of profit or good will or for any
other special, consequential or incidental
damages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are made
in connection with the sale of parts or trade
accessories nor as to any engine not manu­factured by Multiquip. Such warranties made
in connection with the sale of new, complete
units are made exclusively by a statement of
warranty packaged with such units, and
Multiquip neither assumes nor authorizes
any person to assume for it any other obliga­tion or liability whatever in connection with
the sale of its products. Apart from such
written statement of warranty, there are no
warranties, express, implied or statutory,
which extend beyond the description of the
products on the face hereof.

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 94

NOTE PAGE

P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 95

PARTS MANUAL

HERE'S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER

UNITED STATES

Multiquip Corporate Office MQ Parts Department

18910 Wilmington Ave. Tel. [phone] Fax: [phone]
Carson, CA 90746 Fax [phone] Fax: [phone]
Contact: [e-mail]

Mayco Parts Warranty Department

800-306-2926 Fax: [phone], Ext. 279 Fax: [phone]
310-537-3700 Fax: [phone], Ext. 279

Service Department Technial Assistance

800-421-1244 Fax: [phone] Fax: [phone]
310-537-3700

MEXICO UNITED KINGDOM

MQ Cipsa Multiquip (UK) Limited Head Office

Carr. Fed. Mexico-Puebla KM 126.5 Tel: [phone] Hanover Mill, Fitzroy Street, Tel: [phone]
Momoxpan, Cholula, Puebla 72760 Mexico Fax: [phone] Ashton-under-Lyne, Fax: [phone]
Contact: [e-mail] Lancashire OL7 0TL

CANADA BRAZIL

Multiquip Multiquip

4110 Industriel Boul. Tel: [phone] Av. Evandro Lins e Silva, 840 - grupo 505 Tel: [phone]
Laval, Quebec, Canada H7L 6V3 Fax: [phone] Barra de Tijuca - Rio de Janeiro Fax: [phone]
Contact: [e-mail] Contact: [e-mail], [e-mail]

ON-HAND

WHEN CALLING

Contact: [e-mail]

© COPYRIGHT 2005, MULTIQUIP INC.

Multiquip Inc and the MQ logo logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks
are the property of their respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and specifications included in this publication were in effect at the time of approval for printing
contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or
the information published in this publication at any time without notice and without incurring any obligations.

.

Illustrations, descriptions, references and technical data

Your Local Dealer is:
