Multiquip MTR40F User Manual

OPERATION AND PARTS MANUAL
SERIES
MODEL MTR40F
TAMPING RAMMER
EH090D/EH092D
Revision #3 (01/05/12)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
GASOLINE ENGINES)
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
PROPOSITION 65 WARNING
PAGE 2 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
NOTES
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 3
TABLE OF CONTENTS
MTR40F Tamping Rammer
Proposition 65 Warning .............................................2
Table Of Contents .....................................................4
Parts Ordering Procedures .......................................5
Safety Information ................................................. 6-9
Specifications ..........................................................10
General Information ................................................11
Components............................................................ 12
Basic Engine ........................................................... 13
Operation .......................................................... 14-17
Maintenance ..................................................... 18-20
Troubleshooting ................................................ 22-23
Explanation Of Codes In Remarks Column ............24
Suggested Spare Parts ........................................... 25
Name Plate and Decals .................................... 26-27
Crankcase and Engine Assembly ..................... 28-31

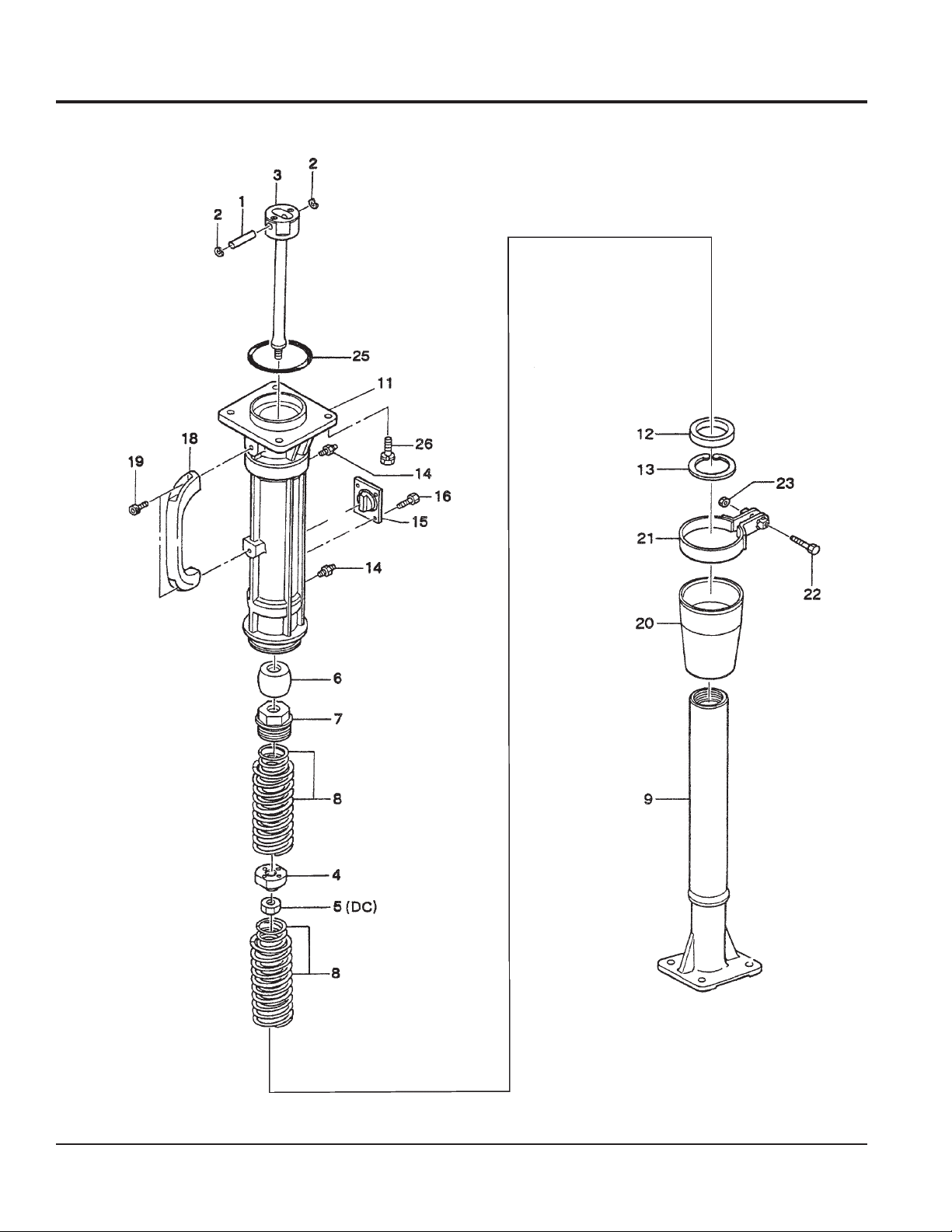

Guide Cylinder Assembly .................................. 32-33

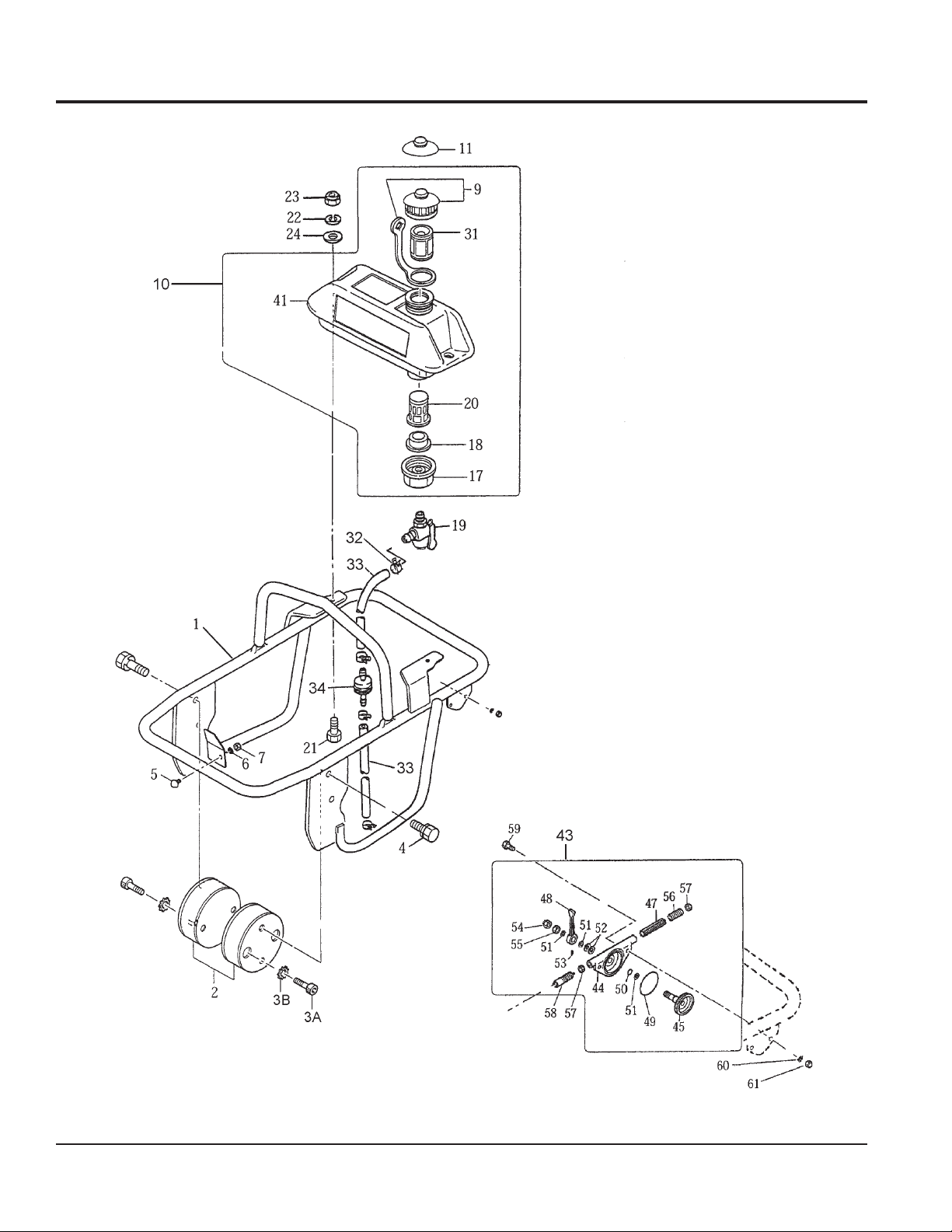

Tank and Handle Assembly .............................. 34-35

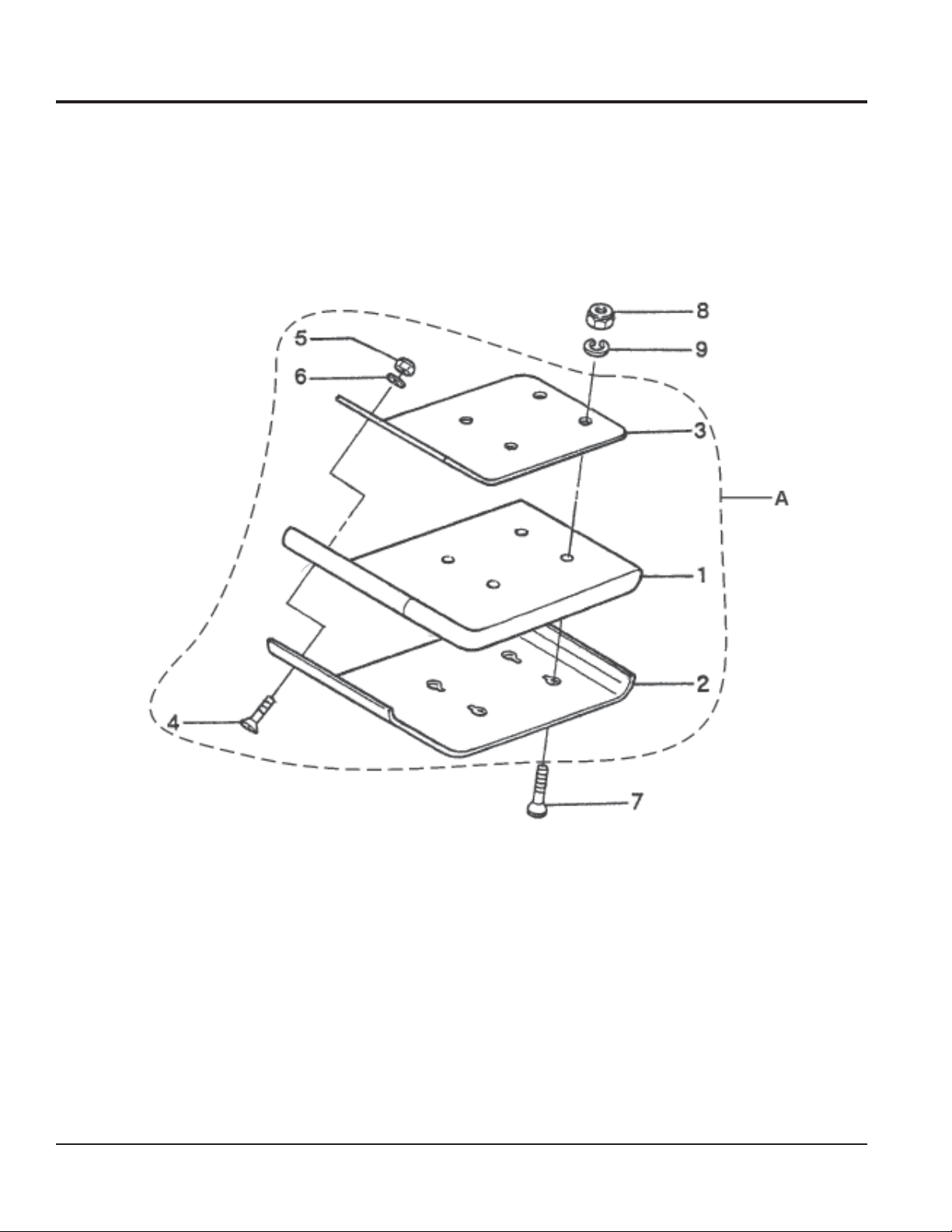

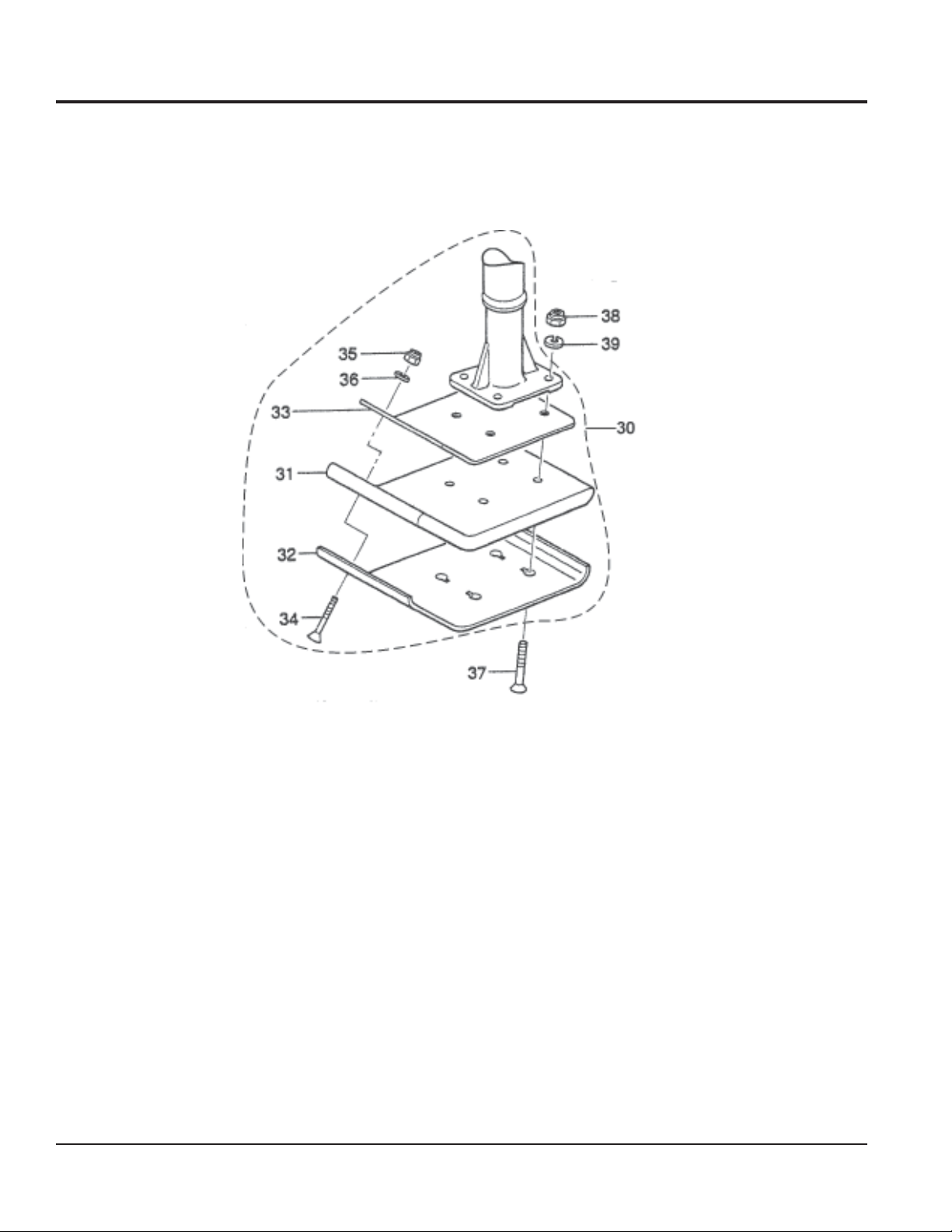

Foot Assembly .................................................. 36-37
Narrow Foot Assembly (Option) ....................... 38-39

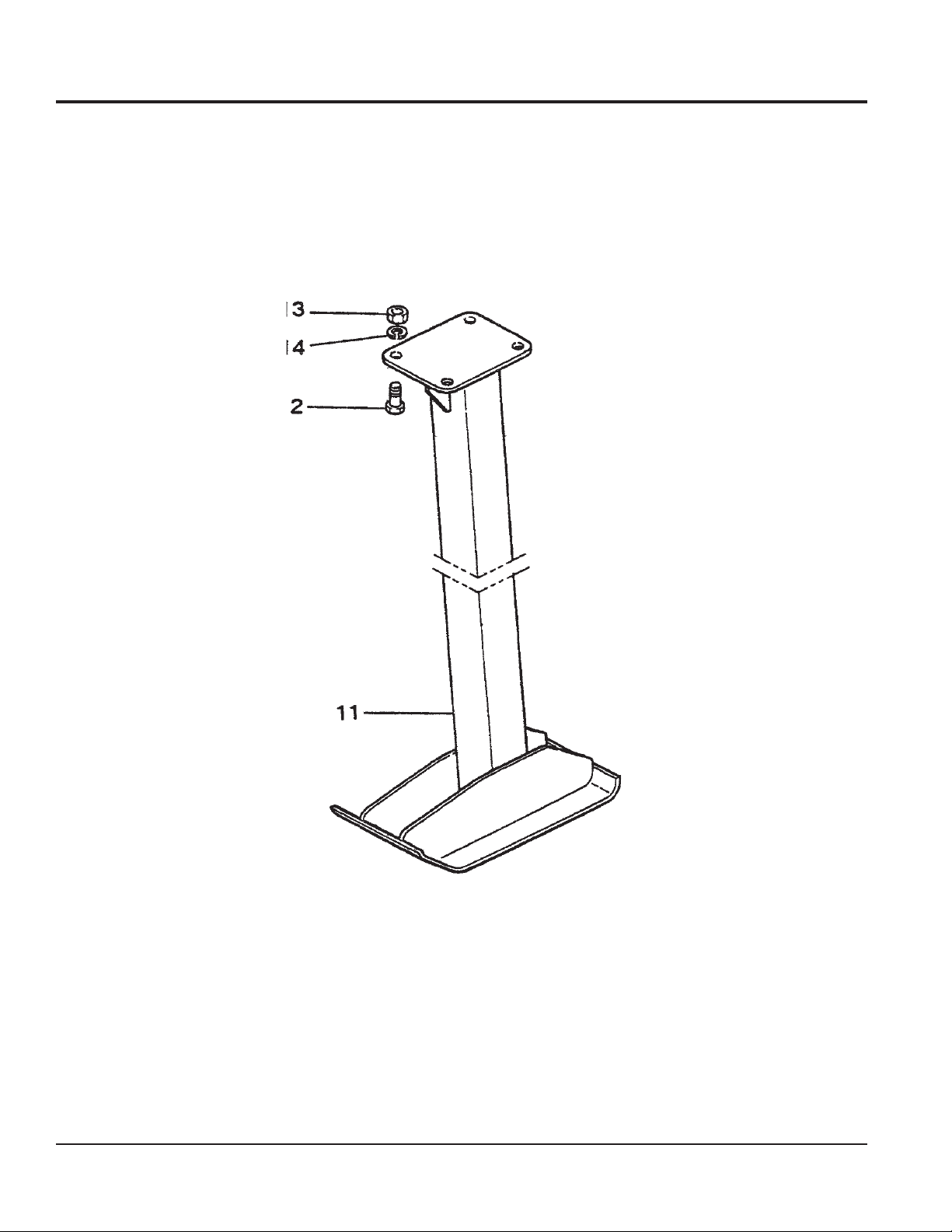

Trench Shoe Assembly (Option) ....................... 40-41
Robin EH-090D Engine
Crankcase Assembly ........................................ 42-43
Crankshaft and Piston Assembly ...................... 44-45
Intake and Exhaust Assembly ........................... 46-47

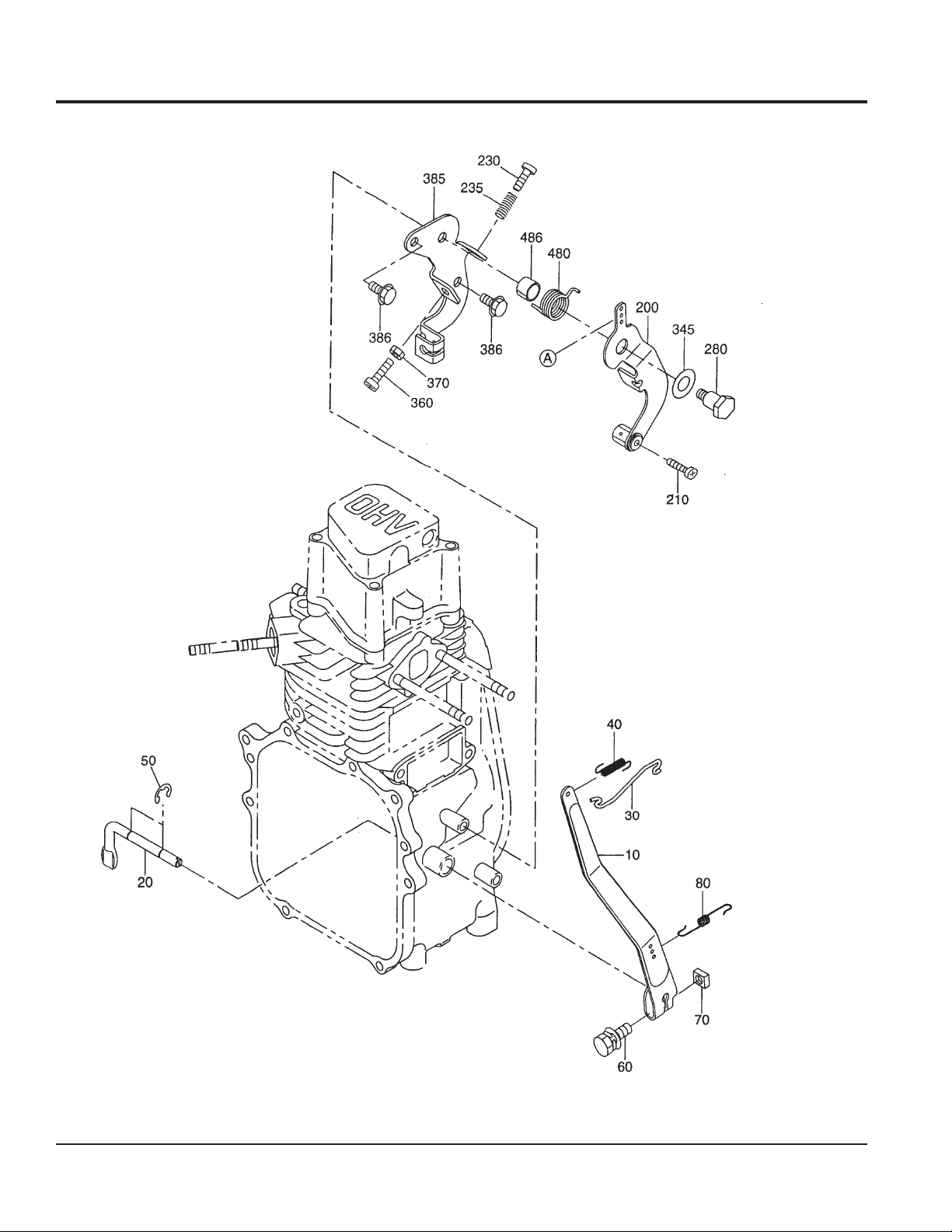

Governor Assembly .......................................... 48-49

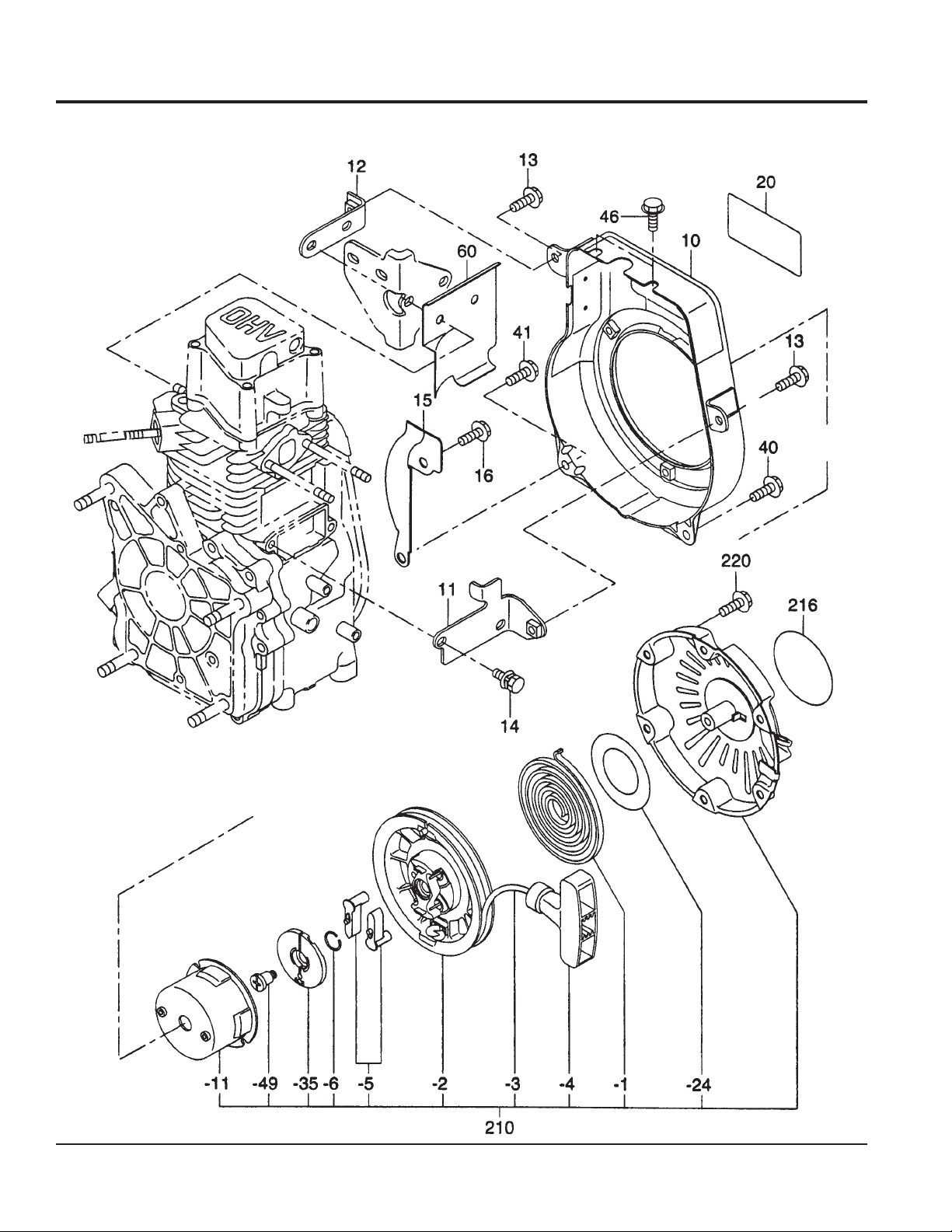

Blower Housing and Recoil Starter Assy. ......... 50-51

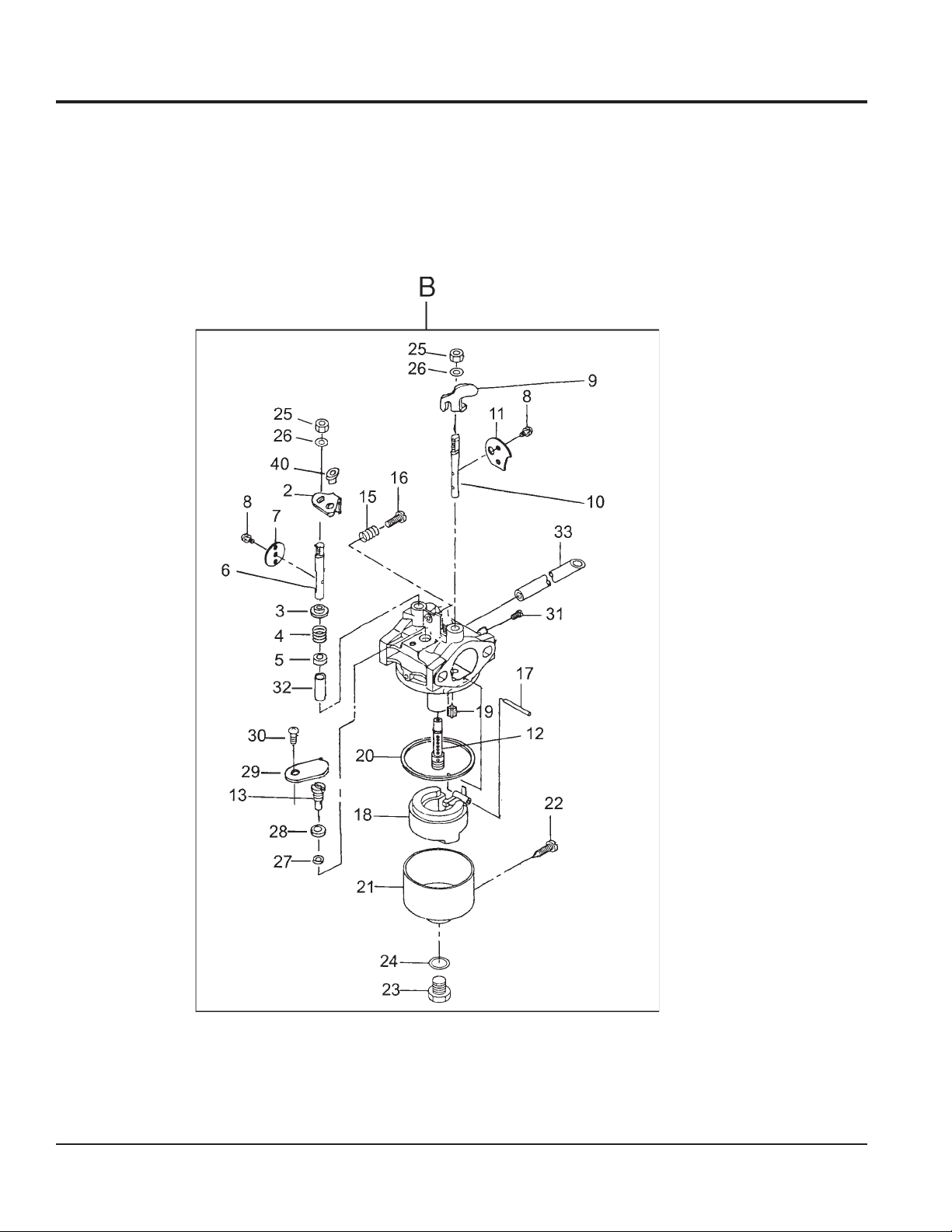

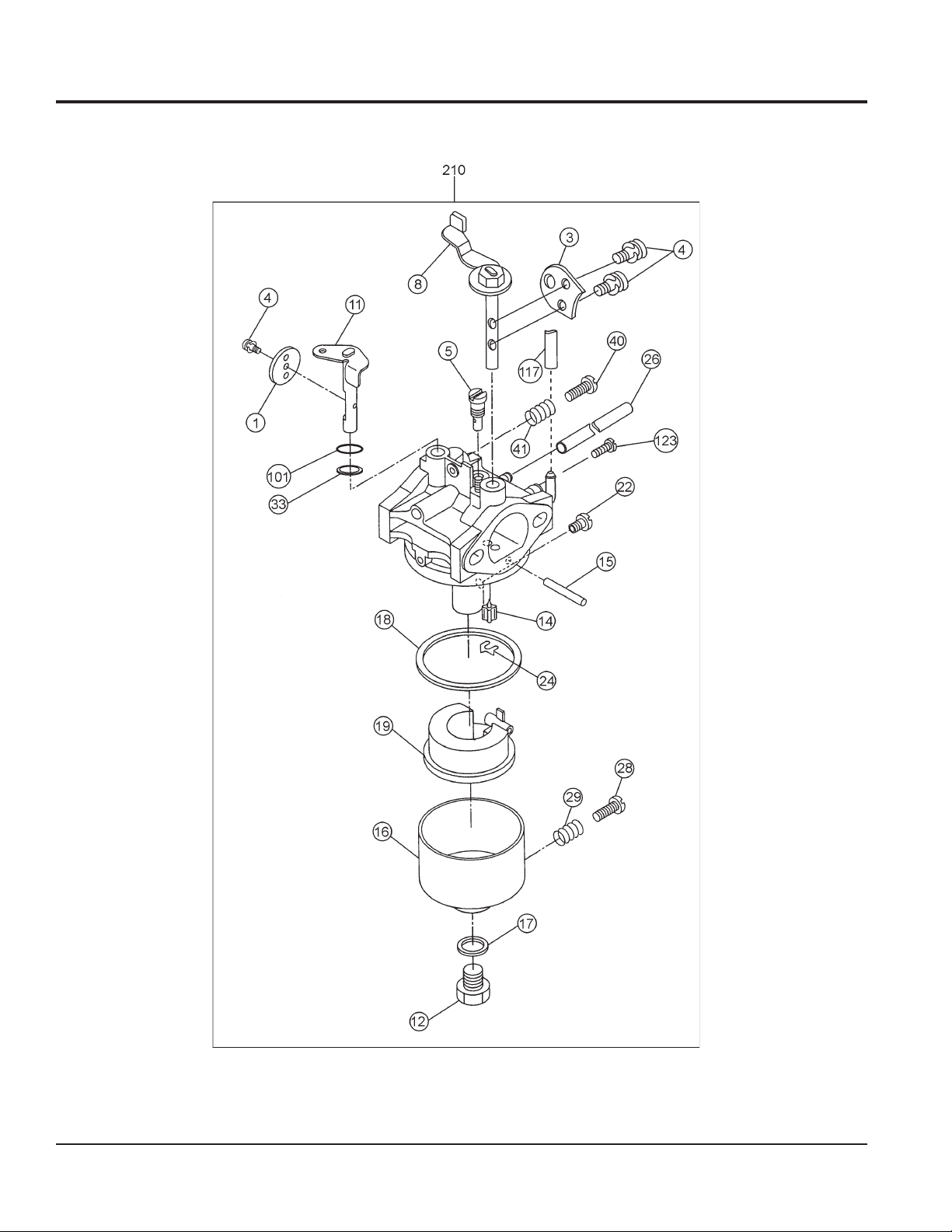

Carburetor Assembly ........................................ 52-53

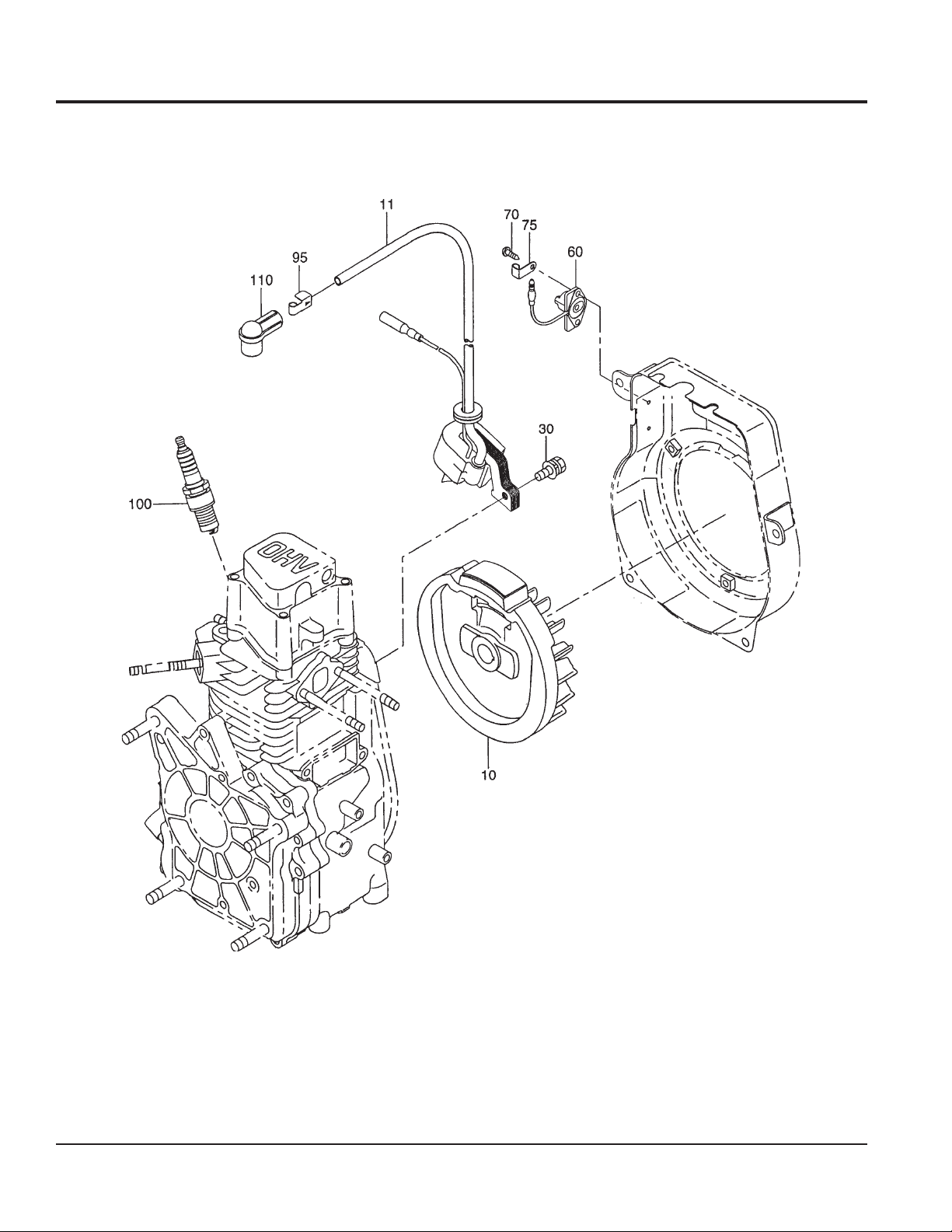

Electric Device Assembly .................................. 54-55
Robin EH-092D Engine

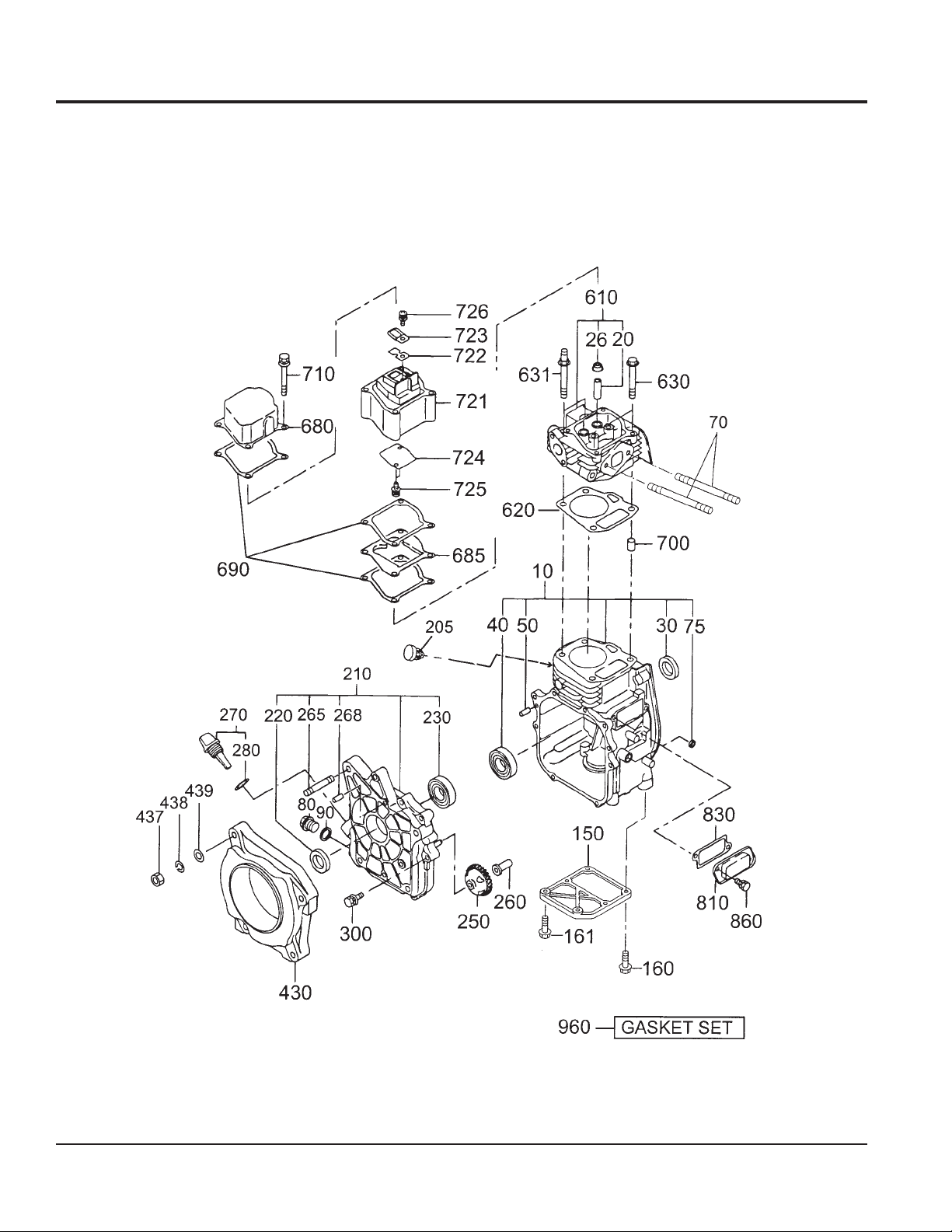

Crankcase Assembly ........................................ 56-57
Crankshaft and Piston Assembly ...................... 58-59
Intake and Exhaust Assembly ........................... 60-61
Carburetor Assembly ........................................ 62-63

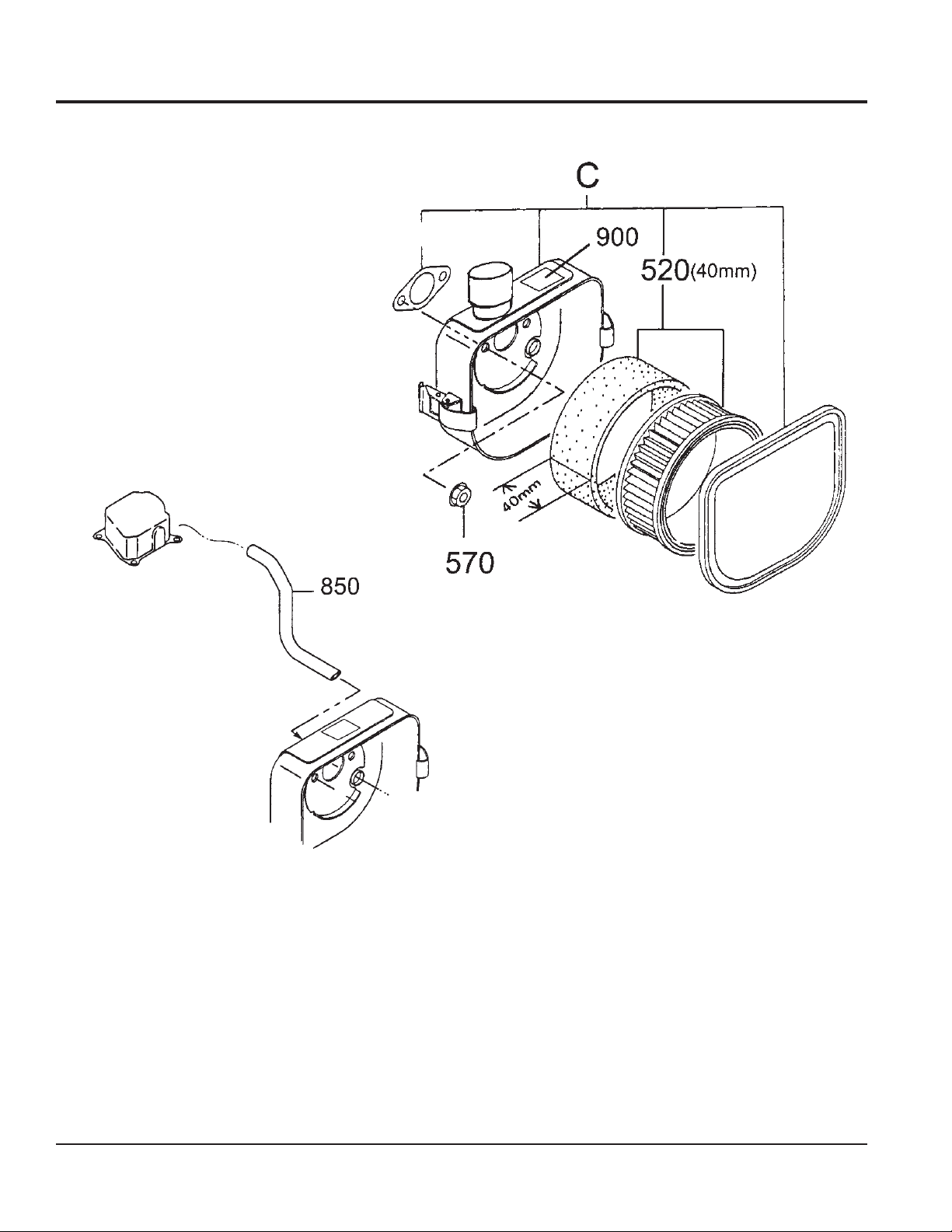

Air Cleaner Assembly........................................

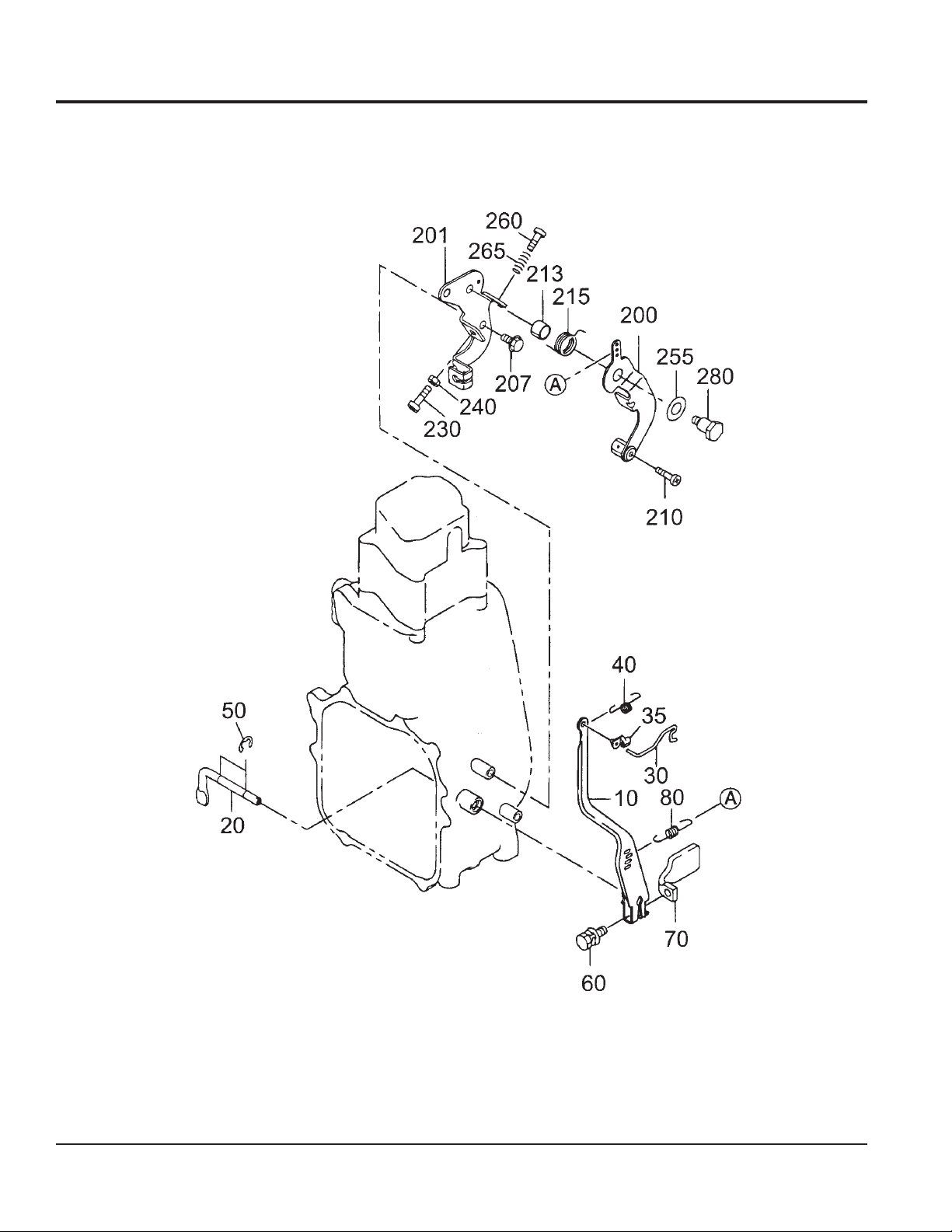

Governor, Operation Assembly......................... 66-67

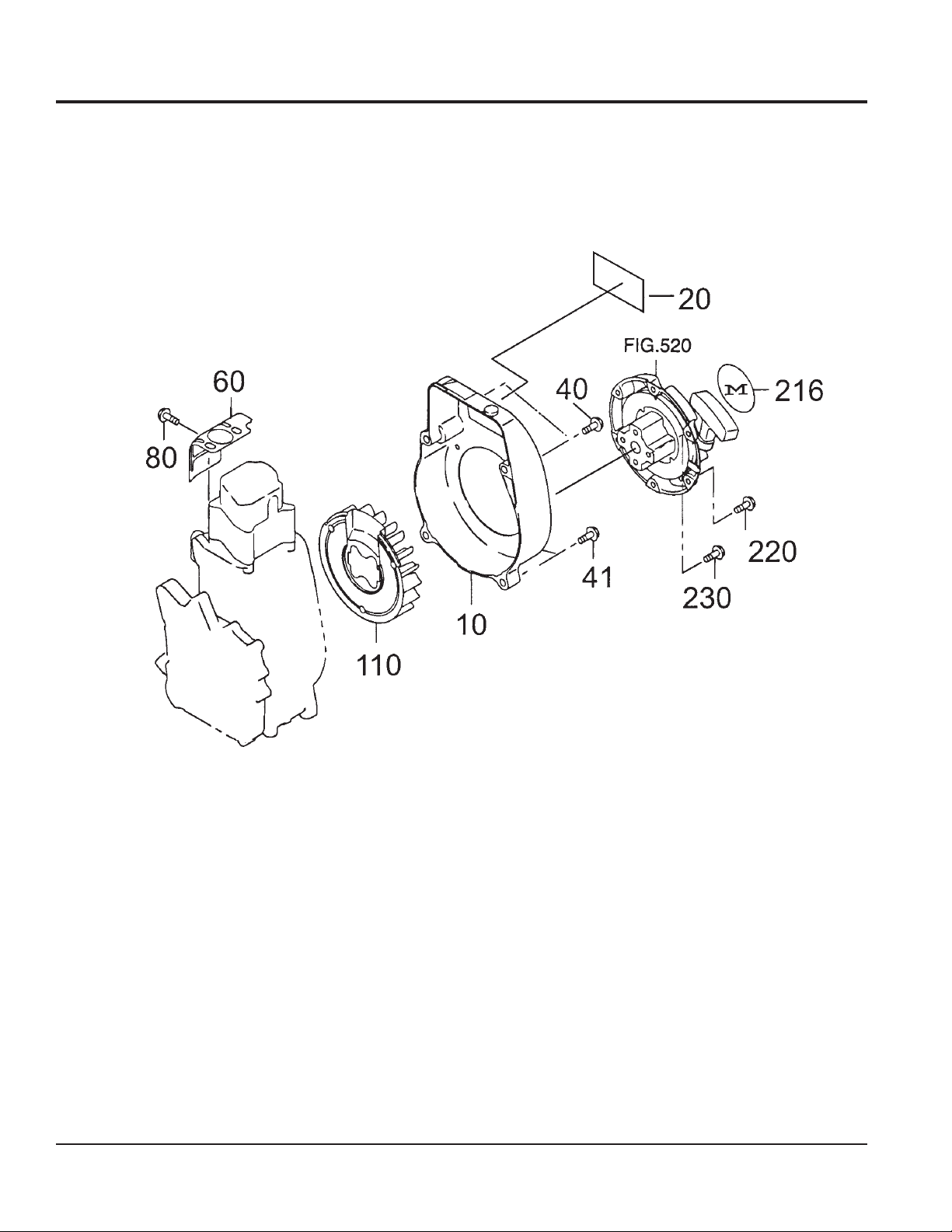

Blower Housing Assembly ............................... 68-69

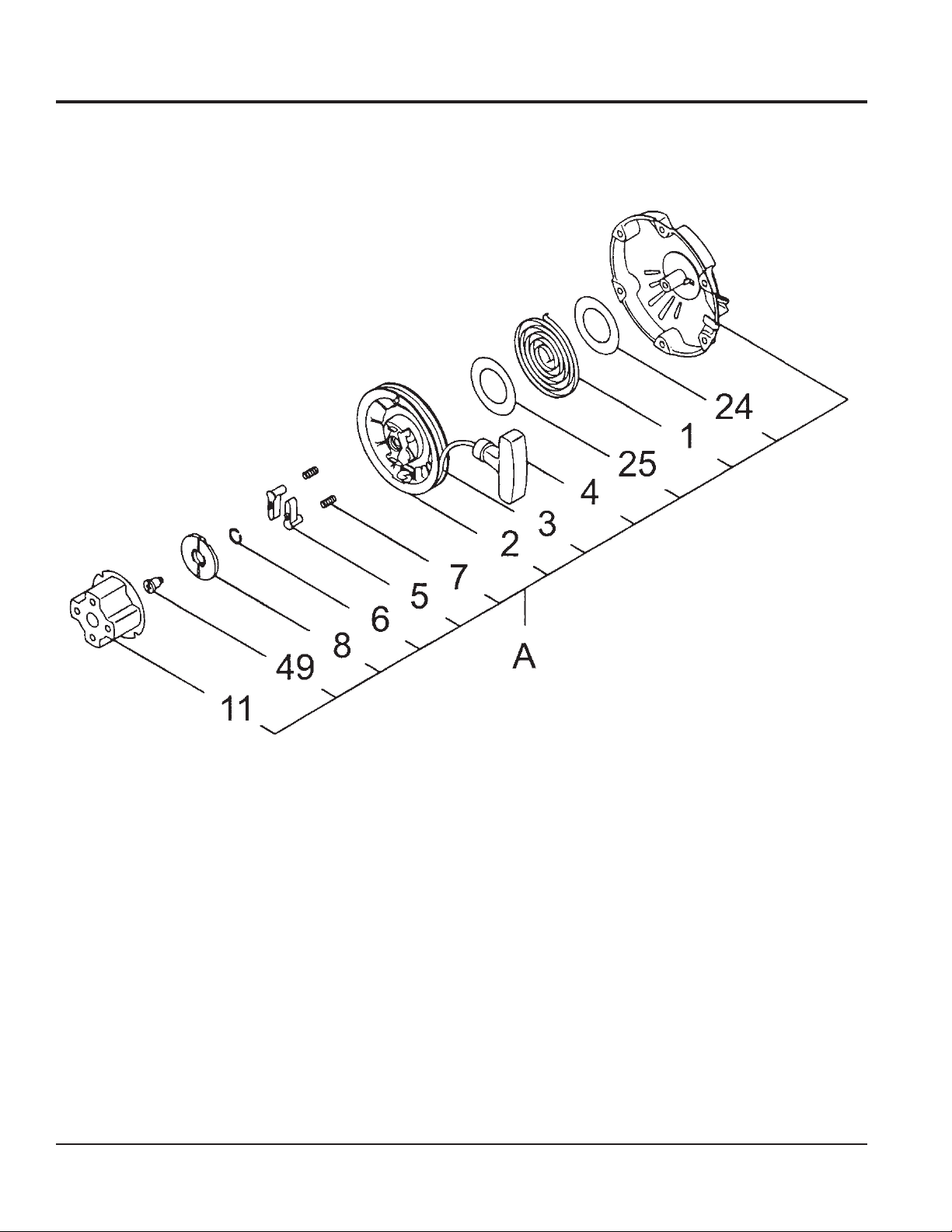

Recoil Starter Assembly.................................... 70-71

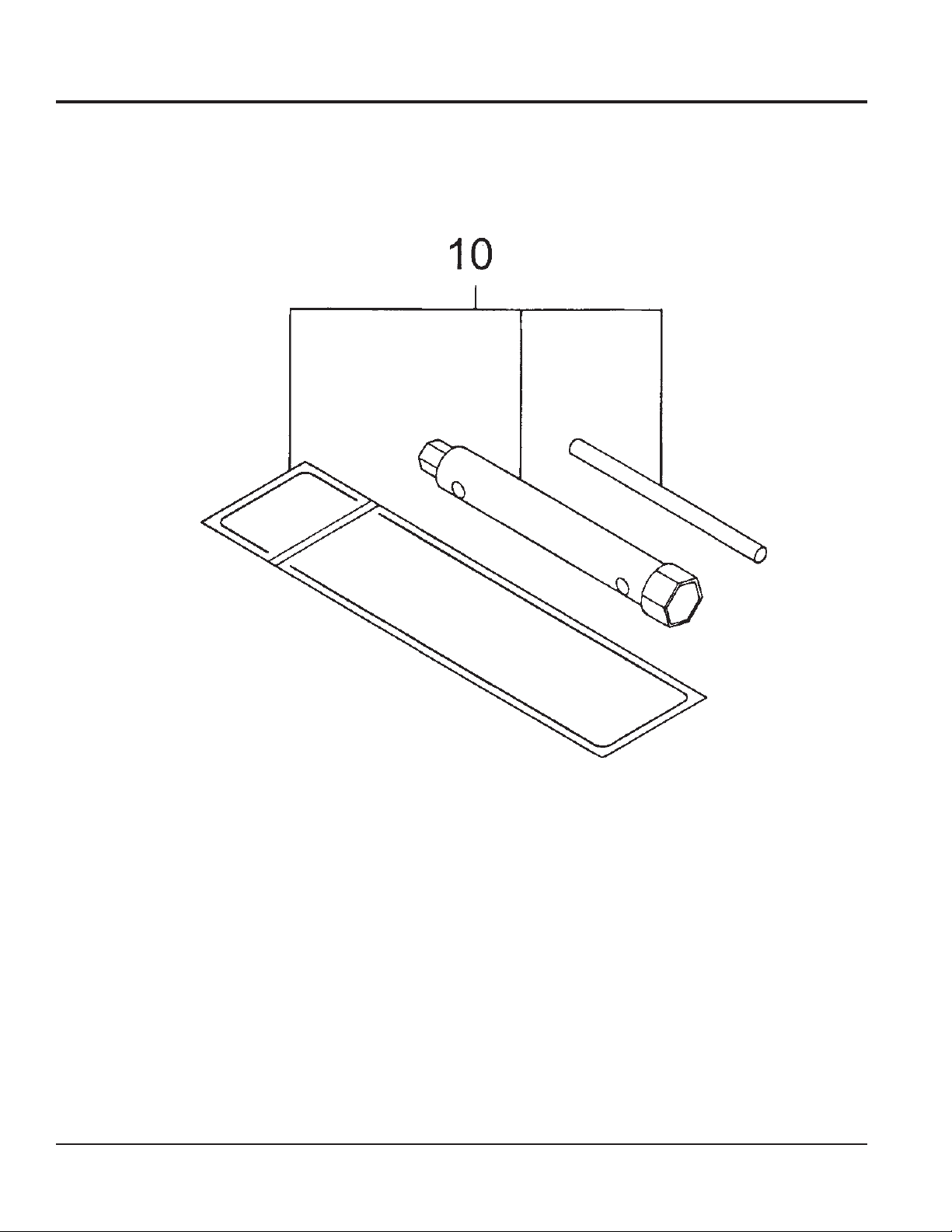

Accessories Assembly ...................................... 72-73
64-65
Terms and Condition of Sale
NOTICE
Specification and part number are subject to change without notice.
— Parts ......................... 74
PAGE 4 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
r
PARTS ORDERING PROCEDURES
Ordering parts has never been easier!
Choose from three easy options:
January 1
Effective:
st
, 2006
Best Deal!
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
View Parts Diagrams
Order Parts
Print Specification Information
Goto www.multiquip.com and click on
Order Parts
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax. Domestic (US) Customers dial: 1-800-6-PARTS-7 (800-672-7877)
Non-Dealer Customers: Contact your local Multiquip Dealer for parts or call 800-427-1244 for help in locating a dealer near you.
to log in and save!
Order via Phone:
If you have an MQ Account, to obtain a Username and Password, E-mail us at: parts@multiquip.
com.
To obtain an MQ Account, contact you District Sales Manager for more information.
Use the internet and qualify for a 5% Discount on Standard orders for all orders which include complete part numbers.*
Fax your order in and qualify for a 2% Discount on Standard orders for all orders which include complete part numbers.*
Domestic (US) Dealers Call:
1-800-427-1244
International Customers should contact their local Multiquip Representatives for Parts Ordering information.
Note: Discounts Are Subject To Change
Note: Discounts Are Subject To Change
When ordering parts, please supply:
Dealer Account NumberDealer Name and AddressShipping Address (if different than billing address)Return Fax NumberApplicable Model NumberQuantity, Part Number and Description of Each Part
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
Specify Preferred Method of Shipment:UPS/Fed Ex ✓ DHL
Priority One Tr uck
Ground
Next Day
Second/Third Day
www.multiquip.com
WE ACCEPT ALL MAJOR CREDIT CARDS!
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 5
SAFETY INFORMATION
Do not operate or service the equipment before reading the entire manual. Safety precautions should be followed at all times when operating this equipment. Failure to read and understand the safety messages and operating instructions could result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you about potential hazards that could injure you or others. The safety messages specifically address the level of exposure to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Potential hazards associated with the operation of this equipment will be referenced with hazard symbols which may appear throughout this manual in conjunction with safety messages.
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
PAGE 6 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
.
SAFETY INFORMATION
GENERAL SAFETY
CAUTION
 NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection, hearing protection, steel-toed boots and other protective devices required by the job or city and state regulations.
NEVER operate this equipment when not
feeling well due to fatigue, illness or when under medication.
NEVER operate this equipment under the influence of
drugs or alcohol.
ALWAYS check the equipment for loosened threads or
bolts before starting.
DO NOT use the equipment for any purpose other than
its intended purposes or applications.
NOTICE
 This equipment should only be operated by trained and
qualified personnel 18 years of age and older.
 Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
 Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized equipment modification will void all warranties.
NEVER use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage to the equipment and/or injury to user may result.
 ALWAYS know the location of the nearest phone or keep a
phone on the job site. Also, know the phone numbers of
the nearest ambulance, doctor and fire department. This information will be invaluable in the case of an emergency.
RAMMER SAFETY
DANGER
 NEVER operate the equipment in an explosive
atmosphere or near combustible materials. An explosion or fire could result causing severe
bodily harm or even death.
WARNING
 NEVER disconnect any emergency or safety devices.
These devices are intended for operator safety Disconnection of these devices can cause severe injury, bodily harm or even death. Disconnection of any of these devices will void all warranties.
DO NOT use this machine on ground that is harder than
the machine can handle, or for driving pilings or tamping rock beds. Furthermore, use of the machine on sloping ground, such as the side of an embankment, may make the machine unstable and can cause an accident. It can also result in premature machine wear due to uneven loads on the machine.
Use the machine with confidence for tamping earth and
sand, soil, gravel, and asphalt. DO NOT use the machine for other types of jobs.
CAUTION
 NEVER lubricate components or attempt service on a
running machine.
NOTICE
 ALWAYS know the location of the nearest
fire extinguisher.
 ALWAYS know the location of the nearest
first aid kit.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 7
ALWAYS keep the machine in proper running condition.
 Fix damage to machine and replace any broken parts
immediately.
ALWAYS store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location out of the reach of children and unauthorized personnel.
k
SAFETY INFORMATION
ENGINE SAFETY
DANGER
 The engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can cause death if inhaled.
 The engine of this equipment
requires an adequate free flow of cooling air. NEVER operate this equipment in any enclosed or narrow area where free flow of the air is restricted. If the air flow is restricted it will cause injury to people and property and serious damage to the equipment or engine.
WARNING
 DO NOT place hands or fingers inside engine
compartment when engine is running.
NEVER operate the engine with heat shields or
guards removed.
DO NOT remove the engine oil drain plug
while the engine is hot. Hot oil will gush out of the oil tank and severely scald any persons in the general area of the rammer.
CAUTION
FUEL SAFETY
DANGER
 DO NOT add fuel to equipment if it is placed inside truc
bed with plastic liner. Possibility exists of explosion or fire due to static electricity.
 DO NOT
fluids. Fuel is extremely flammable and its vapors can cause an explosion if ignited.
ALWAYS refuel in a well-ventilated area, away from
sparks and open flames.
 ALWAYS use extreme caution when working with
flammable liquids.
start the engine near spilled fuel or combustible
NEVER touch the hot exhaust manifold,
muffler or cylinder. Allow these parts to cool before servicing equipment.
NOTICE
NEVER run engine without an air filter or with a dirty air
filter. Severe engine damage may occur. Service air filter frequently to prevent engine malfunction.
NEVER tamper with the factory settings
of the engine or engine governor. Damage to the engine or equipment can result if operating in speed ranges above the maximum allowable.
PAGE 8 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
DO NOT fill the fuel tank while the engine is running
or hot.
DO NOT overfill tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from the ignition system.
 Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and flames.
 NEVER use fuel as a cleaning agent.
 DO NOT smoke around or near the
equipment. Fire or explosion could result from fuel vapors or if fuel is spilled on a hot engine.
TRANSPORTING SAFETY
CAUTION
 NEVER allow any person or animal to stand underneath
the equipment while lifting.
NOTICE
 Before lifting, make sure that the equipment parts (hook
and vibration insulator) are not damaged and screws are not loose or missing.
 Always make sure crane or lifting device has been
properly secured to the lifting bail (hook) of the equipment.
 ALWAYS shutdown engine before transporting.
 NEVER lift the equipment while the engine is running.
 Tighten fuel tank cap securely and close fuel cock to
prevent fuel from spilling.
SAFETY INFORMATION
 Use adequate lifting cable (wire or rope) of sufficient
strength.
 Use one point suspension hook and lift straight
upwards.
 DO NOT lift machine to unnecessary heights.
 ALWAYS tie down equipment during transport by
securing the equipment with rope.
 Never allow any person or animal to stand underneath the
equipment while lifting.
ENVIRONMENTAL SAFETY
NOTICE
 Dispose of hazardous waste properly.
Examples of potentially hazardous waste are used motor oil, fuel and fuel filters.
DO NOT use food or plastic containers to dispose of
hazardous waste.
DO NOT pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 9
LEDOM)cirtem(.S.UF04-RTM
thgieHllarevO)mm011,1(.ni7.34
htdiWllarevO)mm153(.ni8.31
SPECIFICATIONS
snoitacificepSremmaRF04-RTM.1elbaTsnoitacificepSremmaRF04-RTM.1elbaT
snoitacificepSremmaRF04-RTM.1elbaTsnoitacificepSremmaRF04-RTM.1elbaT
snoitacificepSremmaRF04-RTM.1elbaT
htgneLllarevO)mm226(.ni5.4
2
eziSeohS)mm072x051(.ni6.01x9.5
etunim/swolB996~056
aerAgnipmaT )rhrepm.qs531(rhrep.tf.qs354,1
ecroFtcapmI)w
hctulClagufirtneCcitamotuA
deepSlevarT)mpm9(mpf03
)thgieHpmuJ(ekortS)mm55(.ni2.2
th
gieWgnitarepO)gk64(.sbl101
)enignE(snoitacificepS.2elbaT
ledoM01054D290HE/05054D090HENIBOR
epyT
ekortSXeroB
tnemecalpsiDmc68(ni.uc42.5
noziroH
olb/gk055(wolb/.sbl512,1
,VHO,rednilyCelgniS,ekorts4delooc-riA
enignEenilosaGtfahSlat
.ni56.1X.ni10.2 )mm24xmm15(
3
)
tuptuOxaM)Wk8.1(.M.P.R0063/.P.H4.2
enignE
thgieWteNyrD
leuFenilosaGdedaelnU
yticapaCknaTleuF)sretil0.2(stq1.2
yticapaCliOebuL)s
dohteMlortnoCdeepSepyTthgiew-ylFlagufirtneC
gulPkrapSA6RMB,A6MBGKN
renaelCriAepyTtnemelEl
metsySnoitingI)etatSdlioS(otengaMleehwylF
dohteMgnitratStratSlioceR
)HxWxL(noisnemiD
retil3.0(.lag97.0
auD
.ni0.31X6.11x1.9
mm033X592X232(
).
).gK4.9(.sbl7.02
NOTICE
Specifications are general and are subject to change without notice. If exact measurements are required, equipment should be weighed and measured.
PAGE 10 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
GENERAL INFORMATION
Definition of Tamping Rammer
The Mikasa MTR40F Tamping Rammer is a powerful compacting tool capable of applying a tremendous force in consecutive impacts to a soil surface. Its applications include soil compacting for backfilling for gas pipelines, water pipelines and cable installation work.
The impact force of the MTR40F levels and uniformly compacts voids between soil particles to increase dry density.
Circular motion is converted to create impact force. The MTR40F tamping rammer develops a powerful compacting force at the foot of the rammer. To maintain optimum performance, proper operation and service are essential.
Construction of Tamping Rammer
The Mikasa MTR40F is equipped with a Robin air-cooled, four­cycle gasoline engine. Transmission of power takes place by increasing the engine speed to engage the centrifugal clutch.
Rammer Spring Cylinder and Crankcase Bearings
The Mikasa MTR40F uses zerk grease fittings to lubricate the spring cylinder and crankcase bearings. Lubricate these grease fittings as indicated in the maintenance section of this manual.
CAUTION
1. Make sure that there is no damage on the bolts.
2. Make sure that there is no crack or breakage on handle.
3. Make sure that there is no fissure on the surface. If there is any abnormality or damage, replace with new one.
For operation:
This handle is to be used to lift up the shoe part of the machine with the body laid down on the ground or truck bed.
1. Use proper lifting techniques to avoid back injury. This handle is for manual lifting only.
2. Do not use this handle as a rammer lift point. Use the lifting point on the top of the machine.
3. Do not move the rammer with the lifting handle and the front rollers more than 16 feet (5 meters).
Before starting operation check the lifting handle to:
Controls
Before starting the MTR40F Tamping Rammer, identify and understand the functions of the controls.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 11
COMPONENTS
Figure 1. MTR40F Rammer
Figure 1 shows the location of the controls and components for the MTR40F Tamping Rammer. The functions of each control is described below:
1. Throttle Lever — Used to adjust engine speed (rpm).
Move lever forward move lever back toward operator
(SLOW)
to reduce engine speed,
(FAST)
to increase
8. Fuel Tank/Cap — Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tightened securely.
DO NOT over fill.
WARNING
speed.
2. Fuel Shut-Off Valve — Supplies fuel from the fuel tank to the engine. To begin fuel flow move the fuel shut-off valve downward.
3. Primary Air Cleaner — Pre-cleans (first stage) dirt and other debris from entering the engine.
4. Foot — Laminated wood with tempered steel plate for superior shock absorption.
5. Grip — When transporting the rammer, carry it by griping the handle.
6. Nameplate — Displays information regarding the rammer.
7. Handle — To operate rammer
GRIP
handle assembly
firmly on both sides.
9. Engine Air Cleaner — Prevents dirt (second stage) and other debris from entering the engine.
10. Dust Sleeve — Prevents dust and debris from entering into the spring cylinder.
11. Zerk Fittings — Lubricates main springs and crankcase bearings.
Add fuel to the tank only when the engine is stopped and has cooled down. In the event of a fuel spill, DO NOT attempt to start the engine until the fuel residue has been completely wiped up and the area surrounding the engine is dry.
PAGE 12 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
BASIC ENGINE
Figure 2. Engine Controls and Components
INITIAL SERVICING
The engine (Figure 2) must be checked for proper lubrication and filled with fuel prior to operation. Refer to the manufacturers Engine manual for instructions & details of operation and servicing.
1. Secondary Air Cleaner — Prevents dirt and other debris from entering the fuel system. Remove wing-nut on top of air filter cannister to gain access to filter element.
2. Choke Lever — Used when starting the engine. Normally used in cold weather conditions. In cold weather turn the choke lever to the fully closed position, in warm weather set choke lever half way or completely open.
3. Spark Plug — Provides spark to the ignition system. Set spark plug gap to 0.02 - 0.03 inch (0.6 - 0.7 mm). Clean spark plug once a week.
4. Engine ON/OFF Switch — Controls the starting and stopping of the engine. Switch must be in the "ON" position when starting the engine.
5. Recoil Starter (pull rope) — Manual-starting method. Pull the starter grip until resistance is felt, then pull briskly and smoothly.
6. Muffler — Used to reduce noise and emissions.
WARNING
7. Dipstick/Oil Filler Cap — Remove this cap to determine if
the engine oil is low. Add oil through this filler port as recommended in Table 3.
8. Oil Drain Plug — Remove this plug to remove oil from the
engine's crankcase.
NOTICE
Engine components can generate extreme heat. To prevent burns, DO NOT touch these areas while the engine is running or immediately after operating. NEVER operate the engine with the muffler removed.
Operating the engine without an air filter, with a damaged air filter, or a filter in need of replacement will allow dirt to enter the engine, causing rapid engine wear.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 13
INSPECTION
This section is intended to assist the operator with the of the
MTR40F Tamping Ramme
this section be rammer.
DO NOT use your rammer until this section is thoroughly understood.
Inspection
Check all nuts, bolts fasteners for tightness. Retighten as necessary.
Clean any dirt from the recoil starter and engine cooling fins. Wipe the entire rammer clean before operating.
Replace any missing or damaged Safety Operation decals.
read carefully
r. It is extremely important that
before attempting to operate the
inspection
Fuel
1. This rammer is equipped with a two-cycled gasoline engine. Use only unleaded gasoline. High test ethyl gasoline
recommended.
2. If fuel is low, remove the fuel filler cap (Figure 4) and fill with only and can be dangerous if mishandled. DO NOT smoke while refueling. DO NOT attempt to refuel the rammer if the engine is
CAUTION
DO NOT attempt to operate the Tamping
Rammer until the Safety, General Information and Inspection sections of this manual have been
thoroughly understood
Prior to Operation
1. When transporting the rammer, carry it by the grip handle located on the body (Figure 3).
read and
.
Engine Oil Check
1. To check the engine oil level, place the rammer on secure level ground with the engine stopped.
unleaded
hot! or running
gasoline. Motor fuels are
.
Figure 4. Fuel Tank
is not
highly flammable
2. Remove the filler cap/dipstick from the engine oil filler hole (Figure 5) and wipe it clean.
Figure 3. Grip Handle
Main Spring and Crankcase Lubrication
1. There are 2 grease fittings (Figure 18) that require lubrica­tion of the main springs. Lubricate these fittings as outlined in the maintenance section of this manual.
2. There are 2 grease fittings (Figure 19) that require lubrica­tion of the crankcase. Lubricate these fittings as outlined in the maintenance section of this manual.
3. Insert and remove the dipstick without screwing it into the filler neck. Check the oil level shown on the dipstick.
4. If the oil level is low (Figure 6), fill to the edge of the oil filler hole with the recommended oil type (Table 3). Maximum oil capacity is .079 gallons (0.3 liters).
Figure 5. Engine Oil Dipstick
PAGE 14 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
Figure 6. Engine Oil Dipstick (Oil Level)
edarGliOrotoM3elbaT
INSPECTION
erutarepmeTronosaeS
nmutuAroremmuS,gnirpS
F°51+otF°021+
retniW
1+otF°04+
F°5
F°51+woleB03-W01EAS
liorotomfoedarG
)ssalcSMnahtrehgih(
03EAS
03EAS
Inspection
1 . Check all nuts, bolts fasteners for tightness. Retighten as
necessary.
2. Clean any dirt from the recoil starter and foot pedestal. Wipe the entire unit clean before operating.
3. Replace any missing or damaged Safety Operation decals.
4. Adjust height of handle. Adjust handle by loosening nuts and moving handle to suit operation. Retighten nuts.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 15
OPERATION
Operation
The following steps outline the procedure for starting the engine:
1. Open the
lever to the
fuel shut- off valve
open
position (Figure 7).
Figure 7. Fuel Shut-Off Valve (Open)
by moving the
fuel cock
4. In cold weather, start the unit with choke lever "Fully Closed" (Figure 10). In warm weather or when the engine is warm, the unit can be started with choke halfway or completely open.
5 Grip the recoil starter (Figure 11) handle and pull it until you feel
a slight resistance. Then pull sharply and quickly. Return the recoil starter handle to the starter position before releasing.
Figure 10. Choke Lever (Closed)
2. Set the engine ON/OFF switch (Figure 8) to the "ON"
position (start).
Figure 8. ON/OFF Switch (ON Position)
3. Move the throttle lever to the "IDLE" position (Figure 9).
Figure 11. Recoil Starter
6. If engine fails to start, move the choke lever (Figure 10) to the half open position to avoid flooding.
7. Repeat steps 1 through 6.
8. If the engine does not start after repeated attempts, check the spark plug for excess fuel. Clean and replace the spark plug as needed.
Figure 9. Throttle Lever (Idle)
PAGE 16 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
OPERATION
Operation
1. To start the rammer tamping action, move the throttle lever (Figure 12) position. DO NOT move the throttle lever slowly as this may cause damage to the clutch or spring.
Figure 12. Throttle Lever (Full Open)
quickly
from IDLE (close) to the FULL OPEN
2. After the engine
3. Close the
CAUTION
Make sure that the throttle lever is moved to the FULL OPEN position. Operating the rammer at less than full speeds can result in damage to the clutch springs or foot.
cools
, turn the engine
OFF” position (Figure 14).
Figure 14. ON/OFF Switch (Off Position)
fuel shut- off valve
cock lever to the CLOSED position.
(Figure 15) by moving the fuel
ON/OFF
switch to the
2. The MTR40F tamping rammer is designed to run between 3,800~4,100 rpms. At optimum rpm the foot hits at the rate of 650~695 impacts per minute. Increasing throttle speed past factory set rpm does not increase impacts and may damage unit. The MTR40F is designed to advance while tamping. For faster advance, pull back slightly on the handle so that rear of foot contacts soil first.
Stopping The Engine
Normal Shutdown
1. Move throttle lever quickly from the FULL OPEN to IDLE position (Figure 13 ) and run the engine for three minutes at low speed.
Figure 15. Fuel Shut-Off Valve
(Closed Position)
Emergency Showdown
1. Move the throttle lever quickly to the the engine ON/OFF switch to the valve lever to the
CLOSED
position.
IDLE
OFF
position. Tur n the fuel
position, and turn
Figure 13. Throttle Lever (Idle)
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 17
MAINTENANCE
Maintenance
Perform the scheduled maintenance procedures as defined by Table 4 and below:
Daily
Thoroughly remove dirt and oil from the engine compartment and rammer. Clean or replace the air cleaner elements as necessary. Check and retighten all fasteners as necessary. Check the bellows for oil leaks. Repair or replace as needed.
200 - 300 HOURS (Pre-Cleaner)
Remove the element from the pre-cleaner (Figure 16) at the top of the crankcase (body side) and clean it with cleaning oil (kerosene).
Main Springs Lubrication
BREATHER
ELEMENT
PAPER
ELEMENT
GRAY OUTER
FOAM ELEMENT
CLEAN WITH
KEROSENE
CLEAN WITH
SOLVENT
Figure 17. Engine Air Cleaner
The rammer
main springs
(Figure 18) should be lubricated with five shots of grease with a hand grease gun after each eight (8) hours of use.
Use MQ HIGH TEMPERATURE GREASE, P/N GRS2 or its equivalent.
Figure 16. Primary Air Cleaner
Lubricate the top element (yellow) with 2~5 cc of engine oil SAE-30.
Lubricate bottom element (gray) with 7~9 cc of engine oil SAE-30 and completely squeeze out the excess oil from the element before installing.
Air Cleaner
The air cleaner (Figure 17) should be inspected and cleaned on a regular basis at least once a week. Remove element, rinse in soapy water, squeeze and allow to air dry until completely dry before reinstalling.
Carefully tap the paper filter element (Figure 17) several times on a hard surface until all dirt is removed then reinstall.
NEVER
brush off dirt. Brushing will force dirt into the fibers. Replace the paper filter element if it is excessively dirty.
Equivalent greases include Shell Darina or Texaco Thermatex, both of which have a bentone base and EP-2 rating.
If an inferior grease is used, it may become too thick or too thin due to changes in temperature, and improper lubrication could result.
Figure 18. Grease Fittings (Main Springs)
PAGE 18 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
MAINTENANCE
Crankcase Lubrication
The rammer lubricated with five shots of grease with a hand grease gun after each eight (8) hours of use.
Use MQ HIGH TEMPERATURE GREASE, P/N GRS2 or its equivalent.
Fuel Lines
Check the fuel and oil lines regularly for damage and ensure that there are no leaks.
Replace the fuel lines every two years to maintain the performance and flexibility of the fuel lines.
Cleaning the Rammer
If using a high pressure spray washer, be careful not to splash water directly on the air cleaner, carburetor, muffler, and fuel
cap. Excessive amounts of water may cause severe engine
damage.
crankcase bearings
Figure 19. Grease Fittings (Crankcase)
(Figure 19) should be
Spark Plug
Long Term Storage
Remove and clean the spark plug (Figure 20), then adjust the spark gap to 0.024 ~0.028 inch (0.6~0.7 mm). This unit has electronic ignition, which requires no adjustments.
Figure 20. Spark Plug Gap
Drain fuel from fuel tank, fuel line and carburetor.
Remove spark plug and pour a few drops of motor oil into cylinder. Crank engine 3 to 4 times so that oil reaches all internal parts.
Clean exterior of rammer with an oil-moistened cloth.
Store unit covered with plastic sheet in moisture free and dust free location out of direct sunlight.
NOTICE
Refer to manufacturer engine manual for specific servicing instructions.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 19
Perform the scheduled engine maintenance procedures as defined by Table 4 below:
MAINTENANCE
eludehcSecnanetniaMenignE.4elbaT
TSRIF
)3(NOITPIRCSEDNOITAREPOEROFEB
KCEHCX
liOenignE
EGNAHCX
KCEHCX
renaelCriA
EGNAHC)1(X
stloB&stuNllA
gulPkrapS
sniFgnilooCKCEHCX
retserrAkrapSNAELC X
knaTleuFNAELC X
retliFleuFKCEHC X
fInethgit-eR
yrasseceN
NAELC-KCEHCX
ECALPER X
X
HTNOM
RO
.SRH01
YREVE
SHTNOM3
RO
.SRH52
YREVE
SHTNOM6
RO
.SRH05
YREVE
RAEY
RO
.SRH0
01
YREVE
SRAEY2
RO
.SRH002
deepSeldITSUJ
ecnaraelCevlaVTSUJDA-KCEHC )2(X
senilleuFKCEHC )2()yrassecenfiecalper(sraey2yrevE
DA-KCEHC )2(X
neuqerferomecivreS)1( YTSUD .saera
resebdluohssmetiesehT)2(
nidesunehwylt
serudecorpecivresroflaunaMpohsNIBORehtotrefeR.tneiciforp
reporpenimretedotnoitarepofosruohgol,esulaicremmocroF)3(
.slavretniecnanetniam
yllacinahcemeradnaslootreporpehtevahuoysselnu,relaedcivresruoyybdeciv
PAGE 20 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)

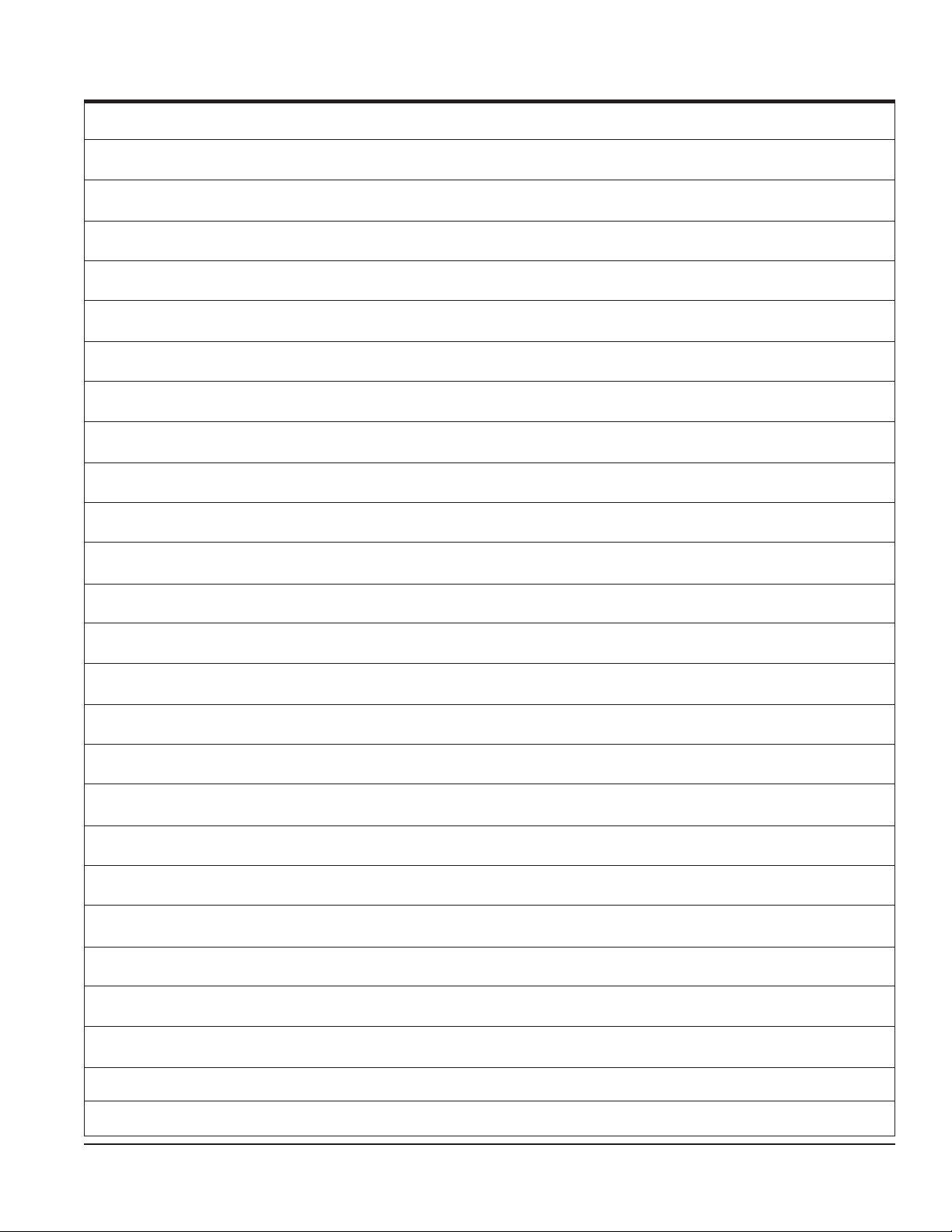

NOTES
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 21
GNITOOHSELBUORTENIGNE.5ELBAT
MOTPMYS MELBORPELBISSOP NOITULOS
tratsottluciffiD
?egdirbgniebgulpnoitingI .metsysnoitingikcehC
TROUBLESHOOTING
.)elbacnoisnethgihta
rewoP(.etingitonlliw TON
noisserpmoc(setingi )lamron .
noisserpmoc(setingi wol .)
yrotcafsitastonnoitarepO
gulpkrapstubelbaliavasileuF
elbaliavarewoP(.etingitonlliw
?srotalusni
gulpkrapstubelbaliavasileuF
.)elbacnoisnethgihtaelbaliava
?stisoped
gulpkrapsdnaelbaliavasileuF
gulpkrapsdnaelbaliavasileuF
?etauqedani
?)tsud
?nrowrednilyC .rednilycecalpeR
?noitingitatisopednobraC .noitingiecalperronaelC
evitcefedoteudtiucrictrohS
?pagkrapsreporpmI .pagtcerrocehtotpaggulpkrapsteS
?hctiwspotstatiucrictrohS .evitcefedfihctiwspotsecalpeR.tiucrichctiwspotskcehC
?evitcefedliocnoitingI .liocnoitingiecalpeR
nobrachtiwdeggolcrelffuM
siytilauqleufdexiM
,retaw(etauqedaniesunileuF
?deggolcrenaelCriA .renaelcriaecalperronaelC
?teksagdaehrednilycevitcefeD .teksagdaehecalperrostlobdaehrednilycnethgiT
?esoolgulpkrapS .gulpkrapsnehgiT
.srotalusniecalpeR
.relffumecalperronaelC
.erutximliootleufkcehC
.leufhserfhtiwecalperdnametysleufhsulF
?deggolcrenaelcriA .renaelcriaecalperronaelC
elbaliavarewophguonetoN
-ssimon,lamronnoisserpmoc(
.)gnirif
elbaliavarewophguonetoN
-ssim,lamronnoisserpmoc(
.)gnirif
.staehrevoenignE
?enilleufniriA .enilleufmorf)riaevomer(deelB
?)tsud
?etauqedani
.nobrac
?reporpmirebmahc
taolfrotaerubracnilevelleuF
?rednilycnistisopednobraC rednilycecalperronaelC
?evitcefedliocnoitingI .leufhserfhtiwecalperdnametysleufhsulF
?strohsnetfogulpnoitingI .noitinginaelc,seriwnoitingiecalpeR
siytilauqleufdexiM
ninoitsopednobracevissecxE
?rebmahcnoitsubmoc
,retaw(etauqedaniesunileuF
htiwdeggolcrelffumrotsuahxE
?tcerrocnieulavtaehgulpkrapS .gulpkrapsepyttcerrochtiwgulpkrapsecalpeR
taolfrotaerubractsujdA
.leufhserfhtiwecalperdnametysleufhsulF
.erutximliootleufkcehC
.esacknarcecalperronaelC
.relffumecalperronaelC
PAGE 22 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
TROUBLESHOOTING
ENGINEENGINE
ENGINE
ENGINEENGINE
)deunitnoc(GNITOOHSELBUORTENIGNE.5ELBAT
MOTPMYS MELBORPELBISSOP NOITULOS
yrotcafsitastonnoitarepO
?reporpmitnemtsujdaronrevoG .reveltcerrocotronrevogtsujdA
?evitcefedgnirpsronrevoG .noitingiecalperronaelC
.setautculfdeepslanoitatoR
?citarrewolfleuF .enilleufkcehC
noitcushguorhtninekatriA
?enil
gnikrowtonretratslioceR
.ylreporp
MOTPMYS MELBORPELBISSOP NOITULOS
ediutilpmatubsetatorenignE
.ekirtstonseodromrofinuton
?spilshctulC .hctulctsujdaroecalpeR
?trapgnitatornitsuD .ylbmessaretratsliocernaelC
?eruliafgnirpsgnirpS .gnirpslaripsecalpeR
revelelttorhtfodeepsgnitarepO
?tesyltcerrocnisi
?eruliaFgnirpS .gnirpslairpsecalpeR
?reporpmienignefodeepS .gnittesMPRgnitarepotcerrocotdeepsenignetsujdA
.enilnoitcuskcehC
GNITOOHSELBUORTREMMAR.6ELBAT
.noitisoptcerrocotrevelelttorhtteS
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 23
EXPLANATION OF CODES IN THE REMARKS COLUMN
The following section explains the different symbols and remarks used in the Parts section of this manual. Use the help numbers found on the back page of the manual if there are any questions.
NOTICE
The contents and part numbers listed in the parts section are subject to change without notice. Multiquip does not guarantee the availability of the parts listed.
SAMPLE PARTS LIST
NO. PART NO. PART NAME QTY. REMARKS
1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%
2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY
2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY
3 12348 HOSE ..................A/R ...MAKE LOCALLY
4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE
NO. Column
Unique Symbols — All items with same unique
symbol
QTY. Column
Numbers Used — Item quantity can be indicated by a
number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other parts that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold separately. Other entries will be clarified in the “Remarks” Column.
REMARKS Column
Some of the most common notes found in the “Remarks” Column are listed below. Other additional notes needed to describe the item can also be shown.
Assembly/Kit — All items on the parts list with the same unique symbol will be included when this item is purchased.
Indicated by:
“INCLUDES ITEMS W/(unique symbol)”
(@, #, +, %, or >) in the number column belong to the same assembly or kit, which is indicated by a note in the “Remarks” column.
Duplicate Item Numbers — Duplicate numbers indicate multiple part numbers, which are in effect for the same general item, such as different size saw blade guards in use or a part that has been updated on newer versions of the same machine.
NOTICE
When ordering a part that has more than one item number listed, check the remarks column for help in determining the proper part to order.
PART NO. Column
Numbers Used — Part numbers can be indicated by a
number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a part that has not been assigned a formal part number at the time of publication.
A blank entry generally indicates that the item is not sold separately or is not sold by Multiquip. Other entries will be clarified in the “Remarks” Column.
Serial Number Break — Used to list an effective serial number range where a particular part is used.
Indicated by:
“S/N XXXXX AND BELOW” “S/N XXXX AND ABOVE” “S/N XXXX TO S/N XXX”
Specific Model Number Use — Indicates that the part is used only with the specific model number or model number variant listed. It can also be used to show a part is NOT used on a specific model or model number variant.
Indicated by:
“XXXXX ONLY” “NOT USED ON XXXX”
“Make/Obtain Locally” — Indicates that the part can be purchased at any hardware shop or made out of available items. Examples include battery cables, shims, and certain washers and nuts.
“Not Sold Separately” — Indicates that an item cannot be purchased as a separate item and is either part of an assembly/kit that can be purchased, or is not available for sale through Multiquip.
PAGE 24 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
MTR40F RAMMER 3 TO 5 UNITS WITH ROBIN EH-09D45050/EH-092D45010 ENGINES
Qty. P/N Description
1 ............ 362910060 ............ LEVER, THROTTLE
1 ............ 956100040 ............ THROTTLE WIRE
3 ............ 362030030 ............ ELEMENT, AIR CLEANER
5 ............ 362030020 ............ PACKING, AIR CLEANER
3 ............ 362455670 ............ ELEMENT, CRANKCASE
1 ............ 361910021 ............ CAP, FUEL TANK W/ STRAP
1 ............ 954300720 ............ COCK, FUEL ASSY.
2 ............ 301419750 ............ FILTER, IN-LINE FUEL
3 ............ 2743260307 .......... ELEMENT, SET ENGINE
1 ............ 0660000361 .......... STOP, SWITCH
3 ............ 0650140470 .......... SPARK PLUG, NKG
1 ............ 362454441 ............ CLUTCH
3 ............ 2745011108 .......... STARTER ROPE
1 ............ 954404890 ............ FILTER, FUEL TANK (UPPER)
1 ............ 954406010 ............ STRAINER, FUEL TANK (LOWER)
NOTICE
Part number on this Suggested Spare Parts List may supersede/replace the P/N shown in the text pages of this book.
SUGGESTED SPARE PARTS
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 25
MTR-40F
16
GASOLINE ONLY
NAMEPLATE AND DECALS
1
2
NPA1017
J
13
12
NPA-961 E
18
CAUTION ATTENZIONE
ATENÇAÕ
Read operator’s manual carefully before use. Lire le manuel attentivement avant utilisation. Bitte lesen Sie vor lnbetriebnahme der Maschine die bedienungsanleitung sorgältig durch. Prima delÍ uso leggere attentamente il manuale. Lee com atenÇão manual de instruÇõ antes de usar. Leer detenidamente el manual de instrucciones antes de usar la maquina.
PRECAUCION
NPA-769 J
17
LAY DOWN TOWARD THIS
DIRECTION ONLY
15
Oil
öl
I’ huile SAE30 7~9 cc
NPA-910 J
11
PRIMARY AIRFILTER
CHECK DAILY
To start, switch must be in the “ ” positionON
NPA1018
NPA293
J
Before Operation
Check all nuts and bolts for tightness
J
Keep machine at the upright operating position to check
1. Give each grease fitting five (5) shots of grease with a hand grease gun.
2. Check the engine oil level and if the level is low, it should be refilled from the filler hole.
NPA-1100 J
OPERATION To STARTengine:
Open fuel filter valve and close choke lever on carburetor. Place starter switch to “ON” and pull start rope. When engine starts, open the choke lever and warm up the engine for 4-5 minutes before operation. Then move throttle lever from “OFF” to “ON” to operate.
To STOPengine:
Move the throttle lever quickly from “ON” to “OFF” position. Then move starter lever quickly to “OFF” and close the fuel filter valve.
5
Gasoline Only Bitte nur Benzine einfüllen Essence Uniquement
NPA-957 J
Usare solo Benzina Solo para Gasolina
3
When you stop the engine, be sure to close the fuel cock
NPA-399 J
NPA-896 J
6
4
3800 ~ 4100 RPM
14
SECONDARY AIRFILTER
CLEANTHE ELEMENT WITH KEROSENE WHEN DIRTY. AFTER THE CLEANING,LUBRICATE IT MIXED OIL (KEROSENE 2~4: ENGINE OIL
1),SQUEEZE OUT THE OIL, AND REPLACE IT. AND CLEAN ITMORE OFTENWHEN OPERATING IN DUSTY CONDITIONS.
9
NAMEPLATE
SERVICE MONTHLY
NPA-831 J
READ OWNER’S SERVICE MANUAL BEFORE OPERATINGOR SERVICING THIS MACHINE.
ALWAYS KEEP UNAUTHORIZED, INEXPERIENCED, UNTRAINED PEOPLE AWAY FROM THIS MACHINE.
MAKE SURE ALL SAFETY DEVICESARE OPERATIONAL BEFORE THIS MACHINE IS STARTED. MAKE SURE ENGINE IS TURNED OFF AND SPARKPLUG WIRE DISCONNECTED BEFORE SERVICING THE MACHINE OR COMING IN CONTACT WITHANY MOVING PART. IF EQUIPMENT IS POWERED BY AN ELECTRIC MOTOR DISCONNECT ELECTRICAL PLUG.
NEVER LEAVE MACHINE UNATTENDEDWHEN OPERATING. ALWAYS STOP ENGINE AND ALLOW ENGINETO COOL BEFORE ADDING FUEL OR OIL.
7
NPA-329 J
NPA1016
J
8
CLEANING ELEMENT: Remove the element from the pre-cleaner Clean the element with solvent Apply SAE30 motor oil with 7~9 cc, and squeeze out excess oil before re-installing.
NPA-963 J
GREASE
NPA-120 J
10
PAGE 26 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
NAMEPLATE AND DECALS
NO PART NO PART NAME QTY. REMARKS
1 NPA1017 DECAL: GASOLINE ONLY 1 2 NPA1100 DECAL: CAUTION (OPERATION) 1 3 920203990 DECAL: CAUTION (FUEL COCK) 1 4 NPA957 DECAL: ENGINE RPM 1 5 NPA896 DECAL: ELEMENT SET 1 6 NPA1016 DECAL: SECONDARY AIR FILTER 1 7 920203290 DECAL: CAUTION 1 8 920209630 DECAL: CLEANING ELEMENT 1
9 920209910 PLATE: SERIAL NO. ............................... 1 .............. CONTACT MQ PARTS DEPT.
10 920101200 DECAL: GREASE 3 11 NPA1018 DECAL: PRIMARY AIR FILTER 1 12 920209100 DECAL: RAMMER BOOT & HEARING 1 13 920209610 DECAL: DECAL OIL 7-9 CC 1 14 NPA831 DECAL: CAUTION/OIL INJECT 1 15 920100240 DECAL: (M-MARK) 1 16 920202930 DECAL: SWITCH-ON 1 17 NPA691 DECAL: LAYDOWN 1 18 NPA769 DECAL: CAUTION 1
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 27
CRANKCASE AND ENGINE ASSY.
PAGE 28 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
CRANKCASE AND ENGINE ASSY.
NO PART NO PART NAME QTY. REMARKS
1 305117260 CRANK CASE 1 2 305343780 CRANK GEAR 1
CLUTCH GUIDE / A 1
3 041006305 BEARING 6305Z 1
45 0053204201 WOODRUFF KEY 1
4 041006203 BEARING 6203Z 1
46 301010210 LOCK WASHER CLUTCH 1
5 952401450 WASHER 8.5 x 22 x 3 1 6 001220825 BOLT 8 x 25 T 1
47 956300130 THROTTLE LEVER AY 25 1
7 030208200 WASHER, LOCK M8 1 9 362455660 BEARING COVER 1 10 002210620 BOLT 6X20 H,SW 2 11 050100350 O-RING G-35 1 13 305333090 CONNECTING ROD 1 14 042006304 BEARING 6304ZZ 1 15 080100520 STOP RING R-52 1 16 952400130 WASHER 9304 1 17 001220825 BOLT 8 x 25 T 1 18 030208200 WASHER, LOCK M8 1 20 303010084 PINION 1 21 042006007 BEARING 6007ZZ 2 22 351437750 SPACER 35.4-42.7-11 1 23 080200350 STOP RING S-35 1 24 351421900 SPACER, CLUTCH DRUM 1 25 060504010 OIL SEAL VB-40525 1 26 050300900 O-RING S-90 1
27 362454441 CLUTCH ASSY. CE120P 1.6T ........................... 1 ........... INCLUDES ITEMS W/
27-1*943020020 CLUTCH SHOE C812 4 27-2*943050050 CLUTCH BOSS C812 1 27-3*943060100 CLUTCH GUIDE (A) 1 27-4*943060020 CLUTCH GUIDE (B) 1 27-5*943030021 CLUTCH SPRING 2 28 0053204201 WOODRUFF KEY 1 29 30 0173120010 LOCK NUT 1 32 362341610 PACKING, FRONT COVER 1 33 002200620 BOLT 6 x 20 H,SW 9 34 351010050 GREASE FITTING A-MT6X1 1 35 351010320 GREASE FITTING B-MT6X1 1 37 2741500123 ADAPTER FLANGE 1 38 0011408400 BOLT AND WASHER ASSY. 4 39 0021808000 NUT 4 40 0032008000 WASHER, LOCK 4
301010210 LOCK WASHER, CLUTCH 1
*
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 29
CRANKCASE AND ENGINE ASSY.
PAGE 30 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
CRANKCASE AND ENGINE ASSY.
CONTINUED NO PART NO PART NAME QTY. REMARKS
41 0031108000 WASHER 4 42 0310060020 DOWEL PIN 2 63 959006120 CLIP (TCP-10509B) 1 64 362341620 OIL GAUGE PROTECTOR 1 65 362341630 LINK PROTECTOR 1
66 002400820 BOLT 8X20 W/FLAT/LOCK WASHER 4 67 2741600113 STIFFENER 1 68 0011408250 BOLT AND WASHER 4 69 0011408300 BOLT AND WASHER ASSY. 2
71 362116871 AIR CLEANER ASSY. ........................................ 1 ........... INCLUDES ITEMS W/#
71-1# 362030011 COVER CP, AIR CLEANER 1 71-2# 362030020 PACKING, AIR CLEANER 1 71-3# 362030030 ELEMENT CP, AIR CLEANER 1 71-4# 362030040 BOLT CP, AIR CLEANER 1 72 353342400 INTAKE PIPE 1 73 507010110 CLAMP TC-200 2 74 050300070 O-RING (7) 1 75 031108160 WASHER, FLAT M8 1 81 306010020 FRONT COVER 1 86 911210905 ENGINE ASSY., EH09D
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 31
GUIDE CYLINDER ASSY.
PAGE 32 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
GUIDE CYLINDER ASSY.
NO PART NO PART NAME QTY. REMARKS
1 305446380 PISTON PIN 1 2 080100120 STOP RING R-12 2 3 305337980 PISTON ROD,M14 1 4 305451550 PISTON END, M14 1 6 305446400 STOPPER, UPPER 1 7 305446410 CYLINDER CAP 1 8 305446420 MAIN SPRING 2 9 305212710 SPRING CYLINDER 1 11 305112730 GUIDE CYLINDER 1 12 065105010 DUST SEAL DKI-5367811 1 13 080510680 STOP RING TH-R-68 1 14 351010050 GREASE FITTING A-MT6x1 2 15 305446430 STOPPER 1 16 001220816 BOLT 8x15 H, SW 4 18 305446440 GRIP 1 19 001520815 SOCKET HEAD BOLT 8x15 T 2 20 305446450 DUST SLEEVE 1 21 305446460 SLEEVE BAND 1 22 011208030 BOLT 8x30 1 23 020308060 NUT M8 1 25 050100800 O-RING G-80 1 26 002211025 BOLT 10x25 H, SW 4
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 33
TANK AND HANDLE ASSY.
PAGE 34 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
TANK AND HANDLE ASSY.
NO PART NO PART NAME QTY. REMARKS
1 306117960 HANDLE 1 2 351319900 SHOCK ABSORBER 2 3A 009110007 SOCKET HEAD BOLT 10x20 T 4 3B 033121009 TOOTHED LOCKWASHER B M10 4 4 002211020 BOLT 10x20 H, SW 4 5 939010210 STOPPER RUBBER EH1002 1 6 030208200 WASHER, LOCK M8 1 7 020308060 NUT M8 1 9# 361910021 TANK CAP CP (ORANGE) 1
10 305910032 FUEL TANK ASSY. ...................................... 1 ............ INCLUDES ITEMS W/ #
11 361455740 SUB CAP 1 17# 351437785 HOLDER, COCK 1 18# 954406020 PACKING, FUEL TANK 1 19 954300720 FUEL COCK ASSY./CVL-08 1 20# 954406010 STRAINER (#110) 1 21 001220830 BOLT 8x30 T 2 22 030208200 WASHER, LOCK M8 2 23 022710809 NYLON NUT M8 2 24 952401450 WASHER 8.5x22x3 2 31
# 954404890 FILTER, TANK 1
32 954403030 ........... HOSE BAND (8) .......................................... 4 ............ S/N S-3129 AND BELOW
32 0561080020 ......... HOSE CLAMP ............................................. 4 ............ S/N S-3130 AND ABOVE
33 351436350 ........... FUEL HOSE, L=150 .................................... 2 ............ S/N S-3129 AND BELOW
33 0851041790 ......... FUEL HOSE FOR EVP, L=150 .................... 2 ............ S/N S-3130 AND ABOVE
34 301419750 FUEL FILTER CP 1 41# 362116890 F. TANK 2L (GRAY) 1
43 362910060 THROTTLE LEVER ASSY. .......................... 1 ............ INCLUDES ITEMS W/
44 45 47 48 49 50 51 52 53 54 022131008 CAP NUT M10 1 55 020410060 NUT M10, H=6 1 56 57 58 59 001220620 BOLT 6X20 T 2 60 030206150 WASHER, LOCK 2 61 022130605 CAP NUT M6 2
362341550 THROTTLE BODY 1
*
362910090 THROTTLE, GEAR CP. W/ BOLT 1
*
362455620 SLIDER 1
*
362455630 THROTTLE LEVER 1
*
050100450 O-RING G-45 1
*
050200100 O-RING P-10 1
*
031110160 WASHER, FLAT M10 3
*
033910070 CONICAL SPRING WASHER 2
*
096206006 SOCKET HEAD SCREW 6 x 6 1
*
096208020 SOCKET HEAD SCREW 8 x 20 1
*
020408050 NUT M8, H=5 2
*
956100040 THROTTLE WIRE 620-710 1
*
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 35
FOOT ASSY. (OPTION)
PAGE 36 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
FOOT ASSY. (OPTION)
NO PART NO PART NAME QTY. REMARKS
30 305910010 FOOT ASSY. 150B ....................... 1 .......... INCLUDES ITEMS W/
31 32 33 34 35 36 37 015112075 SUNK HEAD BOLT 12x60 H 4 38 022711214 NYLON NUT M12 4 39 030212300 WASHER, LOCK M12 4
305333120 FOOT 150B 1
*
305333130 METAL SHEET 150B 1
*
305446470 FOOT COVER 1
*
015110055 SUNK HEAD BOLT 10x50 H 2
*
022711012 NYLON NUT M10 2
*
030210250 WASHER, LOCK M10 2
*
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 37
NARROW FOOT ASSY. (OPTION)
PAGE 38 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
NARROW FOOT ASSY. (OPTION)
NO PART NO PART NAME QTY. REMARKS
A 305910020 FOOT ASSY. 200B........................................ 1 ........... INCLUDES ITEMS W/
A 305910040 FOOT ASSY. 100B........................................ 1 ........... INCLUDES ITEMS W/#
1
*
1# 305334930 FOOT 100B ................................................... 1 ........... 100B
2
*
2# 305334940 METAL SHEET 100B .................................... 1 ........... 100B
3
*
3# 305447810 FOOT COVER 96B ....................................... 1 ........... 100B
4
*
5
*
6
*
7 001611252 SUNK HEAD BOLT 12x60 H 4 8 022711214 NYLON NUT M12 4 9 030212300 WASHER, LOCK M10 4
305333140 FOOT 200B ................................................... 1 ........... 200B
305333150 METAL SHEET 200B .................................... 1 ........... 200B
305446470 FOOT COVER ............................................... 1 ........... 200B
# 001611050 SUNK HEAD BOLT 10x50 H 2 # 022711012 NYLON NUT M10 2 # 030210250 WASHER, LOCKM10 2
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 39
TRENCH SHOE ASSY.
PAGE 40 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
TRENCH SHOE ASSY.
NO PART NO PART NAME QTY. REMARKS
11 305333160 TRENCH SHOE 500H-120B 1 11 305333170 TRENCH SHOE 800H-120B 1 11 305334390 TRENCH SHOE 305H-100B 1 12 001221235 BOLT 12x35 T 4 13 020312100 NUT M12 4 14 030212300 WASHER, LOCK M12 4
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 41
ROBIN EH-090D ENGINE —
CRANKCASE ASSY.
PAGE 42 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2741010121 CRANKCASE CP .................................... 1 .......... INCLUDES ITEMS W/#
20% 2371420203 VALVE GUIDE 2 26 2371600801 STEM SEAL CP 1 30# 0440200070 OIL SEAL 20X32X6 1 40# 0600200140 BALL BEARING 1 50# 0310060020 DOWEL PIN 2 60% 0013906600 STUD 1 61% 0105060200 STUD 1 62% 0105060170 STUD 2 70% 0105060160 STUD 2 75# 0440060010 OIL SEAL 6X10X2.5 1 80 0401140030 PLUG 1 90 0211140020 GASKET 1 150 2741600113 STIFFENER 1 160 0011408250 BOLT & WASHER 2
210 2741100131 MAIN BEARING COVER ......................... 1 ..........INCLUDES ITEMS W/
220*0440200110 OIL SEAL 20X32X6 1 230 250 2304500301 GOVERNOR GEAR CP 1 260 2054190103 GOVERNOR SLEEVE 1 265 0013908500 STUD 4 270 2306360113 OIL GAUGE 1 280 0213160020 GASKET 1 300 0130060200 BOLT & WASHER 9
610 2741300131 CYLINDER HEAD CP ............................. 1 .......... INCLUDES ITEMS W/%
620 2741550103 GASKET, HEAD 1 630 0110080210 FLANGE BOLT 4 680 2741550223 ROCKER COVER 1 690 2741600403 GASKET (ROCKET COVER) 1 700 0310060020 DOWEL PIN 2 710 0011406600 BOLT & WASHER ASSY. 4 727 0566000250 CLAMP 1 820 2741440101 BREATHER PLATE CP 1 821 2741620103 GASKET/BREATHER PLATE 1 825 2741440503 OIL SHELTER PLATE 1 850 2741610203 BREATHER PIPE 1 850-1 0566000331 CLAMP, BREATHER, PIPE 1 852 0569000010 HOSE CLIP 1 860 0011305100 BOLT & WASHER ASSY. 2 960 2749900107 GASKET SET 1
0600200140 BALL BEARING 1
*
CRANKCASE ASSY.
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 43
ROBIN EH-090D ENGINE —
CRANKSHAFT AND PISTON ASSY.
PAGE 44 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2742010141 CRANKSHAFT CP .................................. 1 .......... INCLUDES ITEMS W/#
40 0230200100 SPACER T=0.8 1 40 0230200110 SPACER T=1.0 1 40 0230200120 SPACER T=1.2 1 50 0021812000 NUT 1
60 0032012000 SPRING WASHER ..................................1 .......... REPLACES 0032012000
70 0053203101 WOODRUFF KEY 1 75# 0053204201 WOODRUFF KEY 1 170 0173120010 LOCK NUT 1 310 2302250120 CONNECTING ROD ASSY. 1 320 2302300123 CONNECTING ROD BOLT 2 350 2302330103 PISTON PIN 1 360 2742340103 PISTON 1 360 2742340203 PISTON 0.25MM 1 360 2742340303 PISTON 0.50MM 1 370 2742350107 PISTON RING SET 1 370 2742350207 PISTON RING SET 0.25MM 1 370 2742350307 PISTON RING SET 0.50MM 1 380 0565110010 CLIP 2
CRANKSHAFT AND PISTON ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 45
ROBIN EH-090D ENGINE —
INTAKE AND EXHAUST ASSY.
PAGE 46 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2743170101 CAMSHAFT CP ............................ 1 ........ INCLUDES ITEMS W/%
34 2273860123 PIN (SPRING) 1 35% 2743640103 RELEASE LEVER 1 36% 0051904100 SPRING PIN 1 37% 0031517000 SNAP RING 1 38 2743870103 RETURN SPRING 1 50 2743330103 TAPPET 2 60 2743360103 VALVE SPRING 2 70 2743370103 SPRING RETAINER 2 80 2743340103 INTAKE VALVE 1 90 2743350103 EXHAUST VALVE 1 95 13210KA031 COLLET VALVE 4 210 2743530103 PUSH ROD 2 220 2743600103 ROCKER ARM 2 230 2693580103 BOLT (PIVOT) 2 240 0170060090 NUT 2 260 2743650103 GUIDE PLATE 1 310 2743010211 MUFFLER CP 1 330 2743700111 BRACKET CP (MUFFLER) 1 340 2743520101 GASKET CP (EXHAUST) 1 350 0176060020 SELF LOCK NUT 2
351 0023806000 FLANGE NUT ............................... 2 ........REPLACES 0023806000
360 0110060010 BOLT AND WASHER ASSY. ........ 2 ........ REPLACES 0011406120
375 0011306120 FLANGE BOLT ............................. 2 ........ REPLACES 0110060010
510 2743260400 AIR CLEANER ASSY. ................... 1 ........INCLUDES ITEMS W/
510-2
*
520
*
540 2303290103 INSULATOR 1 550 2303590103 GASKET (INSULATOR) 1 560 2303590203 GASKET 2 (INSULAT0R) 2 570 0176060020 SELF LOCK NUT 2
2303262008 GASKET 1 2743260307 ELEMENT SET 1
INTAKE AND EXHAUST ASSY.
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 47
ROBIN EH-090D ENGINE —
GOVERNOR ASSY.
PAGE 48 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2744230101 GOVERNOR LEVER 1 20 2304220103 GOVERNOR SHAFT 1 30 2744270113 GOVERNOR ROD 1 40 1064280113 ROD SPRING 1 50 0031305000 CLIP 2 60 0011406250 BOLT AND WASHER ASSY. 1 70 0186060020 NUT 1 80 2744250103 GOVERNOR SPRING 1 200 2304330210 SPEED CONTROL ASSY. 1 210 0043104140 SCREW (PAN HEAD) 1 230 0140040070 SCREW 1 235 2684500103 CONTROL SPRING 1 280 2264310301 LINK PIVOT CP 1 345 0217100020 FRICTION WASHER 1 360 0043106300 SCREW 1
370 0022706000 NUT .........................................................1 ....... REPLACES 0022706000
385 2744510101 BASE PLATE CP 1
386 0110060050 FLANGE BOLT .......................................2 ....... REPLACES 0110060010
480 2264500313 RETURN SPRING 1 486 0230100040 SPACER 1
GOVERNOR ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 49
ROBIN EH-090D ENGINE —
RECOIL STARTER ASSY.
PAGE 50 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2745120211 BLOWER HOUSING CP 1 11 2745510121 BLOWER H. BKT. 1 CP 1 12 2745520101 BLOWER H. BKT. 2 CP 1 13 0110060020 FLANGE BOLT 2 14 0011606140 BOLT AND WASHER ASSY. 2 15 2745500101 BLOWER GUIDE CP 1
16 0110060050 FLANGE BOLT .......................................1 ....... REPLACES 0110060010
20 2749170103 LABEL (TRADE MARK) 1
40 0110060050 FLANGE BOLT .......................................1 ....... REPLACES 0110060010
41 0110060020 FLANGE BOLT 1 46 0110060020 FLANGE BOLT 2 60 2745260103 CYLINDER BAFFLE 1
210 2745020120 RECOIL STARTER ASSY. ...................... 1 ....... INCLUDES ITEM W/
210-1*2745011508 SPIRAL SPRING 1 210-2 210-3 210-4 210-5 210-6 210-11 210-24 210-35 210-49 216 2069170103 LABEL (TRADE MARK) 1 220 0110060020 FLANGE BOLT 3
2745012018 REEL 1
*
2745011108 STARTER ROPE 1
*
2615010008 STARTER KNOB 1
*
2705012508 RATCHET 2
*
2275013108 FRICTION SPRING 1
*
2745014508 STARTING PULLEY 1
*
1315015008 SLIDE PLATE 1
*
2705026108 RATCHET GUIDE 1
*
2275015208 SET SCREW 1
*
RECOIL STARTER ASSY.
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 51
ROBIN EH-090D ENGINE —
CARBURETOR ASSY.
PAGE 52 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
210 2746230100 CARBURETOR ASSY. ......................... 1 .......... INCLUDES ITEMS W/
-1
-3
-4
-5
-8
-11
-12
-14
-15
-16
-17
-18
-19
-22
-24
-26
-28
-29
-33
-40
-41
-101
-117
-123
2746253508 THROTTLE VALVE 1
*
2306252508 CHOKE VALVE 1
*
2376245108 SCREW 3
*
2346242108 PILOT JET 1
*
2746252008 SHAFT ASSY. (CHOKE) 1
*
2746253008 SHAFT ASSY. (THROTTLE) 1
*
2246254308 BOLT 1
*
2268250208 NEEDLE VALVE ASSY. 1
*
2146251508 PIN 1
*
2306255308 FLOAT CHAMBER BODY 1
*
2078234508 INSERT WASHER 1
*
2306254008 PACKING 1
*
2306250608 FLOAT ASSY. 1
*
2746240008 MAIN JET 1
*
2266270118 CLIP 1
*
2746235108 HOSE 1
*
2246245008 SCREW 1
*
2106231808 SPRING 1
*
2306258108 SEAL 1
*
1066239308 SCREW 1
*
2066244608 SPRING 1
*
2306258208 PACKING 1
*
2746235008 HOSE 1
*
2276240408 MAIN JET 1
*
CARBURETOR ASSY.
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 53
ROBIN EH-090D ENGINE —
ELECTRIC DEVICE ASSY.
PAGE 54 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2307020831 FLYWHEEL CP 1 11 2747020101 IGNITION COIL CP 1 30 0011706250 BOLT & WASHER ASSY. 2 60 0660000361 SWITCH ASSY. 1 70 0150040090 TAPPING SCREW 2 75 0566030010 CLAMP 1 95 0659000010 PLUG TERMINAL 1 100 0650140470 SPARK PLUG NGK 1 110 2307510113 SPARK PLUG CAP 1
ELECTRIC DEVICE ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 55
ROBIN EH-092D ENGINE —
CRANKCASE ASSY.
PAGE 56 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2841010411 CRANKCASE CP .................................... 1 .......... INCLUDES ITEMS W/ #
20& 2371420203 VALVE GUIDE 2 26& 2771601001 STEM SEAL CP 1 30# 0440200070 OIL SEAL 20X32X6 1 40# 0600200110 BALL BEARING, 60074C3 1 50# 0310060020 DOWEL PIN 2 70 0105060430 STUD 2 75# 0440060020 OIL SEAL 1 80 0401140030 PLUG 1 90 0211140020 GASKET 1 150 2741600113 STIFFENER 1 160 0011408250 BOLT & WASHER 4 161 0011408300 BOLT & WASHER ASSY. 2 205 0241090060 GROMMET 1
210 2841100121 MAIN BEARING COVER ......................... 1.......... INCLUDES ITEMS W/
220*0440200110 OIL SEAL 20X32X6 1 230 250 2844500301 GOVERNOR GEAR CP 1 260 2054190103 GOVERNOR SLEEVE 1 265 268
270 2306360101 OIL GAUGE ............................................. 1 ..........INCLUDES ITEMS W/ %
280% 0213160020 GASKET 1 300 0130060200 BOLT & WASHER 9 430 2741500123 ADAPTER FLANGE 1 437 0021808000 NUT 4 438 0032008000 SPRING WASHER 4 439 0031108000 WASHER 4
610 2841300110 CYLINDER HEAD ASSY. ........................ 1 .......... INCLUDES ITEMS W/ &
620 2841500113 GASKET HEAD 1 630 0110080210 FLANGE BOLT 1 631 0100080410 BOLT 2 680 2841550203 ROCKER COVER 1 685 2841450203 OIL SHELTER PLATE 1 690 2841600403 GASKET, ROCKER COVER 3 700 2771501103 PIPE KNOCK 2 710 0110060400 FLANGE BOLT 4 721 2841560203 BREATHER PLATE 1 722 2841600103 LEAF VALVE 1 723 2841600203 BREATHER PLATE 1 724 2841450103 OIL SHELTER PLATE 1 725 0131050020 SCREW & WASHER ASSY. 2 726 0131050020 SCREW & WASHER ASSY. 1 810 2841700103 COVER CASE 1 830 2301600613 GASKET TAPPET COVER NA 1 860 0011406160 BOLT & WASHER ASSY. 2 960 2849900117 GASKET SET 1
0600200110 BALL BEARING, 6004C3 1
*
0013908500 STUD 4
*
0310060020 DOWEL PIN 2
*
CRANKCASE ASSY.
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 57
ROBIN EH-092D ENGINE —
CRANKSHAFT AND PISTON ASSY.
PAGE 58 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2842030101 CRANKSHAFT CP 1 40 0230200100 SPACER T=0.8 1 41 0230200110 SPACER T=1.0 1 42 0230200120 SPACER T=1.2 1 50 0021814000 NUT 1
60 0032014000 SPRING WASHER ..................................1 .......... REPLACES 0032012000
70 0053203101 WOODRUFF KEY 1 80 0053204201 WOODRUFF KEY 1 105 0173120010 LOCK NUT 1
310 2842250130 CONNECTING ROD ASSY..................... 1 ..........INCLUDES ITEMS W/%
320% 2842300103 CONNECTING ROD BOLT 2 350 2302330103 PISTON PIN 1 360 28423401H3 PISTON 1 360 28423402H3 PISTON 0.25MM 1 360 28423403H3 PISTON 0.50MM 1 370 2842351107 PISTON RING SET 1 370 2842351207 PISTON RING SET 0.25MM 1 370 2842351307 PISTON RING SET 0.50MM 1 380 0565110010 CLIP 2
CRANKSHAFT AND PISTON ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 59
ROBIN EH-092D ENGINE —
INTAKE AND EXHAUST ASSY.
PAGE 60 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2843170121 CAMSHAFT CP ............................ 1 ........ INCLUDES ITEMS W/%
34% 2273860123 PIN (SPRING) 1 35% 2843640103 RELEASE LEVER 1 36% 0051904100 SPRING PIN 1 37% 0031517000 SNAP RING 1 38% 2743870123 RETURN SPRING 1 50 2743330103 TAPPET 2 60 2743360103 VALVE SPRING 2 70 2743370203 SPRING RETAINER 2 80 2743340103 INTAKE VALVE 1 90 2743350103 EXHAUST VALVE 1 95 13210KA031 COLLET VALVE 4 210 2743530103 PUSH ROD 2 220 2743600303 ROCKER ARM 2 230 2693580103 BOLT (PIVOT) 2 240 0170060090 NUT 2 260 2743650103 GUIDE PLATE 1 310 2843010401 MUFFLER CP 1 340 2843520103 GASKET (EXHAUST) 1 351 0023808000 FLANGE NUT 2 357 0200080170 WASHER 1 365 0110060460 FLANGE BOLT 2 366 0011408160 BOLT & WASHER 8X16 1 370 0130080240 BOLT & WASHER ASSY. 1 540 1063292103 INSULATOR 1 550 2843590203 GASKET (INSULATOR) 1 560 1573500103 GASKET 2 (INSULAT0R) 1 570 0176060030 SELF LOCK NUT 2
INTAKE AND EXHAUST ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 61
ROBIN EH-092D ENGINE —
CARBURETOR ASSY.
PAGE 62 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
B 2846233200 CARBURETOR ASSY. ............................................... 1 ............... INCLUDES ITEMS W/#
2# 2846253908 LEVER SUB ASSY. THROTTLE 1
# 2846256008 COLLAR 1
3
# 2846231608 SPRING, THROTTLE 1
4
# 2516255908 BUSH 1
5
# 2846253308 SHAFT, THROTTLE 1
6 7
# 2846253508 THROTTLE VALVE 1 # 2846245508 SCREW 2
8
# 2846252908 LEVER CHOKE 1
9
# 2846252308 SHAFT CHOKE 1
10
# 2846252908 VALVE CHOKE 1
11
# 2846240108 MAIN JET #68 1
12 13
# 2846242008 SLOW JET 1 # 2516244908 SRING 2
15
# 2776258108 SCREW ADJUST 2
16
# 2846251508 PIN, FLOAT LEVER 1
17
# 2846250508 FLOAT ASSY. 1
18
# 2796250008 VALVE NEEDLE 1
19 20# 2846254008 GASKET CHAMBER 1
# 2846255208 CHAMBER ASSY. FLOAT 1
21
# 2516266108 DRAIN SCREW 1
22
# 2846233508 SCREW 1
23
# 2516235008 GASKET 1
24
# 2846246508 NUT 2
25 26# 2846246008 SPRING WASHER 2
# 2846245008 O-RING 1
27
# 2846245108 O-RING 1
28
# 2846256308 PLATE 2
29
# 2846245608 SCREW 1
30
# 2846246008 JET 1
31 32# 2846243008 COLLAR 1
# 2516256508 RUBBER PIPE 1
33
# 2844550103 BUSH, THRO 1
40
CARBURETOR ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 63
ROBIN EH-092D ENGINE —
AIR CLEANER ASSY.
PAGE 64 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
C 2843260300 AIR CLEANER ASSY. 1 INCLUDES ITEMS W/# 520# 2743260307 ELEMENT SET/09 1 570 0176060030 SELF LOCK NUT 2 850 2841600403 RUBBER PIPE 1 900# 0732004430 LABEL, CHOKE 1
AIR CLEANER ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 65
ROBIN EH-092D ENGINE —
GOVERNOR, OPERATION ASSY.
PAGE 66 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2844230403 GOVERNOR LEVER 1 20 2304220103 GOVERNOR SHAFT 1 30 2844270201 GOVERNOR ROD 1 35 2844560103 LINKAGE BUSHING 1 40 2844280403 ROD SPRING 1 50 0031305000 CLIP 2 60 0011406300 BOLT & WASHER ASSY. 1 70 2844900201 WEIGHT CP 1 80 2524250323 GOVERNOR SPRING 1 200 2304330210 SPEED CONTROL ASSY. 1 201 2744510101 BASE PLATE 1 207 0110060010 FLANGE BOLT 2 210 0043104140 SCREW, PAN HEAD 1 213 0230100040 SPACER 1 215 2264500313 RETURN SPRING 1 230 0043106300 SCREW 1 240 0022706000 NUT 1 255 0217100020 FRICTION WASHER 1 260 0140040070 SCREW 1 265 2684500113 CONTROL SPRING 1 280 2264310301 LINK PIVOT 1
GOVERNOR, OPERATION ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 67
ROBIN EH-092D ENGINE —
BLOWER HOUSING ASSY.
PAGE 68 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2845110213 BLOWER HOUSING CP 1 20 2849510203 LABEL 1 40 0010408350 FLANGE BOLT 1 41 0010408200 FLANGE BOLT 1 60 2845260123 CYLINDER BAFFLE 1 80 0110060010 FLANGE BOLT 2 110 2845410103 COOLING BLOWER 1 216 920100240 DECAL, M-MARK 1 220 0110060010 FLANGE BOLT 3 230 0110060020 FLANGE BOLT 4
BLOWER HOUSING ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 69
ROBIN EH-092D ENGINE —
RECOIL STARTER ASSY.
PAGE 70 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
A 2845021120 RECOIL STARTER ASSY. ............................................. 1 ...........INCLUDES ITEM W/
1 2 3 4 5 6 7 8 11 24 25 49
* * * * * * * *
* * * *
2745011508 SPIRAL SPRING 1 2745012018 REEL 1 2745011208 STARTER ROPE 1 2615010008 STARTER KNOB 1 2705012508 RATCHET 2 2745013108 FRICTION SPRING 1 2275013508 RETURN SPRING 2 2705026108 RATCHET GUIDE 1 2845014508 STARTING PULLEY 1 2745015208 SLIDE PLATE, B 1 1315015008 SLIDE PLATE 1 2275015208 SET SCREW 1
RECOIL STARTER ASSY.
*
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 71
ROBIN EH-092D ENGINE —
ACCESSORIES ASSY.
PAGE 72 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2269030710 ACCESSORY TOOL KIT 1
ACCESSORIES ASSY.
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 73
TERMS AND CONDITIONS OF SALE — PARTS
PAYMENT TERMS
Terms of payment for parts are net 30 days.
FREIGHT POLICY
All parts orders will be shipped collect or prepaid with the charges added to the invoice. All shipments are F.O.B. point of origin. Multiquip’s responsibility ceases when a signed manifest has been obtained from the carrier, and any claim for shortage or damage must be settled between the consignee and the carrier.
MINIMUM ORDER
The minimum charge for orders from Multiquip is $15.00 net. Customers will be asked for instructions regarding handling of orders not meeting this requirement.
RETURNED GOODS POLICY
Return shipments will be accepted and credit will be allowed, subject to the following provisions:
A Returned Material Authorization 1. must be approved by Multiquip prior to shipment.
To obtain a Return Material Authorization, 2. a list must be provided to Multiquip Parts Sales that defines item numbers, quantities, and descriptions of the items to be returned.
The parts numbers and descriptions a. must match the current parts price list.
The list must be typed or computer b. generated.
The list must state the reason(s) c. for the return.
The list must reference the sales d. order(s) or invoice(s) under which the items were originally purchased.
The list must include the name e. and phone number of the person requesting the RMA.
A copy of the Return Material Authorization 3. must accompany the return shipment.
Freight is at the sender’s expense. All 4. parts must be returned freight prepaid to Multiquip’s designated receiving point.
Parts must be in new and resalable 5. condition, in the original Multiquip package (if any), and with Multiquip part numbers clearly marked.
The following items are not returnable:6.
Obsolete parts. (If an item is in the a. price book and shows as being replaced by another item, it is obsolete.)
Any parts with a limited shelf life b. (such as gaskets, seals, “O” rings, and other rubber parts) that were purchased more than six months prior to the return date.
Any line item with an extended c. dealer net price of less than $5.00.
Special order items.d.
Electrical components.e.
Paint, chemicals, and lubricants.f.
Decals and paper products.g.
Items purchased in kits.h.
The sender will be notified of any material 7. received that is not acceptable.
Such material will be held for five 8. working days from notification, pending instructions. If a reply is not received within five days, the material will be returned to the sender at his expense.
Credit on returned parts will be issued 9. at dealer net price at time of the original purchase, less a 15% restocking charge.
In cases where an item is accepted, for 10. which the original purchase document can not be determined, the price will be based on the list price that was effective twelve months prior to the RMA date.
Credit issued will be applied to future 11. purchases only.
PRICING AND REBATES
Prices are subject to change without prior notice. Price changes are effective on a specific date and all orders received on or after that date will be billed at the revised price. Rebates for price declines and added charges for price increases will not be made for stock on hand at the time of any price change.
Multiquip reserves the right to quote and sell direct to Government agencies, and to Original Equipment Manufacturer accounts who use our products as integral parts of their own products.
SPECIAL EXPEDITING SERVICE
A $35.00 surcharge will be added to the invoice for special handling including bus shipments, insured parcel post or in cases where Multiquip must personally deliver the parts to the carrier.
LIMITATIONS OF SELLER’S LIABILITY
Multiquip shall not be liable hereunder for damages in excess of the purchase price of the item with respect to which damages are claimed, and in no event shall Multiquip be liable for loss of profit or good will or for any other special, consequential or incidental damages.
LIMITATION OF WARRANTIES
No warranties, express or implied, are made in connection with the sale of parts or trade accessories nor as to any engine not manufactured by Multiquip. Such warranties made in connection with the sale of new, complete units are made exclusively by a statement of warranty packaged with such units, and Multiquip neither assumes nor authorizes any person to assume for it any other obligation or liability whatever in connection with the sale of its products. Apart from such written statement of warranty, there are no warranties, express, implied or statutory, which extend beyond the description of the products on the face hereof.
Effective: February 22, 2006
PAGE 74 — MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12)
NOTE PAGE
NOTES
MTR40F RAMMER — OPERATION AND PARTS MANUAL — REV. #3 (01/05/12) — PAGE 75
©
OPERATION AND PARTS MANUAL
HERE’S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
UNITED STATES
Multiquip Corporate Office MQ Parts Department
18910 Wilmington Ave. Carson, CA 90746 Contact: mq@multiquip.com
Service Department Warranty Department
Tel. (800) 421-1244 Fax (800) 537-3927
800-427-1244 310-537-3700
Fax: 800-672-7877 Fax: 310-637-3284
800-421-1244 310-537-3700
Technical Assistance
800-478-1244 Fax: 310-943-2238
Fax: 310-537-4259 800-421-1244
310-537-3700
Fax: 310-943-2249
MEXICO UNITED KINGDOM
MQ Cipsa Multiquip (UK) Limited Head Office
Carr. Fed. Mexico-Puebla KM 126.5 Momoxpan, Cholula, Puebla 72760 Mexico
Contact: pmastretta@cipsa.com.mx
Tel: (52) 222-225-9900 Fax: (52) 222-285-0420
Unit 2, Northpoint Industrial Estate, Globe Lane, Dukinfield, Cheshire SK16 4UJ Contact: sales@mult
iquip.co.uk
Tel: 0161 339 2223 Fax: 0161 339 3226
CANADA
Multiquip
4110 Industriel Boul. Laval, Quebec, Canada H7L 6V3 Contact: jmartin@multiquip.com
COPYRIGHT 2012, MULTIQUIP INC.
Multiquip Inc of their respective owners and used with permission.
This manual
The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the ri in this publication at any time without notice and without incurring any obligations.
, the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property
MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remai
Tel: (450) 625-2244 Tel: (877) 963-4411 Fax: (450) 625-8664
n with the unit if resold.
ght to discontinue or change specifications, design or the information published
Your Local Dealer is:
Loading...
