PARTS AND OPERATION MANUAL

Tamping Rammer

Model MT-85H

Revision #8 (06/26/01)

MULTIQUIP INC

18910 WILMINGTON AVE. 800-427-1244 CARSON, CALIFORNIA 90746 FAX: 800-672-7877 310-537-3700 800-421-1244 800-478-1244 FAX: 310-537-3927 FAX: 310-631-5032

E-mail:mq@multiquip.com • www:multiquip.com

Atlanta • Boise • Dallas • Houston • Newark Montreal, Canada • Manchester, UK Rio De Janiero, Brazil • Guadalajara, Mexico

. PARTS DEPARTMENT:

SERVICE DEPARTMENT/TECHNICAL ASSISTANCE:

PAGE 2 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

HERE'S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL NUMBER ON-HAND WHEN CALLING

PARTS DEPARTMENT

800-427-1244 or 310-537-3700 FAX: 800-672-7877 or 310-637-3284

SERVICE DEPARTMENT/TECHNICAL ASSISTANCE

800-478-1244 or 310-537-3700 FAX: 310- 537-4259

WARRANTY DEPARTMENT

888-661-4279, or 310-661-4279 FAX: 310- 537-1173

MAIN

800-421-1244 or 310-537-3700 FAX: 310-537-3927

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 3

TABLE OF CONTENTS

Here's How To Get Help ........................................ 3

Table Of Contents ................................................. 4

Parts Ordering Procedures ................................... 5

Rules For safe Operation .................................. 6-7

Operation and Safety Decals ................................ 8

General Information .............................................. 9

MT-85H

Specification ........................................................ 10

Controls and Components .................................. 11

Operation .......................................................12-13

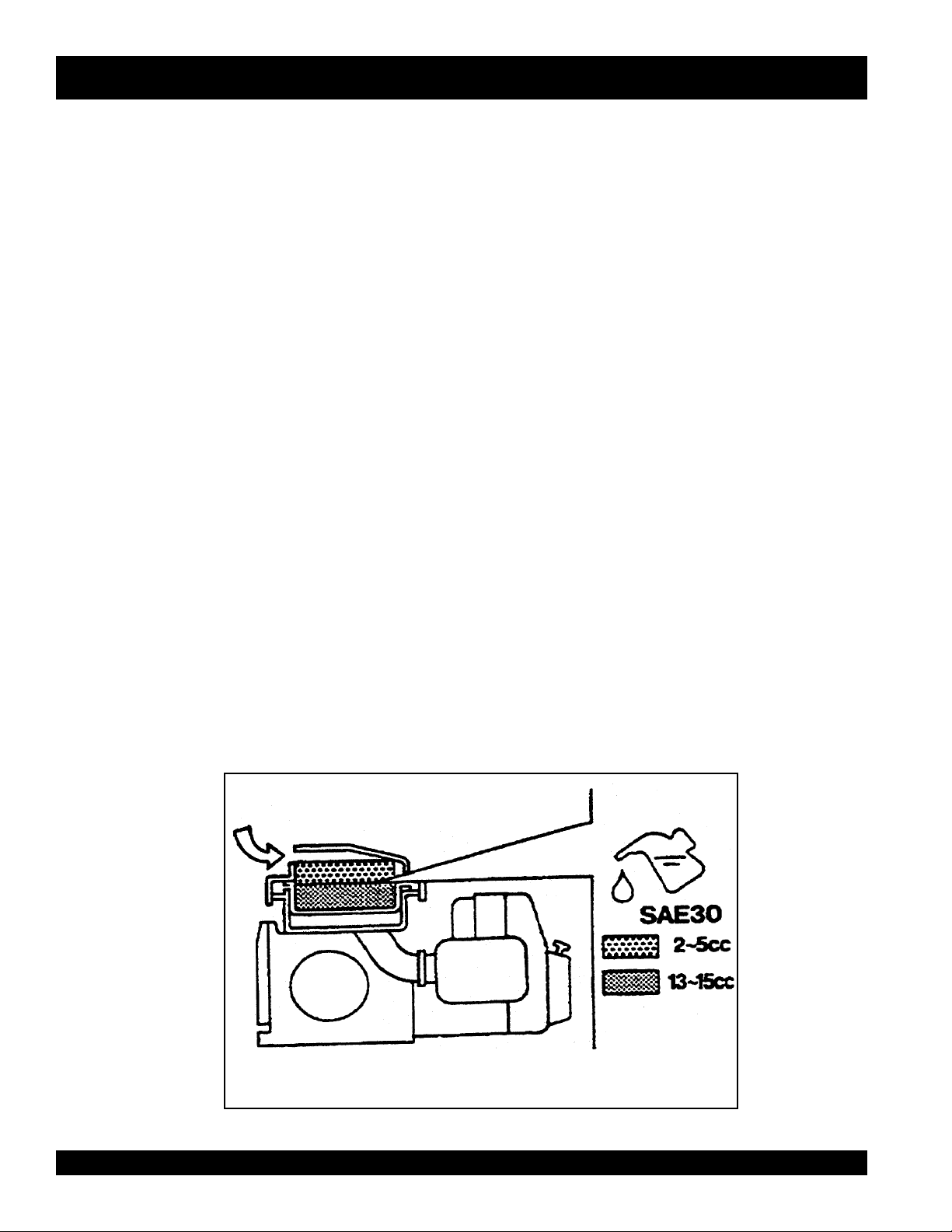

Maintenance ....................................................... 14

Troubleshooting Guide ...................................15-16

Explanation Of Codes In Remarks Column ........ 18

Suggested Spare Parts ....................................... 19

Crankcase and Engine...................................20-21

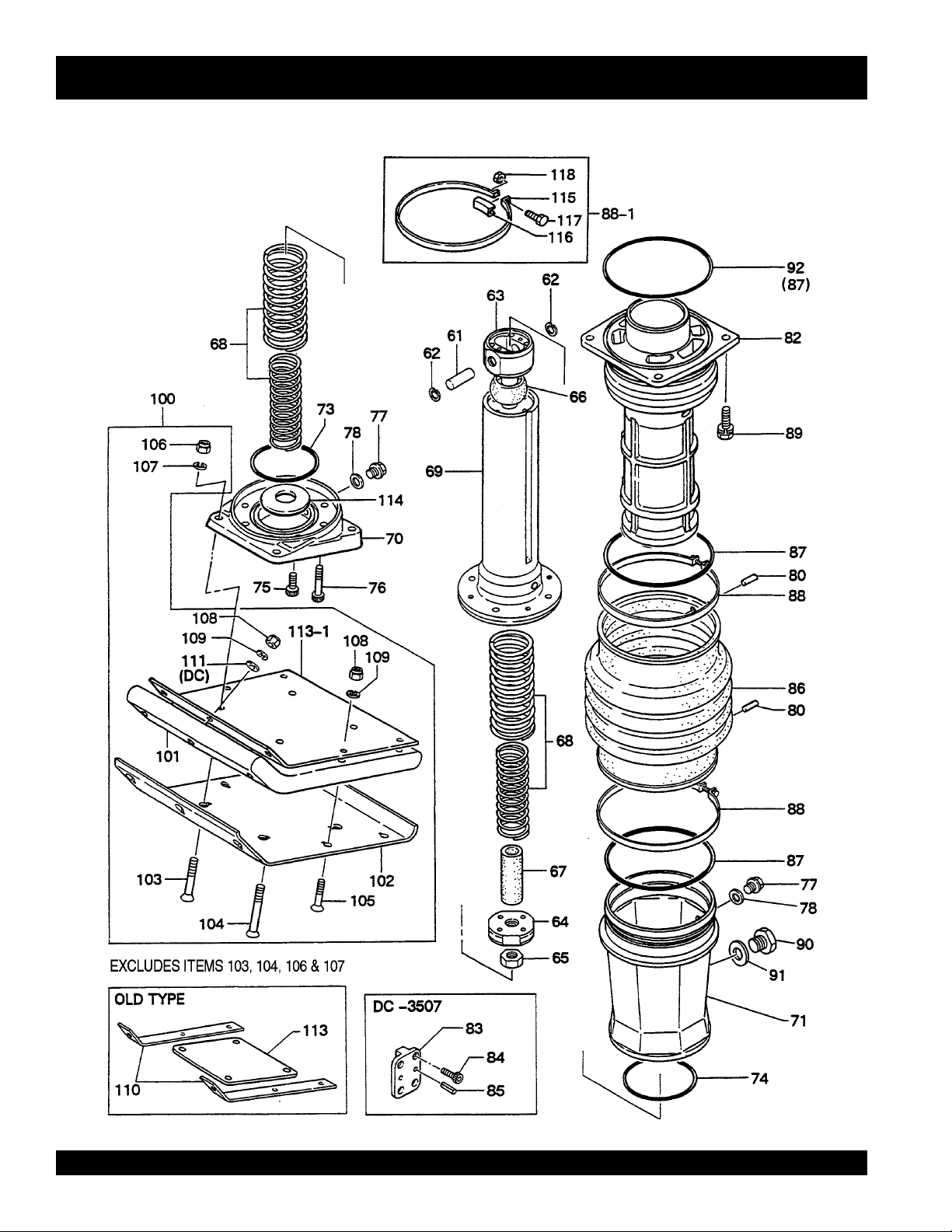

Guide Cylinder and Foot ................................ 22-23

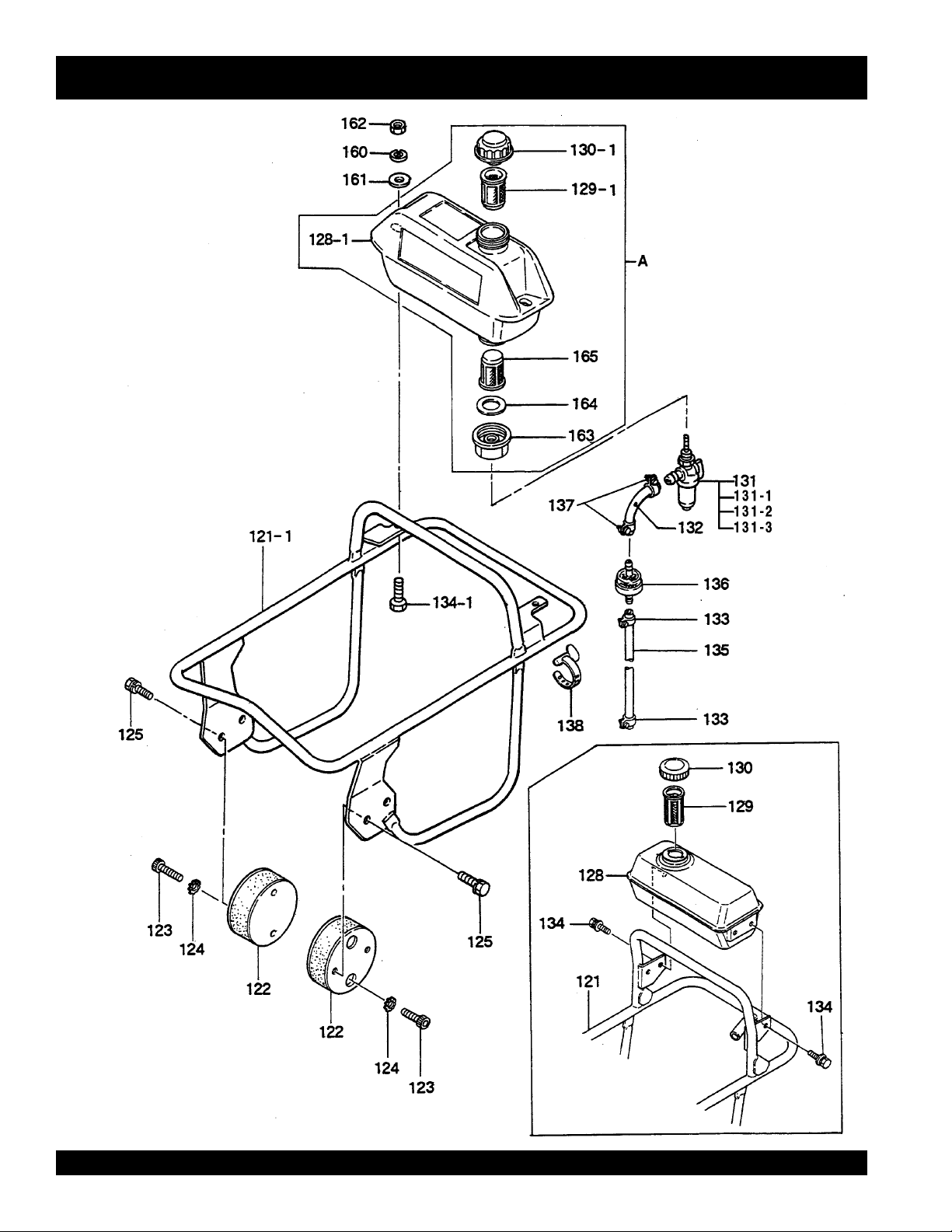

Tank and Handle ............................................ 24-25

EC-12G ROBIN ENGINE

Crankcase and Cylinder Head .......................26-27

Crankshaft and Piston....................................28-29

Muffler and Air Cleaner ..................................30-31

Governor ........................................................32-33

Blower Housing & Recoil Starter....................34-35

Electric Device................................................ 36-37

Carburetor......................................................38-39

Terms and Condition Of Sale

— Parts ................ 40

NOTE

Specification and part number are subject to change without notice.

PAGE 4 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

PARTS ORDERING PROCEDURES

Dealer account number

Dealer name and address

Shipping address (if different than billing address)

Return fax number

Applicable model number

Quantity, part number and description of each part

Specify preferred method of shipment:

UPS Ground

•

UPS Second Day or Third Day*

•

UPS Next Day*

•

Federal Express Priority One (please provide us with your Federal

•

Express account number)*

Airborne Express*

•

Truck or parcel post

•

*Normally shipped the same day the order is received, if prior to 2PM west coast time.

Earn Extra Discounts when

you order by FAX!

All parts orders which include complete part numbers and are received by fax qualify for the following extra discounts:

Number of line items ordered Additional Discount

1-9 items 3% 10+ items** 5%

Get special freight allowances when you order 10 or more line items via FAX!**

UPS Ground Service at no charge for freight

PS Third Day Service at one-half of actual freight cost

No other allowances on freight shipped by any other carrier. **Common nuts, bolts and washers (all items under $1.00 list price)

do not count towards the 10+ line items.

Extra Fax DiscountExtra Fax Discount

Extra Fax Discount

Extra Fax DiscountExtra Fax Discount

for Domestic USAfor Domestic USA

for Domestic USA

for Domestic USAfor Domestic USA

Dealers OnlyDealers Only

Dealers Only

Dealers OnlyDealers Only

Now! Direct TOLL-FREE access

to our Parts Department!

Toll-free nationwide:

800-421-1244

Toll-free FAX:

*DISCOUNTS ARE SUBJECT TO CHANGE*

Fax order discount and UPS special programs revised June 1, 1995

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 5

800/6-PARTS-7 • 800-672-7877

RULES FOR SAFE OPERATION

CAUTION:

Failure to follow instructions in this manual may lead to serious injury or even death! This equipment is to be operated by trained

and qualified personnel only! This equipment is for industrial use only.

The following safety guidelines should always be used when operating the MT-85H Tamping Rammer:

GENERAL SAFETY

■

DO NOT operate or service this equipment before reading this entire manual.

■

This equipment should not be operated by persons under 18 years of age.

■

NEVER operate this equipment without proper protective clothing, shatterproof glasses, steeltoed boots and other protective devices required by the job.

■

NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.

■

NEVER operate this equipment under the influence or drugs or alcohol.

■

Whenever necessary, replace nameplate, operation and safety decals when they become difficult read.

■

Manufacture does not assume responsibility for any accident due to equipment modifications.

■

NEVER use accessories or attachments, which are not recommended by Multiquip for this equipment. Damage to the equipment and/or injury to user may result.

■

NEVER touch the hot exhaust manifold, muffler or cylinder. Allow these parts to cool before servicing engine or rammer.

■

High Temperatures – Allow the engine to cool before adding fuel or performing service and maintenance functions. Contact

hot

with

■

The engine section of this rammer requires an adequate free flow of cooling air. NEVER operate the rammer in any enclosed or narrow area where free flow of the air is restricted.

components can cause serious burns.

If the air flow is restricted it will cause serious damage to the rammer or engine and may cause injury to people. Remember the rammer's engine gives off carbon monoxide gas.

DEADLY

■

ALWAYS check the machine for loosened threads or bolts before starting.

■

ALWAYS wear proper respiratory (mask), hearing and eye protection equipment when operating the rammer.

PAGE 6 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

■

ALWAYS refuel in a well-ventilated area, away from sparks and open flames.

■

ALWAYS use extreme caution when working with flammable liquids. When refueling, stop the engine and allow it to cool. DO NOT machine. Fire or explosion could result from fuel vapors, or if fuel is spilled on a hot engine.

■

NEVER operate the rammer in an explosive atmosphere or near combustible materials. An explosion or fire could result causing severe

bodily harm or even death.

smoke around or near the

RULES FOR SAFE OPERATION

■

NEVER Run engine without air filter. Severe engine may

occur.

■

Always service air cleaner frequently to prevent carburetor malfunction.

■

Always be sure the operator is familiar with proper safety precautions and operations techniques before using rammer.

■

Always store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children.

■

NEVER use accessories or attachments, which are not recommended by Multiquip for this equipment. Damage to the equipment and/or injury to user may result.

■

NEVER Run engine without air cleaner. Severe engine

damage may occur.

■

Always read, understand, and follow procedures in Operator’s Manual before attempting to operate equipment.

■

Always be sure the operator is familiar with proper safety precautions and operations techniques before using pump.

■

Always store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children.

■

Refer to the technical questions or information

for this equipment. Damage to the equipment and/or injury to user may result.

ROBIN Engine Owner's Manual

recommended by Multiquip

for engine

Transporting

■

Emergencies

■

Maintenance Safety

■

Always shutdown engine before transporting. Tighten fuel tank cap securly and close fuel cock to prevent

fuel from spilling. Drain fuel when transporting rammer over long distances or

bad roads. When placing the rammer inside a truck-bed for transport,

always tie-down the rammer.

Always know the location of the nearest and

first aid kit

Also know the phone numbers of the nearest

doctor

and

invaluable in the case of an emergency.

NEVER lubricate components or attempt service on a running machine.

Always allow the machine a proper amount of time to cool before servicing.

Keep the machinery in proper running condition. Fix damage to the machine immediately and always replace

broken parts. Dispose of hazardous waste properly. Examples of potentially

hazardous waste are used motor oil, fuel and fuel filters. DO NOT use plastic containers to dispose of hazardous

waste.

. Know the location of the nearest telephone.

fire department

. This information will be

fire extinguisher

ambulance

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 7

OPERATION AND SAFETY DECALS

PAGE 8 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

Definition of Tamping Rammer

The Mikasa MT-85H tamping rammer is a powerful compacting tool capable of applying a tremendous force in consecutive impacts to a soil surface. Its applications include soil compacting for road, embankments and reservoirs as well as backfilling for gas pipelines, water pipelines and cable installation work.

The impact force of the MT-85H levels and uniformly compacts voids between soil particles to increase dry density.

Circular motion is converted to create impact force. The MT-85 H tamping rammer develops a powerful compacting force at the foot of the rammer. To maintain optimum performance, proper operation and service are essential.

Construction of Tamping Rammer

The Mikasa MT-85H is equipped with an air cooled, two cycle gasoline engine. Transmission of the power takes place by increasing the engine speed to engage the centrifugal clutch.

Rammer Gearbox and Spring Cylinder

The Mikasa MT-85H uses an oil bath lubrication system. Always check the oil level through the oil level sight glass at the rear of the tamper foot.

GENERAL INFORMATION

Controls

Before starting the MT-85H Tamping Rammer identify and understand the function of the controls, see Figure 1 on page 9.

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 9

MT-85H — SPECIFICATIONS

LEDOM)cirtem(.S.UH58-TM

thgieHllarevO)mm050,1(.ni3.14

htdiWllarevO)mm093(ni4.51

htgneLrevO)mm017(ni4.62

eziSeohS)mm043xmm033(4.31x.ni0.31

etunim/swolB076

ecroFtcapmI)wolb/gk000,2(wolb/.sbl014,4

hctulClagufirtneCcitamotuA

thgieWgnitarepO)gk67(.sbl861

snoitacificepSremmaRH58-TM.1elbaTsnoitacificepSremmaRH58-TM.1elbaT

snoitacificepSremmaRH58-TM.1elbaT

snoitacificepSenignEH58-TM.2elbaTsnoitacificepSenignEH58-TM.2elbaT

snoitacificepSenignEH58-TM.2elbaT

LEDOMG-21CEniboR

epyTenignEenilosaGekortS2delooC-riA

tnemecalpsiDnotsiP)cc411(.ni.uc69.6

tuptuO.xaM)WK0.3(mpr000,4/ph0.4

daoLoN,deepSdenrevoG.xaMmpr000,4

metsySgnilooCdelooC-riA

metsySnoitacirbuL metsySgniyarpSliOnoitacirbuL-leuF

leuF)lio(1:52enilosagdedaelnU

metsySgnitratSretratSlioceR

NOTE

Specifications are general and are subject to change without notice. If exact measurements are required, equipment should be weighed and measured.

PAGE 10 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

MT-85H — CONTROLS AND COMPONENTS

Figure 1. MT-85H Rammer

Figure 1 shows the location of the controls and components for the MT-85H Tamping Rammer. The functions of each control is described below:

1. Throttle Lever – Controls engine speed and the tamping

action of the rammer.

2. Engine Stop Switch – Controls the starting and stopping

of the engine. Switch must be in the "ON" position when starting the engine.

3. Choke Lever – Used when starting the engine. Normally

used in cold weather conditions. In cold weather turn the choke lever to the fully closed position, in warm weather set choke lever half way or completely open.

4. Fuel Shut-Off Valve – Supplies fuel from the fuel tank to

the engine. To begin fuel flow move the fuel shut-off valve downward.

5. Excess Fuel Drain Valve – Open drain plug when

excess fuel is present in the carburetor, or crankcase.

L1. A Returned Material Authorization must be approved by Multiquip prior to shipment. A copy of the Authorization must

accompany the shipment to the designated Warehouse. A copy of the original Multiquip invoice to the customer must

6. Drain Valve – Open this valve to remove oil from the

also accompany the shipment.

bellows.

7. Air Cleaner – Pre-cleans (first stage) dirt and other

8. Foot– Laminated wood with tempered steel plate for

superior shock absorption.

9. Oil Level Sight Glass – Indicates the level of oil in the oil

bath reservoir.

10. Recoil Starting Handle – Used when starting the engine.

Pull starter handle sharply and quickly, then return starter handle to starter case before releasing.

11. Fuel Tank/Cap – Poly fuel tank to avoid rust and

corrosion, remove this cap to add gasoline.

12. Air Cleaner – Prevents dirt (second stage) and other debris from entering the engine.

13. Bellows – Reservoir for oil bath.

14. Handle – To operate rammer

GRIP

handle assembly

firmly on both sides.

15. Muffler– Used to reduce noise and emissions.

16. Spark Plug – Provides spark to the ignition system, replace with engine manufactures recommended type spark plug.

17. Nameplate – Displays information regarding the rammer.

debris from entering the engine.

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 11

MT-85H — OPERATION

This section is intended to assist the operator with the initial start-up of the MT-85H Tamping Rammer. It extremely important that this section be read carefully before attempting to operate the rammer.

DO NOT use your rammer until this section is thoroughly understood.

CAUTION:CAUTION:

CAUTION:

CAUTION:CAUTION:

Failure to understand the operation of the MT85H Tamping Rammer could result in severe damage to the trowel or personal injury.

Rammer Gearbox and Spring Cylinder Oil Bath

This unit uses an oil bath lubrication system. Perform the following:

1. Check the oil level through the oil level sight glass at the rear of the tamper foot.

2. If oil is not visible, add 10W-30 motor oil. The bath contains approximately 1.7 pints (800 cc.)

Inspection

1. Check all nuts, bolts fasteners for tightness. Retighten as necessary.

2. Clean any dirt from the recoil starter and foot pedestal. Wipe the entire unit clean before operating.

3. Replace any missing or damaged Safety Operation decals.

4. Adjust height of handle. Adjust handle by loosening nuts and moving handle to suit operation. Retighten nuts.

Initial Start-up

When starting the MT-85H Tamping Rammer perform the following:

1. Open the shut- off valve by moving the strainer lever

downward (Figure 3), then set the engine start /stop switch (Figure 4) to the "START" position.

NOTE

The oil level should be kept at the half way point of the sight glass.

Engine

Before pouring fuel into the fuel tank (Figure 2) perform the following:

1. Find a container for the mixing of fuel and gasoline.

2. Use a quality outboard motor oil for 2-cycle engines.

3. Mix gasoline (unleaded) with oil at a 25:1 ratio. Mix well.

4. Be sure to filter the mixed fuel with a strainer at the filler port.

5. If fuel spills on the fuel cap when operating rammer, replace the rubber leak stopper inside the cap.

Figure 3. Fuel Shut-Off Valve

Figure 2. Fuel Tank

PAGE 12 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

Figure 4. Engine Start/Stop Switch

2. Close the choke lever Figure 3 and move the throttle lever

to the "Full Open" position. Turning the choke lever 90 degrees clockwise closes the choke . In cold weather, start the unit with choke fully closed. In warm weather or when the engine is warm, the unit can be started with choke halfway or completely open.

Operation

1. To start the rammer tamping action, move the throttle lever

quickly from IDLE to the FULL OPEN position (Figure 5) . DO NOT move the throttle lever slowly as this may cause damage to the clutch or spring.

MT-85H — OPERATION

Figure 7. Drain Cock

Figure 5. Throttle Control Lever

3. Grip the recoil starter (Figure 6 ) handle and pull it until you

feel a slight resistance. Then pull sharply and quickly. Return the recoil starter handle to the starter case before releasing.

Figure 6. Recoil Starter

4. If engine fails to start, move the choke lever (Figure 3) to the

half open position to avoid flooding.

5. Repeat steps 1 thru 4.

6. If the engine does not start after repeated attempts,

check the spark plug for excess fuel. Clean and replace the spark plug as needed.

7. If the carburetor is flooded or the crankcase is loaded

with fuel, open the drain plug as shown in Figure 7 and drain excess fuel.

CAUTION:CAUTION:

CAUTION:

CAUTION:CAUTION:

2. The MT-85H Tamping rammer is designed to run at 4,000 rpm. At optimum rpm the foot hits at the rate of 665 impacts per minute. Increasing throttle speed past factory set rpm does not increase impacts and may damage unit. The MT85H is designed to advance while tamping. For faster advance, pull back slightly on the handle so that rear of foot contacts soil first.

3. To stop the tamping action, move throttle lever quickly from the FULL OPEN to IDLE position.

Stopping The Engine

Normal Shutdown

1. Move throttle lever quickly from the FULL OPEN to IDLE position (Figure 5) and run the engine for three minutes at low speed. After the engine switch to the “STOP” position (Figure 4) until engine comes to a complete stop.

2. Close the fuel shut- off valve by moving the strainer lever upward. See Figure 3.

Emergency Showdown

2. Move the throttle lever quickly to the the engine start/stop switch to the

Make sure that the throttle lever is moved to the FULL OPEN position. Operating the rammer at less than full speeds can result in damage to the clutch springs or foot

cools

, turn the engine start/stop

IDLE

position, and turn

STOP

position.

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 13

■

Maintenance

Perform the scheduled maintenance procedures as indicated:

DAILY

■

Thoroughly remove dirt and oil from the engine and control area. Clean or replace the air cleaner elements as necessary. Check and retighten all fasteners as necessary. Check the spring box and bellows for oil leaks. Repair or replace as needed.

WEEKLY

■

Remove the fuel filter cap and clean the inside of the fuel tank.

■

Remove or clean the filter at the bottom of the tank.

■

Remove and clean the spark plug, then adjust the spark gap to 0.02~0.03 inch (0.6~0.7 mm). This unit has electronic ignition, which requires no adjustments.

■

Clean air cleaner cover.

200 - 300 HOURS (Air Cleaner Figure 8)

■

Remove the element from the pre-cleaner at the top of the crankcase (body side) and clean it with cleaning oil (kerosene).

■

Lubricate the top element (yellow) with 2~5cc of engine oil SAE-30.

■

Lubricate bottom element (gray) with 13 ~15cc of engine oil SAE-30 and completely squeeze out the excess oil from the element before installing.

The air cleaner on the engine side will hardly be contaminated, if it is, however after cleaning the element with kerosene, dip it in mixed oil consisting of 3 parts of gasoline and 1 part of engine oil. Then tightly squeeze outer primary element (sponge) and shake off well the inner secondary element before installing them.

200 - 300 HOURS (Oil Bath)

■

Drain oil reservoir on foot housing. Refill with approximately

1.7 pt. (800cc) of 10W-30 motor oil. Oil should be midway in sight glass. Break in oil should be changed after first 50 hours.

Yearly

■

Check the fuel line and the oil line regularly for damage and to ensure that there are no leaks.

■

Replace the oil and fuel lines every two years to maintain the performance and flexibility lines.

Long Term Storage

■

Drain fuel from fuel tank, fuel line and carburetor.

■

Remove spark plug and pour a few drops of motor oil into cylinder. Crank engine 3 to 4 times so that oil reaches all internal parts.

■

Clean exterior with a cloth soaked in clean oil.

■

Store unit covered with plastic sheet in moisture free and dust free location out of direct sunlight.

MT-85H — MAINTENANCE

Figure 8. Air Cleaner

PAGE 14 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

MT-85H — TROUBLESHOOTING GUIDE

GNITOOHSELBUORTENIGNE.3ELBAT

MOTPMYS MELBORPELBISSOP NOITULOS

tratsottluciffiD

?egdirbgniebgulpnoitingI .metsysnoitingikcehC

.)elbacnoisnethgih

rewoP(.etingitonlliw TON

noisserpmoc(setingi )lamron .

noisserpmoc(setingi wol .)

yrotcafsitastonnoitarepO

gulpkrapstubelbaliavasileuF

taelbaliavarewoP(.etingitonlliw

?srotalusni

gulpkrapstubelbaliavasileuF

.)elbacnoisnethgihtaelbaliava

?stisoped

gulpkrapsdnaelbaliavasileuF

?)tsud

gulpkrapsdnaelbaliavasileuF

?nrowrednilyC .rednilycecalpeR

?esoolgulpkrapS .gulpkrapsnehgiT

?noitingitatisopednobraC .noitingiecalperronaelC

evitcefedoteudtiucrictrohS

?pagkrapsreporpmI .pagtcerrocehtotpaggulpkrapsteS

?hctiwspotstatiucrictrohS .evitcefedfihctiwspotsecalpeR.tiucrichctiwspotskcehC

?evitcefedliocnoitingI .liocnoitingiecalpeR

nobrachtiwdeggolcrelffuM

?etauqedanisiytilauqleufdexiM .erutximliootleufkcehC

,retaw(etauqedaniesunileuF

?deggolcrenaelCriA .renaelcriaecalperronaelC

?teksagdaehrednilycevitcefeD .teksagdaehecalperrostlobdaehrednilycnethgiT

.srotalusniecalpeR

.relffumecalperronaelC

.leufhserfhtiwecalperdnametysleufhsulF

?deggolcrenaelcriA

elbaliavarewophguonetoN

-ssimon,lamronnoisserpmoc(

.)gnirif

elbaliavarewophguonetoN

-ssim,lamronnoisserpmoc(

.)gnirif

?)tsud

.staehrevoenignE

?enilleufniriA .enilleufmorf)riaevomer(deelB

?reporpmirebmahc

?evitcefedliocnoitingI .leufhserfhtiwecalperdnametysleufhsulF

?rebmahcnoitsubmoc

.nobrac

taolfrotaerubracnilevelleuF

?rednilycnistisopednobraC rednilycecalperronaelC

?strohsnetfogulpnoitingI .noitinginaelc,seriwnoitingiecalpeR

,retaw(etauqedaniesunileuF

?etauqedanisiytilauqleufdexiM .erutximliootleufkcehC

ninoitsopednobracevissecxE

htiwdeggolcrelffumrotsuahxE

?tcerrocnieulavtaehgulpkrapS .gulpkrapsepyttcerrochtiwgulpkrapsecalpeR

taolfrotaerubractsujdA

.leufhserfhtiwecalperdnametysleufhsulF

.esacknarcecalperronaelC

.relffumecalperronaelC

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 15

MT-85H — TROUBLESHOOTING GUIDE

ENGINEENGINE

ENGINE

ENGINEENGINE

MOTPMYS MELBORPELBISSOP NOITULOS

yrotcafsitastonnoitarepO

?reporpmitnemtsujdaronrevoG .reveltcerrocotronrevogtsujdA

?evitcefedgnirpsronrevoG .noitingiecalperronaelC

.setautculfdeepslanoitatoR

?citarrewolfleuF .enilleufkcehC

?enilnoitcushguorhtninekatriA .enilnoitcuskcehC

)deunitnoc(GNITOOHSELBUORTENIGNE.3ELBAT

gnikrowtonretratslioceR

.ylreporp

MOTPMYS MELBORPELBISSOP NOITULOS

tonediutilpmatubsetatorenignE

.ekirtstonseodromrofinu

?trapgnitatornitsuD .ylbmessaretratsliocernaelC

?eruliafgnirpsgnirpS .gnirpslairpsecalpeR

revelelttorhtfodeepsgnitarepO

?tesyltcerrocnisi

?ssecxeniliO .leveltcerrocotgnirB.liossecxeniarD

?spilshctulC .hctulctsujdaroecalpeR

GNITOOHSELBUORTREMMAR.4ELBAT

.noitisoptcerrocotrevelelttorhtteS

?eruliaFgnirpS .gnirpslairpsecalpeR

?reporpmienignefodeepS .gnittesMPRgnitarepotcerrocotdeepsenignetsujdA

PAGE 16 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

MT-85H — NOTE PAGE

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 17

EXPLANATION OF CODE IN REMARKS COLUMN

How to read the marks and remarks used in this parts book.

Items Found In the “Remarks” Column

Serial Numbers-Where indicated, this indicates a serial number range (inclusive) where a particular part is used.

Model Number-Where indicated, this shows that the corresponding part is utilized only with this specific model number or model number variant.

Items Found In the “Items Number” Column

All parts with same symbol in the number column,

■

, belong to the same assembly or kit.

If more than one of the same reference number is listed, the last one listed indicates newest (or latest) part avaliable.

, #, +, %, or

NOTE

The contents of this catalog are subject to change without notice

PAGE 18 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

MT-85H— SUGGESTED SPARE PARTS

MT-85H RAMMER 1 TO 3 UNITS

Qty. P/N Description

1 ............ 956300130 ............ LEVER, THROTTLE

3 ............ 354030030 ............ ELEMENT, YELLOW

3 ............ 354030040 ............ ELEMENT, GRAY

1 ............ 0430440033 .......... CAP, FUEL TANK

1 ............ 954300390 ............ COCK, FUEL

1 ............ 954405080 ............ STRAINER,FUEL TOP/BOTTOM

2 ............ 301419750 ............ FILTER, IN-LINE FUEL

3 ............ 1573620101 .......... ELEMENT, SET ENGINE

1 ............ 0662000070 .......... BUTTN, STOP (S/N C-4154 & BELOW)

3 ............ 0650140460 .......... SPARK PLUG

1 0660000370 SWITCH, STOP (ABOVE C-4154-4178

&C-4207

1 ............ 956106040 ............ THROTTLE ,WIRE

1 ............ 402010110 ............ SPRING,THROTTLE RETURN

MT-85H RAMMER 3 TO 5 UNITS

1 ............ 956300130 ............ LEVER, THROTTLE

1 ............ 956106040 ............ THROTTLE WIRE

1 ............ 402010110 ............ SPRING,THROTTLE RETURN

4 ............ 354030030 ............ ELEMENT, YELLOW

4 ............ 354030040 ............ ELEMENT, GRAY

2 ............ 354910020 ............ CLAMP, BELLOWS

1 ............ 3544332700 .......... BELLOWS

1 ............ 0430440033 .......... CAP, FUEL TANK

1 ............ 954300390 ............ COCK, FUEL

2 ............ 954405080 ............ STRAINER,FUEL TOP/BOTTOM

4 ............ 301419750 ............ FILTER, IN-LINE FUEL

4 ............ 1573620101 .......... ELEMENT SET ENGINE

2 ............ 0662000070 .......... BUTTN, STOP (S/N C-4154 & BELOW)

6 ............ 0650140460 .......... SPARK PLUG

1 ............ 1616230207 .......... CARBURETOR KIT

2 0660000370 SWITCH, STOP (ABOVE C-4154-4178

&C-4207))

NOTE

MT-85H RAMMER 5 TO 10 UNITS

2 ............ 956300130 ............ LEVER, THROTTLE

2 ............ 956106040 ............ THROTTLE WIRE

2 ............ 402010110 ............ SPRING,THROTTLE RETURN

6 ............ 354030030 ............ ELEMENT, YELLOW

6 ............ 354030040 ............ ELEMENT, GRAY

4 ............ 354910020 ............ CLAMP, BELLOWS

2 ............ 354332700 ............ BELLOWS

2 ............ 0430440033 .......... CAP, FUEL TANK

2 ............ 954300390 ............ COCK, FUEL

4 ............ 954405080 ............ STRAINER, FUEL TOP/BOTTOM

6 ............ 301419750 ............ FILTER, IN-LINE FUEL

3 ............ 1573620101 .......... ELEMENT SET ENGINE

3 ............ 0662000070 .......... BUTTN, STOP (S/N C-4154 & BELOW)

10 .......... 0650140460 .......... SPARK PLUG

3 ............ 0660000370 .......... SWITCH, STOP (ABOVE C-4154 & C-4207)

3 ............ 1611510101 .......... GASKET,COMPLETE HEAD

3 ............ 1613520101 .......... GASKET,COMPLETE EXHAUST

3 ............ 2263272008 .......... GASKET, AIR CLEANER

4 ............ 1573500103 .......... GASKET, INSULATOR, CARBURETOR

3 ............ 1616230207 .......... CARBURETOR KIT

1 ............ 1616230100 .......... CARBURETOR ASSEMBLY

2 ............ 050201500 ............ O-RING, UPPER GUIDE CYLINDER

4 ............ 050931500 ............ O-RING, MIDDLE GUIDE CYLINDER

2 ............ 050101100 ............ O-RING, LOWER GUIDE CYLINDER

2 ............ 050100950 ............ O-RING, FOOT PLATE GUIDE CYLINDER

MT-85H RAMMER 10+ UNITS

6 ............ 956300130 ............ LEVER, THROTTLE

6 ............ 956106040 ............ THROTTLE WIRE

6 ............ 402010110 ............ SPRING,THROTTLE RETURN

16 .......... 354030030 ............ ELEMENT, YELLOW

16 .......... 354030040 ............ ELEMENT, GRAY

10 .......... 354910020 ............ CLAMP, BELLOWS

5 ............ 3544332700 .......... BELLOWS

5 ............ 0430440033 .......... CAP, FUEL TANK

4 ............ 954300390 ............ COCK, FUEL

6 ............ 954405080 ............ STRAINER, FUEL TOP/BOTTOM

12 .......... 301419750 ............ FILTER, IN-LINE FUEL

16 .......... 1573620101 .......... ELEMENT SET ENGINE

4 ............ 0662000070 .......... BUTTN, STOP (S/N C-4154 & BELOW)

16 .......... 0650140460 .......... SPARK PLUG

4 0660000370 SWITCH, STOP (ABOVE C-4154-4178

Part number on this Suggested Spare Parts List may super cede/ replace the P/N shown in the text pages of this book.

3 ............ 1611510101 .......... GASKET,COMPLETE HEAD

3 ............ 1613520101 .......... GASKET,COMPLETE EXHAUST

3 ............ 2263272008 .......... GASKET, AIR CLEANER

4 ............ 1573500103 .......... GASKET, INSULATOR, CARBURETOR

1 ............ 301421360 ............ CLUTCH ASSY

1 ............ 354211840 ............ AIR CLEANER ASSEMBLY

5 ............ 1616230207 .......... CARBURETOR KIT

1 ............ 1616230100 .......... CARBURETOR ASSEMBLY

1 ............ 1615010400 .......... RECOIL STARTER ASSEMBLY

4 ............ 050201500 ............ O-RING, UPPER GUIDE CYLINDER

8 ............ 050931500 ............ O-RING, MIDDLE GUIDE CYLINDER

4 ............ 050101100 ............ O-RING, LOWER GUIDE CYLINDER

4 ............ 050100950 ............ O-RING, FOOT PLATE GUIDE CYLINDER

&C-4207)

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 19

CRANKCASE AND ENGINE

MT-85H — CRANKCASE AND ENGINE

PAGE 20 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

MT-85H — CRANKCASE AND ENGINE

CRANKCASE AND ENGINE

NO PART NO PART NAME QTY. REMARKS

1 354111850 CRANKCASE ....................................... 1 ............ REPLACES 352110010 & 352111130

2 352321580 CRANK GEAR 1 3 040006207 BEARING 620 1 4 040006305 BEARING 6305 1 5 952400690 WASHER 9X35X4.5 1

6 01108025 BOLT 8X25 H, SW ............................... 1 ............ REPLACES 002210825

8 352423271 BEARING COVER 1 9 050920630 O-RING 1

10 011706020 BOLT H, SW ......................................... 4............REPLACES 002210620

16 301300530 CONNECTING ROD 1 17 040006305 BEARING 6305 1 18 080100620 STOP RING R-62 1 19 952400690 WASHER 9X35X4.5 1 20 011708025 BOLT 8X25 H, SW 1 25 354211980 FRONT COVER 1 26 354444460 PACKING FRONT COVER 1 27 011706020 BOLT 6X20 H ,SW 10 29 352437870 CLUTCH DRUM 1 30 951010060 KEY 5X5X32 1 31 952405490 LOCK WASHER 1 32 002210820 BOLT 8X20 H, SW 1 33 041006207 BEARING 6207Z 1

34 0600250010 BEARING 6205 .................................... 1 ............REPLACES 040006205

35 080200350 STOP RING S-35 1 36 301010160 PINION 1 37 352441340 SPACER 1 38 060404010 OIL SEAL TC-40528 1 39 050100950 O-RING G-95 1 43 911101206 ENGINE ASSY. EC12G 1

44 301421363 CLUTCH ASSY. .................................... 1 ............INCLUDES ITEMS W/

44-1 44-2 44-3 44-4 44-5 45 0053204201 WOODRUFF KEY 1 46 47 956300130 THROTTLE LEVER ASSY. 1 48 956106040 THROTTLE WIRE 1

49 402010110 RETURN SPRING ............................... 1 ............REPLACES 301010950

50 959403750 RUBBER SLIP STOP 1

52 012710045 BOLT 10X45 ......................................... 2 ............REPLACES 002211045

53 012710035 BOLT 10X35 H, HS 1

61 354211841 AIR CLEANER ASSY. ........................... 1 ............INCLUDES ITEMS W/

62 011008020 BOLT 8X20 SW .................................... 4 ............ REPLACES 002200820

63 354330590 INTAKE PIPE 1 64 507010110 CLAMP TC-200 1 65 66 67 68 69 70 0021714000 NUT 1

943060020 CLUTCH GUIDE (B) 1

943050050 CLUTCH BOSS 1

943020020 CLUTCH SOE 4

943030020 CLUTCH SPRING 2

943060010 CLUTCH GUIDE (A) 1

301010210 LOCK WASHER CLUTCH 1

# 354030010 BODY 1 # 354030020 BACK PLATE 1 # 354030030 ELEMENT YELLOW 1 # 354030040 ELEMENT GRAY 1 # 354030050 ELEMENT FRAME 1

, REPLACES 301421360

#, REPLACES 354211840

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 21

GUIDE CYLINDER AND FOOT

MT-85H — GUIDE CYLINDER AND FOOT

PAGE 22 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

MT-85H — GUIDE CYLINDER AND FOOT

GUIDE CYLINDER AND FOOT

NO PART NO PART NAME QTY. REMARKS

61 352423290 PISTON PIN 1 62 080100150 STOP RING R-15 2 63 352210380 PISTON ROD 1 64 352437330 PISTON END 1 65 020118150 NUT M18, P1.5 1 66 352431430 STOPPER,UPPER 1 67 352437470 STOPPER, LOWER 1 68 352326610 MAIN SPRG 2 69 354212480 SPRING CYLINDER 1 70 352210401 FOOT PLATE 1 71 352110042 PROTECTION SLEEVE 1 73 050100950 O-RING G-95 1 74 050101100 O-RING G-110 1

75 014210020 SOCKET HEAD 10X20 T ..................... 4 ....... REPLACES 001521020

76 014210035 SOCKET HEAD BOLT 0X35 T ............. 4 ....... REPLACES 001521035

77 953405270 PLUG 1/4X14 13L 2 78 953405260 PACKING 1/4(CU) 2 80 354446170 PIN 6D-8.5L 2

82 354212490 GUIDE CYLINDER .............................. 1 ....... REPLACES 352210410, 352211240

83 352437340 STOPPER 2 84 001520612 SOCKET HEAD BOLT 6X12 T 8

85 026160140 SPRING PIN 6X14W ............................4 ....... REPLACES 025406014

86 354010010 BELLOWS(L),ORANGE .......................1 ....... REPLACES 354332700

87 050931500 O-RINGJAS3150 2 88 352010020 CLAMP 150-180D 2 88-1 359410020 BELLOWS CLAMP CP 2

89 012710035 BOLT 10X35 H,SW .............................. 4 ....... REPLACES 002211035

90 959010150 LEVELGAUGE, PLUG TYPE METAL 1 91 953404670 COPPER PACKING 17X25.5X1 1 92 050201500 O-RING P-150 1

100 352985115 FOOT ASSY. 285W-6T ........................ 1 ....... REPLACES 352910032, INCLUDES ITEMS W/#

100 FOOT ASSY. 330W-4.5........................ 1 ....... INCLUDES ITEMS W/*, CONTACT UNIT SALES/ACCESSORY ITEM

100*352910081 FOOT ASSY. 330W-W/F. COVER......... 1 ....... STD

101# 352108220 FOOT 285B-331L ................................ 1 ....... OPTION

101*352326620 FOOT 330B-331L ................................ 1 ....... STD

102# 352108230 METAL SHEET 285W ..........................1 ....... OPTION

102*352910081 METAL SHEET 330B ...........................1 ....... REPLACES 352326630

103 001611256 SUNK HEAD BOLT 12 X 80H .............. 2 ....... REPLACES 015112075 INCLUDES ITEMS W/%

104 001611260 SUNK HEAD BOLT 12 X100 H ............ 2 ....... REPLACES 001611259 INCLUDES ITEMS W/%

105*# 015110055 SUNK HEAD BOLT 10X55 H ............... 7 ....... REPLACES 001611051 INCLUDES ITEMS W/$

106% 021112140 NYLON NUT M12 ................................4 ....... REPLACES 022711214

107 030212300 SW M12 4

108*#$ 021110120 NYLON NUT M10 ................................ 7 ....... REPLACES 022711012

109*# 030210250 SW M10 7 110 352322580 FOOT FITTING 25B-4.5T 2 110 352322581 FOOT FITTING 38B-3T 2

111*# 506404060 WASHER 11X34X3.2 ...........................1 ....... REPLACES 301010540 #5

113 352441700 BASE PLATE 1 113-1*# 354332070 FOOT COVER 1 114 352441730 SPRING SEAT 80D-1.6T 1 115 354329380 BELLOWS CLAMP 2 116 354442340 BAND GUIDE, BELLOWS 2

117 011008035 BOLT 8X35 H ....................................... 2 ....... REPLACES 001210835

118 020108060 NUT M8 2

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 23

TANK AND HANDLE

MT-85H — TANK AND HANDLE

PAGE 24 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

MT-85H — TANK AND HANDLE

TANK AND HANDLE

NO PART NO PART NAME QTY. REMARKS

A 353910010 FUEL TANK ASSY.,3L 1 INCLUDES ITEMS W/ 121-1 354111831 HANDLE 1 122 351319900 SHOCK ABSORBER 2

123 014210020 SOCKET HEAD BOLT 10X20 T .............4 .......... REPLACES 001521020

124 033121009 TOOTHED LOCK WASHER B M10 4

125 012210020 BOLT 10X20 H,SW .................................4 ..........REPLACES 002211020

128 351010010 FUEL TANK,3.3L(CUBIC)STEEL 1 128-1

129 954405080 FUEL FILTER .......................................... 1 .........REPLACES 301010760

129-1 130 0430430015 FUEL TANK CAP 1 130-1

131 954405990 FUEL COCK ASSY. CL-TYPE 1 ..........INCLUDES ITEMS W/

131-1 131-2 131-3 132 3514-36350 FUEL HOSE R-150 1 133 954404590 HOSE BAND 9.5D 2

134 011808015 BOLT 8X15 H, SW, PW...........................4 ..........REPLACES 002410815

134-1 011208030 BOLT 8X30 T........................................... 2 .......... REPLACES 001220830

135 301420330 FUEL HOSE ............................................ 1 .......... REPLACES 301418140

136 301419750 FUEL FILTER CP, MQ75MIC. 1

137 301420730 HOSE BAND(8) ....................................... 2 .......... REPLACES 954403030

138 303010450 BAND 1 160 030208200 WASHER SW M8 2 161 952401450 WASHER 8.5X22X3 2 162 022710809 NYLON NUT M8 2 163 164 165

351110650 FUEL TANK 3L(P)PLASTIC 1

954404890 FILTER,TANK/MR 1

0430440033 FUEL TANK CAP 1

954300390

# 0642001410 CUP 1 # 0642001420 SCREEN 1 # 06642001430 RUBBER PACKING 1

351437785 HOLDER, COCK.....................................1 ..........REPLACES 351437780

351439290 PACKING, COCK HOLDER 1

954405080 STRAINER(#100) 1

#, REPLACES 301322990 &

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 25

EC-12G ENGINE (ROBIN) — CRANKCASE AND CYL. HEAD

CRANKCASE AND CYLINDER HEAD

PAGE 26 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

EC-12G ENGINE (ROBIN) — CRANKCASE AND CYL. HEAD

CRANKCASE AND CYLINDER HEAD

NO PART NO PART NAME QTY REMARKS

1 1611040101 CRANKCASE COMPL. ........................ 1 ........... INCLUDES ITEMS W/

10 0643000101 DRAIN COCK 1

11 1611240101 CYLINDER COMPL. ............................. 1 ...........INCLUDES ITEMS W/

12# 0013208351 STUD 2 13

14 020108060 NUT ....................................................... 4 ...........REPLACES 0021808000

15 030208200 SPRING WASHER 4 16 0031008000 WASHER 4 17 1571310113 CYLINDER HEAD 1

18 1611510101 GASKET COMPL. (HEAD) ................... 1 ...........REPLACES 1611510111

19 0130080071 BOLT AND WASHER ASSY. 2 20 0011408350 BOLT AND WASHER ASSY. 2

0013208401 STUD 2 0013208651 STUD 2 0310060010 DOWEL PIN 2 0440080010 OIL SEAL 7.4X14X4 1 0440250180 OIL SEAL EC13 2 0600250010 BALL BEARING 6205C3 2 0011406550 BOLT AND WASHER ASSY. 3 0011406400 BOLT AND WASHER ASSY. 2

# 0105060190 STUD..................................................... 2 ...........REPLACES 0105060191

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 27

EC-12G ENGINE (ROBIN) — CRANKSHAFT AND PISTON

CRANKCASE AND PISTON

PAGE 28 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

EC-12G ENGINE (ROBIN) — CRANKSHAFT AND PISTON

CRANKSHAFT AND PISTON

NO PART NO PART NAME QTY REMARKS

1 1612040100 CRANKSHAFT ASSY. 1 2 1612340101 PISTON COMPL. STD 1 2 1612340201 PISTON COMPL. 0.25 OS 1 2 1612340301 PISTON COMPL. 0.5 OS 1 3 1612350107 PISTON RING SET STD. 1 3 1612350207 PISTON RING SET 0.25 OS 1 3 1612350307 PISTON RING SET 0.5 OS 1 4 1572330103 PISTON PIN 1 5 056-5120010 CLIP 2 6 0610120010 NEEDLE BEARING 1 7 0021714000 NUT 1 8 0032014000 SPRING WASHER 1 9 0053204201 WOODRUFF KEY 1 10 0173120010 LOCK NUT 1 11 1612500103 SPACER 0.1T 3 11 1612500203 SPACER 0.3T 1 12 1574170101 GOVENOR PLATE COMPL. 1 13 1574190103 GOVENOR SLEEVE 1

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 29

EC-12G ENGINE (ROBIN) — MUFFLER AND AIR CLEANER

MUFFLER AND AIR CLEANER

PAGE 30 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

EC-12G ENGINE (ROBIN) — MUFFLER AND AIR CLEANER

MUFFLER AND AIR CLEANER

NO PART NO PART NAME QTY REMARKS

1 1613010111 MUFFLER COMPL. 1 2 1613500101 MUFFLER BRACKET 1 3 1613510101 MUFFLER BRACKET 1 4 1613520101 GASKET COMPL. (EXHAUST) 1

5 020108060 NUT .........................................................2 ....... REPLACES 0021908000

6 030208200 SPRING WASHER ..................................2 ....... REPLACES 0032008000

7 0011308160 BOLT AND WASHER ASSY. 7

8 1613270310 AIR CLEANER ASSY. ..............................1 ....... REPLACES 16133270300 INCLUDES ITEMS W/

9# 1573620101 ELEMENT SET 1 10

# 2263272008 GASKET (AIR CLEANER) 1

# 1073273308 LABEL 1

12 13 1507520103 CLAMP 1 14 1613600111 CLEANER BRACKET 1

15 0016606120 BOLT AND WASHER ASSY. ...................3 ....... REPLACES 0011006120

16 1573290103 INSULATOR 1 17 1573500103 GASKET, INSULATOR 2 18 1613261008 ELEMENT 1 19

0732004430 LABEL (CHOKE) ..................................... 1 ....... REPLACES 0732001930

# 920203980 DECAL, ELEMENT SET .........................1 ....... INCLUDES ITEMS W/

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 31

GOVERNOR

EC-12G ENGINE (ROBIN) — GOVERNOR

PAGE 32 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

EC-12G ENGINE (ROBIN) — GOVERNOR

GOVERNOR

NO PART NO PART NAME QTY REMARKS

1 1574210103 GOVERNOR YOKE 1

2 1064220103 GOVERNOR SHAFT .............................. 1 ............ REPLACES 1574220103

3 0043504060 SCREW 2 4 1614230101 GOVERNOR LEVER 1

5 1064240101 ADJUSTING PLATE ................................ 1 ............ REPLACES 1574240101

6 0021906000 NUT 1

7 030206150 SPRING WASHER ..................................1 ............. REPLACES 0032006000

8 0043504080 SCREW AND WASHER ASSY. ............... 1 ............. REPLACES 0043604080

9 1614250113 GOVERNOR SPRING ............................1 ............. REPLACES 1614250101

10 2274270101 GOVERNOR ROD 1 11 1064280113 ROD SPRING 1 12 1614341001 SPEED CONTROL COMPL. 1 13 1614350111 STOP PLATE COMPL. 1

14 0116060050 FLANGE BOLT .......................................1 ............ REPLACES 0110060010

15 1574510113 COVER .................................................... 1 ............ REPLACES 1574510101

16 1574610103 WASHER 1

17 0110060050 FLANGE BOLT .......................................1 ............ REPLACES 0110060010

18 0016506350 BOLT 1 19 0021706000 NUT 1 20 1614420101 WIRE BRACKET 1

21 0110060050 FLANGE BOLT .......................................1 ............ REPLACES 0110060010

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 33

EC-12G ENGINE (ROBIN) — BLOWER HOUSING/RECOIL STR.ER

BLOWER HOUSING AND RECOIL STARTER

PAGE 34 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

EC-12G ENGINE (ROBIN) — BLOWER HOUSING/RECOIL STR.

BLOWER HOUSING AND RECOIL STARTER

NO PART NO PART NAME QTY REMARKS

1 1615110701 BLOWER HOUSING COMPL. ...............1 ..........INCLUDES ITEM W/ * REPLACES 161511001

3 1615260123 CYLINDER BAFFLE 1

4 0110060050 FLANGE BOLT .......................................2 ......... REPLACES 0110060010

5 0152060070 TAPPING BOLT 3 6 0011406200 BOLT AND WASHER ASSY. 3 7 0011406550 BOLT AND WASHER ASSY. 2

8 1615010400 RECOIL STARTER ASSY. ......................1 .......... INCLUDES ITEM W/

9# 1615012008 REEL 1 10 11 12 13 14 15 16 17 18 19 920100240 DECAL, (M-MARK) 1 20 1615500103 PULLEY SPACER 1

21 0016606120 BOLT AND WASHER ASSY. ...................4 ........ REPLACES 0011006120

22 0011306250 BOLT AND WASHER ASSY. 3 23 1507520103 CLAMP 1

1619180203 LABEL, ENGINE NAME 1

# 1615012508 RATCHET 2 # 2155051508 SPIRAL SPRING 1 # 2275013108 FRICTION SPRING 1 # 2275013508 RETURN SPRING 2 # 1615015008 RATCHET GUIDE 1 # 2275015208 SET SCREW 1 # 1615011008 STARTER ROPE 1

# 2065010108 STARTER KNOB .................................... 1 ......... REPLACES 2365010108

# 1615014518 STARTER PULLEY 1

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 35

ELECTRIC DEVICE

EC-12G ENGINE (ROBIN) — ELECTRIC DEVICE

PAGE 36 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

EC-12G ENGINE (ROBIN) — ELECTRIC DEVICE

BLOWER HOUSING AND RECOIL STARTER

NO PART NO PART NAME QTY REMARKS

1 1617010100 MAGNETO ASSY. ................................... 1 .......... INCLUDES ITEM W/

1 2 3 0011006200 BOLT AND WASHER ASSY. 2 4 1617500103 GROMMET, HIGH 1 5 1577500203 GROMMET 1

6 1067330101 WIRE COMPL. ........................................1 ......... COMES WITH STOP BUTTON

7 0669900217 STOP BUTTON ......................................1 ..........REPLACES 0662000070

8 0043504080 SCREW AND WASHER ASSY. 2 9 0566030010 CLAMP 1 10 0650140460 SPARK PLUG 1 11 2307510113 SPARK PLUG CAP 1 12 0659000010 PLUG TERMINAL 1 13 1507520103 CLAMP 1

1617012008 FLYWHEEL COMPL. 1

1617013008 IGNITION COIL, COMPL. 1

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 37

CARBURETOR

EC-12G ENGINE (ROBIN) — CARBURETOR

PAGE 38 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

EC-12G ENGINE (ROBIN) — CARBURETOR

CARBURETOR

NO PART NO PART NAME QTY REMARKS

1 1616230100 CARBURETOR ASSY. ............................ 1 ..........INCLUDES ITEM W/ * REPLACES 1616230120

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

25 0176060020 SELF LOCK NUT 2

2366254008 PACKING 1 1616235008 FLOAT BODY 1

5806083350 FLOAT ..................................................... 1 .......... REPLACES 2366250508

2366245008 PACKING 1 1616235108 BOLT 1 2266240008 MAIN JET 1 2366244508 SPRING 1 2146251508 FLOAT PIN 1 1616235208 NEEDLE 1

1616244008 MAIN NOZZLE 1

1616253008 SHAFT ASSY. (THROTTLE) 1

1616252038 SHAFT ASSY. (CHOKE).......................... 1 .......... REPLACES 1616252008

1616235308 HOSE 1

2346245008 SCREW 4

5806083310 CHOKE VALVE ........................................ 1 .......... REPLACES 1616252508

1616240008 MAIN JET 1

2136239008 ADJUSTER 1

2096244508 SPRING ................................................... 2 .......... REPLACES 2106231808

2076242008 PILOT JET 1

5416002230 SCREW ...................................................1 .......... REPLACES 1066239308

1616253508 THROTTLE VALVE 1

2366254108 PACKING 1

2366235008 SCREW 1

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 39

Effective: July 1, 2000

TERMS AND CONDITIONS OF SALE — PARTS

PAYMENT TERMS

Terms of payment for parts are net 10 days.

FREIGHT POLICY

All parts orders will be shipped collect or prepaid with the charges added to the invoice. All shipments are F.O.B. point of origin. Multiquip’s responsibility ceases when a signed manifest has been obtained from the carrier, and any claim for shortage or damage must be settled between the consignee and the carrier.

MINIMUM ORDER

The minimum charge for orders from Multiquip is $15.00 net. Customers will be asked for instructions regarding handling of orders not meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and credit will be allowed, subject to the following provisions:

1. A Returned Material Authorization must be approved by Multiquip prior to shipment.

2. To obtain a Retur n Material Authorization, a list must be provided to Multiquip Parts Sales that defines item numbers, quantities, and descriptions of the items to be returned.

a. The parts numbers and descriptions

must match the current parts price list.

b. The list must be typed or computer

generated.

c. The list must state the reason(s) for

the return.

d. The list must reference the sales

order(s) or invoice(s) under which the items were originally purchased.

e. The list must include the name and

phone number of the person requesting the RMA.

3. A copy of the Return Material Authorization must accompany the return shipment.

4. Freight is at the sender’s expense. All

5. Parts must be in new and resalable

6. The following items are not returnable:

7. The sender will be notified of any material

8. Such material will be held for 5 working

9. Credit on returned parts will be issued at

10. In cases where an item is accepted for

11. Credit issued will be applied to future

PRICING AND REBATES

parts must be returned freight prepaid to Multiquip’s designated receiving point.

condition, in the original Multiquip package (if any), and with Muiltiquip part numbers clearly marked.

a. Obsolete parts. (If an item is listed

in the parts price book as being replaced by another item, it is obsolete.)

b. Any parts with a limited shelf life

(such as gaskets, seals, “O” rings, and other rubber parts) that were purchased more than six months prior to the return date.

c. Any line item with an extended dealer

net price of less than $5.00. d. Special order items. e. Electrical components. f. Paint, chemicals, and lubricants. g. Decals and paper products. h. Items purchased in kits.

received that is not acceptable.

days from notification, pending instructions. If a reply is not received within 5 days, the material will be returned to the sender at his expense.

dealer net price at time of the original purchase, less a 15% restocking charge.

which the original purchase document can not be determined, the price will be based on the list price that was effective twelve months prior to the RMA date.

purchases only.

Prices are subject to change without prior notice. Price changes are effective on a specific date and all orders received on or after that date will be billed at the revised price. Rebates for price declines and added charges for price increases will not be made for stock on hand at the time of any price change.

Multiquip reserves the right to quote and sell direct to Government agencies, and to Original Equipment Manufacturer accounts who use our products as integral parts of their own products.

SPECIAL EXPEDITING SERVICE

A $20.00 to $50.00 surcharge will be added to the invoice for special handling including bus shipments, insured parcel post or in cases where Multiquip must personally deliver the parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable here under for damages in excess of the purchase price of the item with respect to which damages are claimed, and in no event shall Multiquip be liable for loss of profit or good will or for any other special, consequential or incidental damages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are made in connection with the sale of parts or trade accessories nor as to any engine not manufactured by Multiquip. Such warranties made in connection with the sale of new, complete units are made exclusively by a statement of warranty packaged with such units, and Multiquip neither assumes not authorizes any person to assume for it any other obligation or liability whatever in connection with the sale of its products. A part from such written statement of warranty, there are no warranties, express, implied or statutory, which extend beyond the description of the products on the face hereof.

PAGE 40 — MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01)

NOTE PAGE

MT-85H — PARTS & OPERATION MANUAL — REV. #8 (06/26/01) — PAGE 41

PARTS AND OPERATION MANUAL

HERE'S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL NUMBER ON-HAND WHEN CALLING

PARTS DEPARTMENT

800-427-1244 or 310-537-3700 FAX: 800-672-7877 or 310-637-3284

SERVICE DEPARTMENT/TECHNICAL ASSISTANCE

800-478-1244 or 310-537-3700 FAX: 310- 537-4259

WARRANTY DEPARTMENT

888-661-4279, or 310-661-4279 FAX: 310- 537-1173

MAIN

800-421-1244 or 310-537-3700 FAX: 310-537-3927

MULTIQUIP INC.

POST OFFICE BOX 6254 CARSON, CA 90749 310-537-3700 • 800-421-1244 FAX: 310-537-3927 E-MAIL: mq@multiquip.com WWW: multiquip.com

Quebec, Canada • Manchester, UK • Rio De Janiero, BR • Guadalajara, MX

Atlanta • Boise • Dallas • Houston • Newark

manufactured for Multiquip Inc.

MIKASA SANGYO CO., LTD. Tokyo, Japan

Multiquip MT-85H User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
