OPERATION AND PARTS MANUAL
(ROBIN
SERIES
MODEL MT55F
TAMPING RAMMER
EH090D/EH092D
Revision #5 (01/05/12)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
GASOLINE ENGINES)
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
PROPOSITION 65 WARNING
PAGE 2 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
NOTES
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 3
TABLE OF CONTENTS
MT55F Tamping
Rammer
Proposition 65 Warning .............................................3
Table Of Contents .....................................................4
Parts Ordering Procedures .......................................5
Safety Information ................................................. 6-9
General Information ................................................ 10
Specifications ..........................................................11
Controls and Components ......................................12
Basic Engine ........................................................... 13
Operation .......................................................... 14-17
Maintenance ........................................................... 18
Troubleshooting Guide ...................................... 20-21
Explanation Of Codes In Remarks Column ............22
Suggested Spare Parts ...........................................23
Component Drawings
Name Plate and Decals .................................... 24-25
Crankcase and Engine Assembly ..................... 26-27
Guide Cylinder Assembly .................................. 28-29

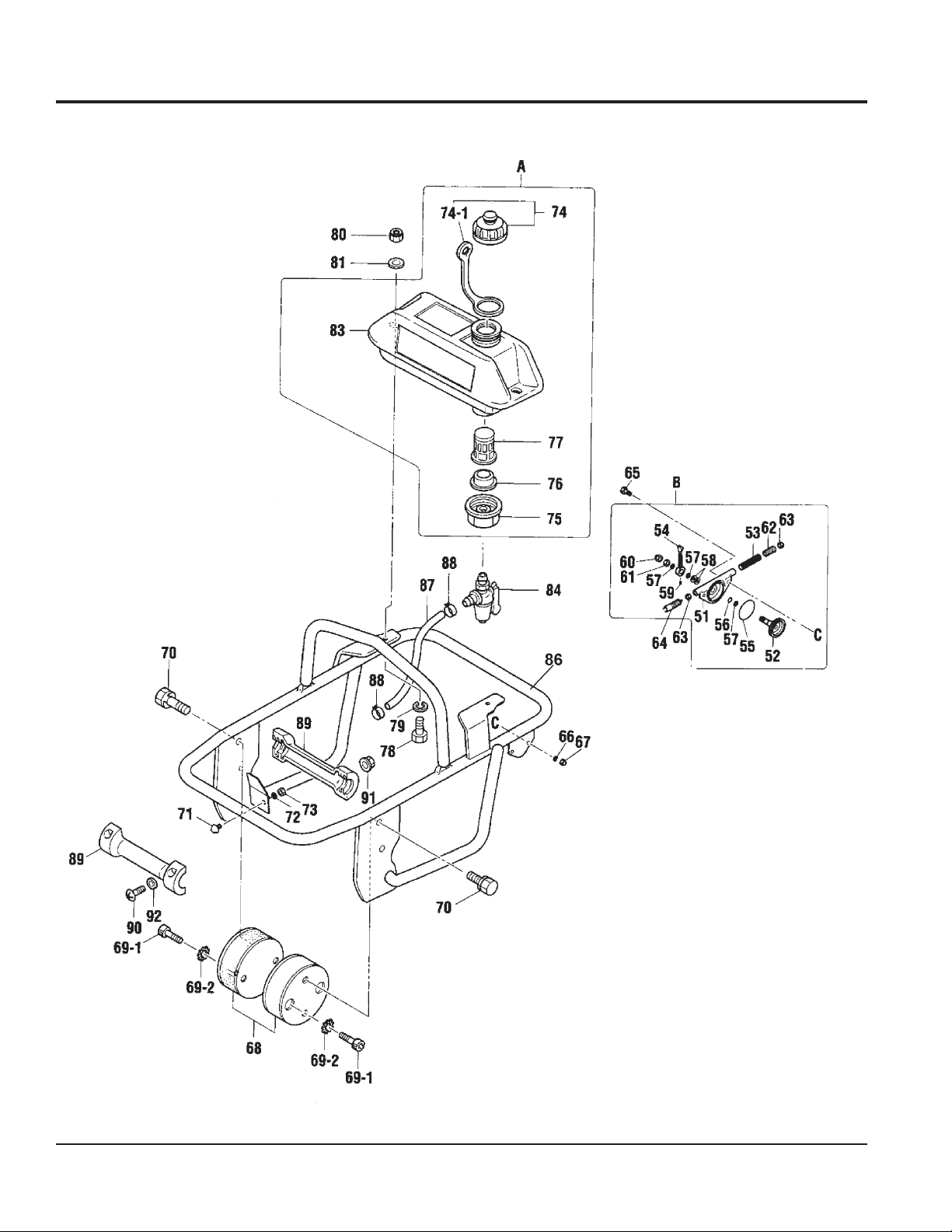

Tank and Handle Assembly .............................. 30-31

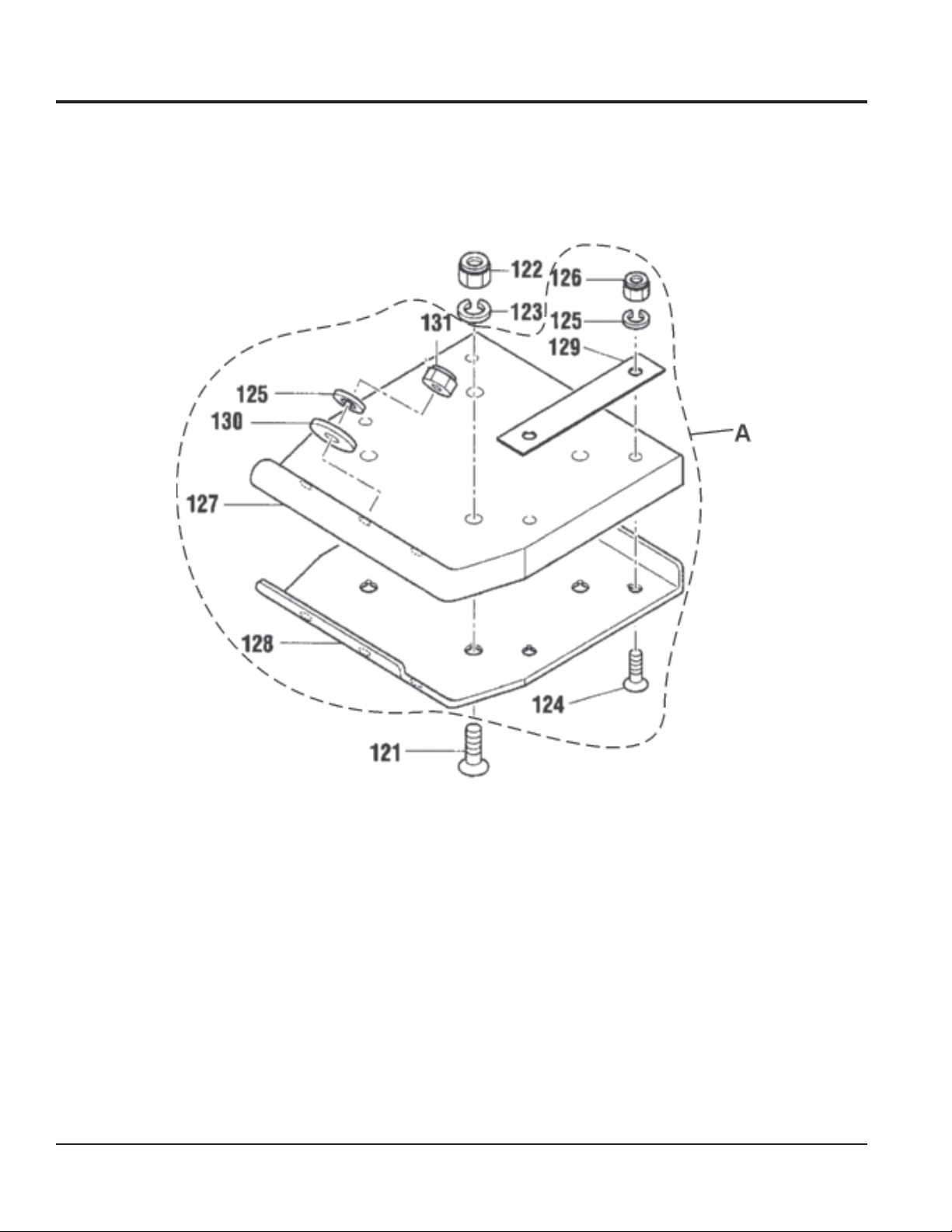

Foot Assembly .................................................. 32-33
Narrow Foot Assembly (Option) ....................... 34-35
Trench Shoe Assembly (Option) ....................... 36-37
ROBIN EH-090D45050
ENGINE
Crankcase Assembly ......................................... 38-39

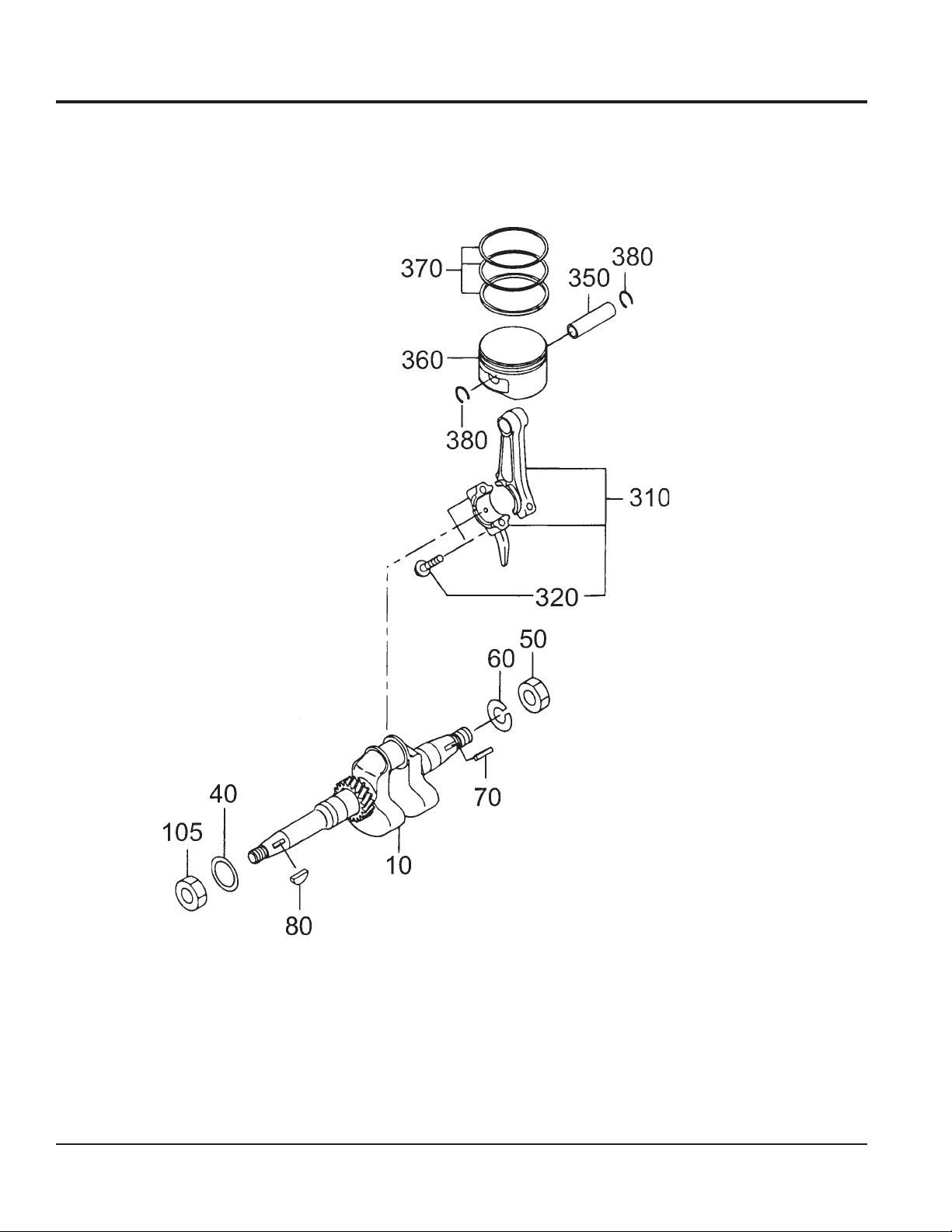

Crankshaft and Piston Assembly ....................... 40-41
Intake and Exhaust Assembly ............................42-43
Governor Assembly ........................................... 44-45
Blower Housing and Recoil Starter Assembly ...46-47

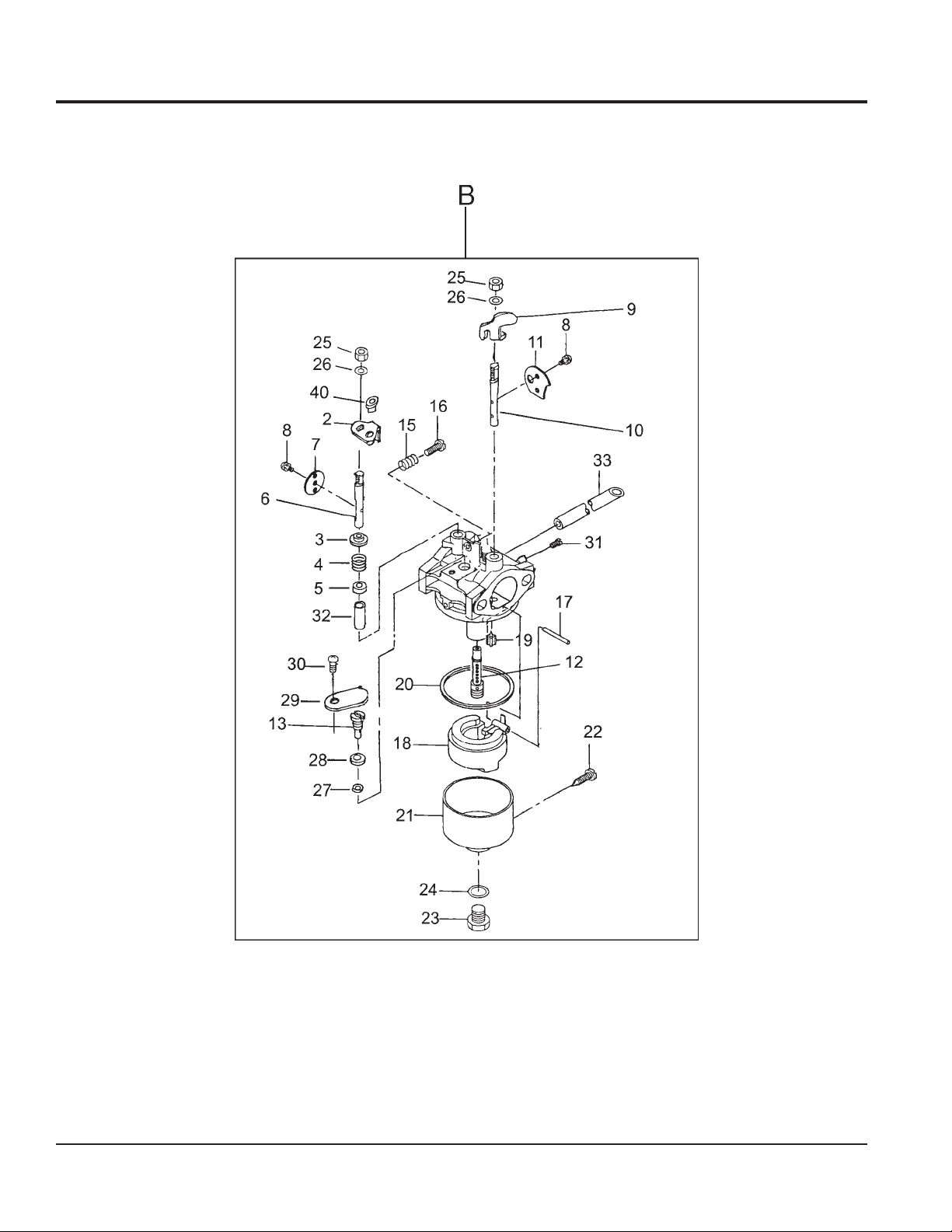

Carburetor Assembly ......................................... 48-49
Electric Device Assembly ...................................50-51
ROBIN EH-092D45010
ENGINE
Crankcase Assembly ........................................ 52-53
Crankshaft and Piston Assembly ...................... 54-55
Intake and Exhaust Assembly ........................... 56-57

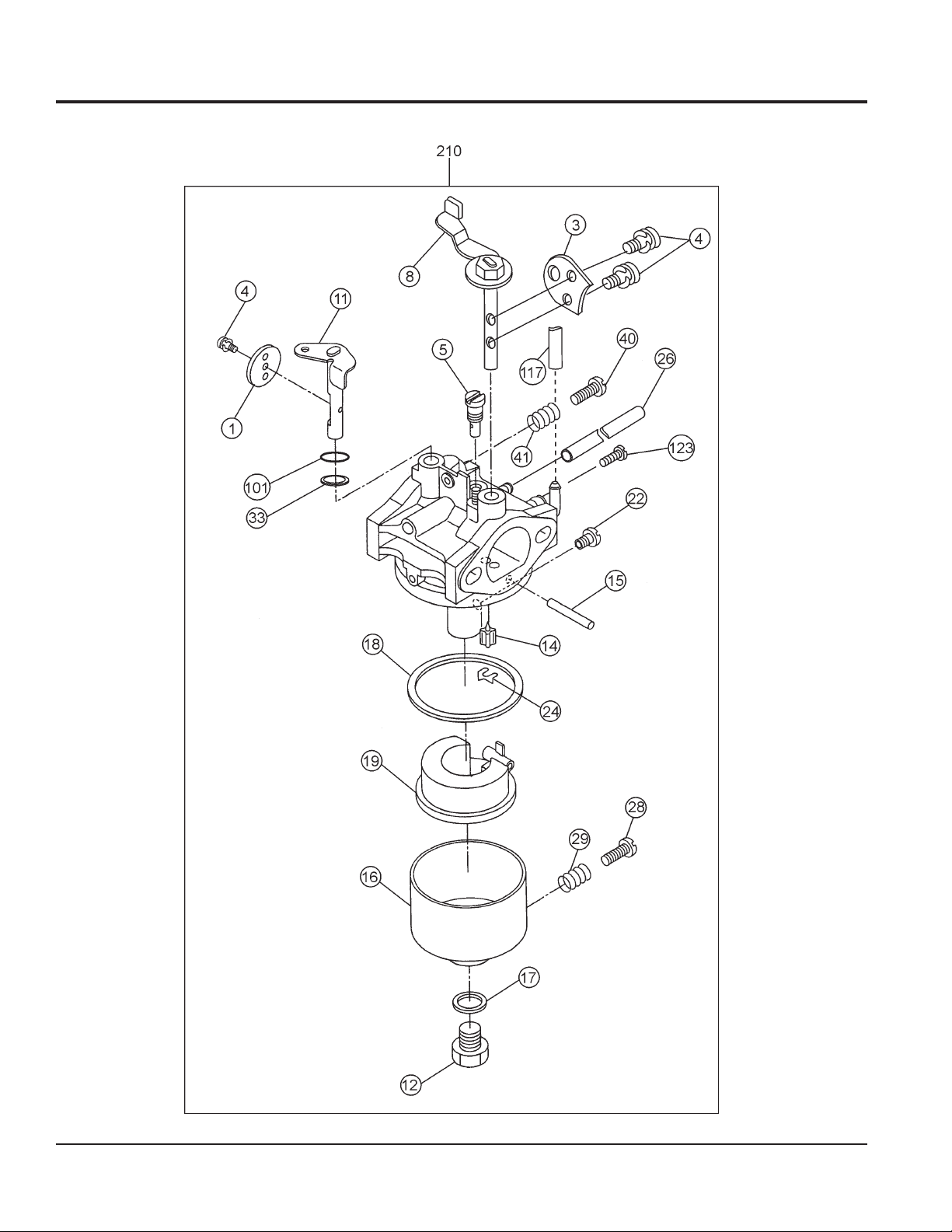

Carburetor Assembly ........................................ 58-59
Air Cleaner Assembly........................................
Governor, Operation Assembly......................... 62-63
Blower Housing Assembly ................................ 64-65

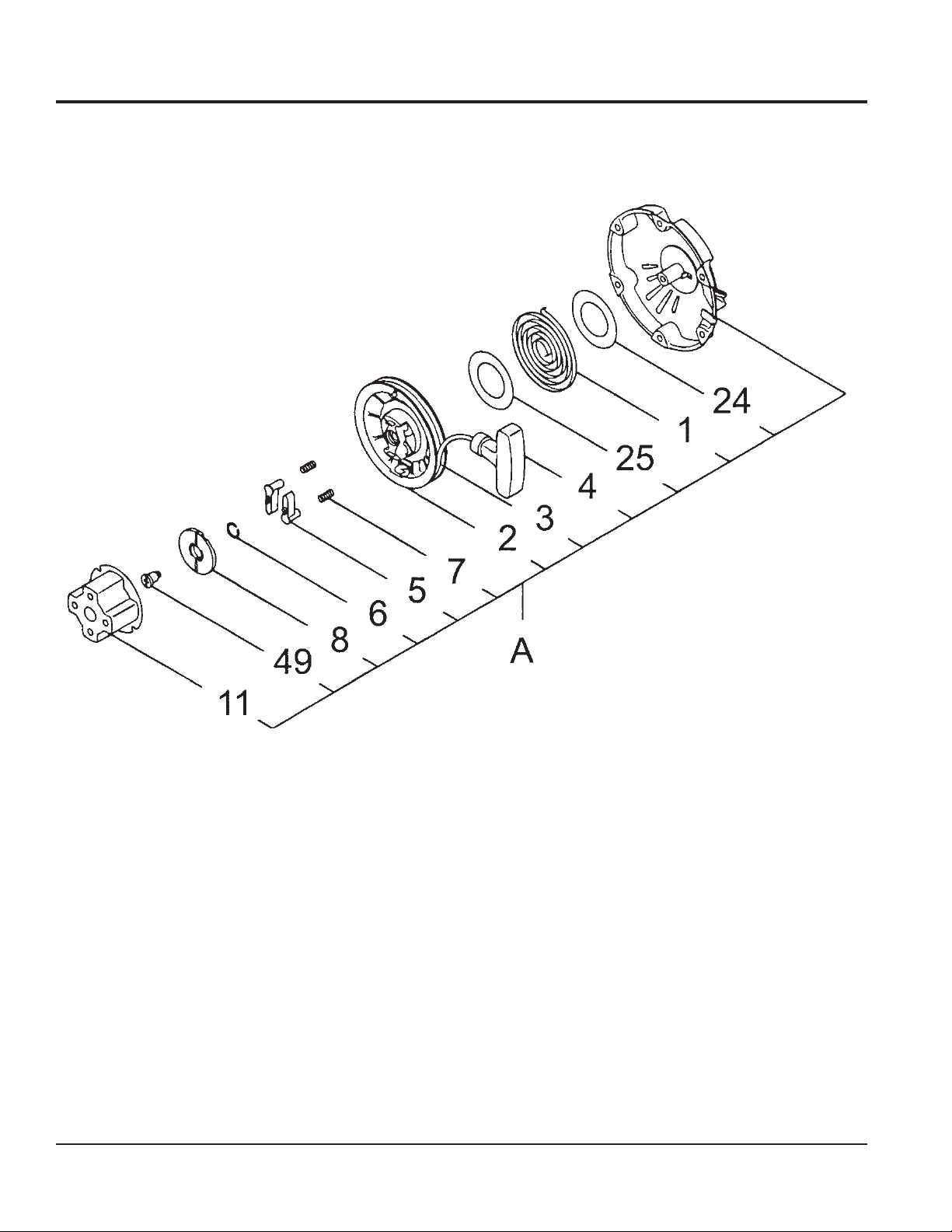

Recoil Starter Assembly.................................... 66-67
Accessories Assembly ...................................... 68-69
Terms and Condition Of Sale
— Parts .................... 70
60-61
NOTICE
Specification and part number are subject to
change without notice.
PAGE 4 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
PARTS ORDERING PROCEDURES
r
Ordering parts has never been easier!
Choose from three easy options:
January 1
Effective:
st
, 2006
Best Deal!
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
■ View Parts Diagrams
■ Order Parts
■ Print Specification Information
Goto www.multiquip.com and click on
Order Parts
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)
Non-Dealer Customers:
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
to log in and save!
Order via Phone:
If you have an MQ Account, to obtain a Username
and Password, E-mail us at: parts@multiquip.
com.
To obtain an MQ Account, contact you
District Sales Manager for more information.
Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*
Fax your order in and qualify for a 2% Discount
on Standard orders for all orders which include
complete part numbers.*
Domestic (US) Dealers Call:
1-800-427-1244
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Note: Discounts Are Subject To Change
Note: Discounts Are Subject To Change
When ordering parts, please supply:
❒ Dealer Account Number
❒ Dealer Name and Address
❒ Shipping Address (if different than billing address)
❒ Return Fax Number
❒ Applicable Model Number
❒ Quantity, Part Number and Description of Each Part
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
❒ Specify Preferred Method of Shipment:
✓ UPS/Fed Ex ✓ DHL
■ Priority One ✓ Tr uck
■ Ground
■ Next Day
■ Second/Third Day
www.multiquip.com
WE ACCEPT ALL MAJOR CREDIT CARDS!
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 5
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others. The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
Lethal Exhaust Gases
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
PAGE 6 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
SAFETY INFORMATION
.
GENERAL SAFETY
CAUTION
NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
NEVER operate this equipment under the influence of
drugs or alcohol.
ALWAYS check the equipment for loosened threads or
bolts before starting.
DO NOT use the equipment for any purpose other than
its intended purposes or applications.
NOTICE
This equipment should only be operated by trained and
qualified personnel 18 years of age and older.
Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
NEVER use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest phone or keep a
phone on the job site. Also, know the phone numbers of
the nearest ambulance, doctor and fire department. This
information will be invaluable in the case of an emergency.
RAMMER SAFETY
DANGER
NEVER operate the equipment in an explosive
atmosphere or near combustible materials. An
explosion or fire could result causing severe
bodily harm or even death.
WARNING
NEVER disconnect any emergency or safety devices.
These devices are intended for operator safety
Disconnection of these devices can cause severe injury,
bodily harm or even death. Disconnection of any of these
devices will void all warranties.
DO NOT use this machine on ground that is harder than
the machine can handle, or for driving pilings or tamping
rock beds. Furthermore, use of the machine on sloping
ground, such as the side of an embankment, may make
the machine unstable and can cause an accident. It can
also result in premature machine wear due to uneven
loads on the machine.
Use the machine with confidence for tamping earth and
sand, soil, gravel, and asphalt. DO NOT use the machine
for other types of jobs.
CAUTION
NEVER lubricate components or attempt service on a
running machine.
NOTICE
ALWAYS know the location of the nearest
fire extinguisher.
ALWAYS know the location of the nearest
first aid kit.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 7
ALWAYS keep the machine in proper running condition.
Fix damage to machine and replace any broken parts
immediately.
ALWAYS store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
SAFETY INFORMATION
k
ENGINE SAFETY
DANGER
The engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.
The engine of this equipment
requires an adequate free flow
of cooling air. NEVER operate
this equipment in any enclosed
or narrow area where free flow
of the air is restricted. If the air
flow is restricted it will cause
injury to people and property
and serious damage to the
equipment or engine.
WARNING
DO NOT place hands or fingers inside engine
compartment when engine is running.
NEVER operate the engine with heat shields or
guards removed.
DO NOT remove the engine oil drain plug
while the engine is hot. Hot oil will gush
out of the oil tank and severely scald any
persons in the general area of the rammer.
CAUTION
FUEL SAFETY
DANGER
DO NOT add fuel to equipment if it is placed inside truc
bed with plastic liner. Possibility exists of explosion or
fire due to static electricity.
DO NOT
fluids. Fuel is extremely flammable and its vapors can
cause an explosion if ignited.
ALWAYS refuel in a well-ventilated area, away from
sparks and open flames.
ALWAYS use extreme caution when working with
flammable liquids.
start the engine near spilled fuel or combustible
NEVER touch the hot exhaust manifold,
muffler or cylinder. Allow these parts to cool
before servicing equipment.
NOTICE
NEVER run engine without an air filter or with a dirty air
filter. Severe engine damage may occur. Service air filter
frequently to prevent engine malfunction.
NEVER tamper with the factory settings
of the engine or engine governor. Damage
to the engine or equipment can result
if operating in speed ranges above the
maximum allowable.
PAGE 8 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
DO NOT fill the fuel tank while the engine is running
or hot.
DO NOT overfill tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from
the ignition system.
Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and flames.
NEVER use fuel as a cleaning agent.
DO NOT smoke around or near the
equipment. Fire or explosion could result
from fuel vapors or if fuel is spilled on a
hot engine.
TRANSPORTING SAFETY
CAUTION
NEVER allow any person or animal to stand underneath
the equipment while lifting.
NOTICE
Before lifting, make sure that the equipment parts (hook
and vibration insulator) are not damaged and screws are
not loose or missing.
Always make sure crane or lifting device has been
properly secured to the lifting bail (hook) of the
equipment.
ALWAYS shutdown engine before transporting.
NEVER lift the equipment while the engine is running.
Tighten fuel tank cap securely and close fuel cock to
prevent fuel from spilling.
SAFETY INFORMATION
Use adequate lifting cable (wire or rope) of sufficient
strength.
Use one point suspension hook and lift straight
upwards.
DO NOT lift machine to unnecessary heights.
ALWAYS tie down equipment during transport by
securing the equipment with rope.
Never allow any person or animal to stand underneath the
equipment while lifting.
ENVIRONMENTAL SAFETY
NOTICE
Dispose of hazardous waste properly.
Examples of potentially hazardous waste
are used motor oil, fuel and fuel filters.
DO NOT use food or plastic containers to dispose of
hazardous waste.
DO NOT pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 9
Definition of Tamping Rammer
The Mikasa MT55F tamping rammer is a powerful
compacting tool capable of applying a tremendous force in
consecutive impacts to a soil surface. Its applications include
soil compacting for road, embankments and reservoirs as
well as backfilling for gas pipelines, water pipelines and cable
installation work.
The impact force of the MT55F levels and uniformly compacts
voids between soil particles to increase dry density.
Circular motion is converted to create impact force. The
MT55F tamping rammer develops a powerful compacting
force at the foot of the rammer. To maintain optimum
performance, proper operation and service are essential.
Construction of Tamping Rammer
The Mikasa MT55F is equipped with an air cooled, two cycle
gasoline engine. Transmission of the power takes place by
increasing the engine speed to engage the centrifugal clutch.
Rammer Gearbox and Spring Cylinder
The Mikasa MT55F uses an oil bath lubrication system.
Always check the oil level through the oil level sight glass at
the rear of the tamper foot.
1. Make sure that there is no damage on the bolts.
2. Make sure that there is no crack or breakage on handle.
3. Make sure that there is no fissure on the surface. If there
is any abnormality or damage, replace with new one.
For operation:
This handle is to be used to lift up the shoe part of the machine
with the body laid down on the ground or truck bed.
1. Use proper lifting techniques to avoid back injury. This
handle is for manual lifting only.
2. Do not use this handle as a rammer lift point. Use the
lifting point on the top of the machine.
3. Do not move the rammer with the lifting handle and the
front rollers more than (16 feet) 5 meters.
GENERAL INFORMATION
CAUTIONCAUTION
CAUTION
CAUTIONCAUTION
Before starting operation check the lifting
handle to:
Handle Operation
Controls
Before starting the MT55F Tamping Rammer identify and
understand the function of the controls, see Figure 1 on
page 13.
PAGE 10 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
LEDOMF55-TM
thgieHllarevO)mm030,1(.ni6.04
htdiWllarevO)mm053(ni8.31
htgneLrevO)mm086(ni8.62
SPECIFICATIONS
noitacificepSremmaRF55-TM.1elbaT
sssss
eziSeohS)mm043x562
etunim/swolB596~006
)thgieHpmuJ(ekortS)mm07(.ni57.2
deepSlevarT)nim/sretem11(nim/.tf63
apmI
ecroFtc
hctulClagufirtneCcitamotuA
yticapaCknaTleuF)sretil0.2(.tq1.2
itcapmoCfoaerAxaM )nim/retem.qs471(.nim.tf.qs278,1
no
thgieWgnitarepO)gk75(.sbl621
ledoM01054D290HE/05054D090HENIBOR
epyT
ekortSXeroB
tnemecalpsiDmc68(ni.uc42.5
(.ni4.31x4.01
wolb/.sbl052,2~056,1
)wolb/gk000,1~057(
)enignE(snoitacificepS.2elbaT
,VHO,rednilyCelgniS,ekorts4delooc-riA
noziroH
enignEenilosaGtfahSlat
.ni56.1X.ni10.2
)mm24xmm15(
3
)
NOTE
tuptuOxaM)Wk8.1(.M.P.R0063/.P.H4.2
enignE
thgieWteNyrD
leuFenilosaGdedaelnU
yticapaCliOebuL)sretil3.0(.lag97.0
epSepyTthgiew-ylFlagufirtneC
gulPkrapSA6RMB,A6MBGKN
renaelCriAepyTtnemelElauD
)HxWxL(noisnemiD
dohteMlortnoCde
metsySnoitingI)etatSdlioS(oten
dohteMgnitratStratSlioceR
gaMleehwylF
.ni0.31X6.11x1.9
).mm033X592X232(
9(.sbl7.02
).gK4.
Specifications are general and are subject to change without notice. If exact
measurements are required, equipment should be weighed and measured.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 11
COMPONENTS
Figure 1. MT55F Rammer
Figure 1 shows the location of the controls and components
for the MT55F Tamping Rammer. The functions of each control
is described below:
1. Throttle Lever – Used to adjust engine speed (rpm). Move
lever forward
back toward operator
(SLOW)
to reduce engine speed, move lever
(FAST
) to increase speed.
2. Fuel Shut-Off Valve – Supplies fuel from the fuel tank to
the engine. To begin fuel flow move the fuel shut-off valve
downward.
3. Oil Bath Fill Plug – Open this plug to add oil to the oil
8. Fuel Tank/Cap – Remove this cap to add unleaded gaso-
line to the fuel tank. Make sure cap is tightened securely. DO
NOT over fill.
CAUTION - Fueling The Engine
Adding fuel to the tank should be done only
when the engine is stopped and has had an
opportunity to cool down. In the event of a fuel
spill, DO NOT attempt to start the engine until
the fuel residue has been completely wiped up,
bath reservoir.
4. Drain Valve – Open this valve to remove oil from the
bellows.
5. Primary Air Cleaner – Pre-cleans (first stage) dirt and
other debris from entering the engine.
6. Foot– Laminated wood with tempered steel plate for
L1. A Returned Material Authorization must be approved by Multiquip prior to shipment. A copy of the Authorization must
accompany the shipment to the designated Warehouse. A copy of the original Multiquip invoice to the customer must
superior shock absorption.
also accompany the shipment.
7. Oil Level Sight Glass – Indicates the level of oil in the oil
bath reservoir.
9. Bellows – Reservoir for oil bath.
10. Handle – To operate rammer
GRIP
handle assembly
firmly on both sides.
11. Nameplate – Displays information regarding the rammer.
12. Engine Air Cleaner – Prevents dirt (second stage) and
other debris form entering the engine.
13. Muffler – Used to reduce noise and emissions.
PAGE 12 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
BASIC ENGINE
Figure 2. Engine Controls and Components
INITIAL SERVICING
The engine (Figure 2) must be checked for proper lubrication and
filled with fuel prior to operation. Refer to the manufacturers Engine
manual for instructions & details of operation and servicing.
1. Secondary Air Cleaner – Prevents dirt and other debris
from entering the fuel system. Remove wing-nut on top of
air filter cannister to gain access to filter element.
2. Choke Lever –Used when starting the engine. Normally
used in cold weather conditions. In cold weather turn the
choke lever to the fully closed position, in warm weather
set choke lever half way or completely open.
3. Spark Plug – Provides spark to the ignition system. Set
spark plug gap to 0.02 - 0.03 inch (0.6 - 0.7 mm). Clean
spark plug once a week.
4. Engine ON/OFF Switch – Controls the starting and
stopping of the engine. Switch must be in the "ON" position
when starting the engine.
Operating the engine without an
NOTE
air filter, with a damaged air filter,
or a filter in need of replacement
will allow dirt to enter the engine,
5. Recoil Starter (pull rope) – Manual-starting method. Pull
the starter grip until resistance is felt, then pull briskly and
smoothly.
6. Muffler – Used to reduce noise and emissions.
CAUTION - Burn Hazard
Engine components can generate extreme heat.
To prevent burns, DO NOT touch these areas
while the engine is running or immediately after
operating. NEVER operate the engine with the
muffler removed.
7. Dipstick/Oil Filler Cap – Remove this cap to determine if
the engine oil is low. Add oil through this filler port as
recommended in Table 3.
8. Oil Drain Plug – Remove this plug to remove oil from the
engine's crankcase.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 13
OPERATION
This section is intended to assist the operator with the initial
start-up of the MT55F Tamping Rammer. It extremely important
that this section be read carefully before attempting to operate
the rammer.
DO NOT use your rammer until this section is thoroughly
understood.
Fuel
1. Fill the fuel tank (Figure 4) with unleaded gasoline. DO NOT
overfill, wipe up spilled fuel immediately.
CAUTION - Read Manual
DO NOT attempt to operate the Tamping
Rammer until the Safety, General
Information and Inspection sections of this
manual have been
understood
Rammer Gearbox and Spring Cylinder Oil Bath
This unit uses an oil bath lubrication system. Perform the following:
1. Check the oil level through the oil level sight glass (Figure 3)
at the rear of the tamper foot.
read and thoroughly
.
Engine Oil Check
1. To check the engine oil level, place the rammer on secure
level ground with the engine stopped.
Figure 4. Fuel Tank
2. Remove the filler cap/dipstick from the engine oil filler hole
(Figure 5) and wipe it clean.
Figure 3. Foot Housing Sight Glass
2. If oil is not visible, add 10W-30 SE, SF or higher grade motor
oil into the oil fill plug opening (Figure 3). The bath contains
approximately 1.0 pints (520 cc.)
NOTE
The oil level should be kept at the half
way point of the sight glass.
3. Insert and remove the dipstick without screwing it into the filler
neck. Check the oil level shown on the dipstick.
4. If the oil level is low (Figure 6), fill to the edge of the oil filler
hole with the recommended oil type (Table 3). Maximum oil
capacity is .079 gallons (0.3 liters)
Figure 5. Engine Oil Dipstick
PAGE 14 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
OPERATION
Initial Start-up
When starting the MT55F Tamping Rammer perform the
following:
Figure 6. Engine Oil Dipstick (Oil Level)
Inspection
erutarepmeTronosaeS
nmutuAroremmuS,gnirpS
F°51+otF°021+
retniW
1+otF°04+
F°5
F°51+woleB03-W01EAS
1. Open the
lever to the
fuel shut- off valve
open
position (Figure 7).
by moving the
fuel cock
edarGliOrotoM3elbaT
liorotomfoedarG
)ssalcSMnahtrehgih(
03EAS
03EAS
Figure 7. Fuel Shut-Off Valve (ON)
2. Set the engine ON/OFF switch (Figure 8) to the "ON"
position (start).
1 . Check all nuts, bolts fasteners for tightness. Retighten as
necessary.
2. Clean any dirt from the recoil starter and foot pedestal. Wipe
the entire unit clean before operating.
3. Replace any missing or damaged Safety Operation decals.
4. Adjust height of handle. Adjust handle by loosening nuts and
moving handle to suit operation. Retighten nuts.
3. Move the throttle lever to the "IDLE" position (Figure 9).
Figure 8. On Off Switch
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 15
Figure 9. Throttle Lever (Idle)
4. In cold weather, start the unit with choke lever "Fully
Closed"(Figure 10). In warm weather or when the engine is
warm, the unit can be started with choke halfway or com-
open
pletely
.
OPERATION
Figure 11. Recoil Starter
6. If engine fails to start, move the choke lever (Figure 10) to the
half open position to avoid flooding.
7. Repeat steps 1 thru 6.
8. If the engine does not start after repeated attempts,
check the spark plug for excess fuel. Clean and replace
the spark plug as needed.
Operation
1. To start the rammer tamping action, move the throttle lever
(Figure 12)
position . DO NOT move the throttle lever slowly as this may
cause damage to the clutch or spring.
Figure 10. Choke Lever (Closed)
5. Grip the recoil starter (Figure 11) handle and pull it until you
feel a slight resistance. Then pull sharply and quickly. Return
the recoil starter handle to the starter case before releasing.
quickly
from IDLE (close) to the FULL OPEN
Figure 12. Throttle Lever (Full Open)
PAGE 16 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
OPERATION
CAUTION - Throttle Lever
Make sure that the throttle lever is moved to the FULL OPEN
position. Operating the rammer at less than full speeds can result
in damage to the clutch springs or foot
2. The MT55F Tamping rammer is designed to run at 3,600 rpm.
At optimum rpm the foot hits at the rate between 600 ~ 695
impacts per minute. Increasing throttle speed past factory
set rpm does not increase impacts and may damage unit. The
MT55F is designed to advance while tamping. For faster
advance, pull back slightly on the handle so that rear of foot
contacts soil first.
2. After the engine
“OFF” position (Figure 14).
Figure 14. ON/OFF Switch (Off Position)
2. Close the
cock lever to the CLOSED position.
cools
, turn the engine start/stop switch to the
fuel shut- off valve
(Figure 15) by moving the fuel
Figure 13. Throttle Lever (Idle)
Stopping The Engine
Normal Shutdown
1. Move throttle lever quickly from the FULL OPEN to IDLE
position (Figure 13) and run the engine for three minutes at
low speed.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 17
Figure 15. Fuel Shut-OFF Valve (Off Position)
Emergency Showdown
1. Move the throttle lever quickly to the
the engine start/stop switch to the
valve lever to the
CLOSED
position.
IDLE
position, and turn
OFF
position. Turn fuel
Maintenance
MAINTENANCE
Perform the scheduled maintenance procedures as indicated:
DAILY
■
Thoroughly remove dirt and oil from the engine and control
area. Clean or replace the air cleaner elements as necessary.
Check and retighten all fasteners as necessary. Check the
spring box and bellows for oil leaks. Repair or replace as
needed.
WEEKLY
■
Remove the fuel filter cap and clean the inside of the fuel
tank.
■
Remove or clean the filter at the bottom of the tank.
■
Remove and clean the spark plug, then adjust the spark gap
to 0.02~0.03 inch (0.6~0.7 mm). This unit has electronic
ignition, which requires no adjustments.
■
Clean air cleaner cover.
200 - 300 HOURS (Pre-Cleaner)
■
Remove the element from the pre-cleaner (Figure 16) at the
top of the crankcase (body side) and clean it with cleaning oil
(kerosene).
■
Tap the paper filter element (Figure 17 ) several times on a
hard surface to remove dirt, or blow compressed air [not
exceeding 30 psi (207 kPa, 2.1 kgf/cm
element from the air cleaner case side.
Brushing will force dirt into the fibers. Replace the paper filter
element if it is excessively dirty.
200 - 300 HOURS (Oil Bath)
■
Drain oil reservoir on foot housing (Figure 18). Refill with
approximately 1.0 pt. (520 cc.) of 10W-30 SE, SF or higher
grade motor oil. Oil should be midway in sight glass. Break in
oil should be changed after first 50 hours.
PAPER
ELEMENT
GRAY OUTER
FOAM ELEMENT
CLEAN WITH
KEROSENE
CLEAN WITH
COMPRESSED
AIR
Figure 17. Engine Air Cleaner
2
)] through the filter
NEVER
brush off dirt.
Yearly
■
Figure 16. Primary Air Filter
■
Lubricate the top element (yellow) with 2~5 cc of engine oil
■
SAE-30.
■
Lubricate bottom element (gray) with 7~9 cc of engine oil
SAE-30 and completely squeeze out the excess oil from the
element before installing.
■
The air cleaner (Figure 17 ) on the engine side will hardly be
Long Term Storage
■
■
contaminated, if it is, clean the outer foam gray element with
cleaning solvent. Tightly squeeze outer foam element to
remove any excess solvent before re-installing.
■
■
PAGE 18 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
Figure 18. Foot Housing Drain Plug
Check the fuel line and the oil line regularly for damage and
to ensure that there are no leaks.
Replace the oil and fuel lines every two years to maintain the
performance and flexibility lines.
Drain fuel from fuel tank, fuel line and carburetor.
Remove spark plug and pour a few drops of motor oil into
cylinder. Crank engine 3 to 4 times so that oil reaches all
internal parts.
Clean exterior with a cloth soaked in clean oil.
Store unit covered with plastic sheet in moisture free and
dust free location out of direct sunlight
NOTES
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 19
GNITOOHSELBUORTENIGNE.4ELBAT
MOTPMYS MELBORPELBISSOP NOITULOS
tratsottluciffiD
?egdirbgniebgulpnoitingI .metsysnoitingikcehC
TROUBLESHOOTING
.)elbacnoisnethgih
rewoP(.etingitonlliw TON
noisserpmoc(setingi )lamron .
noisserpmoc(setingi wol .)
yrotcafsitastonnoitarepO
gulpkrapstubelbaliavasileuF
taelbaliavarewoP(.etingitonlliw
?srotalusni
gulpkrapstubelbaliavasileuF
.)elbacnoisnethgihtaelbaliava
?stisoped
gulpkrapsdnaelbaliavasileuF
?)tsud
gulpkrapsdnaelbaliavasileuF
?nrowrednilyC .rednilycecalpeR
?noitingitatisopednobraC .noitingiecalperronaelC
evitcefedoteudtiucrictrohS
?pagkrapsreporpmI .pagtcerrocehtotpaggulpkrapsteS
?hctiwspotstatiucrictrohS .evitcefedfihctiwspotsecalpeR.tiucrichctiwspotskcehC
?evitcefedliocnoitingI .liocnoitingiecalpeR
nobrachtiwdeggolcrelffuM
?etauqedanisiytilauqleufdexiM .erutximliootleufkcehC
,retaw(etauqedaniesunileuF
?deggolcrenaelCriA .renaelcriaecalperronaelC
?teksagdaehrednilycevitcefeD .teksagdaehecalperrostlobdaehrednilycnethgiT
?esoolgulpkrapS .gulpkrapsnehgiT
.srotalusniecalpeR
.relffumecalperronaelC
.leufhserfhtiwecalperdnametysleufhsulF
?deggolcrenaelcriA .renaelcriaecalperronaelC
elbaliavarewophguonetoN
-ssimon,lamronnoisserpmoc(
.)gnirif
elbaliavarewophguonetoN
-ssim,lamronnoisserpmoc(
.)gnirif
?)tsud
.staehrevoenignE
?enilleufniriA .enilleufmorf)riaevomer(deelB
?reporpmirebmahc
?evitcefedliocnoitingI .leufhserfhtiwecalperdnametysleufhsulF
?rebmahcnoitsubmoc
.nobrac
taolfrotaerubracnilevelleuF
?rednilycnistisopednobraC rednilycecalperronaelC
?strohsnetfogulpnoitingI .noitinginaelc,seriwnoitingiecalpeR
,retaw(etauqedaniesunileuF
?etauqedanisiytilauqleufdexiM .erutximliootleufkcehC
ninoitsopednobracevissecxE
htiwdeggolcrelffumrotsuahxE
?tcerrocnieulavtaehgulpkrapS .gulpkrapsepyttcerrochtiwgulpkrapsecalpeR
taolfrotaerubractsujdA
.leufhserfhtiwecalperdnametysleufhsulF
.esacknarcecalperronaelC
.relffumecalperronaelC
PAGE 20 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
TROUBLESHOOTING
ENGINEENGINE
ENGINE
ENGINEENGINE
deunitnoc(GNITOOHSELBUORTENIGNE.4ELBAT )
MOTPMYS MELBORPELBISSOP NOITULOS
yrotcafsitastonnoitarepO
?reporpmitnemtsujdaronrevoG .reveltcerrocotronrevogtsujdA
?evitcefedgnirpsronrevoG .noitingiecalperronaelC
.setautculfdeepslanoitatoR
?citarrewolfleuF .enilleufkcehC
?enil
.ylreporp
gnikrowtonretratslioceR
MOTPMYS MELBORPELBISSOP NOITULOS
?tesyltcerrocnisi
?ssecxeniliO .leveltcerrocotgnirB.liossecxeniarD
spmujremmartubsnurenignE
..llatatonroyllacitarre
?spilshctulC .hctulctsujdaroecalpeR
?eruliaFgnirpS .gnirpslairpsecalpeR
noitcushguorhtninekatriA
?trapgnitatornitsuD .ylbmessaretratsliocernaelC
?eruliafgnirpsgnirpS .gnirpslairpsecalpeR
revelelttorhtfodeepsgnitarepO
?reporpmienignefodeepS .gnittesMPRgnitarepotcerrocotdeepsenignetsujdA
.enilnoitcuskcehC
GNITOOHSELBUORTREMMAR.5ELBAT
.noitisoptcerrocotrevelelttorhtteS
?detcapmoc-revolioS .liostsetdnaenihcamnwod-tuhS
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 21
EXPLANATION OF CODES IN THE REMARKS COLUMN
The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the
help numbers found on the back page of the manual if there
are any questions.
NOTICE
The contents and part numbers listed in the parts
section are subject to change without notice. Multiquip
does not guarantee the availability of the parts listed.
SAMPLE PARTS LIST
NO. PART NO. PART NAME QTY. REMARKS
1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%
2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY
2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY
3 12348 HOSE ..................A/R ...MAKE LOCALLY
4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE
NO. Column
Unique Symbols — All items with same unique
symbol
QTY. Column
Numbers Used — Item quantity can be indicated by a
number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other
parts that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold
separately. Other entries will be clarified in the “Remarks”
Column.
REMARKS Column
Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed
to describe the item can also be shown.
Assembly/Kit — All items on the parts list with the
same unique symbol will be included when this item is
purchased.
Indicated by:
“INCLUDES ITEMS W/(unique symbol)”
(@, #, +, %, or >) in the number column belong to the
same assembly or kit, which is indicated by a note in the
“Remarks” column.
Duplicate Item Numbers — Duplicate numbers indicate
multiple part numbers, which are in effect for the same
general item, such as different size saw blade guards in
use or a part that has been updated on newer versions
of the same machine.
NOTICE
When ordering a part that has more than one item
number listed, check the remarks column for help in
determining the proper part to order.
PART NO. Column
Numbers Used — Part numbers can be indicated by a
number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a
part that has not been assigned a formal part number
at the time of publication.
A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will
be clarified in the “Remarks” Column.
Serial Number Break — Used to list an effective serial
number range where a particular part is used.
Indicated by:
“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”
Specific Model Number Use — Indicates that the part
is used only with the specific model number or model
number variant listed. It can also be used to show a
part is NOT used on a specific model or model number
variant.
Indicated by:
“XXXXX ONLY”
“NOT USED ON XXXX”
“Make/Obtain Locally” — Indicates that the part can
be purchased at any hardware shop or made out of
available items. Examples include battery cables, shims,
and certain washers and nuts.
“Not Sold Separately” — Indicates that an item cannot
be purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available
for sale through Multiquip.
PAGE 22 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
MT55F RAMMER 3TO 5 UNITS WITH ROBIN
EH-09D45050/EH-092D45010 ENGINES
Qty. P/N Description
1 ............ 362910060 ............ LEVER, THROTTLE
1 ............ 956100040 ............ THROTTLE WIRE
3 ............ 362030030 ............ ELEMENT, AIR CLEANER
5 ............ 362030020 ............ PACKING, AIR CLEANER
3 ............ 362455670 ............ ELEMENT, CRANKCASE
2 ............ 351316870 ............ CLAMP, BELLOWS
1 ............ 353332870 ............ BELLOWS
1 ............ 361910021 ............ CAP, FUEL TANK W/ STRAP
1 ............ 954406000 ............ COCK, FUEL ASSY.
2 ............ 301419750 ............ FILTER, IN-LINE FUEL
3 ............ 2743260307 .......... ELEMENT, SET ENGINE
1 ............ 0660000361 .......... STOP, SWITCH
3 ............ 0650140470 .......... SPARK PLUG, NKG
1 ............ 362454440 ............ CLUTCH
3 ............ 2745011108 .......... STARTER ROPE
1 ............ 954404890 ............ FILTER, FUEL TANK (UPPER)
1 ............ 954406010 ............ STRAINER, FUEL TANK (LOWER)
SUGGESTED SPARE PARTS
NOTICE
Part number on this Suggested Spare Parts List may
supersede/replace the P/N shown in the text pages of
this book.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 23
OHV
NPA-961 E
GASOLINE ONLY
11
Oil
öl
I’ huile
SAE30
7~9 cc
14
3800 ~ 4100 RPM
NPA-957 J
13
Tostart, switch must be
in the “ ” positionON
12
When you stop
the engine, be
sure to close
the fuel cock
NPA-399 J
NAMEPLATE AND DECALS
2
READ OWNER’S SERVICEMANUAL BEFORE OPERATING OR
SERVICINGTHIS MACHINE.
ALWAYSKEEP UNAUTHORIZED, INEXPERIENCED,
UNTRAINED PEOPLEAWAY FROM THIS MACHINE.
MAKE SUREALL SAFETY DEVICES ARE OPERATIONAL
BEFORETHIS MACHINE IS STARTED. MAKE SURE ENGINE
ISTURNED OFF AND SPARK PLUG WIRE DISCONNECTED
BEFORE SERVICINGTHE MACHINE OR COMING IN
CONTACTWITH ANY MOVING PART.IF EQUIPMENT IS
POWERED BYAN ELECTRIC MOTOR DISCONNECT
ELECTRICALPLUG.
NEVER LEAVEMACHINE UNATTENDED WHEN OPERATING.
ALWAYSSTOP ENGINE ANDALLOW ENGINE TO COOL
NPA293
BEFOREADDING FUEL OR OIL.
1
NPA-329 J
GASOLINE ONLY
3
Priorto each operation check
Checkall nuts and bolts for tightness.
Checkoil levels in both the engine and the lower unit.
Keepmachine at the upright operating position to check.
1.Lower unit assembly-Check sight glass for proper level.
2.Engine-Fill to the lower outer rim.
DCL205
NPA-975 J
CAUTION
4
OPERATION
ToSTART engine:
Openfuel filter valve and close choke lever on carburetor.
Placestarter switch to “ON” and pull start rope.
Whenengine starts, open the choke lever and warm up the
enginefor 4-5 minutes before operation.
ToSTOP engine:
Movethe throttle lever quickly from “ON” to “OFF” position.
Thenmove starter switch to “OFF” and close the fuel filtervalve.
Mikasa
10
9
CAUTION
ATTENZIONE
ATENÇAÕ
PRECAUCION
*Read operator’s manual carefully before use.
*Libre le manual attentivement avant utillsation.
*Bitte lesen Sie vor inbetriebnahme der Maschine de
Bedienungsanleitungsogfältig durch.
*Prima dell’ uso leggere attentamente il manuale.
*Lee com atenÇão o manual de instruÇões antes de
usar.
*Leer detenidamente el mamual de instrucciones
antesde usar la maquina.
NPA-769 J
NPA-910 J
8
PRIMARY AIRFILTER
CHECK DAILY
5
NOTICE
CLEANTHE ELEMENT WITH KEROSENE WHEN DIRTY.AFTER THE
CLEANING,LUBRICATE IT MIXED OIL (KEROSENE 2~4: ENGINE OIL
1),SQUEEZE OUT THE OIL, AND REPLACE IT.AND CLEAN IT MORE
OFTENWHEN OPERATING IN DUSTY CONDITIONS.
NP-831 J
6
Mikasa
CLEANING ELEMENT:
MT-55F
DCL207
7
NAMEPLATE
Remove the element from the pre-cleaner
Clean the element with solvent
Apply SAE30 motor oil with 7~9 cc, and
squeeze out excess oil before re-installing.
NPA-963 J
PAGE 24 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
NAMEPLATE AND DECALS
NO PART NO PART NAME QTY. REMARKS
1
*
2
*
3
*
4
*
5
*
6
*
7 DECAL: NAMEPLATE .................................. 1 ............ CONTACT MQ PARTS DEPT. W/MODEL & S/N
8
*
9
*
10
11
12
13
14
920106460 DECAL: MIKASA LOGO 1
920203290 DECAL: READ MANUAL ............................. 1 ............ NPA-329
DCL205 DECAL: GASOLINE ONLY 1
NPA975 DECAL: CAUTION/OPERATION 1
NPA831 DECAL: NOTICE 1
NPA963 DECAL: CLEANING ELEMENT 1
DCL207 DECAL: PRIMARY AIRFILTER 1
NPA769 DECAL: CAUTION READ MANUAL 1
NPA910 DECAL: RAMMER, BOOT & HEARING 1
*
NPA961 DECAL: OIL 7~9 cc 1
*
920203990 DECAL: FUEL COCK ................................... 1 ............ NPA-399
*
920202930 DECAL: START SWITCH ............................ 1 ............ NPA293
*
NPA957 DECAL: 3800~4100 RPM 1
*
DCLMT55F KIT, DECAL ................................................. 1 ............ INCLUDES ITEMS W/
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 25
CRANKCASE AND ENGINE ASSY.
PAGE 26 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
CRANKCASE AND ENGINE ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 362116510 CRANK CASE 1
2 362341650 CRANK GEAR 1300-59Z 1
3 040006305 BEARING 6305 1
4 040006203 BEARING 6203 1
5 952401450 WASHER 8.5X22X3 1
6 001220825 BOLT 8X25 T 1
7 030208200 SW M8 1
8 362455660 BEARING COVER 1
9 050100350 O-RING G-35 1
10 002210620 BOLT 6X20 H, SW 2
11 303010060 CONNECTING ROD 1
12 040006304 BEARING 6304 1
13 080100520 STOP RING R-52 1
14 952400130 WASHER 9304 1
15 001220825 BOLT 8X25 T 1
16 030208200 SW M8 1
17 303010084 PINION 1
18 040006007 BEARING 6007 1
19 041006007 BEARING 6007Z 1
20 351437750 SPACER 35.4-42.7-11 1
21 080200350 STOP RING S-35 1
22 351421900 SPACER, CLUTCH DRUM 1
23 060404010 OIL SEAL TC-40528 1
24 050300900 O-RING S-90 1
25 362454440 CLUTCH ASSY./CE120M 0.5C .................... 1 ............
25-1*943020020 CLUTCH SHOE C812 4
25-2*943050050 CLUTCH BOSS C812 1
25-3*943060090 CLUTCH GUIDE (A) 1
25-4*943060020 CLUTCH GUIDE/B 1
25-5 943030021 CLUTCH SPRING 2
26 0053204201 WOODRUFF KEY 1
27 301010210 LOCK WASHER, CLUTCH 1
28 0173120010 LOCK NUT 1
29 362341610 PACKING, FRONT COVER 1
30 002210620 BOLT 6X20 H,SW 9
31 2741500123 ADAPTER, FLANGE 1
32 0011408400 BOLT & WASHER ASSY. 4
33 0021808000 NUT 4
34 0032008000 SPRING WASHER 4
35 0031108000 WASHER 4
36 0310060020 DOWEL PIN 2
37 959006120 CLIP (TCP2-10509B) 1
38 362341620 OIL GAUGE PROTECTOR 1
39 362341630 LINK PROTECTOR 1
40 002400820 BOLT 8X20 SW, PW 4
INCLUDES ITEMS W/
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 27
CRANKCASE AND ENGINE ASSY.
PAGE 28 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
CRANKCASE AND ENGINE ASSY.
NO. PART NO. PART NAME QTY. REMARKS
41 2741600113 STIFFENER 1
42 0011408250 BOLT AND WASHER 4
43 0011408300 BOLT AND WASHER ASSY. 2
44 362116870 AIR CLEANER ASSY. .................................. 1 ............ INCLUDES ITEMS W/#
44-1# 362030010 COVER CP, AIR CLEANER 1
44-2# 362030020 PACKING, AIR CLEANER 1
44-3# 362030030 ELEMENT CP, AIR CLEANER 1
44-4# 362030040 BOLT CP, AIR CLEANER 1
44-5# 050300070 O-RING (S-7) 1
45 362341210 INTAKE PIPE 1
46 507010110 CLAMP TC-200 2
47 362455670 ELEMENT CRANKCASE 1
48 031108160 PW M8 1
49 911210905 ENGINE ASSY. EH09D45050 ...................... 1 ............ S/N N2299 AND BELOW
49 911210909 ENGINE ASSY. EH092D45010 .................... 1 ............ S/N N2300 AND ABOVE
50 64016 HOSE CLAMP 13x16, 1-1/2" SS 1
51# 031108160 WASHER, PW M8 1
52 362010040 COVER FRONT 1
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 29
GUIDE CYLINDER ASSY.
PAGE 30 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
GUIDE CYLINDER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
93 351420390 PISTON PIN 1
94 080100120 STOP RING R-12 2
95 351324120 PISTON ROD 1
96 362455680 PISTON END 1
97 020116130 NUT M16, P1.5 1
98 351434200 STOPPER, UPPER 1
99 351434211 STOPPER, LOWERD:30 1
100 362452830 MAIN SPRING, A,B 2
101 362341640 SPRING CYLINDER 1
102 362214820 FOOT PLATE 1
103 050100750 O-RING G-75 1
104 050930850 O-RING JASO3085 1
105 001521020 SOCKET HEAD BOLT 10X20 T 4
106 001521035 SOCKET HEAD BOLT 10X35 T 4
107 351209590 GUIDE CYLINDER 1
108 050100950 O-RING G-95 2
109 351316870 BELLOWS CLAMP, W/B40L,N,SV 2
110 351433250 BAND GUIDE/BELLOWS 2
111 001210840 BOLT 8X40 H 2
112 020308060 NUT M8 2
113 050100800 O-RING G-80 1
114 002211040 BOLT 10X40 H,SW 4
115 351109020 PROTECTION SLEEVE 1
118 959010150 LEVEL GAUGE, PLUG TYPE 1
119 953404670 COPPER PACKING 17X25.5X1 1
120 353332870 BELLOWS (OR) 1
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 31
FOOT ASSY. (OPTION)
PAGE 32 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
FOOT ASSY. (OPTION)
NO. PART NO. PART NAME QTY. REMARKS
A 362910050 FOOT ASSY. 265 ........................... 1 ......................... INCLUDES ITEMS W/
121 001611253 SUNK HEAD BOLT 10x55 4
122 022711214 NYLON NUT M12 4
123 030212300 WASHER, LOCK M12 4
124
# 001611051 SUNK HEAD BOLT 10x55 7
125
# 030210250 WASHER, LOCK M10 7
126
# 022711012 NYLON NUT M10 6
127
# 362341760 FOOT 265W 1
128
# 362341770 METAL SHEET 265W 1
129
# 362455760 FOOT FITTING 2
130
# 301010540 WASHER, 11 x 34 x 3.2 3
131
# 022711012 NYLON NUT M10 1
#
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 33
TANK AND HANDLE ASSY.
PAGE 34 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
TANK AND HANDLE ASSY.
NO. PART NO. PART NAME QTY. REMARKS
A 305910031 F.TANK AY 2L (GRAY) ............................... 1 ............... INCLUDES ITEMS W/
B 362910060 THROTTLE LEVER ASSY. ........................ 1 ............... INCLUDES ITEMS W/#
51# 362341550 THROTTLE BODY 1
# 362455610 THROTTLE GEAR 1
52
53
# 362455620 SLIDER 1
# 362455630 THROTTLE LEVER 1
54
55
# 050100450 O-RING G-45 1
*
56# 050200100 O-RING P-10 1
57
# 031110160 SCREW M10 3
# 033910070 CONICAL SPRING WASHER 2
58
59# 096206006 SOCKET HEAD SCREW 6X6 1
60# 022131008 CAP NUT M10 1
61
# 020410060 NUT M10,H=6 1
# 096208020 SOCKET HEAD SCREW 8X20 1
62
63
# 020408050 NUT M8, H=5 2
64# 956100040 THROTTLE WIRE 620-710 1
65 001220620 BOLT 6X20 T 2
66 030206150 WASHER, M6 2
67 022130605 CAP NUT, M6 2
68 351325590 SHOCK ABSORBER 100D-45B 2
69-1 033121009 SOCKET HEAD BOLT 10x20 T 4
69-2 033121009 TOOTHED LOCK WASHER B M10 4
70 002211020 BOLT 10X20 H, SW 4
71 939010210 STOPPER RUBBER EH1002..................... 1 ............... S/N N2299 AND BELOW
71 939010270 STOPPER RUBBER EH (70) ..................... 1 ............... S/N N2300 AND ABOVE
72 030208200 WASHER, M8 1
73 020308060 NUT M8 1
74
*
74-1*$ 353449010 STRAP, FUEL TANK 1
75
*
76
*
77
*
78 001220830 BOLT 8X30 T 2
79 030208200 WASHER M8 2
80 022710809 NYLON NUT M8 2
81 952401450 WASHER 8.5X22X3 2
83 362116890 FUEL TANK 2L (GRAY) 1
361910021 TANK CAP CP (ORANGE) .........................1 ............... INCLUDES ITEM W/$
351437785 HOLDER, COCK 1
954406020 PACKING, FUEL TANK 1
954406010 STRAINER (#110) 1
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 35
TANK AND HANDLE ASSY.
PAGE 36 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
TANK AND HANDLE ASSY.
NO. PART NO. PART NAME QTY. REMARKS
84 954406000 FUEL COCK ASSY. N18L-02 1
86 362117940 HANDLE ....................................................... 1 ............ REPLACES P/N 362116960
..................................................................................... S/N N2299 AND BELOW
86 362117941 HANDLE ....................................................... 1 ............ S/N N2300 AND ABOVE
87 959026102 FUEL HOSE/320L 1
88 954406420 HOSE BAND 10.5 2
89 361910040 ROLLER, W/PIN 1
90 091005025 SCREW 5X25 4
91 022610505 FLANGE NUT M5 H 4
92 031105080 WASHER, M5 4
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 37
ROBIN EH-090D ENGINE —
CRANKCASE ASSY.
PAGE 38 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2741010121 CRANKCASE CP ....................................1 ..........INCLUDES ITEMS W/#
20% 2371420203 VALVE GUIDE 2
26 2371600801 STEM SEAL CP 1
30# 0440200070 OIL SEAL 20X32X6 1
40# 0600200140 BALL BEARING 1
50# 0310060020 DOWEL PIN 2
60% 0013906600 STUD 1
61% 0105060200 STUD 1
62% 0105060170 STUD 2
70% 0105060160 STUD 2
75# 0440060010 OIL SEAL 6X10X2.5 1
80 0401140030 PLUG 1
90 0211140020 GASKET 1
150 2741600113 STIFFENER 1
160 0011408250 BOLT & WASHER 2
210 2741100131 MAIN BEARING COVER ......................... 1 .......... INCLUDES ITEMS W/
220*0440200110 OIL SEAL 20X32X6 1
230
250 2304500301 GOVERNOR GEAR CP 1
260 2054190103 GOVERNOR SLEAVE 1
265 0013908500 STUD 4
270 2306360113 OIL GAUGE 1
280 0213160020 GASKET 1
300 0130060200 BOLT & WASHER 9
610 2741300131 CYLINDER HEAD CP ............................. 1 .......... INCLUDES ITEMS W/%
620 2741550103 GASKET, HEAD 1
630 0110080210 FLANGE BOLT 4
680 2741550223 ROCKER COVER 1
690 2741600403 GASKET (ROCKET COVER) 1
700 0310060020 DOWEL PIN 2
710 0011406600 BOLT & WASHER ASSY. 4
727 0566000250 CLAMP 1
820 2741440101 BREATHER PLATE CP 1
821 2741620103 GASKET/BREATHER PLATE 1
825 2741440503 OIL SHELTER PLATE 1
850 2741610203 BREATHER PIPE 1
850-1 0566000331 CLAMP, BREATHER, PIPE 1
852 0569000010 HOSE CLIP 1
860 0011305100 BOLT & WASHER ASSY. 2
960 2749900107 GASKET SET 1
0600200140 BALL BEARING 1
*
CRANKCASE ASSY.
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 39
ROBIN EH-090D ENGINE —
CRANKSHAFT AND PISTON ASSY.
PAGE 40 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2742010141 CRANKSHAFT CP .................................. 1 .......... INCLUDES ITEMS W/#
40 0230200100 SPACER T=0.8 1
40 0230200110 SPACER T=1.0 1
40 0230200120 SPACER T=1.2 1
50 0021812000 NUT 1
60 0032012000 SPRING WASHER .................................. 1 ..........REPLACES 0032012000
70 0053203101 WOODRUFF KEY 1
75# 0053204201 WOODRUFF KEY 1
170 0173120010 LOCK NUT 1
310 2302250120 CONNECTING ROD ASSY. 1
320 2302300123 CONNECTING ROD BOLT 2
350 2302330103 PISTON PIN 1
360 2742340103 PISTON 1
360 2742340203 PISTON 0.25MM 1
360 2742340303 PISTON 0.50MM 1
370 2742350107 PISTON RING SET 1
370 2742350207 PISTON RING SET 0.25MM 1
370 2742350307 PISTON RING SET 0.50MM 1
380 0565110010 CLIP 2
CRANKSHAFT AND PISTON ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 41
ROBIN EH-090D ENGINE —
INTAKE AND EXHAUST ASSY.
PAGE 42 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2743170101 CAMSHAFT CP ............................ 1 ........ INCLUDES ITEMS W/%
34 2273860123 PIN (SPRING) 1
35% 2743640103 RELEASE LEVER 1
36% 0051904100 SPRING PIN 1
37% 0031517000 SNAP RING 1
38 2743870103 RETURN SPRING 1
50 2743330103 TAPPET 2
60 2743360103 VALVE SPRING 2
70 2743370103 SPRING RETAINER 2
80 2743340103 INTAKE VALVE 1
90 2743350103 EXHAUST VALVE 1
95 13210KA031 COLLET VALVE 4
210 2743530103 PUSH ROD 2
220 2743600103 ROCKER ARM 2
230 2693580103 BOLT (PIVOT) 2
240 0170060090 NUT 2
260 2743650103 GUIDE PLATE 1
310 2743010101 MUFFLER CP 1
310 2743010211 MUFFLER CP 1
330 2743700111 BRACKET CP (MUFFLER) 1
340 2743520101 GASKET CP (EXHAUST) 1
350 0176060020 SELF LOCK NUT 2
351 0023806000 FLANGE NUT ............................... 2 ........REPLACES 0023806000
360 0110060010 BOLT AND WASHER ASSY. ........ 2 ........ REPLACES 0011406120
375 0011306120 FLANGE BOLT ............................. 2 ........ REPLACES 0110060010
510 2743260400 AIR CLEANER ASSY. ................... 1 ........INCLUDES ITEMS W/
510-2
520
*
540 2303290103 INSULATOR 1
550 2303590103 GASKET (INSULATOR) 1
560 2303590203 GASKET 2 (INSULAT0R) 2
570 0176060020 SELF LOCK NUT 2
2303262008 GASKET 1
*
2743260307 ELEMENT SET/09 1
INTAKE AND EXHAUST ASSY.
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 43
ROBIN EH-090D ENGINE —
GOVERNOR ASSY.
PAGE 44 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2744230103 GOVERNOR LEVER 1
10 2744230101 GOVERNOR LEVER 1
20 2304220103 GOVERNOR SHAFT 1
30 2744270103 GOVERNOR ROD 1
30 2744270113 GOVERNOR ROD 1
40 1064280113 ROD SPRING 1
50 0031305000 CLIP 2
60 0011406250 BOLT AND WASHER ASSY. 1
70 0186060020 NUT 1
80 2744250103 GOVERNOR SPRING 1
200 2304330210 SPEED CONTROL ASSY. 1
210 0043104140 SCREW (PAN HEAD) 1
230 0140040070 SCREW 1
235 2684500103 CONTROL SPRING 1
280 2264310301 LINK PIVOT CP 1
345 0217100020 FRICTION WASHER 1
360 0043106300 SCREW 1
370 0022706000 NUT .........................................................1 ....... REPLACES 0022706000
385 2744510101 BASE PLATE CP 1
386 0110060050 FLANGE BOLT .......................................2 ....... REPLACES 0110060010
480 2264500313 RETURN SPRING 1
486 0230100040 SPACER 1
GOVERNOR ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 45
ROBIN EH-090D ENGINE —
RECOIL STARTER ASSY.
PAGE 46 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2745120211 BLOWER HOUSING CP 1
11 2745510121 BLOWER H. BKT. 1 CP 1
12 2745520101 BLOWER H. BKT. 2 CP 1
13 0110060020 FLANGE BOLT 2
14 0011606140 BOLT AND WASHER ASSY. 2
15 2745500101 BLOWER GUIDE CP 1
16 0110060050 FLANGE BOLT ....................................... 1 ....... REPLACES 0110060010
20 2749170103 LABEL (TRADE MARK) 1
20 2749170203 LABEL (TRADE MARK) 1
40 0110060050 FLANGE BOLT ....................................... 1 ....... REPLACES 0110060010
41 0110060020 FLANGE BOLT 1
46 0110060020 FLANGE BOLT 2
60 2745260103 CYLINDER BAFFLE 1
210 2745020120 RECOIL STARTER ASSY. ...................... 1 ....... INCLUDES ITEM W/
210-1*2745011508 SPIRAL SPRING 1
210-2
210-3
210-4
210-5
210-6
210-11
210-24
210-35
210-49
216 2069170103 LABEL (TRADE MARK) 1
220 0110060020 FLANGE BOLT 3
2745012018 REEL 1
*
2745011108 STARTER ROPE 1
*
2615010008 STARTER KNOB 1
*
2705012508 RATCHET 2
*
2275013108 FRICTION SPRING 1
*
2745014508 STARTING PULLEY 1
*
1315015008 SLIDE PLATE 1
*
2705026108 RATCHET GUIDE 1
*
2275015208 SET SCREW 1
*
RECOIL STARTER ASSY.
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 47
ROBIN EH-09 ENGINE — CARBURETOR ASSY.
ROBIN EH-090D ENGINE —
CARBURETOR ASSY.
PAGE 48 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-09 ENGINE — CARBURETOR ASSY.
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
210 2746230100 CARBURETOR ASSY. ......................... 1 .......... INCLUDES ITEMS W/
-1
-3
-4
-5
-8
-11
-12
-14
-15
-16
-17
-18
-19
-22
-24
-26
-28
-29
-33
-40
-41
-101
-117
-123
2746253508 THROTTLE VALVE 1
*
2306252508 CHOKE VALVE 1
*
2376245108 SCREW 3
*
2346242108 PILOT JET 1
*
2746252008 SHAFT ASSY. (CHOKE) 1
*
2746253008 SHAFT ASSY. (THROTTLE) 1
*
2246254308 BOLT 1
*
2268250208 NEEDLE VALVE ASSY. 1
*
2146251508 PIN 1
*
2306255308 FLOAT CHAMBER BODY 1
*
2078234508 INSERT WASHER 1
*
2306254008 PACKING 1
*
2306250608 FLOAT ASSY. 1
*
2746240008 MAIN JET 1
*
2266270118 CLIP 1
*
2746235108 HOSE 1
*
2246245008 SCREW 1
*
2106231808 SPRING 1
*
2306258108 SEAL 1
*
1066239308 SCREW 1
*
2066244608 SPRING 1
*
2306258208 PACKING 1
*
2746235008 HOSE 1
*
2276240408 MAIN JET 1
*
CARBURETOR ASSY.
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 49
ROBIN EH-090D ENGINE —
ELECTRIC DEVICE ASSY.
PAGE 50 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-090D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2307020831 FLYWHEEL CP 1
11 2747020101 IGNITION COIL CP 1
30 0011706250 BOLT & WASHER ASSY. 2
60 0660000361 SWITCH ASSY. 1
70 0150040090 TAPPING SCREW 2
75 0566030010 CLAMP 1
95 0659000010 PLUG TERMINAL 1
100 0650140470 SPARK PLUG NGK 1
110 2307510113 SPARK PLUG CAP 1
ELECTRIC DEVICE ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 51
ROBIN EH-092D ENGINE —
CRANKCASE ASSY.
PAGE 52 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2841010411 CRANKCASE CP ....................................1 ..........INCLUDES ITEMS W/#
20& 2371420203 VALVE GUIDE 2
26& 2771601001 STEM SEAL CP 1
30# 0440200070 OIL SEAL 20X32X6 1
40# 0600200110 BALL BEARING, 60074C3 1
50# 0310060020 DOWEL PIN 2
70 0105060430 STUD 2
75# 0440060020 OIL SEAL 1
80 0401140030 PLUG 1
90 0211140020 GASKET 1
150 2741600113 STIFFENER 1
160 0011408250 BOLT & WASHER 4
161 0011408300 BOLT & WASHER ASSY. 2
205 0241090060 GROMMET 1
210 2841100121 MAIN BEARING COVER ......................... 1 .......... INCLUDES ITEMS W/
220*0440200110 OIL SEAL 20X32X6 1
230
250 2844500301 GOVERNOR GEAR CP 1
260 2054190103 GOVERNOR SLEAVE 1
265
268
270 2306360101 OIL GAUGE .............................................1 .......... INCLUDES ITEMS W/%
280% 0213160020 GASKET 1
300 0130060200 BOLT & WASHER 9
430 2741500123 ADAPTER FLANGE 1
437 0021808000 NUT 4
438 0032008000 SPRING WASHER 4
439 0031108000 WASHER 4
610 2841300110 CYLINDER HEAD ASSY. ........................ 1 .......... INCLUDES ITEMS W/&
620 2841500113 GASKET HEAD 1
630 0110080210 FLANGE BOLT 1
631 0100080410 BOLT 2
680 2841550203 ROCKER COVER 1
685 2841450203 OIL SHELTER PLATE 1
690 2841600403 GASKET, ROCKER COVER 3
700 2771501103 PIPE KNOCK 2
710 0110060400 FLANGE BOLT 4
721 2841560203 BREATHER PLATE 1
722 2841600103 LEAF VALVE 1
723 2841600203 BREATHER PLATE 1
724 2841450103 OIL SHELTER PLATE 1
725 0131050020 SCREW & WASHER ASSY. 2
726 0131050020 SCREW & WASHER ASSY. 1
810 2841700103 COVER CASE 1
830 2301600613 GASKET TAPPET COVER NA 1
860 0011406160 BOLT & WASHER ASSY. 2
960 2849900117 GASKET SET 1
0600200110 BALL BEARING, 6004C3 1
*
0013908500 STUD 4
*
0310060020 DOWEL PIN 2
*
CRANKCASE ASSY.
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 53
ROBIN EH-092D ENGINE —
CRANKSHAFT AND PISTON ASSY.
PAGE 54 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2842030101 CRANKSHAFT CP 1
40 0230200100 SPACER T=0.8 1
40 0230200110 SPACER T=1.0 1
40 0230200120 SPACER T=1.2 1
50 0021814000 NUT 1
60 0032014000 SPRING WASHER .................................. 1 ..........REPLACES 0032012000
70 0053203101 WOODRUFF KEY 1
80 0053204201 WOODRUFF KEY 1
105 0173120010 LOCK NUT 1
310 2842250130 CONNECTING ROD ASSY..................... 1 ..........INCLUDES ITEMS W/%
320% 2842300103 CONNECTING ROD BOLT 2
350 2302330103 PISTON PIN 1
360 28423401H3 PISTON 1
360 28423402H3 PISTON 0.25MM 1
360 28423403H3 PISTON 0.50MM 1
370 2842351107 PISTON RING SET 1
370 2842351207 PISTON RING SET 0.25MM 1
370 2842351307 PISTON RING SET 0.50MM 1
380 0565110010 CLIP 2
CRANKSHAFT AND PISTON ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 55
ROBIN EH-092D ENGINE —
INTAKE AND EXHAUST ASSY.
PAGE 56 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2843170121 CAMSHAFT CP ............................ 1 ........INCLUDES ITEMS W/%
34% 2273860123 PIN (SPRING) 1
35% 2843640103 RELEASE LEVER 1
36% 0051904100 SPRING PIN 1
37% 0031517000 SNAP RING 1
38% 2743870123 RETURN SPRING 1
50 2743330103 TAPPET 2
60 2743360103 VALVE SPRING 2
70 2743370203 SPRING RETAINER 2
80 2743340103 INTAKE VALVE 1
90 2743350103 EXHAUST VALVE 1
95 13210KA031 COLLET VALVE 4
210 2743530103 PUSH ROD 2
220 2743600303 ROCKER ARM 2
230 2693580103 BOLT (PIVOT) 2
240 0170060090 NUT 2
260 2743650103 GUIDE PLATE 1
310 2843010401 MUFFLER CP 1
340 2843520103 GASKET (EXHAUST) 1
351 0023808000 FLANGE NUT 2
357 0200080170 WASHER 1
365 0110060460 FLANGE BOLT 2
366 0011408160 BOLT & WASHER 8X16 1
370 0130080240 BOLT & WASHER ASSY. 1
540 1063292103 INSULATOR 1
550 2843590203 GASKET (INSULATOR) 1
560 1573500103 GASKET 2 (INSULAT0R) 1
570 0176060030 SELF LOCK NUT 2
INTAKE AND EXHAUST ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 57
ROBIN EH-092D ENGINE —
CARBURETOR ASSY.
PAGE 58 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
B 2846233200 CARBURETOR ASSY. ............................................... 1 ............... INCLUDES ITEMS W/#
2# 2846253908 LEVER SUB ASSY. THROTTLE 1
3# 2846256008 COLLAR 1
4# 2846231608 SPRING, THROTTLE 1
5# 2516255908 BUSH 1
6# 2846253308 SHAFT, THRO 1
7# 2846253508 THROTTLE VALVE 1
8# 2846245508 SCREW 2
9# 2846252908 LEVER CHOKE 1
10# 2846252308 SHAFT CHOKE 1
11# 2846252908 VALVE CHOKE 1
12# 2846240108 MAIN JET #68 1
13# 2846242008 SLOW JET 1
15# 2516244908 SRING 2
16# 2776258108 SCREW ADJUST 2
17# 2846251508 PIN, FLOAT LEVER 1
18# 2846250508 FLOAT ASSY. 1
19# 2796250008 VALVE NEEDLE 1
20# 2846254008 GASKET CHAMBER 1
21# 2846255208 CHAMBER ASSY. FLOAT 1
22# 2516266108 DRAIN SCREW 1
23# 2846233508 SCREW 1
24# 2516235008 GASKET 1
25# 2846246508 NUT 2
26# 2846246008 SPRING WASHER 2
27# 2846245008 O-RING 1
28# 2846245108 O-RING 1
29#
30# 2846245608 SCREW 1
31# 2846246008 JET 1
32# 2846243008 COLLAR 1
33# 2516256508 RUBBER PIPE 1
40# 2844550103 BUSH, THRO 1
2846256308 PLATE 2
CARBURETOR ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 59
ROBIN EH-092D ENGINE —
AIR CLEANER ASSY.
PAGE 60 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
C 2843260300 AIR CLEANER ASSY. 1 INCLUDES ITEMS W/#
520# 2743260307 ELEMENT SET/09 1
570 0176060030 SELF LOCK NUT 2
850 2841600403 RUBBER PIPE 1
900# 0732004430 LABEL, CHOKE 1
AIR CLEANER ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 61
ROBIN EH-092D ENGINE —
GOVERNOR, OPERATION ASSY.
PAGE 62 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2844230403 GOVERNOR LEVER 1
20 2304220103 GOVERNOR SHAFT 1
30 2844270201 GOVERNOR ROD 1
35 2844560103 LINKAGE BUSHING 1
40 2844280403 ROD SPRING 1
50 0031305000 CLIP 2
60 0011406300 BOLT & WASHER ASSY. 1
70 2844900201 WEIGHT CP 1
80 2524250323 GOVERNOR SPRING 1
200 2304330210 SPEED CONTROL ASSY. 1
201 2744510101 BASE PLATE 1
207 0110060010 FLANGE BOLT 2
210 0043104140 SCREW, PAN HEAD 1
213 0230100040 SPACER 1
215 2264500313 RETURN SPRING 1
230 0043106300 SCREW 1
240 0022706000 NUT 1
255 0217100020 FRICTION WASHER 1
260 0140040070 SCREW 1
265 2684500113 CONTROL SPRING 1
280 2264310301 LINK PIVOT 1
GOVERNOR, OPERATION ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 63
ROBIN EH-092D ENGINE —
BLOWER HOUSING ASSY.
PAGE 64 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2845110213 BLOWER HOUSING CP 1
20 2849510203 LABEL 1
40 0010408350 FLANGE BOLT 1
41 0010408200 FLANGE BOLT 1
60 2845260123 CYLINDER BAFFLE 1
80 0110060010 FLANGE BOLT 2
110 2845410103 COOLING BLOWER 1
216 920100240 DECAL,M-MARK 1
220 0110060010 FLANGE BOLT 3
230 0110060020 FLANGE BOLT 4
BLOWER HOUSING ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 65
ROBIN EH-092D ENGINE —
RECOIL STARTER ASSY.
PAGE 66 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
A 2845021120 RECOIL STARTER ASSY. ............................................. 1 ........... INCLUDES ITEM W/
1
2
3
4
5
6
7
8
11
24
25
49
*
*
*
*
*
*
*
*
*
*
*
*
2745011508 SPIRAL SPRING 1
2745012018 REEL 1
2745011208 STARTER ROPE 1
2615010008 STARTER KNOB 1
2705012508 RATCHET 2
2745013108 FRICTION SPRING 1
2275013508 RETURN SPRING 2
2705026108 RATCHET GUIDE 1
2845014508 STARTING PULLEY 1
2745015208 SLIDE PLATE, B 1
1315015008 SLIDE PLATE 1
2275015208 SET SCREW 1
RECOIL STARTER ASSY.
*
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 67
ROBIN EH-092D ENGINE —
ACCESSORIES ASSY.
PAGE 68 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
ROBIN EH-092D ENGINE —
NO PART NO PART NAME QTY. REMARKS
10 2269030710 ACCESSORY TOOL KIT 1
ACCESSORIES ASSY.
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 69
TERMS AND CONDITIONS OF SALE — PARTS
PAYMENT TERMS
Terms of payment for parts are net 30 days.
FREIGHT POLICY
All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a
signed manifest has been obtained from the
carrier, and any claim for shortage or damage
must be settled between the consignee and
the carrier.
MINIMUM ORDER
The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.
RETURNED GOODS POLICY
Return shipments will be accepted and
credit will be allowed, subject to the following
provisions:
A Returned Material Authorization 1.
must be approved by Multiquip prior to
shipment.
To obtain a Return Material Authorization, 2.
a list must be provided to Multiquip
Parts Sales that defines item numbers,
quantities, and descriptions of the items
to be returned.
The parts numbers and descriptions a.
must match the current parts price
list.
The list must be typed or computer b.
generated.
The list must state the reason(s) c.
for the return.
The list must reference the sales d.
order(s) or invoice(s) under
which the items were originally
purchased.
The list must include the name e.
and phone number of the person
requesting the RMA.
A copy of the Return Material Authorization 3.
must accompany the return shipment.
Freight is at the sender’s expense. All 4.
parts must be returned freight prepaid to
Multiquip’s designated receiving point.
Parts must be in new and resalable 5.
condition, in the original Multiquip
package (if any), and with Multiquip part
numbers clearly marked.
The following items are not returnable:6.
Obsolete parts. (If an item is in the a.
price book and shows as being
replaced by another item, it is
obsolete.)
Any parts with a limited shelf life b.
(such as gaskets, seals, “O” rings,
and other rubber parts) that were
purchased more than six months
prior to the return date.
Any line item with an extended c.
dealer net price of less than
$5.00.
Special order items.d.
Electrical components.e.
Paint, chemicals, and lubricants.f.
Decals and paper products.g.
Items purchased in kits.h.
The sender will be notified of any material 7.
received that is not acceptable.
Such material will be held for five 8.
working days from notification, pending
instructions. If a reply is not received
within five days, the material will be
returned to the sender at his expense.
Credit on returned parts will be issued 9.
at dealer net price at time of the original
purchase, less a 15% restocking
charge.
In cases where an item is accepted, for 10.
which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.
Credit issued will be applied to future 11.
purchases only.
PRICING AND REBATES
Prices are subject to change without prior
notice. Price changes are effective on a
specific date and all orders received on or
after that date will be billed at the revised price.
Rebates for price declines and added charges
for price increases will not be made for stock
on hand at the time of any price change.
Multiquip reserves the right to quote and
sell direct to Government agencies, and to
Original Equipment Manufacturer accounts
who use our products as integral parts of their
own products.
SPECIAL EXPEDITING SERVICE
A $35.00 surcharge will be added to the
invoice for special handling including bus
shipments, insured parcel post or in cases
where Multiquip must personally deliver the
parts to the carrier.
LIMITATIONS OF SELLER’S LIABILITY
Multiquip shall not be liable hereunder for
damages in excess of the purchase price of
the item with respect to which damages are
claimed, and in no event shall Multiquip be
liable for loss of profit or good will or for any
other special, consequential or incidental
damages.
LIMITATION OF WARRANTIES
No warranties, express or implied, are
made in connection with the sale of parts or
trade accessories nor as to any engine not
manufactured by Multiquip. Such warranties
made in connection with the sale of new,
complete units are made exclusively by a
statement of warranty packaged with such
units, and Multiquip neither assumes nor
authorizes any person to assume for it
any other obligation or liability whatever in
connection with the sale of its products. Apart
from such written statement of warranty,
there are no warranties, express, implied or
statutory, which extend beyond the description
of the products on the face hereof.
Effective: February 22, 2006
PAGE 70 — MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12)
NOTES
MT55F RAMMER — OPERATION AND PARTS MANUAL — REV. #5 (01/06/12) — PAGE 71
OPERATION AND PARTS MANUAL
©
HERE’S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
UNITED STATES
Multiquip Corporate Office MQ Parts Department
18910 Wilmington Ave.
Carson, CA 90746
Contact: mq@multiquip.com
Service Department Warranty Department
Tel. (800) 421-1244
Fax (800) 537-3927
800-427-1244
310-537-3700
Fax: 800-672-7877
Fax: 310-637-3284
800-421-1244
310-537-3700
Technical Assistance
800-478-1244 Fax: 310-943-2238
Fax: 310-537-4259 800-421-1244
310-537-3700
Fax: 310-943-2249
MEXICO UNITED KINGDOM
MQ Cipsa Multiquip (UK) Limited Head Office
Carr. Fed. Mexico-Puebla KM 126.5
Momoxpan, Cholula, Puebla 72760 Mexico
Contact: pmastretta@cipsa.com.mx
Tel: (52) 222-225-9900
Fax: (52) 222-285-0420
Unit 2, Northpoint Industrial Estate,
Globe Lane,
Dukinfield, Cheshire SK16 4UJ
Contact: sales@mult
iquip.co.uk
Tel: 0161 339 2223
Fax: 0161 339 3226
CANADA
Multiquip
4110 Industriel Boul.
Laval, Quebec, Canada H7L 6V3
Contact: jmartin@multiquip.com
COPYRIGHT 2012, MULTIQUIP INC.
Multiquip Inc
are the property of their respective owners and used with permission.
This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should
The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in
this manual are for guidance only and may not be considered as binding. Multiquip In
in this publication at any time without notice and without incurring any obligations.
, the MQ logo and the Mikasa logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks
Tel: (450) 625-2244
Tel: (877) 963-4411
Fax: (450) 625-8664
remain with the unit if resold.
c. reserves the right to discontinue or change specifications, design or the information published
Your Local Dealer is:
Loading...
