Multiquip MP200SDLSM User Manual

PARTS MANUAL

DRY PRIME PUMP

MP150SDLTE (6-inch, High Flow, Deutz F3L914, Electric Brakes)

MP150SDLTS (6-inch, High Flow, Deutz F3L914, Surge Brakes)

MP150SDLSM (6-inch, High Flow, Deutz F3L914, Skid Mount)

MP200DLTE (8-inch, High Flow, Deutz F3L914, Electric Brakes)

MP200DLTS (8-inch, High Flow, Deutz F3L914, Surge Brakes)

MP200DLSM (8-inch, High Flow, Deutz F3L914, Skid Mount)

MP200SDLTE (8-inch, High Flow, Deutz F4L914, Electric Brakes)

MP200DLST (8-inch, High Flow, Deutz F4L914, Surge Brakes)

MP200SDLSM (8-inch, High Flow, Deutz F4L914, Skid Mount)

Revision #5 (10/12/09)

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

P/N 17568

Engine exhaust and some of
its constituents, and some dust created
by power sanding, sawing, grinding,
drillingandotherconstructionactivities
contains chemicals known to the State
of California to cause cancer, birth
defects and other reproductive harm.
Some examples of these chemicals are:

Leadfromlead-basedpaints.
Crystallinesilicafrombricks.
Cementandothermasonryproducts.
Arsenicandchromiumfrom chemically
treatedlumber.

Your risk from these exposures varies,
dependingonhowoftenyoudothistype
of work. To reduce your exposure to
these chemicals: work in aALWAYS
well ventilated area, and work with

approved safety equipment, such as

dust masks that are specially designed
to filter out microscopic particles.

WARNING

SILICOSIS WARNING RESPIRATORY HAZARDS

Grinding/cutting/drilling of masonry, concrete, metal and
other materials with silica in their composition may give
off dust or mists containing crystalline silica. Silica is a
basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Repeated and/or
substantial inhalation of airborne crystalline silica can
cause serious or fatal respiratory diseases, including
silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a
substance known to cause cancer. When cutting such
materials, always follow the respiratory precautions
mentioned above.

WARNING

Grinding/cutting/drilling of masonry, concrete, metal and
other materials can generate dust, mists and fumes
containing chemicals known to cause serious or fatal
injury or illness, such as respiratory disease, cancer,
birth defects or other reproductive harm. If you are
unfamiliar with the risks associated with the particular
process and/or material being cut or the composition of
the tool being used, review the material safety data
sheet and/or consult your employer, the material
manufacturer/supplier, governmental agencies such as
OSHA and NIOSH and other sources on hazardous
materials. California and some other authorities, for
instance, have published lists of substances known to
cause cancer, reproductive toxicity, or other harmful
effects.

Control dust, mist and fumes at the source where
possible. In this regard use good work practices and
follow the recommendations of the manufacturers or
suppliers, OSHA/NIOSH, and occupational and trade
associations. Water should be used for dust
suppression when wet cutting is feasible. When the
hazards from inhalation of dust, mists and fumes cannot
be eliminated, the operator and any bystanders should
always wear a respirator approved by NIOSH/MSHA for
the materials being used.

MQ - DRY PRIME PUMP

Table of Contents ...................................................... 4

Parts Ordering Procedures ....................................... 5

Explanation Of Code In Remarks Column ................ 6

Suggested Spare Parts ............................................. 7

Nameplate and Decals......................................... 8-11

Engine Skid Rails Assy. ...................................... 12-13

Deutz F3L914 Engine Assy. ............................... 14-17

Deutz F4L914 Engine Assy. ............................... 18-21

Priming System Hoses....................................... 22-23

Pump End Assy. ................................................. 24-25

Bearing Housing Assy. ....................................... 26-27

Vacuum Pump Assy ........................................... 28-29

Vac. Pump Bearing Housing Assy...................... 30-31

Volute And Check Valve Assy. ............................ 32-33

Check Valve Assy. .............................................. 34-35

Vacuum Pump Assy. .......................................... 24-25

Impeller and Wear Plate Assy ............................ 36-37

Priming Tank Assy. ............................................. 38-41

Float Valve Assy. ................................................ 42-43

Battery Assy. ....................................................... 44-45

Fuel Tank Assy. .................................................. 46-47

Trailer Assy (Trailer Lights) ................................ 48-49

Trailer Assy. (Surge Brake) ................................ 50-51

Trailer Assy. (Electric Brake) .............................. 52-53

TABLE OF CONTENTS

Terms and Conditions of Sale .................................. 55

NOTE

Specifications are subject to change
without notice.

PAGE 4 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

PARTS ORDERING PROCEDURES

Ordering parts has never been easier!

Choose from three easy options:

Effective:

January 1

st

, 2006

Best Deal!

Order via Internet (Dealers Only):

Order parts on-line using Multiquip’s SmartEquip website!

■

View Parts Diagrams

■

Order Parts

■

Print Specification Information

Goto www.multiquip.com and click on

Order Parts

Order via Fax (Dealers Only):

All customers are welcome to order parts via Fax.

Domestic (US) Customers dial:

1-800-6-PARTS-7 (800-672-7877)

Non-Dealer Customers:

Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.

to log in and save!

Order via Phone:

If you have an MQ Account, to obtain a
Username and Passw ord, E-ma il us at:

[e-mail].

To obtai n an MQ Account, contact your
District Sales Manager for more inform ation.

internet

Use the
on

Standard orders

and qualify for a 5% Discount

for all orders which include

complete part numbers.*

Fax

your order in and qualify for a 2% Discount

on

Standard orders

for all orders which include

complete part numbers.*

Domestic (US) Dealers Call:

1-800-427-1244

International Customers

their local Multiquip Representatives for
Parts Ordering information.

Note: Discounts Are Subject To Change

Note: Discounts Are Subject To Change

should contact

❒❒

❒

❒❒

❒❒

❒

❒❒

❒❒

❒

❒❒

❒❒

❒

❒❒
❒❒

❒

❒❒

❒❒

❒

❒❒

www.multiquip.com

When ordering parts, please supply:

❒❒

❒

Specify Preferred Method of Shipment:

Dealer Account Number
Dealer Name and Address
Shipping Address (if different than billing address)

Return Fax Number
Applicable Model Number

Quantity, Part Number and Description of Each Part

All orders are treated as
and will ship the same day if received prior
to 3PM PST.

WE ACCEPT ALL MAJOR CREDIT CARDS!

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 5

❒❒

✓

UPS/Fed Ex

■

■

■ Next Day

■

Standard Orders

Priority One
Ground

Second/Third Day

✓ DHL
✓

Tr u c k

EXPLANATION OF CODE IN REMARKS COLUMN

The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the help
numbers found on the back page of the manual if there are any
questions.

The contents and part numbers listed in the parts section are
subject to change
guarantee the availibility of the parts listed.

Sample Parts List:

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ...................... 1 ......INCLUDES ITEMS W/

2

*

2*12347 WASHER, 3/8 IN. ... 1 ......

3 12348 HOSE ................... A/R .... MAKE LOCALLY

4 12349 BEARING ............... 1 ......S/N 2345B AND ABOVE

NO. Column

Unique Symbols - All items with same unique symbol

(*, #, +, %, or >) in the number column belong to the same
assembly or kit, which is indicated by a note in the “Remarks”
column.

Duplicate Item Numbers - Duplicate numbers indicate
multiple part numbers are in effect for the same general
item, such as different size saw blade guards in use or a
part that has been updated on newer versions of the same
machine.

When ordering a part that has more than one
item number listed, check the remarks column
for help in determining the proper part to order.

without notice

WASHER, 1/4 IN. .............

. Multiquip does not

NOT SOLD SEPARATELY
MQ-45T ONLY

*

QTY. Column

Numbers Used - Item quantity can be indicated by a

number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other parts

that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold

separately. Other entries will be clarified in the “Remarks”
Column.

REMARKS Column

Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed to
describe the item can also be shown.

Assembly/Kit

unique symbol will be included when this item is purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

Serial Number Break

number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”

Specific Model Number Use

used only with the specific model number or model number
variant listed. It can also be used to show a part is NOT
used on a specific model or model number variant.

Indicated by:

“XXXXX ONLY”
“NOT USED ON XXXX”

- All items on the parts list with the same

- Used to list an effective serial

- Indicates that the part is

PART NO. Column

Numbers Used - Part numbers can be indicated by a

number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a part

that has not been assigned a formal part number at time of
publication.

A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will be
clarified in the “Remarks” Column.

PAGE 6 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

“Make/Obtain Locally”

purchased at any hardware shop or made out of available
items. Examples include battery cables, shims, and certain
washers and nuts.

“Not Sold Separately”

purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available for
sale through Multiquip.

- Indicates that the part can be

- Indicates that an item cannot be

MQ DRY PRIME PUMP

SUGGESTED SPARE PARTS

1 TO 3 UNITS WITH DEUTZ DIESEL ENGINE

Qty. P/N Description

2 ....... 17020 .................. O-RING, SIZE 2-248 VITON

1 ....... 17031 .................. O-RING, SIZE 2-237 VITON

1 ....... 17037 .................. GASKET, VOLUTE TO PRIMING TANK

1 ....... 17038 .................. GASKET, PRIMING TANK ACCESS PANEL

1 ....... 17039 .................. GASKET, PRIMING TANK FLOAT VALVE

3 ....... 17040 .................. GASKET, 8" FLANGE

2 ....... 17063 .................. PIN, DISCHARGE CHECK VALVE PIVOT

1 ....... 17073 .................. RUBBER SEAL, DISCHARGE CHECK

....................................... VALVE

4 ....... 17074 .................. BUSHING, BRONZE .5 X .625 X 1"

....................................... W/FLANGE

1 ....... 17125 .................. HINGE, MP PUMP FLOAT VALVE

2 ....... 17138 .................. O-RING, SIZE 3-906 VITON

2 ....... 17141 .................. O-RING, SIZE 2-228 VITON

4 ....... 17143 .................. O-RING, SIZE 2-271 VITON

1 ....... 17144 .................. O-RING, SIZE 2-457 VITON

1 ....... 17219 .................. GUAGE, 0 RO -30INHG, .25MP

1 ....... 17417 .................. BEARING HSG KIT, MECH SEAL ASSY.

1 ....... 17419 .................. VAC PUMP KIT, MECH SEAL ASSY.

1 ....... 17180 .................. FILTER, FLOJET P/N 1740-002

4 ....... 25666 .................. O-RING, SIZE-3-912 12 BOSS

3 ....... 1181917 .............. FILTER, FUEL

3 ....... 1182001 .............. FILTER, OIL

1 ....... 2235175 .............. BELT, FAN

1 ....... 2235178 .............. BELT, ALTERNATOR

RECOMENDED SERVICE TOOLING

Qty. P/N Description

1 ....... 17171 .................. IMPELLER PULLER, SCREW, HHC M30

1 ....... 17423 .................. SOCKET, BEARING NUT

1 ....... 17424 .................. COUPLER PULLER, MP PUMP

NOTE

Part numbers on this Suggested Spare
Parts List may supercede/replace the
P/N's shown in the teXt pages of this
manual.

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 7

NAMEPLATES AND DECALS (1)

NAMEPLATES AND DECALS (1)

PAGE 8 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

NAMEPLATES AND DECALS (1)

NAMEPLATES AND DECALS (1)

NO. PART NO. PART NAME QTY. REMARKS

1 17175 DECAL, WARNING CHECK VALVE DRAIN ............. 1 .................. SAFETY ITEM

2 17176 DECAL, WARNING PRIMING TANK LIFT BAIL ....... 3 .................. SAFETY ITEM

3 36099 DECAL, PROTECTIVE CLOTHING ISO BLUE ........ 1 .................. SAFETY ITEM

4 17174 DECAL, OPERATING INSTRUCTIONS/WARNINGS 1 .................. SAFETY ITEM

5 36092 DECAL, WARNING DIESEL FUEL 3.5 X 1.75 ......... 1 .................. SAFETY ITEM

6 17347 DECAL, MQ LOGO 8 X 10 WHITE .......................... 2

7 17178 DECAL, DANGER ROTATING IMPELLER BLADE ... 2 .................. SAFETY ITEM

8 20525 DECAL, WARNING "PROP 65" 3.25 X 4.25 ............ 1 .................. SAFETY ITEM

9 29157 DECAL, DIESEL ONLY ............................................ 1 .................. SAFETY ITEM

10 17348 DECAL, MQ MULTIQUIP 14" WHITE 2

11 29440 DECAL, WARNING ELECTRICAL CONNECTORS .. 1 .................. SAFETY ITEM

12 17298 TAPE, NON-SKID SURFACE ................................... 4 .................. SAFETY ITEM

....................................................................................................... SOLD IN FT. LENGTHS

13 17569 DECAL, MP150S 2

17570 DECAL, MP200 2

17571 DECAL, MP200S 2

14 17297 DECAL, REFLECTIVE TAPE 1" RED/WHITE .......... 150" ............. SAFETY ITEM

15 17394 DECAL, PRIMING SYSTEM FILL LEVEL 1
16 17398 DECAL, PRIMING SYSTEM 1
17 17399 DECAL, PRIMING SYSTEM DRAIN 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 9

NAMEPLATES AND DECALS (2)

NAMEPLATES AND DECALS (2)

PAGE 10 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

NAMEPLATES AND DECALS (2)

NAMEPLATES AND DECALS (2)

NO. PART NO. PART NAME QTY. REMARKS

1 17348 DECAL, MQ MULTIQUIP 14" WHITE 2

2 17176 DECAL, WARNING PRIMING TANK LIFT BAIL ....... 3 .................. SAFETY ITEM

3 17177 DECAL, BACKFLUSH VALVE 1

4 36092 DECAL, WARNING DIESEL FUEL 3.5 X 1.75 ......... 1 .................. SAFETY ITEM

5 29157 DECAL, DIESEL ONLY ............................................ 1 .................. SAFETY ITEM

6 17347 DECAL, MQ LOGO 8 X 10 WHITE .......................... 2

7 49002 DECAL, WARNING TRLR HTCH/WHEEL ................ 2 .................. SAFETY ITEM

8 29680 DECAL, MULTIPLE TRAILER VIN 1

9 17322 DECAL, TIRE LOADING .......................................... 1 .................. SAFETY ITEM

10 13118 DECAL, POWDER COATED 1
11 29729 DECAL, NATM MANUFACTURER COMPLIANCE 1

12 37513 DECAL, REFLECTIVE TAPE 1" YELLOW ............... 2 .................. SAFETY ITEM

....................................................................................................... SOLD IN FT. LENGTHS

13 17569 DECAL, MP150S 2

17570 DECAL, MP200 2

17571 DECAL, MP200S 2

14 17298 TAPE, NON-SKID SURFACE ................................... 4 .................. SAFETY ITEM

....................................................................................................... SOLD IN FT. LENGTHS

15 29713 DECAL, BRAKE FLUID CHECK .............................. 1 .................. SURGE BRAKE MODELS

16 MQ SERIAL TAG...................................................... 1 .................. CONTACT SERVICE DEPT.

17 17397 DECAL, HOT SURFACE .......................................... 1 .................. SAFETY ITEM

18 17399 DECAL, PRIMING SYSTEM DRAIN 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 11

ENGINE SKID RAILS ASSY.

ENGINE SKID RAILS ASSY.

5

3

6

2

6

3

4

3

6

3

1

5

3

3

PAGE 12 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

ENGINE SKID RAILS ASSY.

ENGINE SKID RAILS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 17224 RAIL, MP PUMP LH SIDE 1
2 17225 RAIL, MP PUMP RH SIDE 1
3 4684 WASHER, FLAT SAE 5/8 PLTD 20
4 17412 SCREW, HHC M16 - 2.00 X 120 ZN CL8.8 2
5 17170 SCREW, HHC M16 - 2.00 X 60 ZN CL8.8 8
6 17097 NUT, NYLOC M16-2.00 DIN985 10

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 13

DEUTZ F3L914 ENGINE ASSY. (1)

DEUTZ F3L914 ENGINE ASSY. (1)

6

16

11

12

1

15

3

13

1

4

1

14

10

7

9

2

8

5

1

USE THREADLOCK: HIGH TEMP.

1

LOCTITE BLUE 246 OR EQUIVALENT.
TORQUE TO 50 FT-L BF (67.9 N-m)

USE THREADLOCK: HIGH TEMP.

2

LOCTITE RED 272 OR EQUIVALENT
TORQUE TO 250 FT-LB (338.9 N-m)

PAGE 14 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

2

DEUTZ F3L914 ENGINE ASSY. (1)

DEUTZ F3L914 ENGINE ASSY. (1)

NO. PART NO. PART NAME QTY. REMARKS

1 2866 SCREW, HHC M8-1.25 X 20 MM GR 8.8 1
2 8151 WASHER FLAT SAE 3/4 4
3

4 13339 WASHER, EXT. SHKP, 5/16 1
5 16523 SCREW, HHC 3/4-10 X 1-1/2 GD 8 4
6 17000 ENGINE, DEUTZ F3L914 1
7 17116 KEY, WOODRUFF #1422-1-7/16X2-3/4 1
8 17117 WASHER, FLAT SAE 1-1/4" 1
9 17119 NUT, HEX JAM 1-1/4-12 1
10 17233 COUPLER, MP PUMP ENG TO BRG HSG 1
11 17205 PLATE, PUMP FLYWHEEL HSG MOUNT 1
12 17388 SCREW, SHC M10-1.5X25 GRD 10.9 8
13 21584 SCREW, HHC M10-1.5 X 35MM GR 10.9 12
14 28094-001 STRAP-GROUND 1
15 1180928 STARTER, DEUTZ 1
16 1182151 ALTERNATOR, DEUTZ 1

10136 WASHER, FLAT SAE 3/8 12

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 15

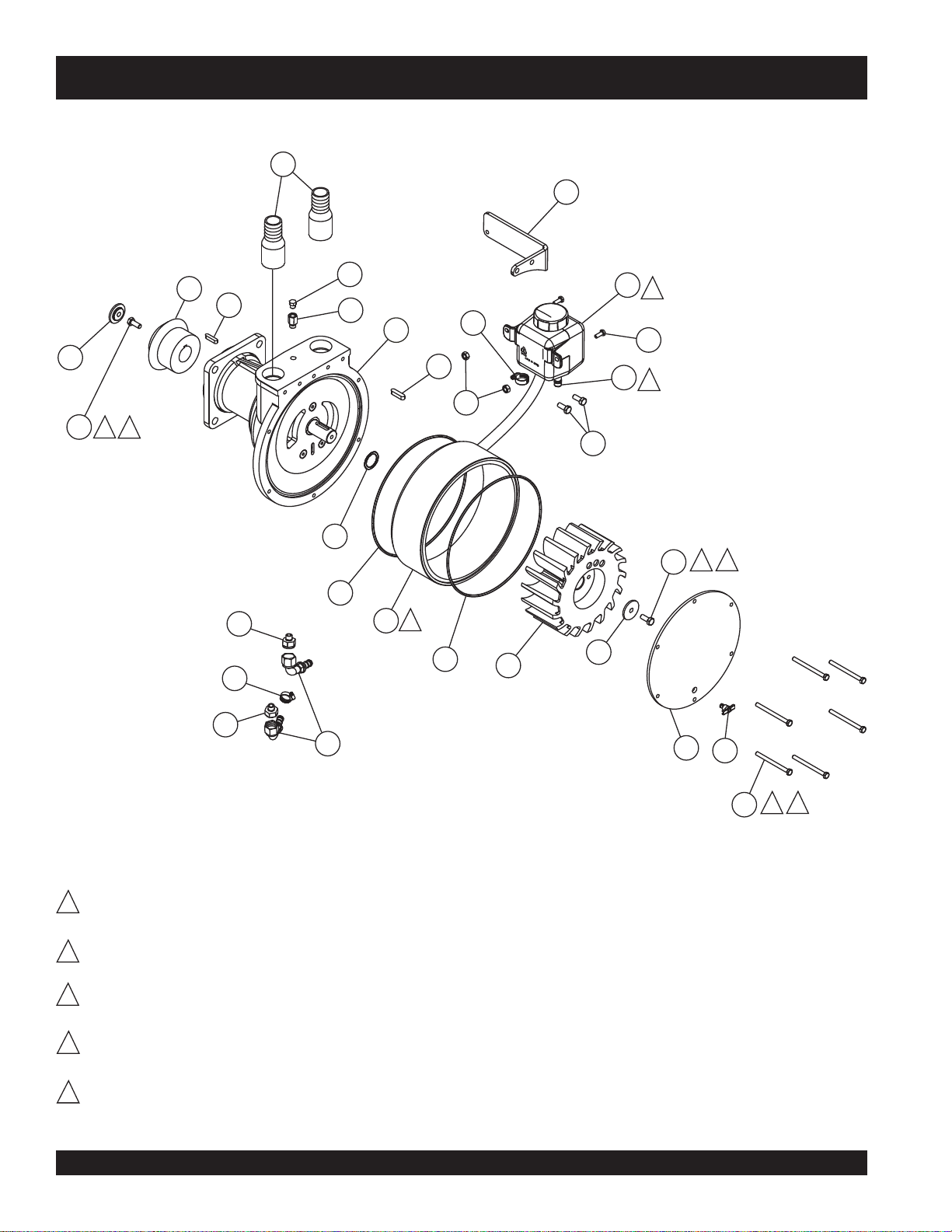

DEUTZ F3L914 ENGINE ASSY. (2)

4

3

7

DEUTZ F3L914 ENGINE ASSY. (2)

8

5

2

9

6

1

10

PAGE 16 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

DEUTZ F3L914 ENGINE ASSY. (2)

DEUTZ F3L914 ENGINE ASSY. (2)

NO. PART NO. PART NAME QTY. REMARKS

1 2866 SCREW, HHC M8-1.25X20 MM GR8.8 1
2 17206 FITTING, STR 5 BARB X 1/4 MP 2
3 17331 SPACER, MP PUMP CONTROL PANEL 2
4 17388 SCREW, SHC M10-1.50X25 GRD 10.9 2
5 19473 CLAMP, HOSE WORM #2 1/4" TO 5/8" 2
6 35022 CLAMP, LOOM CUSHIONED #8 2
7 1181917 FILTER, FUEL 1
8 1182001 FILTER, OIL 1
9 2235175 BELT, FAN 1
10 2235178 BELT, ALTERNATOR 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 17

DEUTZ F4L914 ENGINE ASSY. (1)

16

DEUTZ F4L914 ENGINE ASSY. (1)

6

12

15

4

11

1

1

14

10

9

2

13

3

1

7

8

2

USE THREADLOCK: HIGH TEMP.

1

LOCTITE BLUE 246 OR EQUIVALENT.

TORQUE TO 50 FT-LB (67.9 N-m)

US THREADLOCK: HIGH TEMP

2

LOCTITE RED 272 OR EQUIVALENT
TORQUE TO 250 FT-LB (338.9 N-m)

PAGE 18 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

5

1

DEUTZ F4L914 ENGINE ASSY. (1)

DEUTZ F4L914 ENGINE ASSY.(1)

NO. PART NO. PART NAME QTY. REMARKS

1 2866 SCREW, HHC M8-1.25 X 20 MM GR 8.8 1
2 8151 WASHER FLAT SAE 3/4 4
3

4 13339 WASHER, EXT. SHKP, 5/16 1
5 16523 SCREW, HHC 3/4-10 X 1-1/2 GD 8 4
6 17002 ENGINE, DEUTZ F4L914 1
7 17116 KEY, WOODRUFF #1422-1-7/16X2-3/4 1
8 17117 WASHER, FLAT SAE 1-1/4" 1
9 17119 NUT, HEX JAM 1-1/4-12 1
10 17233 COUPLER, MP PUMP ENG TO BRG HSG 1
11 17205 PLATE, PUMP FLYWHEEL HSG MOUNT 1
12 17388 SCREW, SHC M10-1.5X25 GRD 10.9 8
13 21584 SCREW, HHC M10-1.5 X 35MM GR 10.9 12
14 28094-001 STRAP-GROUND 1
15 1180928 STARTER, DEUTZ 1
16 1182151 ALTERNATOR, DEUTZ 1

10136 WASHER, FLAT SAE 3/8 12

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 19

DEUTZ F4L914 ENGINE ASSY. (2)

5

DEUTZ F4L914 ENGINE ASSY. (2)

6

3

2

7

1

4

8

PAGE 20 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

DEUTZ F4L914 ENGINE ASSY. (2)

DEUTZ F4L914 ENGINE ASSY. (2)

NO. PART NO. PART NAME QTY. REMARKS

1 2866 SCREW, HHC M8-1.25X20 MM GR8.8 1
2 17206 FITTING, STR 5 BARB X 1/4 MP 2
3 19473 CLAMP, HOSE WORM #2 1/4" TO 5/8" 2
4 35022 CLAMP, LOOM CUSHIONED #8 2
5 1181917 FILTER, FUEL 1
6 1182001 FILTER, OIL 1
7 2235175 BELT, FAN 1
8 2235178 BELT, ALTERNATOR 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 21

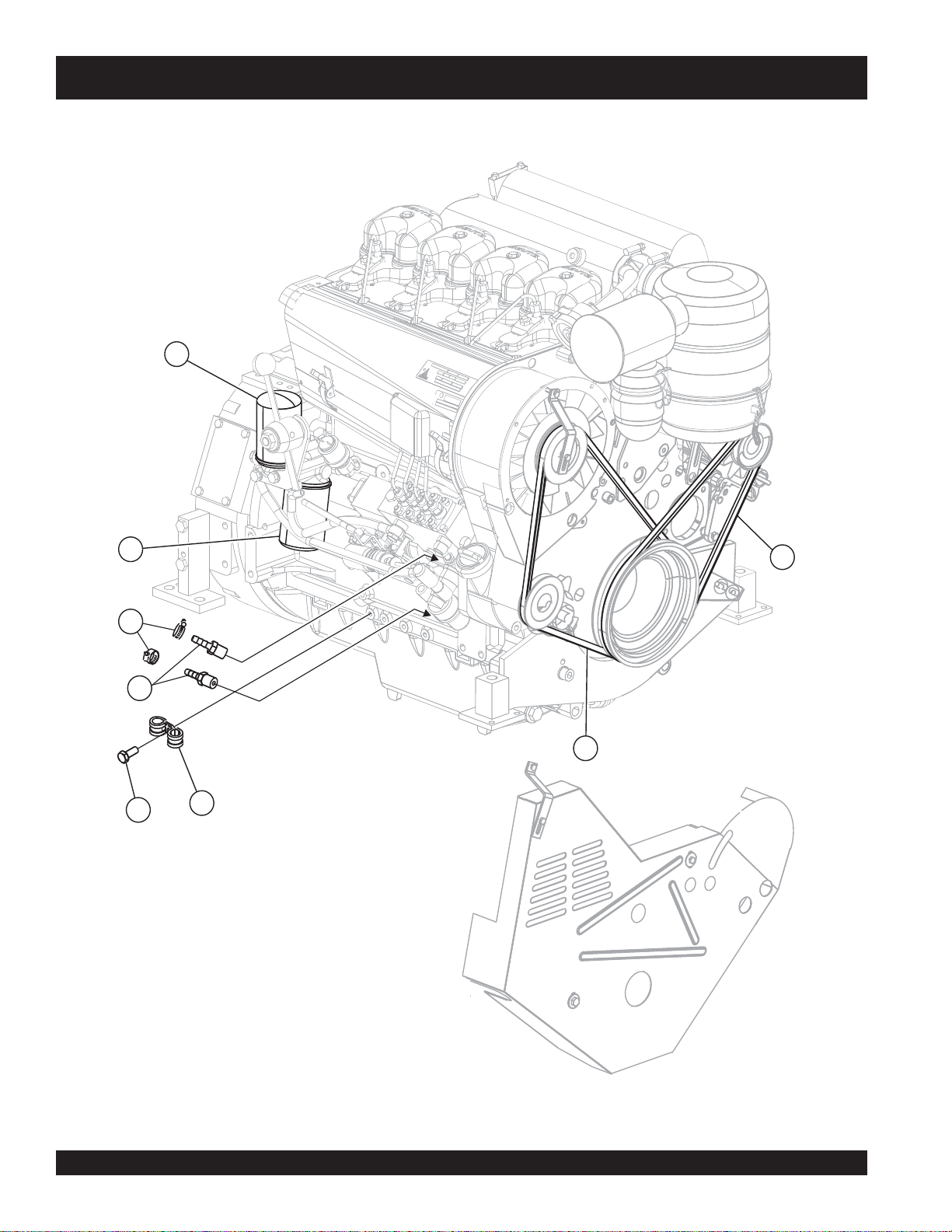

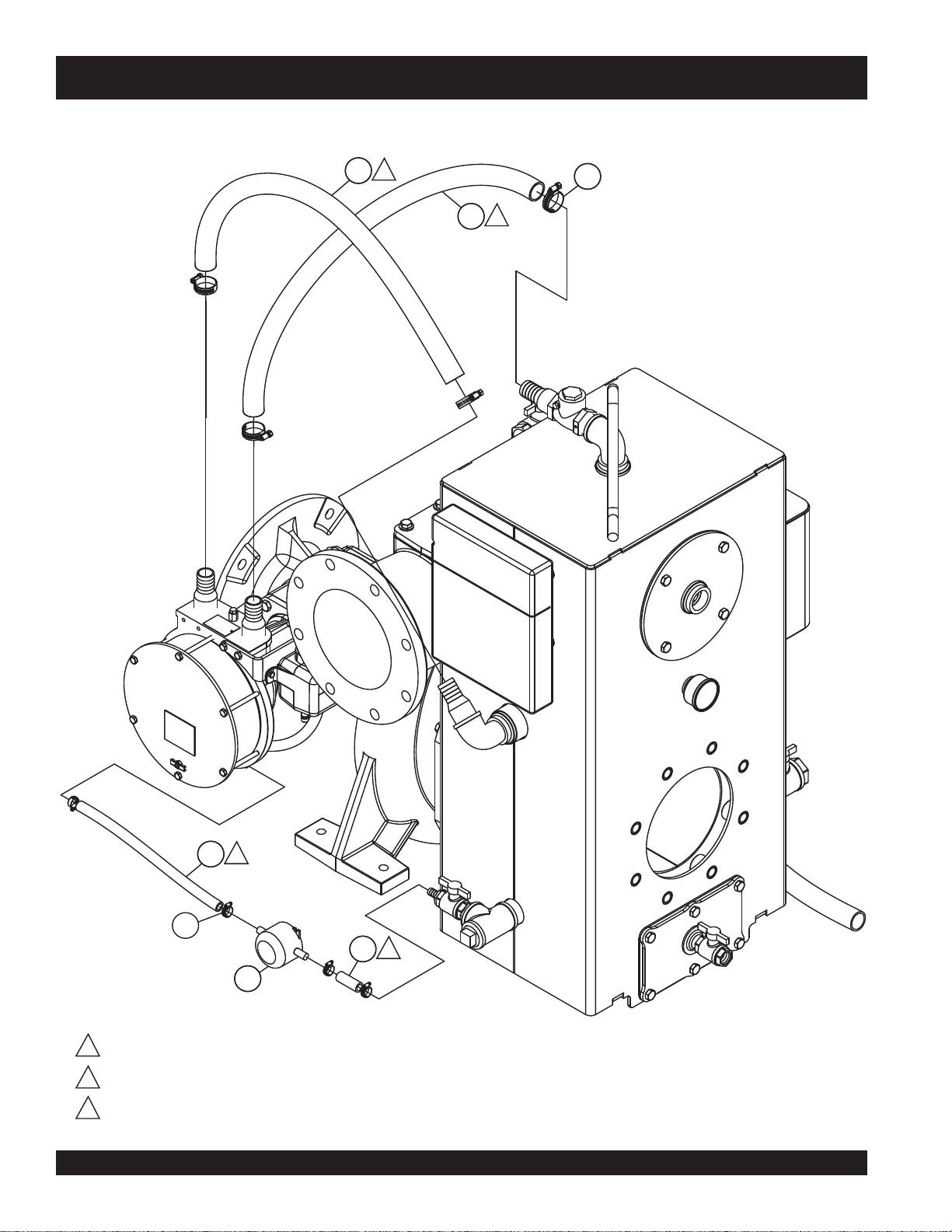

PRIMING SYSTEM HOSES

MQ DRY PRIME PUMP - PRIMING SYSTEM HOSES

3

1

3

1

4

5

2

1

5

3

2

P\N 17265: 36 IN (91.44 cm) CLEAR HOSE WIRE REINFORCED

1

P\N 60008: 25 IN (60.96 cm) HOSE, PVC BRAIDED

2

P\N 60008: 2 IN (5.08 cm) HOSE, PVC BRAIDED

3

PAGE 22 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

MQ DRY PRIME PUMP —PRIMING SYSTEM HOSES

PRIMING SYSTEM HOSES

NO. PART NO. PART NAME QTY. REMARKS

1 15538 CLAMP, HOSE WORM #6 4
2 17180 FILTER, FLOJET 1740-002 1

3 17265 HOSE, 1.25ID CLEAR WIRE REINFORCED ........... 72.0 IN. ........ SOLD IN FOOT LENGTHS

4 26405 CLAMP, HOSE WORM 13/16 - 1-3/4 SIZE 20 4

5 60088 HOSE, PVC BRAIDED, .5 ID X .75 OD ................... 26.0 IN ......... SOLD IN FOOT LENGTHS

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 23

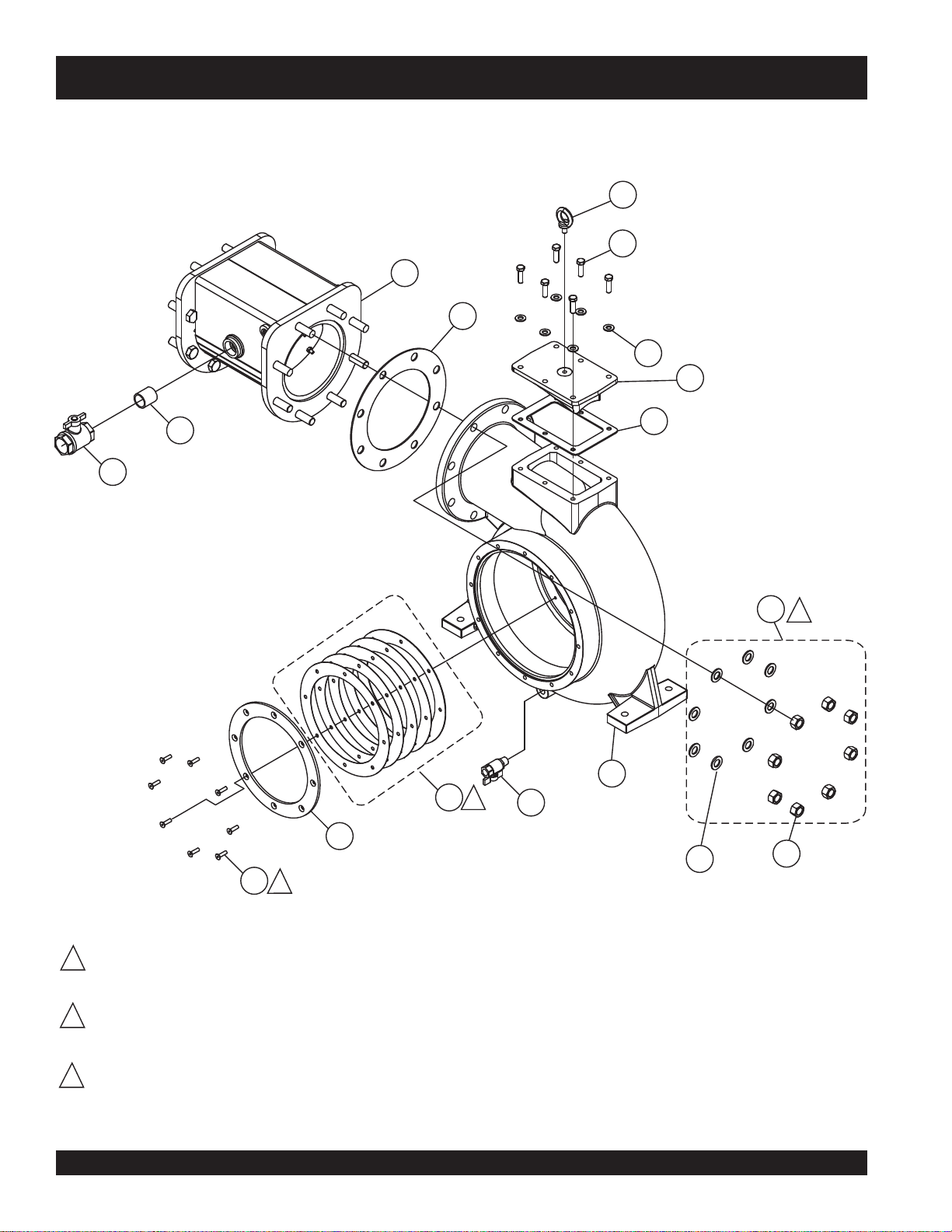

PUMP END ASSY.

PUMP END ASSY.

4

8

2

6

12

5

3

13

1

10

3

USE THREADLOCK: HIGH TEMP.

1

LOCTITE BLUE 246 OR EQUIVALENT.
TORQUE TO 28 FT-L BF (37.9 N-m)

USE THREADLOCK: HIGH TEMP.

2

LOCTITE BLUE 246 OR EQUIVALENT
TORQUE TO 48 FT-LB (65.0 N-m)

USE THREADLOCK: HIGH TEMP.

3

LOCTITE RED 272 OR EQUIVALENT

PAGE 24 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

7

1

9

2

2

11

2

PUMP END ASSY.

PUMP END ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 VOLUTE ASSEMBLY ............................................... 1 .................. SEE PAGES 32-33

2 0447 WASHER, FLAT SAE 1/2 12
3 10136 WASHER, FLAT SAE 3/8 8
4 16057 SCREW, HHC M12-1.75 x 40mm 4

5 17017 PRIMING TANK ASSY., MP PUMP ......................... 1 .................. SEE PAGES 38-41

6 17034 HOUSING ASSY. MP PUMP DRIVE SHAFT .......... 1 .................. SEE PAGES 26-27

7 17037 GASKET, VOLUTE TO PRIMING TANK 1

8 17078 VACUUM PUMP ASSY., 60 CFM ............................ 1 .................. SEE PAGES 28-29

9 17114 NUT, HEX FINISH M12-1.750 ZN, DIN934 CL8 4
10 17172 SCREW, STUD M12-1.75X50 DIN939 CL 8.8 4
11 17413 SCREW, HHC M12-1.75x45 ZN, DIN931 CL8.8 8
12 17416 SHIM PACK, VACUUM PUMP BACKLASH 1
13 21584 SCREW, HHC M10-1.5 X 35MM GR 10.9 8

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 25

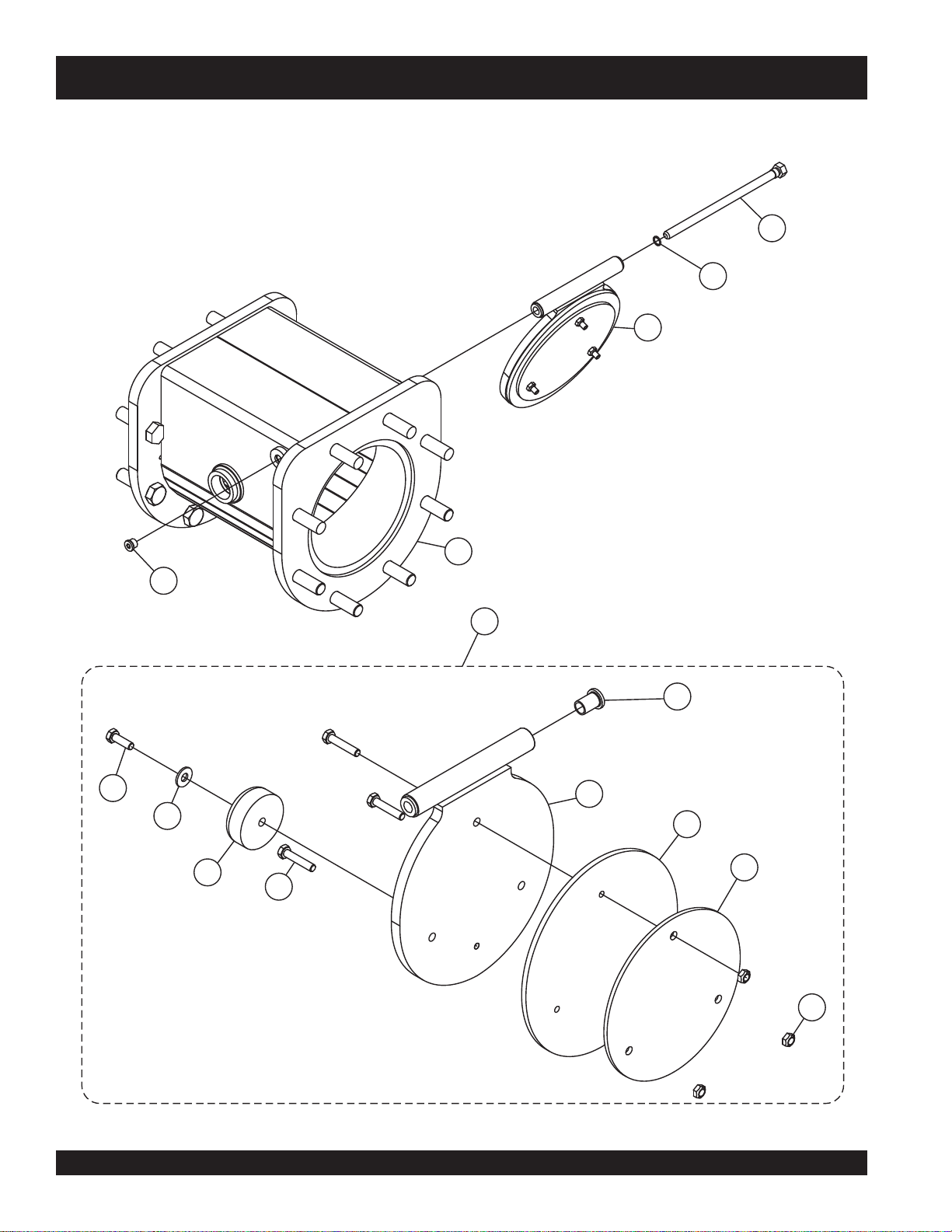

BEARING HOUSING ASSY.

19

BEARING HOUSING ASSY.

30

10

12

24

8

25

28

27

10

31

2

1

22

1

30

24

25

31

29

3

9

5

18

26

29

15

3

21

23

3

11

6

USE THREADLOCK: HIGH TEMP.

1

LOCTITE BLUE 246 OR EQUIVALENT.

US THREADLOCK: HIGH TEMP

2

LOCTITE RED 272 OR EQUIVALENT
TORQUE TO 100 FT-LB (135.5 N-m)

FILL BEARING HOUSING CAVATIES

3

SIGHTGLASS. FILL WITH P\N 60078 OIL, GEAR ISO 220
OR EQUIVALENT.

TO

13

THE CENTER OF

14

17

9

7

32

1

16

20

2

22

1

22

4

1

PAGE 26 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

BEARING HOUSING ASSY.

BEARING HOUSING ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 11821 SCREW, SHC M8 - 1.25 X 25MM GR 12.9 NP 8
2 17012 HOUSING, MP PUMP DRIVE SHAFT 1
3 17013 DRIVE SHAFT, MULTIPURPOSE PUMP 1
4 17014 END CAP, MP PUMP BEARING HOUSING 1
5 17015 END CAP, MP PUMP BEARING HSG,VOLUTE 1
6 17016 SPACER, PUMP GEAR/BEARING 1
7 17018 PLATE,VACUUM PUMP MOUNT COVER 1
8 17019 EYE BOLT, M12 X 1.75 ZP 1
9 17020 O-RING, SIZE 2-248 VITON 2
10 17021 SEAL, CR 50X70X10 HMSA7 VITON 2
11 17023 MITER GEAR, 4" PITCH DIA. LH MODIFIED 1
12 17024 BEARING, SKF NU-210-ECM 1
13 17025 BEARING, SKF 5311E 1
14 17026 SNAP RING, ROTORCLIP VHO-475 BEVELED 1
15 17027 SPACER, MP PUMP MECHANICAL SEAL 1
16 17028 SEAL, CR 75X100X10 HMSA7 VITON 1
17 17029 O-RING, SIZE 2-246 VITON 1
18 17031 O-RING, SIZE 2-237 VITON 1
19 17032 O-RING, SIZE 2-377 VITON 1
20 17033 NUT, 48MM THREADED BEARING RETAINER 1
21 17099 SCREW, HHC M12-1.75X20 ZN DIN933 CL8.8 4
22 17109 SCREW, SHSCU M8-1.25X8 DIN916 10
23 17121 KEY, SQ. .375 X 1.25 RD END 1
24 17173 FITTING, 12MO X 1/8FP 2
25 17337 EXTENSION, BEARING HOUSING BREATHER 2

26 17417 BEARING HOUSING, MECH. SEAL KIT ................. 1 .................. INCLUDES ITEMS W/*

27* 17251 MECHANICAL SEAL, MP PUMP DRIVE SHAFT ... 1 .................. REPLACE AS SET

28* 17252 SEAL COUNTERFACE, MP PUMP DRIVE SHAFT 1 .................. REPLACE AS SET

29 21109 SIGHT GLASS, DASH 12 ORB STEEL 4
30 21218 VENT, AIR GEAR BOX 2
31 25666 O-RING, SIZE 3-912 12 BOSS 2
32 368657 FITTING, PLUG 12MO 2

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 27

VACUUM PUMP ASSY.

VACUUM PUMP ASSY.

20

11

9

2

12

10

16

21

21

5

22

19

18

23

17

12

7

24

3

5

4

13

3

5

15

2

2

1

2

4

18

6

9

8

1

14

USE THREADLOCK: HIGH TEMP LOCTITE BLUE 246 OR EQUIVALENT.

1

TORQUE TO 14 FT. LBS (18.9 N-m).

2

FILL ALL OIL RESERVOIRS WITH FILL WITH P\N 60078 OIL, GEAR ISO 220 OR EQUIVALENT.

3

ROTATE ECCENTRIC HOUSING TO OBTAIN. 006” CLEARANCE BETWEEN IMPELLER AND HOUSING.

4

ROTATE IMPELLER AFTER SETTING CLEARANCE TO ENSURE IMPELLER DOES NOT RUB.

SILICONE SCREW INTO PLACE TO BLOCK EXTRA PORT ON RESERVOIR.

5

PAGE 28 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

2

1

VACUUM PUMP ASSY.

VACUUM PUMP ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2478 FITTING, PETCOCK RAD DRAIN 1/4MP 1
2 2866 SCREW, HHC M8 - 1.25 X 20MM 4
3 11821 SCREW, SHC M8 - 1.25 X 25MM GR 12.9 NP 1
4 12464 SCREW, HHC M6 - 1.0 X 16MM 2
5 15538 CLAMP, HOSE WORM #6 2
6 17080 IMPELLER, MP 60 CFM VACUUM PUMP 1
7 17081 ECCENTRIC HOUSING, 60 CFM VACUUM PUMP 1
8 17082 COVER PLATE, VACUUM PUMP IMPELLER 1
9 17083 WASHER, MP VACUUM PUMP BEVEL GEAR 2
10 17085 MITER GEAR, BOSTON GEAR HLSK118Y-R 1
11 17086 BRACKET, VACUUM PUMP OIL RESERVOIR 1
12 17087 HOUSING ASSY., MP VACUUM PUMP 1
13 17096 KEY, 8X7X32 MM DIN 6885A 1
14 17104 SCREW, HHC M8-1.25 X 100 ZN 6
15 17113 NUT, HEX FINISH M6-1.00 ZN 2
16 17120 KEY, SQ .25X1.125 RD END 1
17 17136 FITTING, 4MO X 1/8FP 1
18 17143 O-RING, SIZE 2-271 VITON 2
19 17204 FITTING, 90 8 FJ X 8 BARB 2
20 17212 FITTING, STR 1.25MPX1.25BARB, GALV 2
21 17299 FITTING, STR 8MJ - 4MO 2
22 17420 SHIM KIT, VACUUM PUMP IMPELLER 1
23 21218 VENT, AIR, GEAR BOX 1
24 37213 RESERVOIR, 350ML, HYDROGEAR 71327 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 29

VAC. PUMP BEARING HOUSING ASSY.

VAC. PUMP BEARING HOUSING ASSY.

4

13

18

19

17

2

1

5

3

9

1

14

15

3

7

3

6

11

10

2

16

12

4

14

8

USE THREADLOCK: HIGH TEMP LOCTITE BLUE 246 OR EQUIVALENT.

1

TORQUE TO 14 FT-LBS. (18.9 N-m).

TORQUE TO 8 FT-LBS (10.8 N-m).

2

APPLY LOCTITE 518, FLANGE SEALANT TO MATING SURFAC

3

PORT PLATE.

SHIM ENDCAP AS NECCESARY, SHAFT SHOULD HAVE ZERO ENDPLAY, BE ABLE TO ROTATE

4

WITH FINGERS, AND HAVE NO “FREE” SPIN

ES

OF BEARING HOUSING AND

PAGE 30 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

VAC. PUMP BEARING HOUSING ASSY.

VAC. PUMP BEARING HOUSING ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 DECAL, MQT SERIAL PLATE, NON CE ................. 1 .................. CONTACT SERVICE DEPT.

2 4014 SCREW, #2 3/16 P-K TYPE U DRIVE 2
3 17020 O-RING, SIZE 2-248 VITON 1
4 17058 SPACER, MECHANICAL SEAL LOCATING 1
5 17079 PORT PLATE, MP VACUUM PUMP 1
6 17088 BEARING HOUSING, MP VACUUM PUMP 1
7 17089 END CAP, VACUUM PUMP BEARING HOUSING 1
8 17090 DRIVE SHAFT MP VACUUM PUMP 1
9 17098 SCREW, FHSC M8-1.25X30 SS, DIN7991 3
10 17108 SCREW, SHC M6-1.00X20, NYTEMP PATCH 4
11 17139 SEAL, CR 40X62X10 HMSA7 VITON 1
12 17140 O-RING, SIZE 2-234 VITON 1
13 17141 O-RING, SIZE 2-228 VITON 1
14 17142 BEARING, SKF 32008 X/Q 2
15 17389 PIN, SPIRAL 1/4X1 HD 2
16 17418 SHIM PACK, VACUUM PUMP PRE-LOAD 1

17 17419 KIT, VACUUM PUMP MECH. SEAL ASSY. ............. 1 .................. INCLUDES ITEMS W/*

18* 17253 MECHANICAL SEAL, MP VACUUM PUMP ........... 1 .................. REPLACE AS SET

19* 17254 SEAL COUNTERFACE, MP VACUUM PUMP ......... 1 .................. REPLACE AS SET

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 31

VOLUTE AND CHECK VALVE ASSY.

VOLUTE AND CHECK VALVE ASSY.

4

2

6

5

1

8

12

11

10

9

14

2

3

17

3

13

7

15

1

16

USE THREADLOCK: HIGH TEMP LOCTITE BLUE 246 OR EQUIVALENT.

1

TORQUE TO 14 FT-LBS. (18.9 N-m).

USE THREADLOCK: HIGH TEMP LOCTITE BLUE

2

SHIM AS NECCESARY TO OBTAIN .020” +- .010” CLEARANCE

3

WEAR PLATE

PAGE 32 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

272 OR EQUIVALENT.

BETWEEN IMPELLER AND

VOLUTE AND CHECK VALVE ASSY.

VOLUTE AND CHECK VALVE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0447 WASHER, FLAT 1/2 SAE 6
2 16057 SCREW, HHC M12 - 1.75 X 40MM 6
3 17004 VOLUTE, MULTIPURPOSE PUMP 1
4 17019 EYE BOLT, M12 X 1.75 ZP 1
5 17040 GASKET, 8" FLANGE 1
6 17062 CHECK VALVE ASSY., PUMP DISCHARGE 1

7 17093 REAR WEAR RING, MP PUMP 1/4" ....................... 1 .................. CONTACT PARTS DEPT.

17396 REAR WEAR RING, MP PUMP 3/16" ..................... 1 .................. W\ SERIAL NUMBER TO

....................................................................................................... DETERMINE PROPER P\N

8 17094 VOLUTE ACCESS CAP 1
9 17095 GASKET, VOLUTE CAP 1
10 17098 SCREW, FHSC M8 - 1.25 X 30 SS DIN 7991 8

11 17214 FITTING, NIPPLE 3/4 MP CLOSE, GALV ................ 1 .................. UP TO S\N 170040

17215 FITTING, NIPPLE 1-1/4 MP CLOSE, GALV ............. 1 .................. S\N 170041 AND UP

12 17218 VALVE, BALL 3/4 FP X 3/4 FP BRASS ................... 1 .................. UP TO S\N 170040

17217 VALVE, BALL 1-1/4 FP X 1-1/4 FP BRASS ............. 1 .................. S\N 170041 AND UP

13 17244 VALVE, BALL 1/2 MNPT X FNPT BRASS 1

14 17335 KIT DISCHARGE HARDWARE, MP PUMP ............. 1 .................. INCLUDES ITEMS W/*

15* 17112 WASHER FLAT 20MM ZN 8
16* 17343 NUT, HEX FINISH M20-2.5 ZP 8
17 17421 SHIM PACK, REAR WEAR RING 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 33

CHECK VALVE ASSY.

CHECK VALVE ASSY.

1

13

2

12

14

2

7

3

10

9

4

5

6

8

PAGE 34 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

11

CHECK VALVE ASSY.

CHECK VALVE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 17063 PIN, DISCHARGE CHECK VALVE PIVOT 1

2 17076 VALVE PLATE ASM, PUMP DISCHARGE .............. 1 .................. INCLUDES ITEMS W/*

3* 1605 SCREW, HHC M8-1.25 X 25MM 1

4* 1928 SCREW, HHC M8-1.25 X 40MM .............................. 3 .................. S\N 170043 AND UP

10790 SCREW, HHC M6-1.00 X 30MM .............................. 3 .................. UP TO S\N 170042

5* 17070 VALVE PLATE W/A, PUMP DISCHARGE 1
6* 17073 RUBBER SEAL, DISCHARGE CHECK VALVE 1
7* 17074 BUSHING, BRONZE .5 X .625 X 1" W/FLANGE 2
8* 17075 WEAR PLATE, DISCHARGE CHECK VALVE 1
9* 17336 BUMPER, MP PUMP CHECK VALVE 1
10* 19470 WASHER, FLAT USS 5/16 1

11* 20440 NUT, HEX LOCK M8-1.25 ........................................ 3 .................. S\N 170043 AND UP

12 17077 CHECK VALVE HOUSING W/A 1
13 17138 O-RING, SIZE 3-906 VITON 1
14 368699 FITTING, PLUG 6MO HEX SKT HD 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 35

IMPELLER AND WEAR PLATE ASSY.

8

2

5

1

IMPELLER AND WEAR PLATE ASSY.

5

2

4

7

2

USE THREADLOCK: HIGH TEMP.

1

LOCTITE BLUE 246 OR EQUIVALENT.
TORQUE TO 60 FT-L BF (81.3 N-m)

USE ANTI-SEIZE OR EQUIVALENT

2

TORQUE TO 60 FT-L BF (81.3 N-m)

USE THREADLOCK: HIGH TEMP.

3

LOCTITE RED 272 OR EQUIVALENT.
TORQUE TO 250 FT-LBF (338.9 N-m)

PAGE 36 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

6

3

3

1

IMPELLER AND WEAR PLATE ASSY.

IMPELLER AND WEAR PLATE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 17006 IMPELLER, 285 X 80 PUMP .................................... 1 .................. FITS MP150S & MP200

17008 IMPELLER, 300 X 85 PUMP .................................... 1 .................. FITS MP200S

2 17011 SEPERATOR FLANGE, MP PUMP 1
3 17049 CAP, MP PUMP IMPELLER 1

4 17092 FRONT WEAR PLATE, MP PUMP .......................... 1 .................. FITS MP200S

17386 FRONT WEAR PLATE, MP PUMP .......................... 1 .................. FITS MP150S & MP200

5 17105 SCREW, SHC M12-1.75X35 SS, DIN912 16
6 17107 SCREW, SHC M16-2.00X60, DIN912 CL12.9 1
7 17144 O-RING, SIZE 2-457 VITON 1
8 17332 SCREW, SHC M12-1.75X70 SS, DIN912 4

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 37

PRIMING TANK ASSY. (1)

PRIMING TANK ASSY. (1)

1

4

2

6

5

1

14

9

17

15

2

9

3

16

11

11

10

13

USE THREADLOCK: HIGH TEMP.

1

LOCTITE BLUE 246 OR EQUIVALENT.
TORQUE TO 50 FT-L BF (67.9 N-m)

P\N 17265: 10.5” (26.67 cm) CLEAR

2

HOSE WIRE REINFORCED

PAGE 38 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

7

5

1

8

12

PRIMING TANK ASSY. (1)

PRIMING TANK ASSY. (1)

NO. PART NO. PART NAME QTY. REMARKS

1 11644 SCREW, HHC 10-32 X 5/8, W/WSHR PLATED 6
2 17036 FILLER CAP ASSY., LENZ PN FCS-1303-24 1
3 17038 GASKET, PRIMING TANK ACCESS PANEL 1
4 17039 GASKET, PRIMING TANK FLOAT VALVE 1
5 17099 SCREW, HHC M12-1.75X20 ZN, DIN933 CL8.8 10

6 17122 FLOAT VALVE ASSY, MP PUMP ............................ 1 .................. SEE PAGES 42-43

7 17137 ACCESS PANEL W/A, MP PUMP, PRIMING TANK 1
8 17211 FITTING, TEE 1.25FPX1.25FPX1.25FP, GALV 1
9 17212 FITTING, STR 1.25MPX1.25BARB, GALV 5
10 17214 FITTING, NIPPLE 3/4 MP CLOSE, GALV 1
11 17215 FITTING, NIPPLE 1-1/4 MP CLOSE, GALV 2
12 17217 VALVE, BALL 1-1/4FPX1-1/4FP, BRASS 1
13 17218 VALVE, BALL 3/4FPX3/4FP, BRASS 2
14 17219 GAUGE, 0 TO -30INHG, .25 MP 1

15 17265 HOSE 1.25ID CLEAR, WIRE REINFORCED ................................. SOLD IN FOOT LENGTHS

16 17438 PRIMING TANK W\A, SERVICE ASSY. 1
17 26405 CLAMP, HOSE WORM 13/16 - 1-3/4 SIZE 20 2

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 39

PRIMING TANK ASSY. (2)

PRIMING TANK ASSY. (2)

12

7

2

5

14

15

1

1

17

2

2

7

15

1

1

9

5

16

5

2

11

2

USE THREADLOCK: HIGH TEMP.

1

LOCTITE BLUE 246 OR EQUIVALENT.
TORQUE TO 14 FT-LBF (18.9 N-m)

P\N 17265: 36 IN (91.44 cm) HOSE 1.25” ID

2

CLEAR, WIRE REINFORCED

PAGE 40 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

13

10

7

4

3

8

6

PRIMING TANK ASSY. (2)

PRIMING TANK ASSY. (2)

NO. PART NO. PART NAME QTY. REMARKS

1 1605 SCREW, HHC M8-1.25 X 25MM 8
2 17208 FITTING, 90 1.25MP X 1.25FP GALV 4
3 17209 FITTING, STR 1.25MP X .75FP, GALV 1
4 17211 FITTING, TEE 1.25FPX1.25FPX1.25FP, GALV 1
5 17212 FITTING, STR 1.25MPX1.25BARB, GALV 3
6 17214 FITTING, NIPPLE 3/4 MP CLOSE, GALV 2
7 17215 FITTING, NIPPLE 1-1/4 MP CLOSE, GALV 3
8 17216 FITTING, PLUG 1.25MP SQ HD, GALV 1
9 17217 VALVE, BALL 1-1/4FPX1-1/4FP, BRASS 2
10 17218 VALVE, BALL 3/4FPX3/4FP, BRASS 2

11 17265 HOSE 1.25ID CLEAR, WIRE REINFORCED ................................. SOLD IN FOOT LENGTHS

12 17266 FITTING, 1.25FP X 1.25FP CHECK VALVE 1
13 17291 FITTING, 3/4 MP X 1/2 FP, BRASS 1
14 17387 BAFFLE, PRIMING TANK EXHAUST 1
15 19470 WASHER, FLAT 5/16 USS 8
16 26405 CLAMP, HOSE WORM 13/16 X 1-3/4 SIZE 20 1
17 29057 DOCUMENT BOX 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 41

FLOAT VALVE ASSY.

7

4

6

5

MQ DRY PRIME PUMP —FLOAT VALVE ASSY.

1

1

8

2

2

9

3

USE THREADLOCK: HIGH TEMP.

1

LOCTITE BLUE 246 OR EQUIVALENT.
TORQUE TO 14 FT-LBF (18.9 N-m)

USE THREADLOCK: HIGH TEMP.

2

LOCTITE BLUE 246 OR EQUIVALENT.
TORQUE TO 10 FT-LBF (1 3.5 N-m)

PAGE 42 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

FLOAT VALVE ASSY.

FLOAT VALVE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 17098 SCREW, FHSC M8-1.25X30 SS, DIN7991 2
2 17115 SCREW, FHSC M6-1.00X20 SS, DIN7991 4
3 17123 BASE W/A, MP PUMP, FLOAT VALVE 1
4 17125 HINGE, MP PUMP, FLOAT VALVE 1
5 17126 SHIM, FLOAT VALVE HINGE 2
6 17127 BACKING PLATE, FLOAT VALVE HINGE 1
7 17128 SHIM, FLOAT VALVE HINGE 1
8 17406 MP PUMP FLOAT ARM W\A 1
9 368699 FITTING, PLUG 6MO HEX SKT HD 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 43

BATTERY ASSY.

BATTERY ASSY.

2

4

1

3

PAGE 44 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

BATTERY ASSY.

BATTERY ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 17292 BATTERY, 12V GROUP 31 1125CCA 1
2 17269 BATTERY BOX, GRP 27 1
3 17294 CABLE, BATTERY POS 0 GA X 31" POST 1
4 17293 CABLE, BATTERY NEG 0 GA X 24" POST 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 45

FUEL TANK ASSY.

FUEL TANK ASSY.

10

4

1

16

2

6

1

14

9

5

11

3

15

11

3

8

12

7

13

17

1

4

PAGE 46 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

FUEL TANK ASSY.

FUEL TANK ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1* 4684 WASHER, FLAT SAE 5/8 PLTD 20
2 8151 WASHER, FLAT SAE 3/4 4
3 16185 FITTING, PLUG 1/4 MP SQ HD 3
4* 17101 SCREW, HHC M16 - 2.00 X 40 ZN 12
5 17102 SCREW, HHC M20-2.5 X 40MM ZN, DIN 933 CL8.8 4
6 17169 SCREW, HHC M16-2.00 X 25 DIN 933 CL 10.9 8
7 17184 FUEL TANK, MP PUMP 1
8 17210 FITTING, STR 1.25MP X .25FP GALV 2
9 17216 FITTING, PLUG 1.25MP SQ HD GALV 2
10 17245 LIFTING BAIL, MP PUMP 1
11 17268 FITTING, FUEL PICKUP 1/4NPT X 5/16 BARB 2

12 17272 TIE DOWN ASSY., MP PUMP ................................. 4 .................. INCLUDES ITEMS W/*

13* 17270 TIE DOWN W/A, MP PUMP 4
14 17274 FUEL CAP, MP PUMP 2
15 17278 ISOLATOR, MP PUMP ENGINE SKID ASSY. 4
16 17279 SUPPORT, MP PUMP LIFTING BAIL 4
17* 17285 MOUNTING PLATE, TRAILER ACCESSORY 4

18 60028 HOSE, FUEL 0.312 50PSI LOW PERM CARB ....... 7 .................. SOLD IN FOOT LENGTHS

....................................................................................................... NOT SHOWN

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 47

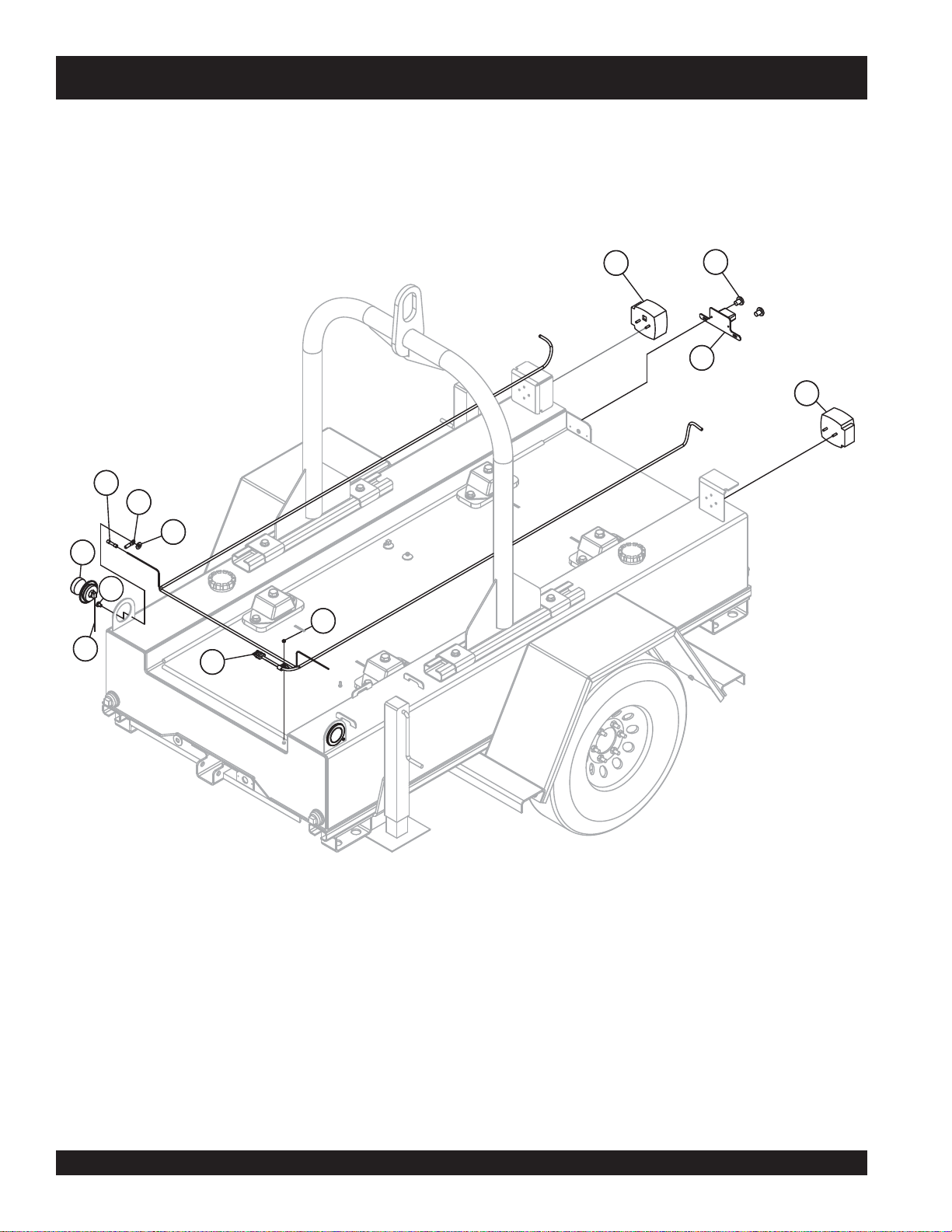

TRAILER ASSY. (TRAILER LIGHTS)

TRAILER ASSY. (TRAILER LIGHTS)

10

11

7

5

1

2

6

3

4

6

9

8

PAGE 48 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

TRAILER ASSY. (TRAILER LIGHTS)

TRAILER ASSY. (TRAILER LIGHTS)

NO. PART NO. PART NAME QTY. REMARKS

1 1319 TERMINAL RING, 16-14 1/4" LOOP 2
2 2203 WASHER FLAT #10 2
3 17113 NUT, HEX FINISH M6-1.00 ZN, DIN 934 CL8 1
4 17182 HARNESS, MP PUMP TRAILER LIGHTS 1
5 17267 CONNECTOR, BUTT SPLICE, 14-16 HT SHRNK 2
6 19847 RIVET, POP, ALUM 3/16X1/8-1/4 4
7 29242 LIGHT, TAIL RT (CURB) SIDE 1
8 29243 LIGHT, TAIL LT (ROAD) SIDE 1
9 29552 BRACKET, LICENSE PLATE WITH LIGHT 1
10 29898 LIGHT, 2-1/2 SIDE MARKER AMBER 143A 2
11 29900 GROMMET, W/WIRE KIT 2-1/2" 14218K 2

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 49

TRAILER ASSY. (SURGE BRAKE)

TRAILER ASSY. (SURGE BRAKE)

4

21

25

8

5

24

33

7

22

3

16

10

19

20

2

11

14

12

1

1

27

34

18

4

6

3

5

36

13

27

9

29

2

11

27

35

6

28

32

26

28

31

15

30

17

23

2

11

PAGE 50 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

35

TRAILER ASSY. (SURGE BRAKE)

TRAILER ASSY. (SURGE BRAKE)

NO. PART NO. PART NAME QTY. REMARKS

1 0447 WASHER, FLAT 1/2 SAE 24
2* 4684 WASHER, FLAT SAE 5/8 PLTD 25
3 8126 CLAMP, HOSE SUPPORT 1/2" SMALL 2
4 9502 SCREW, HHC 5/8-11 X 4-1/2 GR8 3
5 9503 NUT, NYLOC 5/8-11 3
6 9509 SCREW, TEK 12 X 3/4 SELF TAP 2
7 10176 NUT, NYLOC 1/2-13 3
8 10306 SCREW, HHC 1/2-13 X 4-1/2 3
9 10463 CLAMP, HOSE WORM 6 1/8 - 7.0 SIZE 104 4
10 16057 SCREW, HHC M12-1.75 X 40MM 12
11* 17101 SCREW, HHC M16-2.00X40 ZN, DIN933 CL8.8 16
12 17114 NUT, HEX FINISH M12-1.750 ZN, DIN934 CL8 12
13 17275 FENDER, MP PUMP 2
14 17276 FENDER MOUNT, MP PUMP, RH 2
15 17277 FENDER MOUNT, MP PUMP, LH 2
16 17280 MOUNT, MP PUMP AXLE & FENDERS 2
17 17281 AXLE MOUNT, MP PUMP 2

18 17282 JACK ASSY., MP PUMP ........................................2 .................... INCLUDES ITEMS W/*

19* 17284 JACK W/A, MP PUMP 2
20* 17285 MOUNTING PLATE, TRAILER ACCESSORIES 2
21 17295 COUPLER, 2 5/16" BALL 6000# GVWR 1
22 17340 HOSE, DOT BRAKE LINE, 3/16 X 28, BRD SS 1
23 17344 AXLE W/A, MP PUMP 5200# HYDR. BRAKE 1
24 19067 ACTUATOR, BRAKE DEMCO 8759122-30 1
25 19280 PIN, 5/8" X 6" 1
26 19468 GROMMET, MINOR Z-4004 1
27 19763 HOSE, DOT BRAKE, 3/16 X 19, MALE/FEM 3
28 29226 TAB, SPRING LOCK 2
29 29227 TEE, BRAKE LINE 3/16 WITH STRAP 1
30 29231 TUBE, BRAKE 3/16 X 30 IN 1
31 29238 TUBE, BRAKE 3/16 X 41.5 IN 1
32 29251 TUBE, BRAKE 3/16 X 15 IN 1
33 29572 CHAIN ASSY., SAFETY 7600 LB 2
34 29638 WHEEL / TIRE, ST225/75D15 LR D 2
35 29755 KIT, HARDWARE, WHL MNT, 1/2-20 PLTD NUTS 1
36 17345 RECEIVER, MP PUMP HYD BRAKES 1

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 51

TRAILER ASSY. (ELECTRIC BRAKE)

TRAILER ASSY. (ELECTRIC BRAKE)

24

20

19

3

15

21

2

8

17

9

23

3

6

11

30

5

26

30

27

4

22

4

1

7

10

18

28

14

12

29

2

16

25

5

13

8

2

8

PAGE 52 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

TRAILER ASSY. (ELECTRIC BRAKE)

TRAILER ASSY. (ELECTRIC BRAKE)

NO. PART NO. PART NAME QTY. REMARKS

1 0447 WASHER, FLAT 1/2 SAE 24
2 4684 WASHER, FLAT SAE 5/8 PLTD 25
3 9502 SCREW, HHC 5/8-11 X 4-1/2 GR8 3
4 9503 NUT, NYLOC 5/8-11 3
5 9509 SCREW, TEK 12 X 3/4 SELF TAP 3
6 16055 NUT, HEX M8-1.25 2
7 16057 SCREW, HHC M12-1.75 X 40MM 12
8 17101 SCREW, HHC M16-2.00X40 ZN, DIN933 CL8.8 16
9 17114 NUT, HEX FINISH M12-1.750 ZN, DIN934 CL8 12
10 17181 HARNESS, MP PUMP ELEC. BRAKES 1
11 17183 HARNESS, MP PUMP TONGUE, ELEC. BRK. 1
12 17267 CONNECTOR, BUTT SPLICE, 16-14 HT SHRNK 6
13 17273 AXLE, MP PUMP 5200# ELEC. BRAKE 1
14 17275 FENDER, MP PUMP 2
15 17276 FENDER MOUNT, MP PUMP, RH 2
16 17277 FENDER MOUNT, MP PUMP, LH 2
17 17280 MOUNT, MP PUMP AXLE & FENDERS 2
18 17281 AXLE MOUNT, MP PUMP 2

19 17282 JACK ASSY., MP PUMP ........................................2 .................... INCLUDES ITEMS W/*

20* 17284 JACK W/A, MP PUMP 2
21* 17285 MOUNTING PLATE, TRAILER ACCESSORIES 2
22 17286 RECEIVER W/A , MP PUMP ELEC BRAKES 1
23 17295 COUPLER, 2 5/16" BALL 6000# GVWR 1
24 19280 PIN, 5/8" X 6" 1
25 19468 GROMMET, MINOR Z-4004 2
26 29366 KIT, BREAK-AWAY, TRAILER 70 1
27 29572 CHAIN ASM, SAFETY 7600 LB 2
28 29638 WHEEL / TIRE, ST225/75D15 LR D 2
29 29755 KIT, HARDWARE, WHL MNT, 1/2-20 PLTD NUTS 1
30 17104 SCREW, HHC M8-1.25 X 100 ZN DIN931 CL8.8 2

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 53

NOTE PAGE

PAGE 54 — MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/2009)

TERMS AND CONDITIONS OF SALE — PARTS

PAYMENT TERMS

Terms of payment for parts are net 30 days.

FREIGHT POLICY

All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a signed
manifest has been obtained from the carrier,
and any claim for shortage or damage must be
settled between the consignee and the carrier.

MINIMUM ORDER

The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and credit
will be allowed, subject to the following provi­sions:

1. A Returned Material Authorization must

be approved by Multiquip prior to ship­ment.

2. To obtain a Return Mater ial Authorization,

a list must be provided to Multiquip Parts
Sales that defines item numbers, quanti­ties, and descriptions of the items to be
returned.

a. The parts numbers and descriptions

must match the current parts price
list.

b. The list must be typed or computer

generated.

c. The list must state the reason(s) for

the return.

d. The list must reference the sales

order(s) or invoice(s) under which the
items were originally purchased.

e. The list must include the name and

phone number of the person request­ing the RMA.

3. A copy of the Return Material Authoriza-

tion must accompany the return shipment.

4. Freight is at the sender’s expense. All

parts must be returned freight prepaid to
Multiquip’s designated receiving point.

5. Parts must be in new and resalable con-

6. The following items are not returnable:

7. The sender will be notified of any material

8. Such material will be held for five working

9. Credit on returned parts will be issued at

10. In cases where an item is accepted, for

11. Credit issued will be applied to future

PRICING AND REBATES

Prices are subject to change without prior
notice. Price changes are effective on a spe­cific date and all orders received on or after that
date will be billed at the revised price. Rebates
for price declines and added charges for price
increases will not be made for stock on hand
at the time of any price change.

Multiquip reserves the right to quote and sell
dition, in the original Multiquip package (if
any), and with Multiquip part numbers
clearly marked.

a. Obsolete parts. (If an item is in the

price book and shows as being re­placed by another item, it is obsolete.)

b. Any parts with a limited shelf life

(such as gaskets, seals, “O” rings,
and other rubber parts) that were pur­chased more than six months prior to
the return date.

c. Any line item with an extended dealer

net price of less than $5.00.

d. Special order items.
e. Electrical components.

f. Paint, chemicals, and lubricants.

g. Decals and paper products.

h. Items purchased in kits.

received that is not acceptable.

days from notification, pending instruc­tions. If a reply is not received within five
days, the material will be returned to the
sender at his expense.

dealer net price at time of the original
purchase, less a 15% restocking charge.

which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.

purchases only.

direct to Government agencies, and to Original

Equipment Manufacturer accounts who use

our products as integral parts of their own

products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the invoice

for special handling including bus shipments,

insured parcel post or in cases where Multiquip

must personally deliver the parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder for

damages in excess of the purchase price of the

item with respect to which damages are

claimed, and in no event shall Multiquip be

liable for loss of profit or good will or for any

other special, consequential or incidental dam-

ages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are made

in connection with the sale of parts or trade

accessories nor as to any engine not manufac-

tured by Multiquip. Such warranties made in

connection with the sale of new, complete units

are made exclusively by a statement of war-

ranty packaged with such units, and Multiquip

neither assumes nor authorizes any person to

assume for it any other obligation or liability

whatever in connection with the sale of its

products. Apart from such written statement of

warranty, there are no warranties, express,

implied or statutory, which extend beyond the

description of the products on the face hereof.

Effective: February 22, 2006

MQ DRY PRIME PUMP • PARTS MANUAL — REV. #5 (10/12/09) — PAGE 55

PARTS MANUAL

HERE’S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER

UNITED STATES

Multiquip Corporate Office MQ Parts Department

18910 Wilmington Ave. Tel. [phone] Fax: [phone]
Carson, CA 90746 Fax [phone] Fax: [phone]
Contact: [e-mail]

Mayco Parts Warranty Department

800-306-2926 Fax: [phone], Ext. 279 Fax: [phone]
310-537-3700 Fax: [phone], Ext. 279

Service Department Technical Assistance

800-421-1244 Fax: [phone] Fax: [phone]
310-537-3700

MEXICO UNITED KINGDOM

MQ Cipsa Multiquip (UK) Limited Head Office

Carr. Fed. Mexico-Puebla KM 126.5 Tel. [phone] Hanover Mill, Fitzroy Street, Tel. [phone]
Momoxpan, Cholula, Puebla 72760 Mexico Fax [phone] Ashton-under-Lyne, Fax [phone]
Contact: [e-mail] Lancashire OL7 0TL

CANADA BRAZIL

Multiquip Multiquip

4110 Industriel Boul. Tel. [phone] Av. Evandro Lins e Silva, 840 - grupo 505 Tel. [phone]
Laval, Quebec, Canada H7L 6V3 Fax [phone] Barra de Tijuca - Rio de Janeiro Fax [phone]

Contact: [e-mail] Contact: [e-mail], [e-mail]

ON-HAND

WHEN CALLING

Contact: [e-mail]

© COPYRIGHT 2009, MULTIQUIP INC.

Multiquip Inc, the MQ logo and the Whiteman logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All
other trademarks are the property of their respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data
contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or
the information published in this publication at any time without notice and without incurring any obligations.

Your Local Dealer is:

MULTIQUIP INC

18910 WILMINGTON AVE.
CARSON, CALIFORNIA 90746
800-421-1244 • 310-537-3700
FAX: [phone]
E-mail:[e-mail]
Internet:multiquip.com

..

.

..
