OPERATION AND PARTS MANUAL

MODEL J36S60

WALK-BEHIND TROWEL

(SUBARU EX170DM2230

GASOLINE ENGINE)

Revision #1 (01/23/12)

To ﬁnd the latest revision of this

publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

PN: 23968

FUEL AND CHEMICAL EXPOSURE WARNINGS

Gasoline engine exhaust and some of

its constituents, and some dust created by power sanding, sawing, grinding, drillingandotherconstructionactivities contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Some examples of these chemicals are:

Leadfromlead-basedpaints. Crystallinesilicafrombricks. Cementandothermasonryproducts. Arsenicandchromiumfrom chemically treatedlumber.

Your risk from these exposures varies, dependingonhowoftenyoudothistype of work. To reduce your exposure to these chemicals: work in aALWAYS well ventilated area, and work with

approved safety equipment, such as

dust masks that are specially designed to filter out microscopic particles.

PAGE 2 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

SILICOSIS/RESPIRATORY WARNINGS

WARNING

SILICOSIS WARNING RESPIRATORY HAZARDS

Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In addition, California and some other authorities have listed respirable crystalline silica as a substance known to cause cancer. When cutting such materials, always follow the respiratory precautions mentioned above.

WARNING

Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheet and/or consult your employer, the material manufacturer/supplier, governmental agencies such as OSHA and NIOSH and other sources on hazardous materials. California and some other authorities, for instance, have published lists of substances known to cause cancer, reproductive toxicity, or other harmful effects.

Control dust, mist and fumes at the source where possible. In this regard use good work practices and follow the recommendations of the manufacturers or suppliers, OSHA/NIOSH, and occupational and trade associations. Water should be used for dust suppression when wet cutting is feasible. When the hazards from inhalation of dust, mists and fumes cannot be eliminated, the operator and any bystanders should always wear a respirator approved by NIOSH/MSHA for the materials being used.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 3

TABLE OF CONTENTS

J36S60 WAKL-BEHIND TROWEL

Fuel and Chemical Exposure Warnings .................. 2

Silicosis/Respiratory Warnings ................................ 3

Table Of Contents .................................................... 4

Training Checklist .................................................... 5

Daily Pre-Operation Checklist ................................. 6

Safety Information ..............................................7-11

Trowel Speciﬁcations/Dimensions ......................... 12

Engine Speciﬁcations ............................................ 13

General Information ............................................... 14

Trowel Components ............................................... 15

Engine Components .............................................. 16

Assembly and Installation ................................. 17-18

Inspection ......................................................... 19-21

Operation ..........................................................21-26

Options ............................................................. 27-28

Maintenance ..................................................... 29-37

Troubleshooting ................................................38-41

Wiring Diagram ...................................................... 42

Explanation Of Code In Remarks Column............. 44

Suggested Spare Parts ......................................... 45

Component Drawings

Nameplate and Decals Assembly ..................... 46-47

Standard Handle Assembly .............................. 48-49

Quick-Pitch Handle Assembly (Option) ............ 50-51

Guard Assembly ............................................... 52-53

Gearbox Assembly. ........................................... 54-55

Engine Assembly .............................................. 56-57

Spider Assembly ............................................... 58-59

Blade Assembly ................................................ 60-61

Engine Assembly .............................................. 62-63

Subaru EX17 Engine Drawings

Crankcase Assembly ........................................ 62-63

Crankshaft Assembly ........................................ 64-65

Mufﬂer Assembly .............................................. 66-67

Air Cleaner Assembly ....................................... 68-69

Governor Assembly .......................................... 70-71

Blower Assembly .............................................. 72-73

Recoil Starter Assembly ................................... 74-75

Fuel Tank Assembly .......................................... 76-77

Carburetor Assembly ........................................ 78-79

Ignition Coil Assembly ...................................... 80-81

Oil Sensor Assembly ........................................ 82-83

NOTICE

Speciﬁcations and part numbers are subject to change without notice.

Terms And Conditions Of Sale — Parts ................ 84

PAGE 4 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

TRAINING CHECKLIST

Training Checklist

No. Description OK? Date

3 Fuel system, refueling procedure.

6 Emergency stop procedures.

7 Startup of machine, engine choke.

8 Maintaining a hover.

9 Maneuvering.

10 Pitching.

11 Concrete ﬁ nishing techniques.

12 Shutdown of machine.

Read operation manual

completely.

Machine layout, location of

components, checking of engine

oil level.

Operation of controls (machine

not running).

Safety controls, safety stop switch

operation.

13 Lifting of machine (lifting bale).

14 Machine transport and storage.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 5

DAILY PRE-OPERATION CHECKLIST

Daily Pre-Operation Checklist

1 Engine oil level

2 Gearbox oil level

3 Condition of blades

4 Blade pitch operation

5 Safety stop switch operation

     

PAGE 6 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

SAFETY INFORMATION

Do not operate or service the equipment before reading

Potential hazard associated with the operation of this

which

P/N 23700

allow any person

to stand underneath the trowel while lifting.

NEVER

P/N

360

ALWAYS wear protective clothing when operating this equipment

This machine to be operated by qualified personnel. Ask for training as needed.

Lifting Crush Hazard

lift trowel with pans attached.DO NOT

WARNING

Read Manual

NEVER operate this equipment with guards removed. Keep hands clear.

WARNING

Training

Guard Hazard

WARNING

make sure handle is securely attached. On Quick Pitch™ models make sure T-Handle latch is locked (engaged).

ALWAYS

DECAL

SAFETY HAZARD

the entire manual. Safety precautions should be followed at all times when operating this equipment. Failure to read and understand the safety messages and operating instructions could result in injury to yourself and others.

SAFETY MESSAGES

The four safety messages shown below will inform you about potential hazards that could injure you or others. The safety messages speciﬁ cally address the level of exposure to the operator and are preceded by one of four words:

DANGER, WARNING, CAUTION or NOTICE.

SAFETY SYMBOLS

DANGER

Indicates a hazardous situation which, if not avoided,

WILL result in DEATH or SERIOUS INJURY.

WARNING

Indicates a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS INJURY.

equipment will be referenced with hazard symbols may appear throughout this manual in conjunction with safety messages.

SYMBOL

Inhaling exhaust fumes can result in severe injury or death. Only operate equipment in well ventilated areas.

Gasoline fuel can cause fire or explosion. Stop engine before refueling. Keep cigarettes, sparks and flames away from hot surfaces.

HOT PARTS can burn skin.

DO NOT

amount of time to cool before performing maintenance.

SAFETY HAZARD

WARNING

Lethal Exhaust Gas Hazard

inhale exhaust gases/fumes.DO NOT

WARNING

Explosive Fuel Hazard

CAUTION

Burn Hazard

touch hot parts. Allow machine a sufficient

Warning decals associated with the operation of this equipment are deﬁ ned below:

CAUTION

Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY.

NOTICE

Addresses practices not related to personal injury.

WARNING

Rotating Blade Hazard Keep hands and feet clear of guard rings. Stop engine before servicing.

To avoid injury you must read and understand operator’s manual before using this machine.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 7

GENERAL SAFETY

NOTICE

This equipment should only be operated by trained and

Whenever necessary, replace nameplate, operation and

accident due to equipment modiﬁ cations. Unauthorized

recommended by Multiquip for this equipment. Damage

keep

Also, know the phone numbers

ﬁ re department.

SAFETY INFORMATION

CAUTION

 NEVER operate this equipment without proper protective

clothing, shatterproof glasses, respiratory protection, hearing protection, steel-toed boots and other protective devices required by the job or city and state regulations.

 Avoid wearing jewelry or loose ﬁ tting clothes that may

snag on the controls or moving parts as this can cause serious injury.

 NEVER operate this equipment when not

feeling well due to fatigue, illness or when under medication.

 NEVER operate this equipment under the

inﬂ uence of drugs or alcohol.

 ALWAYS clear the work area of any debris, tools, etc.

that would constitute a hazard while the equipment is in operation.



qualiﬁ ed personnel 18 years of age and older.



safety decals when they become difﬁ cult read.

 Manufacturer does not assume responsibility for any

equipment modiﬁ cation will void all warranties.

 NEVER use accessories or attachments that are not

to the equipment and/or injury to user may result.

 ALWAYS know the location of the nearest

ﬁ re extinguisher.

 ALWAYS know the location of the nearest

ﬁ rst aid kit.

 ALWAYS know the location of the nearest phone or

a phone on the job site.

of the nearest ambulance, doctor and This information will be invaluable in the case of an emergency.

 No one other than the operator is to be in the working

area when the equipment is in operation.

 DO NOT use the equipment for any purpose other than

its intended purposes or applications.

PAGE 8 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

TROWEL SAFETY



NOTICE

keep the machine in proper running condition.

store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children and unauthorized personnel.

Association of Equipment Manufacturers (AEM) can be

engine is hot. High pressure boiling water will gush out

SAFETY INFORMATION

DANGER

 Engine fuel exhaust gases contain poisonous carbon

monoxide. This gas is colorless and odorless, and can cause death if inhaled.

 The engine of this equipment requires an adequate free

ﬂ ow of cooling air. NEVER operate this equipment in any enclosed or narrow area where free ﬂ ow of the air is restricted. If the air ﬂ ow is restricted it will cause injury to people and property and serio u s dama g e to t he equipment or engine.

NEVER operate the equipment in an explosive atmosphere or near combustible materials. An explosion or ﬁ re could result causing severe

bodily harm or even death.

WARNING

ALWAYS keep clear of rotating or moving

parts while operating the trowel.

 ALWAYS

 Fix damage to machine and replace any broken parts

immediately.

 ALWAYS

 A safety manual for operating and maintenance

personnel of concrete power trowels produced by the

DANGEROUS

GAS FUMES

obtained for a fee by ordering through their website at www.aem.org.

Order FORM PT-160

ENGINE SAFETY

WARNING

 D O NOT pl ace hands o r fi ngers inside e ngine

compartment when engine is running.

 NEVER operate the engine with heat shields or

guards removed.

DO NOT start or operate the trowel if the

drive train will not disengage. Centrifugal force between the trowel and surface when starting can cause uncontrolled handle movement that can cause serious injury. The handle must not move while pulling the engine recoil starter.

 NEVER disconnect any emergency or safety devices.

These devices are intended for operator safety. Disconnection of these devices can cause severe injury, bodily harm or even death. Disconnection of any of these devices will void all warranties.

CAUTION

 NEVER stand on trowel during operation.

 NEVER lubricate components or attempt service on a

running machine.

 NEVER place your feet or hands inside the guard rings

while starting or operating this equipment.

 Keep ﬁ ngers, hands hair and clothing away

from all moving parts to prevent injury.

 DO NOT remove the radiator cap while the

of the radiator and severely scald any persons in the general area of the trowel.

 DO NOT remove the coolant drain plug

while the engine is hot. Hot coolant will gush out of the coolant tank and severely scald any persons in the general area of the trowel.

 DO NOT remove the engine oil drain plug while the

engine is hot. Hot oil will gush out of the oil tank and severely scald any persons in the general area of the trowel.

CAUTION

 NEVER touch the hot exhaust manifold,

mufﬂ er or cylinder. Allow these parts to cool before servicing equipment.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 9

NOTICE

 Store fuel in appropriate containers, in well-ventilated

Some walk-behind trowels can be lifted or moved by two people utilizing lifting tubes or other special attachments. Generally, however, they must be lifted using lifting bales

transport trowel with ﬂ oat pans attached unless

safety catches are used and are speciﬁ cally cleared for

 NEVER run engine without an air ﬁ lter or with a dirty air

ﬁ lter. Severe engine damage may occur. Service air ﬁ lter frequently to prevent engine malfunction.

NEVER tamper with the factory settings

of the engine or engine governor. Damage to the engine or equipment can result if operating in speed ranges above the maximum allowable.

FUEL SAFETY

DANGER

 DO NOT add fuel to equipment if it is placed inside truck

bed with plastic liner. Possibility exists of explosion or ﬁ re due to static electricity.

SAFETY INFORMATION

areas and away from sparks and ﬂ ames.

 NEVER use fuel as a cleaning agent.

 D O NOT smoke around or near the

equipment. Fire or explosion could result from fuel vapors or if fuel is spilled on a hot engine.

TRANSPORTING SAFETY

CAUTION

 NEVER allow any person or animal to

stand underneath the equipment while lifting.

NOTICE

FUEL

 DO NOT start the engine near spilled fuel or combustible

ﬂ uids. Fuel is extremely ﬂ ammable and its vapors can cause an explosion if ignited.

 ALWAYS refuel in a well-ventilated area, away from

sparks and open ﬂ ames.

 ALWAYS use extreme caution when working with

ﬂ ammable liquids.

 DO NOT ﬁ ll the fuel tank while the engine is running

or hot.

 DO NOT overﬁ ll tank, since spilled fuel could ignite if it

comes into contact with hot engine parts or sparks from the ignition system.



and cranes, hoists, or forklifts.

 NEVER

such transport by the manufacturer.

 NEVER hoist the trowel more than three feet off the

ground with ﬂ oat pans attached.

 Before lifting, make sure that the lifting bales are not

damaged.

 Always make sure crane or lifting device has been

properly secured to the lifting bales of the equipment.

 ALWAYS shutdown engine before transporting.

 NEVER lift the equipment while the engine is running.

 Tighten fuel tank cap securely and close fuel cock to

prevent fuel from spilling.

 Use adequate lifting cable (wire or rope) of sufﬁ cient

strength.

 DO NOT lift machine to unnecessary heights.

 ALWAYS tie down equipment during transpor t by

securing the equipment with rope.

PAGE 10 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

SAFETY INFORMATION

ENVIRONMENTAL SAFETY/DECOMMISSIONING

EMISSIONS INFORMATION

This engine has been certiﬁ ed to meet US EPA Evaporative

proper training could damage the equipment or create an

Additionally, modifying the fuel system may adversely affect evaporative emissions, resulting in ﬁ nes or other penalties.

The emission control label is an integral part of the emission

If a replacement emission label is needed, please contact

NOTICE

Decommissioning is a controlled process used to safely retire a piece of equipment that is no longer serviceable. If the equipment poses an unacceptable and unrepairable safety risk due to wear or damage or is no longer cost effective to maintain (beyond life-cycle reliability) and is to be decommissioned (demolition and dismantlement),be sure to follow rules below.

 DO NOT pour waste or oil directly onto the ground, down

a drain or into any water source.

 Contact your country's Depar tment of

Public Works or recycling agency in your area and arrange for proper disposal of any electrical components, waste or oil associated with this equipment.

 When the life cycle of this equipment is over, remove

battery and bring to appropriate facility for lead reclamation. Use safety precautions when handling batteries that contain sulfuric acid.

 When the life cycle of this equipment is over, it is

recommended that the trowel frame and all other metal parts be sent to a recycling center.

Metal recycling involves the collection of metal from discarded products and its transformation into raw materials to use in manufacturing a new product.

Recyclers and manufacturers alike promote the process of recycling metal. Using a metal recycling center promotes energy cost savings.

NOTICE

The gasoline engine used in this equipment has been designed to reduce harmful levels of carbon monoxide (CO), hydrocarbons (HC) and nitrogen oxides (NOx) contained in gasoline exhaust emissions.

emissions requirements in the installed conﬁ guration.

Attempting to modify or make adjustments to the engine emmission system by unauthorized personnel without

unsafe condition.

Emission Control Label

system and is strictly controlled by regulation(s).

The label must remain with the engine for its entire life.

your authorized Honda Engine Distributor.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 11

TROWEL SPECIFICATIONS/DIMENSIONS

TOP VIEW

AAA

SIDE VIEW

Figure 1. Dimensions

Table 1. Trowel Speciﬁcations

A–Height (Lifting Bale) – in. (mm) 27 (686) Number of Blades 4

B–Height (Handle) – in. (mm) Standard 37.4 (950) Path Width – in. (mm) 36 (914)

Quick Pitch 42 (1,067) Rotor – RPM (Dry Concrete) 60-130

C–Width (Ring Diameter) – in. (mm) 37.3 (950) Gear Box Oil Capacity – oz (ml)

Shipping Weight – lbs. (kg)

D–Length – in. (mm) 74 (1,880)

Standard

Quick Pitch

28 (828)

225 (102) 235 (107)

Table 2. Noise and Vibration Emissions

Guaranteed ISO 11201:2010 Based Sound Pressure Level at Operator Station in dB(A)

Guaranteed ISO 3744:2010 Based Sound Power Level in dB(A)

Hand-Arm Vibration Per ISO 5349-1:2001

∑A(8)

in m/s

a. With an uncertainty factor K of 2.5 dB (A) included per Note 1 in section 7.2.1 of EN 12649::2008+A1:2011

b. With an uncertainty factor K of 1.5 dB (A) included per Note 1 in section 7.2.1 of EN 12649::2008+A1:2011

Quick Pitch

Standard Handle 90.79

Quick Pitch

Standard Handle 104.3

Quick Pitch

Standard Handle 1.20

Handle 90.79

Handle 104.3

Handle 1.18

NOTES:

1. Sound Pressure and Power Levels are “A” weighted Measures per ISO 3744:2010. They are measured with the operating condition of the

machine which generates the most repeatable but highest values of the sound levels. Under normal circumstances, the sound level will vary

depending on the condition of the material being worked upon.

2. The vibration level indicated is the vector sum of the RMS (Root Mean Square) Values of amplitudes on each axis, standardized to an 8 hour

exposure period, and obtained using operating condition of the machine that generates the most repeatable but highest values in accordance

with the applicable standards for the machine.

3. Per EU Directive 2002/44/EC, the daily exposure action value for hand/arm vibration is 2.5 m/s

s2 “A(8).

PAGE 12 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

“A(8). The daily exposure limit value is 5 m/

ENGINE SPECIFICATIONS

Table 3. Engine Speciﬁcations/Dimensions

Model Subaru EX170DM2230 Engine

Type

Bore X Stroke 2.64 in. X 1.89 in. (67 mm x 48 mm)

Displacement 10.31 cu-in. (169 cc)

Max. Output 5.7 H.P. @ 4000 RPM

Fuel Tank Capacity Approx. 0.95 U.S. Gallons (3.6 Liters)

Fuel Unleaded Gasoline

Lube Oil Capacity 0.63 qt. (0.6 liters)

Oil Type

Speed Control Method Centrifugal Fly-weight Type

Cooling System Forced Air

Starting Method Recoil Start

Spark Plug Type NKG BR6HS

Spark Plug Gap 0.028-0.031 in. (0.70 - 0.80 mm)

Dimension (L x W x H) 11.97 x 13.94 X 13.19 in. (304 X 354 X 335 mm)

Dry Net Weight 33.08 lbs (15 Kg.)

Air-cooled 4 stroke, Slant Single Cylinder, OHC,

Horizontal PTO Shaft Gasoline Engine

4-Stroke API, SF or SG

SAE 10W-30 General Use

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 13

GENERAL INFORMATION

INTENDED USE

Operate this trowel, tools and components in accordance with the manufacturer's instructions. Use of any other tools for stated operation is considered contrary to designated use. The risk of such use lies entirely with the user. The manufacturer cannot be held liable for damages as a result of misuse

TROWEL FAMILIARIZATION

This walk-behind trowel is designed for the ﬂoating and ﬁnishing of concrete slabs.

Take a walk around the trowel. Take notice of all the major components (Figure 2) like the engine, blades, steering handle, kill switch, gearbox, etc. Check that there is always oil in the engine.

Read all the safety instructions carefully. Safety instructions will be found throughout this manual and on the trowel. Keep all safety information in good, readable condition. Operators should be well trained on the operation and maintenance of the trowel.

Before using your trowel, test it on a ﬂat watered down section of ﬁnished concrete that is free of any debris and other objects.

GEARBOX

The gearbox is located beneath the engine and transfers power to the spider assembly. The gearbox controls the rotational speed of the trowel and is equipped with two shafts (input and output).

SPIDER

The vertical output shaft of the gearbox connects to a cast hub called the spider. The spider has 4 arms that extend outward that are used for attachment of blades or other accessories. Remember as the gearbox output shaft rotates so does the spider assembly.

GUARD RING

This unit is equipped with a safety guard ring. It is designed to help protect items from coming into contact with the rotating blades while the trowel is in operation.

BLADES

The blades of the trowel ﬁnish the concrete as they are rotated around the surface. This trowel comes equipped with four combination blades (8 in./203 mm wide) per rotor equally spaced in a radial pattern and attached to a vertical rotating shaft by means of a spider assembly.

This trial test run will increase your conﬁdence in using the trowel and at the same time it will familiarize you with the trowel’s controls. In addition you will understand how the trowel handles under actual conditions.

ENGINE

This trowel is equipped with a SUBARU 5.7 HP gasoline engine. Refer to the engine owner’s manual for instructions regarding the operation and maintenance of your engine. Please contact your nearest Multiquip Dealer for a replacement should the original manual disappear or otherwise become unusable.

DRIVE SYSTEM

Power is transferred from the engine to the gearbox input shaft via a V-belt pulley drive system. The pulley engages using a centrifugal clutch. See parts section of this manual for a breakdown of the drive system.

CENTRIFUGAL

In the event of a trowel runaway condition (operator releases handlebars during operation), the centrifugal safety stop switch will stop the engine and bring the trowel to a halt

CAUTION

NEVER attempt to lift the trowel by yourself. ALWAYS get the assistance of another person to help lift the trowel.

SAFETY STOP SWITCH

TRAINING

For proper training, please use the “TRAINING CHECKLIST” form located in the front of this manual. This checklist will provide an outline for an experienced operator to provide training to a new operator.

PAGE 14 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

TROWEL COMPONENTS

4 5

Figure 2. Trowel Control and Components

111213

Figure 2 shows the location of the basic controls or components, for the trowel. Listed below is a brief explanation of each control or component.

1. Access Panel — Allows access to the blade area. NEVER run the trowel with this access panel removed.

2. Engine — Subaru 5.7 HP gasoline engine.

3. Lifting Bale — Attach a suitable lifting device to lifting bale whenever lifting of the trowel is required.

4. Throttle Lever — Controls engine speed. Returns engine to idle when released.

5. Vibratory Handle Bar — Installed rubber shock mounts/isolators reduces vibration when the trowel is operating.

6. Pitch Control Star Wheel— To adjust the pitch of the blades, rotate the star wheel clockwise to pitch blades upwards. Rotate star wheel counterclockwise to pitch blades ﬂat (no pitch).

7. Handle Bar Pad — Foam rubber pad that protects the body when coming in contact with handle bar.

8. Hand Grips — When maneuvering of the trowel is required ALWAYS place both hands on each grip to operate the trowel. Replace hand grips when they become worn or damaged.

QUICK PITCH ™

HANDLE

(OPTION)

9. Handlebar Adjuster — Change the angle/height of the handle bars by loosening star wheel, adjust handlebars to desired location, tighten starwheel ﬁrmly to hold handlebars in that position.

10. Centrifugal "Kill" Switch — In the event the operator loses control of the trowel, this switch will shut down the engine.

11. Blades — This trowel is equipped with combination blades. These blades are versatile and should take care of most troweling needs. In addition ﬂoat discs can be attached to the trowel arms that will allow the trowel to ﬂoat on "wet" concrete.

12. V-Belt Cover — Remove this cover to gain access to the V-belt. NEVER operate the trowel with this cover removed.

13. Guard Ring — NEVER put hands or feet inside guard ring while the machine is running.

14. Gearbox — Helical worm gear drive gearbox. Provides rotation of blades via engine interface. ALWAYS check gearbox oil level (sight glass) prior to each use. Fill with recommended type gearbox oil.

15. Trowel Arm — NEVER operate the trowel with a bent, broken or out of adjustment trowel arm. If the blades show uneven wear patterns or some blades wear out faster than others, the trowel arm may need to be adjusted. Use the trowel arm adjustment tool P/N 1817 to adjust the trowel arms.

16. Quick Pitch™ Control Handle — Contact MQ unit sales for this option.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 15

INITIAL SERVICING

ENGINE COMPONENTS

Figure 3. Engine Components and Controls

The engine Figure 3) must be checked for proper lubrication and ﬁlled with fuel prior to operation. Refer to the manufacturer's engine manual for instructions and details of operation and servicing.

1. Mufﬂer – Used to reduce noise and emissions. NEVER touch when hot!

2. Air Cleaner – Prevents dirt and other debris from entering the fuel system. Remove wing-nut on top of air ﬁlter canister to gain access to ﬁlter element.

NOTICE

Operating the engine without an air filter, with a damaged air ﬁlter, or a ﬁlter in need of replacement will allow dirt to enter the engine, causing rapid engine wear.

3. Fuel Tank – Fill with unleaded gasoline. Reference Table 3 for fuel tank capacity. For additional information refer to Honda engine owner's manual.

DANGER

Add fuel to the tank only when the engine is stopped and has had an opportunity to cool down. In the event of a fuel spill, DO NOT attempt to start the engine until the fuel residue has been completely wiped up and the area surrounding the engine is dry.

4. Fuel Filler Cap – Remove this cap to add unleaded gasoline to the fuel tank. Make sure cap is tightened securely. DO NOT over ﬁll.

5. Throttle Lever – Used to adjust engine RPM speed. This lever is connect to the throttle lever cable located on the handle bars. Reference throttle cable installation procedure in this manual.

6. Recoil Starter (pull rope) – Manual-starting method. Pull the starter grip until resistance is felt, then pull briskly and smoothly.

7. Choke Lever – Used in the starting of a cold engine, or in cold weather conditions. The choke enriches the fuel mixture.

8. Fuel Valve Lever – OPEN to let fuel ﬂow, CLOSE to stop the ﬂow of fuel.

9. Spark Plug – Provides spark to the ignition system. Set spark plug gap according to engine manufacturer's instructions. Clean spark plug once a week.

10. Engine ON/OFF Switch – ON position permits engine starting, OFF position stops engine operation.

11. Oil Drain Plug – Remove this plug to remove oil from the engine's crankcase.

12. Dipstick/Oil Filler Cap – Remove this cap to determine if the engine oil is low. Add oil through this ﬁller port as recommended in Table 4.

PAGE 16 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

ASSEMBLY AND INSTALLATION

GEARBOX

CLAMP/SCREW

ASSEMBLY AND INSTALLATION

Before the trowel can be put into operation there are some components that must be installed before the trowel can be used. This section provides general instructions on how to install those components. Instruction sheet P/N 20485 provides further details for the handle assembly.

Handle Tube Installation

13. Attach the main handle (tube) to the gearbox as shown in (Figure 4). The mounting hardware should be contained in the shipping container.

MAIN HANDLE

(TUBE)

3/8 FLAT

WASHER

3/8-16

NYLOC NUT

3/8-16 X 3.25

HHC SCREW

Figure 4. Handle Tube Installation

NOTICE

If additional handle height adjustment is desired, a handle wedge kit can be purchased for your trowel by ordering P/N 2576 from your Multiquip dealer.

These wedges are placed between the handle and the gearbox to adjust the operating height of the handle. This kit comes complete with wedges, new bolts and installation instructions. This will move your operating handle position up or down approximately 3” (76 mm).

Throttle Cable Installation (Engine)

1. Uncoil the throttle cable and housing.

2. Feed the throttle cable through the cable housing.

3. Connect the trowel throttle cable to the engine throttle linkage (Figure 6). There should be a piece of wire installed on the trowel to show where to route the throttle cable.

4. Route cable end through the cable locking screw. When connecting the cable housing, make sure that no more than 1/4" (6.4 mm) of the cable housing protrudes past the housing clamp on the engine.

ENGINE

THROTTLE

LEVER

Vibratory T-Handle Bar Placement

1. The vibratory T-handle bar is already attached to the main handle tube.

2. To adjust the height of the T-bar, loosen the star wheel (Figure 5) and position T-handle bar in the desired position.

T-HANDLE BAR

HEIGHT

ADJUSTMENT

STAR WHEEL

Figure 5. T-Handle Bar Adjustment

3. Tighten star wheel ﬁrmly.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 17

CABLE

THROTTLE

CABLE

CABLE HOUSING

Figure 6. Throttle Cable Installation (Engine)

LOCKING

SCREW

1/4”

(6.35 MM)

5. Tighten cable clamp screw.

6. After the trowel throttle cable has been connected to the engine throttle linkage, adjust and tighten operator position of the T-bar handle to lock the throttle cable at the proper length.

ASSEMBLY AND INSTALLATION

7. Adjustment of the throttle cable tension may be required. If so, loosen the adjusting nut (top nut) on the throttle cable receiver (Figure 7) and loosen or tighten the locking nut (bottom nut). Retighten adjusting nut.

ADJUSTING

NUT (TOP)

LOCKING NUT

(BOTTOM)

Figure 7. Throttle Cable Receiver Adjustment

NOTICE

If the throttle lever does not return to the "neutral" position with throttle backed off, loosen adjuster nut 1/2 turn at a time, tighten and recheck. Readjust throttle tension as necessary.

Safety Stop Switch Connection

1. Connect the black tail wire from the engine to the black safety stop wire from the centrifugal stop switch as shown in Figure 8.

SAFETY STOP WIRE

CONNECTION POINT

2. For Quick Pitch™ Handle models expose the pitch cable to maximum by grasping the T-handle (Figure 10), then squeezing the trigger lock and pushing the T-handle forward for no pitch (blades ﬂat).

T-HANDLE

TRIGGER

(SQUEEZE)

NO PITCH

FORWARD

Figure 10. Blade Pitch T-Handle

(Quick Pitch™ Handle)

3. Remove brass set nut #1 from the blade pitch cable end as shown in (Figure 11).

BLADE

PITCH

CABLE

BRASS SET

NUT #1

BRASS SET

NUT #2

Figure 11. Blade Pitch Cable

Figure 8. Safety Stop Switch Connection

Pitch Cable Installation

1. For Standard Handle models expose the pitch cable to maximum by turning the blade pitch star wheel (Figure 9) fully counterclockwise for no pitch (blades ﬂat).

INCREASE

BLADE PITCH

(CW)

Figure 9. Blade Pitch Star Wheel

(Standard Handle)

PAGE 18 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

DECREASE

BLADE PITCH

(CCW)

4. Thread brass set nut #2 (Figure 11) towards the cable as far as possible.

5. Insert t he cabl e end t hrough th e yoke eyel et (Figure 12). Tighten brass set nut #1 by hand to remove all the slack from the cable.

BLADE

PITCH

CABLE

YOKE

EYELET

BRASS SET

NUT #1

BRASS SET

NUT #2

Figure 12. Pitch Cable Yoke Attachment

INSPECTION

4. Align the groove on the slider with the text 36" COMBO/

"J" COMBO on the decal. The letter "J" stands for J-36 Walk-Behind Trowel

CAUTION

ALWAYS wear approved eye and hearing

protection before operating the trowel.

NEVER place hands or feet inside the guard rings while the engine is running. ALWAYS shut the engine down before performing any kind of maintenance service on the trowel.

Before Starting

6. Using a wrench, tighten the brass set #2 nut up against the yoke boss. This will lock the cable in place.

7. Use a wrench and ﬁnish tightening the brass set #1 nut up against the yoke boss.

Pre-Load Adjustment (Quick Pitch™ Handle Only)

WARNING

The Quick Pitch™ handle is spring loaded, personal injury or damage could result from improper handling, installation or adjustment. Use extreme caution when installing this component.

1. After the Quick-Pitch™ handle has been installed on the trowel, spring pre-load adjustment will be required.

2. Locate the spring pre-load adjustment screw (Figure 13) on the underside of the handle tube.

ALIGNMENT

DECAL

FINISH

PRELOAD TRIM INDICATOR

FINISH

36”

COMBO

FINISH

COMBO

48”

1. Read all safety instructions at the beginning of manual.

2. Clean the trowel, removing dirt and dust, particularly the engine cooling air inlet, carburetor and air cleaner.

3. Check the air ﬁlter for dirt and dust. If air ﬁlter is dirty, replace air ﬁlter with a new one as required.

4. Check carburetor for external dirt and dust. Clean with dry compressed air.

5. Check fastening nuts and bolts for tightness.

Engine Oil Check

1. To check the engine oil level, place the trowel on secure level ground with the engine stopped.

2. Remove the dipstick from the engine oil ﬁller hole (Figure 14) and wipe clean.

ADJUSTMENT

FINISH

36”

PRELOADTRIM INDICATOR

FINISH

COMBO

FINISH

48”

COMBO

FINISH

COMBO

SLIDER

GROOVE

SCREW

Figure 13. Spring Pre-Load Adjustment

3. A decal has been placed on the side of the handle tube to assist the user in the adjustment of the spring.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 19

Figure 14. Engine Oil Dipstick Removal

INSPECTION

3. Insert and remove the dipstick without screwing it into the ﬁller neck. Check the oil level shown on the dipstick.

4. If the oil level is low (Figure 15), ﬁll to the edge of the oil ﬁller hole with the recommended oil type as listed in Table 4. Reference Table 3 for maximum engine oil capacity.

Figure 15. Engine Oil Dipstick (Oil Level)

Table 4. Oil Type

Season Temperature Oil Type

Summer 25°C or Higher SAE 10W-30

Spring/Fall 25°C~10°C SAE 10W-30/20

Winter 0°C or Lower SAE 10W-10

Gearbox Oil

1. Determine if the gearbox oil is low by removing the oil plug located on the side of the gearbox. (Figure 16) This plug will be marked by the "check" decal. The correct level of the lubrication oil should be to the bottom of the ﬁll plug.

OIL SIGHT GLASS/

FILL PLUG

GEARBOX

DRAIN

PLUG

Figure 16. Gearbox

2. If lubrication oil begins to seep out as the drain plug is being removed, then it can be assumed that the gearbox has a sufﬁcient amount of oil.

3. If lubrication oil does not seep out as the drain plug is being removed, ﬁll with type ISO 680 (P/N 10139) gearbox lubricant oil until the oil ﬁller hole overﬂows.

DANGER

EXPLOSIVE FUEL!

Motor fuels are highly ﬂammable and can be dangerous if mishandled. DO NOT smoke while refueling. DO NOT attempt to refuel the trowel if the engine is hot! or running.

Fuel Check

1. Visually inspect to see if fuel level is low. If fuel is low, replenish with unleaded fuel.

2. When refueling, be sure to use a strainer for ﬁltration. DO NOT top-off fuel. Wipe up any spilled fuel immediately.

V-Belt Check

A worn or damaged V-belt can adversely affect the performance of the trowel. If a V-belt is defective or worn simply replace the V-belt as outlined in the maintenance section of this manual.

Belt Guard Check

Check for damage, loose or missing hardware.

Blade Check

Check for worn or damaged blades. Check to see if one blade is worn out while the others look new. If this is the case there could be a blade pitch problem. Refer to the maintenance section of this manual for blade pitch adjustment procedure. Replace any worn blades.

WARNING

NEVER disable or disconnect the centrifugal safety

"STOP" switch. It is provided for operator safety. Injury may result if it is disabled, disconnected or improperly maintained.

PAGE 20 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

INSPECTION/OPERATION

Centrifugal Safety "STOP" Switch

This trowel has been equipped with a centrifugal safety "STOP" switch (Figure 17). This switch should be tested every time the engine is started.

The switching mechanism of this switch should operate freely and should always be kept in this condition. With the switch in the OFF position, the engine should not start or run. The purpose of this switch is to stop the engine in a runaway situation, (i.e. the operator releasing the handle during operation).

OFF

CENTRIFUGAL

SAFETY “STOP”

SWITCH

NOTICE

DO NOT attempt to operate the trowel until the Safety, General Information and Inspection sections of this manual have been read and thoroughly understood.

NOTICE

The trowel is heavy and awkward to move around. Use proper heavy lifting procedures and DO NOT lift the trowel by the guard rings.

Lifting Bale

The lift bale provides an optimal lift point for lifting the trowel. When lifting the trowel onto a concrete slab, attach a chain or rope to the lifting bale. Make sure the lifting device has adequate lifting capacity to lift the trowel.

Using a crane or forklift (Figure 18) to lift the trowel is highly recommended, and is perfectly safe for the trowel. ALWAYS use extra care when lifting the trowel off the ground.

Figure 17. Centrifugal Safety "STOP" Switch

Operation

This section is intended to assist the operator with the initial start-up of the walk-behind trowel. It is extremely important that this section be read carefully before attempting to use the trowel in the ﬁeld. DO NOT use your trowel until this section is thoroughly understood.

Lifting the Trowel Onto a Slab

Extra care should be taken when lifting the trowel off the ground. Serious damage to the machine or personal injury could be caused by dropping a trowel.

WARNING

NEVER attempt to lift this machine alone. NEVER lift

the trowel by the guard ring as it may rotate and cause injury.

ALWAYS make certain the handle is secure and use only the manufacturer's approved lifting point. The trowel may be lifted at the center lifting bale by crane or other lifting device of adequate capacity.

LIFT

Figure 18. Lifting the Trowel

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 21

OPERATION

NEVER lift the trowel to unnecessary heights. DO NOT stand underneath the trowel while it is being lifted. Serious damage to the machine or personal injury could be caused by dropping a trowel.

Starting the Engine

1. Place the engine fuel valve lever (Figure 19) in the "ON" position.

OFF

Figure 19. Engine Fuel Valve Lever (ON)

2. Pull the throttle lever (Figure 20) backwards and place

in the "idle" position.

3. Place the centrifu gal sa fety "STOP" swit ch (Figure 21) in the "ON" position.

OFF

CENTRIFUGAL

SAFETY “STOP”

SWITCH

Figure 21. Centrifugal Safety"Stop"

Switch (ON)

CAUTION

NEVER disable or disconnect the centrifugal "STOP" switch. It is provided for the operator's safety and injury may result if it is disabled, disconnected or improperly maintained.

IDLE

THROTTLE

LEVER

Figure 20. Throttle (Idle Position)

4. If starting a cold engine place the choke lever (Figure 22 ) in the "CLOSED" position.

Figure 22. Choke Lever (Closed)

PAGE 22 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

OPERATION

5. If starting a warm engine place the choke lever (Figure 23) in the "OPEN " position.

Figure 23. Choke Lever (Open)

6. Grasp the starter grip (Figure 24) and slowly pull it out. The resistance becomes the hardest at a certain position, corresponding to the compression point. Pull the starter grip briskly and smoothly for starting.

8. Before the trowel is placed into operation, run the engine for several minutes. Check for fuel leaks, and noises that would associate with a loose guard ring and/or covers.

Testing the Centrifugal Safety Stop Switch

1. With the engine running at idle, place the safety stop switch lever in the "OFF" position (Figure 26). Verify that the engine shuts off. If the engine continues to run, replace centrifugal safety stop switch.

OFF

Figure 26. Testing Safety Stop Switch

2. Before performing this test, clear the area around the

trowel. Make sure it is free of debris and objects. Move the safety stop switch lever to the "ON" position, restart the engine and let idle.

Figure 24. Starter Grip

7. If the engine has started, slowly return the choke lever (Figure 25), cold start only to the CLOSED position. If the engine has not started repeat steps 1 through 6.

Figure 25. Choke Lever Closed

Stand behind the handle and spin the handle to the right, simulating a runaway situation. (See Figure 27). Centrifugal force should throw the safety switch outward to the "OFF" position thus shutting off the engine.

Figure 27. Testing Safety Stop Switch

Runaway Situation

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 23

OPERATION

UPWARDS FLAT

To Begin Troweling

1. To begin troweling, push the throttle lever (Figure 28) forward

to the "RUN" position.

RUN

THROTTLE

LEVER

Figure 28. Throttle Lever (Run)

Concrete Finishing Techniques

The following steps are intended as a basic guide to machine operation, and are not to be considered a complete guide to concrete ﬁnishing. We suggest that all operators (experienced and novice) read “Slabs on Grade” published by the American Concrete Institute, Detroit, Michigan. Read the “Training” section of this manual for more information.

Pitching the Blades (Quick Pitch™ Handle)

To pitch the blades upwards using the "Quick Pitch™" handle, (Figure 30) simply pull the T-handle backwards while squeezing the trigger. Pushing the T-handle forward will cause the blades to lay ﬂat.

T-HANDLE

TRIGGER

(SQUEEZE)

NO PITCH

(BLADES FLAT)

BLADES PITCHED

Figure 30. Blade Pitch T-Handle

Pitching the Blades (Standard Handle)

To pitch the blades upwards using the "Standard" handle, (Figure 29) simply turn the star-wheel clockwise. Turning the star wheel counter clockwise will cause the blades to lay ﬂat.

BLADE PITCH STAR WHEEL

INCREASE

BLADE PITCH

(CW)

DECREASE

BLADE PITCH

(CCW)

Figure 29. Blade Pitch Star Wheel

PAGE 24 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

OPERATION

Maneuvering the Trowel

1. Get into the operator’s position behind the handle. With

a secure foothold and a ﬁrm grasp on the handle, slowly increase the engine speed until the desired blade speed is obtained.

2. Figure 31 below illustrates a typical walk-behind trowel application. Practice maneuvering the trowel. The trick is to let the trowel do the work.

3. Continue to practice maneuvering the trowel. Try to practice as if you were ﬁnishing a slab of concrete. Practice edging and covering a large area.

Remember a good finishing technique is to work backwards. Be careful when moving backwards so that hazards can be avoided. The best way to get accustomed to the trowel is repeated use.

Figure 31. Maneuvering the Trowel

CAUTION

NEVER place your feet or hands inside the guard rings

while starting or operating this equipment.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 25

CAUTION

ALWAYS keep clear of rotating or moving parts while

operating this equipment.

OPERATION

Stopping The Engine

1. Move the throttle lever to the (Figure 32) "IDLE" position and run the engine for three minutes at low speed.

IDLE

THROTTLE

LEVER

Figure 32. Throttle Lever (Idle)

2. After the engine cools, turn the engine start/stop switch to the “OFF” position (Figure 33).

4. Close the fuel shut- off valve (Figure 35) by moving the fuel valve lever to the OFF position.

OFF

Figure 35. Fuel Valve Lever (OFF)

Figure 33. Engine ON/OFF Switch

(OFF Position)

3. Place the safety stop switch (Figure 34) in the "OFF" position.

OFF

Figure 34. Safety Stop Switch (OFF)

PAGE 26 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

OPTIONS

NOTICE

Trowel blades should be changed when they fail to ﬁnish concrete in a satisfactory manner.

Blades are a vital part of ﬁnishing concrete. This trowel, or ﬁnisher, has been designed to ﬁnish concrete and the blades are built to stringent quality standards out of the ﬁnest steel.

If you need replacement blades, consult the parts list in this manual for part numbers and order them from your Multiquip parts dealer or importer.

Combo Blades

This trowel is equipped with combination ﬂoat/ﬁnish (Figure

36) blades as original equipment. These blades have been designed for optimum performance in both the ﬂoating and ﬁnishing operations. These blades are versatile and should take care of most troweling needs.

Clip-On Float Blades (Optional)

These blades will clip (Figure 38) onto an existing installed blade, allowing your ﬁnisher to ﬂoat on “wet” concrete so that the troweling operation can begin as early as possible. These blades are easily removable, so that after the ﬂoating operation, when the concrete is sufﬁciently cured, they can be removed to expose the ﬁnish blades for continued troweling.

Figure 38. Clip-On Float Blade

Float Discs (Optional)

These round discs (Figure 39) attach to the spiders and allow the machine to “ﬂoat” on “wet” concrete. The disc design allows early ﬂoating and easy movement from wet to dry areas. They are also very effective in embedding large aggregates and surface hardeners.

Figure 36. Combination Blade

Finish Blades (Optional)

These blades (Figure 37) have been speciﬁcally designed for ﬁnish operations with this trowel. They will provide a premium surface ﬁnishing capability from your trowel. They should only be used after the concrete has set to the point where the trowel does not sink into the concrete when placed on it.

Figure 37. Finish Blade

Figure 39. Float Disk/Pan

NOTICE

For optimum panning performance blade speed must be changed. Use Low Speed Kit. Reference Engine Assembly in parts section of this manual.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 27

Trowel Arm Adjustment Tool (Optional)

If blades show uneven wear patterns or some tend to wear out faster than others, the trowel arms may need to be adjusted. A special tool is available (Figure 40) that will adjust all of the trowel arms consistently. The Trowel Arm Fixture P/N is 1817.

Figure 40. Trowel Arm Adjustment Fixture

Quick Pitch™ Handle (Optional)

This feature (Figure 41) is not standard equipment on this model walk-behind trowel. To order this feature please contact MQ unit sales.

OPTIONS

T-HANDLE

TRIGGER

Figure 41. Quick Pitch™ Handle (Option)

The Quick Pitch™ Handle feature allows the operator to adjust the pitch of the blades by grasping the handle, then squeezing the trigger lever and then moving the handle either forward or backwards to achieve the desired blade pitch.

PAGE 28 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

Table 5. Engine Maintenance Schedule

MAINTENANCE

EVERY

YEAR

OR 300

HRS.

DESCRIPTION

(3)

OPERATION

BEFORE

EACH

USE

FIRST

MONTH OR

20 HRS.

EVERY 6

MONTHS

OR 100

HRS.

Check X

Engine Oil

Change X X

Engine Oil Filter Replace Every 200 Hrs.

Check X

Air Cleaner

Clean X (1)

Change X (*)

Check/Adjust X

Spark Plugs

Replace X

Spark Arrester Clean X

Fuel Filter Replace X (2)

Fuel Tube Check Every 2 years (replace if necessary) (2)

* - Replace the paper ﬁlter element only.

(1) Service more frequently when used in DUSTY areas.

EVERY 2

YEARS OR

500 HRS.

(2) These items should be serviced by your service dealer, unless you have the proper tools and are mechanically proﬁcient. Refer to the HONDA Shop Manual for service procedures.

(3) For commercial use, log hours of operation to determine proper maintenance intervals.

Table 6. Trowel Maintenance Schedule

Periodic Maintenance Interval

ITEM OPERATION DAILY

Every

50-60 Hrs

Every

200-300 Hrs

Every

2000-2500 Hrs

V-Belt Check/Replace X

Relube Trowel Arms Grease X

Blades Check/Replace X

Trowel Arms Remove/Clean X

Thrust Collar/Bushing Remove/Clean X

Blade Arms Adjust X

Arm Bushing Remove/Replace X

Wear Ring Remove/Replace X

Thrust Collar Bearing Remove/Replace X

Pitch Control Cable Check X

Clutch Remove/Clean X

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 29

MAINTENANCE

Ge neral maintenance practices are crucial to the performance and longevity of your trowel. This equipment requires routine cleaning, blade and trowel arm inspection, lubrication and V-belt inspection for wear and damage. Reference Table 5 and Table 6 for scheduled engine and trowel maintenance.

The following procedures, devoted to maintenance, can prevent serious trowel damage or malfunctioning.

NOTICE

Reference HONDA engine manual supplied with your trowel for more detailed engine maintenance and troubleshooting.

CAUTION

ALWAYS allow the engine to cool before

servicing. NEVER attempt any maintenance work on a hot engine.

CAUTION

ALWAYS disconnect the spark plug wire from the spark

plug and secure away from the engine before performing maintenance or adjustments on the machine.

Engine Air Cleaner

DANGER

DO NOT use gasoline or low ﬂash point

solvents for cleaning the air cleaner, the possibility exists of ﬁre or explosion which can cause damage to the equipment and severe bodily harm or even DEATH!

CAUTION

Wear protective equ ipment such as approved safety glasses or face shields and dust masks or respirators when cleaning air ﬁlters with compressed air.

This engine is equipped with a replaceable, high-density paper air cleaner element. See Figure 42 for air cleaner components.

1. Remove the air cleaner cover and foam ﬁlter element.

2. Tap the paper ﬁlter element several times on a hard surface to remove dirt, or blow compressed air not exceeding 30 psi (207 kPa, 2.1 kgf/cm2) through the ﬁlter element from the inside out. NEVER brush off dirt. Brushing will force dirt into the ﬁbers. Replace the paper ﬁlter element if it is excessively dirty.

WARNING

Some maintenance operations may require the engine to be run. Ensure that the maintenance area is well ventilated. Gasoline engine exhaust contains poisonous carbon monoxide gas that can cause unconsciousness and may result in DEATH

GENERAL CLEANLINESS

Clean the trowel daily. Remove all dust and slurry buildup. If the trowel is steam-cleaned, ensure that lubrication is accomplished AFTER steam cleaning.

ENGINE CHECK

Check daily for any oil and/or fuel leakage, thread nut and bolt tightness, and overall cleanliness.

3. Clean foa m e lement in warm, soapy water or nonﬂammable solvent. Rinse and dry thoroughly. Dip the element in clean engine oil and completely squeeze out the excess oil from the element before installing.

WING

NUT

AIR CLEANER

COVER

WING

NUT

FOAM

FILTER

ELEMENT

PAPER

FILTER

ELEMENT

Figure 42. Engine Air Cleaner

BLOW COMPRESSED

AIR FROM THE

INSIDE OUT

PAGE 30 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

MAINTENANCE

IN.

NOTICE

Operating the engine with loose or damaged air cleaner components could allow unﬁltered air into the engine causing premature wear and failure.

ENGINE OIL

1. Drain the engine oil when the oil is warm as shown in Figure 43.

2. Remove the oil drain bolt and sealing washer and allow the oil to drain into a suitable container.

3. Replace engine oil with recommended type oil as listed in Table 4. For engine oil capacity, see Table 3 (engine speciﬁcations). DO NOT overﬁll.

4. Reinstall drain bolt with sealing washer and tighten securely.

GAP

.028 - .031 (0.7- 0.8 MM.)

Figure 44. Spark Plug Gap

V-BELT

Visually examine the V-belt (Figure 45) and determine if it is full of tiny cracks, frayed, has pieces of rubber missing, is peeling or otherwise damaged.

Also, examine the belt and determine if it is oil soaked or "glazed " (hard shiny appearance on the sides of the belt). Either of these two conditions can cause the belt to run hot, which can weaken it and increase the danger of it breaking.

If the V-belt exhibits any of the above wear conditions replace the V-belt immediately.

OIL SOAKED

Figure 43. Draining Engine Oil

SPARK PLUG

NOTICE

NEVER use a spark plug of incorrect heat range.

1. Remove and clean spark plug (Figure 44) with a wire brush if it is to be reused. Discard spark plug if the insulator is cracked or chipped.

2. Using a feeler gauge adjust spark plug gap to 0.028 ~0.031 inch (0.7~0.8 mm).

3. Thread spark plug into cylinder hole by hand to prevent cross-threading, then tighten securely.

GLAZED

CRACKS

SIDEWALL

WEAR

CORD FAILURE

WORN BACK

COVER

BROKEN

MISSING RUBBER

Figure 45. V-Belt Inspection

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 31

MAINTENANCE

SPARK ARRESTER CLEANING

Clean the spark arrester every 6 months or 100 hours.

1. Remove the 4 mm screw (3) from the exhaust deﬂector, then remove the deﬂector. See Figure 46

2. Remove the 5 mm screw (4) from the mufﬂer protector, then remove the mufﬂer protector.

3. Remove the 4 mm screw from the spark arrestor, then remove the spark arrester.

BLADE PITCH ADJUSTMENT PROCEDURE

The maintenance adjustment of blade pitch is an adjustment that is made by a bolt (Figure 48) on the arm of the trowel arm lever. This bolt is the contact point of the trowel arm lever to the lower wear plate on the thrust collar. The goal of the adjustment is to promote consistent blade pitch and ﬁnishing quality. Adjustments are made by tightening or loosening the blade pitch adjustment bolt.

BLADE PITCH ADJUSTMENT

BOLT

TROWEL LEVER

FINGER

TROWEL

ARM

SPIDER

PLATE

TROWEL

BLADE

Figure 48. Blade Pitch Adjustment Bolt

Watch for the following indications when determining if blade pitch adjustments are necessary:

Figure 46. Spark Arrester Removal

4. Carefully remove carbon deposits from the spark arrester screen (Figure 47) with a wire brush.

WIRE

BRUSH

SPARK

ARRESTER

Figure 47. Cleaning The Spark Arrester

5. If the spark arrester is damaged and has breaks or holes, replace with a new one.

6. Reinstall the spark arrester and mufﬂer protector in reverse order of disassembly.

• Is the machine wearing out blades unevenly, (i.e. one blade is completely worn out while the others look new)?

• Does the machine have a perceptible rolling or bouncing motion when in use?

• Look at the machine while it is running, do the guard rings “rock up and down” relative to the ground?

If it is determined that blade pitch adjustments are required do the following:

1. Place the trowel on a ﬂat, level area free of dirt and debris.

NOTICE

Before any blade pitch adjustments can be made it is essential to have a clean level area free of dirt and debris to test the trowel. Any unlevel spots in the ﬂoor or debris under the trowel blades will give an incorrect perception of adjustment. Ideally, a 5 x 5 ft. (1.5 x 1.5 meter), three-quarter inch (19 mm) thick FLAT steel plate should be used for testing.

PAGE 32 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

MAINTENANCE

2. Pitch the blades as flat as possible. The pitch adjustment bolts (Figure 49) should all barely make contact (0.10 inch max. clearance) with the lower wear plate on the spider. All pitch alignment bolts should be spaced the same distance from the lower wear plate. If one is not making contact, adjustment will be necessary.

GEARBOX

TROWEL

ARM

STEEL TEST

SURFACE

PITCH

ADJUSTMENT

BOLT

LOWER

WEAR PLATE

MOUNTING

BAR

BLADE

Figure 49. Correct Blade Pitch (Flat)

3. Adjust the “high” bolts down to the level of the one that is not touching, or adjust the “low” bolt up to the level of the higher ones. If possible, adjust the low bolt up to the level of the rest of the bolts. This is the fastest way, but may not always work. Verify after adjustment the blades pitch correctly.

4. Blades that are incorrectly adjusted often will not be able to pitch ﬂat. This can occur if the adjusting bolts are raised too high. Conversely, adjusting bolts that are too low will not allow the blades to be pitched high enough for ﬁnishing operations.

5. If, after making blade pitch adjustments the machine is still ﬁnishing poorly, blades, trowel arms, and trowel arm bushings may be suspect and should be looked at for adjustment, wear, or damage.

6. Figure 50 illustrates, "incorrect alignment", worn spider bushings or bent trowel arms.

PITCH

ADJUSTMENT

BOLT

SPIDER REMOVAL

Remove the spider assembly from the gearbox shaft as follows:

1. Loc ate the cone point square head set screw (Figure 51) and attached jam nut found on the side of the spider assembly.

2. Loosen the jam nut and cone point square head set screw.

3. Carefully lift the upper trowel/gearbox assembly off of the spider assembly. A slight tap with a rubber mallet may be necessary to dislodge the spider from the main shaft of the gearbox.

GEARBOX

SHAFT

SET SCREW

(CONE POINT SQ.HD.)

JAM NUT

THRUST COLLAR

BEARING

WEAR RING

THRUST COLLAR

LOWER WEAR

YOKE ARM

W/BUSHING

PLATE

SPIDER PLATE

LOWER

WEAR PLATE

“DISHED” EFFECT ON FINISHED CONCRETE

Figure 51. Spider Removal

Figure 50. Incorrect Spider Plate Alignment

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 33

MAINTENANCE

CHANGING BLADES

It is recommended that ALL the blades on the trowel are changed at the same time. If only one or some of the blades are changed, the machine will not ﬁnish concrete consistently and the machine may wobble or bounce.

Perform the following procedure when changing blades: Please note the blade orientation on the trowel arm before removing.

1. Lift the trowel up, placing blocks under the main guard ring to support it.

2. Remove the bolts and lock washers from all the towel arms, and then remove the blades as shown in Figure 52.

BLADE

ATTACHMENT

SCREWS

TROWEL ARM

TROWEL ARM REMOVAL

1. Each trowel arm is held in place at the spider plate by a hex head bolt (zerk grease ﬁtting) and a roll pin. Remove both the hex head bolt and the roll pin (Figure 53) from the spider plate.

2. Remove the trowel arm from the spider plate.

3. Should the trowel arm inserts ( bushing ) come out with the trowel arm, remove the bushing from the trowel arm and set aside in a safe place. If the bushing is retained inside the spider plate, carefully remove the bushing

4. Examine the trowel arm bushing insert (Figure 53), clean if necessary. Replace bushing if out of round or worn.

SPIDER PLATE

ROLL PIN

TROWEL

ARM

CAP

ZERK

GREASE

FITTING

BUSHING

BLADE

ATTACHMENT

BAR

TROWEL

BLADE

Figure 52. Blade Removal

3. Wire brush and remove all concrete and debris from all six sides of each of the four trowel arms. This is important to properly seat the new blades.

4. Install the new blades, maintaining the proper blade orientation for direction of rotation.

5. Reinstall the bolts and lock washers.

Figure 53. Trowel Arm Removal

PAGE 34 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

MAINTENANCE

CHECKING TROWEL ARM STRAIGHTNESS

Trowel arms (Figure 54) can be damaged by rough handling, such as dropping the trowel on the pad, or by striking exposed plumbing, forms, or rebar while in operation. A bent trowel arm will not allow the trowel to operate in a smooth ﬂuid rotation. If bent trowel arms are suspect, check for ﬂatness as follows:

LEVER

MOUNTING

SLOT

TROWEL ARM

ROUND SHAFT

SECTION

ROLL PIN

HOLE

HEXAGONAL (HEX)

Figure 54. Trowel Arm

1. Use a thick steel plate, granite slab or any surface

which is true and ﬂat, to check all six sides of each trowel arm for ﬂatness (Figure 55).

BLADE ATTACHMENT

BOLT HOLE

FLAT OF HEXAGONAL

SHAFT (TOP OF ARM)

TROWEL ARM

SHAFT SECTION

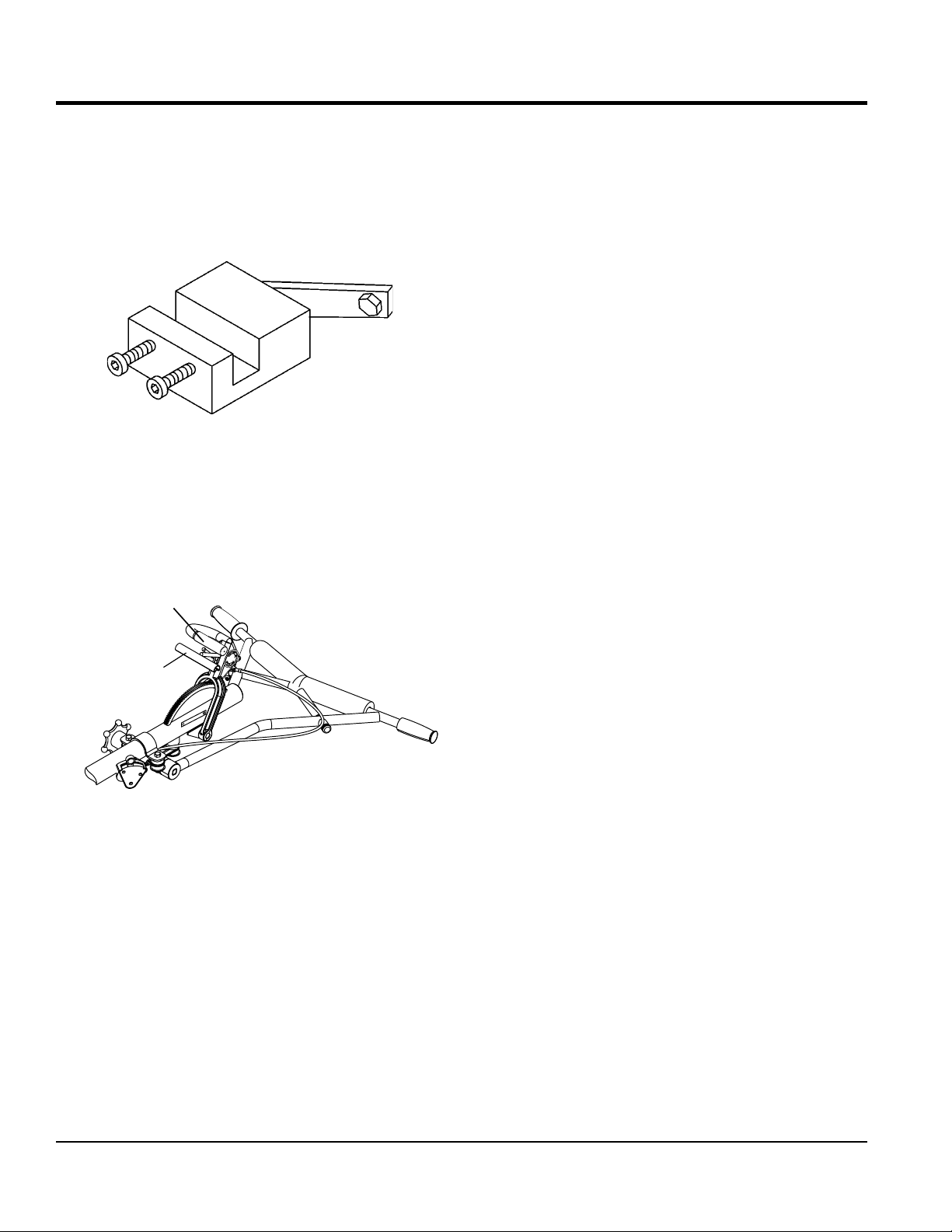

TROWEL ARM LEVER ADJUSTMENT

The easiest and most consistent way to adjust the trowel arm lever is to use the Trowel Arm Adjustment Fixture (P.N. 1817).

As each trowel arm is locked into the ﬁxture, the arm bolt is adjusted to where it contacts a stop on the ﬁxture. This will consistently adjust all of the trowel arms, keeping the ﬁnisher as ﬂat and evenly pitched as possible.

This ﬁxture will allow consistent adjustment of the trowel arm lever. It comes with all the hardware necessary to properly accomplish this maintenance and instructions on how to properly utilize this tool. Adjusting the trowel arm lever without a ﬁxture requires a special talent.

Perform the following procedure when adjusting the trowel arm lever:

1. Unscrew the locking bolts on the adjustment ﬁxture and place the trowel arm (lever attached) into the ﬁxture channel as shown in Figure 56.

2. Ensure the ﬁxture arm is in the up position.

2. Check each of the six sides of the trowel arm (hex section). A feeler gauge of .004 inch (0.10 mm) should not pass between the ﬂat of the trowel arm and the test surface along its length on the test surface.

TROWEL

ARM

FEELER GAUGE

(.005 IN/0.127 MM)

FEELER GAUGE

(.004 IN/0.10 MM)

FLAT TEST

SURFACE

Figure 55. Checking Trowel Arm Flatness

3. Next, check the clearance between the round shaft and the test surface as one of the ﬂat hex sections of the arm rests on the test surface. Rotate the arm to each of the ﬂat hex sections and check the clearance of the round shaft. Use a feeler gauge (Figure 56) of .005 inch (0.127 mm). Each section should have the same clearance between the round of the trowel arm shaft and the test surface.

3. A thin shim may be required to cover the blade holes on the trowel arm. Make sure to align the trowel adjustment bolt with the ﬁxture adjustment bolt.

TROWEL

ARM

SHIM

LOCKING

BOLTS

ADJUSTMENT FIXTURE

ARM

LEVER

TROWEL ARM

FIXTURE

ARM

ADJUSTMENT

BOLT

DISTANCE

.010 INCH

BOLT

Figure 56. Trowel Arm Adjustment Fixture

4. Use an allen wrench to tighten the locking bolts securing the trowel arm in place.

5. Adjust the bolt distance shown in Figure 56 to match one of the arms. The other arms will be adjusted to match this distance.

4. If the trowel arm is found to be uneven or bent, replace the trowel arm.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 35

6. Loosen the locking nut on the trowel arm lever, then turn the trowel arm adjusting bolt until it barely touches (.010") the ﬁxture adjusting bolt.

MAINTENANCE

7. Once the correct adjustment is made, tighten the lock nut on the trowel arm to lock in place.

8. Loosen locking nuts on the adjustment ﬁxture, and remove trowel arm.

9. Repeat steps for the remaining trowel arms.

REASSEMBLY

1. Clean and examine the upper/lower wear plates and thrust collar. Examine the entire spider assembly. Wire brush any concrete or rust buildup. If any of the spider components are found to be damaged or out of round, replace them.

2. Make sure that the bronze trowel arm bushing is not damage or out of round. Clean the bushing if necessary. If the bronze bushing is damaged or worn, replace it.

3. Reinstall bronze bushing onto trowel arm.

4. Repeat steps 2 -3 for each trowel arm.

5. Make sure that the spring tensioner is in the correct position to exert tension on the trowel arm.

13. Lubricate all grease points (zerk ﬁttings) with premium "Lithum 12" based grease, conforming to NLG1 Grade #2 consistency.

INSTALLING PANS ONTO FINISHER BLADES

These round discs, sometimes referred to as "pans", attach to the spiders arms and allow early ﬂoating on wet concrete and easy movement from wet to dry areas. They are also very effective in embedding large aggregates and surface hardeners.

Refer to Figure 57 when installing pans onto ﬁnisher blades.

KNOB, TIE-DOWN Z-CLIP PANS

Z-CLIP, PAN

TIE-DOWN, BLADE

BLADE ASSEMBLY

6. Insert all trowel arms with levers into spider plate (with bronze bushing already installed) using care to align grease hole on bronze bushing with grease hole ﬁtting on spider plate.

7. Lock trowel arms in place by tightening the hex head bolt with zerk grease ﬁtting and jam nut.

8. Reinstall the blades onto the trowel arms.

9. Install stabilizer ring onto spider assembly.

10. Reinstall lower wear plate, thrust collar and upper wear ring in the reverse order that they were disassembled onto the spider shaft. Make sure that there is little or no lateral movement between the thrust collar and the spider shaft.

11. Carefully lift the upper trowel assembly, line up the keyway on gear box main shaft and insert into spider assembly.

12. Reinstall square head cone point into spider plate and tighten in place. Tighten jam nut. Use care in making sure point of set screw engages groove in gear box main shaft.

Figure 57. Z-Clip Finisher Pan Installation

1. Lift trowel just enough to slide pan under blades. Lower ﬁnisher onto pan with blades adjacent to Z-Clips.

2. Rotate blades into position under Z-Clips. Ensure that the blades are rotated in the direction of travel when the machine is in operation or use the engine to rotate the blades into position.

3. Attach the blade tie-downs to the far side of the Z-Clip brackets with tie-down knobs as shown in Figure 57.

4. Check to make certain that the blade edges are secured under the Z-Clips and the tie-downs are secured completely over the edges of the blade bar before the machine is put back into operation.

PAGE 36 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

LONG-TERM STORAGE

For storage of the trowel for over 30 days, the following is required:

 Drain the fuel tank completely, or add STA-BIL to the fuel.

 Run the engine until the gasoline in the carburetor is

completely consumed.

 Completely drain the oil from the crankcase and reﬁll

with fresh oil.

 Remove the spark plug. Pour 5 to 10 cc of SAE 30 oil

into the cylinder. Turn the engine switch to the START position for a few seconds to distribute the oil. Reinstall the spark plug.

 Clean all external parts of the trowel with a cloth.

 Cover the trowel and store in a clean, dry place.

MAINTENANCE

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 37

Symptom Possible Problem Solution

Difﬁ cult to start, fuel is available, but no spark at spark plug.

Difﬁ cult to start, fuel is available, and spark is present at the spark plug.

Difﬁ cult to start, fuel is available, spark is present and compression is normal.

Difﬁ cult to start, fuel is available, spark is present and compression is low.

No fuel present at carburetor.

TROUBLESHOOTING

Troubleshooting (Engine)

Spark plug bridging? Check gap, insulation or replace spark plug.

Carbon deposit on spark plug? Clean or replace spark plug.

Short circuit due to deﬁ cient spark plug insulation?

Improper spark plug gap? Set to proper gap.

Fuel reaching carburetor? Check fuel line.

Water in fuel tank? Flush or replace fuel tank.

Fuel ﬁ lter clogged? Replace fuel ﬁ lter.

Stuck carburetor? Check ﬂ oat mechanism.

Spark plug is red? Check transistor ignition unit.

Spark plug is bluish white?

No spark present at tip of spark plug?

No oil? Add oil as required.

Oil pressure alarm lamp blinks upon starting? (if applicable)

ON/OFF switch is shorted? Check switch wiring, replace switch.

Ignition coil defective? Replace ignition coil.

Improper spark gap, points dirty? Set correct spark gap and clean points.

Condenser insulation worn or short circuiting? Replace condenser.

Spark plug wire broken or short circuiting? Replace defective spark plug wiring.

Wrong fuel type?

Water or dust in fuel system? Flush fuel system.

Air cleaner dirty? Clean or replace air cleaner.

Choke open? Close choke.

Suction/exhaust valve stuck or protruded? Reseat valves.

Piston ring and/or cylinder worn? Replace piston rings and/or piston.

Cylinder head and/or spark plug not tightened properly?

Head gasket and/or spark plug gasket damaged? Replace head and spark plug gaskets.

No fuel in fuel tank? Fill with correct type of fuel.

Fuel cock does not open properly?

Fuel ﬁ lter/lines clogged? Replace fuel ﬁ lter.

Fuel tank cap breather hole clogged? Clean or replace fuel tank cap.

Air in fuel line? Bleed fuel line.

Check spark plug insulation, replace if worn.

If insufﬁ cient compression, repair or replace engine. If injected air leaking, correct leak. If carburetor jets clogged, clean carburetor.

Check transistor ignition unit is broken, and replace defective unit. Check if voltage cord cracked or broken and replace. Check if spark plug if fouled and replace.

Check automatic shutdown circuit, "oil sensor". (if applicable)

Flush fuel system, replace with correct type of fuel.

Torque cylinder head bolts and spark plug.

Apply lubricant to loosen fuel cock lever, replace if necessary.

PAGE 38 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

Symptom Possible Problem Solution

Weak in power, compression is proper and does not misﬁ re.

Weak in power, compression is proper but misﬁ res.

Engine overheats.

Rotational speed ﬂ uctuates.

Recoil starter malfunctions. (if applicable)

Starter malfunctions.

Burns too much fuel.

Exhaust color is continuously "white".

Exhaust color is continuously "black".

Will not start, no power with key "ON". (if applicable)

TROUBLESHOOTING

Troubleshooting (Engine) - continued

Air cleaner dirty? Clean or replace air cleaner.

Improper level in carburetor? Check ﬂ oat adjustment, rebuild carburetor.

Defective spark plug? Clean or replace spark plug.

Improper spark plug? Set to proper gap.

Water in fuel system?

Dirty spark plug? Clean or replace spark plug.

Ignition coil defective? Replace ignition coil.

Spark plug heat value incorrect? Replace with correct type of spark plug.

Wrong type of fuel? Replace with correct type of fuel.

Cooling ﬁ ns dirty? Clean cooling ﬁ ns.

Intake air restricted?

Oil level too low or too high? Adjust oil to proper level.

Governor adjusted incorrectly? Adjust governor.

Governor spring defective? Replace governor spring.

Fuel ﬂ ow restricted? Check entire fuel system for leaks or clogs.

Recoil mechanism clogged with dust and dirt? Clean recoil assembly with soap and water.

Spiral spring loose? Replace spiral spring.

Loose, damaged wiring?

Battery insufﬁ ciently charged? Recharge or replace battery.

Starter damaged or internally shorted? Replace starter.

Over-accumulation of exhaust products?

Wrong spark plug?

Lubricating oil is wrong viscosity? Replace lubricating oil with correct viscosity.

Worn rings? Replace rings.

Air cleaner clogged? Clean or replace air cleaner.

Choke valve set to incorrect position? Adjust choke valve to correct position.

Carburetor defective, seal on carburetor

broken?

Poor carburetor adjustment, engine runs too

rich?

ON/OFF device not activated ON? Turn on ON/OFF device.

Battery disconnected or discharged?

Ignition switch/wiring defective? Replace ignition switch. Check wiring.

Flush fuel system and replace with correct type of fuel.

Clear intake of dirt and debris. Replace air cleaner elements as necessary.

Ensure tight, clean connections on battery

and starter.

Check and clean valves. Check mufﬂ er and

replace if necessary.

Replace spark plug with manufacturer's suggested type.

Replace carburetor or seal.

Adjust carburetor.

Check cable connections. Charge or replace

battery

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 39

Symptom Possible Problem Solution

Engine running rough or not at all.

Trowel bounces, rolls concrete, or makes uneven swirls in concrete.

TROUBLESHOOTING

Troubleshooting (Walk-Behind Trowel)

Engine ON/OFF Switch in "OFF" position or malfunctioning?

Centrifugal ON/OFF Switch in "OFF" position or malfunctioning?

Fuel?

Ignition?

Loose wire connections Check wiring. Replace or repair as necessary.

Bad contacts in ON/OFF switch? Replace ON/OFF switch.

Blades?

Pitch adjustment?

Bent trowel arms?

Spider?

Thrust collar?

Thrust collar bushing?

Thrust bearing worn?

Make sure that the Engine ON/OFF Switch is ON or replace switch if necessary.

Place centrifugal stop switch in "ON" position. Check wiring. Replace switch if necessary.

Look at the fuel system. Make sure there is fuel being supplied to the engine. Check to ensure that the fuel ﬁ lter is not clogged.

Check to ensure that the ignition switch has power and is functioning correctly.

Make certain blades are in good condition, not excessively worn. Finish blades should measure no less than 2"" (50mm) from the blade bar to the trailing edge, combo blades should measure no less that 3.5"" (89mm). Trailing edge of blade should be straight and parallel to the blade bar.

Check that all blades are set at the same pitch angle as measured at the spider. A ﬁ eld adjustment tool is available for height adjustment of the trowel arms. (Contact Parts Dept.)

Check the spider assembly for bent trowel arms. If one of the arms is even slightly bent, replace it immediately.

Check ﬁ t of arms in spider. This can be done by moving the trowel arms up and down. If there is more than 1/8 inch (3.2 mm) of travel at the tip of the arm, the spider and arms should be replaced.

Check the ﬂ atness of the thrust collar by rotating it on the spider. If it varies by more than 0.02 inch (0.5 mm) replace the thrust collar.

Check the thrust collar by rocking it on the spider. If it can tilt more than 3/32 inch (2.4 mm) - as measured at the thrust collar O.D., replace the thrust collar.

Check the thrust bearing to see that it is spinning freely. Replace if necessary.

PAGE 40 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

Symptom Possible Problem Solution

Machine has a perceptible rolling motion while running.

Clutch slipping or sluggish response to engine speed change.

Trowel blades do not rotate.

TROUBLESHOOTING

Troubleshooting (Walk-Behind Trowel) - continued

The main output shaft of the gearbox assembly should be checked for straightness.

Main shaft?

Yoke?

Blade Pitch?

Worn V-belts? Replace V-belt.

Hand clutch out of adjustment?

Worn or defective hand clutch parts? Replace parts as necessary.

Worn bearings in gearbox?

Worn or broken gears in gearbox?

Defective clutch? Replace clutch.

Broken V-belt? Replace V-belt.

Defective ON/OFF switch?

Defective centrifugal ON/OFF switch?

The main shaft must run straight and cannot be more than 0.003"" (0.08 mm) out of round at the spider attachment point.

Check to make sure that both ﬁ ngers of the yoke press evenly on the wear cap. Replace yoke as necessary.

Check to ensure that each blade is adjusted to have the same pitch as all other blades. Adjust per maintenance section in manual.

Adjust per instructions in maintenance section of this manual.

Rotate input shaft by hand. If shaft rotates with difﬁ culty, check the input and output shaft bearings. Replace as necessary.

Verify that the gearbox shaft rotates when the input shaft is rotated. Replace both the worm and worm gear as a set.

Check and replace ON/OFF switch if necessary.

Check and replace centrifugal ON/OFF switch if necessary.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 41

CENTRIFUGAL STOP SWITCH

WIRING DIAGRAM

OFF

OIL LEVEL

SWITCH

OIL LEVEL

INDICATOR

GRN

YEL

OIL ALERT

UNIT

BLK

ENGINE

SWITCH

CHASSIS

GND.

STOP

UNIT

TRANSISTORIZED

IGNITION UNIT

IGNITION

COIL

SPARK

PLUG

PAGE 42 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

NOTES

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 43

EXPLANATION OF CODE IN REMARKS COLUMN

The following section explains the different symbols and

PART NO. Column

QTY. Column

— Item quantity can be indicated by a

A/R (As Required) is generally used for hoses or other

A blank entry generally indicates that the item is not sold separately. Other entries will be clariﬁ ed in the “Remarks”

Some of the most common notes found in the “Remarks” Column are listed below. Other additional notes needed

same unique symbol will be included when this item is

— Used to list an effective serial

— Indicates that the part

part is NOT used on a speciﬁ c model or model number

available items. Examples include battery cables, shims,

— Indicates that an item cannot be purchased as a separate item and is either part of an assembly/kit that can be purchased, or is not available

remarks used in the Parts section of this manual. Use the help numbers found on the back page of the manual if there are any questions.

Numbers Used

number, a blank entry, or A/R.

NOTICE

The contents and part numbers listed in the parts section are subject to change without notice. Multiquip does not guarantee the availability of the parts listed.

SAMPLE PARTS LIST

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT .....................1 .....INCLUDES ITEMS W/%

2% WASHER, 1/4 IN. ..........NOT SOLD SEPARATELY

2% 12347 WASHER, 3/8 IN. ..1 .....MQ-45T ONLY

3 12348 HOSE ..................A/R ...MAKE LOCALLY

4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE

NO. Column

Unique Symbols — All items with same unique

symbol

(@, #, +, %, or >) in the number column belong to the same assembly or kit, which is indicated by a note in the “Remarks” column.

Duplicate Item Numbers — Duplicate numbers indicate multiple part numbers, which are in effect for the same general item, such as different size saw blade guards in use or a part that has been updated on newer versions of the same machine.

NOTICE

When ordering a part that has more than one item number listed, check the remarks column for help in determining the proper part to order.

parts that are sold in bulk and cut to length.

Column.

REMARKS Column

to describe the item can also be shown.

Assembly/Kit — All items on the parts list with the

purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

Serial Number Break

number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW” “S/N XXXX AND ABOVE” “S/N XXXX TO S/N XXX”

Speciﬁ c Model Number Use

is used only with the speciﬁ c model number or model number variant listed. It can also be used to show a

variant.

Indicated by:

Numbers Used — Part numbers can be indicated by a number, a blank entry, or TBD.

TBD (To Be Determined) is generally used to show a part that has not been assigned a formal part number at the time of publication.

A blank entry generally indicates that the item is not sold separately or is not sold by Multiquip. Other entries will be clariﬁ ed in the “Remarks” Column.

PAGE 44 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

“XXXXX ONLY” “NOT USED ON XXXX”

“Make/Obtain Locally” — Indicates that the part can be purchased at any hardware shop or made out of

and certain washers and nuts.

“Not Sold Separately”

for sale through Multiquip.

SUGGESTED SPARE PARTS

J3 6S60 WALK -BEHIND TROWEL W ITH S UBARU

EX170DM2230 GASOLINE ENGINE

1 to 3 Units

Qty. P/N Description

2............20478 .................... GRIP, HANDLE

1............21046 .................... GASKET/SEAL KIT

1............21047 .................... BEARING KIT

1............20285 .................... PITCH CABLE (STD)

1............20297 .................... PITCH CABLE (QP)

1............21172 .................... THROTTLE CABLE

1............10968 .................... THRUST BEARING KIT

1............10793 .................... THRUST COLLAR

1............1154 A ..................WEAR PLATE

2............0152 3 ................... V-BELT A-28)

2............10139 .................... GEARBOX LUBRICANT

1............22732 .................... THROTTLE LEVER ASSY.

SUBARU EX170DM2230 Qty. P/N Description

3............20A0670100 .........SPARK PLUG

1............X430440142 .........TANK CAP

3............20A3263603 .........AIR CLEANER ELEMENT

1............2825011118 .......... ROPE, RECOIL

NOTICE

Part numbers on this Suggested Spare Parts list may supersede/replace the part numbers shown in the following parts lists.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 45

NAMEPLATE AND DECALS

P/N 23700

WWW.MULTIQUIP

.COM

WALK-BEHIND

POWER TROWEL

FINISH

COMBO

PRELOAD TRIM INDICATOR

FINISH

COMBO

STANDARD

HANDLE

QUICK PITCH™

HANDLE

P/N 23700

TIQ

WALK-BEHIND

POWER TROWEL

P/N

360

P/N

360

MODEL SERIAL NO.

PAGE 46 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

NAMEPLATE AND DECALS

NO. PART NO. PART NAME QTY. REMARKS

1# 23698 ISO DECAL, ROTATING BLADE HAZARD, 2.00” DIA. 1 2# 23699 ISO DECAL, READ MANUAL, 2.00” DIA. 1 3# 23700 ISO DECAL, LIFTING/CRUSH, 2.4” X 2.0” 1 4# 36099 ISO DECAL, PROTECTIVE CLOTHING, 3.50” X 1.13” 1 5# 23701 ISO DECAL, ASK FOR TRAINING, 2.00” DIA. 1 6 23702 DECAL, MQ LOGO 12.30” X 1.457” 1 7# 20816 DECAL, MQ LOGO 6.78” X .80” 1 8 23683 DECAL, SERIAL PLATE, WBT- CHINA 1 9# 23703 DECAL, MQ MULTIQUIP ROUND 3.78” DIA. 1 10# 23704 ISO DECAL, GUARD WARNING 2.00” DIA. 1

11 1735 DECAL, PRE-LOAD ............................................................. 1 ..................QUICK PITCH ONLY

12 22897 MQS DECAL KIT .................................................................. 1 ..................INCLUDES ITEMS W/#

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 47

STANDARD HANDLE ASSY.

INSTRUCTIONS

PAGE 48 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

STANDARD HANDLE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1# 0786 SCREW, BHC 1/4-20 X 3/8 NYL PATCH ,NP 2 2# 0786 A SPACER, SLIDE BLOCK GUIDE 1 3# 1116 NUT, BRASS JAM 5/16-18 2 4# 1665 SCREW, HHC 3/8-16 X 2 1 5# 3233 WASHER, FENDER, 1.5OD X 3/8ID 4 6# 9154 SCREW, HHC 3/8-16 X 1 3/4 2 7# 10133 NUT, NYLOC 3/8-16 2

8# 20280 BLOCK, PITCH CONTROL ...............................1................INCLUDES ITEMS W/$

9# 20285 CABLE, CONTROL 1 10# 20287 SLIDE BLOCK, TROWEL CONTROL 1 11# 20439 WHEEL ASSY. , HAND 1 12# 20478 GRIP, HANDLE 2 13# 20514 WIRE ASSY., KILL SWITCH 1

14# 20819 HAND WHEEL ASSY, PITCH CONTROL ..........1................INCLUDES ITEMS W/@

15# 20856 SWITCH ASSY., KILL 1 16# 21017 SCREW, HHC 3/8-16 x 3.25 FULL THRD GR5 1 17#% 22732 THROTTLE, BICYCLE FINISHER HANDLES 1 18#% 21172 CABLE, THROTTLE 68” 1 19#% 21173 HOUSING, MAGURA THROTTLE CABLES 1 20# 22055 HANDLE WA, VIBRATION CONTROL 1 21# 22059 ISOLATOR, VIB. 80 DUROMETER SHORE A 3 22# 22095 HANDLE, W/A, STOW FIN VIBE CONTROL 1 23# 22166 COVER,VIBE CONTROL HANDLE PAD 1 24# 22167 SCREW, HHC 3/8-16 X 6.5” GRADE 5 1

25# 22206 CHASSIS, CAST VIBRATION ISOLATOR .........1................REPLACES P/N 22056

26# 22100 KIT, VIBE CTRL. HANDLE INSTALLATION 1 27#@ 20817 WHEEL, HAND J-B HANDLES 1 28#@ 0281 BEARING, THRUST NICE, 607 1 29#@ 3615 COLLAR, SET 3/4 ID 1 30#@ 0122 c SCREW, SHS 3/8-16 X 1/2 1 31#@ 1478 SHAFT, TROWEL CONTROL 1

32# 21243 THROTTLE KIT ..................................................1................INCLUDES ITEMS W/%

33#@ 20282 BEARING, TROWEL CONTROL 1 34#$ A1118 PULLEY, PITCH CABLE HANDLE 1 35#$ 20279 PIN, SUPPORT BLOCK 3/8 X 1.59 1 36#$ 20275 BLOCK, SUPPORT 1

37 22094 HANDLE ASSY, STD. VIBE CONTROL .............1................INCLUDES ITEMS W/#

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 49

QUICK-PITCH HANDLE ASSY. (OPTION)

UC TIONS

PAGE 50 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

QUICK-PITCH HANDLE ASSY. (OPTION)

NO. PART NO. PART NAME QTY. REMARKS

1# 1116 NUT, BRASS JAM 5/16-18 2 2# 1665 SCREW, HHC 3/8-16 X 2 2 3# 1715 Q.P. SPRING CENTER BALANCE 1 4# 1717 SCREW, QP TRIM ADJUSTMENT W/A 1 5# 1718 NUT , QP TRIM CNTL ADJUSTMENT 1 6#$ 20389 HANDLE, QUICK PITCH (QP) 1 7#$ 1729 PIN, ROLL 3/16 X 1-1/4 2 8# 1732 Q.P. ADJUSTMENT PIN 1 9# 1733 WASHER, 1/2 X 1/32, AN960-816L 2 10# 1737 RING, SNAP, TRUARC 5100-5 1 11# 3233 WASHER, FENDER, 1.5OD X 3/8ID 4 12# 4568 PIN, ROLL 3/16 X 1 1 13# 9154 SCREW, HHC 3/8-16 X 1 3/4 1 14# 10133 NUT, NYLOC 3/8-16 2 15# 20270 QP ADJUSTMENT BLOCK 1

16# 20280 BLOCK, PITCH CONTROL ...............................1................INCLUDES ITEMS W/&

17# 20293 LINKAGE QP CONTROL ...................................1................INCLUDES ITEMS W/@

18# 20390 TRIGGER, QP ASSEMBLY ...............................1................INCLUDES ITEMS W/$

19# 20439 WHEEL ASSY. , HAND 1 20# 20478 GRIP, HANDLE 2 21# 20514 WIRE ASSY., KILL SWITCH 1 22# 20856 SWITCH ASSY., KILL 1 23# 21017 SCREW, HHC 3/8-16 X 3.25 FULL THRD GR5 1 24#% 21171 THROTTLE, LEVER 1 25#% 21172 CABLE, THROTTLE 68” 1 26#% 21173 HOUSING, MAGURA THROTTLE CABLES 1 27# 20297 CABLE ASM, LENGTH 45", JB, HD & QP 1 28# 22055 HANDLE WA, VIBRATION CONTROL 1 29# 22059 ISOLATOR, VIB. 80 DUROMETER SHORE A 3 30# 22060 MAIN HANDLE WA,QP VIBE CONTROL 1 31# 22166 COVER,VIBE CONTROL HANDLE PAD 1 32# 22167 SCREW, HHC 3/8-16 X 6.5” GRADE 5 1

33# 22206 CHASSIS, CAST VIBRATION ISOLATOR .........1................REPLACES P/N 22056

34#$ 1711 SHAFT, CONTROL Q.P. 1 35# 22100 KIT, VIBE CTRL. HANDLE INSTALLATION 1 36#$ 12405 DECAL, WHITEMAN QUICK PITCH 2 37#$ 1729 PIN, ROLL 3/16 X 1-1/4 1 38#$ 1724 GRIP, HANDLE 1 39#$ 1706 SPRING, COMPRESSION 1 40#$ 20437 PIN, QP LATCH 1 41#@ 1731 PIN, ROLL 1/4 X 3/4 1 42#@ 20443 ARM, SLIDE CONTROL 1 43#@ 1709 QP DOGBONE 1 44#@ 20269 BLOCK, CABLE SLIDE 1 45#@ 20276 PIN, ROLL 1/4 X 1-3/4 1

46# 21243 THROTTLE KIT ..................................................1................INCLUDES ITEMS W/%

47#$ A6581 TRIGGER, QP 1 48#& 20279 PIN, SUPPORT BLOCK 3/8 X 1.59 1 49#& A1808 PULLEY, PITCH CABLE HANDLE 1 50 20275 BLOCK, SUPPORT 1

51 22061 HANDLE ASSY, HD QP VIBE CONTROL .........1................INCLUDES ITEMS W/#

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 51

GUARD ASSY.

PAGE 52 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

GUARD ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 21965 GUARD RING J36 FINISHER 1 2 0205 SCREW, HHC 3/8 - 16 X 1.0 4 3 21996 SPACER, 1.00 OD X .328 ID X .438 THK 4 4 22024 SCREW, HHC 5/16 - 24 X 1-3/4 GR5 ZINC 4 5 933241 WASHER, FLAT SAE 5/16 GRD 9YZ 4 6 21880 ACCESS PANEL, M & J GUARD RING 1 7 26250 SCREW, HHC 1/4 - 20 X 1-3/4 2 8 21893 SCREW, FAST LEAD 1 9 21986 WASHER, FAST LEAD STAINLESS 1 10 21894 CLIP, FAST LEAD 1 11 21922 CLAMP, 0.625" ID PIPE 2 12 10024 NUT, NYLOC 1/4 - 20 2

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 53

GEARBOX ASSY.

GEARBOX

OIL

22 OZ.

(751 mL)

NOTES:

APPLY THREAD LOCK, LOCTITE

246 BLUE P/N 60097 OR EQUIVALENT.

APPLY THREAD LOCK, LOCTITE

572 WHITE P/N 60096 OR EQUIVALENT.

TORQUE TO 15 FT-LBS (20 Nm)

GASKETS ARE NOT SOLD SEPARATELY.

SHIM (GASKETS) AS NECESSARY FOR INPUT SHAFT END-PLAY.

GASKETS ARE NOT SOLD SEPARATELY.

SHIM (GASKETS) AS NECESSARY FOR OUTPUT SHAFT END-PLAY.

USE SPECIALLY FORMULATED WHITEMAN GEARBOX LUBRICANT P/N 10139 OR ISO OIL.

REQUIRES 26 OZ. (0.8 LITERS)

OF GEARBOX LUBRICANT FOR OPERATION.

GASKET AND SEAL KIT INCLUDES

ITEMS 1,4, 25, AND 29 PLUS GASKETS.

BEARING KIT INCLUDES ITEMS 6,7,18

AND 19.

GEARBOX

GEARBOX ASSEMBLY ITEM 30, INCLUDES ITEMS WITHIN DASHED LINE

EXCEPT ITEMS 12,13 AND 31

PAGE 54 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

GEARBOX ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1%$ 0753 SEAL, OIL 1 2% 0131 A SCREW, HHC 1/4-20 X 3/4 4 3% 12876 FLANGE, INPUT SHAFT 1 4%$ 20395 O-RING, 2" 8032 N 1 6%# 20466 BEARING, CUP, TIMKEN #M11910 2 7%# 20465 BEARING, CONE, TIMKEN #LM11949 2 8% 0627 KEY, SQUARE 3/16 X 1-1/4 1 9% 1851 GEAR, WORM "B" INPUT SHAFT 1 10% 12874 CASE, WORM GEAR MACHINED 1 11% 21218 VENT, AIR 1

12 21046 GASKET/SEAL KIT.............................................1 ...............INCLUDES ITEMS W/ $

13 21047 BEARING KIT...................................................... 1 ...............INCLUDES ITEMS W/ #

14% 20476 SCREW, HHC 1/4-28 X 3/8 2 15% 21033 SIGHT GLASS, 3/4 M PIPE STEEL 1 16% 0121 A FITTING, PLUG 3/8 MP SQ HEAD 1 17% 1138 RING, SNAP, TRUARC 5100-112 1 18%# 20475 BEARING, CUP TIMKEN #M86610 2 19%# 20474 BEARING, CONE TIMKEN #M86647 2 20% 1140 GEAR, WORM, COMPOSITE 1 21% 20470 SHAFT, OUTPUT 1 22% 1139 KEY, WOODRUFF #810 1 23% 1238 KEY, WOODRUFF #25 1 25%$ 20396 O-RING, 254 BUNA N 1 26% 12875 COVER, GEARBOX 1 27% 10235 WASHER, C/S EXT. SHKP 4 28% 20875 SCREW, FHSC 5/16-18 X 3/4 4 29%$ 0254 SEAL, OIL 1

30 20407 GEARBOX ASSY. ..............................................1................INCLUDES ITEMS W/ %

31 10139 GEARBOX OIL ISO 680, 22 OZ. (650 ML) 2 32 22292 SPACER, 1/2 X .406 X 1/4 UNTREATED 2 33 20802 RING, SNAP TRUARC 5100-37 2 34 1150 YOKE ARM 1 35 20801 PIN, YOKE 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 55

ENGINE ASSY.

NOTES:

APPLY BLUE LOCTITE™ 246, ITEM 23.

BLUE

LOCTITE

LOW SPEED

KIT

FOR OPTIMUM PANNING PERFORMANCE BLADE SPEED MUST BE CHANGED. USE LOW SPEED KIT, ITEM 31.

PAGE 56 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

ENGINE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 22995 ENGINE, SUBARU 5.7 1 2 1475 CONNECTOR, SPLICE TAP 1 3 1488 WIRE, SAFETY SWITCH 1 4 12287 SCREW, THP 1/4- 20 X 3/4 SS 3 5 21988 LIFTING BALE ASSEMBLY J FIN 1 6 933241 WASHER, FLAT SAE 5/16 RD 9 YZ 4

8 0255 CLUTCH ASSY. 3/4" CENTRIFUGAL, 5.5 HP ...1................INCLUDES ITEMS W/@

9 0627 KEY, SQ 3/16 X 1-1/4 1 10 21994 PULLEY AK-59 X 3/4, 60-130 RPM 1

10% 21140 PULLEY AK-54 X 3/4 .........................................1................FLOAT PANS ONLY

11% 0152 3 V-BELT A28 1 12 21970 BELT GUARD 1 13@# 0253 CLUTCH PLATE 1 14@# 1868 SCREW, SHS 3/8-24 X 3/4, NP 2 15@# 0855 SPRING, CLUTCH .156 X 5.375 X .025 1 16@# B1766 WEIGHT, AUTOMATIC CLUTCH 4 17@# 0251 DRUM, CENTRIFUGAL CLUTCH 1 18@# 0456 BEARING, SHIELDED 6007 ZZ E 1 19@ 21307 CLUTCH SPINDLE 3/4" BORE 1 20 20845 SWIVEL ASSEMBLY 1 21 1834 DEFLECTOR 1 22 1273 SCREW, HHST 8-32 X 3/8 1 23 60097 LOCTITE ™ #246, BLUE 1 25 1406 PLUG, END (CLUTCH) 1 26 21915 SPACER PLATE, LIFTING BAIL 1 27 21679 SPACER, 1 X .78 X .69L 1 28 10229 SCREW, HHC 5/16-24 X 1 4 29 21678 SCREW, FHSC 5/16-24 X 1-3/4 1 30 0300 B WASHER, FLAT SAE 5/16 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 57

SPIDER ASSY.

NOTES:

APPLY LOCTITE P/N 1477 TO ITEMS 1 AND 14

SPIDER ASSEMBLY P/N 1490

INCLUDES ALL ITEMS WITHIN OUTLINE.

INCLUDED WITH ITEM 19 OR CAN BE

ORDERED SEPARATELY (P/N 1471)

TORQUE TO 90 FT.-LBS (122 Nm)

TORQUE TO 130 FT.-LBS (176 Nm)

PAGE 58 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

SPIDER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1% 0164 B RADIUS HEAD 3/8-16, FULL THREAD 4 2% 0166 A LOCK WASHER 3/8 MED 4 3% 1157 A BUSHING, TROWEL ARM 4 4% 1161 SPIDER PLATE 1 5% 1162 A CAP, GREASE ZERK #2 YELLOW 4 6% 1163 LEVER, TROWEL ARM RIGHT HAND 4 7% 1316 SPRING, LS ARM RETURN 4 8% 1322 RETAINING SCREW ASSY. 4 9% 1456 NUT, HEX FINISH 3/8-16 1 10% 1875 WASHER, INT. SHKP. 3/8” 4 11% 1876 NUT, HEX JAM 3/8 - 16 CLASS 2B 4 12% 2826 ARM, J FINISHER, EXTENDED 4 13% 4164 ROLL PIN 5/16 x 1-3/4” 4 14% 12097 SCREW, SQHS 3/8 -16 X 1-3/4 CONE GRD 8 1

15 1215 SPIDER PLATE ASSY., .....................................1................INCLUDES ITEMS W/%

16 10968 THRUST BEARING KIT .....................................1................INCLUDES ITEMS W/$

17$ 12208 WEAR RING 1 18$ 12778 FLANGE BEARING 1

19$ 10793 THRUST COLLAR ............................................1................INCLUDES ITEMS W/#

20$# 1471 THRUST COLLAR BUSHING 1 21$ 1154 A WEAR PLATE 1 22 1207 SCREW, HHCS 5/16-18 X 1-3/4" 12 23 0161 C WASHER, LOCK 5/16" 12 24 C844 BLADE ASSEMBLY 4 25 1817 TOOL, TROWEL ARM ADJUST. FIXTURE 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 59

BLADE ASSY.

PAGE 60 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

BLADE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 C844 TROWEL BLADE, 8X14, COMBO 4 2 F900 TROWEL BLADE, 8X14, FINISH 4

3 21906 SCREW, HHFS 5/16 - 18 X 1-1/2 GR5 ..............8................ALL BLADES

5 20646 FLOAT DISC LATCH PIN 4 6 2870 FLOAT PAN, 36-INCH 1 7 11032 FLOAT PAN, 36-INCH SUPER FLAT 1 8 CL945 FLOAT BLADE, 10X14 CLIP-ON 4 9 F10900 ENDURO FINISH BLADE 6X14 4 10 C10844 ENDURO COMBO BLADE 8X14 4 11 QF1872 QUICK CHANGE BLADE, 6X14 4 11 QF10872 ENDURO QUICK CH.FINISH BLADE, 6X14 4 12 QC1871 QUICK CHANGE COMBO BLADE, 8X14 4 12 QC10871 ENDURO QK CHNG.COMBO BLADE, 8X14 4 14 QB1857 UNIVERSAL MOUNTING BAR 4 15 QS1869 SNAP PIN 1/4"X1-3/4" 8 16 1434 TROWEL LUG (FINISH BLADE ONLY) 4 17 0202 SCREW, HHCS 5/16-18X1" RING 4 18 0201 GUARD RING LUG 4

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 61

EX17 — CRANKCASE ASSY.

PAGE 62 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — CRANKCASE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

10 20A1010601 CRANK CASE CP .............................................1................INCLUDES ITEMS W/$

20# 20A1420103 VALVE GUIDE 2 26# 20A1601001 STEM SEAL 1 30$ 20A0480100 OIL SEAL 1 40$ 20A0610100 BALL BEARING 1 50$ 20A1501103 PIPE KNOCK 2 60# 20A0161100 STUD 1 70# 20A0160100 STUD 2 75$ 20A0480200 OIL SEAL 1 80 20A0410100 PLUG 1 90@ 20A0220100 GASKET 2

210 20A1100201 MAIN BEARING COVER C ...............................1................INCLUDES ITEMS W/%

220% 20A0480300 OIL SEAL 1 230% 20A0610200 BALL BEARING 1 250 20A4500401 GOVERNOR GEAR CP 1 260 20A4190103 GOVERNOR SLEEVE 1 270 20A6360103 OIL GAUGE 2 280@ 20A0230100 GASKET 2 300 20A0110100 FLANGE BOLT 6

610 20A1300101 CYLINDER HEAD CP .......................................1................INCLUDES ITEMS W/#

620@ 20A1500103 GASKET (HEAD) 1 630 20A0110200 FLANGE BOLT 4 631 20A0110300 FLANGE BOLT 1 680 20A1550501 ROCKER COVER CP 1 690@ 20A1600113 GASKET (ROCKER COVER) 1 700 20A1501103 PIPE KNOCK 2 710 20A0111100 FLANGE BOLT 4

960 2779900127 GASKET SET ...................................................1................INCLUDES ITEMS W/@ AND

.............................................................................................ITEM 340 MUFFLER ASSY.

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 63

EX17 — CRANKSHAFT ASSY.

PAGE 64 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — CRANKSHAFT ASSY.

NO. PART NO. PART NAME QTY. REMARKS 10 20A2090201 CRANKSHAFT CP 1 50 20A0185300 FLANGE NUT 1 70 20A0360100 WOODRUFF KEY 1 80 20A0361200 KEY 1

310 20A2250110 CONNECTING ROD ASSY. ...............................1................INCLUDES ITEMS W/#

320# 20A2300103 CONNECTING ROD BOLT 2 350 20A2330103 PISTON PIN 1 362 20A2340103 PISTON 1 370 PISTON RING SET 1 380 20A0320100 CLIP 2

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 65

EX17 — MUFFLER ASSY.

PAGE 66 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — MUFFLER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

10 20A3160101 CAM SHAFT CP ...............................................1................INCLUDES ITEMS W/%

25 20A3510103 PIN (CAM SHAFT) 1 27 20A0280100 O-RING 1 34% 20A3860103 PIN (SPRING) 1 35% 20A3640103 RELEASE LEVER 1 37% 20A3650103 CLIP 1 38% 20A3870203 RETURN SPRING 1 60 20A3360103 VALVE SPRING 2 70 20A3370103 SPRING RETAINER 2 80 20A3340103 INTAKE VALVE 1 90 20A3360103 EXHAUST VALVE 1 95 20A3380103 COLLET-VALVE 4 150 20A3560101 TIMING CHAIN CP 1 160 20A3691103 TENTIONER 1 163 20A3710103 SPRING (TENTIONER) 1 166 20A3690203 PIN (TENTIONER) 1 170 20A3691303 CHAIN GUIDE 1 200 20A3500201 PIN (ROCKER) CP 1 202 20A0321100 CLIP 1

220 20A3620100 ROCKER ARM (IN) ASSY. .................................1................INCLUDES ITEMS W/#

225 20A3620200 ROCKER ARM (EX) ASSY. ................................1................INCLUDES ITEMS W/@

230# 20A0140100 ADJUST SCREW 1 231@ 20A140100 ADJUST SCREW 1 240# 20A0180100 NUT 1 241@ 20A0180100 NUT 1 290 20A0111100 FLANGE BOLT 1

310 20A3011101 MUFFLER CP ...................................................1................INCLUDES ITEMS W/+

315+ 20A3760101 SPARK ARRESTER CP 1 317+ 20A0140200 TAPPING SCREW 1 320 20A3420101 MUFFLER COVER CP 1 340 20A3520103 GASKET (MUFFLER) 1 350 20A0185100 FLANGE NUT 2 360 20A0120100 TAPPING BOLT 2 361 20A0111200 FLANGE BOLT 1 365 20A0110400 FLANGE BOLT 1 387 20A0140200 TAPPING SCREW 2 440 20A3700101 DEFLECTOR CP 1

540 20A3290203 INSULATOR CP ................................................1................INCLUDES ITEMS W/$

550$ 20A3590303 GASKET 2 (INSULATOR) 1 560$ 20A3590203 GASKET 1 (INSULATOR) 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 67

EX17 — AIR CLEANER ASSY.

PAGE 68 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — AIR CLEANER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

510# 20A3273100 AIR CLEANER ASSY. .........................1................INCLUDES ITEMS W/#

510-200# 20A3280202 BASE CP ............................................1................INCLUDES ITEMS W/%

510-210#% 2773261008 PACKING 1 510-220#% 2773260408 PACKING 1 510-250# 20A3280103 COVER CP 1 510-260#% 20A3261503 LABEL 1 510-270# 2773274118 WING NUT 1 510-272# 2773260708 WING NUT 1 510-520# 20A3263603 ELEMENT SET 1 570 20A0185200 FLANGE NUT 2 580 20A0111300 FLANGE BOLT 1 850 20A0811100 BREATHER PIPE 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 69

EX17 — GOVERNOR ASSY.

PAGE 70 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — GOVERNOR ASSY.

NO. PART NO. PART NAME QTY. REMARKS

10 20A4230103 GOVERNOR LEVER 1 20 20A4220103 GOVERNOR SHAFT 1 30 20A4270101 GOVERNOR ROD CP 1 40 20A4280103 ROD SPRING 1 50 20A0321100 CLIP 1 60 20A0130110 BOLT AND WASHER AY 1 70 20A0190100 NUT 1 80 20A4251003 GOVERNOR SPRING 1 310 20A4330301 SPEED CONT. LEVER CP 1 322 20A4370101 LINK ROD CP 1 340 20A4350203 STOP PLATE 1 350 20A4680103 WASHER 1 355 20A0230600 FRICTION WASHER 1 360 20A0140400 SCREW 1 365 20A4501103 SPRING (ADJUST) 1 395 20A4390203 CLAMP 1 396 20A0151100 SCREW AND WASHER AY 1 435 20A4600301 SPEED CONT. BRKT CP 1 440 20A0141100 SCREW 1 450 20A0191100 SELF LOCK NUT 1 480 20A4510301 RETURN SPRING 1 485 20A0111100 FLANGE BOLT 2

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 71

EX17 — BLOWER ASSY.

PAGE 72 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — BLOWER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

10 20A5120101 BLOWER HOUSING CP 1 20 0732005820 LABEL (TRADE MARK) 1 40 20A0111400 FLANGE BOLT 4 60 20A5271101 BAFFLE 1 (CASE) CP 1 61 20A5270203 BAFFLE 2 (HEAD) 1 80 20A0111500 FLANGE BOLT 1 81 20A0111100 FLANGE BOLT 1 220 20A0111400 FLANGE BOLT 4

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 73

EX17 — RECOIL STARTER ASSY.

PAGE 74 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — RECOIL STARTER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

210 20A5020130 RECOIL STARTER ASSY. .........................1................INCLUDES ITEMS W/#

210-1# 2705011508 SPIRAL SPRING 1 210-2# 2695012008 REEL 1 210-3# 2825011118 STARTER ROPE 1 210-4# 2615010008 STARTER KNOB 1 210-5# 2705012508 RATCHET 2 210-6# 2275013108 FRICTION SPRING 1 210-7# 2275013508 RETURN SPRING 2 210-8# 2705026108 RATCHET GUIDE 1 210-11# 20A5021133 STARTER PULLEY 1 210-49# 2275015208 SET SCREW 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 75

EX17 — FUEL TANK ASSY.

PAGE 76 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — FUEL TANK ASSY.

NO. PART NO. PART NAME QTY. REMARKS

10 20A6110201 FUEL TANK CP 1 20 0732005760 LABEL (WARNING) 1 23 2779511203 LABEL (MODEL) 1 30 X430440142 FUEL TANK CAP CP 1 40 20A0640100 FUEL FILTER 1 48 20A0640200 UNION 1 60 20A0185200 FLANGE NUT 2 63 20A0111600 FLANGE BOLT 1

70 20A6260501 FUEL PIPE CP ..................................................1................INCLUDES ITEMS W/$

80$ 20A0810100 RUBBER PIPE 1 90$ 20A0580100 HOSE CLAMP 2

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 77

EX17 — CARBURETOR ASSY.

PAGE 78 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — CARBURETOR ASSY.

NO. PART NO. PART NAME QTY. REMARKS

210 20A6230240 CARBURETOR ASSY. .................. 1 ..................INCLUDES ITEMS W/#

210-1# 2776253508 THROTTLE VALVE 1 210-2# 2096235108 SCREW 1 210-3# 2776252508 CHOKE VALVE 1 210-5# 2466242008 PILOT JET 1 210-8# 2776252008 CHOKE LEVER 1 210-11# 2776253118 THROTTLE SHAFT-A 1 210-12# 2276245108 BOLT 1 210-14# 2776250008 NEEDLE 1 210-15# 2776251508 PIN 1 210-16# 2776250608 FLOAT BODY AY 1 210-17# 2146245008 PACKING 1 210-18# 2146254008 CHAMBER PACKING 1 210-19# 2266250608 FLOAT 1 210-20# 2776244008 MAIN NOZZLE 1 210-22# 2266241208 MAIN JET 1 210-24# 2266270118 CLIP 1 210-28# 2776236008 BOLT 1 210-40# 1066255608 SCREW 1 210-41# 2836235708 SPRING 1 210-44# 2486241008 AIR JET 1 210-45# 1066241008 AIR JET (PILOT) 1 210-62# 2366268008 SEAL 1 210-79# 2366254108 PACKING 1 210-102# 2466239008 SEAL 1 210-144# 2776255308 NUT 1

210-300# 20A6210200 FUEL STRAINER ASSY. ................1 ..................INCLUDES ITEMS W/$

210-302#$ 2776211018 PACKING 1 210-303#$ 2776210018 CUP 1 210-325# 2776255208 O-RING 1 210-327# 1656237708 SCREW 2 224 20A4380101 CHOKE LEVER CP 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 79

EX17 — IGNITION COIL ASSY.

PAGE 80 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — IGNITION COIL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

10 20A7923101 FLYWHEEL CP 1 11 20A7943101 IGNITION COIL CP 1 20 20A5410113 COOLING BLOWER 1 30 20A0130200 BOLT AND WASHER AY 1 50 20A7310101 WIRE 1 CP 1 60 KU31107101 SWITCH ASSY. 1 70 20A0140300 TAPPING SCREW 2 100 20A0670100 SPARK PLUG 1 110 0655000110 SPARK PLUG CAP 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 81

EX17 — OIL SENSOR ASSY.

PAGE 82 — J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13)

EX17 — OIL SENSOR ASSY.

NO. PART NO. PART NAME QTY. REMARKS

700 2777630121 OIL SENSOR CP 1 740 20A0130400 BOLT AND WASHER AY 2 780 20A0590100 PURSE LOCK 1

J36S60 WALK-BEHIND TROWEL • OPERATION AND PARTS MANUAL — REV. #1 (01/23/13) — PAGE 83

OPERATION AND PARTS MANUAL

HERE’S HOW TO GET HELP

Multiquip Inc of their respective owners and used with permission.

This manual

The information and speciﬁcations included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change speciﬁcations, design or the information published in this publication at any time without notice and without incurring any obligations.

PLEASE HAVE THE MODEL AND SERIAL

NUMBER ON-HAND WHEN CALLING

United StateS

Multiquip Corporate Ofﬁce MQ Parts Department

18910 Wilmington Ave. Carson, CA 90746 Contact: mq@multiquip.com

Service Department Warranty Department

800-421-1244 310-537-3700

Technical Assistance

800-478-1244 Fax: 310-943-2238

Tel. (800) 421-1244 Fax (310) 537-3927

Fax: 310-537-4259 800-421-1244

800-427-1244 310-537-3700

310-537-3700

Fax: 800-672-7877 Fax: 310-637-3284

Fax: 310-943-2249

mexico United Kingdom

MQ Cipsa Multiquip (UK) Limited Head Ofﬁce

Carr. Fed. Mexico-Puebla KM 126.5 Momoxpan, Cholula, Puebla 72760 Mexico Contact: pmastretta@cipsa.com.mx

Tel: (52) 222-225-9900 Fax: (52) 222-285-0420

Unit 2, Northpoint Industrial Estate, Globe Lane, Dukinﬁeld, Cheshire SK16 4UJ Contact: sales@multiquip.co.uk

Canada

Multiquip

4110 Industriel Boul. Laval, Quebec, Canada H7L 6V3 Contact: jmartin@multiquip.com

Tel: (450) 625-2244 Tel: (877) 963-4411 Fax: (450) 625-8664

Tel: 0161 339 2223 Fax: 0161 339 3226

, the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the proper ty

MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

Your Local Dealer is:

PN: 23968

Multiquip J36S60 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
