OPERATION AND PARTS MANUAL
GLOBUG
MODEL GB4000
LIGHT TOWER MOUNT TYPE
BALLOON LIGHT
SERIAL NO. G3100044 AND ABOVE
Revision #1 (02/25/14)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

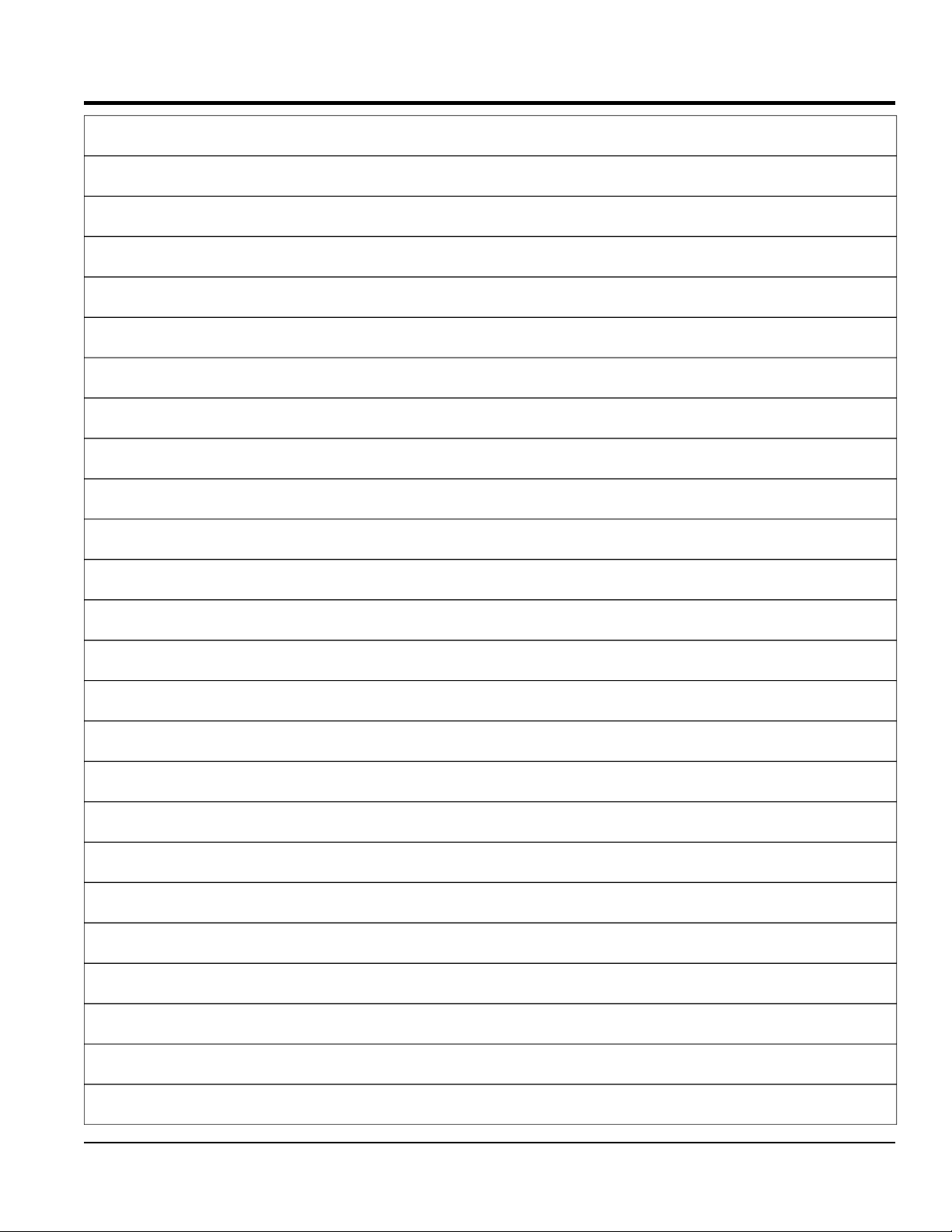

NOTES
PAGE 2 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 3
TABLE OF CONTENTS
GB4000 BALLOON LIGHT
Table of Contents ..................................................... 4
Parts Ordering Procedures ...................................... 5
Safety Information .............................................. 6-13
Specifications ........................................................ 14

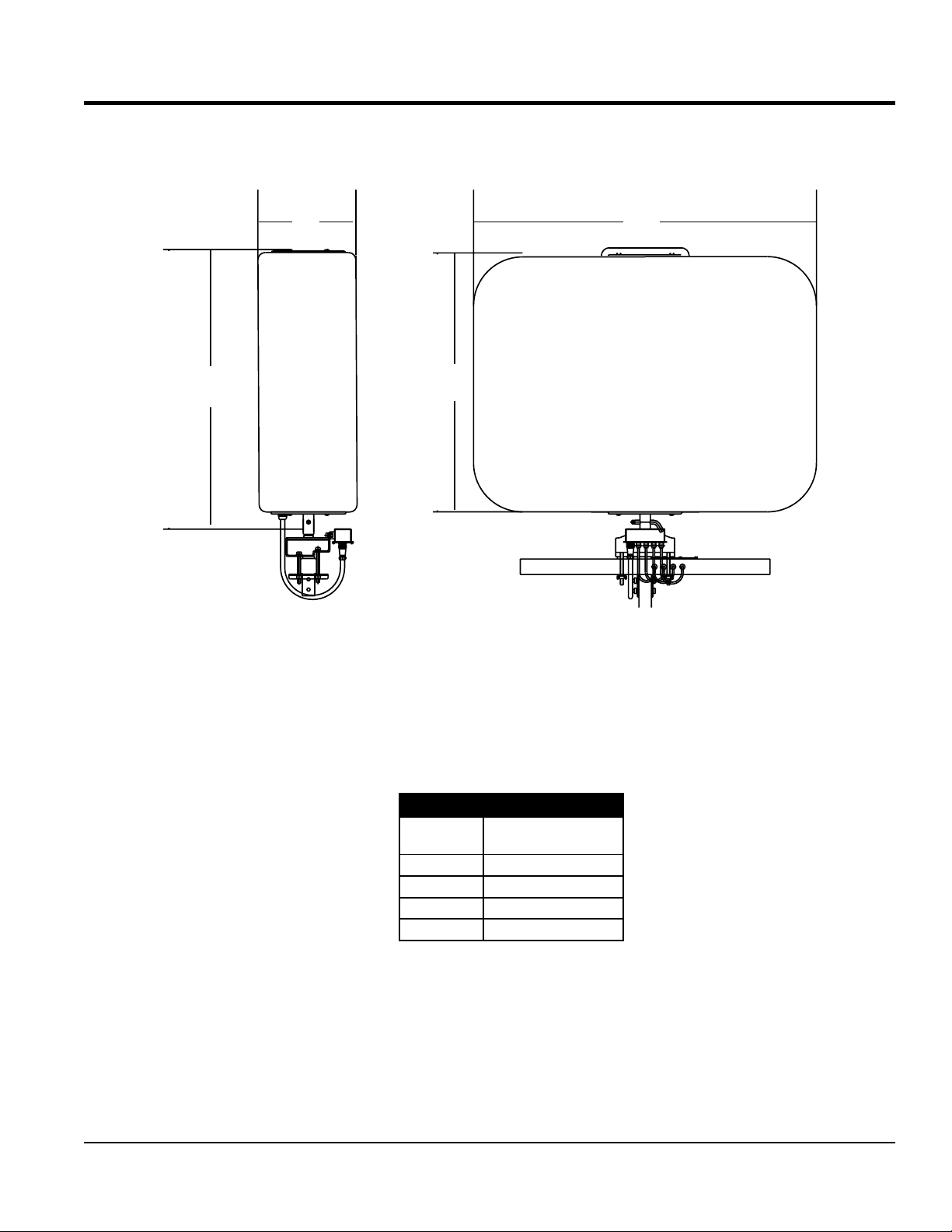

Dimensions ............................................................ 15

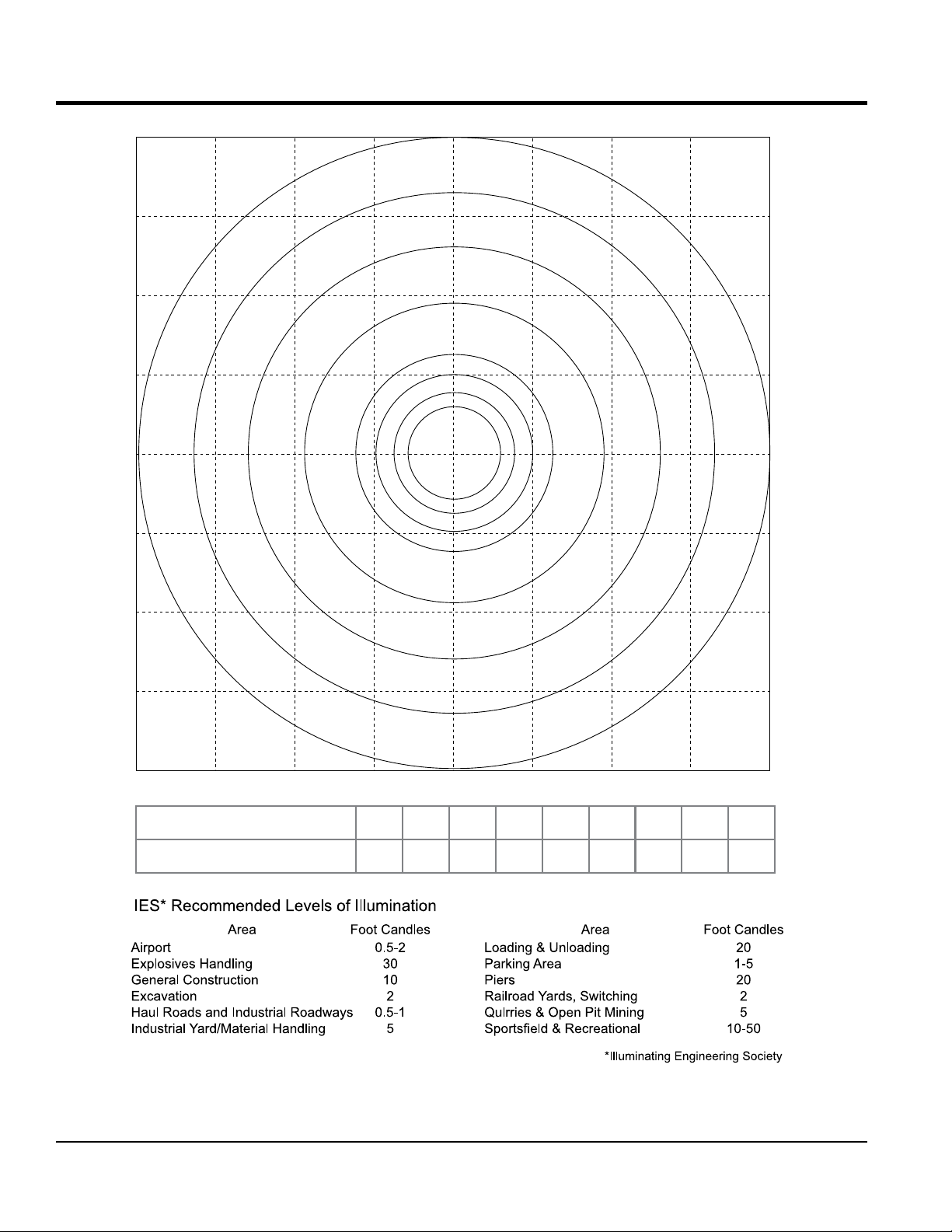

Footcandle Plot ...................................................... 16
General Information ............................................... 17
Components .......................................................... 18
Setup ................................................................ 19-22
Lamp Cable Connections ...................................... 23
Operation .......................................................... 24-25
Maintenance ..................................................... 26-28

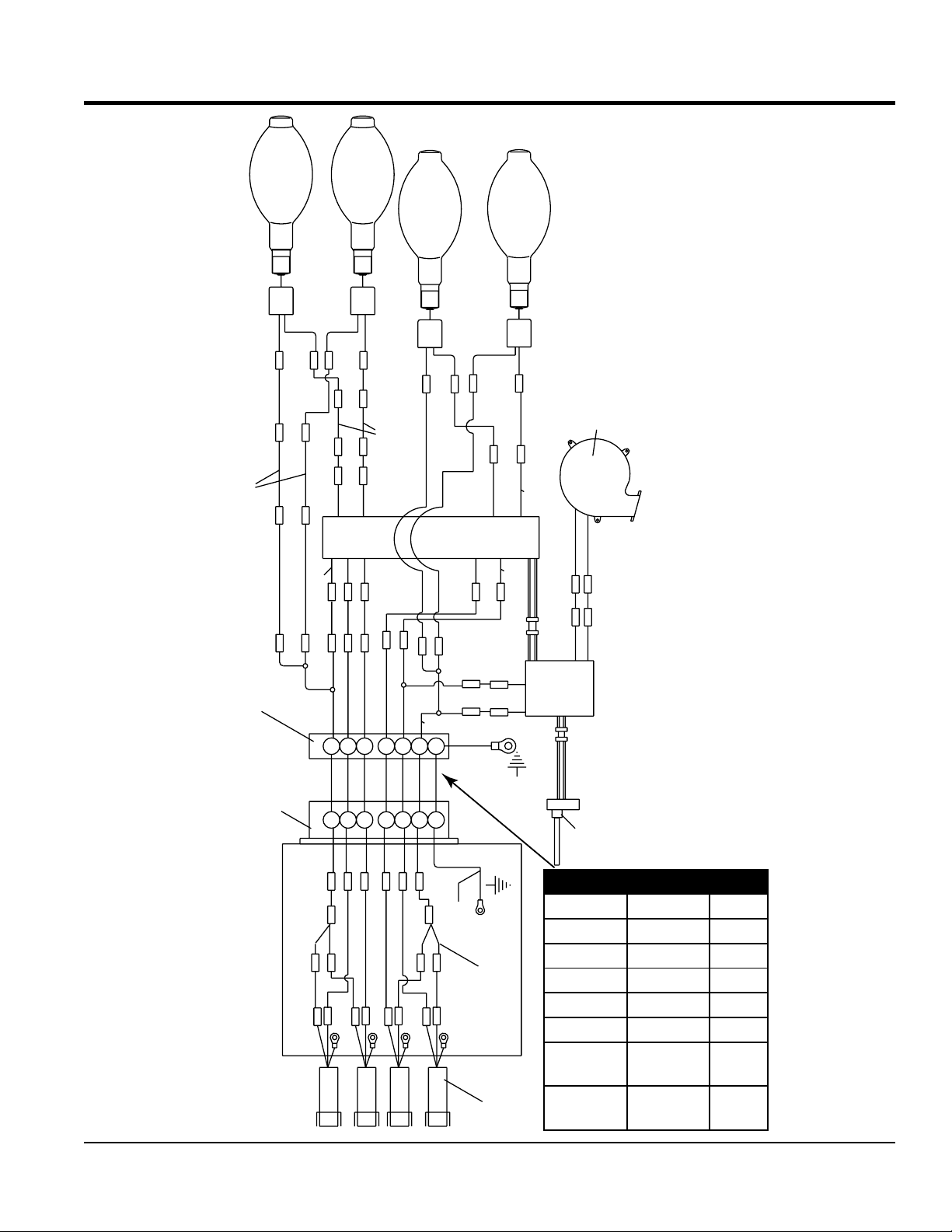

Wiring Diagram ...................................................... 29
Explanation Of Code In Remarks Column............. 30
Suggested Spare Parts ......................................... 31
Component Drawings
Nameplate And Decals ..................................... 32-33
Electrical Assy. ................................................. 34--37

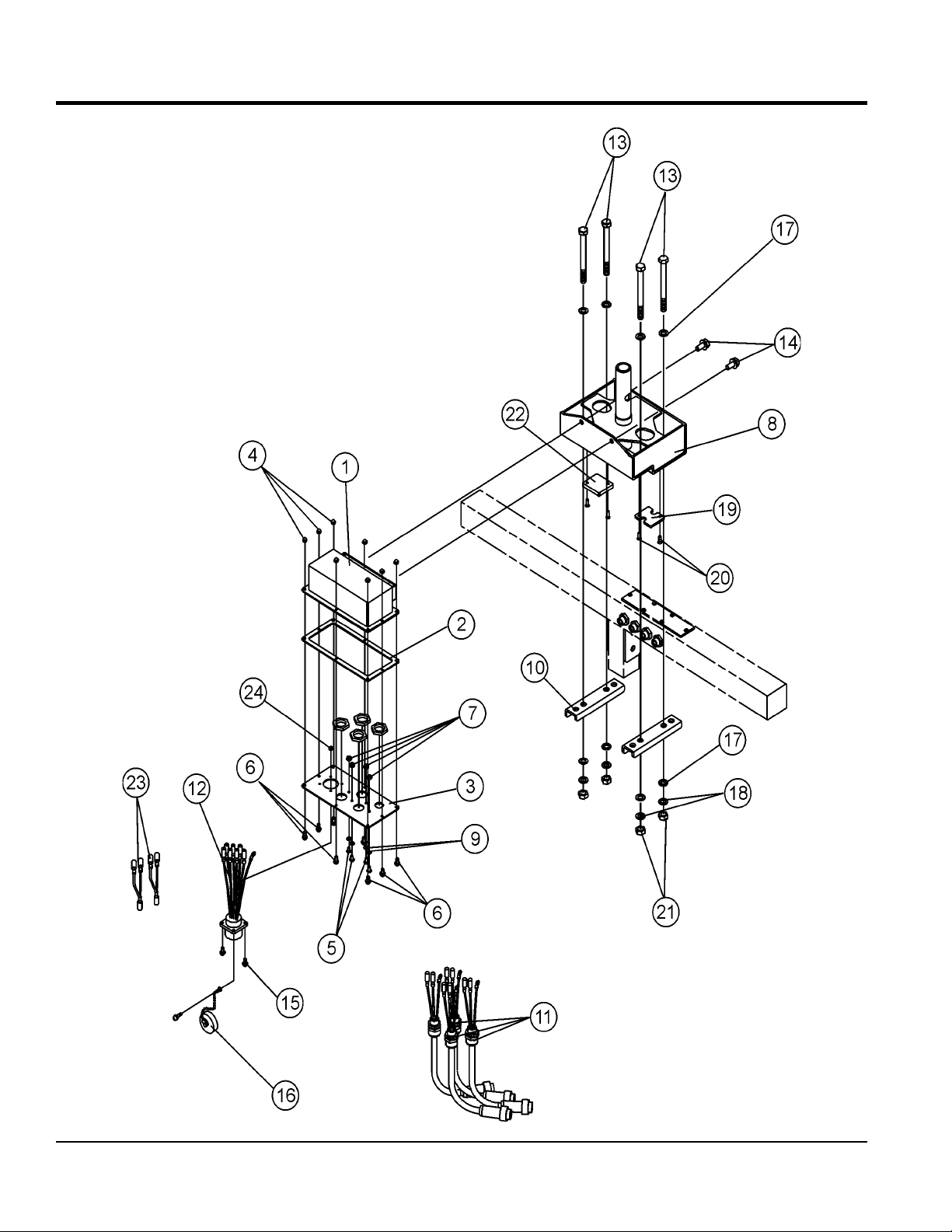

Bracket And J-Box Assy. .................................. 38-39
Terms And Conditions Of Sale — Parts ................ 40
NOTICE
Specifications and part numbers are subject to change
without notice.
PAGE 4 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
PARTS ORDERING PROCEDURES
www.multiquip.com
Ordering parts has never been easier!
If you have an MQ Account, to obtain a Username
parts@multiquip.
To obtain an MQ Account, contact your
Effective:
, 2006
Choose from three easy options:
January 1
st
Best Deal!
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
■ View Parts Diagrams
■ Order Parts
■ Print Specifi cation Information
Goto www.multiquip.com and click on
Order Parts
to log in and save!
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)
Order via Phone:
Non-Dealer Customers:
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
and Password, E-mail us at:
com.
District Sales Manager for more information.
Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*
Fax your order in and qualify for a 2% Discount
on Standard orders for all orders which include
complete part numbers.*
Domestic (US) Dealers Call:
1-800-427-1244
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Note: Discounts Are Subject To Change
Note: Discounts Are Subject To Change
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 5
When ordering parts, please supply:
❒ Dealer Account Number
❒ Dealer Name and Address
❒ Shipping Address (if different than billing address)
❒ Return Fax Number
❒ Applicable Model Number
❒ Quantity, Part Number and Description of Each Part
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
WE ACCEPT ALL MAJOR CREDIT CARDS!
❒ Specify Preferred Method of Shipment:
✓ UPS/Fed Ex ✓ DHL
■ Priority One ✓ Tr uc k
■ Ground
■ Next Day
■ Second/Third Day
SAFETY INFORMATION
Do not operate or service the equipment before reading the
entire manual. Safety precautions should be followed at all
times when operating this equipment. Failure to read and
understand the safety messages and operating instructions
could result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others. The
safety messages specifi cally address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION
SAFETY SYMBOLS
SAFETY SYMBOLS
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
or NOTICE.
safety messages.
NOTICE
Addresses practices not related to personal injury.
PAGE 6 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
GENERAL SAFETY
NOTICE
This equipment should only be operated by trained and
Whenever necessary, replace nameplate, operation and
Manufacturer does not assume responsibility for any
accident due to equipment modifi cations. Unauthorized
use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
know the location of the nearest phone or
Also, know the phone
fi re
This information will be invaluable in the
SAFETY INFORMATION
CAUTION
NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
NEVER operate this equipment under the infl uence of
drugs or alcohol.
ALWAYS check the equipment for loosened threads or
bolts before starting.
DO NOT use the equipment for any purpose other than
its intended purposes or applications.
qualifi ed personnel 18 years of age and older.
safety decals when they become diffi cult read.
equipment modifi cation will void all warranties.
NEVER
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest
fi re extinguisher.
ALWAYS know the location of the nearest
fi rst aid kit.
ALWAYS
keep a phone on the job site.
numbers of the nearest ambulance, doctor and
department.
case of an emergency.
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 7
LIGHT TOWER SAFETY
NOTICE
keep the immediate area surrounding the light
Fix damage to machine and replace any broken parts
store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
use
attempt to replace lamp with the power on.
Always shut down the engine and turn off circuit breakers
allow a suffi cient amount of time for the lamp to
before touching or changing. The possibility exists of
use force when installing the lamp. Excessive force
leave any grease or oil residue on lamp surface
when replacing or removing lamp. This can create hot
install and remove
SAFETY INFORMATION
DANGER
NEVER operate the equipment in an explosive
atmosphere or near combustible materials. An
explosion or fi re could result causing severe
bodily harm or even death.
WARNING
NEVER disconnect any emergency or safety devices.
These devices are intended for operator safety.
Disconnection of these devices can cause severe injury,
bodily harm or even death. Disconnection of any of these
devices will void all warranties.
CAUTION
NEVER lubricate components or attempt service on a
running machine.
ALWAYS ensure light tower is on level ground before use
so that it cannot slide or shift around, endangering workers.
Always keep immediate area free of bystanders.
ALWAYS make sure trailer is leveled with all outriggers
extended before raising tower. Outriggers must remain
extended while tower is up.
ALWAYS keep area behind trailer clear of people while
raising and lowering mast.
NEVER remove safety pin or pull mast locking pin while
tower is in a raised position!
CHECK the mast and winch cables for wear. If any
problem occurs when lowering or raising the tower, STOP
immediately! Contact a trained technician for assistance.
NEVER pivot or retract mast while unit is operating.
NEVER use the light tower mast as a crane. DO NOT
lift anything with the mast.
ALWAYS lower the light tower when not in use, or if high
winds or electrical storms are expected.
ALWAYS
tower clean, neat, and free of debris.
ALWAYS keep the machine in proper running condition.
immediately.
ALWAYS
To prevent the light tower from overturning, NEVER
in winds that exceed 65 MPH (105 km/h).
LAMP SAFETY
WARNING
NEVER
when changing the lamp.
ALWAYS
cool
severe burns.
CAUTION
NEVER
could cause the lamp to break, causing bodily harm.
NOTICE
NEVER
spots, reducing the service life of the lamp.
ALWAYS make sure lamp surface is clean and dry.
ALWAYS replace with MQ recommended type lamp.
ALWAYS have a trained technician
a fl oodlight, or replace any damaged fi xture wiring.
PAGE 8 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
ENGINE SAFETY
DANGEROUS
GASFUMES
NOTICE
run engine without an air fi lter or with a dirty air
fi lter. Severe engine damage may occur. Service air fi lter
tip the engine to extreme angles during lifting as
it may cause oil to gravitate into the cylinder head, making
Wet stacking is a common problem with diesel engines
which are operated for extended periods with light or
no load applied. When a diesel engine operates without
suffi cient load (less than 40% of the rated output), it will
not operate at its optimum temperature. This will allow
unburned fuel to accumulate in the exhaust system,
which can foul the fuel injectors, engine valves and
exhaust system, including turbochargers, and reduce
it must be able to provide fuel and air in the proper ratio
and at a high enough engine temperature for the engine
damage and can be alleviated if additional load is
applied to relieve the condition. It can reduce the system
performance and increase maintenance. Applying an
increasing load over a period of time until the excess
fuel is burned off and the system capacity is reached
usually can repair the condition. This can take several
State Health Safety Codes and Public Resources
Codes specify that in certain locations, spark arresters
must be used on internal combustion engines that use
hydrocarbon fuels. A spark arrester is a device designed
to prevent accidental discharge of sparks or fl ames
from the engine exhaust. Spark arresters are qualifi ed
and rated by the United States Forest Service for this
purpose. In order to comply with local laws regarding
spark arresters, consult the engine distributor or the
SAFETY INFORMATION
DANGER
The engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.
The engine of this equipment
requires an adequate free
fl ow of cooling air. NEVER
operate this equipment in
any enclosed or narrow area
where free fl ow of the air is
restricted. If the air fl ow is
restricted it will cause injury to people and property and
serious damage to the equipment or engine.
WARNING
DO NOT place hands or fingers inside engine
compartment when engine is running.
NEVER operate the engine with heat shields or
guards removed.
Keep fi ngers, hands hair and clothing away
from all moving parts to prevent injury.
DO NOT remove the radiator cap while the engine is hot.
High pressure boiling water will gush out of the radiator
and severely scald any persons in the general area of
the generator.
NEVER
frequently to prevent engine malfunction.
NEVER tamper with the factory settings
of the engine or engine governor. Damage
to the engine or equipment can result
if operating in speed ranges above the
maximum allowable.
NEVER
the engine start diffi cult.
the operating performance.
In order for a diesel engine to operate at peak effi ciency,
to completely burn all of the fuel.
Wet stacking does not usually cause any permanent
DO NOT remove the coolant drain plug
while the engine is hot. Hot coolant will
gush out of the coolant tank and severely
scald any persons in the general area of
the generator.
DO NOT remove the engine oil drain plug while the
engine is hot. Hot oil will gush out of the oil tank and
severely scald any persons in the general area of the
generator.
CAUTION
NEVER touch the hot exhaust manifold,
muffl er or cylinder. Allow these parts to cool
before servicing equipment.
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 9
hours to burn off the accumulated unburned fuel.
local Health and Safety Administrator.
FUEL SAFETY
DANGER
TOWING SAFETY — LIGHT TOWER
ALWAYS inspect the hitch and coupling for wear. NEVER
Check the tire air pressure on both towing vehicle and
Trailer tires should be infl ated to 50 psi cold.
safety
attach trailer’s safety chains to towing
make sure the vehicle and trailer directional,
backup, brake and trailer lights are connected and
55 MPH
) unless posted otherwise. Recommended off-
)or less
Avoid sudden stops and starts. This can cause skidding,
or jack-knifi ng. Smooth, gradual starts and stops will
Trailer should be adjusted to a level position at all times
Raise and lock trailer jack stands in up position when
DO NOT start the engine near spilled fuel or combustible
fl uids. Diesel fuel is extremely fl ammable and its vapors
can cause an explosion if ignited.
ALWAYS refuel in a well-ventilated area, away from
sparks and open fl ames.
ALWAYS use extreme caution when working with
fl ammable liquids.
DO NOT fi ll the fuel tank while the engine is running
or hot.
DO NOT overfi ll tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from
the ignition system.
Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and fl ames.
SAFETY INFORMATION
tow a trailer with defective hitches, couplings, chains, etc.
trailer.
Also check the tire tread wear on both vehicles.
ALWAYS make sure the trailer is equipped with a
chain.
ALWAYS properly
vehicle.
ALWAYS
working properly.
DOT Requirements include the following:
• Connect and test electric brake operation.
• Secure portable power cables in cable tray with tie
wraps.
NEVER use fuel as a cleaning agent.
DO NOT smoke around or near the
equipment. Fire or explosion could result
from fuel vapors or if fuel is spilled on a
hot engine.
CAUTION
Check with your local county or state safety
towing regulations, in addition to meeting
Department of Transportation (DOT)
Safety Towing Regulations, before towing
your light tower.
In order to reduce the possibility of an accident while
transporting the light tower on public roads, ALWAYS
make sure the trailer that supports the light tower and
the towing vehicle are mechanically sound and in good
operating condition.
ALWAYS shutdown engine before transporting.
The maximum speed for highway towing is
(86 km/h
road towing is not to exceed 15 MPH (24 km/h
depending on type of terrain.
improve towing.
Avoid sharp turns to prevent rolling.
when towing.
towing.
NOTICE
ALWAYS remove and stow the GB4000 lamp fi xture
prior to towing the light tower.
Make sure the hitch and coupling of the towing vehicle
are rated equal to, or greater than the trailer “gross
vehicle weight rating.”
PAGE 10 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
TRANSPORTING SAFETY
CAUTION
TING
If lifting through pockets, make sure forks of forklift are
rolling
underneath the trailer’s bumper
Use the trailer’s swivel jack to adjust the trailer height to
allow any person or animal to stand underneath
Before loading light tower to fl atbed truck, disconnect all
connectors and tie-wrap the cables against the T-bar to
Remove and stow the GB4000 in a safe place where it
will not get damaged before loading the light tower onto
When loading onto fl atbed truck, make sure that front
jackstand of light tower is retracted and in the horizontal
position so that the foot does not make contact with the
Make sure that the two side (left and right) and two rear
jackstands are in the vertical postion, slightly extended,
Straps and chains should be routed through the transport
tie-down points located beneath each corner of the
cabinet to allow even application of force to the front
secure the unit by running a strap or chain over
the tongue of the light tower. This may cause severe
TRANSPORT
TIE-DOWN
POINT (4)
FRONT JACKSTAND
RETRACTED
TONGUE
SIDE
JACK
STAND (2)
REAR
JACK
STAND (2)
Before lifting, make sure that light tower parts are not
damaged and screws are not loosened or lost.
ALWAYS make sure crane or lifting device has been
properly secured to lifting hook of the equipment.
NEVER lift the equipment while engine is running.
Remove fan power cord from junction box before towing.
Make sure tower (mast) is in the stowed position and the
GB4000 is removed from the mast before lifting.
SAFETY INFORMATION
inserted in pockets as far as possible before lifting.
Place chock blocks underneath wheel to prevent
while parked.
Place support blocks
to prevent tipping while parked.
a level position while parked.
NEVER
the equipment while lifting.
DO NOT lift equipment to unnecessary heights.
REMOVE
STOWED
POSITION
MAST
LOCK
GB2000
BEFORE
TRANSPOR
REMOVE
FAN
POWER
CORD
ALWAYS Make sure rear mast lock is secure before
lifting.
Use adequate lifting cable (wire or rope) of suffi cient
strength.
Use one point suspension hook and lift straight upwards.
LIFTING BALE
Loading and Tie-Down on Flatbed Truck
NOTICE
prevent damage to the cables and connectors.
a fl atbed truck, towing, or shipping via a container.
deck fl oor.
FORKLIFT
POCKETS
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 11
LIGHT TOWER
so that each foot makes contact with the deck fl oor.
and rear of the machine.
DO NOT
damage to the unit.
ELECTRICAL SAFETY
DANGER
Backfeed to a utility system can cause electrocution
connect the generator
to a building’s electrical system without a transfer switch
or other approved device. All installations should be
cables or cords when
connecting equipment to generator. Inspect for cuts in
Make sure power cables are securely connected.
Incorrect connections may cause electrical shock and
make certain that proper power or extension
Ensure fan power cable is safely routed and secured
as it travels from the junction box down the mast to the
The light tower is equipped with a ground terminal for
complete the grounding path
make sure that electrical circuits are properly
grounded to a suitable earth ground (ground rod) per
the National Electrical Code (NEC) and local codes
Severe injury or death by
can result from operating an ungrounded
The electrical voltage required to operate the generator
can cause severe injury or even death through physical
contact with live circuits. Turn generator and all circuit
breakers OFF before performing maintenance on the
generator.
NEVER insert any objects into the output
receptacles during operation. This is
extremely dangerous. The possibility exists
of electrical shock, electrocution or
death.
NEVER operate light tower
or handle any electrical
equipment while standing in
water, while barefoot, while
hands are wet or in the rain.
A dangerous electrical
shock could occur, causing
severe bodily harm or
even death.
SAFETY INFORMATION
and/or property damage. NEVER
performed by a licensed electrician in
accordance with all applicable laws and
electrical codes. Failure to do so could
result in electrical shock or burn,
causing serious injury or even death.
Power Cord/Cable Safety
DANGER
NEVER let power cords or cables lay in water.
NEVER use damaged or worn
the insulation.
NEVER grab or touch a live power
cord or cable with wet hands. The
possibility exists of electrical shock,
electrocution or death.
ALWAYS make sure the
area above the light tower is
open and clear of overhead
power lines and other
obstructions. The tower
extends in excess of 30
feet (9 meters). Contact
with overhead power
lines or other obstructions
could result in equipment
damage, electrical shock,
electrocution and even
death.
Similar to boom equipment, light tower may become
energized with high voltage. DO NOT operate the light
tower within a radial distance of 17 feet (5.1 meters)
from high voltage power lines. If light tower becomes
energized with high voltage, contact with the equipment
could result in electrocution.
NEVER operate GB4000 in winds in excess of 40 MPH
(64 km/h).
PAGE 12 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
damage to the light tower.
NOTICE
ALWAYS
cord has been selected for the job.
GFCI receptacle.
Grounding Safety
DANGER
your protection. ALWAYS
from the light tower to an extrnal grounding source.
ALWAYS
before operating generator.
electrocution
generator.
NEVER use gas piping as an electrical ground.
SAFETY INFORMATION
BATTERY SAFETY
ENVIRONMENTAL SAFETY
use food or plastic containers to dispose of
pour waste, oil or fuel directly onto the ground,
DANGER
DO NOT drop the battery. There is a possibility that the
battery will explode.
DO NOT expose the battery to open fl ames,
sparks, cigarettes, etc. The battery contains
combustible gases and liquids. If these
gases and liquids come into contact with a
fl ame or spark, an explosion could occur.
WARNING
ALWAYS wear safety glasses when handling
the battery to avoid eye irritation. The battery
contains acids that can cause injury to the
eyes and skin.
Use well-insulated gloves when picking up the battery.
ALWAYS keep the battery charged. If the battery is not
charged, combustible gas will build up.
ALWAYS recharge the battery in a well-ventilated
environment to avoid the risk of a dangerous concentration
of combustible gasses.
NOTICE
Dispose of hazardous waste properly.
Examples of potentially hazardous waste
are used motor oil, fuel and fuel fi lters.
DO NOT
hazardous waste.
DO NOT
down a drain or into any water source.
If the battery liquid (dilute sulfuric acid) comes into
contact with clothing or skin, rinse skin or clothing
immediately with plenty of water.
If the battery liquid (dilute sulfuric acid) comes into
contact with eyes, rinse eyes immediately with plenty
of water and contact the nearest doctor or hospital to
seek medical attention.
CAUTION
ALWAYS disconnect the NEGATIVE battery terminal
before performing service on the generator.
ALWAYS keep battery cables in good working condition.
Repair or replace all worn cables.
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 13
Table 1. Specifications
Model GB4000
Type 1000 W Metal Halide (X4)
Number of Bulbs 4
SPECIFICATIONS
Lamp
Fan
Dimensions
Weight
Appropriate Generator 3.2 kW and above
Current 37.2 A (9.3 A x 4)
Voltage 120 V
Lumens 428,000 (10,700 x 4) lm
Current 1.2 A
Voltage 24 VDC
Storage
Working
Balloon 39.9 lb (18.1 kg)
Bracket & J-Box 19.2 lb (8.7 kg)
Total 59.1 lb (26.8 kg)
15.7 x 15.7 x 45.6 in
(400 x 400 x 1160 mm)
55.1 x 55.1 x 47.2 in
(1400 x 1400 x 1200 mm)
PAGE 14 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
A C
DIMENSIONS
B
D
CLOSED OPENED
Figure 1. Dimensions
Table 2. Dimensions
Reference
Letter
A 15.7 (400)
B 46 (1,170)
C 55.1 (1400)
D 41.7 (1,060)
Dimension
in. (mm)
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 15
30
20
FOOTCANDLE PLOT
10
5
Illuminance (Footcandle)
Diameter (Feet)
3046206010
7859821491205
2
1
0.5
0.25
1 grid = 40 ft.
0.5
259
0.25
314
0.1
426
Figure 2. Footcandle Plot
PAGE 16 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
The GB4000 lamp fixture is a difused balloon light that is
designed to be mounted and operated on most conventional
mobile light tower masts. Its design and features permit
clean, difused light to be cast uniformly over 232 feet (70.7
meters).
The shadow-less lighting dramatically reduces glare in
the work area. This type of lighting improves safety and
enhances the illuminated area. The GB4000 is ideal for
highway work, construction job sites, security support, and
special events.
The balloon light assembly is supported by four 1000-watt
metal halide lamps, self-inflating durable polyester balloon
bag, protective lamp guard, quick disconnect communal
mast bracket, and self-contained electrical junction box.
Once attached to the mast, the GB4000 utilizes the ballast
assembly, electrical conduits, and receptacle connections
of conventional mobile light towers to permit operation.
The GB4000 requires 2000 watts of power and the host
light tower electrical ballast system for operation. Total lamp
operation will be limited to the design and capacity of the
host light tower.
GENERAL INFORMATION
The unit easily disconnects from the light tower mast and
can be easily stored in its protective canvas cover case.
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 17
COMPONENTS
1. Lamp Fixture — Made of heat resistant polyester
balloon and four 1000-watt metal halide lamps.
2. Locking Pin — Locks the lamp fixture in place when
attached to the pole on the bracket.
1
lamps, fan and balloon inflation circuit.
4. Adapter Plate — Attaches to the T-Bar and mast
interface of the light tower to allow the GB4000 to be
installed.
NOTICE
This adapter plate (item 4) fits most conventional light
tower masts.
5. Junction Box — Holds the electrical connection and
cables to connect the lamp fixture to the T-Bar and to
the power cable.
6. Support Bracket — Attaches to T-Bar to support
adapter plate (hardware not shown).
7. Connector Cap — Provides protection to the
receptacle on the junction box when not in use.
3. Balloon Power Cable — Provides AC power to the
2
5
4
6
7
Figure 3. GB4000 Components
3
PAGE 18 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
STOWED
POSITION
MAST
LOCK
SETUP
TMENT
4-PIN POWER
CABLE
PREPARATION
1. Place the light tower in an area free of dirt and debris
with enough clearance as not to interfere with any
overhead obstructions. Make sure it is on secure level
ground with chock blocks underneath each wheel to
prevent the light tower from rolling.
DANGER
ALWAYS make sure the area above
light tower is open and clear of
overhead power lines and other
obstructions. The tower extends in
excess of 30 ft. (9 meters). Contact
with overhead power lines or other
obstructions could result in equipment
damage, serious injury or death!
2. If the light tower is in the deployed position, place the
tower mast into the cradle support (stowed position).
See Figure 4. Make sure cradle lock/release pin has
been inserted and the mast is locked.
POWER DISCONNECTION
1. For LT12D light towers, disconnect the negative cable
(black) from battery. See Figure 5.
DISCONNECT
NEGATIVE
BATTERY CABLE
Figure 5. Disconnecting Battery
2. For MLT series light towers disconnect the 4-pin power
cable (Figure 6) from the 120 VAC twist-lock receptacle
on the front panel of the generator.
MLT
LIGHT TOWER
Figure 4. Light Tower in Stowed Position
NOTICE
The new lamp adapter plate requires no existing lamp
removal for installation. All lamps can remain in place
during installation of the adapter plate.
NOTICE
Only mount the GB4000 on Light Towers that are
equipped with one of the following ballasts:
• UNIVERSAL LIGHTING TECHNOLOGIES INC:
M1000120AC5M
• PHILIPS LIGHTING ELECTRONICNA : 71A-6592.
WHISPERWATT
7KW AC
Model DA-7000SS
AC CIRCUIT
BREAKER
7000 WATT
DIESELPOWERED AC GENERA
20A
25A
120V
ON
RUN
STOP
HEA
T
OFF
IDLE CONTROL
AC VOL
TMETER
0 0
0
HOURS
HOUR METER
TOR
25A
120/240V
START
0
0
STARTER SWITCH
25A
DISCONNECT
TO BALLAST
COMPAR
Figure 6. MLT Power Cable Removal
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 19
SETUP
LAMP ADAPTER PLATE MOUNTING INSTALLATION
1. Remove the adapter plate kit hardware from its
container.
2. Before proceeding make sure the light tower mast is
in the stow position (down) and the cradle lock/release
pin has been inserted and the mast is locked.
3. Attach the lamp adapter plate to the T-Bar as shown
in Figure 7. Align adapter plate so that adapter spacer
notch fits over screw on T-Bar. Pay close attention to
the orientation of the two support brackets.
4. Mount the flat end of both support brackets flush
against the T-Bar with the low end of each bracket
facing inwards toward the mast. The raised end of
each bracket should be facing outward.
NOTICE
Pay close attention to the orientation of the two support
brackets. Each bracket has a high and low side. The low
side of the bracket should be facing inwards towards
the mast.
5. Next, insert a bolt (4) and flat washer (4) thru the
mounting holes on the adapter plate as shown in Figure
7. Again, pay close attention on which set of holes to
insert the bolts thru. Bolt number 2 must be oriented
so that it passes between receptacles J1 and J2 on
the T-Bar.
6. Secure the adapter plate to the T-Bar using the supplied
flat washer (4), lock washer (4) and nut (4). Make sure
the adapter plate is level (use a bubble level) and both
brackets are straight (vertical), not slanted, before
tightening.
PAGE 20 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
SETUP
VIEW FROM BACK SIDE
BOLT (4)
FLAT WASHER (8)
LOCK WASHER (4)
HEX NUT (4)
SUPPORT
BRACKET (2)
T-BAR
LAMP ADAPTER
PLATE
BUBBLE LEVEL
SPACER
LOW END
BOLT
1
NOTES:
It is important for the adapter SPACER to seat
against the T-Bar as shown above.
2
For proper alignment of the adapter plate,
use of a bubble level is required.
FLUSH W/
T-BAR BOTT
OM
1
2
BACK SIDE
UNDERNEATH
1
2
3
4
1
2
3
4
T-BAR
J1
J2
BOLT
SUPPORT
BRACKET
2
LAMP ADAPTER
PLATE
Figure 7. Adapter Plate Mounting Installation
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 21
SETUP
JUNCTION BOX MOUNTING
1. Secure the junction box (Figure 8) to the adapter plate
using the supplied bolts (2), lock washer (2), and flat
washer (2). Tighten mounting bolts securely.
T-BAR
LAMP
ADAPTER
PLATE
BOLT
(2)
POLE
LOCK
WASHER (2)
FLAT
WASHER
(2)
JUNCTION BOX
LAMP MOUNTING
1. Place the GB4000 lamp fixture onto the lamp adapter
plate pole as shown in Figure 9.
2. Insert locking pin into hole opening on pole, then insert
cotter pin to lock pin in place.
BALLOON POWER CABLE
1. Connect the balloon power cable (Figure 9) to the 10pin receptacle on the junction box.
Figure 8. Junction Box Mounting
2 FT. (10 PIN)
BALLOON
POWER CABLE
LOCKING PIN
BALLOON FIXTURE
COTTER PIN
PLATE ADAPTER
POLE
JUNCTION BOX
Figure 9. Balloon Power Cable Connection
PAGE 22 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
LAMP CABLE CONNECTIONS
On the T-Bar (Figure 10) there are four power receptacles J1, J2, J3 and J4. These receptacles provide AC power to the
existing rectangular lamps. When the GB4000 lamp assembly is employed, these receptacles are used to connect the
GB4000. Refer to Figure 10.
GB4000
T-BAR
NOTE: CABLE FROM LAMP 1
MUST BE CONNECTED FOR
OTHER LAMPS TO OPERATE
AND FOR BALLOON TO INFLATE.
LT12 LAMP
CIRCUIT BREAKERS
ON ONON ON
CB1 CB2 CB3 CB4
JUNCTION BOX
1 2 3
4
MLT LAMP
CIRCUIT BREAKERS
CB1 CB2
ON ON
Figure 10. Lighting Configuration
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 23
OPERATION
REMOVING BALLOON PROTECTIVE COVER
CAUTION
DO NOT use excessive force when
zipping or unzipping the balloon. The
possibility exists of the zipper tearing,
which would make the balloon unusable.

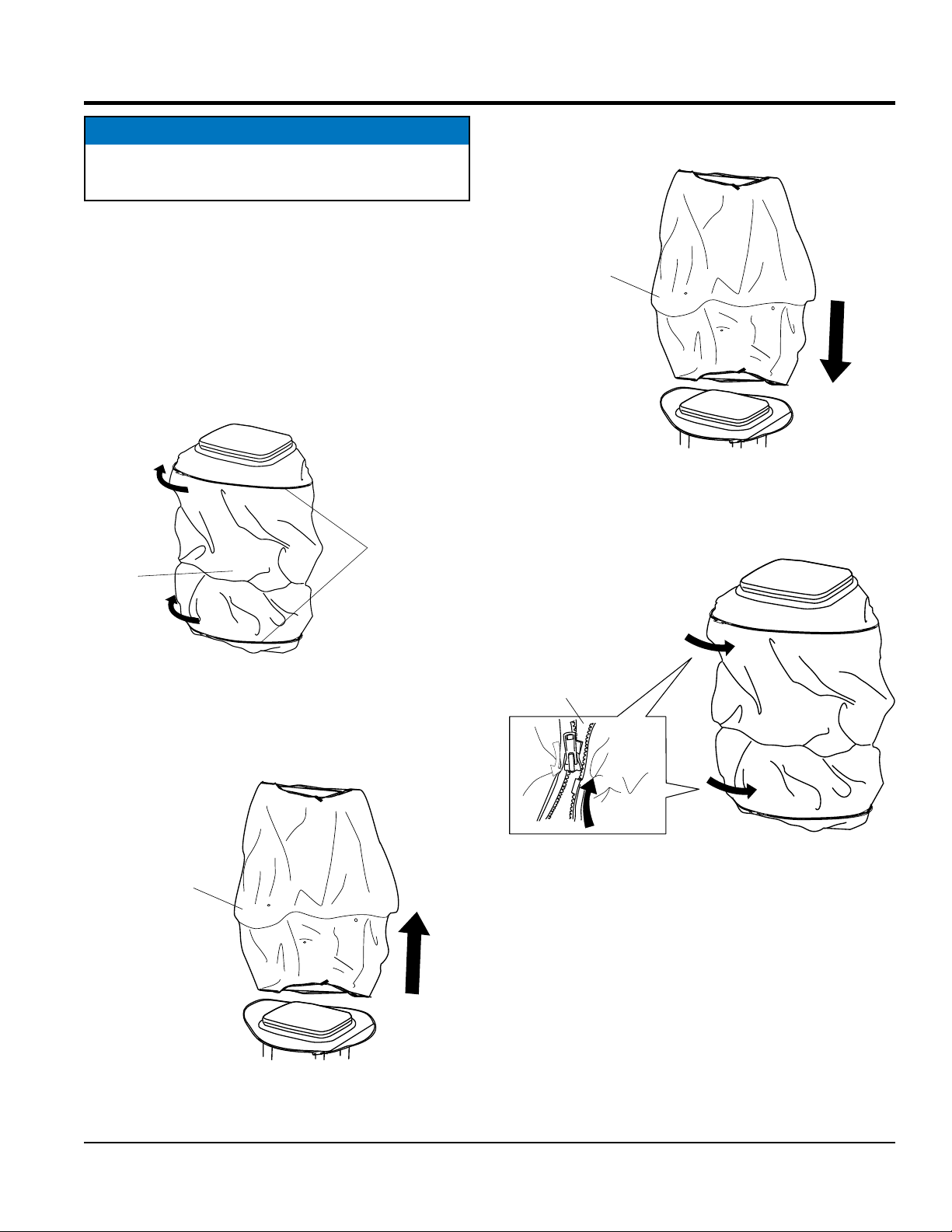

1. Expose the balloon by unsnapping the buttons and
unzipping the protective cover as shown in Figure 11.
UNZIP
SNAPS
PROTECTIVE
COVER
Figure 11. Removing Protective Cover
BALLOON
FULLY
EXPOSED
FOLD PROTECTIVE
COVER INTO ITSELF
4. Once, the engine has started, place the main circuit
breaker switch (Figure 12) on the LT12 control panel
in the ON position.
LT12
LIGHT TOWER
240 VAC/30A
120 VAC/15A
MAIN
GFCI
BREAKER
BREAKER
MAIN
CIRCUIT
BREAKER
ON
CB4
CB1
CB3CB2
LIGHT CONTROL/BREAKER
Figure 12. Main Breaker ON (LT12)
5. Next, turn on lamp circuit breakers. The balloon should
begin to inflate and the lamps will light.
6. Secure any unused lamp cables.
7. Raise the light tower mast to the desired upright height.
2. Next, fold the protective cover into itself and zip. See
Figure 11.
INFLATING BALLOON AND TURNING ON LAMPS
(LT12 ONLY)
1. On LT12 series light towers, reconnect negative battery
cable (black).
2. Slightly raise the light tower mast to allow clearance
for the balloon to inflate.
3. Start the light tower engine as referenced in the LT12
light tower operation manual.
PAGE 24 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
OPERATION
CABLE
INFLATING BALLOON AND TURNING ON LAMPS
(MLT ONLY)
1. On MLT series light towers, reconnect the 4-pin power
cable (Figure 13) to the 120 VAC twist-lock receptacle
on the front panel of the generator.
MLT LIGHT TOWER
WHISPERWATT
7KWAC
Model DA-7000SS
AC CIRCUIT
BREAKER
7000 WATT
DIESELPOWERED AC GENERA
20A
120V
4-PIN POWER
CABLE
Figure 13. MLT Ballast 4-pin
Power Cable
2. Slightly raise the light tower mast to allow clearance
for the balloon to inflate.
3. Start the light tower engine as referenced in the MLT
operation manual.
4. Once, the engine has started, place the main circuit
breaker switch (Figure 14) on the MLT front control
panel in the ON position.
ON
RUN
STOP
HEA
OFF
IDLE CONTROL
AC VOL
TMETER
0 0
0
0
0
HOURS
STARTER SWITCH
HOUR METER
TOR
25A
25A
25A
120/240V
TO BALLAST
COMPARTMENT
T
START
5. Next, turn on lamp circuit breakers The balloon should
begin to inflate and the lamps will light.
6. Secure any unused lamp cables.
7. Raise the light tower mast to the desired upright height.
DEFLATING AND STORING BALLOON
1. Turn lamps OFF and allow to cool for at least five
minutes.
2. Once the lamps have cooled, place the main breaker
switch in the OFF position.
NOTICE
ALWAYS make sure lamps are turned off and allowed
to cool before deflating balloon to avoid any damage
to the balloon. NEVER transport GB4000 lamp fixture
while attached to mast.
3. When the balloon is completely deflated, unzip the
protective cover and fold the balloon inside the cover.
4. Carefully zip up the cover and snap the buttons to fully
close the protective cover.
5. Remove all cables from T-Bar, and remove balloon
power cable from junction box.
6. Pull cotter pin from locking pin and remove lamp
assembly from light tower mast.
7. Store lamp assembly in a safe place where it will not
get damaged.
MLT LIGHT TOWER
WHISPERWATT
MAIN CIRCUIT
BREAKER
()ON
7KWAC
Model DA-7000SS
AC CIRCUIT
BREAKER
7000 WATT
DIESELPOWERED AC GENERA
20A
25A
120V
ON
RUN
STOP
HEA
T
OFF
IDLE CONTROL
AC VOL
TMETER
TOR
25A
120/240V
HOUR METER
START
0 0
0
0
0
HOURS
STARTER SWITCH
25A
TO BALLAST
4-PIN POWER
COMPARTMENT
Figure 14. Main, GFCI Circuit Breakers (ON/MLT)
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 25
MAINTENANCE
REPLACING LAMP
DANGER
Never attempt to replace lamp in a wet place. The
possibility exists of electric shock.
WARNING
Always allow sufficient time for the lamp to
cool down before replacing. The possibility
exists of severe burns if hot lamp is
touched.
\
CAUTION
Always shutdown power source and remove balloon
assembly from mast when replacing a broken lamp.
Utmost care should be taken in handling broken lamp.
The possibility exists of serious injury from handling a
broken lamp.
1. Unzip the zipper at the bottom of the balloon and roll
the balloon up to expose the lamp. See Figure 15.
3. Press the tabs on the lamp holder and push up lamp
holder to release it from lamp. Do the same to the lower
lamp if necessary. See Figure 17.
LAMP HOLDER
Figure 17. Lamp Holder
4. Remove lamp from the lamp socket by turning lamp
counterclockwise. See Figure 18.
BALLOON
ZIPPER
Figure 15. Exposing Balloon
2. Release the lamp guard hooks from the poles and
remove the two lamp guards. See Figure 16.
LAMP
GUARD
LAMP
LAMP
SOCKET
Figure 18. Removing Lamp
5. Install new lamp into socket and turn lamp in a
clockwise direction until tight. See Figure 19.
LAMP
LAMP
SOCKET
Figure 19. Installing New Lamp
LOCK HOOK
Figure 16. Removing Lamp Guard
PAGE 26 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
MAINTENANCE
ZIPPERS
BALLOON
NOTICE
Do not use excessive force when screwing the lamp to
prevent lamp from breaking.
6. Secure lamp holder on top of the lamp.
7. Reinstall lamp guard.
8. Pull down balloon and zip the bottom zipper to cover
lamp.
REPLACING BALLOON
1. Unzip the top and bottom of the balloon. See Figure 20.
UNZIP TOP AND
BOTTOM
3. Slide in the new replacement balloon over the top of
the lamp guard assembly. See Figure 22.
INSTALL NEW
BALLOON
Figure 22. Replacing Balloon
4. Zip up the top and bottom of the new balloon. See
Figure 23.
Figure 20. Unzipping Balloon
2. Slide out the old or worn balloon over the top of the
lamp guard assembly. See Figure 21.
REMOVE OLD
BALLOON
Figure 21. Removing Old Balloon
ZIP UP
NEW BALLOON
Figure 23. Zipping Up New Balloon
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 27
MAINTENANCE
Table 3. Troubleshooting
SYMPTOM POSSIBLE PROBLEM SOLUTION
Is plug disconnected? Plug in correctly.
Is generator power switched off? Turn on switch.
Lamp does not light.
Is lamp loose? Screw lamp securely into socket.
Is power connector disconnected or
loose?
Connect disconnected connector.
Is model of lamp incompatible? Use genuine MQ lamp.
Lamp only lights for a short time.
Is ambient temperature too high more than 104° F (40° C)?
Move lamp where there is proper
ventilation.
Is fan motor not working properly? Check and repair fan motor.
Balloon does not inflate.
Is balloon cloth defective? Repair or replace balloon cloth.
Is Lamp 1 on but fan is not working? Check and repair fan motor.
Only Fan is working. Is Lamp 1 not turning on? Check Lamps and cable wiring.
Shuts down after 30 seconds. Is Microswitch being pressed? Check Microswitch or repair fan motor.
LAMP １
MICRO SWITCH
LAMP １
Figure 24. Location of Maintenance Parts
PAGE 28 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
WIRING DIAGRAM
CABLE (BALLOON)
LAMP 1
SOCKET SOCKET
CABLE
(POLE) W
TOP
M
M
F
F
MM M
F
M
F
M
BLUE
MMM
F
F
F
LAMP 2
TOP
M
F
F
F
F
LAMP 2
BOTTOM
SOCKET
MMMM
CABLE
(POLE) R
RELAY
F
F
FF
LAMP 1
BOTTOM
①
SOCKET
DC FAN MOTOR
F
F
①
①
M
M
MFM
F
CABLE (PANEL)
M
Ｄ
Ｄ
F
M
16 -3AWGC
F
M
DC CONVERTER
F
BALLOON
GREEN
M
MICROSWITCH
Connectors
Connector Number Color
①
Ｃ
Ｅ
Ｆ
Ｃ
Ｅ
Ｆ
MMM
Ｇ
Ａ
Ｂ
GREEN
Ａ
Ｇ
Ｂ
MMM
F
A 1 Black
M
M
BOX RELAY
B 2 White
C 3 Red
FF
FFFF
FF
D 4 Orange
E 5 Blue
16 -3AWGC
16 -3AWGC
16 -3AWGC
①
CABLE
(LAMP)
F 6
G
Green/
Yellow
Black/
White
Green
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 29
EXPLANATION OF CODE IN REMARKS COLUMN
The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the
help numbers found on the back page of the manual if there
are any questions.
SAMPLE PARTS LIST
NO.
1 12345 BOLT
2% WASHER, 1/4 IN.
2% 12347 WASHER, 3/8 IN.
3 12348 HOSE
4 12349 BEARING
NO. Column
PART NO. Column
QTY. Column
— Item quantity can be indicated by a
A/R (As Required) is generally used for hoses or other
A blank entry generally indicates that the item is not sold
separately. Other entries will be clarifi ed in the “Remarks”
Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed
— All items on the parts list with the
same unique symbol will be included when this item is
— Used to list an effective serial
— Indicates that the part
is used only with the specifi c model number or model
number variant listed. It can also be used to show a
part is NOT used on a specifi c model or model number
— Indicates that the part can
be purchased at any hardware shop or made out of
available items. Examples include battery cables, shims,
— Indicates that an item cannot
be purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available
Numbers Used
number, a blank entry, or A/R.
NOTICE
The contents and part numbers listed in the parts
section are subject to change without notice. Multiquip
does not guarantee the availability of the parts listed.
PART NO. PART NAME QTY. REMARKS
.....................1 .....INCLUDES ITEMS W/%
..........NOT SOLD SEPARATELY
..1 .....MQ-45T ONLY
..................A/R ...MAKE LOCALLY
..............1 .....S/N 2345B AND ABOVE
Unique Symbols — All items with same unique symbol
(@, #, +, %, or >) in the number column belong to the
same assembly or kit, which is indicated by a note in the
“Remarks” column.
Duplicate Item Numbers — Duplicate numbers indicate
multiple part numbers, which are in effect for the same
general item, such as different size saw blade guards in
use or a part that has been updated on newer versions
of the same machine.
parts that are sold in bulk and cut to length.
Column.
REMARKS Column
to describe the item can also be shown.
Assembly/Kit
purchased.
Indicated by:
“INCLUDES ITEMS W/(unique symbol)”
Serial Number Break
number range where a particular part is used.
Indicated by:
“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”
NOTICE
When ordering a part that has more than one item
number listed, check the remarks column for help in
determining the proper part to order.
Numbers Used — Part numbers can be indicated by a
number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a
part that has not been assigned a formal part number
at the time of publication.
A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will
be clarifi ed in the “Remarks” Column.
PAGE 30 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
Specifi c Model Number Use
variant.
Indicated by:
“XXXXX ONLY”
“NOT USED ON XXXX”
“Make/Obtain Locally”
and certain washers and nuts.
“Not Sold Separately”
for sale through Multiquip.
GB4000 BALLOON LIGHT
1 to 3 units
Qty. P/N Description
2............E000127300 ......... LAMP
2............A100097802 ......... BALLOON COVER CP
3............A400038301 ......... FILTER
NOTICE
Part numbers on this Suggested Spare Parts list may
supersede/replace the part numbers shown in the
following parts lists.
SUGGESTED SPARE PARTS
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 31
2
B UR N HAZ AR D
To pre vent burns, NE V E R
touch la mp while la mp is on.
La mp sur fa ce gets e xtremely
hot! A LWA YS a llow sufficient
time for lamp to c ool down
before touching.
A-400 2526-0 0
AV E R TIS S E ME NT
R IS QUE DE B R ÛL UR E
P our éviter les brulures, NE
J AMA IS touche r la lampe, le
ballas t ou le couver cle tant que la
lampe est allumée. C es surfac es
sont trè s c haudes ! TOU J OUR S
permettre a ux de ux s urfaces de se
ref roid ir a vant d’y toucher.
E LE C TR ICAL
S HOC K HAZA RD
When replacing lamp and to prevent electrical
shock, ALWAYS shutdown the generator before
replacing lamp. Remember to let lamp cool before
removing. Use only recommended type lamp as
listed in parts manual.
A-400 3369- 00
A-400 2525-0 0
3
NAMEPLATE AND DECALS
G B 4000
120V 60Hz 4000 W
4
Metal halide lamp 1000W× 4 T YP E M47
G X XX X X X
1
R IS QUE DE C HOC É LE CT RIQU E
Lors du remplacement de la lampe et pour
prévenir le risque de choc électrique, TOUJOURS
éteindre le générateur avant de remplacer la lampe.
Ne pas oublier de laisser la lampe se refroidir avant
de l’enlever. Utiliser uniquement le type de lampe
recommandé dans le manuel des pièces.
ATTE NT ION
IN F OR MA T IO N S S U R L A L A MP E
NE JAMAIS laisser la lampe se cogner
une surface dure. Tout impact excessif
pourrait causer des dommages et
r duire la dur e de vie utile de la lampe
IN F OR M AT IO N S S U R L E B A LL O N
NE JAMAIS laisser le ballon toucher la
surface de lampe lorsque celle-ci est
chaude. from dust, dirt and adverse weather
conditions.Avant de ranger globug, TOUJOURS
couvrir enti rement ballon pour viter tout
dommage.
A-4003242-00
A-400 3368- 00
7
6
NE V ER disconnect the connector when
power is applied. The possibility exists of
Electrical shock or equipment damage.
NE V ER grab or touch a live power cord with
wet hands, the possibility exists of Electrical
shock, Electrocution and even Death!
YO U MUS T TU RN T HE 1s t L A MP
ON , W HE N Y OU AR E
OP E R ATI NG TH IS L IGH TIN G
FI XT UR E .
A-4003 366-0 0
5
ALWAYS remove the ba llon/lamp
as sembly from the mas t to
prevent damage to ba lloon/light
as sembly when trans portating the
light tower.
A-400
2
528-00
8
NE J A MAI S débrancher le connecteur lorsqull ’
est sous tension. ll existe une possibilité de choc
électrique ou de dommages matériels.
NE J A MAI S saisir ou toucher un cordon
d’alimentation sous tension avec les mains
mouillées,il existe une possibilité de choc
électrique, d'électrocution et même la mort !
P RÉ V E NIR : VO US de vez
AL L UME R L A 1ère L AMP E ,
QU AND V OUS O P ÉR E Z CE T
AP PA R E IL de l 'É CL A IR AG E .
A-4003 370-0 0
TO UJ OU RS e nlever l’ensemble
ballon/la mpe du mât pour prévenir
les dommages à l’ens emble
ballon/la mpe lors du transport de
la tour d’éclaira ge.
A-400 3367-0 0
PAGE 32 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
NAMEPLATE AND DECALS
NO. PART NO. PART NAME QTY. REMARKS
1 A400290900 DECAL; CAUTION, LAMP INFORMATION (ENGLISH) 1
1 A400324200 DECAL; CAUTION, LAMP INFORMATION (FRENCH) 1
2 A400252500 DECAL; DANGER, ELECTRICAL SHOCK HAZARD (ENGLISH) 1
2 A400336800 DECAL; DANGER, ELECTRICAL SHOCK HAZARD (FRENCH) 1
3 A400252600 DECAL; WARNING, BURN HAZARD (ENGLISH) 1
3 A400336900 DECAL; WARNING, BURN HAZARD (FRENCH) 1
4 DECAL; SERIAL PLATE .................................................................1 .....CONTACT MQ PARTS DEPT.
5 A400252800 DECAL; DANGER, BALLOON/LAMP REMOVAL (ENGLISH) 1
5 A400336700 DECAL; DANGER, BALLOON/LAMP REMOVAL (FRENCH) 1
6 A400336600 DECAL; DANGER, ELECTRICAL SHOCK CONNECTOR (ENGLISH) 1
6 A400337000 DECAL; DANGER, ELECTRICAL SHOCK CONNECTOR (FRENCH) 1
7 A400326400 DECAL; CAUTION,, LAMP TYPE 1
8 A400325000 DECAL; CAUTION, AC ONLY 1
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 33
ELECTRICAL ASSY.
7
33
42
64
41
26
27
45
47
49
12
40
36
51
34
25
22
21
35
46
1
33
39
38
23
16
38
37
32
34
62
37
63
3
7
8
9
4
5
18
36
6
15
14
46
47
48
43
44
20
50
17
19
62
63
12
13
14
2
17
15
36
17
19
18
20
23
16
11
12
20
10
2
17
17
25
11
17
16
21
1
24
31
23
22
27
26
28
29
58
53
55
57
5
56
59
54
60
9
52
27
61
36
8
30
PAGE 34 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
ELECTRICAL ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 E000127300 LAMP 4
2 A100100002 LAMP GUARD 2
3 A100098700 BALLOON 1
4 A100097802 BALLOON COVER CP 1
5 2204500230 SEAL (PACKING) 2
6 2204220130 PLATE (CAP) 1
7 0014710035 BUTTON BOLT (M10x35) 8
8 0043210000 SPRING WASHER (M10) 8
9 0043110000 WASHER (M10) 8
10 1800001000 SHEET (TOP) 1
11 2204500131 SEAL (NORMAL) 2
12 0023204010 COUNTERSUNK SCREW (M4x10) 12
13 A200097900 PLATE (HEAD) 1
14 E000128900 SPACER ASB460E 8
15 A300276802 PLATE 2
16 0021704005 SET SCREW (M4x5) 28
17 0013806012 FLANGE BOLT (M6x12) 16
18 0023304015 SCREW WASHER (M4x15) 8
19 A400327202 HOLDER (GUARD) 4
20 0033206000 SELF LOCK NUT (M6) 8
21 A300285400 SOCKET ASSY 4
22 E000038200 CAP (RUBBER) 4
23 A400321501 STOPPER 14
24 A300278801 LAMP HOLDER 2 1
25 A200097703 PLATE (LAMP) 1 2
26 0043104000 WASHER (M4) 14
27 0033104000 NUT(M4) 17
28 A400199500 PACKING (LAMP) 12
29 0023305015 SCREW & WASHER (M4x12) ..........................12...............REPLACES 0023304012
30 A300278701 LAMP HOLDER 1 1
31 A400306301 SPRING (LAMP) 4
32 A400240701 POLE JOINT 2 4
33 A300269902 MAIN POLE 1 2
34 A300270002 MAIN POLE 2 2
35 0023404030 SCREW TRUSS (M4x30) 2
36 0024304008 SCREW TRUSS (M4x8) 18
37 0023405008 SCREW TRUSS (M5x8) 16
38 0023404035 SCREW TRUSS (M4x35) 6
39 0033204000 SELF LOCK NUT (M4) 6
40 1400150210 MICRO SWITCH 1
41 1400150300 MICRO SWITCH COVER 1
42 1400150410 MICRO SWITCH CAP 1
43 A300168800 FAN MOTOR ASSY 1
44 A200100702 PLATE (FAN) 1
45 A200075900 VESSEL 1
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 35
ELECTRICAL ASSY. (CONTINUED)
7
33
42
64
41
26
27
45
47
49
12
40
36
51
34
25
22
21
35
46
1
33
39
38
23
16
38
37
32
34
62
37
63
3
7
8
9
4
5
18
36
6
15
14
46
47
48
43
44
20
50
17
19
62
63
12
13
14
2
17
15
36
17
19
18
20
23
16
11
12
20
10
2
17
17
25
11
17
16
21
1
24
31
23
22
27
26
28
29
58
53
55
57
5
56
59
54
60
9
52
27
61
36
8
30
PAGE 36 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
ELECTRICAL ASSY. (CONTINUED)
NO. PART NO. PART NAME QTY. REMARKS
46 A400240602 POLE JOINT 1 2
47 A400243501 POLE JOINT 3 2
48 A300287400 RELAY ASSY 1
49 A300286700 FAN POWER SOURCE 1
50 0013112030 BOLT (M12x30) 1
51 A200100502 FLANGE 1
52 E000099000 PIN 1
53 1800001100 SHEET (BOTTOM) 1
54 A300283300 PLATE (GUARD) 1
55 A200076103 PLATE (BOTTOM) 1
56 A400038301 FILTER (200) 1
57 E000119300 WAVE WASHER 3
58 A400030700 STOPPER (FILTER) 3
59 E000010301 SPACER (M4x4) 3
60 A200018000 PLATE (AIR) 1
61 A300283700 CABLE (BALLOON) 1 CP 1
62 A400334400 CABLE (POLE) W CP 2
63 A400334500 CABLE (POLE) R CP 2
64 0043204000 SPRING WASHER (M4) 2
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 37
BRACKET AND J-BOX ASSY.
PAGE 38 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
BRACKET AND J-BOX ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 A200102501 BOX (RELAY) 1
2 A300282800 RUBBER CAP 1
3 A300282700 PLATE CAP 1
4 0033304000 CAP NUT (M4) 8
5 0024304008 SCREW TRUSS (M4x8) 4
6 0023305015 SCREW & WASHER (M4x12) ...........................8................REPLACES 0023304012
7 0033104000 NUT(M4) 4
8 A100088602 ADAPTER CP 1
9 E000122700 WASHER 4
10 A400288001 RETAINER 2
11 A300215302 CABLE (LAMP) 3 CP 4
12 A300283800 CABLE (LAMP) 2 CP 1
13 0013112130 BOLT M12x130 4
14 0013510025 BOLT & WASHER (M10x25) 2
15 0023303012 SCREW & WASHER (M3x12) 4
16 E000128500 CAP 1
17 0043112000 WASHER (M12) 8
18 0043212000 SPRING WASHER (M12) 4
19 A400287902 SPACER 1 1
20 0023205015 SCREW (M5x15) 4
21 0033112000 NUT (M12) 4
22 A400287801 SPACER 2 2
23 A400334300 CABLE (BOXCOM) 2
24 0033103000 NUT(M3) 1
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 39
PAYMENT TERMS
Terms of payment for parts are net 30 days.
FREIGHT POLICY
All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a
signed manifest has been obtained from the
carrier, and any claim for shortage or damage
must be settled between the consignee and
the carrier.
MINIMUM ORDER
The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.
RETURNED GOODS POLICY
Return shipments will be accepted and
credit will be allowed, subject to the following
provisions:
1.
2.
3.
4.
5. Parts must be in new and resalable
Multiquip reserves the right to quote and
sell direct to Government agencies, and to
Original Equipment Manufacturer accounts
who use our products as integral parts of their
A $35.00 surcharge will be added to the
invoice for special handling including bus
shipments, insured parcel post or in cases
where Multiquip must personally deliver the
LIMITATIONS OF SELLER’S LIABILITY
Multiquip shall not be liable hereunder for
damages in excess of the purchase price of
the item with respect to which damages are
claimed, and in no event shall Multiquip be
liable for loss of profi t or good will or for any
other special, consequential or incidental
No warranties, express or implied, are
made in connection with the sale of parts or
trade accessories nor as to any engine not
manufactured by Multiquip. Such warranties
made in connection with the sale of new,
complete units are made exclusively by a
statement of warranty packaged with such
units, and Multiquip neither assumes nor
authorizes any person to assume for it
any other obligation or liability whatever in
connection with the sale of its products. Apart
from such written statement of warranty,
there are no warranties, express, implied or
statutory, which extend beyond the description
A Returned Material Authorization
must be approved by Multiquip prior to
shipment.
To obtain a Return Material Authorization,
a list must be provided to Multiquip
Parts Sales that defi nes item numbers,
quantities, and descriptions of the items
to be returned.
a. The parts numbers and descriptions
must match the current parts price
list.
b. The list must be typed or computer
generated.
c. The list must state the reason(s)
for the return.
d. The list must reference the sales
order(s) or invoice(s) under
which the items were originally
purchased.
e. The list must include the name
and phone number of the person
requesting the RMA.
A copy of the Return Material Authorization
must accompany the return shipment.
Freight is at the sender’s expense. All
parts must be returned freight prepaid to
Multiquip’s designated receiving point.
TERMS AND CONDITIONS OF SALE — PARTS
condition, in the original Multiquip
package (if any), and with Multiquip part
numbers clearly marked.
6. The following items are not returnable:
a. Obsolete parts. (If an item is in the
7. The sender will be notifi ed of any material
8. Such material will be held for five
9. Credit on returned parts will be issued
10. In cases where an item is accepted, for
11. Credit issued will be applied to future
price book and shows as being
replaced by another item, it is
obsolete.)
b. Any parts with a limited shelf life
(such as gaskets, seals, “O” rings,
and other rubber parts) that were
purchased more than six months
prior to the return date.
c. Any line item with an extended
dealer net price of less than
$5.00.
d. Special order items.
e. Electrical components.
f. Paint, chemicals, and lubricants.
g. Decals and paper products.
h. Items purchased in kits.
received that is not acceptable.
working days from notifi cation, pending
instructions. If a reply is not received
within five days, the material will be
returned to the sender at his expense.
at dealer net price at time of the original
purchase, less a 15% restocking
charge.
which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.
purchases only.
PRICING AND REBATES
Prices are subject to change without prior
notice. Price changes are effective on a
specifi c date and all orders received on or
after that date will be billed at the revised price.
Rebates for price declines and added charges
for price increases will not be made for stock
on hand at the time of any price change.
own products.
SPECIAL EXPEDITING SERVICE
parts to the carrier.
damages.
LIMITATION OF WARRANTIES
of the products on the face hereof.
Effective: February 22, 2006
PAGE 40 —GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)
NOTES
GB4000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14) — PAGE 41
OPERATION AND PARTS MANUAL
HERE’S HOW TO GET HELP
© COPYRIGHT 2014, MULTIQUIP INC.
Multiquip Inc
the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property
of their respective owners and used with permission.
This manual
The information and specifi cations included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in
this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifi cations, design or the information published
in this publication at any time without notice and without incurring any obligations.
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
UNITED STATES
Multiquip Corporate Offi ce MQ Parts Department
18910 Wilmington Ave.
Carson, CA 90746
Contact : mq@multiquip.com
Service Department Warranty Department
800-421-1244
310-537-3700
Technical Assistance
800-478-1244 Fax: 310-943-2238
CANADA
Multiquip Multiquip (UK) Limited Head Offi ce
4110 Industriel Boul.
Laval, Quebec, Canada H7L 6V3
Contact : jmartin@multiquip.com
Tel. (800) 421-1244
Fax (310) 537-3927
Fax: 310-537-4259 800-421-1244
Tel: (450) 625-2244
Tel: (877) 963-4411
Fax: (450) 625-8664
800-427-1244
310-537-3700
310-537-3700
UNITED KINGDOM
Unit 2, Northpoint Industrial Estate,
Globe Lane,
Dukinfi eld, Cheshire SK16 4UJ
Contact : sales@multiquip.co.uk
Fax: 800-672-7877
Fax: 310-637-3284
Fax: 310-943-2249
Tel: 0161 339 2223
Fax: 0161 339 3226
,
MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.
Your Local Dealer is:
Loading...
