PARTS MANUAL
SERIES
MODEL CA4HM
WALK-BEHIND TROWEL
(HONDA
KOHLER 27 HP
GX120K1QX2/GX120UT1QX2
KOHLER 28 HP EFI
GASOLINE ENGINE)
Revision #4 (11/03/10)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
P/N 21692
TABLE OF CONTENTS
MQ Whiteman CA4HM
Walk-Behind Trowel
Table of Contents .................................................... 2
Parts Ordering Procedures ..................................... 3
Explanation of Code in Remarks Column ............... 4
Suggested Spare Parts ........................................... 5
Nameplates and Decals ....................................... 6-7
Quick Pitch™ Handle Assembly ........................... 8-9
Spider Assembly .............................................. 10-11
Gearbox Assembly ........................................... 12-13
Engine Assembly, 4 HP Honda
(S/N CL0132684 and Below) ........................... 14-15
Engine Assembly, 4 HP Honda
(S/N CL0132685 and Above) ........................... 16-17
Guard Ring Assembly ...................................... 18-19

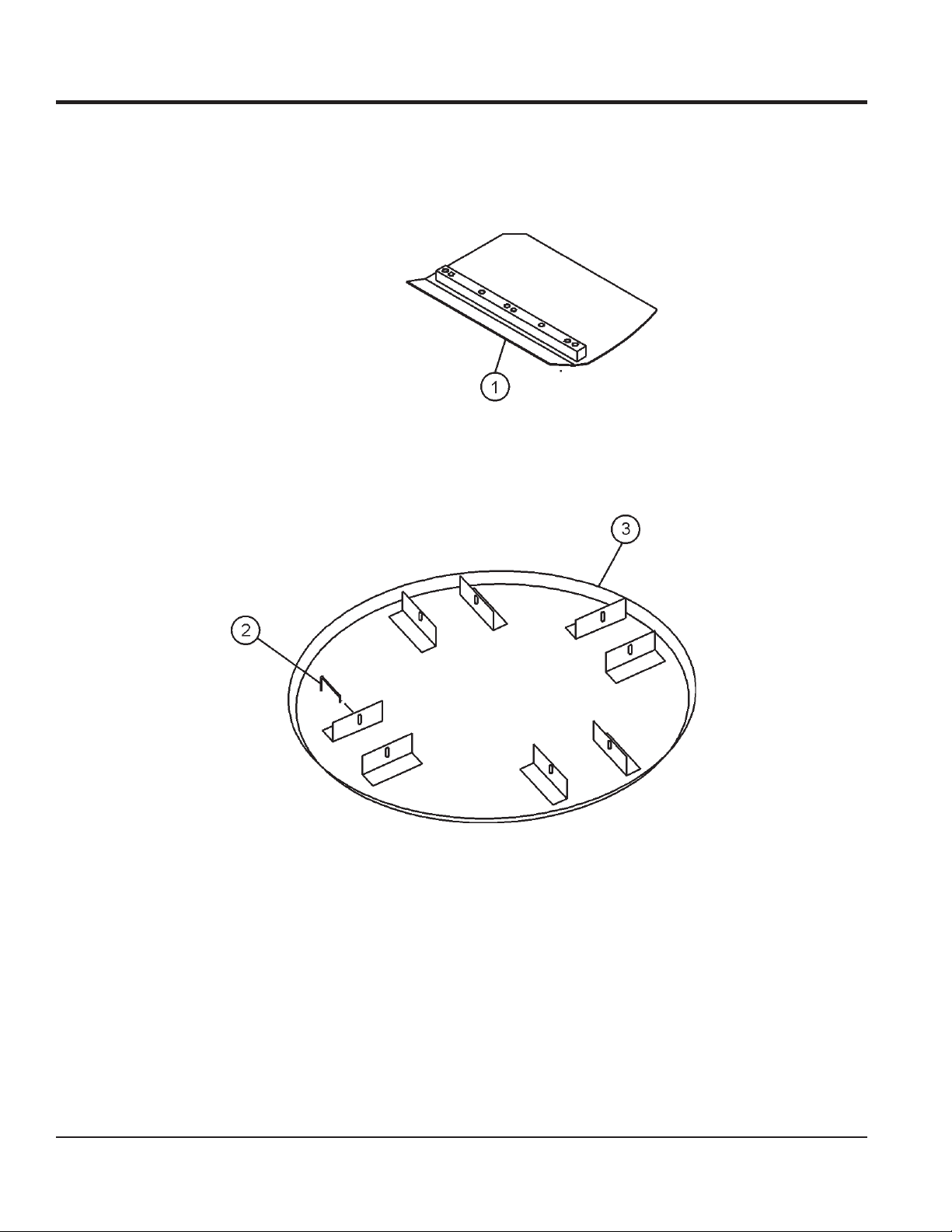

Blades and Pan Assembly ............................... 20-21
HONDA GX120k1QX2/
UT1QX2 ENGINE
Air Cleaner (Dual) Assembly ............................ 22-23
Camshaft Assembly ......................................... 24-25
Carburetor Assembly ....................................... 26-27
Control Assembly ............................................. 28-29
Crankcase Cover Assembly ............................. 30-31

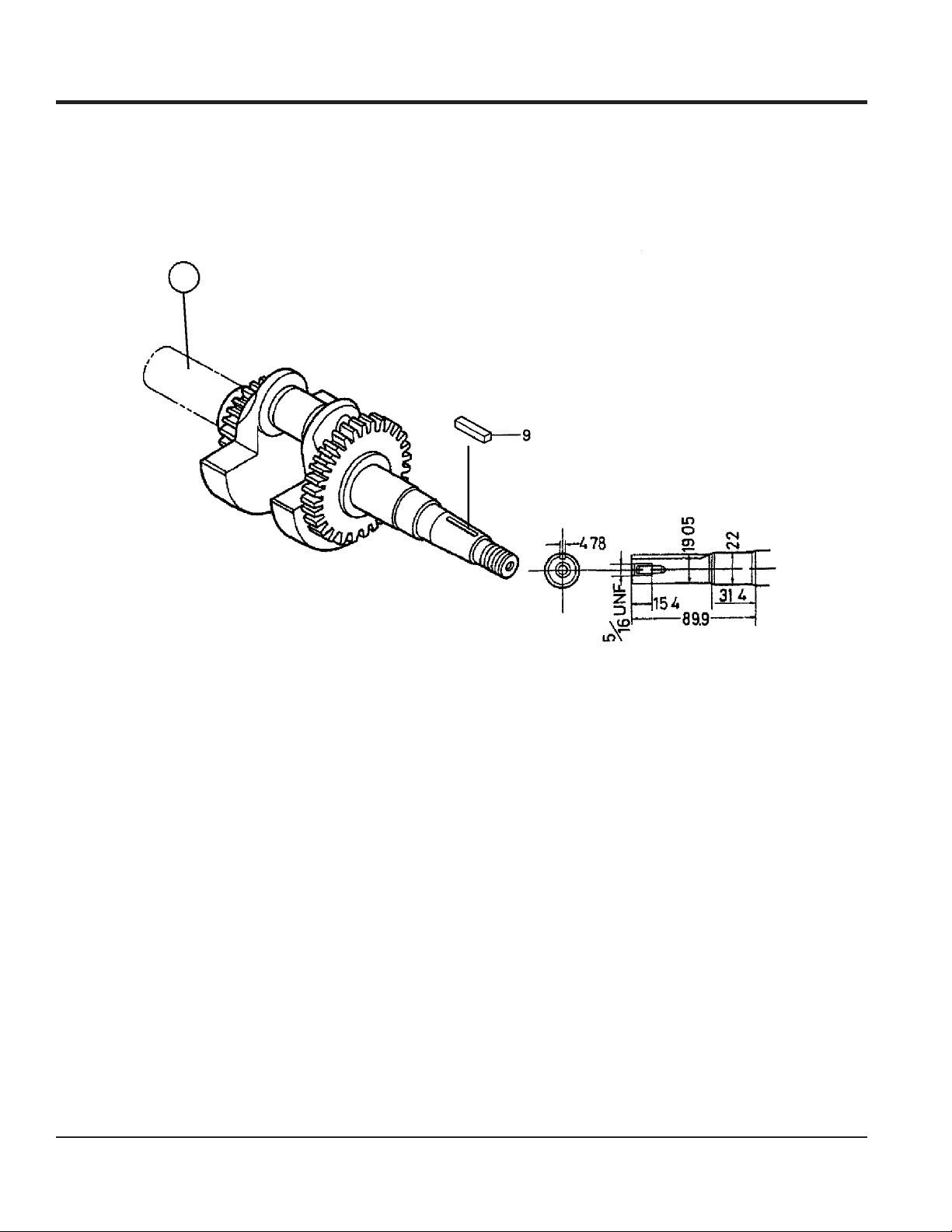

Crankshaft Assembly ....................................... 32-33

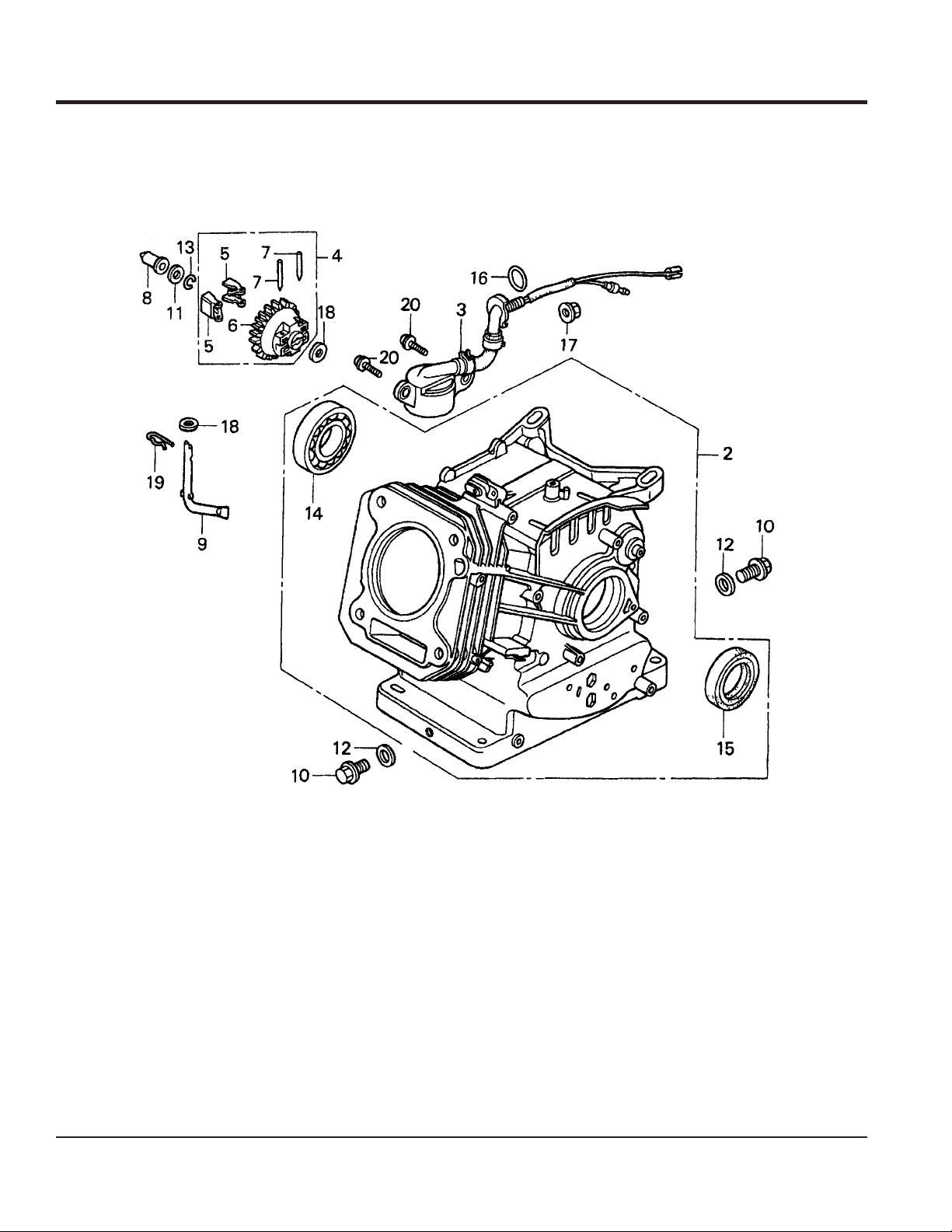

Cylinder Barrel Assembly ................................. 34-35
Cylinder Head Assembly .................................. 36-37
Fan Cover Assembly ........................................ 38-39

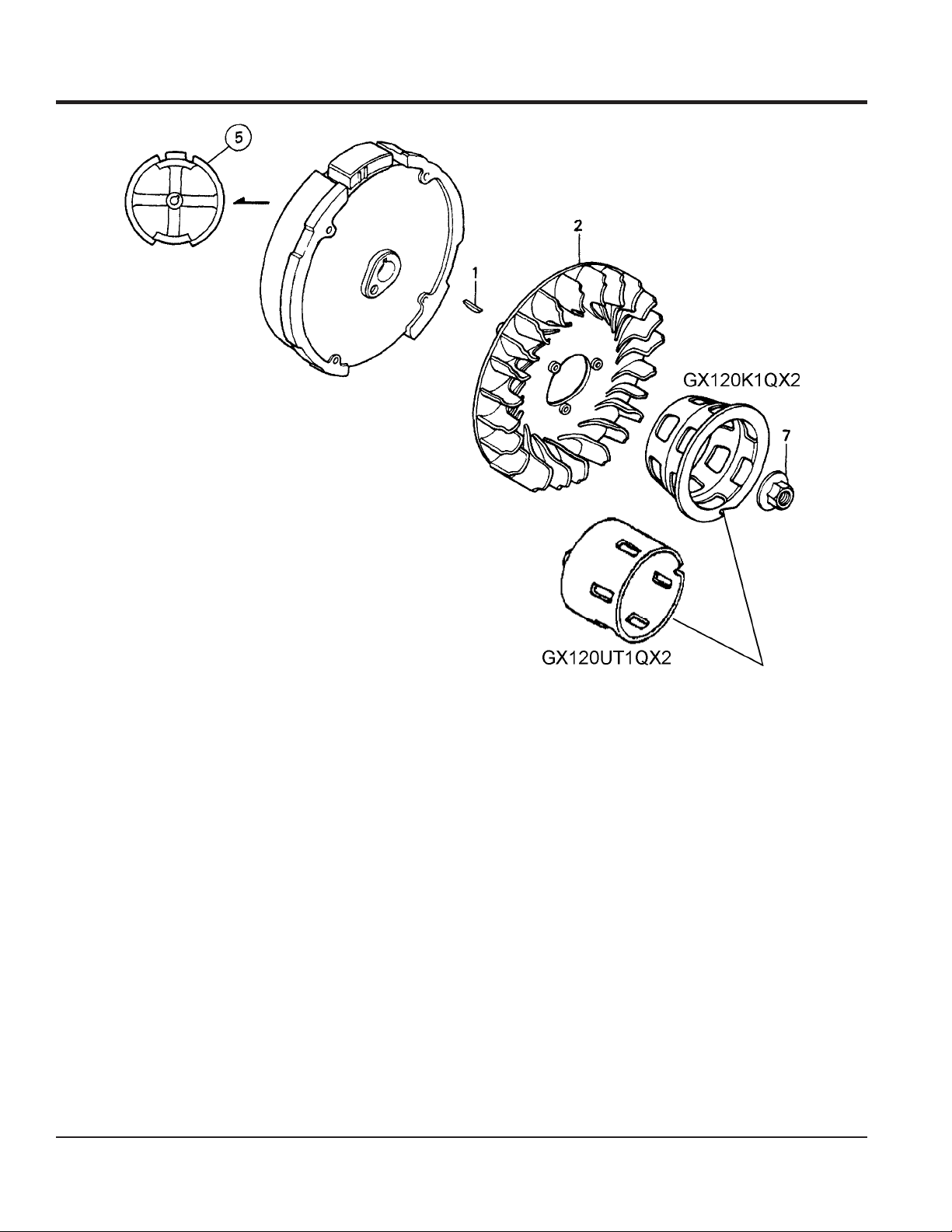

Flywheel Assembly .......................................... 40-41
Fuel Tank Assembly ......................................... 42-43
Ignition Coil Assembly ...................................... 44-45
Muffler Assembly ............................................. 46-47

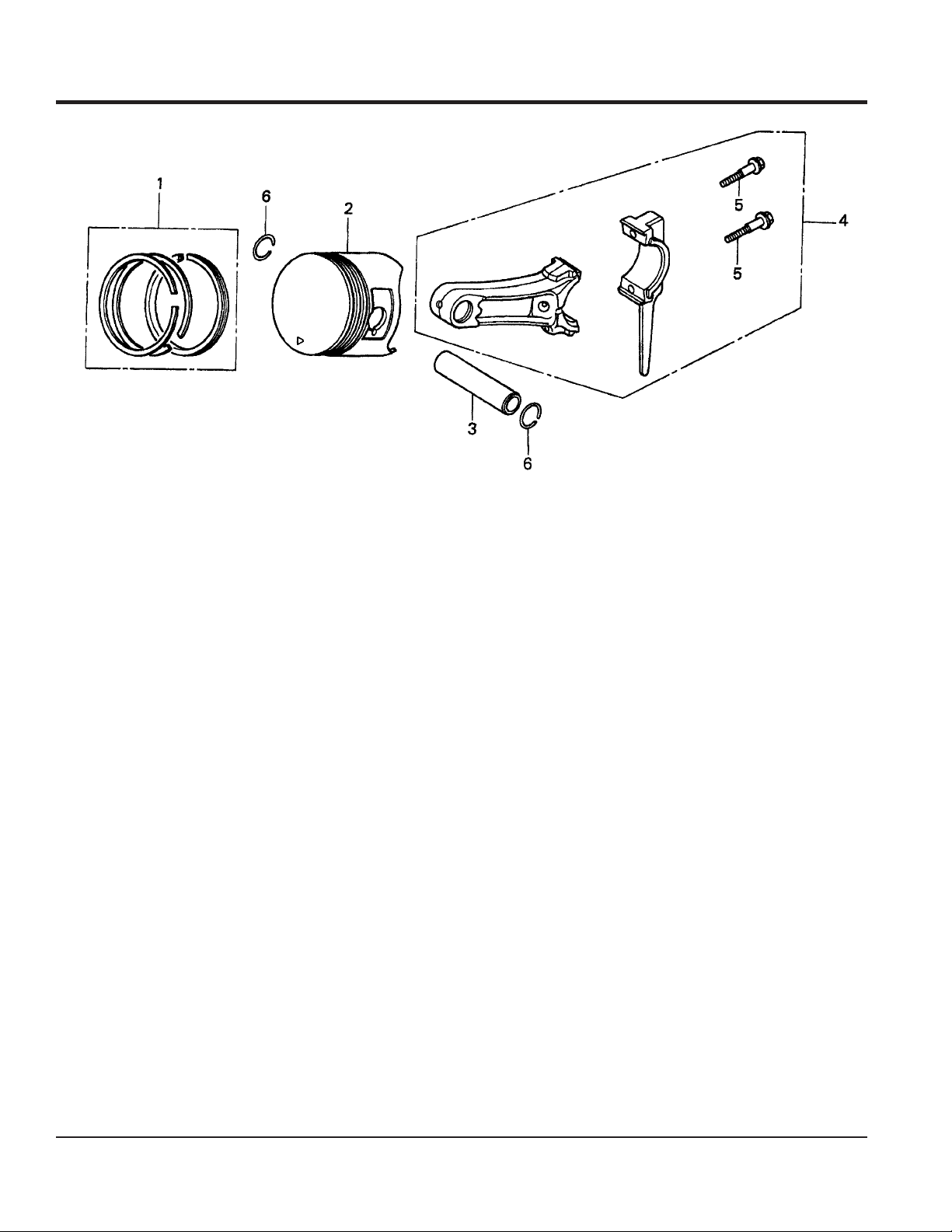

Piston Assembly ............................................... 48-49

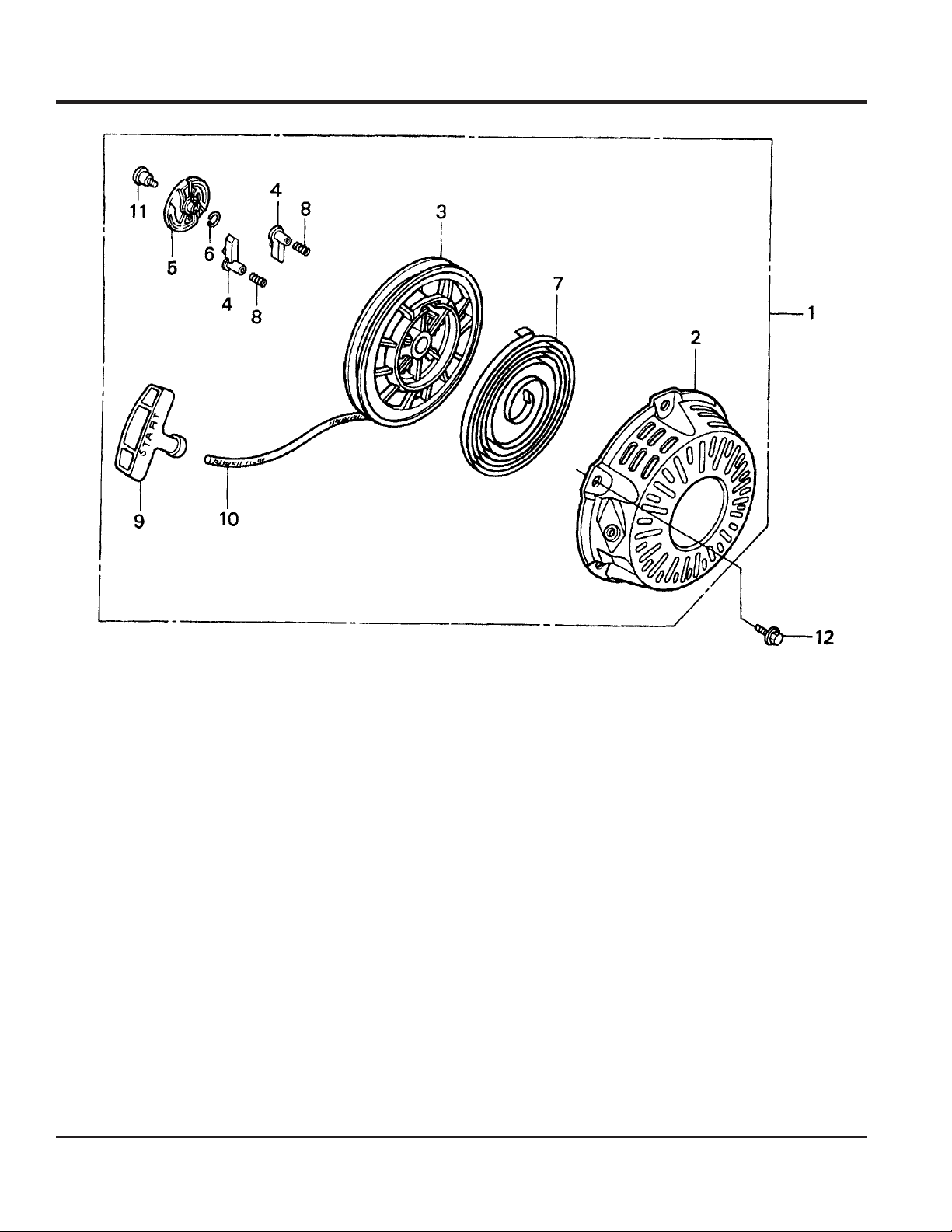

Recoil Starter Assembly................................... 50-51

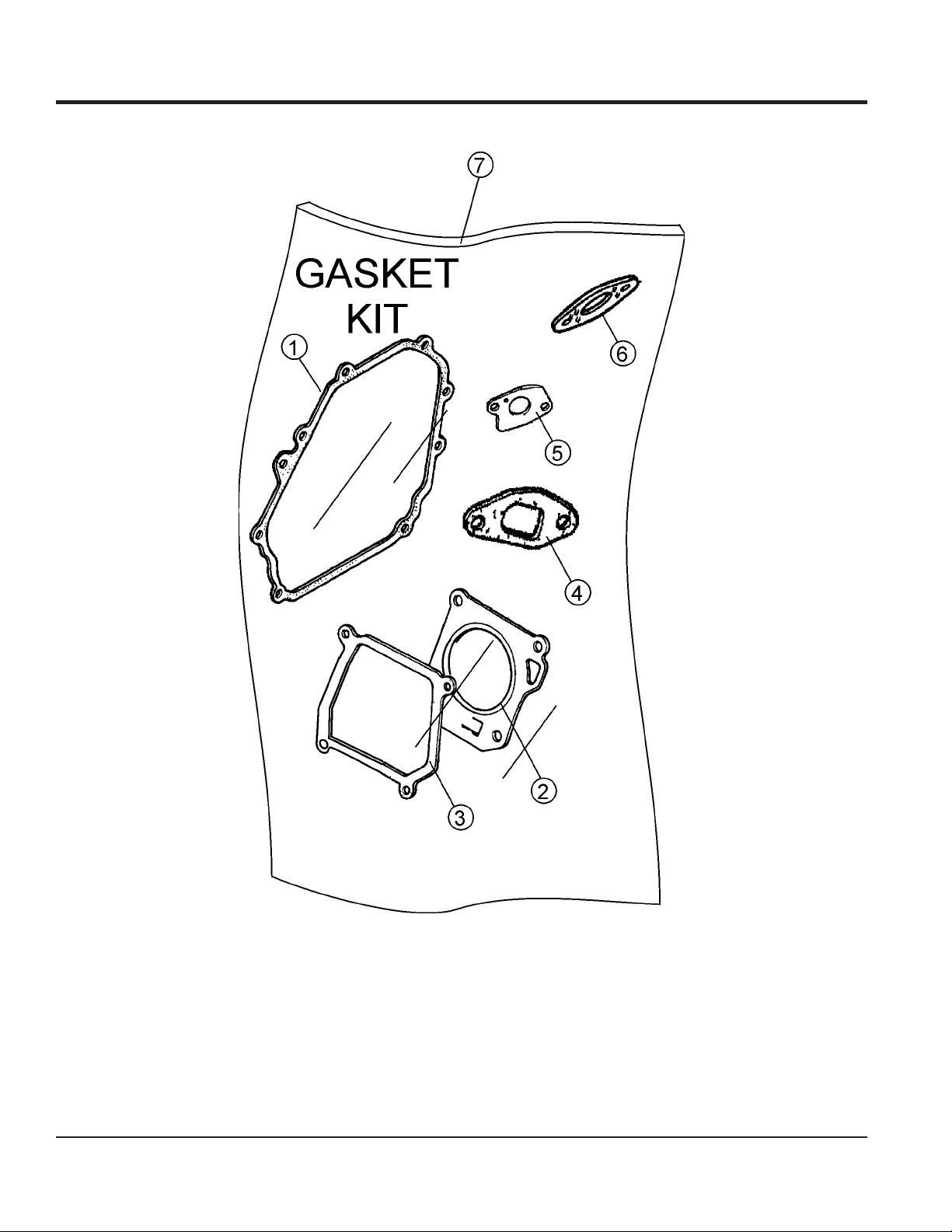

Gasket Kit Assembly ........................................ 52-53

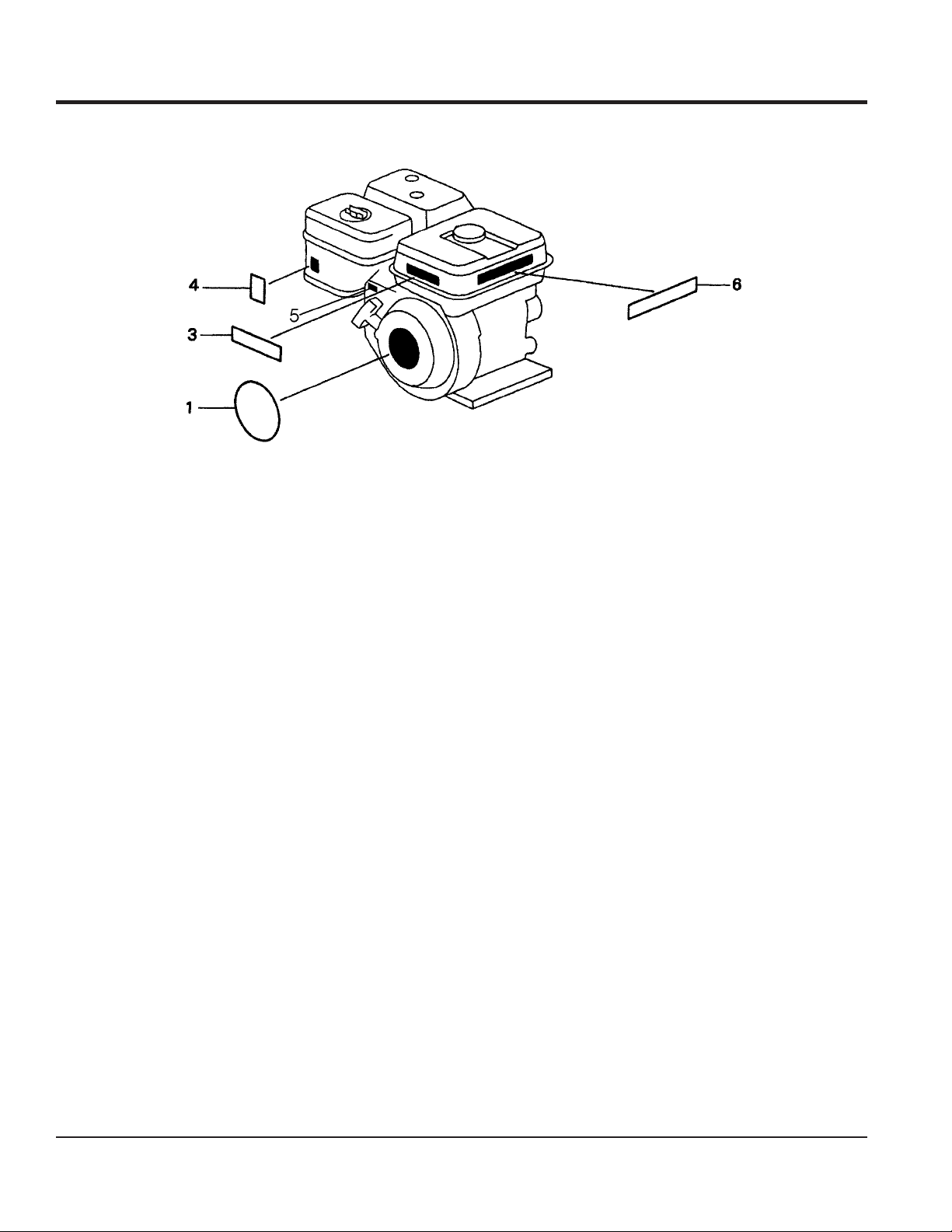

Labels Assembly .............................................. 54-55
Terms and Conditions of Sale — Parts ................. 56
NOTICE
Part numbers are subject to change without notice
PAGE 2 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
PARTS ORDERING PROCEDURES
Ordering parts has never been easier!
Choose from three easy options:
January 1
Effective:
st
, 2006
Best Deal!
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
N View Parts Diagrams
N Order Parts
N Print Specification Information
Goto www.multiquip.com and click on
Order Parts
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)
Non-Dealer Customers:
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
to log in and save!
Order via Phone:
If you have an MQ Account, to obtain a Username
and Password, E-mail us at: parts@multiquip.
com.
To obtain an MQ Account, contact your
District Sales Manager for more information.
Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*
Note: Discounts Are Subject To Change
Fax your order in and qualify for a 2% Discount
on Standard orders for all orders which include
complete part numbers.*
Note: Discounts Are Subject To Change
Domestic (US) Dealers Call:
1-800-427-1244
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
R Dealer Account Number
R Dealer Name and Address
R Shipping Address (if different than billing address)
R Return Fax Number
R Applicable Model Number
R Quantity, Part Number and Description of Each Part
www.multiquip.com
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 3
When ordering parts, please supply:
R Specify Preferred Method of Shipment:
UPS/Fed Ex DHL
N Priority One Tr uck
N Ground
N Next Day
N Second/Third Day
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
WE ACCEPT ALL MAJOR CREDIT CARDS!
EXPLANATION OF CODES IN REMARKS COLUMN
The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the
help numbers found on the back page of the manual if there
are any questions.
NOTICE
The contents and part numbers listed in the parts
section are subject to change without notice. Multiquip
does not guarantee the availability of the parts listed.
SAMPLE PARTS LIST
NO. PART NO. PART NAME QTY. REMARKS
1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%
2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY
2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY
3 12348 HOSE ..................A/R ...MAKE LOCALLY
4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE
NO. Column
Unique Symbols — All items with same unique
symbol
QTY. Column
Numbers Used — Item quantity can be indicated by a
number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other
parts that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold
separately. Other entries will be clarified in the “Remarks”
Column.
REMARKS Column
Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed
to describe the item can also be shown.
Assembly/Kit — All items on the parts list with the
same unique symbol will be included when this item is
purchased.
Indicated by:
“INCLUDES ITEMS W/(unique symbol)”
(@, #, +, %, or >) in the number column belong to the
same assembly or kit, which is indicated by a note in the
“Remarks” column.
Duplicate Item Numbers — Duplicate numbers indicate
multiple part numbers, which are in effect for the same
general item, such as different size saw blade guards in
use or a part that has been updated on newer versions
of the same machine.
NOTICE
When ordering a part that has more than one item
number listed, check the remarks column for help in
determining the proper part to order.
PART NO. Column
Numbers Used — Part numbers can be indicated by a
number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a
part that has not been assigned a formal part number
at the time of publication.
A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will
be clarified in the “Remarks” Column.
Serial Number Break — Used to list an effective serial
number range where a particular part is used.
Indicated by:
“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”
Specific Model Number Use — Indicates that the part
is used only with the specific model number or model
number variant listed. It can also be used to show a
part is NOT used on a specific model or model number
variant.
Indicated by:
“XXXXX ONLY”
“NOT USED ON XXXX”
“Make/Obtain Locally” — Indicates that the part can
be purchased at any hardware shop or made out of
available items. Examples include battery cables, shims,
and certain washers and nuts.
“Not Sold Separately” — Indicates that an item cannot
be purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available
for sale through Multiquip.
PAGE 4 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
SUGGESTED SPARE PARTS
CA4HM TROWEL WITH HONDA GX120K1QX2/GX120UT1QX2 GASOLINE ENGINE
1 to 3 Units
Qty. ........ P/N .............................. Description
3 ............ 0189 ...................... GRIP
1 ............ 21046 .................... GASKET KIT
1 ............ 21047 .................... BEARING KIT
2 ............ 9807955855 .......... SPARK PLUG W16EPR- U (DENSO), OPT. (GX120K1QX2)
2 ............ 9807955876 .......... SPARK PLUG BPR5ES (NGK) (GX120UT1QX2)
2 ............ 17631ZH7003 ....... TANK CAP (GX120K1QX2)
2 ............ 17620Z0T813 ....... TANK CAP (GX120UT1QX2 - S/N 1120058 AND BELOW)
2 ............ 17620Z4H000 ....... TANK CAP (GX120UT1QX2 - S/N 1120059 TO 1188057)
2 ............ 17620Z4H010 ....... TANK CAP (GX120UT1QX2 - S/N 1188058 TO 1206680)
2 ............ 17620Z4H020 ....... TANK CAP (GX120UT1QX2 - S/N 1206681 AND ABOVE)
3 ............ 17210ZE0505 ....... AIR CLEANER ELEMENT (GX120K1QX2)
3 ............ 17210ZE0822 ....... AIR CLEANER ELEMENT (GX120UT1QX2)
2 ............ 17218ZE0505 ....... FILTER OUTER (GX120K1QX2)
2 ............ 17218ZE0820 ....... FILTER OUTER (GX120U1QX2)
1 ............ 1714 ...................... PITCH CABLE
1 ............ 10607 .................... THRUST BEARING
1 ............ 10567 .................... THRUST COLLAR
1 ............ 10639 .................... WEAR PLATE
3 ............ 2343 ...................... V-BELT (A-25)
1 ............ 0302 ...................... CABLE, THROTTLE
2 ............ 10139 .................... GEARBOX LUBRICANT
1 ............ 10936 .................... CABLE ASSY. HAND CLUTCH
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 5
CHECK
MODEL
SERIAL NO.
C
NAMEPLATE AND DECALS
1
9
2
D
10
8
2
HOT
12
3
A
2
BELT DRIVE
4
2
B
GEAR DRIVE
5
E
2
7
6
COUNTER
CLOCKWISE
A
B
C
D
BELT DRIVE
GEAR DRIVE
CHECK
HOT
LUBRICATION
LUBRICATION
CLOCKWISE
GEAR DRIVE
CHECK
COUNTER
CLOCKWISE
LIFTING POINTLIFTING POINT
LUBRICATION
LUBRICATION
E
2
PAGE 6 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
NAMEPLATE AND DECALS
NO. PART NO. PART NAME QTY. REMARKS
1 10732 DECAL: CAUTION PITCH HANDLE...................... 1 ....... SAFETY ITEM
2A 11246 DECAL: BELT DRIVE ........................................... 1 ....... SAFETY ITEM
2B 11246 DECAL: GEAR DRIVE .......................................... 1 ....... SAFETY ITEM
2C 11246 DECAL: CHECK OIL 1
2D 11246 DECAL: HEAT 1 SAFETY ITEM
2E 11246 DECAL: COUNTER CLOCKWISE......................... 1 ....... SAFETY ITEM
3 36099 DECAL: HELMET, SHOE AND GLOVE ................ 1 ....... SAFETY ITEM
4 11092 DECAL: CE 1
5 20816 DECAL: MQ MULTIQUIP 1
6 35168 DECAL: WARNING, BLADE RISK ........................ 1 ....... SAFETY ITEM
7 21302 DECAL: WARNING, GUARDS ............................... 1 ....... SAFETY ITEM
8 NAME PLATE ........................................................ 1 ....... CONTACT MULTIQUIP
.......................................................................................... PARTS DEPARTMENT
9 35137 DECAL: WARNING, READ MANUAL .................... 1 ....... SAFETY ITEM
10 35438 DECAL: WARNING, SILICOSIS HAZARD ............ 1 ....... SAFETY ITEM
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 7
QUICK PITCH
™ ™
™
HANDLE ASSY.
™ ™
PAGE 8 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
™ ™
QUICK PITCH
NO. PART NO. PART NAME QTY. REMARKS
1 10657 PITCH CONTROL HANDLE 1
2 10881 LATCHING BAR 1
3 3910382 SHOULDER BOLT 3/8 X 3/8 1
4 10655 LATCH RETURN SPRING COVER 1
5 10654 LATCH RETURN SPRING 1
6 10659 QP LATCHING BOLT 1
6 10878 QP LATCHING BOLT 1
7 0161 C LOCK WASHER 5/16” 1
8 10024 LOCK NUT 1/4- 20 1
9 1714 CABLE, PITCH CONTROL 1
10 10658 CONTROL HANDLE SUPPORT TUBE 1
11 0189 HANDLE GRIP 1
12 0304 SCREW, RHM 10- 24 X 1/4” 2
13 0302 THROTTLE ASSEMBLY CABLE 1
14 5283 LOCK NUT 5/16- 18 1
15 10651 STAR WHEEL 1
16 1456 NUT, HEX FINISH 3/8- 16 1
17 3216 COTTER PIN 3
18 0948 FLAT WASHER 1/4” 2
19 10629 HANDLE HINGE PIN 1
20 10133 LOCK NUT 3/8- 16 2
21 10136 FLAT WASHER 3/8” 3
22 20280 SUPPORT BLOCK 1
23 21017 SCREW, HHC 3/8- 16 X 3.25 FULL THRD 1
24 10701 SWING BOLT 1
25 5291 CLEVIS PIN 1
26 0300 B FLAT WASHER 5/16” 2
27 0669 A SCREW, HHC 5/16- 18 X 2-1/4” 1
28 1512 CLUTCH HAND LEVER 1
29 1493 SCREW, HHC 3/8 - 16 X 3.25 1
30 10036 CLUTCH ASSIST HANDLE ASSY. 1
31 10660 SHIM 1
32 3164 SCREW, FHSC 1/4- 20 X 1” 1
33 21438 LOWER HANDLE 1
34 10635 UPPER HANDLE 1
35 10653 CLUTCH CABLE ASSY. 1
36 10676 ACORN NUT 5/16- 18 1
37 8128 CLAMP 2
39 11015 HANDLE SLIDER 1
™
HANDLE ASSY.
™ ™
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 9
SPIDER ASSY.
PAGE 10 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
SPIDER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 21477 YOKE 1
2 20801 YOKE PIN 1
3 1116 NUT, BRASS JAM 5/16- 18 1
4 20802 SNAP RING 2
5 10607 THRUST BEARING 1
6 10567 THRUST COLLAR 1
7 10639 WEAR PLATE 1
8 10563 SPIDER 1
9 0164 B SCREW, HHC 3/8- 16 X 1-1/4 F.T. 4
10 1876 NUT, JAM 3/8- 16 4
11 0166 A LOCK WASHER 3/8” 4
12 0181 B LOCK WASHER 1/4” 8
13 10768 TROWEL ARM 4
14 10790 SCREW, HHC M6- 1 X 30MM 8
15 0685 SCREW, SHS 5/16- 18 X 5/16” 2
16 1162 A GREASE ZERK CAP 4
17 10587 ARM RETAINING SCREW 4
18 1875 WASHER, INT. SHKP. 3/8” 4
20 10698 NUT, ADJUSTING 5/16- 18 1
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 11
GEARBOX ASSY.
PAGE 12 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
GEARBOX ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1%*0753 SEAL, OIL NATIONAL 1
2% 0131 A SCREW, HHC 1/4-20 X 3/4 4
3% 12876 FLANGE, INPUT SHAFT 1
4%*20395 RING, O -139 BUNA N 1
6%# 21218 BEARING, CUP, TIMKEN 2
7%# 20465 BEARING, CONE, TIMKEN 2
8% 0627 KEY, SQUARE 3/16 X 1 1/4 1
9% 1851 GEAR, WORM & SHAFT ASSY. 1
10% 21454 CASE, GEAR 1
11% 21218 VENT, AIR 1
12 21046 GASKET/SEAL KIT .......................................................... 1 ....... INCLUDES ITEMS W/
13 21047 BEARING KIT ................................................................... 1 .......INCLUDES ITEMS W/ #
14% 20476 SCREW, HHC 1/4-28 X 3/8 2
15% 21033 SIGHT GLASS, 3/4 M PIPE STEEL 1
16% 0121 A FITTING, PLUG 3/8 MP SQ HEAD 1
17% 1138 RING, SNAP, TRUARC 5100-112 1
18%# 20475 BEARING, CUP TIMKEN 2
19%# 20474 BEARING, CONE TIMKEN 2
20% 1140 GEAR, WORM, BRONZE 1
21% 21435 SHAFT, OUTPUT 1
22% 1139 KEY, WOODRUFF #21 HARDENED 1
23% 1238 KEY, WOODRUFF #25 1
25%*20396 RING, O -257 BUNA N 1
26% 12875 COVER, GEARBOX 1
27% 10235 WASHER, C/S EXT. SHKP 4
28% 1146 SCREW, FHSC 5/16-18 X 1, NYLOC NP 4
29%*0254 SEAL, OIL, NATIONAL 1
30 21436 GEARBOX ASSY. ............................................................. 1 ....... INCLUDES ITEMS W/ %
31 10139 LUBE, GEARBOX OIL ISO 680, 22 OZ. (650 mL) ............ 2 ....... REQUIRES 27 OZ. (798 mL)
*
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 13
ENGINE ASSY., 4 HP HONDA (S/N CL0132684 AND BELOW)
PAGE 14 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
ENGINE ASSY., 4 HP HONDA (S/N CL0132684 AND BELOW)
NO. PART NO. PART NAME QTY. REMARKS
1 21387 ENGINE, 4 HP. HONDA GX120K1QX2/UT1QX2 1
2 10036 HANDLE ASSY., CLUTCH ASSIST 1
3 0161 C LOCK WASHER 5/16” 5
4 0300 B FLAT WASHER 5/16” 11
5 1284 SCREW, HHC 3/8 -16 X 1-1/2” 2
6 0166 A LOCK WASHER 3/8” 1
7 10136 FLAT WASHER 3/8” 1
8 0105 SCREW, HHC 5/16- 18 X 1-1/2” 2
9 10644 CLUTCH BRACKET 1
10 5277 SCREW, HHC 1/4- 20 X 1-1/2” 1
11 10229 SCREW, HHC 5/16 - 24 X 1" 2
12 10936 CABLE ASSY., HAND CLUTCH 1
13 10608 IDLER PULLEY 1
14 6014 C NUT, HEX 5/16 X 24 1
15 10611 BELT (A21) 1
16 0730 SCREW, HHC 1/4- 20 X 1” 3
17 0181 B LOCK WASHER 1/4” 5
18 10661 BELT GUARD ...................................................... 1 ......... SAFETY ITEM
19 21492 PULLEY 1
20 10909 SQUARE KEY 3/16 X 3/16 X 13/16” 1
21 10181 SCREW, HHC 5/16 - 24 X 1-1/4" 1
22 20979 CLUTCH LEVER 1
23 10610 PULLEY 1
24 0948 FLAT WASHER 1/4” 5
25 1512 CONTROL LEVER, HAND CLUTCH 1
26 20981 SHOE, BELT HAND CLUTCH 1
27 10450 SHS 10- 32 X 1/4” 1
28 0949 HEX NUT 1/4- 20 1
29 1733 WASHER, 1/2 X 1/32 1
30 13351 WASHER, FLAT USS 3/8 EXT. THK. 1
31 1672 SCREW, HHC 3/8 -24 X 1” 1
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 15
ENGINE ASSY., 4 HP HONDA (S/N CL0132685 AND ABOVE)
10
4
20
1
1
3
31
6
3
6
8
27
14
1
3
15
7
34
8
9
32
6
3
21
6
3
6
28
21
8
3
13
18
21
36
19
29
6
22
12
6
11
30
6
24
7
25
17
33
23
10
16
26
7
5
2
PAGE 16 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
35
7
2
5
7
5
2
ENGINE ASSY., 4 HP HONDA (S/N CL0132685 AND ABOVE)
NO. PART NO. PART NAME QTY. REMARKS
1 0105 SCREW, HHC 5/16- 18 X 1-1/2 3
2 0131 A SCREW, HHC 1/4 - 20 X 3/4 3
3 0161 C LOCK WASHER 5/16 6
4 0166 A LOCK WASHER 3/8 1
5 0181 B LOCK WASHER 1/4 3
6 0300 B FLAT WASHER 5/16 9
7 0948 FLAT WASHER 1/4 7
8 0949 HEX NUT 1/4- 20 5
9 1273 SCREW, HHST 3- 32 X 3/8 2
10 1284 SCREW, HHC 3/8 -16 X 1-1/2 2
11 1391 SCREW, HHC 5/16 - 24 X 1-1/2 ZINC 1
12 1512 CONTROL LEVER, HAND CLUTCH 1
13 1672 SCREW, HHC 3/8 -24 X 1 2
14 1733 WASHER, 1/2 X 1/32 1
15 1834 DEFLECTOR, HONDA EXHAUST 1
16 1897 SPACER 1
17 2343 BELT (A25) 1
18 4538 SCREW, HHC 1/4- 20 X 2-1/2 1
19 6014 C NUT, HEX 5/16 X 24 1
20 10136 FLAT WASHER 3/8 1
21 10181 SCREW, HHC 5/16 - 24 X 1-1/4 3
22 10450 SHS 10- 32 X 1/4 1
23 10608 PULLEY, IDLER 1
24 10909 SQUARE KEY 3/16 X 11/16 1
25 10936 CABLE ASSY., HAND CLUTCH 1
26 11043 PULLEY, AK41 X 3/4 1
27 13351 WASHER, FLAT USS 3/8 EXT. THK. 1
28 19380 SCREW, HHC 1/4 - 20 X 3 2
29 20977 CLUTCH LEVER 1
30 20981 SHOE, BELT HAND CLUTCH 2
31 21387 ENGINE, 4 HP. HONDA GX120K1QX2/UT1QX2 1
32 21674 BRACKET, PULLEY GUARD 1
33 21675 PULLEY AK-32 X 3/4 1
34 21713 CLUTCH BRACKET 1
35 30102-001 BELT GUARD ...................................................... 1 ......... SAFETY ITEM
36 933242 WASHER, FLAT SAE 3/8 GRD 9 YZ 2
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 17
GUARD RING ASSY.
1
2
3
4
TUBE FITS INTO GROOVE
OF GUARD RING
5
6
7
PAGE 18 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
GUARD RING ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 21502 LIFTING BALE ..................................................... 1 ......... ACCESSORY ITEM CONTACT
.......................................................................................... UNIT SALES
2 1724 GRIP 1
3 21433 GUARD RING 1
4 21443 TUBE, GROOVE GUARD RING 1
5 21441 BEARING ............................................................. 1 ......... INCLUDES ITEMS W/
6
*
7 21434 SLEEVE, PITCH 1
21480 RING 1
*
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 19
BLADES AND PAN ASSY.
PAGE 20 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
BLADES AND PAN ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 COMBO FLOAT & FINISH BLADE .......................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM
2 FLOAT DISC LATCH PIN ....................................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM
3 FLOAT DISC ........................................................... 1 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 21
HONDA GX120K1QX2/UT1QX2 ENGINE — AIRCLEANER (DUAL) ASSY.
PAGE 22 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — AIRCLEANER (DUAL) ASSY.
AIRCLEANER (DUAL) ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 16271ZE1000 GASKET, ELBOW 1
2 17210ZE0505 ELEMENT, AIR CLEANER (DUAL) ....................1................INCLUDES ITEMS W/ $
2 17210ZE0822 ELEMENT, AIR CLEANER (DUAL) ....................1................INCLUDES ITEMS W/ $
3$ 17218ZE0505 FILTER, OUTER 1
3$ 17218ZE0820 FILTER, OUTER 1
4 17230ZE0820 COVER, AIR CLEANER (DUAL) 1
5$ 17232891000 GROMMET, AIR CLEANER 1
7# 17238ZE0010 COLLAR, AIR CLEANER 2
8# 17239ZE1000 COLLAR B, AIR CLEANER 1
9 17410ZE0030 ELBOW, AIR CLEANER ....................................1................INCLUDES ITEMS W/ #
12 90325044000 WINGNUT, TOOL BOX SETTING 2
13 957010602000 BOLT, FLANGE 6X20 1
14 9405006000 NUT, FLANGE 6MM 2
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 23
HONDA GX120K1QX2/UT1QX2 ENGINE — CAMSHAFT ASSY.
PAGE 24 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — CAMSHAFT ASSY.
CAMSHAFT ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 14100ZE0812 CAMSHAFT ASSEMBLY ...................................1................INCLUDES ITEMS W/ $
2 14410ZE0010 ROD, PUSH 2
3 14431ZE1000 ARM, VALVE ROCKER 2
4 14441ZE1010 LIFTER, VALVE 2
5 14451ZE1013 PIVOT, ROCKER ARM 2
6$ 14568ZE1000 SPRING, WEIGHT RETURN 1
7 14711ZF0010 VALVE, INTAKE 1
8 14721ZH7810 VALVE, EXHAUST 1
8 14721ZH7810 VALVE, EXHAUST 1
9 14751ZF1000 SPRING, VALVE 2
10 14771ZE1000 RETAINER, IN. VALVE SPRING 1
11 14773ZE1000 RETAINER, EX. VALVE SPRING 1
12 14781ZE1000 ROTATOR, VALVE 1
13 14791ZE0010 PLATE, PUSH ROD GUIDE 1
14 90012ZE0010 BOLT, PIVOT 8MM 2
15 90206ZE1000 NUT, PIVOT ADJ. 2
16 12209ZH8003 SEAL, VALE STEM 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 25
HONDA GX120K1QX2/UT1QX2 ENGINE — CARBURETOR ASSY.
PAGE 26 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — CARBURETOR ASSY.
CARBURETOR ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1$ 16010ZE1812 GASKET SET 1
2$ 16011ZE0005 VALVE SET, FLOAT 1
3 16013ZE0005 FLOAT SET 1
3 16013Z0SB01 FLOAT SET 1
4 16015ZE1811 CHAMBER SET, FLOAT, BE60B A 1
4 16015ZE1831 CHAMBER SET, FLOAT, BE60B B 1
4 16015ZE0831 CHAMBER SET, FLOAT 1
5$ 16016ZH7W01 SCREW SET, PILOT 1
6$ 16024ZE1811 SCREW SET, DRAIN 1
7$ 16028ZE0005 SCREW SET B 1
8$ 16044ZE0005 CHOKE SET, BE12A B 1
9 16100ZH8W50 CARBURETOR ASSY. (BE65B A) .....................1................S/N 2728507 AND BELOW
.............................................................................................INCLUDES ITEMS W/ $
9 16100ZH8W51 CARBURETOR ASSY. (BE65B B) .....................1................S/N 3491425 AND ABOVE
.............................................................................................INCLUDES ITEMS W/ $
9 16100Z0S921 CARBURETOR ASSY. (BE60R A) .....................1................INCLUDES ITEMS W/ $
10$ 16124ZE0005 SCREW, THROTTLE STOP 1
11$ 16166ZH7W50 NOZZLE, MAIN BE12A B 1
12$ 16173001004 PACKING, FUEL STRAINER CUP 1
13 16211ZE1000 INSULATOR, CARBURETOR 1
14 16212ZH7800 GASKET, INSULATOR 1
15 16220ZE1020 SPACER, CARBURETOR 1
16 16221ZH8800 GASKET, CARBURETOR ..................................1................S/N 2533057 AND BELOW
16 16221ZH8801 GASKET, CARBURETOR ..................................1................S/N 2534177 AND ABOVE
16 16221ZH8801 GASKET, CARBURETOR 1
17 16610ZE1000 LEVER, CHOKE (STD) ......................................1................INCLUDES ITEMS W/ #
18$ 16953ZE1812 LEVER, VALVE 1
19$ 16954ZE1811 PLATE, LEVER SETTING 1
20$ 16956ZE1811 SPRING, VALVE LEVER 1
21$ 16957ZE1812 GASKET, VALVE 1
22$ 16967ZE0811 CUP, FUEL STRAINER 1
23$ 93500030080G SCREW, PAN (3 X 6) 2
23$ 93500030061H SCREW, PAN (3 X 6) 2
24# 9430520122 PIN, SPRING (2 X 12) 1
25 99101ZH80550 JET, MAIN (#55) OPTIONAL 1
25 99101ZH80580 JET, MAIN (#58) OPTIONAL 1
25$ 99101ZH80600 JET, MAIN (#60) 1
26$ 99204ZE00350 JET, SET, PILOT (#35) 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 27
HONDA GX120K1QX2/UT1QX2 ENGINE — CONTROL ASSY.
PAGE 28 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — CONTROL ASSY.
CONTROL ASSY.
NO. PART NO. PART NAME QTY. REMARKS
2 16500ZH7820 CONTROL ASSEMBLY ......................................1................INCLUDES ITEMS W/ $
4 16551ZE0010 ARM, GOVERNOR 1
5 16555ZE0000 ROD, GOVERNOR 1
6 16561ZE0020 SPRING, GOVERNOR 1
7 16562ZE0020 SPRING, THROTTLE RETURN 1
8$ 16571ZH7000 LEVER, CONTROL 1
9$ 16574ZE1000 SPRING, LEVER 1
10$ 16575ZH8000 WASHER, CONTROL LEVER 1
11$ 16576891000 HOLDER, CABLE 1
12$ 16578ZE1000 SPACER, CONTROL LEVER 1
14$ 16580ZH7810 BASE, CONTROL 1
15$ 16584883300 SPRING, CONTROL ADJUSTING 1
16$ 16592ZE1810 SPRING, CABLE RETURN 1
18 90013883000 BOLT, FLANGE 6X12 (CT200) 1
19 90015ZE5010 BOLT, GOVERNOR ARM 1
20 90022888010 BOLT, FLANGE 6X20 (CT200) 1
21$ 90114SA0000 NUT, SELF- LOCK 6MM 1
24$ 93500050250H SCREW, PAN 5X25 1
25$ 93500050160A SCREW-WASHER (5X16) 1
26 9405006000 NUT, FLANGE 6MM 1
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 29
HONDA GX120K1QX2/UT1QX2 ENGINE — CRANKCASE COVER ASSY.
PAGE 30 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — CRANKCASE COVER ASSY.
CRANKCASE COVER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 11300ZE0640 COVER ASSEMBLY, CRANKCASE (U- TYPE) .........1 .......INCLUDES ITEMS W/ %
1 11300ZE0641 COVER ASSEMBLY, CRANKCASE (U- TYPE) .........1 .......INCLUDES ITEMS W/ %
2 11381ZH7800 GASKET, CASE COVER 1
3 15600ZE1003 CAP ASSEMBLY, OIL FILLER ...................................1 .......INCLUDES ITEMS W/ #
3 15600Z0T810 CAP ASSEMBLY, OIL FILLER ...................................1 .......INCLUDES ITEMS W/ #
4 15600ZG4003 CAP ASSEMBLY, OIL FILLER ...................................1 .......INCLUDES ITEMS W/ $
4 15600Z0T820 CAP ASSEMBLY, OIL FILLER ...................................1 .......INCLUDES ITEMS W/ $
7# 15625ZE1003 GASKET, OIL FILLER CAP 1
7# 15625Z0T800 GASKET, OIL FILLER CAP 1
8$ 15625ZE1003 GASKET, OIL FILLER CAP 1
8$ 15625Z0T800 GASKET, OIL FILLER CAP 1
9 90015883000 BOLT, FLANGE 6X28 7
10% 91001878003 BEARING, RADIAL BALL 1
11% 91203ZE0003 OIL SEAL 22X41X6 1
11% 91203ZE0013 OIL SEAL 22X41X6 1
12 9430108140 PIN A, DOWEL 8X14 2
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 31
HONDA GX120K1QX2/UT1QX2 ENGINE — CRANKSHAFT ASSY.
PAGE 32 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — CRANKSHAFT ASSY.
CRANKSHAFT ASSY.
NO. PART NO. PART NAME QTY. REMARKS
6 13310ZE0650 CRANKSHAFT, Q-TYPE 1
6 13310Z0S800 CRANKSHAFT, Q-TYPE 1
9 90745ZE1600 KEY (4.78 X 78 X 38) 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 33
HONDA GX120K1QX2/UT1QX2 ENGINE — CYLINDER BARREL ASSY.
PAGE 34 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — CYLINDER BARREL ASSY.
CYLINDER BARREL ASSY.
NO. PART NO. PART NAME QTY. REMARKS
2 12000ZH7415 CYLINDER BARREL ASSY. (OIL ALERT) .........1................INCLUDES ITEMS W/ $
2 12000Z0S416 CYLINDER BARREL ASSY. (OIL ALERT) .........1................INCLUDES ITEMS W/ $
3 15510ZE1033 SWITCH ASSEMBLY, OIL LEVEL 1
3 15510ZE1033 SWITCH ASSEMBLY, OIL LEVEL ......................1................S/N 1111367 AND BELOW
3 35480Z0T003 SWITCH ASSEMBLY, OIL LEVEL ......................1................S/N 1111367 AND ABOVE
4 16510ZE1000 GOVERNOR ASSEMBLLY ................................1................INCLUDES ITEMS W/ #
5# 16511ZE1000 WEIGHT, GOVERNOR 2
6# 16512ZE1000 HOLDER, GOVERNOR WEIGHT 1
7# 16513ZE1000 PIN, GOVERNOR WEIGHT 2
8 16531ZE1000 SLIDER, GOVERNOR 1
9 16541ZE1000 SHAFT, GOVERNOR ARM 1
10 90131ZE1000 BOLT, DRAIN PLUG 2
11 90451ZE1000 WASHER, THRUST 6MM 1
12 90601ZE1000 WASHER, DRAIN PLUG 10.2MM 2
13 90602ZE1000 CLIP, GOVERNOR HOLDER 1
14$ 91001878003 BEARING, RADIAL BALL 62/22 1
15$ 91202ZE6003 OIL SEAL 22X35X6 1
15$ 91202ZE6013 OIL SEAL 22X35X6 1
16 91353671003 O- RING 13.5X1.5 (ARAI) 1
16 91353671004 O- RING 13.5X1.5 (ARAI) 1
17 9405010000 NUT, FLANGE 10MM 1
18 9410106800 WASHER, PLAIN 6MM 2
19 9425108000 PIN, LOCK 8MM 1
20 957010601200 BOLT, FLANGE 6X12 2
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 35
HONDA GX120K1QX2/UT1QX2 ENGINE — CYLINDER HEAD ASSY.
PAGE 36 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — CYLINDER HEAD ASSY.
CYLINDER HEAD ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 12210ZH7000 CYLINDER HEAD ..............................................1................INCLUDES ITEMS W/ $
2$ 12204ZE1306 GUIDE, VALVE (OS) OPTIONAL 1
3$ 12205ZE1315 GUIDE, EX. VALVE (OS) OPTIONAL ................1................INCLUDES ITEMS W/ #
4$# 12216ZE5300 CLIP, VALVE GUIDE 1
5 12251ZH7800 GASKET, CYLINDER HEAD 1
6 12310ZE1000 COVER, HEAD ..................................................1................S/N 2533057 AND BELOW
6 12310ZE1010 COVER, HEAD ..................................................1................S/N 2533058 TO 3909674
6 12310ZE1010 COVER, HEAD ..................................................1................S/N 3909675 AND ABOVE
6 12310ZE1020 COVER, HEAD 1
7 12391ZE1000 GASKET, CYLINDER HEAD COVER 1
8 15721ZH8000 TUBE, BREATHER 1
9 90013883000 BOLT, FLANGE 6X12 (CT200) 4
10 90043ZE1020 BOLT, STUD 6X109 2
11 90047ZE1000 BOLT, STUD 8X32 2
12 9430110160 PIN, A, DOWEL 10X16 2
14 957230805500 BOLT, FLANGE 8X55 4
15 9807955855 SPARK PLUG W16EPR- U (DENSO), OPT. 1
15 9807956846 SPARK PLUG BPR6ES, (NGK) 1
15 9807955876 SPARK PLUG BPR5ES, (NGK) 1
15 9807956876 SPARK PLUG BPR6ES, (NGK) 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 37
HONDA GX120K1QX2/UT1QX2 ENGINE — FAN COVER ASSY.
PAGE 38 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — FAN COVER ASSY.
FAN COVER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 11347371300 GROMMET, ADJUSTING COVER 1
2 19610ZE0000ZE COVER, FAN *NH1* BLACK 1
2 19610ZE0000ZS COVER, FAN *R280* RED 1
3 19612ZH7810 PLATE, SIDE (OIL ALERT) 1
4 90601ZH7013 CLIP, HARNESS 1
5 19630ZH7000 SHROUD 1
6 32197ZH8003 SUB- HARNESS 1
7 36100ZH7003 SWITCH ASSEMBLY, ENGINE STOP 1
7 36120Z0T851 SWITCH ASSEMBLY, ENGINE STOP 1
8 36101ZE1010 WIRE, STOP SWITCH 370MM 1
9 90013883000 BOLT, FLANGE 6X12 (CT200) 6
10 90022888010 BOLT, FLANGE 6X12 (CT200) 1
11 34150ZH7003 ALERT UNIT, OIL 1
11 34150ZH7003 ALERT UNIT, OIL ...............................................1................S/N 1170368 AND BELOW
11 34150ZH7013 ALERT UNIT, OIL ...............................................1................S/N 1170368 AND ABOVE
13 957010600800 BOLT, FLANGE 6X8 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 39
HONDA GX120K1QX2/UT1QX2 ENGINE — FLYWHEEL ASSY.
PAGE 40 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — FLYWHEEL ASSY.
FLYWHEEL ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 13331357000 KEY, SPECIAL WOODRUFF 25X18 1
2 19511ZE0000 FAN, COOLING 1
4 28451ZH8003 PULLEY, STARTER 1
4 28451ZH7801 PULLEY, STARTER 1
5 31100ZE0010 FLYWHEEL 1
5 31100ZE0010 FLYWHEEL ........................................................1................S/N 1120058 AND BELOW
5 31100ZE0020 FLYWHEEL ........................................................1................S/N 1120058 AND ABOVE
7 90201878003 NUT, SPECIAL 14MM 1
7 90201Z0T800 NUT, SPECIAL 14MM 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 41
HONDA GX120K1QX2/UT1QX2 ENGINE — FUEL TANK ASSY.
PAGE 42 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — FUEL TANK ASSY.
FUEL TANK ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 16854ZH8000 RUBBER, SUPPORTER 107MM 1
2 16955ZE1000 JOINT, FUEL TANK 1
3 17510ZE0020ZD TANK, FUEL *NH1* (BLACK) 1
3 17510Z0S000ZB TANK, FUEL *NH31* (BLACK) ...........................1................S/N 1219127 AND BELOW
3 17510Z0S010ZB TANK, FUEL *NH31* (BLACK) ...........................1................S/N 1219127 AND ABOVE
5 17620ZH7023 CAP, FUEL FILLER ............................................1................INCLUDES ITEMS W/ $
5 17620Z0T813 CAP, FUEL FILLER (CHROME PLATED) ..........1................S/N 1120058 AND BELOW
.............................................................................................INCLUDES ITEMS W/ $
5 17620Z4H000 CAP, FUEL FILLER ............................................1................S/N 1120059 TO 1188057
.............................................................................................INCLUDES ITEMS W/ $
5 17620Z4H010 CAP, FUEL FILLER ............................................1................S/N 1188058 TO 1206680
.............................................................................................INCLUDES ITEMS W/ $
5 17620Z4H020 CAP, FUEL FILLER ............................................1................S/N 1206681 AND ABOVE
.............................................................................................INCLUDES ITEMS W/ $
6$ 17631ZH7003 GASKET, FUEL FILLER CAP 1
6$ 17631Z4H800 GASKET, FUEL FILLER CAP ............................1................S/N 1188057 AND BELOW
6$ 17631Z4H800 GASKET, FUEL FILLER CAP ............................1................S/N 1188058 TO 1206680
6$ 17631Z0T801 GASKET, FUEL FILLER CAP ............................1................S/N 1206681 AND ABOVE
11$ 91353671003 O- RING 13.5X1.5 (ARAI) 1
11$ 91353671004 O- RING 13.5X1.5 (ARAI) 1
12 9405006000 NUT, FLANGE 6MM 2
13 950014500360M BULK HOSE, FUEL (4.5X3000) (4.5X140) 1
14 9500202080 CLIP, TUBE (B8) 2
14 9500202080 CLIP, TUBE (B8) .................................................2................S/N 1038089 AND BELOW
14 950024080008 CLAMP, TUBE (D8) ............................................2................S/N 1038090 AND ABOVE
15 90004ZH7003 BOLT, FLANGE 6X29 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 43
HONDA GX120K1QX2/UT1QX2 ENGINE — IGNITION COIL ASSY.
PAGE 44 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — IGNITION COIL ASSY.
IGNITION COIL ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 30500ZE1033 COIL ASSEMBLY, IGNITION 1
1 30500Z0T801 COIL ASSEMBLY, IGNITION ............................1................S/N 1098652 AND BELOW
1 30500Z0T802 COIL ASSEMBLY, IGNITION ............................1................S/N 1098653 AND ABOVE
2 30700ZE1013 CAP ASSEMBLY, NOISE SUPPRESSOR 1
2 30700Z0T811 CAP ASSEMBLY, NOISE SUPPRESSOR 1
8 90121952000 BOLT, FLANGE 6X25 2
9 36101ZE0101 CORD STOP SWITCH (370 MM) 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 45
HONDA GX120K1QX2/UT1QX2 ENGINE — MUFFLER ASSY.
PAGE 46 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — MUFFLER ASSY.
MUFFLER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 18310ZF1000 MUFFLER 1
1 18310ZF8810 MUFFLER 1
3 18320ZF1H01 PROTECTOR, MUFFLER 1
4 18355ZE1000 ARRESTOR, SPARK 1
7 18381ZH8800 GASKET, MUFFLER 1
7 18381ZH8800 GASKET, MUFFLER ..........................................1................S/N 1060773 AND BELOW
7 18381Z0T801 GASKET, MUFFLER ..........................................1................S/N 1060774 AND ABOVE
8 90055ZE1000 SCREW, TAPPING 5X8 1
10 90050ZE1000 SCREW, TAPPING 5X8 4
13 94001080000S NUT, HEX. 8MM 2
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 47
HONDA GX120K1QX2/UT1QX2 ENGINE — PISTON ASSY.
PAGE 48 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — PISTON ASSY.
PISTON ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 13010ZK7V01 RING SET, PISTON (STANDARD) 1
1 13010Z4F004 RING SET, PISTON (STANDARD) 1
1 13011ZK7V01 RING SET, PISTON (OS 0.25), OPTIONAL 1
1 13011Z4F004 RING SET, PISTON (OS 0.25), OPTIONAL 1
1 13012ZK7V01 RING SET, PISTON (OS 0.50), OPTIONAL 1
1 13012Z4F004 RING SET, PISTON (OS 0.50), OPTIONAL 1
1 13013ZK7V01 RING SET, PISTON (0.75), OPTIONAL 1
1 13013Z4F004 RING SET, PISTON (0.75), OPTIONAL 1
2 13101ZH7000 PISTON, STANDARD ........................................................ 1 ...... S/N 3993725 AND BELOW
2 13101ZH7010 PISTON, STANDARD ........................................................ 1 ...... S/N 3993726 AND ABOVE
2 13101Z0S810 PISTON, STANDARD ........................................................ 1 ......S/N 1120058 AND BELOW
2 13101Z0S811 PISTON, STANDARD ........................................................ 1 ......S/N 1120059 TO 1141323
2 13101ZH7020 PISTON, STANDARD ........................................................ 1 ...... S/N 1141324 AND ABOVE
2 13102ZH7000 PISTON, OS 0.25 (OPTIONAL) ........................................ 1 ...... S/N 3993725 AND BELOW
2 13102ZH7010 PISTON, OS 0.25 (OPTIONAL) ........................................ 1 ...... S/N 3993726 AND ABOVE
2 13102Z0S810 PISTON, OS 0.25 (OPTIONAL) ........................................ 1 ......S/N 1120058 AND BELOW
2 13102Z0S811 PISTON, OS 0.25 (OPTIONAL) ........................................ 1 ......S/N 1120059 TO 1141323
2 13102ZH7020 PISTON, OS 0.25 (OPTIONAL) ........................................ 1 ...... S/N 1141324 AND ABOVE
2 13103ZH7000 PISTON, OS 0.50 (OPTIONAL) ........................................ 1 ...... S/N 3993725 AND BELOW
2 13103ZH7000 PISTON, OS 0.50 (OPTIONAL) ........................................ 1 ...... S/N 3993726 AND ABOVE
2 13103Z0S810 PISTON, OS 0.50 (OPTIONAL) ........................................ 1 ......S/N 1120058 AND BELOW
2 13103Z0S811 PISTON, OS 0.50 (OPTIONAL) ........................................ 1 ......S/N 1120059 TO 1141323
2 13103ZH7020 PISTON, OS 0.50 (OPTIONAL) ........................................ 1 ...... S/N 1141324 AND ABOVE
2 13104ZH7000 PISTON, 0.75 (OPTIONAL) .............................................. 1 ...... S/N 3993725 AND BELOW
2 13104ZH7010 PISTON, 0.75 (OPTIONAL) .............................................. 1 ...... S/N 3993726 AND ABOVE
2 13104Z0S810 PISTON, 0.75 (OPTIONAL) .............................................. 1 ...... S/N 1120058 AND BELOW
2 13104Z0S811 PISTON, 0.75 (OPTIONAL) .............................................. 1 ...... S/N 1120059 TO 1141323
2 13104ZH7020 PISTON, 0.75 (OPTIONAL) .............................................. 1 ...... S/N 1141324 AND ABOVE
3 13111ZE0000 PIN, PISTON 1
4 132A0ZE0000 ROD ASSY., CONNECTING (UNDERSIZE) OPTIONAL . 1 ......INCLUDES ITEMS W/ $
4 13200ZE0000 ROD ASSEMBLY, CONNECTING ..................................... 1 ...... INCLUDES ITEMS W/ $
4 13200Z0S800 ROD ASSEMBLY, CONNECTING ..................................... 1 ...... INCLUDES ITEMS W/ $
5$ 90001ZE1000 BOLT, CONNECTING ROD 2
6 90551ZE0000 CLIP, PISTON PIN 13MM 2
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 49
HONDA GX120K1QX2/UT1QX2 ENGINE — RECOIL STARTER ASSY.
PAGE 50 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — RECOIL STARTER ASSY.
RECOIL STARTER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 28400ZH8013ZB STARTER ASSY., RECOIL *NH1* (BLACK) ..... 1 ...............INCLUDES ITEMS W/$
1 28400ZH8013ZA STARTER ASSY., RECOIL *R8* (RED) .............1................S/N 4142273 AND BELOW
.............................................................................................INCLUDES ITEMS W/$
1 28400ZH8013YA STARTER ASSY., RECOIL *R280* (RED) .........1................S/N 4142274 AND ABOVE
.............................................................................................INCLUDES ITEMS W/$
1 28400ZH8023YA STARTER ASSY., RECOIL *R280* (RED) .........1................INCLUDES ITEMS W/ $
2$ 28410ZH8003ZB CASE, RECOIL STARTER *NH1* (BLACK) 1
2$ 28410ZH8003ZA CASE, RECOIL STARTER *R8*(RED) .............1................S/N 4142273 AND BELOW
2$ 28410ZH8003YA CASE, RECOIL STARTER *R280* (RED) .........1................S/N 4142274 AND ABOVE
2$ 28410ZH8003YA CASE, RECOIL STARTER *R280* (RED) 1
3$ 28420ZH8013 REEL, RECOIL STARTER 1
3$ 28420ZH8801 REEL, RECOIL STARTER 1
4$ 28422ZH8013 RATCHET, STARTER 2
4$ 28422ZH8801 RATCHET, STARTER 2
5$ 28433ZH8003 GUIDE, RATCHET 1
5$ 28433ZH8801 GUIDE, RATCHET 1
6$ 28441ZH8003 SPRING, FRICTION 1
6$ 28441ZH8801 SPRING, FRICTION 1
7$ 28442ZH8003 SPRING, RECOIL STARTER 1
8$ 28443ZH8003 SPRING, RETURN 2
8$ 28443ZH8801 SPRING, RETURN 2
9$ 28461ZH8003 GRIP, RECOIL STARTER 1
10$ 28462ZH8003 ROPE, RECOIL STARTER 1
11$ 90003ZH8003 SCREW, SETTING 1
12 90008ZE2003 BOLT, FLANGE 6X10 3
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 51
HONDA GX120K1QX2/UT1QX2 ENGINE — GASKET KIT ASSY.
PAGE 52 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — GASKET KIT ASSY.
GASKET KIT ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1$ 11381ZH7800 GASKET, CASE COVER 1
2$ 12251ZH7800 GASKET, CYLINDER HEAD 1
3$ 12391ZE1000 GASKET, CYLINDER HEAD COVER 1
4$ 16212ZH7800 GASKET, INSULATOR 1
5$ 16221ZH8801 GASKET, CARBURETOR 1
6$ 18381ZH8800 GASKET, MUFFLER 1
6$ 18381ZH8800 GASKET, MUFFLER ..........................................1................S/N 1060773 AND BELOW
6$ 18381Z0T801 GASKET, MUFFLER ..........................................1................S/N 1060774 AND ABOVE
7 06111ZH7405 GASKET KIT ......................................................1................INCLUDES ITEMS W/ $
7 061A1ZH7010 GASKET KIT ......................................................1................INCLUDES ITEMS W $
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 53
HONDA GX120K1QX2/UT1QX2 ENGINE — LABELS ASSY.
PAGE 54 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
HONDA GX120K1QX2/UT1QX2 ENGINE — LABELS ASSY.
LABELS ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 87521ZH7010 EMBLEM ............................................................1................S/N 2185870 TO 3841370
1 87521ZH7020 EMBLEM ............................................................1................S/N 3841371 TO 4142243
1 87521ZH7030 EMBLEM (4.0) ...................................................1................S/N 4142244 AND ABOVE
1 87521ZH7030 EMBLEM, (4.0) ..................................................1................S/N 1120058 AND BELOW
1 87521ZH7040 EMBLEM, GX120 ...............................................1................S/N 1120059 AND ABOVE
3 87522ZH9000 LABEL, CAUTION 1
4 87528ZE1810 MARK, CHOKE 1
4 87528ZH7000 MARK, CHOKE (GRAY) 1
5 87532ZH7000 THROTTLE INDICATION 1
6 87532ZH8810 MARK, OIL ALERT (E) 1
NOTICE
GX120K1QX2: AUGUST 2008 AND BELOW
GX120UT1QX2: SEPTEMBER 2008 AND ABOVE
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 55
TERMS AND CONDITIONS OF SALE — PARTS
PAYMENT TERMS
Terms of payment for parts are net 30 days.
FREIGHT POLICY
All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a
signed manifest has been obtained from the
carrier, and any claim for shortage or damage
must be settled between the consignee and
the carrier.
MINIMUM ORDER
The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.
RETURNED GOODS POLICY
Return shipments will be accepted and
credit will be allowed, subject to the following
provisions:
A Returned Material Authorization 1.
must be approved by Multiquip prior to
shipment.
To obtain a Return Material Authorization, 2.
a list must be provided to Multiquip
Parts Sales that defines item numbers,
quantities, and descriptions of the items
to be returned.
The parts numbers and descriptions a.
must match the current parts price
list.
The list must be typed or computer b.
generated.
The list must state the reason(s) c.
for the return.
The list must reference the sales d.
order(s) or invoice(s) under
which the items were originally
purchased.
The list must include the name e.
and phone number of the person
requesting the RMA.
A copy of the Return Material Authorization 3.
must accompany the return shipment.
Freight is at the sender’s expense. All 4.
parts must be returned freight prepaid to
Multiquip’s designated receiving point.
Parts must be in new and resalable 5.
condition, in the original Multiquip
package (if any), and with Multiquip part
numbers clearly marked.
The following items are not returnable:6.
Obsolete parts. (If an item is in the a.
price book and shows as being
replaced by another item, it is
obsolete.)
Any parts with a limited shelf life b.
(such as gaskets, seals, “O” rings,
and other rubber parts) that were
purchased more than six months
prior to the return date.
Any line item with an extended c.
dealer net price of less than
$5.00.
Special order items.d.
Electrical components.e.
Paint, chemicals, and lubricants.f.
Decals and paper products.g.
Items purchased in kits.h.
The sender will be notified of any material 7.
received that is not acceptable.
Such material will be held for five 8.
working days from notification, pending
instructions. If a reply is not received
within five days, the material will be
returned to the sender at his expense.
Credit on returned parts will be issued 9.
at dealer net price at time of the original
purchase, less a 15% restocking
charge.
In cases where an item is accepted, for 10.
which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.
Credit issued will be applied to future 11.
purchases only.
PRICING AND REBATES
Prices are subject to change without prior
notice. Price changes are effective on a
specific date and all orders received on or
after that date will be billed at the revised price.
Rebates for price declines and added charges
for price increases will not be made for stock
on hand at the time of any price change.
Multiquip reserves the right to quote and
sell direct to Government agencies, and to
Original Equipment Manufacturer accounts
who use our products as integral parts of their
own products.
SPECIAL EXPEDITING SERVICE
A $35.00 surcharge will be added to the
invoice for special handling including bus
shipments, insured parcel post or in cases
where Multiquip must personally deliver the
parts to the carrier.
LIMITATIONS OF SELLER’S LIABILITY
Multiquip shall not be liable hereunder for
damages in excess of the purchase price of
the item with respect to which damages are
claimed, and in no event shall Multiquip be
liable for loss of profit or good will or for any
other special, consequential or incidental
damages.
LIMITATION OF WARRANTIES
No warranties, express or implied, are
made in connection with the sale of parts or
trade accessories nor as to any engine not
manufactured by Multiquip. Such warranties
made in connection with the sale of new,
complete units are made exclusively by a
statement of warranty packaged with such
units, and Multiquip neither assumes nor
authorizes any person to assume for it
any other obligation or liability whatever in
connection with the sale of its products. Apart
from such written statement of warranty,
there are no warranties, express, implied or
statutory, which extend beyond the description
of the products on the face hereof.
Effective: February 22, 2006
PAGE 56 — CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10)
NOTES
CA4HM WALK-BEHIND TROWEL — PARTS MANUAL — REV. #4 (11/03/10) — PAGE 57
©
PARTS MANUAL
HERE’S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
UNITED STATES
Multiquip Corporate Office MQ Parts Department
18910 Wilmington Ave.
Carson, CA 90746
Contact: mq@multiquip.com
Mayco Parts Warranty Department
Tel. (800) 421-1244
Fax (800) 537-3927
800-427-1244
310-537-3700
Fax: 800-672-7877
Fax: 310-637-3284
800-306-2926
310-537-3700
Service Department Technical Assistance
800-421-1244
310-537-3700
Fax: 800-672-7877
Fax: 310-637-3284
Fax: 310-537-4259 800-478-1244 Fax: 310-631-5032
800-421-1244, Ext. 279
310-537-3700, Ext. 279
Fax: 310-537-1173
MEXICO UNITED KINGDOM
MQ Cipsa Multiquip (UK) Limited Head Office
Carr. Fed. Mexico-Puebla KM 126.5
Momoxpan, Cholula, Puebla 72760 Mexico
Contact: pmastretta@cipsa.com.mx
Tel: (52) 222-225-9900
Fax: (52) 222-285-0420
Unit 2, Northpoint Industrial Estate,
Global Lane,
Dukinfield, Cheshire SK16 4UJ
Contact: sales@multiquip.co.uk
Tel: 0161 339 2223
Fax: 0161 339 3226
CANADA
Multiquip
4110 Industriel Boul.
Laval, Quebec, Canada H7L 6V3
Contact: jmartin@multiquip.com
COPYRIGHT 2010, MULTIQUIP INC.
Multiquip Inc and the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property
of their respective owners and used with permission.
This manual
The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in
this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published
in this publication at any time without notice and without incurring any obligations.
MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.
Tel: (450) 625-2244
Tel: (877) 963-4411
Fax: (450) 625-8664
Your Local Dealer is:
Loading...
