Multiquip CA4HC User Manual

PARTS MANUAL

SERIES

MODEL CA4HC

WALK-BEHIND TROWEL

(HONDA

GX120

GASOLINE ENGINE)

Revision #3 (11/14/07)

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

P/N 21769

CA4HC TROWEL— PROPOSITION 65 WARNING

Engine exhaust and some of
its constituents, and some dust created
by power sanding, sawing, grinding,
drillingandotherconstructionactivities
contains chemicals known to the State
of California to cause cancer, birth
defects and other reproductive harm.
Some examples of these chemicals are:

Leadfromlead-basedpaints.
Crystallinesilicafrombricks.
Cementandothermasonryproducts.
Arsenicandchromiumfrom chemically
treatedlumber.

Your risk from these exposures varies,
dependingonhowoftenyoudothistype
of work. To reduce your exposure to
these chemicals: work in aALWAYS
well ventilated area, and work with

approved safety equipment, such as

dust masks that are specially designed
to filter out microscopic particles.

CA4HC TROWEL— SILICOSIS/RESPIRATORY WARNINGS

WARNING

SILICOSIS WARNING RESPIRATORY HAZARDS

Grinding/cutting/drilling of masonry, concrete, metal and
other materials with silica in their composition may give
off dust or mists containing crystalline silica. Silica is a
basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Repeated and/or
substantial inhalation of airborne crystalline silica can
cause serious or fatal respiratory diseases, including
silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a
substance known to cause cancer. When cutting such
materials, always follow the respiratory precautions
mentioned above.

WARNING

Grinding/cutting/drilling of masonry, concrete, metal and
other materials can generate dust, mists and fumes
containing chemicals known to cause serious or fatal
injury or illness, such as respiratory disease, cancer,
birth defects or other reproductive harm. If you are
unfamiliar with the risks associated with the particular
process and/or material being cut or the composition of
the tool being used, review the material safety data
sheet and/or consult your employer, the material
manufacturer/supplier, governmental agencies such as
OSHA and NIOSH and other sources on hazardous
materials. California and some other authorities, for
instance, have published lists of substances known to
cause cancer, reproductive toxicity, or other harmful
effects.

Control dust, mist and fumes at the source where
possible. In this regard use good work practices and
follow the recommendations of the manufacturers or
suppliers, OSHA/NIOSH, and occupational and trade
associations. Water should be used for dust
suppression when wet cutting is feasible. When the
hazards from inhalation of dust, mists and fumes cannot
be eliminated, the operator and any bystanders should
always wear a respirator approved by NIOSH/MSHA for
the materials being used.

CA4HC TROWEL— TABLE OF CONTENTS

MQ WHITEMAN CA4HC
WALK-BEHIND TROWEL

Table Of Contents ..................................................... 4

Parts Ordering Procedures ....................................... 5

Explanation of Codes in Remarks Column ............... 6

Suggested Spare Parts ............................................. 7

Component Drawings

Nameplate and Decals........................................... 8-9

Standard Handle Assembly ............................... 10-11

Foldable Handle Assembly ................................ 12-13

Basic Unit Assembly ........................................... 14-15

Gearbox Assembly ............................................. 16-17

Engine 4 HP Honda Assembly ........................... 18-19

Spider Assembly ................................................ 20-21

Blades and Pans Assembly ................................ 22-23

Honda GX120 Engine

Air Cleaner (Dual) Assembly .............................. 24-25

Camshaft Assembly ........................................... 26-27

Carburetor Assembly ......................................... 28-29

Control Assembly ............................................... 30-31

Crankcase Cover Assembly ............................... 32-33

Crankshaft Assembly ......................................... 34-35

Cylinder Barrel Assembly ................................... 36-37

Cylinder Head Assembly .................................... 38-39

Fan Cover Assembly .......................................... 40-41

Flywheel Assembly ............................................ 42-43

Fuel Tank Assembly ........................................... 44-45

Ignition Coil Assembly ........................................ 46-47

Muffler Assembly ............................................... 48-49

Piston Assembly ................................................. 50-51

Recoil Starter Assembly..................................... 52-53

Gasket Kit Assembly .......................................... 54-55

Labels ................................................................ 56-57

Terms and Condition Of Sale

— Parts .................... 58

Specifications and part numbers are
subject to change without notice.

PAGE 4 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

PARTS ORDERING PROCEDURES

r

Ordering parts has never been easier!

Choose from three easy options:

Effective:

January 1st, 2006

Best Deal!

Order via Internet (Dealers Only):

Order parts on-line using Multiquip’s SmartEquip website!

■

View Parts Diagrams

■

Order Parts

■

Print Specification Information

Goto www.multiquip.com and click on

Order Parts

to log in and save!

Order via Fax (Dealers Only):

All customers are welcome to order parts via Fax.

Domestic (US) Customers dial:

1-800-6-PARTS-7 (800-672-7877)

Order via Phone:

Non-Dealer Customers:

Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.

If you have an MQ Account, to obtain a
Username and Password, E-mail us at:

[e-mail].

To obtain an MQ Account, contact you
District Sales Manager for more information.

Use the

internet

on

Standard orders

and qualify for a 5% Discount

for all orders which include

complete part numbers.*

Fax

your order in and qualify for a 2% Discount

on

Standard orders

for all orders which include

complete part numbers.*

Domestic (US) Dealers Call:

1-800-427-1244

International Customers

their local Multiquip Representatives for
Parts Ordering information.

Note: Discounts Are Subject To Change

Note: Discounts Are Subject To Change

should contact

❒❒

❒

❒❒

❒❒

❒

❒❒

❒❒

❒

❒❒

❒❒

❒

❒❒
❒❒

❒

❒❒

❒❒

❒

❒❒

www.multiquip.com

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 5

When ordering parts, please supply:

❒❒

Dealer Account Number

Dealer Name and Address

Shipping Address (if different than billing address)

Return Fax Number
Applicable Model Number

Quantity, Part Number and Description of Each Part

All orders are treated as
and will ship the same day if received prior
to 3PM PST.

WE ACCEPT ALL MAJOR CREDIT CARDS!

❒

❒❒

Standard Orders

Specify Preferred Method of Shipment:

✓

UPS/Fed Ex

■

Priority One

■

Ground

■ Next Day

■

Second/Third Day

✓ DHL
✓

Tr u ck

CA4HC TROWEL — EXPLANATION OF CODES IN REMARKS COLUMN

The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the help
numbers found on the back page of the manual if there are any
questions.

The contents and part numbers listed in the parts section are
subject to change
guarantee the availibility of the parts listed.

Sample Parts List:

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ...................... 1 ......INCLUDES ITEMS W/

2

*

2*12347 WASHER, 3/8 IN. ... 1 ......

3 12348 HOSE ................... A/R ....MAKE LOCALLY

4 12349 BEARING ............... 1 ......S/N 2345B AND ABOVE

NO. Column

Unique Symbols - All items with same unique symbol

, #, +, %, or >) in the number column belong to the same

(

*

assembly or kit, which is indicated by a note in the “Remarks”
column.

Duplicate Item Numbers - Duplicate numbers indicate
multiple part numbers are in effect for the same general
item, such as different size saw blade guards in use or a
part that has been updated on newer versions of the same
machine.

When ordering a part that has more than one
item number listed, check the remarks column for
help in determining the proper part to order.

without notice

WASHER, 1/4 IN. .............

. Multiquip does not

NOT SOLD SEPARATELY
MQ-45T ONLY

*

QTY. Column

Numbers Used - Item quantity can be indicated by a

number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other parts

that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold

separately. Other entries will be clarified in the “Remarks”
Column.

REMARKS Column

Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed to
describe the item can also be shown.

Assembly/Kit

unique symbol will be included when this item is purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

Serial Number Break

number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”

Specific Model Number Use

used only with the specific model number or model number
variant listed. It can also be used to show a part is NOT
used on a specific model or model number variant.

Indicated by:

“XXXXX ONLY”
“NOT USED ON XXXX”

- All items on the parts list with the same

- Used to list an effective serial

- Indicates that the part is

PART NO. Column

Numbers Used - Part numbers can be indicated by a

number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a part

that has not been assigned a formal part number at time of
publication.

A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will be
clarified in the “Remarks” Column.

PAGE 6 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

“Make/Obtain Locally”

purchased at any hardware shop or made out of available
items. Examples include battery cables, shims, and certain
washers and nuts.

“Not Sold Separately”

purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available for
sale through Multiquip.

- Indicates that the part can be

- Indicates that an item cannot be

CA4HC TROWEL — SUGGESTED SPARE PARTS

CA4HC TROWEL 1 TO 3 UNITS WITH HONDA
GX120GX120UTZX2 GASOLINE ENGINE.

1 to 3 Units

Qty. ........ P/N .............................. Description

2 ............ 20478 .................... GRIP

1 ............ 21046 .................... GASKET KIT

1 ............ 21047 .................... BEARING KIT

2 ............ 9807354776 .......... SPARK PLUG HONDA

2 ............ 17631ZH7003 ....... TANK CAP (HONDA)

3 ............ 17211896000 ........ AIR CLEANER ELEMENT (HONDA)

2 ............ 17218ZE2505 ....... FILTER OUTER (HONDA)

1 ............ 21718 .................... PITCH CABLE (STANDARD HANDLE)

1 ............ 1714 ...................... PITCH CABLE (QPHAFC HANDLE)

1 ............ 21724 .................... THROTTLE CABLE (STANDARD HNDL)

1 ............ 21823 .................... THROTTLE CABLE (QPHAFC HNDL)

1 ............ 10607 .................... THRUST BEARING

1 ............ 10567 .................... THRUST COLLAR

1 ............ 10639 .................... WEAR PLATE

3 ............ 2343-1 .................. V-BELT (A-25)

2 ............ 10065 .................... GEARBOX LUBRICANT

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 7

NAMEPLATE AND DECALS

P/N35168

CA4HC TROWEL — NAMEPLATE AND DECALS

5

19

P

O

W

E

P/N 1848

MODEL
SERIAL NO.

7

CONTACT
SERVICE
DEPARTMENT

P/N: 13118

R

12

P/N 2942 WHITE TEXT 13”

L

E

W

O

R

T

13

WARNING

To avoid injury,
you MUST read
and understand
operator’s manual
before using this
machine.

This machine to
be operated by
qualified
personnel only.

Ask for training
as needed.

P/N35137

2

BELT DRIVE

GEAR DRIVE

CLOCKWISE

3

GEAR DRIVE

P/N 35137

6

CHECK

CHECK

17

15

P/N 11092

P/N 20816

8

P/N 36099 (ISO Blue)

9

HOT

COUNTER

CLOCKWISE

LIFTING POINTLIFTING POINT

4

1

P/N: 1492

(STANDARD MODEL)

WARNING

ROTATING BLADE

HAZARD

Keep hands
and feet clear

14

of guard rings.
Stop engine
before servicing.

P/N35168

P/N 35168

PAGE 8 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

16

Engine exhaust and some of
its constituents,and somedust created
by power sanding, sawing, grinding,
drillingand otherconstructionactivities
contains chemicals known to the State

of California to cause cancer, birth

defects and other reproductive harm.
Someexamples of thesechemicals are:

Leadfrom lead-basedpaints.
Crystallinesilica frombricks.
Cementand othermasonryproducts.
Arsenicand chromiumfromchemically
treatedlumber.

Your riskfrom these exposures varies,

dependingon howoftenyou dothistype

of work.To reduce your exposure to
these chemicals: work in aALWAYS
well ventilated area, and work with

10

approved safety equipment, such as
dust masksthat are specially designed
to filterout microscopic particles.

P/N 20525

P/N: 21455

18

P/N 21302

LUBRICATION

LUBRICATION

P/N: 11246

11

LUBRICATION

LUBRICATION

P/N 20936

CA4HC TROWEL — NAMEPLATE AND DECALS

NAMEPLATE AND DECALS

NO. PART NO. PART NAME QTY. REMARKS

1 1492 DECAL: FINISHER HANDLE 1

2 11246 DECAL: BELT DRIVE ........................................... 1 ....... SAFETY ITEM

3 11246 DECAL: GEAR DRIVE .......................................... 1 ....... SAFETY ITEM

4 11246 DECAL: COUNTER CLOCKWISE......................... 1 ....... SAFETY ITEM

5 1848 DECAL: MQ/WHITEMAN POWER TROWEL 1
6 11246 DECAL: CHECK OIL 1

7 NAME PLATE ........................................................ 1 ....... CONTACT MULTIQUIP

.......................................................................................... PARTS DEPARTMENT

8 36099 DECAL: HELMET, SHOE AND GLOVE ................ 1 ....... SAFETY ITEM

9 11246 DECAL: HEAT ....................................................... 1 ....... SAFETY ITEM

10 20525 DECAL: WARNING, CA PROP 65 ......................... 1 ....... SAFETY ITEM

11 20936 DECAL: MQ MULTIQUIP 3
12 2942 DECAL: MQ WHITEMAN (WHITE TEXT) 1

13 35137 DECAL: WARNING, READ MANUAL .................... 1 ....... SAFETY ITEM

14 35168 DECAL: WARNING, BLADE RISK ........................ 1 ....... SAFETY ITEM

15 11092 DECAL: CE 1

16 21455 DECAL: WARNING, LIFT/CRUSH HAZARD.......... 1 ....... SAFETY ITEM

17 20816 DECAL: MULTIQUIP 1

18 21302 DECAL: WARNING KEEP GUARDS IN PLACE .... 1 ....... SAFETY ITEM

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 9

STANDARD HANDLE ASSY.

CA4HC TROWEL — STANDARD HANDLE ASSY.

4

12

5

8

15

3

6

7

9

14

13

16

1

SEE

DETAIL “A”

10

2

18

19

20

1

17

21

28

25

26

25

11

22

29

24

26

25

25

24

26

DETAIL “A”

CABLE LENGTH IS PRESET AND
ATTACHED TO THROTTLE LEVER

1

AT THE FACTORY. ORDERABLE
AS A UNIT ONLY.

23

PAGE 10 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

27

CA4HC TROWEL — STANDARD HANDLE ASSY.

STANDARD HANDLE

NO. PART NO. PART NAME QTY. REMARKS

1 20478 GRIP, HANDLE 2
2 21251 HANDLE 1
3
4
5
6
7
8 21279 HAND WHEEL ASSEMBLY, PITCH CONTROL 1 INCLUDES ITEMS W/
9
10 391512 LEVER, THROTTLE 1
11 21724 CABLE, THROTTLE 1

12 HANDLE ASSEMBLY, STD WHITEMAN FIN ....... 1 ............ CONTACT MQ UNIT SALES DEPT.

13 0786 SCREW, BHC 1/4- 20 X 3/8 NYL PATCH, NP 1
14 0786A SPACER, SLIDE BLOCK GUIDE 1
15 21249 SLIDE BLOCK, TROWEL CONTROL 1
16 20285 CABLE, PITCH CONTROL 1
17 21250 BLOCK SUPPORT 1
18 20856 SWITCH ASSEMBLY, SAFETY STOP 1

19 1602 SCREW, RHM 10-24 X 3/8 ................................... 1 ............ INCLUDES ITEM W/#

20# 20988 SCREW, FHSC PHILLIPS 8-32 X 1 1/4 1
21 20514 WIRE ASSEMBLY, SAFETY STOP SWITCH 1
22 21254 HANDLE TUBE 1
23 0106 NUT, HEX JAM 5/16-18 2
24 0169 SCREW, HHC 3/8-16 X 3.0 2
25 10136 WASHER, FLAT 3/8 SAE 4
26 10133 NUT, NYLOC 3/8-16 4
27 21017 SCREW, HHC 3/8-16 X 3 1/4 FULL THRD GR 5 1
28 1247 GROMMET, 1/4 X .875ID X 1-5/8OD 1
29 1245 BUSHING 1

21279 HAND WHEEL, PITCH CONTROL 1

*

1729 PIN, ROLL 3/16 X 1-1/4 1

*

21248 BEARING, TROWEL CONTROL 1

*

3615 COLLAR, SET 3/4 ID 1

*

21282 SHAFT, PITCH CONTROL 1

*

0122C SCREW, SHS 3/8-16 X 1/2 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 11

FOLDABLE HANDLE ASSY.

CA4HC TROWEL — FOLDABLE HANDLE ASSY.

7

30

39

34

8

5

38

6

10

25

18

26

1

36

15

16

27

12

12

14

17

21

19

20

2

11

22

9

37

3

28

2

35

31

24

13

23

4

33

29

32

40

15

14

PAGE 12 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

CA4HC TROWEL — FOLDABLE HANDLE ASSY.

FOLDABLE HANDLE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0161 C WASHER, LOCK 5/16 MED 1
2 0300 B WASHER, FLAT SAE 5/16 2
3 0669 A SCREW, HHC 5/16 - 18 X 2-1/4 1
4 1116 NUT, HEX JAM 5/16-18 1
5 1662 TIE, CABLE TY-RAP BLACK 3
6 1714 CABLE, PITCH CONTROL 1
7 1724 GRIP, HANDLE PITCH 1
8 60123 3/8" EXPANDABLE SLEEVING 1
9 3164 SCREW, FHSC 1/4 - 20 X 1/2 NO PLATE 1
10 3216 PIN, COTTER 1/8D X 1.00 1
11 5117 PIN, COTTER 1/16D X 1/2 2
12 5283 NUT, NYLOC 5/16-18 2
13 5291 PIN, CLEVIS 3/8 X 1-1/8 1
14 8128 CLAMP, HOSE SUPPORT 5/16 2
15 10136 WASHER, FLAT 3/8 SAE 2
16 10651 TEE HANDLE 1
17 10654 SPRING, LATCH RETURN 1
18 10655 COVER, SPRING 1
19 10657 CONTROL HANDLE 1
20 10658 TUBE, CONTROL HANDLE SUPPORT 1
21 10660 SHIM, 1.125 O.D. X .75 I.D. X .031 1
22 10676 NUT, ACORN 5/16 - 18 1
23 10698 NUT, 5/16 - 18 - CONICAL 1
24 10701 BOLT, SWING 1
25 3910382 SCREW, SHLDR 3/8D X 3/8L 5/16-1 SCKT HD 1
26 10878 BOLT, QP LATCHING 1
27 10881 LATCHING BAR 1
28 11015 STRIP, HANDLE SPACER 1
29 20280 BLOCK, PITCH CONTROL 1
30 20478 GRIP, HANDLE 2
31 21017 SCREW, HHC 3/8-16 X 3 1/4 FULL THRD GR 5 1
32 21758 PIN, HINGE HANDLE 1
33 21779 HANDLE, LOWER 1
34 21780 THROTTLE, MAGURA MODEL 90 W/KILL SW 1
35 21781 NUT, FLG'D HEX 3/8 - 16 PLTD 1
36 21785 KILL SWITCH HARNESS, MAGURA MODEL 90 1
37 21788 HANDLE, UPPER 1
38 21823 CABLE, MAGURA MODEL 90 CONTROL LEVER 1
39 21824 ADJUSTER, W/THUMB WHEEL 1
40 HANDLE ASSY, QPHAFC 1

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 13

BASIC UNIT ASSY.

CA4HC TROWEL — BASIC UNIT ASSY.

5

17

PITCH CONTROL

CABLE

1

11

4

12

3

2

18

21

15

19

PAGE 14 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

CA4HC TROWEL — BASIC UNIT ASSY.

BASIC UNIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0627 KEY, INPUT SHAFT SQUARE 1
2 1139 KEY, WOODRUFF #810 1
3 1207 SCREW, HHC 5/16 - 18 X 1-3/4 1
4 4014 SCREW. 2-3/16 P-K TYPE U DRIVE 2
5 10024 NUT, NYLOC 1/4 - 20 1
11 21735 LIFT HANDLE 1
12 20478 GRIP, HANDLE 1
15 21433 RING, ROTATING GUARD 1
17 25334 WASHER, FLAT 1/4 USS 1

18 21441 BEARING, 2.9375 I.D. 4.527 O.D. .....................1 ................. INCLUDES ITEM W/#

19# 21443 BELT, CLEAR URETHANE 1
21 21480 RING, RETAINING 1

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 15

GEARBOX ASSY.

CA4HC TROWEL — GEARBOX ASSY.

1

2

3

4

34

PITCH CONTROL

CABLE

APPLY THREAD LOCK (LOCTITE

1

242 BLUE OR EQUIVALENT).

APPLY SEALANT (LOCTITE

2

572 WHITE OR EQUIVALENT).

TORQUE TO 15 FT-LBS (20 Nm)

3

GASKETS ARE NOT SOLD SEPARATELY.

4

SHIM (GASKETS) AS NECESSARY FOR
INPUT SHAFT END-PLAY.

GASKETS ARE NOT SOLD SEPARATELY.
SHIM (GASKETS) AS NECESSARY FOR

5

OUTPUT SHAFT END-PLAY.

USE SPECIALLY FORMULATED
WHITEMAN GEARBOX LUBRICANT

6

P/N 10139 OR ISO OIL.

REQUIRES 24 OZ. OF LUBRICATING

.

OIL FOR OPERATION

GASKET AND SEAL KIT INCLUDES

7

ITEMS 1,4, 25, AND 29 PLUS GASKETS.

BEARING KIT INCLUDES ITEMS 6,7,18

8

AND 19.

GEARBOX ASSEMBLY INCLUDES
ITEMS WITHIN DASHED LINE

9

EXCEPT ITEMS 12,13 AND 31

5

33

12

1

7

31

8

6

9

4

6

35

36

32

GEARBOX

7

13

11

7

6

8

10

17

18

19

20

13

34

19

18

22

21

23

5

25

29

28

3

26

14

8

12

GEARBOX

(751 mL)

2

15

16

7

OIL

22 OZ.

PAGE 16 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

CA4HC TROWEL — GEARBOX ASSY.

GEARBOX ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1%
2% 0131 A SCREW, HHC 1/4-20 X 3/4 4
3% 12876 FLANGE, INPUT SHAFT 1
4%
6%# 20466 BEARING, CUP, TIMKEN 2
7%# 20465 BEARING, CONE, TIMKEN 2
8% 0627 KEY, SQUARE 3/16 X 1 1/4 1
9% 1851 GEAR, WORM & SHAFT ASSY. 1
10% 12874 CASE, GEAR WORM MACHINED 1
11% 21218 VENT, AIR 1

12 21046 GASKET/SEAL KIT ............................................... 1 ................. INCLUDES ITEMS W/

13 21047 BEARING KIT ........................................................ 1 ................. INCLUDES ITEMS W/ #

14% 20476 SCREW, HHC 1/4-28 X 3/8 2
15% 21033 SIGHT GLASS, 3/4 NPT STEEL-NO BALL 1
16% 0121 A FITTING, PLUG 3/8 MP SQ HEAD 1
17% 1138 RING, SNAP, TRUARC 5100-112 1
18%# 20475 BEARING, CUP TIMKEN 2
19%# 20474 BEARING, CONE TIMKEN 2
20% 1140 GEAR, WORM, COMPOSITE 1
21% 21435 SHAFT, OUTPUT 1
22% 1139 KEY, WOODRUFF #810 HARDENED 1
23% 1238 KEY, WOODRUFF #25 1
26% 12875 COVER, GEARBOX 1
25% 20396 O-RING, 254 BUNA N 1
27% 10235 WASHER, C/S EXT. SHKP 4
28% 20875 SCREW, FHSC 5/16-18 X 3/4 4
29%

30 21436 GEARBOX ASSY. .................................................. 1 ................. INCLUDES ITEMS W/ %

31 100139 LUBE, GEARBOX OIL ISO 680 22 OZ (650 ML) ... 2 ................. REQUIRES 20 OZ.

32 10698 NUT, ADJUSTING 5/16-18 1
33 1116 NUT, BRASS JAM 5/16-18 1
34 20802 SNAP RING 2
35 20801 YOKE PIN 1
36 21477 YOKE 1

0753 SEAL, OIL NATIONAL 1

*

20395 RING, O -2" BUNA N 1

*

0254 SEAL, OIL, NATIONAL 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 17

ENGINE, 4 HP HONDA ASSY.

CA4HC TROWEL — ENGINE, 4 HP HONDA ASSY.

1

19

2

11

7

5

23

22

4

8

3

13

21

9

20

26

15

16

10

24

1

6

1

25

15

COMES WITH PULLEY

1

15

PAGE 18 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

CA4HC TROWEL — ENGINE, 4 HP HONDA ASSY.

ENGINE, 4 HP HONDA ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0105 SCREW, HHC 5/16- 18 X 1-1/2 3
2 0161 C LOCK WASHER 5/16 3
3 0166 A LOCK WASHER 3/8 1
4 0255 CLUTCH ASSEMBLY 1
5 0300 B FLAT WASHER 5/16 3
6 0740 PULLEY AK-51 X 3/4 1
7 1273 SCREW, HHST 3- 32 X 3/8 2
8 1284 SCREW, HHC 3/8 -16 X 1-1/2 1
9 1406 END PLUG, CLUTCH 1
10 1733 WASHER, 1/2 X 1/32 1
11 1834 DEFLECTOR, HONDA EXHAUST 1
13 10136 FLAT WASHER 3/8 1
15 12287 SCREW, THP 1/4 - 20 X 3/4 SS 3
16 13351 WASHER, FLAT USS 3/8 EXT. THK. 1
19 21387 ENGINE, 4 HP. HONDA GX120UTQX2 1
20 21678 SCREW, FHSC 5/16 - 24 X 1-3/4 1
21 21679 SPACER, 1" X .78 X 69L 1
22 21911 SCREW, HHFS 5/16 - 24 X 1 GR5 4
23 21915 SPACER, C M & J LIFTING BALE 1
24 21927 BRACKET, W/LIFTING BALE ASSEMBLY 1
25 2343-1 V-BELT, A-25 1
26 30102-001 BELT GUARD, TROWEL 1

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 19

SPIDER ASSY.

10

4

16

CA4HC TROWEL — SPIDER ASSY.

13

14

3

15

5

11

1

4

12

2

2

7

3

6

9

8

NOTES:

1

APPLY LOCTITE P/N 1477 TO ITEMS 1.

SPIDER ASSEMBLY P/N 11860

2

INCLUDES ALL ITEMS WITHIN OUTLINE.

17

INCLUDED WITH ITEM 15 OR CAN BE

3

ORDERED SEPARATELY (P/N 1471)

TORQUE TO 130 FT.-LBS (176 Nm)

4

PAGE 20 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

CA4HC TROWEL — SPIDER ASSY.

SPIDER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1# 0164 B SCREW, HHC 3/8- 16 X 1-1/4 F.T. 4
2# 0166 A LOCK WASHER 3/8” 4
3# 1875 WASHER, LOCK 3/8 MED 4
4# 1876 NUT, JAM 3/8- 16 4
5# 10563 SPIDER 1
6# 10587 SCREW, RETAINING 4
7# 11299 SCREW, SHS 5/16- 18 X 9/16” CONE PT. 2
8# 1162 A GREASE ZERK CAP 4
9# 10768 TROWEL ARM 4
10 10790 SCREW, HHC M6- 1 X 30MM 8
11 0181 B LOCK WASHER 1/4” 8

12 11860 SPIDER ASSEMBLY ........................................ 1 ............ INCLUDES ITEMS W/#

13 10607 THRUST BEARING 1
14 21434 SLEEVE, PITCH 1
15 10567 THRUST COLLAR 1
16 10639 WEAR PLATE 1

17 BLADE ASSEMBLY .......................................... 4 ............ CONTACT MQ UNIT SALES

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 21

BLADES & PAN ASSY.

CA4HC TROWEL — BLADES & PAN ASSY.

PAGE 22 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

CA4HC TROWEL — BLADES & PAN ASSY.

BLADES & PAN ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 COMBO FLOAT & FINISH BLADE .......................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

2 FLOAT DISC LATCH PIN ....................................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

3 FLOAT DISC ........................................................... 1 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 23

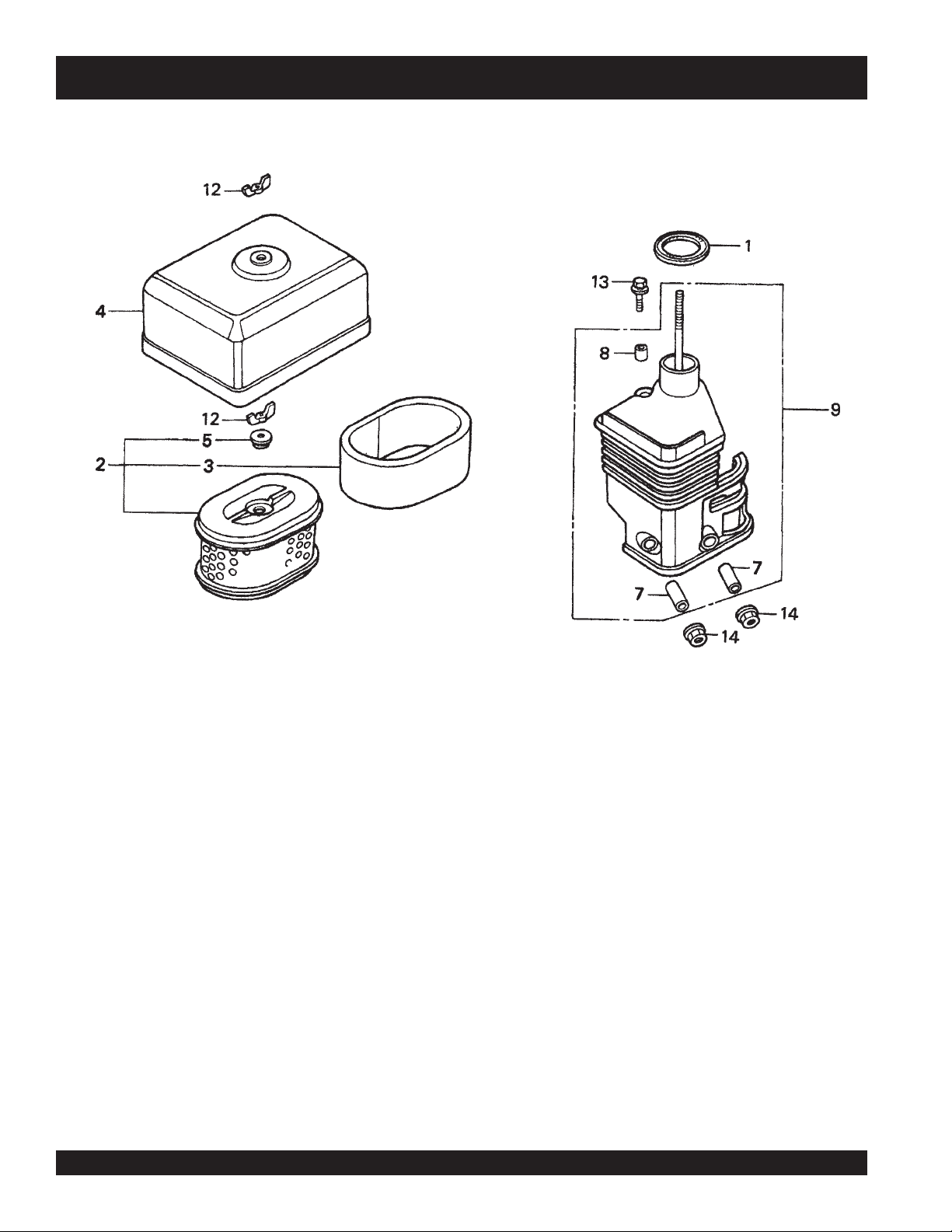

HONDA GX120UTQX2 ENGINE — AIR CLEANER (DUAL) ASSY.

AIR CLEANER (DUAL) ASSY.

PAGE 24 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — AIR CLEANER (DUAL) ASSY.

AIR CLEANER (DUAL) ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 16271ZE1000 GASKET, ELBOW 1

2 17210ZE0505 ELEMENT, AIR CLEANER (DUAL) ................... 1 .............INCLUDES ITEMS W/

3
4 17230ZE0820 COVER, AIR CLEANER (DUAL) 1
5
7# 17238ZE0010 COLLAR, AIR CLEANER 2
8# 17239ZE1000 COLLAR B, AIR CLEANER 1

9 17410ZE0030 ELBOW, AIR CLEANER ................................... 1............. INCLUDES ITEMS W/#

12 90325044000 WINGNUT, TOOL BOX SETTING 2
13 957010602000 BOLT, FLANGE 6X20 1
14 9405006000 NUT, FLANGE 6MM 2

17218ZE0505 FILTER, OUTER 1

*

17232891000 GROMMET, AIR CLEANER 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 25

CAMSHAFT ASSY.

HONDA GX120UTQX2 ENGINE — CAMSHAFT ASSY.

PAGE 26 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — CAMSHAFT ASSY.

CAMSHAFT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 14100ZE0812 CAMSHAFT ASSEMBLY .................................. 1 .............INCLUDES ITEMS W/

2 14410ZE0010 ROD, PUSH 2
3 14431ZE1000 ARM, VALVE ROCKER 2
4 14441ZE1010 LIFTER, VALVE 2
5 14451ZE1013 PIVOT, ROCKER ARM 2
6
7 14711ZF0010 VALVE, IN. 1
8 14721ZH7810 VALVE, EX. (HAUST) 1
9 14751ZF1000 SPRING, VALVE 2
10 14771ZE1000 RETAINER, IN. VALVE SPRING 1
11 14773ZE1000 RETAINER, EX. VALVE SPRING 1
12 14781ZE1000 ROTATOR, VALVE 1
13 14791ZE0010 PLATE, PUSH ROD GUIDE 1
14 90012ZE0010 BOLT, PIVOT 8MM 2
15 90206ZE1000 NUT, PIVOT ADJ. 2

14568ZE1000 SPRING, WEIGHT RETURN 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 27

CARBURETOR ASSY.

HONDA GX120UTQX2 ENGINE — CARBURETOR ASSY.

PAGE 28 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — CARBURETOR ASSY.

CARBURETOR ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1

*

2

*

3

*

4

*

5

*

6

*

7

*

8

*

9 16100ZH8W51 CARBURETOR ASSY. (BE65B B) ................ 1 ...... INCLUDES ITEMS W/

10
11
12
13 16211ZE1000 INSULATOR, CARBURETOR 1
14 16212ZH7800 GASKET, INSULATOR 1
15 16220ZE1020 SPACER, CARBURETOR 1
16 16221ZH8801 GASKET, CARBURETOR 1

17 16610ZE1000 LEVER, CHOKE (STD) ................................ 1 ...... INCLUDES ITEMS W/

18
19
20
21
22
23
24# 9430520122 PIN, SPRING (2 X 12) 1
25 99101ZH80550 JET, MAIN (#55) OPTIONAL 1
25 99101ZH80580 JET, MAIN (#58) OPTIONAL 1
25
26

16010ZE1812 GASKET SET 1
16011ZE0005 VALVE SET, FLOAT 1
16013ZE0005 FLOAT SET 1
16015ZE1811 CHAMBER SET, FLOAT 1
16016ZH7W01 SCREW SET 1
16024ZE1811 SCREW SET, DRAIN 1
16028ZE0005 SCREW SET B 1
16044ZE0005 CHOKE SET 1

16124ZE0005 SCREW, THROTTLE STOP 1

*

16166ZH7W50 NOZZLE, MAIN 1

*

16173001004 O-RING 1

*

16953ZE1812 LEVER, VALVE 1

*

16954ZE1811 PLATE, LEVER SETTING 1

*

16956ZE1811 SPRING, VALVE LEVER 1

*

16957ZE1812 GASKET, VALVE 1

*

16967ZE0811 CUP, FUEL STRAINER 1

*

93500030080G SCREW, PAN (3 X 6) 2

*

99101ZH80600 JET, MAIN (#60) 1

*

99204ZE00350 JET, SET, PILOT (#35) 1

*

*

#

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 29

CONTROL ASSY.

HONDA GX120UTQX2 ENGINE — CONTROL ASSY.

PAGE 30 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — CONTROL ASSY.

CONTROL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 16500ZH7820 CONTROL ASSEMBLY .................................... 1............. INCLUDES ITEMS W/

4 16551ZE0010 ARM, GOVERNOR 1
5 16555ZE0000 ROD, GOVERNOR 1
6 16561ZE0020 SPRING, GOVERNOR 1
7 16562ZE0020 SPRING, THROTTLE RETURN 1
8
9
10
11
12
14
15
16
18 90013883000 BOLT, FLANGE 6X12 (CT200) 1
19 90015ZE5010 BOLT, GOVERNOR ARM 1
20 90022888010 BOLT, FLANGE 6X20 (CT200) 1
21
24
25
26 9405006000 NUT, FLANGE 6MM 1

16571ZH7000 LEVER, CONTROL 1

*

16574ZE1000 SPRING, LEVER 1

*

16575ZH8000 WASHER, CONTROL LEVER 1

*

16576891000 HOLDER, CABLE 1

*

16578ZE1000 SPACER, CONTROL LEVER 1

*

16580ZH7810 BASE, CONTROL 1

*

16584883300 SPRING, CONTROL ADJUSTING 1

*

16592ZE1810 SPRING, CABLE RETURN 1

*

90114SA0000 NUT, SELF- LOCK 6MM 1

*

93500050250H SCREW, PAN 5X25 1

*

93500050160A SCREW-WASHER (5X16) 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 31

HONDA GX120UTQX2 ENGINE — CRANKCASE COVER ASSY.

CRANKCASE COVER ASSY.

PAGE 32 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — CRANKCASE COVER ASSY.

CRANKCASE COVER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 11300ZE0640 COVER ASSEMBLY, CRANKCASE (U- TYPE).........1 ............. INCLUDES ITEMS W/

2 11381ZH7800 GASKET, CASE COVER 1

3 15600ZE1003 CAP ASSEMBLY, OIL FILLER ..................................1 ............. INCLUDES ITEMS W/

4 15600ZG4003 CAP ASSEMBLY, OIL FILLER ..................................1 ............. INCLUDES ITEMS W/

7# 15625ZE1003 GASKET, OIL FILLER CAP 1
8
9 90015883000 BOLT, FLANGE 6X28 7
10% 91001878003 BEARING, RADIAL BALL 1
11
12 9430108140 PIN A, DOWEL 8X14 2

15625ZE1003 GASKET, OIL FILLER CAP 1

*

% 91203ZE0003 OIL SEAL 22X41X6 1

%

#

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 33

CRANKSHAFT ASSY.

HONDA GX120UTQX2 ENGINE — CRANKSHAFT ASSY.

PAGE 34 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — CRANKSHAFT ASSY.

CRANKSHAFT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 13310ZE0650 CRANKSHAFT, Q-TYPE 1
9 90745ZE1600 KEY (4.78 X 4.78 X 38) 1

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 35

HONDA GX120UTQX2 ENGINE — CYLINDER BARREL ASSY.

CYLINDER BARREL ASSY.

PAGE 36 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — CYLINDER BARREL ASSY.

CYLINDER BARREL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 12000ZH7415 CYLINDER ASSEMBLY, 811 (OIL ALERT)............ 1 .............. INCLUDES ITEMS W/

3 15510ZE1033 SWITCH ASSEMBLY, OIL LEVEL 1

4 16510ZE1000 GOVERNOR ASSEMBLLY .................................... 1.............. INCLUDES ITEMS W/

5# 16511ZE1000 WEIGHT, GOVERNOR 2

# 16512ZE1000 HOLDER, GOVERNOR WEIGHT 1

6
7

# 16513ZE1000 PIN, GOVERNOR WEIGHT 2

8 16531ZE1000 SLIDER, GOVERNOR 1
9 16541ZE1000 SHAFT, GOVERNOR ARM 1
10 90131ZE1000 BOLT, DRAIN PLUG 2
11 90451ZE1000 WASHER, THRUST 6MM 1
12 90601ZE1000 WASHER, DRAIN PLUG 10.2MM 2
13 90602ZE1000 CLIP, GOVERNOR HOLDER 1
14
15
16 91353671003 O- RING 13.5X1.5 (ARAI) 1
17 9405010000 NUT, FLANGE 10MM 1
18 9410106800 WASHER, PLAIN 6MM 2
19 9425108000 PIN, LOCK 8MM 1
20 957010601200 BOLT, FLANGE 6X12 2

91001878003 BEARING, RADIAL BALL 62/22 1

*

91202ZE6003 OIL SEAL 22X35X6 1

*

*

#

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 37

CYLINDER HEAD ASSY.

HONDA GX120UTQX2 ENGINE — CYLINDER HEAD ASSY.

PAGE 38 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — CYLINDER HEAD ASSY.

CYLINDER HEAD ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 12210ZH7000 CYLINDER HEAD .................................................. 1.............. INCLUDES ITEMS W/

2
3
4
5 12251ZH7800 GASKET, CYLINDER HEAD 1
6 12310ZE1000 COVER, HEAD 1
6 12310ZE1010 COVER, HEAD 1
7 12391ZE1000 GASKET, CYLINDER HEAD COVER 1
8 15721ZH8000 TUBE, BREATHER 1
9 90013883000 BOLT, FLANGE 6X12 (CT200) 4
10 90043ZE1020 BOLT, STUD 6X109 2
11 90047ZE1000 BOLT, STUD 8X32 2
12 9430110160 PIN, A, DOWEL 10X16 2
14 957230805500 BOLT, FLANGE 8X55 4
15 9807955855 SPARK PLUG W16EPR- U (DENSO), OPT. 1
15 9807956846 SPARK PLUG BPR6ES, (NGK) 1

12204ZE1306 GUIDE, VALVE (OS) OPTIONAL 1

*

12205ZE1315 GUIDE, EX. VALVE (OS) OPTIONAL ................... 1.............. INCLUDES ITEMS W/#

*

# 12216ZE5300 CLIP, VALVE GUIDE 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 39

FAN COVER ASSY.

HONDA GX120UTQX2 ENGINE — FAN COVER ASSY.

PAGE 40 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — FAN COVER ASSY.

FAN COVER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 11347371300 GROMMET, ADJUSTING COVER 1
2 19610ZE0000ZE COVER, FAN *NH1* BLACK 1
3 19612ZH7810 PLATE, SIDE (OIL ALERT) 1
4 90601ZH7013 CLIP, HARNESS 1
5 19630ZH7000 SHROUD 1
6 32197ZH8003 SUB- HARNESS 1
7 36100ZH7003 SWITCH ASSEMBLY, ENGINE STOP 1
8 36101ZE1010 WIRE, STOP SWITCH 370MM 1
9 90013883000 BOLT, FLANGE 6X12 (CT200) 6
10 90022888010 BOLT, FLANGE 6X12 (CT200) 1
11 34150ZH7003 ALERT UNIT, OIL 1
13 957010600800 BOLT, FLANGE 6X8 1

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 41

FLYWHEEL ASSY.

HONDA GX120UTQX2 ENGINE — FLYWHEEL ASSY.

PAGE 42 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — FLYWHEEL ASSY.

FLYWHEEL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 13331357000 KEY, SPECIAL WOODRUFF 25X18 1
2 19511ZE0000 FAN, COOLING 1
4 28451ZH8003 PULLEY, STARTER 1
5 31100ZE0010 FLYWHEEL 1
7 90201878003 NUT, SPECIAL 14MM 1

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 43

FUEL TANK ASSY.

HONDA GX120UTQX2 ENGINE — FUEL TANK ASSY.

PAGE 44 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — FUEL TANK ASSY.

FUEL TANK ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 16854ZH8000 RUBBER, SUPPORTER 107MM 1
2 16955ZE1000 JOINT, FUEL TANK 1
3 17510ZE0020ZD TANK, FUEL *NH1* (BLACK) 1

5 17620ZH7023 CAP, FUEL FILLER ............................................... 1 .............. INCLUDES ITEMS W/

6
11 91353671003 O- RING 13.5X1.5 (ARAI) 1
12 9405006000 NUT, FLANGE 6MM 2
13 950014500360M BULK HOSE, FUEL (4.5X3000) (4.5X140) 1
14 9500202080 CLIP, TUBE (B8) 2
15 90004ZH7003 BOLT, FLANGE 6X29 1

17631ZH7003 GASKET, FUEL FILLER CAP 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 45

IGNITION COIL ASSY.

HONDA GX120UTQX2 ENGINE — IGNITION COIL ASSY.

PAGE 46 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — IGNITION COIL ASSY.

IGNITION COIL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 30500ZE1033 COIL ASSEMBLY, IGNITION 1
2 30700ZE1013 CAP ASSEMBLY, NOISE SUPPRESSOR 1
8 90121952000 BOLT, FLANGE 6X25 2

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 47

MUFFLER ASSY.

HONDA GX120UTQX2 ENGINE — MUFFLER ASSY.

PAGE 48 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — MUFFLER ASSY.

MUFFLER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 18310ZF1000 MUFFLER 1
3 18320ZF1H01 PROTECTOR, MUFFLER 1
7 18381ZH8800 GASKET, MUFFLER 1
10 90050ZE1000 SCREW, TAPPING 5X8 4
13 94001080000S NUT, HEX. 8MM 2

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 49

PISTON ASSY.

HONDA GX120UTQX2 ENGINE — PISTON ASSY.

PAGE 50 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — PISTON ASSY.

PISTON ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 13010ZK7V01 RING SET, PISTON (STANDARD) 1
1 13011ZK7V01 RING SET, PISTON (OS 0.25), OPTIONAL 1
1 13012ZK7V01 RING SET, PISTON (OS 0.50), OPTIONAL 1
1 13013ZK7V01 RING SET, PISTON (0.75), OPTIONAL 1
2 13101ZH7000 PISTON, STANDARD 1
2 13102ZH7000 PISTON, OS 0.25 (OPTIONAL) 1
2 13103ZH7000 PISTON, OS 0.50 (OPTIONAL 1
2 13104ZH7000 PISTON, 0.75 (OPTIONAL) 1
3 13111ZE0000 PIN, PISTON 1

4 132A0ZE0000 ROD ASSY., CONNECTING (UNDERSIZE) OPTIONAL .... 1 .......... INCLUDES ITEMS W/

4 13200ZE0000 ROD ASSEMBLY, CONNECTING ................................... 1 .......... INCLUDES ITEMS W/

5
6 90551ZE0000 CLIP, PISTON PIN 13MM 2

90001ZE1000 BOLT, CONNECTING ROD 2

*

*
*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 51

RECOIL STARTER ASSY.

HONDA GX120UTQX2 ENGINE — RECOILSTARTER ASSY.

PAGE 52 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — RECOILSTARTER ASSY.

RECOIL STARTER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 28400ZH8013ZB STARTER ASSY., RECOIL *NH1* (BLACK) ..........1 .............. INCLUDES ITEMS W/

2
3
4
5
6
7
8
9
10
11
12 90008ZE2003 BOLT, FLANGE 6X10 3

28410ZH8003ZB CASE, RECOIL STARTER 1

*

28420ZH8013 REEL, RECOIL STARTER 1

*

28422ZH8013 RATCHET, STARTER 2

*

28433ZH8003 GUIDE, RATCHET 1

*

28441ZH8003 SPRING, FRICTION 1

*

28442ZH8003 SPRING, RECOIL STARTER 1

*

28443ZH8003 SPRING, RETURN 2

*

28461ZH8003 KNOB, RECOIL STARTER 1

*

28462ZH8003 ROPE, RECOIL STARTER 1

*

90003ZH8003 SCREW, SETTING 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 53

GASKET KIT ASSY.

HONDA GX120UTQX2 ENGINE — GASKET KIT ASSY.

NO ART WORK

PAGE 54 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — GASKET KIT ASSY.

GASKET KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 06111ZH7405 GASKET KIT ......................................................... 1 .............. INCLUDES ITEMS W/

2
3
4
5
6
7

11381ZH7800 GASKET, CASE COVER 1

*

12251ZH7800 GASKET, CYLINDER HEAD 1

*

12391ZE1000 GASKET, CYLINDER HEAD COVER 1

*

16212ZH7800 GASKET, INSULATOR 1

*

16221ZH8801 GASKET, CARBURETOR 1

*

18381ZH8800 GASKET, MUFFLER 1

*

*

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 55

LABELS ASSY.

HONDA GX120UTQX2 ENGINE — LABELS ASSY.

PAGE 56 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

HONDA GX120UTQX2 ENGINE — LABELS ASSY.

LABELS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 87521ZH7020 EMBLEM 1
3 87522ZH9000 LABEL, CAUTION 1
4 87528ZE1810 MARK, CHOKE 1
6 87532ZH8810 MARK, OIL ALERT (E) 1

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 57

TERMS AND CONDITIONS OF SALE — PARTS

PAYMENT TERMS

Terms of payment for parts are net 30 days.

FREIGHT POLICY

All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a signed
manifest has been obtained from the carrier,
and any claim for shortage or damage must be
settled between the consignee and the carrier.

MINIMUM ORDER

The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and credit
will be allowed, subject to the following provi­sions:

1. A Returned Material Authorization must
be approved by Multiquip prior to ship­ment.

2. To obtain a Return Material Authorization,
a list must be provided to Multiquip Parts
Sales that defines item numbers, quanti­ties, and descriptions of the items to be
returned.

a. The parts numbers and descriptions

must match the current parts price
list.

b. The list must be typed or computer

generated.

c. The list must state the reason(s) for

the return.

d. The list must reference the sales

order(s) or invoice(s) under which the
items were originally purchased.

e. The list must include the name and

phone number of the person request­ing the RMA.

3. A copy of the Return Material Authoriza­tion must accompany the return shipment.

4. Freight is at the sender’s expense. All
parts must be returned freight prepaid to
Multiquip’s designated receiving point.

5. Parts must be in new and resalable con-

6. The following items are not returnable:

7. The sender will be notified of any material

8. Such material will be held for five working

9. Credit on returned parts will be issued at

10. In cases where an item is accepted, for

11. Credit issued will be applied to future

PRICING AND REBATES

Prices are subject to change without prior
notice. Price changes are effective on a spe­cific date and all orders received on or after that
date will be billed at the revised price. Rebates
for price declines and added charges for price
increases will not be made for stock on hand
at the time of any price change.

Multiquip reserves the right to quote and sell
dition, in the original Multiquip package (if
any), and with Multiquip part numbers
clearly marked.

a. Obsolete parts. (If an item is in the

price book and shows as being re­placed by another item, it is obsolete.)

b. Any parts with a limited shelf life

(such as gaskets, seals, “O” rings,
and other rubber parts) that were pur­chased more than six months prior to
the return date.

c. Any line item with an extended dealer

net price of less than $5.00.

d. Special order items.
e. Electrical components.

f. Paint, chemicals, and lubricants.

g. Decals and paper products.

h. Items purchased in kits.

received that is not acceptable.

days from notification, pending instruc­tions. If a reply is not received within five
days, the material will be returned to the
sender at his expense.

dealer net price at time of the original
purchase, less a 15% restocking charge.

which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.

purchases only.

direct to Government agencies, and to Original

Equipment Manufacturer accounts who use

our products as integral parts of their own

products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the invoice

for special handling including bus shipments,

insured parcel post or in cases where Multiquip

must personally deliver the parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder for

damages in excess of the purchase price of the

item with respect to which damages are

claimed, and in no event shall Multiquip be

liable for loss of profit or good will or for any

other special, consequential or incidental dam-

ages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are made

in connection with the sale of parts or trade

accessories nor as to any engine not manufac-

tured by Multiquip. Such warranties made in

connection with the sale of new, complete units

are made exclusively by a statement of war-

ranty packaged with such units, and Multiquip

neither assumes nor authorizes any person to

assume for it any other obligation or liability

whatever in connection with the sale of its

products. Apart from such written statement of

warranty, there are no warranties, express,

implied or statutory, which extend beyond the

description of the products on the face hereof.

Effective: February 22, 2006

PAGE 58 — CA4HC WALK-BEHIND TROWEL— PARTS MANUAL — REV. #3 (11/14/07)

NOTES

CA4HC WALK-BEHIND TROWEL — PARTS MANUAL — REV. #3 (11/14/07) — PAGE 59

PARTS MANUAL

HERE'S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER

UNITED STATES

Multiquip Corporate Office MQ Parts Department

18910 Wilmington Ave. Tel. [phone] Fax: [phone]
Carson, CA 90746 Fax [phone] Fax: [phone]
Contact: [e-mail]

Mayco Parts Warranty Department

800-306-2926 Fax: [phone], Ext. 279 Fax: [phone]
310-537-3700 Fax: [phone], Ext. 279

Service Department Technial Assistance

800-421-1244 Fax: [phone] Fax: [phone]
310-537-3700

MEXICO UNITED KINGDOM

MQ Cipsa Multiquip (UK) Limited Head Office

Carr. Fed. Mexico-Puebla KM 126.5 Tel. [phone] Hanover Mill, Fitzroy Street, Tel. [phone]
Momoxpan, Cholula, Puebla 72760 Mexico Fax [phone] Ashton-under-Lyne, Fax [phone]
Contact: [e-mail] Lancashire OL7 0TL

CANADA BRAZIL

Multiquip Multiquip

4110 Industriel Boul. Tel. [phone] Av. Evandro Lins e Silva, 840 - grupo 505 Tel. [phone]
Laval, Quebec, Canada H7L 6V3 Fax [phone] Barra de Tijuca - Rio de Janeiro Fax [phone]

Contact: [e-mail] Contact: [e-mail], [e-mail]

ON-HAND

WHEN CALLING

Contact: [e-mail]

© COPYRIGHT 2007, MULTIQUIP INC.

Multiquip Inc, the MQ logo and the Whiteman logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All
other trademarks are the property of their respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and specifications included in this publication were in effect at the time of approval for printing.Illustrations, descriptions, references and technical data
contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or
the information published in this publication at any time without notice and without incurring any obligations.

Your Local Dealer is:

MULTIQUIP INC

18910 WILMINGTON AVE.
CARSON, CALIFORNIA 90746
800-421-1244 • 310-537-3700
FAX: [phone]
E-mail:[e-mail]
Internet:multiquip.com

..

.

..
