Multiquip BRT User Manual

PARTS MANUAL

BRT RIDE-ON POWER

TROWEL

RIDE-ON POWER TROWEL

MODEL #
SERIAL #

© COPYRIGHT 2003, MULTIQUIP INC.

Revision #1 (01/13/03)

MULTIQUIP INC

18910 WILMINGTON AVE. 800-427-1244
CARSON, CALIFORNIA 90746 FAX: [phone]
310-537-3700
800-421-1244 800-478-1244
FAX: [phone] FAX: [phone]

E-mail:[e-mail] • www:multiquip.com

Atlanta • Boise • Dallas • Houston • Newark
Montreal, Canada • Manchester, UK
Rio De Janiero, Brazil • Guadalajara, Mexico

..

. PARTS DEPARTMENT:

..

SERVICE DEPARTMENT/TECHNICAL ASSISTANCE:

P/N 2763

HERE'S HOW TO GET
HELP

PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING

PARTS DEPARTMENT

800-427-1244 or 310-537-3700
FAX: [phone] or 310-637-3284

SERVICE DEPARTMENT

800-421-1244
FAX: [phone]

TECHNICAL ASSISTANCE

800-478-1244
FAX: [phone]

WARRANTY DEPARTMENT

888-661-4279, or 310-661-4279
FAX: [phone]

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 3

BRT RIDE-ON POWER TROWEL— TABLE OF CONTENTS

MQ WHITEMAN BRT RIDE-ON
POWER TROWEL

Here's How To Get Help ............................................ 3

Table Of Contents ..................................................... 4

Parts Ordering Procedures ....................................... 5

Explanation od Code In Remarks Column................ 6

Suggested Spare Parts ............................................. 7

Vanguard Engine and Clutch ................................. 8-9

Onan Engine and Clutch .................................... 10-11

Onan Engine and Clutch .................................... 12-13

Honda Engine and Clutch ..................................14-15

Drive Assembly .................................................. 16-17

Steering Assembly (Left-Side) ..........................18-19

Steering Assembly (Right-Side) ........................ 20-21

Gearbox Adapter Plates Assembly .................... 22-23

Gearbox Pivot Assembly .................................... 24-25

Gearbox Assembly (Right-Side) ........................ 26-27

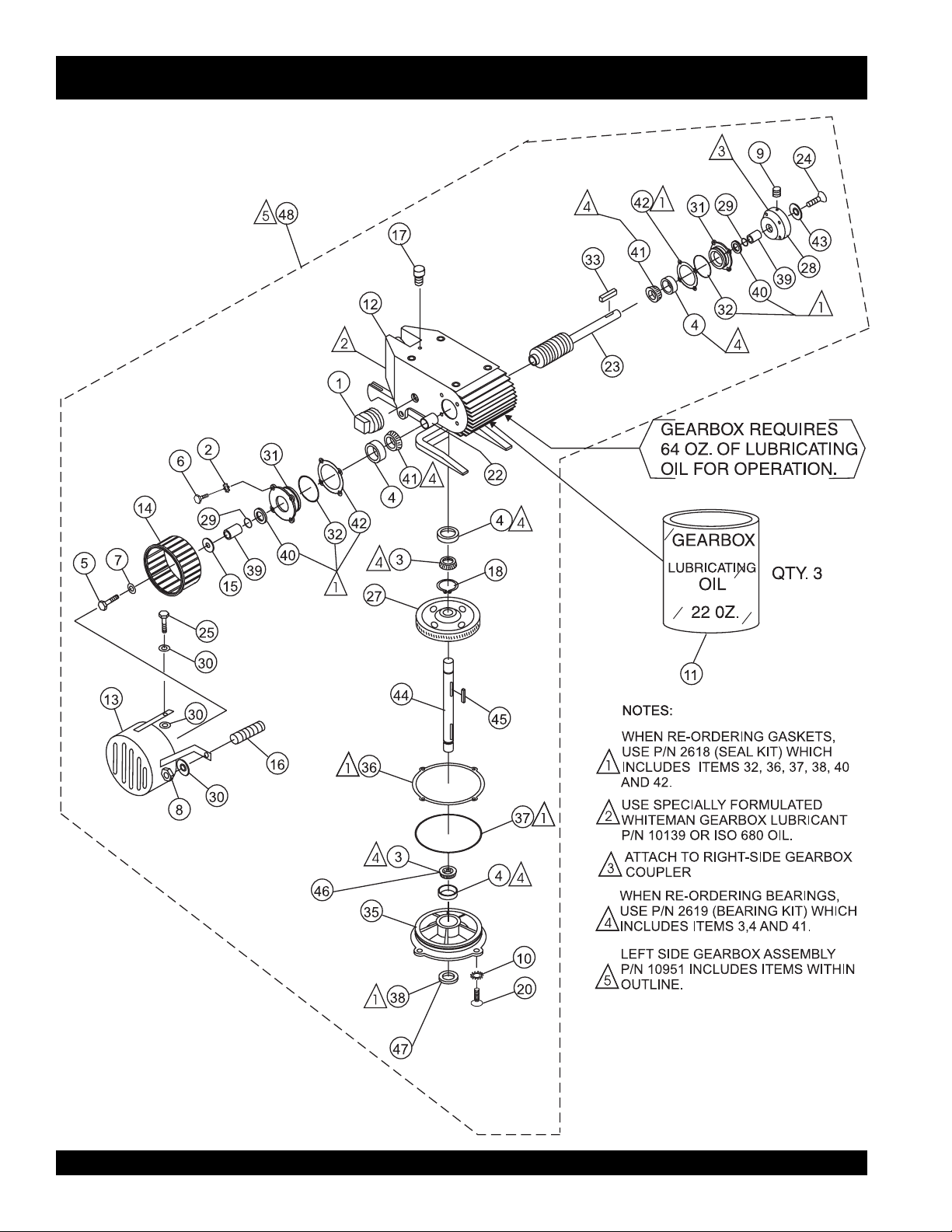

Gearbox Assembly (Left-Side) ........................... 28-29

Thrust Bearing Kit .............................................. 30-31

4-Blade Spider Assembly (Left-Side) ................. 32-33

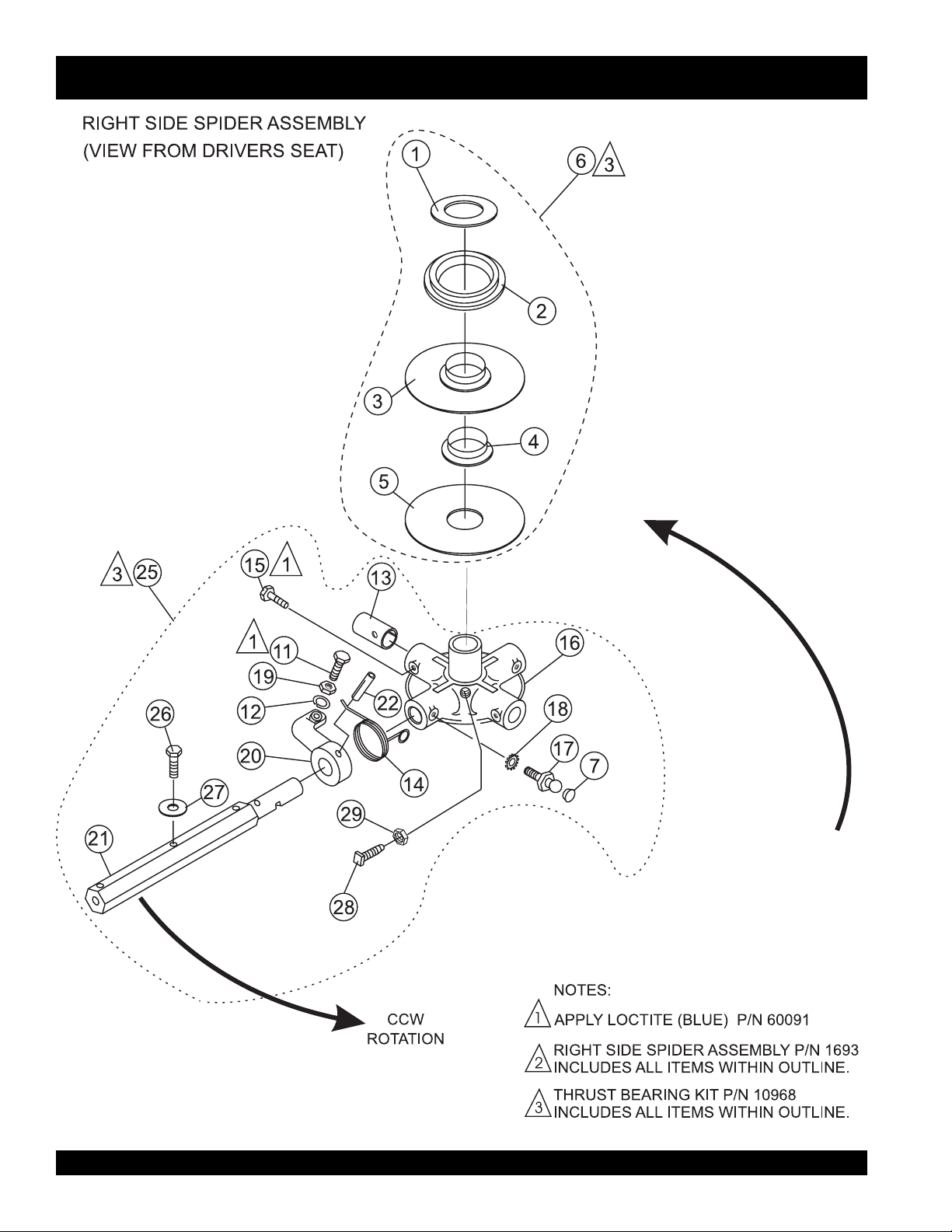

4-Blade Spider Assembly (Right-Side) .............. 34-35

Stabilizer Ring Assembly ...................................36-37

Blades and Adjustment Fixture Assembly ......... 38-39

Twin Pitch Handle Assembly (RT/LT) ................. 40-41

Twin Pitch Tower Assembly (RT/LT) ...................42-43

Twin Pitch Miter Box Assembly .......................... 44-45

Main Frame Assembly ....................................... 46-47

Seat Frame Assembly ........................................ 48-49

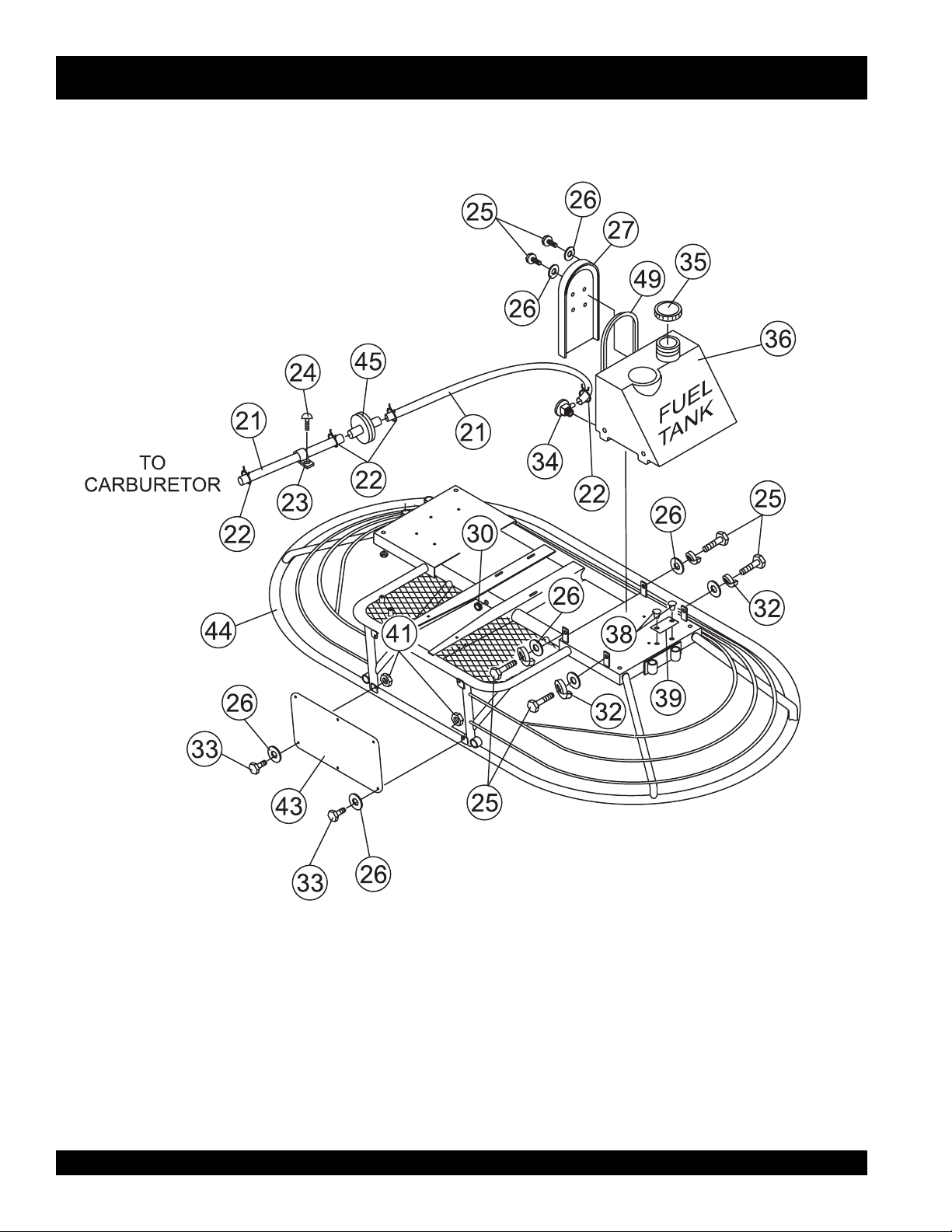

Retardant Spay Tank Assy. (Option) ..................50-51

Foot Pedal Assembly ......................................... 52-53

Throttle/Foot Pedal ............................................ 54-55

Battery Assembly ............................................... 56-57

Lights Assembly .................................................58-59

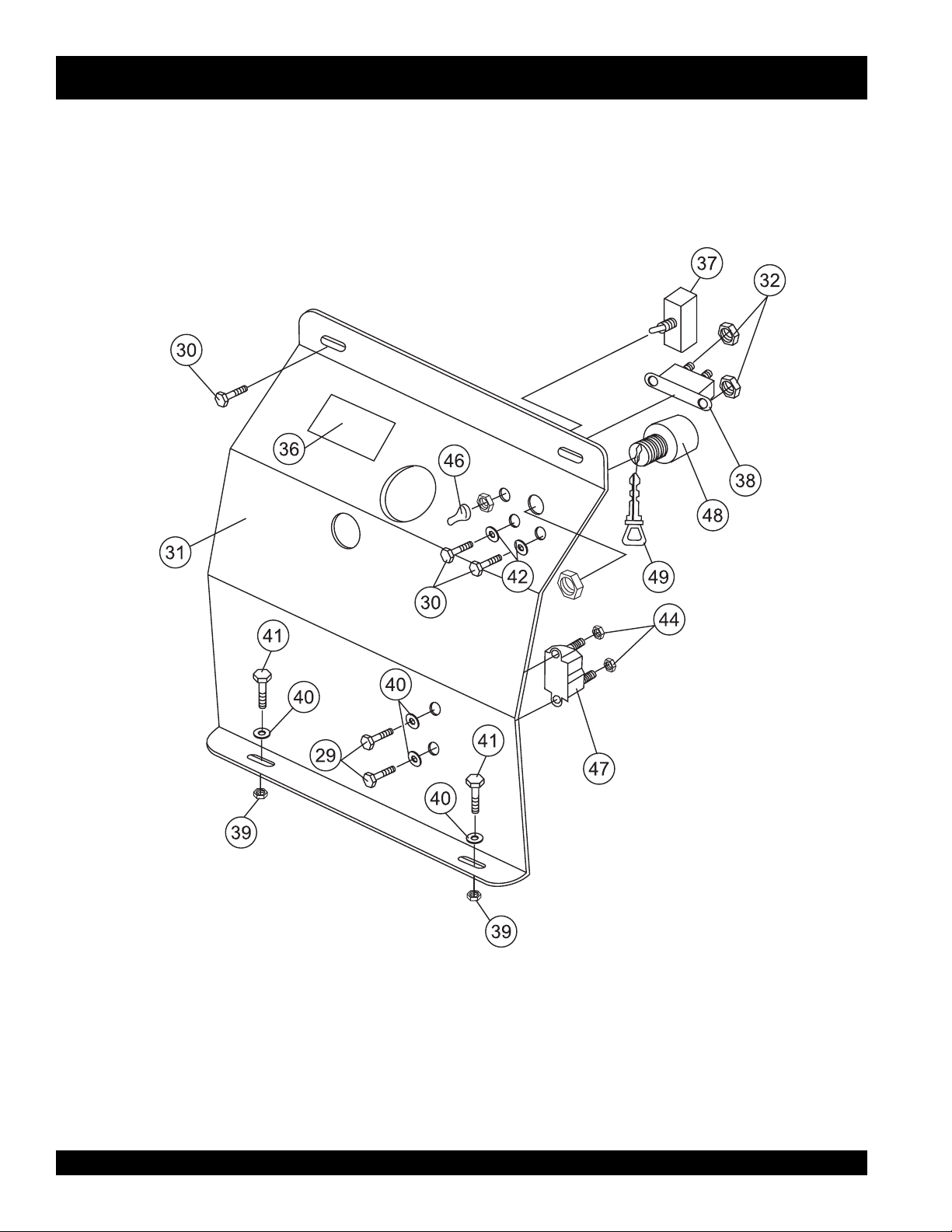

Front Panel Assembly (Vanguard) .....................60-61

Front Panel Assembly (Onan) ............................ 62-63

Front Panel Assembly (Kohler) ........................... 64-65

Front Panel Assembly (Honda)) ......................... 66-67

E-Z Mover & Lift Handle Assembly ....................68-69

Wiring Diagram, Vanguard, Onan and Kohler .... 70-71

Wiring Diagram, Honda...................................... 72-73

Terms and Conditions of Sale ................................. 74

NOTE

Specifications and
part numbers are
subject to change
without notice.

PAGE 4 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— PARTS ORDERING PROCEDURES

When ordering parts,

please supply the following information:

❒❒

❒ Dealer account number

❒❒
❒❒

❒ Dealer name and address

❒❒
❒❒

❒ Shipping address (if different than billing address)

❒❒
❒❒

❒ Return fax number

❒❒
❒❒

❒ Applicable model number

❒❒
❒❒

❒ Quantity, part number and description of each part

❒❒
❒❒

❒ Specify preferred method of shipment:

❒❒

✓ FedEx or UPS Ground
✓ FedEx or UPS Second Day or Third Day
✓ FedEx or UPS Next Day
✓ Federal Express Priority One
✓ DHL
✓ Tr u c k

Note: Unless otherwise indicated by customer, all
orders are treated as “Standard Orders”, and will
ship within 24 hours. We will make every effort to
ship “Air Shipments” the same day that the order is
received, if prior to 2PM west coast time. “Stock
Orders” must be so noted on fax or web forms.

Here’s how to get help...

Please have the model and serial number on
hand when calling.

Parts Department

800-427-1244 Fax: [phone]

310-537-3700 Fax: [phone]

Mayco Parts

800-306-2926 Fax: [phone]

310-537-3700 Fax: [phone]

Service Department

800-478-1244 Fax: [phone]

310-537-3700

MQ Power Service Department

800-835-2551 Fax: [phone]

310-537-3700

Warranty Department

800-421-1244, Ext. 279 Fax: [phone]

310-537-3700, Ext. 279

Multiquip’s Main Phone Numbers

800-421-1244 Fax: [phone]

310-537-3700

Place Your Parts Order Via Web or Fax

For Even More Savings!

Extra Discounts!

All parts orders which include complete part numbers
and are received by our automated web parts order
system, or by fax qualify for the following extra
discounts:

Ordered Standard Stock orders

via orders ($750 list and above)

Fax 3% 10%

Web 5% 10%

Special freight allowances
when you order 10 or more
line items via Web or Fax!**

FedEx Ground Service

No other allowances on freight shipped by any other
carrier.

NOTE: DISCOUNTS ARE SUBJECT TO CHANGE

at no charge for freight

MULTIQUIP INC.

18910 WILMINGTON AVENUE
POST OFFICE BOX 6254
CARSON, CALIFORNIA 90749
310-537-3700 • 800-421-1244
FAX: [phone]
E-MAIL: [e-mail]
WWW: multiquip.com

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 5

QP-202TH TRASH PUMP — PARTS MANUAL— REV. 1 (01/07/03) — PAGE 5

Direct TOLL-FREE access

to our Parts Department:

Toll-free nationwide — 800-427-1244

EXPLANATION OF CODE IN REMARKS COLUMN

How to read the marks and remarks used in this parts
book.

NOTE

Items Found In the “Remarks” Column

Serial Numbers-Where indicated, this indicates a serial
number range (inclusive) where a particular part is used.

Model Number-Where indicated, this shows that the
corresponding part is utilized only with this specific model
number or model number variant.

Items Found In the “Items Number” Column

The contents of this parts
catalog are subject to
change without notice

.

All parts with same symbol in the number column,

■

, belong to the same assembly or kit.

Note: If more than one of the same reference number is listed,
the last one listed indicates newest (or latest) part available.

If more than one of the same

NOTE

reference number is listed, the
last one listed indicates newest
(or latest) part available.

, #, +, %, or

*

PAGE 6 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL — SUGGESTED SPARE PARTS

BRT RIDE-ON POWER TROWEL (ONAN)

1 to 3 Units

Qty. P/N Description

4 ............ 189 .............................. HANDLE GRIP

4 ............ 2267 ............................ HANDLE GRIP (RIGHT-SIDE)

2 ............ 2584 ............................ SWITCH

2 ............ 2008 ............................ CABLE PITCH

1 ............ 1617 ............................ LEVER ASSY. TROWEL ADJUSTMENT

2 ............ 2737 ............................ KNOB

1 ............ 2124 ............................ THROTTLE CABLE

4 ............ 2633 ............................ GASKET KIT (UP TO S/N KC-44134)

4 ............ 11426 .......................... GASKET KIT (FROM S/N KC-441354)

4 ............ 10501 .......................... BEARING KIT (UP TO S/N KC-44134)

4 ............ 11318 .......................... BEARING KIT (FROM S/N KC-44135)

2 ............ 10922 .......................... LEFT-SIDE FAN

2 ............ 10921 .......................... RIGHT-SIDE FAN

2 ............ 2249 ............................ RIGHT-SIDE WORM GEAR (BRONZE)

2 ............ 2250 ............................ LEFT-SIDE WORM GEAR (BRONZE)

2 ............ 2231 ............................ MAIN SHAFT (1-1/8")

2 ............ 1141 ............................ KEY 5/16 X 5/16 X 2-5/8

2 ............ 2229 ............................ KEY 5/16 X 5/16 X 1-7/16

2 ............ 10968 .......................... THRUST COLLAR KIT

2 ............ 10876 .......................... RIGHT-SIDE WORM GEAR (UP TO S/N KC -44134)

2 ............ 11231 .......................... RIGHT-SIDE WORM GEAR (FROM S/N KC -44135)

2 ............ 10877 .......................... LEFT-SIDE WORM GEAR (UP TO S/N KC -44134)

2 ............ 11231 .......................... LEFT-SIDE WORM GEAR (FROM S/N KC -44135)

4 ............ 2827 ............................ ARMS (16-1/2")

2 ............ 1555 ............................ RIGHT-SIDE TROWEL ARM LEVER

2 ............ 1163 ............................ LEFT-SIDE TROWEL ARM LEVER

20 .......... 0166 A ........................ WASHER, LOCK 3/8" MED

20 .......... 1876 ............................ JAM NUT

20 .......... 0164 B ........................ SCREW

10 .......... 1157 A ........................ BUSHING

2 ............ 1316 ............................ LEFT-SIDE SPRING

2 ............ 1317 ............................ RIGHT-SIDE SPRING

20 .......... 1875 ............................ WASHER, INT. SHKP, 3/8"

20 .......... 1322 ............................ SCREW ASSEMBLY, RETAINING

2 ............ 12452 .......................... SPIDER UNIVERSAL

20 .......... 1162 A ........................ GREASE CAP

20 .......... 1456 ............................ HEX NUT 3/8-16"

2 ............ 2712 ............................ FUEL CAP

5 ............ 11078 .......................... KEYS, IGNITION

2 ............ 10958 .......................... IGNITION SWITCH ASSY.

2 ............ 2655 ............................ HOUR METER

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 7

BRT RIDE-ON POWER TROWEL— VANGUARD ENGINE & CLUTCH ASSY.

VANGUARD ENGINE AND CLUTCH ASSY.

PAGE 8 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— VANGUARD ENGINE & CLUTCH ASSY.

VANGUARD ENGINE AND CLUTCH ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2883 ENGINE, VANGUARD 18 HP ...................... 1 ..... SPECIFICATION NO. 350447-0086-01

2 2192 THROTTLE SPRING 1
3 2194 THROTTLE NUT 1
4 2124 THROTTLE CABLE 1
5 2153 SPHERICAL BEARING 1
6 0937 HEX NUT 10- 32 1
7 2650 GOVERNOR ASM. 1
8 2162 THROTTLE CABLE MTK. BRKT. 1
9 0310 CLUTCH KEY 1/4 X 1/4 X 1.1/2” 1
10 2516 4” CLUTCH ASM. 1” BORE 1
11 1882 CLUTCH SPINDLE 1
12 1886 CLUTCH PULLEY 1
13 2504 CLUTCH BOWL 1
14 2451 CLUTCH WEIGHT 4
15 2450 WEIGHT SPRING 2
16 2506 CLUTCH PLATE (WITH ROLLERS) 1
17 1893 SHSS 3/8- 24 X 5/8” 2
18 9123 CLUTCH RETAINER 1
19 0166A LOCK WASHER 3/8” 1
20 0478 HHCS 3/8- 24 X 2.1/4” 1

21 2155 DRIVE BELT A-37 (100 RPM) ....................2 ..... USED WITH PULLEY P/N 10500 (7-9/16)

21 1619 DRIVE BELT A-39 (120 RPM) ....................2 ..... USED WITH PULLEY P/N 2019 (6-1/2)

21 11064 DRIVE BELT A-36 (138 RPM) ....................2 ..... USED WITH PULLEY P/N 11047 (5-5/8)

22 2134 BELT GUARD 1
23 1273 HHSTS 8- 32 X 3/8” 4
24 0169 HHCS 3/8- 16 X 3” 1
25 2257 BELT GUIDE 1
26 5283 LOCK NUT 5/16- 18 4
27 0300B FLAT WASHER 5/16” 9
28 1207 HHCS 5/16- 18 X 1.3/4” 4
33 2655 HOUR METER 1
34 8126 HOSE CLAMP 1
35 2299 HHCS 8MM- 1.25 X 15MM 1
43 0161C LOCK WASHER 5/16” 1
49 2190 SPACER 1
50 10490 LOCK NUT 3/8 NPT 1
51 12328 PIPE NIPPLE 1
52 10491 PIPE CAP 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 9

BRT RIDE-ON POWER TROWEL— ONAN ENGINE AND CLUTCH ASSY.

ONAN ENGINE AND CLUTCH ASSY.

PAGE 10 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— ONAN ENGINE AND CLUTCH ASSY.

ONAN ENGINE AND CLUTCH ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2192 THROTTLE SPRING 1
2 2194 THROTTLE NUT 1
3 2124 THROTTLE CABLE 1
4 2153 SPHERICAL BEARING 1
5 0937 HEX NUT 10- 32 1
6 5065B RHMS 10- 32 X 1/2” 5
7 0948 FLAT WASHER 1/4” 5
8 2655 HOUR METER 1
9 2628 THROTTLE CABLE MNTG. BRKT. 1
10 4514 HHCS 1/4- 20 X 5/8” 6
11 2639 HEAT SHIELD 1
12 1883 CLUTCH SPINDLE 1
13 1886 CLUTCH PULLEY 1
14 2504 CLUTCH BOWL 1
15 2451 CLUTCH WEIGHT 4
16 2450 WEIGHT SPRING 2
17 2506 CLUTCH PLATE (WITH ROLLERS) 1
18 1893 SHSS 3/8 - 24 X 5/8” 2
19 2134 BELT GUARD 1
20 1273 HHSTS 8- 32 X 3/8” 4

21 2155 DRIVE BELT A-37 (100 RPM) .................. 2 ......... USED WITH PULLEY P/N 10500 (7-9/16")

21 2152 DRIVE BELT A-40 (120 RPM) .................. 2 ......... USED WITH PULLEY P/N 2019 (6-1/2")

21 11064 DRIVE BELT A-36 (138 RPM) .................. 2 ......... USED WITH PULLEY P/N 11047 (5-5/8")

22 0166A LOCK WASHER 3/8” 3
23 8135 HHCS 3/8- 24 X 3 1
24 2376 CLUTCH RETAINER 1
25 2517 4” CLUTCH ASM. 1.1/8” BORE 1
26 2629 CLUTCH SPACER 1
27 1284 HHCS 3/8- 16 X 1.1/2” 2
28 2548 HOSE CLAMP 1
29 2631 BELT GUIDE 1
30 2656 LOCK NUT 5/16- 24 8
31 0300B FLAT WASHER 5/16” 8
32 2637 ENGINE MOUNT PLATE 2
33 8126 HOSE CLAMP 1
34 2659 MUFFLER 1
35 2571 ENGINE ONAN 18HP (P218G) 1
36 2694 THROTTLE CONTROL ASM. 1
37 10019 LOCK NUT 10- 32 5
38 0949 HEX NUT 1/4- 20 3
39 0310 CLUTCH KEY 1/4 X 1/4 X 1.1/2” 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 11

BRT RIDE-ON POWER TROWEL— KOHLER ENGINE AND CLUTCH ASSY.

KOHLER ENGINE AND CLUTCH ASSY.

PAGE 12 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— KOHLER ENGINE AND CLUTCH ASSY.

KOHLER ENGINE AND CLUTCH ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2947 ENGINE, KOHLER 20HP 1
2 2192 THROTTLE SPRING 1
3 2194 THROTTLE NUT 1
4 2124 THROTTLE CABLE 1
5 2153 SPHERICAL BEARING 1
6 0937 HEX NUT 10- 32 1
7 2190 SPACER 1
8 2884 THROTTLE CABLE MNTG. BRKT. 1
9 0310 SQUARE KEY 1/4 X 1/4 X 1.1/2” 1
10 2517 CLUTCH ASM. 1.1/8” BORE 1
11 1883 CLUTCH SPINDLE 1
12 1886 CLUTCH PULLEY 1
13 2504 CLUTCH BOWL 1
14 2451 CLUTCH WEIGHT 4
15 2450 WEIGHT SPRING 2
16 B8226 CLUTCH PLATE (WITH ROLLERS) 1
17 1893 SHSS 3/8- 24 X 5/8” 2
18 2951 CLUTCH RETAINER 1
19 2955 LOCK WASHER 7/16” 1
20 2956 HHCS 7/16- 20 X 1.1/2” 1

21 2155 DRIVE BELT A-37 (100 RPM) ............... 2 ...... USED WITH PULLEY P/N 10500 (7-9/16")

21 2152 DRIVE BELT A-40 (120 RPM) ............... 2 ...... USED WITH PULLEY P/N 2019 (6-1/2")

21 11064 DRIVE BELT A-36 (138 RPM) ............... 2 ...... USED WITH PULLEY P/N 11047 (5-5/8")

22 2333 BELT GUARD 1
23 1273 HHSTS 8-32 X 3/8” 4
27 0300B FLAT WASHER 5/16” 8
28 2138 HOSE CLAMP 2
30 5065B RHMS 10-32 X1/2" 2
31 2655 HOUR METER 1
33 2876 ENGINE ADAPTOR PLATE 2
36 0948 WASHER, FLAT 3/8" 4
37 10019 LOCK NUT 10-32 2
39 0131A HHCS 1/4-20 X 3/4" 1
40 2629 CLUTCH SPACER 1
41 5283 LOCK NUT 5/16- 18 8
42 10018 SHCS 10- 32 X 1” 1
44 10691 FUEL HOSE 1
48 0181B LOCK WASHER 1/4” 1
49 0949 HEX NUT 1/4- 20 1
50 10853 MUFFLER 1
51 10855 MUFFLER CLAMP 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 13

BRT RIDE-ON POWER TROWEL— HONDA ENGINE AND CLUTCH ASSY.

HONDA ENGINE AND CLUTCH ASSY.

PAGE 14 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— HONDA ENGINE AND CLUTCH ASSY.

HONDA ENGINE AND CLUTCH ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 10931 ENGINE HONDA, GX620QAB 20HP 1 OBSOLETE
2 2192 THROTTLE SPRING 1
3 2194 THROTTLE NUT 1
4 10568 THROTTLE CABLE 1
5 2153 SPHERICAL BEARING 1
6 0937 HEX NUT 10- 32 1
7 10990 SHOULDER BOLT 1
8 10964 TRHOTTLE CABLE MTG. BRKT. 1
9 0310 SQUARE KEY 1/4 X 1/4 X 1.1/2” 1
10 2516 4” CLUTCH ASM. 1” BORE 1
11 1882 CLUTCH SPINDLE 1
12 1886 CLUTCH PULLEY ASM. 1
13 2504 CLUTCH BOWL ASM. 1
14 2939 CLUTCH WEIGHT SET 1
15 2450 WEIGHT SPRING 2
16 2506 CLUTCH PLATE (WITHROLLERS) 1
17 1893 SHSS 3/8- 24 X 5/8” 2
18 9123 CLUTCH RETAINER 1
19 0166A LOCK WASHER 3/8” 1
20 2667 HHCS 3/8- 24 X 2.1/2” 1

21 2155 DRIVE BELT A-37 (100 RPM) .................. 2 ........... USED WITH PULLEY P/N 10500 (7-9/16")

21 3546 DRIVE BELT A-38 (120 RPM) .................. 2 ........... USED WITH PULLEY P/N 2019 (6-1/2")

21 11064 DRIVE BELT A-36 (138 RPM) .................. 2 ........... USED WITH PULLEY P/N 11047 (5-5/8")

22 2134 BELT GUARD 1
23 1273 HHSTS 8- 32 X 3/8” 4
24 0169 HHCS 3/8- 16 X 3” 1
25 2257 BELT GUIDE 1
26 5283 LOCK NUT 5/16- 18 4
27 0300B FLAT WASHER 5/16” 10
28 0669A HHCS5/16- 18 X 2.1/4” 4
33 2655 HOUR METER 1
34 10954 THROTTLE LEVER 1
35 2299 HHCSM8- 1.25 X 15MM 2
40 0948 WASHER, FLAT 3/8" 2
42 2203 FLAT WASHER #10 8
43 0161C LOCK WASHER 5/16” 1
44 10955 THROTTLE WIRE 1
45 2762 TERMINAL BOOT 1
48 1618 LOCK NUT 10-24 1
49 10963 OIL DRAIN VALVE 1
50 2207 SOLENOID 1
51 10984 ENGINE SPACER 2
52 10987 OIL DRAIN HOSE 1
53 10948 SPACER 1
54 10962 FUEL HOSE 1
55 2138 HOSE CLAMP 2
56 10018 SHCS 10- 32 X 1” 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 15

DRIVE ASSY.

BRT RIDE-ON POWER TROWEL— DRIVE ASSY.

PAGE 16 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— DRIVE ASSY.

DRIVE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2052 C.V. JOINT 4

2 11602 PLUG .................................................................12 .............. REPLACES 2218

3 0126 WOODRUFF KEY #9 4
4 2186 SHCS 5/16- 18 X 2.1/4” 9

5 2019 PULLEY (6-1/2", 120 RPM) ................................. 1 .............. USE DRIVE BELTS 2155 A-37,

.............................................................................................. 2152 A-40, 3546 A-38

5 10500 PULLEY (7-9/16", 100 RPM) ............................... 1 .............. USE DRIVE BELT 1619 A-39

5 11047 PULLEY (5-5/8", 138 RPM) ................................. 1 .............. USE DRIVE BELT 11064 A-36

6 2129 BEARING SHAFT 1

7 10909 KEY 3/16 X 3/16 X 13/16” ................................... 1 .............. REPLACES P/N 2126

8 2043 DRIVE SHAFT 2
9 2090 SNAP RING 4
10 10133 LOCK NUT 3/8” 4
11 10514 SPACER 1
12 10337 PILLOW BLOCK BEARING 2
13 10136 FLAT WASHER 3/8” 8
14 1284 HHCS 3/8- 16 X 1.1/2” 4
15 2029 COUPLER 1” I.D. 1
16 2037 RETAINING WASHER 1
17 1146 FHSCS 5/16- 18 X 1” 1
18 2259 C.V. JOINT BOOT (REPLACEMENT ONLY) 1
19 0161C FLAT WASHER 5/16” 12
20 2187 SHCS 5/16- 18 X 2.1/2” 3
21 10138 SHSS1/4- 20 X 1/2” 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 17

BRT RIDE-ON POWER TROWEL— STEERING ASSY. (LEFT-SIDE)

STEERING (LEFT-SIDE) ASSY.

PAGE 18 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— STEERING ASSY. (LEFT-SIDE)

STEERING (LEFT-SIDE) ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 0189 LEFT SIDE HAND GRIP 1
3 10130 HANDLE EXTENSION 1
5 2197 ACORN NUT 1/4- 20 1
6 0424 HHCS 1/4- 20 X 1.1/4” 1
7 10131 LEFT HANDLE 1
8 9154 HHCS 3/8- 16 X 1.3/4” 2
9 2196 SPACER 4

10 2063 SPHERICAL BEARING ........................................4 .............. RIGHT HAND MALE

11 1023 HHCS 3/8- 16 X 1.1/4” 4
12 0166A LOCK WASHER 3/8” 1
13 2199 JAM NUT 3/8- 24 4

14 2064 SPHERICAL BEARING ........................................2 .............. RIGHT HAND FEMALE

15 10133 LOCK NUT 3/8- 16 4
16 0183 COTTER PIN 2
17 2097 CLEVIS PIN 1
18 1484 BUSHING 2

19 11085 STEERING CONTROL LEVER ........................... 1 .............. REPLACES 2891

20 10136 FLAT WASHER 3/8” 1
21 2366 LEFT SIDE STEERING ASSY. 1
22 8151 FLAT WASHER 3/4” 1
25 5283 LOCK NUT 5/16- 18 4
26 0655 HHCS 5/16- 18 X 3/4” 5
27 2352 CONNECTOR ROD 1
28 0161C LOCK WASHER 5/16” 1
33 5228 GREASE FITTING 1
36 1162A LUBRA- CAP 1

38 12408 BUSHING ............................................................ 1 .............. REPLACES 2168

39 0300B FLAT WASHER 5/16” 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 19

BRT RIDE-ON POWER TROWEL— STEERING ASSY. (RIGHT-SIDE)

STEERING (RIGHT-SIDE) ASSY.

PAGE 20 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— STEERING ASSY. (RIGHT-SIDE)

STEERING (RIGHT-SIDE) ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 2267 RIGHT SIDE HAND GRIP 1
3 10130 HANDLE EXTENSION 1
4 2765 RETARDANT SPRAY BUTTON SWITCH 1
5 2197 ACORN NUT 1/4- 20 1
6 0424 HHCS 1/4- 20 X 1.1/4” 1
8 9154 HHCS 3/8- 16 X 1.3/4” 2
9 2196 SPACER 4

10 2063 SPHERICAL BEARING ........................................5 .............. RIGHT HAND MALE

11 1023 HHCS 3/8- 16 X 1.1/4” 5
12 0166A LOCK WASHER 3/8” 1
13 2199 JAM NUT 3/8- 24 5

14 2064 SPHERICAL BEARING ........................................3 .............. RIGHT HAND FEMALE

15 10133 LOCK NUT 3/8- 16 5
16 0183 COTTER PIN 3
17 2097 CLEVIS PIN 1
18 1484 BUSHING 2

19 11085 STEERING CONTROL LEVER ........................... 1 .............. REPLACES 2891

20 10136 FLAT WASHER 3/8” 1
22 8151 FLAT WASHER 3/4” 1
23 10603 BOSS & SUPPORT 2
24 10606 RIGHT SIDE STEERING ASM. 1
25 5283 LOCK NUT 5/16- 18 4
26 0655 HHCS 5/16- 18 X 3/4” 5
28 0161C LOCK WASHER 5/16” 1
29 2093 LINKAGE ROD 1
30 10132 RIGHT HANDLE 1
31 2080 RIGHT/LEFT MOTION SHAFT 1
32 2036 RIGHT/LEFT MOTION ARM 1
33 5228 GREASE FITTING 3
34 2188 SPACER 2
35 3550 ADAPTER PLATE PIN 1
36 1162A LUBRA- CAP 3
37 2219 COTTER PIN 2

38 12408 BUSHING ............................................................ 2 .............. REPLACES 2168

39 0300B FLAT WASHER 5/16” 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 21

BRT RIDE-ON POWER TROWEL— GEARBOX ADAPTER PLATES ASSY.

GEARBOX ADAPTER PLATES ASSY.

S/N LD39205 AND BELOW

PAGE 22 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— GEARBOX ADAPTER PLATES ASSY.

GEARBOX ADAPTER PLATES ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 1023 HHCS 3/8- 16 X 1.1/4” 8
2 0166A LOCK WASHER 3/8” 16
3 2079 ROCKER BLOCK ASSY. 4
4 2044 PIVOT ARM ASSY. 1
5 10138 SHSS 1/4- 20 X 1/2” 4
6 1284 HHCS 3/8- 16 X 1.1/2” 8
7 2132 ADAPTER PLATE 2
8 2111 CONTROL PIVOT TUBE 2
9 2078 ROCKER BLOCK 2
10 2076 PIVOT SHAFT 1
11 1394 HHCS 3/8- 16 X 1” 4

S/N LD39205 AND BELOW

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 23

BRT RIDE-ON POWER TROWEL— GEARBOX PIVOT ASSY.

GEARBOX PIVOT ASSY.

S/N LD39206 AND ABOVE

PAGE 24 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— GEARBOX PIVOT ASSY.

GEARBOX PIVOT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 1023 HHCS3/8- 16 X 1.1/4” 12
2 0166A LOCK WASHER 3/8” 20
3 2079 ROCKER BLOCK ASM. 4
4 2044 PIVOT ARM ASSY. 1
5 10138 SHSS 1/4- 20 X 1/2” 4
6 1284 HHCS 3/8- 16 X 1.1/2” 8
7 2076 PIVOT SHAFT 1
8 2111 CONTROL PIVOT TUBE 2
9 10973 ROCKER BLOCK 2

S/N LD39206 AND ABOVE

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 25

BRT RIDE-ON POWER TROWEL— GEARBOX ASSY. (RIGHT-SIDE)

GEARBOX ASSY. (RIGHT-SIDE 1-1/8 DIAMETER SHAFT)

PAGE 26 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— GEARBOX ASSY. (RIGHT-SIDE)

GEARBOX ASSY. (RIGHT-SIDE) WITH 1-1/8 DIA. SHAFT.
NO PART NO PART NAME QTY. REMARKS

1 0121 A FITTING, PLUG 3/8MP SQ HEAD 3
2 10031 WASHER, COPPER 1/4 8
3

*

4

*

5 0424 SCREW, HHC 1/4-20 X 1-1/4 1
6 2295 SCREW, HHC 1/4-20 X 1 8
7 10930 WASHER, FLAT, 1/4 SAE 1
8 10237 EXT. SHKP WASHER 1
9 10138 SCREW, SHS 1/4-20 X 1/2, N.P. 1
10 10235 WASHER, C/S EXT. SHKP, 5/16 4

11 10139 GEARBOX LUBRICATING OIL (BOTTLE) .................. 3 ........ THREE 22 OZ. BOTTLES REQD.

12 10492 GEARBOX CASE ONLY ............................................. 1 ........ S/N LD39205 AND BELOW

12 10800 GEARBOX CASE ONLY ............................................. 1 ........ S/N LD39206 AND ABOVE

13 10890 FAN COVER, RIGHT SIDE 1
14 10921 FAN, AAI 3.5 X 1.5 CW ROT 1
15 10930 WASHER, FENDER, 1/4 X 1-1/4 1
16 10989 STUD, 10-32 X 3/4 1
17 1132 VENT, AIR 1
18 1138 RING, SNAP, TRUARC 5100-112 1
20 1146 SCREW, FHSC 5/16-18 X 1, NYLOC, NP 4

23 10493 RS WORM AND C/SHAFT W/BEARING .................... 1 ........ S/N LD39205 AND BELOW 7-1/4"

23 10876 RS WORM AND C/SHAFT W/BEARING .................... 1 ........ S/N LD39206 AND ABOVE 8-1/4"

0232 BEARING, CONE, TIMKEN #1985 2
0232 A BEARING, CUP, TIMKEN #1932 4

24 1146 SCREW, FHSC 3/8-24 X 3/4 PLAIN 1
25 5065B HEX SLOTED WASHER HEAD 10-32 X ½ 2
27 2249 GEAR, WORM GEAR RH 1
28 2030 COUPLER- 7/8” ID 1
29 2115 RING, O, SIZE –022, BUNA-N 2
30 2203 WASHER, FLAT, #10 3
31 10498 COUNTERSHAFT FLANGE 2
32# 2308 RING, O 2 13/16” 2
33 2126 KEY, 1/4 X 1/4 X 13/16 1
35 1145 PLATE, COVER 1
36# 2633 SHIM, (.005, .010, AND .020) 1
37# 1143 RING, O, A-264 1
38# 10461 SEAL, OIL, 471763 1
39 10497 SPACER, 1-1/4 X 1 X 1.375L 2
40 10460 SEAL, OIL, NATIONAL #471413 2
41
42# 2633 SHIM, (.002, .003, .005, .010, AND .020) 1
43 2037 RETAINER, DRIVEN PULLEY 1
44 2231 MAINSHAFT 1
45 2229 KEY, 5/16 X 2-1/4 HRDND 1

46 10518 BEARING KIT ............................................................ 1 ........ INCLUDES ITEMS W/

47 2633 SEAL KIT ................................................................... 1 ........ INCLUDES ITEMS W/#

48 10966 GEARBOX ASSY. 1

10501 BEARING, CONE, TIMKEN #1986 2

*

*

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 27

BRT RIDE-ON POWER TROWEL— GEARBOX ASSY. (LEFT-SIDE)

GEARBOX ASSY. (LEFT-SIDE 1-1/8 DIAMETER SHAFT)

PAGE 28 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— GEARBOX ASSY. (LEFT-SIDE)

GEARBOX ASSY. (LEFT-SIDE) WITH 1-1/8 DIA. SHAFT.
NO PART NO PART NAME QTY. REMARKS

1 0121 A FITTING, PLUG 3/8MP SQ HEAD 3
2 10031 WASHER, COPPER 1/4 8
3

*

4

*

5 0424 SCREW, HHC 1/4-20 X 1-1/4 1
6 2295 SCREW, HHC 1/4-20 X 1 8
7 10930 WASHER, FLAT, 1/4 SAE 1
8 10237 EXT. SHKP WASHER 1
9 10138 SCREW, SHS 1/4-20 X 1/2, N.P. 1
10 10235 WASHER, C/S EXT. SHKP, 5/16 4

11 10139 GEARBOX LUBRICATING OIL (BOTTLE) .................. 3 ........ THREE 22 OZ. BOTTLES REQD.

12 10492 GEARBOX CASE ONLY ............................................. 1 ........ S/N LD39205 AND BELOW

12 10800 GEARBOX CASE ONLY ............................................. 1 ........ S/N LD39206 AND ABOVE

13 10882 FAN COVER, LEFT-SIDE 1
14 10922 FAN, AAI 3.5 X 1.5 CCW ROT 1
15 10930 WASHER, FENDER, 1/4 X 1-1/4 1
16 10989 STUD, 10-32 X 3/4 1
17 1132 VENT, AIR 1
18 1138 RING, SNAP, TRUARC 5100-112 1
20 1146 SCREW, FHSC 5/16-18 X 1, NYLOC, NP 4

23 10496 LS WORM AND C/SHAFT W/BEARING .................... 1 ........ S/N LD39205 AND BELOW 7-1/4"

23 10877 LS WORM AND C/SHAFT W/BEARING .................... 1 ........ S/N LD39206 AND ABOVE 8-1/4"

24 1146 SCREW, FHSC 3/8-24 X 3/4 PLAIN ........................... 1

25 5065B HEX SLOTED WASHER HEAD 10-32 X ½ 2
27 2250 GEAR, WORM GEAR LH, 1
28 2030 COUPLER- 7/8” ID 1
29 2115 RING, O, SIZE –022, BUNA-N 2
30 2203 WASHER, FLAT, #10 3
31 10498 COUNTERSHAFT FLANGE 2
32# 2308 RING, O 2 13/16” 2
33 2126 KEY, 1/4 X 1/4 X 13/16 1
35 1145 PLATE, COVER 1
36# 2633 SHIM, (.005, .010, AND .020) 1
37# 1143 RING, O, A-264 1
38# 10461 SEAL, OIL, 471763 1
39 10497 SPACER, 1-1/4 X 1 X 1.375L 2
40 10460 SEAL, OIL, NATIONAL #471413 2
41
42# 2633 SHIM, (.002, .003, .005, .010, AND .020) 1
43 2037 RETAINER, DRIVEN PULLEY 1
44 2231 MAINSHAFT 1
45 2229 KEY, 5/16 X 2-1/4 HRDND 1

46 10518 BEARING KIT ............................................................ 1 ........ INCLUDES ITEMS W/

47 2633 SEAL KIT ................................................................... 1 ........ INCLUDES ITEMS W/#

48 10967 GEARBOX ASSY. 1

0232 BEARING, CONE, TIMKEN #1985 2
0232 A BEARING, CUP, TIMKEN #1932 4

10501 BEARING, CONE, TIMKEN #1986 2

*

*

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 29

BRT RIDE-ON POWER TROWEL— THRUST BEARING KIT ASSY.

THRUST BEARING KIT ASSEMBLY.

PAGE 30 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— THRUST BEARING KIT ASSY.

THRUST BEARING KIT ASSEMBLY.

NO. PART NO. PART NAME QTY. REMARKS

1
2
3
4
5

6 10968 THRUST BEARING KIT ....................................................1............ INCLUDES ITEMS W/

7 1803 WEAR CAP ....................................................................... 1 ........... OLD STYLE

8 1152 THRUST COLLAR CAP .................................................... 1 ........... OLD STYLE

9 1153 THRUST COLLAR BEARING ............................................ 1 ........... OLD STYLE

10 1154 THRUST COLLAR ............................................................. 1 ........... OLD STYLE

11 1471 THRUST COLLAR BUSHING ............................................ 1 ........... OLD STYLE

12 1154A LOWER WEAR PLATE ..................................................... 1 ........... OLD STYLE

12208 WEAR RING ..................................................................... 1 ........... NEW STYLE

*

12778 FLANGE BEARING .......................................................... 1 ........... NEW STYLE

*

10793 THRUST COLLAR W/BUSHING........................................ 1 ........... NEW STYLE

*

1471 BUSHING .......................................................................... 1 ........... NEW STYLE

*

1154A LOWER WEAR PLATE ..................................................... 1 ........... NEW STYLE

*

*

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 31

BRT RIDE-ON POWER TROWEL— SPIDER ASSY. (LEFT-SIDE)

PAGE 32 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— SPIDER ASSY. (LEFT-SIDE)

4-BLADE SPIDER ASSY. (LEFT-SIDE)

NO PART NO PART NAME QTY. REMARKS

1

*

2

*

3

*

4

*

5

*

6 10968 THRUST BEARING KIT ..................................... 1 ........... INCLUDES ITEMS W/

7# 1162 A CAP, GREASE ZERK, #2 YELLOW 1
11# 0164 B WASHER, LOCK 3/8" MED 4
12# 0166 A HHC 3/8-16 X 1-1/4 FT. 4
13# 1157A BUSHING 8
14# 1316 SPRING, L.S. ARM RETURN 4
15# 11602 SCREW, HHC 3/8-16 X 3/8 4
16# 12452 PLATE, SPIDER 1
17# 1322 SCREW, RETAINING 4
18# 1875 WASHER, INT. SHKP, 3/8 4
19# 1876 NUT, HEX JAM 3/8-16 CLASS 2B 4
20# 1163 LEVER, TROWEL RH 4
21# 2827 ARM, TROWEL EXTENDED 16-1/2" 4
22# 4164 PIN, ROLL 5/16 X 2, N.P. 4

25 12479 SPIDER ASSY, LEFT SIDE ............................... 1 ........... INCLUDES ITEMS W/#

26# 0105 HHCS 5/16-18 X 1.1/2" 4
27# 0161C LOCK WASHER 5/16" 8
28 12097 SCREW, SQHS 3/8-16x1-3/4" CONE GD 8 1
29 1456 NUT, HEX. 3/8-16 1

12208 WEAR RING 1
12778 FLANGE BEARING 1
10793 THRUST COLLAR W/BUSHING 2
1471 BUSHING 1
1154A LOWER WEAR PLATE 1

*

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 33

BRT RIDE-ON POWER TROWEL— SPIDER ASSY. (RIGHT-SIDE)

PAGE 34 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— SPIDER ASSY. (RIGHT-SIDE)

4-BLADE SPIDER ASSY. (RIGHT-SIDE)

NO PART NO PART NAME QTY. REMARKS

1

*

2

*

3

*

4

*

5

*

6 10968 THRUST BEARING KIT ..................................... 1 ........... INCLUDES ITEMS W/

7# 1162 A CAP, GREASE ZERK, #2 YELLOW 1
11# 0164 B SCREW, HHC 3/8-16 X 1 1/4 F.T. 4
12# 0166 A WASHER, LOCK, 3/8 MED. 4
13# 1157A BUSHING 8
14# 1317 SPRING, R.S. ARM RETURN 4
15# 11602 SCREW, HHC 3/8-16 X 3/8 4
16# 12452 PLATE, SPIDER 1
17# 1322 SCREW, RETAINING 4
18# 1875 WASHER, INT. SHKP, 3/8 4
19# 1876 NUT, HEX JAM 3/8-16 CLASS 2B 4
20# 1555 LEVER, TROWEL LH 4
21# 2827 ARM, TROWEL EXTENDED 16-1/2" 4
22# 4164 PIN, ROLL 5/16 X 2, N.P. 4

25 1693 SPIDER ASSY, RIGHT SIDE ............................ 1 ........... INCLUDES ITEMS W/#

26# 0105 HHCS 5/16-18 X 1.1/2" 4
27# 0161C LOCK WASHER 5/16" 8
28 12097 SCREW, SQHS 3/8-16x1-3/4" CONE GD 8 1
29 1456 NUT, HEX. 3/8-16 1

12208 WEAR RING 1
12778 FLANGE BEARING 1
10793 THRUST COLLAR W/BUSHING 2
1471 BUSHING 1
1154A LOWER WEAR PLATE 1

*

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 35

BRT RIDE-ON POWER TROWEL— STABILIZER RING ASSY.

PAGE 36 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— STABILIZER RING ASSY.

STABILIZER ASSY.

NO PART NO PART NAME QTY. REMARKS

1 0161C LOCK WASHER 5/16" 5
2 1237 SCREW, SCH 5/16-18 X 7/8 5
3 1723 ROD END, 5/16-24 MALE 4
4 6014C NUT, HEX FINISH 5/16-24 8
5 12095 RING, STABILIZER, EXT ARM, HD 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 37

BRT RIDE-ON POWER TROWEL— BLADES AND ADJ. FIXTURE ASSY.

BLADES & ADJUSTMENT FIXTURE ASSY.

PAGE 38 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— BLADES AND ADJ. FIXTURE ASSY.

BLADES & ADJUSTMENT FIXTURE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

20 COMBO FLOAT & FINISH BLADE .......................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

20 ENDURO COMBO FLOAT &FINISH BLADE .......... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

21 FLOAT BLADE ........................................................ 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

22 FINISH BLADE ....................................................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

22 ENDURO FINISH BLADE W/ROTATING ................ 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

23 0202 HHCS 5/16-18X1" RING 4
24 0201 GUARD RING LUG RING 4
26 1434 TROWEL LUG (FINISH BLADE ONLY) 4

39 UNIVERSAL COMBO BLADE ................................. 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

39 ENDURO UNIVERSAL COMBO BLADE ................ 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

40 UNIVERSAL FINISH BLADE .................................. 4 ........ CONTACT UNIT SALES DEPT./ACCESSORY ITEM

40 ENDURO UNIVERSAL FINISH BLADE .................. 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

41 UNIVERSAL MOUNTING BAR ............................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

42 SNAP PIN 1/4"X1.3/4" ............................................ 8 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

46 TROWEL ARM ADJ. FIXTURE ASSY ..................... 1 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

47 REVERSIBLE COMBO BLADE ............................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

49 FLOAT DISC ........................................................... 1 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

50 FLOAT DISC LATCH PIN ....................................... 4 ......... CONTACT UNIT SALES DEPT./ACCESSORY ITEM

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 39

BRT RIDE-ON POWER TROWEL— TWIN PITCH HANDLE ASSY. (RT/LT)

TWIN PITCH CONTROL ASSY. (RIGHT AND LEFT)

PAGE 40 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— TWIN PITCH HANDLE ASSY. (RT/LT)

TWIN PITCH HANDLE ASSY. (LEFT AND RIGHT)

NO PART NO PART NAME QTY. REMARKS

1 #$ 4403 CRANK KNOB 1
2 #$ 3231 SPACER 1
3 # 1615 CRANK LEVER 1
4 #$ 1733 HARDENED WASHER 1
5 #$ 1616 SHOULDER BOLT 1
6 +% 2620 SCREW, BHC 10 – 24 X 5/8 4
7 10114 WASHER, EXT. SHKP, #8 4
8+% 2621 FITTING GREASE 4
9+% 1162A CAP, GREASE ZERK 4
10 # 4014 SCREW, 2-3/16 P-K TYPE U DRIVE 2
11 2300 DECAL, AL PITCH, RH 1
12 # 1528 SCREW, SHSS 1/4 – 20 X 5/16" 2
13 # 0185 SCREW, SHSS 3/8 – 16 X 3/8" 1
14 +% 2649 COVER, PITCH CONT HOUSING 1
15 +% 1579 SCREW, HHC 1/4 – 20 X 1/2 1
16 +% 0181 B WASHER, LOCK, 1/4 MED 4
17 +% 0948 WASHER, FLAT, 1/4 SAE 1
18 +% 1530 GEAR, SLAVE, TPC 1
19 +% 1733 WASHER, 1/32 X 1/2 HARDENED 8
20 +% 1529 GEAR, MASTER, TPC 1
21 +% 0161C WASHER, LOCK 5/16 MED 1
22 +% 0655 SCREW, HHC 5/16 – 18 X 3/4 1
23 +% 10546 HOUSING, PITCH CONTROL, 1-3/4 1
25 +% 1162 A CAP, GREASE ZERK 1

26 1617 LEVER ASSY. , TROWEL ADJUSTMENT ... 1 ............ INCLUDES ITEMS W/#

27 2737 KNOB, KIT ................................................... 1 ............ INCLUDES ITEMS W/$

28 2332 DECAL, AL PITCH, LH 1

NOTE 1: ITEMS WITH % ARE PART OF TWIN PITCH ASSY. RIGHT SIDE

ITEMS WITH + ARE PART OF TWIN PITCH ASSY. LEFT SIDE

NOTE 2: INDICATED QUANTITIES ARE FOR ONE PITCH TOWER.

IF ORDERING FOR TWO PITCH TOWERS DOUBLE THE QUANTITY.

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 41

BRT RIDE-ON POWER TROWEL— TWIN PITCH TOWER ASSY. (RT/LT)

TWIN PITCH TOWER ASSY. (LEFT AND RIGHT)

PAGE 42 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— TWIN PITCH TOWER ASSY. (RT/LT)

TWIN PITCH TOWER ASSY. (LEFT AND RIGHT)

NO PART NO PART NAME QTY. REMARKS

1 (LT) 10392 TOWER ASSY. , LEFT TPC .................... 1 .. INCLUDES ITEMS W/+

1 (RT) 10421 TOWER ASSY. , RIGHT TPC .................. 1 .. INCLUDES ITEMS W/

2 +% 10512 RING, SNAP, TRUARC 5160 – 75 1
3 +% 2170 BEARING, RACE, TORR #TRA 1220 3
4 +% 1604 BEARING, BALL 1
5 +% 1612 BEARING, ALUM – PITCH CONTR 1
6 +% 2169 BEARING, THRUST, TORR #NTA 1220 1

7 +% 2367 SET COLLAR .......................................... 1 .. INCLUDES ITEM 8

8 +% 0685 SCREW, SHS 5/16-18 X 5/16 1
9 +% 0126 B KEY, WOODRUFF #9 1

10 + 2010 SHAFT, PITCH CONTROL, LH TPC ....... 1 .. LEFT SIDE ONLY REPLACES 10511

11 % 10510 SHAFT, PITCH CONTROL, RH TPC ....... 1 .. RIGHT SIDE ONLY

12 +% 1733 WASHER, 1/32 X 1/2 HARDENED 8
13 +% 2007 SHAFT 1

14 +% 1578 KEY, WOODRUFF, #3 ............................. 9 .. QTY. INCLUDES USAGE ON BOTH TWIN PITCH

...................................................................... ASSEMBLIES, AND MITER BOX SHAFTS.

15 +% 11654 PIN, ROLL 1/8 X 1 PLATED ................... 5 .. QTY. INCLUDES USAGE ON BOTH TWIN PITCH

...................................................................... ASSEMBLIES, AND MITER BOX SHAFTS.

16 +% 2311 SPACER, 3/4 X 1/2 X 0.8L 1
17 +% 1536 U-JOINT, PITCH CONTROL 1
18 +% 1586 PIN, ROLL 1/8 X 3/4 1
19 +% 2023 SHAFT, PITCH CONTROL 1

20 + 10722 SLIDE BLOCK, LH PITCH CONTROL .... 1 .. LEFT SIDE ONLY

21 % 10721 SLIDE BLOCK, RH PITCH CONTROL .... 1 .. RIGHT SIDE ONLY

22 +% 10382 BOLT, SHOULDER 3/8 X 3/8 LONG 1
23 +% 10723 PIN, SPIROL 3/16 X 1 3/8 HD 1
24 +% 2008 CABLE, PITCH ASSY. 1
25 +% 1116 NUT, BRASS JAM 5/16 – 18 2

%

NOTE 1: ITEMS WITH % ARE PART OF TWIN PITCH ASSY. RIGHT SIDE

ITEMS WITH + ARE PART OF TWIN PITCH ASSY. LEFT SIDE

NOTE 2: INDICATED QUANTITIES ARE FOR ONE PITCH TOWER.

IF ORDERING FOR TWO PITCH TOWERS DOUBLE THE QUANTITY.

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 43

BRT RIDE-ON POWER TROWEL— TWIN PITCH MITER BOX ASSY. (RT/LT)

TWIN PITCH MITER BOX ASSY. (RIGHT AND LEFT)

PAGE 44 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— TWIN PITCH MITER BOX ASSY. (RT/LT)

TWIN PITCH MITER BOX ASSY. (RIGHT AND LEFT)

NO. PART NO. PART NAME QTY. REMARKS

+% 0181B WASHER, LOCK 1/4 MED 20

3

*

14

+% 1536 U-JOINT, PITCH CONTROL 2

*

15*+% 1162 A CAP, GREASE ZERK 2
17 10548 TUBE, PITCH CONTROL 1

20*+% 1586 PIN ROLL 1/8 x 3/4 ..................... 11 .......... QTY INCLUDES USAGE ON BOTH TWIN PITCH

................................................................... ASSEMBLIES, AND MITER BOX SHAFTS.

24*+% 1578 KEY, WOODRUFF, #3 .................... 9.......... QTY INCLUDES USAGE ON BOTH TWIN PITCH

................................................................... ASSEMBLIES, AND MITER BOX SHAFTS.

29*+% 1733 WASHER, 1/32 x 1/2 HARDEN 8
31 2012 SLEEVE, ADJ.-LONG RIDER 1
32 2156 SPRING, COIL 1
38*+% 2621 ZERK, GREASE STR 1/4-28 2
41 0202 SCREW, HHC 5/16-18 x 1 4
42 0300 B WASHER, FLAT 5/16 SAE 4
43

*

44

*

45

*

46

*

47

*

48

*

49

*

50

*

51

*

52

*

53 5283 NUT, NYLOC 5/16-18 4

56 11655 MITER BOX ASSEMBLY ............... 1 .......... INCLUDES ITEMS W/

0730 SCREW, HHC 1/4-20 x 1 8
2104 SLEEVE W/U JOINT 1
1577 SET COLLAR, 1/2 2
1987 MITER BOX, PITCH CONTROL 1
1988 MITER BOX, BEARING CAP 2
2021 SHAFT, MITER VERTICAL 1

2022 SHAFT, MITER .............................. 3 .......... QTY INCLUDES USAGE ON BOTH TWIN PITCH

................................................................... ASSEMBLIES, AND MITER BOX SHAFTS.

2062 GEAR, MITER 2
2049 SHAFT, MITER BOX HORIZ. 1
4514 SCREW, HHC 1/4-20 x 5/8 4

*

NOTE 1: ITEMS WITH % ARE PART OF TWIN PITCH ASSY. RIGHT SIDE

ITEMS WITH + ARE PART OF TWIN PITCH ASSY. LEFT SIDE

NOTE 2: INDICATED QUANTITIES ARE FOR ONE PITCH TOWER.

IF ORDERING FOR TWO PITCH TOWERS DOUBLE THE QUANTITY.

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 45

MAIN FRAME ASSY.

BRT RIDE-ON POWER TROWEL— MAIN FRAME ASSY.

PAGE 46 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— MAIN FRAME ASSY.

MAIN FRAME ASSY.

NO. PART NO. PART NAME QTY. REMARKS

21 2135 FUEL LINE 1
22 19473 HOSE CLAMP 2
23 8126 CLAMP 1
24 2299 HHCS 8MM- 1.25 X 15MM 1
25 4514 HHCS 1/4- 20 X 5/8” 6
26 0948 FLAT WASHER 1/4” 12
27 2429 SPARE BELT CARRIER 1
30 2923 RUBBER GROMMET 1
32 0181B LOCK WASHER 1/4- 20 2
33 0131A HHCS 1/4- 20 X 3/4” 8
34 2161 FUEL VALVE 1
35 2712 FUEL CAP 1
36 2028 FUEL TANK 1
38 4014 U- DRIVE SCREW 2 X 3/16” 2

39 SERIAL NUMBER PLATE .................... 1 ........... CONTACT MULTIQUIP PARTS DEPT.

41 10024 LOCK NUT 1/4- 20 6
43 2536 FRONT PANEL 1
44 10638 MAIN FRAME 1
45 2346 FUEL FILTER 1

49 11064 SPARE BELT A-36 (138 RPM) ............. 2 ........... VANGUARD, ONAN, KOHLER, AND HONDA

49 2155 SPARE BELT A-37 (120 RPM) ............. 2 ........... VANGUARD ONLY

49 3546 SPARE BELT A-38 (120 RPM) ............. 2 ........... HONDA ONLY

49 1619 SPARE BELT A-39 (100 RPM) ............. 2 ........... VANGUARD, ONAN, KOHLER, AND HONDA

49 2152 SPARE BELT A-40 (120 RPM) ............. 2 ........... ONAN AND KOHLER

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 47

SEAT FRAME ASSY.

BRT RIDE-ON POWER TROWEL— SEAT FRAME ASSY.

PAGE 48 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— SEAT FRAME ASSY.

SEAT FRAME ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2351 SEAT 1
2 2421 SEAT MOUNTING PLATE 1
3 0161C LOCK WASHER 5/16” 3
4 0655 HHCS 5/16- 18 x 3/4” 4
5 0183 COTTER PIN 2
6 8081 CLEVIS PIN 2

7 2812 SEAT FRAME ...................................................... 1 .............. VANG.

7 2758 SEAT FRAME ...................................................... 1 .............. ONAN

7 10697 SEAT FRAME ...................................................... 1 .............. KOHLER

7 10978 SEAT FRAME ...................................................... 1 .............. HONDA

8 8156 HHCS 3/8- 16 X 2.1/2” 1
9 4001 FLAT WASHER 3/8” 1

10 2549 HHCS 1/2- 13 X 3” ................................................ 4 .............. VAN/ONAN

10 10306 HHCS 1/2- 13 X 4.1/2” ..........................................4 .............. KOHLER/HONDA

11 2585 COIL SPRING 1
12 2584 PUSH BUTTON SWITCH 1
13 10133 LOCK NUT 3/8- 16 1
14 2906 PANEL NUT 1
15 10284 CLIP- ON NUT 10- 32 2
16 10176 LOCK NUT 1/2- 13 4

17 2759 SEAT KILL SWITCH ADAPTER ...........................1 .............. ONAN/HONDA

18 2893 SPACER ...............................................................4 .............. KOHLER/HONDA

19 2946 JUMPER WIRE ....................................................1 .............. KOHLER

20 10638 MAIN FRAME 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 49

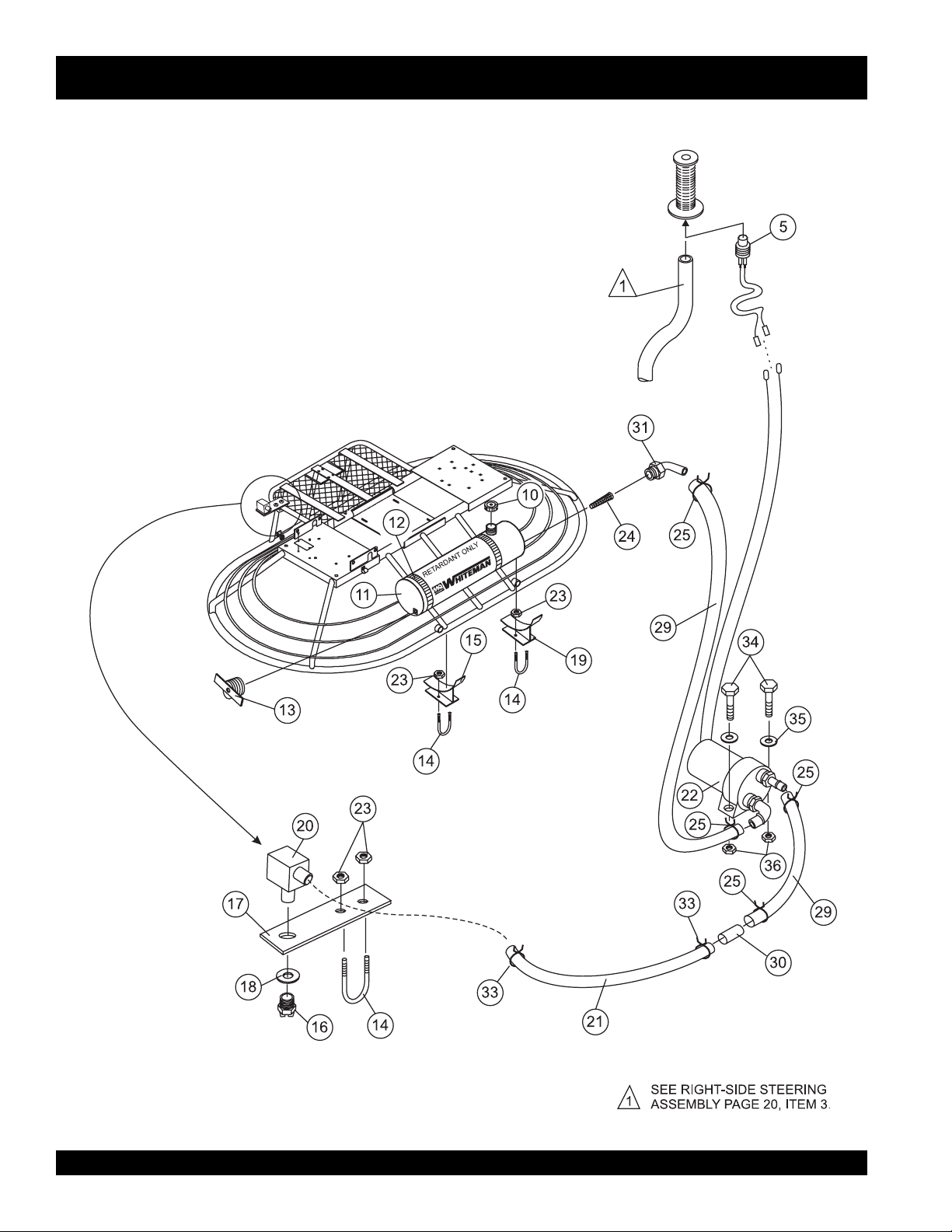

BRT RIDE-ON POWER TROWEL— RETARDANT SPRAY TANK ASSY.

RETARDANT SPRAY TANK ASSY.

PAGE 50 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— RETARDANT SPRAY TANK ASSY.

RETARDANT SPRAY TANK ASSY.

NO. PART NO. PART NAME QTY. REMARKS

5 2765 SWITCH, RETARDANT SPRAY 1
10 2108 TANK CAP 1
11 2916 RETARDANT TANK 1
12 2398 CLAMP 2
13 2478 DRAIN COCK 1
14 2399 U- BOLT 2
15 2887 RIGHT MOUNTING BRACKET 1
16 392292 SPRAY NOZZLE 1
17 2873 MOUNTING BRACKET 1
18 2898 RUBBER WASHER 1
19 2886 LEFT MOUNTING BRACKET 1
20 2912 90 DEGREE FITTING 1
21 2914 HOSE 1
22 10043 PUMP ASSYJ. 1
23 2656 LOCKNUT 5/16- 24 6
24 2926 STRAINER 1
25 2918 HOSE CLAMP 4
29 2913 LOWER HOSE 1
30 10022 REDUCER 1
31 2925 90 DEGREE ELBOW 1
33 2930 HOSE CLAMP 2
34 0131A HHCS 1/4- 20 X 3/4” 2
35 0948 FLAT WASHER 1/4” 2
36 10024 LOCK NUT 1/4-20 2

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 51

FOOT PEDALS ASSY.

BRT RIDE-ON POWER TROWEL— FOOT PEDAL ASSY.

PAGE 52 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— FOOT PEDAL ASSY.

FOOT PEDALS ASSY.

NO PART NO PART NAME QTY. REMARKS

1 0202 SCREW, HHC 5/16-18X1 4
2 0300B WASHER, FLAT, 5/16 SAE 4
3 10136 WASHER, FLAT, 3/8 SAE 2
4 2086 PEDAL, ACCELERATOR 1
5 2772 PIN, ACC MOUNT 1
6 5283 NUT, NYLOC 5/16-18 4
7 6014B PIN, COTTER 3/32X1 2
8 12985 LEFT SIDE FOOT REST 1
9 12986 RIGHT SIDE FOOT REST 1
10 3233 WASHER, FENDER, 1.5odX3/8id 4
11 3083 SPACER 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 53

BRT RIDE-ON POWER TROWEL— THROTTLE/FOOT PEDAL ASSY.

THROTTLE FOOT PEDAL ASSY.

PAGE 54 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— THROTTLE/FOOT PEDAL ASSY.

THROTTLE FOOT PEDAL ASSY.

NO PART NO PART NAME QTY. REMARKS

1 0937 NUT, HEX 10-32 ..................................................... 2 ........ ONAN, VANGUARD, HONDA, KOHLER

2 10018 SCREW, SHC 10-32X1 NO PLATE ......................... 1 ........ ONAN, VANGUARD, HONDA, KOHLER

3 10019 NUT, NYLOC 10-32 ................................................. 1 ........ ONAN, VANGUARD, HONDA, KOHLER

4 2153 ROD END, 10-32 FEMALE RH ............................... 2 ........ ONAN, VANGUARD, HONDA, KOHLER

5 2203 WASHER, FLAT, #10 .............................................. 2 ........ ONAN, VANGUARD, HONDA, KOHLER

6 2753 SPRING, THROTTLE RETURN, LOWER ............... 1 ........ ONAN, VANGUARD, HONDA, KOHLER

7 2754 ADAPTOR, THROTTLE RET. SPRING LG. ............. 1 ........ ONAN, VANGUARD, HONDA, KOHLER

8 2755 ADAPTOR, THROTTLE RET. SPRING SHORT ...... 1 ........ ONAN, VANGUARD, HONDA, KOHLER

9 2124 ENGINE THROTTLE CABLE .................................. 1 ........ ONAN, VANGUARD, KOHLER

10 2194 THROTTLE NUT ..................................................... 1 ........ ONAN, VANGUARD, HONDA, KOHLER

11 2192 THROTTLE SPRING .............................................. 1 ........ ONAN, VANGUARD, HONDA, KOHLER

12 2694 THROTTLE CONTROL ASSY. ................................ 1 ........ ONAN ONLY

13 2628 THROTTLE CABLE MTNG. BRACKET .................. 1 ........ ONAN ONLY

15 10964 THROTTLE CABLE MTNG. BRACKET .................. 1 ........ HONDA ONLY

16 11771 ENGINE THROTTLE CABLE .................................. 1 ........ HONDA ONLY

17 10954 THROTTLE LEVER ................................................ 1 ........ HONDA ONLY

18 10955 THROTTLE WIRE ................................................... 1 ........ HONDA ONLY

19 2190 SPACER ................................................................. 1 ........ VANGUARD, KOHLER

20 2409013 THROTTLE CONTROL ASSY. ................................ 1 ........ KOHLER ONLY

21 2884 THROTTLE CABLE MTNG. BRACKET .................. 1 ........ KOHLER ONLY

22 10018 SHCS 10-32X1" ...................................................... 1 ........ HONDA, KOHLER

23 2162 THROTTLE CABLE MTNG. BRACKET .................. 1 ........ VANGUARD ONLY

24 691028 THROTTLE CONTROL ASSY. ................................ 1 ........ VANGUARD ONLY

15 10237 WASHER, EXT. SHKP, 5/16? 4

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 55

BATTERY ASSY.

BRT RIDE-ON POWER TROWEL— BATTERY ASSY.

PAGE 56 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— BATTERY ASSY.

BATTERY ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2482 BATTERY STRAP ................................................ 1 ............. WITH BATTERY BOX

1 2222 BATTERY STRAP ................................................ 1 ............. WITHOUT BATTERY BOX

2 2449 BATTERY BOX 1

3 1597 NEGATIVE BATTERY CABLE.............................. 1 .............. BLACK

4 2484 FRONT BATTERY BRACKET ..............................1 .............. WITH BATTERY BOX

4 2184 FRONT BATTERY BRACKET ..............................1 .............. WITHOUT BATTERY BOX

5 2483 REAR BATTERY BRACKET ................................1 .............. WITH BATTERY BOX

5 2183 REAR BATTERY BRACKET ................................ 1 .............. WITHOUT BATTERY BOX

6 2509 WING NUT 1/4- 20 2
7 10031 EXT. SHKP WASHER 1/4” 2

8 4671 BATTERY 12V (SHIPPED DRY) .........................1 .............. GROUP U- 1 PURCHASE FROM

.............................................................................................. LOCAL INTERSTATE DEALER

9 2542 POSITIVE BATTERY CABLE ..............................1 .............. RED

10 0655 HHCS 5/16-18 X 3/4" 4
11 0300B FLAT WASHER 5/16" 4
31 0949 HEX NUT 1/4-20 2
32 0181B WASHER, LOCK 2

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 57

LIGHTS ASSY.

BRT RIDE-ON POWER TROWEL— LIGHTS ASSY.

PAGE 58 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— LIGHTS ASSY.

LIGHTS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2896 LIGHT & MOUNTING HARDWARE 3
2 2531 FRONT MOUNTING BRACKET 2
3 5283 LOCK NUT 5/16- 18 8
4 2534 CLAMP ASSY. 2

6 0161C LOCK WASHER 5/16” .......................................... 7 .............. VANGUARD

6 0181B LOCK WASHER 1/4” ............................................1 .............. KOHLER ONLY

7 2299 HHCSM 8- 1.25 X 15MM ...................................... 1 .............. VANGUARD

7 10486 HHCSM 6- 1 X 40MM ........................................... 1 .............. KOHLER ONLY

8 2430 REAR MOUNTING BRACKET 1
26 0655 HHCS 5/16- 18 X 3/4” 3
27 0161D HEX NUT5/16- 18 6
28 0300A HHCS 5/16- 18 X 2” 3

35 0948 FLAT WASHER 1/4” 2 .............. KOHLER ONLY

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 59

BRT RIDE-ON POWER TROWEL— FRONT PANEL ASSY. (VANGUARD)

FRONT PANEL ASSY. (VANGUARD)

PAGE 60 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— FRONT PANEL ASSY. (VANGUARD)

FRONT PANEL ASSY. (VANGUARD)

NO. PART NO. PART NAME QTY. REMARKS

29 0131A HHCS 1/4- 20 X 3/4” 2
30 5065B RHMS 10- 32 X 1/2” 4
31 2752 FRONT HEAT SHIELD 1
32 10019 LOCK NUT 10- 32 4
36 2814 DECAL 1

37 4682 TOGGLE SWITCH ................................................1 .............. OPTIONAL

38 2673 CIRCUIT BREAKER 1
39 10024 LOCK NUT 1/4- 20 4
40 0948 FLAT WASHER 1/4” 4
41 4514 HHCS 1/4- 20 X 5/8” 2
42 2203 FLAT WASHER #10 2
44 0949 HEX NUT 1/4” 2
46 8381 TOGGLE BOOT 1
47 807829 VOLTAGE REGULATOR 1
48 10958 IGNITION SWITCH 1
49 11078 IGNITION KEY 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 61

BRT RIDE-ON POWER TROWEL— FRONT PANEL ASSY. (ONAN)

FRONT PANEL ASSY. (ONAN)

PAGE 62 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— FRONT PANEL ASSY. (ONAN)

FRONT PANEL ASSY. (ONAN)

NO. PART NO. PART NAME QTY. REMARKS

6 5065B RHMS 10- 32 X 1/2” 5
7 0948 FLAT WASHER 1/4” 5
37 10019 LOCK NUT 10- 32 5
40 10024 LOCK NUT 1/4- 20 2
41 8381 TOGGLE BOOT 1
42 2703 CONTROL PANEL 1
43 2673 CIRCUIT BREAKER 1

44 4682 LIGHT SWITCH ....................................................1 .............. OPTIONAL

45 10958 IGNITION SWITCH 1
46 11078 IGNITION KEY 1
47 1530606 THROTTLE CABLE 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 63

BRT RIDE-ON POWER TROWEL— FRONT PANEL ASSY. (KOHLER)

FRONT PANEL ASSY. (KOHLER)

PAGE 64 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— FRONT PANEL ASSY. (KOHLER)

FRONT PANEL ASSY. (KOHLER)

NO. PART NO. PART NAME QTY. REMARKS

24 10471 CONTROL PANEL 1
25 2580 CHOKE CABLE 2
26 4514 HHCS 1/4- 20 X 5/8” 2
29 8381 BOOT 1
30 5065B RHMS 10- 32 X 1/2” 6
34 2673 CIRCUIT BREAKER 1
35 10024 LOCK NUT 1/4- 20 3
36 0948 FLAT WASHER 1/4” 4
37 10019 LOCK NUT 10- 32 6
38 2203 FLAT WASHER #10 4
39 0131A HHCS 1/4- 20 X 3/4” 2
40 10958 IGNITION SWITCH 1
41 11078 IGNITION KEY 1
43 4682 SWITCH 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 65

BRT RIDE-ON POWER TROWEL— FRONT PANEL ASSY. (HONDA)

FRONT PANEL ASSY. (HONDA)

PAGE 66 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— FRONT PANEL ASSY. (HONDA)

FRONT PANEL ASSY. (HONDA)

NO. PART NO. PART NAME QTY. REMARKS

30 5065B RHMS10-32 X 1/2” 6
31 10927 CONTROL PANEL 1
32 10019 LOCK NUT 10- 32 8
36 2814 CONTROL PANEL DECAL 1

37 4682 LIGHT SWITCH ....................................................1 .............. OPTIONAL

38 2673 CIRCUIT BREAKER 2
39 10024 LOCK NUT 1/4- 20 4
40 0948 FLAT WASHER 1/4” 6
41 4514 HHCS 1/4- 20 X 5/8” 2
42 2203 FLAT WASHER #10 8
46 8381 TOGGLE BOOT 1
47 10958 IGNITION SWITCH 1
48 11078 IGNITION KEY 1
49 31620Z65003 RECTIFER

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 67

BRT RIDE-ON POWER TROWEL— E-Z MOVER & LIFT HANDLE ASSY.

E-Z MOVER (EMR2) AND LIFT HANDLE

PAGE 68 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— E-Z MOVER & LIFT HANDLE ASSY.

E-Z MOVER (EMR2) AND LIFT HANDLE

NO PART NO PART NAME QTY. REMARKS

1 0189 HAND GRIP 2
2 2336 UPPER HANDLE 1
3 1869 SNAP PIN 1
4 7170 CLIP 4
5 11684 DOLLY AXLE 4
6 10440 WHEEL & TIRE 4
7 0655 SCREW, HHCS 5/16-18 x 3/4" 2
8 0300B FLAT WASHER 5/16" 2
9 2364 WHEEL 2
10 10445 FRAME 1
11 4684 FLAT WASHER 5/8" 2
12 0183 COTTER PIN 4
13 10446 FLAT WASHER 3/4" 8
14 8151 FLAT WASHER 3/4" SAE 8
15 0161C LOCK WASHER 5/16" 2

EMR-2 E-Z MOVER ASSY — PURCHASE THROUGH MQ UNIT SALES DEPT.

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 69

BRT RIDE-ON POWER TROWEL— WIRING DIAGRAM ASSY.

WIRING DIAGRAM ASSY.

VANGUARD, ONAN AND KOHLER

PAGE 70 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— WIRING DIAGRAM ASSY.

WIRING DIAGRAM ASSY.

VANGUARD, ONAN AND KOHLER

NO. PART NO. PART NAME QTY. REMARKS

1 1662 WIRE TIES 14

2 2566 WIRING HARNESS ASSY. .................................. 1 .............. TO PJ29574

2 2775 WIRING HARNESS ASSY. ..................................1 .............. FROM PJ29575

3 5065B RHMS 10- 32 X 1” 2
4 2548 WIRE CLAMP 2
5 10019 HEX NUT 10- 32 2

6 2776 ENGINE HARNESS .............................................1 .............. VANGUARD

6 2768 ENGINE HARNESS .............................................1 .............. ONAN

6 2945 ENGINE HARNESS .............................................1 .............. KOHLER

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 71

BRT RIDE-ON POWER TROWEL— HONDA WIRING DIAGRAM ASSY.

HONDA WIRING DIAGRAM ASSY.

PAGE 72 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

BRT RIDE-ON POWER TROWEL— HONDA WIRING DIAGRAM ASSY.

HONDA WIRING DIAGRAM ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 2775 MAIN WIRING HARNESS ASSY. 1
2 2945 ENGINE HARNESS 1
3 10985 KILL WIRE 1
4 10961 CHARGING JUMPER WIRE 1
5 10982 BATTERY JUMPER WIRE 1
6 1475 WIRE SPLICE 1
7 10983 SOLENOID WIRE 1
8 2796 LIGHT SWITCH WIRE 1
9 10979 CHARGE WIRE 1
10 10940 BATTERY HOT WIRE 1

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 73

Effective: October 1, 2002

TERMS AND CONDITIONS OF SALE — PARTS

PAYMENT TERMS

Terms of payment for parts are net 10 days.

FREIGHT POLICY

All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a signed
manifest has been obtained from the carrier,
and any claim for shortage or damage must be
settled between the consignee and the carrier.

MINIMUM ORDER

The minimum charge for orders from Mul­tiquip is $15.00 net. Customers will be asked
for instructions regarding handling of orders
not meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and credit
will be allowed, subject to the following provi­sions:

1. A Returned Material Authorization must
be approved by Multiquip prior to ship­ment.

2. To obtain a Retur n Material Authorization,
a list must be provided to Multiquip Parts
Sales that defines item numbers, quanti­ties, and descriptions of the items to be
returned.

a. The parts numbers and descriptions

must match the current parts price
list.

b. The list must be typed or computer

generated.

c. The list must state the reason(s) for

the return.

d. The list must reference the sales

order(s) or invoice(s) under which the
items were originally purchased.

e. The list must include the name and

phone number of the person request­ing the RMA.

3. A copy of the Return Material Authoriza­tion must accompany the return shipment.

4. Freight is at the sender’s expense. All
parts must be returned freight prepaid to
Multiquip’s designated receiving point.

5. Parts must be in new and resalable con-

6. The following items are not returnable:

7. The sender will be notified of any material

8. Such material will be held for five working

9. Credit on returned parts will be issued at

10. In cases where an item is accepted, for

11. Credit issued will be applied to future

PRICING AND REBATES

Prices are subject to change without prior
notice. Price changes are effective on a spe­cific date and all orders received on or after that
date will be billed at the revised price. Rebates
for price declines and added charges for price
increases will not be made for stock on hand
at the time of any price change.

Multiquip reserves the right to quote and sell
dition, in the original Multiquip package (if
any), and with Multiquip part numbers
clearly marked.

a. Obsolete parts. (If an item is in the

price book and shows as being re­placed by another item, it is obsolete.)

b. Any parts with a limited shelf life

(such as gaskets, seals, “O” rings,
and other rubber parts) that were pur­chased more than six months prior to
the return date.

c. Any line item with an extended dealer

net price of less than $5.00.

d. Special order items.
e. Electrical components.

f. Paint, chemicals, and lubricants.

g. Decals and paper products.

h. Items purchased in kits.

received that is not acceptable.

days from notification, pending instruc­tions. If a reply is not received within five
days, the material will be returned to the
sender at his expense.

dealer net price at time of the original
purchase, less a 15% restocking charge.

which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.

purchases only.

direct to Government agencies, and to Origi-

nal Equipment Manufacturer accounts who

use our products as integral parts of their own

products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the invoice

for special handling including bus shipments,

insured parcel post or in cases where Multiquip

must personally deliver the parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder for

damages in excess of the purchase price of the

item with respect to which damages are

claimed, and in no event shall Multiquip be

liable for loss of profit or good will or for any

other special, consequential or incidental dam-

ages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are made

in connection with the sale of parts or trade

accessories nor as to any engine not manufac-

tured by Multiquip. Such warranties made in

connection with the sale of new, complete units

are made exclusively by a statement of war-

ranty packaged with such units, and Multiquip

neither assumes nor authorizes any person to

assume for it any other obligation or liability

whatever in connection with the sale of its

products. Apart from such written statement of

warranty, there are no warranties, express,

implied or statutory, which extend beyond the

description of the products on the face hereof.

PAGE 74 — BRT RIDE-ON POWER TROWEL— OPERATION & PARTS MANUAL — REV. #1 (01/13/03)

NOTE PAGE

BRT RIDE-ON POWER TROWEL — OPERATION & PARTS MANUAL — REV. #1 (01/13/03) — PAGE 75

PARTS MANUAL

HERE'S HOW TO GET
HELP

PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING

PARTS DEPARTMENT

800-427-1244 or 310-537-3700
FAX: [phone] or 310-637-3284

SERVICE DEPARTMENT

800-421-1244
FAX: [phone]

TECHNICAL ASSISTANCE

800-478-1244
FAX: [phone]

WARRANTY DEPARTMENT

888-661-4279, or 310-661-4279
FAX: [phone]

MULTIQUIP INC

18910 WILMINGTON AVE. 800-427-1244
CARSON, CALIFORNIA 90746 FAX: [phone]
310-537-3700
800-421-1244 800-478-1244
FAX: [phone] FAX: [phone]

E-mail:[e-mail] • www:multiquip.com

Atlanta • Boise • Dallas • Houston • Newark
Montreal, Canada • Manchester, UK
Rio De Janiero, Brazil • Guadalajara, Mexico

..

. PARTS DEPARTMENT:

..

SERVICE DEPARTMENT/TECHNICAL ASSISTANCE:
