OPERATION AND PARTS MANUAL

MODEL AR13D

RIDE-ON TANDEM DRUM ROLLER

SERIES DRIVE SYSTEM

(DIESEL ENGINE)

Revision #2 (09/15/11)

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

AR13D RIDE-ON ROLLER — PROPOSITION 65 WARNING

Diesel engine exhaust and some of

PAGE 2 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

NOTE PAGE

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 3

AR13D RIDE-ON ROLLER — TABLE OF CONTENTS

MULTIQUIP AR13D RIDE-ON TANDEM DRUM ROLLER

Proposition 65 Warning ............................................. 2

Table Of Contents ..................................................... 4

Parts Ordering Procedures ....................................... 5

Safety Message Alert Symbols .............................. 6-7

Rules For Safe Operation .................................... 8-10

Operation and Safety Decals ............................. 11-12

Specifications (Roller) ............................................. 13

Specifications (Engine) ........................................... 14

Dimensions ............................................................. 15

General Information ........................................... 16-17

Roller Components ............................................ 18-20

Engine Components ............................................... 21

Inspection ........................................................... 22-24

Initial Start-Up ......................................................... 25

Operation ................................................................ 26

Maintenance ...................................................... 27-36

Preparation For Long-Term Storage ...................... 37

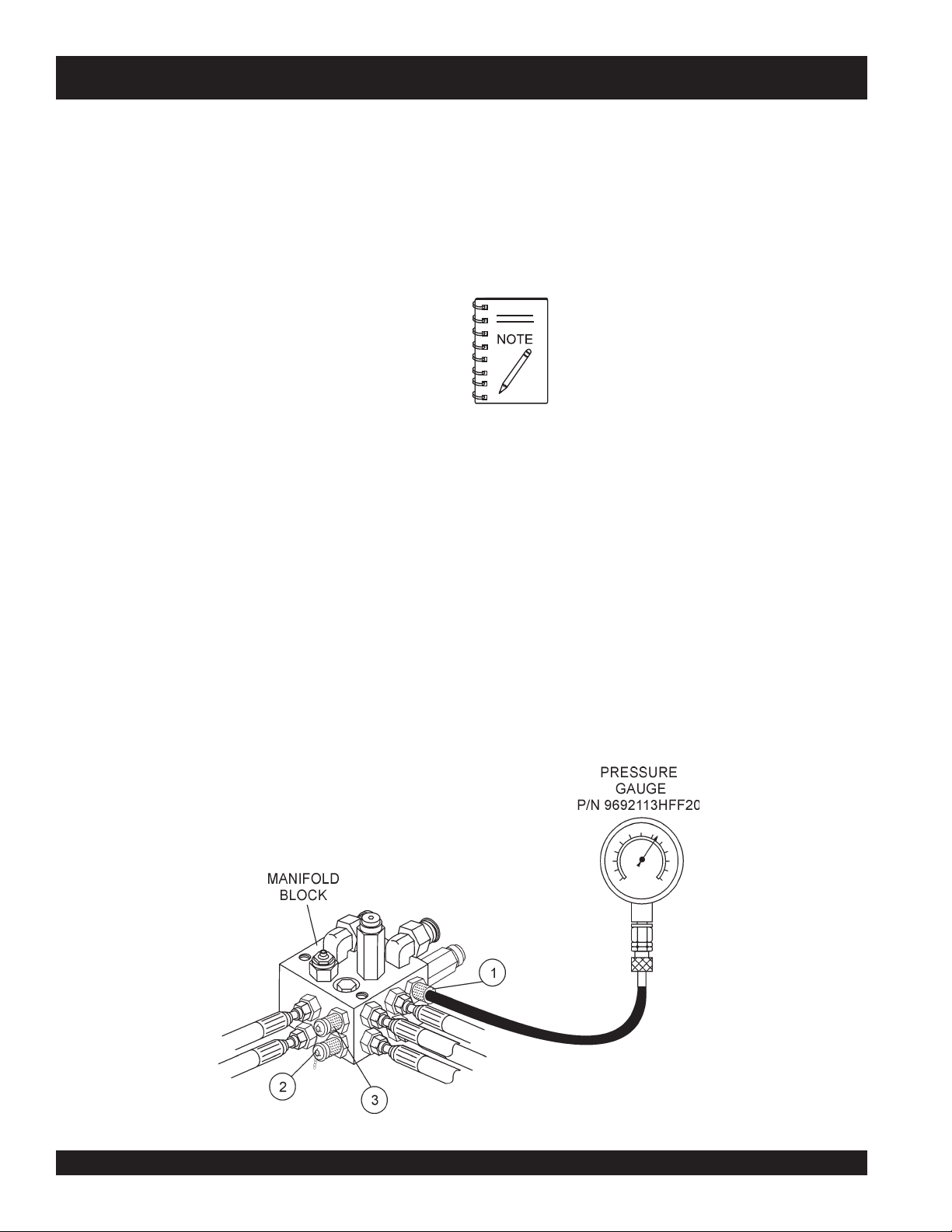

Manifold Test Ports .................................................. 38

Hydraulic System Diagram ..................................... 39

Electric Wiring Diagram ........................................... 40

Hydraulic Hose Connectsion .............................. 42-43

Troubleshooting (Roller).......................................... 44

Troubleshooting (Engine) ................................... 45-46

COMPONENT DRAWINGS

Explanation Of Code In Remarks Column .............. 48

Suggested Spare Parts ........................................... 49

Name Plate and Decals ..................................... 50-51

Front Drum Assembly ........................................ 52-53

Exciter Assembly ................................................ 54-55

Rear Drum and Chassis Assembly .................... 56-57

Covers and Frame Articulation Lock Assy. ........ 58-59

Hood and Rear Panel Assembly ........................ 60-61

Steering Column and Hydraulic Artic. Assy. ...... 62-63

Articulation Arm Assembly ................................. 64-65

Hydraulic Drive Pump Assembly ........................ 66-67

Manifold and Hydraulic Oil Filter Assembly........ 68-69

Fuel Tank and Oil Drain Hose Assembly ............ 70-71

Water Tank Assembly ......................................... 72-73

Engine Mounting Assembly ............................... 74-75

Muffler Assembly ............................................... 76-77

Air Cleaner Assembly.........................................78-79

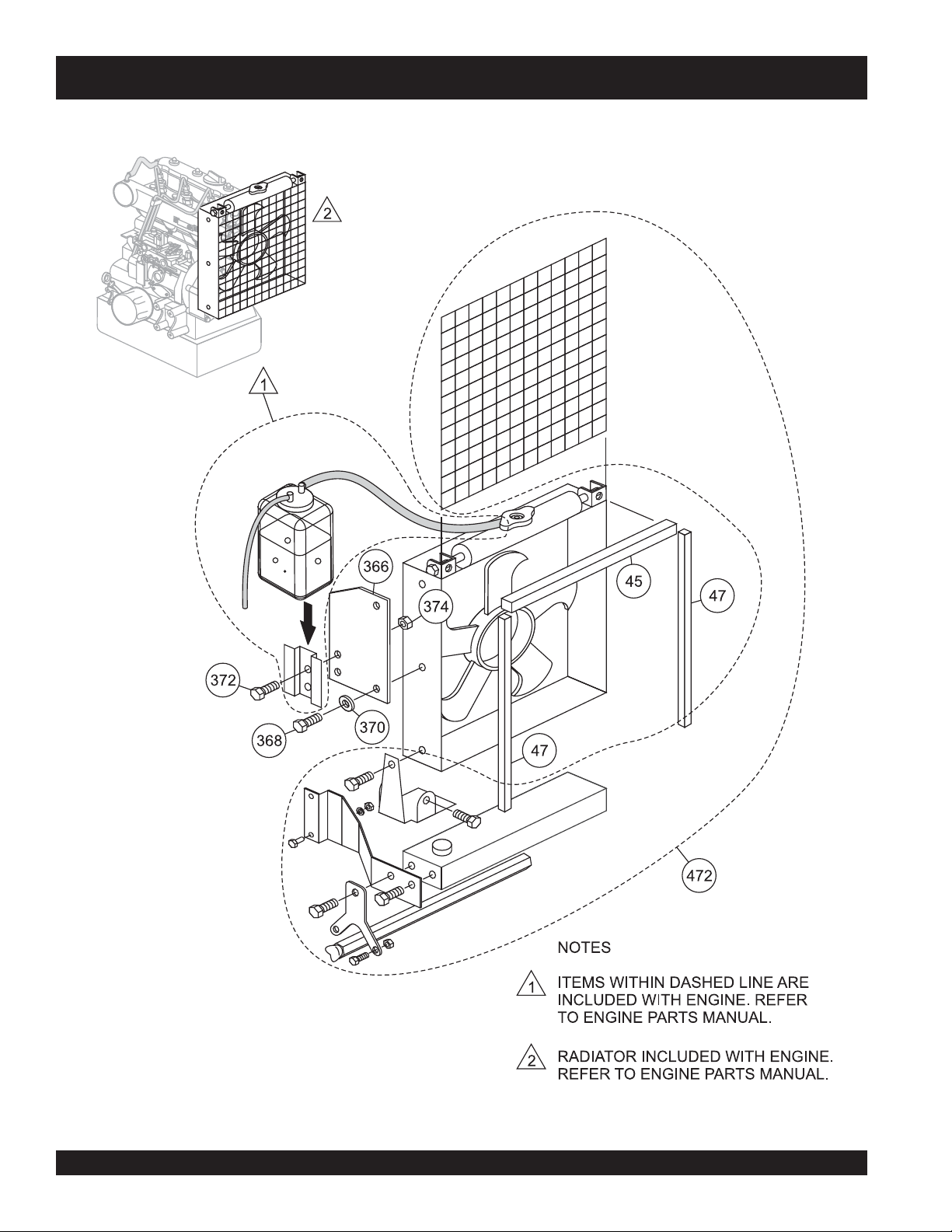

Radiator Assembly ............................................. 80-81

Throttle Assy. ..................................................... 82-83

Brake Control Assy. ............................................ 84-85

Battery Assy. ...................................................... 86-87

Scraper Assy. ..................................................... 88-89

Terms and Conditions of Sale ................................. 90

Specification and part number are subject to change without notice.

PAGE 4 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

Best Deal!

PARTS ORDERING PROCEDURES

Ordering parts has never been easier!

Choose from three easy options:

Order via Internet

Order parts on-line using Multiquip’s SmartEquip website!

■

View Parts Diagrams

■

Order Parts

■

Print Specification Information

Goto www.multiquip.com and click on

Order Par ts

Order via Fax

All customers are welcome to order parts via Fax.

Domestic (US) Customers dial:

1-800-6-PARTS-7 (800-672-7877)

(Dealers Only)

to log in and save!

(Dealers Only)

If you have an MQ Account, to obtain a Username and Password, E-mail us at:

parts@multiquip.com.

To obtain an MQ Account, contact your District Sales Manager for more information.

Use the

internet

Standard orders

complete part numbers.*

Fax

your order in and qualify for a 2% Discount

Standard orders

complete part numbers.*

Effective:

January 1

, 2006

and qualify for a 5% Discount

for all orders which include

Note: Discounts Are Subject To Change

for all orders which include

Note: Discounts Are Subject To Change

Order via Phone:

Non-Dealer Customers:

Contact your local Multiquip Dealer for parts or call 800-427-1244 for help in locating a dealer near you.

When ordering parts, please supply:

❒❒

Dealer Account Number

❒

❒❒

Dealer Name and Address

❒

❒❒

Shipping Address (if different than billing address)

❒

❒❒

Return Fax Number

❒

❒❒ ❒❒

Applicable Model Number

❒

❒❒

Quantity, Part Number and Description of Each Part

❒

❒❒

All orders are treated as and will ship the same day if received prior to 3PM PST.

Domestic (US) Dealers Call:

1-800-427-1244

International Customers

their local Multiquip Representatives for Parts Ordering information.

❒❒

Specify Preferred Method of Shipment:

❒

❒❒

✓

UPS/Fed Ex

Priority One

■

Ground

■ Next Day Second/Third Day

■

Standard Orders

should contact

✓ DHL ✓

Tr u ck

www.multiquip.com

WE ACCEPT ALL MAJOR CREDIT CARDS!

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 5

AR13D RIDE-ON ROLLER — SAFETY MESSAGE ALERT SYMBOLS

FOR YOUR SAFETY AND THE SAFETY OF OTHERS!

Safety precautions should be followed at all times when operating this equipment. Failure to read and understand the Safety Messages and Operating Instructions could result in injury to yourself and others.

This Owner's Manual has been developed to provide complete instructions for the safe and efficient operation of the Multiquip Model AR13D Ride-on Tandem Drum Roller. Refer to the engine manufacturers instructions for data relative to its safe operation.

Before using this roller, ensure that the operating individual has read and understands all instructions in this manual.

HAZARD SYMBOLS

Potential hazards associated with operation of the pump will be referenced with Hazard Symbols which appear throughout this manual, and will be referenced in conjunction with Safety Message Alert Symbols. Some examples are listed below:

WARNING - LETHAL EXHAUST GASES

structure that does not provide ample free flow air.

SAFETY MESSAGE ALERT SYMBOLS

The three (3) Safety Messages shown below will inform you about potential hazards that could injure you or others. The Safety Messages specifically address the level of exposure to the operator, and are preceded by one of three words: DANGER,

WARNING, or CAUTION.

DANGER

You WILL be KILLED or SERIOUSLY injured if you do not follow directions.

could ignite if it comes into contact with hot engine parts or sparks from the ignition system. Store fuel in approved containers, in well-ventilated areas and away from sparks and flames. NEVER use fuel as a cleaning agent.

Lethal Exhaust Gases

Gasoline engine exhaust gases contain poisonous carbon monoxide. This gas is colorless and odorless, and can cause death if inhaled. NEVER operate this equipment in a confined area or enclosed

WARNING - EXPLOSIVE FUEL

Gasoline

vapors can cause an explosion if ignited. DO NOT start the engine near spilled fuel or combustible fluids. DO NOT fill the fuel tank while the engine is running or hot.

DO NOT overfill tank, since spilled fuel

is extremely flammable, and its

WARNING - BURN HAZARDS

WARNING

Engine components can generate extreme

You COULD be KILLED or SERIOUSLY injured if you do not follow directions.

CAUTION

You CAN be injured if you do not follow directions

PAGE 6 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

heat. To prevent burns, DO NOT touch these areas while the engine is running or immediately after operations. NEVER operate the engine with heat shields or heat guards removed.

AR13D RIDE-ON ROLLER — SAFETY MESSAGE ALERT SYMBOLS

WARNING - ROTATING PARTS

NEVER operate equipment with covers,

or guards removed. Keep

hair

and clothing away from all moving

parts to prevent injury.

fingers, hands

CAUTION - ACCIDENTAL STARTING

ALWAYS place the Engine ON/OFF switch

in the OFF position and remove the ignition key when the pump is not in use.

CAUTION - OVER-SPEED CONDITIONS

NEVER tamper with the factory settings of

the engine governor or settings. Personal injury and damage to the engine or equipment can result if operating in speed ranges above maximum allowable.

CAUTION - RESPIRATORY HAZARDS

ALWAYS wear approved protection.

respiratory

CAUTION - SIGHT AND HEARING HAZARDS

ALWAYS wear approved

hearing

protection.

eye

and

CAUTION - EQUIPMENT DAMAGE MESSAGES

Other important messages are provided throughout this manual to help prevent damage to your concrete pump, other property, or the surrounding environment.

This Ride-on Tandem Drum Roller, other property, or the surrounding environment could be damaged if you do not follow instructions.

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 7

AR13D RIDE-ON ROLLER — RULES FOR SAFE OPERATION

■

DANGER - Read This Manual!

Failure to follow instructions in this manual may lead to serious injury or even trained and qualified personnel only! This equipment is for industrial use only.

The following safety guidelines should always be used when operating the AR13D Ride-on Tandem Drum Roller:

GENERAL SAFETY

■

DO NOT operate or service this equipment before reading this entire manual.

■

This equipment should not be operated by persons under 18 years of age.

■

NEVER operate this equipment without proper protective clothing, shatterproof glasses, steel-toed boots and other protective devices required by the job.

■

NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.

DEATH

! This equipment is to be operated by

NEVER touch the hot exhaust manifold, muffler or cylinder. Allow these parts to cool before servicing engine or pump.

■

High Temperatures – Allow the engine to cool before adding fuel or performing service and maintenance functions. Contact with serious burns.

■

The engine of this roller requires an adequate free flow of cooling air. Never operate the roller in any enclosed or narrow area where free flow of the air is restricted. If the air flow is

hot

components can cause

restricted it will cause

serious damage to the roller or engine and may cause injury to people and property. Remember

the roller's engine gives off DEADLY gases.

■

NEVER operate this equipment under the influence or drugs or alcohol.

■

Whenever necessary, replace nameplate, operation and safety decals when they become difficult read.

■

ALWAYS check the machine for loosened threads or bolts before starting.

■

ALWAYS wear proper respiratoty (mask) hearing and eye protection equipment when operating the roller.

■

NEVER operate this equipment when not feeling well due to fatigue, llness or taking medicine.

■

NEVER operate this equipment under the influence of

drugs

alcohol

■

ALWAYS refuel in a well-ventilated area, away from sparks and open flames.

■

ALWAYS use extreme caution when working with flammable liquids. When refueling, stop the engine and allow it to cool.

DO NOT

could result from fuel vapors, or if fuel is spilled on a hot engine.

■

NEVER operate the Ride-on Tandem Drum Roller in an explosive atmosphere or near combustible materials. An explosion or fire could result causing severe

■

Topping-off to filler port is dangerous, as it tends to spill fuel.

■

Refer to the questions or information.

■

NEVER use accessories or attachments, which are not recommended by Multiquip for this equipment. Damage to the equipment and/or injury to user may result.

■

Manufacturer does not assume responsibility for any accident due to equipment modifications.

smoke around or near the machine. Fire or explosion

bodily harm or even death.

Engine Owner's Manual

for engine technical

PAGE 8 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — RULES FOR SAFE OPERATION

■

NEVER Run engine without air cleaner. Severe engine

damage may occur.

■

ALWAYS read, understand, and follow procedures in Operator’s Manual before attempting to operate equipment.

■

ALWAYS be sure the operator is familiar with proper safety precautions and operations techniques before using roller.

■

ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children.

■

DO NOT operate this roller with hydrostatic oil temperature higher than 180 degrees fahrenheit.

■

NEVER leave the roller unattended, turn off engine and place parking brake lever in upright position.

■

CAUTION must always be observed while servicing this roller. Rotating parts can cause injury if contacted.

■

DO NOT leave roller with engine running.

■

If the roller must be stopped on an incline (grade), remove the ignition key and

and

front

place chock blocks (not provided) under

rear

drums.

MAINTENANCE SAFETY

■

the

NEVER lubricate components or attempt service on a running

machine.

ALWAYS allow the machine a proper amount of time to cool

before servicing.

Keep the machinery in proper running condition.

Fix damage to the machine immediately and always replace broken parts, or missing decals.

Dispose of hazardous waste properly. Examples of potentially hazardous waste are used motor oil, fuel and fuel filters.

DO NOT use food or plastic containers to dispose of hazardous waste.

DO NOT pour waste, oil or fuel directly onto the ground, down a drain or into any water source.

■

NEVER drive the roller on unshored trenches or near steep, unsupported banks. The vibration caused by the roller could cause a cave-in.

■

ALWAYS use extreme care when operating near obstructions, on slippery surfaces, grades and side slopes.

■

ALWAYS wear slip resistant safety shoes or boots.

■

Unauthorized equipment modifications will void all warranties.

■

When working on slopes, avoid

sidehill travel

. Operate up and down travel only. Remember, the danger of sliding on and/or tripping on steep slopes is always present.

■

ALWAYS wear

■

When malfunctions occur, always remove the ignition key and place a "

seat belts

DO NOT OPERATE

" sign in the operator's

seat.

■

If a malfunction occurs with the travel lever mechanism, speed and direction will be impossible to control. Immediately stop the roller and correct the problem.

■

If the steering system operates improperly, immediately stop the engine and apply the parking brake.

■

In the event of hydraulic hose or line failure, promptly return the travel lever to the “neutral” position, stop the engine and set the parking brake.

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 9

AR13D RIDE-ON ROLLER — RULES FOR SAFE OPERATION

LOADING AND TRANSPORTING SAFETY

DANGER - Loading & Unloading the Roller

DANGER!

Hard Ground, or Pavement.

result from improper loading, lifting or unloading. Use extreme caution!

■

The roller has an operating weight of approximately 3,088 lbs. (1,400 Kg). Use lifting equipment capable of lifting this weight.

■

ALWAYS check the roller's lifting hooks. Before lifting or transporting the roller, lock the frame with the locking bar that is provided. Make sure the hooks are secure and tight before lifting the machine.

■

When driving the roller onto a transporting vehicle or trailer, use ramps or other suitable material of sufficient strength to support the roller.

■

Remove mud, oil, ice, snow or any other slippery materials from the ramps and bed of the vehicle to avoid accidents.

■

After loading, apply the parking brake.

ALWAYS load and unload the roller on Level,

Serious injury or death

can

EMERGENCIES

■

ALWAYS know the location of the nearest

fire extinguisher

ALWAYS know the location of the

nearest and

In emergencies nearest phone or

first aid kit

always

know the location of the

keep a phone on the job site

Also know the phone numbers of the nearest

ambulance, doctor

and

fire department

. This information will be invaluable in the case of an emergency.

■

Use a chain, binders or other suitable means to firmly secure the roller before transporting.

■

Only use the lifting points for the roller that are clearly marked

lifting point

as “

■

NEVER apply chains through the articulating section of the roller. The chain could cause damage by scoring the hydraulic steering cylinder.

■

NEVER stand below roller when it is being lifted.

”.

DANGER - Transporting Safety

DO NOT allow personnel to

suspended machine.

Serious injury

stand under

death

near

any

may result.

PAGE 10 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — OPERATION AND SAFETY DECALS

Machine Safety Decals

The AR13D Ride-on Tandem Drum Roller and maintenance information. The illustration below and on the next page shows these decals as they appear on the machine. Should any of these decals become unreadable, replacements can be obtained from your dealer.

is equipped with a number of safety decals. These decals are provided for operator safety

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 11

AR13D RIDE-ON ROLLER — OPERATION AND SAFETY DECALS

PAGE 12 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — SPECIFICATIONS (ROLLER)

snoitacificepSrelloRD31-RA.1elbaT

thgieWgnippihS).gK522,1(.sbl007,2

thgieWyrD).gK061,1(.sbl655,2

thgieWgnitarepO).gK425,1(.sbl063,3

rD/wthgieWgnitarepO ).gK955,1(.sbl734,3

htgneLllarevO).mm682,2(.ni5.09

htdiWllarevO).mm279(.ni52.83

R-thgieHllarevO).mm012,2(.ni0.78

edisnI-suidaRgninruT).mm867,2(.ni901

naraelCdnuorG).mm292(.ni5.11

ecnaraelCbruC ).mm384,.mm791(R.ni0.91,L.ni57.7

ecnaraelCllaW ).mm23,.mm54(R.n

esableehW).mm341,1(.ni54

htdiWmurD).mm709(.ni7.53

retemaiDmurD).mm475(.ni6.22

ssenkcihTmurD).mm

tsallaBmu

)pu(SPO

htdiWgnilloRmumixaM).mc709(.ni7.53

mpr007,2-004,2@ecroFlagufirtneC ).gK604,1(.sbl001,3

i52.1,Lni57.1

0.01(.ni83.0

mpr007,2-004,2@etunimrepsnoitarbiV MPV00

raeniLcimanyD

mpr007,2-004,2murDrepecroF

elgnAgnitallicsOseerged1

yticapaCknaTliOciluardyH )sretiL6.12(snollaG.S.U7.5

metsySgnilooCriA

leuFleseiD

yticapaCknaTleuF)sretiL63(s

yticapaCknaTretaW)sretiL251(snollaG04

yrettaB1UepyTpuorGtloV21

elbairav-deepSlevarT)HPK7.7-0(

noitarbiVo/w-wytilibAedarG)%72(seerged51

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 13

0,4

).mc/.gK6.93(.ni/.sbl5.78

)ylnotnorf(

nollaG.S.U5.9

HPM8.4-0

AR13D RIDE-ON ROLLER — SPECIFICATIONS (ENGINE)

snoitacificepSenignE.2elbaT

ledoMD058MDnottartS&sggirB

epyTenignEleseiD

srednilyCforebmuN3

]ekortSxeroB[)mm87

tnemecalpsiD)cc058(.ni.uc8.15

rewopesroH

MPR0063@PH

euqroT.xaM

MPR0042@.sbl/.tF

thgieWyrD).gk0.48(.sbl0.581

tiwliOenignE)sretil0.3(.stq71.3

retliFtuoh

retliFhtiwliOenignE)sretil3.3(.stq5.3

xmm86(.ni703x.ni76.2

ssorg6.32

)tnettimretniten(1.12

ounitnocten(3.81

)su

ssorg0042/0.04

0042/0.53

PAGE 14 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — DIMENSIONS

(Side View) (Rear View)

Figure 1. AR13D Roller Dimensions

snoisnemiDD31-RA.3elbaT

esableehWA ).mm341,1(.ni0.54

retemaiDmurDB ).mm475(.ni6.22

ecnaraelCbruCC ).mm384,.mm791(thgiR.ni0.91,tfeL.ni57.

htdiWmurDD ).mm709(.ni7.53

)SPORhtiw(thgieHllarevOE ).mm012,2(.ni78

ecnaraelCdnuorGF ).mm292(.ni5.11

vOG ).mm741,2(.ni5.09

evOJ ).mm279(.ni52.83

htgneLllare

ecnaraelCllaWH ).mm23,.mm54(thgiR.ni52.1,tfeL.ni57.1

ssenkcihTmurDI ).mm01(.ni83.

htdiWllar

thgieHtaeSK ).mm006,1(.ni36

leehWgnireetSL ).mm425,1(.ni06

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 15

AR13D RIDE-ON ROLLER — GENERAL INFORMATION

The AR13D roller has been designed for asphalt application and compaction of granular soils used in site preparation. Use the machine only for the purpose intended and by experienced personnel who understand this operating manual and all safety decals. Typical applications for this roller are driveways, patch work and road repairs. Standard features included with this roller are articulated steering, double drum hydrostatic drive, front drum vibration, high curb clearance and on board water capability.

POWER PLANT

The AR13D roller is powered by a Brigss & Stratton DM 850D, liquid cooled, diesel engine rated at 23.6 hp @3,600 rpm. The engine is of a lightweight design and is exceptionally well balanced for low vibration.

HYDRAULIC SYSTEM

The Brigss & Stratton DM 850D diesel engine drives an axial hydraulic, variable displacement pump which is manually controlled via a cable control system. Pump flow is directed through an aluminum block manifold which provides the control for the 3 hydraulic motors.

The hydraulic drum drive system incorporates a parallel closed loop configuration operating at a maximum pressure of 2,900 psi. In addition this hydraulic system offers a " which allows the roller to be towed in the event of an emergency.

COMPACTION SYSTEM

The compaction force is delivered by a 36-inch wide steel drum with beveled edges to help prevent asphalt enclosed hydrostatic drive system offers a variable speed control as well as smooth acceleration and braking.

Connected to the axial hydraulic pump is a gear pump that provides power for the drum vibratory system and the articulating steering system. Oil from this pump flows to the manifold control valve block and then to a hydraulic motor which rotates the eccentric weights inside a sealed housing containing oil to lubricate the bearings.

free wheel valve

marring

. A fully

The roller nominally has an operating weight of 3,088 lbs (1,400 Kg.), but can be increased to 3,309 lbs (1,500 Kg.) by adding water ballast to the rear drum.

HYDRAULIC OIL FILTER SYSTEM

The hydraulic system oil is filtered by a screen type filter located in the reservoir filler neck, then doubled filtered within the system first by a 40 micron mesh-type suction filter located in the tank and the by a filter.

ARTICULATED STEERING SYSTEM

Power for the articulated steering system, which uses a single hydraulic cylinder is provided by the gear pump. This steering system can produce an inside turning radius of 109 inches (2.77 meters).

SPRINKLER SYSTEM

A 40 gallon (152 liters) water tank with a gravity feed spray bar is provided for wetting the roll for asphaltic pavement rolling.

The water system is fully adjustable from the operator’s position by adjusting the two water valves. The front valve controls the water supply to the front drum, and the rear valve controls water to the rear drum.

Before starting an asphalt rolling job, be sure all spray bar holes are clear of dirt or foreign matter and are working. Always use clean fresh water in the water tank. To prevent rust and foreign debris from clogging the spray bar holes, drain and flush water tank and spray bars every 30 days.

LIFTING THE ROLLER

When lifting of the roller is required, attach a suitable hook or shackle to the lifting points (4) are marked by a lifting hook decal. Make sure the lifting device is capable of lifting 4,000 lbs. (1,814 Kg).

DANGER - Clear Obstacles from Area

Zinga

10 micron, cartridge style spin-on return line

lifting eye

of the roller. These

A pushbutton switch located on top of the gearshift lever when pressed activates a the vibratory action. The drum's vibratory action generates 3,100 lbs. (1,406 Kg.) of centrifugal force at a frequency of 4,000 vpm (vibrations per minute). If the vibration appears to be weak or slow, allow the machine to warm-up thoroughly, and check the hydraulic oil level. Add hydraulic oil if necessary.

The vibrator housing and drum are shock mounted to isolate the engine compartment and operator from vibration.

PAGE 16 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

hydraforce

valve that engages or disgages

Before operating the roller, make sure that personnel and obstacles are free from the roller’s path.

death

even

The forward-reverse control lever operates the hydrostatic pump which governs the roller speed and direction of travel. The speed in which movement of this lever is made is directly related to the amount of pressure that is applied to the travel lever in each direction. Travel speed is infinitely variable from 0 to 4.8 mph.The neutral position of this lever will cause the roller to stop.

can result!

Serious injury

AR13D RIDE-ON ROLLER — GENERAL INFORMATION

REAR

ROLLER

SIDE TO SIDE

OPERATION

NOT RECOMMENDED

ROLL OVER

DANGER - Transporting Safety

Tipping (Rollovers)

NEVER! operate the roller on side slopes (Figure 3). The

DO NOT allow personnel to

suspended machine.

Serious injury

stand under

death

may result.

near

any

possibility exist that the roller could tip over (roll over), thus causing bodily harm even death and serious damage to the equipment.

CAUTION - Use CERTIFIED Lifting Devices

ONLY! use approved certified lifting devices capable of lifting

at least 4,000 lbs. (1,814 Kg.).

CAUTION - Lifting the Roller

When lifting of the roller is required, only use the provided

lifting eyes

to lift the roller. Using other sections of the roller

for lifting purposes may cause severe damage to the roller.

OPERATING ON SLOPES

Special care must be taken when operating the roller on hills or slopes. There exist the possibility of serious injury to the operator and severe damage to the roller in the event of a roll over. ALWAYS operate the roller up and down hills rater than from side to side. For safe operation hillside slopes should not exceed 12 degree (27 % grade). See Figure 2 below.

Figure 3. Tipping (Rollover)

NEVER! operate the roller on

side slopes

. The roller may tip over causing injury to personnel and severe damage to the equipment

MAXIMUM SLOPE

27%

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 17

Figure 2. Recommend Slope

In the event the roller does tip over, if at all possible, try to shutdown the engine by turning the ignition key to the

OFF

position. Extreme care must be taken to prevent damage to the engine. When the roller has been tipped over, oil from the engine crankcase can flow into the combustion chamber, which can severely damage the engine the next time it is started.

IMMEDIATELY after a unit has tipped over upright the unit as soon as possible to prevent oil from leaking into the combustion chamber.

CAUTION - Roller Rollover Safety

To prevent damage to the engine after a rollover, the roller must NOT be started. NEVER start a roller after a rollover. CONTACT your nearest authorized multiquip dealer for instructions or servicing.

AR13D RIDE-ON ROLLER — ROLLER COMPONENTS

Figure 4. Roller Components 1

PAGE 18 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — ROLLER COMPONENTS

Figure 4 shows the location of the components and basic components for the AR13D compaction roller. The function of each component or control is described below:

1. Battery – Provides +12VDC to the electrical system, and is located underneath foot plate. Replace only with recommended type battery, see specification Table 1.

2. Articulating Locking Bar – Always make sure that the articulating locking bar is engaged during lifting, transport and maintenance.

3. Foot Step – To lift yourself onto the roller's platform, place foot into foot step, then grab hold of hand rail.

4. Ignition Switch – With key inserted, turn clockwise to start the engine.

5. Rear Sprinkler System – A gravity feed spray bar is provided for the wetting the roll for asphalt pavement.

6. Rear Roller – This roller is a 30 inch wide with beveled edges (no vibration). The beveled edges help prevent asphalt marring.

7. Lifting Point – Attach a crane or suitable lifting device to this point when lifting of the roller is required.

8. Rear Scrapper – This adjustable rear scrapper blade helps prevent the buildup of material between the drum and frame.

9. Fuel Tank/Fuel Gauge – The fuel capacity of the fuel tank is 9.5 gallons (36 liters). Read the gauge on top of the fuel cap to determine if fuel level is low. Fill with diesel fuel. To gain access to the fuel tank,

seat forward

10. Tie-Down Transport Point – Attach a chain or suitable tie-down device to this point when transporting of the is required.

. Fuel tank has a spill containment feature

steel drum

tilt the front

12. Rear Spray Control Valve – This valve controls the flow of water to the to the return this valve to the closed position (clockwise) when water is not required.

13. Throttle Control — Pull all the way out to achieved maximum engine RPM's. To idle the engine, push the RED stop button inwards all the way.

14. Vibration Control Button – Press this button to activate the eccentric that will produce a vibration frequency of 4,400 vpm (vibrations per minute). Pressing the button again will stop the vibrations.

15. Shift Lever — Push the lever travel in a forward direction, pull the lever make the roller travel in a reverse direction. Maximum travel speed is 4.8 MPH ( 7.7 KPH). Center position is neutral, no travel.

16. Hour meter — Indicates the number hours the unit has been in use.

17. Water Tank — Remove filler cap and fill with water. Water tank capacity is 40 gallons (152 liters). To determine if water level is low, visually inspect water level gauge (tube) at rear of roller. Add water as necessary.

18. Roll-Over Bar — This unit may be equipped with a

Over

when the roller is used on slopes, open trenches, sharp turns, slippery surfaces or objects in the rollers's path of travel.

19. Operator's Seat — of both front rear drum edges during start the roller unless seated in the operator's seat.

20. Parking Break Lever — Pull the lever upward to set the parking break. To release the parking break, press and hold the button on top of the lever and push lever downward.

rear spray bar

open

position (counterclockwise) to let water flow,

Protection System

(ROPS) to protect the operator

A contoured seat that provides visibility

.Turn the water valve

forward

to makethe roller

operation.

backward

Roll

NEVER!

TRANSPORT

TIE-DOWN POINT

11. Front Spray Control Valve – This valve controls the flow of water to the

open

to the return this valve to the closed position (clockwise) when water is not required.

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 19

position (counterclockwise) to let water flow,

front spray bar

.Turn the water valve

21. Seat Belt — When using the roller in working conditions always have the operator wear the seat belt. the roller without a seat belt. If the seat belt becomes worn or damaged, have it replaced immediately.

22. Steering Wheel — Use this wheel to steer the roller.

23. Engine Status Indicator Gauge — Indicates oil temperature, water temperature, glow plug and battery.

24. Hydraulic Motor – This hydraulic motor provides

rear

control for the

25. Documentation Box — Maintain and store Operation, Parts, and Engine manuals in this box.

of the roller

NEVER

use

at all times

AR13D RIDE-ON ROLLER — ROLLER COMPONENTS

Figure 5. Roller Components 2

Figure 5 shows the location of additional components for the AR13D compaction roller. The function of each component or control is described below:

26. Front Sprinkler System – A gravity feed spray bar is provided for the wetting the roll for asphalt pavement.

27. Hydraulic Manifold – Aluminum block that controls the flow of hydraulic pressure to the various hydraulic motors and other components required to control the roller.

28. Hydraulic Oil Filter – Filters return oil from the front and rear hydrostatic motors.

29. Fuel Filter/Fuel Pump – Electrical device that pumps fuel from the fuel tank to the carburetor.

30. Hydraulic Pump – This unit incorporates an axial variable displacement hydraulic piston pump.

31. Front Ride-on Tandem Drum Roller – This roller is a 30 inch wide beveled edges help prevent asphalt marring.

32. Hydraulic Motor – This hydraulic motor controls the rotation of the vibratory system.

33. Bunjee Latch – Pull this rubber latch upward and back to gain access to the engine/pump compartment. There is one rubber latch located on each side of the unit.

steel drum

with beveled edges. The

34. Steering Cylinder – Controls direction of roller.

35. Engine – This roller incorporates a Briggs & Stratton DM850D, liquid-cooled diesel engine rated at 23.6 hp at 3,600 rpm.

36. Hydraulic Fluid Filler Port – Remove this cap to add hydraulic fluid. Fill with type ISO 46 anti-wear hydraulic fluid.

37. Compartment Hood – Houses the engine, hydraulic manifold, accessory relay, hydraulic oil filter, hoses, and hydraulic pump. To lift the compartment hood, release the rubber bunjee latches located on each side of the hood.

38. Compartment Hood Lift Point – Place hand here then lift upwards to lift compartment hood.

39. Hydraulic Motor – This hydraulic motor drives the roller during operation.

40. Rear Drum Zerk Grease Fitting – Grease this fitting bi-weekly. See maintenance section of this manual.

42. Hand Rail – Grab hold of this hand rail when lifting yourself onto the operator's platform.

PAGE 20 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — ENGINE COMPONENTS

Figure 6. B&S 850D Diesel Engine Controls and Components

INITIAL SERVICING

The engine (Figure 6) must be checked for proper lubrication and filled with fuel prior to operation. Refer to the manufacturer's engine manual for instructions & details of operation and servicing.

1. Thermostat – Regulates the temperature of the engine coolant.

2. Oil Filler Cap – Remove to add engine oil.

3. Starter – Starts engine when ignition key is rotated to the "ON" position

4. Oil Pan– Holds a maximum of 3.5 quarts (3.3 liters) of motor oil.

5. Alternator– Provides charge for battery and voltage for the +12 VDC electrical system.

6. Injection Nozzle – Injects diesel fuel into the cylinder.

7. Glow Plugs – Heating element used for starting the engine in cold weather conditions.

8. Oil Drain Plugs – Remove to drain crankcase oil. Fill with recommended type oil as listed in Table 4.

9. Oil Filter – Spin-on type, filters oil contaminants.

10. Oil Dip Stick – Remove to check amount and condition of oil in crankcase. Refill or replace with recommended type oil as listed in Table 4.

12. Injector Pump– Provides fuel under pressure to the injector nozzles.

14. Air Filter – Prevents dirt and other debris from entering the fuel system. Unsnap air filter cover to gain access to filter element.

WARNING - BURN HAZARD

Engine components can generate extreme heat. To prevent burns, DO NOT touch these areas while the engine is running or immediately after operating. NEVER operate the engine with the muffler removed.

Operating the engine without an air filter, with a damaged air filter, or a filter in need of replacement will allow dirt to enter the engine, causing rapid engine wear.

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 21

AR13D RIDE-ON ROLLER — INSPECTION

Before Starting

3. Check the oil level shown on the dipstick (Figure 8).

1. Read safety instructions at begining of manual.

2. Clean the

ROLLER

, removing dirt and dust, particularly the

engine cooling air inlet, carburetor and air cleaner.

3. Check the air filter for dirt and dust. If air filter is dirty, replace air filter with a new one as required.

4. Check carburetor for external dirt and dust. Clean with dry compressed air.

5. Check fastening nuts and bolts for tightness.

Engine Oil Check

1. To check the engine oil level, place the roller on secure level ground with the engine stopped.

2. Remove the dipstick from its holder (Figure 7) and wipe it clean.

4. If the oil level is low, remove the oil filler cap (Figure 9) and fill to the safe operating level (F) as indicated by the dipstick. Pour oil slowly. Fill with recommended type oil as listed in Table 4. Maximum oil capacity is 3.5 quarts (3.3 liters).

Figure 8. Engine Oil Dipstick

Figure 7. Engine Oil Dipstick (Removal)

Figure 9. Engine Oil Filler Port

edarGliOrotoM.4elbaT

erutarepmeTronosaeS

nmutuAroremmuS,gnirpS

F°51+otF°021+

retniW

1+otF°04+

F°5

F°51+woleB03-W01EAS

PAGE 22 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

liorotomfoedarG

)ssalcSMnahtrehgih(

03EAS

To assure proper venting, always remove the dipstick when adding oil. ALWAYS be sure to check the engine oil level prior to starting the engine.

Fuel Check

DANGER - EXPLOSIVE FUEL

AR13D RIDE-ON ROLLER — INSPECTION

If the fuel level is low, remove the fuel fillercap/guage and fill with #2 diesel fuel. Wipe up any spilled fuel immediately.

NEVER fill the fuel tank while the engine is running or in the dark. Fuel spillage on a hot engine can cause a fire or explosion. If fuel spillage occurs, wipe up the spilled

5. Pay attention to the fuel tank capacity when replenishing

fuel (Figure 12). Refer to the fuel tank capacity listed on page 13, AR13D Roller Specification Table 1.

fuel completely to prevent fire hazards.

DO NOT smoke while refueling, motor fuels are highly flammable and can be dangerous if mishandled.

1. To check the engine fuel level, place the roller on secure level ground with the engine stopped.

2. Tilt the operator's seat (Figure 10) to the fuel tank.

forward

to gain access

6. After replenishing fuel, make sure fuel cap is securely tighten to fuel tank. Return operator's seat to normal operating position.

Figure 12. Adding Fuel

Hydraulic Oil Check

1. To check the hydraulic oil level, place the roller on secure level ground with the engine stopped.

2. Visually inspect the hydraulic oil sight glass (Figure 13) located on the right rear of the front drum. For normal operation the hydraulic oil level must be below the top and above the bottom of the sight glass. DO NOT OVERFILL!

Figure 10. Fuel Tank Access

3. Read the fuel gauge (Figure 11) located on top of the fuel tank to determine if fuel level is low.

4. If the hydraulic oil level is low, remove the hydraulic oil cap (Figure 14) and fill with type

Figure 11. Fuel Guage

lic oil

Figure 13. Hydraulic Oil Sightglass

ISO 46 anti-wear type hydrau-

to the recommended operating level.

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 23

AR13D RIDE-ON ROLLER — INSPECTION

Battery Check

A 12-volt DC battery (Figure 16) is shipped dry, and will require a proper electrolyte level for operation.

ALWAYS be sure that the battery cables are properly connected to the battery terminals as shown below. Generally the

RED

the battery, and the BLACK cable will be connected to the negative terminal of the battery.

Figure 14. Hydraulic Oil Reservoir Filler Port

Water Tank Check

1. To check the water tank water level, place the roller on secure level ground.

2. The amount of water inside the water tank can be visually inspected by reading the water tube (Figure 15) that runs vertically along the water tank at the rear of the roller. This tube indicates the amount of water inside the water tank. Total tank capacity is 40 gallons (152 liters)

WARNING - Battery Polarity Safety

If the battery cables are connected incorrectly, electrical damage will occur causing damage to the roller's electrical circuits. Pay close attention to the polarity of the battery when connecting the battery.

cable will be connected to the positive terminal of

Figure 16. Battery

WATER

TANK

CAP

WATER

TANK

WATER

LEVEL

REAR

ROLLER

TUBE

Figure 15. Water Tank

PAGE 24 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — INITIAL START-UP

Initial Start-up Instructions

Starting

CAUTION - General Operation Safety

DO NOT attempt to operate the roller until the Safety, General

Information and Inspection sections have been read and understood.

1. Place your foot into the roller's foot step, grab hold of the hand rail located on the steering console, and lift yourself onto the platform.

PUSH-IN, THEN PULL

THROTTLE RELEASE AND IDLE BUTTON

TO SET THROTTLE

(RPM’s)

PUSH ALL THE WAYDOWN

TO IDLE ENGINE

2. Sit down in the operators seat and adjust the seat for a confortable position, then fasten the seat belt (Figure 17) around your waist.

NEVER!

operate the roller without the seat belt being fastened, serious injury could occur if the seat belt is not used.

6. Insert ignition key into ignition switch (Figure 20), turn key clockwise until glow plug indicator light turns ON, keep key

in this position until glow plug indicator light turns OFF. Continue turning ignition all the way clockwise until engine starts, release key.

Figure 17. Securing Seat Belt

3. Before starting engine, make sure the immediate area is free of obstructions and debris that may lay in the roller's path.

4. Make sure that the roller's shift lever (Figure 18) is placed in the

neutral position.

THROTTLE LOCK

KNOB, TURN CLOCKWISE

TO LOCK THROTTLE CABLE.

Figure 19. Throttle Control

Figure 20. Ignition Switch

Figure 18. Shift Lever

7. If the engine does not start, repeat steps 1 through 7 or consult the troubleshooting guide contained in this manual.

PUSH

the "RED" button (Figure 19) on the throttle control and

pull the round black knob about halfway out. Make sure that the throttle lock knob has been dis-engaged.

8. Let the engine warm for 3 to 5 minutes before using roller.

Check for fuel and oil leaks, and noises that would associate with a loose guard and/or covers.

9. If necessary return the choke knob to the full

OPEN

position.

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 25

AR13D RIDE-ON ROLLER — OPERATION

OPERATION

Parking Brake

1. To release the parking brake, press and hold the release button (Figure 21) pull up slightlyon the parking lever, then push the parking brake lever all the way down.

Figure 21. Brake Release Lever

Shift Lever

3. Try manuvering the roller a few times to get familar with the

4. Make sure that the roller comes to a complete stop (neutral)

Vibration Button

1. To begin the vibratory action,

handling. Also place the travel lever in the oposite direction to get acquainted with driving in reverse.

before placing the travel lever in either a forward or reverse position.

press

the vibratory pushbutton switch located on top of the travel lever as shown in Figure 23. The pressing of this switch will generate 3,100 lbs. (1,406 Kg.) of centrifugal force at a frequency of 4000 vpm (vibrations per minute) to the drum.

front

1. To make the roller move in a shift lever forward as shown in Figure 22.

Figure 22. Shift Lever

2. Remember the speed of the roller is directly proportional to the amount of pressure being applied to the lever in each direction. Travel speed is between 0 and 4.8 mph (7.2 kph).

forward direction

, move the

2. To stop the vibratory action, press the vibratory pushbutton switch again.

Sprinkler Controls

1. If the application requires the wetting of a surface, front and rear drum sprinkler controls have been provided. These controls (Figure 24) are located to the bottom right of the operators seat. The the front drum spray bar and the flow to the back drum spray bar.

CAUTION - Drive System Safety

ALWAYS

changing the direction of travel. Changing directions before the roller comes to a complete stop will result in

force

which will reduce the over service life of the system.

allow the roller to come to a complete stop before

excessive

being applied to the transmission and drive system,

Figure 23. Vibration Pushbutton Switch

front

valve controls the water supply to

back

valve contols water

FRONT

BACK

Figure 24. Sprinkler Controls

PAGE 26 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

Maintenance

Perform roller maintenance as indicated by Figure 25 and Table 5.

Figure 25. Roller Maintenance

Schedule

AR13D RIDE-ON ROLLER — MAINTENANCE

1leveLliOenignE

2leveLknaTretaW

3leveLleuF

4leveLliOciluardyH

5metsy

6reparcS

7)raeR/tnorF(smurD

8retliFriA

9leveLdiuqiLyrettaB

01)murDraeR(gnittiFesaerGkreZ

21)nruteR(retliFliOciluardyH

31retliFliOenignE

41liOciluardyH

eludehcSecnanetniaMrelloRH31-RA.5elbaT

yliaD 1 2 3 lavretnI setoN

SrelknirpS

ylkeeW

ylkeeW-iB

shtnoM3

shtnoM6

ylraeY

ro.srh08 ylkeeW-iB

.srh005.retlifepytemashtiwecalpeR

ro.srh02

htnom1

ro.srh001,1

raeyaecn0

.xamstohs3 TONOD

4elbaTeeS

liOciluardyHepyT64OSIesU

nrowyldabnehwecalpeR

.raeyaecnotnemelerepapecalpeR

tnelaviuqero2#ainavlAepyTesU

.esaergrevo

retliflioegnahc,srh02tsrifretfA

.srh001roshtnom6yreve

liOciluardyHepyT64OSIesU

1 = Check 2 = Refill/ Clean / Grease 3 = Replace

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 27

AR13D RIDE-ON ROLLER — MAINTENANCE

Hydraulic Oil System

The hydraulic system consists of a two pump stack directly coupled to the engine. A hydraulic valve block (manifold)is provided for quick and easy testing and troubleshooting.

Hydraulic oil is filtered by a screen filter located in the tank filler neck, a

micron return filter

return circuit.

40 micron suction filter

, with cold oil bypass valve located in the

located in the tank, and a

It is recommended that be used when adding or replacing the hydraulic oil is required.

DO NOT USE MULTI-VISCOSITY OIL. Cleanliness is a very important part of proper hydraulic system operation. Hydraulic oil is not only used to transfer power; it also lubricates and cools the system components. Keeping the hydraulic system clean can help reduce costly repairs.

The hydraulic oil level sight glass is located on the right rear of the front drum, below the engine compartment. This level should be checked daily. Oil must be below the top and above the bottom of the sight glass. DO NOT OVERFILL! Care should be taken to clean the filler cap before adding oil to the system. If hydraulic oil has to be added, the machine should be inspected for leaks.

suction filter

The tank. This filter is attached to the fitting connected to the hydraulic pump suction hose.

return filter

The compartment. Replace both filters according to the Table 5.

ISO 46 type hydraulic oil

(Figure 26) is located inside the hydraulic

(Figure 26) is located at the front of the engine

CAUTION - HYDRAULIC SYSTEM HAZARD

DO NOT open hydraulic lines or loosen hydraulic fittings

while engine is running! Hydraulic fluid under pressure can penetrate the skin, blind, cause burns or create other potentially dangerous hazards follow all safety instructions as described throughout this manual.

or equivalent

Changing Hydraulic Oil and Filters

1. Park the roller on a clean flat work area and set the parking

brake.

2. Remove the

drain the hydraulic oil. Dispose of the used oil in an environmentally friendly manner. Replace the drain plug and tighten.

3. Remove the return filter and

the used filter in an environmentally friendly manner.

4. Disconnect the suction hose and remove the fitting from

the tank. filter in an environmentally friendly manner. Replace the fitting and reconnect the suction hose.

Freewheel Engagement Valve

This hydraulic system has a freewheel engagemet valve allowing hydraulic oil to be bypassed. clockwise) this valve (Figure 27) to engage the freewheel capability of the roller. When the valve is fully opened, ports A and B are allowed to connect, bypassing the oil to and from the drum drive motors.

Figure 26. Hydraulic Filter Locations

hydraulic oil drain plug

install a new filter

Replace

the suction filter. Dispose of the used

Open

(turn allen wrench counter-

(Figure 26) and

. Dispose of

Remember the freewheel engagement valve should only be used in emergencies when the roller cannot be driven due to engine or hydraulic system problems.

When towing of the roller has been completed, this valve be

closed

the lock nut set. Failure to close this valve completely will result in low power, improper speed, and excessive hydraulic oil temperature.

PAGE 28 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

(turn allen wrench fully clockwise) completely and

must

AR13D RIDE-ON ROLLER — MAINTENANCE

The vibration circuit is controlled by an electric control valve

CAUTION - Freewheel Engagement Valve

The freewheel engagement valve (towing) is only for

emergency use

. DO NOT move roller over 2 MPH or long

distances as hydraulic system component failure could result.

ALLEN

WRENCH

OPEN

located on the valve block (manifold). This valve is controlled by

ON/OFF

the “ lever.

High-pressure oil is supplied by the pump to the valve block ( control valve. When the pushbutton switch is in the

OFF

” position, this valve is

“ to the steering valve, without driving the vibration motor.

” pushbutton switch mounted on top of the travel

PUSH

CLOSED

(ON)

START

port P

) and is directed to the electric

open

allowing oil to go

When the switch is in the “

CLOSED

electric control valve

port 1

out of from the motor returns to the valve block via

FREEWHEEL

ENGAGEMENT

VALV E

and is directed to the steering valve.

Steering is controlled by a

Figure 27. Freewheel Engagement Valve

Drum Drive

The drum drive circuit is a

parallel, closed loop system

(Figures 29 and 30) consisting of a hydrostatic pump, two relief valves, a freewheel engagement valve, front and rear drum drive motors.

The hydrostatic pump is manually controlled by a cable connected to the forward/reverse shift lever located on the right side of the operator seat. When the shift lever is placed in forward, high-pressure oil is supplied by the hydrostatic pump to the valve

port A

block (

). The valve block (manifold) directs this high-

pressure oil to the front and rear drum drive motors. Return oil

port B

from the motors is returned to the valve block (

) and is

29 and 30). The steering wheel is direct coupled to the steering valve controling the oil flow to the cylinder. Oil supplied from the vibration circuit is directed to the steering valve. When steering is not being used, oil passes

port T

out of When the steering wheel is operated, the steering valve closes and oil is directed to ports L or R to extend or retract the steering cylinder.

Rubber Scrapper Mat

Rubber scraper mats have been provided for the cleaning of the front and rear drums. Adjust the scrapers mats as close as possible to the drums, using the slotted holes (Figure 28) provided. Replace these rubber mats when they become badly worn.

returned to the suction side of the hydrostatic pump.

” position, the

closes

and oil is directed

PUSH

START

to the vibration motor. Return oil

port

CLOSED

(ON)

steering valve

port 3

and

cylinder

which connects to

(Figures

port P

of the valve block and returns to the hydraulic tank.

When shifted into reverse, the high-pressure and suction ports on the hydrostatic pump are reversed. Oil flow is then in the

port B

opposite direction of forward (

port A

and

becomes suction)

becomes high-pressure

Vibration and Steering

The vibration and steering system is an

open loop circuit

operated by a gear type pump. Separate relief valves control each circuit. This system consist of the gear pump, relief valves, electric vibration control valve, vibration drive motor, steering valve, and steering cylinder.

Figure 28. Scraper Bar Adjustment

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 29

AR13D RIDE-ON ROLLER — MAINTENANCE

Forward/Reverse Hydraulic Pressure Test

Park the machine on a solid flat surface and stop the engine. Set the parking brake and

1. Check hydraulic oil level by viewing the hydraulic oil sight glass. The hydraulic oil level must be below the top and above the bottom of the sight glass. DO NOT OVERFILL!

2. Adjust engine RPM (3,500 +/- 50 RPM)

3. Let engine run for 5 minutes, this will bring the hydraulic oil operating temperature to a minimum of 135

4. Check and repair all hydraulic leaks.

5. On the manifold block install a 5,000 psi pressure gauge (Figure 34) to the test port 2

6. Run engine at full throttle.

7. Move the

FRONT AND REAR DRUMS DO NOT SPIN.

8. Read the pressure gauge. The drums blocked) will read 2,900 ± 145 psi. Under

operating

9. Return the travel lever to the engine.

10. Install the pressure gauge into the reverse quick disconnect

port 3

and repeat the above procedures. The relief pressure reading for the reverse test port 3 will be the same (2,900 psi). Again normal operation pressure for the reverse port will be 400-600 psi.

Vibration Circuit Pressure Test

Place the front drum on soil, gravel, or a heavy rubber mat.

DO NOT ACTIVATE VIBRATION FEATURE ON CONCRETE OR HARD SURFACE!

block the front drum securely

forward

travel lever

to the forward position. MAKE SURE

pressure quick disconnect

relief pressure

conditions this pressure will read 400-600 psi.

neutral

position and

farenheit.

(roller

normal

stop

1. On the manifold block install a 5,000 psi pressure gauge to quick disconnect test port 1.

2. Start the engine and run at full throttle.

3. To start the vibration, (vibration control) located on top of the travel lever. Under normal operating conditions this pressure will range between 800-1,000 psi.

Steering Pressure Test

1. On the manifold block, install a 5,000 psi pressure gauge into quick disconnect test

2. Start the engine and run at full throttle.

3. Turn the steering wheel to the

the

hold. Read the steering relief pressure. The reading for the steering test port 1 will be 700 psi. Again, under normal operating conditions, pressure for the steering port will be between 200-400 psi.

If maximum pressure cannot be reached, plug the steering cylinder pressure hoses and re-test. If pressure is correct the steering cylinder is leaking. DO NOT ACTIVATE THE

VIBRATION FUNCTION WHILE PERFORMING THIS TEST !

press

the pushbutton switch

Vibration relief pressure is hard to read accurately using this test. It may be necessary to disconnect the pressure line to the vibration drive motor. Plug this line and re-test, pressure will be exact relief pressure. DO NOT perform this test for a long period of time — damage could occur.

port 1

(Figure 34).

left or right

(maximum) and

relief pressure

TEST PORTS

1. Vibration and Steering

2. Forward

3. Reverse

Figure 34. Manifold Test Ports

PAGE 30 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — MAINTENANCE

Forward/Reverse Relief Valves Drive Adjustment

The

forward

type cartridge type and are located in the hydrostatic pump (not on the manifold block) under plugs 1 and 2 . Plug 2 is located in the same location as plug 1, except it is on the bottom side of the pump. Relief valve 1 is

1. Clean the area around the cap.

2. Remove the cap.

3. Carefully remove the valve cartridge.

4. Using an must be taken not to loosen existing shims, spring, or valve) Add or remove shims as required. pressure; equal to approximately 50 psi. Shim P/N is 34538.

and

reverse

Axle Pumps supplied after 01/01/2003 DO NOT have adjustable relief cartridges. The pressure is fixed at 2,900 ± 145 psi. If the relief pressure is not within normal range, the complete cartridge must be replaced.

allen wrench

removing

relief valves (Figure 35) are shim

reverse

and 2 is

, remove the top nut (extreme care

shims lowers pressure. One shim is

forward

Adding

shims increases

Steering Relief Valve Pressure Adjustment

To adjust the relief valve steering pressure perform the following:

1. Insert an 8 mm allen wrench into steering relief (Figure 36) on the manifold block.

2. On the manifold, connect at 5,000 psi pressure gauge into quick disconnect test

3. Start the engine and run at full throttle.

4. Turn the steering wheel to the hold. Read the steering relief pressure. The reading for the steering test port 1 will should be 700 psi.

5. If the steering relief pressure is not 700 psi, using the allen wrench adjust the pressure at gauge reads 500 psi.

port 1

left or right

port 4

until the pressure

port 4

(maximum) and

relief pressure

5. Install the top nut and install valve in the pump cavity using extreme care not to bind.

6. Install the valve cap.

7. Re-test pressure, further adjustment may be needed if pressure is not correct.

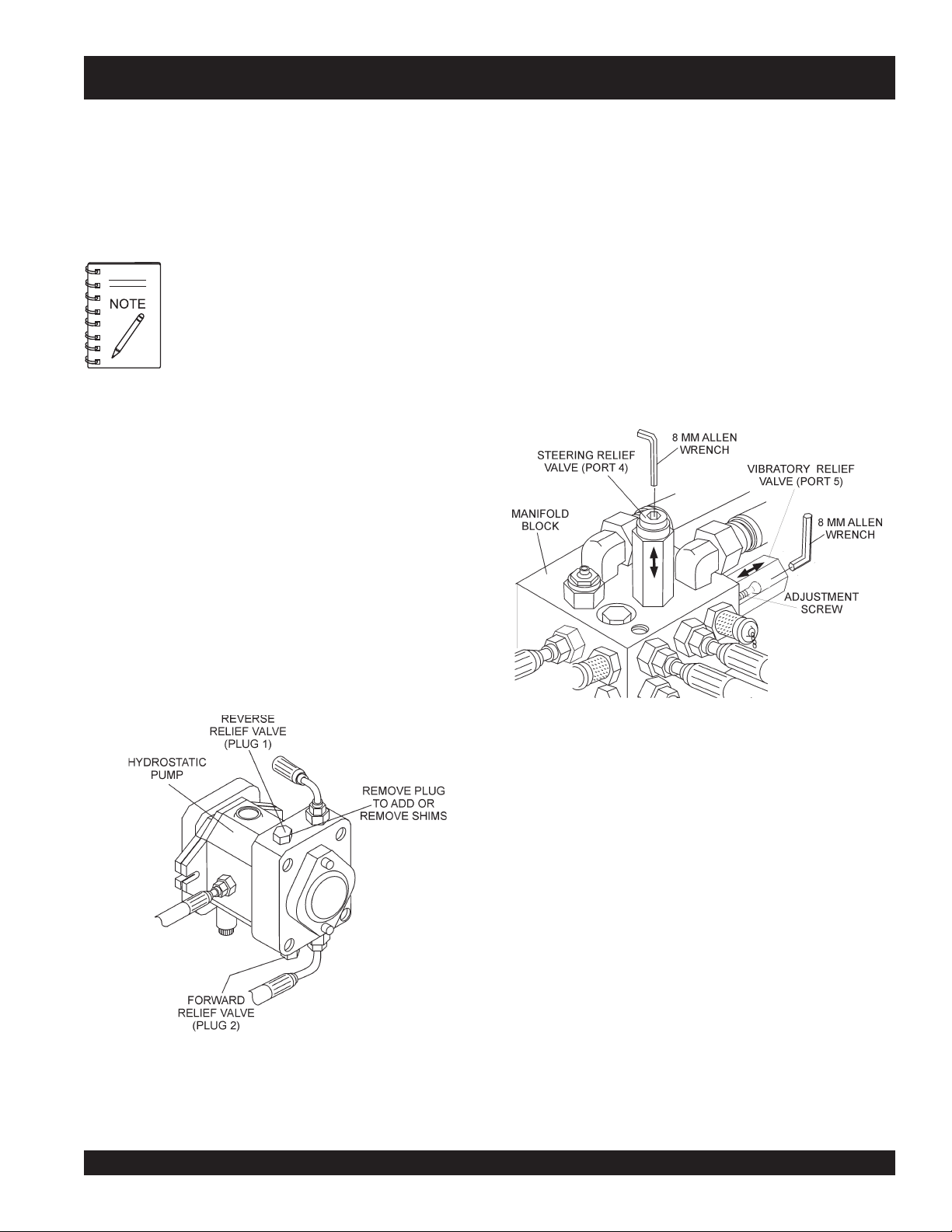

Figure 36. Steering and Vibration Relief Valves

Vibration Relief Valve Pressure Adjustment

1. Insert an 8 mm allen wrench into steering relief (Figure 36) on the manifold block.

2. On the manifold block, insert a 5,000 psi pressure gauge into quick disconnect test

3. Start the engine and run at full throttle.

4. To start the vibration, (vibration control) located on top of the travel lever. The relief pressure should read 800 ~ 1,000 psi.

5. If the vibration relief pressure is not 800 ~ 1,000 psi using the allen wrench adjust the pressure at pressure guage reads correctly.

port 1

press

the pushbutton switch

port 5

until the

Figure 35. Adjusting Forward/Reverse

Relief Valves

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 31

AR13D RIDE-ON ROLLER — MAINTENANCE

Removing and Replacing Hydrostatic Pump

1. Set the parking brake.

2. Disconnect the battery.

3. Clean the pump and all connections.

4. Mark and disconnect all hoses and lines from the pump.

5. Disconnect the forward / reverse control cable.

6. Disconnect the pump support bracket.

7. Remove the engine mounting bolts.

8. Elevate the pump and engine assembly using a proper lifting device.

9. Disconnect and remove the hydrostatic pump assembly.

10. Repair or replace the hydrostatic pump as required.

11. Install the hydrostatic pump in the reverse order of removal, using

Locktite 271

12. Test operate. Test and adjust the forward and reverse relief pressures as required. Adjust the forward / reverse control cable.

Removing and Replacing Vibration/Steering Pump

on all mounting bolts and nuts.

Drums and Main Frame

The front drum is designed to apply vibration and compaction force to the operating surface for compaction. This vibration and compaction force is produced when the vibrator shaft is rotated. Maximum efficiency is achieved only when the engine is operated at full throttle.

A single drive motor is mounted on the left side of the drum and is shockmounted. This type of drive motor is designed for maximum torque and power.

The vibrator is driven by a gear motor coupled to the vibrator shaft. The vibrator assembly rotates inside of a sealed housing containing oil to lubricate the bearings. This side of the drum is also shock mounted.

Front and Rear Drum Removal and Disassembly.

The removal and disassembly of the front and rear drums shall be referenced by Figures 37, 38, and 39 on the following pages. When reassembling the front drum use mounting hardware.

Loctite 271

on all

1. Remove the hydrostatic pump as per preceding instructions.

2. Remove all hoses and lines.

3. Disconnect the vibration / steering pump and remove.

4. Repair or replace pump as required.

5. Install the pump in the reverse order of removal, using

Locktite 271

6. Test operate. Test and adjust the forward and reverse pressure relief valves as required. Adjust the

reverse control cable

steering pressure relief valves as required.

on all mounting bolts and nuts.

forward

. Test and adjust the vibration and

PAGE 32 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — MAINTENANCE

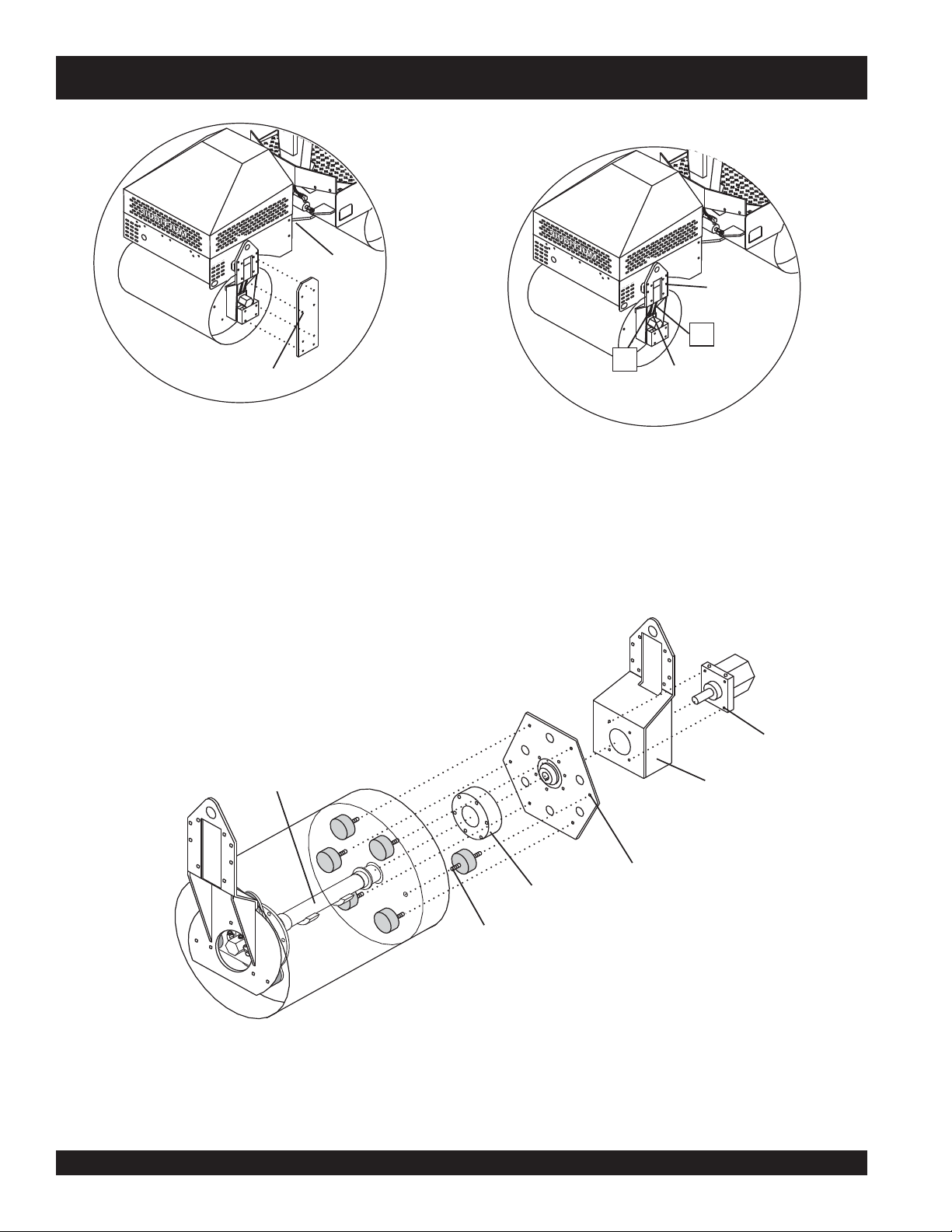

Figure 37. Front-Right Drum Removal

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 33

STEP 2

AR13D RIDE-ON ROLLER — MAINTENANCE

STEP 1

STEP 4

STEP 3

1. JACK FRAME UP SLIGHTLY AT ARTICULATION JOINT.

2. REMOVE THE EIGHT ALLEN HEAD SCREWS HOLDING THE SIDE COVER OF THE DRUM SUPPORT PLATE.

PULL DRUM SUPPORT PLATE

5. OFF DRIVE PLATE ASSEMBLY.

REMOVE FOUR ALLEN HEAD SCREWS SECURING MOTOR TO DRUM SUPPORT PLATE AND SET ASIDE.

7. REMOVE SIX NUTS SECURING DRIVE PLATE TO SHOCK MOUNTS. PULL OFF DRIVE PLATE AND SET ASIDE.

STEP 9

3. MARK AND DISCONNECT HOSES FROM MOTOR.

4. REMOVE FOUR ALLEN HEAD SCREWS FROM DRUM SUPPORT PLATE. (SCREWS MAY NEED TO BE HEATED TO REMOVE)

STEP 6

STEP 5

STEP 7

STEP 8

FRONT DRUM

8. UN-THREAD SIX SHOCK MOUNTS FROM DRUM WALL TO REPLACE.

9. PULL EXCITER ASSEMBLY TO REMOVE FROM DRUM INTERIOR.

10.

REVERSE PROCEDURES TO REASSEMBLE DRUM. USE LOCKTITE ON ALL NUTS AND BOLTS.

Figure 38. Front-Left Drum Removal

PAGE 34 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

STEP 2

STEP 3

1. JACK FRAME UP SLIGHTLY AT ARTICULATION JOINT.

2. REMOVE THE FOUR ALLEN HEAD

SCREWS SECURING THE DRUM SUPPORT PLATE TO THE FRAME.

STEP 1

AR13D RIDE-ON ROLLER — MAINTENANCE

STEP 6

STEP 4

STEP 5

REMOVE ALLEN HEAD SCREWS

4. HOLDING THE SIDE COVER OF THE DRUM SUPPORT PLATE.

5. MARK AND DISCONNECT HOSES FROM MOTOR.

STEP 4

3. REMOVE NUTS SECURING BEARING FLANGE TO BASE OF DRUM SUPPORT PLATE.

REMOVE TWO NUTS SECURING

7. DRUM SUPPORT PLATE TO FLANGE. PULL OFF LEFT DRUM SUPPORT PLATE AND SET ASIDE.

. PULL FLANGE OFF DRUM ROD

FOR SERVICE.

PULL RIGHT DRUM SUPPORT PLATE

9. OFF DRIVE PLATE ASSEMBLY.

REAR DRUM

STEP 8

STEP 7

6. REMOVE FOUR ALLEN HEAD SCREWS FROM DRUM SUPPORT PLATES.

STEP 9

STEP 11

REMOVE FOUR ALLEN HEAD

10. SCREWS SECURING MOTOR TO DRUM SUPPORT PLATE AND SET ASIDE.

REMOVE SIX BOLTS SECURING

11. DRIVE PLATE TO DRUM WALL. PULL OFF DRIVE PLATE AND SET ASIDE.

STEP 10

12. REVERSE PROCEDURES TO REASSEMBLE DRUM.

Figure 39. Rear Drum Removal/Installation

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 35

AR13D RIDE-ON ROLLER — MAINTENANCE

Alternator/Regulator

The AR13D is equipped with a 40 amp charging system. This system uses three charge coils connected in parallel. The windings of each coil are wound with heave-duty insulated wire and are further protected by insulating material for long life. A voltage regulator is provided to control the amount of charge voltage being delivered to the 12 volt electrical system. For servicing this charging system, contact your engine dealer.

Neutral Safety Switch

travel lever

The (Figure 40) that prevents the engine from starting when the lever is in the forward or reverse drive position. Lever must be placed in the neutral position in order for the starter to function.

To check this switch, remove the panel located below and to the rear of the floor. This switch is mounted to the lower forward/ reverse lever mechanism. Disconnect the Place the lever in neutral and test for continuity. Place the lever in forward or reverse; no continuity should be present. Repair or replace as required.

is provided with a

neutral safety switch

white

and

green

wires.

Battery

Mishandling of the battery shortens the service life of the battery ans adds to maintenance cost. When handling the battery do the following:



Be careful not to let the battery electrolyte come in contact with your body or clothing.



Always wear eye protection and rubber gloves, since the battery contains sulfuric acid which burns skin and eats through clothing.

CAUTION - BATTERY ACID BURN HAZARD

If your clothing or skin comes in contact with the battery acid,

immediately

attention.



Figure 40. Safety Switch

Vibrator Solenoid

The vibrator solenoid (Figure 41) is located in the manifold valve block and is controlled by the vibration switch located on top of the travel lever. This solenoid controls the vibration control valve which supplies hydraulic oil to the vibration drive motor.

Check the battery regulary and make sure that each electrolyte level is to the bottom of the vent well (Figure 42). If necessary add only distilled water in a well-ventilated area.

Figure 41. Vibration Solenoid

wash off with running water and get medical

To test the vibration solenoid, turn the ignition switch on. Check for proper supply voltage and ground. If proper voltage and ground are present, check the solenoid for continuity. If no continuity, replace the solenoid coil. If continuity is present, place your hand on the solenoid and turn the switch to the ON position; movement should be felt. DO NOT START THE ENGINE FOR

THIS TEST

Figure 42. Battery Fluid Levels

PAGE 36 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — PREPARATION FOR LONG-TERM STORAGE

Roller Storage

For storage of the roller for over 30 days, the following is recommended:



Drain the fuel tank completely, or add STA-BIL to the fuel.



Run the engine until the fuel in the injection system is completely consumed.



Completely drain used oil from the engine crankcase and fill with fresh clean oil, then follow the procedures described in the engine manual for engine storage.



Drain water tank



Clean the entire roller and engine compartment.



Remove battery and store it in cool dry place.



Cover the roller and place it a clean dry area, that is protected from harsh elements.



Remove ignition key, and store in a safe place.

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 37

AR13D RIDE-ON ROLLER — MANIFOLD TEST PORTS

Figure 29. Manifold Test Ports

PAGE 38 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — HYDRAULIC SYSTEM DIAGRAM

Figure 30. Hydraulic System Diagram

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 39

AR13D ROLLER — ELECTRIC WIRING DIAGRAM

Wiring diagram not available at this time.

PAGE 40 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

NOTE PAGE

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 41

MANIFOLD

HYDRAULIC DRIVE

PUMP

AR13D RIDE-ON ROLLER — HYDRAULIC HOSE CONNECTIONS

FROM OPERATOR’S POSITION

FRONT RIGHT SIDE

HYDRAULIC DRIVE PUMP

FROM OPERATOR’S

Figure 32. Hydraulic Hose Connections 1

POSITION

FRONT LEFT SIDE

NOTES

HOSES SHADED FOR VISUAL CLARITY.

PAGE 42 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

MANIFOLD

AR13D RIDE-ON ROLLER — HYDRAULIC HOSE CONNECTIONS

FRONT RIGHT MOTOR

STEERING COLUMN

FROM OPERATOR’S POSITION

REAR LEFT MOTOR

FRONT LEFT MOTOR

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 43

NOTES

HOSES SHADED FOR VISUAL CLARITY.

Figure 33. Hydraulic Hose Connections 2

AR13D RIDE-ON ROLLER — TROUBLESHOOTING (ROLLER)

GNITOOHSELBUORTRELLOR.6ELBAT

MOTPMYS MELBORPELBISSOP NOITULOS

?MPRenignewoL

noitarbiVwoL

?erusserpciluardyhwoL .erusserpciluardyhtsujdadnakcehC

?dionelostlov21otegatlovoN .ytiunitnocrofliockcehc,hctiwsnoitarbivkcehC

noitarbiVoN

gnireetSwolS

noitceriDenOniwolSsreetS ?rednilycgnireetSevitcefeD .yrassecenfiecalper,noitanimatnocrofrednilyctcepsnI

deepSesreveR/drawroFwolS

?lerusserpliooN .evlavfeilerevitcefedroerusserplioreporprofkcehC

?tcerrocni

"evlavleehweerF

?relpuocrotomnekorB .relpuocecalpeR

?erusserpciluardyhwoL .erusserpkcehC

?rotcennocnmulocgnireetS .yrassecenfiesaergdnasgniraebtcepsnI

?rednilycgnireetsevitcefeD .yrassecenfiecalper,slaeskcehC

?erusserpciluardyhwoL .erusserpkcehC

tnemtsujdarepparcsrebbuR

?esooltnuomkcohsrebbuR .yrassecenfiecalper,tnuomnekorbroftcepsnI

nepo

?" .evlavesolC

.deepsenignetsujdadnakcehC

.murdtsniagatnemtsujdareporprofkcehC

?tnemtsujda

woLerusserPciluardyHniaM

?etalpevird

?eruces

fotuoelbaclortnocdeepS

?deepsenignetcerrocnI .deepstcerrocotdeepsenignetsujdA

rostnuomkcohsrebburnekorB

tonerawdrahrotomevirD

.yrassecenfitsujdadnaelbactcepsnI

.yrassecenfiecalper,skcarcroftcepsnI

.relpuocyekdnatunrotomkcehC

PAGE 44 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — TROUBLESHOOTING (ENGINE)

GNITOOHSELBUORTENIGNE.7ELBAT

NOTPMYSMELBORPELBISSOPNOITULOS

?pmupnoitcejnignihcaerleuFoN .metsysleuferitnekcehC.leufddA

?pmupleufevitcefeD.pmupl

?deggolcretlifleuF .knatnaelcdnaretlifleufecalpeR

?enilylppusleufytluaF .enilleufriaperroecalp

sitratsrotratstonlliwenignE

deyaled

.revodenruteb

.tratston

nacenignehguohtla,

tgnitratswoL

lliwenigneserutarepmetwoltA

sanoosspotstubserifenignE

.ffodehctiwssiretrats

?wolootnoisserpmoC

owtonpmupleuF .pmupleufecalperroriapeR

?wolooterusserpliO .erusserplioenignekcehC

?yrettabevitcefeD .yrettabecalperr

?kcihtootlioenignE

?yrettabevitcefeD.yrettabecalpeR

ekcolbretlifleuF.retlifleufecalpeR

?dekcolbylppusleuF .metsysleuferitneehtkcehC

?pmupleufevitcefeD.pmupleu

?yltcerrocgnikr

dedeecxetimilerutarepme

eufecalpeR

rotsujdA.sevlavdnarednilyc,notsipkcehC

.launamriaperenignerepriaper

dnasnoitcurtsnignitratsdlochtiwylpmoC

.ytisocsivlioreporp

oegrahC

liofoepyttcerrochtiwesacknarcenignellifeR

.tnemnorivneretniwrof

fecalpeR

?ytpmeknatleuF.leufddA

?dekcolbretlifleuF.retlifleufeca

gnirudflestiybspotsenignE

.noitarepolamron

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 45

?pmupleufevitcefeD.pmupleufecalpeR

rosnesnwodtuhserusserpliolacinahceM

?liowoloteudenigneehtspots

lpeR

fir

osnesnwodtuhsliowolecalpeR.lioddA

.yrassecen

AR13D RIDE-ON ROLLER — TROUBLESHOOTING (ENGINE)

)DEUNITNOC(GNITOOHSELBUORTENIGNE.7ELBAT

NOTPMYSMELBORPELBISSOPNOITULOS

?ytp

meknatleuF.retlifleufecalpeR

?deggolcretlifleuF.retlifleufecalpeR

?etauqedanisignitnevknatleuF .detnevylet

dnatuptuo,rewopenignewoL

.deeps

?noitisop

dnatuptuorewopenignewoL

tsuahxekcalb,deepswol

.ekoms

snurenigneleseiddelooc-riA

daehrednilyC."TOH"yrev

.staehrevo

?snoinuepiptaskaeL nethgitdnaepatsnoinuepipdedaerhtkcehC

niniamertonseodrevellortnocdeepS

?llufootlevellioenignE ?le

?dekcolbretlifriA .retlifriaecalp

?secnaraelcevlavtcerrocnI .noitacificepsenignerepsevlavtsujdA

?rotcejnitanoitcnuflaM.launamenig

?esacknarcenigneniliohcumooT

detceles

erronaelC

neeeS

.kcitspid

?dekcolbdetanimatnocmetsysriagnilooceritnE

loocnaelC

.saera

.deriuqerasnoinu

auqedasiknattahterusnE

.noitcaevitcerrocroflaunamenigneeeS

vellioenignetcerroC

uotnwodlioenigneffoniarD

nokramrepp

nifgniloocdna,metsysriagni

PAGE 46 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

NOTE PAGE

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 47

EXPLANATION OF CODE IN REMARKS COLUMN

The following section explains the different symbols and remarks used in the Parts section of this manual. Use the help numbers found on the back page of the manual if there are any questions.

NOTICE

The contents and part numbers listed in the parts section are subject to change without notice. Multiquip does not guarantee the availability of the parts listed.

SAMPLE PARTS LIST

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%

2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY

2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY

3 12348 HOSE ..................A/R ...MAKE LOCALLY

4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE

NO. Column

Unique Symbols — All items with same unique

symbol

QTY. Column

Numbers Used — Item quantity can be indicated by a

number, a blank entry, or A/R.

A/R (As Required) is generally used for hoses or other parts that are sold in bulk and cut to length.

A blank entry generally indicates that the item is not sold separately. Other entries will be clariﬁed in the “Remarks” Column.

REMARKS Column

Some of the most common notes found in the “Remarks” Column are listed below. Other additional notes needed to describe the item can also be shown.

Assembly/Kit — All items on the parts list with the same unique symbol will be included when this item is purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

(@, #, +, %, or >) in the number column belong to the same assembly or kit, which is indicated by a note in the “Remarks” column.

Duplicate Item Numbers — Duplicate numbers indicate multiple part numbers, which are in effect for the same general item, such as different size saw blade guards in use or a part that has been updated on newer versions of the same machine.

NOTICE

When ordering a part that has more than one item number listed, check the remarks column for help in determining the proper part to order.

PART NO. Column

Numbers Used — Part numbers can be indicated by a

number, a blank entry, or TBD.

TBD (To Be Determined) is generally used to show a part that has not been assigned a formal part number at the time of publication.

A blank entry generally indicates that the item is not sold separately or is not sold by Multiquip. Other entries will be clariﬁed in the “Remarks” Column.

Serial Number Break — Used to list an effective serial number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW” “S/N XXXX AND ABOVE” “S/N XXXX TO S/N XXX”

Speciﬁc Model Number Use — Indicates that the part is used only with the speciﬁc model number or model number variant listed. It can also be used to show a part is NOT used on a speciﬁc model or model number variant.

Indicated by:

“XXXXX ONLY” “NOT USED ON XXXX”

“Make/Obtain Locally” — Indicates that the part can be purchased at any hardware shop or made out of available items. Examples include battery cables, shims, and certain washers and nuts.

“Not Sold Separately” — Indicates that an item cannot be purchased as a separate item and is either part of an assembly/kit that can be purchased, or is not available for sale through Multiquip.

PAGE 48 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — SUGGESTED SPARE PARTS

AR13D Ride-on Tandem Drum Roller

w/Briggs and Stratton Diesel Engine

1 to 3 Units

Qty. P/N Description

1 .......... 513324 ................... Forward Reverse Travel Cable

............ 509350SW ............. Neutral Safety Switch

2 .......... 510229 ................... Throttle Cable

6 .......... 508667 ................... Hydraulic Oil Filter

1 .......... 507278 ................... Hydraulic Tank Cap

6 .......... 820311 ................... Fuel Filter

1 .......... 34507 ..................... Fuel Tank Cap Gauge

1 .......... 509249 ................... Water Tank Cap

4 .......... 508433 ................... Rubber Drum Scraper

3 .......... M113621 ................ Air Filter Element

4 .......... 691959 ................... Ignition Key

2 .......... 692318 ................... Ignition Switch

4 .......... 821075 ................... Fan Belt

4 .......... 820150 ................... Rocker Cover Gasket

6 .......... 820314 ................... Engine Oil Filter

2 .......... 820258 ................... Radiator Cap

1 .......... 825222 ................... Starter

2 .......... 821135 ................... Oil Pressure Switch

2 .......... 820208 ................... Water Temperature Switch

2 .......... 825064 ................... Thermostat

2 .......... 515848 ................... Breaker Switch

1 .......... 825324 ................... Injection Pump

1 .......... 825265 ................... Water Pump

1 .......... 825133 ................... Radiator Hose Upper

1 .......... 825134 ................... Radiator Hose Lower

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 49

AR13D RIDE-ON ROLLER — NAME PLATE AND DECALS

NAME PLATE AND DECALS

REAR

ROLLER

PAGE 50 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — NAME PLATE AND DECALS

NAME PLATE AND DECALS

NO. PART NO. PART NAME QTY. REMARKS

1 513457 DECAL: STEERING CONSOLE 1 2 13118 DECAL: POWDER COATED 1 3 511726 DECAL: HYDRAULIC OIL LEVEL INDICATOR 1 4 511736 DECAL: WARNING 1 5 511740 DECAL: MULTIQUIP BANNER 1 6 34536 DECAL: OWNERS MANUAL 1 7 513580 DECAL: ENGINE RPM SETTING 1 9 513698 DECAL: WATER TANK CAP 1 10 515436 DECAL: CONTROL PANEL 1 11 511737 DECAL: SERVICE INSTRUCTION CHART 1

12 513393 DECAL: SECURING POINT INDICATOR ................ 3 ........ POINT ARROW DOWN

13 511735 DECAL: CAUTION 2 14 513707 DECAL: ATTENTION 2 15 513467 DECAL: PARKING BRAKE INSTRUCTIONS 1 16 515818 DECAL: AR13D MQ LOGO 1 17 511738 DECAL: DANGER 1

18 513393 DECAL: SECURING POINT INDICATOR ................ 4 ........ POINT ARROW UP

19 513469 DECAL: CAUTION STRIPE PATTERN .................... 1 ........ HORIZONTAL PLACEMENT

20 511718 DECAL: CAUTION STRIPE PATTERN .................... 2 ........ VERTICAL PLACEMENT

21 513688 DECAL: MQ LOGO 2

22 513740 DECAL: CAUTION STRIPE PATTERN .................... 1 ........ HORIZONTAL PLACEMENT

23 515815 DECAL: AR13D MQ LOGO 1 24 511739 DECAL: CAUTION: INSTRUCTIONS 1 25 511724 DECAL: GREASE REMINDER 1 26 511733 DECAL: HYDRAULIC OIL INDICATOR 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 51

FRONT DRUM ASSY.

AR13D RIDE-ON ROLLER — FRONT DRUM ASSY.

PAGE 52 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — FRONT DRUM ASSY.

FRONT DRUM ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 513280 FRONT ROLLER 1 4 506145 HOUSING BEARING 1 6 506147 BEARING 1 8 506136 RING, RETAINING 1 10 508665 COUPLER 1 12 506142 MOUNT, VIBRATION MOTOR 1

14 011208025 BOLT, 8X25T ................................................... 6 ................ REPLACES 508342

16 EM923023 WASHER, FLAT 5/16” ..................................... 6 ................ REPLACES 492597

18 492264 BOLT, 3/8”X1” 6 20 506141 SHOCK, MOUNT 3 22 508340 STUD, M8X40 6

26 020108060 NUT, M8 .......................................................... 6 ................ REPLACES 508341

28 514522 ROLLER, SUPPORT, RIGHT .......................... 1 ................ LEFT SIDE - FRONT/REAR

30 6109210 BOLT 1/2”X1-1/2” ............................................ 8 ................ REPLACES 492276

32 513283 HOSE, PROTECTION COVER 1 34 513314 NUT 1/4”X1/2” 12 36 506220 MOTOR, HYDRAULIC 1 40 492362 NUT 5/16”X5/8” 4

41 EM923343 WASHER, LOCK 5/16” DIAMETER .............. 10 ................ REPLACES 492623

43 513337 HOSE 1 45 513343 HOSE 1 47 513342 HOSE 1

78 EM963610 BOLT 3/8”X1” .................................................. 6 ................ REPLACES 492375

80 3019092 WASHER, 3/8 ................................................. 6 ................ REPLACES 508346

82 505985 SHOCK, MOUNT 6 84 021110120 NUT, NYLON LOCK M10 ZINC 1.SP 12 86 505977 PLATE, DRIVER 1 88 505984 HUB 1

90 EM503803 PINS, DOWEL ................................................ 2 ................ REPLACES 503803

92 515637 SUPPORT, ROLLER, LEFT ............................ 1 ................ RIGHT SIDE - FRONT

94 EM924006 KEY, COTTER 1/8”X2” .................................... 1 ................ REPLACES 491690

95 511159 FLAT WASHER 1 96 515396 MOTOR, HYDRAULIC 1 98 505990 BOLT 1/2”X2-1/2” 4 100 515639 COVER 1 124 505951 FITTING 2 126 513332 FITTING 2 128 515641 HOSE 1 130 513344 HOSE 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 53

EXCITER ASSY.

AR13D RIDE-ON ROLLER — EXCITER ASSY.

FRONT DRUM

NOTES:

INNER BEARINGS ARE INCLUDED

WITH ITEM 64.

PAGE 54 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — EXCITER ASSY.

EXCITER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

44 EM963610 CAPSCREW, 3/8”N X 1-1/4”G5 6

46 3019092 WASHER, 3/8" ............................................... 12 ............... REPLACES 508346

48 513285 HOUSING, BEARING RIGHT 1

52 EM927040 KEY, WOODRUFF 606 ..................................... 1 ............... REPLACES 506250

54 492467 SCREW, ALLEN 5/16” 4

58 EM963610 CAPSCREW, 3/8” ............................................ 6 ............... REPLACES 492375

60 506144 SEAL 1 62 490964 RING, RETAINING 1 64 506131 BEARING 2 66 513418 EXCITER SHAFT 1 70 506135 RING, RETAINING 2 74 513286 OIL SEAL 65x100x9 2 76 513287 HOUSING, BEARING LEFT 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 55

AR13D RIDE-ON ROLLER — REAR DRUM & CHASSIS ASSY.

REAR DRUM & CHASSIS ASSY.

PAGE 56 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — REAR DRUM & CHASSIS ASSY.

REAR DRUM & CHASSIS ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 513291 REAR DRUM 1 4 505988 ALLEN PLUG 1 6 492584 NUT, LOCK 1/2 IN. 2

8 503735 BEARING, FLANGE ........................................ 1 ............... INCLUDES ITEMS W/

10 514523 SUPPORT, ROLLER ........................................ 1 ............... RIGHT SIDE - REAR

11 513283 HOSE PROTECTION COVER 1 12 509165 BOLT, 1/2 NC x 2-1/4 IN. G5 2

14 6109210 BOLT, 1/2 NC x 1-1/2 IN. G5 ............................ 8 ............... REPLACES 492276

16 EM963610 CAPSCREW, 3/8 IN. NC x 1-1/4 IN. G5 6

18 3019092 LOCK WASHER 3/8 IN. .................................. 6 ............... REPLACES 508346

20 505977 PLATE DRIVE 1

22 3019092 WASHER 3/8 IN............................................... 6 ............... REPLACES 508346

24 EM963610 CAPSCREW, 3/8 NC x 1-1/4 IN. G8 ................ 6 ............... REPLACES 492375

26 505984 HUB 1 28 EM503803 PINS, DOWEL 3/8 x 1 IN. 2

30 515637 REAR ROLLER SUPPORT, LEFT ................... 1 ............... LEFT SIDE - FRONT/REAR

32 515639 SUPPORT COVER 1 34 513314 BOLT, 1/4 NC x 1/2 IN. G 12 35 511159 FLAT WASHER 1 IN. 1

36 EM924006 KEY, COTTER 1/8 x 2 IN................................. 1 ............... REPLACES 491690

38 515396 MOTOR, HYDRAULIC 1 40 505990 BOLT, 1/2 NC x 2-1/2 IN. G 4 66 505951 FITTING 8-10-F5OLO-S 2 70 513349 HOSE 2 72

100 513266 REAR CHASSIS 1 126 505976 CLAMP 3/4 5 128 506185 PLATE CORNER 4 130 492367 SCREW, HHC5/16”-18X1-3/4” 3

132 EM923343 WASHER, LOCK 5/16” ..................................... 4 ............... REPLACES 492623

ZERK GREASE FITTING ................................ 1 ............... CANNOT BE SOLD SEPARATELY

ZERK CAP ....................................................... 1 ............... CANNOT BE SOLD SEPARATELY

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 57

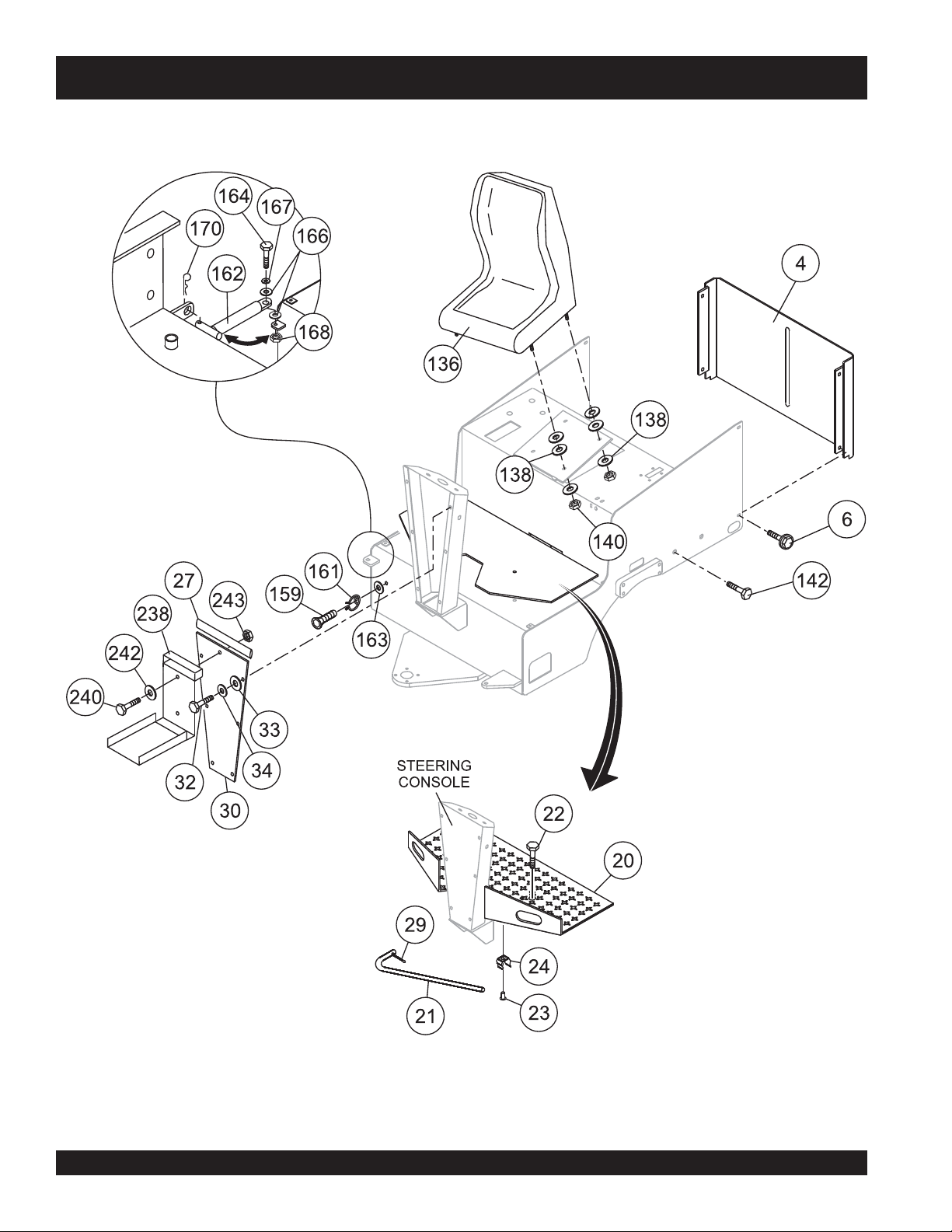

AR13D RIDE-ON ROLLER — COVERS AND FRAME ARTICULATION LOCK ASSY.

PAGE 58 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — COVERS AND FRAME ARTICULATION LOCK ASSY.

COVERS AND FRAME ARTICULATION LOCK ASSY.

NO. PART NO. PART NAME QTY. REMARKS

4 513315 REAR WATER TANK COVER 1 6 509177 BOLT 5/16 IN. 4 20 515416 FLOOR PLATE 1 21 515415 ARM, FLOOR COVER 1 22 509177 BOLT 5/16 X 3/4 IN. 2

23 512881 RIVET AM-54 .................................................. 1 ............... REPLACES 503723

24 511474 BRACKET, ARM 1 27 508679 SEAL RUBBER 11.8" 29 509074 PIN COTTER 3/32" 1 30 514243 CONSOLE COVER 1 32 492363 BOLT 5/16 X 3/4 IN. NCG5 6

33 EM923023 WASHER 5/16" ................................................ 6 ............... REPLACES 505679

34 EM923343 WASHER, LOCK 5/16 IN. ................................ 6 ............... REPLACES 492623

136 507888 SEAT 1

138 EM923023 NUT 5/16" ...................................................... 12 ............... REPLACES 505679

140 2105164 NUT, NYLON 5/16 IN. - 18 ............................... 4 ............... REPLACES 492582

142 510875 BOLT 3/4 NC X 1-1/2 IN 4 159 513314 SCREW 1/4" X 3/4" 1 161 513471 LOCK CLIP 1 162 513328 LOCKING ARM 1

163 2101402 WASHER LOCK 1/4" ....................................... 1 ............... REPLACES 492622

164 492410 BOLT 5/8 NC x 2-1/2 IN. G5 1 166 506167 WASHER, PLASTIC 5/8 IN. 2

167 EM923023 WASHER, PLAIN 5/16 IN. ............................... 1 ............... REPLACES 506109

168 EM969023 NUT, LOCK 5/8 IN. ........................................... 1 ............... REPLACES 492586

170 745 LOCK PIN 1 238 29057 DOCUMENT BOX 1 240 492356 BOLT 1/4" X 3/4" 2

242 EM923057 WASHER 1/4 IN............................................... 8 ............... REPLACES 492596

243 492581 NUT 1/4"-20 NYLON 2

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 59

AR13D RIDE-ON ROLLER — HOOD AND REAR PANEL ASSY.

HOOD AND REAR PANEL ASSY.

PAGE 60 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — HOOD AND REAR PANEL ASSY.

HOOD AND REAR PANEL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

2 515703 HOOD 1 4 513305 HINGE, SLOTTED 2

6 0202 SCREW, HHC 5/16 X 18 X 1 IN....................... 4 ............... REPLACES 492364

8 EM923023 FLAT WASHER 5/16 IN.................................. 10 ............... REPLACES 505679

10 2105164 NUT, NYLON 5/16- 18 ...................................... 4 ............... REPLACES 492582

12 491010 LATCH KIT ....................................................... 2 ............... REPLACES 504744

13 512881 RIVET BRAKE LINING .................................... 2 ............... REPLACES 503723

15 508679 SEAL RUBBER 56.1" 17 508679 SEAL RUBBER 23.6" 18 514438 LATCH KIT (HOOD) 2 22 492356 BOLT 1/4 X 3/4 IN. 12 24 492581 NUT 1/4 IN. 12 30 515645 FRONT CHASSIS 1 32 513308 REAR EINGINE COVER 1 33 13212 GROMMET, 1-1/4 IN. ID 1

34 506158 BOLT 5/16 X 3/4 IN. ........................................ 4 ............... REPLACES 513309

90 490181 SIGHT GLASS 1 92 516294 SUPPORT REAR ENGINE COVER 1

94 0202 BOLT 1/4 X 3/4 IN. .......................................... 1 ............... REPLACES 492364

96 2105164 WASHER, LOCK 1/4 IN. .................................. 1 ............... REPLACES 492622

98 EM923023 FLAT WASHER 5/16 IN. ................................... 3 ............... REPLACES 492597

100 011208025 BOLT 8 X 25T DCA-85,125,150SSM ............... 1 ............... REPLACES 508342

102 EM923343 WASHER, LOCK 5/16 IN. ................................ 1 ............... REPLACES 492623

104 506205 PLUG 1 148 510925 NUT 3/16 IN. 2 150 513314 BOLT 1/4 X 1/2 IN. 2

155 EM506085 GROMMET ...................................................... 1 ............... REPLACES 506085

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 61

AR13D — STEERING COLUMN AND HYDRAULIC ARTICULATION ASSY.

STEERING COLUMN AND HYDRAULIC ARTICULATION ASSY.

PAGE 62 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D — STEERING COLUMN AND HYDRAULIC ARTICULATION ASSY.

STEERING COLUMN AND HYDRAULIC ARTICULATION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

16 EM969023 NUT, LOCK 5/8 IN. ........................................... 2 ............... REPLACES 492586

18 492413 BOLT 5/8” UNC X 3-1/2 1 19 EM128 BOLT 5/8"NC X 4"G8 1 22 506196 ELBOW FITTING 2 24 513297 CYLINDER, STEERING 1

26 6109210 BOLT 1/2"-13 x 1-1/2 ....................................... 4 ............... REPLACES 492276

28 513299 COVER, ARTICULATING JOINT 1

30 EM963055 HEX HEAD CAPSCREW 3/8 IN. x 3/4 IN. ....... 3 ............... REPLACES 492373

32 6109180 WASHER, LOCK 1/2” DIAMETER ................... 8 ............... REPLACES 492626

34 0166A WASHER, LOCK 3/8” DIAMETER ................... 3 ............... REPLACES 492624

36 513300 RETAINER PLATE 1 38 513301 SPACER 1 40 506164 BEARING 1

42 6109210 BOLT 1/2 IN. NC x 1-1/2 IN. G ......................... 4 .............. REPLACES 492276

44 6109180 WASHER, LOCK 1/2 IN. .................................. 4 .............. REPLACES 492626

46 513302 BASE, ARTICULATING JOINT 1 48 513303 ARTICULATING JOINT 1

50 6109210 BOLT 1/2 IN. NC x 1-1/2 IN. G ......................... 4 ............... REPLACES 492276

52 491701 ZERK FITTING 1 54 513350 HOSE, 9 1 56 513348 HOSE, 16 1 58 491008 GREASE COVER 1 172 509156 NUT 1 174 493128 WHEEL, STEERING 1

176 507862 STEERING COLUMN ...................................... 1 ............... REPLACES 5061861

178 506265 NUT 5/16 IN. 4 181 513346 HOSES K AND L 2

182 EM923343 WASHER 5/16 IN............................................. 4 ............... REPLACES 492623

184 508335 BUSHING 4 186 509190 WASHER 3/4 IN. 1 188 506186 HYDRAULIC VALVE 1 190 18706 HOUR METER 1 192 503119 NUT, LOCK 3/16” 1 194 692318 SWITCH, STARTER 1 195 691959 KEY, IGNITION 1 198 492356 BOLT 1/4 IN. x 3/4 IN. 1

200 EM969079 NUT 1/4 IN. ...................................................... 1 ............... REPLACES 492581

202 515791 HARNESS, WIRING 1 390 515971 INDICATOR, GAUGE, ENGINE STATUS 1 391 515848 CIRCUIT BREAKER 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 63

ARTICULATION ARM

AR13D RIDE-ON ROLLER — ARTICULATION ARM ASSY.

PAGE 64 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — ARTICULATION ARM ASSY.

ARTICULATION ARM

NO. PART NO. PART NAME QTY. REMARKS

2 513294 ROD END 2 4 514347 BOLT 3/4 IN. x 2-1/2 IN. 2 6 EM505069 NUT 3/4 IN. 2 8 513295 NUT 3/4 IN. 2 10 513296 ROD, DIRECTION STABILIZER 1 62 514433 FLAT WASHER 3/4. 4

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 65

AR13D RIDE-ON ROLLER — HYDRAULIC DRIVE PUMP ASSY.

HYDRAULIC DRIVE PUMP ASSY.

PAGE 66 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — HYDRAULIC DRIVE PUMP ASSY.

HYDRAULIC DRIVE PUMP ASSY.

NO. PART NO. PART NAME QTY. REMARKS

36 515803 ENGINE, BRIGGS AND STRATTON 850D 1 54 507845 PUMP, STEERING 1

56 EM508346 WASHER 3/8 IN. .............................................. 2 ............... REPLACES 508346

58 EM175 BOLT 3/8-16 X 1-1/4 SC HD 2 60 507860 ADAPTER, STEERING PUMP 1 62 506187 HYDRAULIC PUMP 1 64 513310 SHIFT LEVER 1 66 509144 BOLT 3/16 X 1-3/4 IN. 1

68 2105162 BOLT 5/16 X 1-3/4 IN. ..................................... 1 ............... REPLACES 492367

70 2105164 NUT, NYLON 5/16 IN. - 18 ............................... 1 ............... REPLACES 492582

72 503119 NUT, LOCK 3/16 IN. 1

74 513489 SCREW ALLEN HEAD 1/4 - 20 X 3/8 IN. ........ 1 ............... REPLACES 492465

87 515727 HOSE 2 190 506217 FITTING 3/4 IN. 1 191 515723 HOSE 1 192 506207 HOSE CLAMP, HS-16 2 196 506203 FITTING 1 199 515725 HOSE 1 200 508427C COPPER WASHER 21/32 IN. 3 201 515726 HOSE 1 202 508343 FITTING 3 203 513339 HOSE 1 204 508428C COPPER WASHER 5/8 IN. 1 206 506219 FITTING 1/2 IN. 1 208 506195 FITTING 3703-08-08 1 209 515724 HOSE 1

388 EM923343 WASHER LOCK 5/16" .................................... 4 ................ REPLACES 492623

390 515811 COUPLING, FLYWHEEL ASSY ...................... 1 ................ INCLUDES ITEMS W/#

391# 515811H HUB, DRIVE 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 67

AR13D RIDE-ON ROLLER — MANIFOLD AND HYDRAULIC OIL FILTER ASSY.

MANIFOLD AND HYDRAULIC OIL FILTER ASSY.

PAGE 68 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — MANIFOLD AND HYDRAULIC OIL FILTER ASSY.

MANIFOLD AND HYDRAULIC OIL FILTER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

30 515645 CHASSIS AR13D 1 83 513221 HOSE 1 87 515727 HOSE 1

91 EM505186 CUSHION RUBBER ......................................... 2 ............... REPLACES 505186

106 507278 HYDRAULIC TANK CAP 1 108 506218 STRAIGHT FITTING 3/4" 1 110 506221 FILTER 1 112 508667 OIL FILTER 1 114 508664 FILTER, HEAD 1 116 492356 BOLT 1/4" X 3/4" 2

118 2101402 WASHER, LOCK 1/4” ....................................... 2 ............... REPLACES 492622

120 506204 FITTING 1 121 EM25507 FITTING 2 122 506244 BLOCK FILTER M10 1 124 508670 VALVE CHECK 1 126 505976 CLAMP 3/4 3 128 506185 PLATE CORNER 3

130 2105162 SCREW, HHC5/16”-18X1-3/4” .......................... 2 ............... REPLACES 492367

132 EM923343 WASHER, LOCK 5/16” ..................................... 3 ............... REPLACES 492623

134 492371 BOLT 5/16” LOCK 1 136 506201 FITTING, TEE 1 138 506202 FITTING 1 140 506206 FITTING 1 144 506195 FITTING 1 156 515502 MANIFOLD 1 157 508814 BOLT 5/16”X3-1/4” 2 158 506192 FITTING 2 160 507774 VALVE RELIEF, 500 PSI 1 162 507772 PLUG 1 164 506247 VALVE, NEEDLE 1 166 506246 VALVE, RELIEF, 2000 PSI 1 168 506245 VALVE, SOLENOID 1 170 507885 12 VOLT COIL SOLENOID 1 172 506182 COUPLING PSI TEST 3 174 506190 FITTING 2 176 511808 ADAPTER, STRAIGHT 2 178 506190 FITTING 2 182 506205 PLUG 1 186 506193 FITTING 5

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 69

AR13D RIDE-ON ROLLER — FUEL TANK & OIL DRAIN HOSE ASSY.

FUEL TANK & OIL DRAIN HOSE ASSY.

PAGE 70 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — FUEL TANK & OIL DRAIN HOSE ASSY.

FUEL TANK & OIL DRAIN HOSE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

124 508302 PAD, RUBBER TANK 2 204 513329 FUEL TANK 1 205 514467 BRACKET, FUEL TANK SUPPORT 1 206 34507 CAP, FUEL W/GAUGE 1 207 514340 PAD, RUBBER BRACKET 4 x 36 x 10 mm 5.6' 208 505594 FLEX TUBE 5/16 IN. 1 210 514560 ADAPTER, ELBOW 1 212 492309 BOLT 3/8 NC x 3/4 IN. G5 2

213 EM923343 WASHER, LOCK 5/16 IN. ....................................... 2 ......... REPLACES 492623

214 3019092 WASHER, FLAT 3/8 IN. 2

216 2105164 NUT, HEX 5/16 IN. ..................................................2 ......... REPLACES 492553

218 506208 CLAMP HS-4 12 220 514536 HOSE 4FLH 5/16 IN. 4.1' 221 514536 HOSE 4FLH 5/16 IN. .7' 248 512731 ADAPTOR 2 252 512731 ADAPTOR 2 256 EM512722 FUEL SHUT-OFF VALVE 1 268 511778 ADAPTER 2 270 514536 HOSE 4FLH 5/16 IN. 4.1' 284 491210 PLUG, TANK 1/4 IN. 1 285 505594 FLEX TUBE 5/16 IN. 1 290 514536 HOSE 4FLH 5/16 IN. 4.1' 292 EM20427 HOSE 4FLH 5/16 IN. 4' 294 514536 HOSE 4FLH 5/16 IN. 4.6' 342 515697 FILTER SUPPORT 1

344 011208025 BOLT 8 X 25T .........................................................2 ......... REPLACES 508342

346 EM923343 WASHER 5/16 IN.................................................... 2 ......... REPLACES 492623

362 492363 BOLT 5/16" NC X 3/4" G5 2 364 492582 NUT 5/16"-18 2 398 825219 FUEL FILTER ASSY W/SENSOR 1 400 516416 ENGINE OIL DRAIN 1 401 516417 FITTING 90° 1 402 516353 HOSE 1 403 513619 FITTING 1 404 820311 FUEL, FILTER ELEMENT W/O SENSOR 1 405 820347 SENSOR, FUEL FILTER 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 71

WATER TANK ASSEMBLY ASSY.

AR13D RIDE-ON ROLLER — WATER TANK ASSY.

PAGE 72 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — WATER TANK ASSY.

WATER TANK ASSEMBLY ASSY.

NO. PART NO. PART NAME QTY. REMARKS

8 513316 WATER TANK 1 14 509249 WATER TANK CAP 1 16 514541 PLUG 1 17 491028 CLAMP 10 18 506071 ELBOW PVC 7 19 506288 CLAMP 1 84 513321 WATER VALVE EXTENSION 1 86 EM506085 GROMMET 2 88 EM492358 BOLT 1/4" NC x 1-1/4" G5 4 90 492581 NUT1/4" 4 92 513322 VALVE, BALL 2 93 513351 ELBOW 90G 1/2” NYLON 1 94 513379 “T” ADAPTER 1

96 402010060 HOSE 1/2" ....................................................1.3' ............... REPLACES 504163

98 506086 U- BOLT 3/8" 4

100 3019092 WASHER, FLAT. 3/8” ...................................... 16 ............... REPLACES 492598

101 EM20426 ELBOW BRASS 2 102 508435 LOCK NUT 8 103 EM20415 TUBE 5/16" 2.3' 104 503015 KNOB, HANDLE ADJ. 2

116 402010060 HOSE 1/2" .................................................. .33' ................ REPLACES 504163

118 402010060 HOSE 1/2" .................................................. .66' ................ REPLACES 504163

119 402010060 HOSE 1/2" ..................................................... 2' ................ REPLACES 504163

120 402010060 HOSE 1/2" .................................................... .5' ................ REPLACES 504163

122 402010060 HOSE 1/2" .................................................. 6.2' ................ REPLACES 504163

123 508301 PAD, WATER TANK 2 125 508251 PAD, WATER TANK 2 128 506084 CLAMP 4

130 EM923023 NUT 5/16" ........................................................ 4 ............... REPLACES 505679

132 EM492299 SCREW, HHC 5/16”- 18X1/2” ........................... 4 ............... REPLACES 505401

266 506072 PVC TUBE 4 268 506074 MALE ADAPTER 4 270 508610 CAP 4

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 73

ENGINE MOUNTING ASSY.

AR13D RIDE-ON ROLLER — ENGINE MOUNTING ASSY.

PAGE 74 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — ENGINE MOUNTING ASSY.

ENGINE MOUNTING ASSY.

NO. PART NO. PART NAME QTY. REMARKS

36 515803 DIESEL ENGINE, BRIGGS AND STRATTON 850D ...... 1 ..........INCLUDES ITEMS W/#

316 515800 BOLT 7/16"NC X 1" G5 2 318 492599 WASHER 7/16" 2 319 492625 WASHER 7/16" 2 320 515659 MOUNT, ENGINE 1

322 EM963057 CAPSCREW 3/8"X1-1/2" ............................................... 2 ..........REPLACES 492313

324 3019092 WASHER FLAT 3/8" ....................................................... 4 ..........REPLACES 492598

326 EM969013 NUT NYLOC ................................................................... 2 ..........REPLACES 492583

328 515650 MOUNT, ENGINE 1

330 EM963610 CAPSCREW 3/8"NC X 1-1/4" G8 .................................. 2 .......... REPLACES 492376

332 3019092 WASHER FLAT 3/8" ....................................................... 2 ..........REPLACES 492598

334 EM969013 NUT NYLOC ................................................................... 2 ..........REPLACES 492583

336 2105162 SET BOLT ENGINE ....................................................... 2 ..........REPLACES 492367

338 EM923023 WASHER PLAIN 5/16" ................................................... 2 .......... REPLACES 492597

340 2105164 NUT 5/16" ...................................................................... 2 ..........REPLACES 492582

450#@ MOUNT, ENGINE 1 451#@ MOUNT, ENGINE 1

452# 835034 ENGINE MOUNT KIT .................................................... 1 .......... INCLUDES ITEMS W/@

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 75

MUFFLER ASSY.

AR13D RIDE-ON ROLLER — MUFFLER ASSY.

PAGE 76 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — MUFFLER ASSY.

MUFFLER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

212 506257 U-BOLT 1 348 515667 MOUNT PLATE, MUFFLER 1 350 515663 MUFFLER BASE EXTENSION 1 352 493108 CLAMP 2

354 0202 SCREW, HHC 5/16-18 X 1 ............................ 1 .................. REPLACES 492364

356 EM923023 WASHER FLAT 5/16 ..................................... 1 .................. REPLACES 492597

358 EM923343 WASHER FLAT 5/16 ..................................... 1 .................. REPLACES 492623

360 2105164 NUT 5/16 ....................................................... 1 .................. REPLACES 492553

396 835029 MUFFLER ..................................................... 1 .................. INCLUDED WITH ENGINE

412 516291 ELBOW, EXHAUST 1

414 0202 SCREW, HHC 5/16-18 X 1 ............................ 4 .................. REPLACES 492364

416 EM923343 WASHER LOCK 5/16" .................................. 4 .................. REPLACES 492623

418 2105164 NUT HEX 5/16" DIA-NC ................................ 4 .................. REPLACES 492553

424 517127 WRAP 2" X 1/16" X 8' .................................. 11.5'............. REPLACES 510718

426 517328 CLAMP 1 428 506886 BOLT 4

430 EM923343 WASHER LOCK 5/16" .................................. 4 .................. REPLACES 492623

450 821001 GASKET, EXHAUST MANIFOLD 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 77

AIR CLEANER ASSY.

AR13D RIDE-ON ROLLER — AIR CLEANER ASSY.

PAGE 78 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — AIR CLEANER ASSY.

AIR CLEANER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

376 515801 AIR INTAKE HOSE 1 378 515696 HOSE AIR INLET 1

402 835007 AIR CLEANER .............................................. 1 .................. INCLUDED WITH ENGINE

452 515802 CLAMP 3

454 MOUNT, AIR CLEANER ............................... 1 .................. INCLUDED WITH ITEM 402

458 M113621 ELEMENT, AIR FILTER 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 79

RADIATOR ASSY.

AR13D RIDE-ON ROLLER — RADIATOR ASSY.

PAGE 80 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — RADIATOR ASSY.

RADIATOR ASSY.

NO. PART NO. PART NAME QTY. REMARKS

45 516422 TRIM EDGE1" X 1" 2.62' 47 516421 TRIM EDGE 3/4" X 3/4" 2.62' 366 515660 MOUNT RADIATOR OVERFLOW 1

368 EM506599 BOLT HEX 6MM X 15 ................................... 2 .................. REPLACES 506599

370 2101402 WASHER SPRING 1/4" ................................ 2 .................. REPLACES 492622

372 492356 BOLT 1/4" X 3/4" 2 374 492581 NUT 1/4"-20 NYLON LOCK 2 472 835085 RADIATOR MOUNTING KIT 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 81

THROTTLE ASSY.

AR13D RIDE-ON ROLLER — THROTTLE ASSY.

PAGE 82 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — THROTTLE ASSY.

THROTTLE ASSY.

NO. PART NO. PART NAME QTY. REMARKS

106 513323 TRAVEL LEVER (FWD/REV) 1 108 513324 CABLE, FORWARD/REVERSE 1 110 516487 JOINT BALL 1 112 508451 LOCK NUT 1/4" - 28 NF 1 114 513325 ADVANCE CABLE SUPPORT 1 134 510229 CABLE THROTTLE ASSEMBLY 1 135 G201 KNOB HANDLE 1 136 DA1252 LEVER HANDLE 1 137 516116 NUT 1/4-20 HEX 1 330 EM968435 NUT 1

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 83

BRAKE CONTROL ASSY.

AR13D RIDE-ON ROLLER — BRAKE CONTROL ASSY.

265

266

PAGE 84 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

268

269

267

AR13D RIDE-ON ROLLER — BRAKE CONTROL ASSY.

BRAKE CONTROL ASSY.

NO. PART NO. PART NAME QTY. REMARKS

36 506046 LEVER, BRAKE 1 38 506158 BOLT 5/16" NC x 3/4" G5 4

40 492303 BOLT 5/16" NC x 1/1/4" G5 ............................. 1 ............... REPLACES 492365

42 EM923023 WASHER, FLAT 5/16” ...................................... 2 ............... REPLACES 492597

44 2105164 NUT, NYLON 5/16”- 18 ..................................... 1 ............... REPLACES 492582

46 506057 BRAKE LINK 1 48 505999 BELL CRANK 1

50 EM963097 BOLT 3/8” NC x 1/1/2" G5 ................................ 1 ............... REPLACES 492313

52 EM969013 NUT, LOCK 3/8” ............................................... 1 ............... REPLACES 492583

54 506000 BRACKET, BRAKE 1 56 508674 BOLT 5/16" NC x 1" G5 4 58 506042 PIN, CLEVIS 1 60 506044 KEY, COTTER 1 62 508450 ROD BRAKE UPPER 1 64 506043 PIN, CLEVIS 1

66 2219 KEY, COTTER ................................................. 1 ............... REPLACES 491687

68 4702 NUT, HEX 5/8" ................................................. 1 ............... REPLACES 492570

70 EM923348 WASHER, LOCK 5/8” ....................................... 1 ............... REPLACES 492627

72 508449 BRAKE ROD 1 74 503116 BOLT, HEX HEAD 3/8” NCX4” 1

76 3019092 WASHER, FLAT 3/8” ........................................ 2 ............... REPLACES 492598

78 EM969013 NUT, LOCK 3/8” ............................................... 1 ............... REPLACES 492583

82 506001 BUSHING, PLASTIC 1 265# 513320 SUPPORT, BRAKE SHOE 1 266# 505997 BRAKE PAD 1 267# 508566 RIVET 6 268# 508386 WASHER 3/16" 6

269 513193 BRAKE PAD ASSEMBLY ................................ 1 ............... INCLUDES ITEMS W/ #

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 85

BATTERY ASSY.

AR13D RIDE-ON ROLLER — BATTERY ASSY.

154

146

150

148

144

158

160

152

156

NOTES:

REMOVE ITEMS 20 AND 29 ON PAGE 58 FOR BATTERY ACCESS

PAGE 86 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — BATTERY ASSY.

BATTERY ASSY.

NO. PART NO. PART NAME QTY. REMARKS

144 514391 BATTERY 12V 1 146 515119 CABLE (-) BATTERY 1 148 515115 CABLE (+) BATTERY 1

150 505624 BATTERY TERMINAL COVER......................... 1 ............... BLACK

152 506266 BATTERY TERMINAL COVER......................... 1 ............... RED

154 506153 WRAP 1 156 514387 CLAMP, BATTERY 1 158 492359 HEX HEAD SCREW 3/8"X2" NC G5 1

160 2101402 WASHER, LOCK 1/4” ...................................... 1 ............... REPLACES 492622

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 87

SCRAPER ASSY.

AR13D RIDE-ON ROLLER — SCRAPER ASSY.

PAGE 88 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

AR13D RIDE-ON ROLLER — SCRAPER ASSY.

SCRAPER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

106 513290 SCRAPER, SUPPORT 4 108 508433 SCRAPER, RUBBER 4 110 508434 PLATE BACKING 4

112 EM963057 BOLT 3/8” ..................................................... 12 ................ REPLACES 492313

114 3019092 WASHER, FLAT3/8” ...................................... 12 ................ REPLACES 492598

116 EM969013 NUT, LOCK 3/8” ............................................ 12 ................ REPLACES 492583

118 EM963692 BOLT, 1/2” UNC X 1-1/2” ................................. 8 ................ REPLACES 492394

120 492584 NUT, LOCK 1/2” NC 8 122 621 WASHER 1/2” SPECIAL 8

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 89

TERMS AND CONDITIONS OF SALE

PAYMENT TERMS

Terms of payment for parts are net 30 days.

FREIGHT POLICY

All parts orders will be shipped collect or prepaid with the charges added to the invoice. All shipments are F.O.B. point of origin. Multiquip’s responsibility ceases when a signed manifest has been obtained from the carrier, and any claim for shortage or damage must be settled between the consignee and the carrier.

MINIMUM ORDER

The minimum charge for orders from Multiquip is $15.00 net. Customers will be asked for instructions regarding handling of orders not meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and credit will be allowed, subject to the following provisions:

A Returned Material Authorization 1. must be approved by Multiquip prior to shipment.

To obtain a Return Material Authorization, 2. a list must be provided to Multiquip Parts Sales that deﬁnes item numbers, quantities, and descriptions of the items to be returned.

The parts numbers and descriptions a. must match the current parts price list.

The list must be typed or computer b. generated.

The list must state the reason(s) c. for the return.

The list must reference the sales d. order(s) or invoice(s) under which the items were originally purchased.

The list must include the name e. and phone number of the person requesting the RMA.

A copy of the Return Material Authorization 3. must accompany the return shipment.

Freight is at the sender’s expense. All 4. parts must be returned freight prepaid to Multiquip’s designated receiving point.

Parts must be in new and resalable 5. condition, in the original Multiquip package (if any), and with Multiquip part numbers clearly marked.

The following items are not returnable:6.

Obsolete parts. (If an item is in the a. price book and shows as being replaced by another item, it is obsolete.)

Any parts with a limited shelf life b. (such as gaskets, seals, “O” rings, and other rubber parts) that were purchased more than six months prior to the return date.

Any line item with an extended c. dealer net price of less than $5.00.

Special order items.d.

Electrical components.e.

Paint, chemicals, and lubricants.f.

Decals and paper products.g.

Items purchased in kits.h.

The sender will be notiﬁed of any material 7. received that is not acceptable.

Such material will be held for five 8. working days from notiﬁcation, pending instructions. If a reply is not received within five days, the material will be returned to the sender at his expense.

Credit on returned parts will be issued 9. at dealer net price at time of the original purchase, less a 15% restocking charge.

In cases where an item is accepted, for 10. which the original purchase document can not be determined, the price will be based on the list price that was effective twelve months prior to the RMA date.

Credit issued will be applied to future 11. purchases only.

PRICING AND REBATES

Prices are subject to change without prior notice. Price changes are effective on a speciﬁc date and all orders received on or after that date will be billed at the revised price. Rebates for price declines and added charges for price increases will not be made for stock on hand at the time of any price change.

Multiquip reserves the right to quote and sell direct to Government agencies, and to Original Equipment Manufacturer accounts who use our products as integral parts of their own products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the invoice for special handling including bus shipments, insured parcel post or in cases where Multiquip must personally deliver the parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder for damages in excess of the purchase price of the item with respect to which damages are claimed, and in no event shall Multiquip be liable for loss of proﬁt or good will or for any other special, consequential or incidental damages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are made in connection with the sale of parts or trade accessories nor as to any engine not manufactured by Multiquip. Such warranties made in connection with the sale of new, complete units are made exclusively by a statement of warranty packaged with such units, and Multiquip neither assumes nor authorizes any person to assume for it any other obligation or liability whatever in connection with the sale of its products. Apart from such written statement of warranty, there are no warranties, express, implied or statutory, which extend beyond the description of the products on the face hereof.

Effective: February 22, 2006

PAGE 90 — AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11)

NOTE PAGE

AR13D RIDE-ON TANDEM DRUM ROLLER — OPERATION & PARTS MANUAL — REV. #2 (09/15/11) — PAGE 91

OPERATION AND PARTS MANUAL

HERE’S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER ON-HAND WHEN CALLING

UNITED STATES

Multiquip Corporate Ofﬁ ce MQ Parts Department

18910 Wilmington Ave. Carson, CA 90746 Contact: mq@multiquip.com

Service Department Warranty Department

Tel. (800) 421-1244 Fax (800) 537-3927

800-427-1244 310-537-3700

Fax: 800-672-7877 Fax: 310-637-3284

800-421-1244 310-537-3700

Technical Assistance

800-478-1244 Fax: 310-943-2238

Fax: 310-537-4259 800-421-1244

310-537-3700

Fax: 310-537-1173

MEXICO UNITED KINGDOM

MQ Cipsa Multiquip (UK) Limited Head Ofﬁ ce

Carr. Fed. Mexico-Puebla KM 126.5 Momoxpan, Cholula, Puebla 72760 Mexico Contact: pmastretta@cipsa.com.mx

Tel: (52) 222-225-9900 Fax: (52) 222-285-0420

Unit 2, Northpoint Industrial Estate, Globe Lane, Dukinﬁ eld, Cheshire SK16 4UJ Contact: sales@multiquip.co.uk

Tel: 0161 339 2223 Fax: 0161 339 3226

CANADA

Multiquip

4110 Industriel Boul. Laval, Quebec, Canada H7L 6V3 Contact: jmartin@multiquip.com

Multiquip Inc of their respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and speciﬁcations included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change speciﬁcations, design or the information published in this publication at any time without notice and without incurring any obligations.

and the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property

Tel: (450) 625-2244 Tel: (877) 963-4411 Fax: (450) 625-8664

Your Local Dealer is:

Multiquip AR13D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
