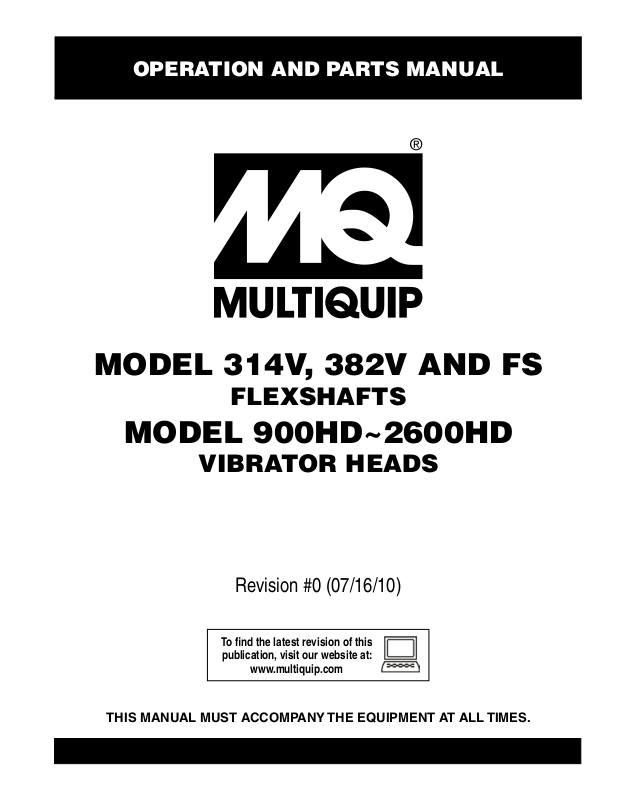

Multiquip 900HD User Manual
OPERATION AND PARTS MANUAL
MODEL 314V, 382V AND FS
FLEXSHAFTS
MODEL 900HD~2600HD
VIBRATOR HEADS
Revision #0 (07/16/10)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
NOTES
PAGE 2 — FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10)
SILICOSIS/RESPIRATORY WARNINGS
WARNING
SILICOSIS WARNING RESPIRATORY HAZARDS
Grinding/cutting/drilling of masonry, concrete, metal and
other materials with silica in their composition may give
off dust or mists containing crystalline silica. Silica is a
basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Repeated and/or
substantial inhalation of airborne crystalline silica can
cause serious or fatal respiratory diseases, including
silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a
substance known to cause cancer. When cutting such
materials, always follow the respiratory precautions
mentioned above.
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and
other materials can generate dust, mists and fumes
containing chemicals known to cause serious or fatal
injury or illness, such as respiratory disease, cancer,
birth defects or other reproductive harm. If you are
unfamiliar with the risks associated with the particular
process and/or material being cut or the composition of
the tool being used, review the material safety data
sheet and/or consult your employer, the material
manufacturer/supplier, governmental agencies such as
OSHA and NIOSH and other sources on hazardous
materials. California and some other authorities, for
instance, have published lists of substances known to
cause cancer, reproductive toxicity, or other harmful
effects.
Control dust, mist and fumes at the source where
possible. In this regard use good work practices and
follow the recommendations of the manufacturers or
suppliers, OSHA/NIOSH, and occupational and trade
associations. Water should be used for dust
suppression when wet cutting is feasible. When the
hazards from inhalation of dust, mists and fumes cannot
be eliminated, the operator and any bystanders should
always wear a respirator approved by NIOSH/MSHA for
the materials being used.
FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10) — PAGE 3
TABLE OF CONTENTS
Flexshaft/Vibrator Heads
Proposition 65 Warning ........................................... 2
Silicosis/Respiratory Warnings ................................ 3
Table Of Contents .................................................... 4
Parts Ordering Procedures ...................................... 5
Safety Information ................................................ 6-9
Specifications .....................................................9-10
General Information ..........................................11-12
Setup ................................................................ 13-14
Operation ............................................................... 15
Maintenance ..................................................... 16-17
Troubleshooting ..................................................... 18
Explanation Of Code In Remarks Column ............ 19
Component Drawings
314V Series Flexible Shafts Assy. .................... 20-21
382V Series Flexible Shafts Assy. .................... 22-23
FS Series Flexible Shafts Assy. ........................ 24-25
HD Series Vibrator Steel Heads Assy. .............. 26-29
Vibrator Rubber/Steel Heads Assy. ................... 30-31
Terms And Conditions Of Sale — Parts ................ 32
NOTICE
Specifications and part numbers are subject to change
without notice.
PAGE 4 — FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10)
PARTS ORDERING PROCEDURES
Ordering parts has never been easier!
If you have an MQ Account, to obtain a Username
Effective:
Choose from three easy options:
January 1st, 2006
Best Deal!
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
■ View Parts Diagrams
■ Order Parts
■ Print Specifi cation Information
Goto www.multiquip.com and click on
Order Parts
to log in and save!
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)
Order via Phone:
Non-Dealer Customers:
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
and Password, E-mail us at: parts@multiquip.
com.
To ob ta in an MQ Acc o unt , co nta ct you r
District Sales Manager for more information.
Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*
Fax your order in and qualify for a 2% Discount
on Standard orders for all orders which include
complete part numbers.*
Domestic (US) Dealers Call:
1-800-427-1244
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Note: Discounts Are Subject To Change
Note: Discounts Are Subject To Change
When ordering parts, please supply:
❒ Dealer Account Number
❒ Dealer Name and Address
❒ Shipping Address (if different than billing address)
❒ Return Fax Number
❒ Applicable Model Number
❒ Quantity, Part Number and Description of Each Part
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
❒ Specify Preferred Method of Shipment:
✓ UPS/Fed Ex ✓ DHL
■ Priority One ✓ Truck
■ Ground
■ Next Day
■ Second/Third Day
www.multiquip.com
WE ACCEPT ALL MAJOR CREDIT CARDS!
FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10) — PAGE 5
SAFETY INFORMATION
Do not operate or service the equipment before reading
Potential hazards associated with the operation of this
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others. The
safety messages specifi cally address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
Symbol Safety Hazard
Burn hazards
Electric shock hazards
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
PAGE 6 — FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10)
GENERAL SAFETY
NOTICE
This equipment should only be operated by trained and
Whenever necessary, replace nameplate, operation and
accident due to equipment modifi cations. Unauthorized
recommended by Multiquip for this equipment. Damage
keep
Also, know the phone numbers
fi re department.
SAFETY INFORMATION
CAUTION
NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
Avoid wearing jewelry or loose fi tting clothes that may
snag on the controls or moving parts as this can cause
serious injury.
NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
NEVER operate this equipment under the
infl uence of drugs or alcohol.
ALWAYS clear the work area of any debris, tools, etc.
that would constitute a hazard while the equipment is
in operation.
qualifi ed personnel 18 years of age and older.
safety decals when they become diffi cult read.
Manufacturer does not assume responsibility for any
equipment modifi cation will void all warranties.
NEVER use accessories or attachments that are not
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest
fi re extinguisher.
ALWAYS know the location of the nearest
fi rst aid kit.
ALWAYS know the location of the nearest phone or
a phone on the job site.
of the nearest ambulance, doctor and
This information will be invaluable in the case of an
emergency.
No one other than the operator is to be in the working
area when the equipment is in operation.
DO NOT use the equipment for any purpose other than
its intended purposes or applications.
FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10) — PAGE 7
SAFETY INFORMATION
FLEXSHAFT SAFETY
VIBRATOR HEAD SAFETY
vibrating) for an extended period of time. This condition
use a worn or deformed vibrator head. Replace
Lubricate vibrator head as recommended in maintenance
overfi ll. Too much oil in the head will
head casing for signs of wear. Replace head if measured
diameter is less than minimum wear diameter referenced
After each use, remove any concrete , debris or foreign
store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
CE
recommended that the head casing and all other metal
DANGER
ALWAYS wear rubber insulated gloves and boots when
holding the fl exshaft during operation. The possibility of
electrocution exists causing equipment damage and
severe bodily harm even death!
DANGER
If applicable, periodically check insulation resistance
as referenced in maintenance section. The possibility
of electrocution exists causing equipment damage and
severe bodily harm even death!
WARNING
NEVER attempt to run the core outside the casing
assembly for any reason.
NOTICE
DO NOT allow fl exshaft to kink.
Check fl exshaft for cuts, cracks or abrasions. Replace
fl ex-shaft imediately if defective.
CAUTION
NEVER touch the head casing when it is
hot! The possibility exists of severe burns
which could cause bodily harm.
NOTICE
NEVER lift the vibrator head out of the mix (head is
can cause the bearings inside the vibrator head to
overheat.
NEVER
any defective vibrator head immediately.
section. DO NOT
overload the motor.
Periodically check the outside diameter of the vibrator
in maintance section.
Make sure the correct shaft is in use for the job. Selecting
too large a head/shaft combination will overloading the
power unit.
When transporting fl exshaft on jobsite NEVER drag
fl ex-shaft on ground.
ALWAYS make certain vibrator power unit is OFF before
connecting fl exshaft.
Apply anaerobic sealant to shaft threads when required.
Only use fl exshaft to power vibrator heads.
Grease flexshaft as recommended in maintenance
section.DO NOT over-pack with grease. A tightly packed
casing will put a heavy load on power unit, which could
cause the power unit to over heat.
After each use, remove any concrete, debris or foreign
matter that may have accumulated on the fl ex-shaft. Rinse
fl exshaft using a garden hose.
ALWAYS store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
matter that may have accumulated on the head. Wipe
clean with a soft cloth.
ALWAYS
NOTICE
ENVIRONMENTAL SAFETY/DECOMMISSIONING
DO NOT pour waste or oil directly onto
the ground, down a drain or into any water
source.
Contact your country's Department of Public Works or
recyling agency in your area and arrange for proper
disposal of any electrical components, waste or oil
associated with this equipment.
When the life-cycle of this equipment is over it is
parts be sent to a recycling center.
PAGE 8 — FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10)
314 SERIES FLEXIBLE SHAFTS
Reference Table 1 when determining drive motor, vibrator
head and flexshaft combinations. Choosing the wrong
vibrator head combination will overload the motor and
cause excessive wear.
Table 1. Maximum Shaft Length Selection Chart (314V)
SPECIFICATIONS
Model#
314V 900~1300HD 21 (6.4) CV1/BP25H
Recommended
Head Size
Max Shaft Length
ft. (m)
Recommended
Drive Motor
382V SERIES FLEXIBLE SHAFTS
Reference Table 2 when determining drive motor, vibrator
head and flexshaft combinations.
Table 2. Maximum Shaft Length Selection Chart (382V)
Model#
382V 1400~1700HD 28 (8.5) CV2/CV2E/BP25H Adapter Required P/N FSC
382V 2100HD 21 (6.4) CV2/CV2E/BP25H
382V 1400 ~ 2600HD 35 (10.6)
382V
Recommended
Head Size
RHV188, RHV250
RHV275, RHV275S
Max Shaft Length
ft. (m)
21 (6.4)
Recommended
Drive Motor
CV3/CV3E/BP25H/
G55H
CV3/CV3E/BP25H/
G55H
Remarks
Adapter Required P/N FSC
FS SERIES FLEXIBLE SHAFTS
Reference Table 3 when determining drive motor, vibrator
head and flexshaft combinations
Table 3. Maximum Shaft Length Selection Chart (FS)
Model#
FS 1400~1700HD 28 (8.5) CV2/CV2E/BP25H Adapter Required P/N FSC
FS 2100HD 21 (6.4) CV2/CV2E/BP25H
FS 1400 ~ 2600HD 35 (10.6)
FS
FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10) — PAGE 9
Recommended
Head Size
RHV188, RHV250
RHV275, RHV275S
Max Shaft Length
ft. (m)
21 (6.4)
Recommended
Drive Motor
CV3/CV3E/BP25H/
G55H
CV3/CV3E/BP25H/
G55H
Remarks
Adapter Required P/N FSC
Table 4. Drive Motors (Electric/Gasoline)
SPECIFICATIONS
Model# Amps Voltage/Frequency HP (kW) RPM
CV1 10 120 VAC 50/60 Hz 1 (1.2) 16,000 314V Electric
CV2 15 120 VAC 50/60 Hz 2 (1.8) 18,000 382V/FS Electric
CV2E 7.5 240 VAC 50/60 Hz 2 (1.8) 18,000 382V/FS Electric
CV3 20 120 VAC 50/60 Hz 3 (2.4) 19,250 382V/FS Electric
CV3E 10 240 VAC 50/60 Hz 3 (2.4) 19,250 382V/FS Electric
G55H N/A N/A 4.8 (3.6) 3,600 382V/FS Gasoline
BP25H N/A N/A 2.1 (1.6) 7,000 382V/FS Gasoline
NOTICE
Vibration techniques, vibrator head placement and
spacing as referenced in the "General Information" and
"Operation" sections of this manual is only to be used
as a guidline. Multiquip assumes no responsibility for
vibrator operating techniques referenced in this manual.
Required
Shaft
Type
The consoldation of concrete has many mitigating
factors that must be considered such as slump, mix,
depth of vibrator, vibrator spacing, vibration time,
vibration frequency, temperature. All of these factors
must be considered when the consildation (vibration)
of concrete is required.
PAGE 10 — FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10)
GENERAL INFORMATION
INSERTION SPACING
Multiquip's flex-shafts vibrator heads are designed to work
in medimum to high slump concrete. Typical applications
include small pours, slabs driveways, stem walls and
footings.
Typical shaft lengths range from 2 to 21 feet (0.6 to 6.4
meters). See Tables 1, 2 and 3 for the various recommended
shaft lengths.
Vibrating steel heads are attached to one end of the flexshaft. These heads generate a vibration via an eccentric
rotator that consoldates the concrete by removing air
pockets. The round head design allows for the transmisssion
of vibration in all directions.
There are 7 different steel head sizes that range from 7/
to 25/8 inches in diameter. Typical vibration frequency for
these vibrating heads range from 9,200 to 12,150 VPM
with 1-inch slump when using electric motors.
When working with epoxy coated rebar, 4 different types of
rubber heads are available to prevent chipping of the rebar
coating. These rubber heads range in diameter from 17/8
~23/4 inches (48~69 mm).
WHY VIBRATE CONCRETE
To ensure optimum strength and durability, vibration of
fresh concrete is an important requirement. Vibration or
compaction is the principal method for consolidation of
concrete.
CONSOLIDATION
Consolidation elimates pockets of aggregate and air
bubbles maximizing strength, eliminating surface voids.
Vibrators consolidate concrete by transmitting shock waves
which allow the aggregate to float freely while pushing
lighter trapped air up and out of the concrete mix.
A properly consoldated concrete pour will display a thin line
of mortar appearing along the form near the vibrator and the
coarse aggregate has been dispersed evenly throughout
the pour and is not visible.
VIBRATION RANGE
Vibration range (Figure 1) can be defined as "Area of
Influence". This area of influence (vibrating radius) is the
distance from the center of the vibrator to the outer most
edge.
AREA OF INFLUENCE
(VIBRATING RADIUS)
R
8
D
VIBRATOR HEAD
Figure 1. Vibrator Radius/Spacing
Table 5 shows the vibration radius and spacing for a given
vibrator head diameter.
Table 5. Vibrating Radius/Insertion Spacing
Vibrating
HD. Model
900HD
1000HD 1
1300HD 1
1400HD 1
1700HD 1
2100HD 2
2600HD 2
RVH188 1
RVH250 2
RVH275S 2
RVH275 2
Vibrator HD.
Dia. in. (mm)#
7
/8 (22) 4 (102) 6 (152)
1
/16 (27) 5.5 (140) 8.25 (210)
3
/8 (35) 8 (203) 12 (305)
3
/8 (35) 8 (203) 12 (305)
11
/16 (43) 12 (305) 18 (457)
1
/8 (54) 14 (356) 21 (533)
5
/8 (67) 18 (457) 27 (686)
7
/8 (48) 11 (279) 16.5 (419)
1
/2 (63) 14 (356) 21 (533)
3
/4 (69) 18 (457) 27 (686)
3
/4 (69) 15 (381) 22.5 (572)
Vibration
Radius (R)
Vibrator
Spacing (D)
VIBRATION TIME
Vibration time depends on frequency. The higher the
frequency, the less vibration time is required for the job.
FLEXSHAFTS/VIBRATOR HEADS • OPERATION AND PARTS MANUAL — REV. #0 (07/16/10) — PAGE 11
NOTICE
Radius (area of influence R) and vibrator head spacing
(D) are expressed in inches/millimeters. Radius and
distance values expressed in Table 5 are only to be
used as a general guide. Values are subject to change.
Loading...
