BIC Manual Fill
Accessories
Accessories
MULTI_P_0000_9_15_Accessories.pdf
BIC Manual Fill
Accessories
# PART # DESCRIPTION QTY Note
1 265-B03-003J BODY LID HOLDER 2
2 265-B03-003K Support,Lid Holder 2
3 1706194 RACK SYRUP 1
4 1706195 Rack Syrup Divider 3
5 000-BIC-007L Cupholder,Assembly,Bic 2
6 000-BIC-0085 Ice Assist 1
Accessories
MULTI_P_0000_9_15_Accessories.pdf
1
2
3
BIC Manual Fill
Boards & Misc Locations
Boards & Misc Locations
MULTI_P_0000_9_15_Boards & Misc Locations.pdf
BIC Manual Fill
Boards & Misc Locations
# PART # DESCRIPTION QTY Note
1 000-CCG-0007 Assy,Base,Bic Man Fill,R404a 1
2 000-CEK-0007 Assy,Top,Bic,2Mix,Modular 1
3 000-187-0023 Assy, Door, Smoothie 1
4 000-BIC-002N Kit,Rail,Front 1
5 265-BZZ-000H Cover Bk Inlet Bic Man Fill 1
6 000-BIC-006Q Kit,Cleaning,Bic Mf Mod 1
7 000-BIC-006S Kit,Label 1
8 9325029 CLAMP,DRAIN TIE DOWN,BIC 2
9 3547778 Coupling,Barbed,1.00 1
10 9294003 EMBLEM,MULTIPLEX,LARGE 1
11 000-BIC-007L Cupholder,Assembly,Bic 2
12 265-B03-003K Support,Lid Holder 2
13 265-B03-003J BODY LID HOLDER 2
14 000-BIC-0085 Ice Assist 1
15 000-BIC-000H ASSY, KIT, INSTALL 1
16 9294699 Manual,User,Bic Man,English 1
17 9321021 SCREW, 1/4-20 X 0.50, Z-H-HW-ROLL 8
18 9321063 WASHER, 1/4, SHAKEPROOF 8
19 3235159 CLAMP, WIRE, DRAIN HOSE, BIC 3
Boards & Misc Locations
MULTI_P_0000_9_15_Boards & Misc Locations.pdf
1
2
4
5
6
10
12
BIC Manual Fill
Cleaning Kit
Cleaning Kit
MULTI_P_0000_9_15_Cleaning Kit.pdf
BIC Manual Fill
Cleaning Kit
# PART # DESCRIPTION QTY Note
1 3547885 CUP,RED 2
2 3547886 CUP,BLUE 2
3 3235146 Brush Cleaning Bic Blender 1
4 000-BIC-006R Shield Disp Area, Assembly 1
5 372-102-0006 BRACKET, HOSE, IPC, BIC 1
6 3547771 BUCKET,5 GALLON,BLACK 3
7 9294279 LABEL,SANITIZE 1
8 9294278 LABEL,RINSE 1
9 9294277 LABEL,WASH 1
10 1702019 TUBING,1/2"ID X 5/8"OD,PVC 1
11 3234411 TIE,ZIP,11" 1
12 1706138 BOTTLE,SQUEEZE,CLEANING 1
Cleaning Kit
MULTI_P_0000_9_15_Cleaning Kit.pdf
1
2
3
4
5
6
7
8
9
10
11
12
13
15
BIC Manual Fill
Condenser Unit Assembly
Condenser Unit Assembly
MULTI_P_0000_9_15_Condenser Unit Assembly.pdf
BIC Manual Fill
Condenser Unit Assembly
# PART # DESCRIPTION QTY Note
1 024-BDF-003G Fixture,Cond,0.2 1
2 3517381 COIL, COND, SMOOTHIE 1
3 026-C58-0004 Shroud, 0.2 Hp Cond. Coil 1
4 2160028 Fan, Axial, 5.5”, 120V 1
5 2160030 Guard, Fan, 6.0” 1
6 3234717 GROMMET,COMP,MTG,TECUM,#70711 4
7 3526997 Compressor, Ref., Tf4clx 1
8 039-231-0032 PAN, CONDENSATE, SM 1
9 024-AJ0-0036 Cover,Trough,0.33 Hi Prsr Ax 1
10 033-252-002G Tubing Tee To Coil 1
11 033-252-002H Tubing Dis To Coil 1
12 033-252-004L Tubing Straight 6.00 Lg. 1
13 033-252-002J TUBING SUCTION 1
14 3547395 TEE,1/4",COPPER FITTING,SOLDER 1
15 3516322 Filter Dryer 1
16 000-998-0030 High Pressure Assembly, 8Amp 1
17 3547639 Access Valve 2
18 3547640 TUBING, CAP, 0.044 ID X 0.094 OD 1
19 3516446 Relay, Compressor, Ref., Danfoss P/N 117u4148 1
20 3516443 Compressor Cover, Freezer/Ref, Small, Danfoss 1
21 2194787 Start, Capacitor, Freezer/Ref, 280mfd 1
22 1701999 ARMAFLEX, 0.625 ID X 0.25 WALL 1
23 3234718 SLEEVE,COMP.,MTG.,TECUM.,#70459 4
24 9321054 WASHER, FLAT, 5/16 4
25 2183131 Harness,Main & Comp, Ibb 1
26 9321163 SCREW,1/4 X 1.25,Z-H-HW-ROLL 4
27 9321088 Screw - #10 x 0.5" 3
28 9321569 Screw,#10-32X0.5,Hx-Hd-T-F 4
29 9321355 SCREW, #10-32 X 0.50, S-P-PN-F 2
30 9292186 GAS, REFRIGERANT,,R-404A 1
31 9321341 BUSHING,SNAP,1.25",BLACK 2
32 2194697 BUSHING,STRAIN RELIEF,0.37-0.43 2
33 2193958 Bushing,Strain Relief,.875X.77,.32-.36 Grip 1
Condenser Unit Assembly
MULTI_P_0000_9_15_Condenser Unit Assembly.pdf
1
2
3
4
5
6
13
17
18
15
19
20
22
21
25
26
27
28
30
31
36
BIC Manual Fill
Refrigerated Cabinet
Refrigerated Cabinet
MULTI_P_0000_9_15_Refrigerated Cabinet.pdf
BIC Manual Fill
Refrigerated Cabinet
# PART # DESCRIPTION QTY Note
1 000-BIC-0062 Assy,Foamed Base,Bic Man Fil 1
2 000-CD0-0002 Assy, Evap Coil 1
3 000-BN5-000H Assy,Cond Unit,Bic 1
4 028-CCZ-000A Cvr,Refg Lines,Bk,Bic Man 1
5 9321088 Screw - #10 x 0.5" 6
6 9321116 SCREW, 1/4 x 1.25, Z-H-HW-S 4
7 9321007 Screws 6
8 9320002 RIVET,POP,1/8X.031 GRIP,S/S 2
9 3234411 TIE,ZIP,11" 1
10 9321011 Screw, #10-24 X 0.37, S-P-Tr-M 2
11 3547198 COUPLING, REDUCING, 0.375 -0.312,COPPER 1
12 3547377 COUPLING, 0.375, SOLDER, COPPER 1
13 373-252-002T TUBING 16" SUCTION 1
14 2186859 Harness, Evap Fans, Bic 1
15 076-CDZ-0000 PAN, PRODUCT DRIP 1
16 3547858 Tube,0.25 Poly,Blue 1
17 1706268 BIN,PRODUCT,HORZ 8
18 000-BIC-0079 Support,Cnt Bin,Welded,Bic 1
19 372-CDY-0031 Shelf,Product Stop,Bic 3
20 000-CDS-0030 ASSY,PUMP,TOP,BIC 1
21 000-CDS-0031 ASSY,LOWER PUMP,BIC 1
22 9321041 Nut, acorn 2
23 1702023 Tubing - 0.5625" x 0.3125" 1 [1]
24 9324097 Hose Clamp - Oetiker 18
25 3547897 FITTING,PRODUCT TO PUMP TAPERED 6
26 270-CCQ-0033 PLATE, HOLDING, PRODUCT, TUBE,BIC 6
27 263-428-0000 BRACKET, SHY CORD, HOOK, SMALL,BIC 1
28 000-BIC-0065 ASSY, EXPANSION BEVERAGE 1
29 2187001 Harness,Dispense,Sol 1
30 372-BHE-0004 Mount,Fan,Bic Man 1
31 2160043 Fan,Axial,80X80x32,82 Cfm 1
32 9321541 S/S thumb screw 3
33 3978124 GUARD,FAN,3-1/8",WIRE 1
34 3234402 TIE, CABLE, ELECTRICAL WIRING 3
35 9321018 NUT, HEX, #8-32 4
36 9325035 8-32X2,18-8 Ph Pan Hd M/S 4
37 3547882 CLIP,LOCKING,3/8,PTC 24
38 3239641 TIE,ZIP,8"X.1",NYLON,BLACK 8
39 9321541 S/S thumb screw 3
PART NOTES:
[1] - clear
Refrigerated Cabinet
MULTI_P_0000_9_15_Refrigerated Cabinet.pdf
1
2
3
4
5
6
7
8
9
10
11
14
15
16
18
19
20
22
23
25
26
27
28
30
31
32
33
34
35
36
37
38
39
40
42
43
46
47
48
49
50
BIC Manual Fill

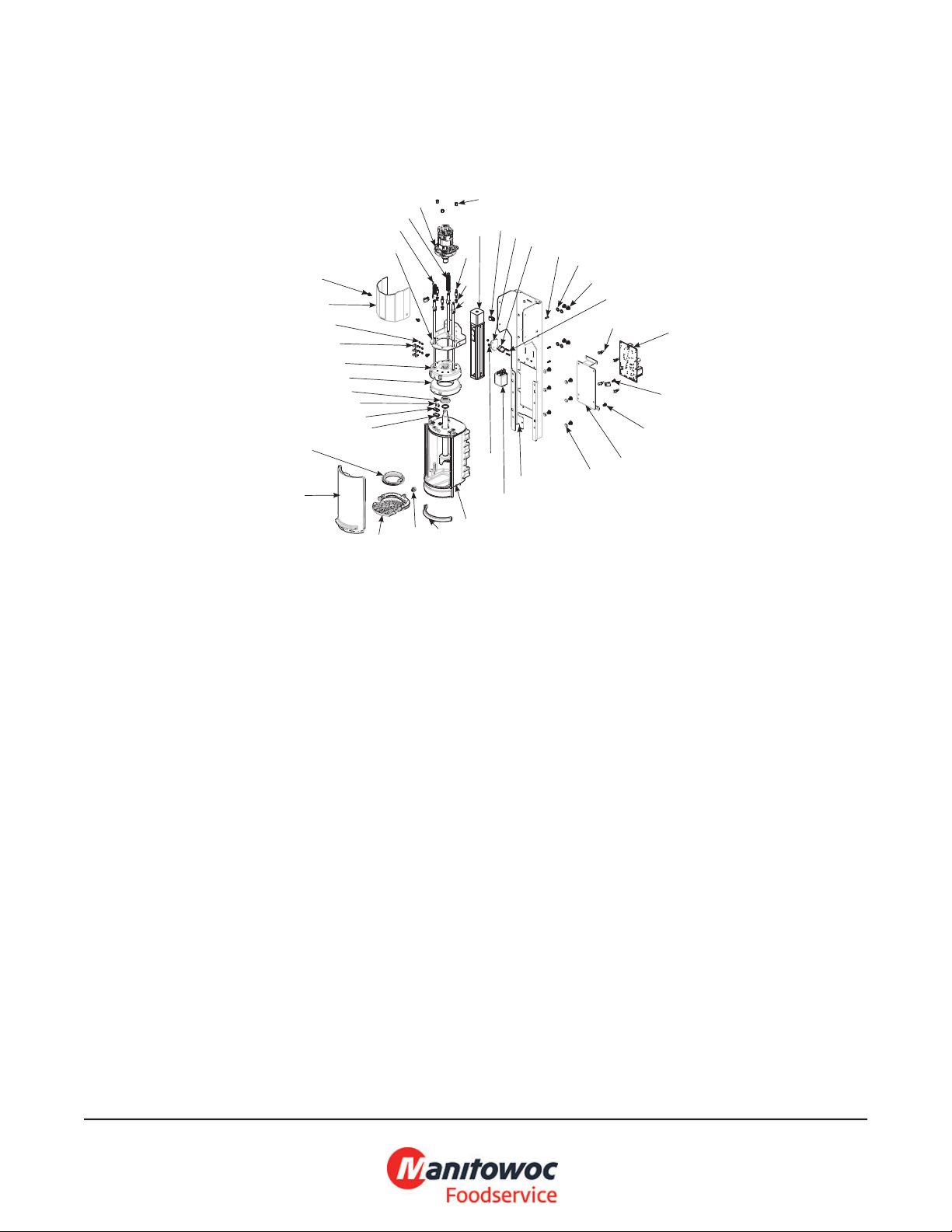

Modular Blender
Modular Blender
MULTI_P_0000_9_15_Mixer.pdf
BIC Manual Fill
Modular Blender
# PART # DESCRIPTION QTY Note
1 024-CDU-001E MIXER BRACKET BACK 1
2 9325008 STUD,8-32X1/2,SELF-CLINCHING 3
3 3239648 LINEAR RAIL ACTUATOR SYSTEM 1
4 9321063 WASHER, 1/4, SHAKEPROOF 4
5 9321150 SCREW, 1/4-20 X 3/8, S/S, TRUSS 10
6 1708673 MODULE, BLENDER ASSY, BIC 1
7 1708718 RETAINER,SPRING,ASSY,BIC 1
8 000-BIC-0088-S Bushing 1
9 2162748 SWITCH,REED,RINSE AREA 1
10 2160033 SWITCH,REED,RINSE AREA 1
11 9324086 Screw - #4 x 0.375" 2
12 2193951 PLATFORM,MOUNTING,WIRE TIE 1
13 3239641 TIE,ZIP,8"X.1",NYLON,BLACK 6
14 9321059 Washer, 1/4 6
15 025-CDR-000W MIXER BOARD BRACKET BIC 1
16 9324163 SPACER,PCB,SNAP IN,3/8" 4
17 2187104 HARNESS,BLENDER,MODULAR 1
18 3234390 CLAMP,LOOP 5/16, PLASTIC 3
19 9321355 SCREW, #10-32 X 0.50, S-P-PN-F 1
21 9320002 RIVET,POP,1/8X.031 GRIP,S/S 5
22 2194234 SCREW,#10-32 GROUDING 2
23 2196069 RELAY, 24DC COIL, DPDT 1
24 9321018 NUT, HEX, #8-32 3
25 025-CCQ-000K BKT LIMIT SWITCH BIC MANUAL 1
26 2194807 SWITCH, SNAP ACTION, MINI 1
27 9324158 SCREW,4-40X5/8,P-Z-PH 2
28 9324157 Nut - #4-40 2
29 2185678 HARNESS,BLENDER LIMIT, BIC 1
30 379-CDU-000L Bracket,Mixer Mtr Mount Mod 1
31 9324160 INSERT,8-32, .080-.130 GRIP 3
32 9324192 BUSHING,SNAP,.50",BLK,THICK 3
33 9324159 MOUNT, ISOLATION 3
34 9324155 WASHER,LOCK,M4,S/S 6
35 9324154 SCREW, M4 X 10 PH-MS 6
36 000-BIC-012C Assy,Blender Cup Cover 1
37 000-BIC-010V-S Rinse Cap 1
38 9321034 NUT, HEX, #10-24, ZINC PLATED 3
39 3239683 SPRING, BLENDER,BIC 1
40 3235145 EXTENTION,SPRING 1
41 9321071 SCREW,#10X3/8,Z-H-HW-S 3
42 026-CDR-000Y-S Cover 1
43 9321353 Screws 2
44 2195683 CLAMP,EMI FERRITE,6.6MM 1
45 2195684 CLAMP,EMI FERRITE,10.2MM 1
46 20005703 Seal Cup Short 1
47 1708674 Seal, Tabletop Blender, Bic 1
Modular Blender
MULTI_P_0000_9_15_Mixer.pdf
BIC Manual Fill
Modular Blender
# PART # DESCRIPTION QTY Note
48 1708691 Door - Blender 1
49 1708687 GRATE, RINSE ASSY, BIC 1
50 1708685 INSERT, CUP ALIGNMENT, BIC 1
51 3235215 Assy, Lower Blender
Modular Blender
MULTI_P_0000_9_15_Mixer.pdf
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
BIC Manual Fill

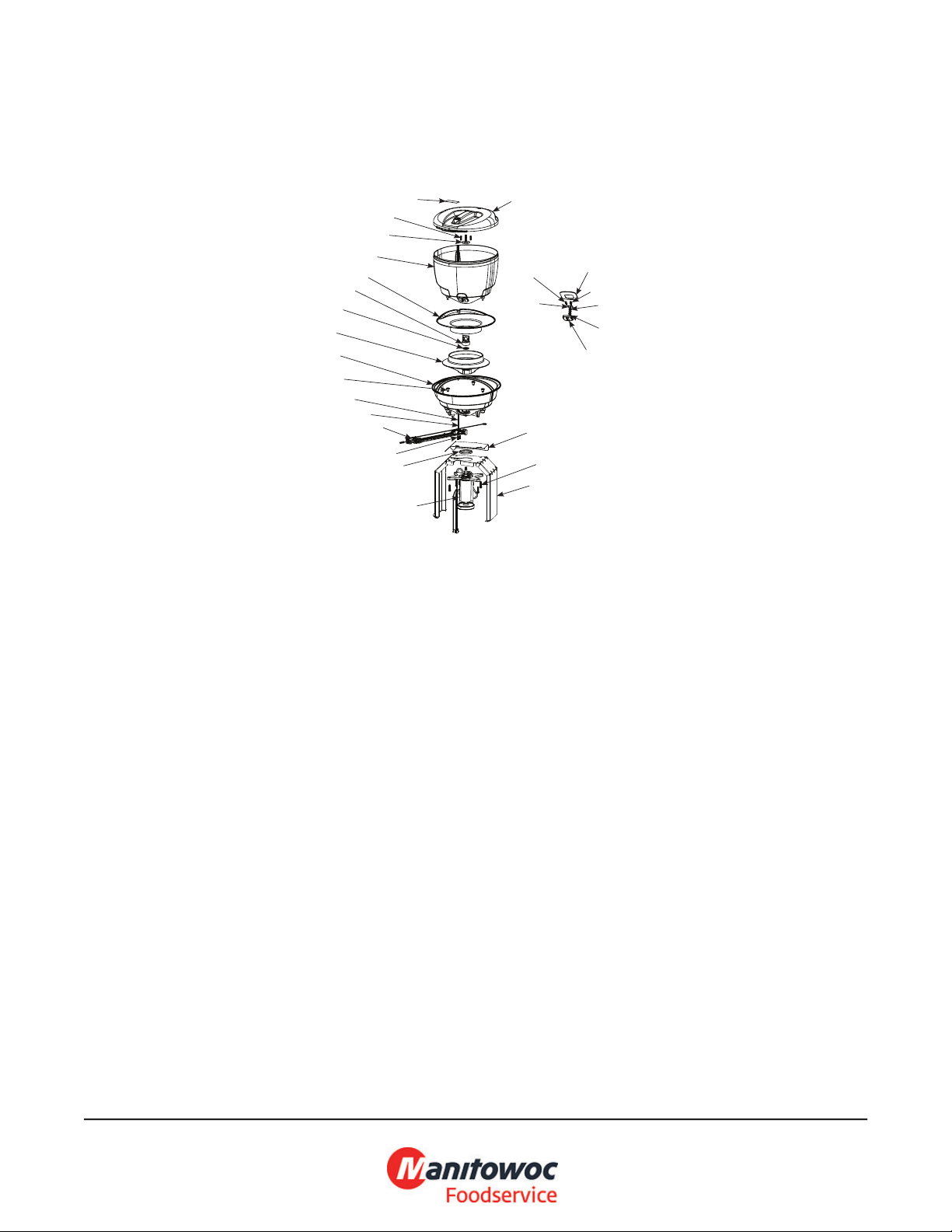

Vitamix Parts
Vitamix Parts
MULTI_P_0000_9_15_Vitamix Parts.pdf
BIC Manual Fill
Vitamix Parts
# PART # DESCRIPTION QTY Note
1 103435 Support Bracket 1
2 101736 Shvr Mtr And Pillow Block 1
3 FOM500 Pedestal Seal Gasket 1
4 101735 Condensation Bowl 1
5 FST522 Screw,0.25-14 Bx1.25 Hex Hd. 4
6 VMP00109 Grommet, Ice Bin 3
7 PLS502 Ice Bin 1
8 FST502 Screw, #10-24 X 0.875" Lg. 4
9 VMP00108 Cartridge, Ice Chute 1
10 FST511 Screw, #10-32 X 0.4375" Lg. 3
11 STM517 Shvr Blade Shim 1 [1]
12 STM514 Shim (.007) / Shaver Blade 3
13 VMP00125 Blade, Shaver, Kit 1
14 FST527 Screw, #10-32 X 0.5 Flat Hd 2
15 688-125-WASHER Washer 1
16 VMP00126 Wheel, Shaver 1
17 RBB505 Paddle O-Ring 1
18 VMP00107 Nut, Paddle 1
19 VMP00106 Shelf, Ice, Bim Shaver 1
20 101884 Vita-Mix Standard 1
21 FST132 Screw, #8-18 X 0.75" Lg. 2
22 VMP00133 Lid, Bin, Ice 1
23 VMP00134 Rod, Push Interlock, Safety 1
24 FST520 E-Clip 0.125" 1
25 LBL302 Attention Label - Pbs Lid 1
26 102044_SPEC Vita-Mix Standard 1
27 101954 Vita-Mix Standard 1
PART NOTES:
[1] - Quiet Ice
Vitamix Parts
MULTI_P_0000_9_15_Vitamix Parts.pdf
