Blended In Cup Manual Fill
Blended Ice Machine
Parts List
Document Number: MULTI_P_0000 Updated: 4/15
Boards & Misc Locations
3
1
2
Item Description Part Number Qty R/C*
1 Assy,Base,Bic Man Fill,R404a 000-CCG-0007 1
2 Assy,Top,Bic,2Mix,Modular 000-CEK-0007 1
3 Assy, Door, Smoothie 000-187-0023 1
4 Kit,Rail,Front 000-BIC-002N 1
5 Cover Bk Inlet Bic Man Fill 265-BZZ-000H 1
6 Kit,Cleaning,Bic Mf Mod 000-BIC-006Q 1
7 Kit,Label 000-BIC-006S 1
8 Clamp,Drain Tie Down,Bic 9325029 2
9 Coupling,Barbed,1.00 3547778 1
10 Emblem,Multiplex,Large 9294003 1
11 Cupholder,Assembly,Bic 000-BIC-007L 2
12 Support,Lid Holder 265-B03-003K 2
13 Body Lid Holder 265-B03-003J 2
14 Ice Assist 000-BIC-0085 1
15 Assy, Kit, Install 000-BIC-000H 1
16 Manual,User,Bic Man,English 9294699 1
17 Screw, 1/4-20 X .50, Z-H-Hx-M 9321021 8
18 Washer, 1/4, Shakeproof 9321063 8
19 Clamp, Wire, Drain Hose, Bic 3235159 3
* R = Recommended Stock Part/C = Critical Part
2 Updated: 4/15
Mixer
48
50
43
42
34
35
36
46
37
38
40
33
31
32
18
3
25
26
2
4
5
27
39
30
16
20
8
19
11
10
9
28
1
14
22
15
23
49
Item Description Part Number Qty R/C*
1 Mixer Bracket Back 024-CDUXAGG1 1
2 Stud,8-32X0.5,Self-Clinching 9325008 3
3 Linear Rail Actuator System 3239648 1
4 Washer, 0.25, Shakeproof 9321063 4
5 Screw, 0.25-20 X 0.375, S/S, Truss 9321150 10
6 Module, Blender Assy, Bic 1708673 1
7 Retainer,Spring,Assy,Bic 1708718 1
8 Assy,Bushing,Blend Chamber 000GBICXAGG1 1
9 Switch,Reed,Rinse Area 2162748 1
10 Switch,Reed,Rinse Area 2160033 1
11 Screw,Hi-Low,#4 X .375" 9324086 2
12 Platform,Mounting,Wire Tie 2193951 1
13 Tie,Zip,8"X.1",Nylon,Black 3239641 6
14 Washer, 0.25, Split Lock, S/S 9321059 6
15 Mixer Board Bracket Bic 025-CDRXAGG1 1
16 Spacer,Pcb,Snap In,0.375" 9324163 4
17 Harness,Blender,Modular 2187104 1
18 Clamp,Loop 0.3125, Plastic 3234390 3
19 Screw,#10-32X0.50,S-P-Pn-F 9321355 1
20 Assy,Cntrl,Bic Mxr 000-CZ0XAGG1 1
21 Rivet,Pop,0.125X.031 Grip,S/S 9320002 5
22 Screw,#10-32 Grouding 2194234 2
23 Relay, 24Dc Coil, Dpdt 2196069 1
24 Nut, Hex, #8-32 9321018 3
25 Bkt Limit Switch Bic Manual 025-CCQXAGG1 1
26 Switch, Snap Action, Mini 2194807 1
27 Screw,4-40X0.625,P-Z-Ph 9324158 2
28 Nut,4-40,Zinc,Nyloc 9324157 2
29 Harness,Blender Limit, Bic 2185678 1
7
6
47
Updated: 4/15 3
Item Description Part Number Qty R/C*
30 Bracket,Mixer Mtr Mount Mod 379-CDUXAGG1 1
31 Insert,8-32, .080-.130 Grip 9324160 3
32 Bushing,Snap,.50",Blk,Thick 9324192 3
33 Mount, Isolation 9324159 3
34 Washer,Lock,M4,S/S 9324155 6
35 Screw, M4 X 10 Ph-Ms 9324154 6
36 Assy,Rinse Cap 000-BIC-006K 1
37 Mx Mtr,120V/50-60,Dbl Bl Opn 3235164 1
38 Nut, Hex, #10-24, Zinc Plated 9321034 3
39 Spring, Blender,Bic 3239683 1
40 Extention,Spring 3235145 1
41 Screw,#10X0.375,Z-H-Hw-S 9321071 3
42 Cover Ul Mixer Bic Manual 026-CDRXAGG1 1
43 Screw, #10 X 0.50, S--H-Hw-Tek 9321353 2
44 Clamp,Emi Ferrite,6.6Mm 2195683 1
45 Clamp,Emi Ferrite,10.2Mm 2195684 1
46 Seal Cup Short 20005703 1
47 Seal, Tabletop Blender, Bic 1708674 1
48 Blender Housing Door 1708691 1
49 Grate, Rinse Assy, Bic 1708687 1
50 Insert, Cup Alignment, Bic 1708685 1
4 Updated: 4/15

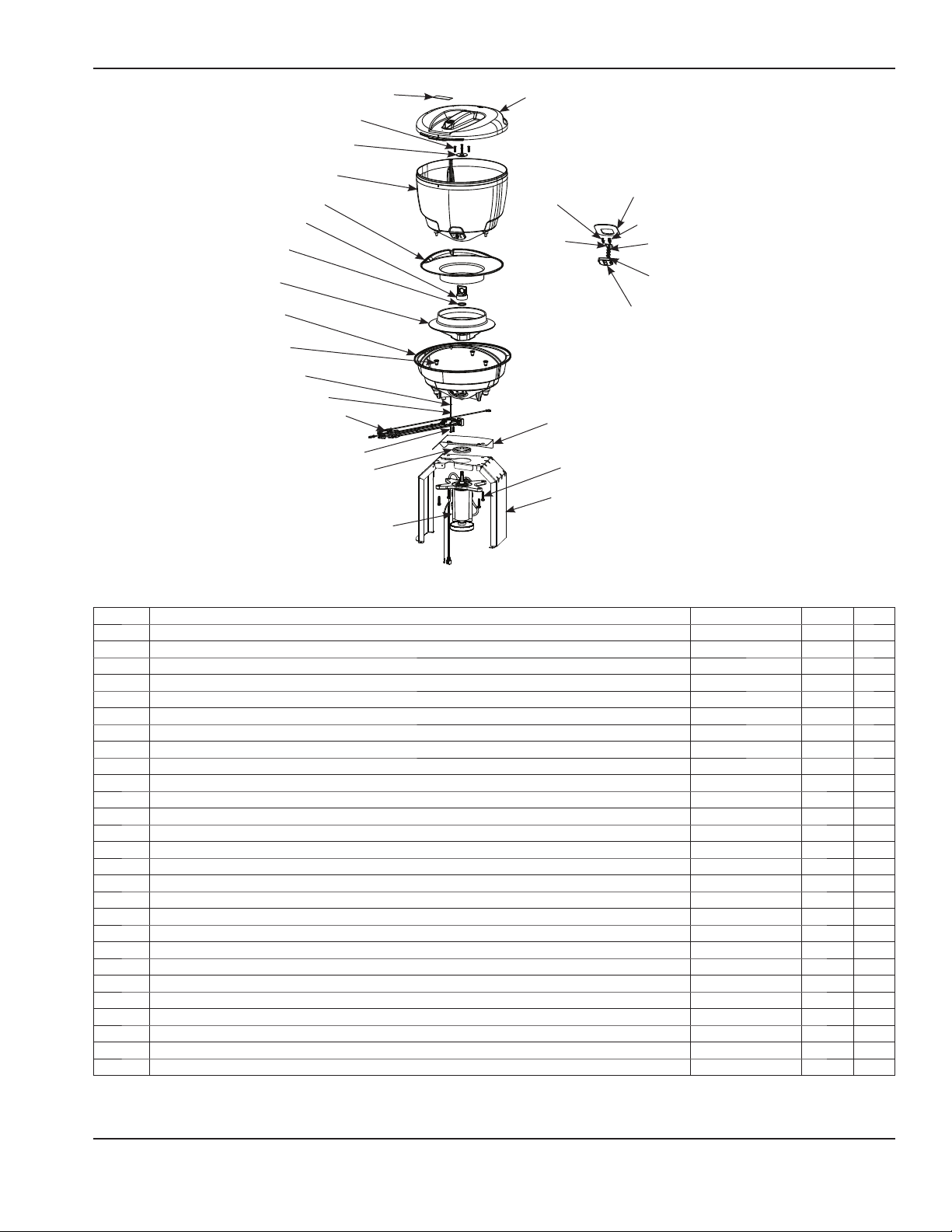

Vitamix Parts
16
17
4
25
22
8
15
18
19
7
10
13
27
14
12
11
9
6
24
23
20
21
3
26
5
1
2
Item Description Part Number Qty R/C*
1 Support Bracket 103435 1
2 Shvr Mtr And Pillow Block 101736 1
3 Pedestal Seal Gasket FOM500 1
4 Condensation Bowl 101735 1
5 Screw,0.25-14 Bx1.25 Hex Hd. FST522 4
6 Grommet, Ice Bin VMP00109 3
7 Ice Bin PLS502 1
8 Screw, #10-24 X 0.875" Lg. FST502 4
9 Cartridge, Ice Chute VMP00108 1
10 Screw, #10-32 X 0.4375" Lg. FST511 3
11 Shvr Blade Shim (Quiet Ice) STM517 1
12 Shim (.007) / Shaver Blade STM514 3
13 Blade, Shaver, Kit VMP00125 1
14 Screw, #10-32 X 0.5 Flat Hd FST527 2
15 Washer 688-125-WASHER 1
16 Wheel, Shaver VMP00126 1
17 Paddle O-Ring RBB505 1
18 Nut, Paddle VMP00107 1
19 Shelf, Ice, Bim Shaver VMP00106 1
20 Vita-Mix Standard 101884 1
21 Screw, #8-18 X 0.75" Lg. FST132 2
22 Lid, Bin, Ice VMP00133 1
23 Rod, Push Interlock, Safety VMP00134 1
24 E-Clip 0.125" FST520 1
25 Attention Label - Pbs Lid LBL302 1
26 Vita-Mix Standard 102044_SPEC 1
27 Vita-Mix Standard 101954 1
Updated: 4/15 5
Refrigerated Cabinet
22
19
18
31
13
20
6
30
36
27
5
28
4
2
21
1
17
3
26
15
25
Item Description Part Number Qty R/C*
1 Assy,Foamed Base,Bic Man Fil 000-BICXAGG1 1
2 Assy, Evap Coil 000-CD0-0002 1
3 Assy,Cond Unit,Bic 000-BN5-000H 1
4 Cvr,Refg Lines,Bk,Bic Man 028-CCZXAGG1 1
5 Screw, #10 X .50, Z-S/H-Hw-A 9321088 6
6 Screw, 0.25 X 1.25, Z-H-Hw-S 9321116 4
7 Screw,#8-32X.50,S-P-Tr-M 9321007 6
8 Rivet,Pop,0.125X.031 Grip,S/S 9320002 2
9 Tie,Zip,11" 3234411 1
10 Screw, #10-24 X 0.37, S-P-Tr-M 9321011 2
11 Coupling, Reducing, 0.375 - 0.312, Copper 3547198 1
12 Coupling, 0.375, Solder, Copper 3547377 1
13 Tubing 16" Suction 373-252-002T 1
14 Harness, Evap Fans, Bic 2186859 1
15 Pan, Product Drip 076-CDZ-0000 1
16 Tube,0.25 Poly,Blue 3547858 1
17 Bin,Product,Horz 1706268 8
18 Support,Cnt Bin,Welded,Bic 000BBICXAGG1 1
19 Shelf,Product Stop,Bic 372-CDYXAGG1 3
20 Assy,Pump,Top,Bic 000-CDS-0030 1
21 Assy,Lower Pump,Bic 000-CDS-0031 1
22 Nut, Acorn, #10-24, Chrome Plated 9321041 2
23 Tubing,0.5625Odx0.3125Id,Clear 1702023 1
24 Clamp,Oetiker,Hose,In Lines 9324097 18
25 Fitting,Product To Pump Tapered 3547897 6
26 Plate, Holding, Product, Tube, Bic 270-CCQ-0033 6
27 Bracket, Shy Cord, Hook, Small, Bic 263-428-0000 1
28 Assy, Expansion Beverage 000VBICXAGG1 1
29 Harness,Dispense,Sol 2187001 1
6 Updated: 4/15
Item Description Part Number Qty R/C*
30 Mount,Fan,Bic Man 372-BHEXAGG1 1
31 Fan,Axial,80X80x32,82 Cfm 2160043 1
32 Screw,#8-32,S-H-Hx,W/ Shoulder 9321541 3
33 Guard,Fan,3-0.125",Wire 3978124 1
34 Tie, Cable, Electrical Wiring 3234402 3
35 Nut, Hex, #8-32 9321018 4
36 8-32X2,18-8 Ph Pan Hd M/S 9325035 4
37 Clip,Locking,0.375,Ptc 3547882 24
38 Tie,Zip,8"X.1",Nylon,Black 3239641 8
39 Screw,Thumb,8-32X.5 9321541 3
Updated: 4/15 7
Condenser Unit Assembly
7
11
9
13
12
10
3
5
2
4
6
1
15
8
Item Description Part Number Qty R/C*
1 Fixture,Cond,0.2 024-BDF-003G 1
2 Coil, Cond, Smoothie 3517381 1
3 Shroud, 0.2 Hp Cond. Coil 026-C58-0004 1
4 Fan,Axial,5.5",120V 2160028 1
5 Guard,Fan,6.0" 2160030 1
6 Grommet,Comp,Mtg,Tecum,#70711 3234717 4
7 Comp,Tf4clx,115V/60Hz,Danfos 3526997 1
8 Pan, Condensate, Sm 039-231-0032 1
9 Cover,Trough,0.33 Hi Prsr Ax 024-AJ0-0036 1
10 Tubing Tee To Coil 033-252-002G 1
11 Tubing Dis To Coil 033-252-002H 1
12 Tubing Straight 6.00 Lg. 033-252-004L 1
13 Tubing Suction 033-252-002J 1
14 Tee,0.25",Copper Fitting,Solder 3547395 1
15 Filter-Dryer,(2) Inlet .25" 3516322 1
16 Assy,Hi Pressure,8 Amp 000-998-0030 1
17 Valve, Access, 0.25 O.d. 3547639 2
18 Tubing, Cap, 0.044 Id X 0.094 Od 3547640 1
19 Comp, Relay, Ovld, Tf4clx 3516446 1
20 Comp, Cover, Small Danfoss 3516443 1
21 Capacitor, Start, 280Mfd 2194787 1
22 Armaflex, 0.625 Id X 0.25 Wall 1701999 1
23 Sleeve,Comp.,Mtg.,Tecum.,#70459 3234718 4
24 Washer, Flat, 5/16 9321054 4
25 Harness,Main & Comp, Ibb 2183131 1
26 Screw,1/4 X 1.25,Z-H-Hw-Roll 9321163 4
27 Screw, #10 X .50, Z-S/H-Hw-A 9321088 3
28 Screw,#10-32X0.5,Hx-Hd-T-F 9321569 4
29 Screw, #10-32 X 0.50, S-P-Pn-F 9321355 2
8 Updated: 4/15
Item Description Part Number Qty R/C*
30 Gas, Refrigerant,,R-404A 9292186 1
31 Bushing,Strain Relief,#1120 9321341 2
32 Bushing,Strain Relief,0.37-0.43 2194697 2
33 Bushing,Strain Relief,.875X.77,.32-.36 Grip 2193958 1
Updated: 4/15 9
12
Cleaning Kit
4
10
6
2
5
1
Item Description Part Number Qty R/C*
1 Cup, Red 3547885 2
2 Cup, Blue 3547886 2
3 Brush Cleaning Bic Blender 3235146 1
4 Shield Disp Area, Assembly 000MBICXAGG1 1
5 Bracket, Hose, Ipc, Bic 372-102-0006 1
6 Bucket, 5 Gallon, Black 3547771 3
7 Label, Sanitize 9294279 1
8 Label, Rinse 9294278 1
9 Label, Wash 9294277 1
10 Tubing, 0.5"Id X 0.625"Od,Pvc 1702019 1
11 Tie,Zip,11" 3234411 1
12 Bottle,Squeeze,Cleaning 1706138 1
10 Updated: 4/15
Accessories
5
6
4
1
2
3
Item Description Part Number Qty R/C*
1 Body Lid Holder 265-B03-003J 2
2 Support,Lid Holder 265-B03-003K 2
3 Rack Syrup 1706194 1
4 Rack Syrup Divider 1706195 3
5 Cupholder,Assembly,Bic 000-BIC-007L 2
6 Ice Assist 000-BIC-0085 1
Updated: 4/15 11
