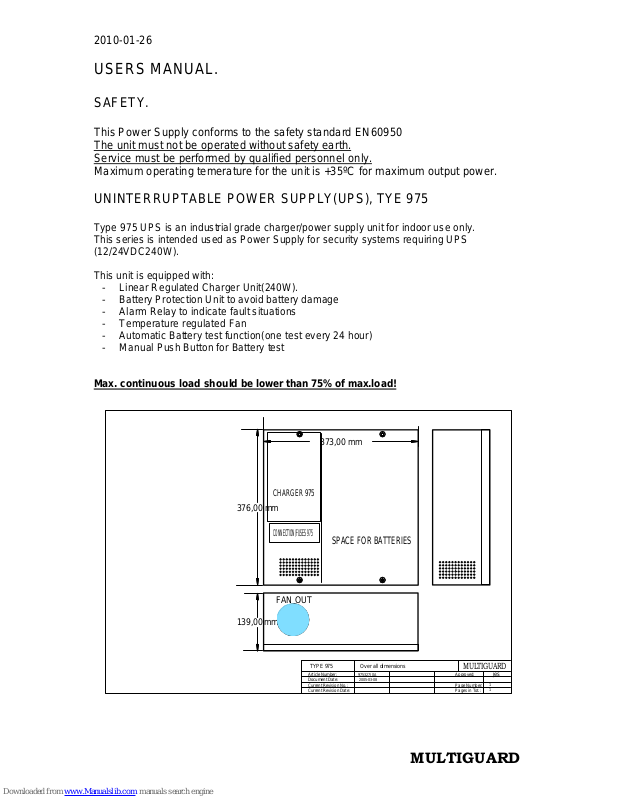

2010-01-26
USERS MANUAL.
SAFETY.
This Power Supply conforms to the safety standard EN60950
The unit must not be operated without safety earth.
Service must be performed by qualified personnel only.
Maximum operating temerature for the unit is +35ºC for maximum output power.
UNINTERRUPTABLE POWER SUPPLY(UPS), TYE 975
Type 975 UPS is an industrial grade charger/power supply unit for indoor use only.
This series is intended used as Power Supply for security systems requiring UPS
(12/24VDC240W).
This unit is equipped with:
- Linear Regulated Charger Unit(240W).
- Battery Protection Unit to avoid battery damage
- Alarm Relay to indicate fault situations
- Temperature regulated Fan
- Automatic Battery test function(one test every 24 hour)
- Manual Push Button for Battery test
Max. continuous load should be lower than 75% of max.load!
Article Number:
Document Date:
Current Revision No.:
Current Revision Date:
Approved:
Page Number:
Pages in Tot.:
975327J0A
2005-03-08
1
1
TYPE 975

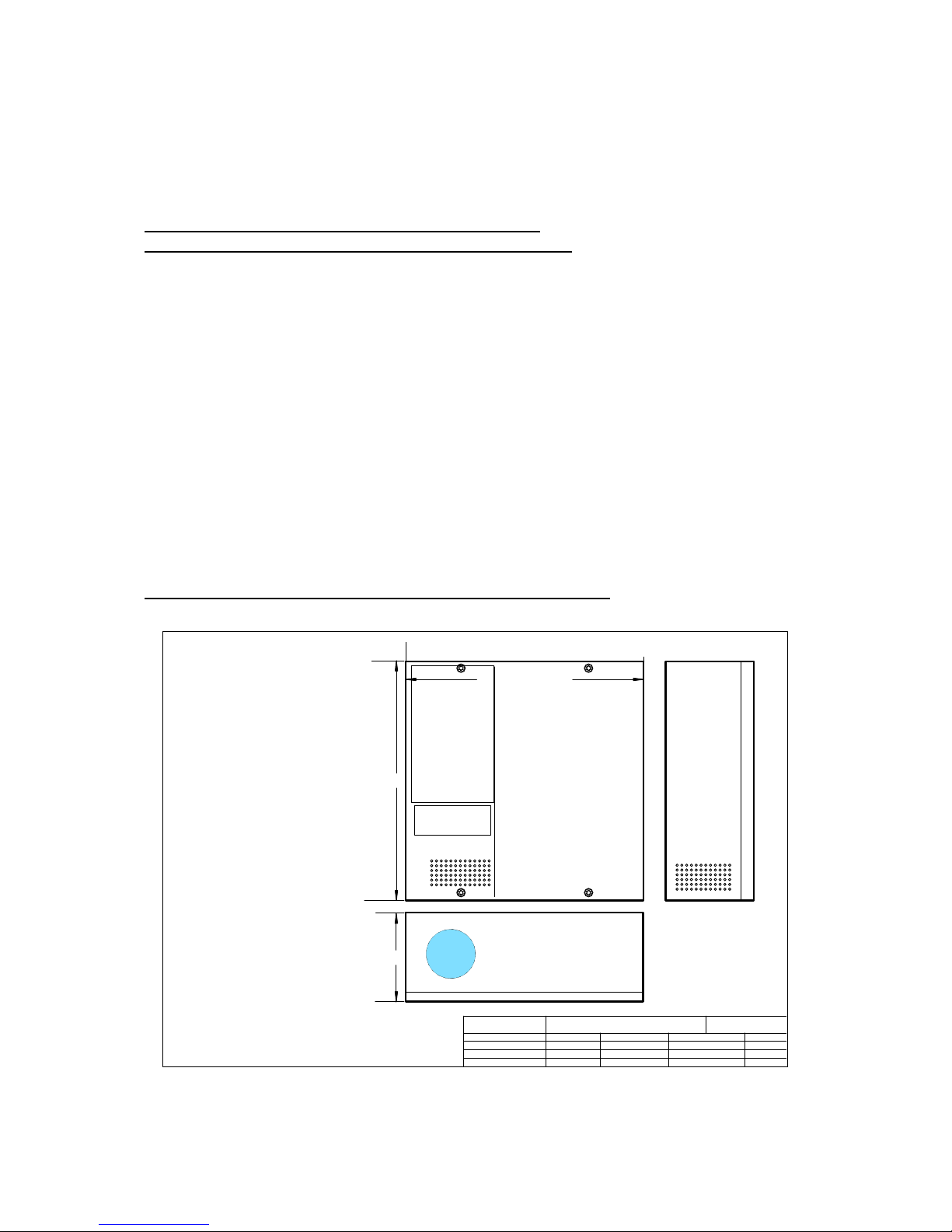

Over all dimensions
MULTI GUARD
376,00 mm
373,00 mm
139,00 mm
SPACE FO R BATTERIES
CHARGER 975
CONNECTION/FUSES 975
FAN OUT
jes
MULTIGUARD
2010-01-26
SPECIFICATIONS:
Input Voltage: 230VAC~50Hz +/-10%
Output Voltage: 13.6VDC, 207W/Alt.27.2V DC, 240W
Max Power: 207W/Alt. 240W
Current Limit: ca. 110% of Max. Current.
Standard: EN 60950, Class 1
Marking: CE
GENERAL INSTRUCTIONS.
Type 975 is for indoor use only and has to be installed in a rooms with good ventilation and
temperature between -5 to +35ºC
Charging batteries may under certain adverse conditions, generate harmful or explosive
gases. Please avoid open flames and sparks near a battery being charged
MAINS CONNECTION.
Main voltage(230VAC~50Hz): N(neutral), L(live), (ground)

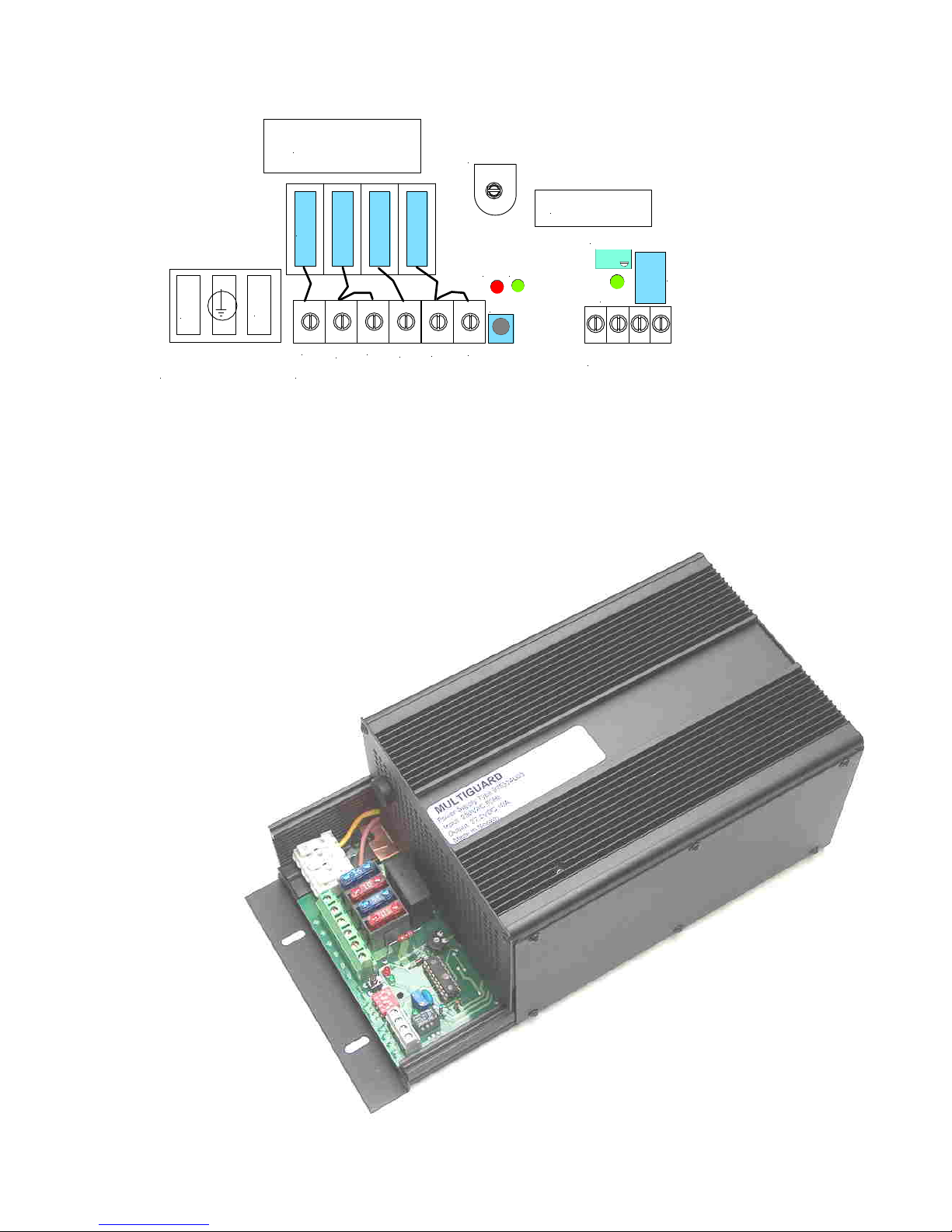

Battery connection:
Fuse F1 to + 1 ,and F3 to - 4
Load connection: F2 to +2 and +3, and F4 to -5 and -6(please see drawing
below).
NB! When ALARM RELAY is in OK connection, the relay is activated
and there is connection between C/NO.
To avoid unessesary alarm indications in places where the mains-supply
is unstable, you may delay the alarm function (see preset table).
Preset of DIP-switch:
1 2 3 4
x 0 0 x 0min. delay Alarm relay
x 1 0 x 5min. delay Alarm relay
x 0 1 x 10min. delay Alarm relay
x 1 1 x 30min. delay Alarm relay
x x x 1
Alarm function on when battery defect or not connected
1 x x x Battery Test each 24 hours on
Battery will be connected earlier than 1min. after alarm indicated.
LED Indication:
LED1 LED2 LED3
RED GREEN Lit when REL2 is activated
0 1 Situation
OK (SituationOK)
1 0 Battery fault
1010.. 1010.. Test routine on
0 1010.. Mains off/Charger fail or
1010.. 0 Battery not connected
0=off, 1=on, 1010..= blinking
MULTIGUARD
2010-01-26
MULTIGUARD
+1 +2 + 3 -4 -5 -6
Test NC C NO
ALAR M RELAY
F1 F2 F3 F4
REL2
PB1
LED2
LED1
LED3
VOLT AGE ADJ.
CONTROLLER
N
L
MAIN CONNECTION
FAN ADJ.
BA TTER Y+
BA TTERY-
LOAD +
LOAD +
LOAD -
LOAD -
REL1
TEST FUNCTION will be activated when pushing PB1 or when connecting
+24V(12V) to TEST.
