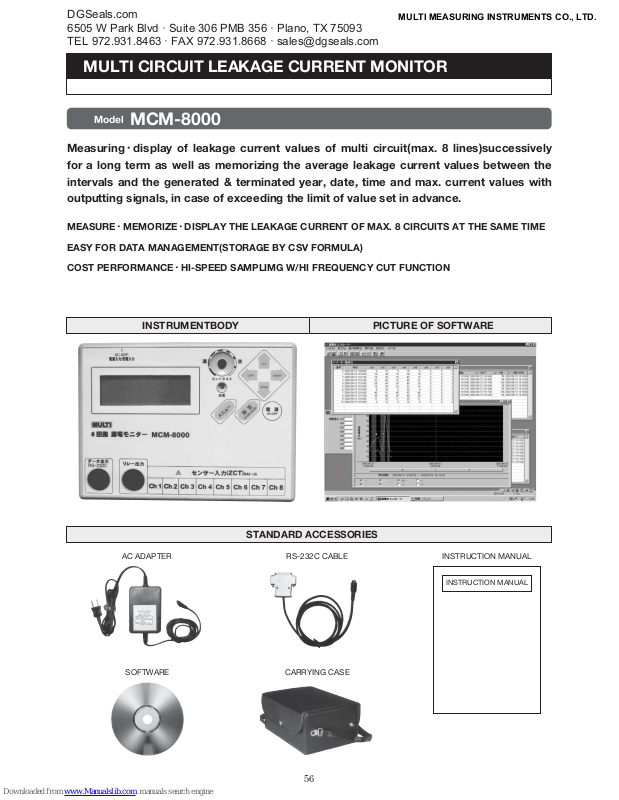

Multi MCM-8000 Instruction Manual

DGSeals.com

MULTI MEASURING INSTRUMENTS CO., LTD.

6505 W Park Blvd · Suite 306 PMB 356 · Plano, TX 75093
TEL [phone] · FAX [phone] · [e-mail]

MINI DIGITAL CLAMP TESTER

MULTI CIRCUIT LEAKAGE CURRENT MONITOR

AC CURRENT AC/ DC VOLTAGE RESISTANCE

Model

MCM-8000

Measuring・display of leakage current values of multi circuit(max. 8 lines)successively

for a long term as well as memorizing the average leakage current values between the

intervals and the generated & terminated year, date, time and max. current values with

outputting signals, in case of exceeding the limit of value set in advance.

MEASURE・MEMORIZE・DISPLAY THE LEAKAGE CURRENT OF MAX. 8 CIRCUITS AT THE SAME TIME

EASY FOR DATA MANAGEMENT(STORAGE BY CSV FORMULA)

COST PERFORMANCE・HI-SPEED SAMPLIMG W/HI FREQUENCY CUT FUNCTION

INSTRUMENTBODY PICTURE OF SOFTWARE

AC ADAPTER RS-232C CABLE INSTRUCTION MANUAL

SOFTWARE CARRYING CASE

STANDARD ACCESSORIES

INSTRUCTION MANUAL

56

DGSeals.com

MULTI MEASURING INSTRUMENTS CO., LTD.

6505 W Park Blvd · Suite 306 PMB 356 · Plano, TX 75093
TEL [phone] · FAX [phone] · [e-mail]

MULTI CIRCUIT LEAKAGE CURRENT MONITOR

Model

MCM-8000

GENERAL

1.MEASURING FUNCTION

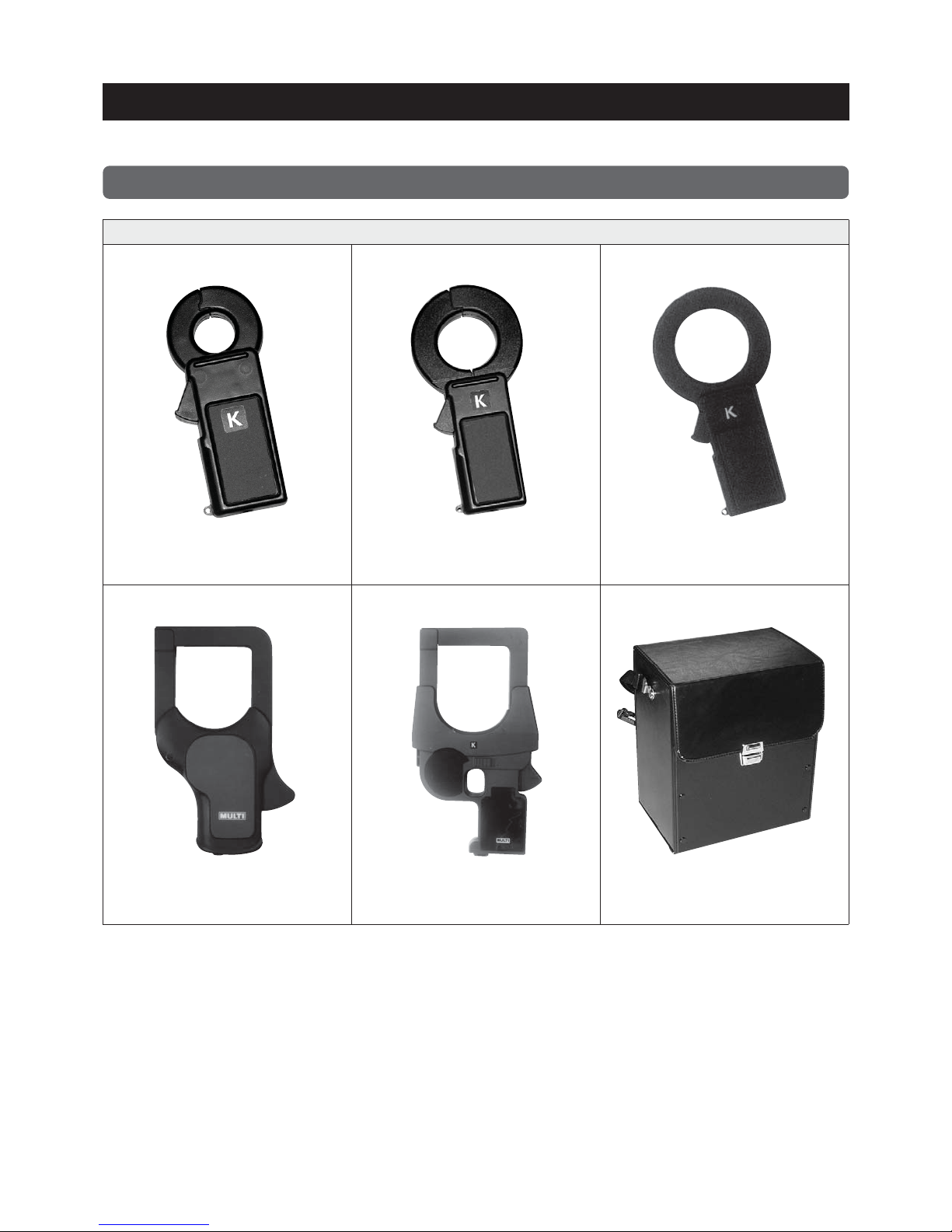

By Connecting Optional CT Sensors, the instrument can measure and memorize leakage cuurent of 8 circuits at the same time and
the memorized data can be seen even during measurement.

2.LOGGING MEASURING FUNCTION

This instrument displays and memorizes the average leakage current between the selected intervals.
Interval ： 1/5/10/15/30/60 minutes
Contents of Memory ： Measuring Time/Measuring Circuit/The average current value
Capacity of Memory ： Approx. 28 days with 10 m. interval

3.PEAK VALUE MEASURING FUNCTION

In case of exceeding the setting value, the instrument displays and memorizes year, month, date, time of the leakage generation &
termination as well as the peak values by each circuit. High speed sampling, comply with ELB.
Range of Setting Current： 10 〜1000mA
Contents of Memory ： Circuit No. of generation, setting current value and times of generation.

Year/Month/Date/Time of exceeding the setting value and recovery.

4.ELECTRICITY FAILURE COUNTING FUNCTION

In case of electricity failure, the instrument memorizes Year/Month/Date/Time of failure and recovery.
Capacity of Memory ： Failure and recovery Year/Month/Date/Time 4,000 times

5.ALARM SIGNAL OUTPUT FUNCTION

In case of exceeding the setting current value, output the signal of non-voltage contact.

6.TRANSMISSION SOFTWARE

The memorized data can be transmitted to PC by RS-232C.
Complying Software ： Windows 95/98/2000/ME/XP
Output Data ： Logging Measured Data/Peak Values/Electricity Failure Data

SPECIFICATIONS

Number of Measuring Circuit ： 8 circuits(channels)
Detection Method ：
Measuring Range ：0〜
Minimum Resolution ： 1mA
Measuring Accuracy ：±
Sampling ：
Filter Function ： Internally equipped filter for cutting high frequency(Secondary low pass filter： 130Hz)
Range of Setting Values ：
Recovery Range ： 10〜 90% of the setting values
Measuring Temperature ： 0 〜50℃, less than 80%RH w/o condensing
Storage Temperature ：-10 〜60 ℃, less than 80%RH w/o condensing
Measuring Circuit Voltage ： less than AC 500V(insulated conductor)
Insulation Resistance ： more than 100MΩ by DC 500V insulation tester(between input terminal and housing case)

Withstanding Voltage ： AC 1500V(50/60Hz)one minute between power supply sorce and housing case
Power Supply ： AC 100V〜 240V with adapter

Current Consumption ： Approx. 40mA
Battery Life ： Approx. 4 days at continuous use by full charge
Dimensions & Weight ：190(W)×140(H)× 42(D)mm, approx. 700gs

Clamp-on CT method

2000mA

3%rdg±2dgt(by standard CTs)

Approx. 20mS

10〜1000mA(Initial setting：50mA)

more than 50M Ω by DC 500V insulation tester(between power supply source and housing case)

Internal Ni-hydride Battery
