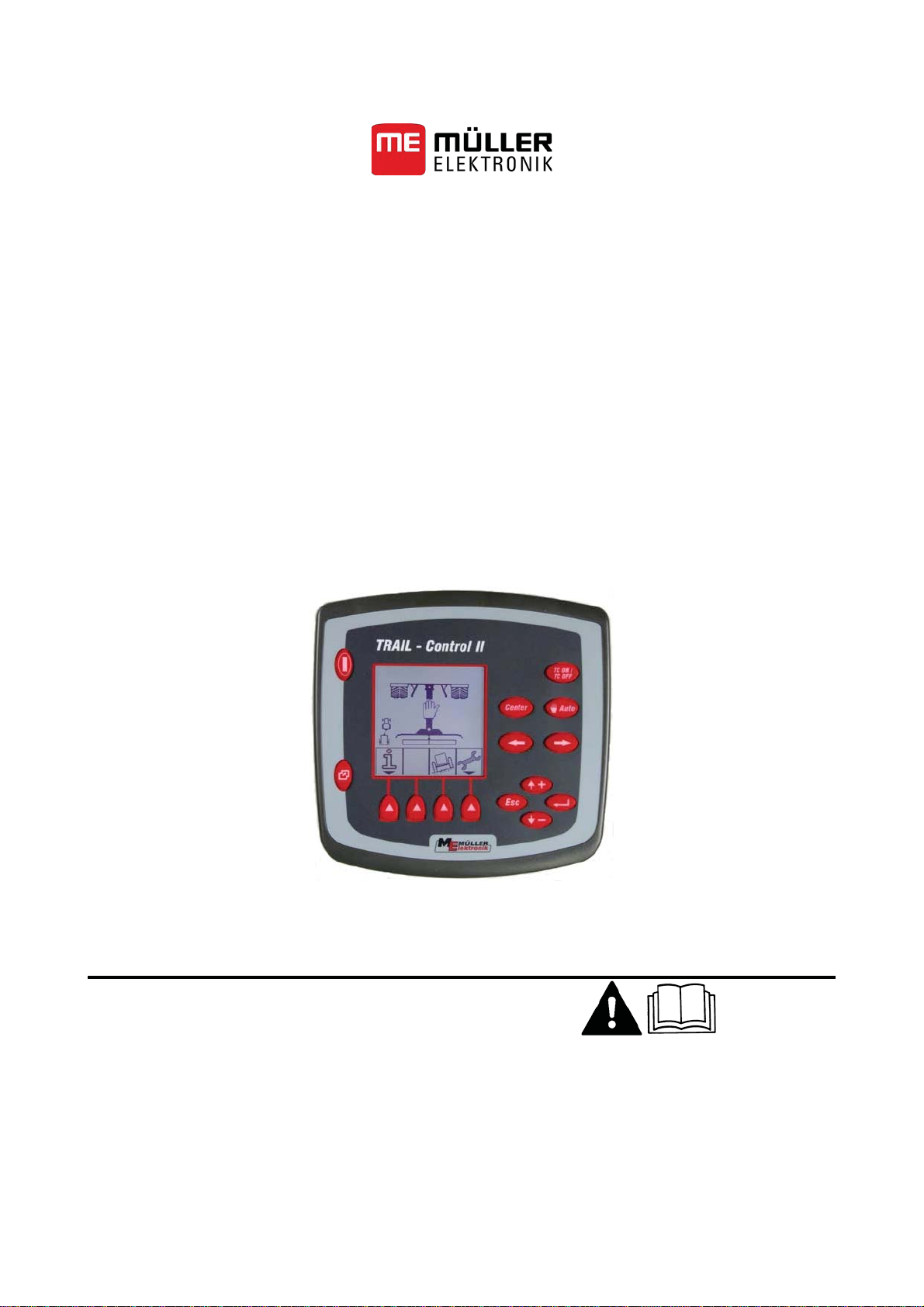

Page 1



17511362-en

Installation and User´s Guide

TRAIL-Control II



Version: V5.20131113



30293001-02-EN Read and follow these operating instructions.

Keep these operating instructions in a safe place for later reference.



Page 2

Imprint

Document

Installation and User´s Guide Product: TRAIL-Control II Document number: 30293001-02-EN From software version: 1.01.0a Original language: German

Müller-Elektronik GmbH & Co.KG Franz-Kleine-Straße 18 33154 Salzkotten Germany Phone: ++49 (0) 5258 / 9834 - 0 Fax: ++49 (0) 5258 / 9834 - 90 Email: [email protected] Homepage: http://www.mueller-elektronik.de

Page 3

Table of contents



Table of contents

1 For your safety 5

1.1 Basic safety instructions 5

1.2 Hazard Area 5

1.3 Safety signs on the machine 6

1.4 Layout and meaning of warnings 6

1.5 User requirements 7

1.6 Intended use 7

1.7 Declaration of conformity 7

2 About these Operating Instructions 8

2.1 Target group of these Operating Instructions 8

2.2 Layout of operating instructions 8

3 Mounting and installation 9

3.1 System overview 9

3.2 Mounting the terminal 10

3.3 Connecting the cable 11

3.4 Connecting the battery connection cable 11

3.5 Mounting the gyroscope 11

3.5.1 Mounting the bracket for the gyroscope 12

3.5.2 Connecting the gyroscope to TRAIL-Control II 12

3.5.3 Using the gyroscope 13

3.6 Instructions on retrofitting 13

4 Product description 15

4.1 Performance description 15

4.2 Minimal preconditions 15

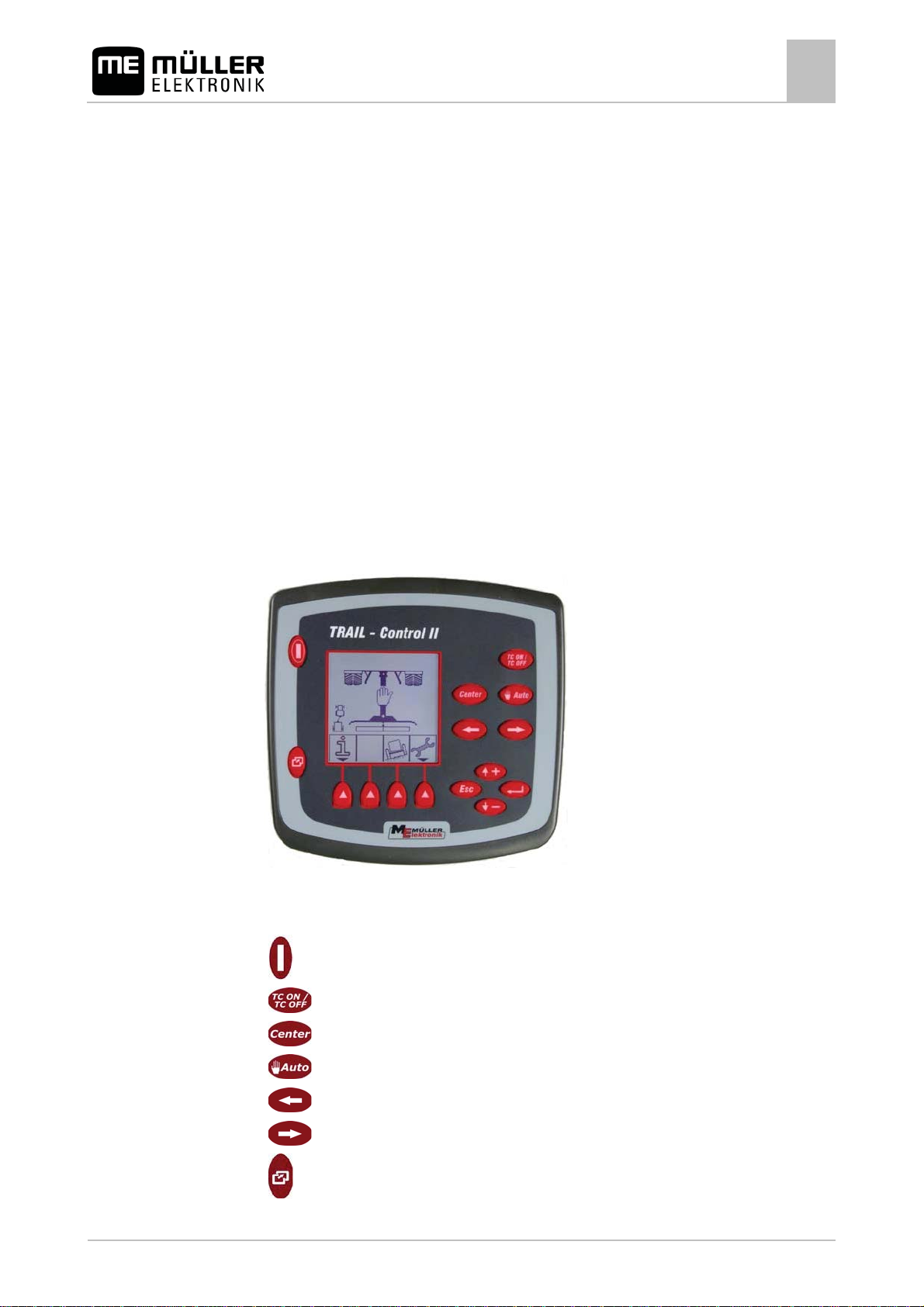

4.3 Overview of keys 15

4.4 Screen structure 16

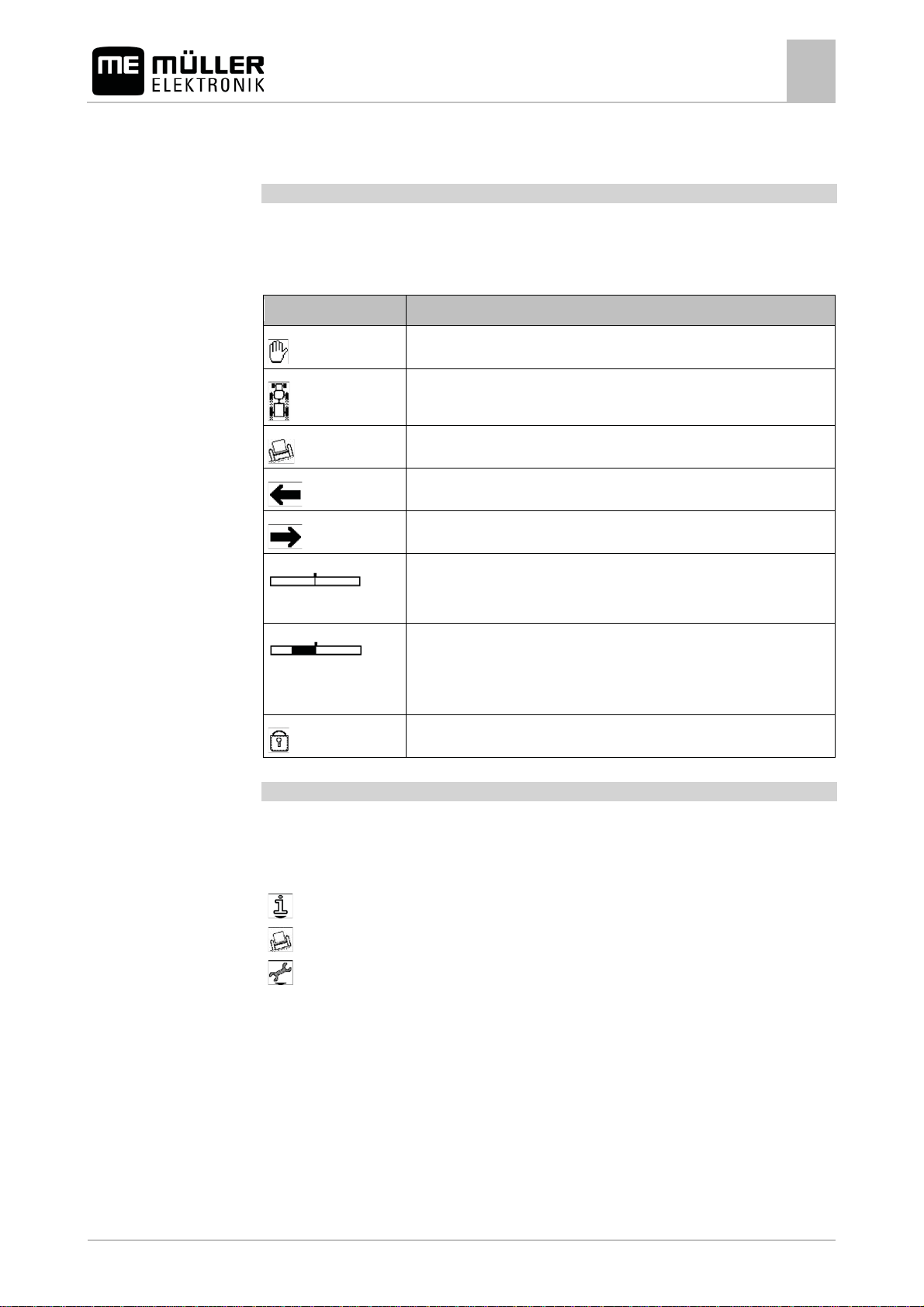

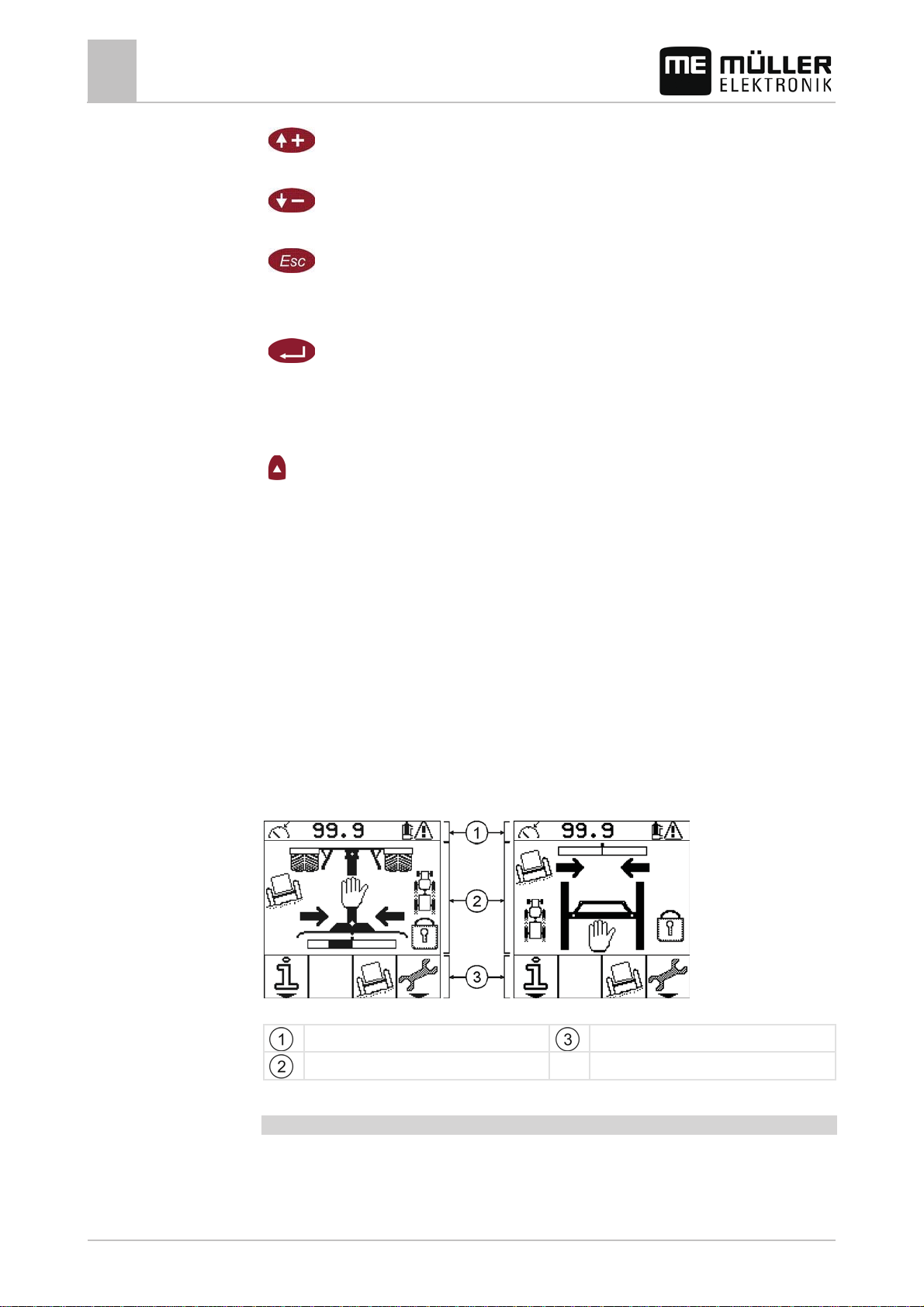

4.4.1 Structure of work screen 16 Header area 16 Main area of work screen 17 Function icons section 17

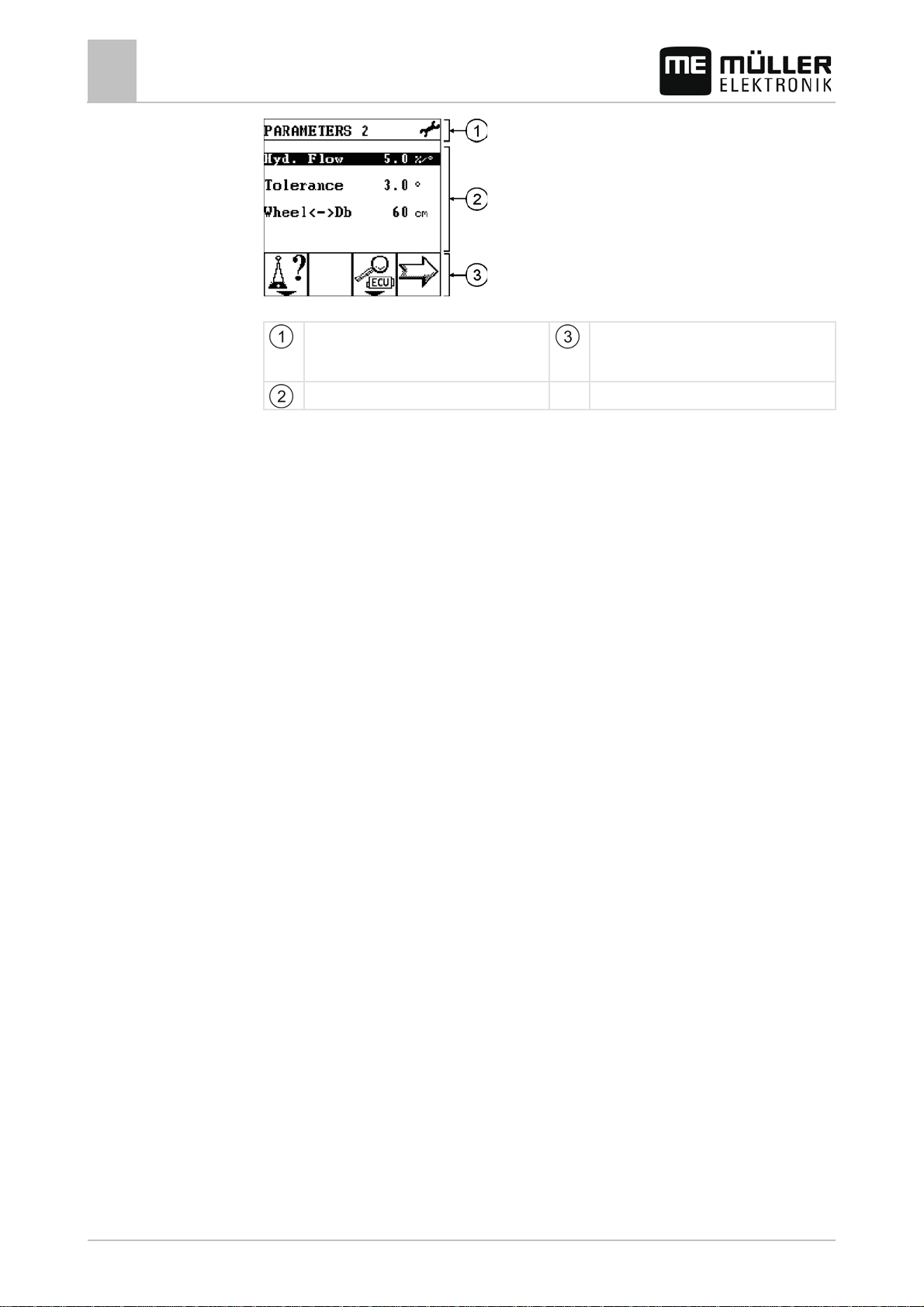

4.4.2 Structure of further screens 17

5 Configuring TRAIL-Control II 19

5.1 When should you configure what? 19

5.2 Configuring the basic settings of the on-board computer 19

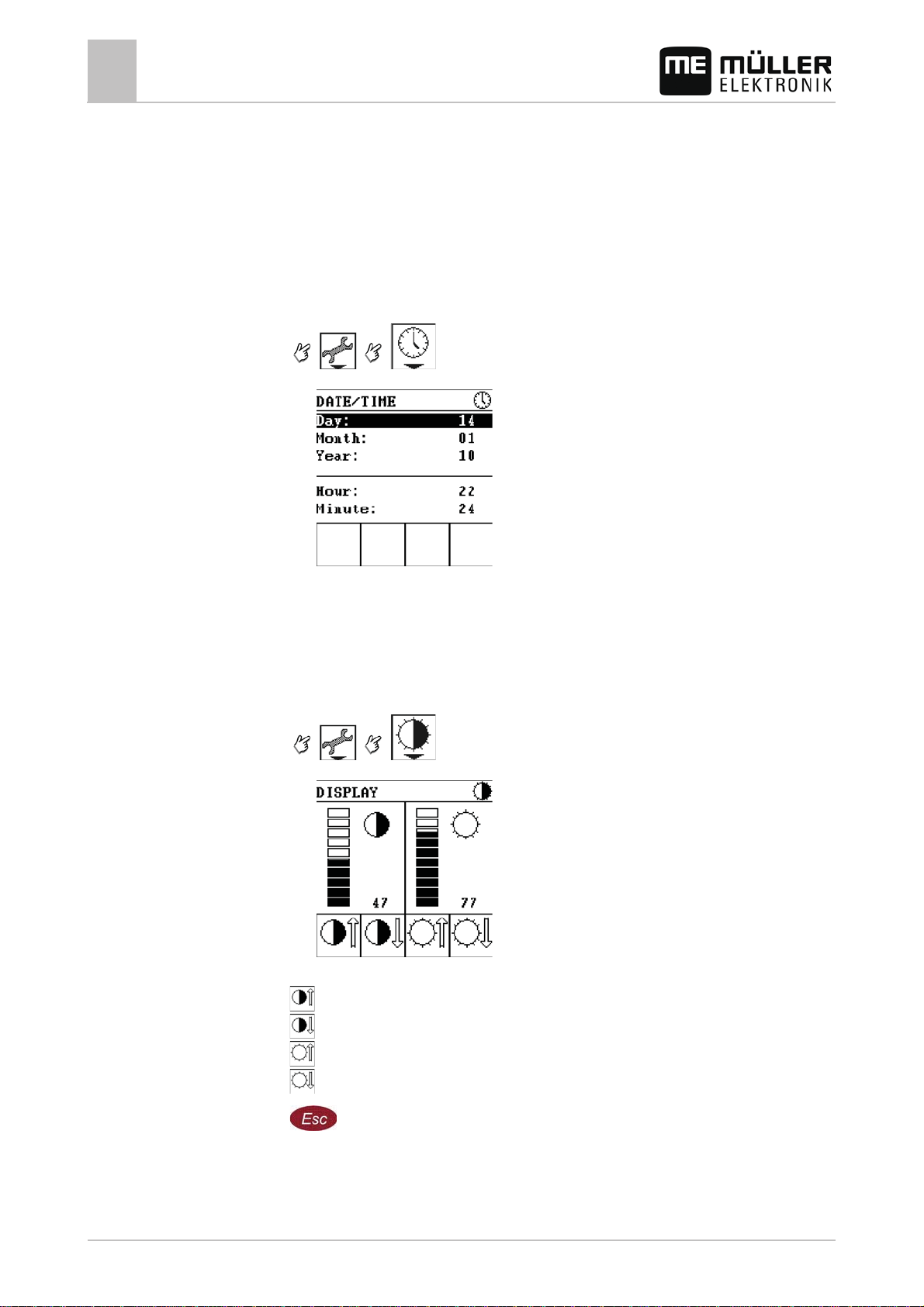

5.2.1 Setting date / time 20

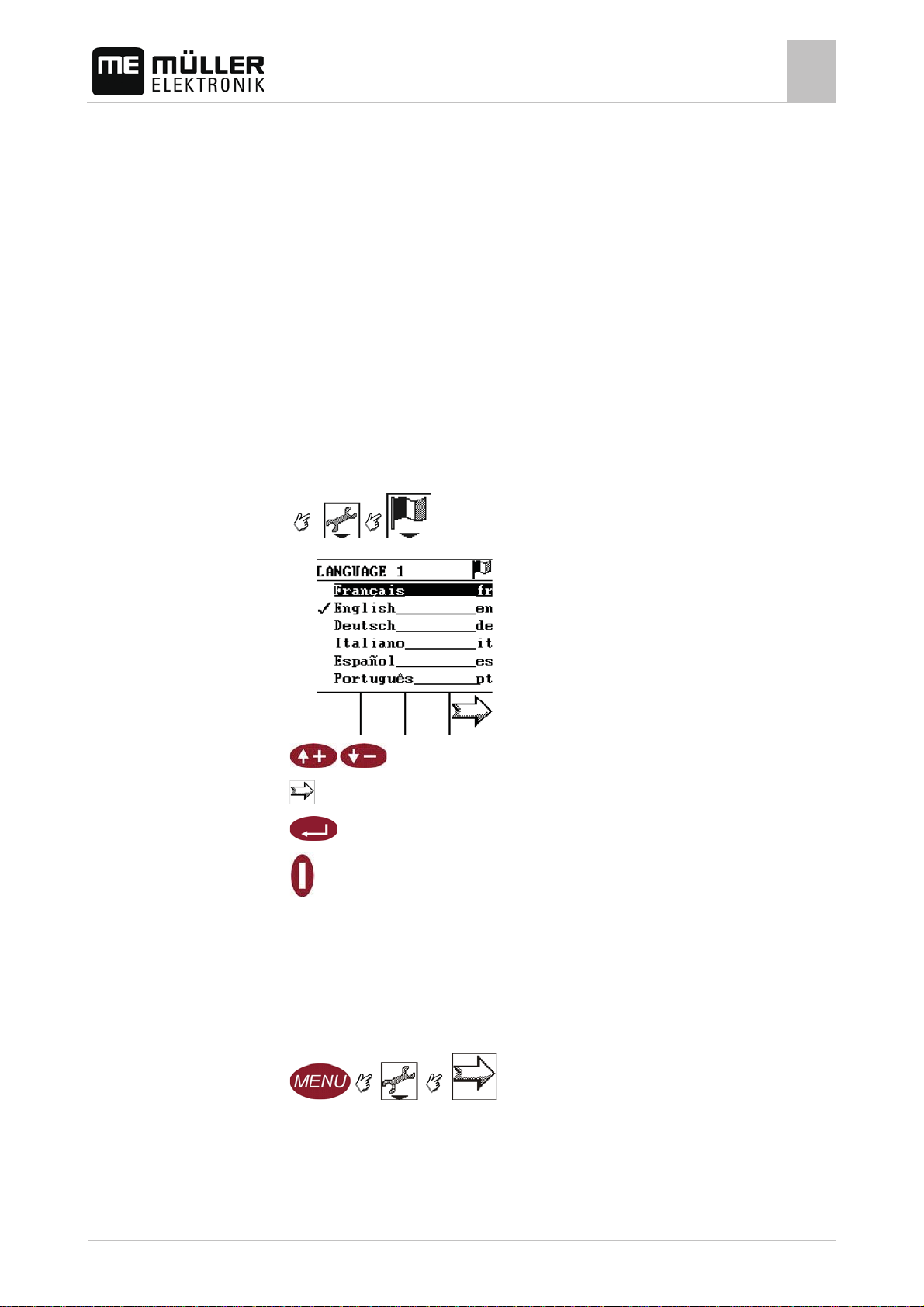

5.2.2 Setting contrast and brightness 20

5.2.3 Selecting language 21

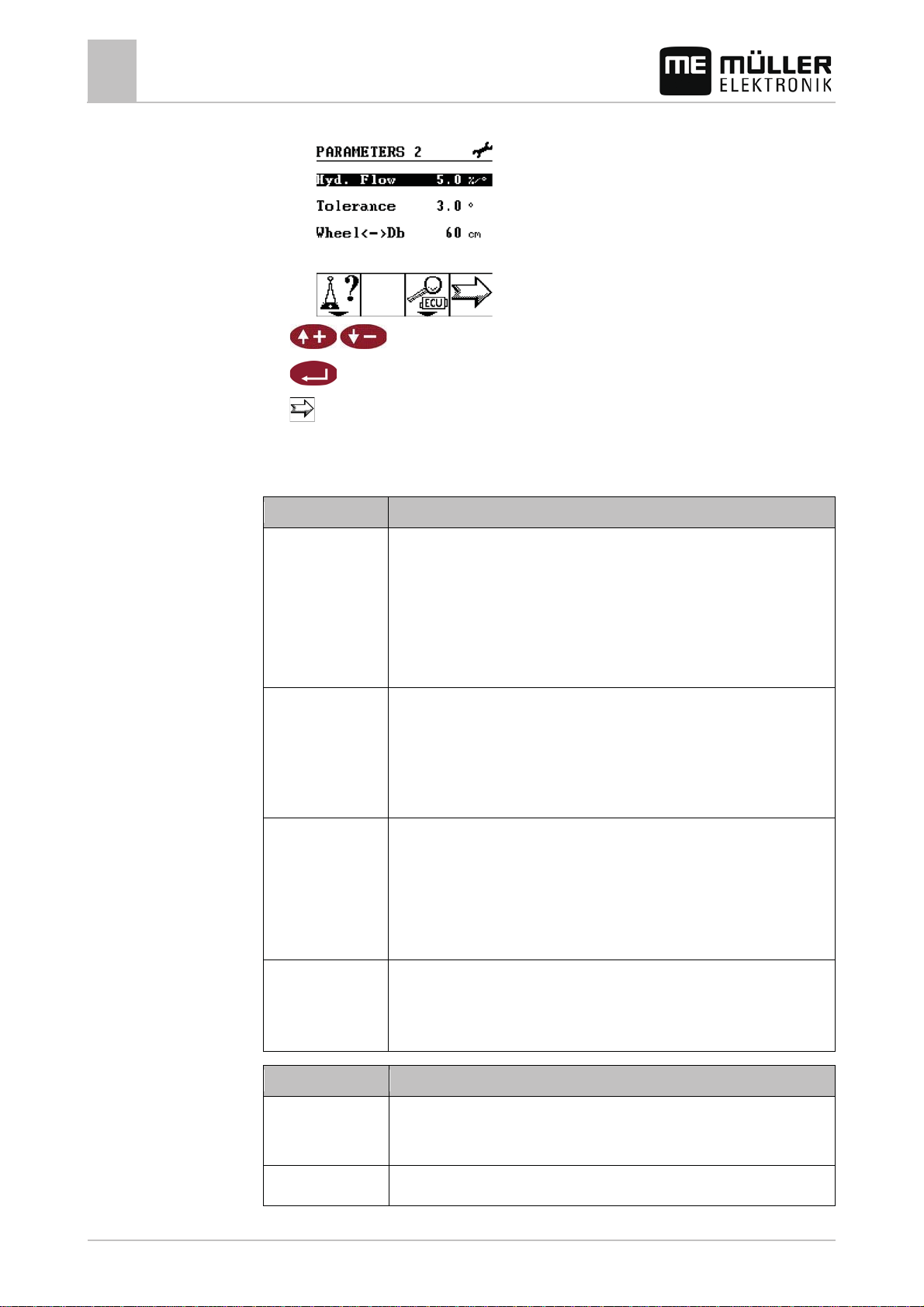

5.3 Entering the trailed implement parameters 21

5.4 Configuring TRAIL-Control II after tire change 23

Page 4

Table of contents

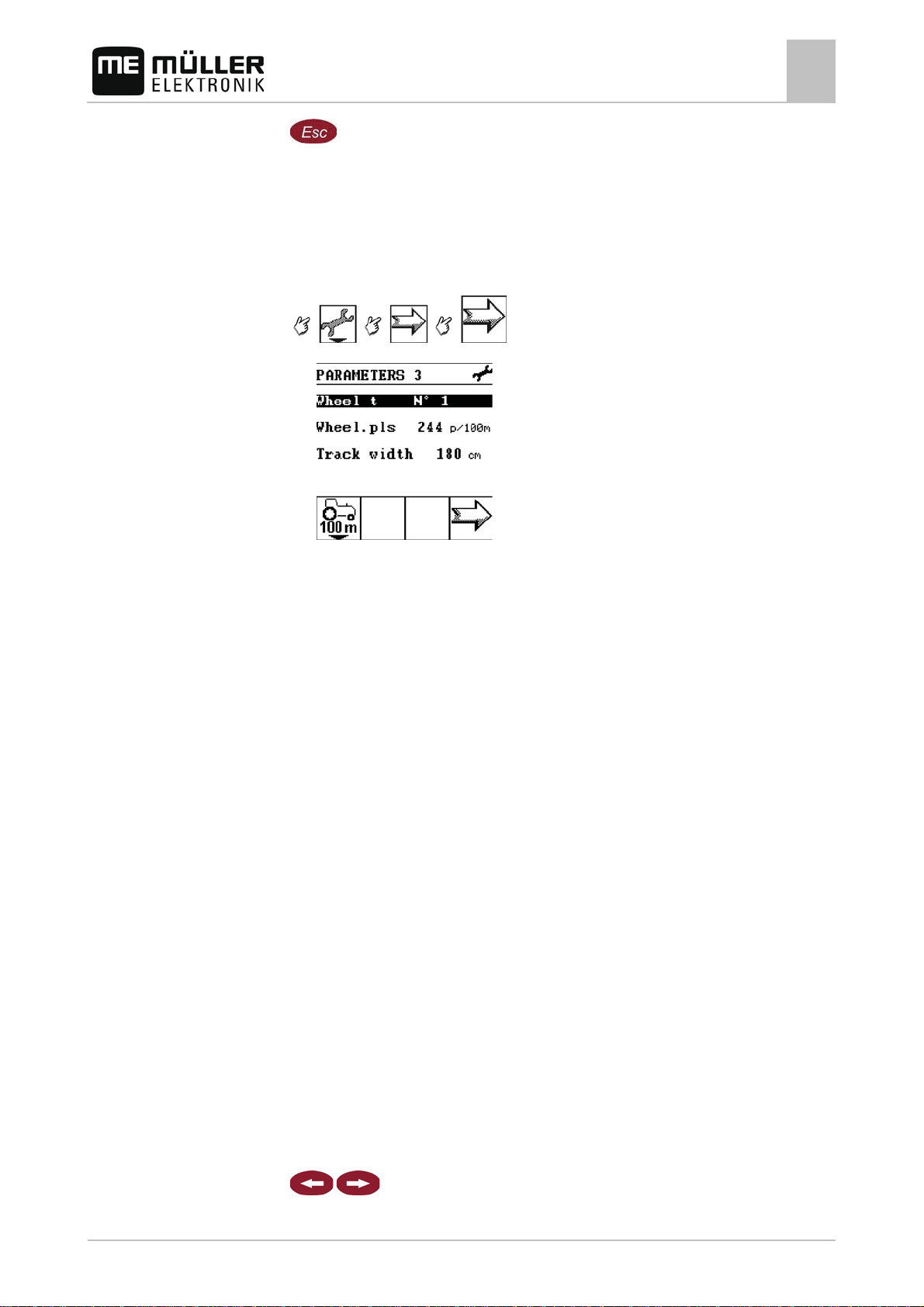

5.5 Calibrating the wheel sensor 23

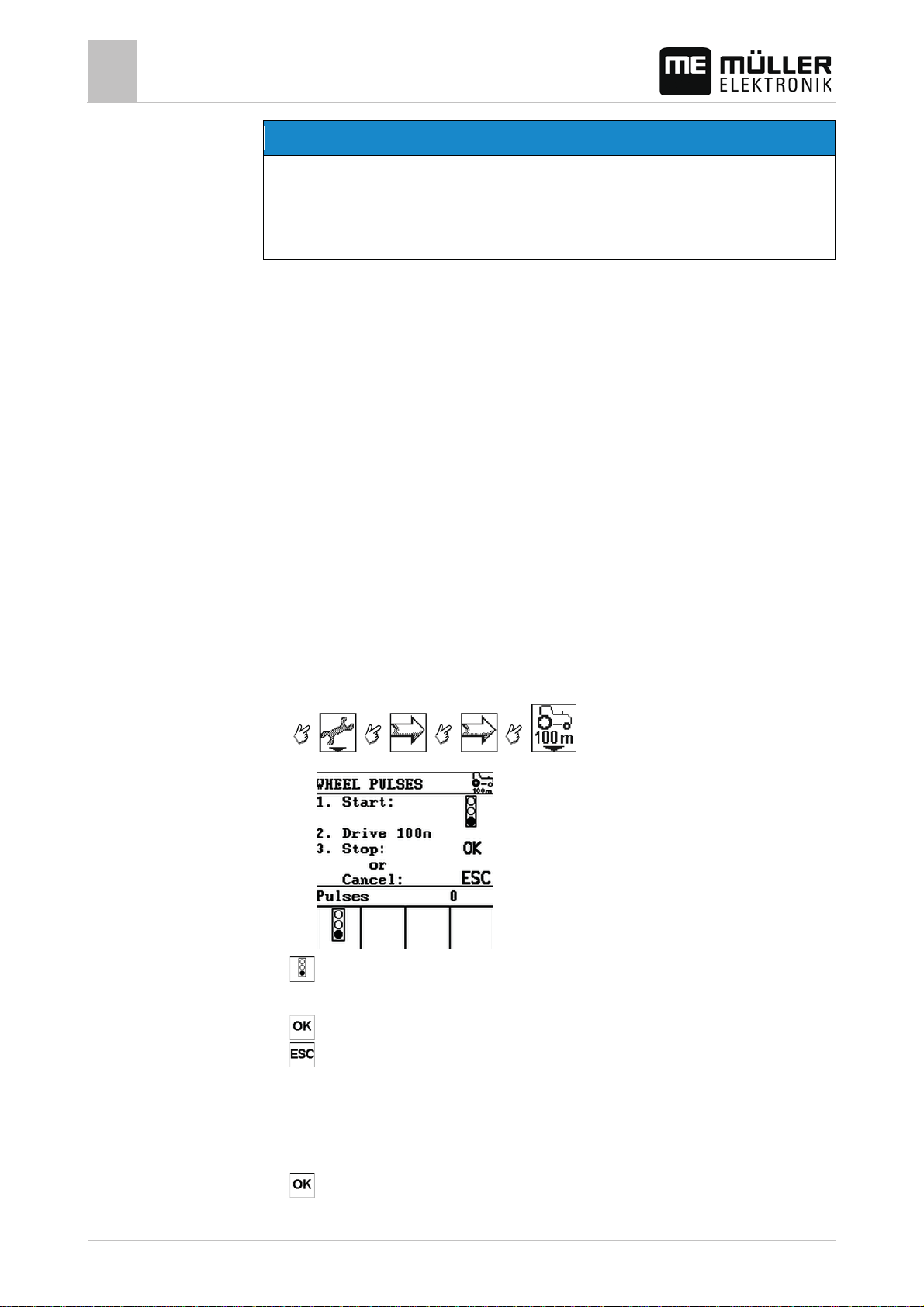

5.5.1 Determining pulses per 100 meters 24

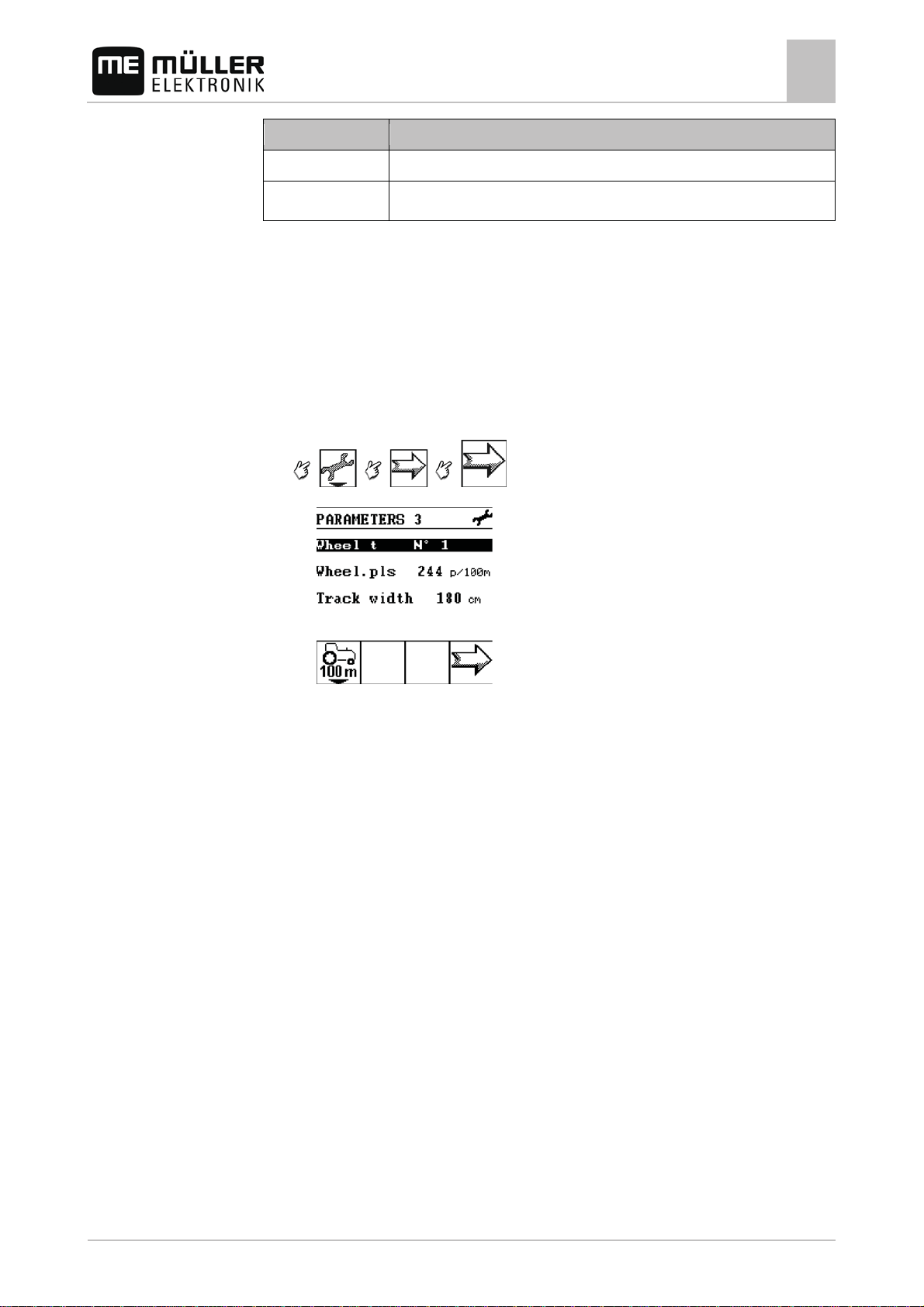

5.5.2 Manually entering the number of pulses for the wheel sensor 25

5.6 Calibrate steering 25

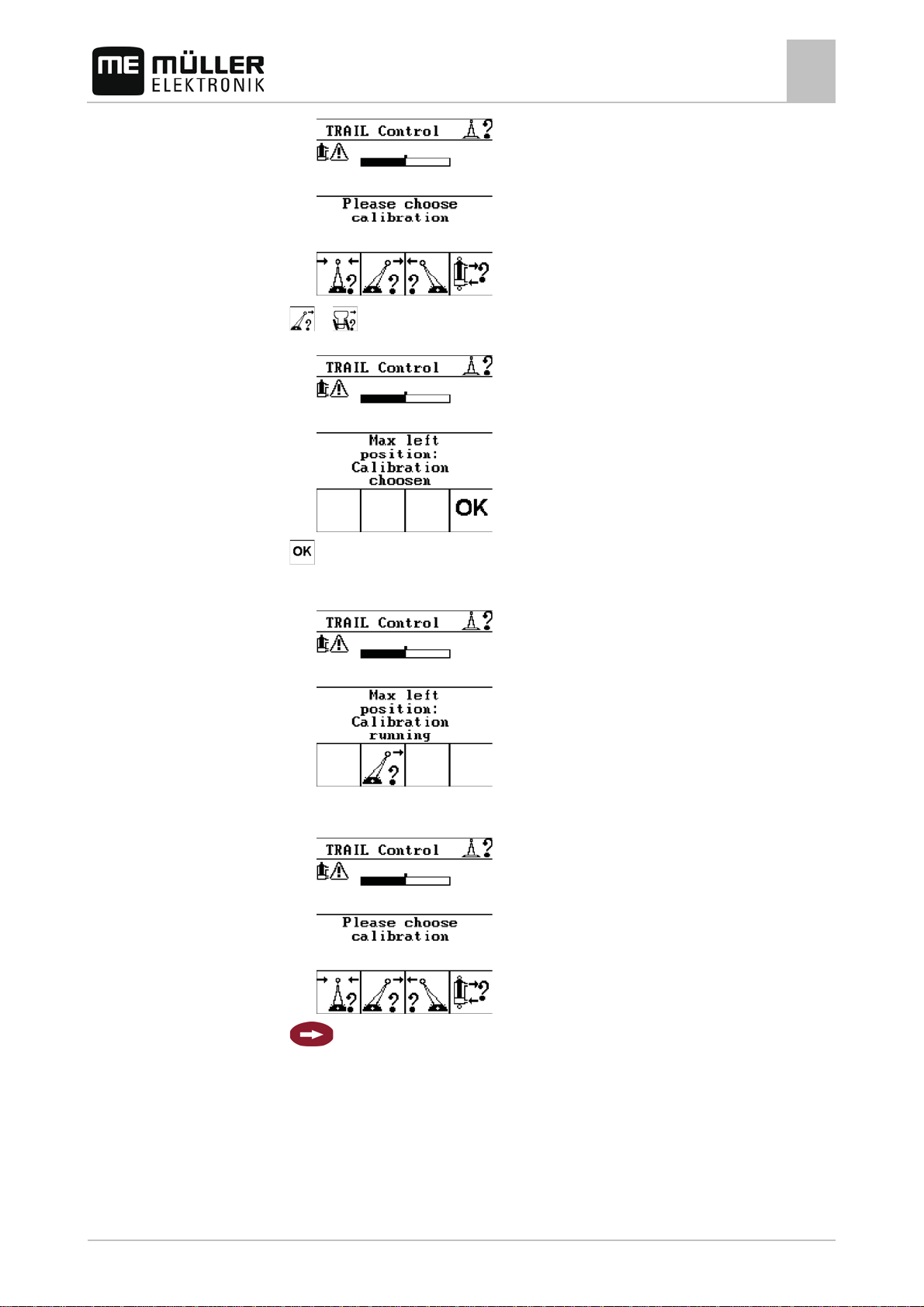

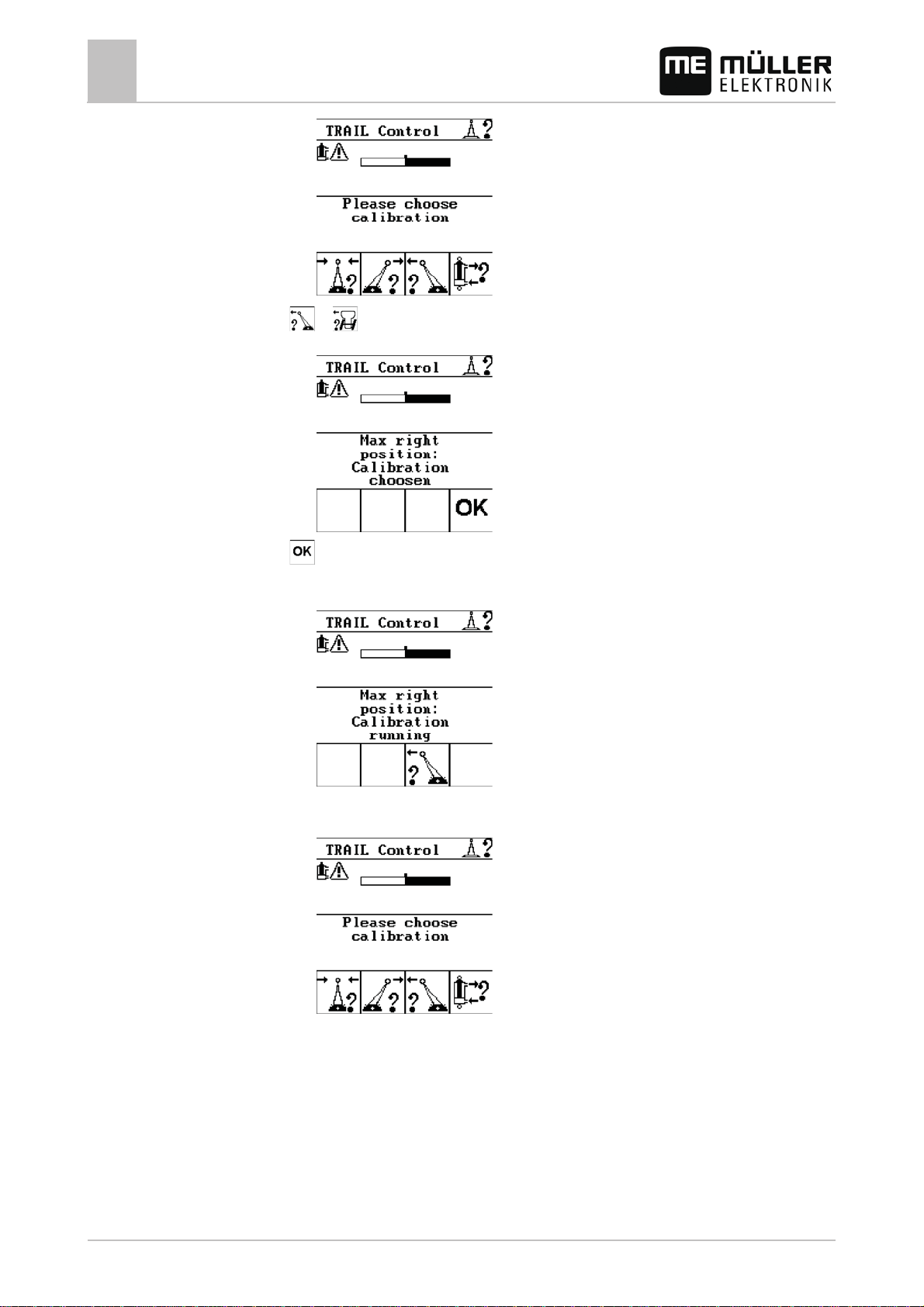

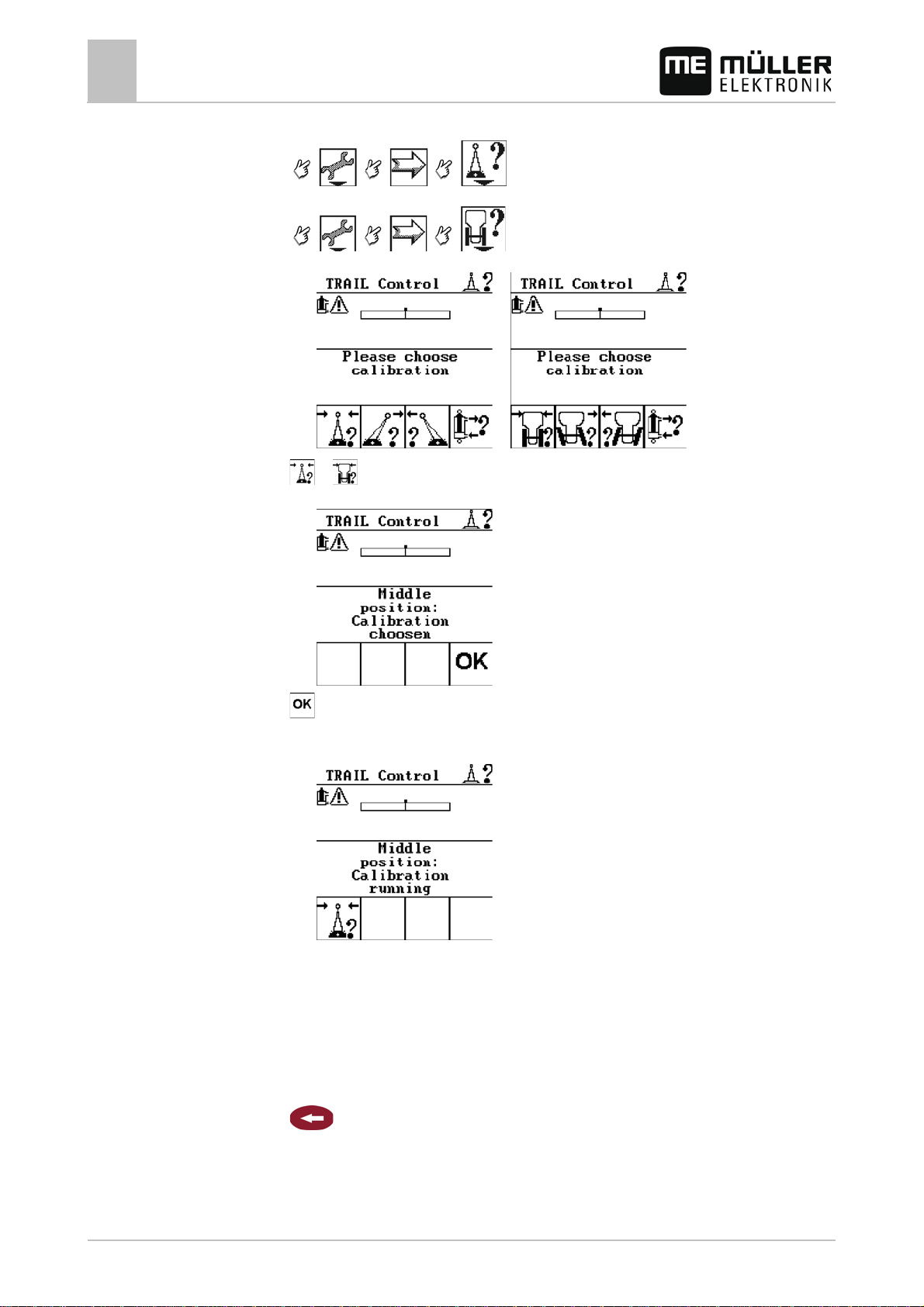

5.6.1 Teaching-in the central position and end stops 25

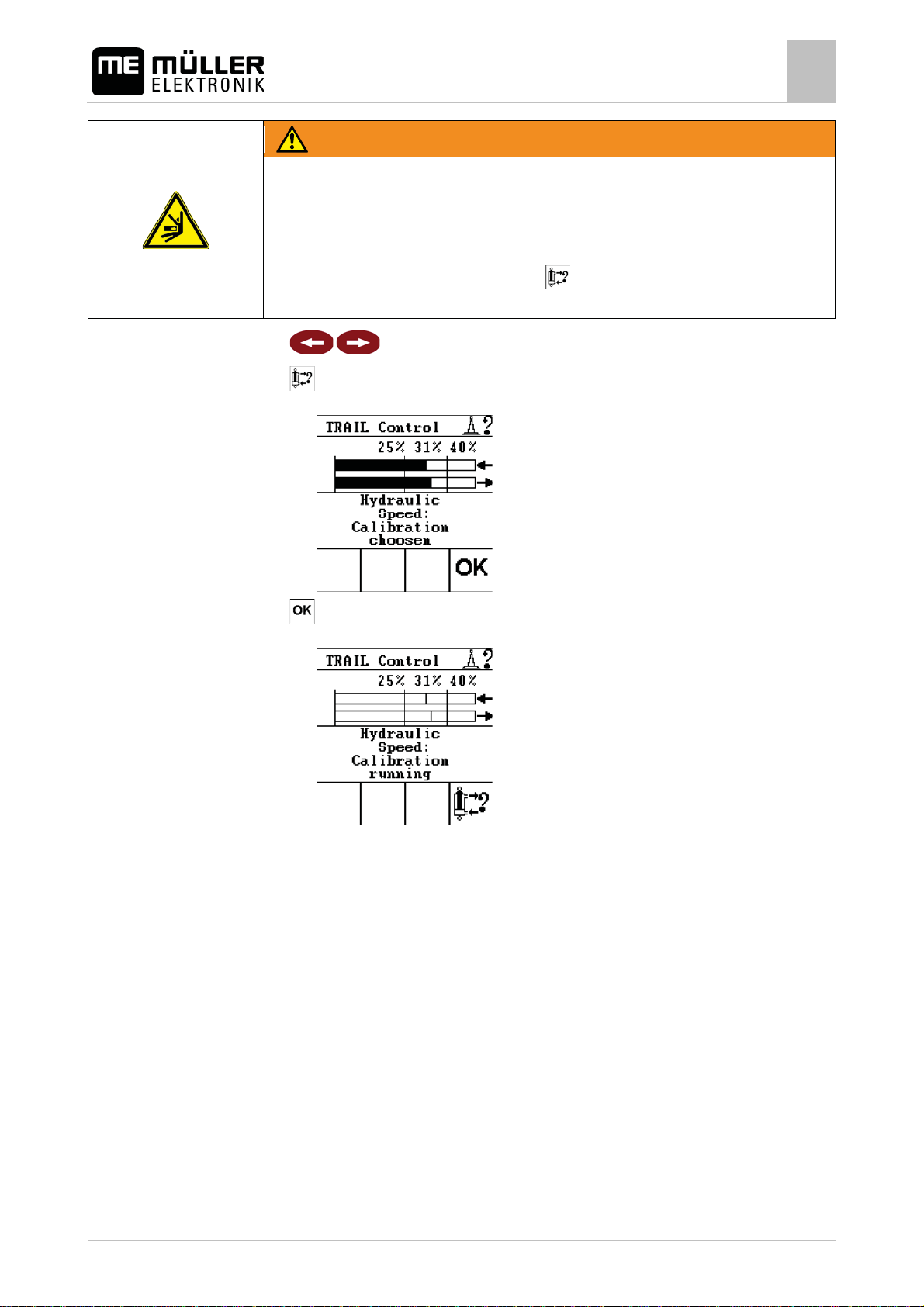

5.6.2 Calibrating the hydraulics of the proportional valve 28

6 Using TRAIL-Control II in the field 30



6.1

ctivating TRAIL-Control II 30

6.2 Steering the trailed implement 30

6.2.1 Steering in manual mode 31

6.2.2 Steering in automatic mode 31

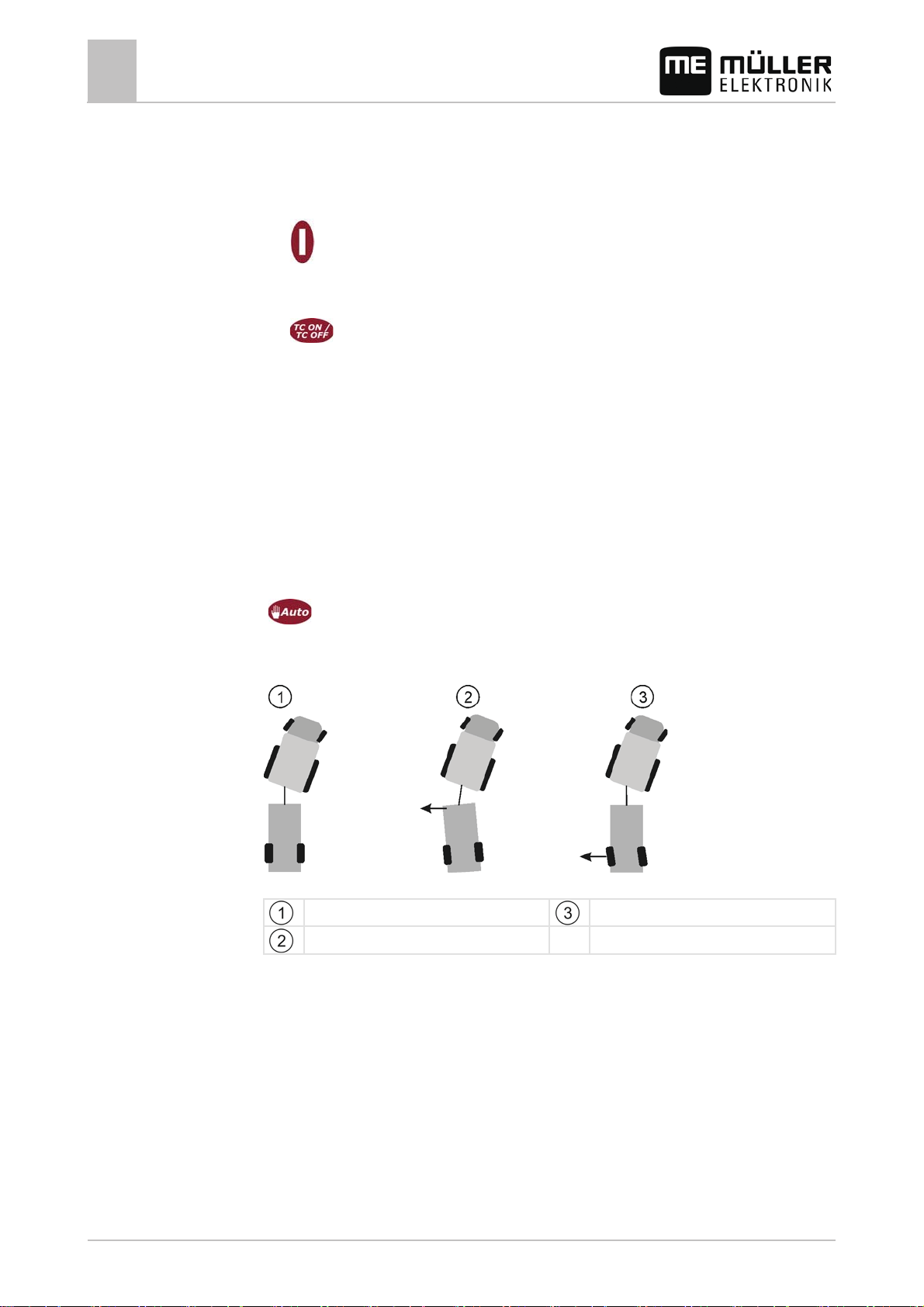

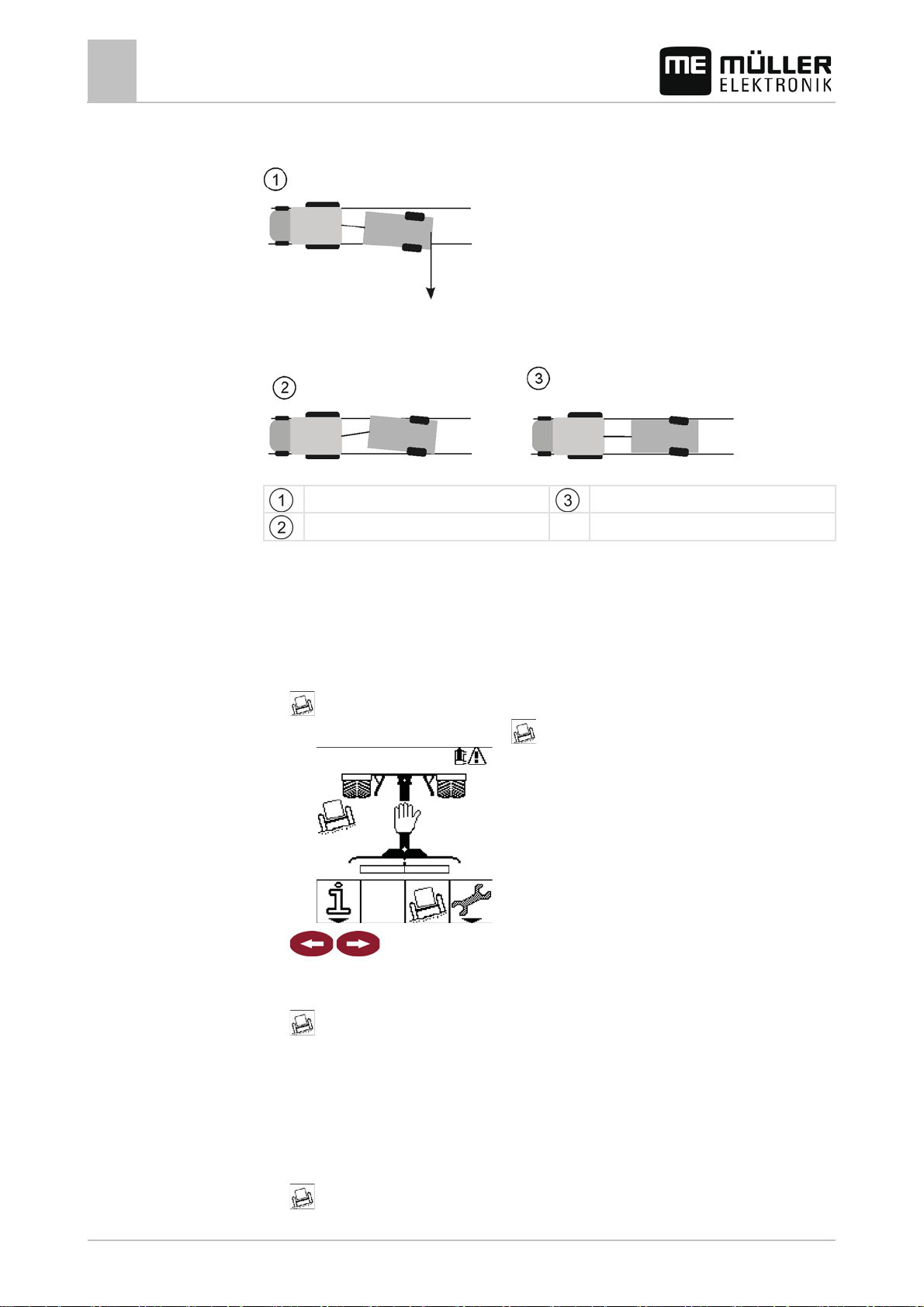

6.2.3 Steering the trailed implement against the slope 31

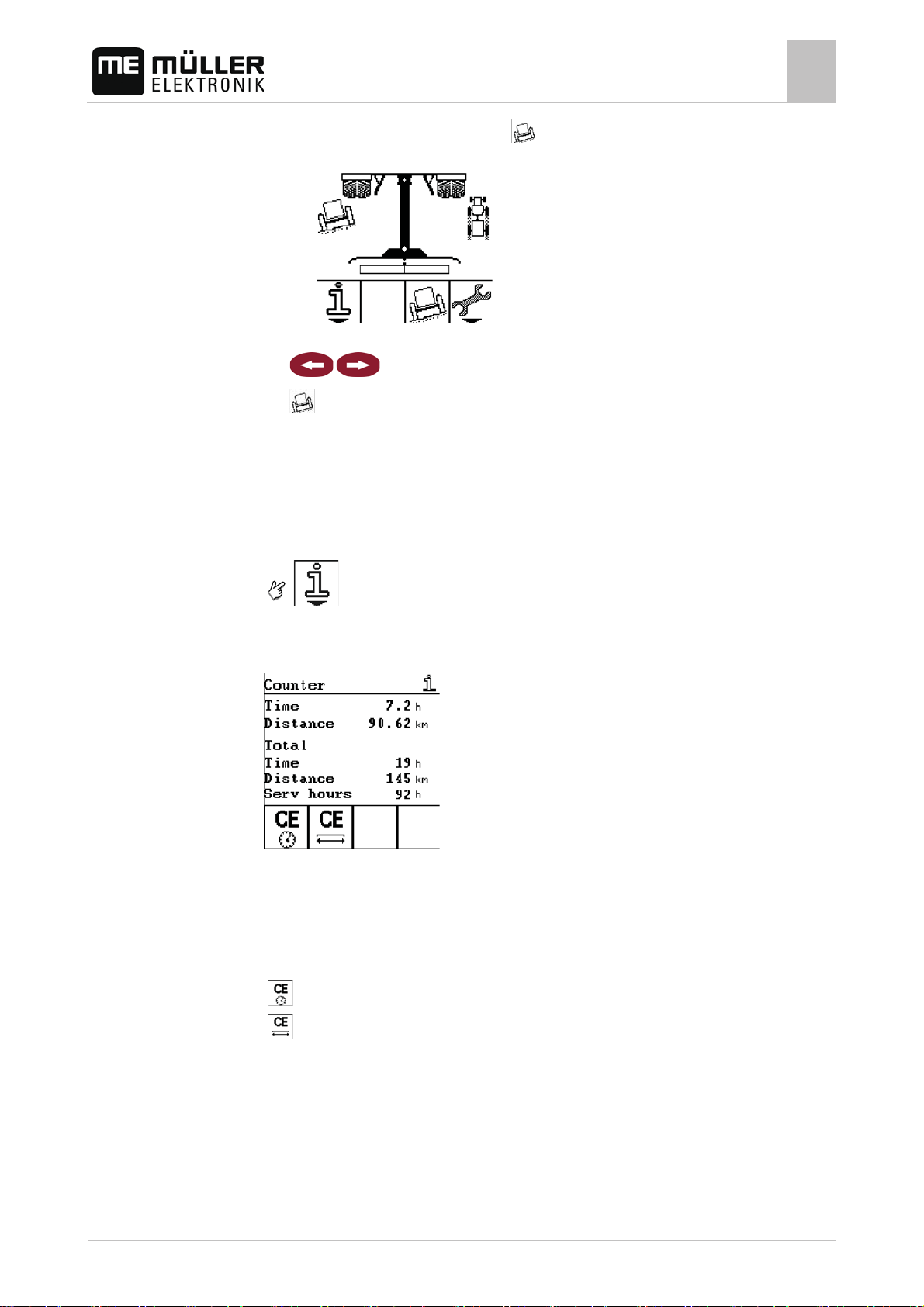

6.3 Documenting work results 33

7 Locking TRAIL-Control II for road driving 34 8 Maintenance and servicing 35

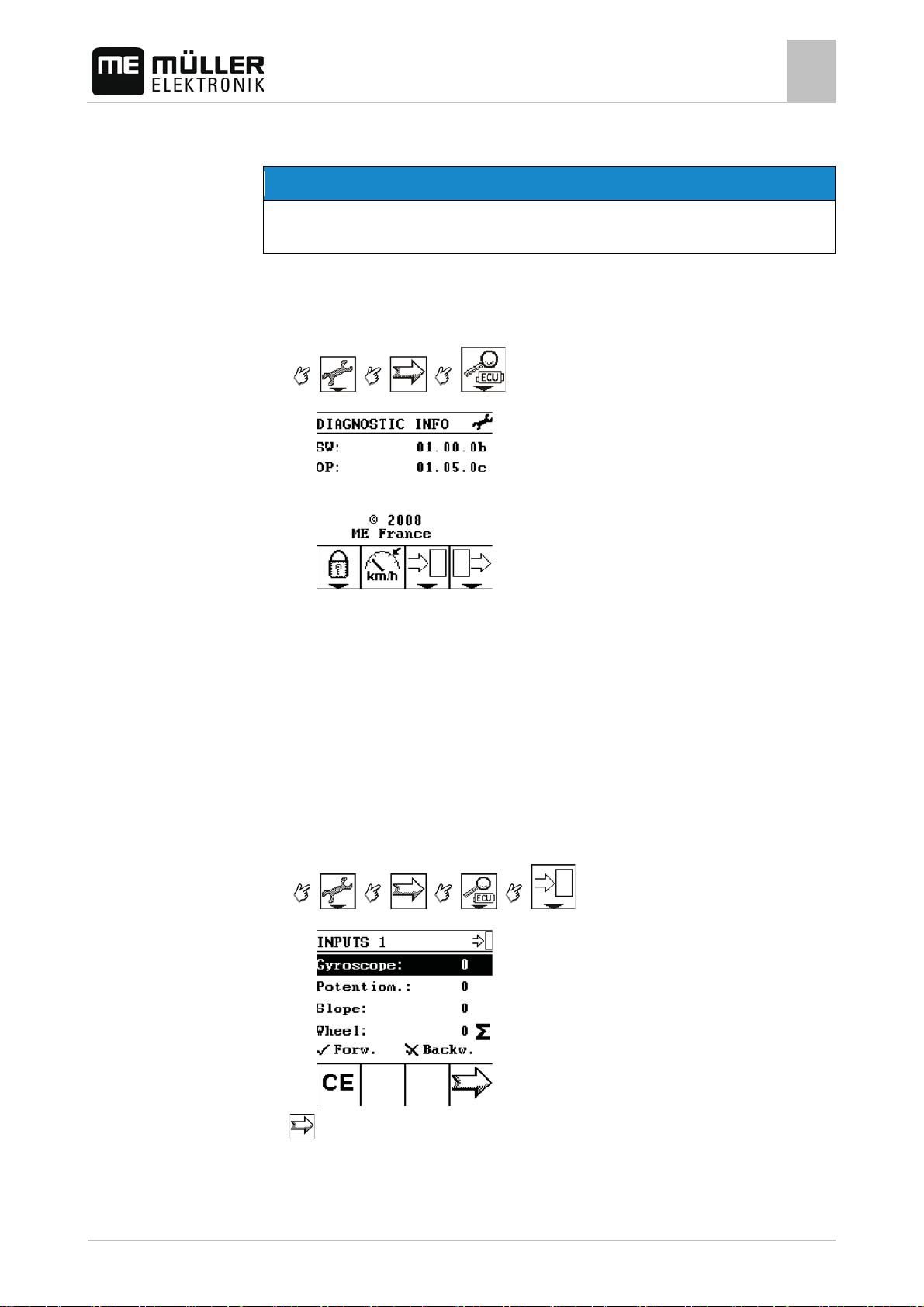

8.1 Checking the software version 35

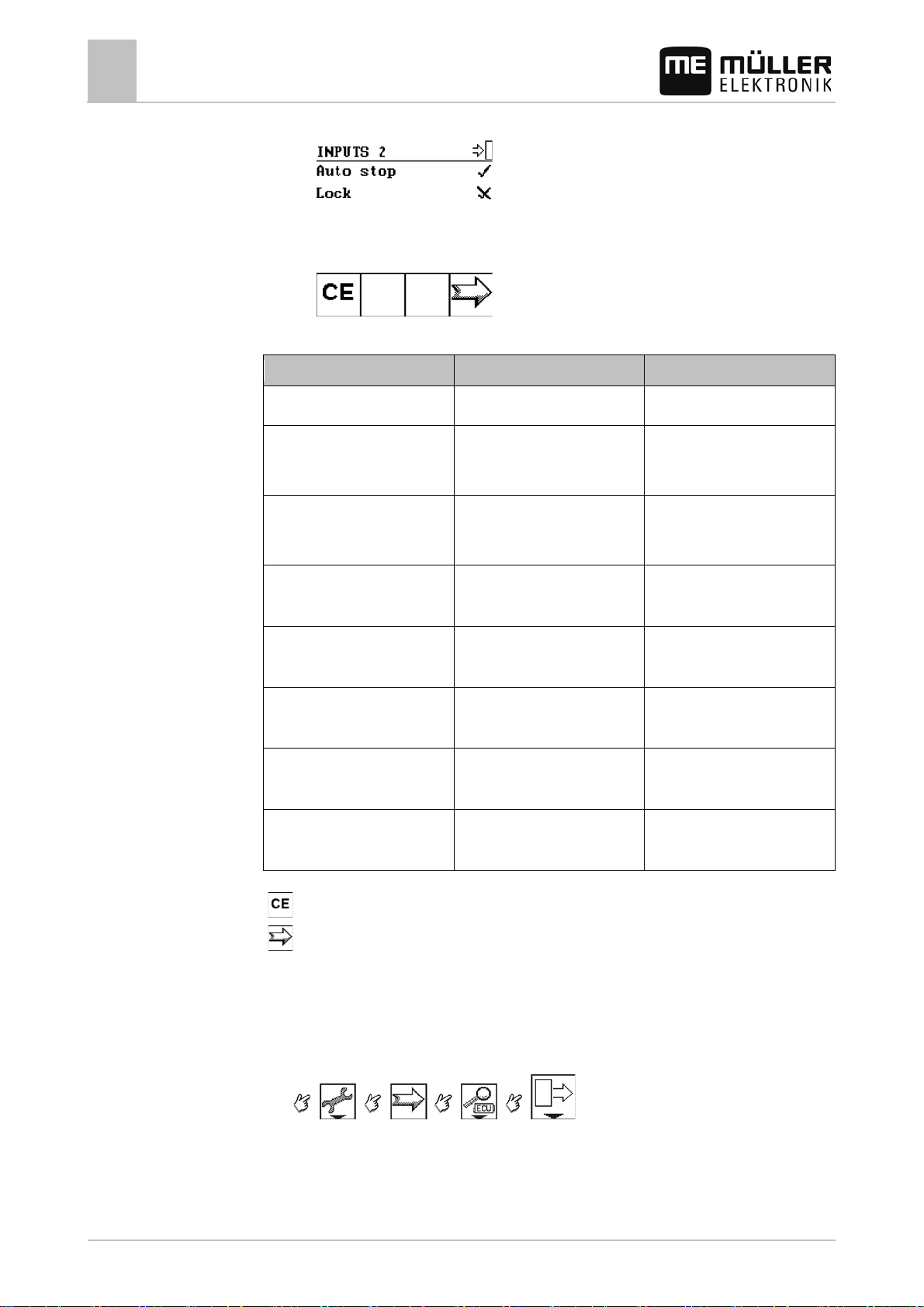

8.2 Displaying sensor status 35

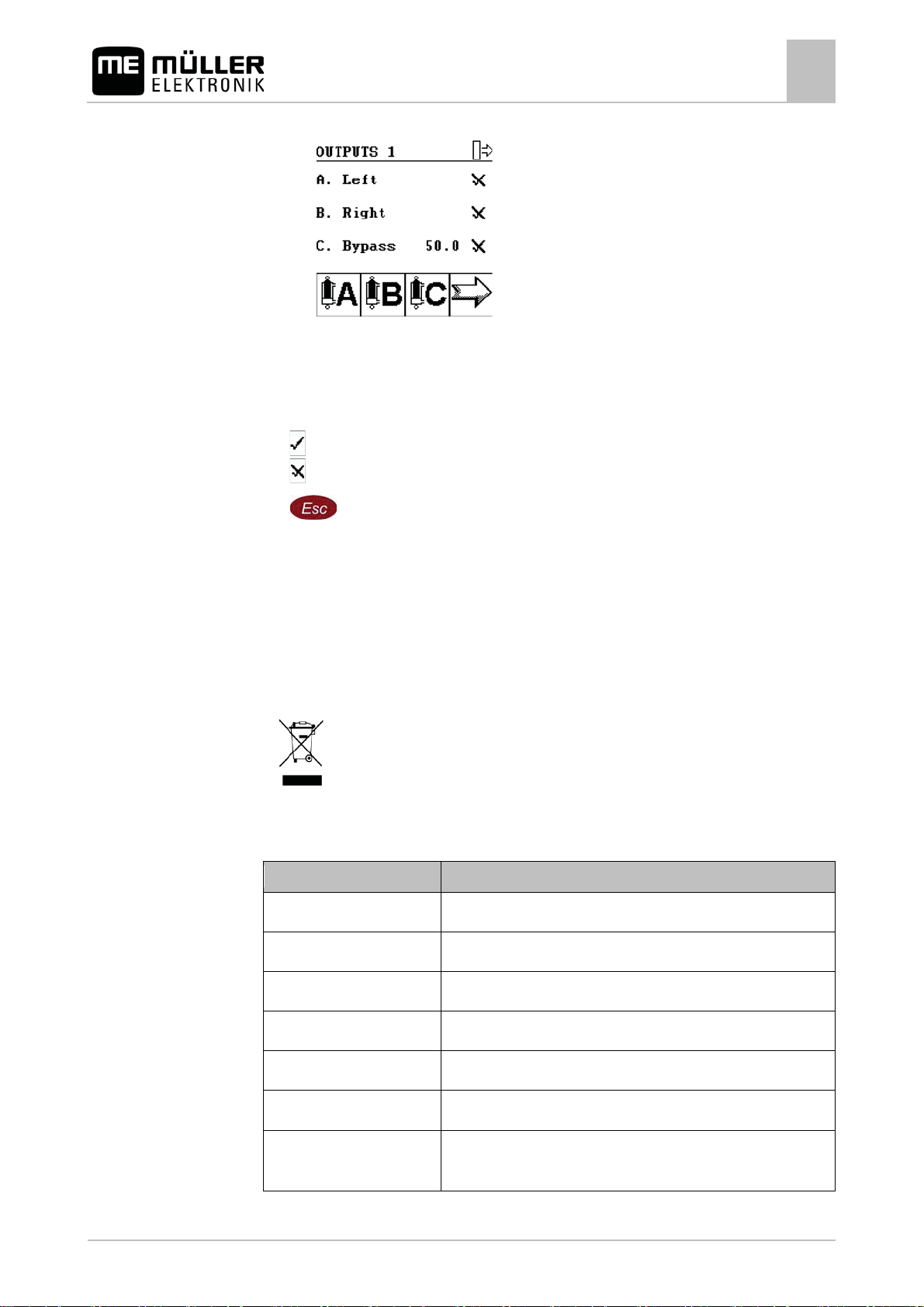

8.3

ctivating and deactivating hydraulic valves 36

8.4 Maintaining and cleaning device 37

8.5 Disposing of the unit 37

8.6 Technical specifications 37

8.7 Plug assignment -8-pin flangesocket 38

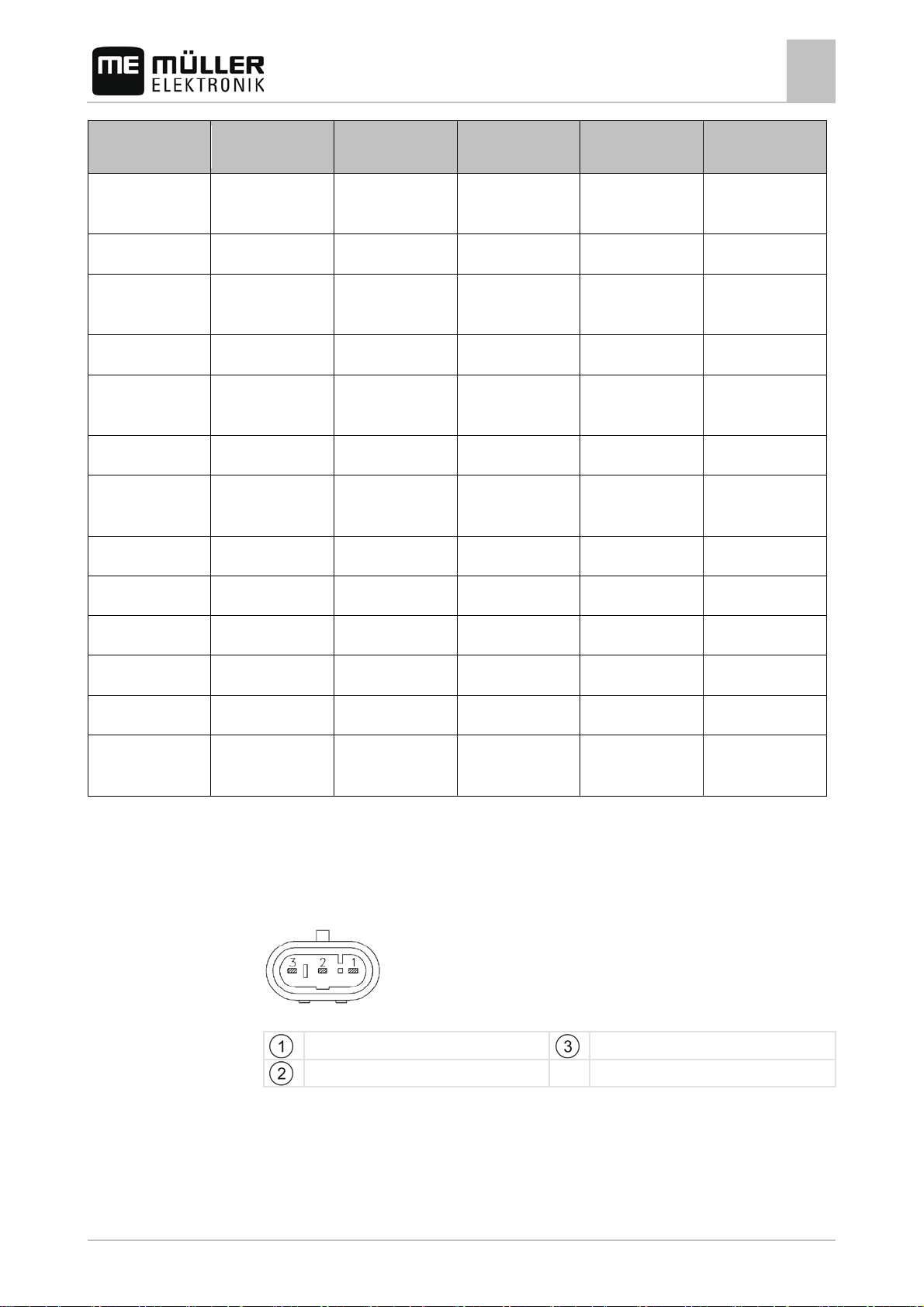

8.8 Plug assignment - 39-pin clip connector 38

8.9 Pin connection of gyroscope connector 39

9 Troubleshooting 40

9.1 Table with possible error messages 40

9.2 Procedure with faults 41

Page 5

For your safety



Basic safety instructions

1.1

1.2

For your safety

Basic safety instructions

Please read the following safety instructions carefully before using the product for the first time.



Hazard Area

The hazard area covers an area of several meters around the tractor and towed equipment in all directions. The greater the size of the towed equipment, the greater the hazard area. For example: The wider the spraying rods of an agricultural sprayer, the further it can swing out and therefore its hazard area is greater.

ƒ Nobody must stay in the proximity of the tractor or trailed implement during operation. ƒ Never remove any safety mechanisms or stickers from the product. ƒ Read the operating instructions to the agricultural device which you want to control by using the

product.

ƒ Before charging the tractor battery, always disconnect the connection between the tractor and

the terminal TRAIL-Control II.

ƒ Before welding on the tractor or implement, always disconnect the power supply to the terminal. ƒ Before maintenance or repair to the tractor, always disconnect the connection between the

tractor and the terminal.

ƒ Do not make any unauthorized modifications to the product. Unauthorized modifications or use

may impair safety and reduce the service life or operability of the unit. Modifications are considered unauthorized if they are not described in the product documentation.

WARNING

Danger of Injury from Uncontrolled Machine Movements

ƕ Pay attention that nobody enters the hazard area! ƕ Switch off the system immediately, as soon as a person enters the hazard area!

As soon as the system has been assembled and switched on, nobody may remain in the hazard area.

When the TRAIL-Controll II is switched on, there is a risk that pressure fluctuations in the hydraulic system could cause the drawbar or the steering knuckle to move uncontrolledly.

Pressure fluctuations can, for example, occur in the following instances:

ƒ If the hydraulic system is defective ƒ If the hydraulic system is used for purposes other than for controlling steering of the drawbar and

knuckle.

The hazard area may then only be entered if the following conditions are fulfilled:

ƒ The person entering the area must be informed of the potential dangers ƒ All activities must be precisely agreed between the driver and the person appointed to enter the

area.

ƒ All maintenance, configuration and monitoring work must, if possible, be conducted when the

system is switched off.

Page 6

For your safety

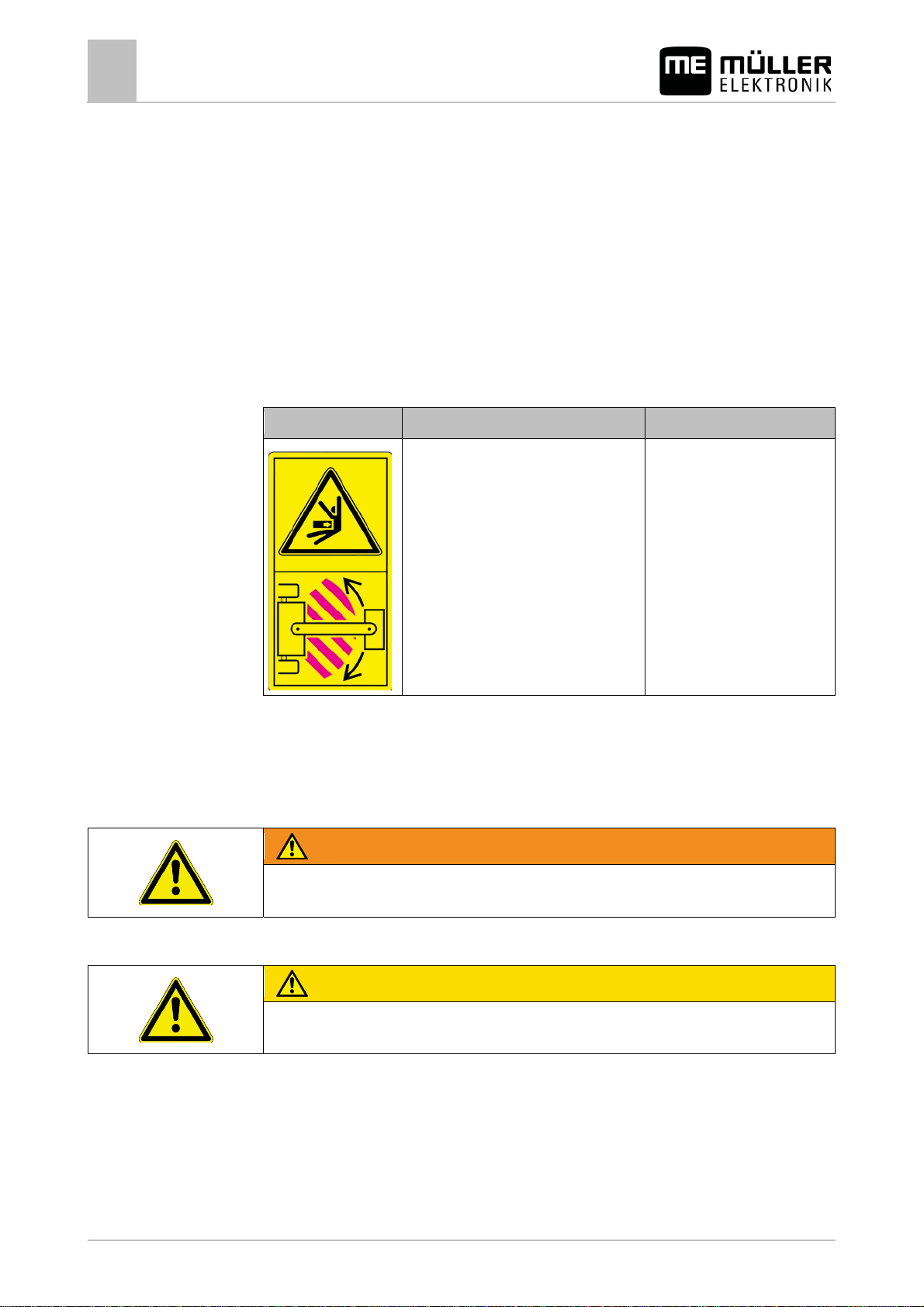

Safety signs on the machine



1.3

Safety signs on the machine

You receive a safety sign adhesive label together with the product. This label must be attached near the bend area with drawbar steering. When attaching safety signs, observe the following:

ƒ Safety signs must be attached at a visible location so that they can be seen by everyone

approaching the danger zone.

ƒ If the danger area can be approached from several sides of the machine, attach the warning

signs on all machine sides.

ƒ Regularly check the safety signs for completeness and legibility. ƒ Replace damaged or unreadable signs with new ones.

Safety sign Where to attach Meaning

Near the the bend area between tractor and trailed implement

Do not stay in the bend area during operation

1.4

Layout and meaning of warnings

All safety instructions found in these Operating Instructions are composed in accordance with the following pattern:

WARNING

This signal word identifies medium-risk hazards, which could potentially cause death or serious physical injury, if not avoided.

CAUTION

This signal word identifies low-risk hazards, which could potentially cause minor or moderate physical injury or damage to property, if not avoided.

Page 7

For your safety



User requirements

NOTICE

This signal word identifies actions which could lead to operational malfunctions if performed incorrectly. These actions require that you operate in a precise and cautious manner in order to produce optimum work results.

There are some actions that need to be performed in several steps. If there is a risk involved in carrying out any of these steps, a safety warning will appear in the instructions themselves.

Safety instructions always directly precede the step involving risk and can be identified by their bold font type and a signal word.

Example

1.5

1.6

1. NOTICE! This is a notice. It warns that there is a risk involved in the next step.

2. Step involving risk.

User requirements

ƒ Learn to operate the product in accordance with the instructions. Nobody must operate the

product before reading these Operating Instructions.

ƒ Please read and carefully observe all safety instructions and warnings contained in these

Operating Instructions and in the manuals of any connected vehicles and farm equipment.

ƒ If there is anything within these Operating Instructions that you do not understand, please do not

hesitate to contact us or your dealer. Müller-Elektronik's Customer Services department will be happy to assist you.

Intended use

TRAIL-Control II is used exclusively for the steering of agricultural trailed implements during work in fields.

TRAIL-Control II is intended exclusively for use in agriculture as well as in wine-growing, fruitcultivating, and hop-growing operations. The manufacturer cannot be held responsible for any installation or use of the system that deviates from or exceeds the scope of intended use.

The manufacturer cannot be held liable for any personal injury or property damage resulting from such improper use. All risk involved during improper use lies with the user.

Intended use also includes the adherence to the conditions for operation and repairs prescribed by the manufacturer.

All applicable accident prevention regulations and all other generally recognised safety, industrial, and medical standards as well as all road traffic laws must be observed. Any unauthorized modifications made to the equipment will void the manufacturer's warranty.

Incorrect use:

ƒ TRAIL-Control II must not be used as part of road traffic!

1.7

Declaration of conformity

This product has been manufactured in conformity with the following national and harmonised standards as specified in the current EMC Directive 2004/108/EC:

ƒ EN ISO 14982

Page 8

About these Operating Instructions

Target group of these Operating Instructions



2.1

2.2

About these Operating Instructions

Target group of these Operating Instructions

This operating manual is aimed at users of TRAIL-Control II.

Layout of operating instructions

The operating instructions explain step by step how you can perform certain operations with the product.

We use the following symbols throughout these Operating Instructions to identify different operating instructions:

Type of depiction Meaning

Actions that must be performed in succession.

Result of the action. This will happen when you perform an action.

Result of an operating instruction. This will happen when you have completed all

steps.

Requirements. In the event that any requirements have been

specified, these must be met before an action can be performed.

Page 9

Mounting and installation



System overview

3.1

Mounting and installation

System overview

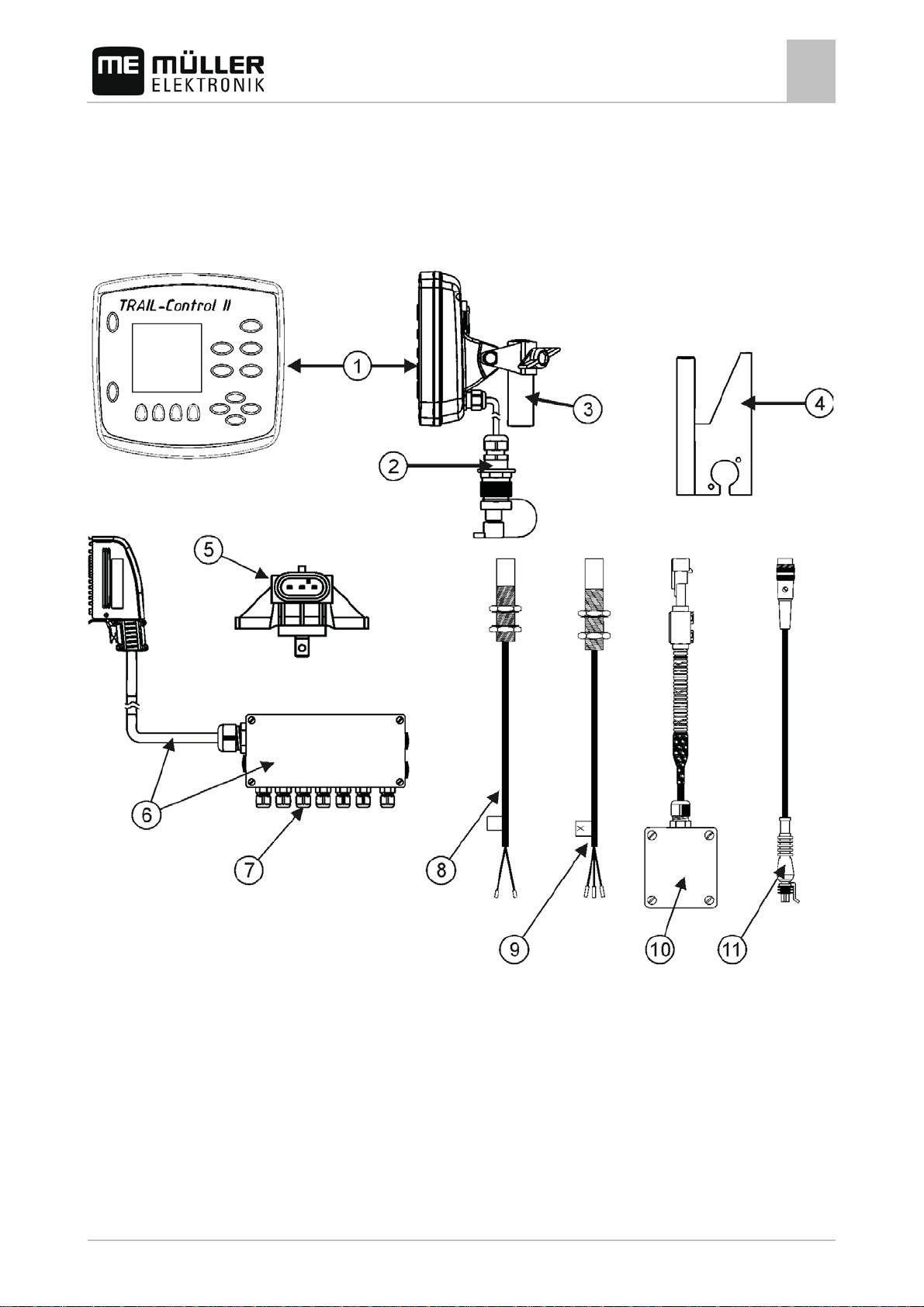

TRAIL-Control II -system overview



Page 10

Mounting and installation

Mounting the terminal



3.2

Terminal / On-board computer

Included in delivery

Power connection cable

Included in delivery

Bracket for computer

Included in delivery

Mounting bracket

Can be ordered. Item no.: 312075

Angle sensor

Can be ordered. Item no.: 30303675

Distributor with connection cable

Can be reordered. 10m cable - Item no.: 30293010

Mounting the terminal

Cable glands for connecting sections, bypass, regulation, sensors

Locking sensor

Can be ordered. Item no.: 312586

Wheel sensor

Can be ordered. Item no.: 312600

Gyroscope connected

Can be ordered. Item no.: 31303160

Connection cable for gyroscope



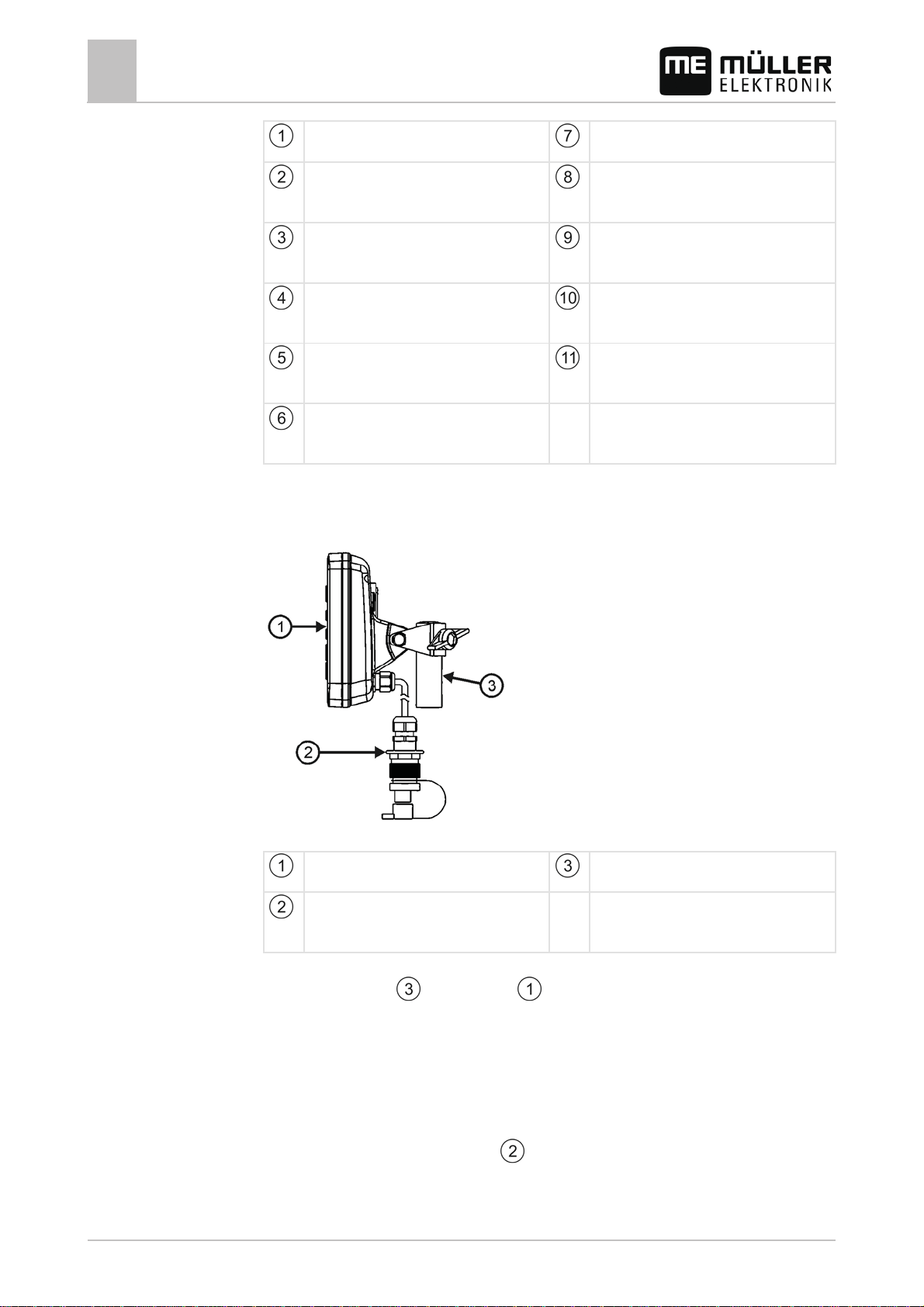

Mounting the terminal

Terminal / On-board computer Bracket

for mounting the terminal

Voltage connection cable

Power connection cable with 3-pin connector plug.

Procedure

1. Screw the bracket to the computer .

2. Fasten the bracket with the terminal in the cab of the tractor.

NOTICE! The distance to the radio device or to the radio antenna must be at least one metre.

A mounting bracket can be used to fasten the bracket in the cab.

3. Connect the terminal with the distributor.

4. Connect the power connection cable

to the battery connection cable.

Page 11

Mounting and installation



Connecting the cable

3.3

Procedure

Connecting the cable



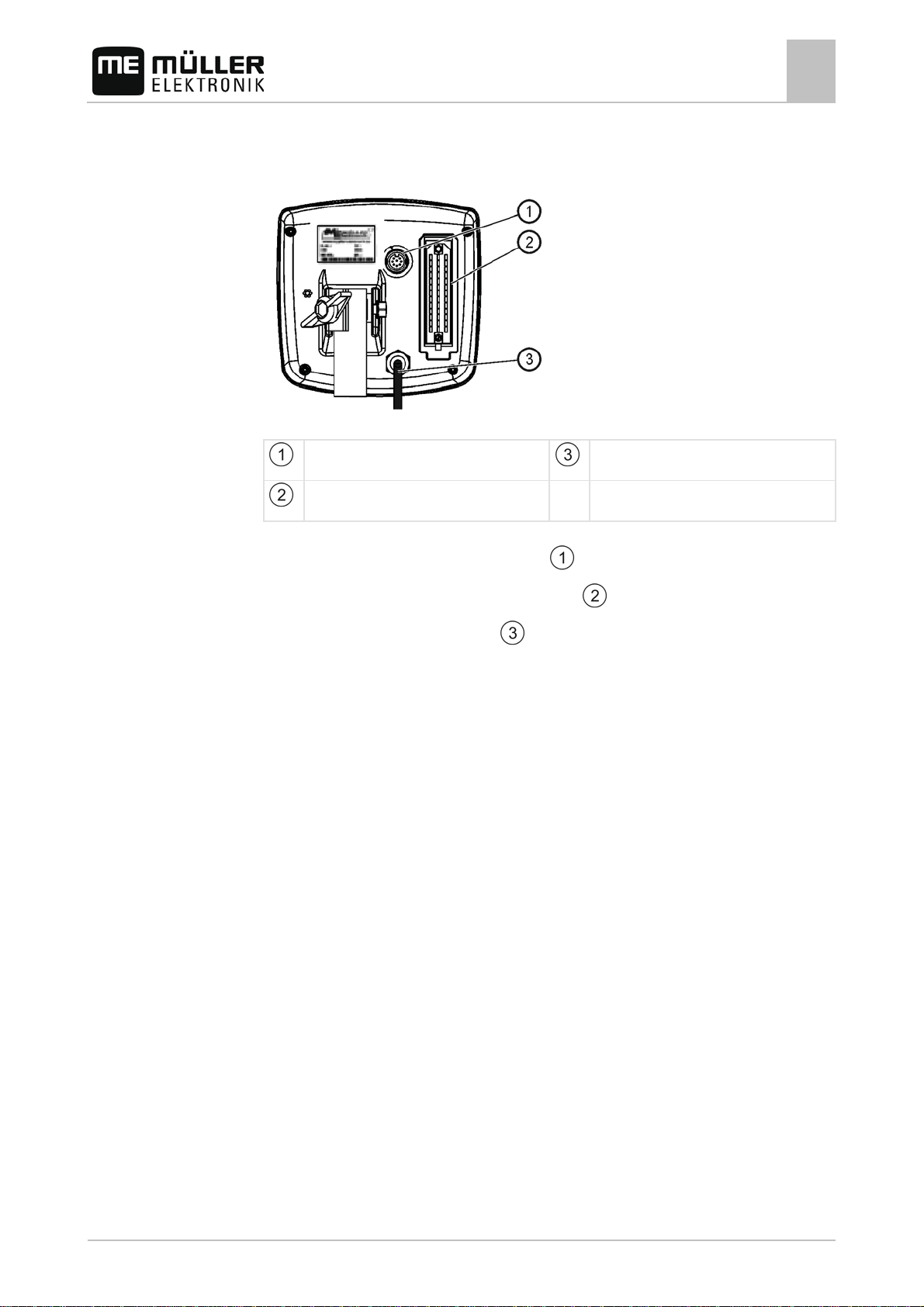

Connections

8-pin flange socket

for connection of the gyroscope.

39-pin multipin connector

for connection of the distributor.

1. Connect gyroscope to the 8-pin flange socket .

2. Connect distributor to the 39-pin multipin connector

Connect the power connection cable

to the battery connection cable.

3.4

3.5

3. Connect the power connection cable

to the battery connection cable.

Connecting the battery connection cable

When connecting the battery connection cable, read the instructions supplied with this cable.

Mounting the gyroscope

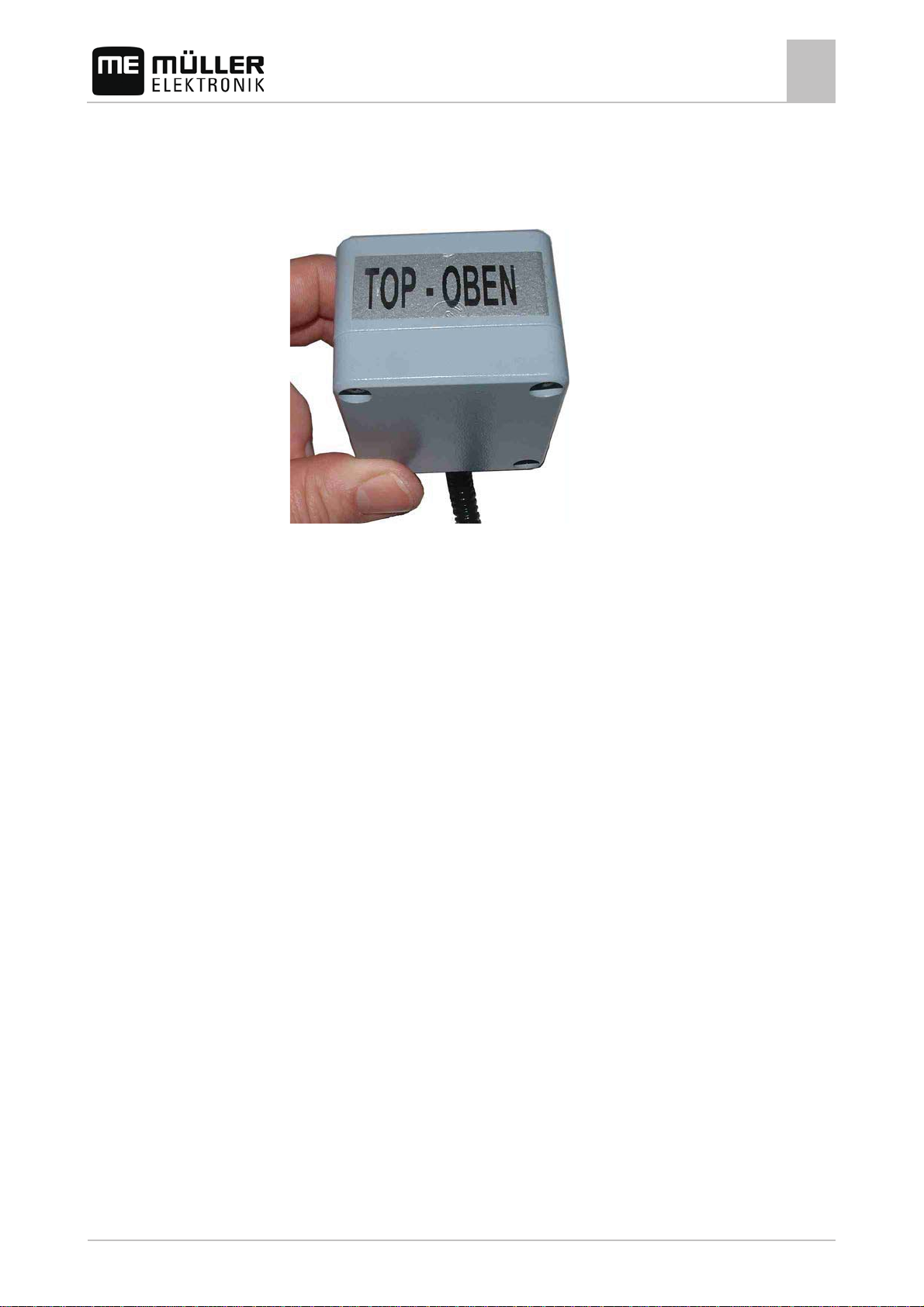

The gyroscope is a measuring device to determine the directional changes of the tractor. You must mount the gyroscope to use the TRAIL-Control II. To mount the gyroscope you must carry out the following:

ƒ Mount the bracket on the tractor. ƒ Connect the gyroscope to the distributor.

Page 12

Mounting and installation

Mounting the gyroscope



3.5.1

Mounting the bracket for the gyroscope

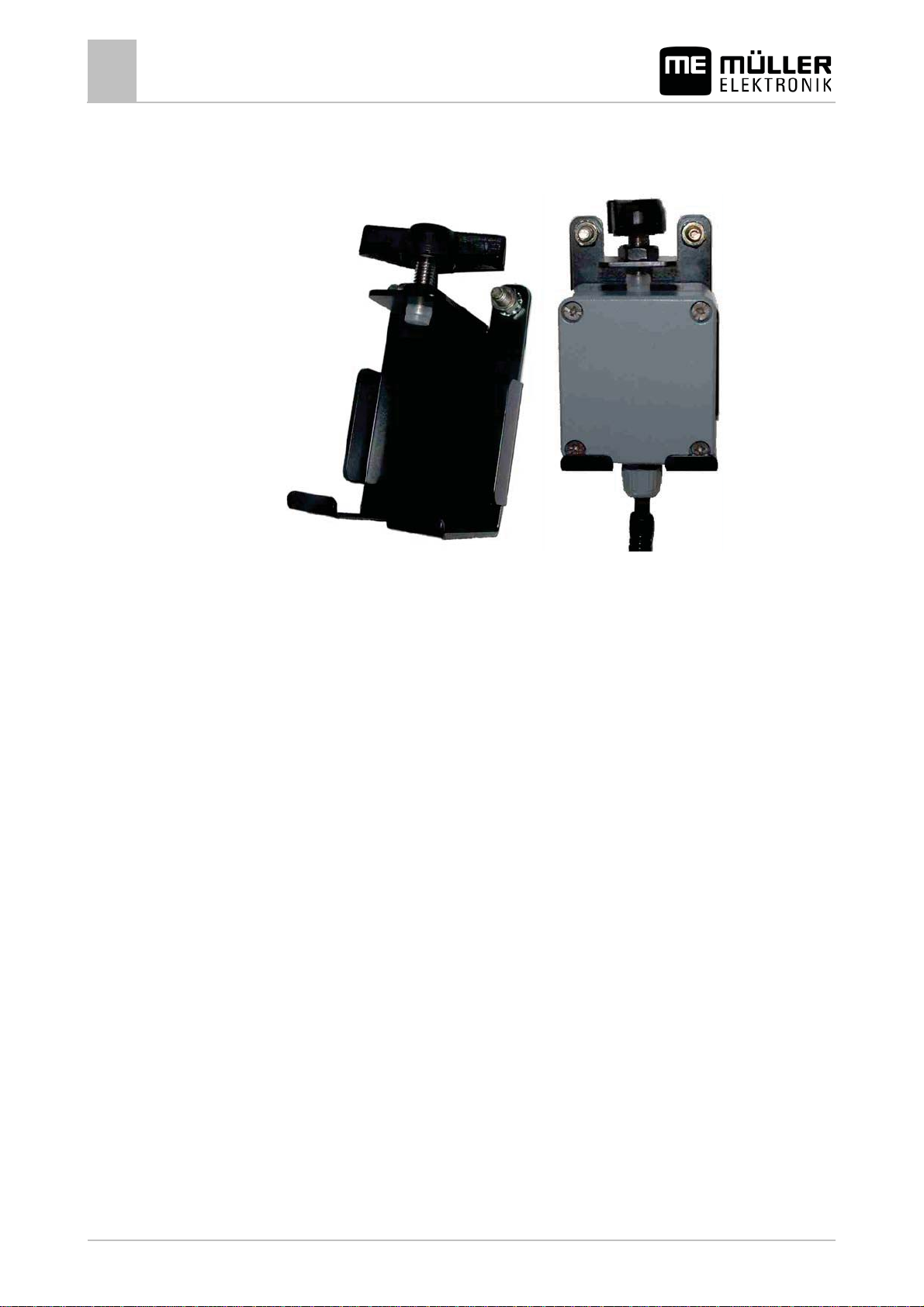

Bracket Gyroscope in the bracket

Procedure

3.5.2

Procedure

Mounting the bracket on the tractor

The bracket on the tractor is used for fastening the gyroscope to the tractor for the duration of work in the field.

1. Determine the position for mounting the bracket on the tractor. The bracket must be mounted vertically and without vibration on the rear of the tractor. Make sure that the connection cable of the gyroscope does not become too tight when fastened in the bracket.

2. CAUTION! Before drilling a hole, make sure that for drilling you are not going to damage any cables.

3. Drill the holes for the screws.

4. Fasten the bracket.

The bracket must be fastened securely to prevent shaking while driving.

Connecting the gyroscope to TRAIL-Control II

1. Connect the gyroscope cable with the connection cable.

2. Insert the connection cable into the 8-pin socket of TRAIL-Control II.

Page 13

Mounting and installation



Instructions on retrofitting

3.5.3

Procedure

Using the gyroscope

1. Fasten the gyroscope into the bracket on the tractor and screw tight with the wing screw. The side with the TOP-OBEN label must be on the top:

2. After work, fasten the gyroscope into the bracket on the trailed implement and screw tight with

the wing screw.

3.6

Selecting components

User responsibility

Instructions on retrofitting

Instructions on how to retrofit electrical and electronic farm equipment and/or components

Agricultural equipment used today features electronic components and parts whose function can be affected by other farm equipment which emits electromagnetic waves. Such effects could lead to personnel being put in danger, if the following safety instructions are not adhered to.

When selecting components, make sure first of all that the retrofitted electrical and electronic components comply with the current version of the EMC Directive 2004/108/EC and carry the CE marking.

When retrofitting a machine with electrical and electronic farm equipment and/or components connected to the vehicle's electrical system, it is your own responsibility to check whether the installation causes interference with the vehicle's electronic system or other components. This applies, in particular, to the electronic control of:

ƒ electronic hitch control, ƒ front linkage, ƒ power take off (PTO), ƒ engine, ƒ gear.

Additional requirements

The following requirements must be met in order to retrofit mobile communication systems (e.g. radio, phone):

ƒ All farm equipment must be approved and installed in accordance with the regulations applicable

in the respective country.

ƒ The equipment must be installed as a fixed installation. ƒ The operation of portable or mobile farm equipment in the interior of the vehicle is only permitted

via a connection to a permanently installed exterior antenna.

Page 14

Mounting and installation

Instructions on retrofitting



ƒ The transmitting part must be spatially separated from the vehicle's electronic system. ƒ When attaching the antenna, pay attention to proper installation, including a sound ground

connection between the antenna and the vehicle's ground wire.

For information on wiring and installation as well as the maximum allowable current consumption, please also refer to the installation guide provided by the machine manufacturer.

Page 15

Product description



Performance description

4.1

4.2

4.3

Product description

Performance description

TRAIL-Control II features the following functions:

ƒ Steering for a trailed implement:

– Drawbar steering – Stub axle steering

ƒ Slope counter-steering: Steering of a trailed implement against a slope, with work on inclined

ground

Minimal preconditions

The following minimal preconditions must be met for working of the TRAIL-Control II:

ƒ Minimal speed = 3 km/h. Steering is not possible with lower speeds. ƒ Minimal oil throughput for the hydraulic system of the tractor = 25 l/min.

Overview of keys



TRAIL-Control II on-board computer - front view

Controls

Buttons – Buttons always having the same function. Named 'buttons' from now.

Switch on-board computer on and off

Switch all functions of TRAIL-Control II on and off Steer the trailed implement into the central position Switch between manual and automatic mode Steer trailed implement to the left when the tractor drives to the right Steer trailed implement to the right when the tractor drives to the left Has no function

Page 16

Product description

Screen structure



In the menus – move the cursor up one line Increase the value by one during data input In the menus – move the cursor down one line Reduce the value by one during data input Exit screen Cancel data input Close a pop-up window Confirm data input and finish

Function buttons – Buttons, the function and meaning of which depends upon the symbols (function symbols) displayed on the screen. Function buttons may have different functions in different screens. Named 'function buttons' from now.

Activate the functions represented by the function icons

4.4

4.4.1

Screen structure

Structure of work screen

The work screen is always displayed during work and contains the most important information. The work screen informs you about the status of the connected machine during work.

The appearance of the work screen depends upon whether your trailed implement is steered via drawbar or swivel pin.

The following figure shows three areas of the work screen. The figure shows all symbols that can be displayed by the screen. During work, only some of the

symbols are displayed simultaneously. Explanations for the symbols are found in the following sections.



Areas of the work screen with steering via drawbar (left) and via swivel pin (right)

Header area Function icons section Main area of work screen

Header area

The following information is shown in this area:

ƒ Symbol for the simulated speed activated function ƒ Current speed

Page 17

Product description



ƒ Warning symbol: The warning symbol appears when you have not calibrated the proportional

valve.

Screen structure

Main area of work screen

In the main area of the work screen, symbols are displayed that inform you about the current status of steering.

Icons

The following symbols can appear in this area:

Icon Meaning

Manual mode is activated.

Automatic mode is activated

'Slope counter-steering' function is activated

Trailed implement is steered to the left when the tractor drives to the right

Trailed implement is steered to the right when the tractor drives to the left

Actual state of the angle sensor Pick-up bar of the angle sensor in central position

Actual state of the angle sensor – with steering to left Shows in which direction and how strong the pick-up bar of the angle

sensor swings out.

Controls

4.4.2

Drawbar was locked with the locking sensor

Function icons section

The lower area of the work screen shows the function symbols. The lower area of the work screen shows the function symbols. With TRAIL-Control II, four function symbols can be shown simultaneously here.

Call up counter screen Activate 'slope counter-steering' function Change to Parameter 1 screen

Structure of further screens

In addition to the work screen, further screens are displayed with TRAIL-Control II. These screens always consist of the following three areas:

Page 18

Product description

Screen structure



Screen structure

Header area

contains the designation of the displayed screen

Screen content

Function symbol area

Icons that can be pressed on this screen.

Page 19

Configuring TRAI L-Control II



When should you configure what?

Configuring TRAIL-Control II

5.1

When should you configure what?

After you have connected all components of the system, you must configure TRAIL-Control II and the connected components.

To configure the system, you must carry out the following:

ƒ Configure the on-board computer. ƒ Enter the machine parameters ƒ Calibrate the sensors ƒ Calibrate the steering hydraulics

When should you configure what?

The following table shows an overview of the configurable functions and when these functions must be configured:

Function First start-up Start of

season

Date / time Ɣ Changing the clocks.

Language Ɣ

In other instances

After more than two weeks without power.

Contrast and brightness

Compensation time (optional)

Hydr. output (optional)

Tolerance Ɣ

Wheel<->Db Ɣ When you change tractors

Wheel type When you use more than one wheel set or

Trace width Ɣ With change of track width

Calibrating the wheel sensor

Calibrate steering Ɣ When the steering is not precise.

Ɣ When the steering starts jerkily

tire set

ƔƔDisplayed speed differs from actual speed.

5.2

Configuring the basic settings of the on-board computer

To configure the basic settings, you must carry out the following:

ƒ Select the language

Page 20

Configuring TRAI L-Control II

Configuring the basic settings of the on-board computer

ƒ Set contrast and brightness ƒ Set date / time

The following sections contain detailed instructions.



5.2.1

When to enter?

Procedure

5.2.2

Setting date / time

ƒ Prior to initial startup. ƒ When TRAIL-Control II has had no power supply for more than two weeks.

1. Change to the Date/time screen:

ֲ The following screen will appear:

2. Modify the required parameters.

ֲ The new date and time appear on the screen Parameter 1

Setting contrast and brightness

Procedure

1. Change to Display screen:

ֲ The following screen will appear:

2. Configure the screen via the following function buttons:

- Increase contrast

- Reduce contrast

- Increase brightness

- Reduce brightness

- Exit the screen.

ֲ The modifications are adopted.

ֲ You have adjusted contrast and brightness of the screen.

Page 21

Configuring TRAI L-Control II



Entering the trailed implement parameters

5.2.3

Procedure

Selecting language

You can choose from the following languages:

ƒ Danish ƒ German ƒ English ƒ French ƒ Italian ƒ Dutch ƒ Polish ƒ Portuguese ƒ Swedish ƒ Spanish ƒ Czech ƒ Hungarian

1. Change to Language 1 screen

ֲ The following screen will appear:

5.3

Procedure

ֲ The on-board computer language is modified.

- If you cannot find your language on the first page, call up the next page.

- Confirm.

- Restart the on-board computer.

- mark the required language.

Entering the trailed implement parameters

Before you use TRAIL-Control II, you must enter the parameters for the connected trailed implement.

1. Change to Parameters 2 screen

Page 22

Configuring TRAI L-Control II

Entering the trailed implement parameters



ֲ The following screen will appear:

Parameter 2 screen

5. Enter the required parameter in the Parameters 3 screen.

The following tables contain an overview and explanation of the settable parameters.

Parameter Description

Comp. time Compensation time

Hyd. Flow Hydraulic Flow

- Enter the required parameter.

- Change to Parameters 3 screen

- Mark the line with the required parameter.

Enter only for trailed implements with bang bang hydraulics. The greater the value, the earlier cornering is commenced in automatic mode. The lesser the value, the later cornering is commenced in automatic mode. Normally the value is between: 700ms and 1000ms.

Enter only for trailed implements with a proportional valve. Hydraulic output is a value for setting the steering speed.

Parameter 3 screen

Normally the value is between: 1.5%/° and 3%/°

Tolerance The tolerance influences the behaviour of steering in the central position

area. The lower the tolerance is set, the more sensitive the control is to small

changes. Normally the value is between: 2° and 3°

Wheel<->Db Wheel<->Db

Distance between the center of the rear axle of the tractor and the towing hook of the tractor.

Parameter Description

Wheel Select the number of a wheel set

The parameters 'Wheel.pls' and 'Track width' change for each wheel type.

Wheel.pls If you know the number of pulses for the wheel sensor you can enter this

Page 23



Parameter Description

manually.

Track width Track width of the machine

Configuring TRAI L-Control II

Configuring TRAIL-Control II after tire change

5.4

Procedure

Configuring TRAIL-Control II after tire change

The following machine parameters change after any tire or wheel replacement:

ƒ Wheel.pls ƒ Track width

You can configure up to three wheel sets to prevent having to re-enter these parameters after each tire or wheel change.

1. Change to Parameters 3 screen

ֲ The following screen will appear:

2. In the Wheel t line, select the number of the wheel set to be configured.

5.5

When should you calibrate?

3. Calibrate the wheel sensor for this wheel set.

4. Enter the track width for this wheel set.

ֲ The wheel.pls and track width parameters are saved for the configured wheel set.

5. With every use of these tires or wheels, select the number in the Wheel t line again with which the tires are configured.

Calibrating the wheel sensor

ƒ Prior to initial startup. ƒ After changing tires. ƒ When the speed shown on the work screen is incorrect.

Page 24

Configuring TRAI L-Control II

Calibrating the wheel sensor



NOTICE

Imprecise calibration

The speed cannot be precisely determined with an incorrectly calibrated wheel sensor. This makes all calculations imprecise.

ƕ Calibrate the wheel sensor very precisely.

5.5.1

Preconditions

Determining pulses per 100 meters

When calibrating the wheel sensor with the 100m method, you determine the number of pulses received by the sensor over a distance of 100 meters.

When you know the amount of impulses, the TRAIL-Control II can calculate the current speed. In order for the wheel sensor to function correctly, it must receive at least 250 pulses over a distance

of 100 metres. With very long machines, even 300 pulses per 100 metres. To increase the number of pulses, you must mount additional magnets opposite of the wheel sensor.

; Wheel sensor is mounted. ; All wheel sensor magnets are fully functional. ; A distance of 100m has been measured and marked. The distance must correspond to the field

conditions. It should therefore lead over a meadow or a field.

; The tractor with connected implement is ready for a 100m drive and is at the start of the marked

distance.

1. Ensure that all prerequisites have been fulfilled.

2. Change to Wheel.Puls screen:

ֲ The following screen will appear:

4. The following function icons appear:

5. Drive the previously measured 100m distance and stop at the end.

- Start calibration.

- Stop calibration.

- Abort calibration.

ֲ During the drive, the currently determined pulses are displayed. At the end of the distance

at least 250 pulses should appear on the screen. If less pulses are shown, you must mount more magnets to the wheel.

- Stop calibration.

Page 25



7. - Exit the screen.

ֲ You have calibrated the wheel sensor.

Configuring TRAI L-Control II

Calibrate steering

5.5.2

Procedure

5.6

When should you calibrate?

Manually entering the number of pulses for the wheel sensor

If you know the number of pulses for the wheel sensor you can enter this number manually as well.

1. Change to Parameters 3 screen

ֲ The following screen will appear:

2. Enter the number of pulses in the Wheel.pls line.

ֲ You have manually entered the number of pulses.

Calibrate steering

ƒ Prior to initial startup. ƒ At the start of each season. ƒ When inaccuracies occur.

5.6.1

There are two methods to calibrate the steering:

ƒ Teaching-in the central position and end stops

This method is suitable for implements without proportional valves. With this method you teach the On-board computer the position of the drawbar or swivel pin in the central position as well as the left and right end stops. All intermediate positions are calculated by the On-board computer itself.

ƒ Calibrating the hydraulics of the proportional valve

This method is suitable for implements with proportional valves. With this method the trailed implement is automatically steered to both sides and the voltage is measured. Calibration with this method is automatic.

Teaching-in the central position and end stops

The appearance of the screens during calibration depends upon whether your trailed implement is steered via drawbar or swivel pin.

The procedure is however identical for both cases.

Phase 1 Teach-in central position

1. - Set up the trailed implement on flat ground in a line behind the tractor.

Page 26

Configuring TRAI L-Control II

Calibrate steering



2. Change to the TRAIL-Control screen:

or when the angle sensor is mounted to the swivel pin:

ֲ The following screen will appear:

or - Call up the calibration of the central position.

ֲ The following screen will appear:

- Confirm within three seconds.

ֲ Calibration is initiated. ֲ The following screen will appear:

ֲ Phase 1 is completed when the message 'Central position: calibration runs' is no longer

displayed.

ֲ You have calibrated the central position. ֲ You can start phase 2 of the calibration.

Phase 2 Teach-in end stops

1. - Steer the trailed implement maximally to the left.

Page 27

Configuring TRAI L-Control II



Calibrate steering

or - Start calibration.

ֲ The following screen will appear:

- Confirm within three seconds.

ֲ Calibration is initiated. ֲ The following screen will appear:

4. Wait until the message 'Left maximum position: calibration runs' is no longer displayed.

ֲ The following screen will appear:

- Steer the trailed implement maximally to the right.

Page 28

Configuring TRAI L-Control II

Calibrate steering



or - Start calibration.

ֲ The following screen will appear:

- Confirm within three seconds.

ֲ Calibration is initiated. ֲ The following screen will appear:

8. Wait until the message 'Right maximum position: calibration runs' is no longer displayed.

ֲ The following screen will appear:

ֲ Phase 2 of calibration has been completed.

5.6.2

Calibrating the hydraulics of the proportional valve

You must only calibrate the hydraulics of the proportional valve when you use a trailed implement with proportional valve.

Page 29

Configuring TRAI L-Control II



Calibrate steering

WARNING

Danger of injury from machine movements

When calibrating the proportional valve, the machine moves automatically in the bend area. This may cause danger for you and for persons in direct proximity to the machine.

ƕ Ensure that nobody is in the regulation range of the machine.

Procedure

ƕ Abort the calibration with the function button

machine.

1. - Steer the machine into central position.

- Start calibration.

ֲ The following screen will appear:

- Confirm within three seconds.

ֲ The following screen will appear:

as soon as someone approaches the

ֲ The drawbar now moves slowly to the left and then slowly to the right. ֲ This procedure may last up to 20 seconds.

ֲ Phase 3 is completed when the message 'Hydraulics calibration runs' is no longer displayed.

Page 30

Using TRAIL-Control II in the field

Activating TRAIL-Control II



6.1

Procedure

6.2

Using TRAIL-Control II in the field

Activating TRAIL-Control II

1. - Switch on TRAIL-Control II.

ֲ A blue screen with the text 'TRAIL CONTROL II' appears.

In this condition, all TRAIL-Control II functions are locked.

ֲ You have activated TRAIL-Control II.

Steering the trailed implement

TRAIL-Control II lets you work in two modes:

ƒ in automatic mode ƒ in manual mode

- Enable all functions of TRAIL-Control II.

ֲ The work screen appears. ֲ Error messages may appear here when sensors are faulty or incorrectly connected. More

about this in section: Table with possible error messages [ᇆ 40]

Controls

Mode of operation

Switch between manual and automatic mode

The TRAIL-Control function controls the trailed implement. Here the direction in which the trailed implement is steered is the reverse of the direction in which the tractor is steered.



Steering a trailed implement in a curve

Trailed implement without steering Trailed implement with swivel pin steering Trailed implement with drawbar steering

The figure shows that the trailed implement must always be steered in the opposite direction to the direction of the tractor. Only in this way can the implement remain in the tracks of the tractor.

Minimum work speed

The minimum work speed for TRAIL-Control II is 3 km/h. Speeds lower than this mean the system does not function optimally.

Page 31

Using TRAIL-Control II in the field



Steering the trailed implement

6.2.1

Controls

Procedure

Steering in manual mode

You can use manual mode to steer the trailed implement in the following situations:

ƒ Steering the trailed implement when driving forwards ƒ Steering the trailed implement when driving backwards ƒ Steering the trailed implement into the central position

WARNING

Danger of injury from trailed implement movement

The complete implement moves during steering. This may cause danger for persons and materials in direct proximity to the implement.

ƕ Ensure that nobody is in the range of the implement before steering the implement.

Steer trailed implement to the left when the tractor drives to the right Steer trailed implement to the right when the tractor drives to the left Steer the trailed implement into the central position

You can see the progress on the work screen.

1. Driving the tractor to the right

6.2.2

6.2.3

3. Drive the tractor straight ahead.

5. Driving the tractor to the left

- Steer the trailed implement for driving to the right.

ֲ With drawbar steering: The drawbar is steered to the left. ֲ With stub axle steering: The wheels are steered to the left.

- Steer the trailed implement into the central position

ֲ The trailed implement moves slowly into central position

- Steer the trailed implement for driving to the left.

ֲ With drawbar steering: The drawbar is steered to the right. ֲ With stub axle steering: The wheels are steered to the right.

Steering in automatic mode

When you work in automatic mode the trailed implement is steered automatically. The gyroscope measures the directional change of the tractor and TRAIL-Control II calculates the

required angle for steering the trailed implement.

Steering the trailed implement against the slope

For work on a slope you can use the 'slope counter-steering' function. When you activate the 'slope counter-steering' function you can offset the track of the trailed

implement to the left or right. The direction in which the track is offset depends if the slope climbs or declines to the left or right of the vehicle.

Page 32

Using TRAIL-Control II in the field

Steering the trailed implement



The aim of the 'slope counter-steering' function is to avoid the trailed implement driving inclined to the direction of work on a slope.



Steering the implement against the slope

Without TRAIL-Control II TRAIL-Control II with swivel pin steering

Procedure

TRAIL-Control II with drawbar steering

Using slope counter-steering in manual mode

In manual mode you must steer the trailed implement manually against the slope. Here you can decide yourself whether the trailed implement should follow the track of the tractor or whether it should be offset.

- Activate 'slope counter-steering' function.

ֲ The work screen displays the icon

- Steer the trailed implement against the slope. When the slope inclines to the left of the vehicle you must steer the trailed implement to the left. When the slope inclines to the right of the vehicle you must steer the trailer device to the right.

- Deactivate 'slope counter-steering' function.

Using slope counter-steering in automatic mode

In automatic mode the TRAIL-Control II determines itself how far the machine must be steered against the slope.

Procedure

; You have installed a tilt sensor.

- Activate 'slope counter-steering' function.

Page 33

Using TRAIL-Control II in the field



ֲ The work screen displays the icon .

ֲ The trailed implement is automatically steered against the slope.

Documenting work results

6.3

Path

- Deactivate 'slope counter-steering' function.

- Readjust the position of the trailer device.

Documenting work results

There are two types of meters for documenting work and evaluating this:

ƒ Day counter – documents the work until it is deleted. ƒ Total counter – documents the work since first start-up.

Both types of counters are found on the Counter screen. The first two lines are for the daily counter.



Counter screen

The Counter screen has the following information:

ƒ Time – time period of TRAIL-Control II in automatic mode. ƒ Distance – distance driven in automatic mode. ƒ Serv hours– time period in which TRAIL-Control II was switched on.

Controls

Delete day meter time Delete day meter distance

Page 34

Locking TRAIL-Control II for road driving



Procedure

Locking TRAIL-Control II for road driving

Before driving the machine on a public road you must deactivate machine steering, and if possible lock with the locking sensor.

WARNING

Risk of accident from activated machine steering

The machine steering in road traffic can lead the pulled machine to the side of the tractor track. This may cause a traffic accident. Before driving the machine on a road:

ƕ Steer the machine into central position! ƕ Switch off TRAIL-Control II!

1. - Activate manual mode.

3. If you have locking bolts: Lock drawbar steering with the locking bolts.

- Steer the trailed implement into the central position.

- Disable all functions of TRAIL-Control II.

ֲ A blue screen appears with the text 'TRAIL-Control II'.

- Switch off TRAIL-Control II.

ֲ TRAIL-Control II is ready for road traffic.

Page 35

Maintenance and servicing



Checking the software version

8.1

Procedure

Maintenance and servicing

NOTICE

This product does not contain any components which require maintenance or repair! Never unscrew the casing!

Checking the software version

1. Change to Diagnostic Info screen

ֲ The following screen will appear:

8.2

Procedure

ֲ The following information may appear on the screen:

ƒ SW: Software version ƒ OP: "Object Pools" version (icons and graphics)

Displaying sensor status

The screens in this area contain information that is mainly of interest for customer service. ou can read out the condition of sensors in the Inputs 1 screen. This screen shows the current voltage at the sensors in millivolts. When voltage is too high or too low,

an error message appears informing that the corresponding sensor is faulty.

1. Change to Inputs 1 screen:

ֲ The following screen will appear:

- To change to the Inputs 2 screen.

Page 36

Maintenance and servicing

Activating and deactivating hydraulic valves

Depending on the system's configuration, different sensors may be displayed here:

Sensor displayed Displayed sensor value Meaning

Gyroscope current measurement value current voltage in mV



ֲ The following screen will appear:

Controls

Potent.:

(angle sensor)

Tilt

(tilt sensor)

Wheel current measurement value Total sum of pulses since last

Forwds. Activated/deactivated Showsin which direction the

Backwrds. Activated/deactivated Shows in which direction the

Auto off activated Shows whether automatic

Locking Activated/deactivated Shows whether drawbar locking

Reset the wheel sensor to 0

current measurement value current voltage in mV

resetting

trailed implement moves.

switch-off is activated.

is activated.

Change to the next screen:

8.3

Procedure

Activating and deactivating hydraulic valves

If irregularities occur, a service technician can open and close the individual hydraulic valves.

1. Change to Outputs 1 screen

Page 37

Maintenance and servicing



ֲ The following screen appears:

Each output corresponds to one hydraulic valve. The current degree of the opening in percent appears in addition to the designation of the hydraulic valve.

2. Press the function buttons to activate the required hydraulic valves. As well as the output designations, the following symbols are displayed:

- Hydraulic valve is activated.

- Hydraulic valve is deactivated.

Maintaining and cleaning device

8.4

8.5

8.6

ֲ You have activated the desired hydraulic valves.

-Exit Outputs 1 screen.

Maintaining and cleaning device

ƒ Only clean TRAIL-Control II with a soft damp cloth wet with clear water or glass cleaner.

Disposing of the unit

When it has reached the end of its service life, please dispose of this product as electronic scrap in accordance with applicable EU legislation.

Technical specifi cations

Parameter Value

Operating voltage 10 - 30 V

Operating temperature -20 – +70 °C

Storage temperature -30 – +80 °C

Weight 1 kg

Dimensions (W x H x D) 170 x 165 x 90 mm

Protection class IP 54 in accordance with DIN 40050/15

EMC In accordance with ISO 14982 / PREN 55025 Interference

suppression level 4

Page 38

Maintenance and servicing

Plug assignment - 8-pin flange socket



Parameter Value

ESD protection In accordance with ISO 10605 Level 3

Power input 5 Watt (no valves connected)

Display 160 x 160 pixel LCD display, transflective with white LED

backlighting; software-controlled contrast, brightness and temperature compensation

Processor 60 MHz ARM7 LPC2214 with internal 256k flash disk and 16k RAM

RAM 1MB

Boot USB 2MB

Serial FRAM 8kB

Internal clock Buffered by capacitor, keeps the time for 2 weeks without an

external power supply.

8.7

Keyboard 14 keys plus On/off key, all backlit

Outputs 3 highside switches with maximum 2.5A each

1 motor bridge with maximum 5A

Plug assignment - 8-pin flang e socket

These abbreviations are used in the following table:

ƒ VE – Electronics voltage ƒ VL – Power voltage

8-pin flange socket Pin no.

1 5 Sig. Gyroscope

2 +12 VE 6

3 0 VE 7 RS232: RxD

4 8 RS232: TxD

Signal 8-pin flange socket

Pin no.

Signal

8.8

Plug assignment - 39-pin clip conn ector

These abbreviations are used in the following table:

ƒ VE – Electronics voltage ƒ VL – Power voltage

Page 39

Maintenance and servicing



Pin connection of gyroscope connector

39-pin connector Pin no.:

A1 TC ON / OFF B1 Magnetic valve,

A2 TC OFF / ON Bypass out

A3 Magnetic valve, left

A4 Free

A5 Magnetic valve, left

A6 Free Gyroscope

A7 Magnetic valve,

A8 Free Wheel sensor 1

Signal 39-pin connector

Pin no.:

right 2

Signal 39-pin connector

Pin no.:

Signal

right 1

Hand operation

12 VE

A9 Drawbar locking 12 VL 0 VE

A10 Center position Ground Wheel sensor 2

A11 Ground Tilt sensor

A12 Ground Locking

A13 Ground Angle sensor /

drawbar poti

8.9

Pin connection of gyroscope connector

Pin connection of gyroscope connector:



3-pin connector of gyroscope

GNDE / mass electronics Signal +12 V

Page 40

Troubleshooting

Table with possible error messages



9.1

Troubleshooting

Table with possible error messages

It may occur that a warning message or warning symbol appears on the terminal screen during work.

ƒ Warning symbols appear in the header of the work screen. ƒ Warning messages appear in a pop-up window.

The following table lists possible error messages and a short help to remedy the fault.

Error message Possible cause Help

Tilt sensor incorrectly mounted Tilt sensor is not connected but

Drawbar poti is incorrectly mounted

Incorrectly configured proportional valve

configured. Sensor voltage is not as

expected.

Angle sensor is defect or not connected.

Contact customer service.

Reset the tilt sensor configuration to works settings.

Contact customer service.

Sensor voltage is not as expected.

Gyroscope incorrectly mounted Gyroscope not connected.

Sensor voltage is not as expected.

Drawbar poti inverted Cable is incorrectly connected

to the angle sensor

Wrong settings in the password-protected area

Calibration required Calibration is no longer up-to-

date

Check parameters

Drawbar poti defective (angle sensor defective)

Sensor voltage is not as expected.

Check the gyroscope connections

Contact customer service.

Calibrate the machine steering

Check condition of the sensors

Gyroscope defective Sensor voltage is not as

expected.

Angle sensor defective Sensor voltage is not as

expected.

Speed too high The maximum speed of 15km/h Drive more slowly or switch off

Check condition of the sensors

Page 41



Error message Possible cause Help

was exceeded. TRAIL-Control II.

Troubleshooting

Procedure with faults

Sensors faulty Short signal interruptions with

all sensors.

9.2

Fault description Possible cause Help

The device does not switch on Incorrect power supply polarity Check the battery connector cable.

Machine drives with activated control (auto, central position, manual) to the mechanical end stop

The track is not maintained or the machine sways around the central position

Procedure with faults

Interruption in the power supply. Check the battery and fuse terminals.

Total failure Replace the device

Angle sensor is defected or mechanically incorrectly mounted.

Machine parameters entered incorrectly or calibration is faulty

Towing eyelet has too much play Use sleeve

Check angle sensor with a multimeter. Readjust if necessary or replace.

Check the machine parameters, Calibrate steering

Check cabling of the sensors.

Steering does not respond "End Stops" incorrectly set Calibrate steering

Hydraulics not switched on or tubes incorrectly coupled

The machine sways onwards after exiting a curve.

Central position is incorrect Angle sensor adjustment has changed Calibrate steering

No speed is displayed Missing pulse/100m input Input number of pulses/100m

Very large inert mass of the rod creates negative pressure in the hydraulic system and therefore a shifting of the cylinder

The wheel sensor does not send any pulses to the computer.

Switch on hydraulics, check tube connections

- Use loadholding valve.

- Check whether the pick-up bar at the angle sensor is correctly mounted.

Set the distance between the wheel sensor and the magnet at 5-10 mm.

The red site of the magnet must face the sensor.

Sensor is faulty, replace
