SW2
21A7059
1 Mitek Plaza
Winslow, IL 61089
815-367-3000
800-225-5689
Powered Home Subwoofer
Owner’s Manual
TECHNICAL ASSISTANCE
For additional technical assistance you can visit our web site at
www.mtx.com. Otherwise, our technical service representatives can be
reached by phone: 1-800-CALL-MTX or by E-mail: technical@mtx.com.
TWO YEAR LIMITED WARRANTY
MTX Powered Subwoofers purchased in the United States from an
authorized MTX dealer are guaranteed against defective material and
workmanship for a period of TWO YEARS from the date purchased by the
end user, and limited to the original retail purchaser of the product. Product
found to be defective during that period will be repaired or replaced by MTX
at no charge. This warranty is void if it is determined that unauthorized
parties have attempted repairs or alterations of any nature. Warranty does
not extend to cosmetic or nish. Before presuming a defect is present in
the product, be certain that all related equipment and wiring is functioning
properly. MTX disclaims any liability for other incurred damages resulting
from product defects. Any expenses incurred in the removal and reinstallation of products are not covered by this warranty. MTX’s total liability will
not exceed the purchase price of the product. If a defect is present, your
authorized MTX dealer may be able to effect repairs.
Proof of purchase is required when requesting service, so please retain
your sales receipt and take a moment to register your warranty on line at
www.mtx.com.
SPECIFICATION
Amplifier Type: Class A/B
Frequency response: 35 Hz - 160 Hz
Lo-pass xover 60 Hz - 160 Hz at 18 dB per octave
Inputs: Line level and speaker level full range
Outputs: Line level
Hi-pass subsonic filter: 18 dB per octave below 30 Hz
Polarity switch: Normal (0 degrees)/reverse (180 degrees)
Amplifier
Power: (continuous) 100 watts
Driver

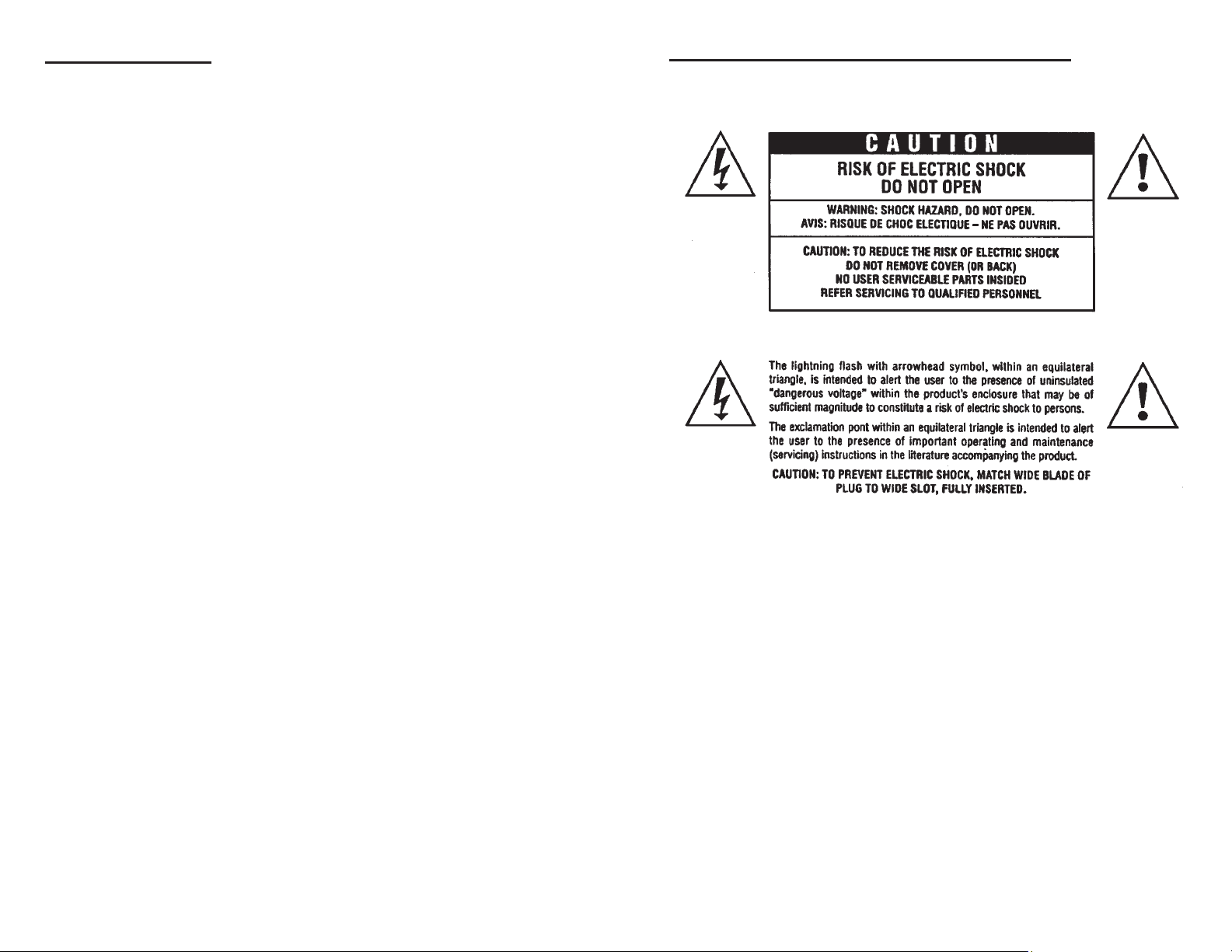

SAFETY SYMBOLS AND STATEMENTS
Size: 12”
Voice coil diameter: 1-1/2”
Dimensions
Height: 17-1/2”
Width: 15”
Depth: 17” (17 7/8” Including Amplifier)
Weight
System: 35.5 lbs
Shipping: 39 lbs
Specifications subject to change without notice.
14
