MTX Audio HTB1-S User Manual

Download
1 Mitek Plaza
Winslow, IL 61089
815-367-3000 800-225-5689
HTB1-S
Home Theater Loudspeaker
System
21A8361
INTRODUCTION
CARE AND MAINTENANCE
Your speakers are designed to work with a wide range of electronic components. As little as 20 watts per channel can provide enough power for most applications. If you have a large room or prefer louder listening levels, more power may be required.
SATELLITE/CENTER CHANNEL FEATURES
• Video shielding for placement near a TV or monitor
• 1/2" Balanced dome tweeter
• Spring loaded push terminals
• Injection molded plastic cabinets
SUBWOOFER FEATURES
• High efficiency amplifier
• Bass reflex enclosure with low noise vent
• Adjustable low-pass crossover frequency
• Adjustable gain control
SPEAKER PLACEMENT
HTB1 SET UP GUIDE Typical Loudspeaker Placement
Figure 1 illustrates the most generally accepted speaker locations for a home the
ater system. Although there are an infinite number of set up options using 1 as a template will certainly provide a great starting point. Experimentation with slightly different speaker locations may provide improved performance in your specific listening environment.
Left/Center/Right Front Speaker Height
One of the most important parameters for the left/center/right front speakers in a home theater system is height. Figure 2 shows the ideal arrangement of the speakers in relation to the viewing screen: all three speakers are aligned on the same horizontal plane. This establishes a firm image height when special audio effects are panned from one side to the other, such as a speeding car moving across the screen. When a large discontinuity occurs between the heights of the center front channel and the left/right front speakers, as depicted in Figure 3, the image of the moving object becomes confused and somewhat unnatural due to shifts in image height.
Figure
Caution: When choosing an amplifier, do not exceed the power rating of the speaker. If you hear very high levels of audible dis tortion you are exceeding the capabilities of the system. Damage can occur from this distortion, turn the volume back down until the distortion disappears.
Use the following guidelines to maintain the appearance of your speakers. Use a soft, damp cloth to clean the speaker cabinet. Avoid using harsh detergents or cleaning fluids. Remove the grills to vacuum and remove dust. Do not vacuum any of the speaker components, permanent damage could occur.
-
TECHNICAL ASSISTANCE
For additional technical assistance you can visit our website at mtx.com. Otherwise, our technical service representatives can be reached by phone: 1-800-CALLMTX (1­800-225-5689) or by email: technical@mtx.com.
MTX WARRANTY INFORMATION
-
All HTB1 speaker systems purchased in the United States from an authorized MTX dealer are guaranteed against defects in material and workmanship for a period of ONE YEAR from the date purchased by the end user, and limited to the original retail purchaser of the product. Product found to be defective during that period will be repaired or replaced by MTX at no charge. This warranty is void if it is determined that unauthorized parties have attempted repairs or alterations of any nature. Warranty does not extend to cosmetics or finish. Before presuming a defect is present in the product, be certain that all related equipment and wiring is functioning properly. MTX disclaims any liability for other incurred damages resulting from product defects. Any expenses incurred in the removal and reinstallation of product is not covered by this warranty. MTX's total liability will not exceed the purchase price of the product. If a defect is present, your authorized MTX dealer may be able to effect repairs.
Proof of purchase is required when requesting service, so please retain your sales receipt and take a moment to register your product on line
mtx.com.
SPECIFICATIONS
RIGHT
FRONT
LEFT
FRONT
45
LEFT
REAR
RIGHT
REAR
HTB1
SUBWOOFER
LISTENING AREA
CENTER
FRONT

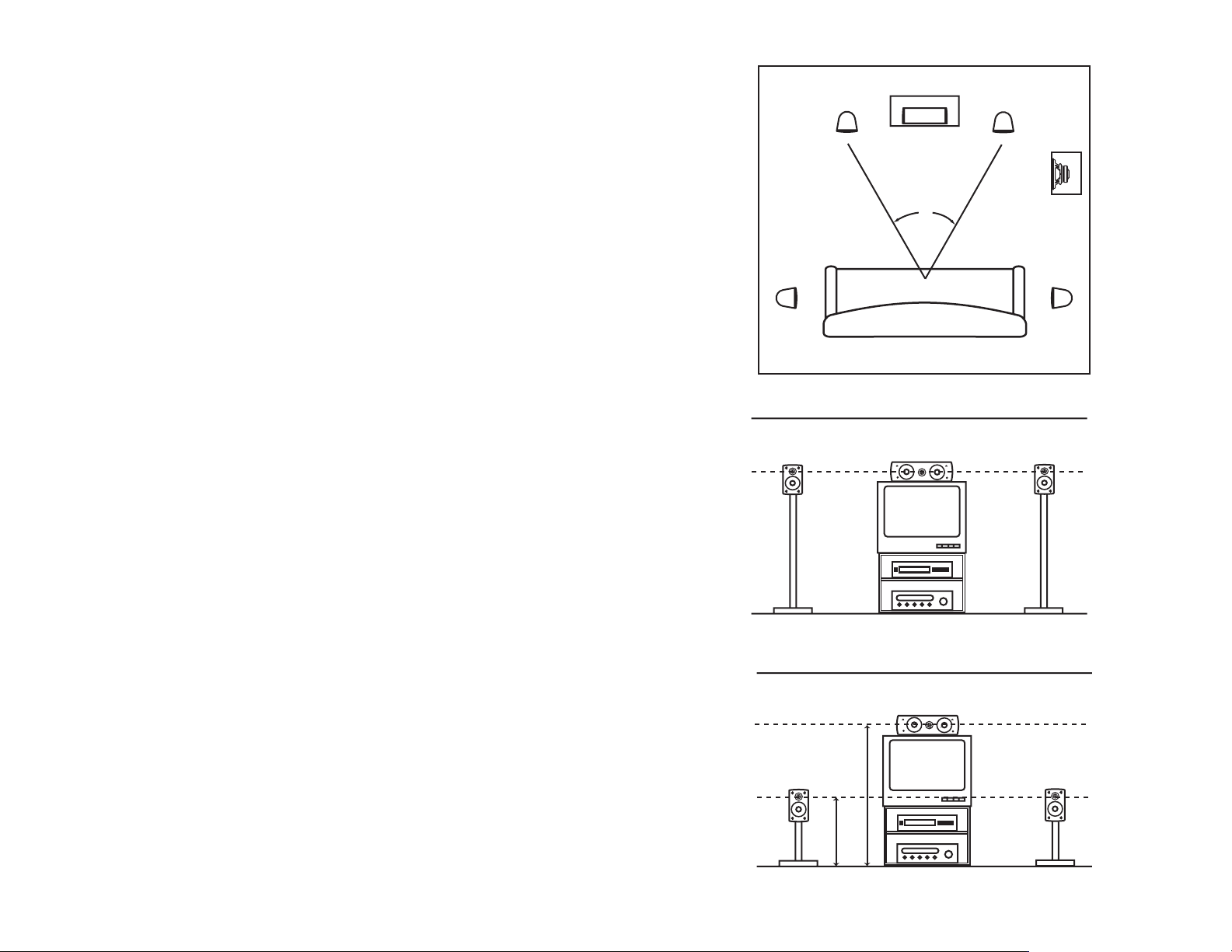

Figure 1- Typical loudspeaker placement in a home theater system.
Figure 2- Proper placement of left/center/right front speakers.
Figure 3- Improper placement of left/center/right front speakers
HTB1 Satellite/Center Channel
Driver Complement
Midrange- 3” shielded with paper cone, foam surround
Tweeter- 1/2" Balanced dome tweeter
Frequency Response: 150Hz - 20kHz
Impedance: 8 ohms nominal
Power Handling: 75 watts RMS / 150 watts peak music
Recommended Amplifier Power: 20-100 watts RMS
Sensitivity: 85dB@2.83V/1M
Weight:
Satellite- 1.8 lbs.
Center Channel- 3.0 lbs
Dimensions:
Satellite- 6"H X 4 1/8"W X 4 1/8"D
Center Channel- 4 1/8"H X 9 11/16"W X 3 7/8"D
HTB1 Subwoofer
Driver Complement
Woofer- 8" high excursion woofer
Amplifier Power: 120W Peak Music Power
Crossover Frequency: continuously variable 50Hz-150Hz
Frequency Response: 50Hz - 150Hz
Enclosure: tuned port design
Weight: 16.5 lbs.
Dimensions: 13 3/4” H X 10” W X 13 3/16” D
Optional Installation Accessories
A. Feet for Satellites
Included in the system are rubber feet that allow you to raise the Satellite Speakers up off of a level surface. Simply peel each of the four feet off the sheet and press on to the bottom of the Satellite Speaker. Repeat steps for the remaining Satellite Speakers.
B. Feet for Center Channel
Included in the system are plastic feet that allow the Center Channel to be angled more horizontally on top of your television monitor. If you wish to use the feet, simply insert the knurled end of the feet into the two holes in the lower rear of the Center Channel.
EXPLANATION OF FEATURES AND CONTROLS
FIGURE B
FRONT CENTER SURROUND
A/V Receiver or Amplifier
LEFT REAR
RIGHT REAR
CENTER
FRONT
+ -
+ -
+ -
HI LEVEL IN
R
L
L
R
LINE IN
MIN MA
X
50Hz
150Hz
POWER
ON
OF
F
FUSE 1A
/250V
Made In China
GAIN
FREQ
FROM AMPLIFIER
120 VAC
100 WATTS
60 HZ
LEFT
FRONT
+ -
RIGHT FRONT
+ -
1A2 50V
HI LEVE L IN
R
L
L
R
LINE IN
MIN MA
X
50Hz
150Hz
POWE R
ON
OF
F
FUSE 1 A
/250 V
Made In Chi na
GAIN
FREQ
FROM AMPLIFIER
120 VAC
100 WATTS
60 HZ
5
1
6
2
7
4
3
FIGURE A
1A 250 V
FIGURE C
FRONT CENTER SURROUND
A/V Receiver or Amplifier
RIGHT FRONT
LEFT
FRONT
LEFT REAR
RIGHT REAR
CENTER
FRONT
+ -
+ -
+ -
+ -
+ -
OUTPUTS
SUB
HI LEVE L IN
R
L
L
R
LINE IN
MIN MA
X
50Hz 150Hz
POWE R
ON
OF
F
FUSE 1 A
/250V
Made In China
GAIN
FREQ
FROM AMPLIFIER
120 VAC
100 WATTS
60 HZ
1A 250V
Refer to Figure A
1) Power Switch: This two position switch controls the power status of the sub woofer. Off: Turns the unit off. On: Turns the unit on regardless of whether a signal is present or not.
2) Subwoofer crossover (Freq): This rotary control adjusts a variable low pass fil ter to set the upper frequency at which the output of the subwoofer begins to roll­off. Continuously variable from 50Hz to 150 Hz, it matches the upper frequency characteristics of the subwoofer to the low frequency response of the main stereo speakers. Recommended setting: 120Hz-150Hz.
3) Line level input: These RCA phono jacks accept a line level full range signal from the preamplifier output of a receiver or preamplifier. This full range signal is processed and amplified to power the subwoofer.
4) Speaker level (high level) input: These spring loaded terminals for speaker wire accept a stereo, speaker level, full range signal from a receiver or power amplifier. This signal is processed and amplified to power the subwoofer.
5) Fuse: For continued protection replace fuse with same type and size listed.
7) Status LED: This light emitting diode shows the status of the subwoofer elec tronics. "Red" indicates that the amplifier is plugged in and the power switch is on.
WIRING AND CONNECTIONS
-
-
-
Installation using speaker level inputs (Figure B).
Installation with A/V amplifiers and receivers that have 5.1 channel line level output (Figure C). Use an RCA "Y" adaptor to connect both line level inputs.
