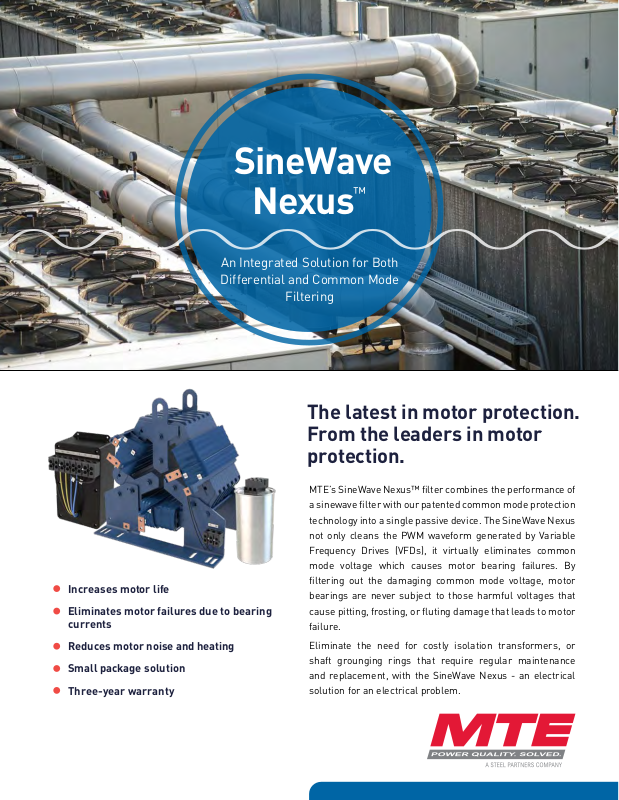

MTE SineWave Nexus Brochure

SineWave

™

Nexus

An Integrated Solution for Both
Differential and Common Mode

Filtering

The latest in motor protection.
From the leaders in motor
protection.

Increases motor life

Eliminates motor failures due to bearing
currents

Reduces motor noise and heating

Small package solution

Three-year warranty

MTE’s SineWave Nexus™ filter combines the performance of
a sinewave filter with our patented common mode protection
technology into a single passive device. The SineWave Nexus
not only cleans the PWM waveform generated by Variable
Frequency Drives (VFDs), it virtually eliminates common
mode voltage which causes motor bearing failures. By
filtering out the damaging common mode voltage, motor
bearings are never subject to those harmful voltages that
cause pitting, frosting, or fluting damage that leads to motor
failure.

Eliminate the need for costly isolation transformers, or
shaft grounging rings that require regular maintenance
and replacement, with the SineWave Nexus - an electrical
solution for an electrical problem.

The optimal solution for reducing common mode and
differential mode voltages and currents.

Differential and common mode power quality issues have
adverse affects on motors. SineWave Nexus™ filters
provide complete motor protection - for any application -

SineWave

at any cable length.

Nexus

Increase motor life by reducing high frequencies and peak

voltages caused by VFD output which result in excessive
motor heating and motor insulation stress.

Eliminate common mode voltages that cause pitting to

motor bearings and premature motor insulation failure
leading to unexpected downtime.

Save time and money associated with sourcing and

installing multiple solutions as the all-in-one design

combines the performance of a sinewave lter and

isolation transformer into one compact solution. The
SineWave Nexus also eliminates the need for costly VFD
cables.

SineWave Nexus Performance:

Total Harmonic Voltage Distortion

™

SineWave Nexus

Filters

Motor
Protection

™

Performance Specications

Input Voltage

Current Range

Harmonic Voltage
Distortion

Inverter Switching
Frequency

Inverter Operating
Frequency

Insertion Loss (Voltage)

Efciency

Common Mode
Attenuation

Maximum Sound Level

Maximum Ambient
Temperature

Altitude Without Derating

Maximum Motor Lead
Length

Relative Humidity

Current Rating

380V - 600V +/- 10%; 60Hz

2A - 160A (0.75 HP - 125 HP)

5% maximum @ 4-8kHz

2kHz to 8kHz

6Hz to 75Hz; >75Hz to
120Hz with derating

10% maximum @ 60Hz

>98%

-20dB (>90% PWM common mode RMS
voltage reduction) @ 4-8kHz

75dB @ 1 meter

-40C to +60C modular filter

-40C to +55C enclosed filter

-40C to +90C storage

3,300 feet above sea level

15,000 feet

0% to 95% non-condensing

100% RMS continuous; 150%
for 1 minute intermittent

Without SineWave Nexus With SineWave Nexus

Common Mode Voltage

Without SineWave Nexus

Common Mode Current

Without SineWave Nexus

With SineWave Nexus

With SineWave Nexus

Final product specications subject to change at anytime.

© 2020 MTE Corporation Printed in U.S.A. SWN-PSP-E 02/20
