MTD YM75 User Manual
English
Operator’s Manual
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
PRINTED IN U.S.A.
PART NO. 769-00572 (12/02)
Straight Shaft,
2-Cycle Trimmer
Model
YM75
2
TABLE OF CONTENTS
Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page
Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

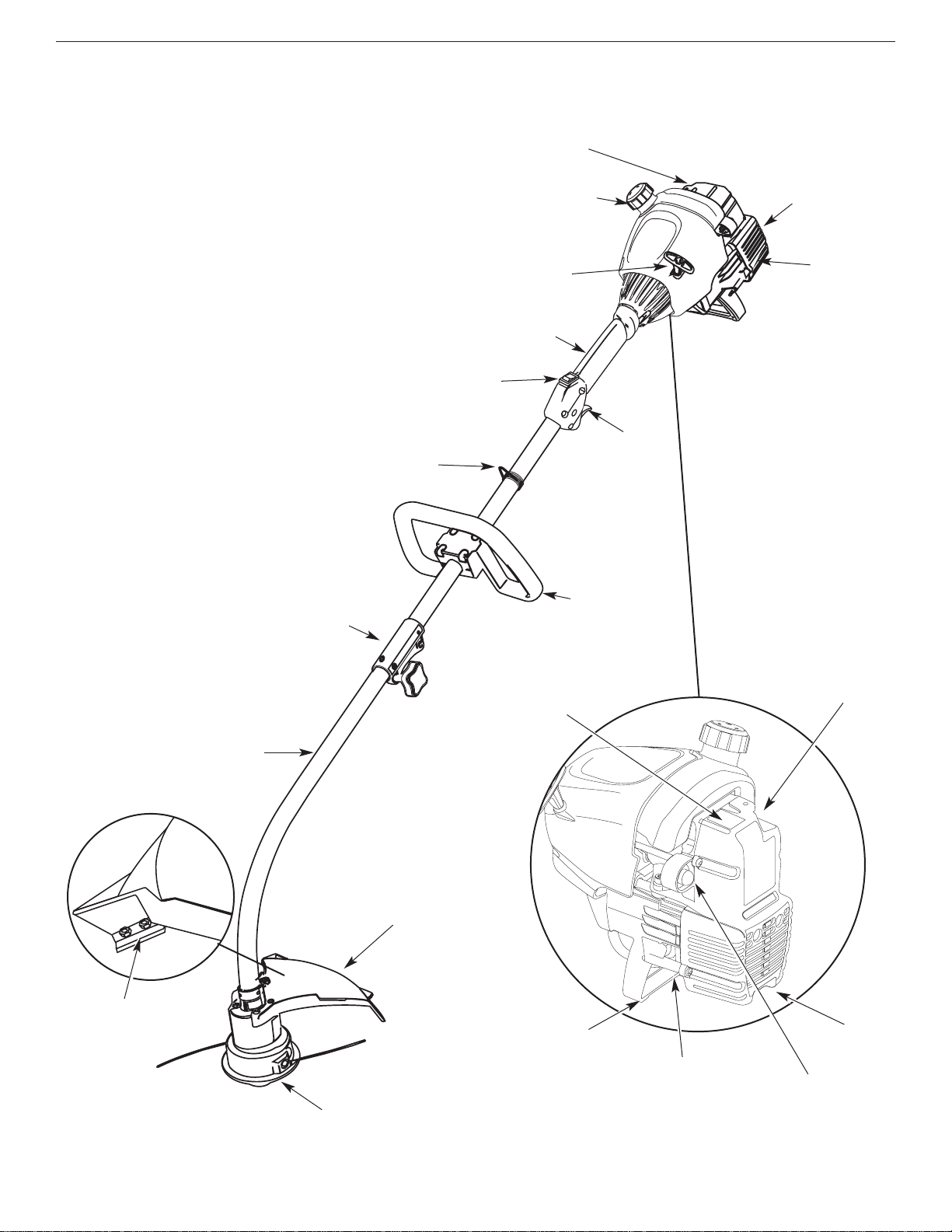

Know Your Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Starting/Stopping Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Maintenance and Repair Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inside Back Cover
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new trimmer. It will help you assemble, prepare and maintain the
unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the unit and
copy the information from it onto the space provided below. The information on the model plate is very
important if you need help from our Customer Support Department or an authorized dealer.
• The model number is located on the engine. A sample model plate is shown and explained below. For future
reference, please copy the model number and the serial number of the equipment in the space provided.
CALLING CUST
OMER SUPPOR
T
If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of
this unit, please call the Customer Support Department.
Call 1- (800)-345-8746, or 1- (800)-668-1238 in Canada, to reach a Customer Support representative.
Please have your unit’s model number and serial number ready when you call. You will be asked to
enter the serial number in order to process your call. This information is explained above.
VISIT OUR
WEB SITE
Visit our web site at www.yardman.com for more information about our quality Yard Man products, customer service,
parts, tips, literature and more.
Copy the model and parent
part number here:
Copy the serial number here:
MODEL :
S/N :
ITEM :
3

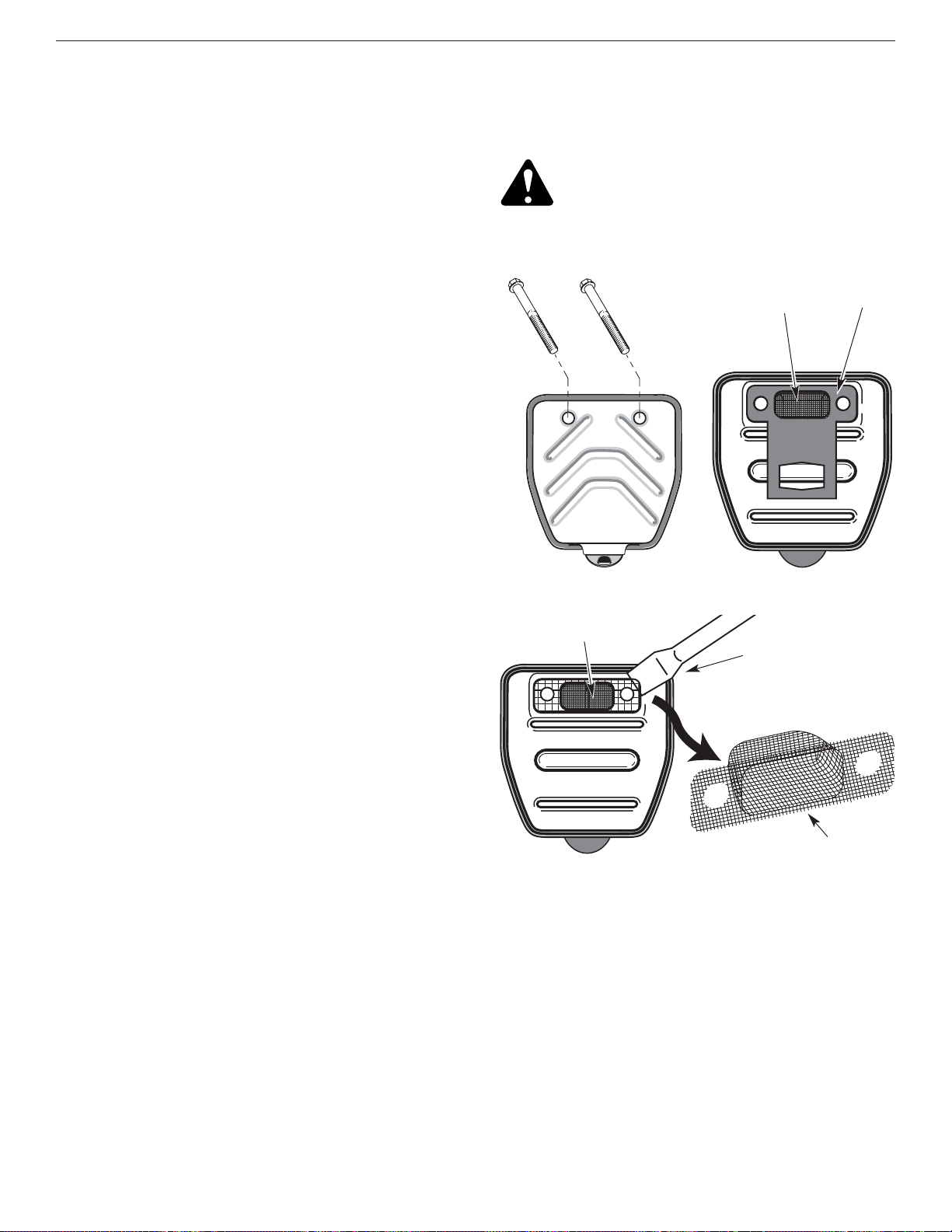

SPARK ARRESTOR
NOTE: For users on U.S. Forest Land and in the states
of California, Maine, Oregon and Washington. All U.S.
Forest Land and the state of California (Public Resources
Codes 4442 and 4443), Oregon and Washington require, by
law that certain internal combustion engines operated on
forest brush and/or grass-covered areas be equipped with
a spark arrestor, maintained in effective working order, or
the engine be constructed, equipped and maintained for the
prevention of fire. Check with your state or local authorities
for regulations pertaining to these requirements. Failure to
follow these requirements could subject you to liability or a
fine. This unit is factory equipped with a spark arrestor.
If it requires replacement, ask your LOCAL SERVICE
DEALER to install the accessory part #182747 Spark
Arrestor.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and
their explanations deserve your careful attention and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper
accident prevention measures.
SAFETY ALERT SYMBOL: Indicates danger, warning, or caution. Attention is required in order to avoid
serious personal injury. May be used in conjunction with other symbols or pictographs.
NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.
DANGER: Failure to obey a safety warning will result in serious injury to yourself or to others. Always
follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
WARNING: Failure to obey a safety warning can result in injury to yourself and others. Always follow
the safety precautions to reduce the risk of fire, electric shock and personal injury.
CAUTION: Failure to obey a safety warning may result in property damage or personal injury to
yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and
personal injury.
READ ALL INSTRUCTIONS
WARNING: When using the unit, you must
follow the safety rules. For your own safety
and that of bystanders, please read these
instructions before operating the unit.
Please keep the instructions for later use.
Before Operating
• Read the instructions carefully. Be familiar with the
controls and proper use of the unit.
• Do not operate this unit when tired, ill or under the
influence of alcohol, drugs or medication.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
THE ENGINE EXHAUST FROM THIS
PRODUCT CONTAINS CHEMICALS
KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS
OR OTHER REPRODUCTIVE HARM.
• Children under the age of 15 must not use the unit;
teens may operate the unit with adult guidance.
• Inspect the unit before use. Replace damaged parts.
Check for fuel leaks. Make sure all fasteners are in
place and secure. Replace cutting attachment parts
that are cracked, chipped or damaged in any way.
Make sure the cutting attachment is properly installed
and securely fastened. Be sure that the cutting
attachment shield is properly attached, and positioned
as recommended. Failure to do so can result in
personal injury to the operator and bystanders, as well
as damage to the unit.
• Use only 0.080-inch (2.03 mm) diameter Genuine
Factory Parts™ replacement line. Never use metalreinforced line, wire, chain or rope. These can break
off and become dangerous projectiles.
WARNING!
Read the Operator’s Manual and follow all warnings and safety instructions. Failure to do so can
result in serious injury to the operator and/or bystanders.
FOR QUESTIONS, CALL 1-800-345-8746 IN U.S. OR 1-800-668-1238 in CANADA
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
SECTION 1a:RULES FOR SAFE OPERATION
4
• Be aware of risk of injury to the head, hands and feet.
• Clear the area to be cut before each use. Remove
rocks, broken glass, nails, wire, string and other
objects which may be thrown or become entangled in
the cutting attachment. Clear the area of children,
bystanders and pets; keep them outside a 50-foot
(15 m.) radius, at a minimum. Even then, they are still
at risk from thrown objects. Encourage bystanders to
wear eye protection. If you are approached, stop the
unit immediately.
• Squeeze the throttle control and check that it returns
automatically to the idle position. Make all adjustments
or repairs before using the unit.
• This unit was not designed to be used as a
brushcutter. Do not attach or operate this unit with any
type of brushcutting blade or brushcutting attachment.
Safety Warnings for Gas Trimmers
WARNING: Gasoline is highly flammable,
and its vapors can explode if ignited. Take
the following precautions:
• Store fuel only in containers specifically designed and
approved for the storage of such materials.
• Always stop the engine and allow it to cool before
filling the fuel tank. Never remove the fuel tank cap or
add fuel when the engine is hot. Never operate the unit
without the fuel cap securely in place. Loosen the fuel
tank cap slowly to relieve any pressure in the tank.
• Add fuel in a clean, well-ventilated outdoor area where
there are no sparks or flames. Remove the fuel cap
slowly, and only after the engine stops. Do not smoke
while fueling or mixing fuel. Wipe up any spilled fuel
from the unit immediately.
• Avoid creating a source of ignition for spilled fuel. Do
not start the engine until fuel vapors dissipate.
• Move the unit at least 30 feet (9.1 m) from the fueling
source and site before starting the engine. Do not
smoke. Keep sparks and open flames away from the
area while adding fuel or operating the unit.
While Operating
• Never start or run the unit inside a closed room or
building. Breathing exhaust fumes can be fatal.
Operate this unit only in a well-ventilated outdoor area.
• Wear safety glasses or goggles that meet ANSI Z87.1
standards and are marked as such. Wear ear/hearing
protection when operating this unit. Wear a face or
dust mask if the operation is dusty.
• Wear heavy long pants, boots, gloves and a long
sleeve shirt. Do not wear loose clothing, jewelry, short
pants, sandals or go barefoot. Secure hair above
shoulder level.
• The cutting attachment shield must always be in place
while operating the unit. Do not operate unit without
both trimming lines extended, and the proper line
installed. Do not extend the trimming line beyond the
length of the shield.
• This unit has a clutch. The cutting attachment remains
stationary when the engine is idling. If it does not, have
the unit adjusted by an authorized service technician.
• Adjust the D-handle to your size in order to provide the
best grip.
• Be sure the cutting attachment is not in contact with
anything before starting the unit.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Remain in the starting
position whenever pulling the starter rope. The
operator and unit must be in a stable position while
starting. Refer to Starting/Stopping Instructions.
• Use the right tool. Only use this tool for its intended
purpose.
• Do not overreach. Always keep proper footing and
balance.
• Always hold the unit with both hands when operating.
Keep a firm grip on both handles or grips.
• Keep hands, face, and feet at a distance from all
moving parts. Do not touch or try to stop the cutting
attachment when it rotates.
• Do not touch the engine, gear housing or muffler.
These parts get extremely hot from operation, even
after the unit is turned off.
• Do not operate the engine faster than the speed
needed to cut, trim or edge. Do not run the engine at
high speed when not cutting.
• Always stop the engine when cutting is delayed or
when walking from one cutting location to another.
• If you strike or become entangled with a foreign
object, stop the engine immediately and check for
damage. Do not operate before repairing damage. Do
not operate the unit with loose or damaged parts.
• Stop the unit, switch the engine to off, and disconnect
the spark plug for maintenance or repair.
• Use only Genuine Factory Parts™ replacement parts
and accessories for this unit. These are available from
your authorized service dealer. Use of any unauthorized
parts or accessories could lead to serious injury to the
user, damage to the unit, and a voided warranty.
• Keep unit clean of vegetation and other materials.
They may become lodged between the cutting
attachment and shield.
• To reduce fire hazard, replace a faulty muffler and
spark arrestor. Keep the engine and muffler free from
grass, leaves, excessive grease or carbon build up.
Other Safety Warnings
• Never store a fueled unit inside a building where fumes
may reach an open flame or spark.
• Allow the engine to cool before storing or transporting.
Be sure to secure the unit while transporting.
• Store the unit in a dry area, locked up or up high to
prevent unauthorized use or damage, out of the reach
of children.
• Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris.
Clean after each use, see Cleaning and Storage
instructions.
• Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone this
unit, also loan them these instructions.
SAVE THESE INSTRUCTIONS
5
SECTION 1b:SAFETY & INTERNATIONAL SYMBOLS
SYMBOL MEANING
• SAFETY ALERT SYMBOL
Indicates danger, warning or caution.
May be used in conjunction with other
symbols or pictographs.
•WARNING - READ
OPERATOR'S MANUAL
Read the operator’s manual(s) and follow
all warnings and safety instructions.
Failure to do so can result in serious injury
to the operator and/or bystanders.
• WEAR EYE AND HEARING
PROTECTION
WARNING:
Thrown objects and loud
noise can cause severe eye injury and
hearing loss. Wear eye protection
meeting ANSI Z87.1 standards and ear
protection when operating this unit.
Use a full face shield when needed.
• KEEP BYSTANDERS AWAY
WARNING:
Keep all bystanders,
especially children and pets, at least
50 feet (15 m) from the operating area.
• UNLEADED FUEL
Always use clean, fresh unleaded fuel.
• OIL
Refer to operator's manual for the
proper type of oil.
SYMBOL MEANING
• THROWN OBJECTS AND
ROTATING CUTTER CAN
CAUSE SEVERE INJURY
WARNING:
Do not operate without
the cutting attachment shield in place.
Keep away from the rotating cutting
attachment.
•ON/OFF STOP CONTROL
ON / START / RUN
•ON/OFF STOP CONTROL
OFF or STOP
• HOT SURFACE WARNING
Do not touch a hot muffler, gear housing
or cylinder. You may get burned. These
parts get extremely hot from operation.
They remain hot for a short time after the
unit is turned off.
• SHARP BLADE
WARNING:
Sharp blade on cutting
attachment shield. To prevent serious
injury, do not touch line cutting blade.
This operator's manual describes safety and international symbols and pictographs that may appear on this product.
Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.
6

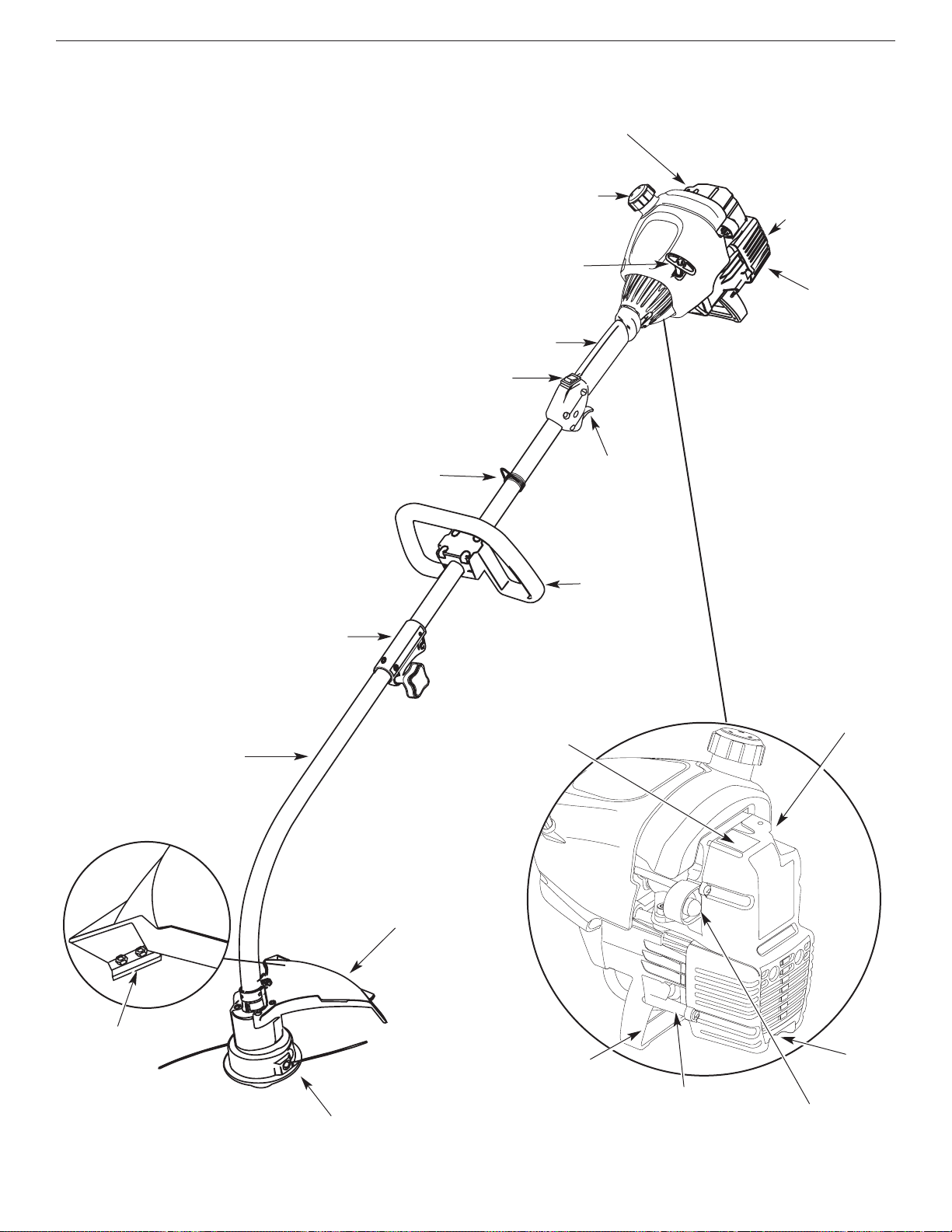

SECTION 2: KNOW YOUR UNIT
Applications
As a trimmer:
• Cutting grass and light weeds
• Edging
• Decorative trimming around trees, fences, etc.
Other optional accessories may be used with the YM75.
Refer to Operating the EZ-Link System for a list of add-ons.
Cutting Attachment
Shield
Fuel Cap
Throttle
Control
D-Handle
Cutting Attachment
Shaft Grip
Primer Bulb
EZ-Start™
Lever
Air Filter/Muffler
Cover
Engine Stand
Spark Plug
Shaft Housing
Starter Rope Grip
EZ-Link™
Spark Plug
Muffler
Muffler Guard
Muffler
EZ-Start™ Lever
Line Cutting Blade
On/Off Stop Control
Shoulder Strap Clip
7
SECTION 3: ASSEMBLY INSTRUCTIONS
On some units, the D-handle may be pre-installed,
requiring only loosening screws and some adjustment. If
this is the case, go to step 4.
Installing and Adjusting the D-handle
1. Remove the screws and bottom clamp piece that
were installed on the D-handle for shipping.
2. Place D-handle the over the shaft housing and onto
the bottom clamp. See Figure 1. Place it a minimum
of 6 inches (15.24 cm) from the end of the shaft grip.
3. Start screws with a large Flat-head or T-25 Torx
screwdriver. Do not tighten until you make the
handle adjustment.
4. If it was pre-installed, loosen the screws on the
D-handle just enough to move the D-handle.
(4) Screws
Shaft
Housing
D-Handle
Bottom Clamp
Shaft Grip
Minimum 6 inches
(15.24 cm)
On/Off Stop Control
5. While holding the unit in the operating position, move
the D-handle to the location that provides you the
best grip. See Figure 2.
6. Tighten the clamp screws evenly, until the D-handle
is secure.
Figure 1
Figure 2
Installing the Cutting Attachment Shield
Use the following instructions if the cutting attachment
shield on your unit is not installed.
WARNING: To prevent serious personal
injury, never operate the trimmer without
the cutting attachment shield in place.
1. Slide the cutting attachment shield into the shield
mount on the cutting attachment. Align the screw
holes in the shield with the holes in the cutting
attachment. See Figure 3.
2. Place a hex lock nut into one of the three recessed
holes on the top of the cutting attachment shield. See
Figure 4.
3. Install a screw into the hole from the bottom of the
cutting attachment shield and screw it into the nut
installed in step 2. See Figure 5. Do not tighten.
4. Repeat steps 2 and 3 until all three screws have been
started, then tighten securely.
Figure 3
Figure 4
Figure 5
Cutting Attachment
Shield
Screws (3)
Shaft Housing
Hex Lock Nut
Cutting Attachment
Shield
Cutting Attachment
Recessed Holes
Shield Mount
8
SECTION 4: OIL AND FUEL INFORMATION
WARNING: Gasoline is extremely
flammable. Ignited vapors may explode.
Always stop the engine and allow it to cool
before filling the fuel tank. Do not smoke
while filling the tank. Keep sparks and
open flames at a distance from the area.
WARNING: Remove fuel cap slowly to avoid
injury from fuel spray. Never operate the unit
without the fuel cap securely in place.
WARNING: Add fuel in a clean, wellventilated outdoor area. Wipe up any
spilled fuel immediately. Avoid creating a
source of ignition for spilled fuel. Do not
start the engine until fuel vapors dissipate.
NOTE: Dispose of the old fuel/oil mix in accordance to
Federal, State and Local regulations.
Oil and Fuel Mixing Instructions
Old and/or improperly mixed fuel is the main reason for
improper unit performance. Be sure to use fresh, clean
unleaded fuel. Follow the instructions carefully for the
proper fuel/oil mixture.
Definition of Blended Fuels
Today's fuels are often a blend of gasoline and
oxygenates such as ethanol, methanol, or MTBE (ether).
Alcohol-blended fuel absorbs water. As little as 1%
water in the fuel can make fuel and oil separate. It forms
acids when stored. When using alcohol-blended fuel,
use fresh fuel (less than 60 days old).
Using Blended Fuels
If you choose to use a blended fuel, or its use is
unavoidable, follow recommended precautions:
• Always use fresh fuel mix per your operator's manual
• Always agitate the fuel mix before fueling the unit
• Drain the tank and run the engine dry before storing
the unit
Using Fuel Additives
The bottle of 2-cycle oil that came with your unit
contains a fuel additive which will help inhibit corrosion
and minimize the formation of gum deposits. It is
recommended that you use only our 2-cycle oil with this
unit.
If unavailable, use a good 2-cycle oil designed for aircooled engines along with a fuel additive, such as
STA-BIL®Gas Stabilizer or an equivalent. Add 0.8 oz.
(23 ml.) of fuel additive per gallon of fuel according to the
instructions on the container. NEVER add fuel additives
directly to the unit's fuel tank.
CAUTION: For proper engine operation and
maximum reliability, pay strict attention to
the oil and fuel mixing instructions on the
2-cycle oil container. Using improperly mixed
fuel can severely damage the engine.
Thoroughly mix the proper ratio of 2-cycle engine oil with
unleaded gasoline in a separate fuel can. Use a 40:1 fuel/oil
ratio. Do not mix them directly in the engine fuel tank. See
the table below for specific gas and oil mixing ratios.
NOTE: One gallon (3.8 liters) of unleaded gasoline mixed
with one 3.2 oz. (95 ml.) bottle of 2-cycle oil
makes a 40:1 fuel/oil ratio.
+
UNLEADED GAS 2-CYCLE OIL
1 US. GALLON + 3.2 FL. OZ.
(3.8 LITERS) (95 ml)
1 LITER + 25 ml
MIXING RATIO - 40:1
9
SECTION 5: STARTING/STOPPING INSTRUCTIONS
WARNING: Operate this unit only in a well- ventilated
outdoor area. Carbon monoxide exhaust fumes can be
lethal in a confined area
.
WARNING: Avoid accidental starting. Make sure you
are in the starting position when pulling the starter
rope. See Figure 8. To avoid serious injury, the operator
and unit must be in a stable position while starting.
To avoid serious personal injury, ensure any Add-On
being used is installed correctly and secure before
starting unit.
Stopping Instructions
1. Release your hand from the throttle control.
See Figure 8. Allow the engine to cool down
by idling.
2. Push and hold the On/Off Stop Control in
the OFF (O) position until the engine stops
running. See Figure 6
On/Off Stop Control
Start/On (I)
Stop/Off (O)
Throttle Control
Starter Rope
Throttle Control
Primer
Bulb
EZ-Start™
Lever
Figure 8
Figure 7
Figure 6
Starting Instructions
IF... You are starting a warm engine, begin at step 4.
1. Mix gas with oil. Fill fuel tank with fuel/oil mixture.
See Oil and Fuel Mixing Instructions.
2. Make sure the On/Off Stop Control is in the ON (I)
position. See Figure 6.
3. Fully press and release the primer bulb 10 times,
slowly, until FUEL IS VISIBLE IN THE PRIMER
BULB. See Figure 7. If you can’t see fuel in the bulb,
press and release the bulb as many times as it takes
before you can see fuel in it.
4. Push the EZ-Start™ Lever to the left until it clicks and
locks into place. See Figure 7.
5. With the unit in the starting position, DO NOT
SQUEEZE THE THROTTLE CONTROL. See Figure 8.
Pull the starter rope 5 times briskly, making sure the
EZ-Start™ lever is pushed to the left.
IF... The engine does not start, go back to step 3.
IF... The engine starts to run before the fifth pull, go to step 6.
IF... The outside temperature or engine temperature
exceeds 90º F and the engine fails to start after 5
pulls, fully squeeze the throttle control and pull the
starter rope briskly 3 to 8 more times. The engine
should start within these pulls.
NOTE:When starting, the EZ-Start™ Lever will automatically
click off when you squeeze the throttle control.
6. When the engine starts, squeeze the throttle control
to warm up the engine for 5 to 10 seconds. The EZStart™ Lever will click off automatically. See Figure 7.
IF... The engine stalls while squeezing the throttle, go
back to step 4.
IF... The engine stalls before you squeeze the throttle
control, hold the throttle control and pull the starter
rope until the trimmer starts.
10
For edging (when using the line head cutting attachment
with EZ-Link™ models), lock the release button of the
cutting attachment into the 90° edging hole or the 180°
edging hole. See Figure 11.
Operating the EZ-Link™ System
The EZ-Link™ system enables the use of these optional
Add-Ons:
Blower/Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . BV720r
Cultivator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GC720r
Edger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE720r
Hedge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . HS720r
Snow Thrower . . . . . . . . . . . . . . . . . . . . . . . . . . . ST720r
Straight Shaft Trimmer . . . . . . . . . . . . . . . . . . . . SS725r
Tree Pruner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TP720r
Turbo Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB720r
Removing the Cutting Attachment or Add-Ons
1. Turn the knob counterclockwise to loosen. See Figure 9.
2. Press and hold the release button. See Figure 9.
3. While firmly holding the upper shaft housing, pull
the cutting attachment or add-on straight out of the
EZ-Link™ coupler. See Figure 10.
Installing the Cutting Attachment or Add-On
NOTE: Place the unit on the ground or on a work bench
to make add-on installation or removal easier.
1. Turn knob counterclockwise to loosen.
EZ-Link™ Coupler
Release Button
Guide Recess
Knob
Primary Hole
Upper Shaft Housing
EZ-Link™ Coupler
2. While firmly holding the add-on, push it straight into
the EZ-Link™ coupler. See Figure 10.
NOTE: Aligning the release button with the guide recess
will help installation. See Figure 9.
3. Turn the knob clockwise to tighten. See Figure 11.
Knob
Lower Shaft Housing
Release Button
90˚ Edging Hole
(Trimmer Only)
180˚ Edging Hole
(Trimmer Only)
CAUTION: Lock the release button in the
primary hole and securely tighten the knob
before operating this unit
SECTION 6: OPERATING INSTRUCTIONS
Figure 11
Figure 10
Figure 9
CAUTION:
The cutting attachment and addons with the EZ-Link™ system are to be used
in the primary hole unless stated otherwise in
the specific add-ons operator’s manual.
Using the wrong hole could lead to personal
injury or damage to the unit.
WARNING: Read and understand the
operator’s manual for each add-on prior to
operation.
WARNING: To avoid serious personal injury
and damage to the unit, shut off the unit
before removing or installing add-ons.
11

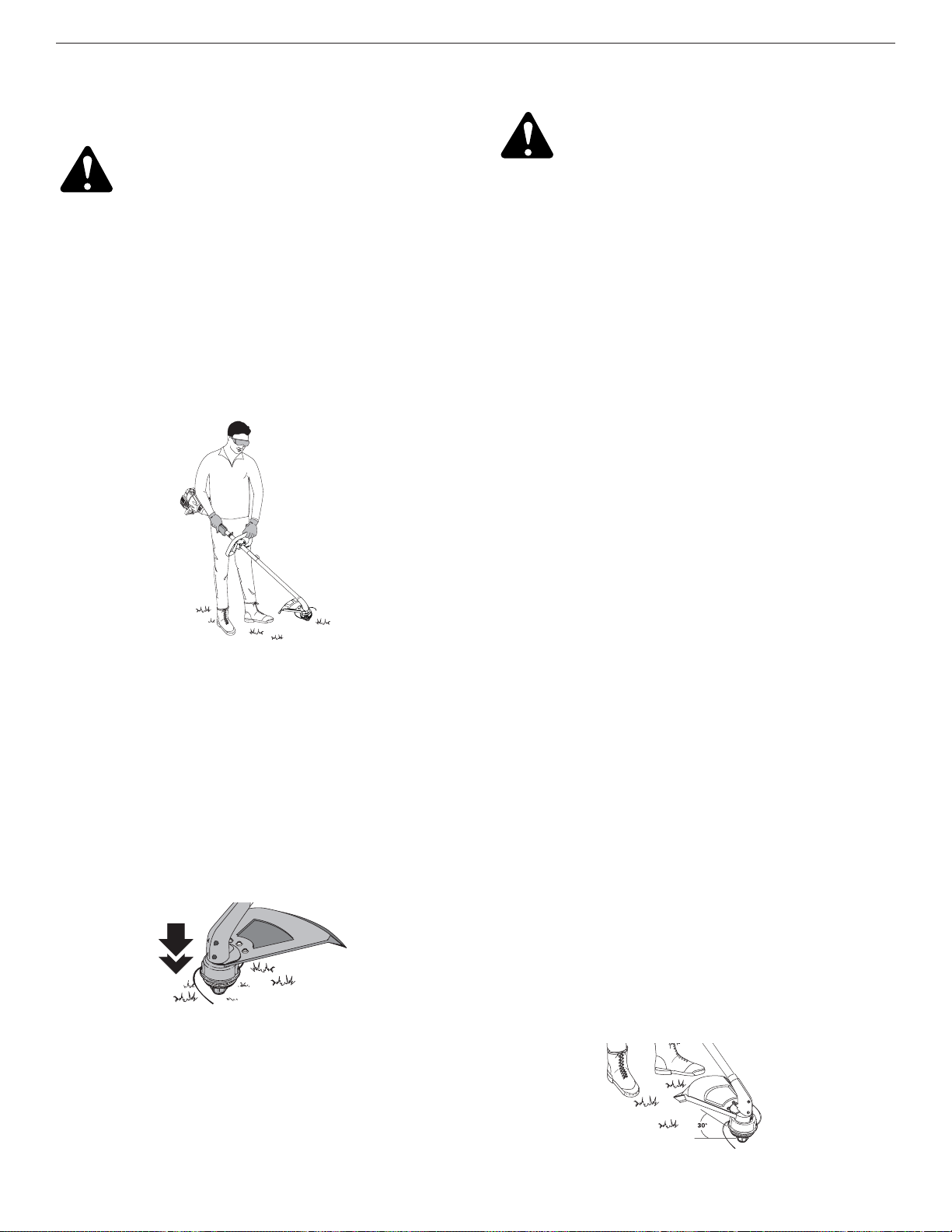

Holding the Trimmer
WARNING: Always wear eye, hearing, foot
and body protection to reduce the risk of
injury when operating this unit.
Before operating the unit, stand in the operating
position. See Figure 12. Check for the following:
• The operator is wearing eye protection and proper
clothing
• With a slightly-bent right arm, the operator’s right hand
is holding the shaft grip
• The operator’s left arm is straight, the left hand holding
the D-handle
• The unit is at waist level
•
The cutting attachment is parallel to the ground and
easily contacts the grass without the need to bend ove
r
Adjusting Trimming Line Length
The Bump Head™ cutting attachment allows you to release
trimming line without stopping the engine. To release more
line, lightly tap the cutting attachment on the ground while
operating the trimmer at high speed. See Figure 13.
NOTE: Always keep the trimming line fully extended.
Line release becomes more difficult when the
cutting line gets shorter.
Each time the head is bumped, about 1 inch (25.4 mm)
of trimming line releases. A blade in the cutting
attachment shield will cut the line to the proper length if
any excess line is released.
For best results, tap the bump knob on bare ground or
hard soil. If you attempt a line release in tall grass, the
engine may stall. Always keep the trimming line fully
extended. Line release becomes more difficult when the
cutting line gets shorter.
NOTE: Do not rest the bump knob on the ground while
the unit is running.
CAUTION: Do not remove or alter the line
cutting blade assembly. Excessive line
length may make the unit overheat.
Some line breakage will occur from:
• Entanglement with foreign matter
• Normal line fatigue
• An attempt to cut thick, stalky weeds
•
Forcing the line into objects such as walls or fence posts
Tips for Best Trimming Results
• For best trimming results, operate unit at full throttle.
• Keep the cutting attachment parallel to the ground.
• Do not force the cutting attachment. Allow the tip of
the line to do the cutting, especially along walls.
Cutting with more than the tip will reduce cutting
efficiency and may overload the engine.
• Cut grass over 8 inches (200 mm) tall by working
from top to bottom in small increments to avoid
premature line wear or engine drag.
• Cut from right to left whenever possible. Cutting to
the left improves the unit's cutting efficiency.
Clippings are thrown away from the operator.
• Slowly move the trimmer into and out of the cutting
area at the desired height. Move either in a forwardto-backward or side-to-side motion. Cutting shorter
lengths produces the best results.
• Trim only when grass and weeds are dry.
• The life of your cutting line is dependent upon:
• Following the trimming techniques
• What vegetation is being cut
• Where vegetation is cut
For example, the line will wear faster when trimming
against a foundation wall as opposed to trimming
around a tree.
Decorative Trimming
Decorative trimming refers to the removal of vegetation
around trees, posts, fences and more.
Rotate the whole unit so that the cutting attachment is at
a 30° angle to the ground. See Figure 14.
SECTION 6: OPERATING INSTRUCTIONS
Figure 12
Figure 13
Figure 14
12
SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS
WARNING: To prevent serious injury, never
perform maintenance or repairs with unit
running. Always service and repair a cool
unit. Disconnect the spark plug wire to
ensure that the unit cannot start.

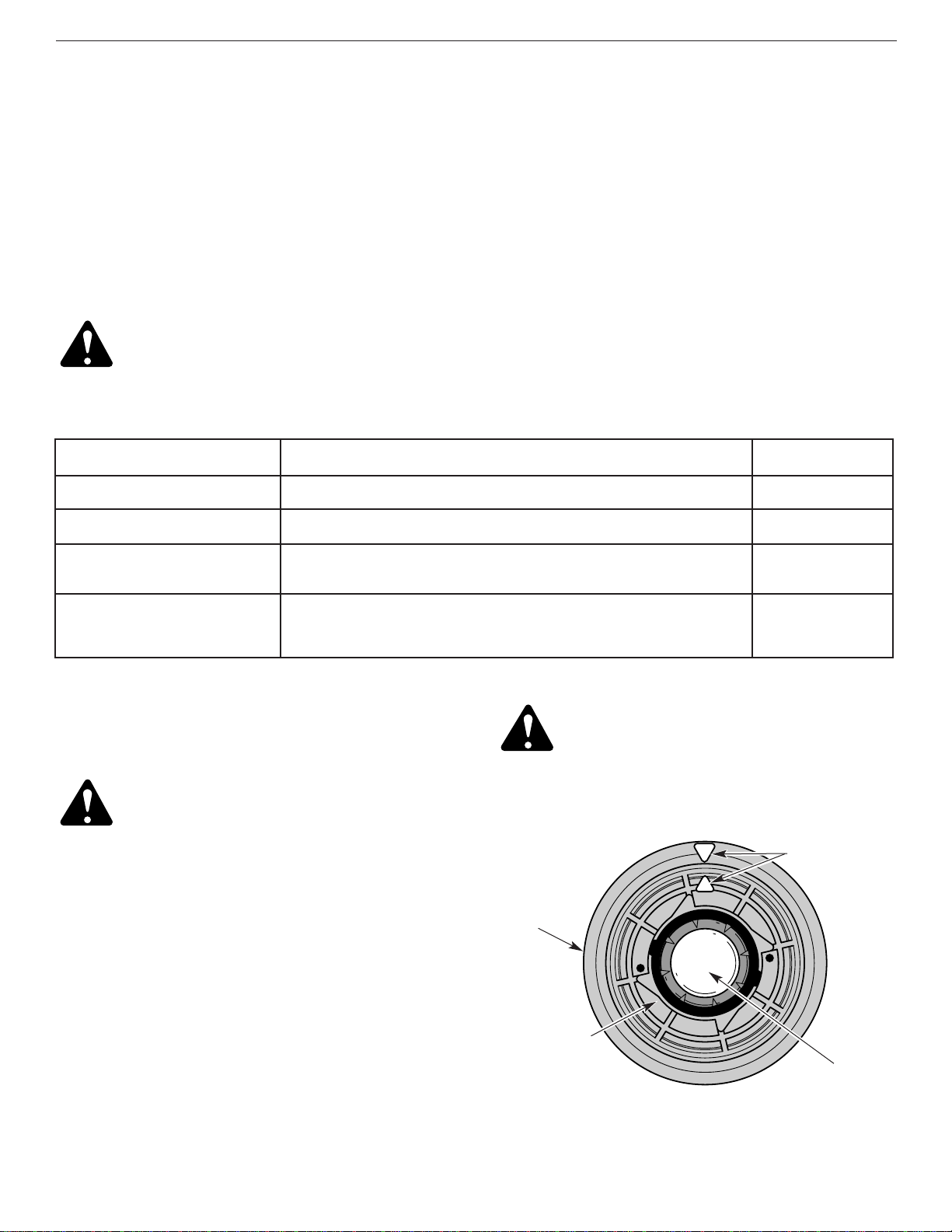

Maintenance Schedule
Perform these required maintenance procedures at the
frequency stated in the table. These procedures should
also be a part of any seasonal tune-up.
NOTE: Some maintenance procedures may require
special tools or skills. If you are unsure about
these procedures take your unit to any non-road
engine repair establishment, individual or
authorized service dealer.
NOTE: Maintenance, replacement, or repair of the
emission control devices and system may be
performed by any non-road engine repair
establishment, individual or authorized service
dealer.
In order to assure peak performance of your engine,
inspection of the engine exhaust port may be necessary
after 50 hours of operation. If you notice lost RPM, poor
performance or general lack of acceleration, this service
may be required. If you feel your engine is in need of this
inspection, refer service to any non-road engine repair
establishment, individual or authorized service dealer for
repair. DO NOT attempt to perform this process yourself
as engine damage may result from contaminants
involved in the cleaning process for the port.
FREQUENCY MAINTENANCE REQUIRED REFER TO
Before starting engine Fill fuel tank with fresh fuel Page 8
Every 10 hours Clean and re-oil air filter Page 15
Every 25 hours
Check and clean spark arrestor
Check spark plug condition and gap
Page 16
Page 18
Every 50 hours
Inspect exhaust port and spark arrestor screen for clogging or
obstruction to assure maximum performance levels
Page 16
Line Installation
Always use Genuine Factory Parts™ 0.080 in. (2.03 mm)
replacement line. Using line other than the specified may
make the engine overheat or fail.
WARNING: Never use metal-reinforced line,
wire, chain or rope. These can break off
and become dangerous projectiles.
There are two methods to replace the trimming line:
• Wind the inner reel with new line
• Install a prewound inner reel
Winding the Inner Reel with New Line
NOTE: It is unnecessary to remove the bump knob to
install new trimming line.
1. Cut two pieces of 0.080 inch (2.03 mm) trimming line,
10 feet (3 m) long.
2. Hold the outer spool and turn the inner reel
counterclockwise to line up the arrows on the outer
spool and inner reel. See Figure 15.
Figure 15
WARNING: Always use the correct line
length when installing trimming line on the
unit. The line may not release properly if
the line is too long.
Top View Of The SpeedSpool
®
Outer Spool
Inner Reel
Bump Knob
Arrows
13
SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS
Line Locking Hole
Trimming Line
Line Loading Hole
Eyelet
5. Insert the line into the locking hole. Do not push the
line more than a 1/2 inch (12.7 mm) into the line
locking hole. The line will form a small loop when it is
inserted correctly. See Figure 17.
3. Pull old line out of the line loading and line locking
holes. See Figure 16 and 17.
4. Insert a piece of trimming line straight into one of the
two eyelets in the outer spool. Push it up through the
line loading hole in the inner reel. See Figure 16. Do
not bend the line when inserting it into the eyelet.
6. Pull the line from the outer spool until the line is tight
against the inner reel. See Figure 18.
Installing a Pre-wound Reel
1. Turn the bump knob counterclockwise and remove
the bump knob, spring and foam seal. See Figure 21.
9. If winding the line becomes difficult or if the line
jams, pull the ends of the line from the spool. See
Figure 20. Continue winding the inner reel
counterclockwise.
7. Repeat procedures 4-6 with the second piece of line.
8. Hold the outer spool. Wind the inner reel
counterclockwise until approximately four (4) inches
(102 mm) of line remain. See Figure 19.
NOTE: Do not wind the inner reel before installing the
second piece of line.
Bump Knob
Foam Seal
Spring
Inner Reel
Figure 21
Figure 20
Figure 19
Figure 18
Figure 17
Figure 16
14
SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS
SpeedSpool®Replacement Parts
Refer to the Accessories/Replacement Parts section.
4. Hold the inner reel in place and install the bump
knob, spring and foam seal. Press down and turn the
bump knob clockwise. Grasp the ends and pull
firmly to release the line from the holding slots in the
inner reel. See Figure 20.
Releasing the Inner Reel
If the SpeedSpool®does not release line correctly, pull
the ends of the line firmly from the spool. See Figure 20.
If this does not the release line, follow the Cleaning the
SpeedSpool®instructions.
2. Pull the old inner reel with existing line from the outer
spool.
3. Insert the ends of the prewound inner reel line into
the outer spool eyelets. See Figure 22. Push the new
inner reel, arrow side up, into the outer spool.
4. Remove any existing line from the inner reel before
cleaning. Remove any debris or grass from the knob,
spring, inner reel and foam seal. Wash the inner reel
with warm soapy water. See Figure 24.
Cleaning the SpeedSpool
®
Cleaning the SpeedSpool®may be necessary if:
•A jammed or excessive line must be removed
• The SpeedSpool®becomes difficult to wind or does
not operate correctly when bumping the head on the
ground
1. Hold the outer spool, and unscrew the bump knob
counterclockwise. See Figure 23.
2. Pull out the bump knob, spring and foam seal.
Shaft
Plunger
NOTE: The inner reel must be totally dry before
reinstalling it into the outer spool. Do not
lubricate the inner reel or outer spool assembly.
6. Place the inner reel into the outer spool.
7. Place the bump knob, spring and foam seal into the
inner reel. See Figure 21.
8. Press the bump knob down and tighten clockwise.
9. Install new line as described in Line Installation for
the SpeedSpool®.
5. Clean the shaft and the inner surface of the outer
spool. To clean the shaft underneath the plunger,
press down on the plunger. See Figure 25. Remove
any dirt or debris from the shaft.
Inner Reel
3. Pull the inner reel with existing line from the outer
spool. See Figure 22.
Figure 24
Figure 23
Figure 22
Figure 25
Holding Slots
15
Air Filter Maintenance
Removing the Air Filter/Muffler Cover
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or service it.
1. Remove the four (4) screws securing the air filter/
muffler cover. See Figure 26. Use a flat blade or T20
Torx bit screwdriver.
2. Pull the cover from the engine. Do not force.
Cleaning the Air Filter
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean it or perform any
maintenance.
Clean and re-oil the air filter every 10 hours of operation.
It is an important item to maintain. Failure to maintain the
air filter will VOID the warranty.
1. Remove air filter/muffler cover. See Removing the Air
Filter/Muffler Cover.
SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS

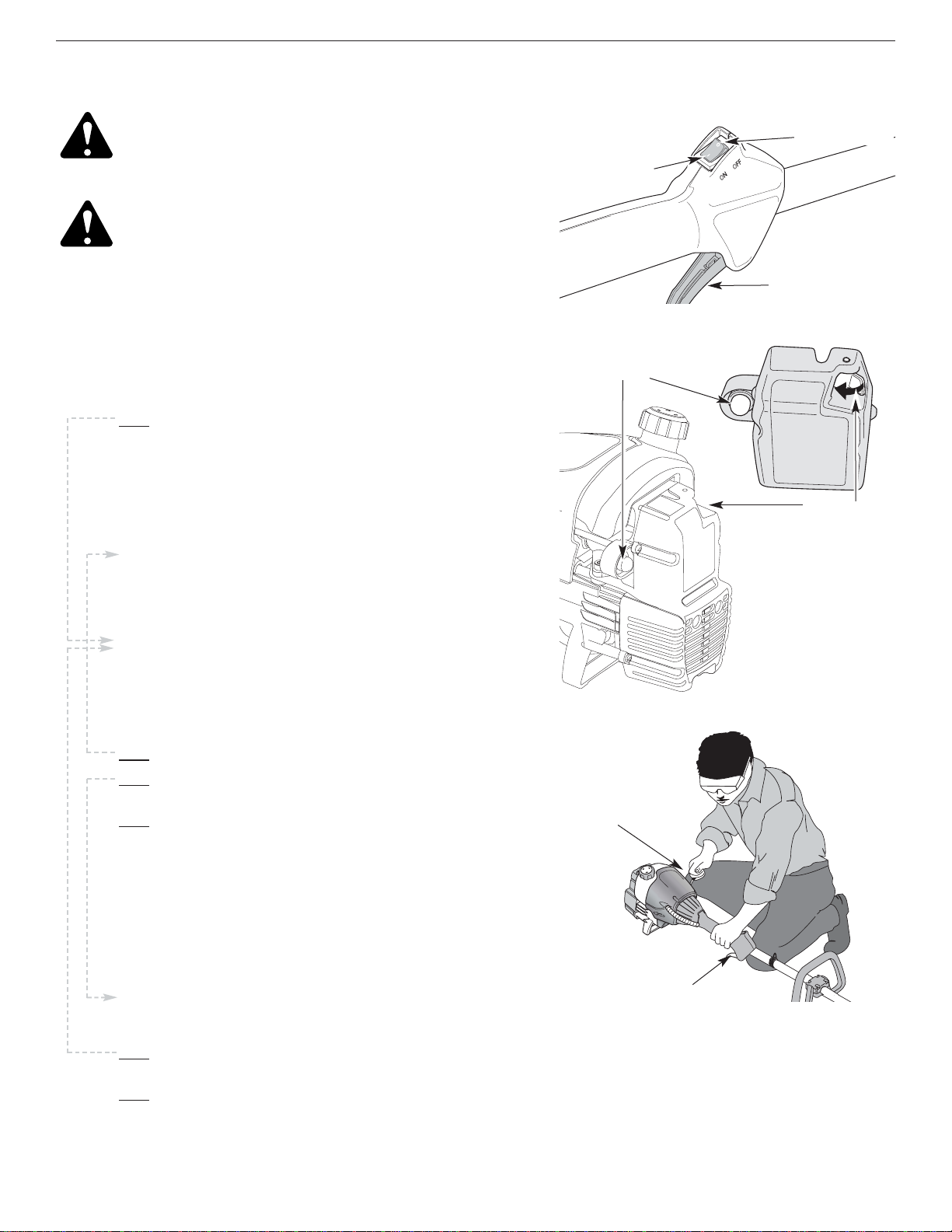

Figure 26
Air Filter
Inside Muffler
Cover
Figure 28Figure 27
Screws
Screws
EZ-Start™
Lever
Figure 30
Figure 29
2. Turn cover over and look inside to locate the air filter.
Remove the air filter from inside the air filter/muffler
cover. See Figure 27.
3. Wash the filter in detergent and water. See Figure
28. Rinse the filter thoroughly. Squeeze out excess
water. Allow it to dry completely.
4. Apply enough clean SAE 30 oil to lightly coat the
filter. See Figure 29.
5. Squeeze the filter to spread and remove excess oil.
See Figure 30.
16
Muffler - Front Side
Muffler - Back Side
Bolts
Exhaust
Gasket
Spark
Arrestor
Muffler - Back Side
Spark
Arrestor
Flat blade
Screwdriver
Spark Arrestor
6. Replace the air filter inside the air filter/muffler cover.
See Figure 27.
NOTE:
Operating the unit without the air filter and air
filter/muffler cover assembly, will VOID the warranty.
Reinstalling the Air Filter/Muffler Cover
1. Place the air filter/muffler cover over the back of the
carburetor and muffler. Align the screw holes.
2. Insert the four (4) screws into the holes in the air
filter/muffler cover and tighten. See Figure 26.
Do not over tighten.
Spark Arrestor Maintenance
1. Remove air filter/muffler cover. See Removing the Air
Filter/Muffler Cover.
2. Locate muffler front and the two (2) bolts securing it
to the engine. See Figure 31. Remove the two (2)
bolts using a flatblade screwdriver or 5/16-inch
socket or nut driver. Pull muffler off of the engine.
3. Turn muffler over to the back side and locate the
exhaust gasket. Remove the muffler gasket from the
muffler. See Figure 31.
NOTE: If the exhaust gasket is torn or damaged, replace
it with a new gasket before reassembling muffler.
4.
Using a small flatblade screwdriver, carefully pry up the
spark arrestor from the recessed hole. See Figure 32.
Remove the spark arrestor from the muffler.
5. Clean the spark arrestor with a wire brush. Replace it
if it is damaged or if it is impossible to clean
thoroughly. See Figure 32.
6. Reinstall the spark arrestor by pressing it into the
recessed hole on the muffler's back side. Make sure
it fits tightly against the muffler and is not raised up.
7. Place the exhaust gasket against muffler's back side.
Align the gasket bolt holes with the bolt holes in the
muffler. While holding exhaust gasket in place, insert
the bolts into the muffler's front side. See Figure 31.
8. Place the muffler (with the exhaust gasket in place
and bolts inserted), against the engine, aligning the
bolt holes. Tighten the bolts to secure the muffler to
the engine. If using a torque wrench torque to:
80-90 in.•lb. (9-10.2 N•m).
WARNING: If the muffler is not tightened
securely, it could fall off causing damage to
the unit and possible serious personal injury.
9. Reinstall the air filter/muffler cover.
SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS
Figure 32
Figure 31
17

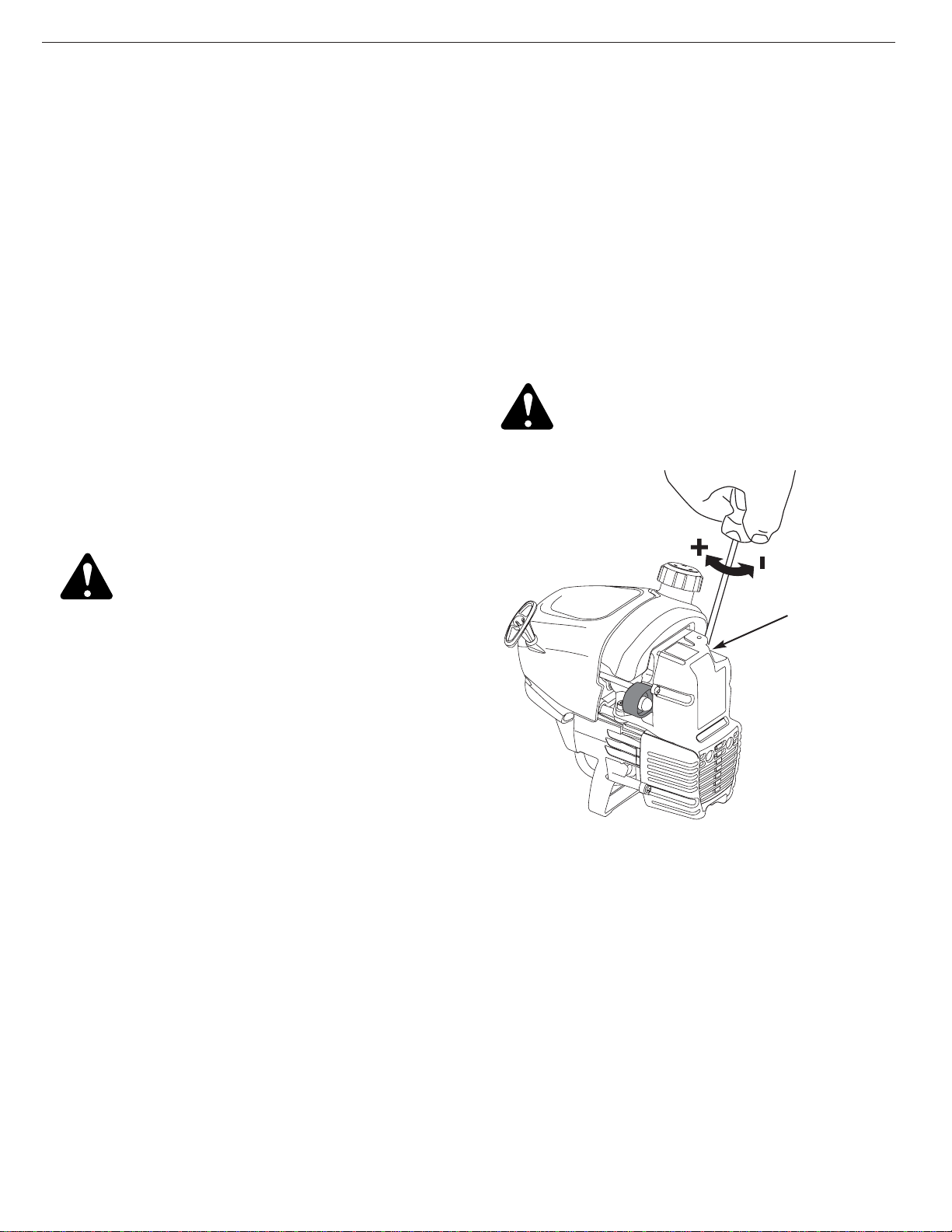

Idle Speed Screw
Figure 33
SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS
Carburetor Adjustment
The idle speed of the engine is adjustable through the air
filter/muffler cover. See Figure 33.
NOTE: Careless adjustments can seriously damage your
unit. An authorized service dealer should make
carburetor adjustments.
Check Fuel Mixture
Old and/or improperly mixed fuel is usually the reason for
improper unit performance. Drain and refill the tank with
fresh, properly mixed fuel prior to making any
adjustments. Refer to Oil and Fuel Information.
Clean Air Filter
The condition of the air filter is important to the operation
of the unit. A dirty air filter will restrict air flow and change
the air/fuel mixture. This is often mistaken for an out of
adjustment carburetor. Check the condition of the air
filter before adjusting the idle speed screw. Refer to Air
Filter Maintenance.
Adjust Idle Speed
WARNING: The cutting attachment may
spin during idle speed adjustments. Wear
protective clothing and observe all safety
instructions to prevent serious personal
injury.
If, after checking the fuel mixture and cleaning the air
filter, the engine still will not idle, adjust the idle speed as
follows.
1. Start the engine and let it run at a high idle for a
minute to warm up. See Starting/Stopping
Instructions.
2. Release the throttle trigger and let the engine idle. If
the engine stops, insert a small Phillips or flat blade
screwdriver into the hole in the air filter/muffler cover.
See Figure 33. Turn the idle speed screw in,
clockwise, 1/8 of a turn at a time (as needed) until the
engine idles smoothly.
NOTE: The cutting attachment should not rotate when
the engine idles.
3. If the cutting attachment rotates when the engine idles,
turn the idle speed screw counterclockwise 1/8 of a
turn at a time (as needed), to reduce idle speed.
Checking the fuel mixture, cleaning the air filter, and
adjusting the idle speed should solve most engine
problems.
If this is not the case and the following are all true:
• The engine will not idle
• The engine hesitates or stalls on acceleration
• There is a loss of engine power
Have the carburetor adjusted by an authorized service
dealer.
WARNING: After turning the unit off, make
sure the cutting attachment has stopped
before setting the unit down. This helps
prevent serious personal injury.
18
SECTION 7: MAINTENANCE AND REPAIR INSTRUCTIONS
Replacing the Spark Plug
Use a Champion RDJ7Y spark plug (or equivalent). The
correct air gap is 0.020 inch (0.5 mm). Remove the plug
after every 25 hours of operation and check its condition.
1. Stop the engine and allow it to cool. Grasp the plug
wire firmly and pull it from the spark plug.
2. Clean around the spark plug. Remove the spark plug
from the cylinder head by turning a 5/8 in. socket
counterclockwise.
3. Replace cracked, fouled or dirty spark plug. Set the
air gap at 0.020 in. (0.5 mm) using a feeler gauge.
See Figure 34.
CAUTION: Do not sand blast, scrape or
clean electrodes. Grit in the engine could
damage the cylinder.
4. Install a correctly-gapped spark plug in the cylinder
head. Tighten by turning the 5/8 inch socket
clockwise until snug.
If using a torque wrench torque to:
110-120 in.•lb. (12.3-13.5 N•m).
Do not over tighten.
Accessories/Replacement Parts
2-Cycle Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147543
Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610311
Spark Arrestor . . . . . . . . . . . . . . . . . . . . . . . . . . . .182747
Replacement Line . . . . . . . . . . . . . . . . . . . . . . . . 181472
Replacement Line Cartridge . . . . . . . . . . . . . . . . 181460
Inner Reel Spring . . . . . . . . . . . . . . . . . . . . . . . . . 181465
Outer Spool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181457
Inner Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181464
Bump Knob™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181468
Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180000
Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . 682075
These replacement parts can be purchased from your
local authorized dealer.

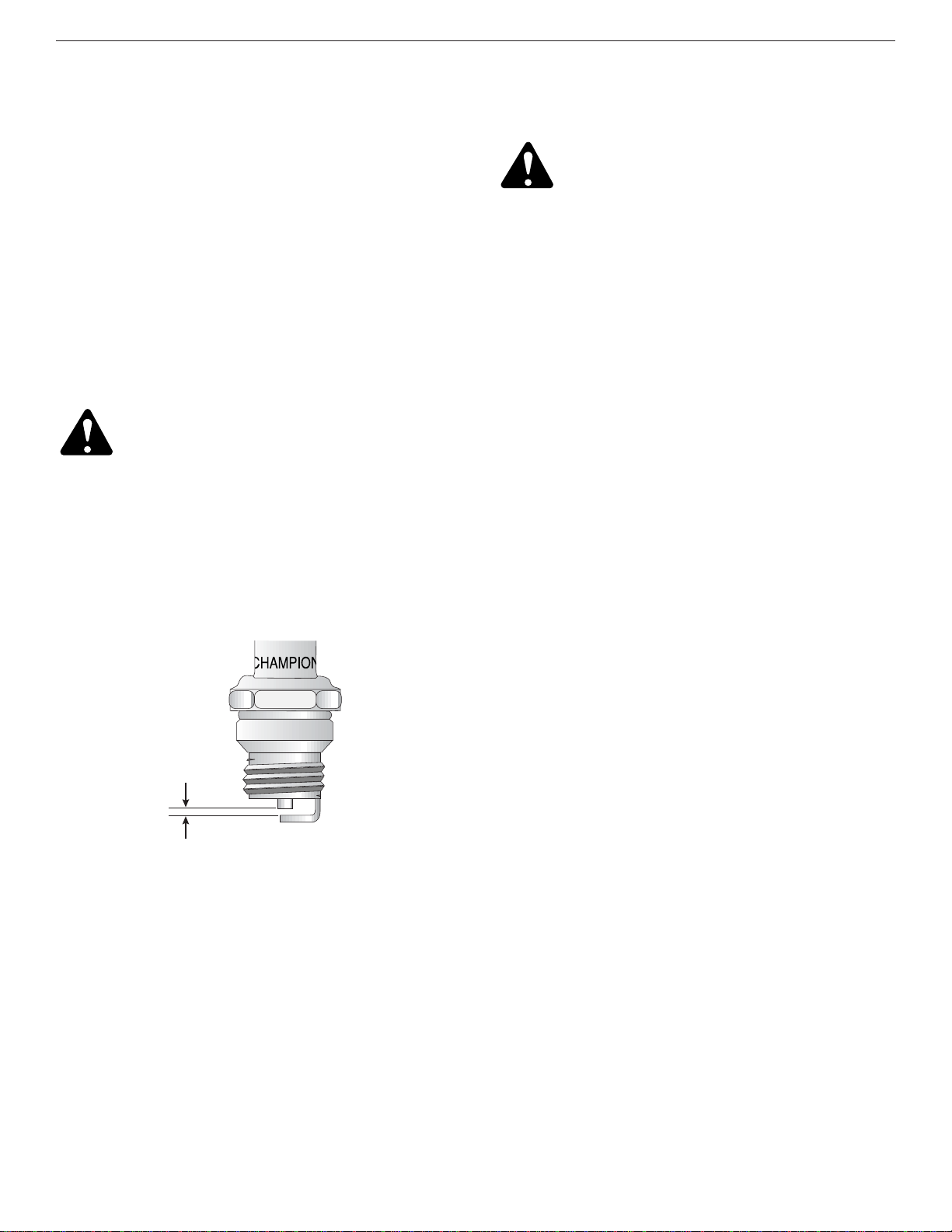

0.020 in.
(0.5 mm)
Long Term Storage
If the unit will be stored for an extended time, use the
following storage procedure:
1. Drain all fuel from the fuel tank into a container with
the same 2-cycle fuel mixture. Do not use fuel that
has been stored for more than 60 days. Dispose of
the old fuel/oil mix in accordance to Federal, State,
and Local regulations.
2. Start the engine and allow it to run until it stalls. This
ensures that all fuel has been drained from the
carburetor.
3. Allow the engine to cool. Remove the spark plug and
put 1 oz. (30 ml) of any high quality motor oil or 2cycle oil into the cylinder. Pull the starter rope slowly
to distribute the oil. Reinstall the spark plug.
NOTE: Remove the spark plug and drain all of the oil
from the cylinder before attempting to start the
trimmer after storage.
4. Thoroughly clean the unit and inspect for any loose
or damaged parts. Repair or replace damaged parts
and tighten loose screws, nuts or bolts. The unit is
ready for storage.
Transporting
• Allow the engine to cool before transporting.
• Secure the unit while transporting.
• Drain fuel from unit.
• Tighten fuel cap before transporting.
Cleaning
WARNING: To avoid serious personal injury,
always turn your trimmer off and allow it to
cool before you clean or service it.
Use a small brush to clean off the outside of the unit. Do
not use strong detergents. Household cleaners that
contain aromatic oils such as pine and lemon, and
solvents such as kerosene, can damage plastic housing
or handle. Wipe off any moisture with a soft cloth.
Storage
• Never store the unit with fuel in the tank where fumes
may reach an open flame or spark.
• Allow the engine to cool before storing.
• Store the unit locked up to prevent unauthorized use
or damage.
• Store the unit in a dry, well-ventilated area.
• Store the unit out of the reach of children.
Figure 34
19
SECTION 8: TROUBLESHOOTING GUIDE
If further assistance is required, contact your authorized service dealer
Trouble Possible Cause(s) Corrective Action
ENGINE WILL
NOT START
• Empty fuel tank
• Primer bulb wasn’t pressed enough
• Engine is flooded
• Old or improperly mixed fuel
• Fouled spark plug
• Plugged spark arrestor
• EZ-Start lever was not set
• Fill fuel tank with properly-mixed fuel
• Press primer bulb fully and slowly 10 times
• Hold throttle control and pull starter rope until it starts
• Drain gas tank and add fresh fuel mixture
• Replace or clean spark plug
• Clean or replace the spark arrestor
• Move lever to start
ENGINE WILL
NOT IDLE
• Air filter is plugged
• Old or improperly mixed fuel
• Improper carburetor adjustment
• Replace or clean the air filter
• Drain gas tank and add fresh fuel mixture
• Adjust according to the Carburetor Adjustment section
ENGINE WILL
NOT
ACCELERATE
• Old or improperly mixed fuel
• Improper carburetor adjustment
• Cutting attachment bound with grass
• Dirty air filter
• Plugged spark arrestor
• Drain gas tank and add fresh fuel mixture
• Take to an authorized service dealer for adjustment
• Stop the engine and clean the cutting attachment
• Clean or replace the air filter
• Clean or replace spark arrestor
ENGINE
LACKS
POWER OR
STALLS WHEN
CUTTING
• Old or improperly mixed fuel
• Improper carburetor adjustment
• Fouled spark plug
• Plugged spark arrestor
• Drain gas tank and add fresh fuel mixture
• Take to an authorized service dealer for adjustment
• Replace or clean spark plug
• Clean or replace the spark arrestor
CUTTING
ATTACHMENT
WILL NOT
ADVANCE LINE
• Cutting attachment bound with grass
• Cutting attachment out of line
• Inner reel bound up
• Cutting head is dirty
• Line welded
• Line twisted when refilled
• Not enough line is exposed
• Stop the engine and clean cutting attachment
• Refill with new line
• Replace the inner reel
• Clean inner reel and outer spool
• Disassemble, remove the welded section and rewind
• Disassemble and rewind the line
• Push the bump knob and pull out line until 4 inches
(102 mm) of line is outside of the cutting attachment
CUTTING LINE
ADVANCES
WILDLY
• Oil is in the cutting head • Clean the cutting head attachment
20
SECTION 9: SPECIFICATIONS
Engine Type........................................................................................................................................... Air-Cooled, 2-Cycle
Stroke................................................................................................................................................... 1.25 in. (31.75 mm.)
Displacement............................................................................................................................................. 1.9 cu in. (31 cc.)
Operating RPM................................................................................................................................................... 7,200+ rpm
Idle Speed RPM ....................................................................................................................................... 2,800 - 4,400 rpm
Ignition Type.......................................................................................................................................................... Electronic
Ignition Switch............................................................................................................................................... Rocker Switch
Spark Plug Gap...................................................................................................................................... 0.020 in. (0.5 mm.)
Lubrication................................................................................................................................................... Fuel/Oil Mixture
Fuel/Oil Ratio.................................................................................................................................................................. 40:1
Carburetor....................................................................................................................................... Diaphragm, All-Position
Starter............................................................................................................................................................... Auto Rewind
Muffler..................................................................................................................................................... Baffled with Guard
Throttle............................................................................................................................................... Manual Spring Return
Fuel Tank Capacity....................................................................................................................................... 13 oz. (384 ml.)
Drive Shaft Housing ............................................................................................................................................ Steel Tube
Throttle Control ........................................................................................................................................ Finger-Tip Trigger
Approximate Unit Weight (No fuel, with string cutting head, string guard and D-handle)............................. 13 lbs. (6 kg.)
Cutting Mechanism................................................................................................ SpeedSpool®Dual String Cutting Head
Shoulder Strap ........................................................................................................................................................ Optional
Line Spool Diameter.................................................................................................................................... 3 in. (76.2 mm.)
Trimming Line Diameter........................................................................................................................ 0.080 in. (2.03 mm.)
Cutting Path Diameter............................................................................................................................... 17 in. (43.18 cm.)
Engine*
Drive Shaft and Cutting Attachment*
*All specifications are based on the latest product information available at the time of printing. We reserve the right to
make changes at any time without notice.
21
EPA Emission Control Warranty Statement
Your Warranty Rights and Obligations
The Environmental Protection Agency and MTD LLC (MTD) are pleased to explain the emission control system warranty
on your 2002 and later small off-road engine. New small off-road engines must be designed, built and equipped to meet
stringent anti-smog standards. Yard Man must warrant the emission control system on your small off-road engine for
the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small offroad engine.
Your emission control system may include parts such as the carburetor or fuel-injected system, the ignition system, and
catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies.
Where a warrantable condition exists, Yard Man will repair your small off-road engine at no cost to you including
diagnosis, parts and labor.
The 2002 and later small off-road engines are warranted for two years. If any emission-related part on your engine is
defective, the part will be repaired or replaced my Yard Man.
Owners Warranty Responsibilities
• As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your
operator’s manual. Yard Man recommends that you retain all receipts covering maintenance on your small off-road
engine, but Yard Man cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance
of all scheduled maintenance.
• As the small off-road engine owner, you however should be aware that Yard Man may deny you warranty coverage if
your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved
modifications.
• You are responsible for presenting your small off-road engine to a Yard Man Authorized Service Center as soon as a
problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-345-8746.
Manufacturer’s Warranty Coverage
• The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.
• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in
material and workmanship which cause the failure of a warranted part for a period of two years.
• Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized Yard Man
Service Center. For the nearest location please contact Yard Man at: 1-800-345-8746.
• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only
for regular inspection to the effect of “Repair or Replace as Necessary” is warranted for the warranty period. Any
warranted part which is scheduled for replacement as required maintenance will be warranted for the period of time up
to the first scheduled replacement point for that part.
• The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective,
if the diagnostic work is performed at an Authorized Yard Man Service Center.
• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still
under warranty.
• Failures caused by abuse, neglect or improper maintenance are not covered under warranty.
• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to
cover failures of warranted parts caused by the use of add-on or modified parts.
• In order to file a claim, go to your nearest Authorized Yard Man Service Center. Warranty services or repairs will be
provided at all Authorized Yard Man Service Centers.
• Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair
of emission related parts and will be provided without charge to the owner. Any replacement part that is equivalent in
performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty
obligations of the manufacturer
• The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel
lines, fuel pick up/ fuel filter, ignition module, spark plug and muffler.
Loading...
