MTD World Tiller - 240 Operator's Manual

SafeOperationPractices•Set-Up•Operation• Maintenance•Service•Troubleshooting• Warranty

L

MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019

PrintedIn USA FormNo.769-05429B

World Tiller m Series 240

(February15,2010)

ToTheOwner

ThankYou

1

Thank you for purchasing an MTD Garden Tiller. It was carefully
engineered to provide excellent performance when properly

operated and maintained.
Please read this entire manual prior to operating the equipment.

It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could

result in personal injury or property damage.
All information in this manual is relative to the most recent

product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,

its features and operation. Please be aware that this Operator's
Manual may cover a range of product specifications for various

models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. We reserve

the right to change product specifications, designs and
equipment without notice and without incurring obligation.

Table of Contents

Safe Operation Practices ........................................ 3

Assembly & Set-Up .................................................. 7

Controls .................................................................... 9

Operation ................................................................ 10

Maintenance &Adjustment. ................................. 12

If you have any problems or questions concerning the machine,
phone your local authorized MTD service dealer or contact us

directly. MTD's Customer Support telephone numbers, website
address and mailing address can be found on this page. We want
to ensure your complete satisfaction at all times.

Throughout this manual, all references to right and left side of the
machine are observed from the operating position

Engine Maintenance .............................................. 14

Service ..................................................................... 18

Troubleshooting ..................................................... 19

Illustrated Parts List .............................................. 20

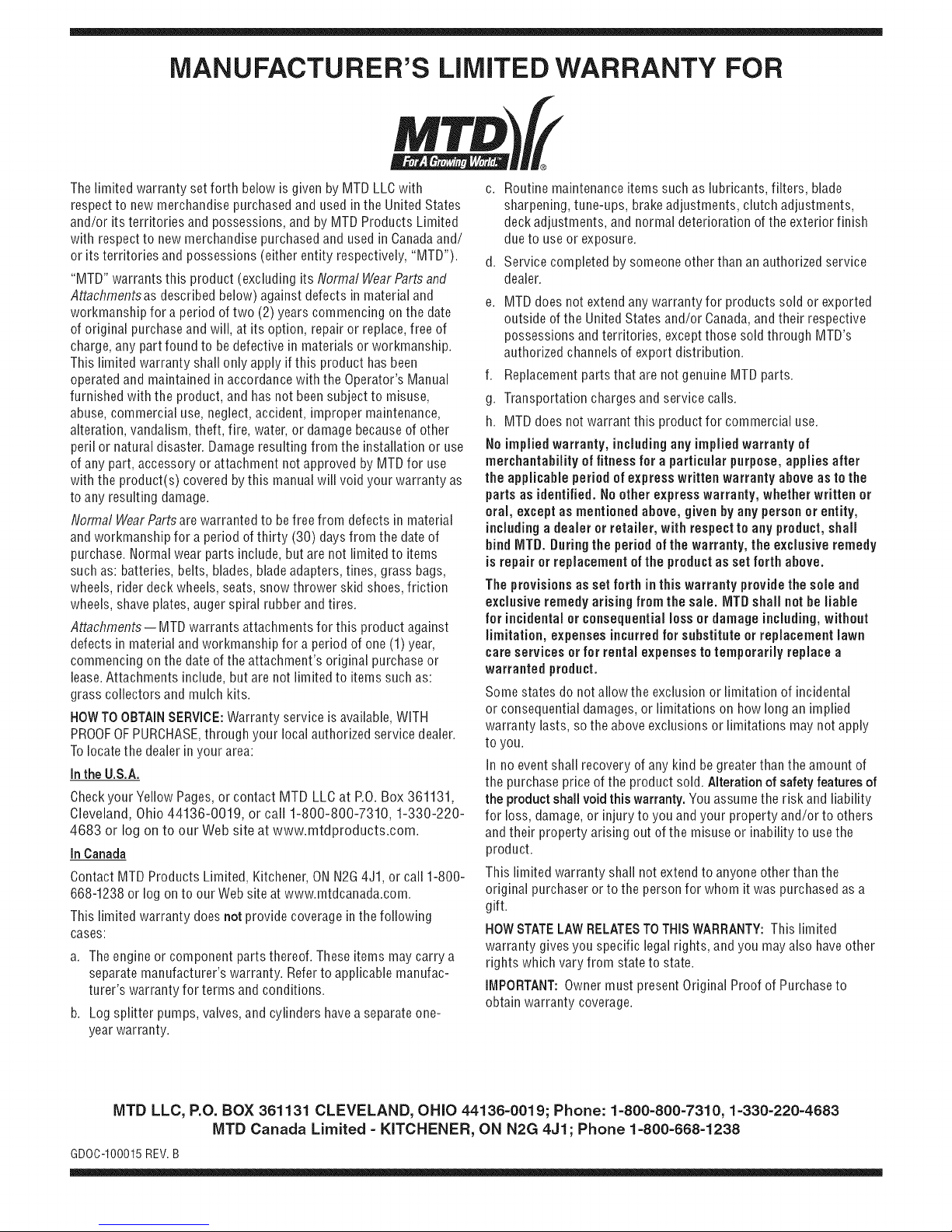

Warranty .................................................. back cover

RecordProductinformation

Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate
the model plate by standing at the operator's position and

looking down at the rear of the tine shield near the handle. This
information will be necessary, should you seek technical support
via our web site, Customer Support Department, or with a local

authorized service dealer.

MODEL NUMBER

NNNNNNNNNNE

SERIAL NUMBER

ENENENENENE

CustomerSupport

Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:

0 Visit us on the web at www.mtdproducts.com

0 Call a Customer Support Representative at [phone] or [phone]
0 Write to MTD LLC • EO. Box 361131 • Cleveland, OH • 44136-0019

importantSafeOperationPractices

WARNING! This symbol points out important safety instructions which, if not followed,

could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply

with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!

CALIFORNIA PROPOSITION 65

WARNING! Engine Exhaust, some of its constituents, and certain vehicle components

contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.

WARNING! Battery posts, terminals, and related accessories contain lead and lead

,A

compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling

DANGER! This machine was built to be operated according to the safe operation practices in

this manual. As with any type of power equipment, carelessness or error on the part of the

operator can result in serious injury. This machine is capable of amputating fingers, hands,

toes and feet. Failure to observe the following safety instructions could result in serious

injury or death.

2

Training 2.

1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
pa rts.

2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them

quickly.

3. Never allow children under 14 years of age to operate this
machine. Children 14 and over should read and understand

the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an

adult.

4_

Never allow adults to operate this machine without proper
instruction.

5.

Keep the area of operation clear of all persons, particularly
small children and pets. Stop machine if anyone enters the

area.

3. Disengage clutch levers and shift (if provided) into neutral

4. Never leave this machine unattended with the engine

5. Never attempt to make any adjustments while engine is

SafeHandling 0f 6as01ine:

To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when

gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.

Preparation

Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire, and other foreign
objects which could be tripped over and cause personal

injury.

Wear sturdy, rough-soled work shoes and close fitting
slacks and shirt. Loose fitting clothes or jewelry can be
caught in moving parts. Never operate this machine in bare

feet or sandals.

('N") before starting the engine.

running.

running, except where specifically recommended in the
operator's manual.

a. Use only an approved gasoline container.
b. Never fill containers inside a vehicle or on a truck

or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle

before filling.

When practical, remove gas-powered equipment
from the truck or trailer and refuel it on the ground.
If this is not possible, then refuel such equipment on

a trailer with a portable container, rather than from a
gasoline dispenser nozzle.

d_

Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.

e_

Extinguish all cigarettes, cigars, pipes and other
sources of ignition.

fl

Never fuel machine indoors.

g.

Never remove gas cap or add fuel while the engine
is hot or running. Allow engine to cool at least two

minutes before refueling.

h. Never over fill fuel tank. Fill tank to no more than 1/2

inch below bottom of filler neck to allow space for
fuel expansion.

i. Replace gasoline cap and tighten securely.

j. If gasoline is spilled, wipe it off the engine and

equipment. Move unit to another area. Wait 5
minutes before starting the engine.

k. To reduce fire hazards, keep machine free of grass,

leaves, or other debris build-up. Clean up oil or fuel
spillage and remove any fuel soaked debris.

I. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light
as on a water heater, space heater, furnace, clothes
dryer or other gas appliances.

Operation

1. Do not put hands or feet near rotating parts. Contact with
the rotating parts can amputate hands and feet.

2. Do not operate machine while under the influence of
alcohol or drugs.

3. Never operate this machine without good visibility or light.
Always be sure of your footing and keep a firm hold on the
handles.

4. Keep bystanders away from the machine while it is in
operation. Stop the machine if anyone enters the area.

5. Be careful when tilling in hard ground. The tines may catch
in the ground and propel the tiller forward. If this occurs,

letgo of the handle bars and do not restrain the machine.

6. Exercise extreme caution when operating on or crossing
gravel surfaces. Stay alert for hidden hazards or traffic. Do
not carry passengers.

7. Never operate the machine at high transport speeds on
hard or slippery surfaces.

8. Exercise caution to avoid slipping or falling.

9. Look down and behind and use care when in reverse or
pulling machine towards you.

10. Start the engine according to the instructions found in this
manual and keep feet well away from the tines at all times.

11. After striking a foreign object, stop the engine, disconnect
the spark plug wire and ground against the engine.
Thoroughly inspect the machine for any damage. Repair

the damage before starting and operating.

12. Disengage all clutch levers (if fitted) and stop engine
before you leave the operating position (behind the
handles). Wait until the tines come to a complete stop
before unclogging the tines, making any adjustments, or

inspections.

13. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.

14. Muffler and engine become hot and can cause a burn. Do
not touch.

15. Use caution when tilling near fences, buildings and
underground utilities. Rotating tines can cause property
damage or personal injury.

16. Do not overload machine capacity by attempting to till soil
too deep at too fast of a rate.

17. If the machine should start making an unusual noise or
vibration, stop the engine, disconnect the spark plug wire
and ground it against the engine. Inspect thoroughly for
damage. Repair any damage before starting and operating.

18. Keep all shields, guards, and safety devices in place and
operating properly.

19. Never pick up or carry machine while the engine is running.

20. Use only attachments and accessories approved by the
manufacturer. Failure to do so can result in personal injury.

21. If situations occur which are not covered in this manual, use
care and good judgement. Contact Customer Support for
assistance and the name of you nearest servicing dealer..

Maintenance & Storage

1. Keep machine, attachments and accessories in safe
working order.

2. Allow a machine to cool at least five minutes before
storing. Never tamper with safety devices. Check their

proper operation regularly.

3. Check bolts and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.

Also, visually inspect machine for any damage.

4. Before cleaning, repairing, or inspecting, stop the engine
and make certain the tines and all moving parts have

stopped. Disconnect the spark plug wire and ground it
against the engine to prevent unintended starting.

5. Do not change the engine governor settings or over-speed
the engine. The governor controls the maximum safe
operating speed of engine.

6. Maintain or replace safety and instruction labels, as
necessary.

7. Follow this manual for safe loading, unloading,
transporting, and storage of this machine.

8. Always refer to the operator's manual for important details
if the machine is to be stored for an extended period.

4 I SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES

9.

If the fuel tank has to be drained, do this outdoors.

10.

Observe proper disposal laws and regulations for gas, oil,
etc. to protect the environment.

11.

According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency (EPA),

this product has an Average Useful Life of seven (7) years,
or 130 hours of operation. Atthe end of the Average Useful
Life have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety

systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.

Notice Regarding Emissions

Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)

are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM), Oxidizing Catalyst (OC), Secondary Air
Injection (SAI) and Three Way Catalyst (TWC) if so equipped.

SparkArrester

internal combustion engine and should not be used

_ ARNING! This machine is equipped with an

Ira spark arrester is used, it should be maintained in effective
working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws
apply on federal lands.
A spark attester for the muffler is available through your

nearest engine authorized service dealer or contact the service
department, RO. Box 361131 Cleveland, Ohio 44136-0019.

on or near any unimproved forest-covered,

brushcovered or grass-covered land unless the
engine's exhaust system is equipped with a spark
arrester meeting applicable local or state laws (if
any).

SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES S

Safety Symbols

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.

READ THE OPERATOR'S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to

assemble and operate

WARNING-- ROTATING TINES

Do not put hands or feet near rotating parts. Contact with the rotating parts can amputate
hands and feet.

WARNING-- ROTATING TINES

Do not put hands or feet near rotating parts. Contact with the rotating parts can amputate
hands and feet.

WARNING--GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.

A

WARNING-- CARBON MONOXIDE

Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.

WARNING-- HOT SURFACE

Engine parts, especially the muffler, become extremely hot during operation. Allow engine

and muffler to cool before touching.

WARNING! Your Responsibility--Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.

6 I SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES

SAVETHESEINSTRUCTIONS!

Assembly& Set-Up

Contents of Carton

3

OneTiller
One Engine Operator's Manual

NOTE:The tiller is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual before operating your machine.

One 20 oz. bottle SAE 30W oil

Assembly

Handle

1. Remove the handle crank, bolt, washer, retainer bracket
and the flange lock nuts from the lower handle. See Fig.

3-1.

Washer

Bolt 1

Handle Crank

Nuts

Bracket

One Tiller Operator's Manual

2.

Position the upper handle onto the lower handle, Step A in
Fig. 3-2. Align the holes on the lower handle with the holes
on the upper handle.

Bolt

Handle Crank

Nuts

Retainer

Bracket

\\

Figure 3-1

Figure 3=2

3. Insert bolt, washer, and handle crank through the holes in
the handle and secure with retainer bracket and nuts. See

Fig.3-2.

4. Inserttheclutchcablehandlefittingintotheholeonthe
rightsideoftheupperhandle.SeeFig.3-3.

Figure 3-3

5. Insert the Z-fitting on the clutch cable into the hole on the
tine clutch control. Hook the "Z" end into the opening from
the inside to the outside as shown in Fig. 3-4.

Set-tip

(;as& 0il Fill-Up

Service the engine with gasoline and oil as instructed in the
separate engine manual packed with your tiller. Read the
instructions carefully.

WARNING! Use extreme care when handling

gasoline. Gasoline is extremely flammable and the

vapors are explosive. Never fuel machine indoors or
while the engine is hot or running.

Adjustments

Wheels

The tiller is shipped with the wheel adjusted such that the
unit sits level. Before tilling, the wheel must be raised. To do

this, remove the clevis and cotter pins, raise the wheel to the
desired position, then reattach pins to secure, Figure 3-5. For
transporting the tiller, reverse the steps to lower the wheel.

Figure 3-4

8 I SECTION3-- ASSEMBLY& SET-UP

Figure 3-5

ControlsandFeatures

Tine Clutch

Clutch Cable

Handlebar Height

Adjustment

4

Recoil Starter

De!

Rea r Wheel

Figure 4-1

TineClutchControl

The clutch control lever is located on the upper handle.
Squeezing the lever against the handle engages the tine drive.
Release the lever to stop the tines from turning.

Handlebar HeightAdjustment

The handlebar height is adjustable to three different settings. In
general, adjust the handlebars so they are at waist level when the
tines are 3-4" in the ground.

RecoilStarter

The recoil starter is located on the engine and is used to
manually start the engine.

Depth Stake

The depth stake acts as a brake for the tiller and controls the
depth and speed at which the machine will operate.

RearWheelwith DepthStake

The rear wheel can be raised and lowered for transport and
storage. Refer to the Maintenance & Adjustments Section for
instructions on depth stake adjustment and the Assembly & Set-
Up Section for instructions on wheel adjustment.

EngineControls

Refer to the engine manual for additional information and
functions of the engine controls.

Throttle Control (IfEquipped)

The throttle control lever is located on the engine. It controls the
engine's speed and stops the engine.

ChokeControl

Thechokecontrolis foundonthe rearof theengineandisacti-
vatedbypullingthe knobout.Activatingthechokecontrolcloses
thechokeplateonthecarburetorandaids instartingthe engine.

Operation

WARNING! Read, understand, and follow all

instructions and warnings posted on the machine

and in this manual before operating.
WARNING! Be sure no one other than the operator

isstanding near the tiller while starting the engine
or operating the unit. Never run the engine indoors

or in enclosed, poorly ventilated areas. Engine

exhaust contains carbon monoxide, an odorless and

deadly gas. Keep hands, feet, hair and loose clothing

away from any moving parts on the engine and the
tiller.

StartingEngine

_ ARNING! Be sure no one isstanding in front of

Referto the engine manual for instructions.

1. Attach the spark plug wire to the spark plug. Make sure the

2. Make sure that the tine clutch control is disengaged.

3. Turn the ignition switch to the ON position.

4. Pull the choke knob out to choke the engine. (A warm

5. Placeyour left hand on the gas tank. Grasp the recoil starter

6. Pull the rope with a rapid, continuous, full arm stroke. Keep

the tiller while the engine is running or being

started.

metal cap on the end of the spark plug isfastened securely
over the metal tip on the spark plug.

engine may still require choking.)

and pull the rope out slowly until the engine reaches the
beginning of its compression cycle (rope will pull slightly
harder at this point).

afirm grip on the handle. Let the rope rewind slowly. Do
not let the recoil starter snap back against the engine.

Repeat until the engine starts. Once the engine starts, push
in the choke knob. (Cold weather condition may require

longer or partial choke use.)

The working depth of the machine may be predetermined by
setting the depth stake sothat the wheels are about four inches
from the ground when the tines and depth stake are resting on

the ground. This setting will permit a working depth of about
four inches. When presetting the working depth, the handles
should be adjusted sothe hand grips are a little above the waist.
The tiller will be lower when the tines and depth stake penetrate
the ground.

For tilling, the depth stake must be lowered and the wheel must
be raised. See Fig. 5-1.

f

//

Figure 5-1

When tilling, leave approximately eight inches of untilled soil
between the first and second tilling paths, then make the third

path between the first and second. See Fig..5-2.

f

Stopping Engine

1. Turn the ignition switch to the OFFposition. Refer to the
engine manual for instructions on stopping the engine.

2. Disconnect the spark plug wire from the spark plug and
ground against the engine.

UsingYourTUler

Your tiller is designed for seed bed preparation, cultivating,
furrowing, and mulching.

Controlling Tilling and DepthSpeed

Byincreasing the depth of the depth stake, the forward speed
of the machine is reduced and the working depth is increased.
When the depth stake is raised,the working depth of the

machine isreduced and the forward speed is increased.

Figure 5-2

In some soils, the desired depth is obtained the first time over
the garden. Inother soils, the desired depth is obtained by going
over the garden two or three times. Passesshould be made
acrossthe length and width of the garden alternately. Rocks

which are turned up should be removed from the garden area.

HandlePressure

Further control of tilling depth and travel speed can be obtained
by variation of pressure on the handles. A downward pressure
on the handles will reduce the working depth and increase the
forward speed. An upward pressure on the handles will increase
the working depth and reduce the forward speed. The type of

soil and working conditions will determine the actual setting of
the depth stake and the handle pressure required.

Cultivating

For cultivating, a two to three inch depth is desirable. With the
outer tines installed, the working width of the machine is 22 or

24 inches.
For cultivation, the tine width can be reduced to 13 inches by

removing the outer tines, refer to the Adjustment Section. When
laying out plant rows, be sure to allow enough width to permit

cultivation between the rows. In growing corn or similar crops,
check-row planting will permit cross cultivation and practically
eliminate hand hoeing, Fig. 5-3.

For proper decaying action, fertilizer should be applied and
worked in with the mulch materials. Breaking up leaves and straw
and mixing it with several inches of soil allows proper aeration of
the plant root system and retards the growth of weeds.

Transportingand Storingthe TUler

To transport the tiller, lower the wheel and move the depth stake
to the highest position. See Fig. 5-4.

k_ _.)

Figure 5-3

The tiller has many uses other than tilling and cultivating a
garden. One of these is the preparation of lawn area for seeding.
The tiller will prepare a deep seed bed which will be free of hard
untilled spots, allowing a better stand of grass to grow. The tiller
is very useful for loosening hard soil for excavation with a shovel;

No tedious handwork will be necessary. Your tiller may be used
for mixing compost in the pile or for mixing it with the soil in
your garden. This should be done after the soil has been broken
to the full working depth. The compost should be worked in
to a depth of six to seven inches. This may be done by working

the length of the garden and then by making separate passes
across its width. The addition of decayed organic matter will
substantially increase the fertility of your garden.

J

Figure 5-4

To store the tiller, lower the wheel and orient the depth stake so
both are touching the ground. See Fig. 5-5.

J

Figure 5-5

SECTION S -- OPERATION 11

Maintenance&Adjustments

6

WARNING! Before inspecting, cleaning or servicing
the tiller, shut off the engine and wait for all moving

parts to come to a complete stop. Disconnect the
spark plug. Failure to follow these instructions
properly can result in serious personal injury or
property damage.

Maintenance

Engine

Refer to the Engine Operator's Manual packaged with your
machine for all engine maintenance.

Tines

Clean the underside of the tine shield after each use. The dirt
washes off the tines easier if rinsed off immediately instead of

after it dries. Always towel dry the tiller afterwards and apply a
light coat of oil or silicone to prevent rusting or water damage.

NOTE: Never use a pressure washer to clean the tiller. Water can
penetrate tight areas of the tiller and cause serious damage.

AirFilter

Service the air filter every 10 hours under normal operating
conditions. Clean every hour under extremely dusty conditions.
Poor engine performance and flooding usually indicates that the

air filter should be serviced. To service the air filter refer to the
separate Engine Operator's Manual.

Adjustments

TineWidth

The tilling width of the unit is 22 inches. Tilling width can
increase to 24 inches by removing the clevis and cotter pins,

sliding each outer tine out one inch, and securing in this position
with the pins. For cultivation, reduce the tine width to 13 inches
by removing the outer tines completely. See Fig. 6-1.

Pin

Cle

Pi

..ql==_22-inch_

Lubrication

Transmission

The transmission is pre-lubricated and sealed at the factory. It
requires no maintenance. See an authorized service dealer for

any service issues.

TineShafts

Remove tine assemblies and lubricate the tine shafts at least
once a season.

WheelShaft

Remove wheel assembly and lubricate the axle shaft at least
once a season.

..,4=_ 13-i nch ===========_

Figure 6-1

DepthStake

The depth stake acts as a brake for the tiller and controls the
depth and speed at which the machine will operate, Figure 6-2.

Remove the clevis and cotter pins, raise or lower the depth stake,
then reattach pins to secure.

Figure 6-2

Off-SeasonStorage

If the tiller will not be used fora period longer than 30 days, the
following steps should be taken to prepare the tiller for storage.

Clean the exterior of the engine and the entire tiller
thoroughly. Lubricate the tiller as described in the

Lubrication instructions.
We do not recommend the use of pressure washers to

clean your tiller. They may cause damage to spindles,
pulleys, bearings, or the engine. The use of pressure

washers will result in shortened life and reduce
serviceability.

Refer to the engine manual for correct engine storage
instructions.

Wipe tines with oiled rag to prevent rust.
Store tiller in a clean, dry area. Do not store next to

corrosive materials, such as fertilizer.
When storing any type of power equipment in an

unventilated or metal storage shed, care should be taken
to rustproof the equipment. Using a light oil or silicone,

coat the equipment and especially any springs, bearings,
and cables.

SECTION 6 -- MAINTENANCE & ADJUSTMENTS 13

EngineMaintenance

_ ARNING: Shut offthe engine before performing

IMPORTANT: If engine must be tipped to transport equipment
or to inspect or remove grass, keep spark plug side of engine
up. Transporting or tipping engine spark plug down may cause

smoking, hard starting, spark plug fouling, or oil saturation of air
cleaner.

MaintenanceSchedule

any maintenance. To prevent accidental start-up,

disconnect the spark plug boot.

1

Periodic inspection and adjustment of the engine is essential if
high level performance is to be maintained. Regular maintenance
will also ensure a long service life. The required service intervals

and the kind of maintenance to be performed are described
in the table below. Follow the hourly or calendar intervals,
whichever occur first. More frequent service is required when
operating in adverse conditions.

_1 WARNING: If the engine has been running, the

muffler will be very hot. Be careful not to touch the
muffler.

FirstSHours

CheckEngineOilLevel

ChangeEngineOilff _/ _/

CheckAirCleaner M/

ServiceAirCleanerf M/

CheckSparkPlug V/

ReplaceSparkPlug V/

CleanEngineShroud V/

Cleanaroundmuffler V/

ReplaceFuelFilter M/

Cleanaroundcarburetorchokelever(If Equipped) M/

EachUseor

EveryS Hrs.

,/

EverySeason

or25 Hours

EverySeason

or SOHours

EverySeason
or 100Hours

Service

Dates

f Service more frequently when used in dusty areas.
ff Every season or 25 hours if operating under heavy load or high ambient temperature.

OilService

OilRecommendations

Check oil level regularly.
Be sure correct oil level is maintained. Check every five

hours or daily before starting engine. See oil checking
procedure in the Operation section.

OilChange

IMPORTANT: Be sure to check engine on a level surface with the
engine stopped. Drain the oil while the engine is still warm to

assure rapid and complete draining.

1. Remove all fuel from tank by running engine until it stops
from lack of fuel.

2. Remove drain plug and allow oil to drain into a suitable
container. See Fig. 10-1.

Oil Fill Cap

NOTE:This engine is shipped without gasoline or oil in the
engine. Running the engine with insufficient oil can cause

serious engine damage and void the engine warranty.

Before starting engine, fill with oil. Do not over-fill. Oil
capacity is about 20 oz.

Use a 4-stroke, or an equivalent high detergent, premium
quality motor oil certified to meet or exceed U.S. automobile

manufacturer's requirements for service classification SG/SF.
Motor oils classified SG/SF will show this designation on the

container.
SAE 10W-30 is recommended for general, all temperature use. If

single viscosity oil is used, select the appropriate viscosity for the
average temperature in your area from the chart below.

_ 20w

__ 20

mlmlllmllmllmllm

m3o

Figure 10-1

i_ WARNING: Before tipping engine or equipment to

3. Reinstall the drain plug and tighten it securely.

4. Refill with the recommended oil (see Operation section)

5. Reinstall the oil fill cap securely.

IMPORTANT: Used motor oil may cause skin cancer if repeatedly
left in contact with the skin for prolonged periods. Although this
is unlikely unless you handle used oil on a daily basis, it is still
advisable to thoroughly wash your hands with soap and water as

soon as possible after handling used oil.
NOTE: Please dispose of used motor oil in a manner that is

compatible with the environment. We suggest you take it in a
sealed container to your local service station for reclamation. Do

not throw it in the trash or pour it on the ground.

drain oil, drain fuel from tank by running engine
until fuel tank is empty.

and check the oil level. See Fig. 10-1.

2ow4o, _ow5o_____

I v

15w40, O_____m_k_,

®

lOw30_____u

(°C)-300 -200 -10° 0° 10° 200 300 400
(0F)-20o 0° 200 400 600 800 1000

Ambient Temperature

1. Single Viscosity

2. Multi Viscosity
NOTE: Using non detergent oil or 2-stroke engine oil could

shorten the engine's service life.

AirCleanerService

Paper filters cannot be cleaned and must be replaced once a year
or every 100 operating hours; more often if used in extremely

dusty conditions.

_ WARNING: Never use gasoline or low flash point

IMPORTANT: Never run the engine without the air cleaner. Rapid
engine wear will result.

solvents for cleaning the air cleaner element. A fire
or explosion could result.

SECTION10 -- ENGINE MAINTENANCE lS

Remove the thumb screw and the air cleaner cover.
Remove the elements and separate them. See Fig. 10-2.

Replace paper element when dirty or damaged. Clean
foam element or replace when damaged.

Paper Element

Foam Element

Figure 10=2

_ ARNING: If the engine has been running, the

2. Visually inspect the spark plug. Discard the spark plug

3_

muffler will be very hot. Be careful not to touch the
muffler.

if there is apparent wear, or if the insulator is cracked or
chipped. Clean the spark plug with a wire brush if it is to be

reused.
Measure the plug gap with a feeler gauge. Correct as

necessary by bending side electrode. See Fig. 10-4. The gap
should be set to 0.030 in.

Electrode

2. To clean foam element, separate it from the paper element
and wash in liquid detergent and water. Allow to dry
thoroughly before using. Do not oil the foam element.

SparkPlugService

_ WARNING: DO NOT check for spark with spark

To ensure proper engine operation, the spark plug must be
properly gapped and free of deposits.

1. Remove the spark plug boot and use a spark plug wrench

plug removed. DO NOT crank engine with spark
plug removed.

to remove the plug. See Fig. 10-3.

Spark Plug

_ 0.030 in.

Figure 10-4

4_

Check that the spark plug washer is in good condition
and thread the spark plug in by hand to prevent cross-

threading.

5_

After the spark plug is seated, tighten with a spark plug
wrench to compress the washer.

NOTE:When installing a new spark plug, tighten 1/2 turn
after the spark plug seats to compress the washer. When

reinstalling a used spark plug, tighten 1/8-1/4 turn after the
spark plug seats to compress the washer.

IMPORTANT:The spark plug must be securely tightened.
An improperly tightened spark plug can become very hot
and may damage the engine.

Spark Plug

Figure 10=3

SECTION10-- ENGINE MAINTENANCE

FuelFilter Service

The fuel filter cannot be cleaned and must be replaced once a
year or every 100 operating hours; more often if run with old

gasoline.

1. Remove all fuel from tank by running engine until it stops
from lack of fuel.

2. Remove c-clamp from fuel line and remove fuel line from
tank outlet. See Fig. 10-5.

Storage

Engines stored between 30 and 90 days need to be treated with
a gasoline stabilizer and engines stored over 90 days need to be

drained of fuel to prevent deterioration and gum from forming
in fuel system or on essential carburetor parts. If the gasoline in
your engine deteriorates during storage, you may need to have
the carburetor, and other fuel system components, serviced or

replaced.

1. Remove all fuel from tank by running engine until it stops
from lack of fuel.

\\

Figure 10-5

3. Pull out old fuel filter from tank outlet. Replace when dirty
or damaged.

4. Grasp new fuel filter from shouldered end and insert it
completely to the shoulder into the tank outlet. See Fig.

10-5 inset.

5. Replace fuel line and c-clamp.

_k ARNING: Never leave engine unattended while

2.

3.

4.

5. Store in a clean, dry and well ventilated area away from any

6. If possible, also avoid storage areas with high humidity,

7. Keep the engine level in storage. Tilting can cause fuel or

running.

Change oil. See Oil Change section.
Remove spark plug and pour about 1/2 an ounce of engine

oil into cylinder. Replace spark plug and crank slowly to
distribute oil.

Clean debris from around engine, under finger guard, and
under, around and behind muffler. Touch upany damaged
paint, and coat other areas that may rust with a light film

of oil.

appliance that operates with a flame or pilot light, such
as a furnace, water heater, or clothes dryer. Also avoid any

area with a spark producing electric motor, or where power
tools are operated.

because that promotes rust and corrosion.

oil leakage.

CleanEngine

If the engine has been running, allow it to cool for at least half
an hour before cleaning. Periodically remove dirt build-up from
engine. Clean finger guard and around muffler. Clean with a
brush or compressed air.

IMPORTANT'. Do not spray engine with water to clean because
water could contaminate fuel. Using a garden hose or pressure
washing equipment can also force water into the air cleaner or
muffler opening. Water in the air cleaner will soak the paper

element, and water that passes through the element or muffler
can enter the cylinder, causing damage.

_ ARNING: Accumulation of debris around muffler

could cause a fire. Inspect and clean before every
use.

SECTION10 -- ENGINE MAINTENANCE 17

Service

7

Belt Replacement

Your tiller has been engineered with a belt made of special
material for longer life and better performance. Replace with

a factory-approved OEM belt. See the retailer from which you
purchased your tiller, an authorized MTD Service Dealer, or call
1-800-800-7310 for information regarding price and availability.

1. Remove the belt cover and engine by removing the six
screws and lock nuts holding the engine and cover to the

shield. See Fig. 7-1.

2. Loosen the lock nut shown in Fig. 7-2.

Lock Nut

Figure 7=2

3_

Unloop the belt from the pulleys. See Fig. 7-2.

4.

Reassemble the new belt and tighten the lock nut.

5.

Reattach belt cover and engine using the hardware
removed earlier.

Troubleshooting

Problem Cause l Remedy

Engine runs erratic

Tines do not engage

1. Spark plug wire loose

2. Unit running on CHOKE

3. Blocked fuel line or stale fuel

4. Vent plugged

5. Water or dirt in fuel system

6. Dirty air cleaner

7. Carburetor out of adjustment

1. Foreign object lodged in tines

2. Tine clevis pin(s) missing

3. Belt worn and/or stretched

4. Pulley and idler not in correct adjustment

1. Connect and tighten spark plug wire

2. Move choke lever to OFF

3. Clean fuel line; fill tank with clean, fresh
gasoline

4. Clear vent

5. Drain fuel tank. Refill with fresh fuel

6. Clean following engine manual

7. Refertoengine manual

1. Stop tiller completely, checkand discard
foreign object

2. Replace tine clevis pin(s)

3. Replace belt

4. Take unitto authorized service

19

illustratedPartsList

9

2 47 /'

50

29

38

39

24

37

23

,14

3O

26

\

22

2 31

20

21

\

Handle,Frame&WheelAssembly

Ref. I

1
2
3
4

5
6
7
8

9

10

11

12

13

14

15

16

17

18

19
2O
21

22
23
24
25

26

Part Number

649-04030-0638
710-0136
649-04029-0638
710-04398

954-04123
756-04163
748-04125
686-04080

712-04065
710-0654A
786-04303-0638

710-0514
732-0418
738-04139
756-04217
710-0591
710-0520

786-04256-0638
911-0415
642-0005-0637
642-0003-0637

714-04043
749-04266-0637
714-3020
726-0299

734-0973

Description

Upper Handle
Hex Head Cap Screw, 1/4-20x 1.75
Lower Handle

Flange Screw, sA6-18x 7.5, GR5

V-Belt

Idler Pulley
Shoulder Spacer
Idler Bracket

Flange Lock Nut, 3/8-16
Self Tapping Screw, 3/8-16x 1.00

Belt Cover
Hex Head Cap Screw, 3/8-16x 1.00

Extension Spring
Stud, 33 x 1.5, 3/8-16

Flywheel Pulley
Hex Head Cap Screw, 3/8-24x 1.00

Hex Head Cap Screw, 3/8-16x 1.55

Tine Shield 61 cm

Clevis Pin
Outer Tine Assembly LH

Inner Tine Assembly LH

Cotter Pin, Bow Tie

Rear Wheel Tube

Cotter Pin

Push Cap

Wheel 5 x 1.38

Ref, I

27
28

29
30
31
32

33
34
35
36

37
38
39
40
41

42

43
44
45

46
47
48
49

50

51

52

Part Number

749-04265-0638
711-04520

710-1007
911-0415
710-0809
737-04272

642-0002-0637
642-0004-0637

918-04276B
721-04157

786-04296-0637
712-04063
710-0189
936-0300
712-0324

720-0269
720-0274

647-04047-0638

731-05095B
731-05096B

731-05272
736-0242
936-0463

946-04663
786-0340A
786-0341

Description

Depth Stake Tube
Axle Shaft

Self Tapping Screw, 3/8-16 x 1.50
Clevis Pin

Self Tapping Screw, 1/4-20x 1.25
Pipe Plug, 1/4-18NPT
Inner Tine Assembly RH
Outer Tine Assembly RH

Case Assembly 61 cm
Gasket
Wheel Bracket

Flange Lock Nut, sA6-18
Hex Head Cap Screw, sA6-18x 3.00

Flat Washer, .406 x .875 x .059
Hex Lock Nut, 1/4-20
Handle Grip
Grip, 1.0 ID x 5.0 LG

Clutch Bail
Bail Holder LH

Bail Holder RH
Handle Fitting

Bell Washer, .340 x .872 x .060
Flat Washer, .25 x .630 x .0515

Clutch Cable
Handle Crank
Retainer Bracket

SECTION 9 -- ILLUSTRATED PARTS LIST 21

EngineModel-1P65LHA

251

25

162

16

.144

142"

154

123
124

126.

EngineM0del-1P65LHA

R°,I

NO,

1

2

3

4

8
16

17
18
19

2O
21

22
23
24

25
26
27

28
29

30
31

32
33
34
35
36

37
38
39

40
41

42
43
44

45
46

50
51

54
55
56

Part No. Description

710-04744
931-04437

951-I0299A
712-04212
951-10319
710-05089

710-05090
710-05091
951-10336
750-05320

712-04221
951-11041
951-10934
951-11042

710-04916
951-11671
951-I1672

951-I1596
951-I1615
732-04718
951-I1541

951-I1673
951-I1602
710-04920
951-I0620
951-I1674

951-I1675
951-I1542
951-I0720
951-I1676

951-I0622
736-04456
951-I0335
750-05322

710-04922
951-I0300
951-I0337
951-I0358

723-04071
951-I1677
951-I1522

Self-Tapping Bolt, Hilo #12-16 X ZOO"

Engine Shroud
Recoil Starter Assembly

Nut M6 X 10 Mm

Recoil Spring
Starter/Shroud Stud Black/Ye Zinc
Starter/Shroud Stud Front/Ye Zinc

Starter/Shroud Stud White/Ye Zinc

Inner Shroud

Engine Shroud Spacer

Flywheel Nut M14
Starter Cup

Cooling Fan

Flywheel

Bolt M6x14

Breather Cover Plate

Breather Gasket

Upper Crankshaft Seal
Mesh Screen

Breather Spring

Breather Va Ive

Engine Brake Cover Plate

Label Bracket

Bolt M6x28

Ignition Coil Assembly

Plastic Clamp q)5.8x9

Ignition Coil Spacer

Fuel Tank Bottom Bracket

Fuel Tank Bracket & On/Off Sw Asm
Clamp

Ignition Switch

Fuel Tank Washer

Rubber Bushing

Fuel Tank Bushing

Bolt M8xS0

Fuel Cap Assembly

Fuel Tank Assembly

Fuel Filter

Plastic Support Clamp
Throttle Linkage
Throttle Linkage Spring

R°,I

NO,
58 712-04212
59 951-11678
60 710-04908
61 951-11679

62 951-10619
63 951-11680

64 951-10387
65 710-04915
66 951-11681
67 951-11694

68 714-04074
69 951-11574
70 951-11608
71 951-11520

74 951-11601
76 951-11369
77 951-11682

78 951-10307
79 710-04980
81 951-10333
82 951-11546

83 951-10334
84 951-11547
86 736-04491
87 951-11609
88 951-11549

98 715-04092
99 715-04096

100 736-04440
101 710-04906

103 951-11545
104 710-04969
106 951-10297
107 951-10882

108 951-10298
112 951-11525
113 951-11683
135 951-11589

137 951-11348
138 710-04945
139 951-11349

Part No. Description

Governor Arm Nut M6
Governor Arm
Governor Arm Bolt
Governor Arm Shield

Choke Control
Flexible Clamp

Governor Spring
Bolt M6x12

Component Bracket
Choke Linkage

Governor Cotter Pin
Governor Seal
Governor Arm Shaft

Breather Hose Assembly
Crankcase Cover Gasket

Main Bearing
Crankshaft Assembly

Woodruff Key

Bolt M6x35
Dipstick Assembly

Dipstick O-Ring
Oil Fill Tube Assembly
Oil Fill Tube O-Ring

Crankshaft Thrust Washer
Governor Gear Mounting Plate

Governor Gear/Shaft Assembly
Crankcase Cover Dowel 7x14

Crankcase Cover Dowel 9x14
Oil Drain Plug Washer

Oil Drain Plug

Lower Crankshaft Seal
A/F Base Bolt M6x30
Air Filter Cover Thumb Screw

Air Cleaner Housing Assembly
Air Cleaner Assembly

Carburetor Gasket Plate

Carburetor Assembly

Fuel Bowl O-Ring

Fuel Bowl Gasket

Fuel Bowl Mounting Bolt

Fuel Drain Plug Gasket

NOTE: Illustrated parts without a numeric call-out are not servicable components. 23

EngineM0del-1P65LHA

I

Ref

I Part No.

No.

I

140 710-04903
141 951-11684
142 951-11527
143 951-11528
144 710-05093

146 710-04982
147 951-10292
148 951-10313

153 951-11687
154 951-11606
155 710-04902
157 751-11123
158 751-11124

159 951-11551
160 951-11548
161 710-05094
162 951-10402

163 951-10295
164 951-10404
165 951-10351
166 710-04983

167 951-11555
168 715-04108
169 951-10314
170 951-11607

171 951-11552
172 951-11688
177 951-11603
178 951-11605

179 951-11604
180 951-11554
3 951-10299A

5
6
7

10
11

12
13
14
15

Description

Fuel Drain Plug

Carburetor Gasket
Carburetor Insulator
Carburetor Insulator Gasket
Carb Stud M6x92

Head Bolt M8x54

Spark Plug/F6rtc
Valve Kit - -- Intake Valve

Push Rod Guide
Rocker Arm Assembly

Rocker Arm Stud
Fulcrum Nut

Jam Nut
Valve Cover Gasket

Valve Cover
Muffler Stud M6x95
Muffler Gasket

Muffler Assembly
Muffler Shield

Spark Arrestor
Spark Arrestor Screw
Cylinder Head Gasket
Cylinder Head Dowel 10x16

Push Rod 15321-1b84-0100 2 Per

Tappet
Camshaft Assembly

Piston Ring Set
Piston Pin Snap Ring

Piston
Piston Pin

Connecting Rod Assembly

Recoil Starter Assembly

Starter Handle Insert
Starter Handle

Starter Housing
Starter Rope
Starter Pawl Return Spring

Starter Pawl

Pressure Plate
Pressure Plate Spring

Pressure Plate Bolt

I

Ref

I Part No.

No.

I

46 951-10300

47
48
49

71 951-11520

72
73

88 Governor Gear Shaft Assembly

113 951-I1683

172 951-11688

180 951-I1554

-- 951-I0314

951-11549
89 -- Governor Slide Cap
90 -- Governor Slide Cap Washer

92 -- Governor Gear Shaft
93 -- Governor Gear Assembly

94 -- Governor Fly Weight
95 -- Governor Fly Weight Pin

96 -- Governor Gear
97 -- Governor Gear Washer

114

115
116

117

118

120

121
122

123

124

125
127

128

173
174

175
176

181

182

183

169

Fuel Cap Assembly
Fuel Cap

Sponge Insert

Vent Gasket

Breather Hose Assembly
Breather Hose Clamp
Breather Hose

Carburetor Assembly
Detent Spring
Choke Shaft

Choke Return Spring
Choke Plate

Choke Shaft Washer

Idle Jet Assembly
Throttle Shaft
Throttle Plate

Throttle Plate Screw
Throttle Plate Lock Washer

Throttle Shaft Fiber O-Ring

Idle Mixture Screw

Carburetor Body

Piston Ring Set

Upper Piston Compression Ring

Lower Piston Compression Ring

Piston Oil Ring Segment

Piston Oil Ring Expander

Connecting Rod Assembly

Connecting Rod

Connecting Rod Cap

Connecting Rod Bolt

Push Rod Kit

Push Rod

Description

NOTE: Illustrated parts without a numeric call-out are not servicable components.

EngineM0del-1P65LltA

I

Ref

I Part No.

No.

I

-- 951-10298
108
109

-- 951-10882
107

III

II0

-- 951-10342
161

-- 951-11690

27

82
84

I00

141
142

143

159

162

-- 951-11691

27

28

69

74
82

84

100

103
141

142

143

159

162

167

-- 951-10363
51

52
53

-- 951-10370

I00
101

Description

Air Cleaner Kit

Pre-Cleaner

Air Filter
Air Cleaner Housing Ass'y

Outer Air Filter Housing

Inner Air Filter Housing
Breather Channel Cover

Muffler Stud Ass'y
Muffler Stud

Gasket Kit - External

Breather Gasket
Dipstick O-Ring

Oil Fill Tube O-Ring
Oil Drain Plug Washer

Carburetor Gasket
Carburetor Insulator

Carburetor Insulator Gasket
Valve Cover Gasket
Muffler Gasket

Gasket Kit - Complete

Breather Gasket
Upper Crankshaft Seal

Governor Seal
Crankcase Cover Gasket

Dipstick O-Ring

Oil Fill Tube O-Ring
Oil Drain Plug Washer

Lower Crankshaft Seal
Carburetor Gasket

Carburetor Insulator
Carburetor Insulator Gasket

Valve Cover Gasket

Muffler Gasket
Cylinder Head Gasket

Born For Fuel Line Kit
Fuel Filter
Hose Clamp

Fuel Hose
Oil Drain Plug & Washer Ass'y

Drain Plug Washer
Drain Plug

I

Ref

I Part No.

NO.

I

-- 951-10846

146

149

159

167 _

-- 951-11692

119

126
130

132

135

131
133

134

129

137

139

-- 951-10319

8
9

-- 951-10333
81
82

-- 951-11693
142 951-11527

143 951-11528
145

148
149

150
151
152

153 951-11687
155 710-04902
156
157 751-11123

158 751-11124
159 951-11551
162 951-10402
167 951-11555

Description

Cylinder Head
Head Bolt M8x54

Intake Valve Seal

Valve Cover Gasket

Cylinder Head Gasket
Carburetor Kit - Major

Fiber O-Ring
Idle Speed Adjusting Screw

(Main Nozzle) Emulsion Tube
Main Jet

Fuel Bowl O-Ring
Needle Valve

Needle Valve Spring
Float

Float Pin
Fuel Bowl Gasket

Fuel Drain Plug Gasket
Recoil Pulley & Spring Ass'y

Spring
Pulley
Dipstick Assembly

Dipstick
Dipstick O-Ring
Cylinder Head

Carburetor Insulator
Carburetor Insulator Gasket

Cylinder Head
Intake Valve
Intake Valve Seal

Exhaust Valve

Valve Spring
Valve Spring Retainer

Push Rod Guide
Rocker Arm Stud
Rocker Arm
Fulcrum Nut

Jam Nut
Valve Cover Gasket
Muffler Gasket

Cylinder Head Gasket(

NOTE: Illustrated parts without a numeric call-out are not servicable components. :25

EngineModel-1P65LHA

Ref

NO.

25
26
27

28
29
30
31

34
68
69

70
74

75
76

77
78

84
85

86
87
88
98
99

100
101
102
103

112
142
143
159

162
167
168
170

171
172
177
178

179
180

Part No.

I

951-11689

I

Description

Short Block

Bolt M6x14
Breather Cover Plate
Breather Gasket
Upper Crankshaft Seal

Mesh Screen

Breather Spring
Breather Valve

Bolt M6x28
Governor Cotter Pin
Governor Seal
Governor Arm Shaft

Crankcase Cover Gasket
Crankcase

Main Bearing
Crankshaft Assembly
Woodruff Key

Oil Fill Tube O-Ring
Oil Return Tube
Crankshaft Thrust Washer

Governor Gear Mounting Plate
Governor Gear/Shaft Assembly
Crankcase Cover Dowel 7x14

Crankcase Cover Dowel 9x14

Oil Drain Plug Washer

Oil Drain Plug

Crankcase Cover

Lower Crankshaft Seal

Carburetor Gasket Plate

Carburetor Insulator

Carburetor Insulator Gasket
Valve Cover Gasket

Muffler Gasket

Cylinder Head Gasket

Cylinder Head Dowel 10x16
Tappet

Camshaft Assembly

Piston Ring Set

Piston Pin Snap Ring

Piston

Piston Pin

Connecting Rod Assembly

NOTE: Illustrated parts without a numeric call-out are not servicable components.

Ref

I Part No, DescriptionNo.

H

-- 951-10334 Oil Fill Tube Assembly
83 -- Oil Fill Tube

84 -- Oil Fill Tube O-Ring

-- 951-10313 Valve Kit
148 -- Intake Valve

150 -- Exhaust Valve

1

27

MANUFACTURER'S LiMiTED WARRANTY FOR

The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased andused in the United States
and/or its territories and possessions, and by MTD Products Limited

with respect to new merchandise purchasedand used in Canadaand/
or its territories and possessions (either entity respectively, "MTD").

"MTD" warrants this product (excluding its Normal WearParts and
Attachments as described below) against defects in material and
workmanship for a period of two (2) years commencing onthe date
of original purchase and will, at its option, repair or replace,free of

charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's Manual
furnished with the product, and has not beensubject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or use
of any part, accessory or attachment not approved by MTD for use
with the product(s) covered bythis manual will void your warranty as
to any resulting damage.

Normal WearPartsare warranted to befree from defects in material
andworkmanship for a period of thirty (30) days from the date of

purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,

wheels, rider deck wheels, seats, snow thrower skid shoes,friction
wheels, shaveplates, auger spiral rubber and tires.

Attachments-- MTDwarrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of theattachment's original purchase or

lease.Attachments include, but are not limited to items such as:
grass collectors and mulch kits.

HOWTO OBTAINSERVICE:Warranty service is available, WITH
PROOFOFPURCHASE,through your local authorized service dealer.
Tolocatethe dealer in your area:

In the U.S.A.
Checkyour Yellow Pages,or contact MTD LLC at RO. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com.

In Canada
Contact MTD Products Limited, Kitchener, ON N2G4J1, orcall 1-800-

668-1238 or log on to our Web site atwww.mtdcanada.com.
This limited warranty does not provide coverage in the following

cases:
a. The engine or component parts thereof. These items may carry a

separate manufacturer's warranty. Referto applicable manufac-
turer's warranty for terms and conditions.

b. Log splitter pumps, valves, and cylinders havea separateone-

yearwarranty.

c. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish

dueto use or exposure.

d. Service completed by someone other than an authorized service

dealer.

e. MTD does not extend any warranty for products sold or exported

outside of the United States and/or Canada, and their respective
possessions and territories, except those sold through MTD's

authorized channels of export distribution.
f. Replacement parts that are notgenuine MTD parts.
g. Transportation charges andservice calls.
h. MTD does not warrant this product for commercial use.

No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by anyperson or entity,

includinga dealer or retailer, with respect to any product,shall
bind MTD. Duringthe period of the warranty, the exclusive remedy

is repair or replacement of the product asset forth above.
The provisionsas set forth inthis warranty providethe sole and

exclusive remedy arising from the sale. MTD shall not be liable
for incidental orconsequential loss or damage including, without

limitation, expenses incurred for substitute or replacement lawn
careservices or for rental expenses to temporarily replace a

warranted product.
Some states do not allow the exclusion or limitation of incidental

or consequential damages, or limitations on how long animplied
warranty lasts, sothe above exclusions or limitations may not apply

to you.
In no event shall recovery of any kind begreater than the amount of

the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. Youassume the risk and liability

for loss, damage, or injury to you and your property and/or to others
andtheir property arising out of the misuse or inability to use the
product.

This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a

gift.
HOWSTATELAW RELATESTOTHIS WARRANTY: This limited

warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.

IMPORTANT:Owner must present Original Proof of Purchase to
obtain warranty coverage.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136=0019; Phone: 1=800=800=7310, 1=330=220=4683

MTD Canada Limited =KITCHENER, ON N2G 4J1; Phone 1=800=668=1238

GDOC-lO0015 REV. B
