MTD CVT 900 Operator's Manual

Download

Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty

CVT Lawn Tractor, 900 Series

MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019

PrintedIn USA FormNo.769-05660

(January25,2010)

ToTheOwner

ThankYou

Thank you for purchasing an MTD Lawn Tractor. It was carefully engineered to provide excellent performance when properly

operated and maintained. Please read this entire manual prior to operating the equipment.

It instructs you how to safely and easily set up, operate and maintain your machine. Please be sure that you, and any other persons who will operate the machine, carefully follow the recommended safety practices at all times. Failure to do so could

result in personal injury or property damage. All information in this manual is relative to the most recent

product information available at the time of printing. Review this manual frequently to familiarize yourself with the machine,

its features and operation. Please be aware that this Operator's Manual may cover a range of product specifications for various

models. Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models. We reserve

the right to change product specifications, designs and equipment without notice and without incurring obligation.

Table of Contents

Safe Operation Practices ........................................ 3

Assembly & Set-Up .................................................. 8

Con trois ................................................................... 12

Operation ................................................................ 13

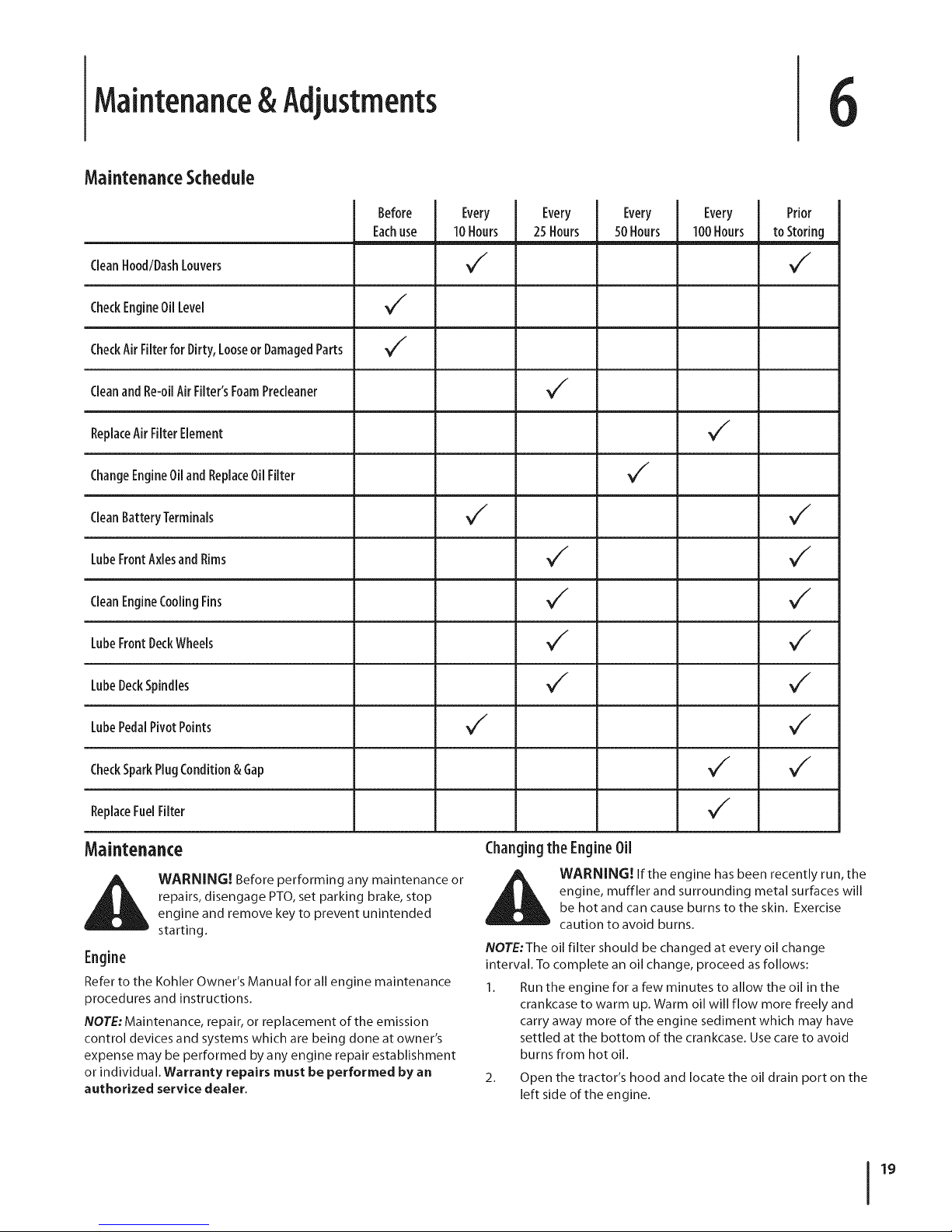

Maintenance &Adjustment. ................................. 19

If you have any problems or questions concerning the machine, phone your local authorized MTD service dealer or contact us

directly. MTD's Customer Support telephone numbers, website address and mailing address can be found on this page. We want to ensure your complete satisfaction at all times.

Throughout this manual, all references to right and left side of the machine are observed from the operating position

The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifications, warranty and service. Please refer to the engine manufacturer's Owner's/Operator's Manual, packed separately with your

machine, for more information.

Service .................................................................... 24

Troubleshooting .................................................... 29

Replacement Parts ................................................ 30

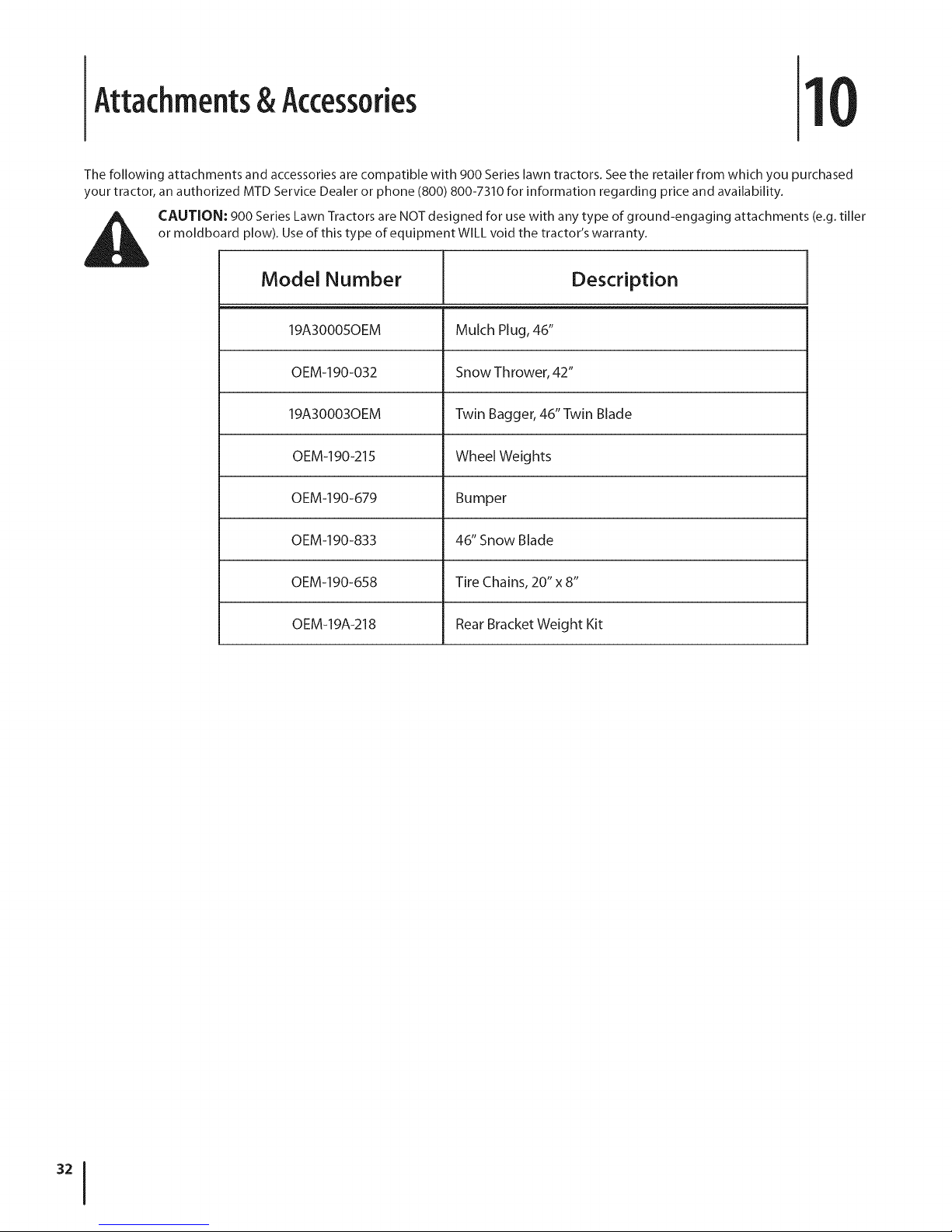

Attachments & Accessories .................................. 32

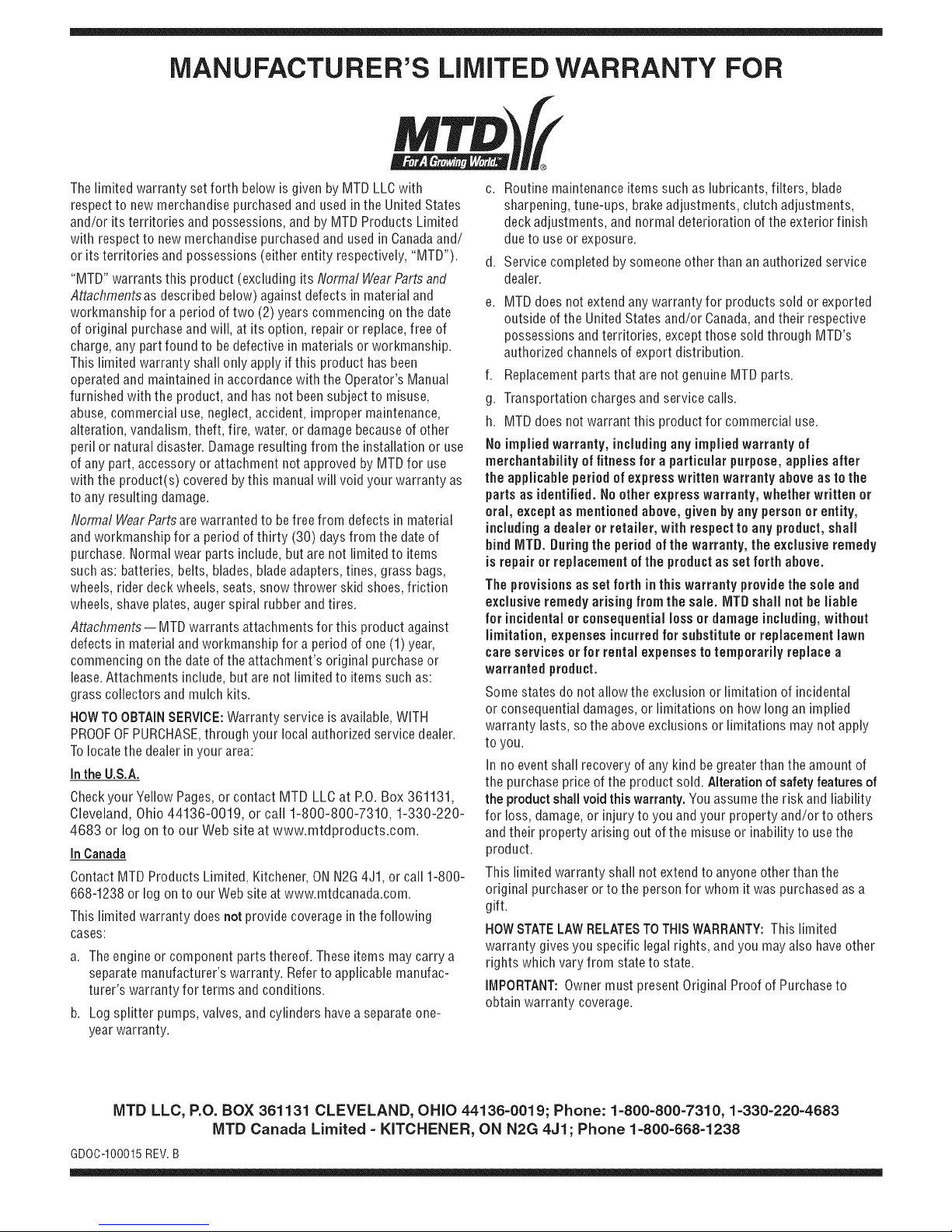

Warranty .................................................. Back Cover

RecordProductinformation

Before setting up and operating your new equipment, please locate the model plate on the equipment and record the

information in the provided area to the right. You can locate the model plate by looking beneath the seat. This information will be necessary, should you seek technical support via our web site, Customer Support Department, or with a local authorized service

dealer.

MODEL NUMBER

DDDDDDDDDDD

SERIAL NUMBER

IqNIqNIqNIqNIqND

CustomerSupport

Please do NOTreturn the machine to the retailer or dealer without first contacting the Customer Support Department.

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this machine, you can seek help from the experts. Choose from the options below:

0 Visit us on the web at www.mtdproducts.com

0 Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683 0 Write to MTD LLC • RO. Box 361131 • Cleveland, OH • 44136-0019

ImportantSafeOperationPractices

WARNING! This symbol points out important safety instructions which, if not followed,

could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply

with these instructions may result in personal injury. When you see this symbol. HEED ITS WARNING!

CALIFORNIA PROPOSITION 65

WARNING! Engine Exhaust, some of its constituents, and certain vehicle components

contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

WARNING! Battery posts, terminals, and related accessories contain lead and lead

compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling

DANGER! This machine was built to be operated according to the safe operation practices in

this manual. As with any type of power equipment, carelessness or error on the part of the

operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

GeneralOperation

1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them

quickly.

3. Never allow children under 14 years of age to operate this machine. Children 14 and over should read and understand

the instructions and safe operation practices in this manual and on the machine and should be trained and supervised

by an adult.

4. Never allow adults to operate this machine without proper instruction.

To help avoid blade contact or a thrown object injury, keep bystanders, helpers, children and pets at least 75 feet

from the machine while it is in operation. Stop machine if anyone enters the area.

6. Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s). Thrown objects can cause serious personal injury.

7. Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back

toward the operator.

8. Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

9. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Loose fitting clothes and jewelry can be

caught in movable parts. Never operate this machine in bare feet or sandals.

10. Be aware of the mower and attachment discharge direction and do not point it at anyone. Do not operate the mower without the discharge cover or entire grass catcher in its proper place.

11. Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet.

12. Amissingordamageddischargecovercancauseblade contactorthrownobjectinjuries.

13. Stoptheblade(s)whencrossinggraveldrives,walks,or roadsandwhilenotcuttinggrass.

14. Watchfortrafficwhenoperatingnearorcrossing roadways.Thismachineisnotintendedforuseonany publicroadway.

15. Donotoperatethemachinewhileundertheinfluenceof alcoholordrugs.

16. Mowonlyindaylightorgoodartificiallight.

17. Nevercarrypassengers.

18. Disengageblade(s)beforeshiftingintoreverse.Backup slowly.Alwayslookdownandbehindbeforeandwhile

backingtoavoidaback-overaccident.

19. Slowdownbeforeturning.Operatethemachinesmoothly. Avoiderraticoperationandexcessivespeed.

20. Disengageblade(s),setparkingbrake,stopengineandwait untiltheblade(s)cometoacompletestopbeforeremoving

grasscatcher,emptyinggrass,uncloggingchute,removing anygrassordebris,ormakinganyadjustments.

21. Neverleavearunningmachineunattended.Alwaysturn offblade(s),placetransmissioninneutral,setparking brake,stopengineandremovekeybeforedismounting.

22. Useextracarewhenloadingorunloadingthemachineinto atrailerortruck.Thismachineshouldnotbedrivenupor downramp(s),becausethemachinecouldtipover,causing seriouspersonalinjury.Themachinemustbepushed manuallyonramp(s)toloadorunloadproperly.

23.

Mufflerandenginebecomehotandcancauseaburn.Do nottouch.

24.

Checkoverheadclearancescarefullybeforedrivingunder lowhangingtreebranches,wires,dooropeningsetc., wheretheoperatormaybestruckorpulledfromthe machine,whichcouldresultinseriousinjury.

25.

Disengageallattachmentclutches,depressthebrake pedalcompletelyandshiftintoneutralbeforeattempting tostartengine.

26.

Your machine is designed to cut normal residential grass of a height no more than 10". Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/ or build up on the mower deck presenting a potential fire

hazard.

27. Use only accessories and attachments approved for this machine by the machine manufacturer. Read, understand

and follow all instructions provided with the approved accessory or attachment.

28. Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related

injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.

29. If situations occur which are not covered in this manual, use care and good judgment. Contact your customer service

representative for assistance.

SlopeOperation

Slopes are a major factor related to loss of control and tip-over accidents which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

For your safety, use the slope gauge included as part of this manual to measure slopes before operating this machine on

a sloped or hilly area. If the slope is greater than 15 degrees as shown on the slope gauge, do not operate this machine on that area or serious injury could result.

Do:

1. Mow up and down slopes, not across. Exercise extreme caution when changing direction on slopes.

2. Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

3. Use slow speed. Choose a low enough speed setting so that you will not have to stop or shift while on the slope.

Tires may lose traction on slopes even though the brakes are functioning properly. Always keep machine in gear when going down slopes to take advantage of engine braking action.

4. Follow the manufacturer's recommendations for wheel weights or counterweights to improve stability.

5. Use extra care with grass catchers or other attachments. These can change the stability of the machine.

6. Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction. Rapid

engagement or braking could cause the front of the machine to lift and rapidly flip over backwards which could cause serious injury.

7. Avoid starting or stopping on a slope. If tires lose traction, disengage the blade(s) and proceed slowly straight down

the slope.

DoNot:

1. Do not turn on slopes unless necessary; then, turn slowly and gradually downhill, if possible.

2. Do not mow near drop-offs, ditches or embankments. The mower could suddenly turn over if a wheel is over the edge of a cliff, ditch, or if an edge caves in.

3. Do not try to stabilize the machine by putting your foot on the ground.

4. Do not use a grass catcher on steep slopes.

5. Do not mow on wet grass. Reduced traction could cause sliding.

6. Do not shift to neutral and coast downhill. Over-speeding may cause the operator to lose control of the machine

resulting in serious injury or death.

7. Do not tow heavy pull behind attachments (e.g. loaded dump cart, lawn roller, etc.) on slopes greater than 5

degrees. When going down hill, the extra weight tends to push the tractor and may cause you to loose control (e.g. tractor may speed up, braking and steering ability are reduced, attachment may jack-knife and cause tractor to

overturn).

4 I SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES

Children

Tragic accidents ca n occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. They do not understand

the dangers. Never assume that children will remain where you last saw them.

a. Keep children out of the mowing area and in

watchful care of a responsible adult other than the operator.

b. Be alert and turn machine off if a child enters the

area.

c. Before and while backing, look behind and down for

small children.

d. Never carry children, even with the blade(s) shut off.

They may fall offand be seriously injured or interfere

with safe machine operation.

e. Use extreme care when approaching blind corners,

doorways, shrubs, trees or other objects that may blockyour vision of a child who may run into the

path of the machine.

f. To avoid back-over accidents, always disengage

the cutting blade(s) before shifting into Reverse. If equipped, the "Reverse Caution Mode" should

not be used when children or others are around.

g. Keep children away from hot or running engines.

They can suffer burns from a hot muffler.

h. Remove key when machine is unattended to

prevent unauthorized operation.

Never allow children under 14 years of age to operate this machine. Children 14 and over should read and understand

the instructions and safe operation practices in this manual and on the machine and should be trained and supervised by an adult.

Towing

1. Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point.

2. Follow the manufacturers recommendation for weight limits for towed equipment and towing on slopes.

3. Never allow children or others in or on towed equipment.

4. On slopes, the weight of the towed equipment may cause loss of traction and loss of control.

5. Always use extra caution when towing with a machine capable of making tight turns (e.g. "zero-turn" ride-on

mower). Make wide turns to avoid jack-knifing.

6. Travel slowly and allow extra distance to stop.

7. Do not shift to neutral and coast downhill.

Service

SafeHandling of Gasoline:

1. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely

flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

a. Use only an approved gasoline container. b. Never fill containers inside a vehicle or on a truck

or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle

before filling.

c. When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

d. Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

e. Extinguish all cigarettes, cigars, pipes and other

sources of ignition.

f. Never fuel machine indoors. g. Never remove gas cap or add fuel while the engine

is hot or running. Allow engine to cool at least two minutes before refueling.

h. Never over fill fuel tank. Fill tank to no more than 1/2

inch below bottom of filler neck to allow space for fuel expansion.

i. Replace gasoline cap and tighten securely.

j. If gasoline is spilled, wipe it off the engine and

equipment. Move machine to another area. Wait 5 minutes before starting the engine.

k. To reduce fire hazards, keep machine free of grass,

leaves, or other debris build-up. Clean up oil or fuel spillage and remove any fuel soaked debris.

I. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light as on a water heater, space heater, furnace, clothes

dryer or other gas appliances.

m. Allow a machine to cool at least five minutes before

storing.

GeneralService

1. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless, and deadly gas.

2. Before cleaning, repairing, or inspecting, make certain the blade(s) and all moving parts have stopped. Disconnect the

spark plug wire and ground against the engine to prevent unintended starting.

SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES S

Periodically check to make sure the blades come to complete stop within approximately (5) five seconds after operating the blade disengagement control. If the blades do not stop within the this time frame, your machine

should be serviced professionally by an authorized MTD Service Dealer.

4. Check brake operation frequently as it is subjected to wear during normal operation. Adjust and service as required.

5. Check the blade(s) and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade(s) for damage (e.g., excessive wear, bent, cracked). Replace the blade(s) with the original equipment manufacturer's (O.E.M.) blade(s) only, listed in this manual. "Use of parts

which do not meet the original equipment specifications may lead to improper performance and compromise safety!"

6. Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

7. Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.

8. Never tamper with the safety interlock system or other safety devices. Check their proper operation regularly.

9. After striking a foreign object, stop the engine, disconnect the spark plug wire(s) and ground against the engine.

Thoroughly inspect the machine for any damage. Repair the damage before starting and operating.

10. Never attempt to make adjustments or repairs to the machine while the engine is running.

11. Grass catcher components and the discharge cover are subject to wear and damage which could expose moving parts or allow objects to be thrown. For safety protection, frequently check components and replace immediately with original equipment manufacturer's (O.E.M.) parts only,

listed in this manual. "Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!"

12. Do not change the engine governor settings or over-speed the engine. The governor controls the maximum safe

operating speed of the engine.

13. Maintain or replace safety and instruction labels, as necessary.

14. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

15. According to the Consumer Products Safety Commission (CPSC) and the U.S. Environmental Protection Agency (EPA),

this product has an Average Useful Life of seven (7) years, or 270 hours of operation. At the end of the Average Useful Life have the machine inspected annually by an authorized service dealer to ensure that all mechanical and safety

systems are working properly and not worn excessively. Failure to do so can result in accidents, injuries or death.

Donot modify engine

To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway

engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor.

NoticeRegardingEmissions

Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment)

are certified to operate on regular unleaded gasoline, and may include the following emission control systems: Engine Modification (EM), Oxidizing Catalyst (OC), Secondary Air Injection (SAI) and Three Way Catalyst (TWC) if so equipped.

SparkArrestor

internal combustion engine and should not be used

_ ARNING! This machine is equipped with an

Ifa spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public

Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark attester for the muffler is available through your nearest engine authorized service dealer or contact the service

department, RO. Box 361131 Cleveland, Ohio 44136-0019.

on or near any unimproved forest-covered, brushcovered or grass-covered land unless the

engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if

any).

WARNING! Your Responsibility--Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

6 I SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES

SAVETHESEiNSTRUCTiONS!

SafetySymbols

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

READ THE OPERATOR'S MANUAL(S) Read, understand, and follow all instructions in the manual(s) before attempting to

assemble and operate

DANGER-- ROTATING BLADES Never carry passengers. Never carry children, even with the blades off.

DANGER-- ROTATING BLADES

Always look down and behind before and while backing to avoid a back-over accident.

WARNING-- ROTATING BLADES

Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet.

WARNING--THROWN OBJECTS This machine may pick up and throw and objects which can cause serious personal injury.

BYSTANDERS Keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in

operation.

WARNING-- SLOPE OPERATION

Do not operate this machine on a slope greater than 15 degrees.

WARNING-- HOT SURFACE

Engine parts, especially the muffler, become extremely hot during operation. Allow engine

and muffler to cool before touching.

DANGER -- ROTATING BLADES

To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover or grass catcher is in its proper place. If damaged, replace immediately.

WARNING-- TOWING Avoid jack-knifing when towing, go slow and make wide turns.

SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES 7

oO 0

_L3

¢..-

G.3 C

Or)

¢-..

¢.-

r--

SECTION 2 -- _MPORTANT SAFE OPERATION PRACTICES

Assembly& Set-Up

Contents of Crate

One Lawn Tractor One Lawn Tractor Operator's Manual

One Oil Drain Tube One Kohler Engine Operator's

Manual

TractorSet-Up

Moving TheTractorManually

To move the tractor manually, move the shift lever into the neutral position.

Shipping BraceRemoval

off, set the parking brake and remove the ignition

_ ARNING! Make sure the lawn tractor's engine is

1. Locate the shipping brace, if present, and warning tag

key before removing the shipping brace.

found on the right side of the cutting deck. See Fig. 3-1.

One DeckWash Hose Coupler

2. While holding the discharge chute with your left hand, remove the shipping brace with your right hand by grasping it between your thumb and index finger and

rotating it clockwise.

packaging purposes only. Remove and discard the

_ WARNING! The shipping brace is used for

_L ARNING! The mowing deck is capable of

shipping brace before operating your lawn tractor.

throwing objects. Operating the riding mower without the discharge cover in the proper operating

position could result in serious personal injury and/ or property damage.

Figure 3-1

CALiFORNiA PROPOSiTiON 65 WARNING!

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known

to the State of California to cause cancer and

reproductive harm. Wash hands after handling.

connect the POSITIVE (Red) wire to its terminal first,

CAUTION: When attaching battery cables, always

followed by the NEGATIVE (Black) wire. To connect the battery cables, proceed as follows: NOTE:The positive battery terminal is marked Pos. (+). The

negative battery terminal is marked Neg. (-).

1. Remove the plastic cover, if present, from the positive (+)

battery terminal and attach the red cable to the positive battery terminal (+) with the bolt and hex nut. See Fig. 3-2.

CheckingTire Pressure

of tires for maximum psi. Equal tire pressure should

• be maintained at all times.

WARNING! Do not overinflate tires. Check sidewall

The tires on your tractor may be over inflated for shipping purposes. Reduce the tire pressure before operating the tractor.

Check sidewall of tires for maximum psi.

Setting the DeckGaugeWheels

Move the tractor on a firm and level surface, preferably pavement, and proceed as follows:

1. Select the height position of the cutting deck by placing the deck lift lever in the normally desired mowing height setting (any of the six different cutting height notches on the right fender).

2. Check the gauge wheels for contact or excessive clearance with the surface below. The deck gauge wheels should have between 1/4"and 1/2"clearance above the ground.

If the gauge wheels have excessive clearance or contact with the surface, adjust as follows:

a. Raise the deck lift handle to its highest setting. b. Remove the front and rear gauge wheels by

removing the lock nuts and shoulder screws which secure them to the deck. See Fig. 3-3.

Figure 3-2

2. Remove the plastic cover, if present, from the negative (-) battery terminal and attach the black cable to the negative battery terminal (-) with the bolt and hex nut. See Fig. 3-2.

3. Position the red rubber boot over the positive battery terminal to help protect it from corrosion.

NOTE: If the battery is put into service after the date shown on top/side of battery, charge the battery as instructed in the Maintenance section your Operator's Manual prior to operating

the tractor.

m_ J

Figure 3-3

c. Place the deck lift lever in the desired mowing

height setting.

d. Reinsert the shoulder screw (with each gauge

wheel) into the index hole that leaves approximately 1/2-inch between the bottom of the wheel and the

pavement.

Refer to Leveling the Deck in the Maintenance section of this manual for more detailed instructions regarding various deck adjustments.

SECTION 2 -- ASSEMBLY& SET-UP

Adjusting the Seat

To adjust the position of the seat, lift the seat forward and loosen the seat adjustment knob. Slide the seat forward or rearward to the desired position; then tighten the adjustment knob. Release

the seat. See Fig. 3-4.

Figure 3-4

GasandOil

The fuel tank is located under the hood and hasa capacity of two and three-fourths gallons. Remove the fuel cap by turning it counterclockwise. Use only clean, fresh (no more than 30 days

old), unleaded gasoline. Do not overfill the tank.

WARNING! Use extreme care when handling

gasoline. Gasoline is extremely flammable and the

vapors are explosive. Never fuel the machine

indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes and other

sources of ignition.

NOTE: Your tractor is shipped with oil in the engine. However, you MUST check the oil level before operating.

CAUTION: Always check the engine oil level before each use as instructed in the Kohler Owner's Manual.

Add oil as necessary. Failure to do so may result in

serious damage to your engine.

WARNING! Before operating the tractor, make sure the seat is engaged in the seat-stop. Engage the

parking brake. Stand behind the machine and pull back on seat until it clicks into place.

SECTION 2 -- ASSEMBLY& SET-UP 11

ControlsandFeatures

Systems indicator

Fuel Tank Cap,

Fuel Level indicator

Monitor

Throttle_

co rol 1

ignition Switch

Module

Pedal

Deck Lift Lever

Cup Holder

Lawn Tractor controls and features are illustrated in Fig. 4-1 and described on the following pages.

WARNING! Read and follow all safety rules and

instructions in this manual, including the entire

Operation section, before attempting to operate this machine. Failure to comply with all safety rules and instructions may result in personal injury.

Throttle/ChokeControl

The throttle/choke control is located on the right side of the tractor's dash panel. This lever controls

the speed of the engine and, when pushed all the way forward, closes the choke for cold starting. When set in a given position, the throttle will maintain a uniform engine speed.

NOTE:When operating the tractor with the cutting deck engaged, be certain that the throttle/choke control is always in the FAST (rabbit) position.

PTO(Blade Engage)

Handle

Figure 4-1

BrakePedal

The brake pedal is located on the left front side of the tractor along the running board. The brake pedal can be used for sudden stops or setting the parking brake.

NOTE:The brake pedal must be fully depressed to activate the safety

interlock switch when starting the tractor.

SeatAdjustmentKnob(not shown)

The seat adjustment knob is located below the front/left of the seat. The knob allows for adjustment of the fore to aft position of the operator's seat. Refer to the Assembly and Set-Up section of

this manual for more detailed instructions.

DeckLift Lever

Found on your tractor's right fender, the deck lift lever is used to change

the height of the cutting deck. To use, move the lever to the left, then place in the notch best suited for your application.

Ignition Switch Module

leave a running

_ ARNING! Never

-- Always disengage

To start the engine, insert the key into the ignition switch and turn

clockwise to the START position. Release the key into the NORMAL MOWING MODE position once the engine has fired.

To stop the engine, turn the ignition key counterclockwise to the STOP position.

DrivePedal

The drive pedal is located on the right side of the tractor, along the running board. Press the drive pedal forward to cause the tractor

to travel forward. Ground speed is also controlled with the drive pedal. The further forward that the pedal is pivoted, the faster the tractor will travel. The pedal will return to its original position when it's not pressed.

ShiftLever

The Shift Lever is used to shift the tractor's drive from Forward, Reverse and Neutral.

machine unattended.

PTO, set parking

brake, stop engine and remove key to prevent unintended starting.

both Safety Interlock Switches and Starting The

CAUTION: Prior to operating the tractor, refer to

Engine in the Operation section of this manual for detailed instructions regarding the Ignition Switch

Module and operating the tractor in REVERSE CAUTION MODE.

SystemsIndicator Monitor/Hour Meter LCD

When the ignition key is rotated out of the STOP

position but not into the START position, the system's indicator monitor displays the battery's

output, in volts, on its LCD for approximately five seconds, after which it displays an hour glass

and the hours of tractor operation. Once the

tractor is started, the monitor continually displays an hour glass and the hours of tractor operation on its LCD.

NOTE: Hours of tractor operation are recorded any time the ignition key is rotated out of the STOP position, regardless of

whether the engine is started. The Indicator Monitor will also remind the operator of

maintenance intervals for changing the engine oil. The LCD will alternately flash the recorded hours, "CHG" and "OIL" for five minutes, after every 50 hours of recorded operation elapse. The

maintenance interval lasts for two hours (from 50-52,100-102, 150-152, etc.). The LCD will also flash as described above for five

minutes every time the tractor's engine has been started during this maintenance interval. Before the interval expires, change

the engine oil as instructed in the Maintenance section of this Operator's Manual.

Brake

If the Brake light illuminates when attempting to start the tractor's engine, depress the brake pedal.

PTO(BladeEngage)

If the PTO light illuminates when attempting to start the tractor's engine, move PTO lever into the disengaged (OFF) position.

0il

It is normal for the Oil light to illuminate while the engine is cranking during start-up, but if it illuminates during operation, while the engine is running, stop the tractor immediately and check the engine oil level as instructed in this Owner's Manual.

Battery

It is normal for the Battery light to illuminate while the engine is cranking during start-up, but if it illuminates during operation, while the engine is running, the battery is in need of a charge

or the engine's charging system is not generating sufficient amperage. Charge the battery as instructed in the Service section of this manual or have the charging system checked by your authorized service dealer.

o (p) o

SECTION4 -- CONTROLS AND FEATURES 13

FuelLevelIndicator

The Fuel Level Indicator is located on the left side of the tractor's dash and indicates the amount of fuel in the gas

tank.

PTO/ BladeEngageHandle

Activating the PTO engages power to the cutting deck or other (separately

available) attachments. Push forward on the

PTO/Blade Engage handle to activate it. Pull the PTO/Blade Engage handle back

to disengage the power to the cutting deck or other (separately available)

attachments. NOTE:The PTO/Blade Engage handle must be in the disengaged

(OFF) position when starting the engine.

ParkingBrake/CruiseControl Lever

Located in the center of the tractor's dash panel below the steering wheel, the Parking Brake/

Cruise Control lever is used to engage the parking brake and the cruise control Refer to the Operation

section of this manual for detailed instructions regarding the parking brake.

NOTE:The parking brake must be set if the operator leaves the seat with the engine running or the engine will automatically shut off.

NOTE: Cruise control can NOT be engaged at the tractor's fastest ground speed. If the operator should attempt to do so, the tractor will automatically decelerate to the fastest optimal

mowing ground speed.

WARNING! Never leave a running machine

unattended. Always disengage PTO, set parking brake, stop engine and remove key to prevent

unintended starting.

SECTION 4-- CONTROLS AND FEATURES

Operation

Safety InterlockSwitches

This tractor is equipped with a safety interlock system for the protection of the operator. If the interlock system should ever

malfunction, do not operate the tractor. Contact your authorized service dealer.

The safety interlock system prevents the engine from cranking or starting unless the parking brake is engaged,

and the PTO (Blade Engage) lever is in the disengaged (OFF) position.

The engine will automatically shut off if the operator leaves the seat before engaging the parking brake.

i_i WARNING! Do not operate the tractor if the

interlock system is malfunctioning. This system was designed for your safety and protection.

Startingthe Engine

NOTE: Refer to the Assembly & Set-Up section of this manual for Gasoline and Oil fill-up instructions.

1. Insert the tractor key into the ignition switch module.

2. Place the PTO (Blade Engage) lever in the disengaged (OFF) position.

3. Engage the tractor's parking brake.

4. Activate the choke control by moving the throttle/choke control all the way forward into the choke position.

5. Turn the ignition key clockwise to the START position. After the engine starts, release the key. It will return to the NORMAL MOWING position.

Stopping the Engine

i_lh WARNING! If you strike a foreign object, stop the

1. If the blades are engaged, place the PTO/Blade Engage

2. Place the throttle control near the SLOW position.

3. Turn the ignition key counterclockwise to the STOP

4. Remove the key from the ignition switch to prevent

engine and disconnect the spark plug wire(s). Thoroughly inspect the machine for any damage.

Repair the damage before restarting and operating.

lever in the disengaged (OFF) position.

position.

unintended starting.

position for longer than ten seconds at a time. Doing

_ CAUTION: Do NOT hold the key in the START

6. After the engine starts, deactivate the choke control.

NOTE: Do NOT leave the choke control on while operating the tractor. Doing so will result in a "rich" fuel mixture and cause the engine to run poorly.

so may cause damage to your engine's electric starter.

DrivingTheTractor

and sudden stops.

i_lk WARNING! Avoid sudden starts, excessive speed

1. Lightly press the brake pedal to release the parking brake. Move the throttle lever into the FAST(rabbit) position.

2. To travel FORWARD,slowly pressthe drive pedal forward until the desired speed is achieved. See Fig.5-1.

ReverseCautionMode

The REVERSE CAUTION MODE position of the key switch module allows the tractor to be operated in reverse with the blades (PTO)

engaged. NOTE: Mowing in reverse is not recommended.

the tractor in the REVERSECAUTIONMODE. Always WARNING! Use extreme caution while operating

look down and behind before and while backing. Do not operate the tractor when children or others are

around. Stop the tractor immediately if someone enters the area.

To use the REVERSECAUTION MODE: NOTE:The operator MUST be seated in the tractor seat.

1. Start the engine as previously instructed on the previous page.

2. Turn the key from the NORMAL MOWING (Green) position to the REVERSECAUTION MODE (Yellow) position of the key switch module. See Fig. 5-2.

3. Press the REVERSE PUSH BUTTON (Orange, Triangular Button) at the top, right corner of the key switch module. The red indicator light at the top, left corner of the key switch module will be ON while activated. See Fig. 5-2.

Figure 5-1

3. To travel in REVERSE, check that the area behind is clear,

and with your tractor parking break on, move the shift lever into the reverse position. Lightly press the brake

pedal to release the parking break and then slowly press the drive pedal until the desired speed is achieved.

CAUTION: Do NOT attempt to change the

direction of travel when the tractor is in motion.

Always bring the tractor to a complete stop before

moving the shift lever from forward to reverse or

vice versa. WARNING! Do not leave the seat of the tractor

without first placing the PTO/Blade Engage lever in the disengaged (OFF) position and engaging the

parking brake. If leaving the tractor unattended, also

turn the engine offand remove the ignition key.

Indicator NO CHILDRENAROUND

REVERSE PUSH

Reverse

Light BUTTON

H Push Button

Reverse

Stop

Position

Caution Mode

Position

Start

Position

Figure 5=2

4. Once activated (indicator light ON), the tractor can be driven in reverse with the cutting blades (PTO) engaged.

5. Always look down and behind before and while backing to make sure no children are around. After resuming forward motion, return the key to the NORMAL MOWING position.

The REVERSE CAUTION MODE will remain activated until:

a. The key is placed in either the NORMAL MOWING

position or STOP position or

b. The operator leaves the seat.

SECTION 5-- OPERATION

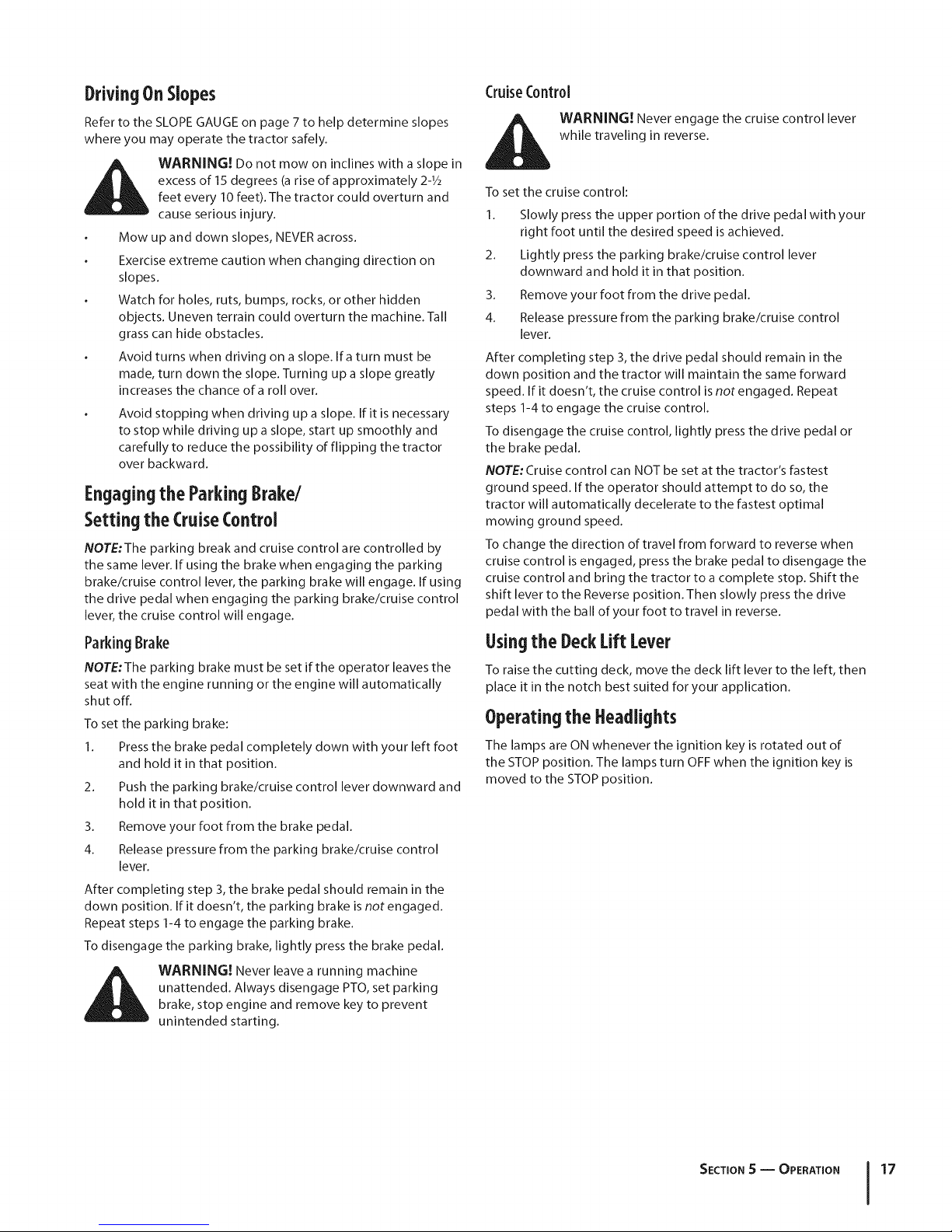

Driving OnSlopes

Refer to the SLOPE GAUGE on page 7 to help determine slopes where you may operate the tractor safely.

CruiseControl

while traveling in reverse.

_ ARNING! Never engage the cruise control lever

excess of 15 degrees (a rise of approximately 2-1/2

i_ll WARNING! Do not mow on inclines with a slope in

feet every 10 feet). The tractor could overturn and

cause serious injury.

Mow up and down slopes, NEVER across. Exercise extreme caution when changing direction on

slopes. Watch for holes, ruts, bumps, rocks, or other hidden

objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

Avoid turns when driving on a slope. Ira turn must be made, turn down the slope. Turning up a slope greatly

increases the chance of a roll over. Avoid stopping when driving up a slope. If it is necessary

to stop while driving up a slope, start up smoothly and carefully to reduce the possibility of flipping the tractor

over backward.

Engagingthe ParkingBrake/ Settingthe CruiseControl

NOTE:The parking break and cruise control are controlled by the same lever. If using the brake when engaging the parking

brake/cruise control lever, the parking brake will engage. If using the drive pedal when engaging the parking brake/cruise control lever, the cruise control will engage.

To set

the cruise control:

Slowly press the upper portion of the drive pedal with your right foot until the desired speed is achieved.

Lightly press the parking brake/cruise control lever downward and hold it in that position.

Remove your foot from the drive pedal.

Release pressure from the parking brake/cruise control lever.

After completing step 3, the drive pedal should remain in the down position and the tractor will maintain the same forward

speed. If it doesn't, the cruise control is not engaged. Repeat steps 1-4 to engage the cruise control.

To disengage the cruise control, lightly press the drive pedal or the brake pedal.

NOTE: Cruise control can NOT be set at the tractor's fastest ground speed. If the operator should attempt to do so, the

tractor will automatically decelerate to the fastest optimal mowing ground speed.

To change the direction of travel from forward to reverse when cruise control is engaged, press the brake pedal to disengage the

cruise control and bring the tractor to a complete stop. Shift the shift lever to the Reverse position. Then slowly press the drive pedal with the ball of your foot to travel in reverse.

Parking Brake

NOTE:The parking brake must be set if the operator leaves the seat with the engine running or the engine will automatically

shut off. To set the parking brake:

1. Press the brake pedal completely down with your left foot and hold it in that position.

2. Push the parking brake/cruise control lever downward and hold it in that position.

3. Remove your foot from the brake pedal.

4. Release pressure from the parking brake/cruise control lever.

After completing step 3, the brake pedal should remain in the down position. If it doesn't, the parking brake is not engaged.

Repeat steps 1-4 to engage the parking brake. To disengage the parking brake, lightly press the brake pedal.

WARNING! Never leave a running machine

unattended. Always disengage PTO, set parking brake, stop engine and remove key to prevent unintended starting.

Usingthe DeckLift Lever

To raise the cutting deck, move the deck lift lever to the left, then place it in the notch best suited for your application.

Operatingthe Headlights

The lamps are ON whenever the ignition key is rotated out of the STOP position. The lamps turn OFF when the ignition key is moved to the STOP position.

SECTION S -- OPERATION 17

Engagingthe PTO

Engaging the PTO transfers power to the cutting deck or other (separately available) attachments. To engage the PTO:

1. Move the Throttle/Choke control lever to the FAST (rabbit) position.

2. Push the PTO/Blade Engage lever forward into the engaged (ON) position.

NOTE: Always operate the tractor with the Throttle/Choke control lever in the FAST (rabbit) position for the most

efficient use of the cutting deck or other (separately available) attachments.

WARNING! To help avoid blade contact or a thrown object injury, keep bystanders, helpers,

children and pets at least 75 feet from the machine

while it is in operation. Stop machine if anyone enters the area.

The following information will be helpful when using the cutting deck with your tractor.

discharge of materials toward roads, sidewalks,

i_ WARNING! Plan your mowing pattern to avoid

bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward

the operator.

Do not mowat high ground speed, especially ira mulch kit or grass collector is installed.

Do not cut the grass too short. Short grass is prone to weed growth and yellows quickly in dry weather.

Always operate the tractor with the throttle lever in the FAST (rabbit) position while mowing.

For best results, it is recommended that the first two laps be cut with the discharge thrown towards the center.

After the first two laps, reverse the direction to throw the discharge to the outside for the balance of cutting. This will give a better appearance to the lawn.

Do NOT attempt to mow heavy brush and weeds or extremely tall grass. Your tractor is designed to mow lawns,

NOT clear brush. Keep the blades sharp and replace the blades when worn.

SECTION S-- OPERATION

Maintenance&Adjustments

MaintenanceSchedule

Before

Eachuse

Every

10 Hours

Every

25 Hours

Every

50 Hours

Every

I00 Hours

CheckEngineOil Level

CheckAir Filter for Dirty, Loose or Damaged Parts

Cleanand Re-oil Air Filter's Foam Predeaner V /

ReplaceAir Filter Element

Change EngineOil and Replace Oil Filter

Clean Battery Terminals y / y /

Lube Front A×ies and Rims _" _"

Clean Engine CoolingFins _" _"

Lube Front Deck Wheels V / V /

Prior

toStoring

,/Clean Hood/Dash Louvers

Lube Deck Spindles _

Lube Pedal Pivot Points _" _"

CheckSpark Plug Condition & Gap _" _"

ReplaceFuel Filter _"

Maintenance

WARNING! Before performing any maintenance or

repairs, disengage PTO, set parking brake, stop

engine and remove key to prevent unintended

starting.

Engine

Refer to the Kohler Owner's Manual for all engine maintenance procedures and instructions.

NOTE: Maintenance, repair, or replacement of the emission control devices and systems which are being done at owner's expense may be performed by any engine repair establishment

or individual. Warranty repairs must be performed by an authorized service dealer.

Changingthe Engine0ii

_ ARNING! If the engine has been recently run, the

• caution to avoid burns. NOTE:The oil filter should be changed at every oil change

interval. To complete an oil change, proceed as follows:

1. Run the engine for a few minutes to allow the oil in the

engine, muffler and surrounding metal surfaces will

be hot and can cause burns to the skin. Exercise

crankcase to warm up. Warm oil will flow more freely and carry away more of the engine sediment which may have

settled at the bottom of the crankcase. Use care to avoid burns from hot oil.

Open the tractor's hood and locate the oil drain port on the left side of the engine.

3. Pop open the protective cap on the end of the oil drain Transmission valve to expose the drain port. See Fig 6-1.

The transmission is sealed at the factory and is maintenance- free. The fluid level cannot be checked and the fluid cannot be

changed.

Battery

Figure 6-1

Remove the oil fill cap/dipstick from the oil fill tube.

Push the oil drain hose (packed with this manual) onto the oil drain port. Route the opposite end of the hose into an

appropriate oil collection container with at least a 2.5 quart capacity to collect the used oil.

The engine is equipped with either a twist-and-pull drain port or a tabbed drain port. If your engine has the twist- and-pull drain, go to step a. If your engine is equipped with the tabbed drain, go to step b.

a. Turn the oil drain valve 1A-turn, then pull outward to

begin draining oil. After the oil has finished draining, push the end of the oil drain valve back in and turn 1/4-turn to secure it back in place. Re-cap the end of the oil drain valve to keep debris from entering the

drain port.

b. Pinch the tabs on the oil drain valve, then pull

outward to begin draining oil. After the oil has finished draining, push the end of the oil drain valve

back in, until the tabs click into place. Re-cap the end of the oil drain valve to keep debris from entering the drain port.

Replace the oil filter as instructed in the Kohler Owner's Manual.

Refill the engine with new oil. Refer to the Kohler Owner's Manual for information regarding the volume and weight

of engine oil.

Air Cleaner

Service the pre-cleaner and cartridge/air cleaner element as instructed in the Kohler Owner's Manual.

Battery posts, terminals, and related accessories

CALIFORNIA PROPOSITION 65 WARNING!

contain lead and lead compounds, chemicals known

to the State of California to cause cancer and

reproductive harm. Wash hands after handling.

The battery is sealed and is maintenance-free. Acid levels cannot be checked and fluid cannot be added.

Always keep the battery cables and terminals clean and free of corrosive build-up.

After cleaning the battery and terminals, apply a light coat of petroleum jelly or grease to both terminals.

disconnect the NEGATIVE (Black) wire from its

_i AUTION: If removing the battery for cleaning,

terminal first, followed by the POSITIVE (Red) wire. When reinstalling the battery, always connect the

POSITIVE (Red) wire to its terminal first, followed by the NEGATIVE (Black) wire. Be certain that the wires are connected to the correct terminals; reversing them could result in serious damage to your engine's alternating system.

Cleaningthe Tractor

Any fuel or oil spilled on the machine should be wiped off promptly. Do NOT allow debris to accumulate around the cooling fins of the engine, the transmission's cooling fan or on any other part of the machine, especially the belts and pulleys.

DeckWash

Your tractor's deck is equipped with a water port on its surface as part of its deck wash system.

Use the deck wash to rinse grass clippings from the deck's underside and prevent the buildup of corrosive chemicals. Complete the following steps AFTER EACH MOWING:

1. Drive the tractor to a level, clear spot on your lawn, near enough for your garden hose to reach.

chute is directed AWAY from your house, garage,

CAUTION: Make certain the tractor's discharge

parked cars, etc.

2. Disengage the PTO (Blade Engage), set the parking brake and stop the engine.

3. Thread the hose coupler (packaged with your tractor's Operator's Manual) onto the end of your garden hose.

SparkPlug

The spark plug should be cleaned and the gap reset once a season. Refer to the Kohler Owner's Manual for correct plug type and gap specifications.

SECTION 6 -- MAINTENANCE & ADJUSTMENTS

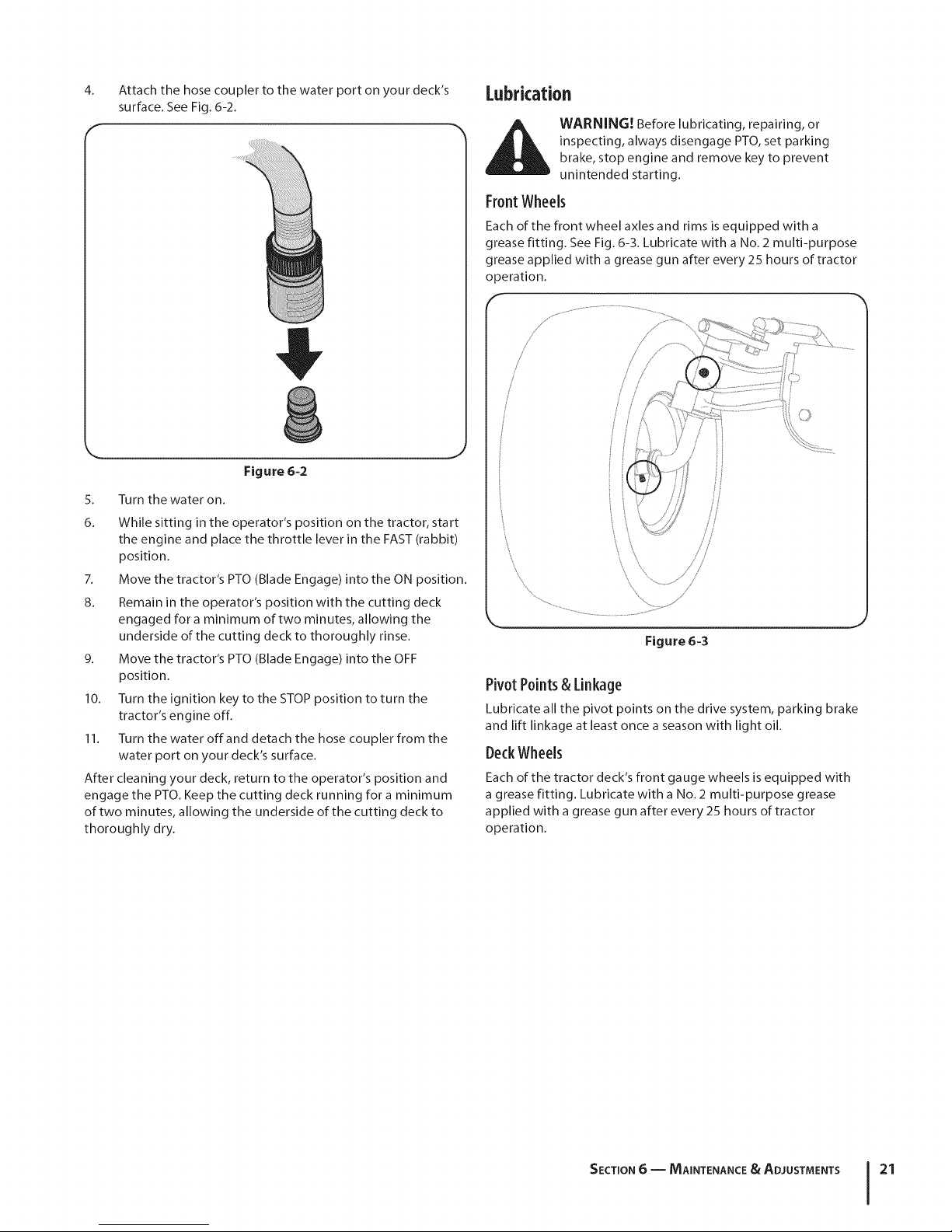

4. Attach the hose coupler to the water port on your deck's surface. See Fig. 6-2.

Lubrication

Figure 6-2

Turn the water on.

While sitting in the operator's position on the tractor, start the engine and place the throttle lever in the FAST (rabbit)

position.

7. Move the tractor's PTO (Blade Engage) into the ON position.

8. Remain in the operator's position with the cutting deck engaged for a minimum of two minutes, allowing the underside of the cutting deck to thoroughly rinse.

9. Move the tractor's PTO (Blade Engage) into the OFF position.

10. Turn the ignition key to the STOP position to turn the tractor's engine off.

11. Turn the water off and detach the hose coupler from the water port on your deck's surface.

After cleaning your deck, return to the operator's position and engage the PTO. Keep the cutting deck running for a minimum

of two minutes, allowing the underside of the cutting deck to thoroughly dry.

_ ARNING! Before lubricating, repairing, or

inspecting, always disengage PTO, set parking brake, stop engine and remove key to prevent

unintended starting.

FrontWheels

Each of the front wheel axles and rims is equipped with a grease fitting. See Fig. 6-3. Lubricate with a No. 2 multi-purpose grease applied with a grease gun after every 25 hours of tractor operation.

Figure 6-3

Pivot Points& Linkage

Lubricate all the pivot points on the drive system, parking brake and lift linkage at least once a season with light oil.

DeckWheels

Each of the tractor deck's front gauge wheels is equipped with a grease fitting. Lubricate with a No. 2 multi-purpose grease applied with a grease gun after every 25 hours of tractor

operation.

SECTION 6 -- MAINTENANCE & ADJUSTMENTS 21

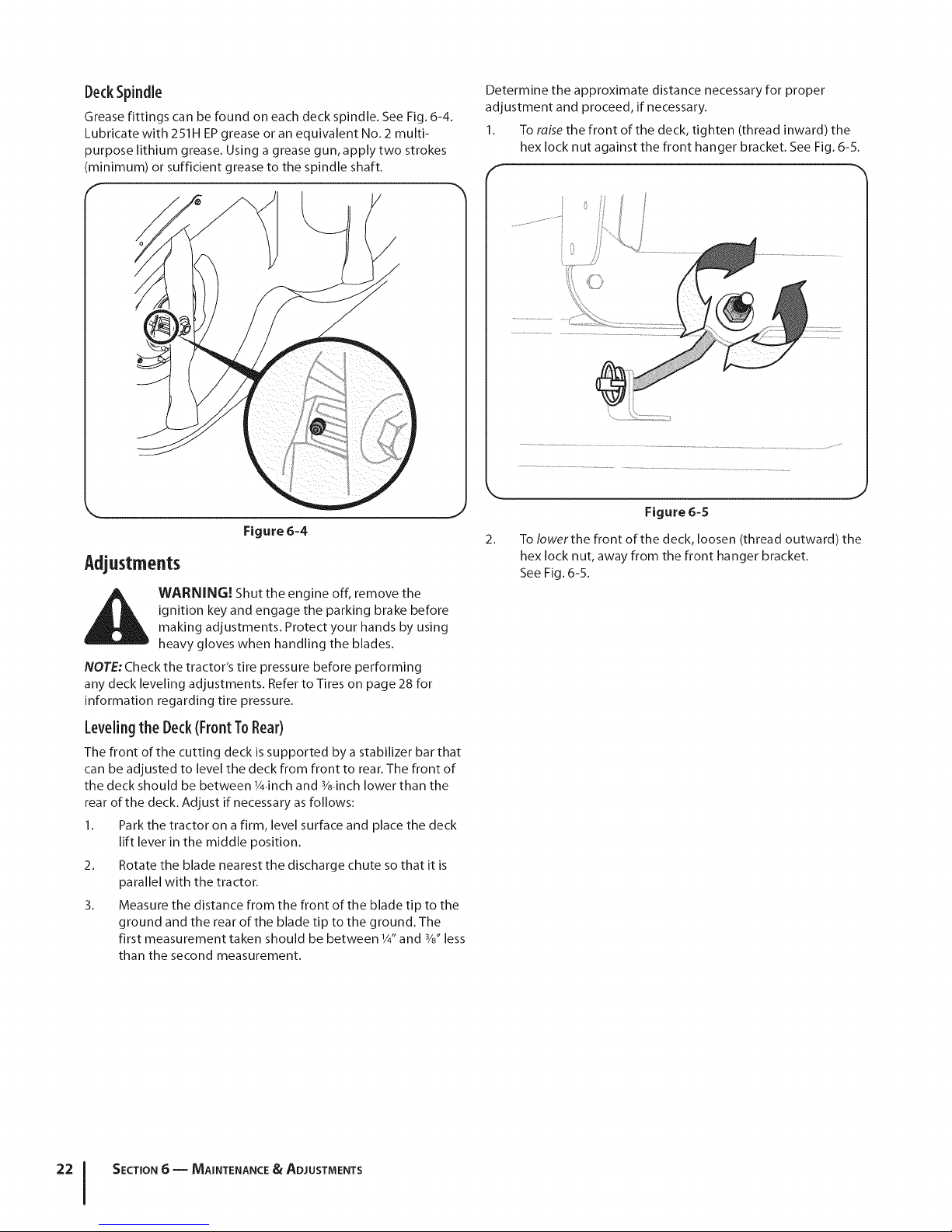

DeckSpindle

Grease fittings can be found on each deck spindle. See Fig. 6-4. Lubricate with 251H EP grease or an equivalent No. 2 multi- purpose lithium grease. Using a grease gun, apply two strokes

(minimum) or sufficient grease to the spindle shaft.

Figure 6-4

Adjustments

WARNING! Shut the engine off, remove the

ignition key and engage the parking brake before making adjustments. Protect your hands by using

heavy gloves when handling the blades.

NOTE: Check the tractor's tire pressure before performing any deck leveling adjustments. Refer to Tires on page 28 for

information regarding tire pressure.

Determine the approximate distance necessary for proper adjustment and proceed, if necessary.

1. To raise the front of the deck, tighten (thread inward) the hex lock nut against the front hanger bracket. See Fig. 6-5.

Figure 6=5

2. To Iowerthe front of the deck, loosen (thread outward) the hex lock nut, away from the front hanger bracket.

See Fig. 6-5.

Levelingthe Deck(FrontToRear)

The front of the cutting deck is supported by a stabilizer bar that can be adjusted to level the deck from front to rear. The front of

the deck should be between 1/4-inch and 3/8-inch lower than the rear of the deck. Adjust if necessary as follows:

1. Park the tractor on a firm, level surface and place the deck lift lever in the middle position.

2. Rotate the blade nearest the discharge chute so that it is parallel with the tractor.

3. Measure the distance from the front of the blade tip to the ground and the rear of the blade tip to the ground. The

first measurement taken should be between 1/4"and 3/8"less than the second measurement.

SECTION 6 -- MAINTENANCE & ADJUSTMENTS

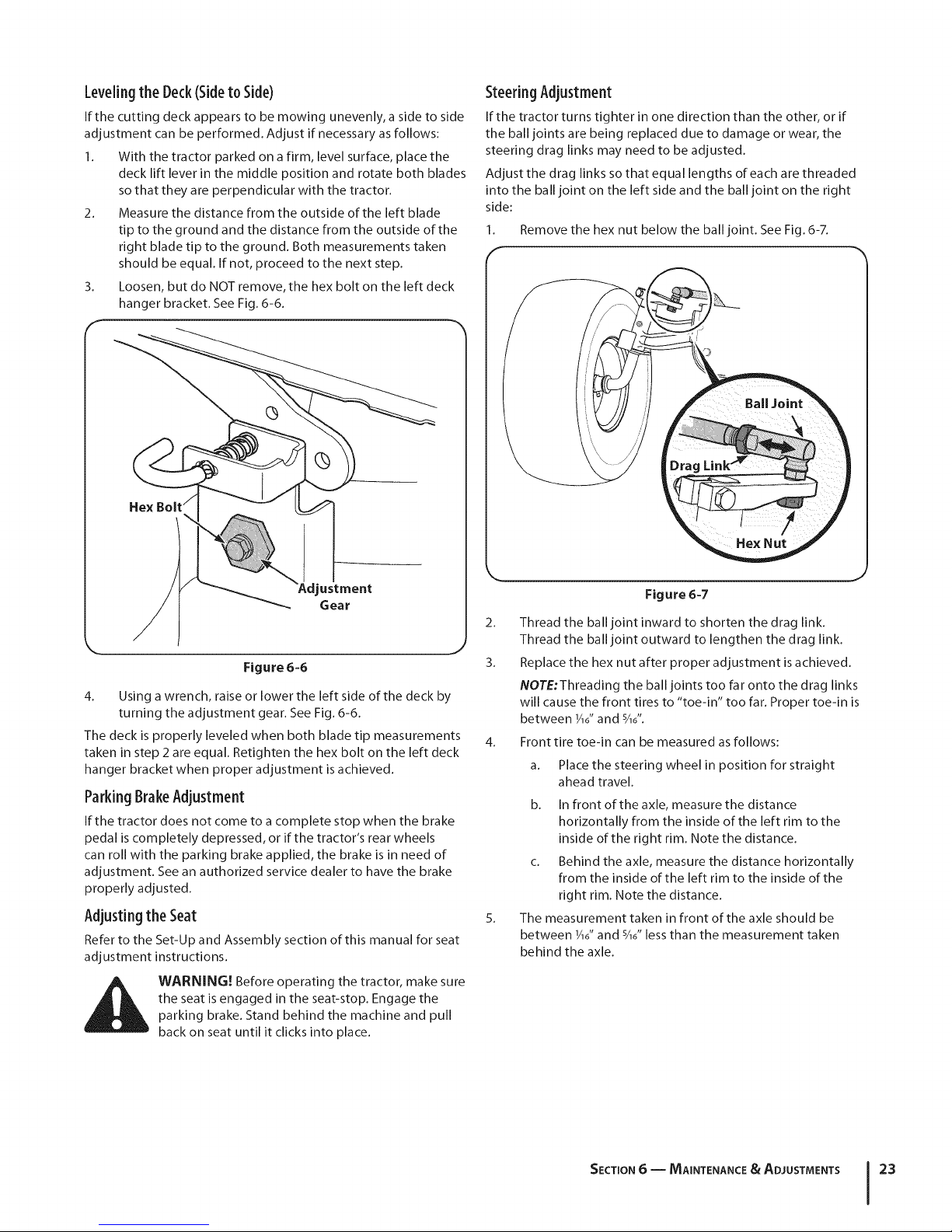

Levelingthe Deck(Sideto Side)

If the cutting deck appears to be mowing unevenly, a side to side adjustment can be performed. Adjust if necessary as follows:

1. With the tractor parked on a firm, level surface, place the deck lift lever in the middle position and rotate both blades

so that they are perpendicular with the tractor.

2. Measure the distance from the outside of the left blade tip to the ground and the distance from the outside of the

right blade tip to the ground. Both measurements taken should be equal. If not, proceed to the next step.

3. Loosen, but do NOT remove, the hex bolt on the left deck hanger bracket. See Fig. 6-6.

SteeringAdjustment

If the tractor turns tighter in one direction than the other, or if the ball joints are being replaced due to damage or wear, the steering drag links may need to be adjusted.

Adjust the drag links so that equal lengths of each are threaded into the ball joint on the left side and the ball joint on the right

side:

1. Remove the hex nut below the ball joint. See Fig. 6-7.

ustment

Gear

Figure 6-6

4. Using a wrench, raise or lower the left side of the deck by turning the adjustment gear. See Fig. 6-6.

The deck is properly leveled when both blade tip measurements taken in step 2 are equal. Retighten the hex bolt on the left deck hanger bracket when proper adjustment is achieved.

Parking BrakeAdjustment

If the tractor does not come to a complete stop when the brake pedal is completely depressed, or if the tractor's rear wheels

can roll with the parking brake applied, the brake is in need of adjustment. See an authorized service dealer to have the brake

properly adjusted.

Adjusting the Seat

Refer to the Set-Up a nd Assembly section of this manual for seat adjustment instructions.

WARNING! Before operating the tractor, make sure the seat is engaged in the seat-stop. Engage the

parking brake. Stand behind the machine and pull back on seat until it clicks into place.

Figure 6-7

Thread the ball joint inward to shorten the drag link.

Thread the ball joint outward to lengthen the drag link.

Replace the hex nut after proper adjustment is achieved. NOTE:Threading the ball joints too far onto the drag links

will cause the front tires to "toe-in" too far. Proper toe-in is between ¼0" and %0".

4. Front tire toe-in can be measured as follows: a. Place the steering wheel in position for straight

ahead travel.

b. In front of the axle, measure the distance

horizontally from the inside of the left rim to the inside of the right rim. Note the distance.

c. Behind the axle, measure the distance horizontally

from the inside of the left rim to the inside of the right rim. Note the distance.

The measurement taken in front of the axle should be between 1A6"and %6" less than the measurement taken behind the axle.

SECTION 6 -- MAINTENANCE & ADJUSTMENTS 23

Service

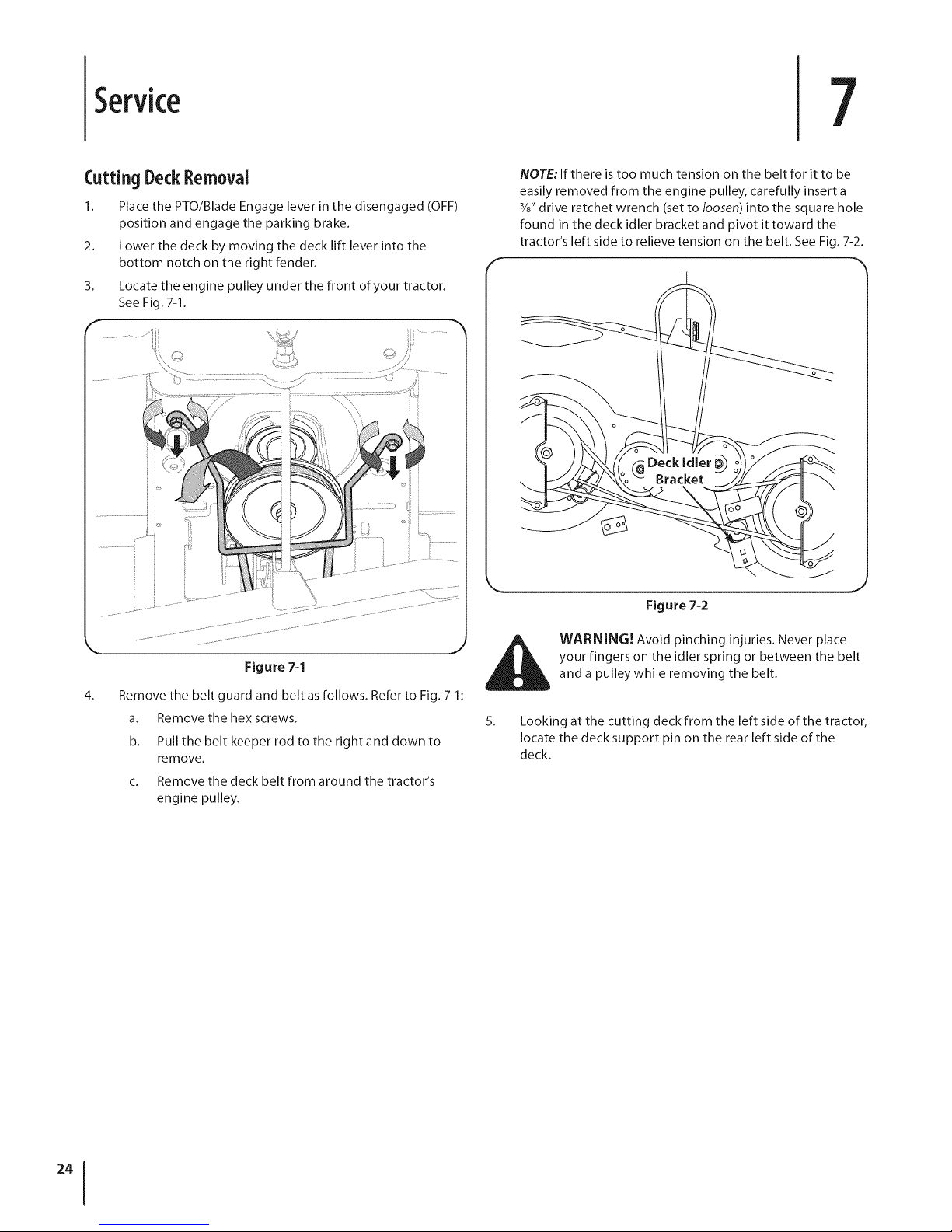

(utting DeckRemoval

Place the PTO/Blade Engage lever in the disengaged (OFF) position and engage the parking brake.

Lower the deck by moving the deck lift lever into the bottom notch on the right fender.

Locate the engine pulley under the front of your tractor. See Fig. 7-1.

NOTE: If there is too much tension on the belt for it to be easily removed from the engine pulley, carefully insert a

%" drive ratchet wrench (set to loosen) into the square hole found in the deck idler bracket and pivot it toward the

tractor's left side to relieve tension on the belt. See Fig. 7-2.

Figure 7-2

............. j

Figure 7-1

Remove the belt guard and belt as follows. Refer to Fig. 7-1:

a. Remove the hex screws. b. Pull the belt keeper rod to the right and down to

rem ove.

c. Remove the deck belt from around the tractor's

engine pulley.

your fingers on the idler spring or between the belt

_k WARNING! Avoid pinching injuries. Never place

and a pulley while removing the belt.

Looking at the cutting deck from the left side of the tractor, locate the deck support pin on the rear left side of the deck.

6. Pullthedecksupportpinoutwardtoreleasethedeckfrom thedeckliftarm.SeeFig.7-3.

Deck Support

Figure 7-3

7. Repeat the above steps on the tractor's right side.

8. Move the deck lift lever into the top notch to raise the deck lift arms upand out of the way.

9. Carefully remove the deck engage cable from the rear of the cutting deck by removing the bow-tie cotter clip that

secures it. Remove the spring from the deck idler bracket. See Fig. 7-4.

10.

Remove the cotter pin from the end of the stabilizer rod and slide the stabilizer out of the hanger bracket on the deck. See Fig. 7-5.

,. j

Figure 7-5

11. Gently slide the cutting deck (from the right side) out from underneath the tractor.

Changingthe DeckBelt

_ WARNING! The V-belts found on your tractor are

All belts on your tractor are subject to wear and should be replaced if any signs of wear are present. To change or replace

the deck belt on your tractor, proceed as follows:

1. Remove the deck as instructed on page 24.

specially designed to engage and disengage safely.

A substitute (non-OEM) V-belt can be dangerous by

not disengaging completely. For a proper working machine, use factory approved belts.

Remove the belt covers by removing the hex washer screws that fasten them to the deck. See Fig. 7-6.

Figure 7-4

SECTION7 -- SERVICE 2S

3. It may also be necessary to loosen the hex nut on the left idler pulley to get the belt off the pulley and around the belt guard.

4. Carefully remove the deck belt from around the two spindle pulleys and the two deck idler pulleys. See Fig. 7-6.

5. To place the new belt, begin by routing the belt around the two outer spindle pulleys as shown in Fig. 7-7.

11. Place the belt into the engine pulley. See Fig. 7-8.

PTO Belt

Pulley

Figure 7-8

12. Replace the belt guard. See Fig. 7-1.

Cutting fllades

Figure 7-7

Then route the belt around the two deck idler pulleys as shown in Fig. 7-7.

Retighten the belt keeper rod loosened earlier.

Remount the belt guards removed earlier.

Reinstall the deck as follows:

a. With the deck beneath the mower frame, attach the

stabilizer rod. See Fig. 7-5. b. Reconnect the deck lift arms. See Fig. 7-3. c. Reattach the deck engage cable. See Fig. 7-4.

ignition key before removing the cutting blade(s) for

_ ARNING! Shut the engine offand remove

To remove the blades, proceed as follows.

sharpening or replacement. Protect your hands by using heavy gloves when grasping the blade

WARNING! Periodically inspect the blade and/or

spindle for cracks or damage, especially after you've struck a foreign object. Do not operate the machine

until damaged components are replaced.

Remove the deck from beneath the tractor, (refer to Cutting Deck Removal earlier in this section) then gently

flip the deck over to expose its underside.

SECTION7-- SERVICE

2. Place a block of wood between the center deck housing baffle and the cutting blade to act as a stabilizer. See Fig. 7-9.

Figure 7-9

Remove the hex flange nut that secures the blade to the spindle assembly. See Fig. 7-9.

To properly sharpen the cutting blades, remove equal amounts of metal from both ends of the blades along the

cutting edges, parallel to the trailing edge, at a 25 °- 30 ° angle. Always grind each cutting blade edge equally to maintain proper blade balance. See Fig. 7-10.

CAUTION: If the cutting edge of the blade has

previously been sharpened, or if any metal separation is present, replace the blades with new ones.

WARNING! A poorly balanced blade will cause excessive vibration, may cause damage to the tractor and/or result in personal injury.

5. Test the blade's balance using a blade balancer. Grind metal from the heavy side until it balances evenly.

NOTE:When replacing the blade, be sure to install the blade with the side of the blade marked "Bottom" (or with

a part number stamped in it) facing the ground when the mower is in the operating position.

blade spindle hex flange nut to between 70 ft-lbs

and 90 ft-lbs.

CAUTION: Use a torque wrench to tighten the

8artery

CALIFORNIA PROPOSiTiON 65 WARNING:

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known

to the State of California to cause cancer and

reproductive harm. Wash hands after handling.

CAUTION: If removing the battery, disconnect the

NEGATIVE (Black) wire from its terminal first,

followed by the POSITIVE (Red) wire. When

reinstalling the battery, always connect the POSITIVE (Red) wire its terminal first, followed by the

NEGATIVE (Black) wire.

JumpStarting

i_ll WARNING! Never jump start a damaged or frozen

1. Connect the positive (+) cable to positive (+) post of your

2. Connect the other end of the cable to the positive (+) post

3. Connect the negative (-), cable to the other post of the

4. Make the final connection on the engine block of the

battery. Be certain the vehicles do not touch and ignitions are off. Do not allow cable clamps to touch.

tractor's discharged battery.

of the jumper battery.

jumper battery.

tractor, away from the battery. Attach to an unpainted part to assure a good connection.

Figure 7-10

vehicle (i.e. car, truck), do NOT start the vehicle's

_hL AUTION: If the jumper battery is installed on a

engine when jump starting your tractor.

Start the tractor (as instructed in the Operation section of this manual).

Set the tractor's parking brake before removing the jumper cables, in reverse order of connection.

SECTION7 -- SERVICE 27

Charging

WARNING! Batteries give off an explosive gas

while charging. Charge the battery in a well ventilated area and keep away from an open flame

or pilot light as on a water heater, space heater,

furnace, clothes dryer or other gas appliances. CAUTION: When charging your tractor's battery,

use only a charger designed for 12V lead-acid batteries. Read your battery charger's Owner's

Manual prior to charging your tractor's battery.

Always follow its instructions and heed its warnings.

If your tractor has not been put into use for an extended period of time, charge the battery as follows:

1. Set your battery charger to deliver a max of 10 amperes.

2. If your battery charger is automatic, charge the battery until the charger indicates that charging is complete. If the

charger is not automatic, charge for no fewer than eight hours.

Fuse

inspecting, always disengage PTO, set parking

ill_ WARNING! Before servicing, repairing, or

A fuse is installed in your tractor's wiring harness to protect the tractor's electrical system from damage caused by excessive amperage.

If the electrical system does not function, or your tractor's engine will not crank, first check to be certain that the fuse has not

blown. It is located under the hood, mounted behind the top of the dash panel on the support bar.

brake, stop engine and remove key to prevent unintended starting.

same amperage capacity as the blown fuse.

i_ CAUTION: Always use a replacement fuse with the

Tires

_ ARNING! Never exceed the maximum inflation

Refer to the tire sidewall for exact tire manufacturer's recommended or maximum psi. Do not overinflate.

Uneven tire pressure could cause the cutting deck to mow unevenly.

pressure shown on the sidewall of the tire.

Changingthe TransmissionDriveBelt

Several components must be removed and special tools used in order to change the tractor's transmission drive belt. See your

authorized service dealer to have the transmission drive belt replaced.

SECTION7-- SERVICE

Troubleshooting

Problem Cause

Engine runs erratic

1. Tractor running with Throttle/Choke activated.

2. Spark plug wires loose.

3. Blocked fuel line or stale fuel.

4. Ventin gas cap plugged.

5. Water or dirt in fuel system.

6. Dirty air cleaner.

Remedy

1. Push Throttle/Choke control in.

2. Connect and tighten spark plug wires.

3. Clean fuel line; fill tank with clean, fresh gasoline and replace fuel filter.

4. Clear vent or replace cap if damaged.

5. Drain fuel tank. Refill with clean, fresh gasoline.

6. Replace air cleaner paper element or clean

foam precleaner.

Engine hesitates at high RPM

Excessive vibration

Uneven cut

1. Spark plug gap too close.

1. Cutting blade loose or unbalanced.

2. Damaged or bent cutting blade.

1. Deck not leveled properly.

2. Dull blade.

3. Uneven tire pressure.

1. Remove spark plug and resetthe gap.

1. Tighten blade and spindle.

2. Replace blade.

1. Perform side-to-side deck adjustment.

2. Sharpen or replace blade.

3. Check tire pressure in all four tires.

ReplacementParts

Component _ Part Number and Description

759-3336 Spark Plug (Champion RC12YC)

KH-20-883-02-$1 Kohler Air Filter Element

KH-12-OSO-01-S KohlerOil Filter

KH-25-050-21-S Kohler Fuel Filter

954-04219 Drive Belt (Mower Deck)

942-04290 2-in-1 Deck Blade

925-1707D Battery

918-04636A Deck Spindle

Call (800) 800-7310 to order replacement parts or a complete Parts Manual. Be sure to have your model number and serial number ready. Parts Manuals can also be downloaded free of charge at www.mtdproducts.com.

Component l Part Number and Description

734-04155 Deck Wheel

751-0603A Fuel Tank Cap

746-04364

925-1745A

631-04461

Throttle/Choke Control Lever & Cable

Ignition Key (Plastic)

Discharge Chute Assembly

SECTION 9 -- REPLACEMENT PARTS 31

Attachments&Accessories

The following attachments and accessories are compatible with 900 Series lawn tractors. See the retailer from which you purchased your tractor, an authorized MTD Service Dealer or phone (800) 800-7310 for information regarding price and availability.

i_ CAUTION: 900 Series Lawn Tractors are NOT designed for use with any type of ground-engaging attachments (e.g. tiller

or moldboard plow). Use of this type of equipment WILL void the tractor's warranty.

Model Number

19A30005OEM

OEM-190-032

19A30003OEM

OEM-190-215

OEM-190-679

OEM-190-833

OEM-190-658

OEM-19A-218

Mulch Plug, 46"

Snow Thrower, 42"

Twin Bagger, 46" Twin Blade

Wheel Weights

Bumper

46" Snow Blade

Tire Chains, 20" x 8"

Rear Bracket Weight Kit

Description

FEDERAL and/or CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

MTDConsumerGroupInc,the UnitedStatesEnvironmentalProtectionAgency(EPA),and,forthoseproductscertifiedfor salein the stateofCalifornia,the CaliforniaAirResourcesBoard(CARB)are pleasedtoexplaintheemission(evaporativeand/orexhaust)controlsystem(ECS) warrantyonyouroutdoor2006

andlater smalloff-roadspark-ignitedengineandequipment(outdoorequipmentengine)InCalifornia,newoutdoorequipmentenginesmustbe designed,builtand equippedtomeetthe State'sstringentanti-smogstandards(inotherstates, 1997andlater modelyear equipmentmustbedesigned,built,and equippedto meet theU.S.EPAsmalloff-road,sparkignitionengineregulations.MTDConsumerGroupIncmustwarrantthe ECSonyouroutdoorequipmentenginefor theperiodof timelistedbelowprovidedtherehasbeen noabuse,neglector impropermaintenanceofoutdoorequipmentengine.

YourECSmayincludepartssuchas thecarburetor,fuel-injectionsystem,the ignitionsystem,catalyticconverter,fueltanks,fuel lines,fuelcaps,valves,canisters, filters,vaporhoses,clamps,connectors,andotherassociatedemission-relatedcomponents.

Wherea warrantableconditionexists, MTDConsumerGroupIncwill repairyouroutdoorequipmentengineatnocost toyouincludingdiagnosis,partsandlabor.

MAN UFACTURER'S WARRANTY COVERAGE:

Thisemissioncontrolsystemiswarrantedfortwo years.If anyemission-relatedpartonyour outdoorequipmentengineis defective,thepartwill berepairedor replacedby MTDCONSUMERGROUPINC.

OWNER'S WARRANTY RESPONSIBILITIES:

Asthe outdoorequipmentengineowner,youareresponsiblefor performanceofthe requiredmaintenancelisted inyourowner'smanual.MTDConsumerGroup Increcommendsthat youretainallreceiptscoveringmaintenanceonyouroutdoorequipmentengine,butMTDConsumerGroupInc cannotdenywarrantysolely forthe lackof receipts.

Asthe outdoorequipmentengineowner,youshouldhoweverbe awarethat MTDConsumerGroupIncmaydenyyouwarrantycoverageifyour outdoorequipment engineor aparthasfaileddueto abuse,neglect,orimpropermaintenanceor unapprovedmodifications.

Youare responsiblefor presentingyouroutdoorequipmentengineto MTDConsumerGroupInc'sdistributioncenterorservicecenterassoonasthe problem exists.Thewarrantyrepairsshouldbecompletedin areasonableamountoftime, nottoexceed30 days.Ifyouhaveaquestionregardingyourwarrantycoverage, youshouldcontacttheMTDConsumerGroupIncService Departmentat 1-800-800-7310orviaemailat http://support.mtdproducts.com

GENERAL EMISSIONS WARRANTY COVERAGE:

MTDConsumerGroupIncwarrantstothe ultimatepurchaserandeachsubsequentpurchaserthat theoutdoorequipmentengineis: Designed,builtandequipped soasto conformwithall applicableregulations;andfreefromdefectsin materialsandworkmanshipthatcausethe failureof a warrantedparttobe identicalinall materialrespectstothat partas describedin MTDConsumerGroupInc'sapplicationforcertification.

Thewarrantyperiodbeginsonthedatetheoutdoorequipmentengineis deliveredto anultimatepurchaserorfirst placedintoservice.Thewarrantyperiodistwo years.

Subjecttocertainconditionsand exclusionsasstated below,thewarrantyonemission-relatedpartsis asfollows:

1. Anywarrantedpartthat isnotscheduledfor replacementas requiredmaintenancein thewritteninstructionssupplied,is warrantedforthe warrantyperiod statedabove.Ifthepart failsduringtheperiodofwarrantycoverage,thepart will berepairedor replacedbyMTDConsumerGroupIncaccordingto subsection (4)below.Anysuchpart repairedorreplacedunderwarrantywillbewarrantedfor theremainderof the period.

2. Anywarrantedpartthat isscheduledonlyforregularinspectioninthe writteninstructionssuppliediswarrantedforthe warrantyperiodstatedabove.Anysuch partrepairedor replacedunderwarrantywill bewarrantedforthe remainingwarrantyperiod.

3. Anywarrantedpartthat isscheduledforreplacementasrequiredmaintenanceinthewritten instructionssuppliediswarrantedfor the periodoftimebeforethe firstscheduledreplacementdatefor thatpart.If the partfails beforethefirst scheduledreplacement,the partwillbe repairedorreplacedby MTDConsumer GroupIncaccordingto subsection(4)below.Anysuchpartrepairedor replacedunderwarrantywill bewarrantedforthe remainderof theperiodpriorto the firstscheduledreplacementpointfor thepart.

4. Repairorreplacementofanywarrantedpart underthewarrantyprovisionshereinmustbeperformedat a warrantystationat no chargetothe owner.

5. Notwithstandingthe provisionsherein,warrantyservicesor repairswill beprovidedatallof our distributioncentersthatarefranchisedtoservicethe subject enginesor equipment.

6. Theoutdoorequipmentengineownerwill notbe chargedfor diagnosticlaborthat isdirectlyassociatedwithdiagnosisof adefective,emission-relatedwar- rantedpart, providedthatsuchdiagnosticworkis performedata warrantystation.

7. MTDConsumerGroupIncisliablefordamagesto otherengineorequipmentcomponentsproximatelycausedby afailureunderwarrantyof anywarranted part.

8. Throughouttheoff-roadengineandequipmentwarrantyperiodstatedabove,MTDConsumerGroupIncwill maintainasupplyof warrantedpartssufficientto meetthe expecteddemandforsuchparts.

9. Anyreplacementpartmaybe usedinthe performanceofanywarrantymaintenanceor repairsandmustbeprovidedwithoutchargetothe owner.Suchusewill notreducethe warrantyobligationsof MTDConsumerGroupInc.

10.Add-onor modifiedpartsthatarenotexemptedbythe AirResourcesBoardmaynot beused.Theuse ofany non-exemptedadd-onor modifiedpartsbythe ultimatepurchaserwillbegroundsfor disallowingawarrantyclaims.MTDConsumerGroup Incwill notbeliableto warrantfailuresofwarrantedpartscaused

bythe useof a non-exemptedadd-onormodifiedpart.

WARRANTED PARTS:

Therepairorreplacementofanywarrantedpart otherwiseeligibleforwarrantycoveragemaybeexcludedfromsuchwarrantycoverageifMTDConsumerGroup Incdemonstratesthattheoutdoorequipmentenginehasbeenabused,neglected,orimproperlymaintained,and thatsuchabuse,neglect,orimpropermainte-

nancewasthe directcauseof the needfor repairorreplacementofthe part.Thatnotwithstanding,anyadjustmentofa componentthat hasa factoryinstalled, andproperlyoperating,adjustmentlimitingdeviceisstill eligibleforwarrantycoverage.Further,the coverageunderthis warrantyextendsonly to partsthat were presentonthe off-roadengineandequipmentpurchased.

Thefollowingemissionwarrantypartsarecovered(ifapplicable): (1)FuelMeteringSystem

• Cold startenrichmentsystem(softchoke)

• Carburetorandinternalparts(orfuel injectionsystem)

• Fuelpump

• Fueltank

(2)Air InductionSystem

• Aircleaner

• Intakemanifold

(3) IgnitionSystem

• Sparkplug(s)

• Magnetoignitionsystem

(4) ExhaustSystem

• Catalyticconverter

• SAI(Reedvalve)

(5) MiscellaneousItemsUsedin AboveSystem

• Vacuum,temperature,position,timesensitivevalvesandswitches

• Connectorsandassemblies

(6) EvaporativeControl

• Fuelhose

• Fuelhoseclamps

• Tetheredfuel cap

• Carboncanister

• Vapor lines

GDOC-100223Rev.A

MANUFACTURER'S LiMiTED WARRANTY FOR

The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased andused in the United States and/or its territories and possessions, and by MTD Products Limited

with respect to new merchandise purchased and used in Canadaand/ or its territories and possessions (either entity respectively, "MTD").

"MTD" warrants this product (excluding its Normal WearParts and Attachments as described below) against defects in material and workmanship for a period of two (2) years commencing onthe date of original purchase and will, at its option, repair or replace,free of

charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator's Manual furnished with the product, and has not beensubject to misuse, abuse, commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damageresulting from the installation or use of any part, accessory or attachment not approved by MTD for use with the product(s) covered bythis manual will void your warranty as to any resulting damage.

Normal WearParts arewarranted to befree from defects in material andworkmanship for a period of thirty (30) days from the dateof

purchase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, tines, grass bags,

wheels, rider deck wheels, seats, snow thrower skid shoes, friction wheels, shaveplates, auger spiral rubber andtires.

Attachments-- MTD warrants attachments for this product against defects in material and workmanship for a period of one (1) year, commencing on the date of the attachment's original purchase or

lease.Attachments include, but are not limited to items such as: grass collectors and mulch kits.

HOWTO OBTAINSERVICE:Warranty service is available, WITH PROOFOFPURCHASE,through your local authorized service dealer. Tolocatethe dealer in your area:

In the U.S.A. Checkyour Yellow Pages,or contact MTD LLC at RO. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220- 4683 or log on to our Web site at www.mtdproducts.com.

In Canada Contact MTD Products Limited, Kitchener, ON N2G4J1, or call 1-800-

668-1238 or log on to our Web site atwww.mtdcanada.com. This limited warranty does not provide coverage in the following

cases: a. Theengine or component parts thereof. These items may carry a

separate manufacturer's warranty. Referto applicable manufac- turer's warranty for terms and conditions.

b. Log splitter pumps, valves, and cylinders havea separate one-

yearwarranty.

c. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal deterioration of the exterior finish

dueto use or exposure.

d. Service completed by someone other than an authorized service

dealer.

e. MTD does not extend any warranty for products sold or exported

outside of the United States and/or Canada,andtheir respective possessions and territories, except those sold through MTD's

authorized channels of export distribution. f. Replacement parts that are not genuine MTD parts. g. Transportation charges and service calls. h. MTD does not warrant this product for commercial use.

No implied warranty, includingany implied warranty of merchantability of fitness for a particular purpose, applies after the applicable periodof express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned above, given by any personor entity,

includinga dealer or retailer, with respect to any product,shall bind MTD. Duringthe period of the warranty, the exclusive remedy

is repair or replacement of the productas set forth above. The provisionsas set forth inthis warranty providethe sole and

exclusive remedy arising from the sale. MTD shall not be liable for incidental orconsequential loss or damage including, without

limitation, expenses incurred for substitute or replacement lawn careservices or for rental expenses to temporarily replace a

warranted product. Some states do not allow the exclusion or limitation of incidental

or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply

to you. In no event shall recovery of any kind begreater than the amount of

the purchase price of the product sold. Alteration of safety features of the product shall void this warranty. You assume the risk and liability

for loss, damage, or injury to you and your property and/or to others andtheir property arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a

gift. HOWSTATELAW RELATESTOTHISWARRANTY: This limited

warranty givesyou specific legal rights, and you may also have other rights which vary from state to state.

IMPORTANT:Owner must present Original Proof of Purchase to obtain warranty coverage.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136=0019; Phone: 1=800=800=7310, 1=330=220=4683

MTD Canada Limited =KITCHENER, ON N2G 4J1; Phone 1=800=668=1238

GDOC-lO0015 REV. B

MTD CVT 900 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
