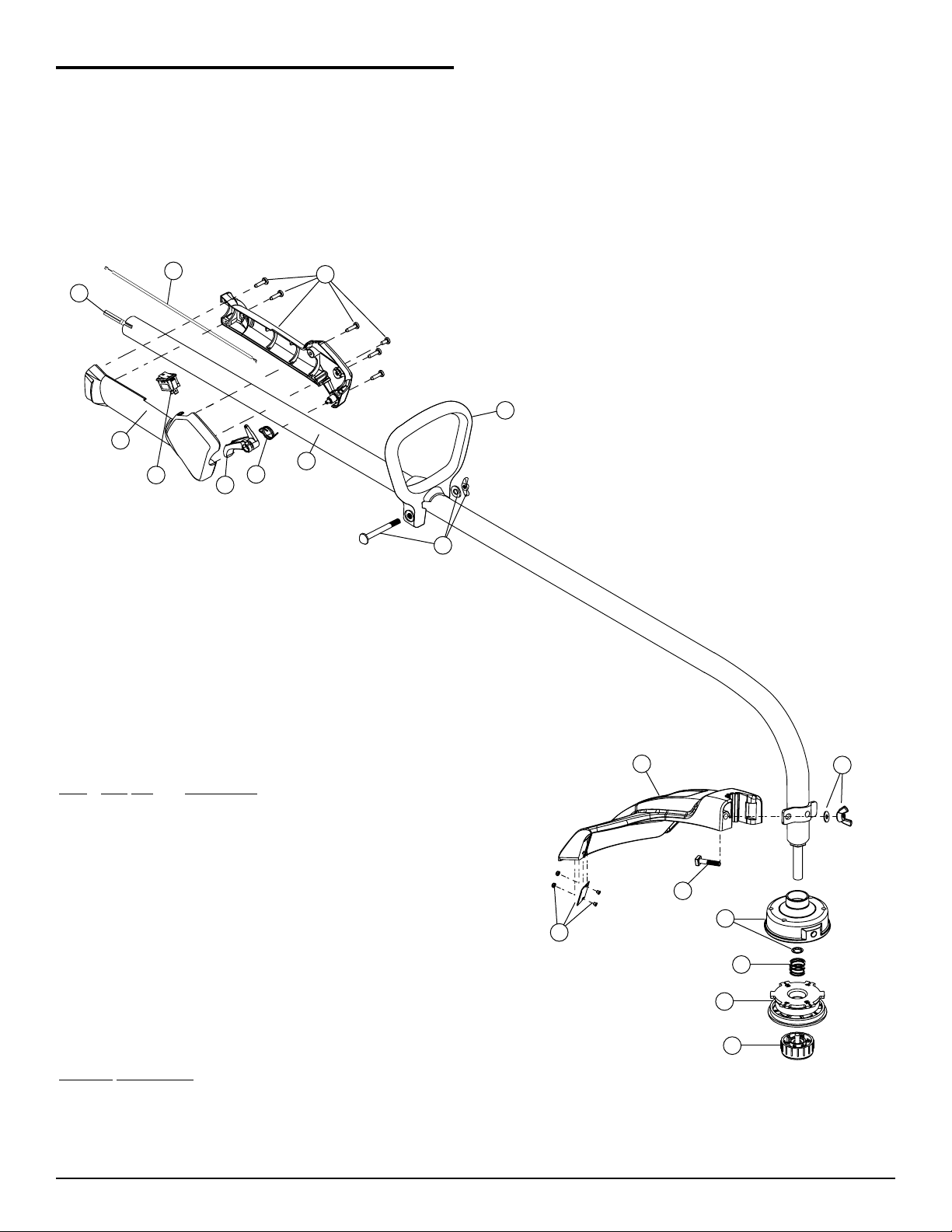

REPLACEMENT PARTS - MODEL CC4105
4-CYCLE GAS TRIMMER
PPN 41ADC05G912
PARTS LIST PART NO. 769-02764 10/06
REPLACEMENT PARTS - MODEL CC4105
4-CYCLE GAS TRIMMER
PPN 41ADC05G912
Issued 10/06
Item
Part No. Description
1 753-05449 Engine Cover
2 791-181345 Screw
3 753-05377 Screw
4 753-05209 Valve Cover
5 753-05210 Valve Cover Gasket
6 753-05438 Cylinder Assembly (includes 5, 7 & 40)
7 791-181003 Cylinder Screw
8 753-05247 Insulator Gasket
9 753-05248 Nut
10 753-05452 Insulator (includes 11)
11 753-05439 Carburetor Gasket
12 753-05440 Carburetor w/Primer
13 791-181751 Carburetor O-Ring
14 753-05441 Air Filter Cover Assembly (includes 16)
15 753-05253 Air Filter Mounting Screw
16 753-05442 Air Filter
17 753-05289 Fuel Cap
18 791-181930 Screw
19 791-182366 Clip Nut
20 753-05443 Fuel Tank Assembly (includes 17)
21 753-05444 Muffler Assembly (includes 22 & 23)
22 753-05244 Muffler Gasket
23 753-05246 Muffler Mounting Screw
24 753-05264 Lead Wire
25 753-05445 Starter Housing Assembly (includes 3, 19 & 26-29)
26 753-1202 Plate Screw
27 753-05260 Push Nut
28 791-613103 Rope
29 791-181079 Pull Handle
Item Part No. Description
30 753-05446 Clutch Cover Assembly (includes 31-33)
31 791-181345 Cover Screw
32 791-182519 Anti-Rotation Screw
33 753-04291 Clamping Screw Assembly
34 753-05447 Ignition Module Assembly
35 791-610303 Square Nut Drive
36 753-05240 Flywheel
37 791-181861 Shroud Screw
38 753-04919 Cam Bracket Assembly (includes 39)
39 791-181012 Cam Bracket Screw
40 791-182374 Cylinder Gasket
41 791-182377 Oil Pan (includes 42 & 43)
42 791-181018 Oil Pan Gasket
43 791-181020 Oil Pan Screw
44 791-182378 Dipstick Assembly (includes 45)
45 791-182290 O-Ring
46 753-05458 Piston Assembly
* 791-180852B Spark Plug
* 753-05459 Shortblock Assembly (includes 3-7 & 34-46)
