MSI X99A SLI PLUS, X99A RAIDER User Manual

X99A SLI PLUS

Motherboard

G52-78851XG

Preface

ii

Preface

Preface

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no
guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks in this manual are properties of their respective owners.

￭ MSI

®

is registered trademark of Micro-Star Int’l Co.,Ltd.

￭ NVIDIA

®

is registered trademark of NVIDIA Corporation.

￭ ATI

®

is registered trademark of AMD Corporation.

￭ AMD

®

is registered trademarks of AMD Corporation.

￭ Intel

®

is registered trademarks of Intel Corporation.

￭ Windows

®

is registered trademarks of Microsoft Corporation.

￭ AMI

®

is registered trademark of American Megatrends Inc.

￭ Award

®

is a registered trademark of Phoenix Technologies Ltd.

￭ Sound Blaster

®

is registered trademark of Creative Technology Ltd.

￭ Realtek

®

is registered trademark of Realtek Semiconductor Corporation.

￭ JMicron

®

is registered trademark of JMicron Technology Corporation.

￭ Netware

®

is registered trademark of Novell, Inc.

￭ VIA

®

is registered trademark of VIA Technologies, Inc.

￭ ASMedia

®

is registered trademark of ASMedia Technology Inc.

￭ iPad, iPhone, and iPod are trademarks of Apple Inc.
￭ Qualcomm Atheros and Killer are trademarks of Qualcomm Atheros Inc.

Revision History

Revision Revision History Date
V1.0 First release

2014/08

V1.1 Release for X99A SLI PLUS 2015/01

Preface

iii

Preface

Smartphone Application

MSI+ is a smart web gadget that works as a shopping navigator and
provides specs comparison for IT buyers. With a simple tap of the

smartphone, you'll e󰘲ciently locate your ideal products from a wide

variety of choices and, if product details are required, you may easily
download user manuals within minutes. Better yet, the power calculator
provides accurate estimates of power unit capacity for DIY users.

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS
updates, driver updates, and other information:

http://www.msi.com/support/

Contact our technical sta󰘯 at:

http://register.msi.com/

iv

Preface

Preface

Safety Instructions

￭ Always read the safety instructions carefully.
￭ Keep this User’s Manual for future reference.
￭ Keep this equipment away from humidity.
￭ Lay this equipment on a reliable 󰘱at surface before setting it up.
￭ The openings on the enclosure are for air convection hence protects the equipment

from overheating. DO NOT COVER THE OPENINGS.

￭ Make sure the voltage of the power source is at 110/220V before connecting the

equipment to the power inlet.

￭ Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

￭ Always Unplug the Power Cord before inserting any add-on card or module.
￭ All cautions and warnings on the equipment should be noted.
￭ Never pour any liquid into the opening that can cause damage or cause electrical

shock.

￭ If any of the following situations arises, get the equipment checked by service

personnel:

◯ The power cord or plug is damaged.
◯ Liquid has penetrated into the equipment.
◯ The equipment has been exposed to moisture.
◯ The equipment does not work well or you can not get it work according to

User’s Manual.

◯ The equipment has been dropped and damaged.
◯ The equipment has obvious sign of breakage.

￭ DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT ABOVE 60

o

C (140oF),

IT MAY DAMAGE THE EQUIPMENT.

Preface

v

Preface

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is
in compliance with the essential safety requirements and other relevant
provisions set out in the European Directive.

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment o󰘯

and on, the user is encouraged to try to correct the interference by one or more of the
measures listed below.

◯ Reorient or relocate the receiving antenna.
◯ Increase the separation between the equipment and receiver.
◯ Connect the equipment into an outlet on a circuit di󰘯erent from that to which

the receiver is connected.

◯ Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modi󰘰cations not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply

with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference that may
cause undesired operation.

Micro-Star International

MS-7885

vi

Preface

Preface

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment and its antenna should be installed and
operated with minimum distance 20 cm between the radiator and your body. This
equipment and its antenna must not be co-located or operating in conjunction with any
other antenna or transmitter.

European Community Compliance Statement

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council
Recommendation of 12 July 1999 on the limitation of exposure of the general public

to electromagnetic 󰘰elds (0–300GHz). This wireless device complies with the R&TTE

Directive.

FCC Bluetooth Wireless Compliance

The antenna used with this transmitter must not be colocated or operated in
conjunction with any other antenna or transmitter subject to the conditions of the FCC
Grant.

Bluetooth Industry Canada Statement

This Class B device meets all requirements of the Canadian interference-causing
equipment regulations.

Cet appareil numérique de la Class B respecte toutes les exigences du Règlement sur
le matériel brouilleur du Canada.

Taiwan Wireless Statements

無線設備警告聲明
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻

率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立

即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線
電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之
干擾。

Japan VCCI Class B Statement

クラス B 情報技術装置
この装置は、情報技術装置等電波障害自主規制協議会（VCCI）の基準に基づくクラ

スB情報技術装置です。この装置が家庭内でラジオやテレビジョン受信機に近接して
使われると、受信障害を引き起こすことがあります。取扱説明書にしたがって正しい
取り扱いをしてください。

Korea Warning Statements

당해 무선설비는 운용중 전파혼신 가능성이 있음

Preface

vii

Preface

California, USA:
The button cell battery may contain perchlorate material and requires

special handling when recycled or disposed of in California.
For further information please visit:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Taiwan:
For better environmental protection, waste batteries should be collected

separately for recycling or special disposal.

廢電池請回收

European Union:
Batteries, battery packs, and accumulators should not be disposed of

as unsorted household waste. Please use the public collection system
to return, recycle, or treat them in compliance with the local regulations.

Battery Information

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No. 1907/2006 of the European Parliament and the
Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

CAUTION: There is a risk of explosion, if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.

viii

Preface

Preface

WEEE (Waste Electrical and Electronic Equipment) Statement

ENGLISH

To protect the global environment and as an environmentalist, MSI must
remind you that...

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2002/96/EC, which takes e󰘯ect on August
13, 2005, products of “electrical and electronic equipment” cannot be

discarded as municipal wastes anymore, and manufacturers of covered
electronic equipment will be obligated to take back such products at the end of their
useful life. MSI will comply with the product take back requirements at the end of life
of MSI-branded products that are sold into the EU. You can return these products to
local collection points.

DEUTSCH

Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt

Gemäß der Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte dürfen
Elektro- und Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden.
MSI hat europaweit verschiedene Sammel- und Recyclingunternehmen beauftragt,
die in die Europäische Union in Verkehr gebrachten Produkte, am Ende seines

Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen

Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer Nähe.

FRANÇAIS

En tant qu’écologiste et a󰘰n de protéger l’environnement, MSI tient à rappeler ceci...

Au sujet de la directive européenne (EU) relative aux déchets des équipement

électriques et électroniques, directive 2002/96/EC, prenant e󰘯et le 13 août 2005,

que les produits électriques et électroniques ne peuvent être déposés dans les

décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements
seront obligés de récupérer certains produits en 󰘰n de vie. MSI prendra en compte
cette exigence relative au retour des produits en 󰘰n de vie au sein de la communauté
européenne. Par conséquent vous pouvez retourner localement ces matériels dans

les points de collecte.

РУССКИЙ

Компания MSI предпринимает активные действия по защите окружающей среды,

поэтому напоминаем вам, что....

В соответствии с директивой Европейского Союза (ЕС) по предотвращению
загрязнения окружающей среды использованным электрическим и электронным
оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13
августа 2005 года, изделия, относящиеся к электрическому и электронному
оборудованию, не могут рассматриваться как бытовой мусор, поэтому
производители вышеперечисленного электронного оборудования обязаны
принимать его для переработки по окончании срока службы. MSI обязуется
соблюдать требования по приему продукции, проданной под маркой MSI на
территории EC, в переработку по окончании срока службы. Вы можете вернуть
эти изделия в специализированные пункты приема.

Preface

ix

Preface

ESPAÑOL

MSI como empresa comprometida con la protección del medio ambiente, recomienda:
Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o

equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos
clasi󰘰cados como “eléctricos y equipos electrónicos” no pueden ser depositados en

los contenedores habituales de su municipio, los fabricantes de equipos electrónicos,
están obligados a hacerse cargo de dichos productos al termino de su período de
vida. MSI estará comprometido con los términos de recogida de sus productos

vendidos en la Unión Europea al 󰘰nal de su periodo de vida. Usted debe depositar

estos productos en el punto limpio establecido por el ayuntamiento de su localidad o

entregar a una empresa autorizada para la recogida de estos residuos.

NEDERLANDS

Om het milieu te beschermen, wil MSI u eraan herinneren dat….
De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische

en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan

kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort
producten worden verplicht om producten retour te nemen aan het eind van hun

levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten
die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen
geretourneerd worden op lokale inzamelingspunten.

SRPSKI

Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj

sredini, MSI mora da vas podesti da…

Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi,
Direktiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji
spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan
otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju
njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih
proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU.
Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.

POLSKI

Aby chronić nasze środowisko naturalne oraz jako 󰘰rma dbająca o ekologię, MSI
przypomina, że...

Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów
elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13
sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie
mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów
będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z
użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie
Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w
wyznaczonych punktach zbiorczych.

x

Preface

Preface

TÜRKÇE

Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır:
Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/EC

Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere,
elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik
cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla
yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri
bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi
yerel toplama noktalarına bırakabilirsiniz.

ČESKY

Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje...
Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků

2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické
výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které
se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení
jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky
MSI, prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete
odevzdat v místních sběrnách.

MAGYAR

Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve
az MSI emlékezteti Önt, hogy ...

Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos
és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint
az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági
hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az
ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja a
termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n
belül értékesített termékek esetében, azok élettartamának végén. Az ilyen termékeket
a legközelebbi gyűjtőhelyre viheti.

ITALIANO

Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che….
In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici

ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti

alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati

come ri󰘰uti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni
prodotto alla 󰘰ne del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i
prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla 󰘰ne

del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto di raccolta

Preface

xi

Preface

▍CONTENTS

Chapter 1 Getting Started............................................................................1-1

Packing Contents ................................................................................................. 1-2

Assembly Precautions ..........................................................................................1-3

Motherboard Speci󰘰cations ..................................................................................1-4

Block Diagram ......................................................................................................1-7

Connectors Quick Guide ...................................................................................... 1-8

Back Panel Quick Guide .................................................................................... 1-10

CPU (Central Processing Unit) ..........................................................................1-12

Introduction to the LGA2011-3 CPU ............................................................ 1-12

CPU & Heatsink Installation .........................................................................1-13

Memory .............................................................................................................. 1-16

Up to Quad-Channel mode ..........................................................................1-16

De󰘰ned Channel list .....................................................................................1-16

Suggestions for Multi-Channel mode population rule .................................. 1-17

Dual-Channel mode .....................................................................................1-17

Triple-Channel mode ................................................................................... 1-17

Quad-Channel mode ...................................................................................1-17

Quad-Channel mode ...................................................................................1-18

Mounting Screw Holes ....................................................................................... 1-19

Power Supply ..................................................................................................... 1-20

JPWR1~2: ATX Power Connectors ............................................................. 1-20

Expansion Slots .................................................................................................1-21

PCI_E1~6: PCIe Expansion Slots ................................................................1-21

PCIe Bandwidth Table ................................................................................ 1-21

Video/ Graphics Cards ...................................................................................... 1-22

Single Video Card Installation ......................................................................1-22

Internal Connectors ............................................................................................1-23

SATA1~10: SATA Connectors ....................................................................1-23

SATA_EX1: SATA Express Connector ....................................................... 1-24

M2_1: M.2 Port ............................................................................................1-24

CPUFAN1~2,SYSFAN1~3: Fan Power Connectors .................................... 1-25

JFP1, JFP2: System Panel Connectors ...................................................... 1-26

JUSB1~2: USB 3.0 Expansion Connectors ................................................. 1-27

JUSB3~4: USB 2.0 Expansion Connectors ................................................. 1-28

JCI1: Chassis Intrusion Connector .............................................................. 1-28

JAUD1: Front Panel Audio Connector ......................................................... 1-29

JTPM1: TPM Module Connector ................................................................1-29

Button .................................................................................................................1-30

OC1: OC Genie Button ............................................................................... 1-30

xii

Preface

Preface

POWER1: Power Button ..............................................................................1-31

RESET1: Reset Button ................................................................................ 1-31

Jumper ............................................................................................................... 1-32

JBAT1: Clear CMOS Jumper .......................................................................1-32

JSLOW1: Slow Mode Booting Jumper ........................................................ 1-32

Switch .................................................................................................................1-33

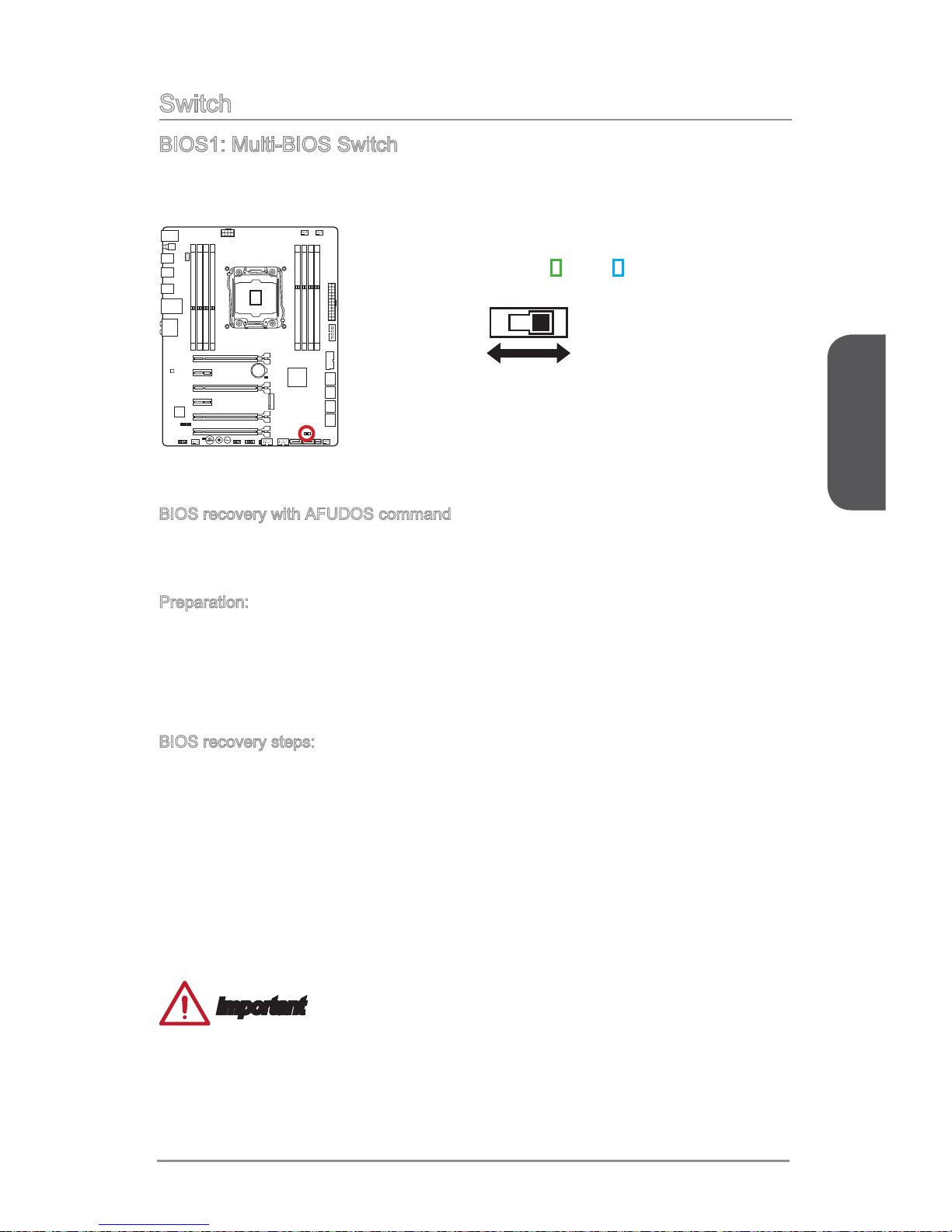

BIOS1: Multi-BIOS Switch ........................................................................... 1-33

Drivers and Utilities ............................................................................................ 1-34

Driver/ Utilities Installation ...........................................................................1-34

Chapter 2 Quick Installation ........................................................................2-1

CPU Installation ...................................................................................................2-2

Memory Installation .............................................................................................. 2-4

Motherboard Installation .......................................................................................2-5

Power Connectors Installation .............................................................................2-7

SATA HDD Installation .........................................................................................2-9

M.2 module Installation ...................................................................................... 2-10

Front Panel Connector Installation .....................................................................2-11

JFP1 Connector Installation .........................................................................2-11

Front Panel Audio Connector Installation .................................................... 2-11

Peripheral Connector Installation ....................................................................... 2-12

USB2.0 Connector Installation .....................................................................2-12

USB3.0 Connector Installation .....................................................................2-12

Graphics Card Installation ..................................................................................2-13

Chapter 3 BIOS Setup .................................................................................3-1

Entering Setup .....................................................................................................3-2

Entering BIOS Setup .....................................................................................3-2

Overview .............................................................................................................. 3-3

Operation .............................................................................................................3-6

Updating BIOS ..................................................................................................... 3-7

Updating the BIOS with M-FLASH .................................................................3-7

SETTINGS ........................................................................................................... 3-8

System Status ................................................................................................3-8

Advanced .......................................................................................................3-9

Boot .............................................................................................................3-13

Security ........................................................................................................3-14

Save & Exit .................................................................................................. 3-15

OC ......................................................................................................................3-16

M-FLASH ...........................................................................................................3-26

OC PROFILE .....................................................................................................3-27

HARDWARE MONITOR .................................................................................... 3-28

Preface

xiii

Preface

Appendix A Realtek Audio .......................................................................... A-1

Software Con󰘰guration .........................................................................................A-2

Software panel overview ................................................................................A-2

Auto popup dialog ..........................................................................................A-3

Appendix B Intel RAID ................................................................................ B-1

Introduction ..........................................................................................................B-2

Using Intel Rapid Storage Technology Option ROM............................................B-3

Degraded RAID Array ........................................................................................B-10

System Acceleration (optional) ..........................................................................B-12

RST Synchronization (optional) .........................................................................B-14

Chapter 1

Getting Started

Thank you for choosing the X99A SLI PLUS Series (MS-7885 v1.X) ATX
motherboard. The X99A SLI PLUS Series motherboards are based on Intel®
X99 chipset for optimal system e󰘲ciency. Designed to 󰘰t the advanced Intel®
LGA2011-3 processor, the X99A SLI PLUS Series motherboards deliver a
high performance and professional desktop platform solution.

Chapter 1

1-2

Getting Started

Packing Contents

* These pictures are for reference only and may vary without notice.
* The packing contents may vary according to the model you purchased.

SATA Cable

Drivers & Utilities

Disc

Motherboard

User Guide

I/O Shield

Motherboard

M-Connector

SLI Cable

SATA3_4SATA9_10

SATA1_2SATA7_8

Chapter 1

1-3

Getting Started

Assembly Precautions

■ The components included in this package are prone to damage from electrostatic

discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.

■ Always turn o󰘯 the power supply and unplug the power cord from the power outlet

before installing or removing any computer component.

■ Ensure that all components are securely connected. Loose connections may cause

the computer to not recognize a component or fail to start.

■ Hold the motherboard by the edges to avoid touching sensitive components.

■ It is recommended to wear an electrostatic discharge (ESD) wrist strap when

handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.

■ Store the motherboard in an electrostatic shielding container or on an antistatic pad

whenever the motherboard is not installed.

■ Before turning on the computer, ensure that there are no loose screws or metal

components on the motherboard or anywhere within the computer case.

■ Do not use the computer in a high-temperature environment.

■ Do not boot the computer before installation is completed. This could cause

permanent damage to the components as well as injury to the user.

■ If you need help during any installation step, please consult a certi󰘰ed computer

technician.

Important

A screwdriver (not included) may be required for computer assembly.

Chapter 1

1-4

Getting Started

Motherboard Speci󰘰cations

CPU
Support

■ Supports New Intel® Core™ i7 Processor Extreme Edition for

LGA2011-3 Socket

Chipset ■ Intel® X99 Express Chipset
Memory

Support

■ 8x DDR4 memory slots supporting up to 128GB

■ Supports DDR4-2133/ 2200(OC)/ 2400(OC)/ 2600(OC)/ 2666(OC)/

2750(OC) / 3000(OC)/ 3110(OC)/ 3333(OC)

■ Quad channel memory architecture

■ Supports non-ECC, un-bu󰘯ered memory

■ Supports Intel® Extreme Memory Pro󰘰le (XMP)

Expansion
Slots

■ 4x PCIe 3.0 x16 slots, support up to 3-way mode

- 1-way mode: x16/ x0/ x0/ x0

- 2-way mode: x16/ x16/ x0/ x0*, 16/ x8/ x0/ x0**

- 3-way mode: x16/ x16/ x0/ x8*, x8/ x8/ x8/ x0**

■ 2x PCIe 2.0 x1 slots

* For the CPU that supports 40 PCIe lanes
** For the CPU that supports 28 PCIe lanes

Multi-GPU
Support

■ Supports 3-Way AMD® CrossFireTM Technology*

■ Supports 3-Way NVIDIA® SLI™ Technology

* Supports Windows 7 and Windows 8/ 8.1

Storage ■ Intel® X99 Express Chipset

■ 10x SATA 6Gb/s ports (2x ports reserved for SATA Express port)*

- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10

- SATA7~10 ports only support IDE mode and AHCI mode.

- Supports Intel® Smart Response Technology (Windows 7/ 8/ 8.1)

■ 1x SATA Express port*

■ 1x M.2 port, supports up to 32Gb/s speed**

- M.2 port supports 4.2cm/ 6cm/ 8cm length module

- M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and
RAID 10.

* The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 SATA

interface module in the M.2 port.

** Intel RST does not support PCIe M.2 SSD with Legacy ROM.

USB ■ Intel® X99 Express Chipset

- 6x USB 3.0 ports (2 ports on the back panel, 4 ports available

through the internal USB 3.0 connectors*)

- 6x USB 2.0 ports (2 ports on the back panel, 4 ports available
through the internal USB 2.0 connectors)

■ ASMedia ASM1142

- 2x USB 3.1 ports on the back panel

■ VIA VL805

- 4x USB 3.0 ports on the back panel

* Internal JUSB1 connector supports MSI Super Charger.

Audio ■ Realtek® ALC892 Codec

- 7.1-Channel High De󰘰nition Audio

- Supports S/PDIF output

LAN ■ 1x Intel I218 Gigabit LAN

Chapter 1

1-5

Getting Started

Back Panel
Connectors

■ 1x PS/2 keyboard/ mouse combo port

■ 2x USB 2.0 ports

■ 1x Clear CMOS button

■ 6x USB 3.0 ports

■ 2x USB 3.1 ports

■ 1x LAN (RJ45) port

■ 1x Optical S/PDIF OUT connector

■ 5x OFC audio jacks

Internal
Connectors

■ 1x 24-pin ATX main power connector

■ 1x 8-pin ATX 12V power connector

■ 10x SATA 6Gb/s connectors

■ 1x SATA Express connector

■ 1x M.2 connector

■ 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

■ 2x USB 3.0 connectors (supports additional 4 USB 3.0 ports)

■ 2x 4-pin CPU fan connectors

■ 3x 4-pin system fan connectors

■ 1x Front panel audio connector

■ 2x System panel connectors

■ 1x TPM module connector

■ 1x Chassis Intrusion connector

■ 1x Clear CMOS jumper

■ 1x Slow mode booting jumper

■ 1x Power button

■ 1x Reset button

■ 1x OC Genie button

■ 1x Multi-BIOS switch

I/O
Controller

■ NUVOTON NCT6792 Controller Chip

Hardware
Monitor

■ CPU/System temperature detection

■ CPU/System fan speed detection

■ CPU/System fan speed control

BIOS
Features

■ 2x 128 Mb 󰘱ash

■ UEFI AMI BIOS

■ ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0

■ Multi-language

Special
Features

■ Military Class 4

■ OC Genie 4

■ CLICK BIOS 4

■ NVIDIA SLI

■ AMD CrossFire

■ Easy Button

■ Clear CMOS Button

■ Total Fan Control

■ Super Charger

■ Smart Utilities

■ Command Center

■ ECO Center

Chapter 1

1-6

Getting Started

Software ■ Drivers

■ MSI

- Command Center

- Live Update 6

- Smart Utilities

- Super Charger

- Fast Boot

- ECO Center

■ Norton Internet Security Solution

■ Intel Extreme Tuning Utility

Form
Factor

■ ATX Form Factor

■ 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

For the latest information about CPU, please visit
http://www.msi.com/cpu-support/

For more information on compatible components, please visit
http://www.msi.com/test-report/

Chapter 1

1-7

Getting Started

Block Diagram

LPC Bus

2 x USB 3.1

4 Channel DDR4 Memory

4 x USB 3.0

6 x USB 3.0

1 x SATA Express

1 x M.2

10 x SATA 6Gb/s

6 x USB 2.0

PCI Express Bus

PCI Express Bus

PCI Express Bus

PS/2 Mouse / Keyboard

Intel I218
Gigabit LAN

DMI 2.0

PCI Express 3.0

PCI Express 3.0

PCI Express 3.0

PCI Express 3.0

PCI Express Bus

Switch

X99 PCH

Haswell-E
Processor

LGA2011-3 CPU

NV6792

Super I/O

Realtek
ALC892

VIA

VL805

ASMEDIA
ASM1142

x1

x1

x2

x1

x4

x2

x1

Switch

Switch

(2 ports reserved for SATA Express)

OR

S/PDIF-Out

Line-In/ SS-Out

Line-OutRS-Out

CS-Out

MIC

PCIe x1 slot

PCIe x1 slot

■ For detailed information, please refer to “Motherboard Speci󰘰cations”.

Chapter 1

1-8

Getting Started

SATA3_4SATA9_1 0

SATA1_2SATA7_8

Connectors Quick Guide

CPUFAN1

PCI_E1

PCI_E2

PCI_E3

PCI_E4

PCI_E5

JPWR1

JUSB4

SATA1_2

SATA3_4

SATA7_8

JPWR2

CPU Socket

Back
Panel

JUSB1

M2_1

JTPM1

DIMM1

DIMM2

DIMM3

DIMM4

CPUFAN2

SYSFAN3

JSLOW1

OC1

POWER1

RESET1

SATA9_10

JCI1

JFP1

JFP2

JBAT1

JUSB3

JUSB2

SYSFAN2

SYSFAN1

JAUD1

SATA6

BIOS1

DIMM8

DIMM7

DIMM6

DIMM5

SATA5

PCI_E6

Chapter 1

1-9

Getting Started

Connectors Reference Guide

Port Name Port Type Page

Back Panel 1-10

BIOS1 Multi-BIOS Switch 1-33

CPU LGA2011-3 CPU Socket 1-12

CPUFAN1~2,SYSFAN1~3 Fan Power Connectors 1-25

DIMM1~8 Memory Slots 1-16

JAUD1 Front Panel Audio Connector 1-29

JBAT1 Clear CMOS Jumper 1-32

JCI1 Chassis Intrusion Connector 1-28

JFP1, JFP2 System Panel Connectors 1-26

JPWR1~2 ATX Power Connectors 1-20

JSLOW1 Slow Mode Booting Jumper 1-32

JTPM1 TPM Module Connector 1-29

JUSB1~2 USB 3.0 Expansion Connectors 1-27

JUSB3~4 USB 2.0 Expansion Connectors 1-28

M2_1 M.2 Port 1-24

OC1 OC Genie Button 1-30

PCI_E1~6 PCIe Expansion Slots 1-21

POWER1 Power Button 1-31

RESET1 Reset Button 1-31

SATA1~10 SATA Connectors 1-23

SATA_EX1 SATA Express Connector 1-24

Chapter 1

1-10

Getting Started

Back Panel Quick Guide

▶PS/2 Port

A PS/2

®

DIN connector is for a PS/2® mouse/keyboard.

▶Clear CMOS Button
There is CMOS RAM present on board that is powered by an external battery to store

system con󰘰guration data. Using CMOS RAM, the system can automatically boot into

the operating system (OS) every time it is turned on. If you wish to clear the system

con󰘰guration, press the button to clear the data.
▶USB 2.0 Port

The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other
USB 2.0-compatible devices.

▶USB 3.0 Port
USB 3.0 port is backward-compatible with USB 2.0 devices. It supports data transfer

rate up to 5 Gbit/s (SuperSpeed).

▶USB 3.1 Port
USB 3.1 port is backward-compatible with USB 3.0/ 2.0 devices. It supports data

transfer rate up to 10 Gb/s (SuperSpeed USB 10 Gbps).

Important

In order to use USB 3.0/ 3.1 devices, you must connect to a USB 3.0/ 3.1 port. If a
USB cable is used, it must be USB 3.0/ 3.1 compliant.

Optical

S/PDIF-Out

Line-In/ SS-Out

Line-Out

RS-Out

CS-Out

USB 3.0 Port

Clear
CMOS
Button

LAN Port

PS/2 Port

USB 2.0 Port USB 3.0 Port

USB 3.1 PortUSB 3.0 Port

MIC

Chapter 1

1-11

Getting Started

▶LAN Port

The standard RJ-45 LAN jack is for connecting to a Local Area Network (LAN).

LINK/ACT

LED

SPEED

LED

LED LED Status Description

Link/ Activity LED

O󰘯 No link

Yellow Linked

Blinking Data activity

Speed LED

O󰘯 10 Mbps connection

Green 100 Mbps connection

Orange 1 Gbps connection

▶Optical S/PDIF-Out

This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical 󰘰ber cable.

▶Audio Ports

These connectors are used for audio devices.

■ Line-In/ SS-Out: Line-In is used for connecting external audio outputting devic-

es. SS-Out is side surround line out in 7.1 channel mode.

■ Line out: Used as a connector for speakers or headphone.

■ Mic: Used as a connector for a microphone.

■ RS-Out: Rear surround sound line out in 4/ 5.1/ 7.1 channel mode.

■ CS-Out: Center/ subwoofer line out in 5.1/ 7.1 channel mode.

Chapter 1

1-12

Getting Started

CPU (Central Processing Unit)

Important

Overheating
Overheating can seriously damage the CPU and motherboard. Always make sure the

cooling fans work properly to protect the CPU from overheating. Be sure to apply an
even layer of thermal paste (or thermal tape) between the CPU and the heatsink to
enhance heat dissipation.

Replacing the CPU

When replacing the CPU, always turn o󰘯 the system’s power supply and unplug the

power supply’s power cord to ensure the safety of the CPU.
Overclocking

This motherboard is designed to support overclocking. Before attempting to overclock,
please make sure that all other system components can tolerate overclocking. Any

attempt to operate beyond product speci󰘰cations is not recommend. MSI does not

guarantee the damages or risks caused by inadequate operation beyond product

speci󰘰cations.

Introduction to the LGA2011-3 CPU

The surface of the

LGA2011-3 CPU has four

alignment keys and a yellow
triangle to assist in correctly
lining up the CPU for
mainboard placement. The
yellow triangle is the Pin 1
indicator.

Yellow triangle is the
Pin 1 indicator

Alignment Key

Chapter 1

1-13

Getting Started

CPU & Heatsink Installation

When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability. Follow the steps
below to ensure correct CPU and heatsink installation. Wrong installation can damage
both the CPU and the motherboard.

Video Demonstration

Watch the video to learn how to install CPU & heatsink.

http://youtu.be/WPhyn2C5mgs

3. Open the load plate by pushing down on the hinge lever.

4. Grasp the tab, only it has risen away from the socket, open load plate to full open
position.

1. Open hinge lever. You can identify the hinge lever as below shown, it with a
interlocking feature on the other end.

2. Open active lever.

Active lever

Hinge lever

Interlock

Chapter 1

1-14

Getting Started

7. Close the active lever with a smooth uniform motion and latch to the socket.

8. Close the hinge lever with a smooth uniform motion and latch to the socket.

5. Line up the CPU to 󰘰t the CPU socket. Be sure to hold the CPU by the base with

the metal contacts facing downward. The alignment keys on the CPU will line up

with the edges of the CPU socket to ensure a correct 󰘰t.

6. Carefully close the load plate and remove the plastic protective cap.

Alignment Key

Chapter 1

1-15

Getting Started

9. Evenly spread a thin layer of thermal paste (or thermal tape) on the top of the
CPU. This will help in heat dissipation and prevent CPU overheating.

10. Locate the CPU fan connector on the mainboard.

11. Place the heatsink on the mainboard with the fan’s wires facing towards the fan
connector and the screws matching the holes on the socket.

12. Using a screwdriver tighten the four captive screws (9 inch-pounds).

13. Finally, attach the CPU fan cable

to the CPU fan connector on the
mainboard.

Thermal paste

SATA3_4SATA9_10

SATA1_2SATA7_8

CPUFAN1

Chapter 1

1-16

Getting Started

Memory

These DIMM slots are used for installing memory modules.

SATA3_4SATA9_10

SATA1_2SATA7_8

DIMM1
DIMM2

DIMM3

DIMM4

DIMM8
DIMM7
DIMM6
DIMM5

Video Demonstration

Watch the video to learn how to install memory.

http://youtu.be/T03aDrJPyQs

Up to Quad-Channel mode

This mainboard supports up to four memory channels. Two DIMM slots provide a
single channel. The memory modules can transmit and receive data with four data bus
channels simultaneously to enhance system performance. Please refer the following
tables for more details.

De󰘰ned Channel list

Channel DIMM Slot

Channel A DIMM1, DIMM2
Channel B DIMM3, DIMM4
Channel C DIMM5, DIMM6
Channel D DIMM7, DIMM8

Important

•

DDR4 memory modules are not interchangeable with DDR3, and the DDR4

standard is not backward compatible. Always install DDR4 memory modules in
DDR4 DIMM slots.

•

Always insert memory modules in the DIMM1 slot 󰘰rst.

•

Due to chipset resource usage, the system will only detect up to 127+ GB of
memory (not full 128 GB) when all DIMM slots have 16GB memory modules
installed.

Chapter 1

1-17

Getting Started

Suggestions for Multi-Channel mode population rule

Dual-Channel mode

Installed DIMMs

(2 memory modules)

Diagram

DIMM1, DIMM5

DIMM1
DIMM2

DIMM3

DIMM4

DIMM8
DIMM7
DIMM6
DIMM5

Triple-Channel mode

Installed DIMMs

(3 memory modules)

Diagram

DIMM1, DIMM3, DIMM5

DIMM1
DIMM2

DIMM3

DIMM4

DIMM8
DIMM7
DIMM6
DIMM5

Quad-Channel mode

Installed DIMMs

(4 memory modules)

Diagram

DIMM1, DIMM3,

DIMM5, DIMM7

DIMM1
DIMM2

DIMM3

DIMM4

DIMM8
DIMM7
DIMM6
DIMM5

Chapter 1

1-18

Getting Started

Quad-Channel mode

Installed DIMMs

(6 memory modules)

Diagram

DIMM1, DIMM2, DIMM3,

DIMM5, DIMM6, DIMM7

DIMM1
DIMM2

DIMM3

DIMM4

DIMM8
DIMM7
DIMM6
DIMM5

Installed DIMMs

(8 memory modules)

Diagram

DIMM1, DIMM2,

DIMM3, DIMM4,

DIMM5, DIMM6,

DIMM7, DIMM8

DIMM1
DIMM2

DIMM3

DIMM4

DIMM8
DIMM7
DIMM6
DIMM5

Important

To ensure system stability for Dual/ Triple/ Quad channel mode, memory modules
must be of the same type, number and density. And for every channel, the odd

number DIMM slot must to be installed 󰘰rst.

Chapter 1

1-19

Getting Started

Mounting Screw Holes

When installing the motherboard, 󰘰rst install the necessary mounting stands required

for an motherboard on the mounting plate in your computer case. If there is an
I/O back plate that came with the computer case, please replace it with the I/O
backplate that came with the motherboard package. The I/O backplate should snap
easily into the computer case without the need for any screws. Align the mounting
plate’s mounting stands with the screw holes on the motherboard and secure the
motherboard with the screws provided with your computer case. The locations of the
screw holes on the motherboard are shown below. For more information, please refer
to the manual that came with the computer case.

Important

•

Install the motherboard on a 󰘱at surface free from unnecessary debris.

•

To prevent damage to the motherboard, any contact between the motherboard
circuitry and the computer case, except for the mounting stands, is prohibited.

•

Please make sure there are no loose metal components on the motherboard or
within the computer case that may cause a short circuit of the motherboard.

The I/O ports should be facing

toward the rear of the computer

case. They should line up with the

holes on the I/O backplate.

SATA3_4SATA9_1 0

SATA1_2SATA7_8

Chapter 1

1-20

Getting Started

Power Supply

Video Demonstration

Watch the video to learn how to install power supply connectors.

http://youtu.be/gkDYyR_83I4

JPWR1~2: ATX Power Connectors

These connectors allow you to connect an ATX power supply. To connect the ATX

power supply, align the power supply cable with the connector and 󰘰rmly press the

cable into the connector. If done correctly, the clip on the power cable should be
hooked on the motherboard’s power connector.

SATA3_4SATA9_10

SATA1_2SATA7_8

13 .+3 . 3V

1. +3. 3

V

14 .-1 2 V

2. +3. 3 V

15 .Gr o und

3. Gro u nd

16 .PS - ON#

4. +5V

17 .Gr o und

5. Gro u nd

18 .Gr o und

6. +5V

19 .Gr o und

7. Gro u nd

22 .+5 V

10 .+1 2 V

20 .Re s

8. PWR O K

23 .+5 V

11. +1 2 V

21 .+5 V

9. 5VS B

24 .Gr o und

12 .+3 . 3V

7. +12 V

3.

Gr oun d

5. +12 V

1.

Gr oun d

8. +12 V

4

.G rou n d

6. +12 V

2. Gro u nd

JPWR1

JPWR2

Important

Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.

Chapter 1

1-21

Getting Started

Expansion Slots

This motherboard contains numerous slots for expansion cards, such as discrete
graphics or audio cards.

PCI_E1~6: PCIe Expansion Slots

The PCIe slot supports the PCIe interface expansion card.

PCIe 2.0 x1 Slot

PCIe 3.0 x16 Slot

PCIe Bandwidth Table

■ 3.0 = PCIe Gen 3.0 lanes, 2.0 = PCIe Gen 2.0 lanes

Bandwidth

1-Way 2-Way 3-Way

CPU Type

40

lanes

28

lanes

40

lanes

28

lanes

40

lanes

28

lanes

PCI_E1

3.0 x16 3.0 x16 3.0 x16 3.0 x16 3.0 x16 3.0 x8

PCI_E3

3.0 x16 3.0 x8 3.0 x16 3.0 x8

PCI_E5

3.0 x8

PCI_E6

3.0 x8

M.2

3.0 x4 3.0 x4 3.0 x4 3.0 x4 2.0 x2*

3.0 x4

SATA Express

2.0 x2 2.0 x2 2.0 x2 2.0 x2

2.0 x2 2.0 x2

* When installing the M.2 PCIe interface module, please set the “M.2 PCH Strap” for [M.2 PCIE] in BIOS.

Important

•

For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E1 slot is recommended.

•

When adding or removing expansion cards, always turn o󰘯 the power supply and

unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.

Chapter 1

1-22

Getting Started

Video/ Graphics Cards

If available, this motherboard takes advantage of the CPU’s integrate graphics
processor, but discrete video cards can be installed by way of the motherboard’s

expansion slots. Adding on one or more discrete video cards will signi󰘰cantly boost

the system’s graphics performance. For best compatibility, MSI graphics cards are
recommended.

Video Demonstration

Watch the video to learn how to install a graphics card on PCIe x16 slot

with butter󰘱y lock.

http://youtu.be/mG0GZpr9w_A

Single Video Card Installation

1. Determine what type of expansion slot(s) the video card will use. Locate the
expansion slot(s) on the motherboard. Remove any protective expansion slot
covers from the computer case.

2. Line up the video card on top of the expansion slot(s) with the display ports facing
out of the computer case. For a single video card installation, using the PCI_E1
slot is recommended.

3. Push the video card into its expansion slot(s). Depending on the expansion slot(s)
used, there should be clip(s) on the expansion slot(s) that will lock in place.

4. If needed, screw the edge of the graphics card to the computer case. Some video
cards might require a power cable directly from the power supply.

5. Please consult your video card’s manual for further instructions regarding driver
installation or other special settings.

Chapter 1

1-23

Getting Started

Internal Connectors

SATA1~10: SATA Connectors

This connector is a high-speed SATA interface port. Each connector can connect to
one SATA device. SATA devices include disk drives (HDD), solid state drives (SSD),
and optical drives (CD/ DVD/ Blu-Ray).

Video Demonstration

Watch the video to learn how to Install SATA HDD.

http://youtu.be/RZsMpqxythc

SATA3_4SATA9_10

SATA1_2SATA7_8

SATA2
SATA1

SATA5

SATA4

SATA3

SATA8
SATA7

SATA10
SATA9

SATA6

■ SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10.

■ SATA7~10 ports only support IDE mode and AHCI mode.

Important

•

The SATA5 and SATA6 ports will be unavailable when installing a M.2 SATA
interface module in the M.2 port.

•

Many SATA devices also need a power cable from the power supply. Such devices
include disk drives (HDD), solid state drives (SSD), and optical drives (CD / DVD /
Blu-Ray). Please refer to the device’s manual for further information.

•

Many computer cases also require that large SATA devices, such as HDDs, SSDs,
and optical drives, be screwed down into the case. Refer to the manual that came
with your computer case or your SATA device for further installation instructions.

•

Please do not fold the SATA cable at a 90-degree angle. Data loss may result
during transmission otherwise.

•

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the 󰘱at connector be connected to the motherboard for space

saving purposes.

Chapter 1

1-24

Getting Started

SATA_EX1: SATA Express Connector

The SATA Express, a new high performance storage interface, supports to connect 1
SATA Express device with up to 10 Gb/s transfer rate. Connects the SATA Express

device to this 3-in-1 connector by a SATA Express cable.

SATA3_4SATA9_10

SATA1_2SATA7_8

M2_1: M.2 Port

The M.2 port supports either M.2 SATA 6Gb/s module or M.2 PCIe module.

SATA3_4SATA9_10

SATA1_2SATA7_8

Video Demonstration

Watch the video to learn how to install M.2 module.

http://youtu.be/JCTFABytrYA

Important

•

The SATA Express port/ SATA5~6 ports will be unavailable when installing the M.2
SATA interface module in the M.2 port.

•

Intel RST does not support PCIe M.2 SSD with Legacy ROM.

•

M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.

•

Always turn o󰘯 the power supply and unplug the power cord from the power outlet

before installing or removing the M.2 module.

Chapter 1

1-25

Getting Started

CPUFAN1~2,SYSFAN1~3: Fan Power Connectors

The fan power connectors support system cooling fans with +12V. If the motherboard
has a System Hardware Monitor chipset on-board, you must use a specially designed
fan with a speed sensor to take advantage of the CPU fan control. Remember to
connect all system fans. Some system fans may not connect to the motherboard and
will instead connect to the power supply directly. A system fan can be plugged into
any available system fan connector.

1.Groun d

2.Speed Contro

l

3.Sense

4.NC

1.Groun d

2.+12V

3.Sense

4.Speed Contro

l

SATA3_4SATA9_10

SATA1_2SATA7_8

CPUFAN1/
CPUFAN2

SYSFAN1/
SYSFAN2/

SYSFAN3

Important

•

Please refer to your processor’s o󰘲cial website or consult your vendor to 󰘰nd

recommended CPU heatsink.

•

These connectors support Smart Fan Control with liner mode. The Command
Center utility can be installed to automatically control the fan speeds according to
the CPU’s and system’s temperature.

•

If there are not enough ports on the motherboard to connect all system fans,
adapters are available to connect a fan directly to a power supply.

•

Before 󰘰rst boot up, ensure that there are no cables impeding any fan blades.

Chapter 1

1-26

Getting Started

JFP1, JFP2: System Panel Connectors

These connectors connect to the front panel switches and LEDs. The JFP1 connector
is compliant with the Intel® Front Panel I/O Connectivity Design Guide. When
installing the front panel connectors, please use the optional M-Connector to simplify
installation. Plug all the wires from the computer case into the M-Connector and then
plug the M-Connector into the motherboard.

Video Demonstration

Watch the video to learn how to Install front panel connectors.

http://youtu.be/DPELIdVNZUI

SATA3_4SATA9_10

SATA1_2SATA7_8

1. +

3. -

10 . No Pin

5. -

Re s et S

wi t ch

HD D L E

D

P

ow e r Swit c h

P

ow e r LED

7. +

9. R eser v ed

8. -

6. +

4. -

2. +

JFP1

1.Ground

3.Suspend LE

D

5.Power L E

D

7.No Pin

8.+

6.-

4.+

2.-

Buzzer

S

peaker

JFP2

Important

•

On the connectors coming from the case, pins marked by small triangles are
positive wires. Please use the diagrams above and the writing on the optional M­Connectors to determine correct connector orientation and placement.

•

The majority of the computer case’s front panel connectors will primarily be plugged
into JFP1.

Chapter 1

1-27

Getting Started

JUSB1~2: USB 3.0 Expansion Connectors

The USB 3.0 port is backward compatible with USB 2.0 devices. It supports data

transfer rates up to 5Gbits/s (SuperSpeed).

SATA3_4SATA9_10

SATA1_2SATA7_8

5.

USB3 _TX _C_ DN

4.Gr oun d

3.US B3_ RX_ DP

2.US B3_ RX_ DN

1.Po wer

10.G rou nd

9. +USB2 .0

8. -USB2 .0

7.Gr oun d

6.US B3_ TX_ C_D P

20.N o Pin

19.P owe r

18.U SB3 _RX _DN

17.U SB3 _RX _DP

16.G rou nd

15.U SB3 _TX _C_ DN

14.U SB3 _TX _C_ DP

13.G rou nd

12.U SB2 .0 -

11. +

USB2 .0

The JUSB1 (red mark) connector supports MSI’s new Super-Charger technology
which provides quicker USB charging of your smartphone or other USB-powered
devices. To enable this feature, please install the MSI Super-Charger application
on your computer. When the Super-Charger application is turned on, the JUSB1
connector will convert data channels to extra power channels to quickly charge your
connected device. Please note that when the Super-Charger application is turned on,

data transmission and synchronization over the JUSB1 connector will not function. To
enable the JUSB1 connector to function as a normal USB 3.0 connector, please turn
o󰘯 the Super-Charger application. When the computer is in stand-by or hibernation
mode (S3/ S4/ S5) Super-Charger mode will automatically be enabled.

Important

•

Note that the VCC and GND pins must be connected correctly to avoid possible
damage.

•

Please only connect one device per USB port to ensure stable charging.

•

Super-Charger Technology is only available on select MSI motherboard models.
Please refer to the MSI website to check if your motherboard has Super-Charger
technology.

•

For iPad, JUSB1 (red mark) can still charge iPad in S3, S4, S5 state.

•

We recommend that don’t disconnect the device when you charge it in S1 state.

•

To use a USB 3.0 device, you must connect the device to a USB 3.0 port through
an optional USB 3.0 compliant cable.

Chapter 1

1-28

Getting Started

JUSB3~4: USB 2.0 Expansion Connectors

This connector is designed for connecting high-speed USB peripherals such as USB

HDDs, digital cameras, MP3 players, printers, modems, and many others.

SATA3_4SATA9_10

SATA1_2SATA7_8

1

0

.

N

C

8

.

G

r

o

u

n

d

6

.

U

S

B

1

+

4

.

U

S

B

1

-

2

.

V

C

C

1

.

V

C

C

3

.

U

S

B

0

-

5

.

U

S

B

0

+

7

.

G

r

o

u

n

d

9

.

N

o

P

in

Important

Note that the VCC and GND pins must be connected correctly to avoid possible
damage.

JCI1: Chassis Intrusion Connector

This connector connects to the chassis intrusion switch cable. If the computer case is
opened, the chassis intrusion mechanism will be activated. The system will record this

intrusion and a warning message will 󰘱ash on screen. To clear the warning, you must

enter the BIOS utility and clear the record.

SATA3_4SATA9_10

SATA1_2SATA7_8

2

.

C

I

N

T

R

U

1

.

G

r

o

u

n

d

Chapter 1

1-29

Getting Started

JAUD1: Front Panel Audio Connector

This connector allows you to connect the front audio panel located on your computer
case. This connector is compliant with the Intel® Front Panel I/O Connectivity Design
Guide.

SATA3_4SATA9_10

SATA1_2SATA7_8

1.MIC L

3.MIC R

10.Head

Phone Det ectio n

5.Head Ph one

R

7.SENSE_SEN

D

9.Head Ph one

L

8.No Pin

6.MIC Det ectio n

4.NC

2

.Ground

JTPM1: TPM Module Connector

This connector connects to a TPM (Trusted Platform Module). Please refer to the TPM
security platform manual for more details and usages.

SATA3_4SATA9_10

SATA1_2SATA7_8

10.No

P

in

14.Groun d

8.5V
P

ower

12.Groun d

6.Serial

I

RQ

4.3.3V

P

ower

2.3V
S

t

andby

power

1.LP
C

Cloc

k

3.LP
C

R

eset

5.LPC a

ddress

&

d

at

a

p

in0

7.LP
C a

ddress

&

data p

in1

9.LP
C a

ddres

s

& d

at

a

p

in2

11

.LPC

a

ddres

s

&

d

at

a p

in3

13.LPC

F

rame

Chapter 1

1-30

Getting Started

Button

The motherboard has numerous on-board buttons to control various functions. This
section will explain how to change your motherboard’s functions through the use of
these on-board buttons.

OC1: OC Genie Button

This button is used to automatically overclock the system. To enable OC Genie,

Set this button to ON while the system is in power o󰘯 mode. On the next boot,

the processor will be automatically overclock for optimal performance. To disable

OC Genie, Set this button to OFF while the system is in power o󰘯 mode and the
con󰘰guration parameters will return to its normal values.

Video Demonstration

Watch the video to learn how to use the OC Genie button.

http://youtu.be/nIpRvWkUazg

SATA3_4SATA9_10

SATA1_2SATA7_8

OC

GE NIE

OC

GE N IE

On O󰘯

Important

•

This motherboard provides two ways to enable OC Genie: press the physical OC
Genie button on the motherboard, or click the virtual OC Genie button in BIOS. You
can specify how OC Genie to be enabled by using the "OC Genie Function Control"
item in BIOS.

•

Please install DDR4 2133 or faster memory and equip a better heatsink/cooler to

use the OC Genie function.

•

We do not guarantee the OC Genie overclocking range or the damages/risks
caused by overclocking behavior.

•

It is possible to disable the OC Genie function in the BIOS setup. Please refer to the

BIOS section of the manual for instructions on how to turn o󰘯 OC Genie from the

BIOS.

•

The usage of OC Genie is at the user’s own risk. Overclocking is never guaranteed
by MSI.

•

To ensure successfully OC Genie usage, MSI components are recommended.

Chapter 1

1-31

Getting Started

POWER1: Power Button

This button is used to turn-on and turn-o󰘯 the system. Press the button once to turn-on
or turn-o󰘯 the system.

SATA3_4SATA9_10

SATA1_2SATA7_8

RESET1: Reset Button

This reset button is used to reset the system. Press the button to reset the system.

SATA3_4SATA9_10

SATA1_2SATA7_8

Re se t

Chapter 1

1-32

Getting Started

Jumper

JBAT1: Clear CMOS Jumper

There is CMOS RAM onboard that is external powered from a battery located on the

motherboard to save system con󰘰guration data. With the CMOS RAM, the system can

automatically boot into the operating system (OS) every time it is turned on. If you

want to clear the system con󰘰guration, set the jumpers to clear the CMOS RAM.

SATA3_4SATA9_10

SATA1_2SATA7_8

Keep Data Clear Data

Important

You can clear the CMOS RAM by shorting this jumper while the system is o󰘯.

Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on
because it will damage the motherboard.

JSLOW1: Slow Mode Booting Jumper

This jumper is used for LN2 cooling solution, that provides the extreme overclocking
conditions, to boot at a stable processor frequency and to prevent the system from
crashing.

SATA3_4SATA9_10

SATA1_2SATA7_ 8

EnabledNormal

(Default)

(Please enable this
jumper during BIOS
POST.)

Important

•

Users will try extreme low temperature overclocking at their own risks. The
overclocking results will vary according to the CPU version.

•

Please don’t set this jumper to “Enabled” when power-o󰘯 or the system will be un-

bootable.

Chapter 1

1-33

Getting Started

Switch

BIOS1: Multi-BIOS Switch

This motherboard has two built-in BIOS ROMs (Labeled A and B, default BIOS ROM
is A). If one is crashed, you can shift to the other for booting by sliding the switch.

SATA3_4SATA9_10

SATA1_2SATA7_8

B A

Green LED

Blue LED

BIOS recovery with AFUDOS command
When BIOS updating fails or causes the computer non-bootable, you can recover the

failed BIOS by the steps below.

Preparation:

1. Prepare a bootable USB 󰘱ash drive.

2. Download the latest BIOS 󰘰le from the MSI o󰘲cial website at www.msi.com, and
then decompress the 󰘰le.

3. Copy the AFUDE238.exe and the BIOS 󰘰le to the bootable USB 󰘱ash drive

BIOS recovery steps:

1. Power o󰘯 the computer.

2. Set the Multi-BIOS switch to the functional BIOS ROM.

3. Insert the bootable USB 󰘱ash drive you have made to the USB port.

4. Boot the computer into the bootable USB 󰘱ash drive.

5. Set the Multi-BIOS switch to the failed BIOS ROM.

6. Execute the below command to 󰘱ash the BIOS:

For example: AFUDE238 EXXXXIMS.XXX

7. Restart the computer after the BIOS 󰘱ashing is complete.

Important

Do not use the Multi-BIOS switch when system is booting up.

Chapter 1

1-34

Getting Started

Drivers and Utilities

After you install the operating system you will need to install drivers to maximize the

performance of the new computer you just built. MSI motherboard comes with a Driver

Disc. Drivers allow the computer to utilize your motherboard more e󰘲ciently and take

advantage of any special features we provide.

You can protect your computer from viruses by installing the bundled security
program. The bundle also includes a variety of powerful and creative utilities.

Driver/ Utilities Installation

Please follow the steps below to install drivers and utilities for your new computer.

1. Insert MSI Driver Disc into the optical drive. The installer will automatically appear
if autorun is enabled in OS.

2. Installer will automatically 󰘰nd and list all necessary drivers.

3. Click

Install button.

4. The software installation will then be in progress, after it has 󰘰nished it will prompt
you to restart.

5. Click

OK button to 󰘰nish.

6. Restart your computer.

You can also use the same method to install the utilities.

Click here

Chapter 2

Quick Installation

This chapter provides demonstration diagrams about how to install your
computer. Some of the installations also provide video demonstrations.
Please link to the URL to watch it with the web browser on your phone or
tablet. You may have even link to the URL by scanning the QR code.

Important

The diagrams in this chapter are for reference only and may vary from the
product you purchased.

Chapter 2

2-2

Quick Installation

CPU Installation

1

2

3

4

5

6

http://youtu.be/WPhyn2C5mgs

Chapter 2

2-3

Quick Installation

7 8

9 10

11

12

Chapter 2

2-4

Quick Installation

Memory Installation

1

2

3

http://youtu.be/T03aDrJPyQs

Chapter 2

2-5

Quick Installation

Motherboard Installation

1

2

Chapter 2

2-6

Quick Installation

3

Chapter 2

2-7

Quick Installation

Power Connectors Installation

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

1

http://youtu.be/gkDYyR_83I4

Chapter 2

2-8

Quick Installation

E688

MSI

MC4

E688

MSI

MC4

E688

MS

I

MC4

E688

MSI

MC4

E688

MSI

MC4

MS

I
MC4

or

2

Chapter 2

2-9

Quick Installation

SATA HDD Installation

1

2

http://youtu.be/RZsMpqxythc

E688

MSI

MC4

E688

MSI

MC4

MSI
MC

4

E688

MSI

MC4

E688

MSI
MC4

E688

MSI

MC4

E688

MSI
MC4

E688
MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

or

or

Chapter 2

2-10

Quick Installation

M.2 module Installation

1

30°

2

3

http://youtu.be/JCTFABytrYA

Chapter 2

2-11

Quick Installation

E688

MSI

MC4

E688
MSI

MC4

E688

MSI

MC4

E688

MSI
MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI
MC4

E688

MSI
MC4

E688

MSI
MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

HD_LED+

HD_LED-

RST_SW-

RST_SW+

RSVD_DNU

HD_LED+

HD_LED-

RST_SW-

RST_SW+

RSVD_DNU

PWR_S W-

PWR_S W+

FP PWR/SLP

FP PWR/SLP

H. D. D. L ED

RE ST S W

POW ER L ED

POW ER S W

Front Panel Connector Installation

JFP1 Connector Installation

http://youtu.be/DPELIdVNZUI

Front Panel Audio Connector Installation

Chapter 2

2-12

Quick Installation

E688

MSI

MC4

E688

MSI

MC4

E688

MSI
MC4

E688
MSI

MC4

E688
MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI
MC4

E688

MSI

MC4

US B

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

US B

E688

MSI

MC4

E688

MSI

MC4

E688

MSI
MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

E688

MSI

MC4

USB3.0 Connector Installation

USB2.0 Connector Installation

or

Peripheral Connector Installation

Chapter 2

2-13

Quick Installation

Graphics Card Installation

http://youtu.be/mG0GZpr9w_A

1

2

Chapter 2

2-14

Quick Installation

3

4

5

Important

•

The items under each BIOS category described in this chapter are
under continuous update for better system performance. Therefore, the
description may be slightly different from the latest BIOS and should be held
for reference only.

•

The pictures in this chpater are for reference only and may vary from the
product you purchased. Please refer to the actual screens of your system
for detailed information.

•

Please clear the CMOS data and restore the default settings if the system
becomes unbootable after changing BIOS settings. (Refer to the Clear
CMOS jumper/ button section to clear the CMOS data, select the "Restore
Defaults" and press <Enter> in BIOS to load the default settings.)

Chapter 3

BIOS Setup

CLICK BIOS is a revolutionary UEFI interface that allows you to setup and

con󰘰gure your system for optimum use. Using your mouse and keyboard,

users can change BIOS settings, monitor CPU temperature, select the boot
device priority and view system information such as the CPU name, DRAM
capacity, the OS version and the BIOS version. Users can import and export
parameter data for backup or for sharing with friends.

Chapter 3

3-2BIOS Setup

Entering Setup

The default settings offer the optimal performance for system stability in normal
conditions. You may need to run the Setup program when:

■ An error message appears on the screen during the system booting up, and

requests you to run SETUP.

■ You want to change the default settings for customized features.

Important

•

Please clear the CMOS data and restore the default settings if the system becomes
unbootable after changing BIOS settings. (Refer to the Clear CMOS jumper/ button
section to clear the CMOS data, select the "Restore Defaults" and press <Enter> in
BIOS to load the default settings.)

•

If you are unfamiliar with the BIOS settings, we recommend that you keep the
default settings to avoid possible system damage or failure booting due to
inappropriate BIOS configuration.

Entering BIOS Setup

Power on the computer and the system will start the Power On Self Test (POST)
process. When the message below appears on the screen, press <DEL> key to enter
BIOS:

Press <Del> to run BIOS setup, or <F11> to run boot menu

If the message disappears before you respond and you still need to enter BIOS,
restart the system by turning the computer OFF then back ON or pressing the RESET
button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and
<Delete> keys.

MSI additionally provides two methods to enter the BIOS setup. You can click the
“GO2BIOS” tab on “MSI Fast Boot” utility screen or press the physical “GO2BIOS"
button (optional) on the motherboard to enable the system going to BIOS setup
directly at next boot.

Click "GO2BIOS" tab on
"MSI Fast Boot" utility
screen.

Important

Please be sure to install the “MSI Fast Boot” utility before using it to enter the BIOS
setup.

Chapter 3

3-3 BIOS Setup

Overview

After entering BIOS, the following screen is displayed.

BIOS menu

selection

Temperature monitor

System

information

Boot device

priority bar

Menu display

BIOS menu

selection

Language

Virtual OC

Genie Button

My Favorites

▶BIOS menu selection

The following options are available:

■

SETTINGS - Uses this menu to specify the parameters for chipset and boot
devices.

■

OC - This menu contains the frequency and voltage adjustments. Increasing
the frequency can get better performance, however high frequency and heat
can cause instability, we do not recommend general users to overclock.

■

M-FLASH - This menu provides the way to update BIOS with a USB flash
disk.

■

OC PROFILE -This menu is used to set various overclocking profiles.

■

HARDWARE MONITOR - This menu is used to set the speeds of fans and
monitor voltages of system.

■

BOARD EXPLORER - It provides the information of the installed devices on
the motherboard.

Chapter 3

3-4BIOS Setup

▶Virtual OC Genie Button

Enables or disables the OC Genie function by clicking on this button. When enabled,
this button will be light. Enabling OC Genie function can automatically overclock with

MSI optimized overclocking profile.

Important

We recommend that you do not to make any modification in OC menu mode and do
not to load defaults after enabling the OC Genie function.

▶Menu display

This area provides BIOS setting items and information to be configured.
▶Boot device priority bar
You can move the device icons to change the boot priority.

High priority Low priority

▶System information

Shows the time, date, CPU name, CPU frequency, DRAM frequency, DRAM capacity
and the BIOS version.

▶Language
Allows you to select the language of the BIOS setup.
▶Temperature monitor
Shows the temperatures of the processor and the motherboard.
▶My Favorites
Allows you to create your personal BIOS menu where you can save and access your

favorite/ frequently-used BIOS setting items.

■

Default HomePage - Allows you to select a BIOS menu (e.g. Settings,
OC...,etc) as the BIOS home page.

■

Favorite1~5 - Allows you to add the frequently-used/ favorite BIOS setting
items in one page.

Chapter 3

3-5 BIOS Setup

Adding BIOS item to Favorite 1~5

1. Move the mouse cursor to highlight a BIOS setting item.

2. Right-click (or press "F2" key) and then choose a favorite menu (Favorite 1~5) to
add the BIOS item.

Choose a favorite menu
to add the BIOS item

Deleting BIOS item from Favorite 1~5

1. Move the mouse cursor to highlight a BIOS item on the Favorite 1~5 menu.

2. Right-click (or press "F2" key) and then click "Delete" to delete the BIOS item.

Click “Delete” to delete the BIOS item

Changing the order of BIOS items on Favorite 1~5

1. Enter the Favorite 1~5 menu.

2. Right-click (or press "F2" key) and then click "Menu lock".

3. Highlight an item and then click the arrow buttons (or press the up/ down arrow
keys) to change the item order.

4. Finally, click the lock button to fix the order.

Arrow buttons Lock button

Chapter 3

3-6BIOS Setup

Operation

You can control BIOS settings with the mouse and the keyboard. The following table
lists and describes the hot keys and the mouse operations.

Hot key Mouse Description

<↑↓→← >

.

Move the cursor

Select Item

<Enter>

Click/ Double-click
the left button

Select Icon/ Field

<Esc>

Click the right button

Jump to the Exit menu or return to the previous
from a submenu

<+> Increase the numeric value or make changes
<-> Decrease the numeric value or make changes
<F1> General Help
<F2> Favorites assistant
<F3> Enter My Favorites menu
<F4> CPU Specifications
<F5> Enter Memory-Z
<F6> Load optimized defaults
<F8> Load Overclocking Profile
<F9> Save Overclocking Profile
<F10> Save Change and Reset
<F12> Save a screenshot to a FAT/FAT32 USB drive

Chapter 3

3-7 BIOS Setup

Updating BIOS

Updating the BIOS with M-FLASH

▶Before updating

Please download the latest BIOS file that matches your motherboard model from MSI
website. And then save the BIOS file into the USB flash disk.

Important

Only the FAT32/ NTFS format USB flash disk supports updating BIOS by M-FLASH.

▶Updating BIOS

1. Insert the USB flash disk that contains the BIOS update file into the computer.

2. Restart the system, and then press "Del" key to enter the BIOS Setup during
POST.

3. Enter the M-FLASH menu and then select the "Select one file to update BIOS and
ME”, and then select the BIOS update file to begin the BIOS update.

4. After the flashing process is 100% complete, the system will restart.

Chapter 3

3-8BIOS Setup

SETTINGS

System Status

▶System Date

Sets the system date. Use tab key to switch between date elements.
The format is <day> <month> <date> <year>.
<day> Day of the week, from Sun to Sat, determined by BIOS. Read-only.
<month> The month from Jan. through Dec.

<date> The date from 1 to 31 can be keyed by numeric function keys.

<year> The year can be adjusted by users.
▶System Time

Sets the system time. Use tab key to switch between time elements.
The time format is <hour> <minute> <second>.

▶SATA PortX
Show the information of connected SATA device.

Important

If the connected SATA device is not displayed, turn off computer and re-check SATA
cable and power cable connections of the device and motherboard.

▶System Information

Shows detailed system information, including CPU type, BIOS version, and Memory
(read only).

▶DMI Information
Shows system information, desktop Board Information and chassis Information. (Read

only).

Chapter 3

3-9 BIOS Setup

Advanced

▶PCI Subsystem Settings

Sets PCI, PCI express interface protocol and latency timer. Press <Enter> to enter the
sub-menu.

▶PEGX - Gen X [Auto]
Sets PCI Express protocol for matching different installed devices.

[Auto] Enables all PCIe Gen1, Gen2 and Gen3. supports.

[Gen1] Enables PCIe Gen1 support only.
[Gen2] Enables PCIe Gen2 support only.

[Gen3] Enables PCIe Gen3 support only.
▶PCI Latency Timer [32]

Sets latency timer of PCI interface device.

[Options: 32, 64, 96, 128, 160, 192, 224, 248 PCI Bus clocks]
▶M.2 Source Link

Sets M.2 source link.
[Auto] M.2 source link will be switched automatically based on CPU BCLK

frequency or XMP profiles.

[PCH] Enables PCH when overclocking or last PCI Express x16 slot was

installed.

▶M.2 PCH Strap [M.2 PCH SATA]

Sets M.2 module interface when the “M.2 Source Link” set to [PCH].
[M.2 PCH SATA] Enables M.2 PCH SATA when M.2 SATA interface module was

installed.

[M.2 PCH PCIE] Enables M.2 PCH PCIE when M.2 PCIe interface module was

installed

▶ACPI Settings
Sets ACPI parameters of onboard power LED behaviors. Press <Enter> to enter the

sub-menu.

▶Power LED [Blinking]
Sets shining behaviors of the onboard Power LED.

[Dual Color] The power LED turns to another color to indicate the S3 state.
[Blinking] The power LED blinks to indicate the S3 state.

▶Integrated Peripherals

Sets integrated peripherals' parameters, such as LAN, HDD, USB and audio. Press
<Enter> to enter the sub-menu.

▶Onboard LAN Controller [Enabled]
Enables or disables the onboard LAN controller.

▶LAN Option ROM [Disabled]
Enables or disables the legacy network Boot Option ROM for detailed settings.

This item will appear when "Onboard LAN Controller" is enabled.
[Enabled] Enables the onboard LAN Boot ROM.
[Disabled] Disables the onboard LAN Boot ROM.

Chapter 3

3-10BIOS Setup

▶Network Stack [Disabled]

Sets UEFI network stack for optimizing IPv4 / IPv6 function.

[Enabled] Enables UEFI network stack.
[Disabled] Disables UEFI network stack.

▶SATA Mode [AHCI Mode] (For SATA1~6)
Sets the operation mode of the onboard 1st SATA controller.
[IDE Mode] Specify the IDE mode for SATA storage devices.
[AHCI Mode] Specify the AHCI mode for SATA storage devices. AHCI (Advanced

Host Controller Interface) offers some advanced features to enhance
the speed and performance of SATA storage device, such as Native
Command Queuing (NCQ) and hot-plugging.

[RAID Mode] Enables RAID function for SATA storage devices.
▶sSATA Mode [AHCI Mode] (For SATA7~10)

Sets the operation mode of the onboard 2nd SATA controller.
[IDE Mode] Specify the IDE mode for SATA storage devices.
[AHCI Mode] Specify the AHCI mode for SATA storage devices. AHCI (Advanced

Host Controller Interface) offers some advanced features to enhance
the speed and performance of SATA storage device, such as Native
Command Queuing (NCQ) and hot-plugging.

▶SATAX Hot Plug [Disabled]
Allows user to enable or disable the SATA hot plug support. This item will appear

when the “SATA Mode” set to [AHCI].
[Enabled] Enables hot plug support for the SATA ports.
[Disabled] Disables hot plug support for the SATA ports.

▶HD Audio Controller [Enabled]
Enables or disables the onboard High Definition Audio controller.

▶HPET [Enabled]
Enables or disables the HPET (High Precision Event Timers) support.

▶USB Configuration
Sets the onboard USB controller and device function. Press <Enter> to enter the sub-

menu.

▶USB Controller [Enabled]
Enables or disables all USB controller.

▶XHCI Hand-off [Enabled]
Enables or disables XHCI hand-off support for the operating system without XHCI

hand-off feature.
▶EHCI Hand-off [Enabled]

Enables or disables EHCI hand-off support for the operating system without EHCI
hand-off feature.

Chapter 3

3-11 BIOS Setup

▶Legacy USB Support [Enabled]

Sets Legacy USB function support.
[Auto] The system will automatically detect if any USB device is connected

and enables or disables the legacy USB support.

[Enabled] Enables the USB support for legacy operating systems that do not

support USB.

[Disabled] The USB devices are available only for UEFI applications.

▶Power Management Setup
Sets system Power Management of EuP2013 and AC Power Loss behaviors. Press

<Enter> to enter the sub-menu.

▶EuP 2013 [Disabled]
Enables or disables the system power consumption according to EuP 2013

regulation.

[Enabled] Optimize the system power consumption according to EuP 2013

regulation.

[Disabled] Disables this function.

Note: When enabled, the system will not support S4 & S5 wake up by USB and

PCIe devices.
▶Restore after AC Power Loss [Power Off]

Sets the system behaviors while encountering the AC power loss.
[Power Off] Leaves the system in power off state after restoring AC power.
[Power On] Boot up the system after restoring AC power.
[Last State] Restores the system to the previous state (power on/ power off)

before AC power loss.

▶Windows 8/ 8.1 Configuration
Sets Windows 8/ 8.1 detailed configuration and behaviors. Press <Enter> to enter the

sub-menu.

▶Windows 8/ 8.1 Feature [Disabled]
Enables the supports for Windows 8/ 8.1 or disables for other operating systems.

Before enabling this item, make sure all installed devices & utilities (hardware &

software) should meet the Windows 8/ 8.1 requirements.
[Enabled] The system will switch to UEFI mode to meet the Windows 8/ 8.1

requirement.

[Disabled] Disables this function.
▶MSI Fast Boot [Disabled]

MSI Fast Boot is the fastest way to boot the system. It will disable more devices to
speed up system boot time which is faster than the boot time of “Fast Boot”.

[Enabled] Enables the MSI Fast Boot function to speed up booting time. And

the following "Fast Boot" will be disabled and fixed.

[Disabled] Disables MSI Fast Boot.
▶Fast Boot [Disabled for Windows 7, Enabled for Windows 8/ 8.1]

Enables or disables the Windows 8/ 8.1 fast boot feature. This item will only be
available when "MSI Fast Boot" is disabled.

[Enabled] Enables the Fast Boot configuration to accelerate system boot time.
[Disabled] Disables the Fast Boot configuration.

Chapter 3

3-12BIOS Setup

Important

If you want to enter BIOS with enabled “MSI Fast Boot” mode or enabled "Fast Boot"
mode, you have to click the "GO2BIOS" tab on MSI Fast Boot utility screen or press
the "GO2BIOS" button (optional) on the motherboard. And then the system will enter
to BIOS setup directly at next boot.

▶Secure Boot

Sets the Windows secure boot to prevent the unauthorized accessing. Press

<Enter> to enter the sub-menu. This sub-menu will appear when “Windows 8/ 8.1
Feature” is enabled.

▶Secure Boot Support [Disabled]
Enables or disables secure boot support.
[Enabled] Enables the secure boot function and allow you to set the secure

boot settings.

[Disabled] Disables this function.
▶Secure Boot Mode [Standard]

Selects the secure boot mode. This item is to select how the secure boot keys
be loaded. This item appears when "Secure Boot" is enabled.

[Standard] The system will automatically load the secure keys from BIOS.
[Custom] Allows user to configure the secure boot settings and manually

load the secure keys.

▶Key Management
Manages the secure boot keys. Press <Enter> to enter the sub-menu. This sub-

menu will appear when “Secure Boot Mode” sets to [Custom].

▶Wake Up Event Setup
Sets system wake up behaviors for different sleep modes. Press <Enter> to enter the

sub-menu.

▶Wake Up Event By [BIOS]
Selects the wake up event by BIOS or operating system.
[BIOS] Activates the following items, and use these items to set the wake up

events.

[OS] The wake up events will be defined by OS.
▶Resume By RTC Alarm [Disabled]

Disables or enables the system wake up by RTC Alarm.
[Enabled] Enables the system to boot up on a scheduled time/ date.
[Disabled] Disables this function.

▶Date (of month) Alarm/ Time (hh:mm:ss) Alarm
Sets RTC alarm date/ Time. If Resume By RTC Alarm is set to [Enabled], the

system will automatically resume (boot up) on a specified date/hour/minute/second

in these fields (using the <+> and <-> to select the date & time settings).

Chapter 3

3-13 BIOS Setup

▶Resume By PCI-E Device [Disabled]

Disables or enables the system wake up by PCI express device.
[Enabled] Enables the system to be awakened from the power saving modes

when activity or input signal of PCIe device is detected. Note:
Enabled this Item will also support some USB devices which are
connected to third party supported USB ports to be resumed from
sleep mode.

[Disabled] Disables this function.
▶Resume By Onboard LAN [Disabled]

Disables or enables the system wake up by Onboard LAN.
[Enabled] Enables the system to be awakened from the power saving modes

when activity or input signal of LAN device is detected.

[Disabled] Disables this function.
▶Resume By USB Device [Disabled]

Disables or enables the system wake up by USB devices.
[Enabled] Enables the system to be awakened from sleep state when activity

of USB device is detected.

[Disabled] Disables this function.

▶Resume From S3/S4/S5 by PS/2 Mouse [Disabled]

Disables or enables the system wake up by PS/2 mouse.

[Enabled] Enables the system to be awakened from S3/ S4/ S5 state when

activity of PS/2 mouse is detected.

[Disabled] Disables this function.

▶Resume From S3/S4/S5 by PS/2 Keyboard [Disabled]

Disables or enables the system wake up by PS/2 keyboard.

[Any Key] Enables the system to be awakened from S3/ S4/ S5 state when

activity of any key on PS/2 keyboard is detected.

[Hot Key] Enables the system to be awakened from S3/ S4/ S5 state when

activity of hot key on PS/2 keyboard is detected.

[Disabled] Disables this function.

Boot

Sets the sequence of system boot devices.
▶Full Screen Logo Display [Enabled]

Enables or disables to show the full screen logo while system POST.
[Enabled] The OS boots straight to the GUI without showing the POST screen.
[Disabled] Shows the POST messages at booting.

▶GO2BIOS [Disabled]
Allows you to enter BIOS setup directly by pressing the Power button for 4 seconds

upon bootup.
[Enabled] The system boots straight to the BIOS setup by long pressing the power

button about 2~4 seconds when the system is off.

[Disabled] Disables this function.

Chapter 3

3-14BIOS Setup

▶Boot Mode Select [LEGACY+UEFI]

Sets the system boot mode from legacy or UEFI architecture depending on OS
installation requirement. This item will become unselectable and will be configured
automatically by BIOS when “Windows 8/ 8.1 Feature” is enabled.

[UEFI] Enables UEFI BIOS boot mode support only.
[LEGACY+UEFI] Enables both Legacy BIOS boot mode and UEFI BIOS boot

mode.

▶FIXED BOOT ORDER Priorities
Sets device priority for system boot.

▶Boot Option #1~N
These items are used to prioritize the installed boot devices.

Security

▶Administrator Password

Sets administrator password for system security. Enters the administrator password if
set; user has full rights to change the BIOS items.

▶User Password
Sets User Password for system security. Enters the user password if set; but user

might have limited rights to change the BIOS items.

Important

When selecting the Administrator / User Password items, a password box will appear
on the screen. Type the password then press <Enter>. The password typed now will
replace any previous set password from CMOS memory. You will be prompted to
confirm the password. You may also press <Esc> to abort the selection.

To clear a set password, press <Enter> when you are prompted to enter a new
password. A message will confirm the password is being disabled. Once the password

is disabled, you can enter the setup and OS without authorization.

▶Trusted Computing

Sets TPM (Trusted Platform Module) function.

▶TPM SUPPORT [Disabled]
Enables or disables the TPM function to build the endorsement key for accessing

the system.

▶Chassis Intrusion Configuration
Press <Enter> to enter the sub-menu.

▶Chassis Intrusion [Disabled]
This function will be available if the chassis equips a chassis intrusion switch.
Once the chassis is opened, the system will record and issue a warning message.

To clear the warning message, set the item to [Reset], then it will return to
[Enabled] later. [Options: Disabled, Enabled, Reset]

Chapter 3

3-15 BIOS Setup

Save & Exit

▶Discard Changes and Exit

Exit BIOS setup without saving any change. This it is used to abandon all changes
and exit BIOS setup.

▶Save Changes and Reboot
This item is used to save all changes and reboot the system.

▶Save Changes
This item is used to save current changes.

▶Discard Changes
This item is used to discard current all changes and restore to the previous values.

▶Restore Defaults
This item is used to restore/ load all default values by the BIOS vendor.

▶Boot Override
The installed boot-able devices will appear on this menu, you can select one of them

be a boot device to start booting.

Chapter 3

3-16BIOS Setup

OC

Important

•

Overclocking your PC manually is only recommended for advanced users.

•

Overclocking is not guaranteed, and if done improperly, can void your warranty or
severely damage your hardware.

•

If you are unfamiliar with overclocking, we advise you to use OC Genie for easy
overclocking.

▶Simple/Advanced Mode [Simple]

Enables or disables the advanced OC settings in BIOS.
[Simple] Provides the regular OC settings in BIOS setup.
[Advanced] Provides the advanced OC settings for experienced users to configure

in BIOS setup.

Note: We use * as the symbol for the OC settings of Advanced mode.

< CPU Setting >

▶CPU Ratio Apply Mode [All Core]*

Sets the applying mode for adjusted CPU ratio. This item only appears when a CPU
that support “Turbo Boost” is installed.

[All Core] Enables the "CPU Ratio". All CPU cores will run the same CPU ratio

that be set in " Adjust CPU Ratio".

[Per Core] Enables the "X-Core Ratio Limit". Sets each CPU core ratio separately

in "X-Core Ratio Limit".

▶CPU Ratio [Auto]
Sets the CPU ratio that is used to determine CPU clock speed for all cores. This item

can only be changed if the processor supports this function.
▶X-Core Ratio Limit [Auto]*

These items only appear when a CPU that support this function is installed. These
items allow you to set the CPU ratios for different number of active cores.

Chapter 3

3-17 BIOS Setup

▶Adjusted CPU Frequency

Shows the adjusted CPU frequency. Read-only.
▶CPU Ratio Mode [Dynamic Mode]*

Selects the CPU Ratio operating mode. This item will appear when you set the CPU
ratio manually.

[Fixed Mode] Fixes the CPU ratio.
[Dynamic Mode] CPU ratio will be changed dynamically according to the CPU

loading.

▶EIST [Enabled]*
Enables or disables the Enhanced Intel

®

SpeedStep Technology.

[Enabled] Enables the EIST to adjust CPU voltage and core frequency

dynamically. It can decrease average power consumption and average
heat production.

[Disabled] Disables EIST.
▶Intel Turbo Boost [Enabled]*

Enables or disables the Intel

®

Turbo Boost. This item appears when the installed CPU

supports this function.
[Enabled] Enables this function to boost CPU performance automatically above

rated specifications when system request the highest performance
state.

[Disabled] Disables this function.
▶Enhanced Turbo [Auto]

Enables or disables Enhanced Turbo function for all CPU cores to boost CPU
performance. This item appears when the installed CPU supports this function.

[Auto] This setting will be configured automatically by BIOS.
[Enabled] All CPU cores would be increased to maximum turbo ratio.
[Disabled] Disables this function.

▶OC Genie Function Control [By Onboard Button]
Enables the OC Genie function by virtual button in BIOS or physical button on

motherboard. Enabling OC Genie function can automatically overclock the system

with MSI optimized overclocking profile.

[By BIOS Options] OC Genie function is enabled by clicking the virtual OC Genie

button at the top left corner of BIOS setup screen.
[By Onboard Button]OC Genie function is enabled by pressing the physical OC Genie
button on the motherboard.

▶Ring Ratio [Auto]
Sets the ring ratio. The valid value range depends on the installed CPU.

▶Adjusted Ring Frequency
Shows the adjusted Ring frequency. Read-only.

< CPU BCLK Setting >

▶CPU Base Clock (MHz) [Default]

Sets the CPU Base clock. You may overclock the CPU by adjusting this value. Please
note that overclocking behavior and stability is not guaranteed. This item appears
when the installed processor supports this function.

Chapter 3

3-18BIOS Setup

▶CPU Base Clock Apply Mode [Auto]*

Sets the applying mode for adjusted CPU base clock.
[Auto] This setting will be configured automatically by BIOS.
[Next Boot] CPU will run the adjusted CPU base clock at next boot.
[Immediate] CPU runs the adjusted CPU base clock immediately.
[During Boot] CPU will run the adjusted CPU base clock during boot.

< DRAM Setting >

▶DRAM Reference Clock [Auto]*

Sets the DRAM reference clock. The valid value range depends on the installed CPU.
This item appears when a CPU that supports this adjustment is installed.

▶DRAM Frequency [Auto]
Sets the DRAM frequency. Please note the overclocking behavior is not guaranteed.

▶Adjusted DRAM Frequency
Shows the adjusted DRAM frequency. Read-only.

▶Extreme Memory Profile (X.M.P) [Disabled]
X.M.P. (Extreme Memory Profile) is the overclocking technology by memory module.

This item will be available when you install the memory modules that support X.M.P.
technology.

[Disabled] Disables this function.
[Profile 1] Uses profile1 over-clocking settings of installed XMP memory module.
[Profile 2] Uses profile2 over-clocking settings of installed XMP memory module.

▶DRAM Timing Mode [Auto]
Selects the memory timing mode.
[Auto] DRAM timings will be determined based on SPD (Serial Presence

Detect) of installed memory modules.
[Link] Allows user to configure the DRAM timing manually for all memory

channel.
[UnLink] Allows user to configure the DRAM timing manually for respective

memory channel.
▶Advanced DRAM Configuration

Press <Enter> to enter the sub-menu. This sub-menu will be activated after setting
[Link] or [Unlink] in “DRAM Timing Mode”. User can set the memory timing for each
memory channel. The system may become unstable or unbootable after changing
memory timing. If it occurs, please clear the CMOS data and restore the default
settings. (Refer to the Clear CMOS jumper/ button section to clear the CMOS data,
and enter the BIOS to load the default settings.)

Chapter 3

3-19 BIOS Setup

▶Memory Fast Boot [Auto]

Enables or disables the initiation and training for memory every booting.
[Auto] This setting will be configured automatically by BIOS.
[Enabled] Memory will completely imitate the archive of first initiation and first

training. After that, the memory will not be initialed and trained when

booting to accelerate the system booting time.
[Disabled] The memory will be initialed and trained every booting.

< Voltage Setting >

▶DigitALL Power

Press <Enter> to enter the sub-menu. Controls the digital powers related to CPU
PWM.

▶VR 12VIN OCP Expander [Auto]
Expands the limitation of VR Over Current Protection with 12V input voltage. The

higher expanding value indicates less protection. Therefore, please adjust the
current carefully if needed, or it may damage the CPU/ VR MOS. If set to "Auto",
BIOS will configure this setting automatically.

▶CPU Phase Control [Auto]
Controls PWM phase proportionally to the CPU loading. If set to "Auto", BIOS will

optimize the CPU PWM phase automatically.

[Auto] This setting will be configured automatically by BIOS.
[Normal] Sets the normal power phase profile for CPU, it could provide a

stable system performance and effective power-saving capability.

[Optimized] Sets the optimum power phase profile for CPU, it could provide the

system with an optimum power-saving capability.

[Disabled] Disables the PWM power phase switching feature.
▶CPU Vdroop Offset Control [Auto]

Sets a percentage of offset voltage for CPU vdroop. If set to "Auto", BIOS will
configure this setting automatically.

▶CPU Over Voltage Protection [Auto]
Sets the voltage limit for CPU over-voltage protection. If set to "Auto", BIOS will

configure this setting automatically. Higher voltage provides less protection and
may damage the system.

▶CPU Under Voltage Protection [Auto]
Sets the voltage limit for CPU under-voltage protection. If set to “Auto”, BIOS will

configure this setting automatically. Higher voltage provides less protection and
may damage the system.

▶CPU Over Current Protection [Auto]
Sets the current limit for CPU over-current protection. If set to “Auto”, BIOS will

configure this setting automatically. Higher values provides less protection and may
damage the system.

▶CPU Switching Frequency [Auto]
Sets the PWM working speed to stabilize CPU Core voltage and minimize ripple

range. Increasing the PWM working speed will cause higher temperature of
MOSFET. So please make sure a cooling solution is well-prepared for MOSFET
before you increase the value. If set to "Auto", BIOS will configure this setting
automatically.

Chapter 3

3-20BIOS Setup

▶CPU VRM Over Temperature Protection [Enabled]

Enables or disables the CPU VRM over-temperature protection.
[Enabled] Sets the temperature limit on CPU VRM for over-temperature

protection. The CPU frequency may be throttled when CPU
temperature over the specified temperature.

[Disabled] Disables this function.
▶DRAM CH_A/B, CH_C/D Phase Control [Auto]

Controls PWM phase proportionally to the DRAM loading. If set to "Auto", BIOS

will optimize the DRAM PWM phase automatically.

[Auto] This setting will be configured automatically by BIOS.

[Optimized] Sets the optimum power phase profile.

[Disabled] Disables the PWM power phase switching feature.
▶DRAM CH_A/B, CH_C/D Over Voltage Protection [Auto]

Sets the voltage limit for DRAM over-voltage protection. If set to "Auto", BIOS will
configure this setting automatically. Higher voltage provides less protection and
may damage the system.

▶DRAM CH_A/B, CH_C/D Under Voltage Protection [Auto]
Sets the voltage limit for DRAM under-voltage protection. If set to "Auto", BIOS

will configure this setting automatically. Higher voltage provides less protection and
may damage the system.

▶DRAM CH_A/B, CH_C/D Over Current Protection [Auto]
Sets the current limit for DRAM over-current protection.
[Auto] This setting will be configured automatically by BIOS.
[Enhanced] Extends the limitation of memory over-current protection.

▶DRAM CH_A/B, CH_C/D Switching Frequency [Auto]
Sets the PWM working speed to stabilize DRAM voltage and minimize ripple range.

If set to “Auto”, BIOS will configure this setting automatically.
▶DRAM CH_A/B, CH_C/D VRM Over Temperature Protection [Auto]

Sets the temperature limit on DRAM VRM for over-temperature protection.
The DRAM frequency may be throttled when DRAM VRM over the specified
temperature.If set to "Auto", BIOS will configure this settings.

▶SVID Communication [Auto]*
Enables or disables SVID (Serial Voltage Identification) support.
[Auto] This setting will be configured automatically by BIOS.
[Enabled] PWM phase will be changed dynamically according to the CPU SVID

(Serial Voltage Identification).
[Disabled] Disables SVID (Serial Voltage Identification) support.

▶VCCIN Voltage [Auto]
Sets the CPU input voltage. The CPU input voltage is the CPU power source that is

shared with components of the CPU.

Chapter 3

3-21 BIOS Setup

▶CPU Core/Ring Voltage Mode [Auto]*

Selects the control mode for CPU Core/ Ring voltages.
[Auto] This setting will be configured automatically by BIOS.

[Adaptive Mode] Sets the adaptive voltage automatically for optimizing the system

performance.
[Override Mode] Allows you to set the voltage manually.
[Offset Mode] Allows you to set the offset voltage and select the voltage

offset mode.
[Adaptive + Offset ] Sets the adaptive voltage automatically and allows you to set the

offset voltage.
[Override + Offset ] Allows you to set the voltage and the offset voltage manually.

▶CPU Core Voltage/ CPU Ring Voltage [Auto]
Sets the CPU Core/ Ring voltages. If set to “Auto”, BIOS will set these voltages

automatically or you can set it manually. This item appears when “CPU Core/Ring
Voltage Mode” sets to [Auto]/ [Adaptive Mode]/ [Override Mode].

▶CPU Core/ Ring Voltage Offset Mode [Auto]*
Selects the offset mode for CPU Core/ Ring voltage. This item appears when “CPU

Core/Ring Voltage Mode” sets to [Offset Mode]/ [Adaptive + Offset]/ [Override +
Offset].

[Auto] This setting will be configured automatically by BIOS.
[+] Allows you to offset the voltage by positive value mode.
[-] Allows you to offset the voltage by negative value mode.

▶CPU Core/ Ring Voltage Offset [Auto]
Sets the offset value for CPU Core/ Ring voltage. If set to "Auto", BIOS will set these

voltages automatically or you can set it manually. This item appears when “CPU Core/
Ring Voltage Mode” sets to [Offset Mode]/ [Adaptive + Offset]/ [Override + Offset].

▶CPU SA Voltage Mode [Manual Mode]*
Selects the control mode for CPU SA voltage.
[Manual] Allows you to set the voltage manually.
[Offset] Allows you to set the offset voltage and select the voltage offset mode.

▶CPU SA Offset Mode [Auto]*
Selects the offset mode for CPU SA voltage. This item appears when “CPU SA

Voltage Mode” sets to [Offset Mode].
[Auto] This setting will be configured automatically by BIOS.
[+] Allows you to offset the voltage by positive value mode.
[-] Allows you to offset the voltage by negative value mode.

▶CPU SA Voltage Offset [Auto]*
Sets the offset value for CPU SA voltage. If set to "Auto", BIOS will set these voltages

automatically or you can set it manually. This item appears when “CPU SA Voltage
Mode” sets to [Offset Mode].

▶CPU SA Voltage [Auto]
Sets the CPU SA voltage. If set to “Auto”, BIOS will set these voltages automatically

or you can set it manually. This item appears when “CPU SA Voltage Mode” sets to
[Manual Mode].

Chapter 3

3-22BIOS Setup

▶XXX Voltage [Auto]* (optional)

Sets the voltages related to memory/ PCH. If set to "Auto", BIOS will set the voltage
automatically or you can set it manually.

< Other Setting >

▶CPU Memory Changed Detect [Enabled]*

Enables or disables the system to issue a warning message during boot when the
CPU or memory has been replaced.

[Enabled] The system will issue a warning message during boot and than needs

to load the default settings for new devices.
[Disabled] Disables this function and keeps the current BIOS settings.

▶CPU Specifications
Press <Enter> to enter the sub-menu. This sub-menu displays the information of

installed CPU. You can also access this information menu at any time by pressing
[F4]. Read only.

▶CPU Technology Support
Press <Enter> to enter the sub-menu. The sub-menu shows what the key features

does the installed CPU support. Read only.

▶MEMORY-Z
Press <Enter> to enter the sub-menu. This sub-menu displays all the settings and

timings of installed memory. You can also access this information menu at any time by
pressing [F5].

▶DIMMX Memory SPD
Press <Enter> to enter the sub-menu. The sub-menu displays the information of

installed memory. Read only.

▶CPU Features
Press <Enter> to enter the sub-menu.

▶Hyper-Threading [Enabled]
The processor uses Hyper-Threading technology to increase transaction rates

and reduces end-user response times. Intel Hyper-Threading technology treats
the multi cores inside the processor as multi logical processors that can execute
instructions simultaneously. In this way, the system performance is highly
improved. This item appears when the installed CPU supports this setting.

[Enable] Enables Intel Hyper-Threading technology.
[Disabled] Disables this item if the system does not support HT function.

▶Active Processor Cores Control [Disabled]
Enables or disables the following items (Core0~X).

▶Core0~X [Enabled]
Enables or disables the CPU core. These items only appear when “Active

Processor Cores Control” is enabled.
▶Limit CPUID Maximum [Disabled]

Enables or disables the extended CPUID value.
[Enabled] BIOS will limit the maximum CPUID input value to circumvent

boot problems with older operating system that do not support the
processor with extended CPUID value.

[Disabled] Use the actual maximum CPUID input value.

Chapter 3

3-23 BIOS Setup

▶Execute Disable Bit [Enabled]

Intel’s Execute Disable Bit functionality can prevent certain classes of malicious
“buffer overflow” attacks where worms attempt to execute code to damage the
system. It is recommended that keeps this item enabled always.

[Enabled] Enables NO-Execution protection to prevent the malicious attacks

and worms.

[Disabled] Disables this function.

▶Intel Virtualization Tech [Enabled]
Enables or disables Intel Virtualization technology.
[Enabled] Enables Intel Virtualization technology and allows a platform to run

multiple operating systems in independent partitions. The system
can function as multiple systems virtually.

[Disabled] Disables this function.

▶Intel VT-D Tech [Enabled]
Enables or disables Intel VT-D (Intel Virtualization for Direct I/O) technology.

[Enabled] Enables Intel VT-D technology and allows a platform to run multiple

operating systems in independent partitions. The system can
function as multiple systems virtually.

[Disabled] Disables this function.
▶Hardware Prefetcher [Enabled]

Enables or disables the hardware prefetcher (MLC Streamer prefetcher).
[Enabled] Allows the hardware prefetcher to automatically pre-fetch data

and instructions into L2 cache from memory for tuning the CPU
performance.

[Disabled] Disables the hardware prefetcher.
▶Adjacent Cache Line Prefetch [Enabled]

Enables or disables the CPU hardware prefetcher (MLC Spatial prefetcher).
[Enabled] Enables adjacent cache line prefetching for reducing the cache

latency time and tuning the performance to the specific application.

[Disabled] Enables the requested cache line only.
▶CPU AES Instructions [Enabled]

Enables or disables the CPU AES (Advanced Encryption Standard-New
Instructions) support. This item appears when a CPU supports this function.

[Enabled] Enables Intel AES support.
[Disabled] Disables Intel AES support.

▶Intel Adaptive Thermal Monitor [Enabled]
Enables or disables the Intel adaptive thermal monitor function to protect the CPU

from overheating.
[Enabled] Throttles down the CPU core clock speed when the CPU is over the

adaptive temperature.

[Disabled] Disables this function.

Chapter 3

3-24BIOS Setup

▶Intel C-State [Enabled]

C-state is a processor power management technology defined by ACPI.
[Auto] This setting will be configured automatically by BIOS.
[Enabled] Detects the idle state of system and reduce CPU power consumption

accordingly.

[Disabled] Disable this function.
▶C1E Support [Disabled]

Enables or disables the C1E function for power-saving in halt state. This item
appears when “Intel C-State” is enabled.

[Enabled] Enables C1E function to reduce the CPU frequency and voltage for

power-saving in halt state.

[Disabled] Disables this function.
▶Package C State limit [Auto]

This item allows you to select a CPU C-state mode for power-saving when system
is idle. This item appears when "Intel C-State" is enabled.

[Auto] This setting will be configured automatically by BIOS.
[C0~C6] The power-saving level from high to low is C6, C2, then C0.

▶EIST [Enabled]
Enables or disables the Enhanced Intel

®

SpeedStep Technology. This item will

appear when “Simple/ Advanced Mode” is set to [Simple].
[Enabled] Enables the EIST to adjust CPU voltage and core frequency

dynamically. It can decrease average power consumption and
average heat production.

[Disabled] Disables EIST.
▶Intel Turbo Boost [Enabled]

Enables or disables the Intel

®

Turbo Boost. This item is for Simple mode and

appears when the installed CPU supports this function.
[Enabled] Enables this function to boost CPU performance automatically above

rated specifications when system request the highest performance
state.

[Disabled] Disables this function.
▶Long Duration Power Limit (W) [Auto]

Sets the long duration TDP power limit for CPU in Turbo Boost mode.
▶Long Duration Maintained (s) [Auto]

Sets the maintaining time for "Long duration power Limit(W)".
▶Short Duration Power Limit (W) [Auto]

Sets the short duration TDP power limit for CPU in Turbo Boost mode.
▶CPU Current Limit (A) [Auto]

Sets maximum current limit of CPU package in Turbo Boost mode. When the
current is over the specified limit value, the CPU will automatically reduce the core
frequency for reducing the current.

Chapter 3

3-25 BIOS Setup

▶Internal VR OVP OCP Protection [Auto]

Enables or disables the over-voltage protection and over-current protection for
CPU internal VR (Voltage Regulator).

[Auto] This setting will be configured automatically by BIOS.
[Enabled] Enables the limitation of internal VR for over-voltage protection and

over-current protection.

[Disabled] Disables this function for overclocking.
▶Internal VR Efficiency Management [Auto]

Enables or disables the CPU internal VR efficiency management.
[Auto] This setting will be configured automatically by BIOS.
[Enabled] Enables the VR effciency management for power-saving control.
[Disabled] Disables this function.

▶DMI Gen 2 [Enabled]
Enables or disables DMI (Direct Media Interface) generation 2.

▶DMI De-emphasis Control [-6dB]
Sets the de-emphasis value to improve DMI margins. However, the default usually

works best.

Chapter 3

3-26BIOS Setup

M-FLASH

Important

M-Flash funcion allows you to update BIOS from USB flash disk (FAT32/ NTFS format

only).

▶Select one file to update BIOS and ME

Selects a BIOS file, includes the ME management settings, in the USB flash disk

(NTFS/ FAT 32 format) to update the BIOS and ME. The system will reboot after

updating.

Chapter 3

3-27 BIOS Setup

OC PROFILE

▶Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press <Enter> to enter the sub-

menu.

▶Set Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Names the current overclocking profile.

▶Save Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Saves the current overclocking profile.

▶Load Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Loads the current overclocking profile.

▶Clear Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

Clears the current overclocking profile.

▶OC Profile Load from ROM
Loads OC profile from ROM.

▶OC Profile Save to USB
Saves OC profile to the USB flash disk drive. The USB flash disk should be FAT32

format only.

▶OC Profile Load from USB
Loads OC profile from the USB flash disk drive. The USB flash disk should be FAT32

format only.

Chapter 3

3-28BIOS Setup

HARDWARE MONITOR

Current Temperature & Speed

information

Fan

control 󰘰eld

Voltage

display

Setting

Buttons

▶Current Temperature & Speed information

Shows the current CPU temperature, system temperature and fans' speeds.
▶Fan control field

This motherboard provides a fan speed control feature call “Smart Fan Mode”.
Please check the “Smart Fan Mode” to enable the Smart Fan Mode. Smart Fan Mode
automatically controls fan speed depending on the current CPU temperature and to
keep it with a specific operating speed. When the current CPU temperature is over/
under the setting temperature, the CPU/ system fan will run at the corresponding
speed. In this field, you can set the CPU/ system fan speed and the target
temperatures by moving the square.

Important

The changed settings will become effective after you save the changes and reboot the
system.

▶Function Buttons

[All Full Speed] Sets all CPU/ system fans to run at full speed.
[All Set Default] Sets all CPU/ system fans to run at default speed.
[All Set Cancel] Discards current all changes and restore to the previous values.

▶Voltage display
Shows the current voltages of CPU, system and memory.

Appendix A

Realtek Audio

The Realtek audio provides 10-channel DAC that simultaneously supports 7.1
sound playback and 2 channels of independent stereo sound output (multiple
streaming) through the Front-Out-Left and Front-Out-Right channels.

Appendix A

A-2

Realtek Audio

Software Con󰘰guration

After installing the audio driver (see Chapter 1 - Driver and Utilities), the “Realtek HD

Audio Manager” icon will appear at the noti󰘰cation area (lower right of the screen).

You may double click the icon and the GUI will pop up accordingly.

double click the icon

It is also available to enable the audio driver by clicking the

Realtek HD Audio

Manager from the Control Panel.

Software panel overview

The following 󰘰gure describes the function of the Realtek HD Audio Manager panel.

Device Selection

Volume Adjustment

Application Enhancement

Jack status panel

Appendix A

A-3

Realtek Audio

▶Device Selection

Here you can select a audio output source to change the related options. The “check”
sign indicates the devices as default.

▶Volume Adjustment
You can control the volume or balance the right/left side of the speakers that you

plugged in front or rear panel by adjust the bar.

▶Application Enhancement
The array of options will provide you a complete guidance of anticipated sound e󰘯ect

for both output and input device.
▶Jack status panel

This panel depicts all render and capture devices currently connected with your
computer.

Auto popup dialog

When you plug into the device at the jack, a dialogue window will pop up asking you
which device is current connected.

Appendix B

Intel RAID

This appendix will assist users in con󰘰guring and enabling RAID functionality

and accelerating system on platforms

Appendix B

B-2

Intel RAID

Introduction

The motherboard comes with the Intel RAID controller that allows you to con󰘰gure

SATA hard drives as RAID sets.
SATA hard drives deliver blistering transfer speeds up to 6 Gb/s. Serial ATA uses

long, thin cables, making it easier to connect your drive and improving the air󰘱ow

inside your PC. The most outstanding features are:

1. Supports 3 Gb/s or 6 Gb/s transfers with CRC error checking.

2. Supports Hot-plug-n-play feature.

3. Data handling optimizations including tagged command queuing, elevator seek

and packet chain command.

Intel

®

RAID controller o󰘯ers RAID level 0 (Striping), RAID level 1 (Mirroring and

Duplexing), RAID level 5 (Block Interleaved Distributed Parity), RAID level 10 (A Stripe
of Mirrors) , Intel® Rapid Storage Technology.

RAID 0 breaks the data into blocks which are written to separate hard drives.
Spreading the hard drive I/O load across independent channels greatly improves I/O
performance.

RAID 1 provides data redundancy by mirroring data between the hard drives and
provides enhanced read performance.

RAID 5 Provides data striping at the byte level and also stripe error correction
information. This results in excellent performance and good fault tolerance. Level 5 is
one of the most popular implementations of RAID.

RAID 10 Not one of the original RAID levels, multiple RAID 1 mirrors are created, and
a RAID 0 stripe is created over these.

Intel

®

Rapid Storage Technology is the advanced ability for two RAID volumes to share

the combined space of two hard drives being used in unison.
Intel

®

Rapid Storage Technology utilizes RAID 1 functionality to copy data from a
designated Master drive to a designated Recovery drive. The size of the Master drive
must be less than or equal to the size of the Recovery drive. When a Recovery volume

is created, complete capacity of the Master drive will be used as the Master volume.
Only one Recovery Volume can exist on a system. There are 2 methods of updating
the data on the Master to the Recovery drive. They are Continuous Update Policy and
On Request Update Policy.

Important

The least number of hard drives for RAID 0, RAID 1, Recovery or Matrix mode is 2.
The least number of hard drives for RAID 10 mode is 4. And the least number of hard

drives for RAID 5 mode is 3.
All the information/ volumes/ pictures listed in your system might di󰘯er from the

illustrations in this appendix.

Appendix B

B-3

Intel RAID

Using Intel Rapid Storage Technology Option ROM

The Intel Rapid Storage Technology Option ROM should be integrated with the
system BIOS on all motherboards with a supported Intel chipset. The Intel Rapid
Storage Technology Option ROM is the Intel RAID implementation and provides BIOS
and DOS disk services. Please use <Ctrl> + <I> keys to enter the “Intel® RAID for
Serial ATA” status screen, which should appear early in system boot-up, during the
POST (Power-On Self Test). Also, you need to enable the RAID function in BIOS to
create, delete and reset RAID volumes.

Creating, Deleting and Resetting RAID Volumes:

The Serial ATA RAID volume may be con󰘰gured using the RAID Con󰘰guration utility

stored within the Intel RAID Option ROM. During the Power-On Self Test (POST), the
following message will appear for a few seconds.

Important

The “Device Model”, “Serial #” and “Size” in the following example might be di󰘯erent

from your system.

RAID Volumes

None de󰘰ned.

Physical Disks:

Port Device Model Serial # Size Type/Status(Vol ID)

1 XXXXXXXXXXXXX XXXXXXXXXXXXX XXX.XGB Non-RAID Disk
2 XXXXXXXXXXXXX XXXXXXXXXXXXX XXX.XGB Non-RAID Disk

Press <CTRL-I> to enter Con󰘰guration Utility..

After the above message shows, press <Ctrl> and <I> keys simultaneously to enter
the Intel Rapid Storage Technology Option ROM.

Important

The following procedure is only available with a newly-built system or if you are
reinstalling your OS. It should not be used to migrate an existing system to RAID.

Appendix B

B-4

Intel RAID

After pressing the <Ctrl> and <I> keys simultaneously, the following window will
appear:

■ Create RAID Volume

1. Select option 1 “Create RAID Volume” and press <Enter> key. The following

screen appears. Then in the Name 󰘰eld, specify a RAID Volume name and then
press the <TAB> or <Enter> key to go to the next 󰘰eld.

2. Use the arrow keys to select the RAID level best suited to your usage model in

RAID Level.

[ ]

CREATE VOLUME MENU

[ ]

HELP

Name :

RAID 1 : Mirrors data (redundancy) .

[ ↑↓] - Change [TAB] - Next [ESC] - Previous Menu [ENTER] - Select

RAID Level :

Disks :

Strip Size :

Capacity :

Sync :

Volume0
RAID1(Mirror)
Select Disks
N / A
XXX.X GB
N / A
Create Volume

MAIN MENU

[ ]

DISK / VOLUME INFORMATION

[ ]

4. Recovery Volume Options

5. Acceleration Options

6. Exit

RAID Volumes :

None de󰘰ned.

Physical Devices :

Port Device Model Serial # Size Type/Status (Vol ID)

1 XXXX-XXXXXXXX XXXXXXXXXXXXXX XXX.XGB Non-RAID Disk
2 XXXX-XXXXXXXX XXXXXXXXXXXXXX XXX.XGB Non-RAID Disk

[ ↑↓] - Select [ESC] - Exit [ENTER] - Select Menu

1. Create RAID Volume

2. Delete RAID Volume

3. Reset Disks to Non-RAID

[ ]

MAIN MENU

Appendix B

B-5

Intel RAID

3. In the Disk 󰘰eld, press <Enter> key and use <Space> key to select the disks you

want to create for the RAID volume, then click <Enter> key to 󰘰nish selection. This
󰘰eld will become available according to the selected RAID level.

4. Then select the strip size for the RAID array by using the “upper arrow” or “down

arrow” keys to scroll through the available values, and pressing the <Enter> key

to select and advance to the next 󰘰eld. The available values range from 4KB to
128 KB in power of 2 increments. The strip size should be chosen based on the

planned drive usage. Here are some typical values:

RAID0 -128KB / RAID10 - 64KB / RAID5 - 64KB. This 󰘰eld will become available

according to the selected RAID level.

5. Then select the capacity of the volume in the Capacity 󰘰eld. The default value is

the maximum volume capacity of the selected disks.

[ ]

CREATE VOLUME MENU

[ ]

HELP

Name :

The default value indicates the maximum capacity using the selected

disks. Entering a lower capacity allows you to create a second

volume on these disks.

[ ↑↓] - Change [TAB] - Next [ESC] - Previous Menu [ENTER] - Select

RAID Level :

Disks :

Strip Size :

Capacity :

Sync :

Volume0
RAID1(Mirror)
Select Disks
N / A
XXX.X GB
N / A
Create Volume

Important

Since you want to create two volumes, this default size (maximum) needs to be
reduced. Type in a new size for the 󰘰rst volume. As an example: if you want the
󰘰rst volume to span the 󰘰rst half of the two disks, re-type the size to be half of what

is shown by default. The second volume, when created, will automatically span the
remainder of two hard drives.

Appendix B

B-6

Intel RAID

7. Then the following screen appears to indicate that the creation is 󰘰nished.

6. Go to the Create Volume 󰘰eld and press <Enter>, the following screen appears for

you to con󰘰rm if you are sure to create the RAID volume. Press <Y> to continue.

[ ]

CREATE VOLUME MENU

[ ]

HELP

Name :

Press ENTER to create the speci󰘰ed volume.

[ ↑↓] - Change [TAB] - Next [ESC] - Previous Menu [ENTER] - Select

RAID Level :

Disks :

Strip Size :

Capacity :

Sync :

Volume0
RAID1(Mirror)
Select Disks
N / A
XXX.X GB
N / A
Create Volume

WARNING : ALL DATA ON SELECTED DISKS WILL BE LOST.

Are you sure you want to create this volume? (Y / N) :

DISK / VOLUME INFORMATION

[ ]

4. Recovery Volume Options

5. Acceleration Options

6. Exit

RAID Volumes :

ID Name Level Strip Size Status Bootable

0 Volume0 RAID1(Mirror) N / A XXX.XGB Normal Yes

Physical Devices :

Port Device Model Serial # Size Type/Status (Vol ID)

1 XXXX-XXXXXXXX XXXXXXXXXXXXXX XXX.XGB Member Disk(0)
2 XXXX-XXXXXXXX XXXXXXXXXXXXXX XXX.XGB Member Disk(0)

[ ↑↓] - Select [ESC] - Exit [ENTER] - Select Menu

1. Create RAID Volume

2. Delete RAID Volume

3. Reset Disks to Non-RAID

MAIN MENU

[ ]

[ ]

MAIN MENU
