Wind Top AE2040
All-in-One (AIO) PC
MS-AA16 (V1.X) System
G52-AA161X1
Preface
Copyright Notice iii Trademarks iii
U.S. Patent Numbers iii
Revision History
iii
Upgrade and Warranty iv
Acquisition of Replaceable Parts iv
Technical
Support iv
Green Product Features
v Environmental
Policy v Safety Instructions
vi
CE
Conformity viii
FCC
-B Radio Frequency
Interference
Statement viii
WEEE
Statement ix
1. Overview 1-1
Packing Contents 1-2 System Overview 1-3 System Specifications 1-9 Component Replacement & Upgrade 1-10

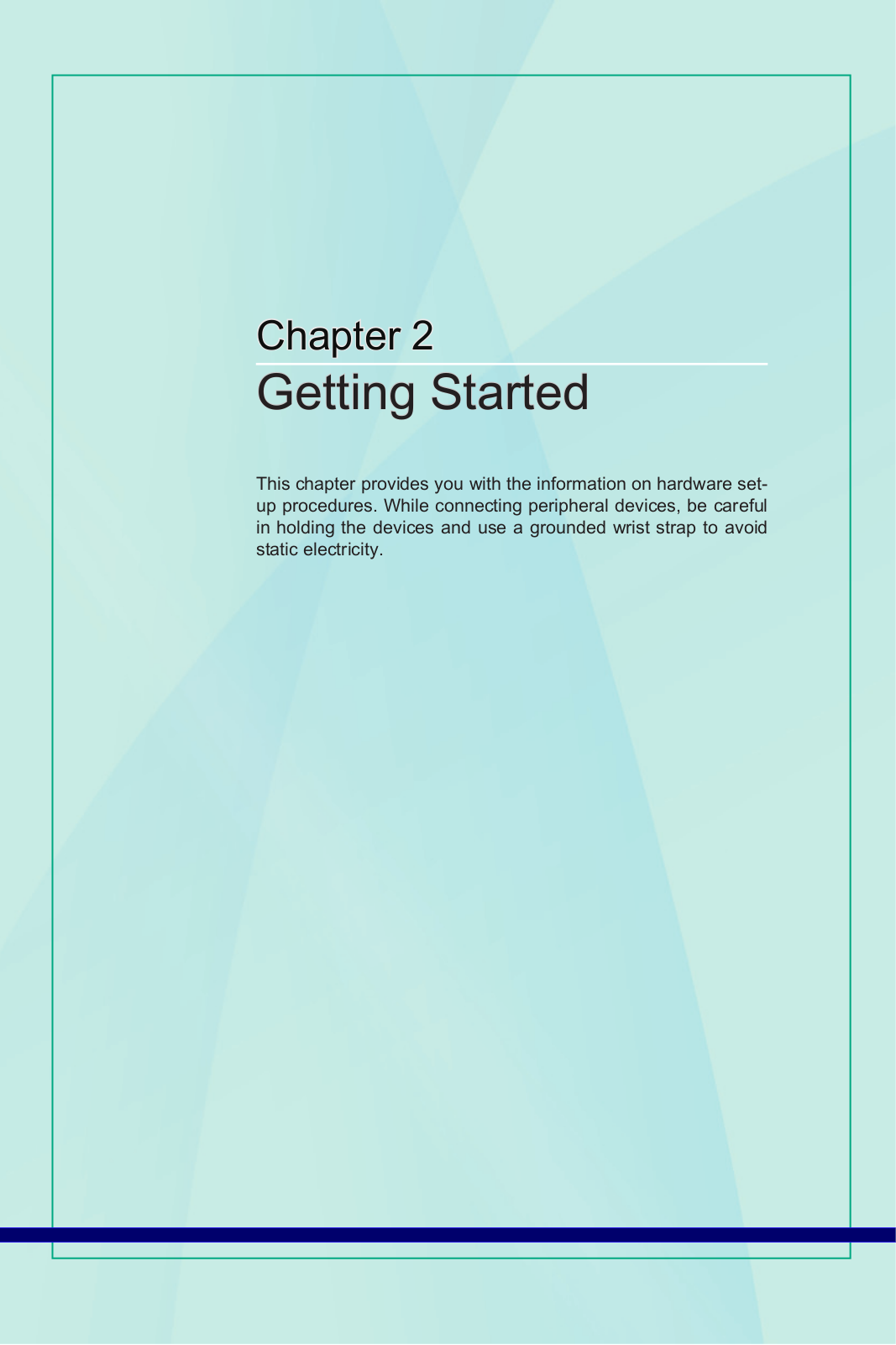

2. Getting Started 2-1

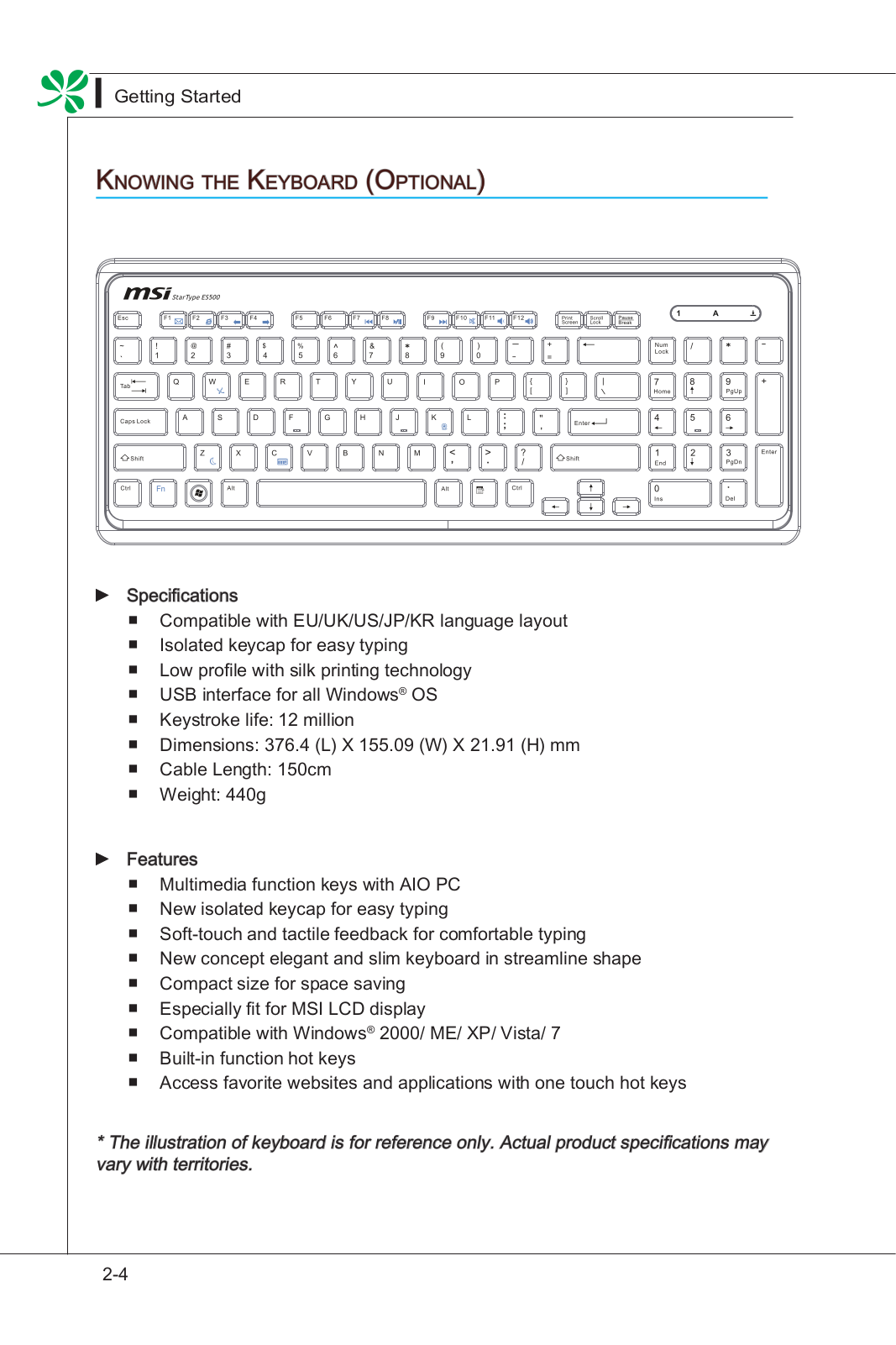

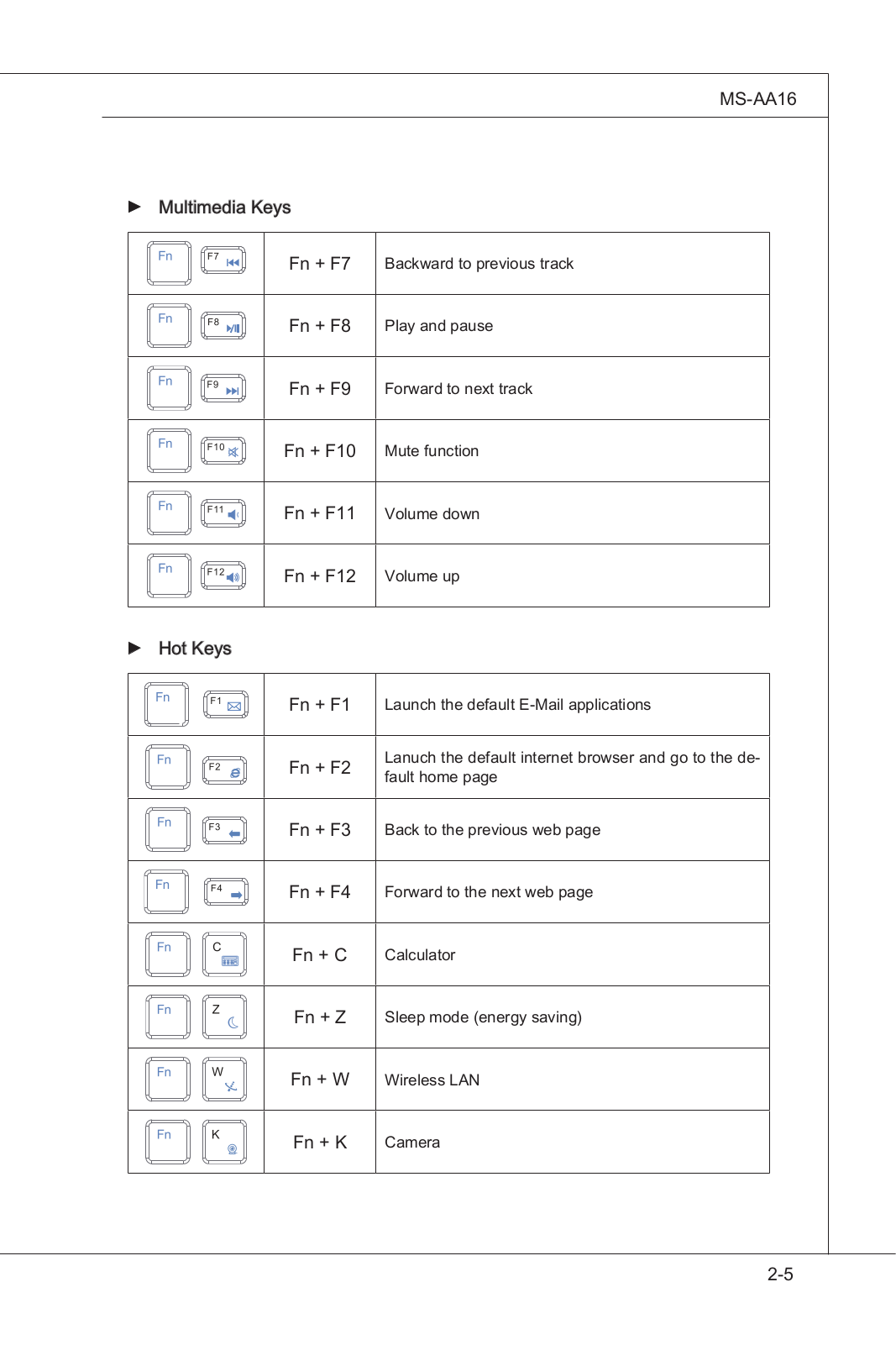

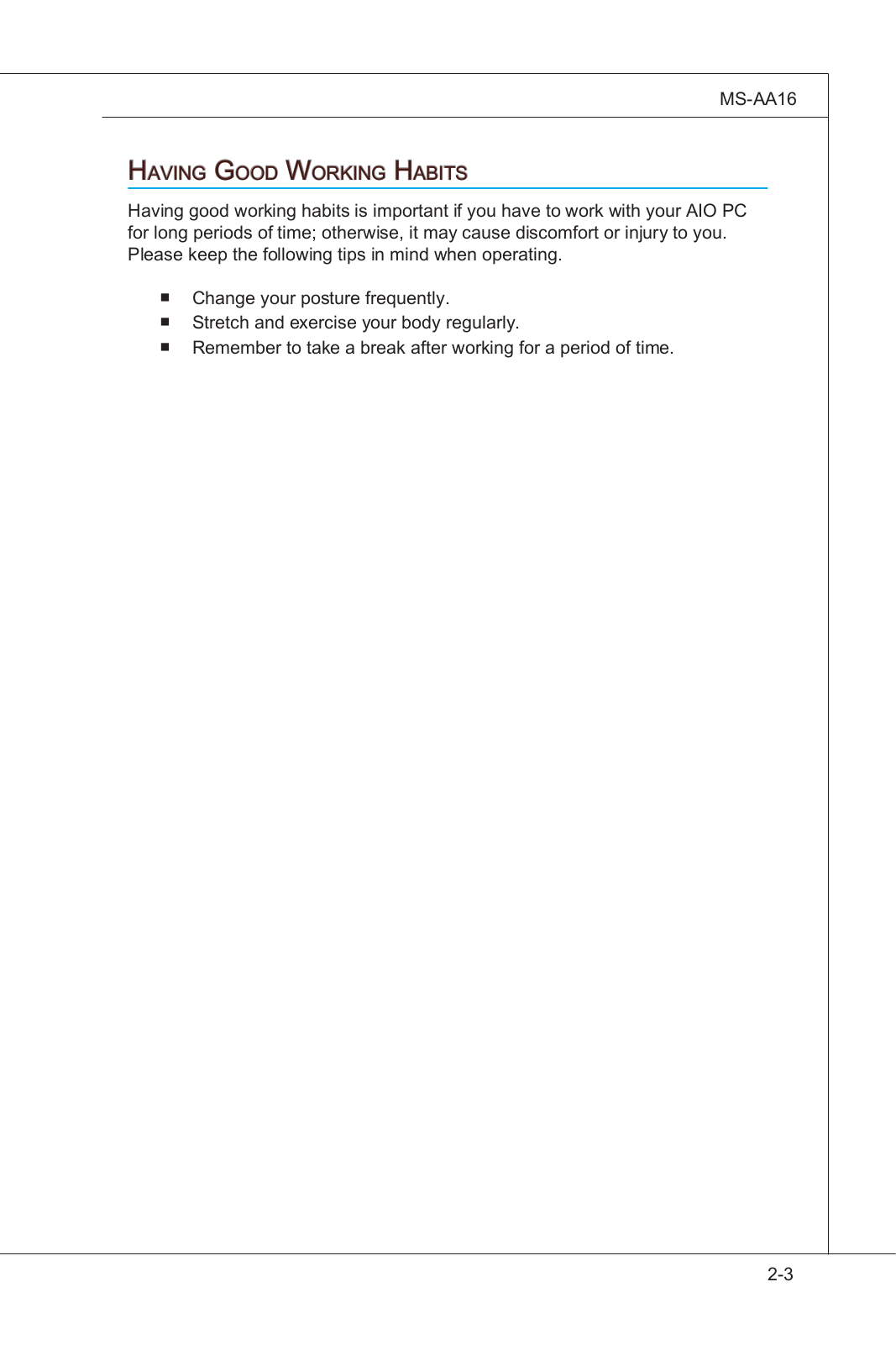

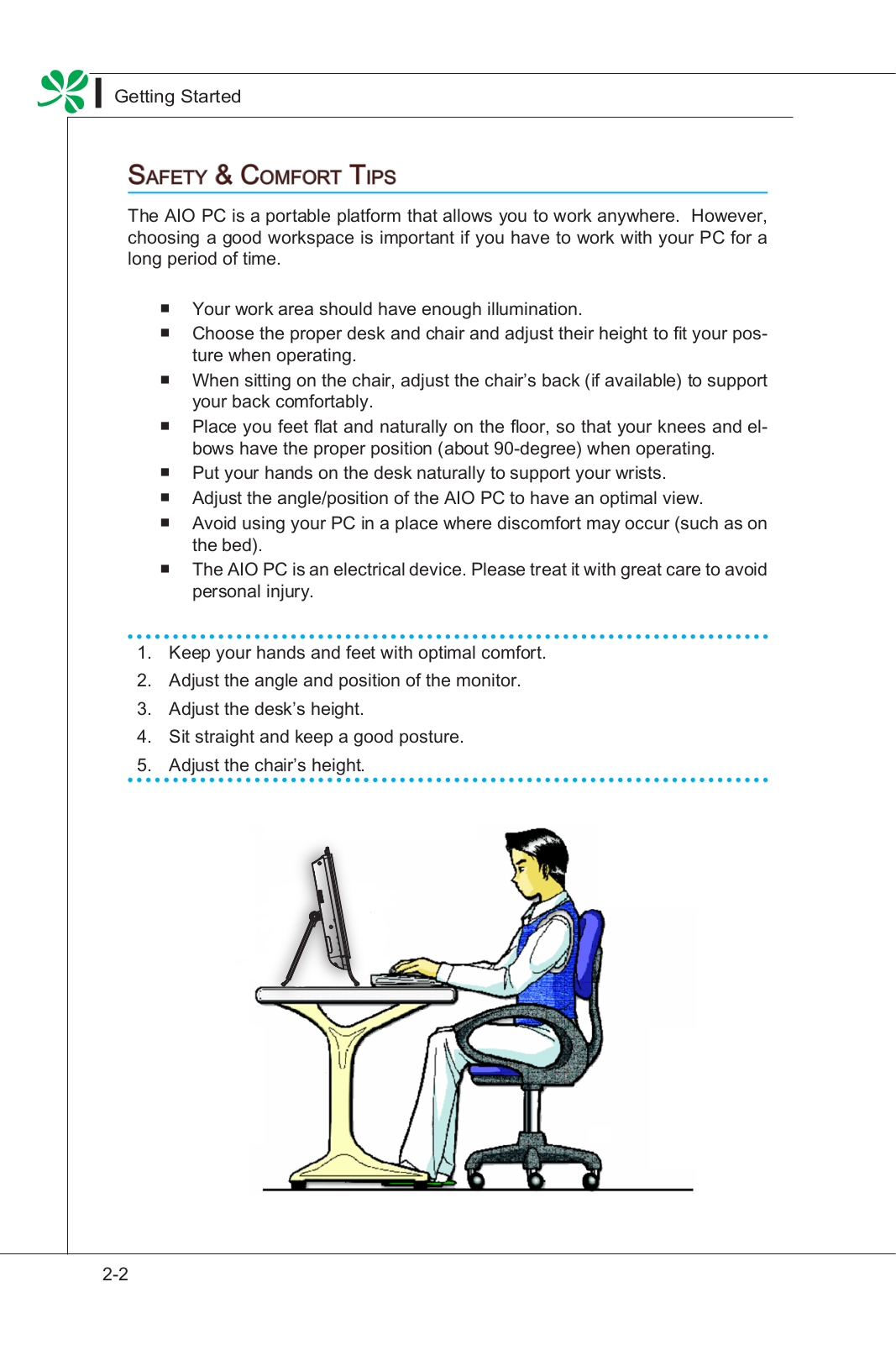

Safety & Comfort Tips 2-2 Having Good Working Habits 2-3 Knowing the Keyboard (Optional) 2-4 Positioning your System 2-6 Connecting Peripheral Devices 2-7 Connecting Power 2-13

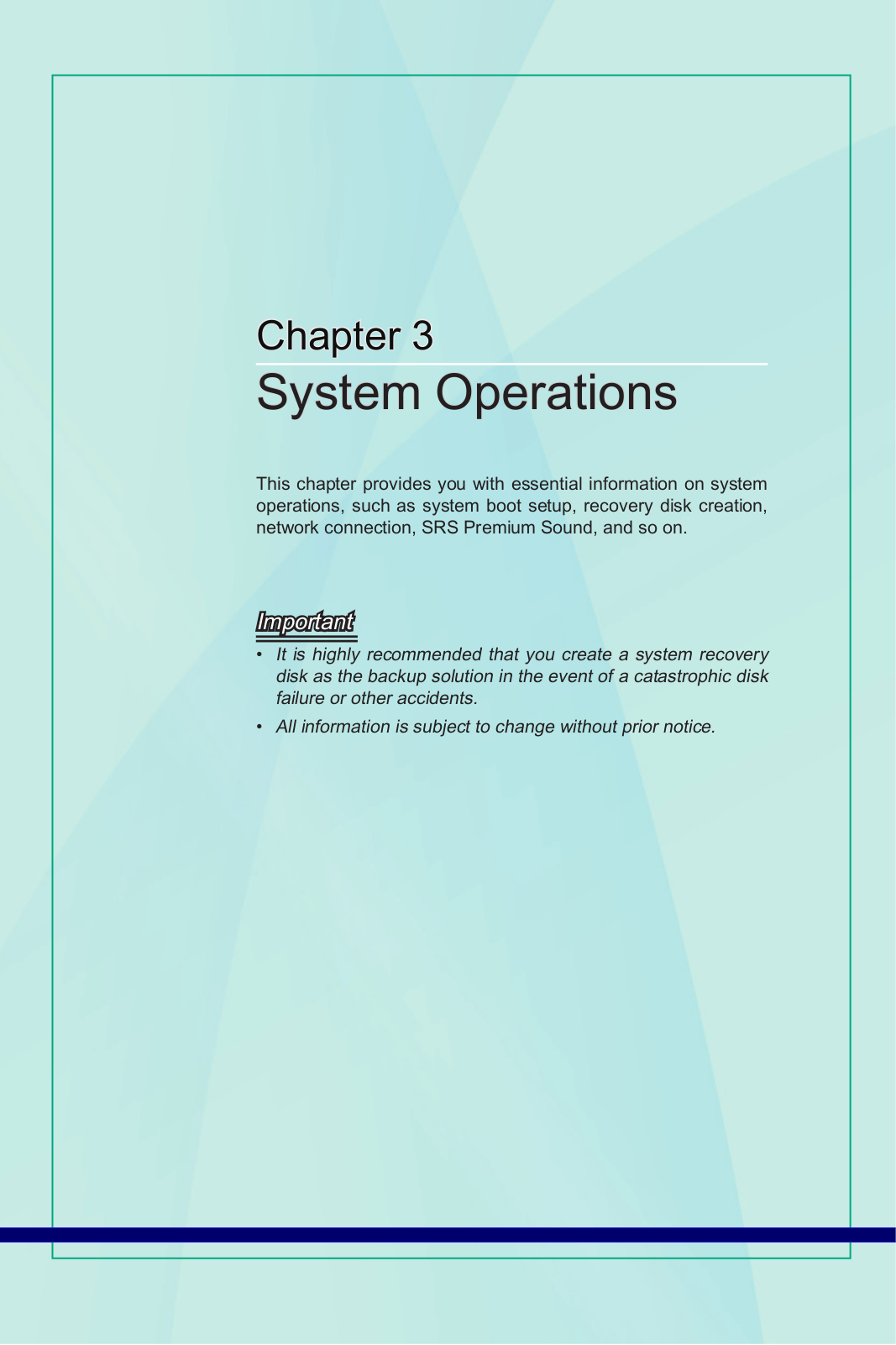

3. System Operations 3-1

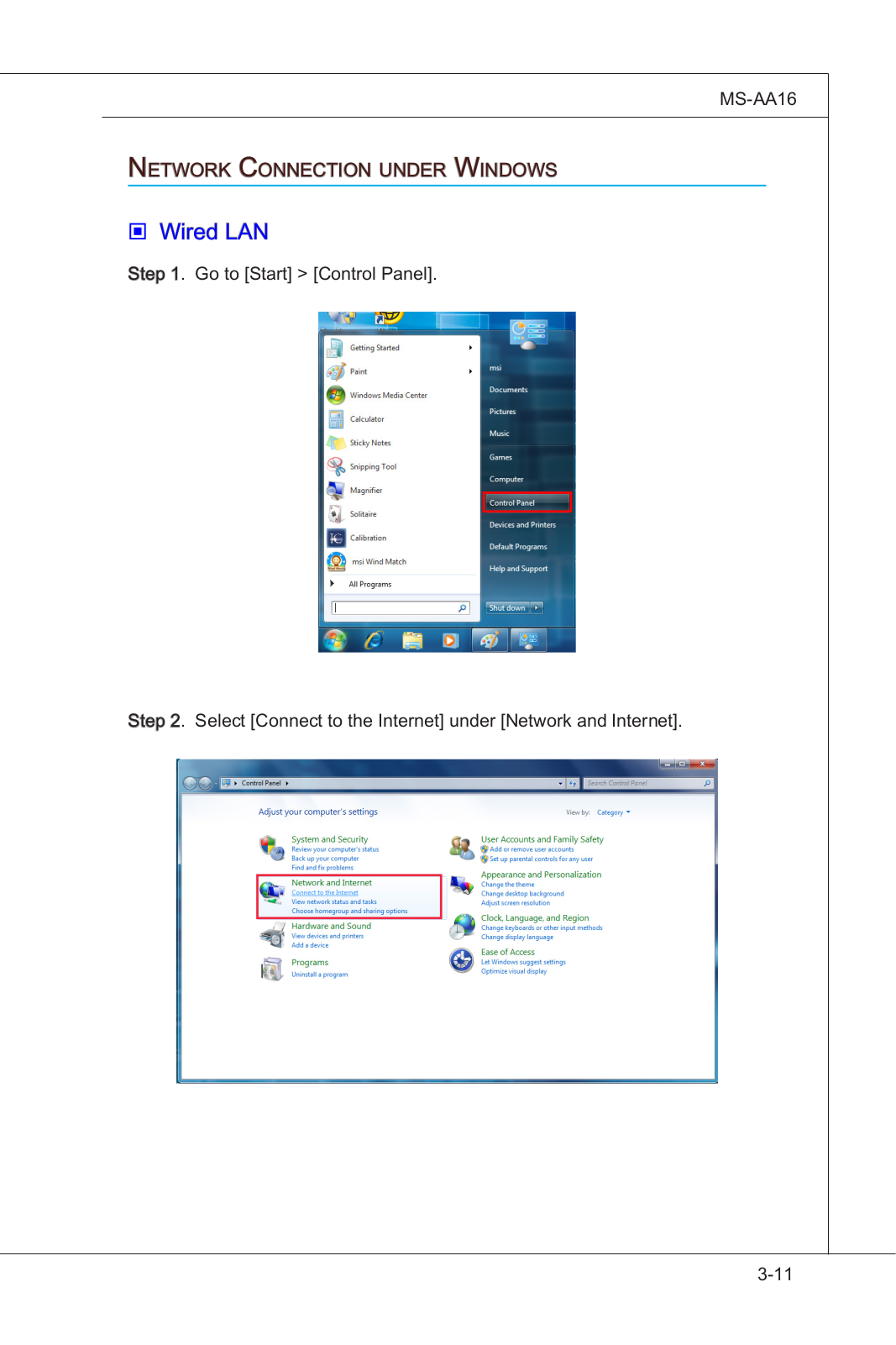

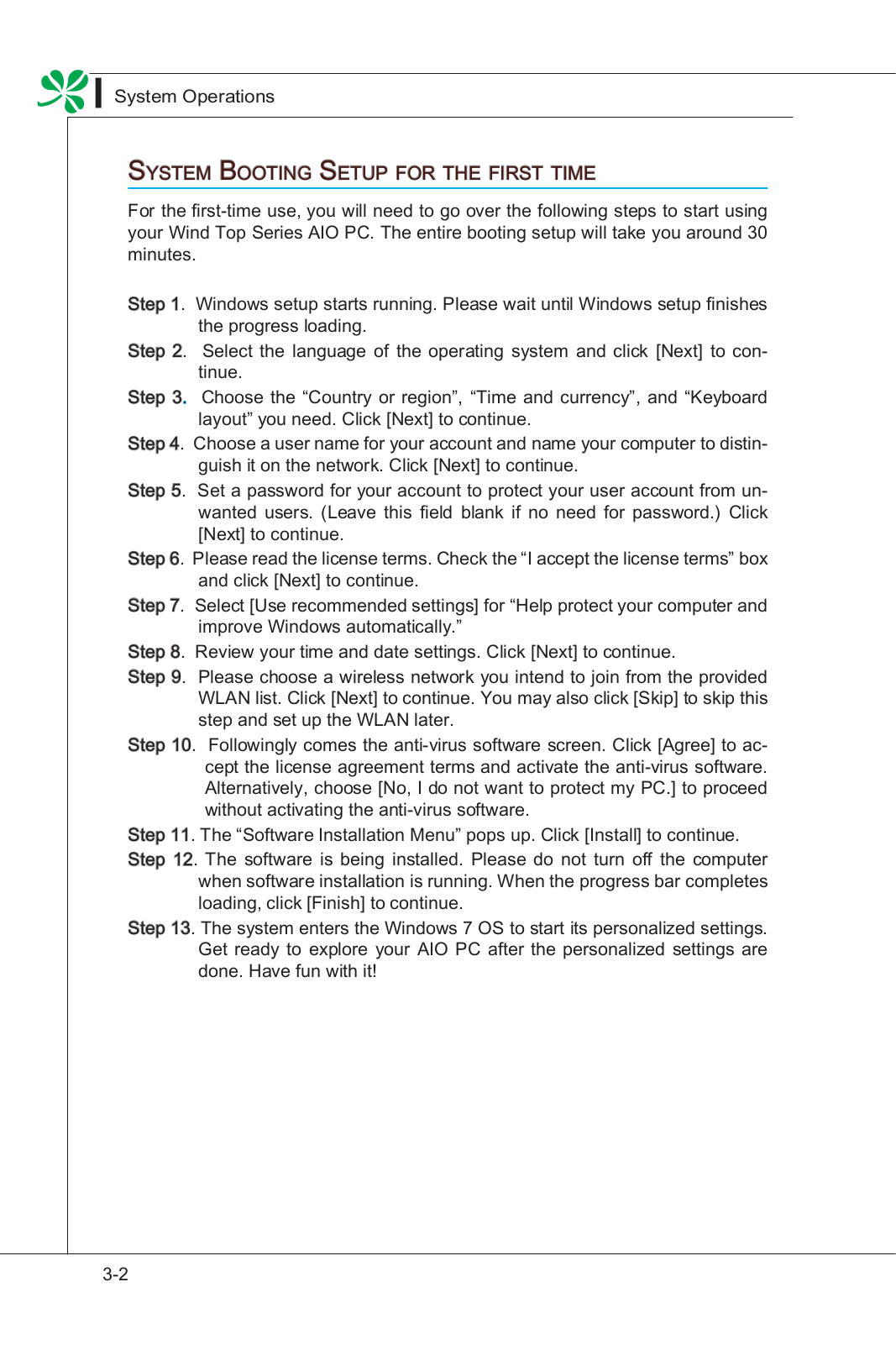

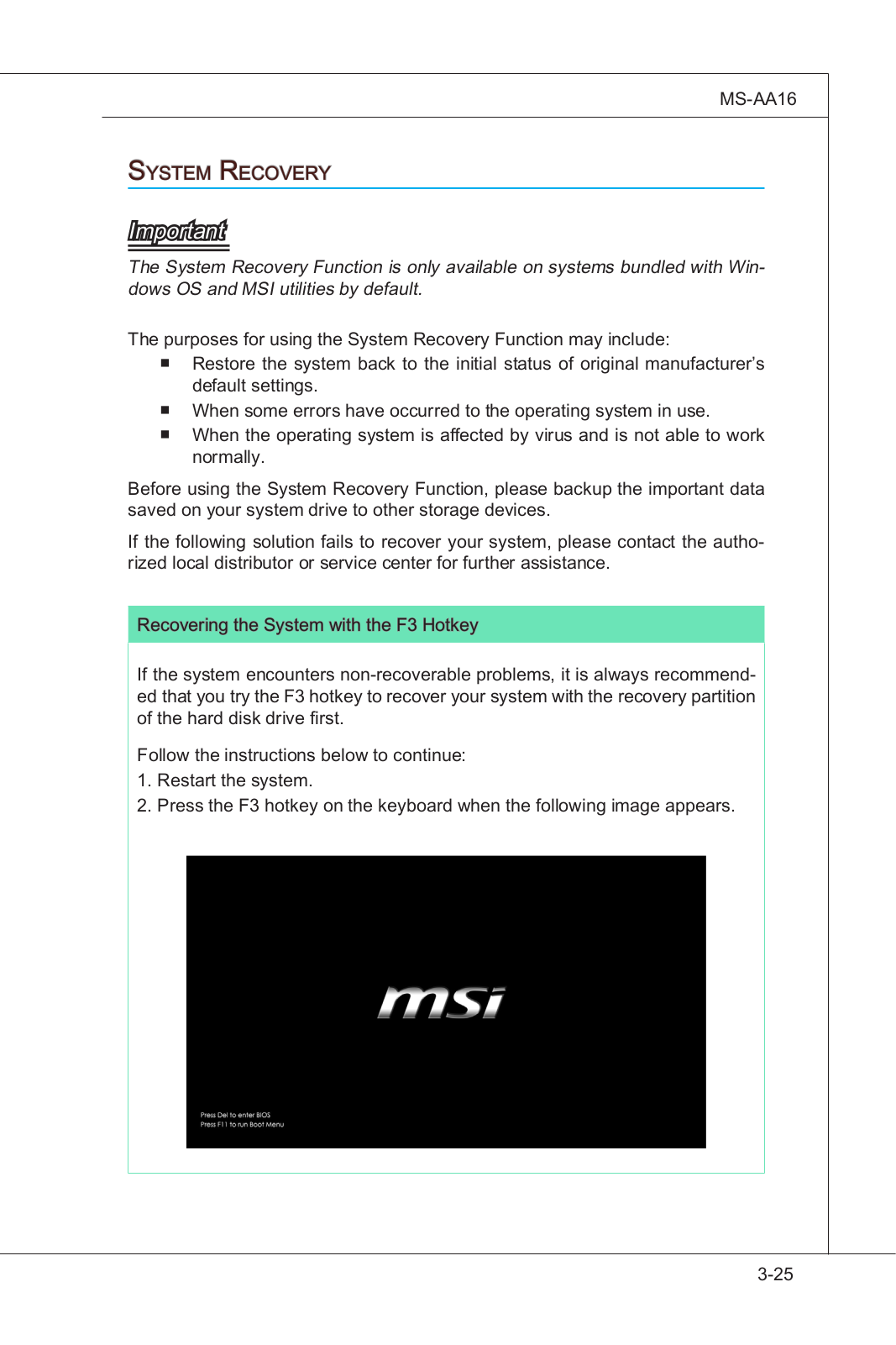

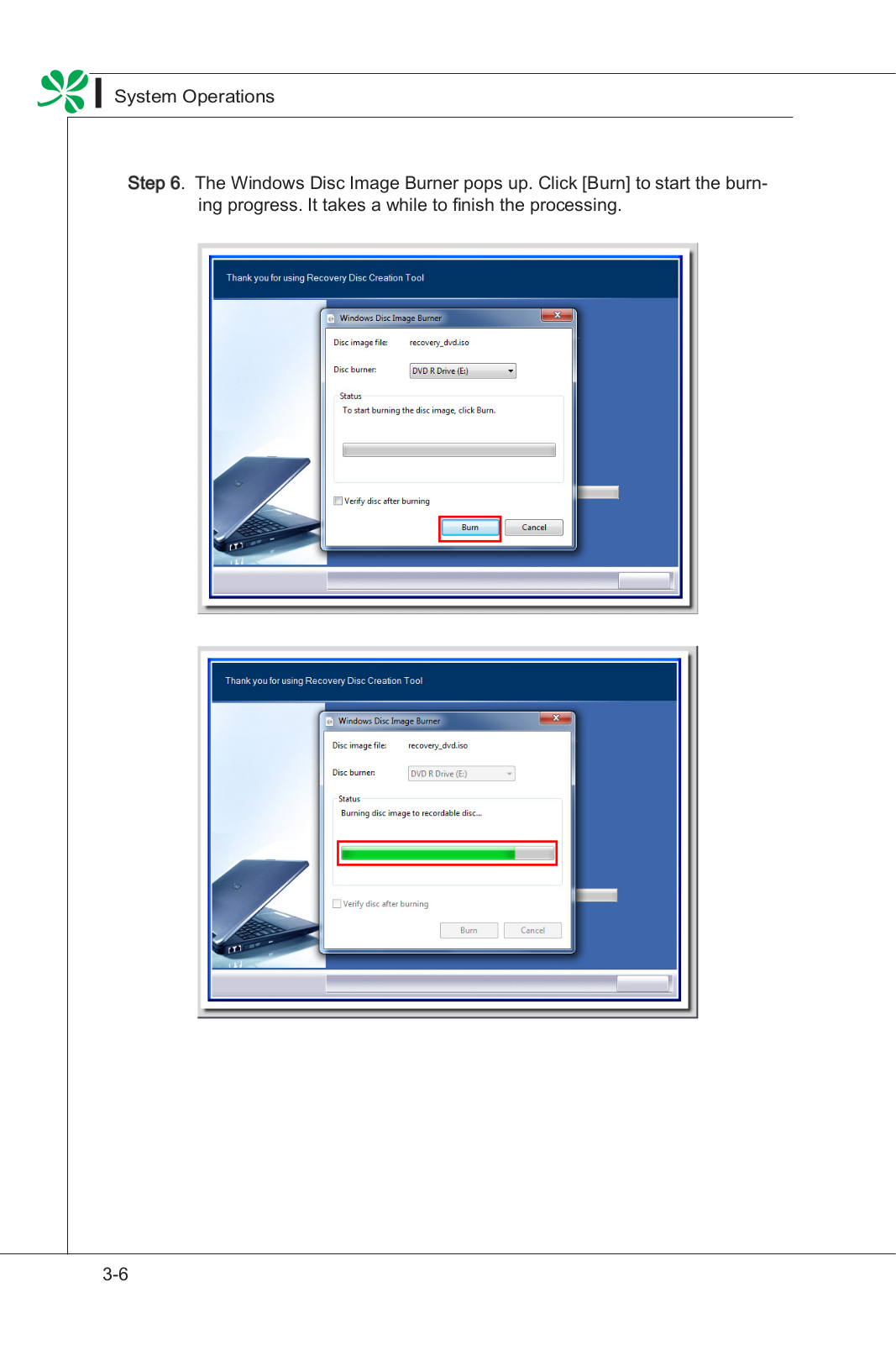

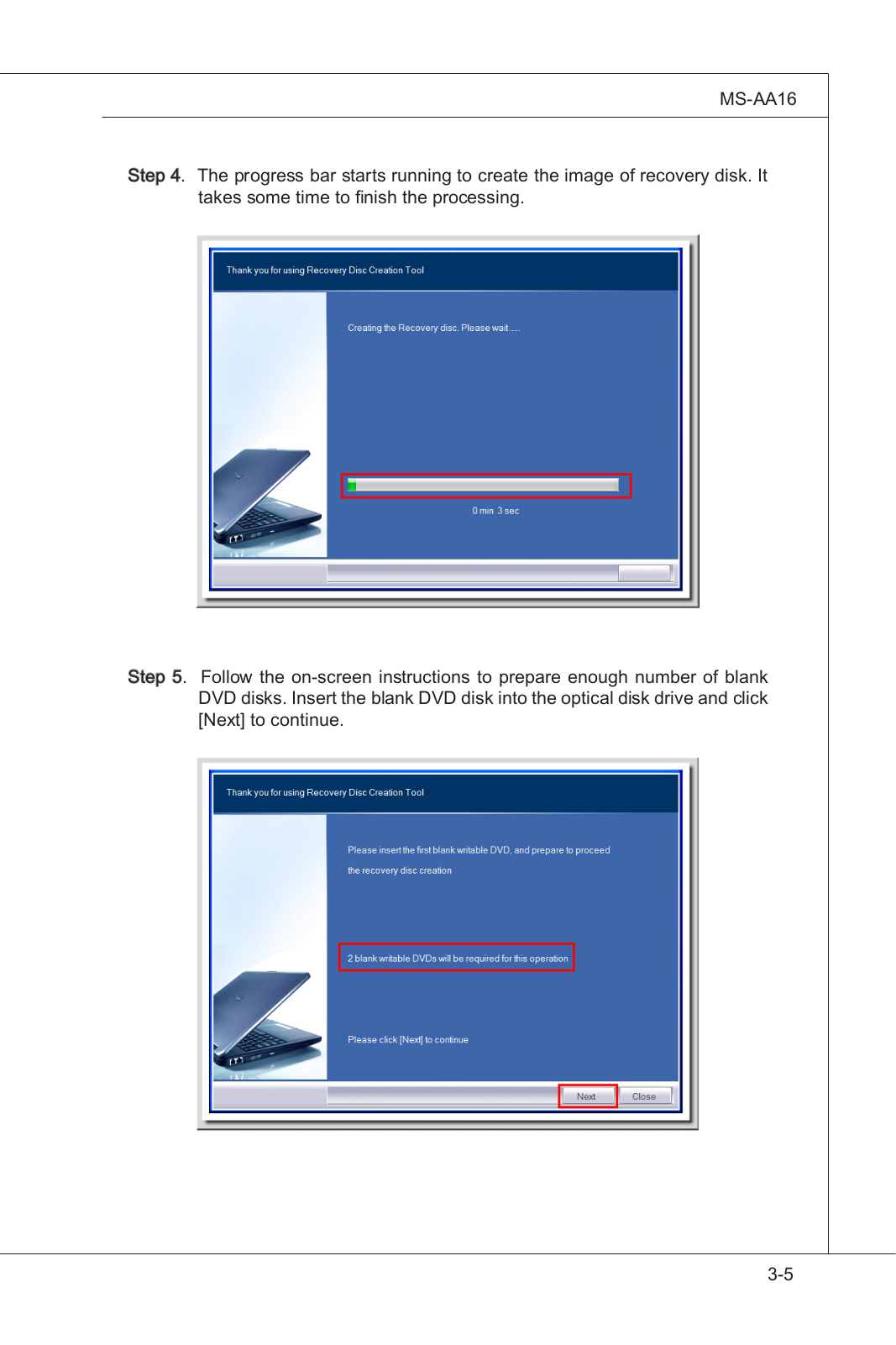

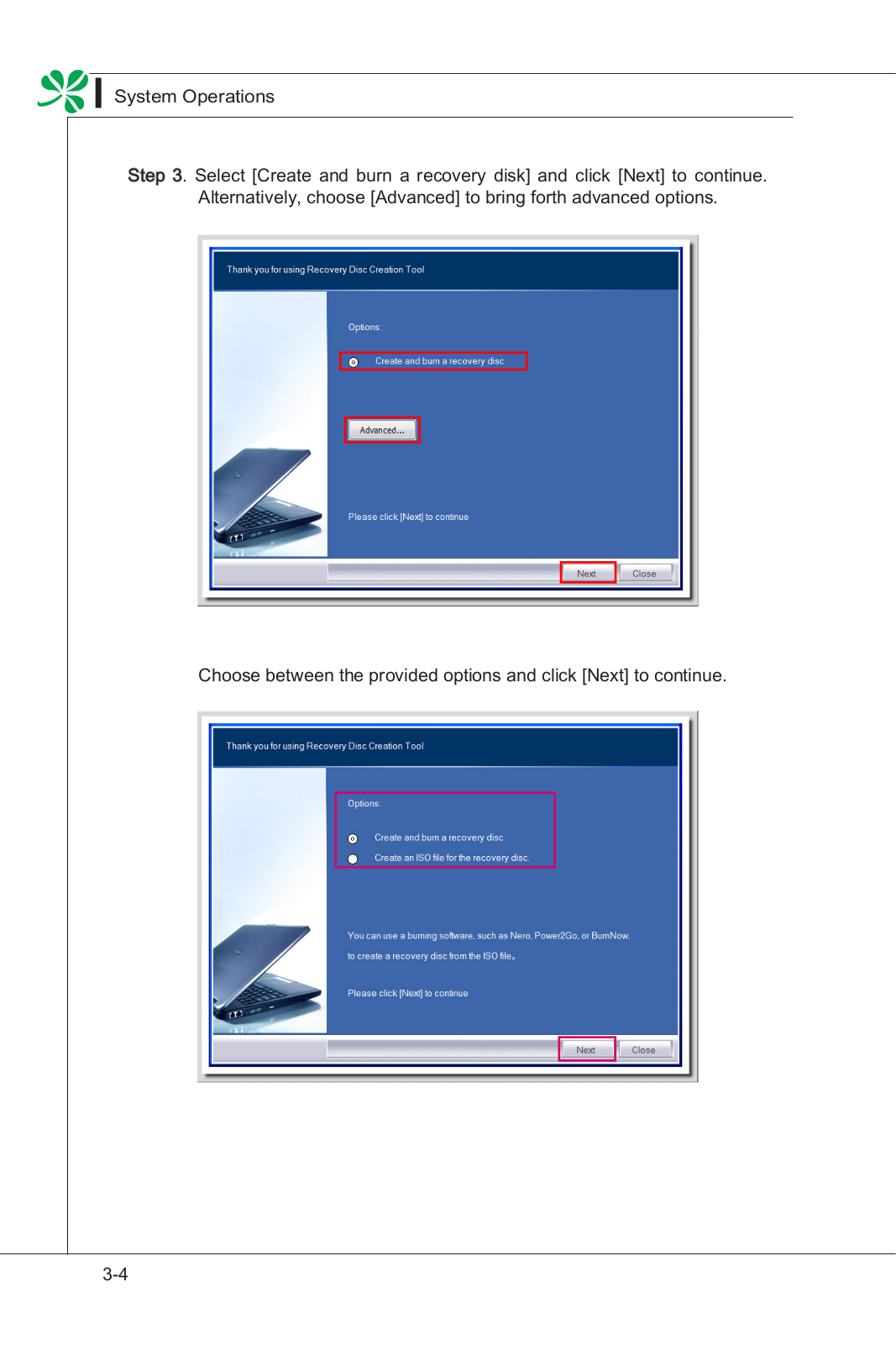

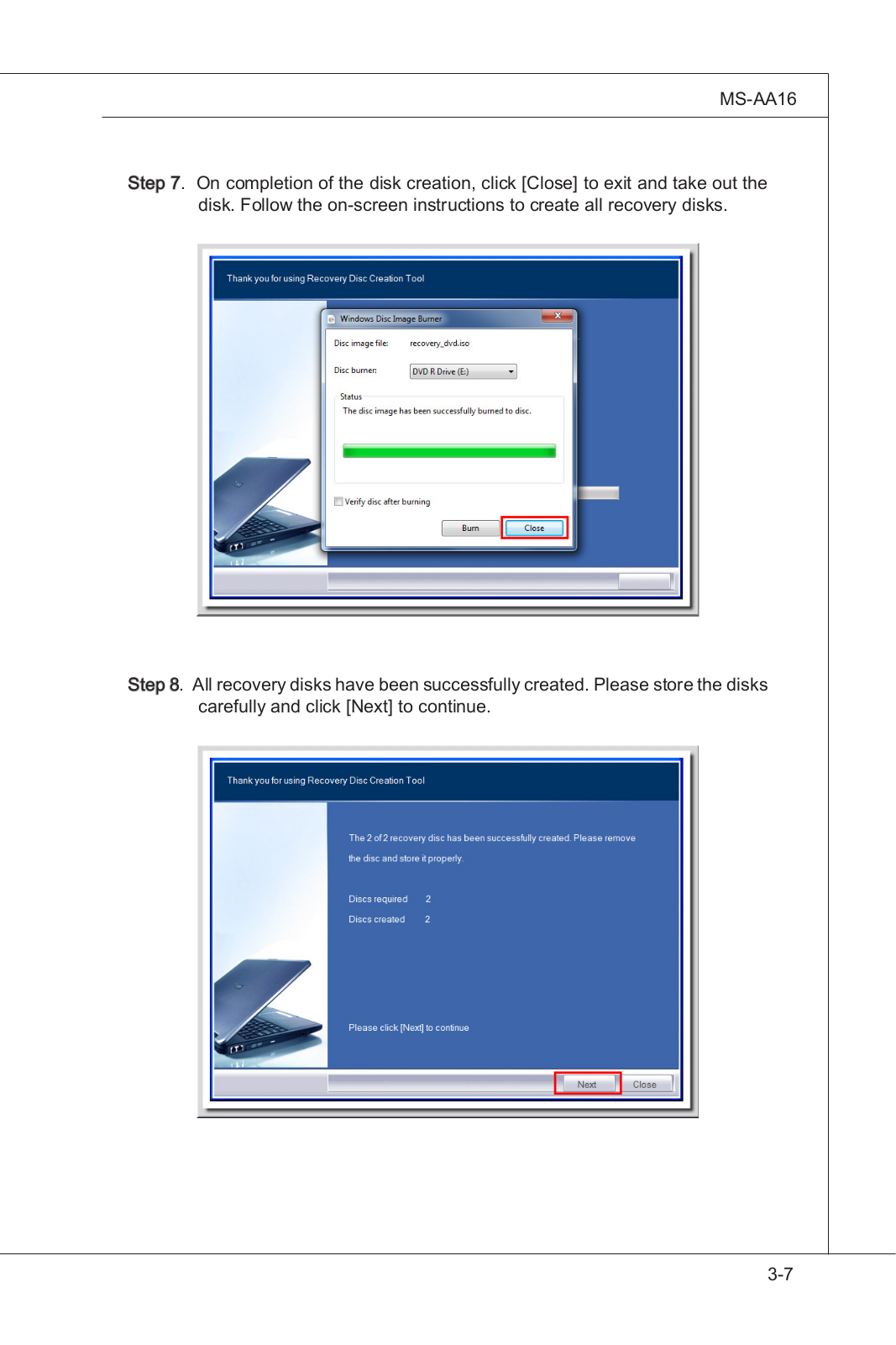

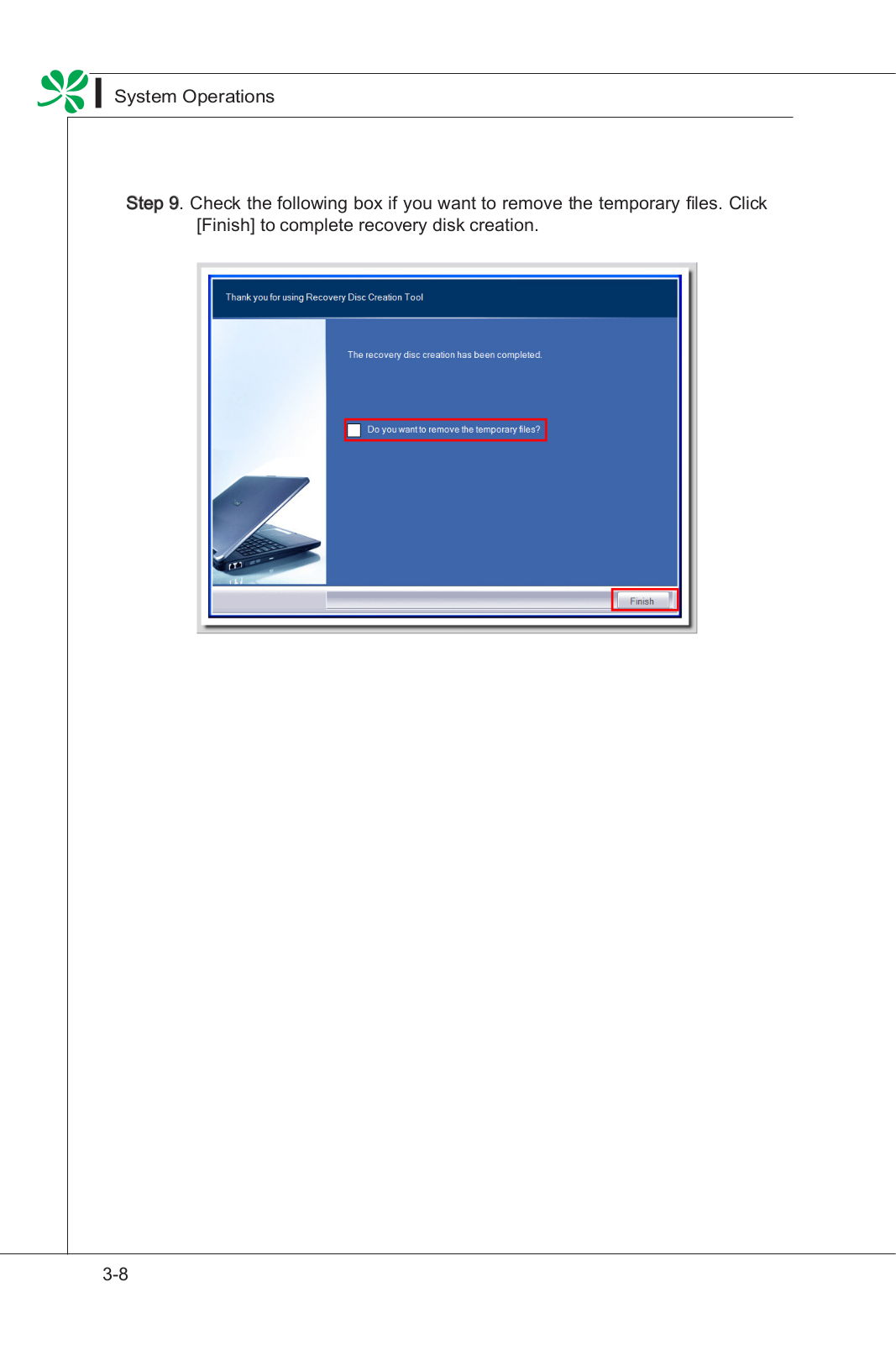

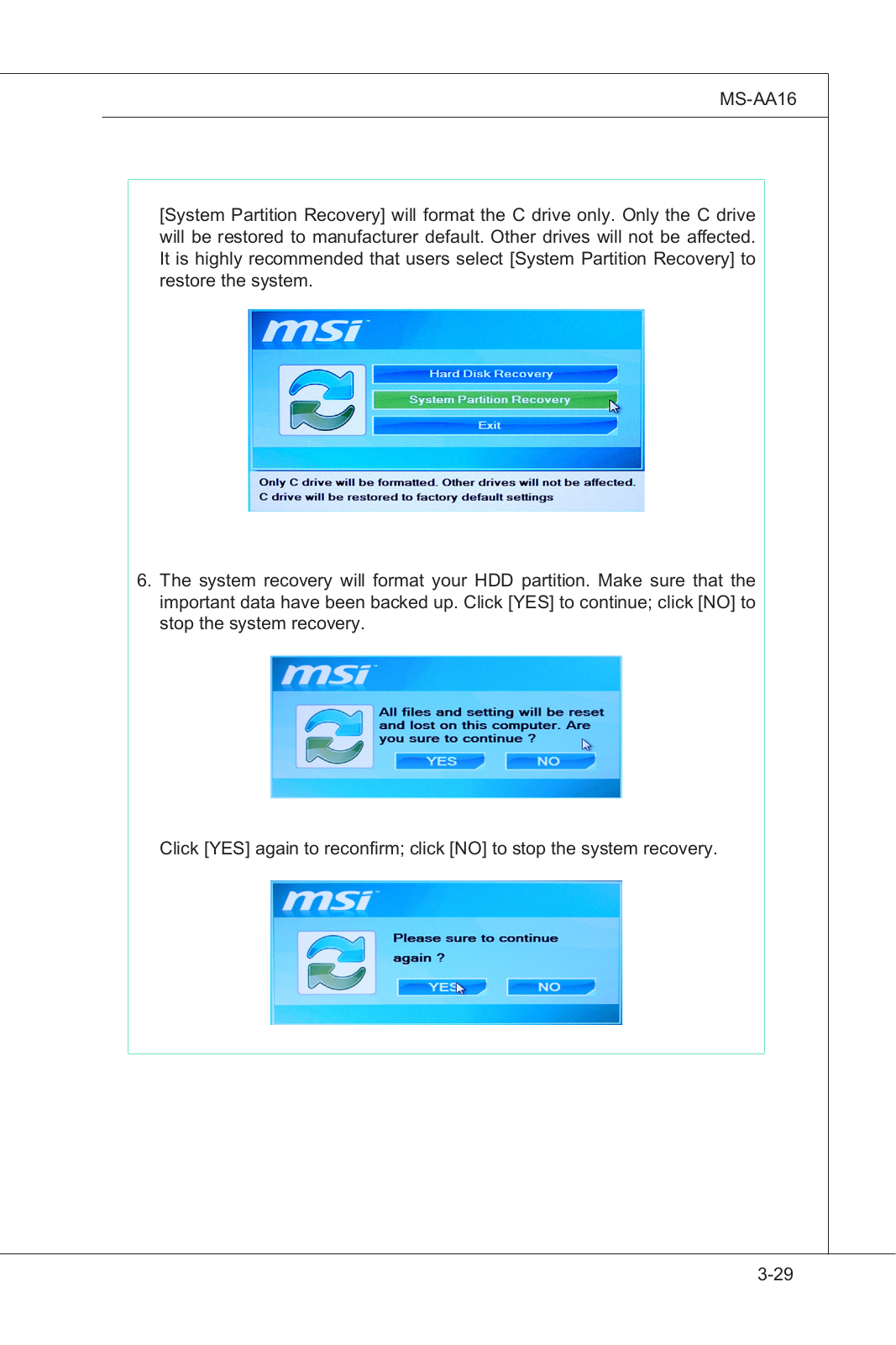

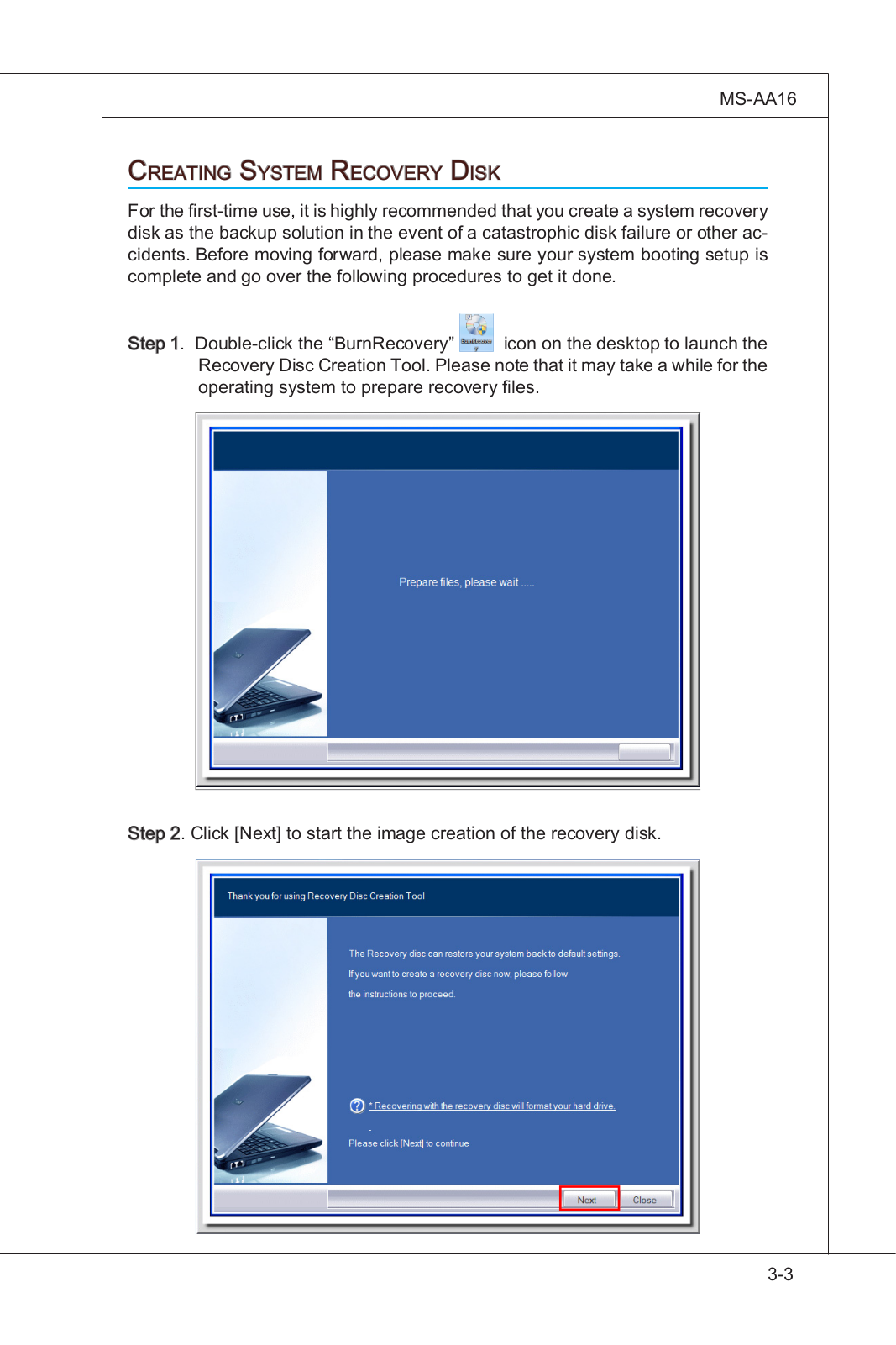

System Booting Setup for the first time 3-2 Creating System Recovery Disk 3-3 Touch Panel Calibration (Only for single-touch model) 3-9 Network Connection under Windows 3-11 RALINK Wireless LAN Connection (Optional) 3-16 SRS Premium Sound (Optional) 3-18 On-Screen Display (OSD) 3-20 Power Management 3-23 System Recovery 3-25
ii
MS-AA16
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners. MSI® is a registered trademark of Micro-Star Int’l Co., Ltd. Intel® is a registered trademark of Intel Corporation.
Realtek® is a registered trademark of Realtek Semiconductor Corporation. Windows® is a registered trademark of Microsoft Corporation.
U.S. Patent Numbers
4,631,603; 4,819,098; 4,907,093; 5,315,448; and 6,516,132.
This product incorporates copyright protection technology that is protected by U.S. patentsandotherintellectualpropertyrights.Useofthiscopyrightprotectiontechnology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Revision History
Revision |
Revision History |
Date |
V1.0 |
First release |
June 2010 |
iii
Preface
Upgrade and Warranty
Please note that certain components preinstalled in the product may be upgradable or replaceable by user’s request. To learn more about upgrade limitation, please refer to the specifications in the User’s Manual. For any further information about the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended that you contact the authorized dealer or service center for any upgrade or replace service.
Acquisition of Replaceable Parts
Please be noticed that the acquisition of replaceable parts (or compatible ones) of the product users purchased in certain countries or territories may be fulfilled by the manufacturer within 5 years at most since the product has been discontinued, depending on the official regulations declared at the time.
■ Please contact the manufacturer via http://www.msicomputer.com/msi_user/ msi_rma/ for the detailed information about the acquisition of spare parts.
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.
◙VisittheMSIwebsiteforFAQ,technicalguide,BIOSupdates,driverupdates and other information via http://www.msi.com/index.php?func=service
◙Contact our technical staff via http://ocss.msi.com/
iv
MS-AA16
Green Product Features
◙Reduced energy consumption during use and stand-by
◙Limited use of substances harmful to the environment and health
◙Easily dismantled and recycled
◙Reduced use of natural resources by encouraging recycling
◙Extended product lifetime through easy upgrades
◙Reduced solid waste production through take-back policy
Environmental Policy
◙The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
◙Usersshouldcontactthelocalauthorizedpointofcollection for recycling and disposing of their end-of-life products.
◙Visit the MSI website and locate a nearby distributor for further recycling information: http://www.msi.com/index.php?func=html&name=service_ worldwide.
◙Users may also reach us at gpgreenteam@msi.com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products.
Preface
Safety Instructions
Read the safety instructions carefully and thoroughly.
All cautions and warnings on the equipment or user’s manual should be noted.
Keep the User’s Guide that comes with the package for future reference.
Keep this equipment away from humidity and high temperature.
Lay this equipment on a reliable flat surface before setting it up.
◙Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100~240V before connecting the equipment to the power outlet. Do not disable the protective earth pin from the plug. The equipment must be connected to an earthed mains socket-outlet.
◙Always unplug the AC power cord before installing any add-on card or module to the equipment.
◙Always disconnect the AC power cord or switch the wall socket off if the equipment would be left unused for a certain time to achieve zero energy consumption.
The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.
Do not leave the equipment in an unconditioned environment with a storage temperature above 60OC (140OF) or below 0OC (32OF), which may damage the equipment.
NOTE: The maximum operating temperature is around 40OC.
vi
MS-AA16
Never pour any liquid into the opening that could damage or cause electrical shock.
Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.
When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliably connected to protective earthing system of the building.
Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.
Always keep the strong magnetic or electrical objects away from the equipment.
If any of the following situations arises, get the equipment checked by service personnel:
◙The power cord or plug is damaged.
◙Liquid has penetrated into the equipment.
◙The equipment has been exposed to moisture.
◙The equipment does not work well or you can not get it work according to user’s manual.
◙The equipment has dropped and damaged.
◙The equipment has obvious sign of breakage.
1.The optical storage devices are classified as CLASS 1 LASER PRODUCT. Use of controls or adjustments or performance of procedures other than those specified is prohibited.
2.Do not touch the lens inside the drive.
Forbetterenvironmentalprotection,wastebatteriesshouldbecollected separately for recycling or special disposal.
CAUTION:
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
vii
Preface
CE Conformity
Hereby, Micro Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.
FCC -B Radio Frequency
Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
VOIR LA NOTICE
D’INSTALLATION AVANT
DE
RACCORDER AU RESEAU.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.this device may not cause harmful interference, and
2.this device must accept any interference received, including interference that may cause undesired operation.
viii
MS-AA16
WEEE Statement
(English) Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.
(French) (Français) Au sujet de la directive européenne (EU) relative aux déchets des équipement électriques et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005, que les produits électriques et électroniques ne peuvent être déposés dans les décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains produits en fin de vie.
(German) (Deutsch) Gemäß der Richtlinie 2002/96/EG über Elektround Elektronik-Altgeräte dürfen Elektround Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden, die sich auf 13.August, 2005 wirken. Und der Hersteller von bedeckt Elektronik-Altgeräte gesetzlich zur gebrachten Produkte am Ende seines Baruchbarkeitsdauer zurückzunehmen.
(Spanish) (Español) Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasificados como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a hacerse cargo de dichos productos al termino de su período de vida.
(Italian) (Italiano) In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati come rifiuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita.
(Russian) (Русский) В соответствии с директивой Европейского Союза (ЕС) по предотвращению загрязнения окружающей среды использованным электрическим и электроннымоборудованием(директиваWEEE2002/96/EC),вступающейвсилу13августа 2005 года, изделия, относящиеся к электрическому и электронному оборудованию, не могут рассматриваться как бытовой мусор, поэтому производители вышеперечисленного электронного оборудования обязаны принимать его для переработки по окончании срока службы.
(Turkish)(Türkçe)AvrupaBirliği(AB)KararnamesiElektrikveElektronikMalzemeAtığı,2002/96/ EC Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla yükümlü olacaktır.
ix
Preface
(Greek) (Ελληνικά) Σύμφωνα με την Οδηγία 2002/96/ΕΚ της Ευρωπαϊκής Ένωσης («ΕΕ») περί Απόρριψης Ηλεκτρικού και Ηλεκτρονικού Εξοπλισμού (WEEE), η οποία λαμβάνει ισχύ στις 13 Αυγούστου 2005, τα προϊόντα «ηλεκτρικού και ηλεκτρονικού εξοπλισμού» δεν είναι δυνατόν να απορριφθούν πλέον ως κοινά απορρίμματα και οι κατασκευαστές κεκαλυμμένου ηλεκτρονικού εξοπλισμού είναι υποχρεωμένοι να πάρουν πίσω αυτά τα προϊόντα στο τέλος της ωφέλιμης ζωής τους.
(Polish) (Polski) Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z użycia.
(Hungarian) (Magyar) Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az ilyen termékek visszavételére azok hasznos élettartama végén.
(Czech) (Čeština) Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků 2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich životnosti.
(Traditional Chinese ) ( ) 2005 8 13
2002/96/EC
(Simplified Chinese ) ( ) 2005 8 132002/96/EC
(Japanese) ( ) 2005 8 13 EU WEEE×
(Korean) ( ) 2005 8 13 (“EU”) ,2002/96/EC , “ ” .
(Vietnam) (Tieng Viet) Theo Hướng dẫn của Liên minh Châu Âu (“EU”) về Thiết bị điện & điện tử đã qua sử dụng, Hướng dẫn 2002/96/EC, vốn đã có hiệu lực vào ngày 13/8/2005, các sản phẩm thuộc “thiết bị điện và điện tử” sẽ không còn được vứt bỏ như là rác thải đô thị nữa và các nhà sản xuất thiết bị điện tử tuân thủ hướng dẫn sẽ phải thu hồi các sản phẩm này vào cuối vòng đời.
(Thai) ( ) (“EU”)2002/96/EC 13“ ”
MS-AA16
(Indonesia) (Bahasa Indonesia) Sesuai dengan Regulasi Uni Eropa (“UE”) perihal WEEE (Limbah Peralatan Listrik dan Elektronik), Directive 2002/96/EC, yang berlaku sejak 13, 2005, produk “peralatan listrik dan elektronik” tidak lagi dapat dibuang sebagai sampah umum dan pabrik peralatan elektronik diwajibkan untuk mengambil kembali produk tersebut pada saat masa pakainya habis.
(Serbian) (Srpski) Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Direktiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog uobičajenog veka trajanja.
(Netherlands) (Nederlands) De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus.
(Romanian) (Română) În baza Directivei Uniunii Europene (“UE”) privind Evacuarea Echipamentului Electric şi Electronic, Directiva 2002/96/EC, care intră în vigoare pe 13 august, 2005, produsele din categoria “echipament electric şi electronic” nu mai pot fi evacuate ca deşeuri municipale, iar fabricanţii echipamentului electronic vizat vor fi obligaţi să primească înapoi produsele respective la sfârşitul duratei lor de utilizare.
(Portuguese) (Português) De acordo com a Directiva 2002/96/EC de Resíduos de Equipamentos Eléctricos e Electrónicos da União Europeia (UE), efectiva desde o 13 de Agosto do ano 2005, os produtos de “equipamento eléctrico e electrónico” não podem ser descartados como resíduo municipal e os fabricantes do equipamento electrónico sujeitos a esta legislação estarão obligados a recolhar estes produtos ao finalizar sua vida útil.
(Swedish) (Svenska) Under Europeiska unionens (“EU”) Weee-direktiv (Waste Electrical and Electronic Equipment), Direktiv 2002/96/EC, vilket trädde i kraft 13 augusti, 2005, kan inte produkter från “elektriska och elektroniska utrustningar” kastas i den vanliga hushållssoporna längre och tillverkare av inbyggd elektronisk utrustning kommer att tvingas att ta tillbaka sådan produkter när de är förbrukade.
(Finnish) (Suomi) Euroopan unionin (EU) 13.8.2005 voimaan tulleen sähköja elektroniikkalaiteromua koskevan direktiivin 2002/96/EY mukaisesti ”sähköja elektroniikkalaitteita” ei saa enää hävittää talousjätteiden mukana. Direktiivin alaisen sähkötai elektroniikkalaitteen valmistajan on otettava laitteet takaisin niiden käyttöiän päättyessä.
(Slovak) (Slovenčina) Na základe smernice Európskej únie („EU“) o elektrických a elektronických zariadeniach číslo 2002/96/ES, ktorá vstúpila do platnosti 13. augusta 2005, výrobky, ktorými sú „elektrické a elektronické zariadenia” nesmú byť zneškodňované spolu s komunálnym odpadom a výrobcovia patričných elektronických zariadení sú povinní takéto výrobky na konci životnosti prevziať naspäť.
(Slovenian) (Slovenščina) Skladno z določili direktive Evropske unije (“EU”) o odpadni električni in elektronski opremi, Direktiva 2002/96/ES, ki je veljavna od 13. avgusta, izdelkov “električne in elektronske opreme” ni dovoljeno odstranjevati kot običajne komunalne odpadke, proizvajalci zadevne elektronske opreme pa so zavezani, da tovrstne izdelke na koncu njihove življenjske dobe sprejmejo nazaj.
xi
Preface
(Danish) (Dansk) I henhold til direktiv fra den europæiske union (EU) vedrørende elektrisk og elektronisk affald , Direktiv 2002/96/EC, som træder i kraft den 13. august 2005, må produkter som “elektrisk og elektronisk udstyr” ikke mere bortskaffes som kommunalt affald. Producenter af det pågældende, elektroniske udstyr vil være forpligtet til at tage disse produkter tilbage ved afslutningen på produkternes levetid.
(Norwegian) (Norsk) Under den europeiske unionens (“EU”) direktiv om deponering av elektronisk og elektrisk utstyr, direktiv 2002/96/EC, som trer i effekt 13. august 2005, kan ikke produkter av “elektronisk og elektrisk ustyr” lenger deponeres som husholdningsavfall og fabrikantene av disse produktene er forpliktet å ta tilbake slike produkter ved slutten av produktets levetid.
(Bulgarian) (български) Според директивата на Европейския съюз относно отпадъците от електрическо и електронно оборудване, директива 2002/96/EC, важаща от 13 август, 2005 г., електрическо и електронно оборудване не може да се изхвърля заедно с битовите отпадъци и производителите на такова оборудване са задължени да приемат обратно съответните продукти в края на експлоатационния им период.
(Croatian) (Hrvatski) U okviru Direktive Europske Unije (“EU”) o Otpadnim električnim i elektroničkim uređajima, Direktiva 2002/96/EC, koja je na snazi od 13. kolovoza 2005., “električni i elektronički uređaji” se ne smiju više bacati zajedno s kućnim otpadom i proizvođači su obvezni zbrinuti takve proizvode na kraju njihovog životnog vijeka.
(Estonia) (Eesti) Vastavalt Euroopa Liidu (“EL”) direktiivile 2002/96/EÜ (elektrija elektroonikaseadmete jäätmete kohta), mis jõustus 13. augustil 2005, on keelatud kodumajapidamiste “elektrija elektroonikaseadmete” jäätmete hävitamine koos majapidamisjäätmetega, ja elektrija elektroonikaseadmete tootjad on kohustatud sellised tooted pärast nende kasutuselt kõrvaldamist tagasi võtma.
xii
Chapter 1
Wind Top AE2040 is integrated in design, selecting a stylish appearance with a glassy frame, which displays the simplicity of modern individualism and the comfort of home. Furthermore, it is accompanied with the best computer features, such as instant message, low acoustics, energy saving, and 802.11 b/g/n wireless internet capability so you may roam freely in the realm of cyberspace.
Overview
Wind Top Series |
AC/DC Adapter |
AC Power Cord |
LCD Display Wiper |
Driver/Utility Disk |
User Manual & |
|
Quick Guide |
|||
|
|
Keyboard (Optional) |
Mouse (Optional) |
Stylus (Optional) |
*Please contact us immediately if any of the items is damaged or missing.
*The picture is for your reference only and your packing contents may slightly vary depending on the model you purchased.
1-2
MS-AA16
Front
View
2
1 |
3 |
4
1Microphone
The built-in microphone can be used for video chatting online.
2Webcam
The built-in webcam with the microphone can be used for picture taking, video recoding, online conferencing and any other interactive applications.
3IR Receiver (Optional)
This infrared receiver is provided for remote control.
4LCD Display
The 20-inch TFT LCD display is with an optimal resolution of 1600 X 900 and standard proportion of 16:9 widescreen.
1-3
Overview
Rear View |
|
|
|
|
|
|
|
|
|
|
1 |
1 |
|
|
|
|
2 |
4 |
|
|
|
|
3 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
15 |
|
|
|
|
|
|
|
8 |
12 14 |
|
|
|
|
|
13 |
6 |
7 |
8 |
9 |
10 |
11 |
Important |
|
|
|
|
|

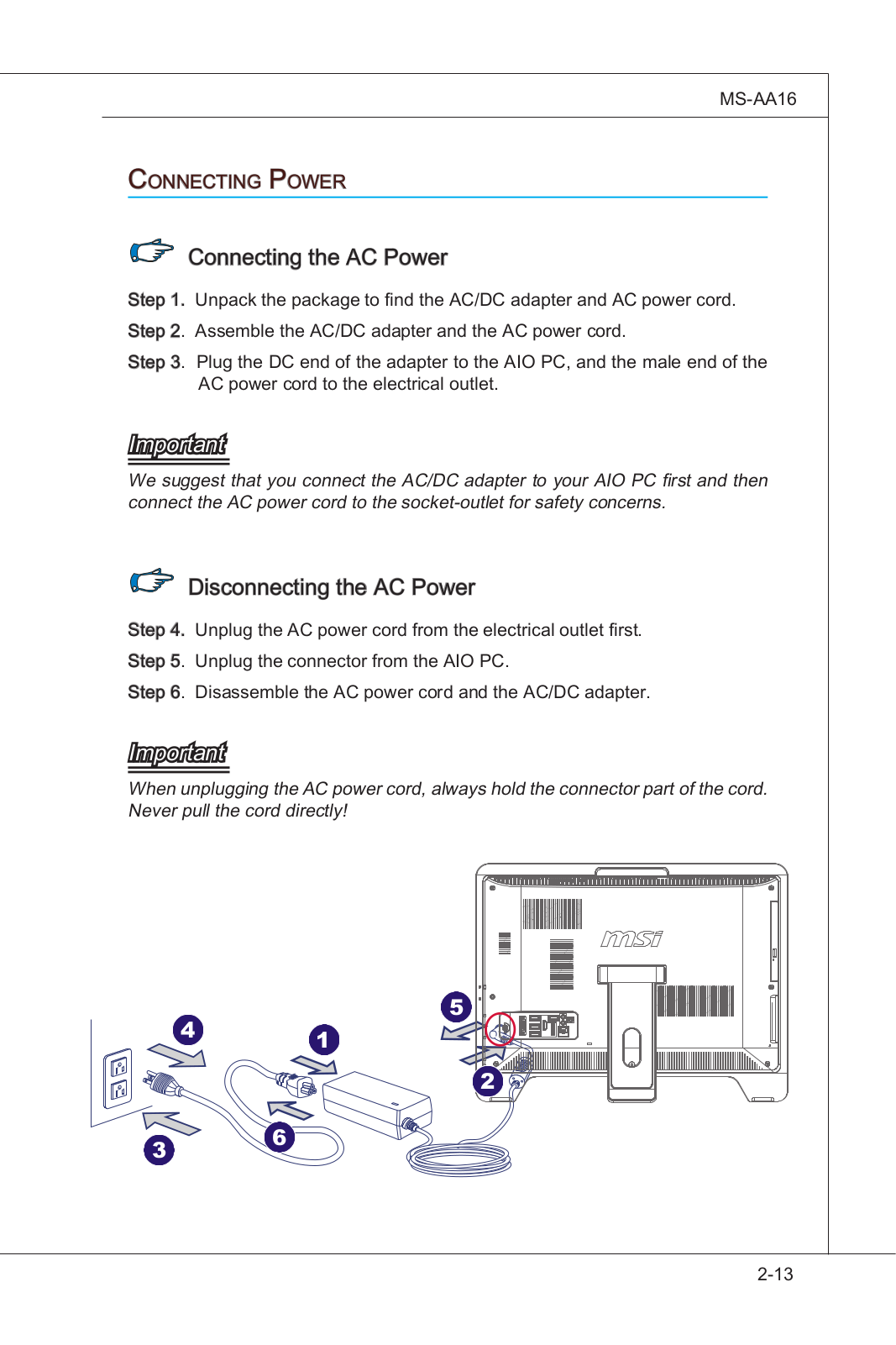

We suggest that you connect the AC/DC adapter to your AIO PC first and then con- |
|||||
nect the AC power cord to the socket-outlet for safety concerns. |
|||||
1-4 |
|
|
|
|
|
MS-AA16
1Ventilator
The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.
2Optical Disk Drive
A DVD Super-Multi drive is integrated for your home entertainment. (Blu-ray is optional.)
3Card Reader Drive
The built-in card reader may support various types of memory card, such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC (Multi-Media Card) cards that usually used in devices like digital cameras, MP3 players, mobile phones and PDAs. Contact the local dealer for further information and please be noted that the supported memory cards may vary without notice.
4Stand
Use this stand to position your system on a flat and stable surface.
5Cable Routing Hole
Route the cables through the cable routing hole to avoid cable spaghetti when connecting devices.
6Power Jack
The AC/DC adapter converts AC power to DC power for this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.
7VGA-In Port (Optional)
The DB15-pin female connector is provided for VGA-interface device.
8USB Port
The USB (Universal Serial Bus) port is provided for attaching USB devices such as mouse, keyboard, printer, scanner, camera, PDA or other USB-compatible devices.
1-5
Overview

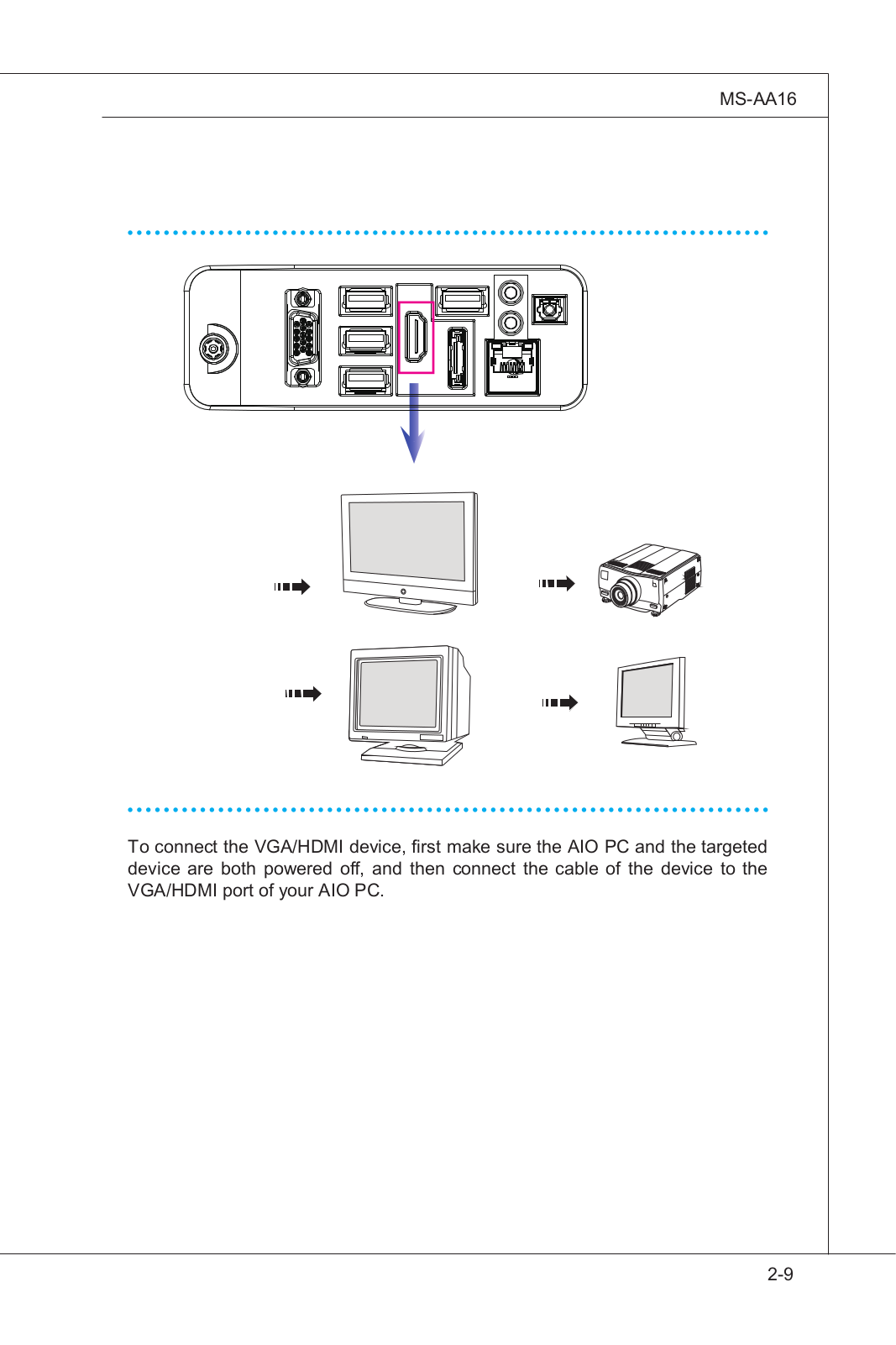

9HDMI-Out Port (Optional)
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams. HDMI supports all TV format, including standard, enhanced, or highdefinition video, plus multi-channel digital audio on a single cable.

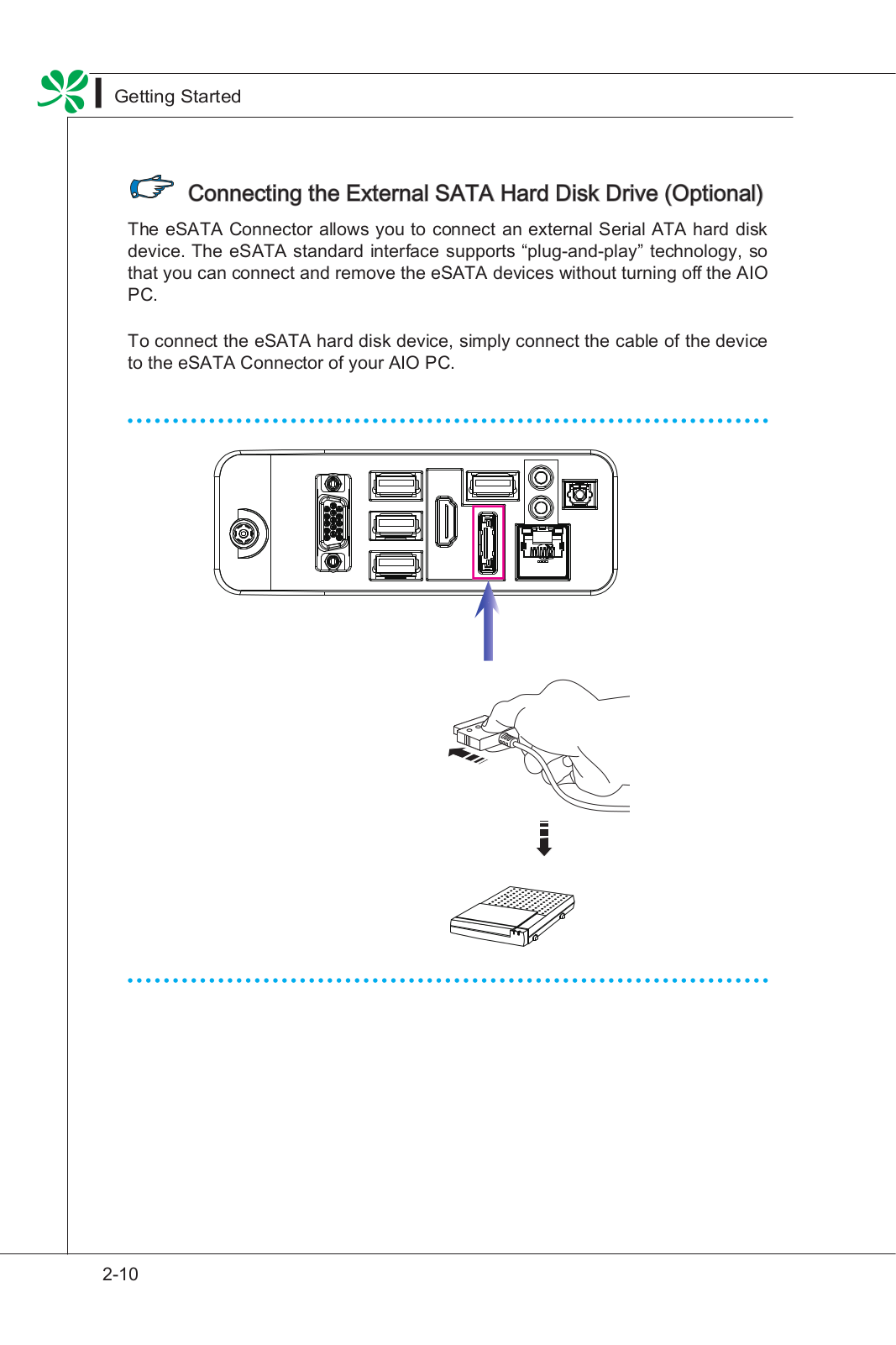

10eSATA Port (Optional)
The eSATA (External-SATA) port is provided for eSATA hard disk drives.

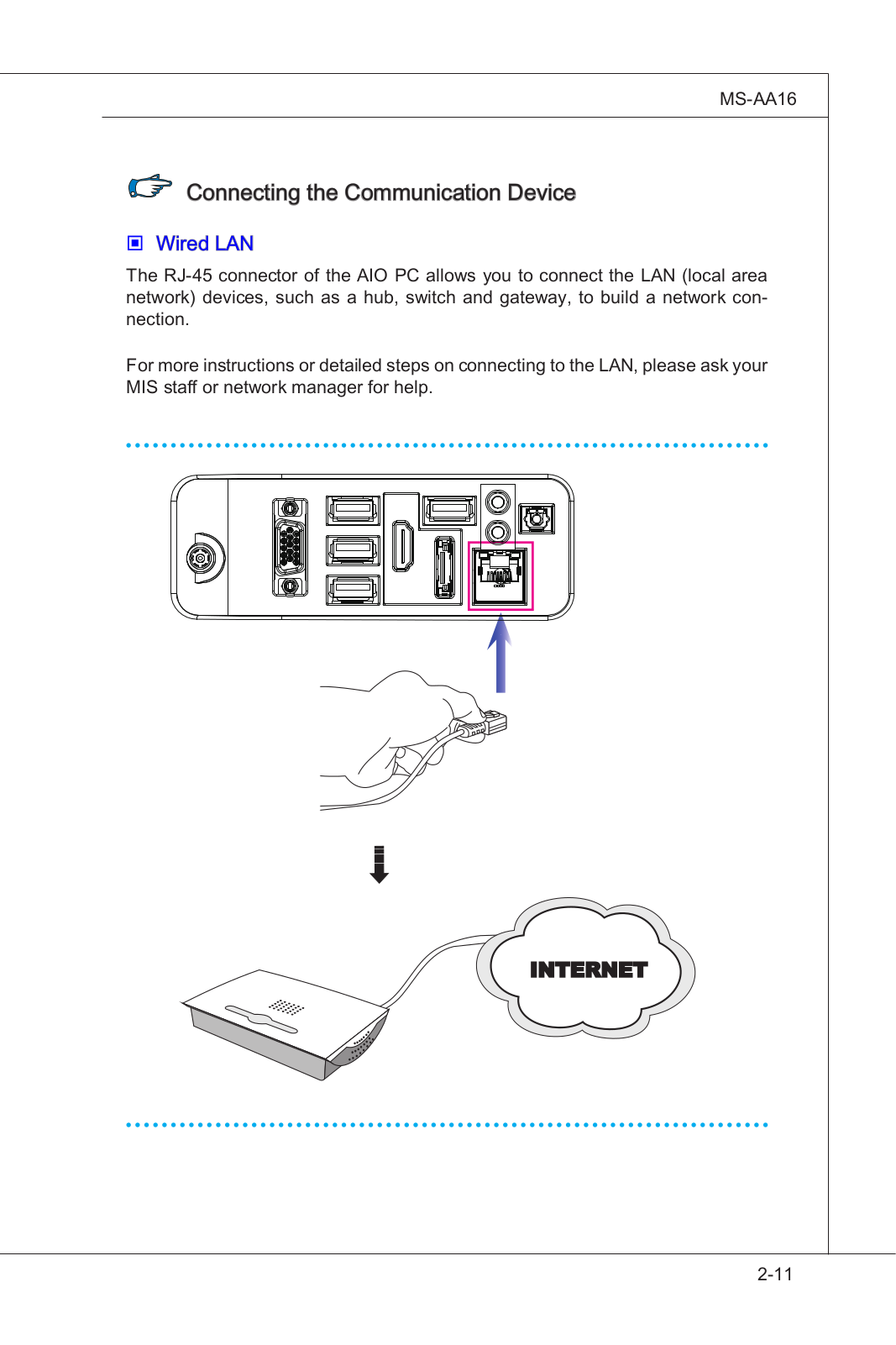

11RJ-45 LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it.
|
|
Yellow |
|
|
|
|
Green/ Orange |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
LED |
Color |
LED State |
|
Condition |
|||
|
|
|
|
|
|||
Left |
Yellow |
Off |
|
LAN link is not established. |
|||
|
|
|
|
|
|||
|
|
On (steady state) |
|
LAN link is established. |
|||
|
|
|
|
|
|||
|
|
On (brighter & pulsing) |
|
The computer is communicating with |
|||
|
|
|
|
|
|
another computer on the LAN. |
|
|
|
|
|
|
|||
Right |
Green |
Off |
|
10 Mbit/sec data rate is selected. |
|||
|
|
|
|
|
|||
|
|
On |
|
100 Mbit/sec data rate is selected. |
|||
|
|
|
|
|
|||
|
Orange |
On |
|
1000 Mbit/sec data rate is selected. |
|||
|
|
|
|
|
|
|
|
12Headphone Jack (Green)
This connector is provided for headphones or speakers.
13Microphone Jack (Pink)
This connector is provided for microphones.
14Optical S/PDIF
-Out Jack (Optional)
This S/PDIF (Sony & Philips Digital Interconnect Format) jack is provided for digital audio transmission to external speakers through an optical fiber cable.
15Stereo Speakers
The built-in stereo speakers deliver high quality sound blaster with stereo system and Hi-Fi function supported.
1-6
MS-AA16
Side View
1 |
|
6 |
|
2 |
|
||
|
|
||
3 |
|
7 |
|
|
|
||
4 |
|
8 |
|
5 |
9 |
||
10 |
|||
|
11 |
||
|
12 |
|
1Optical Disk Drive
A DVD Super-Multi drive is integrated for your home entertainment. (Blu-ray is optional.)
2Eject Button
Press the eject button to open the optical disk drive.
3Eject Hole
Insert a thin, straight object (such as a paper clip) into the eject hole to open the optical disk drive manually if the eject button does not work.
4Card Reader Drive
The built-in card reader may support various types of memory card, such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC (Multi-Media Card) cards that usually used in devices like digital cameras, MP3 players, mobile phones and PDAs. Contact the local dealer for further information and please be noted that the supported memory cards may vary without notice.
1-7
Overview
5USB Ports
The USB (Universal Serial Bus) port is provided for attaching USB devices such as mouse, keyboard, printer, scanner, camera, PDA or other USB-compatible devices.
6Ventilator
The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator.
7System Power Button/LED
Press the system power button to turn the system on or off.
The power LED glows when the system is turned on and goes off when the system is shut down.

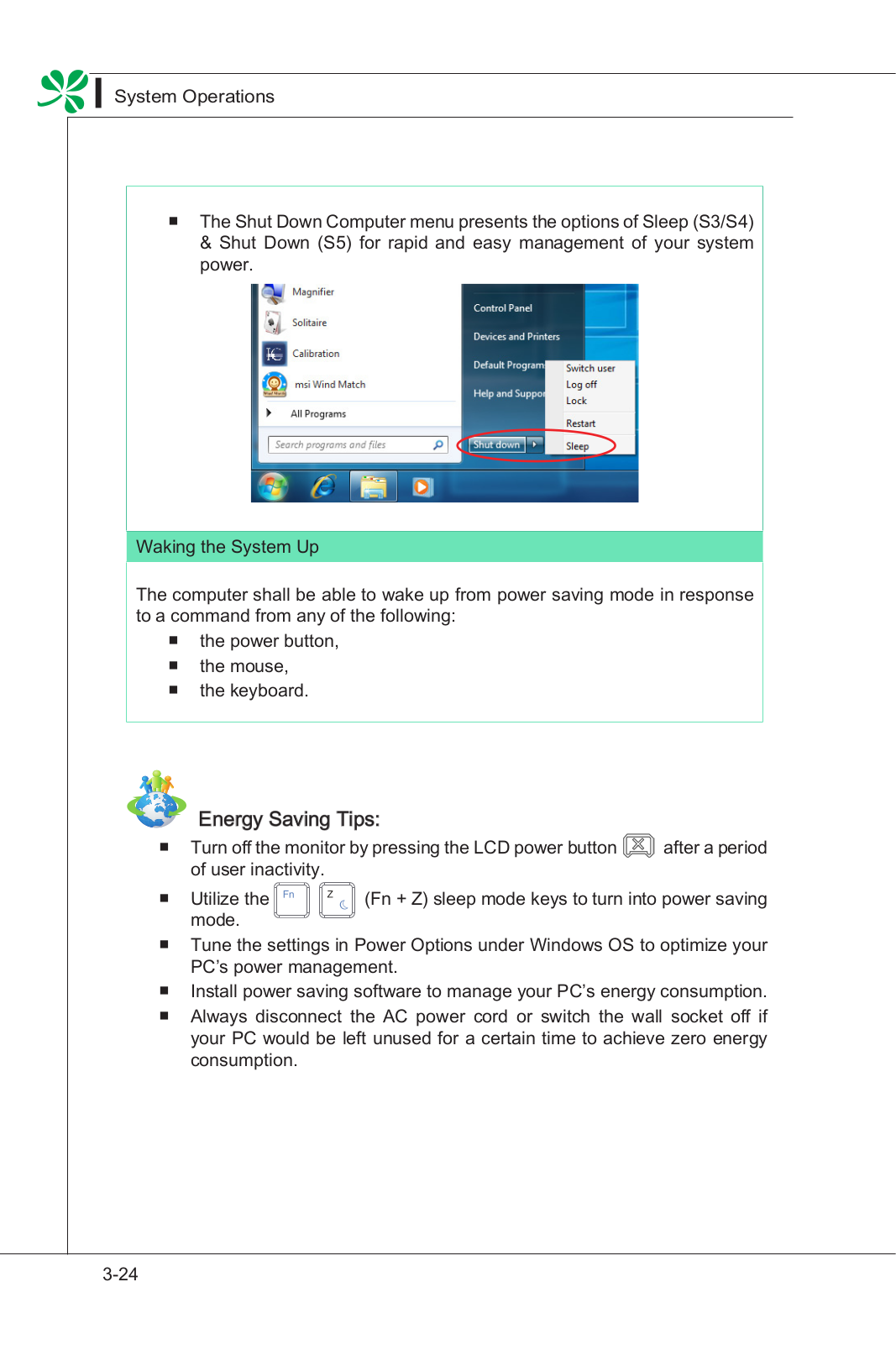

In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode. Pressing the system power button will wake the system up from power saving mode.

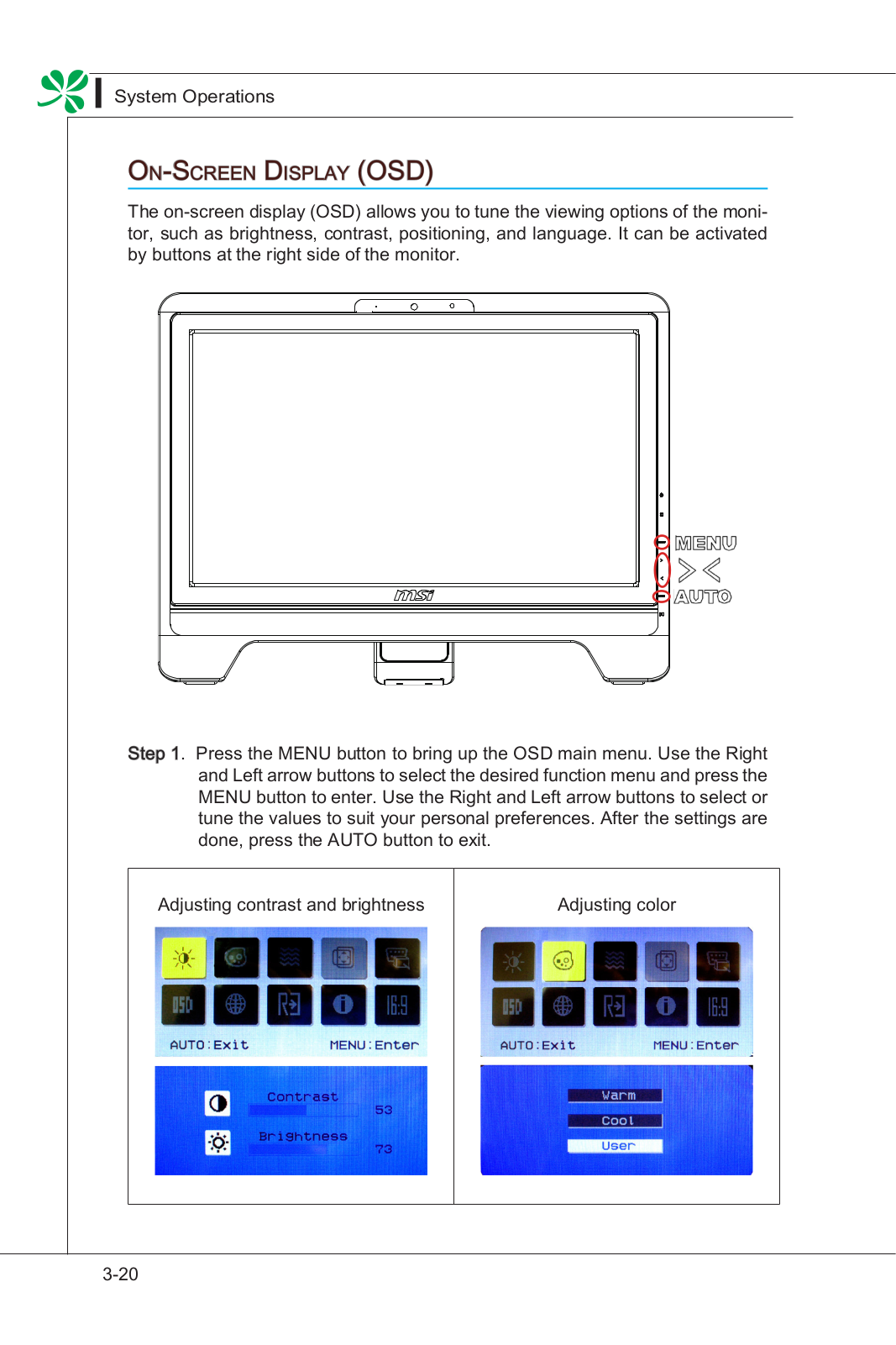

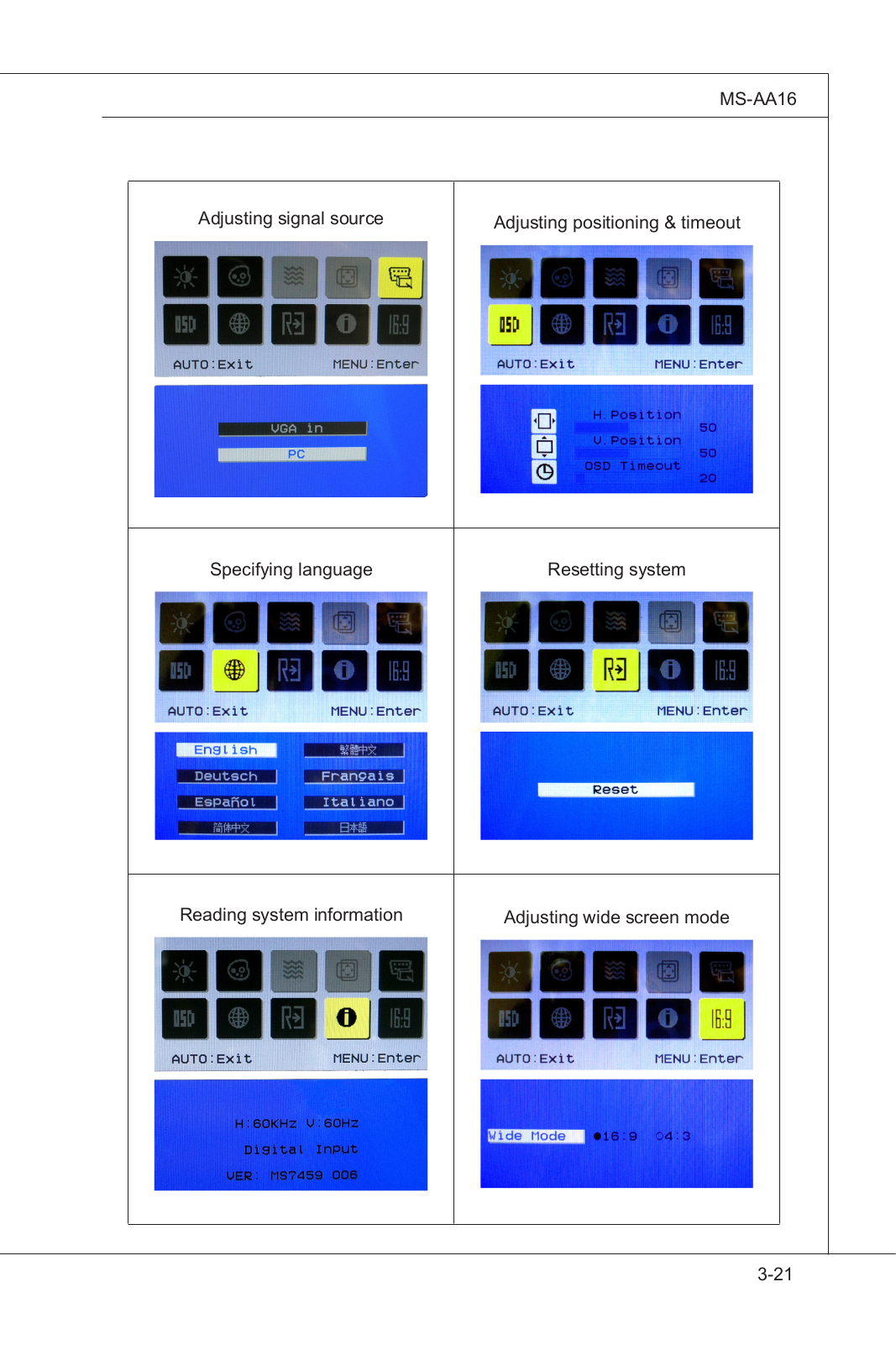

8MENU Button
Press this button to view the OSD menu or enter into the submenu.
9Right Button
This button indicates the cursor movement or OSD manual selection in incremental values.
10Left Button
This button indicates the cursor movement or OSD manual selection in decremental values.

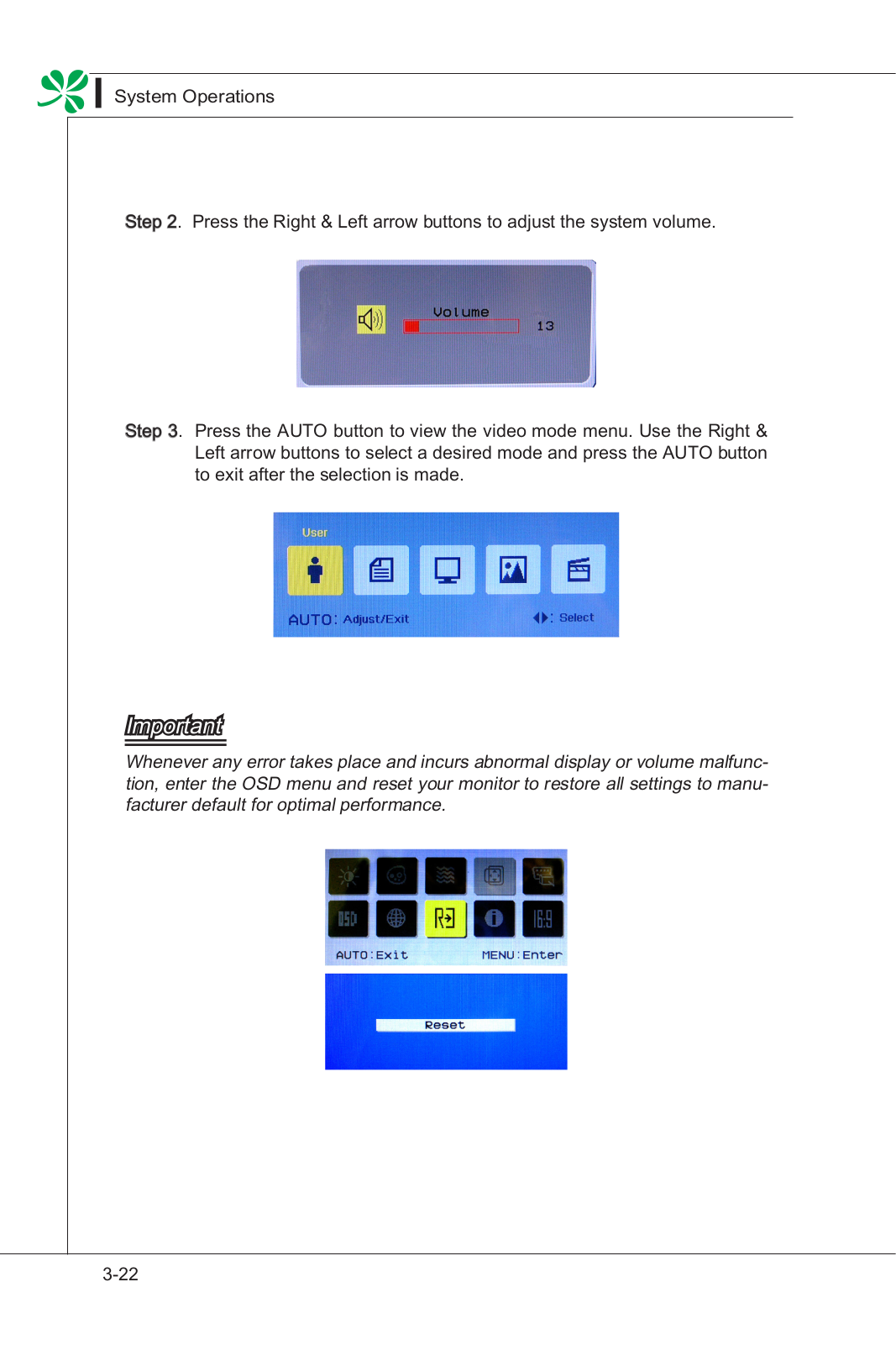

11AUTO Button
Press this button to view the video mode menu or exit the submenu.
12LCD Power Button
Press this button to power ON/OFF the monitor.
1-8
MS-AA16
Processor
■ Intel® Core™ i series processor
Chipset
■ Intel® HM55 chipset
Memory
■2 DDR3 SO-DIMM slots
■Supports the maximum of 4GB
LAN
■Wired LAN: supported by Realtek® RTL8111DL Gigabit Ethernet controller
■Wireless LAN: optionally supported through Mini PCI-E WLAN module
Audio
■HDA Codec by Realtek® ALCxxx series
■Compliant with Azalia 1.0 specs
Display
■20-inch TFT LCD display with an optimal resolution of 1600 X 900 and standard proportion of 16:9 widescreen
Rear Panel I/O
■1 DC power jack
■1 VGA-In port (optional)

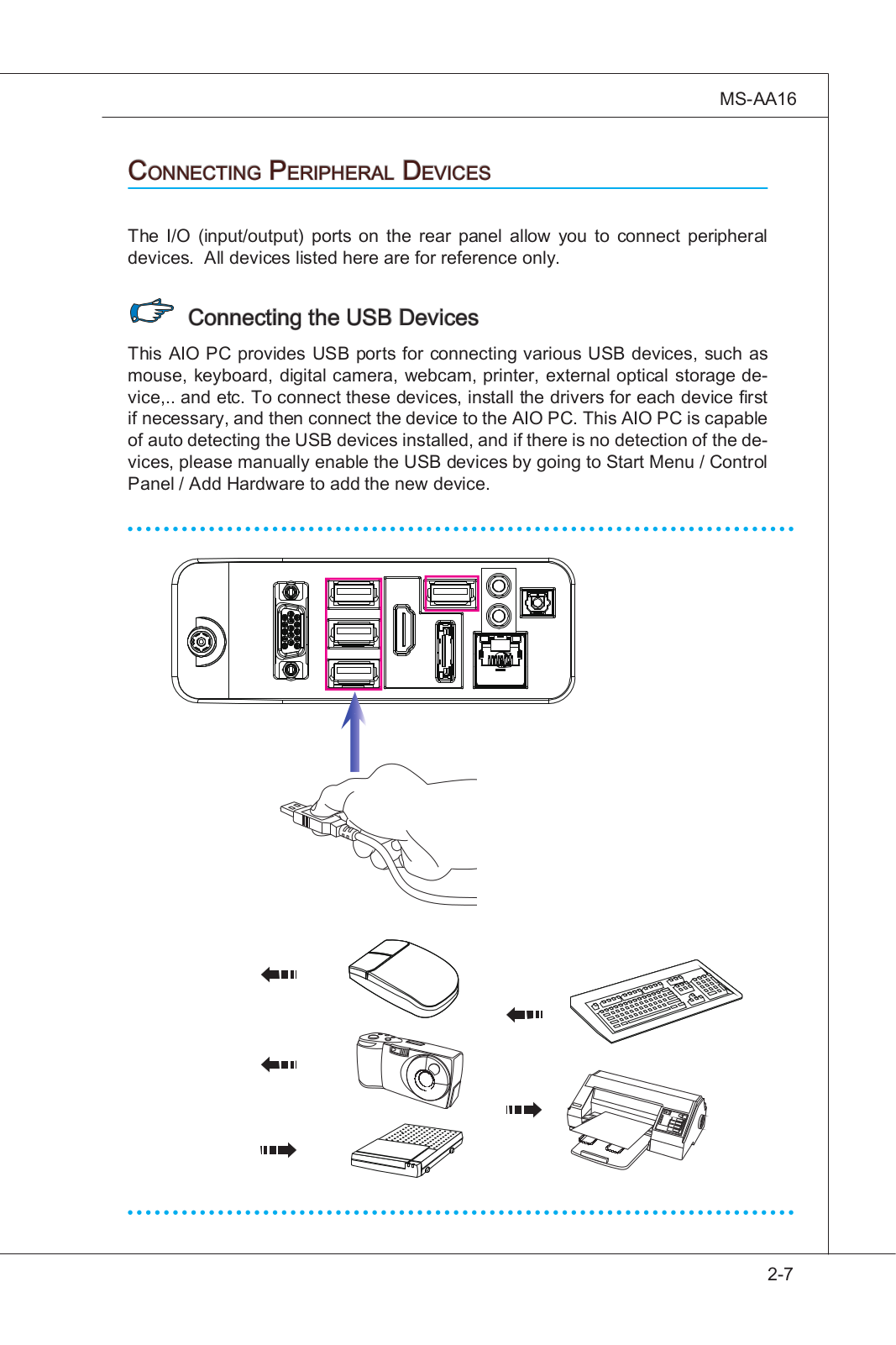

■4 USB ports
■1 HDMI-Out port (optional)
■1 eSATA port (optional)
■1 RJ-45 LAN jack
■1 microphone jack
■1 headphone/speaker jack
■1 optical S/PDIF-Out jack (optional)
Storage
■Hard Disk Drive: 3.5”, SATAII
■Optical Disk Drive: Slim DVD Super Multi (Blu-ray is optional)
■Card Reader: 4 in 1 (XD, SD, MMC, MS)
Stereo Speaker
■ 2 Hi-Fi stereo speakers with SRS Premium Sound (3W)
WebCam
■ 1.3M WebCam with microphone
Power Supply
■90~120 watt AC/ DC adapter with active PFC
■Input: 100-240V~, 50-60Hz, 1.5A
■Output: 19V 4.74A
1-9
