MSI MS-98E6 User Manual

Download

Page 1

MS-98E6

(v1.x) Industrial Computer Board

Page 2

Preface MS-98E6

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.

Revision History

Revision Date

V1.1 2018/ 01

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Visit the MSI website for technical guide, BIOS updates, driver updates and other

information, or contact our technical sta󰘯 via http://www.msi.com/support/

Page 3

iii

Safety Instructions

￭ Always read the safety instructions carefully. ￭ Keep this User’s Manual for future reference. ￭ Keep this equipment away from humidity. ￭ Lay this equipment on a reliable at surface before setting it up. ￭ The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

￭ Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

￭ Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

￭ Always Unplug the Power Cord before inserting any add-on card or mod-

ule.

￭ All cautions and warnings on the equipment should be noted. ￭ Never pour any liquid into the opening that could damage or cause electrical

shock.

￭ If any of the following situations arises, get the equipment checked by ser-

vice personnel:

◯ The power cord or plug is damaged. ◯ Liquid has penetrated into the equipment. ◯ The equipment has been exposed to moisture. ◯ The equipment does not work well or you can not get it work according

to User’s Manual.

◯ The equipment has dropped and damaged. ◯ The equipment has obvious sign of breakage.

￭ DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDI-

TIONED, STORAGE TEMPERATURE ABOVE 60oC (140oF), IT MAY DAMAGE THE EQUIPMENT.

警告使用者: 這是甲類資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在這種情

況下，使用者會被要求採取某些適當的對策。

Page 4

Preface MS-98E6

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the

Council), MSI provides the information of chemical substances in products at: http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

廢電池請回收

Taiwan:

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.

For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Page 5

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

FCC-A Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference that

may cause undesired operation.

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

Page 6

Preface MS-98E6

CONTENTS

Trademarks ................................................................................................... ii

Revision History ............................................................................................ ii

Technical Support .......................................................................................... ii

Safety Instructions .........................................................................................iii

Chemical Substances Information ............................................................... iv

Battery Information ....................................................................................... iv

CE Conformity ............................................................................................... v

FCC-A Radio Frequency Interference Statement ......................................... v

WEEE Statement .......................................................................................... v

Overview............................................................................................1-1

Motherboard Specications ........................................................................1-2

Motherboard Layout ................................................................................... 1-4

Rear Panel I/O Options .............................................................................. 1-6

Hardware Setup ................................................................................2-1

Memory ......................................................................................................2-3

Power Supply ............................................................................................. 2-4

Rear Panel I/O ...........................................................................................2-5

Connector ...................................................................................................2-6

Jumper .....................................................................................................2-10

Slot ........................................................................................................... 2-12

BIOS Setup ........................................................................................3-1

Entering Setup ...........................................................................................3-2

The Menu Bar ............................................................................................3-4

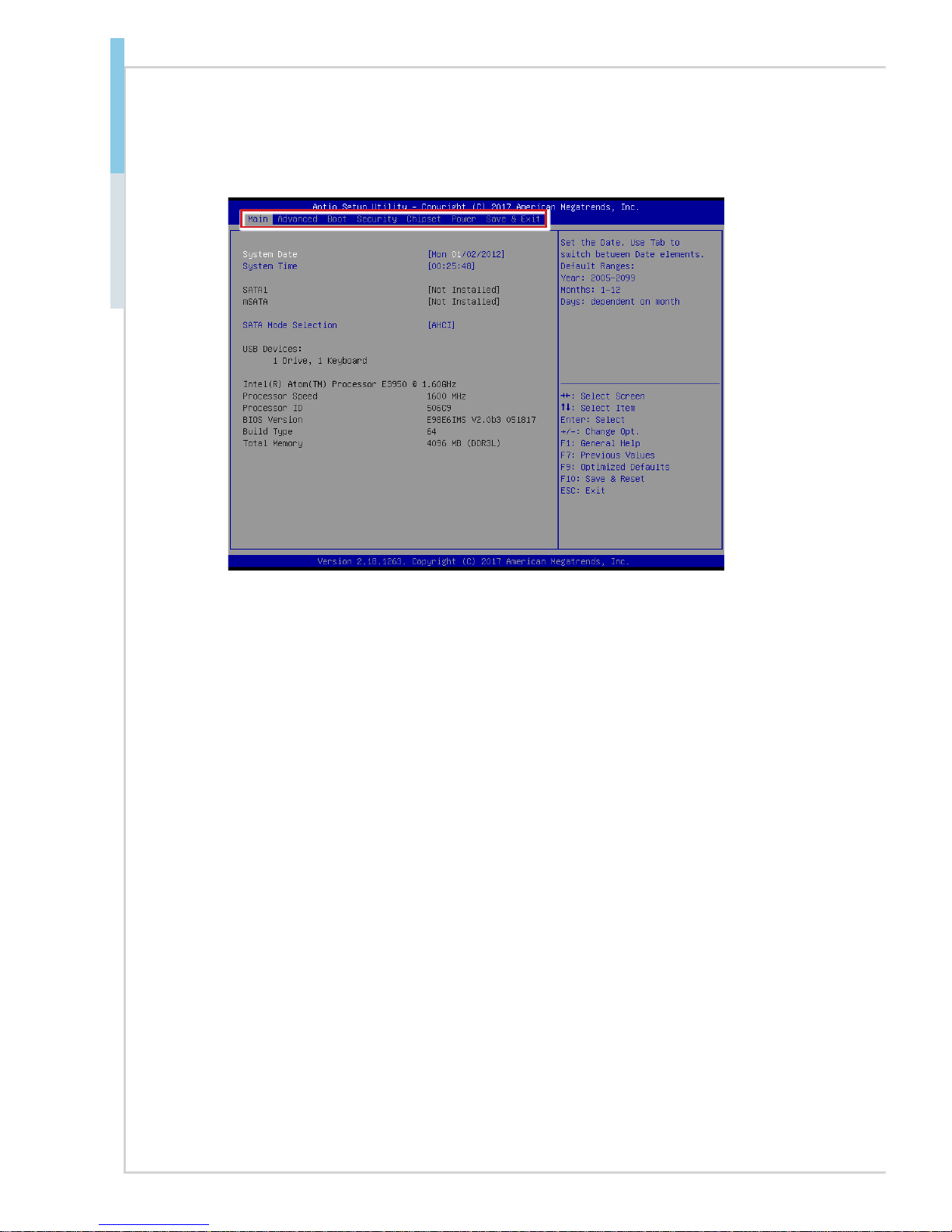

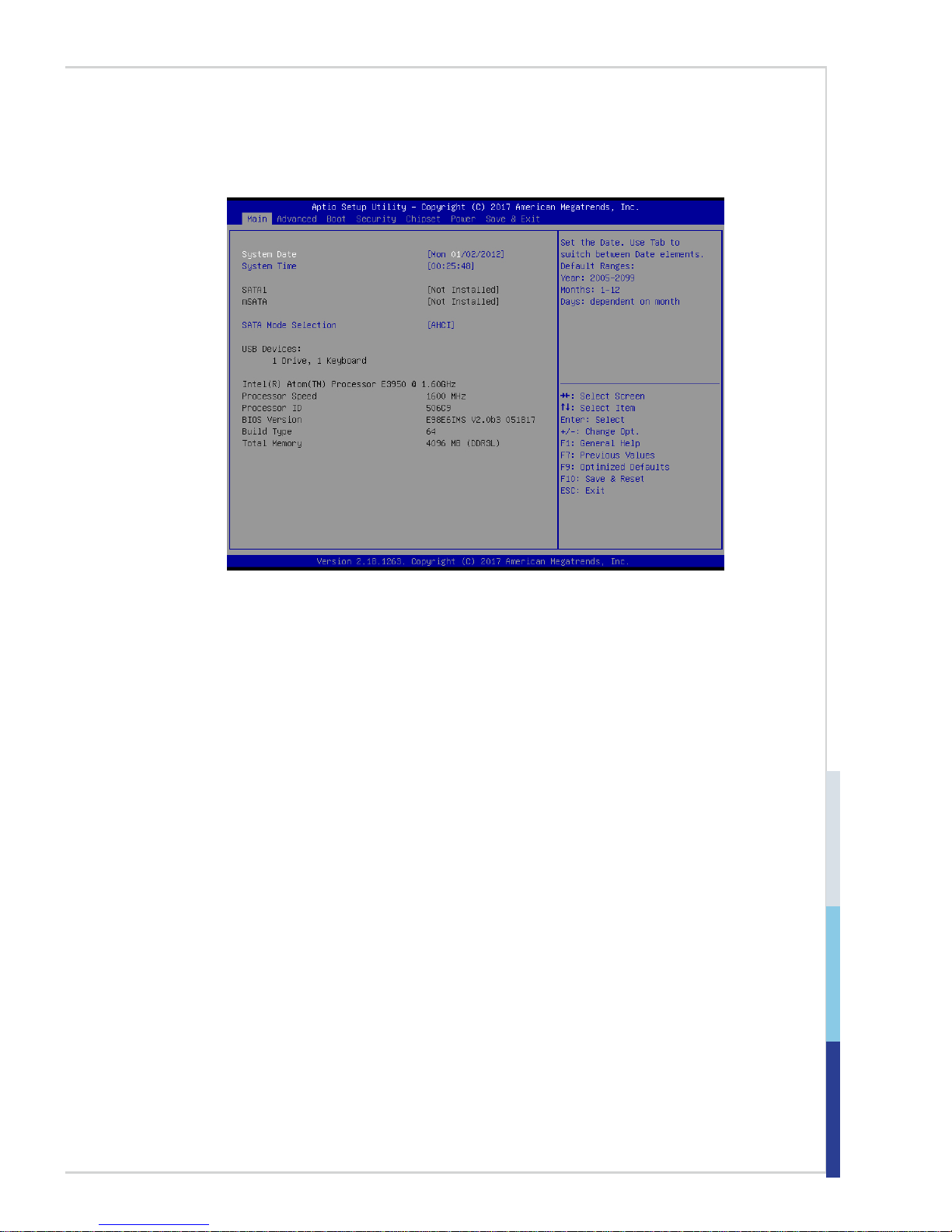

Main ...........................................................................................................3-5

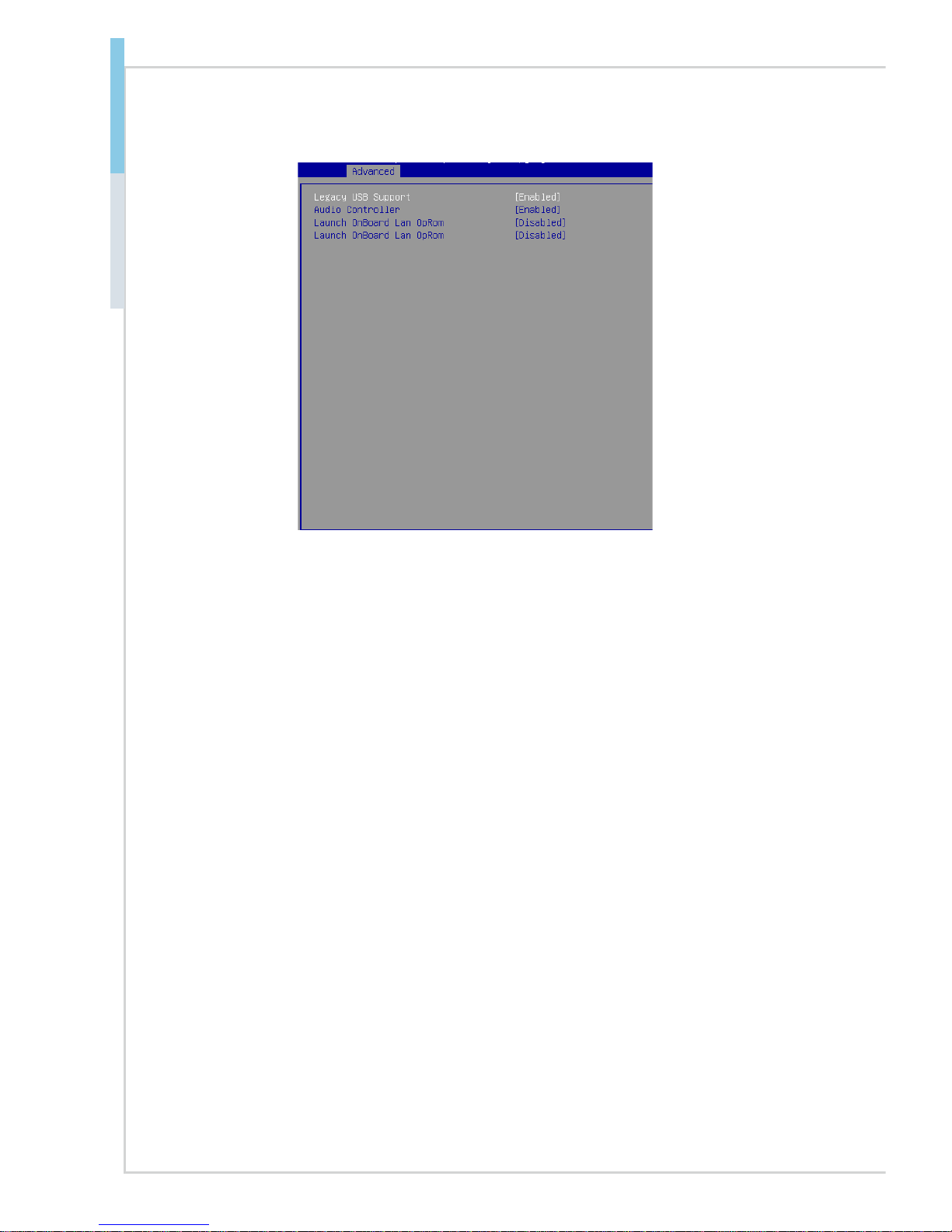

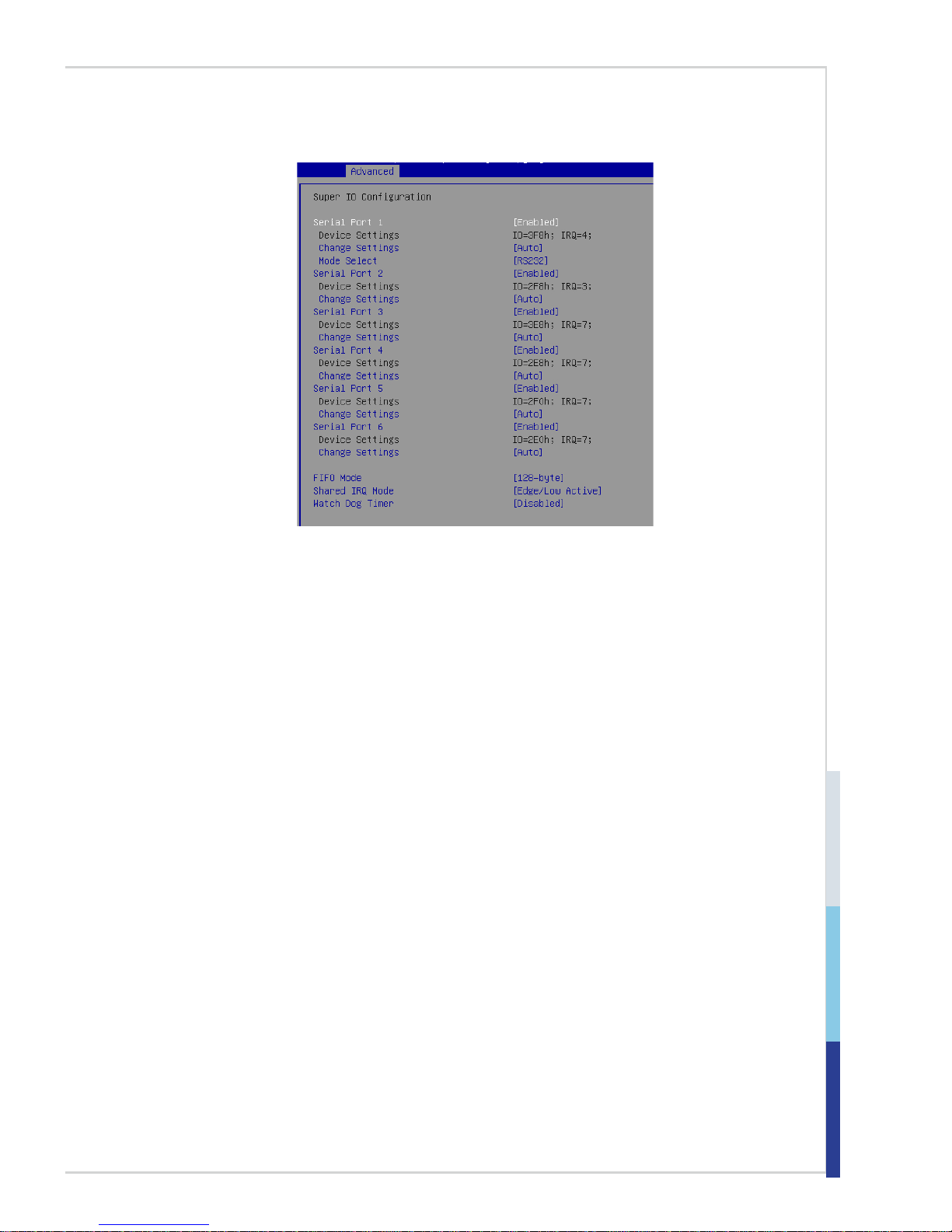

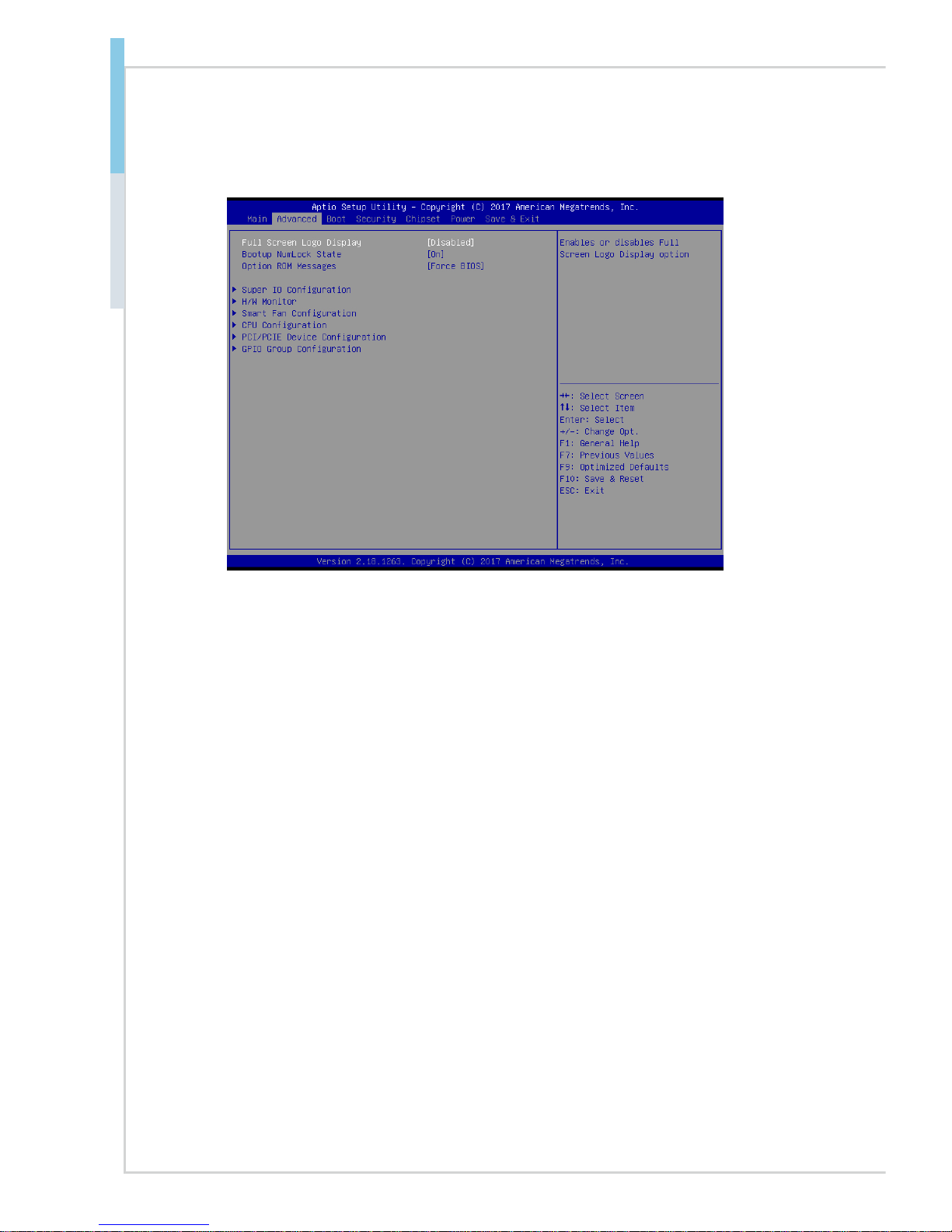

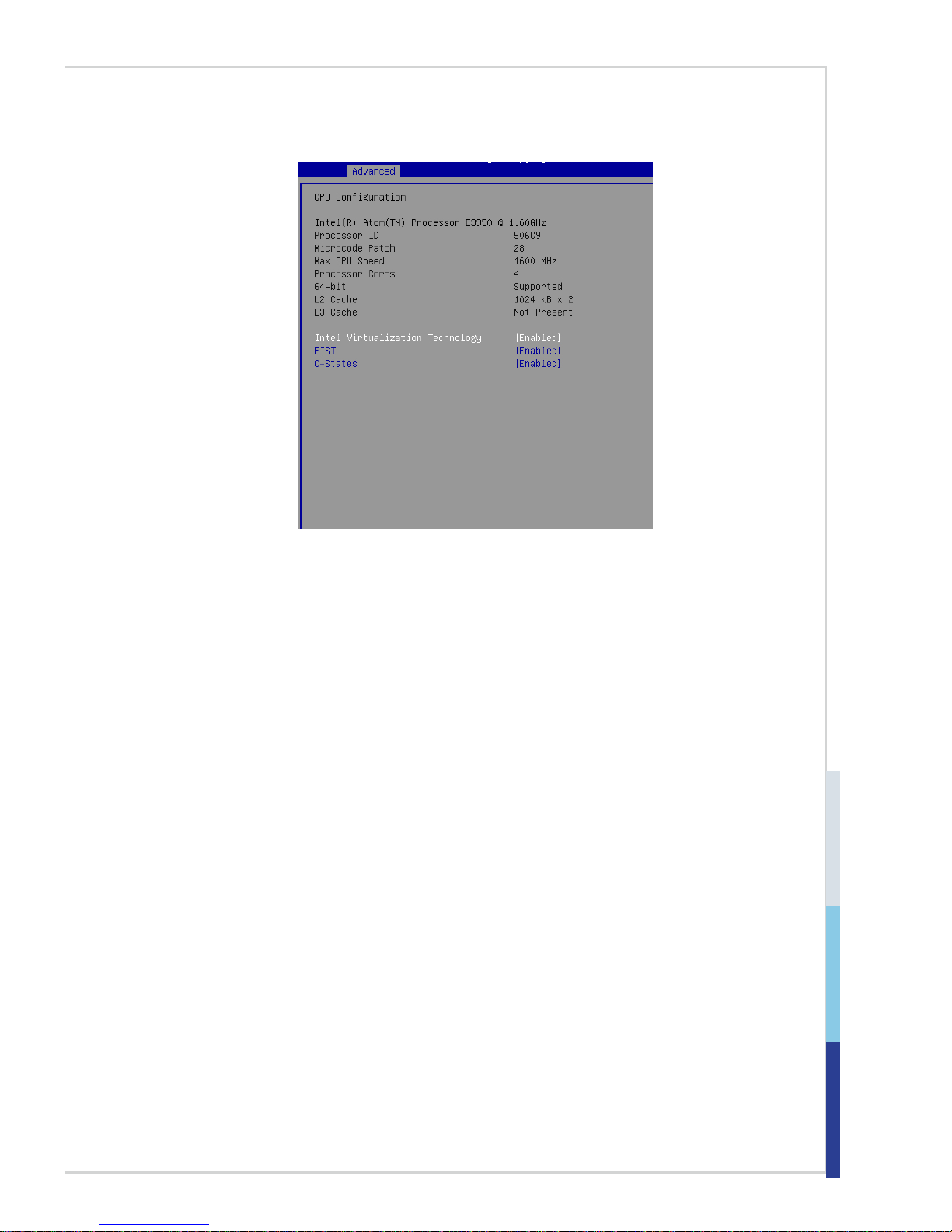

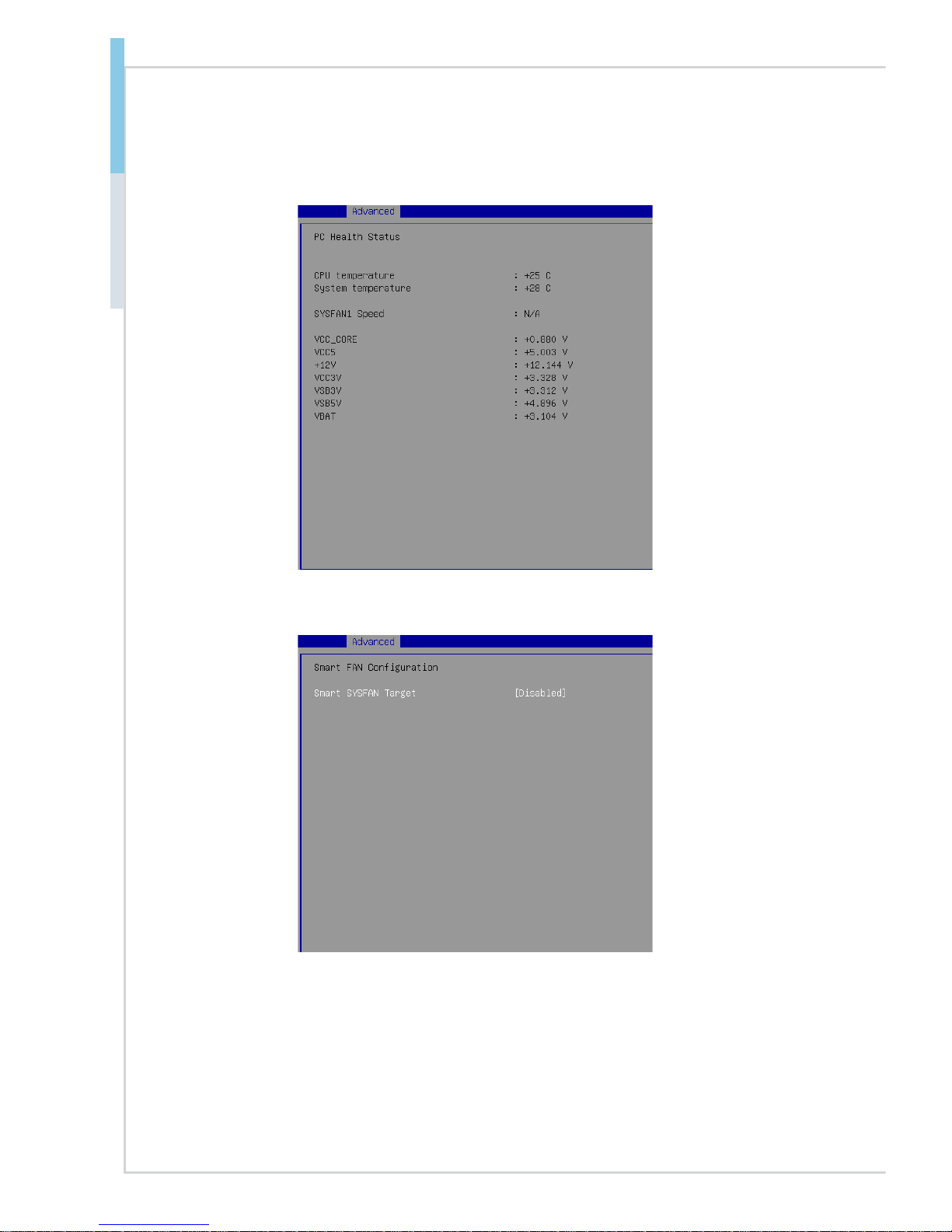

Advanced ...................................................................................................3-6

Boot .......................................................................................................... 3-12

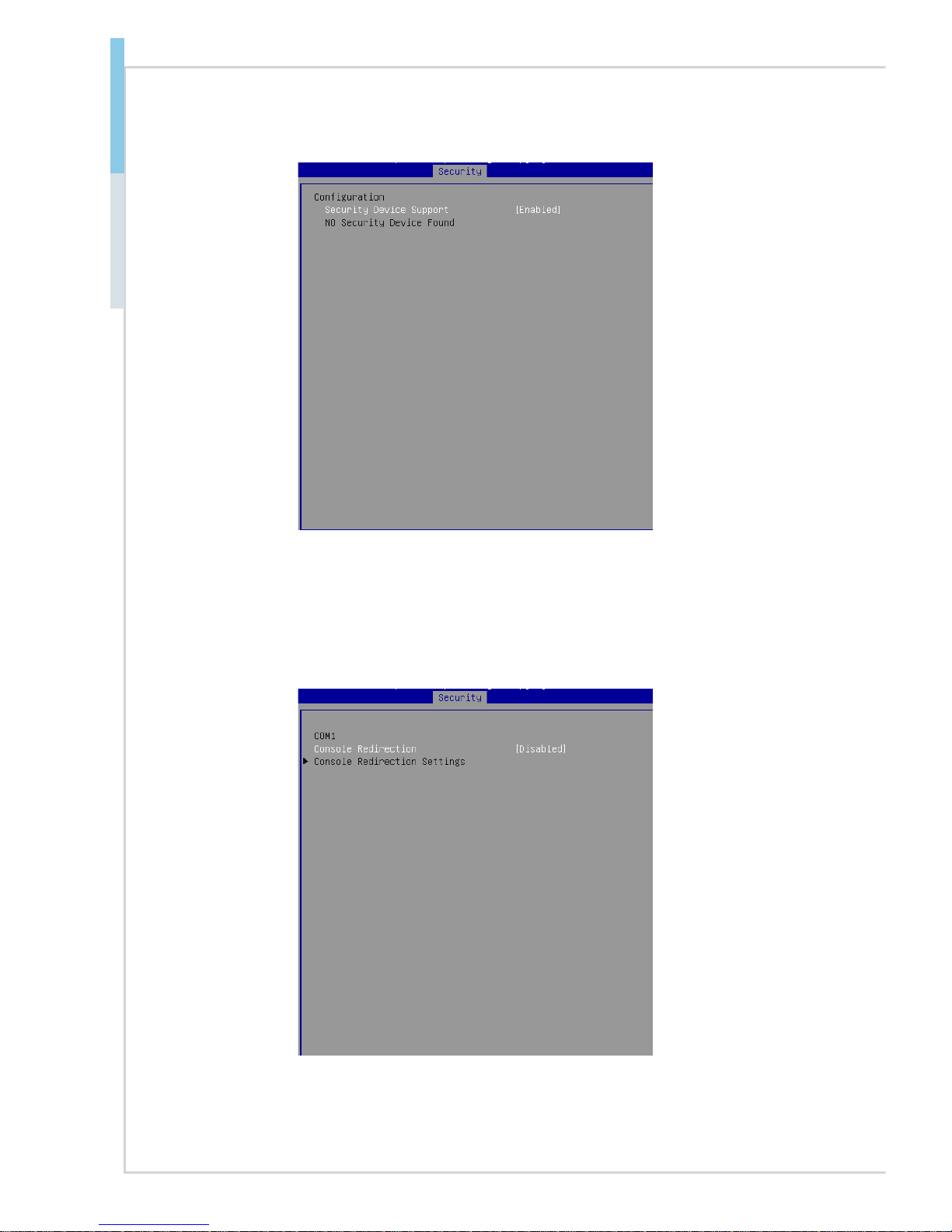

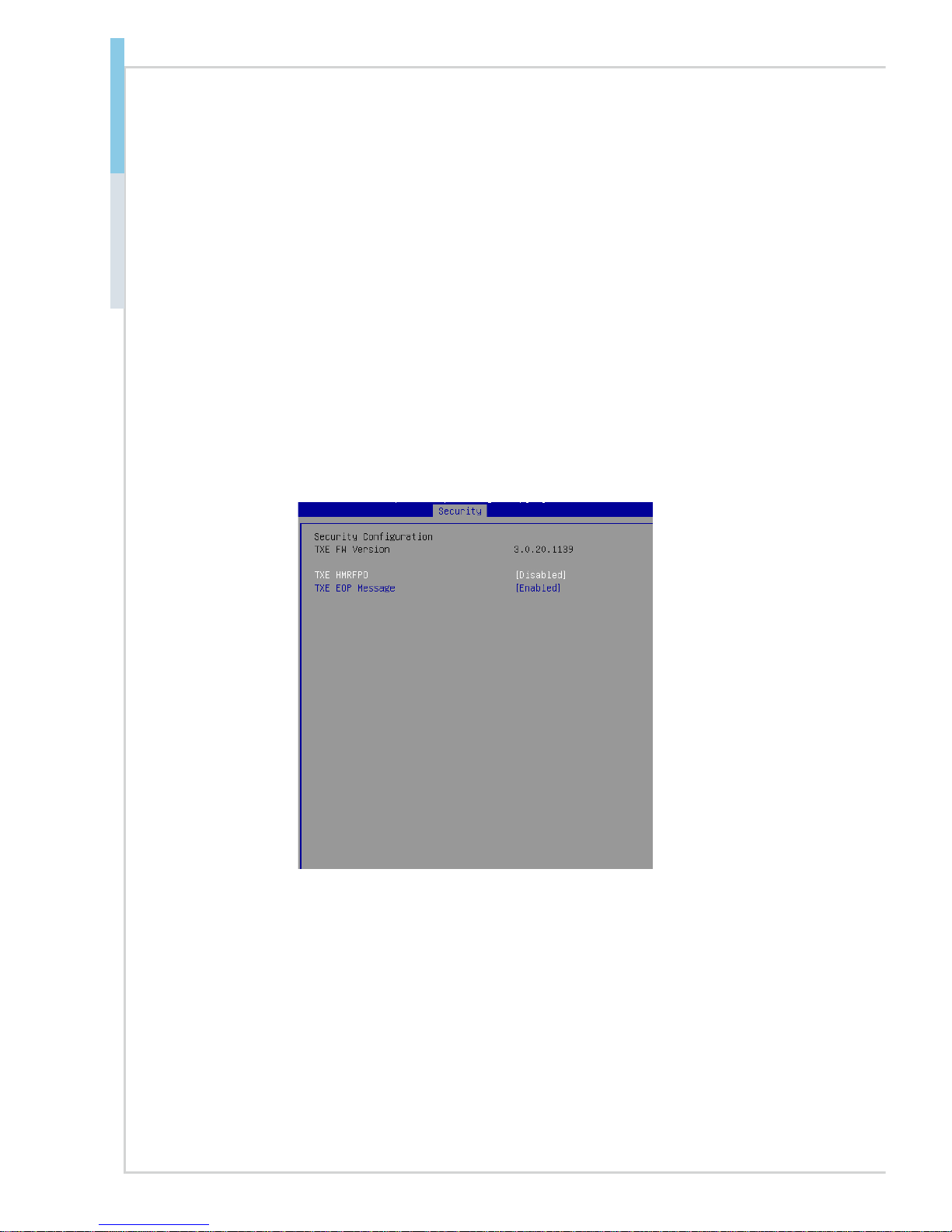

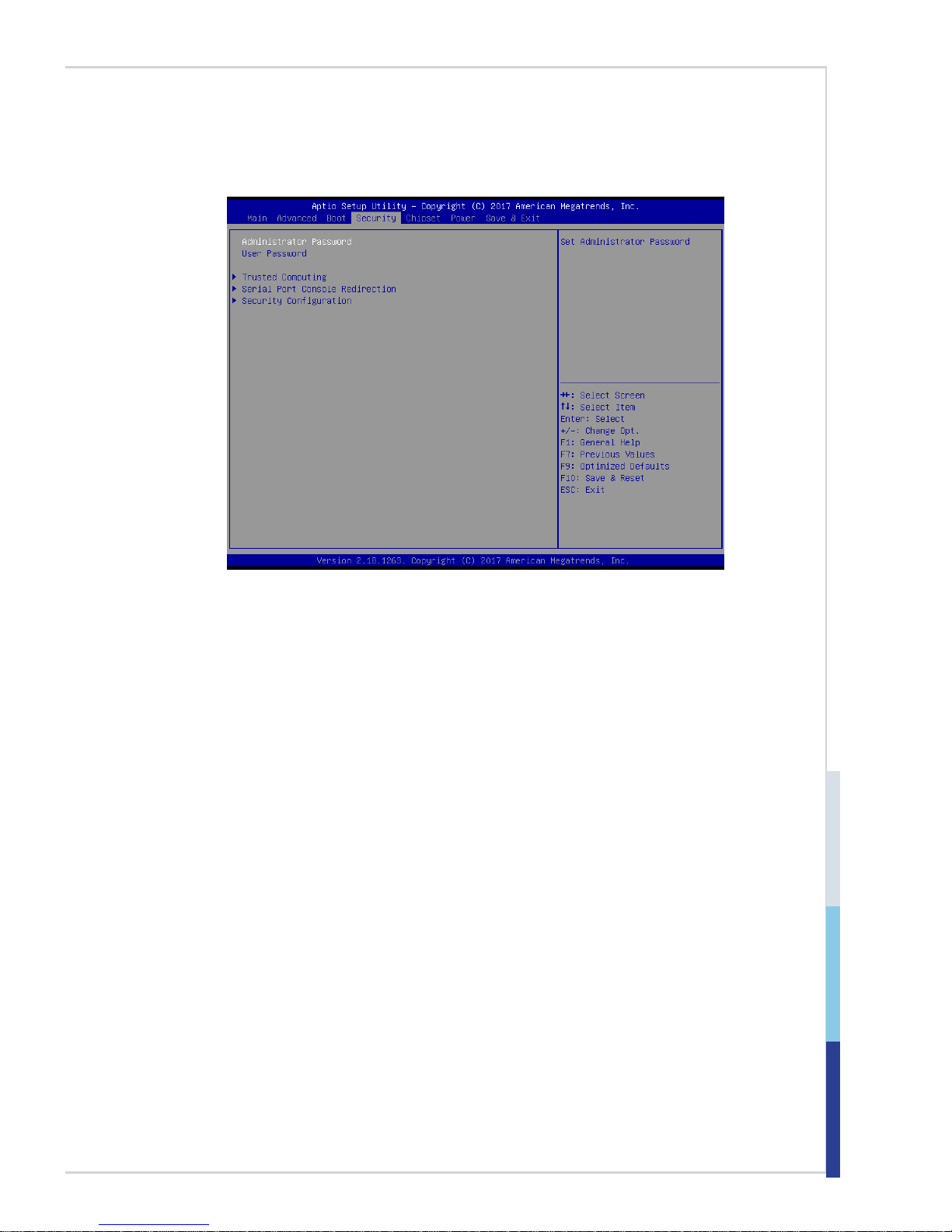

Security ....................................................................................................3-13

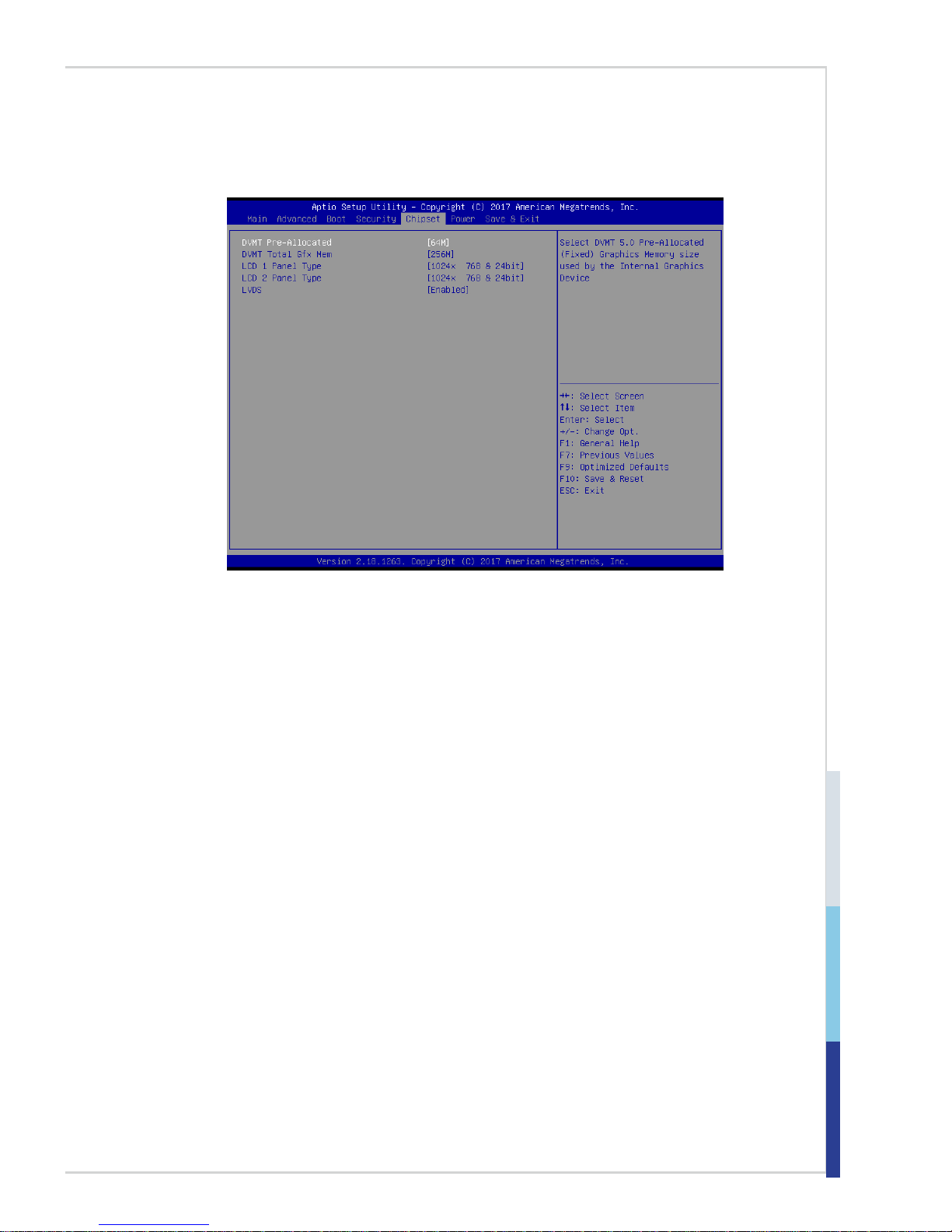

Chipset ..................................................................................................... 3-17

Power ....................................................................................................... 3-18

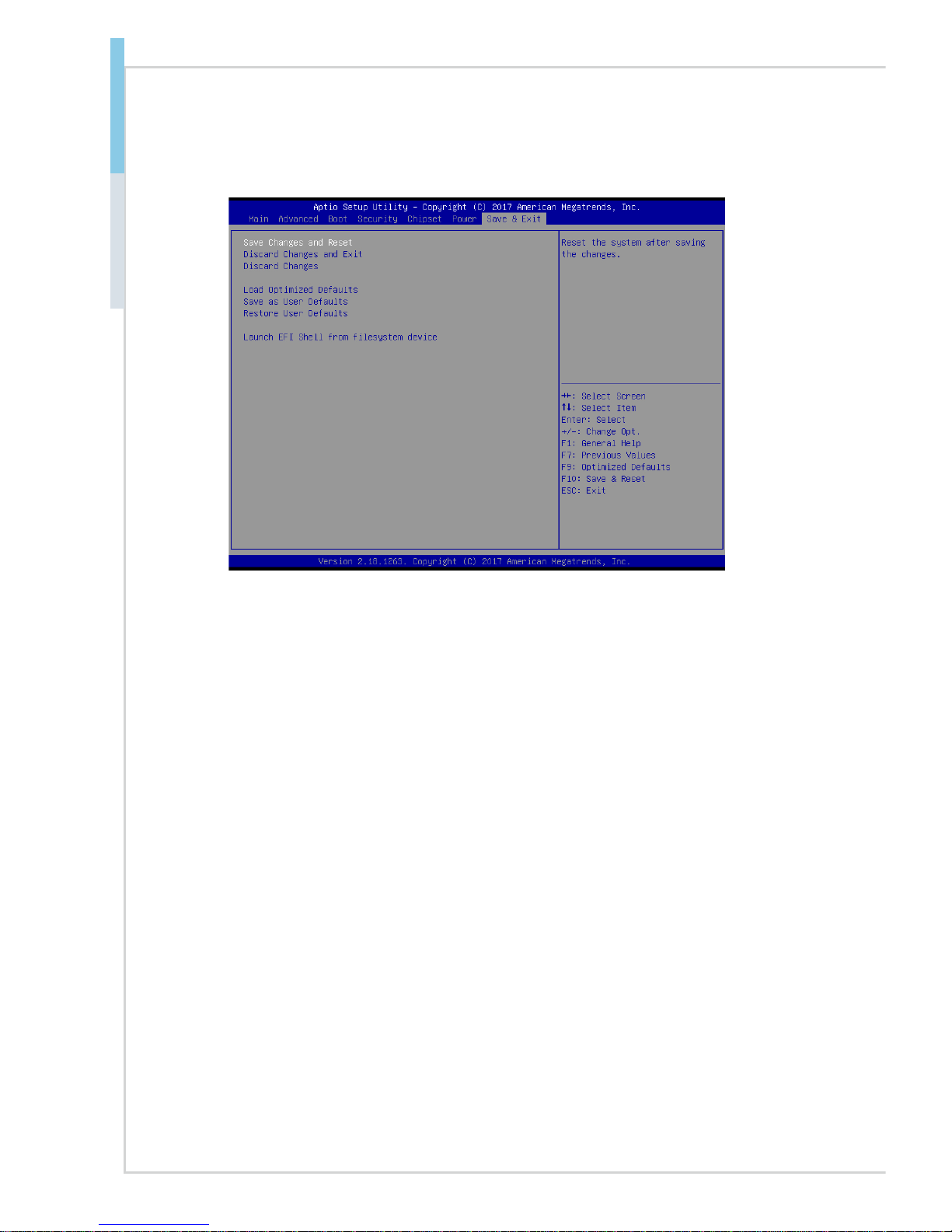

Save & Exit ...............................................................................................3-20

Appendix .......................................................................................... A-1

Abstract ..................................................................................................... A-2

General Purposed IO – GPIO/DIO ............................................................ A-3

Watchdog Timer – WDT ............................................................................ A-4

LVDS Backlight Brightness Control ........................................................... A-5

SMBus Access .......................................................................................... A-6

Page 7

1-1-1

Thank you for choosing the MS-98E6, an excellent industrial computer

board.

Based on the innovative Intel® Apollo Lake/ Apollo Lake-I Series SoC for optimal system efciency, the MS-98E6 supports up to 8GB of onboard DDR3L 1600 / 1866MHz memory and allows connection to 3 independent displays with HDMI, DisplayPort, LVDS and eDP outputs.

The MS-98E6 is durable under extreme environments and suitable to be applied in every industrial eld, such as digital signage, kiosk, gaming, industrial control automation and POS.

1 Overview

Page 8

1-2

Overview

Motherboard Specications

Processor

■ Intel Pentium N4200 QC 1.1GHz/2.5GHz (Burst)

■ Intel Celeron N3350 DC 1.1GHz/2.4GHz (Burst)

■ Intel Atom X7-E3950 QC 1.6GHz/2.0GHz (Burst)

■ Intel Atom X5-E3940 QC 1.6/1.8GHz (Burst)

■ Intel Atom X5-E3930 DC 1.3/1.8GHz (Burst)

Memory

■ 1 SO-DIMM slot for single-channel Non-ECC DDR3L 1600 / 1866MHz

■ Up to 8GB

Networking

■ Intel® I210-IT GbE LAN * 2 (For Apollo Lake-I Only)

■ Intel® I211-AT GbE LAN * 2 (For Apollo Lake Only)

Storage

■ 1 x SATA 6Gb/s port

■ 1 x mSATA 6Gb/s slot (shared with Mini-PCIe2)

Audio

■ Realtek® ALC887-VD2-CG HD Audio Codec

■ 1 x Audio/Amplier/SMbus connector

■ 1 x Amplier connector

Graphics

■ HD Graphics integrated in Intel® processor

■ LVDS up to 1920 x 1200 @ 60 Hz

■ HDMI1 up to 1920 x 1080 @ 60 Hz

■ HDMI2 up to 3840 x 2160 @ 30 Hz

■ DisplayPort 1/2 up to 4096 x 2160 @ 60 Hz

■ eDP up to 3840 x 2160 @ 60 Hz

■ Supports three independent displays: LVDS/HDMI/DisplayPort/eDP

Rear Panel I/O

■ 1 x HDMI port (Co-lay DisplayPort by Request)

■ 1 x DisplayPort (Co-lay HDMI port by Request)

■ 2 x RJ45 GbE LAN ports

■ 4 x USB 3.0 ports

Page 9

1-3

MS-98E6

Onboard Connectors

■ 1 x 4-pin DC power connector (For Apollo Lake Only)

■ 1 x 2-pin DC power connector (For Apollo Lake-I Only)

■ 1 x 4-pin SATA power connector

■ 1 x System FAN connector

■ 1 x SATA 6Gb/s port

■ 1 x USB 2.0 connector (2 ports)

■ 1 x RS-232/422/485 serial port connector

■ 5 x RS232 serial port connectors

■ 3 x COM port power jumpers

■ 1 x Front panel connector

■ 1 x Audio/Amplier/SMbus Connector

■ 1 x GPIO connector

■ 2 x LVDS connectors

■ 2 x LVDS power jumpers

■ 2 x LVDS inverter connectors

■ 2 x LVDS inverter power jumpers

■ 1 x TPM 2.0(LPC Header)

■ 1 x Clear CMOS jumper

■ 1 x AT/ATX select jumper

■ 1 x eDP connector

■ 1 x MIPI-CSI 2.0 connector (Support By Request)

Expansion Slot

■ 1 x Micro SD socket

■ 1 x Mini-PCIe1 (Full -size, with Nano SIM-Holder)

■ 1 x Mini-PCIe2 (Full-size, with m-SATA)

Form Factor

■ 146 mm x 102 mm (3.5-inch size)

Environment

■ Operating temperature: -10 ~ 60oC (For Apollo Lake)

Operating temperature: -40 ~ 85oC (For Apollo Lake-I)

■ Storage temperature: -20 ~ 80oC (For Apollo Lake)

Storage temperature: -40 ~ 85oC (For Apollo Lake-I)

■ Humidity: 10 ~ 90% RH, non-condensing

Page 10

1-4

Overview

Motherboard Layout

Apollo Lake

MIPI-CSI 2.0 connector

System Fan Connector

Clear CMOS Jumper

AT/ATX Jumper

COM Port Connectors

USB2.0 Connector

JNVM1/ JNVM2 Jumper

SATA Port

GPIO Connector

COM Port Power Jumpers

DC Power Connector

SATA Power Connector

Mini-PCIe1

Back Panel

LVDS Inverter Connector

LVDS Power Jumper

LVDS 2

Front Panel Connector

Audio/ Amplier/ SMbus Connector

SO-DIMM Slot

Mini-PCIe2/mSATA Slot

Nano SIM-Holder

LVDS 1

LVDS Power Jumper

eDP Power Jumper

Micro SD Card Slot

TPM (LPC) Connector

eDP Slot

JDNX1 Jumper

Page 11

1-5

MS-98E6

Apollo Lake-I

MIPI-CSI 2.0 connector

System Fan Connector

Clear CMOS Jumper

AT/ATX Jumper

COM Port Connectors

USB2.0 Connector

JNVM1/ JNVM2 Jumper

SATA Port

GPIO Connector

COM Port Power Jumpers

DC Power Connector

SATA Power Connector

Mini-PCIe1

Back Panel

LVDS Inverter Connector

LVDS Power Jumper

LVDS 2

Front Panel Connector

Audio/ Amplier/ SMbus Connector

SO-DIMM Slot

Mini-PCIe2/mSATA Slot

Nano SIM-Holder

LVDS 1

LVDS Power Jumper

eDP Power Jumper

Micro SD Card Slot

TPM (LPC) Connector

eDP Slot

JDNX1 Jumper

Page 12

1-6

Overview

Rear Panel I/O Options

Standard

Option 1

Option 2

RJ45 GbE LAN Ports

USB3.0 Ports

HDMI PortDisplayPort

RJ45 GbE LAN Ports

USB3.0 Ports

HDMI PortHDMI Port

RJ45 GbE LAN Ports

USB3.0 Ports

DisplayPortDisplayPort

Page 13

2-2-1

This chapter provides you with the information about hardware setup procedures. While doing the installation, be careful in holding

the components and follow the installation procedures. For some

components, if you install in the wrong orientation, the components will

not work properly.

Use a grounded wrist strap before handling computer components. Static electricity may damage the components.

2 Hardware Setup

Page 14

2-2

Hardware Setup MS-98E6

Components Reference Guide

Memory ..............................................................................................2-3

Power Supply ....................................................................................2-4

DC-In Power Connector: JPWR1 (For Apollo Lake) ..................................2-4

DC-In Power Connector: JPWR2 (For Apollo Lake-I) ...............................2-4

SATA Power Connector: JPW1 ..................................................................2-4

Rear Panel I/O ...................................................................................2-5

Connector ..........................................................................................2-6

Fan Power Connector: SYSFAN1 ..............................................................2-6

Serial ATA Connector: SATA1 ....................................................................2-6

Front Panel Connector: JFP1 .....................................................................2-6

Audio/Amplier/SMbus Connector: JAUD1 ................................................ 2-7

GPIO Connector: JGPIO1 .......................................................................... 2-7

USB 2.0 Header: JUSB1 ............................................................................ 2-7

Serial Port Connector: JCOM1/JCOM2/JCOM3 ........................................2-8

LVDS Inverter Connector: JINVDD1 / JINVDD2 ........................................2-8

LVDS Connector: JLVDS1 / JLVDS2 ..........................................................2-8

LPC Debug Port Connector: JLPC1 (With TPM Support) ........................ 2-9

eDP Connector ...........................................................................................2-9

Jumper.............................................................................................2-10

Clear CMOS Jumper: JCMOS1 ...............................................................2-10

AT/ATX Select Jumper: JAT1 ................................................................... 2-10

Serial Port Power Jumper: JCOMP1 ........................................................ 2-11

Serial Port Power Jumper: JCOMP2 / JCOMP3 ...................................... 2-11

LVDS Power Jumper: JVDD1 / JVDD2 .................................................... 2-11

LVDS Inverter Power Jumper: JINV1 / JINV2 .......................................... 2-11

Slot ...................................................................................................2-12

Mini-PCIe (Peripheral Component Interconnect Express) Slot ................ 2-12

Nano SIM-Holder .....................................................................................2-12

Micro SD Card Slot ..................................................................................2-12

Page 15

2-3

Memory

The SO-DIMM slot is intended for memory modules.

1. Locate the SO-DIMM slot. Align the notch on the DIMM with the

key on the slot and insert the

DIMM into the slot.

2. Push the DIMM gently downwards until the slot levers click and lock the DIMM in

place.

3. To uninstall the DIMM, ip the slot levers outwards and the DIMM will be

released instantly.

Important

You can barely see the golden nger if the DIMM is properly inserted in the DIMM slot.

Page 16

2-4

Hardware Setup MS-98E6

Power Supply

DC-In Power Connector: JPWR1 (For Apollo Lake)

This connector is used to provide power to the motherboard.

4.GND

3.GND

2.DC- IN (12V~2 4V

)

1.DC- IN ( )12V~2 4V

DC-In Power Connector: JPWR2 (For Apollo Lake-I)

This connector is used to provide power to the motherboard.

2.GND

1.DC_IN

SATA Power Connector: JPW1

This connector is used to provide power to SATA devices.

2. GND

3. GND

1. V CC5

4. + 12V

Important

Make sure that all power connectors are connected to the power supply to ensure stable operation of the motherboard.

Page 17

2-5

Rear Panel I/O

RJ45 GbE LAN Ports

USB3.0 Ports

HDMI PortDisplayPort

h DisplayPort

DisplayPort is a digital display interface standard. This connector is used to connect a monitor with DisplayPort inputs.

h HDMI Port

The High-Denition Multimedia Interface (HDMI) is an all-digital audio/video interface capable of transmitting uncompressed streams. HDMI supports all TV format, including standard, enhanced, or high-denition video, plus multi-channel digital audio on a single cable.

h USB 3.0 Port

The USB 3.0 port is backward-compatible with USB 2.0 devices and supports data transfer rate up to 5 Gbit/s (SuperSpeed).

h RJ45 GbE LAN Port

The standard single RJ45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it.

Speed LED

Active

LED

LED LED Status Description

Active LED

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Off 10 Mbps connection

Green 100 Mbps connection

Orange 1 Gbps connection

Page 18

2-6

Hardware Setup MS-98E6

Connector

Fan Power Connector: SYSFAN1

The fan power connector supports system cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the motherboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

3. FA N S ENS E

2. FA N P O WER

1. G N D

Serial ATA Connector: SATA1

This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device.

Important

Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission.

Front Panel Connector: JFP1

This front panel connector is provided for electrical connection to the front panel switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design Guide.

1.HDD LED

3.HDD LED

5.RESET SWIT CH

7.RESET SWIT CH

9.NC

2.P O WER L

4.P O WER LED

6.P O WER SWITCH

8.P O WER SWITCH

10.Key (no p in)

Page 19

2-7

Audio/Amplier/SMbus Connector: JAUD1

This connector allows you to connect the front panel audio. It also supports amplier function to enhance audio performance and SMBus, known as I2C, for connecting System Management Bus (SMBus) interface. This connector is compliant with Intel Front Panel I/O Connectivity Design Guide.

11. G ND

13. 5 VS B

15. S MB CL K

17. S MB DATA

19. G ND

1. LIN E_IN_ R

3. LIN E_IN_ L

5. L_O UT_R

7. L_O UT_L

9. FRO NT_JD

20. AM P_ R+

18. AM P_ R-

16. AM P_ L+

14. AM P_ L-

12. G ND

10. G ND

8. LIN E1_JD

6. MIC 1_JD

4. MIC 1_L

2. MIC 1_R

GPIO Connector: JGPIO1

This connector is provided for the General-Purpose Input/Output (GPIO)

peripheral module.

1. GPI O_ OU T4

3. GPI O_ OU T5

5. GPI O_ OU T6

7. GPI O_ OU T7

9. VCC 5

. G

. GPIO_ OU T0

. GPIO_ OU T1

7. GPI O_ OU T2

9. GPI O_ OU T3

. V

8. GPI O_ IN 7

6. GPI O_ IN 6

4. GPI O_ IN 5

2. GPI O_ IN 4

0. GPI O_ IN 3

8. GPI O_ IN 2

6. GPI O_ IN 1

4. GPI O_ IN 0

. G

USB 2.0 Header: JUSB1

This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

1.VC C

3. USB_ D0-

5. U

SB_D 0+

7. GND

2. GN

4. USB_ D1+

6. USB _D1 -

8. VC

Important

Note that the pins of VCC and GND must be connected correctly to avoid possible damage.

Page 20

2-8

Hardware Setup MS-98E6

Serial Port Connector: JCOM1/JCOM2/JCOM3

This connector is a 16550A high speed communications port that sends/receives 16 bytes FIFOs. You can attach serial devices to it through the optional serial

port bracket.

1. DSR 1

3. RTS 1

5. CTS 1

7. VCC

9. NA

. D CD 1

3. RXD 1

5. T XD 1

7. DTR 1

9. GND

4. RXD 2

6. T XD 2

8. DTR 2

10 . G ND

12 . D SR 2

14 . RT S2

16 . C TS 2

18 . V CC

20 . N A

2. DCD 2

LVDS Inverter Connector: JINVDD1 / JINVDD2

The connector is provided for LCD backlight options.

1. Bac k lig ht po wer

2. Bac k lig ht p

owe r

3. BKLT _EN

4. BKLT

_CT R L

5. GND

6. GND

LVDS Connector: JLVDS1 / JLVDS2

The LVDS (Low Voltage Differential Signal) connector provides a digital interface typically used with at panels. After connecting an LVDS interface at panel to the JLVDS1, be sure to check the panel datasheet and set the LVDS jumper to proper power voltage.

Important

Pin 12 is a detect pin. When using a customized LVDS cable, pin 12 should be a signal ground with a low impedance. Otherwise, LVDS will not function.

Page 21

2-9

LPC Debug Port Connector: JLPC1 (With TPM Support)

This connector works as LPC debug port and supports TPM modules through

an adapter.

eDP Connector

This connector is for connecting the at eDP cable.

1.LC D_ VDD

21.e DP _DATA1 _P

2.LC D_ VDD

3.LC D_ VDD

33.G ND

23.e DP _DATA0 _N

4.LC D_ VDD

6.NC

12.N C

5.LC D_ VDD

35.G ND

25.G ND

27.e DP _AU X_ N

7.DD C_ CLK

8.DD C_ DATA

14.e DP _DATA3 _N

20.e DP _DATA1 _N

18.e DP _DATA2 _P

24.e DP _DATA0 _P

26.e DP _AU X_ P

10.e DP _HP D

37.B KLT _E N

9.GN D

39.3 .3 V

29.3 .3 V

13.G ND

16.G ND

22.G ND

28.G ND

30.G ND

32.G ND

40.G ND

34.5 V

38.1 2V

36.B KLT _C TRL

15.e DP _DATA3 _P

17.e DP _DATA2 _N

11.N C

31.1 2V

19.G ND

MIPI-CSI 2.0 Connector

This slot is connecting the at MIPI-CSI cable.

10. DATA 2_DP

8. 2.8V

6. I2C0_ CL

4. 3VSB

2. GN

20. GND

18. DATA 1_DN

16. DATA 1_DP

14. SID

12. DATA 2_DN

1. GND

3. STROB E

5. I2C2_ DAT

7. I2C2_ CLK

9. XSHUT DN

11. CLK_ DP1

13. CLK_ DN1

15. I2C0 _DATA -

17. PWDN

19. XSHU TDN

30. DATA 0_DN

28. DATA 0_DP

26. GND

24. CLK_ DN0

22. CLK_ DP0

40. GN

38. 1.8V

36. 1.2V

34. XVCL K

32. GND

21. CAME RASB0 1

23. CAME RASB0 3

25. NC

27. NC

29. NC

31. NC

33. NC

35. DATA 3_DP

37. DATA 3_DN

39. GND

Page 22

2-10

Hardware Setup MS-98E6

Jumper

Important

Avoid adjusting jumpers when the system is on; it will damage the motherboard.

Clear CMOS Jumper: JCMOS1

There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system conguration. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system conguration, set the jumper to clear data.

Normal Clear CMOS

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the motherboard.

AT/ATX Select Jumper: JAT1

This jumper allows users to select between AT and ATX power.

ATX AT

eDP Power Jumper: JEDP_VDD1

This jumper species the operation voltage of the eDP connector.

+5V +3V

Page 23

2-11

Serial Port Power Jumper: JCOMP1

The jumper species the operation voltage of the specied serial port.

+5V +12V

Serial Port Power Jumper: JCOMP2 / JCOMP3

The jumper species the operation voltage of the specied serial port.

+12V +5V

LVDS Power Jumper: JVDD1 / JVDD2

Use this jumper to specify the operation voltage of the LVDS display.

+3V +5V

LVDS Inverter Power Jumper: JINV1 / JINV2

Use this jumper to specify the operation voltage of the LVDS inverter.

+5V +12V

JDNX1 Jumper: JDNX1

This jumper is designed only for debugging.

JNVM1 & JNVM2 Jumper: JNVM1 / JNVM2

This jumper is designed only for debugging.

Page 24

2-12

Hardware Setup MS-98E6

Slot

Mini-PCIe (Peripheral Component Interconnect Express) Slot

The Mini-PCIe slot is provided for WiFi modules, Bluetooth modules, TV tuner cards and other Mini-PCIe cards.

■ MINI_PCIE1 supports Mini-PCIe and Nano-SIM card.

■ MINI_PCIE2 supports Mini-PCIe and mSATA cards.

Important

When adding or removing expansion cards, make sure that you unplug the power supply rst. Meanwhile, read the documentation for the expansion card to congure any necessary hardware or software settings for the expansion card, such as

jumpers, switches or BIOS conguration.

Nano SIM-Holder

This holder is for inseriting the Nano-SIM card.

Micro SD Card Slot

This slot is for inseriting the micro SD card.

Page 25

2-3-1

This chapter provides information on the BIOS Setup program and allows users to congure the system for optimal use.

Users may need to run the Setup program when:

■ An error message appears on the screen at system startup and

requests users to run SETUP.

■ Users want to change the default settings for customized features.

Important

• Please note that BIOS update assumes technician-level experience.

• As the system BIOS is under continuous update for better system performance, the illustrations in this chapter should be held for reference only.

3 BIOS Setup

Page 26

3-2

BIOS Setup MS-98E6

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> or <F2> key to enter Setup.

Press <DEL> or <F2> to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Important

The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.

Page 27

3-3

Control Keys

← → Select Screen

↑ ↓ Select Item

Enter Select

+ - Change Option

General Help

F7 Previous Values

F9 Optimized Defaults

F10 Save & Exit

Esc Exit

Getting Help

After entering the Setup menu, the rst menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted

setup function is displayed at the bottom of the screen.

Sub-Menu

If you nd a right pointer symbol appears to the left of certain elds that means a sub-menu can be launched from this eld. A sub-menu contains additional options for a eld parameter. You can use arrow keys ( ↑↓ ) to highlight the eld and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from eld to eld within a sub-menu. If you want to return to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.

Page 28

3-4

BIOS Setup MS-98E6

The Menu Bar

▶Main

Use this menu for basic system congurations, such as time, date, etc.

▶Advanced

Use this menu to set up the items of special enhanced features.

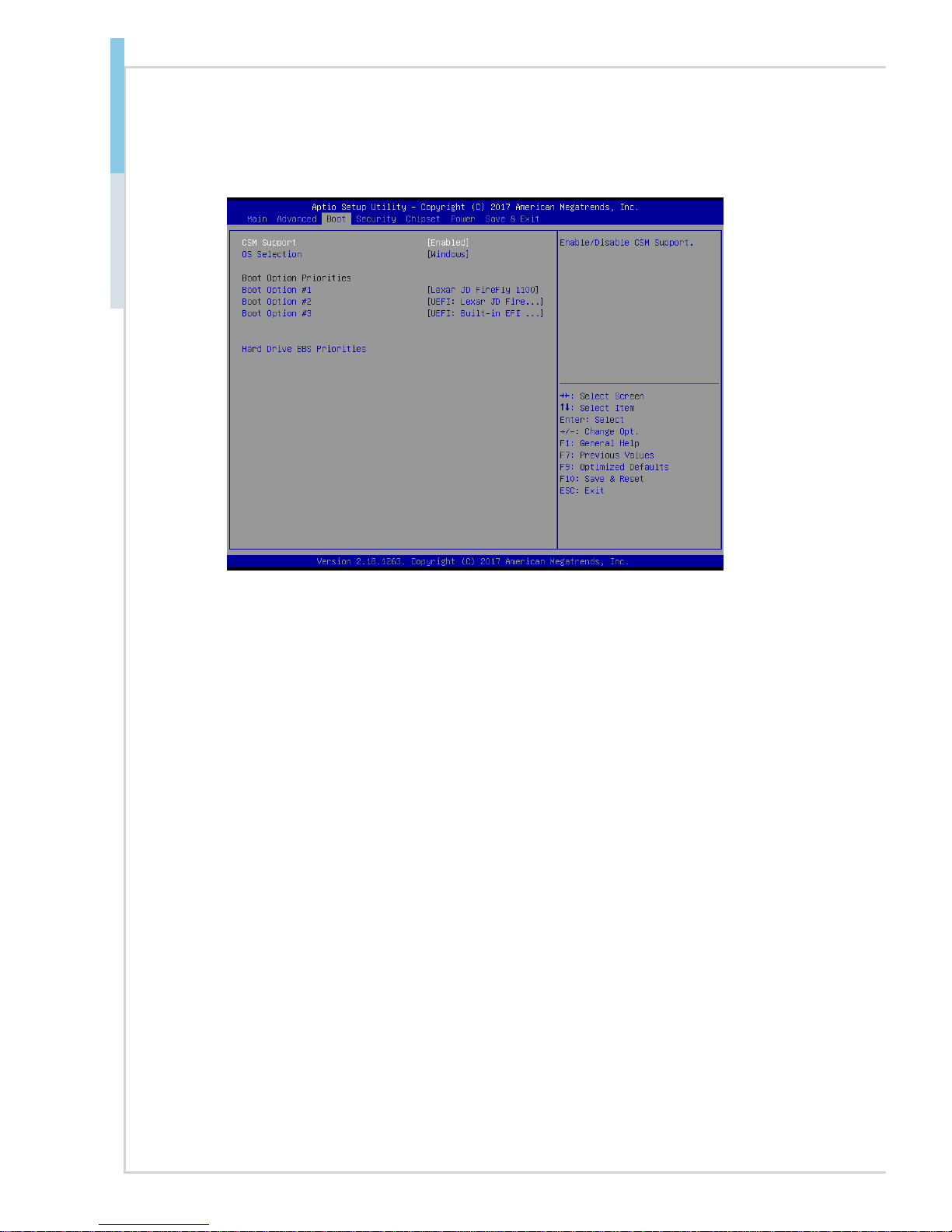

▶Boot

Use this menu to specify the priority of boot devices.

▶Security

Use this menu to set supervisor and user passwords.

▶Chipset

This menu controls the advanced features of the onboard chipsets.

▶Power

Use this menu to specify your settings for power management.

▶Save & Exit

This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes.

Page 29

3-5

Main

▶System Date

This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>.

▶System Time

This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>.

▶SATA Mode Selection

This setting species the SATA controller mode.

Page 30

3-6

BIOS Setup MS-98E6

Advanced

▶Full Screen Logo Display

This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo.

When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.

When it is disabled, the BIOS will display the normal POST messages, instead of the full-screen logo.

Please note that enabling this BIOS feature often adds 2-3 seconds of delay to the booting sequence. This delay ensures that the logo is displayed for a sufcient amount of time. Therefore, it is recommended that you disable this BIOS feature for a faster boot-up time.

▶Bootup NumLock State

This setting is to set the Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. Setting to [Off] will allow users to use the arrow keys on the numeric keypad.

▶Option ROM Messages

This item is used to determine the display mode when an optional ROM is initialized during POST. When set to [Force BIOS], the display mode used by AMI BIOS is used. Select [Keep Current] if you want to use the display mode of optional ROM.

Page 31

3-7

▶Super IO Conguration

▶Serial Port 1/ 2/ 3/ 4/ 5/ 6

This setting enables/disables the specied serial port.

▶Change Settings

This setting is used to change the address & IRQ settings of the specied

serial port.

▶Mode Select

Select an operation mode for the specied serial port.

▶FIFO Mode

This setting controls the FIFO data transfer mode.

▶Shared IRQ Mode

This setting provides the system with the ability to share interrupts among its

serial ports.

▶ Watch Dog Timer

You can enable the system watch-dog timer, a hardware timer that generates

a reset when the software that it monitors does not respond as expected each

time the watch dog polls it.

Page 32

3-8

BIOS Setup MS-98E6

▶H/W Monitor

These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds.

▶Smart Fan Conguration

▶Smart SYSFAN Target

This setting enables/disables the Smart Fan function. Smart Fan is an excellent feature which will adjust the CPU/system fan speed automatically depending on the current CPU/system temperature, avoiding the overheating to damage your system.

Page 33

3-9

▶CPU Conguration

▶Intel Virtualization Technology

Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple “Virtual”

systems.

▶EIST

EIST (Enhanced Intel SpeedStep Technology) allows the system to dynamically adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat production. When disabled, the processor will return the actual maximum CPUID input value of

the processor when queried.

▶C-States

This setting controls the C-States (CPU Power states).

Page 34

3-10

BIOS Setup MS-98E6

▶PCI/PCIE Device Conguration

▶Legacy USB Support

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO Unix.

▶Audio Controller

This setting enables/disables the onboard audio controller.

▶Launch OnBoard LAN OpROM

These settings enable/disable the initialization of the onboard/onchip LAN Boot ROM during bootup. Selecting [Disabled] will speed up the boot process.

Page 35

3-11

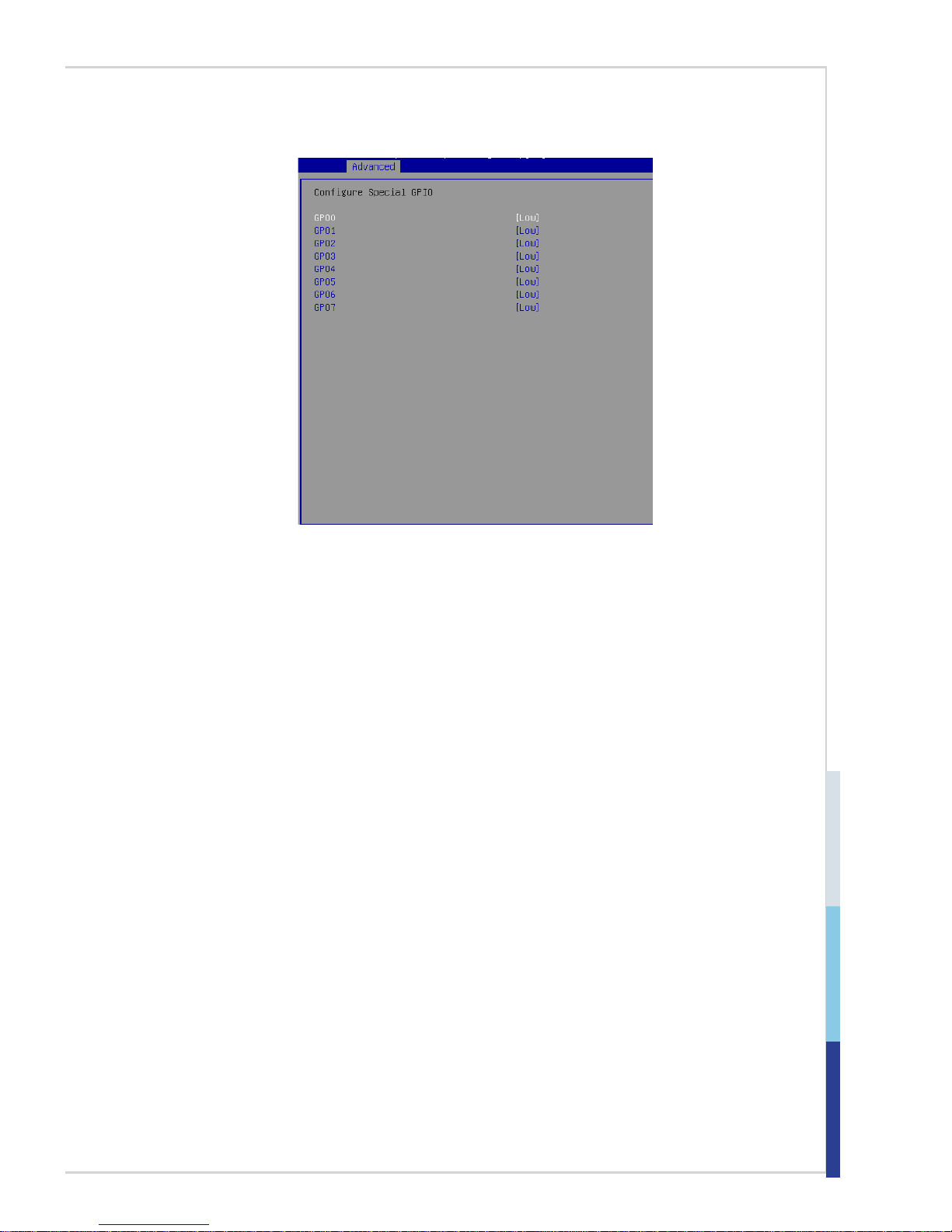

▶GPIO Group Conguration

▶GPO0 ~ GPO7

These settings control the operation mode of the specied GPIO.

Page 36

3-12

BIOS Setup MS-98E6

Boot

▶CSM Support

This setting enables/disables the support for Compatibility Support Module, a part of the Intel Platform Innovation Framework for EFI providing the capability to support legacy BIOS interfaces.

▶OS Selection

This setting allows users to select the Operating System.

▶Boot Option Priorities

This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system.

▶Hard Drive BBS Priorities

This setting allows users to set the priority of the specied devices. First press <Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to select the desired device, then press <+>, <-> or <PageUp>, <PageDown> key to move it up/down in the priority list.

Page 37

3-13

Security

▶Administrator Password

Administrator Password controls access to the BIOS Setup utility.

▶User Password

User Password controls access to the system at boot and to the BIOS Setup

utility.

Page 38

3-14

BIOS Setup MS-98E6

▶Trusted Computing

▶Security Device Support

This setting enables/disables BIOS support for security device. When set to [Disable], the OS will not show security device. TCG EFI protocol and INT1A interface will not be available.

▶Serial Port Console Redirection

Page 39

3-15

▶Console Redirection

Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables/disables the operation of console redirection. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen. Besides, all data received from the serial port is interpreted

as keystrokes from a local keyboard.

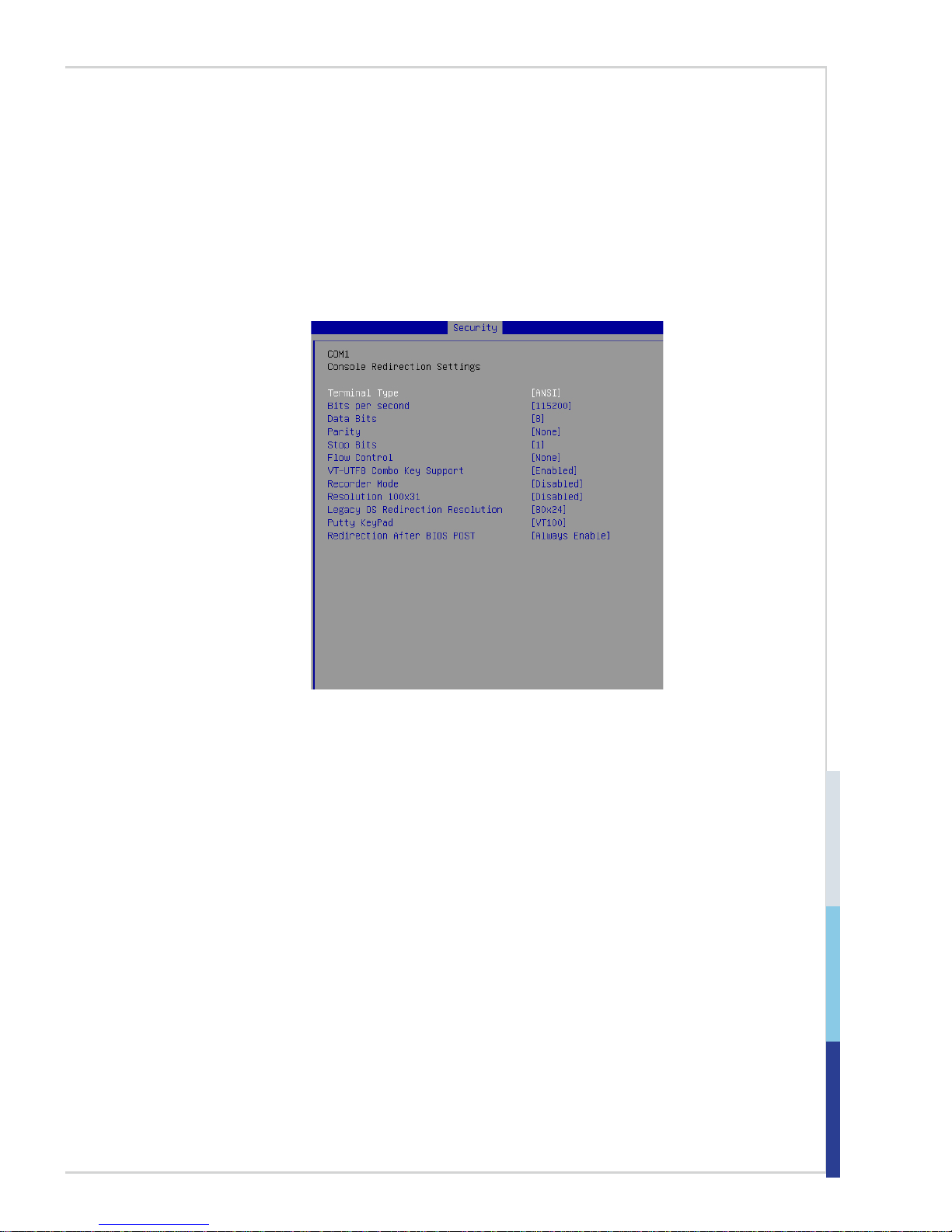

▶Console Redirection Settings

▶Terminal Type

To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). This setting species the type of terminal device for console redirection.

▶ Bits per second, Data Bits, Parity, Stop Bits

This setting species the transfer rate (bits per second, data bits, parity, stop bits) of Console Redirection.

▶Flow Control

Flow control is the process of managing the rate of data transmission between two nodes. It’s the process of adjusting the ow of data from one device to another to ensure that the receiving device can handle all of the incoming data. This is particularly important where the sending device is capable of sending data much faster than the receiving device can receive

it.

Page 40

3-16

BIOS Setup MS-98E6

▶VT-UTF8 Combo Key Support

This setting enables/disables the VT-UTF8 combination key support for ANSI/VT100 terminals.

▶Recorder Mode, Resolution 100x31

These settings enable/disable the recorder mode and the resolution 100x31.

▶ Legacy OS Redirection Resolution

This setting species the redirection resolution of legacy OS.

▶Putty Keypad

PuTTY is a terminal emulator for Windows. This setting controls the numeric keypad for use in PuTTY.

▶Redirection After BIOS POST

This setting determines whether or not to keep terminals’ console redirection running after the BIOS POST has booted.

▶Security Conguration

▶TXE FW Version

The setting shows the rmware information of the Intel Trusted Execution Engine (TXE).

▶TXE HMRFPO

The setting enables/disables TXE HMRFPO (Host ME Region Flash Protection Override).

▶TXE EOP Message

This setting determines whether or not to send EOP (Exchange Online Protection) message before entering OS.

Page 41

3-17

Chipset

▶DVMT Pre-Allocated

This setting denes the DVMT pre-allocated memory. Pre-allocated memory is the small amount of system memory made available at boot time by the system BIOS for video. Pre-allocated memory is also known as locked memory. This is because it is "locked" for video use only and as such, is invisible and unable to be used by the operating system.

▶DVMT Total Gfx Mem

This setting species the memory size for DVMT.

▶LCD 1 / 2 Panel Type

This setting species the LCD panel type.

▶LVDS

This setting enables/disables LVDS.

Page 42

3-18

BIOS Setup MS-98E6

Power

▶Restore AC Power Loss

This setting species whether your system will reboot after a power failure or interrupt occurs. Available settings are:

[Power Off] Leaves the computer in the power off state.

[Power On] Leaves the computer in the power on state.

[Last State] Restores the system to the previous status

before power failure or interrupt occurred.

▶Deep Sleep Mode

The setting enables/disables the Deep S5 power saving mode. S5 is almost the same as G3 Mechanical Off, except that the PSU still supplies power, at a minimum, to the power button to allow return to S0. A full reboot is required. No previous content is retained. Other components may remain powered so the computer can “wake” on input from the keyboard, clock, modem, LAN, or USB device.

** Advanced Resume Events Control **

▶PCIE PME

This eld species whether the system will be awakened from power saving modes when activity or input signal of onboard PCIE PME is detected.

Page 43

3-19

▶USB from S3/S4

The item allows the activity of the USB device to wake up the system from S3/ S4 sleep state.

▶RTC

When [Enabled], your can set the date and time at which the RTC (real-time

clock) alarm awakens the system from suspend mode.

Page 44

3-20

BIOS Setup MS-98E6

Save & Exit

▶Save Changes and Reset

Save changes to CMOS and reset the system.

▶Discard Changes and Exit

Abandon all changes and exit the Setup Utility.

▶Discard Changes

Abandon all changes.

▶Load Optimized Defaults

Use this menu to load the default values set by the motherboard manufacturer specically for optimal performance of the motherboard.

▶Save as User Defaults

Save changes as the user’s default prole.

▶Restore User Defaults

Restore the user’s default prole.

▶Launch EFI Shell from lesystem device

This setting helps to launch the EFI Shell application from one of the available le system devices.

Page 45

2-A-1

This appendix provides WDT (Watch Dog Timer), GPIO (General Purpose Input/ Output) and LVDS Backlight programming guide.

Appendix

GPIO WDT BKL Programming

Page 46

A-2

GPIO WDT BKL MS-98E6

Abstract

MSI Industrial Platform Computing

Abstract

In this document, code examples based on C programming language are provided for

customer interest. Inportb, Outportb, Inportl and Outportl are basic functions used for

access IO ports and defined as following.

Inportb: Read a single 8-bit I/O port.

Outportb: Write a single byte to an 8-bit port.

Inportl: Reads a single 32-bit I/O port.

Outportl: Write a single long to a 32-bit port.

Page 47

A-3

General Purposed IO – GPIO/DIO

MSI Industrial Platform Computing

Abstract

In this document, code examples based on C programming language are provided for

customer interest. Inportb, Outportb, Inportl and Outportl are basic functions used for

access IO ports and defined as following.

Inportb: Read a single 8-bit I/O port.

Outportb: Write a single byte to an 8-bit port.

Inportl: Reads a single 32-bit I/O port.

Outportl: Write a single long to a 32-bit port.

1. General Purposed IO – GPIO/DIO

The GPIO port configuration addresses are listed in the following table:

Name IO Port IO address Name IO Port IO address

N_GPI0 0x42 Bit 0 N_GPO0 0x11 Bit 0

N_GPI1 0x42 Bit 1 N_GPO1 0x11 Bit 1

N_GPI2 0x42 Bit 2 N_GPO2 0x11 Bit 2

N_GPI3 0x42 Bit 3 N_GPO3 0x11 Bit 3

N_GPI4 0x42 Bit 4 N_GPO4 0x11 Bit 4

N_GPI5 0x42 Bit 5 N_GPO5 0x11 Bit 5

N_GPI6 0x42 Bit 6 N_GPO6 0x11 Bit 6

N_GPI7 0x42 Bit 7 N_GPO7 0x11 Bit 7

Note: GPIO should be accessed through controller device 0x6E on SMBus. The associated access

method in examples (SMBus_ReadByte, SMBus_WriteByte) are provided in part 4.

1.1 Set output value of GPO

1. Read the value from GPO port.

2. Set the value of GPO address.

3. Write the value back to GPO port.

Example: Set N_GPO0 output “high”

val =SMBus_ReadByte (0x6E, 0x11); // Read value from N_GPO0 port through SMBus.

val = val | (1<<0); // Set N_GPO0address (bit 0) to 1 (output “high”).

MSI Industrial Platform Computing

SMBus_WriteByte (0x6E, 0x11, val); // Write back to N_GPO0 port through SMBus.

Example: Set N_GPO1 output “low”

val = SMBus_ReadByte (0x6E, 0x11); // Read value from N_GPO1 port through SMBus..

val = val & (~(1<<1)); // Set N_GPO1 address (bit 1) to 0 (output “low”).

SMBus_WriteByte (0x6E, 0x11, val); // Write back to N_GPO1 port through SMBus.

1.2 Read input value from GPI:

1. Read the value from GPI port.

2. Get the value of GPI address.

Example: Get N_GPI2 input value.

val = SMBus_ReadByte (0x6E, 0x42); // Read value from N_GPI2 port through SMBus.

val = val & (1<<2); // Read N_GPI2 address (bit 2).

if (val) printf (“Input of N_GPI2 is High”);

else printf (“Input of N_GPI2 is Low”);

Example: Get N_GPI6 input value.

val = SMBus_ReadByte (0x6E, 0x42); // Read value from N_GPI6 port through SMBus.

val = val & (1<<6); // Read N_GPI6 address (bit 6).

if (val) printf (“Input of N_GPI6 is High”);

else printf (“Input of N_GPI6 is Low”);

Page 48

A-4

GPIO WDT BKL MS-98E6

Watchdog Timer – WDT

MSI Industrial Platform Computing

SMBus_WriteByte (0x6E, 0x11, val); // Write back to N_GPO0 port through SMBus.

Example: Set N_GPO1 output “low”

val = SMBus_ReadByte (0x6E, 0x11); // Read value from N_GPO1 port through SMBus..

val = val & (~(1<<1)); // Set N_GPO1 address (bit 1) to 0 (output “low”).

SMBus_WriteByte (0x6E, 0x11, val); // Write back to N_GPO1 port through SMBus.

1.2 Read input value from GPI:

1. Read the value from GPI port.

2. Get the value of GPI address.

Example: Get N_GPI2 input value.

val = SMBus_ReadByte (0x6E, 0x42); // Read value from N_GPI2 port through SMBus.

val = val & (1<<2); // Read N_GPI2 address (bit 2).

if (val) printf (“Input of N_GPI2 is High”);

else printf (“Input of N_GPI2 is Low ”);

Example: Get N_GPI6 input value.

val = SMBus_ReadByte (0x6E, 0x42); // Read value from N_GPI6 port through SMBus.

val = val & (1<<6); // Read N_GPI6 address (bit 6).

if (val) printf (“Input of N_GPI6 is High”);

else printf (“Input of N_GPI6 is Low ”);

2. Watchdog Timer – WDT

The base address (WDT_BASE) of WDT configuration registers is 0xA10.

2.1 Set WDT Time Unit

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting

val = val | 0x08; // minute mode. val = val & 0xF7 if second mode

Outportb (WDT_BASE + 0x05, val); // Write back WDT setting

2.2 Set WDT Time

Outportb (WDT_BASE + 0x06, Time); // Write WDT time, value 1 to 255.

MSI Industrial Platform Computing

2.3 Enable WDT

val = Inportb (WDT_BASE + 0x0A); // Read current WDT_PME setting

val = val | 0x01; // Enable WDT OUT: WDOUT_EN (bit 0) set to 1.

Outportb (WDT_BASE + 0x0A, val); // Write back WDT setting.

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting

val = val | 0x20; // Enable WDT by set WD_EN (bit 5) to 1.

Outportb (WDT_BASE + 0x05, val); // Write back WDT setting.

2.4 Disable WDT

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting

val = val & 0xDF; // Disable WDT by set WD_EN (bit 5) to 0.

Outportb (WDT_BASE + 0x05, val); // Write back WDT setting.

2.5 Check WDT Reset Flag

If the system has been reset by WDT function, this flag will set to 1.

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting.

val = val & 0x40; // Check WDTMOUT_STS (bit 6).

if (val) printf (“timeout event occurred”);

else printf (“timeout event not occurred”);

2.6 Clear WDT Reset Flag

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting

val = val | 0x40; // Set 1 to WDTMOUT_STS (bit 6);

Outportb (WDT_BASE + 0x05, val); // Write back WDT setting

Page 49

A-5

LVDS Backlight Brightness Control

MSI Industrial Platform Computing

2.3 Enable WDT

val = Inportb (WDT_BASE + 0x0A); // Read current WDT_PME setting

val = val | 0x01; // Enable WDT OUT: WDOUT_EN (bit 0) set to 1.

Outportb (WDT_BASE + 0x0A, val); // Write back WDT setting.

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting

val = val | 0x20; // Enable WDT by set WD_EN (bit 5) to 1.

Outportb (WDT_BASE + 0x05, val); // Write back WDT setting.

2.4 Disable WDT

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting

val = val & 0xDF; // Disable WDT by set WD_EN (bit 5) to 0.

Outportb (WDT_BASE + 0x05, val); // Write back WDT setting.

2.5 Check WDT Reset Flag

If the system has been reset by WDT function, this flag will set to 1.

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting.

val = val & 0x40; // Check WDTMOUT_STS (bit 6).

if (val) printf (“timeout event occurred”);

else printf (“timeout event not occurred”);

2.6 Clear WDT Reset Flag

val = Inportb (WDT_BASE + 0x05); // Read current WDT setting

val = val | 0x40; // Set 1 to WDTMOUT_STS (bit 6);

Outportb (WDT_BASE + 0x05, val); // Write back WDT setting

3. LVDS Backlight Brightness Control

The LVDS controller support 17 level of backlight b

rightness value from 0 (30%) to 16

(100%) and it is accessible through SMBus. The associated access method

(SMBus_ReadByte, SMBus_WriteByte) are provided in part 4.

3.1 Set the Level of LVDS Backlight

MSI Industrial Platform Computing

1. Write 0xED into address 0x7F on SMBus device 0x42.

2. Write desired backlight level from 0x0 (30%) to 0x10 (100%) into address 0x6E on

SMBus device 0x42.

Example: Set LVDS backlight level to 0x10 (100%)

SMBus_WriteByte (0x42, 0x7F, 0xED);

SMBus_WriteByte (0x42, 0x6E, 0x10); // Set brightness to 100%

3.2 Read the Level of LVDS Backlight

1. Write 0xED into address 0x7F on SMBus device 0x42.

2. Read current backlight level from address 0x6E on SMBus device 0x42.

Example: Get LVDS backlight level

SMBus_WriteByte (0x42, 0x7F, 0xED);

BKL_Value = SMBus_ReadByte (0x42, 0x6E);

Page 50

A-6

GPIO WDT BKL MS-98E6

SMBus Access

MSI Industrial Platform Computing

1. Write 0xED into address 0x7F on SMBus device 0x42.

2. Write desired backlight level from 0x0 (30%) to 0x10 (100%) into address 0x6E on

SMBus device 0x42.

Example: Set LVDS backlight level to 0x10 (100%)

SMBus_WriteByte (0x42, 0x7F, 0xED);

SMBus_WriteByte (0x42, 0x6E, 0x10); // Set brightness to 100%

3.2 Read the Level of LVDS Backlight

1. Write 0xED into address 0x7F on SMBus device 0x42.

2. Read current backlight level from address 0x6E on SMBus device 0x42.

Example: Get LVDS backlight level

SMBus_WriteByte (0x42, 0x7F, 0xED);

BKL_Value = SMBus_ReadByte (0x42, 0x6E);

4. SMBus Access

The base address of SMBus must be known before access. The relevant bus and device

information are as following.

#define IO_SC 0xCF8

#define IO_DA 0xCFC

#define PCIBASEADDRESS 0x80000000

#define PCI_BUS_NUM 0

#define PCI_DEV_NUM 31

#define PCI_FUN_NUM 1

4.1 Get SMBus Base Address

int SMBUS_BASE;

int DATA_ADDR = PCIBASEADDRESS + (PCI_BUS_NUM<<16) +

(PCI_DEV_NUM<<11) +

(PCI_FUN_NUM<<8);

Outportl

(DATA_ADDR + 0x20, IO_SC);

MSI Industrial Platform Computing

SMBUS_BASE =

Inportl

(IO_DA) & 0xfffffff0;

4.2 SMBus_ReadByte (char DEVID, char offset)

Read the value of OFFSET from SMBus device DEVID.

Outportb (LOWORD (

SMBUS_BASE

), 0xFE);

Outportb (LOWORD (

SMBUS_BASE

) + 0x04, DEVID + 1); //out Base + 04, (DEVID + 1)

Outportb (LOWORD (

SMBUS_BASE

) + 0x03, OFFSET); //out Base + 03, OFFSET

Outportb (LOWORD (

SMBUS_BASE

) + 0x02, 0x48); //out Base + 02, 48H

mdelay (20);

//delay 20ms to let data ready

while ((Inportl (

SMBUS_BASE

) & 0x01) != 0); //wait SMBus ready

SMB

_DATA = Inportb (LOWORD (

SMBUS_BASE

) + 0x05); //input Base + 05

4.3 SMBus_WriteByte (char DEVID, char offset, char DATA)

Write DATA to OFFSET on SMBus device DEVID.

Outportb (LOWORD (

SMBUS_BASE

), 0xFE);

Outportb (LOWORD (

SMBUS_BASE

) + 0x04, DEVID); //out Base + 04, (DEVID)

Outportb (LOWORD (

SMBUS_BASE

) + 0x03, OFFSET); //out Base + 03, OFFSET

Outportb (LOWORD (

SMBUS_BASE

) + 0x05, DATA); //out Base + 05, DATA

Outportb (LOWORD (

SMBUS_BASE

) + 0x02, 0x48); //out Base + 02, 48H

mdelay (20);

//wait 20ms
