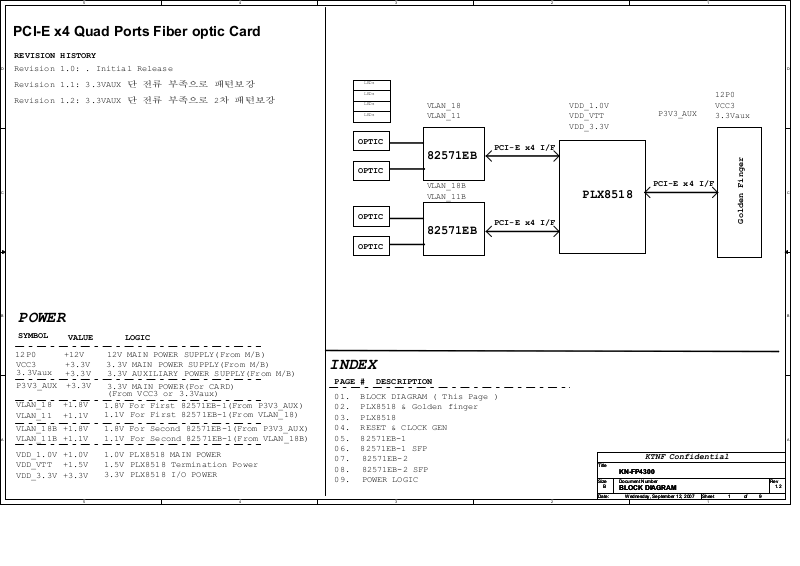

PCI-E x4 Quad Ports Fiber optic Card
REVISION HISTORY
D D
Revision 1.0: . Initial Release
Revision 1.1: 3.3VAUX
Revision 1.2: 3.3VAUX 2
C C
LEDs
LEDs
LEDs
LEDs
OPTIC
OPTIC
VLAN_11
82571EB
VLAN_18B
VLAN_11B
PCI-E x4 I/F
VDD_1.0VVLAN_18
VDD_VTT
VDD_3.3V
PLX8518
P3V3_AUX
PCI-E x4 I/F
12P0
VCC3
3.3Vaux
OPTIC
PCI-E x4 I/F
Golden Finger
82571EB
OPTIC
B B
POWER
SYMBOL
12P0
VCC3
3.3Vaux
P3V3_AUX +3.3V
VLAN_18 +1.8V
VLAN_11 +1.1V
A A
VDD_1.0V
VDD_VTT
VDD_3.3V
VALUE LOGIC
+12V 12V MAIN POWER SUPPLY(From M/B)
+3.3V
+3.3V
3.3V MAIN POWER SUPPLY(From M/B)
3.3V AUXILIARY POWER SUPPLY(From M/B)
3.3V MAIN POWER(For CARD)
(From VCC3 or 3.3Vaux)
1.8V For First 82571EB-1(From P3V3_AUX)
1.1V For First 82571EB-1(From VLAN_18)
+1.8VVLAN_18B
+1.1VVLAN_11B
+1.0V
+1.5V
+3.3V
1.8V For Second 82571EB-1(From P3V3_AUX)
1.1V For Second 82571EB-1(From VLAN_18B)
1.0V PLX8518 MAIN POWER
1.5V PLX8518 Termination Power
3.3V PLX8518 I/O POWER
5
4
INDEX
DESCRIPTIONPAGE #
01. BLOCK DIAGRAM ( This Page )
02.
PLX8518 & Golden finger
PLX8518
03.
RESET & CLOCK GEN
04.
82571EB-1
05.
82571EB-1 SFP
06.
07.
82571EB-2
08. 82571EB-2 SFP
POWER LOGIC09.
3
Title
KTNF Confidential
Title
Title
KN-FP4300
KN-FP4300
KN-FP4300
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
B
B
B
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
Date: Sheet of
Date: Sheet of
2
Date: Sheet
1
of
1 9Wednesday, September 12, 2007
1 9Wednesday, September 12, 2007
1 9Wednesday, September 12, 2007
1.2
1.2
1.2
5
U1A
