Page 1

1U Rackmount Server

MS-9245

User’s Guide

G52-S9245X3

Page 2

Manual Rev: 2.1 Release Date: April 2004

FCC-A Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-9245

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 3

iii

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. W e take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners. AMD, Opteron™, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™

are registered trademarks of AMD Corporation. Intel® and Pentium® are registered trademarks of Intel Corporation. PS/2 and OS®/2 are registered trademarks of International Business Machines Corporation. Windows® 95/98/2000/2003/NT/XP are registered trademarks of Microsoft Corporation. Netware® is a registered trademark of Novell, Inc. Award® is a registered trademark of Phoenix T echnologies Ltd. AMI® is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

V2.1 Based on V2.0, adding DDR400, April 2004

PCI-X 133

T echnical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

V isit the MSI website for FAQ, technical guide, BIOS updates, driver

updates, and other information: http://www .msi.com.tw/

Contact our technical staff at: support@msi.com.tw

Page 4

1. Always read the safety instructions carefully. 2 . Keep this User’s Manual for future reference. 3 . Keep this equipment away from humidity. 4 . Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equipment from overheating. DO NOT COVER THE OPENINGS.

6 . Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

1 0 . Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a service personnel:

 The power cord or plug is damaged.  Liquid has penetrated into the equipment.  The equipment has been exposed to moisture.  The equipment has not work well or you can not get it work according

to User’s Manual.

 The equipment has dropped and damaged.  The equipment has obvious sign of breakage.

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERA TURE ABOVE 600 C (1400F), IT MA Y DAMAGE THE EQUIPMENT.

Safety Instructions

警告使用者: 這是甲類的資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在這種情況下，使用者會被要求採取某些適當的對策。

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Page 5

CONTENTS

FCC-A Radio Frequency Interference Statement ................................ii

Trademarks ........................................................................................ iii

Revision History................................................................................ iii

Technical Support.............................................................................. iii

Safety Instructions ............................................................................ v

Chapter 1. Getting Started ........................................................................ 1-1

System Specifications ..........................................................................1-2

Mainboard Layout ............................................................................... 1-6

Packing Checklist .................................................................................1-7

System Configuration ..........................................................................1-8

Front V iew ........................................................................................ 1-9

Rear View .........................................................................................1-9

T op V ie w ........................................................................................ 1-14

Chapter 2. Hardware Setup ....................................................................... 2-1

Central Processing Unit: CPU ..............................................................2-3

CPU Installation Procedures for Socket 940 ..................................2-3

Memory................................................................................................ 2-5

DIMM Module Combination.........................................................2-5

Installing DDR Modules ................................................................2-5

18-Pin Main Power Supply Connector: J10....................................2-6

14-Pin Standby and Status Control Connector: J11 .......................2-6

24-Pin SCSI Power and I2C Connector: J12....................................2-6

4-Pin CD-ROM Power Connector: J14 ...........................................2-6

6-Pin Front Plane USB Connector: J15........................................... 2-6

Power Supply .......................................................................................2-7

Front Panel Connector: J13 ............................................................2-8

SM Card 3rd I2C Bus Connector: JSMB1 ...................................... 2-9

Page 6

Connectors...........................................................................................2-9

Hard Disk Connectors: IDE1 & IDE2 ............................................. 2-9

Fan Power Connectors: SF AN1/SF AN2/SF AN3/SF AN4/SF AN5. 2-10

Ultra320 SCSI Connector: SCSI 1................................................. 2-11

Server Management Card Connector: J16.................................... 2-12

Rear Status LED: J20 ................................................................... 2-13

Jumpers .............................................................................................. 2-14

Boot Block Jumper: JBBF1 .......................................................... 2-14

PCI-X 100/133 Jumper: JPCIXB1 .................................................. 2-14

Clear CMOS Jumper: JBA T1........................................................ 2-14

Slots ................................................................................................... 2-15

PCI Slots...................................................................................... 2-15

PCI Interrupt Request Routing .................................................... 2-15

Chapter 3. BIOS Setup.............................................................................. 3-1

Entering Setup......................................................................................3-2

Control Keys .................................................................................3-2

Getting Help .................................................................................. 3-3

The Menu Bar ......................................................................................3-4

The Main Menu ...................................................................................3-6

The Advanced Menu ...........................................................................3-8

Chipset Configuration ..................................................................3-9

Keyboard Configuration ............................................................. 3-11

I/O Device Configuration............................................................. 3-12

PCI Configuration........................................................................ 3-13

Console Redirection .................................................................... 3-15

POST Error Log ........................................................................... 3-16

IPMI ............................................................................................ 3-17

The Security Menu ............................................................................ 3-19

The Power Menu................................................................................ 3-21

Page 7

vii

The Boot Menu.................................................................................. 3-23

The Exit Menu .................................................................................... 3-24

Chapter 4. Chassis Installation ................................................................ 4-1

System Assembly................................................................................. 4-2

Chassis Cover ...............................................................................4-2

CPU and Heatsink..........................................................................4-3

CPU and Heatsink (continued) ......................................................4-4

DIMM ...........................................................................................4-5

PCI Cards.......................................................................................4-6

IDE Hard Disks .............................................................................. 4-8

Hot Swap SCSI Hard Disks .......................................................... 4-12

Rack Mounting .................................................................................. 4-14

Page 8

1-1

Getting Started

Chapter 1. Getting Started

Getting Started

Thanking you for choosing the MS-9245 1U Rackmount Server Barebone! The MS-9245 1U Rackmount Server is a highperformance barebone system powered by AMD Opteron

processors in Socket 940. With high scalability, reliability , ease of use, and overall value, the MS-9245 makes an ideal choice for value conscious customers.

Page 9

1-2

MS-9245 1U Rackmount Server

System Specifications

Mainboard

h MSI-9145 mainboard

CPU

h Supports AMD OpteronTM 200 or OpteronTM 100 up to 2.4GHz

Chipset

h AMD 8111 I/O bridge h AMD 8131 PCI-X Hub

2D/3D graphics controller

h A TI Rage XL V ideo Controller with 8 MB of memory

Memory

h Supports up to 8 Registered ECC DDR200/266/333/400 DIMMs h 2GB per DIMM for a maximum memory size of 16 GB

PCI Slot

h PCI-X 64-bit 100/133MHz x 2

- one full length and one half length PCI slots

Drive Bays

h 2 Hot-Swap SCSI (or Non-hotswap IDE) HDD h 1 Slim CD-ROM

Front I/O

h 2 USB ports

Rear I/O

h 2 USB ports h 1 VGA port h 1 serial port h 2 RJ-45 LAN jacks

Page 10

1-3

Getting Started

SCSI (optional)

h Single channel SCSI Ultra320 (LSI 1020)

LAN

h Broadcom 2 ports Gigabit LAN (BCM5704C)

IDE

h 2 IDE connectors, supporting up to 4 A TA-100/133 compatible devices

MSI Server Management IPMI 1.5 (optional)

h MSI-9549 BMC card (with QLogic Zircon UL BMC) and MSI iConsole AP

support IPMI 1.5 (optional)

FAN

h 4 pcs, 40 x 28 mm system fan h 1 pc, 40 x 20mm I/O fan h 3 pcs integrated into power supply

Power Supply

h 411W max. h Active PFC h Full range 100 ~ 240V AC

Dimension (WxDxH)

h 440(W) x 660(D) x 43(H) mm

Others

h High Performance Thermal Solution

Page 11

1-4

MS-9245 1U Rackmount Server

MS-9549 BMC Card Specification

BMC Chip :

- Qlogic Zircon UL ( ARM7 TDMI 40M RISC) , 128pin PQFP

- Host hardware interface : LPC interface

- Host software interface : KCS interface Memory Size

- 256 X 16 Bits SRAM

- 4M Bits Flash Form Factor:

- Add-on Card on SO-DIMM (144 pin , Key position in 50) On-board I2Cmux

- 9545 On board Connector/Header:

- JTAG header (14 pin) for debugging

Key Features:

- IPMI 1.5 Compliant

- Out-of-band LAN based management using RMCP

- FRU/SEL access

- Remote out-of-band alerts

- Event log

- Support for CLI (command line interface) over Serial or shared NIC (RMCP)

- Ability to update firmware inband unattended

- Remote access security (MD5)

- Out-of-band environmental monitoring and alerting

- Secure remote power control and system reset over Serial or shared NIC (RMCP)

- Support Microsoft EMS

- Support on-board I2C ADM 1027 to extend Hardware monitor feature

System Management: T wo SMBus 2.0 (I2C) One SMBus for Broadcom 5704C One SMBus for ADM 1027 , SEEPROM access , CPU thermal sensor

Page 12

1-5

Getting Started

CPU Fan speed control dependent on System Temperature System Fan speed control dependent on System Temperature

Sensor Management Monitored Voltage: +12V , +5V, +3.3V, Vcore, 5V standby , +2.5V Thermal protection (CPU/System overheat shut down through BMC) No Chassis Intrusion LED x 6 ( Power , DASD , Fault , ID_LED , BMC Heartbeat ) On-Board Diagnostic LEDs ( 8 x Memory DIMM, 2 x CPU, 5 x F AN ) Support shared NIC (Broadcom 5704C)

Page 13

1-6

MS-9245 1U Rackmount Server

MS-9145 v1.X Mainboard

BATT

AMD 8111

AMD 8131

ATi

RAGE XL

Broadco m

5704C

SFAN2

SFAN3

SFAN4

SFAN5

SFAN1

IDE1

IDE2

J10

J11

J12

J14

J15

JSMB1

PCIX1

COM2

BIOS

SCSI 1

J13

SW1

J16

SYSFAN1_ERR_LED

SYSFAN2_ERR_LED

CPU1_ERR_LED

CPU0_ERR_LED

Mainboard Layout

Page 14

1-7

Getting Started

Unpack the package and check if all items listed below are present. If any item contained in the package is damaged or missing, please contact your local dealer for replacement. In addition, keep the box and packing materials for possible future use.

Your MS-9245 1U Rackmount Server Barebone package should contain the following items:

Packing Checklist

* MS-9245 1U Rackmount Server x 1

(including a MS-9145 mainboard, a MS-9549 BMC card, a Power Supply and a Fan Duct)

* Heatsink x 2

* 6”32 x 5 screw x 8

* HDD tray set (2 in a set, IDE model) x 2

* Rail Kit x 1

(including two rails and cable ties)

* User’s Guide x 1

* Installation Floppy Disk x 1

* Server Driver CD x 1

* iConsole Suite CD (optional) x 1

Page 15

1-8

MS-9245 1U Rackmount Server

Front View

This section shows the configuration of the MS-9245 from different

angles, and the connectors and buttons on the front and back panel.

System Configuration

1. Slim CD-ROM (optional)

2. Hot Swap 80-pin SCSI HDD: HDD 1 (ID0)

IDE HDD: HDD 2 (Primary Slave)

3. Hot Swap 80-pin SCSI HDD: HDD 2 (ID1) IDE HDD: HDD 1 (Primary Master)

4. USB Port 1

5. USB Port 2

6. (from left to right) IDE HDD Activity LED, Location LED,

Info LED & Error LED**

7. Reset Button

8. Power Button

9. Power LED*

7 8

Page 16

1-9

Getting Started

Rear View

1. AC Power Connector

2. Half Length PCI Slot 2

3. Full Length PCI Slot 1

4. Serial Port

5. VGA Port

6. (from left to right) USB Port 3 & USB Port 4

7. (from left to right) Gbit Port 2 & Gbit Port 1

8. Power LED*

9. NMI Switch

10. Error LED**

7 8

NOTE

* Please refer to Table 1. MS-9245 Front Bezel & Rear I/O LEDs Definitions for more information on Power LED. ** Please refer to Table 2. MS-9245 System Error and Diagnostic LEDs Definitions for more information on Error LED.

Page 17

1-10

MS-9245 1U Rackmount Server

T able 1. MS-9245 Front Bezel & Rear I/O LEDs Definitions

LED Color State Description

ON System operating Green

Blink

System main power off and

standby power on

Power

OFF OFF AC power removed

Green Random blink IDE HDD access activi ty IDE HDD Activity

OFF OFF No disk activi ty

Amber ON Some component error/failure Error

OFF OFF System normal operation

Blue ON Identify active via iConsole

command

Location

(Controlled by MSI

iConsole AP only)

OFF OFF No identification

Information

Amber Reserved for new BIOS function

upgrade

Green Random blink HDD access activity Swappable SCSI

HDD Access

OFF OFF No disk activi ty

Page 18

1-11

Getting Started

T able 2. MS-9245 System Error and Diagnostic LEDs Definitions

Diagnostic LEDs

Diagnostic LEDs use signal display to help users understand their system.When POST or Service Processor detects an error, the corresponding LEDs light up to alert the user to the condition and help service personnel identify the failing component. A system error single LED on the front panel and in the rear of the system first alters the users that an error has occurred. Service personnel next check inside the system to determine which subsystem has an error LED lit. This information helps the service personnel to locate the failing component for replacement. The full failing path remians lit until POST no longer exists or the error is fixed.

Item Error LED Diagnostic LED Description/Symptoms

1 OFF OFF Normal operation

2 ON CPU Error LED ON Processor related problems

3 ON SCSI Error LED ON SCSI hard drive Error/failure

4 ON FAN Error LED ON Fan failure

5 ON Memory Error LED ON Memory error/failure

6 ON N/A Power supply error/failure

Page 19

1-12

MS-9245 1U Rackmount Server

The Rear Panel provides the following connectors:

USB Connectors

The mainboard provides an UHCI (Universal Host Controller Interface) Universal Serial Bus root for attaching USB devices such as keyboard, mouse or other USB-compatible devices. You can plug the USB device directly into ths connector.

USB Port

1 2 3 4

PIN SIGNAL DESCRIPTION

1 VCC +5V 2 -Data 0 Negative Data Channel 0 3 +Data0 Positive Data Channel 0 4 GND Ground

USB Port Description

LAN (RJ-45) Jacks: Giga-bit LAN

The mainboard provides two standard RJ-45 jacks for connection to Local Area Network (LAN). Giga-bit LAN enables data to be transferred at 1000, 100 or 10Mbps. You can connect a network cable to either LAN jack.

Giga-bit LAN Pin Definition

PIN SIGNAL DESCRIPTION

1 D 0P Differential Pair 0+ 2 D0N Differential Pair 03 D 1P Differential Pair 1+ 4 D 2P Differential Pair 2+ 5 D2N Differential Pair 26 D1N Differential Pair 17 D 3P Differential Pair 3+ 8 D3N Differential Pair 3-

Page 20

1-13

Getting Started

VGA Connector

The mainboard provides a DB 15-pin female connector to connect a

VGA monitor.

15 11

VGA Connector

(DB 15-pin)

Pin Signal Description

1 RED 2 GREEN 3 BLUE 4 N/C 5 GND 6 GND 7 GND 8 GND 9 +5V 10 GND 1 1 N/C 12 SDA 13 Horizontal Sync 14 Vertical Sync 15 SCL

Serial Port Connectors: COM 1 & COM 2 (optional)

The mainboard offers two 9-pin DIN connectors for serial ports COM 1 and COM 2. The ports are 16550A high speed communication ports that send/ receive 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to them.

COM 1

1 2 3 4 5

6 7 8 9

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect 2 SIN Serial In or Receive Data 3 SOUT Serial Out or Transmit Data 4 DTR Data T erminal Ready) 5 GND Ground 6 DSR Data Set Ready 7 RTS Request To Send 8 CTS Clear To Send 9 RI Ring Indicate

COM 1 Pin Definition

COM 2

8 6 4 2

9 7 5 3 1

PIN DESCRIPTION PIN DESCRIPTION

1 Data Carrier Detect 2 Receive Data 3 Transmit Data 4 Data T erminal Ready 5 Ground 6 Data Set Ready 7 Request to Send 8 Clear to Send 9 Ring Indicator 10 Ground

COM 2 Pin Definition

Page 21

1-14

MS-9245 1U Rackmount Server

T op View

1. Proprietary Power Supply

2. Slim CD-ROM Drive

3. DIMM Slots

4. PCI Slots

5. Heatsinks

6. Fan Duct

7. AC Power Connector

Page 22

2-1

Hardware Setup

Chapter 2. Hardware Setup

This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to setup the jumpers on the mainboard. Also, it provides the instructions on connecting the peripheral devices, such as the mouse, keyboard, etc.

While doing the installation, be careful in holding the components and follow the installation procedures.

Hardware Setup

Page 23

2-2

MS-9245 1U Rackmount Server

The mainboard supports Single AMD® Opteron UP or Dual AMD

Opteron DP™ processor(s). The mainboard uses two CPU sockets called Socket 940 for easy CPU installation. Y ou can install SINGLE or DUAL CPUs on the mainboard to meet your own needs. Keep the following points in mind before installing CPU(s):

1. If SINGLE CPU is intended, always install the CPU on the U1

socket.

2. T o install DUAL CPUs on the board, you must use the same type/

stepping of AMD Opteron DP™ CPUs running at the same frequency.

Central Processing Unit: CPU

As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. Maintaining the proper thermal environment is key to reliable operation. As such, the processor must be maintained in the specified thermal requirements.

You need to add thermal grease between the CPU and heatsink to improve heat dissipation. Then, make sure that the CPU and heatsink are securely fastened and in good contact with each other. These are needed to prevent damaging the processor and ensuring reliable operation. If you want to get more information on the proper cooling, you can visit AMD’s website for reference.

WARNING! Thermal Issue for CPU

Page 24

2-3

Hardware Setup

1. Make sure that the computer

is turned off, and the power cord disconnected before installing the CPU.

2. Pull the lever sideways away

from the socket, and raise it up to a 90-degree angle.

3. Locate the cut edge of the

CPU. When the CPU is installed into the socket, this cut edge should be aligned with the corner marking an arrow on the Socket 940.

Please note that the CPU can only fit in a correct orientation, DO NOT use force to install the CPU into the socket.

4. Place the CPU onto the socket

and press it down firmly into the socket. The pins of the CPU should be embedded into the socket completely.

5. Close the lever to secure the

CPU. Do not close the level until the CPU’s pins are fully inserted; otherwise, the pins may be damaged.

CPU Installation Procedures for Socket 940

Open Lever

Close Lever

Press down

the CPU

Cut edge

Corner marking

an arrow

Page 25

2-4

MS-9245 1U Rackmount Server

The mainboard supports up to eight registered ECC DDR200/266/333 DIMMs providing up to 16GB of memory. Each DIMM slot supports up to a maximum size of 2GB. Y ou can install either single- or double-sided modules to meet your own needs.

Memory

DDR DIMM Slots

You can install either one or two DIMM modules on the slots. Use Slot 1, 3, 6 or 8 for single DDR module installation. If DDR modules are installed on Slot 5 ~ 8, CPU2 must be installed.

Memory modules can be installed in any combination as follows:

DIMM Module Combination

NOTE

Memory modules “in pairs” must be of the same type and size.

Option Memory Modules Installed

1 Slot 1&2, Slot 3&4, Slot 5&6, Slot 7&8 2 Slot 1&2&3&4, Slot 1&2&5&6, Slot 1&2&7&8, Slot 3&4&5&6, Slot 3&4&7&8,

Slot 5&6&7&8

3 Slot 1&2&3&4&5&6, Slot 1&2&3&4&7&8, Slot 1&2&5&6&7&8,

Slot 3&4&5&6&7&8

4 Slot 1&2&3&4&5&6&7&8

Page 26

2-5

Hardware Setup

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module

will only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in until the golden finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt

Notch

NOTE

You can barely see the golden finger if the module is properly inserted in the socket.

Page 27

2-6

MS-9245 1U Rackmount Server

Power Supply

The mainboard supports SSI power supply for the power system. Before inserting the power supply connector, always make sure that all components are installed properly to ensure that no damage will be caused.

18-Pin Main Power Supply Connector: J10

This connector provides power supply to the system board.

14-Pin Standby and Status Control Connector: J1 1

This connector provides power supply to the system board.

24-Pin SCSI Power and I2C Connector: J12

This connector is an optional power connector to provide power output to the SCSI HDD.

4-Pin CD-ROM Power Connector: J14

This connector provides power supply to the CD-ROM Drive.

6-Pin Front Plane USB Connector: J15

This connector provides power supply to the front USB ports.

J12

J14

J10

J11

J15

Page 28

2-7

Hardware Setup

J10

Molex_44472-1853

RET1

12V_1

5V_1

MH1

MH2

12V_2

12V_3

12V_4

5V_2

5V_3

5V_4

RET2

RET3

RET4

RET5

RET6

RET7

RET8

RET9

RET10

J11

Molex_43045-1413

-ON_+OFF

+5VSB

+5VSB2

+5VSB_RET

-EPOW

-FAN_FAULT

DCGOOD/-POR

-FAN_HS

SDA

SCL

SPARE1

SPARE2

+5VSB_RET2

MH1

MH2

J12

Molex_43045-2413

I2C_A0

12V_1

12V_2

12V_3

12V_4

I2C_A1

I2C_A2

I2C_CLK

I2C_DATA

I2C_INT

GND1

GND2

GND3

GND4

5V_1

5V_2

5V_3

RESET

3P4V/NC

GND6

GND7

GND8

MH1

MH2

PRES_DET#

GND5

J14

Molex_43045-0414

12V1GND1

GND2

MH1

MH2

J15

CON2X3

Page 29

2-8

MS-9245 1U Rackmount Server

Connectors

SM Card 3rd I2C Bus Connector: JSMB1

The mainboard provides one I2C (also known as I2C) Bus connector for users to connect to System Management Bus (SMBus) interface.

JSMB1

PIN SIGNAL

1DATA 2 CLK 3ALT#

JSMB1 Pin Definition

J13

Pin Description Pin Description

1 GND 2 SM_PWRLED# 3 GND 4 FP2SW_RST#

5 GND 6 Unused 7 +5VSB 8 Unused 9 +5VSB 10 SMB_2_DA TA 11 +5VSB 12 SMB_2_CLK 13 Unused 14 GND 1 5 +5V 1 6 SM_FP_DET# 17 +5V 1 8 USB1_OC_L 19 +5V 20 SB_GPIO14 21 +5V 2 2 SM_LED4_SEL 23 GND 24 FP2SW_PWRBTN# 25 GND 26 Unused

J13 Pin Definition

Front Panel Connector: J13

The mainboard provides one front panel connector for electrical connection to the front panel switches and LEDs.

Page 30

2-9

Hardware Setup

Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/ 133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/ 100/133 function. Y ou can connect up to four hard disk drives, CD-ROM, 120MB Floppy (reserved for future BIOS) and other devices.

IDE1 (Primary IDE Connector) The first hard drive should always be connected to IDE1. IDE1 can

connect a Master and a Slave drive. You must configure second hard drive to Slave mode by setting the jumper accordingly.

IDE2 (Secondary IDE Connector) IDE2 can also connect a Master and a Slave drive.

IDE1

IDE2

NOTE

If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting instructions.

Page 31

2-10

MS-9245 1U Rackmount Server

Fan Power Connectors: SF AN1/SF AN2/SFAN3/SF AN4/SF AN5

The SFAN1/SF AN2/SFAN3/SFAN4/SFAN5 (system fans) support system cooling fan with +12V. It supports three-pin head connector. When connecting the wire to the connectors, always take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

NOTE

1. Always consult the vendors for proper CPU cooling fan.

2. SFAN supports the fan control. MS-9245 will automatically control the CPU fan speed according to the system temperature.

SF AN3

Sensor

+12V

GND

SF AN4

Sensor

+12V

GND

SF AN5

Sensor

+12V

GND

SF AN1

Sensor

+12V

GND

SF AN2

GND

+12V

Sensor

Page 32

2-11

Hardware Setup

Ultra320 SCSI Connector: SCSI 1

SCSI (Small Computer System Interface) is a hardware interface that allows for connection of up to 15 peripheral devices. The mainboard provides one SCSI channel (SCSI 1) for you to connect SCSI devices such as SCSI hard disks.

SCSI 1

Pin Description Pin Description

1 +DB(12) 35 -DB(12) 2 +DB(13) 36 -DB(13) 3 +DB(14) 37 -DB(14) 4 +DB(15) 38 -DB(15) 5 +DB(P1) 39 -DB(P1) 6 +DB(0) 40 -DB(0) 7 +DB(1) 41 -DB(1) 8 +DB(2) 42 -DB(2) 9 +DB(3) 43 -DB(3) 10 +DB(4) 44 -DB(4) 11 +DB(5) 45 -DB(5) 12 +DB(6) 46 -DB(6) 13 +DB(7) 47 -DB(7) 14 +DB(P) 48 -DB(P) 15 GROUND 49 GROUND 16 DIFFSENS 50 GROUND 17 TERMPWR 51 TERMPWR 18 TERMPWR 52 TERMPWR 1 9 RESERVED 53 RESERVED 20 GROUND 54 GROUND 21 +ATN 55 -ATN 22 GROUND 56 GROUND 2 3 +BSY 5 7 -BSY 24 +ACK 58 -ACK 25 +RST 59 -RST 26 +MSG 60 -MST 27 +SEL 61 -SEL 28 +C/D 62 -C/D 29 +REQ 63 -REQ 30 +I/O 64 -I/O 31 +DB(8) 65 -DB(8) 32 +DB(9) 66 -DB(9) 33 +DB(10) 67 -DB(10) 34 +DB(11) 68 -DB(11)

68-Pin Ultra320 SCSI Connector

Page 33

2-12

MS-9245 1U Rackmount Server

SODIMM144__8MMP

J16

COM1_DI(I)

COM1_RST#(O)

COM1_DCD#(I)

COM1_RI#(I)

COM1_CTS#(I)

COM1_DTR#(O)

COM1_DSR#(I)

COM1_EN/SW#(O)

COM2_EN/SW#(O)

COM_BUS_EXCH(O)

FAN_TACH3(I)

POST/I2C_ACK#(O)

5VSB_VDD_ANALOG

FAN_TACH0(I)

FAN_TACH1(I)

FAN_TACH2(I)

FAN_TACH4(I)

FAN_TACH5(I)

GND_ANALOG

I2C_0_SDA

I2C_0_SCL

I2C_0_INT#

3VSB_ANALOG

I2C_2_SDA

I2C_2_SCL

I2C_INT#(I)

SB_PWR_PG(I)

Main_PWR_PG(I)

ANALOG_VOLT0(I)

ANALOG_VOLT1(I)

ANALOG_VOLT2(I)

ANALOG_VOLT3(I)

ANALOG_VOLT4(I)

ANALOG_VOLT5(I)

ANALOG_VOLT6(I)

ANALOG_VOLT7(I)_BAT

RTS_SEN_EN(O)

3.3VSB_ANALOG

LPC_AD0

COM1_DO(O)

INSERT_DET(I)

BMC_VER0(O)

BMC_VER1(O)

PLAN_LVL0(I)

PLAN_LVL1(I)

101

PLAN_LVL2(I)

103

PLAN_LVL3(I)

105

SYS_ID0(I)

107

SYS_ID1(I)

109

SYS_ID2(I)

111

SYS_ID3(I)

113

SYS_ID4(I)

115

117

119

GND

121

485+

123

485-

125

GND

127

PWR_BTN_IN(I)

129

PWR_BTN_OUT(O)

131

BMC_Heartbeat(O)

133

BMC_SMI#

135

COM_EXCH_DIS(O)

139

COM_SHUT(O)

141

5VSB

143

LPC_AD1

LPC_AD2

LPC_AD3

GND

(I)LPC_CLK

LPC_RST#

LPC_FRAME#

(O)LPC_INT#

GND

(O)LPC_DRQ#

(I)POST/I2C_REQ#

5VSB

(O)FAN_PWM0

(O)FAN_PWM1

(O)FAN_PWM2

(O)FAN_PWM3

(O)FAN_PWM4

(O)FAN_PWM5

(I)GP_INT1#

(I)GP_INT2#

(I)GP_INT3#

(I)GP_INT4#

GND

I2C_1_SDA

I2C_1_SCL

(I)I2C_1_INT#

3.3VSB

I2C_3_SDA

I2C_3_SCL

(I)I2C_3_INT#

EPOW#

(I)SYS_RST#

(O)SYS_RST_OUT

(O)SYS_PWRON_OUT

(I)SYS_PWRON_IN

(O)BMC_WD#

(I)FEA_DET0

(I)FEA_DET1

(O)I2C_0_RST#

(O)I2C_2_RST#

(O)I2C_2_MUX_DIS#

3.3VSB

LED0

LED1

LED2

LED3

100

LED4

102

LED5

104

LED6

106

110

112

114

116

118

120

GND

122

124

126

GND

128

130

132

(I)SYS_RTC

134

(I)REM_BTN_IN

136

(I)HD_ACT#

138

(I)I2C_DIS_ALL

140

(I)I2C_MEM_SW

142

5VSB

144

LED7

108

SYS_NMI#(I)

137

Server Management Card Connector: J16

This connector allows you to insert a Server Management Card.

1 2

J16

143 144

Page 34

2-13

Hardware Setup

Rear Status LED: J20

The LED shows the error and power status.

Error LED (Amber)

Power LED (Green)

Page 35

2-14

MS-9245 1U Rackmount Server

PCI-X 100/133 Jumper: JPCIXB1

The jumper is used to set the channel B of 64-bit PCI bus (PCIX) to run at

100MHz or at 133MHz (for use with one PCI-X 133 device).

Jumpers

Clear CMOS Jumper: JBA T1

If you want to clear the system configuration, use the JBAT1 (Clear

CMOS Jumper ) to clear data.

Keep Data Clear Data

NOTE

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.

JBAT1

100MHz 133MHz

JPCIXB1

Boot Block Jumper: JBBF1

Users can short connect pin#2-3 to recover the system BIOS with a Recovery Floppy. When the system is done with the job, the buzzer will beep to notify the user and set the jumper to its normal state (pin#1-2 short connected).

Normal

Recovery

JBBF1

Page 36

2-15

Hardware Setup

PCI Interrupt Request Routing

The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus INT A# ~ INT D# pins as follows:

PCI Slots

Two PCI slots allow you to insert the expansion cards to meet your needs. When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to make any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.

The motherboard provides two 64-bit PCI-X 100/133MHz slots. One is full length and the other is half length.

Slots

Primary IDE Interrupt: IRQ14 (for AMD811 1)

Secondary IDE Interrupt: IRQ15 (for AMD811 1)

IRQ Routing

Devices Order 1 Order 2 Order 3 Order 4 PCI Slot 1 INT A# INT B# INT C# INT D# PCI Slot 2 INT D# INT A# INT B# INT C# LAN INT A# INT B# VGA INT A# SCSI INT C#

Page 37

3-1

BIOS Setup

Chapter 3. BIOS Setup

BIOS Setup

This chapter provides information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when:

 An error message appears on the screen during the system

booting up, and requests you to run SETUP.

 You want to change the default settings for customized

features.

Upon boot-up, the 1st line appearing after the memory count is the BIOS version. It is usually in the format:

A6380MS V1.0 091096 where:

1st digit refers to the BIOS maker as A = AMI, W = AWARD, and P = PHOENIX. 2nd - 5th digit refers to the model number. 6th - 7th digit refers to the customer as MS = all standard customers. V1.0 refers to the BIOS version. 091096 refers to the date this BIOS was released.

Page 38

3-2

MS-9245 1U Rackmount Server

Entering Setup

Control Keys

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <F2> key to enter Setup.

Press F2 to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Key <F1> or <Alt-H> <Esc>

↔ arrow keys

↑ or ↓ arrow keys

Function General Help window Exit this menu Select a different menu Move cursor up and down Cycle cursor up and down Move cursor to top or bottom of window Move cursor to next or previous page Select the Previous Value for the field Select the Next Value for the field Load the Default Configuration values for this menu Save and exit Execute Command or Enter Submenu

Page 39

3-3

BIOS Setup

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol (as shown in the right view) appears to the left of certain fields that means a sub-menu can be launched from this field. A sub-menu contains additional options for a field parameter. You can use arrow keys ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen.

MSI Reminds Y ou...

The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only.

8 IDE Primary Master 8IDE Primary Slave 8IDE Secondary Master 8IDE Secondary Slave

Page 40

3-4

MS-9245 1U Rackmount Server

Once you enter PhoenixBIOS Setup Utility, the Main Menu will appear on the screen. On the Main Menu screen, you will see basic BIOS settings including system time & date, and the setup categories the BIOS supplies. Use Arrow keys to move among the items and menus, and make changes to the settings.

Main Menu

Use this menu for basic system configurations, such as time, date etc.

Advanced Menu

Use this menu to set up the items of special enhanced features available on your system’s chipset.

Security Menu

Use this menu to set Supervisor and User Passwords and the Backup and V irus-Check reminders.

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

System Time [09:10:11] System Date [05/25/2003]

8IDE Primary Master [None] 8IDE Primary Slave [None] 8IDE Secondary Master [CD-ROM] 8IDE Secondary Slave [None]

Large Disk Access Mode : [DOS] Boot Summary Screen : [Disabled] System Memory : 624KB

Extended Memory : 510MB

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

<Tab>, <Shift+Tab>, or <Enter> selects field.

Item Specific Help

The Menu Bar

Page 41

3-5

BIOS Setup

Power Menu

Use this menu to specify your settings for power management.

Boot Menu

Use this menu to specify the priority of boot devices.

Exit Menu

This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes.

Page 42

3-6

MS-9245 1U Rackmount Server

The items inside the Main menu are for basic system information and configuration. Each item includes none, one or more setup items. Use the Up/ Down arrow keys or <T ab> to highlight the item or field you want to modify and use the <+> or <-> key to switch to the value you prefer.

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

System Time [09:10:11]

System Date [05/25/2003]

8IDE Primary Master [None] 8IDE Primary Slave [None] 8IDE Secondary Master [CD-ROM] 8IDE Secondary Slave [None]

Large Disk Access Mode : [DOS] Boot Summary Screen : [Disabled] System Memory : 624KB

Extended Memory : 510MB

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Exit

<Tab>, <Shift+Tab>, or <Enter> selects field.

Item Specific Help

System Time

The time format is <HH> <MM> <SS>.

System Date

The date format is <MM> <DD> <YYYY>.

Primary/Secondary Master/Slave

Press PgUp/<+> or PgDn/<-> to select [Manual], [None] or [Auto] type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. If your hard disk drive type is not matched or listed, you can use [Manual] to define your own drive type manually .

The Main Menu

Page 43

3-7

BIOS Setup

If you select [Manual], related information is asked to be entered to the following items. Enter the information directly from the keyboard. This information should be provided in the documentation from your hard disk vendor or the system manufacturer.

Type Select how to define the HDD parameters Multi-Sector Transfers Any selection except Disabled determines

the number of sectors transferred per block

LBA Mode Control Enabling LBA causes Logical Block Ad

dressing to be used in place of Cylinders, Heads and Sectors.

32-Bit I/O Enables 32-bit communication between

CPU and IDE card

Tranfer Mode Selects the method for transferring the data

between the hard disk and system memory

Ultra DMA Mode Indicates the type of Ultra DMA.

Large Disk Access Mode

Select DOS if you have DOS. Select Other if you have another operating system such as UNIX. A large disk is one that has more than 1024 cylinders, more than 16 heads, or more than 63 tracks per sector . Options: [DOS], [Other].

Boot Summary Screen

Selecting Enabled displays system summary screen during boot up. Options: [Enabled], [Disabled].

System Memory

It displays amount of conventional memory detected during boot up.

Extended Memory

It displays the amount of extended memory detected during boot up.

Page 44

3-8

MS-9245 1U Rackmount Server

Items in the menu are divided into 7 sub-menus. Each sub-menu provides more settings. To enter the sub-menu, highligh the sub-menu you want to configure and press <Enter>.

The Advanced Menu

Install O/S

Select the operating system installed on your system which you will use most commonly . Options: [Other], [Win95], [W in98], [WinMe], [W in2000].

Reset Configuration Data

Select Yes if you want to clear the Extended System configuration Data (ESCD) area. Options: [Yes], [No].

Multiprocessor Specification

This item allows you to configure the MP Specification revision level. Some operating systems will require 1.1 for compatibility reason. Options: [1.4], [1.1].

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

Installed O/S : [Other]

Reset Configuration Data : [No] Multiprocessor Specification : [1.4] QuickBoot Mode : [Enabled]

8Chipset Configuration 8Keyboard Configuration 8I/O Device Configuration 8PCI Configuration 8Console Redirection 8POST Error Log 8IPMI

PhoenixBIOS Setup Utility

Select the operating system installed on your system which you will use most commonly.

Note: An incorrect setting can cause some operating systems to display unexpected behavior.

Item Specific Help

Main Advanced Security Power Boot Exit

Page 45

3-9

BIOS Setup

Quick Boot Mode

This feature allows the system skip certain tests while booting. This will decrease the time needed to boot the system. Options: [Enabled], [Disabled].

Chipset Configuration

The sub-menu is used to configure chipset features for optimal system performance.

Dram Bank Interleave

Interleave memory blocks across dram chip selects. Options: [Auto], [Disabled].

Node Memory Interleave

Interleave memory blocks across Processor Nodes. BIOS will AUTO detect the capability of Memory System. Options: [Disabled], [AUTO].

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

Setting items on this menu to incorrect values may cause your system to malfunction.

Dram Bank Interleave : [AUTO]

Node Memory Interleave : [Disabled] HPET Timer [Enabled] HT Link Frequence : [800MHz] ECC : [Enabled] Dram ECC : [Enabled] ECC Scrub Redirection : [Disabled] Chip-Kill: [Enabled]

DCACHE ECC Scrub CTL [Disabled] L2 ECC Scrub CTL [Disabled] Dram ECC Scrub CTL [Disabled]

PhoenixBIOS Setup Utility

Interleave memory blocks across dram chip selects. BIOS will AUTO detect capability on each Node.

Item Specific Help

Advanced

Chipset Configuration

Setup Warning

Page 46

3-10

MS-9245 1U Rackmount Server

HPET Timer

This item allows you to enable/disable HPET high precision event timer . Setting to Disabled will turn off the device and remove it from the ACPI namespace. Options: [Enabled], [Disabled].

HT Link Frequency

This setting specifies the HT (HyperTransport) frequency between CPU0 & CPU1. Setting options: [800MHz], [1GHz].

ECC

This is a global enable function for all blocks within CPU core and North Bridge. After loading setup defaults, restart and enter setup to access Dram ECC setup options. Options: [Enabled], [Disabled].

Dram ECC

If all memory in the system supports ECC, enabling this will initial scrub dram and enable system requests to dram to be checked and/or corrected. Options: [Enabled], [Disabled].

ECC Scrub Redirection

Enable Scrubber to correct errors detected in Dram during normal CPU requests (Foreground scrubbing). Options: [Enabled], [Disabled].

Chip-Kill

This item allows you to enable/disable Chip-Kill ECC on Nodes with all x4 ECC capable dimms. Options: [Enabled], [Disabled].

DCACHE ECC Scrub CTL

This feature sets the rate of background scrubbing for DCACHE lines. Options: [Disabled], [40 ns], [80 ns], [160 ns], [320 ns], [640 ns], [1.28 us], [2.56 us].

L2 ECC Scrub CTL

This feature sets the rate of background scrubbing for L2 cache lines. Options: [Disabled], [40 ns], [80 ns], [160 ns], [320 ns], [640 ns], [1.28 us], [2.56 us].

Page 47

3-11

BIOS Setup

Dram ECC Scrub CTL

This feature sets the rate of BACKGROUND scrubbing for Dram. (In addition to normal ECC scrubbing from system requests.) Options: [Disabled], [1.31 ms], [2.62 ms], [5.24 ms], [10.49 ms], [20.97 ms], [42.0 ms], [84.0 ms]. Note: BACKGROUND agent works independently of CPU

requests and bus masters, but cannot be enabled without first enabling Dram ECC.

Keyboard Configuration

The sub-menu is used to configure keyboard features for optimal system performance.

NumLock

On or Off turns NumLock on or off at boot up. auto turns NumLock on if it finds a numeric key pad. Options: [On], [Off].

Keyboard auto-repeat rate

It sets the number of times a second to repeat a keystroke when you hold the key down. Options: [30/sec], [26.7/sec], [21.8/sec], [18.5/sec], [13.3/ sec], [10/sec], [6/sec], [2/sec].

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

NumLock : [On]

Keyboard auto-repeat rate : [30/sec] Keyboard auto-repeat dealy : [1/4 sec]

PhoenixBIOS Setup Utility

Selects Power-on State for NumLock.

Item Specific Help

Advanced

Keyboard Configuration

Page 48

3-12

MS-9245 1U Rackmount Server

Keyboard auto-repeat delay

It sets the delay time after the key is held down before it begins to repeat the keystroke. Options: [1/4 sec], [1/2 sec], [3/4 sec], [1 sec].

I/O Device Configuration

The sub-menu is used to configure I/O Devices for optimal system performance.

Serial port A/B

Setting to [Enabled] allows users to configure the base I/O address and IRQ of Port A/Port B manually . Selecting Auto allows BIOS to automatically determine the correct base I/O port address. Options: [Enabled], [Disabled], [Auto].

Base I/O address

It specifies the base I/O address for Port A/Port B. Options: [3F8], [2F8], [3E8], [2E8].

Interrupt

It specifies the interrupt for Port A/Port B. Options: [IRQ 3], [IRQ 4].

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

Serial port A : [Enabled]

Base I/O address : [3F8] Interrupt : [IRQ 4]

Serial port B : [Enabled]

Base I/O address : [2F8] Interrupt : [IRQ 3]

PhoenixBIOS Setup Utility

Configure serial port A using options:

[Disabled] No configuration

[Enabled] User configuration

[Auto] BIOS or OS chooses configuration

(OS Controlled) Displayed when controlled by OS

Item Specific Help

Advanced

I/O Device Configuration

Page 49

3-13

BIOS Setup

PCI Configuration

Press PgUp/<+> or PgDn/<-> to PCI Configuration. The following submenu will appear.

PCI Device, Slot #1 & PCI Device, Slot #2

The sub-menu is used to configure the specific PCI device. Press PgUp/ <+> or PgDn/<-> to PCI Device, Slot#1 or 2. The following submenu will appear.

Option ROM Scan

Use this feature to initialize device expansion ROM.

Enable Master

Use this feature to enable selected device as a PCI bus master.

Latency Timer

Use this feature to minimize guaranteed time slice allotted for bus master in units of PCI bus clocks.

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

8PCI Device, Slot #1

8PCI Device, Slot #2 8Onboard SCSI Device 8Onboard LAN Device

PhoenixBIOS Setup Utility

Setup items for configuring the specific PCI device

Item Specific Help

Advanced

PCI Configuration

Page 50

3-14

MS-9245 1U Rackmount Server

Onboard LAN Device

The sub-menu is used to configure the onboard LAN device. Press PgUp/ <+> or PgDn/<-> to Onboard LAN Device. The following submenu will appear.

LAN Device Function

Use this feature to enable or disable the onboard LAN device.

Option ROM Scan

Use this feature to initialize device expansion ROM.

Enable Master

Use this feature to enable selected device as a PCI bus master.

Latency Timer

Use this feature to minimize guaranteed time slice allotted for bus master in units of PCI bus clocks.

Onboard SCSI Device

The sub-menu is used to configure the onboard SCSI device. Press PgUp/<+> or PgDn/<-> to Onboard SCSI Device. The following submenu will appear.

SCSI Device Function

Use this feature to enable or disable the onboard SCSI device.

Option ROM Scan

Use this feature to initialize device expansion ROM.

Enable Master

Use this feature to enable selected device as a PCI bus master.

Latency Timer

Use this feature to minimize guaranteed time slice allotted for bus master in units of PCI bus clocks.

Page 51

3-15

BIOS Setup

Console Redirection

Press PgUp/<+> or PgDn/<-> to Console Redirection. The following submenu will appear.

Com Port Address

This feature allows you to enable/disable the Com port on the motherboard. Options: [Disabled], [On-board COM A].

Console connection

This feature indicates whether the console is connected directly to the system or a modem is used for connection. Options: [Direct], [V ia modem].

Baud Rate

It allows you to select delay befor key repeat. Options: [300], [1200], [2400], [9600], [19.2K], [38.4K], [57.6K], [115.2K].

FIFO Level

This feature allows you to enable the specified FIFO level. Options: [Level 4], [Level 14].

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

Com Port Address : [Disabled]

Baud Rate : [19.2K] FIFO Level : [Level 14] Flow Control : [CTS/RTS] Console Type : [vt100] Continue C.R. after POST : [On]

PhoenixBIOS Setup Utility

If enabled, it will use a port on the motherboard.

Item Specific Help

Advanced

Console Redirection

Page 52

3-16

MS-9245 1U Rackmount Server

Flow Control

This feature allows you to enable flow control. Options: [None], [XON/ XOFF], [CTS/RTS].

Console T ype

This feature allows you to enable the specified console type. Options: [vt100], [vt100 8bit], [ANSI 7bit], [ANSI], [ut100 plus], [UTF8].

Continue C. R. after POST

Selecting [On] will enable Console Redirection after OS has loaded. Options: [On], [Off].

POST Error Log

Press PgUp/<+> or PgDn/<-> to POST Error Log. The following submenu will appear.

View DMI event log

Press Enter to view the contents of the DMI event log.

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

View DMI event log [Enter]

Clear all DMI event logs [No] Event Logging [Enabled]

PhoenixBIOS Setup Utility

View the contents of the DMI event log.

Item Specific Help

Advanced

POST Error Log

Page 53

3-17

BIOS Setup

Clear all DMI event logs

Setting this to Yes will clear the DMI event log after rebooting. Options: [Y es], [No].

Event Logging

Select [Enabled] to allow logging of DMI events. Options: [Enabled], [Disabled].

IPMI

Press PgUp/<+> or PgDn/<-> to IPMI. The following submenu will appear.

IPMI Specification V ersion

It shows the support version of IPMI specification. (read only)

BMC Firmware V ersion

It shows the current BMC firmware version. (read only)

Setting PEF Configuration

Select this line to enable/disable the Platform Event Filter (PEF). Options: [Disabled], [Enabled].

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

IPMI Specification Version 1.5 BMC Firmware Version 3.24

Setting PEF Configuration [Enabled] Change COM port Setting [No] COM port on BMC [Disabled] Clear System Event Log [Disabled]

Existing Event Log number 1 2 Remaining Event Log number 115

SYS Firmware Progress [Enabled] BIOS POST Watchdog [Enabled] System Event Log

PhoenixBIOS Setup Utility

Select this line to en/disable COM port on BMC.

Item Specific Help

Advanced

IPMI

Page 54

3-18

MS-9245 1U Rackmount Server

Change COM port Setting

Select this line to change COM port setting. Options: [Yes], [No].

COM port on BMC

Select this line to enable/disable COM port on BMC. Options: [Disabled], [IPMI], [CLI].

Clear System Event Log

Enabling this selection will force the BIOS to clear the System Event Log on the next boot. Options: [Disabled], [Enabled].

Existing Event Log number/Remaining Event Log number

It shows the number of existing/remaining event log.

SYS Firmware Progress

Enabling this selection will log POST Progress. Options: [Enabled], [Disabled].

BIOS POST W atchdog

Enabling this selection will enable POST watchdog. Options: [Enabled], [Disabled].

System Event Log

Press <Enter> to display the System Event Log.

SEL Entry Number = 1

SEL Record ID = 0010 SEL Record Type = 02 - System Event Record Timestamp = 07.29.2003 10:50:08 Generator Id = 20 00 SEL Message Rev = 04 Sensor Type = 01 - Temperature

-Sensor Number = 32 - TMP_S2 SEL Event Type = 81 - Upper Non-critical Going SEL Event Data = 57 24 2A

PhoenixBIOS Setup Utility

This is an entry in the System Event Log

Item Specific Help

Advanced

System Event Log

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

Page 55

3-19

BIOS Setup

The Security Menu

This section lets you set security passwords to control access to the system at boot time and/or when entering the BIOS setup program. It also allows you to set virus protection at hard disk boot sector.

Supervisor Password Is/User Password Is

It shows the preset supervisor/user password. (read only)

SetSupervisor/User Password

Enabling “Supervisor Password” requires a password for entering Setup. The passwords are not case sensitive. Pressing <Enter> at either Set Supervisor Password or Set User Password displays the following message:

Type the password and press <Enter>. Repeat.

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

Supervisor Password Is : Clear User Password Is : Clear

Set Supervisor Password : [Enter]

Set User Password : [Enter] Password on boot : [Disabled]

Fixed disk boot sector : [Normal] Diskette access : [Supervisor]

PhoenixBIOS Setup Utility

Supervisor Password controls access to the setup utility.

Item Specific Help

Main Advanced Security Power Boot Exit

Set Supervisor Password

Enter New Password: Confirm New Password:

[] []

Page 56

3-20

MS-9245 1U Rackmount Server

Password on boot

Choosing Enabled requires a password on boot. It requires prior setting of the Supervisor password. If supervisor password is set and this option is disabled, BIOS assumes user is booting. Options: [Enabled], [Disabled].

Fixed disk boot sector

Write protects the boot sector on the hard disk for virus protection. It requires a password to format the hard disk. Options: [Normal], [Write Protect].

Diskette access

Setting privilege of password to boot from or access the floppy disk. Options: [Supervisor], [User].

Page 57

3-21

BIOS Setup

The Power Menu

Use this menu to specify your settings for Power Management. Remember that the options available depend upon the hardware installed in your system.

Power Savings

This item allows you to select Power Managment Mode. Select Customize to make your own selections from the following fields. Disabled turns off all power management. Maximum Power Savings conserves the greatest amount of system power . Maximum Performance conserves power but allows greatest system performance. Options: [Disabled], [Customized], [Maximum Power Savings], [Maximum Performance].

Standby Timeout

This feature allows you to specify the inactivity period required to put system in Standby (partial power shutdown). Options: [Off], [1 min], [2 min], [4 min], [6 min], [8 min], [12 min], [16 min].

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

Power Savings : [Disabled]

Standby Timeout : Off Auto Suspend Timeout : Off

Resume On Modem Ring : [Off] Resume On LAN : [On] Resume On Time : [Off] Resume Time : [00:00:00] Resume Date : [00/00/0000]

After Power Failure : [Last State]

PhoenixBIOS Setup Utility

Maximum Power Savings conserves the greatest amount of system power. Maximum Performance conserves power but allows greatest system performance. To alter these settings, choose Customized. To turn off power management, choose Disabled.

Item Specific Help

Main Advanced Security Power Boot Exit

Page 58

3-22

MS-9245 1U Rackmount Server

Auto Suspend Timeout

This feature allows you to specify the inactivity period required after Standby to Suspend (maximum power shutdown). Options: [Disabled], [5 min], [10 min], [15 min], [20 min], [30 min], [40 min], [60 min].

Resume On Modem Ring

Select On to wake up system when an incoming call is detected on the modem. Options: [On], [Off].

Resume On LAN

Select On to wake up system by LAN devices. Options: [On], [Off].

Resume On Time

Select On to wake up system at predetermined time. Options: [On], [Off].

Resume Time

The time format is <HH> <MM> <SS>.

Resume Date

The date format is <MM> <DD> <YYYY>.

After Power Failure

This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are:

[Stay Off] Returns the system to an off state. [Power On] Returns the system to a full on state. [Last State] Restores the system to the previous status before power

failure or interrupt occurred.

Page 59

3-23

BIOS Setup

The Boot Menu

CD-ROM Drive, Removable Devices, Hard Drive

These are the generic types of devices on your system from which you can boot an operating system. You may have more than one device of each type. If so, the generic type is marked with a plus or minus sign. Use the <Enter> key to expand or collapse the devices marked with <+> or <->. Press <Ctrl+Enter> to expand all such devices. To change a device’s priority, first select it with the up-or-down arrows, and move it up or down using the <+> and <-> keys.

Use this menu to arrange to specify the priority of the devices from which the BIOS will attempt to boot the Operating System.

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

CD-ROM Drive

Removable Devices +Hard Drive MBA v6.2.11 Slot 0208 MBA v6.2.11 Slot 0209

PhoenixBIOS Setup Utility

Keys used to view or configure devices: <Enter> expands or collapses devices with a + or <Ctrl+Enter> expands all

Item Specific Help

Main Advanced Security Power Boot Exit

Page 60

3-24

MS-9245 1U Rackmount Server

Exit Saving Changes

When you want to quit the Setup menu, you can select this option to save the changes and quit.

Exit Discarding Changes

When you want to quit the Setup menu, you can select this option to abandon the changes.

Load Setup Defaults

The option allows users to restore all of the BIOS settings to the Optimal Defaults. The Setup Defaults are the default values set by the mainboard manufacturer specifically for the optimized performance of the mainboard.

The Exit Menu

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ↔ Select Menu Select Sub-Menu F10 Save and Exit

Exit Saving Changes

Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

PhoenixBIOS Setup Utility

Exit System Setup and save your changes to CMOS.

Item Specific Help

Main Advanced Security Power Boot Exit

The following sections describe each of the options on this menu. Note that <Esc> does not exit this menu. You must select one of the items from the menu or menu bar to exit.

Page 61

3-25

BIOS Setup

Discard Changes

The option allows users to restore all of the BIOS settings to previous values.

Save Changes

The option allows users to save the changes without exiting Setup.

Page 62

4-1

Chassis Installation

Chapter 4. Chassis Installation

Chassis Installation

This chapter provides instructions on the hardware instal-

lation of the MS-9245 in two sections. System Assembly illustrates how to assemble each component of the MS-9245. Rack Mounting describes the procedures for mounting the unit into the rack in details. You can use the system assembly flowchart and the chart below to determine the proper sequence for removing or installing components to the server.

Chassis Cover CPU and Heatsink DIMM PCI Cards Hard Disks

System Assembly

Rack Mounting

MS-9245

Page 63

4-2

MS-9245 1U Rackmount Server

System Assembly

Locate the release button on the chassis cover.

Lift the release button to the upright position. Push the chassis cover forward.

Chassis Cover

Lift the chassis cover to remove it from the system.

NOTE

Before you remove or install these modules, make sure the server is not turned on or connected to the AC power.

Page 64

4-3

Chassis Installation

Locate the First and Second CPU sockets.

CPU and Heatsink

Place the CPU on top of the socket with the cut edge pointing to the arrow sign.

(If you plan on installing single CPU, use the first CPU socket.)

Lift the CPU lever up to a 90 degree angle.

2nd CPU Socket

1st CPU Socket

CPU lever up

arrow sign

cut edge

Page 65

4-4

MS-9245 1U Rackmount Server

CPU and Heatsink (continued)

Place the heatsink on top of CPU.

Screw the heatsink to the chassis.

Push the lever down to secure the CPU in place.

Page 66

4-5

Chassis Installation

DIMM

Locate the DIMM slots. Install at least two DDR modules on

the slots. The plastic clip at each side of the DIMM slot will automati-cally close.

NOTE

Memory modules “in pairs” must be of the same type and size. Please refer to DIMM Module Combination on page2-4 for more information.

Page 67

4-6

MS-9245 1U Rackmount Server

PCI Cards

Remove the clip from the chassis.

Take out the I/O shield on the first PCI slot.

Insert the add-on card to the PCI slot.

safety lock

PCI Slot 1

PCI Slot 2

Page 68

4-7

Chassis Installation

Replace the clip.

Follow the procedures described earlier to install the second PCI Card.

Page 69

4-8

MS-9245 1U Rackmount Server

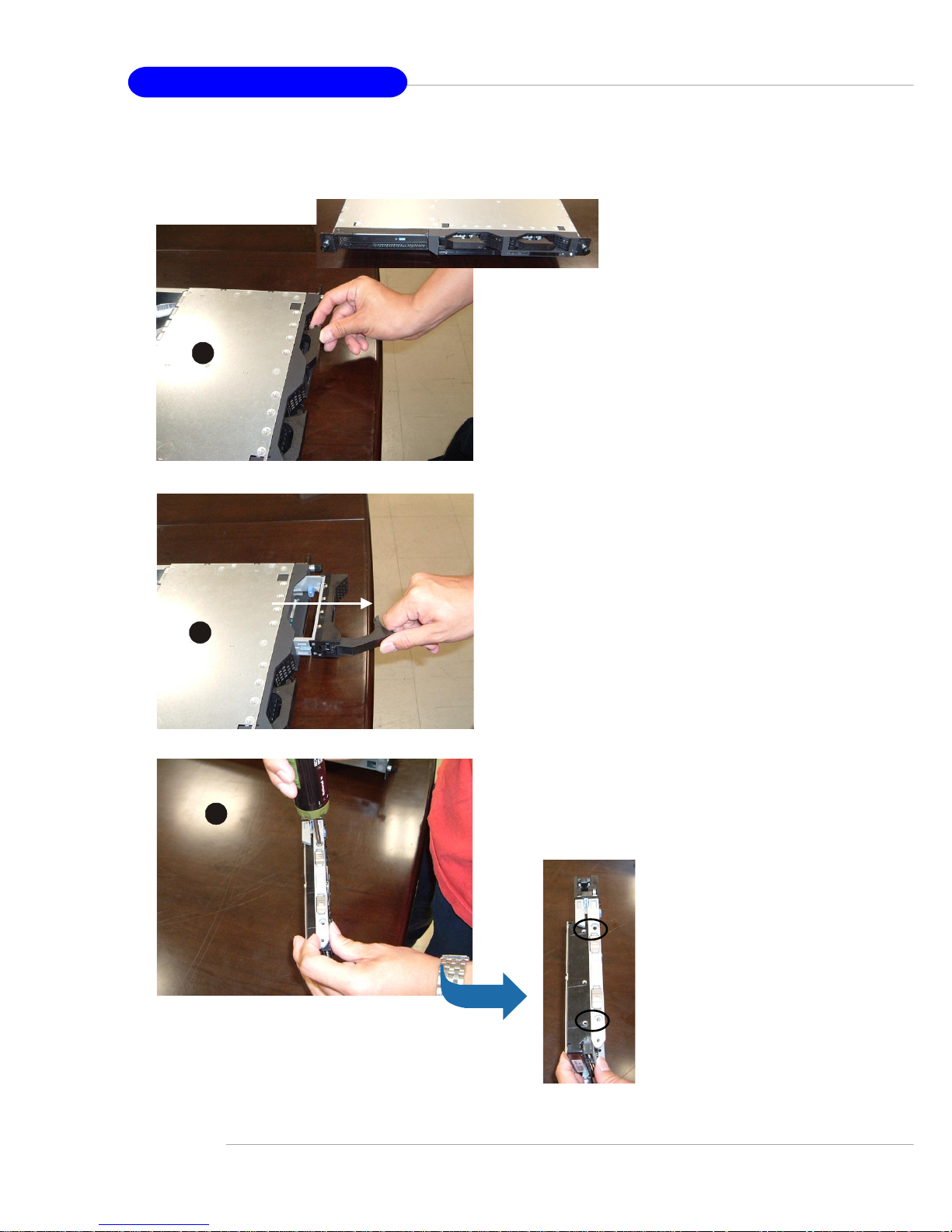

IDE Hard Disks

T ake out the hard disk and HDD trays.

Screw the HDD trays to the hard disk.

Page 70

4-9

Chassis Installation

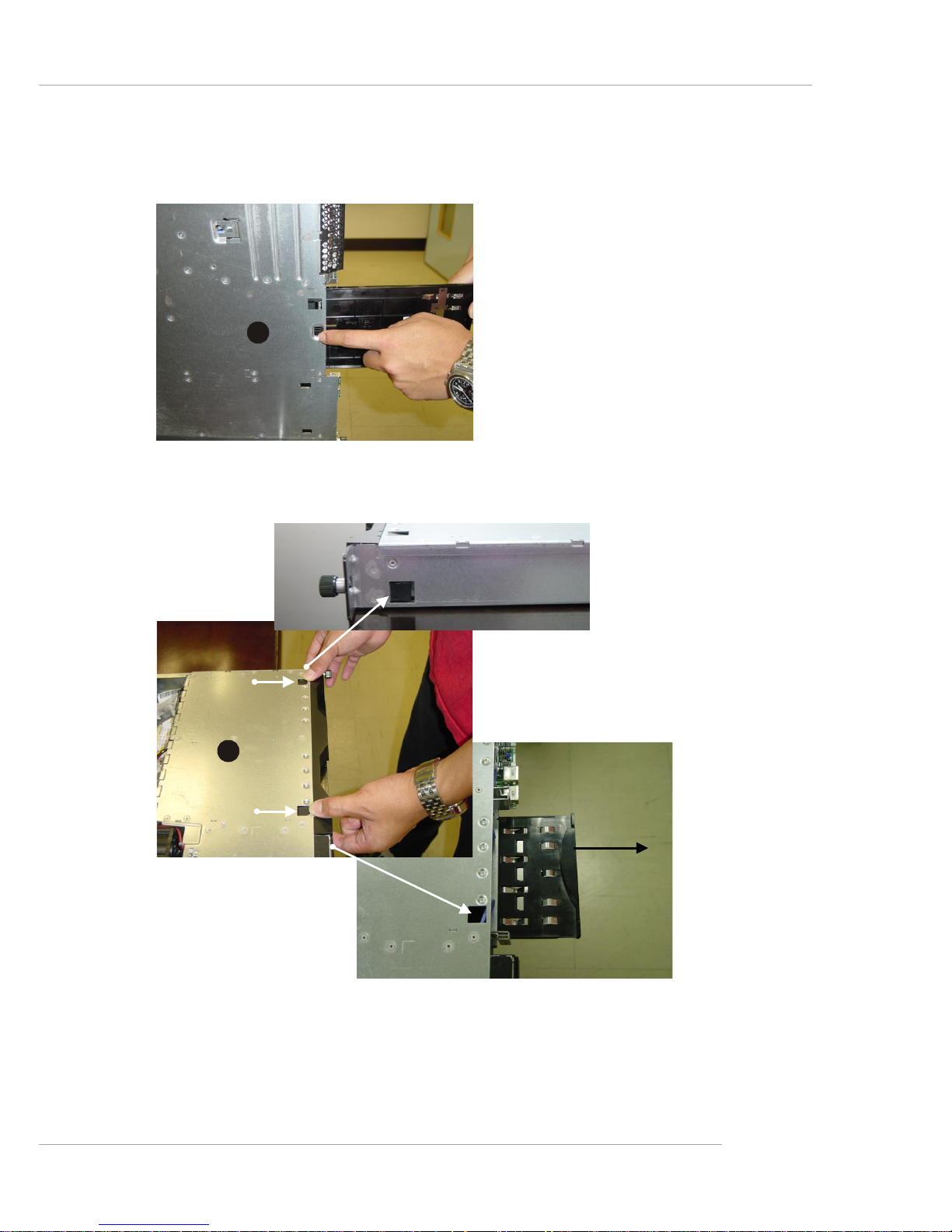

Press the release button to pull out the USB tray completely from the chassis.

Remove the front bezel by pressing the release buttons (point 1~4) simultaneously.

point 2

point 3

(reverse side)

point 4

point 1

USB tray

Page 71

4-10

MS-9245 1U Rackmount Server

step 1

step 2

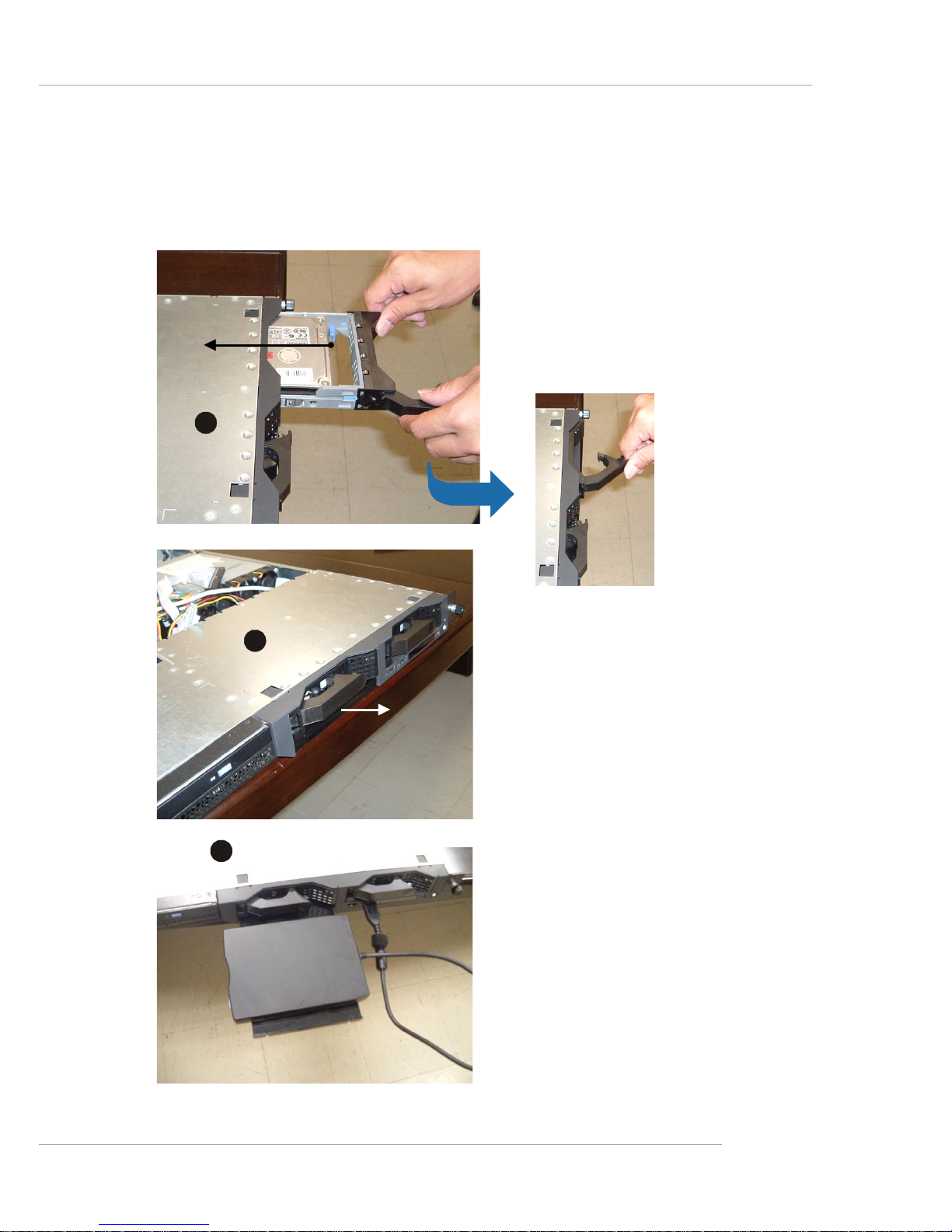

Pull the rings inward to push the hard disk back into the hard disk drive bay.

Follow the same procedures mentioned earlier to install the second hard disk.

Replace the front bezel for IDE HDD. Replace the USB tray and pull it

open to rest any USB device on it.

Page 72

4-11

Chassis Installation

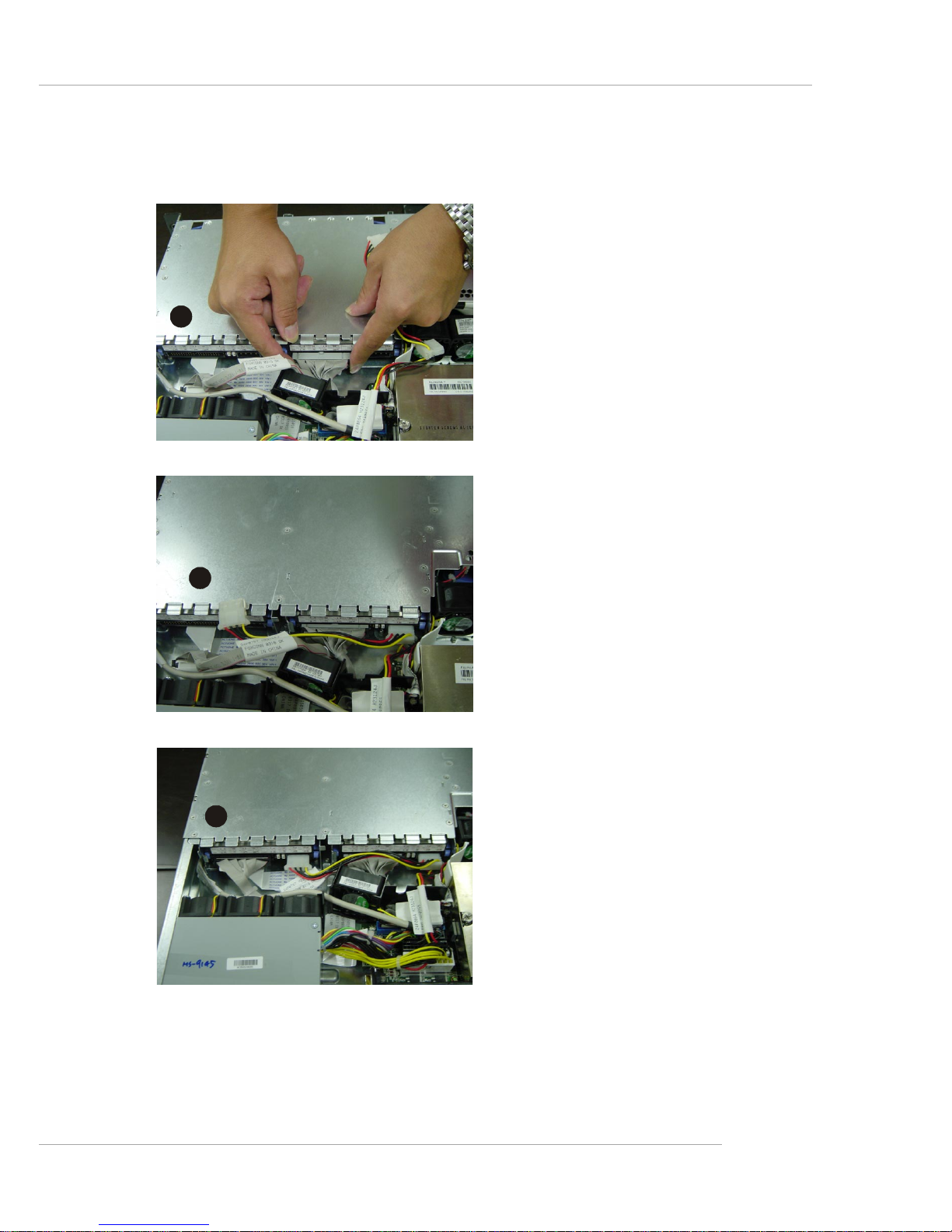

Connect the ATA100 cable to the first hard disk.

Connect the power cord to the first hard disk.

Connect the AT A100 cable and power cord to the second hard disk.

Page 73

4-12

MS-9245 1U Rackmount Server

Hot Swap SCSI Hard Disks

Unlock the HDD device holder and pull it out from the chassis.

Screw the hard disk to the HDD device holder.

Page 74

4-13

Chassis Installation

Slide the HDD device holder into the chassis and push it backward until you hear a “click” sound to secure the holder.

You may pull the USB tray open to rest any USB device on it.

USB tray

Page 75

4-14

MS-9245 1U Rackmount Server

Rack Mounting

Take out the rail set for rack mounting.

rail set

Position the rail to the rack cabin.

Press the button to push the locking tab forward. The rail will secure itself to the cabin.

Screw to secure the rail on the rear.

Rear Right

Page 76

4-15

Chassis Installation

Position the rail to the rack cabin.

Press the button to push the locking tab forward. The rail will secure itself to the cabin.

Screw to secure the rail on the front.

Front Right

Page 77

4-16

MS-9245 1U Rackmount Server

Follow the same procedures as mentioned earlier in this section to screw the left rail on the front and rear.

Align the 1U rackmount server to the rails and push it backward until it reaches the end.

Screw the system to the cabin.
