MSI MS-91A2 Schematics

5

D D

4

3

2

1

MS-91A2

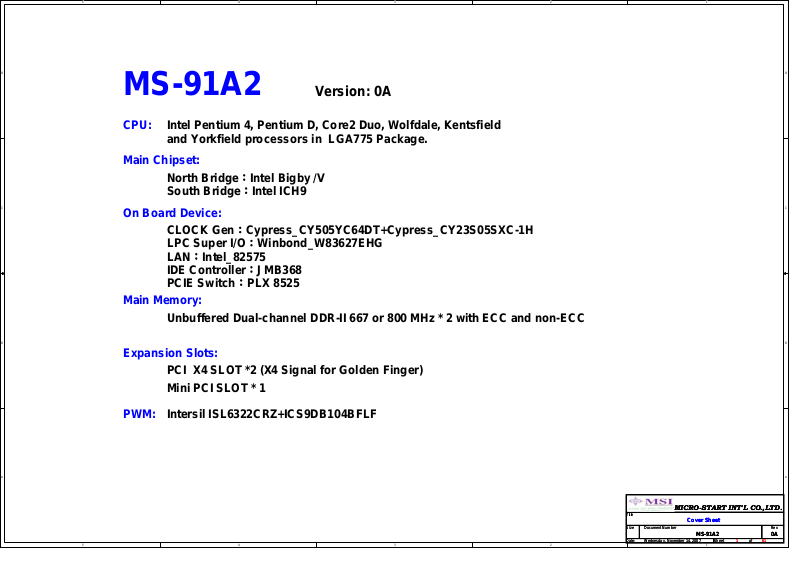

CPU:

Intel Pentium 4, Pentium D, Core2 Duo, Wolfdale, Kentsfield

Version: 0A

and Yorkfield processors in LGA775 Package.

Main Chipset:

North Bridge
South Bridge

C C

：

Intel Bigby /V

：

Intel ICH9

On Board Device:

：

CLOCK Gen
LPC Super I/O

：

LAN

Intel_82575

IDE Controller

Cypress_CY505YC64DT+Cypress_CY23S05SXC-1H

：

Winbond_W83627EHG

：

JMB368

PCIE Switch：PLX 8525

Main Memory:

Unbuffered Dual-channel DDR-II 667 or 800 MHz * 2 with ECC and non-ECC

B B

Expansion Slots:

PCI X4 SLOT *2 (X4 Signal for Golden Finger)
Mini PCI SLOT * 1

PWM:

A A

5

Intersil ISL6322CRZ+ICS9DB104BFLF

4

MICRO-START INT'L CO.,LTD.

MICRO-START INT'L CO.,LTD.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet

3

2

Date: Sheet

MICRO-START INT'L CO.,LTD.

Cover Sheet

Cover Sheet

Cover Sheet

MS-91A2 0A

MS-91A2 0A

MS-91A2 0A

1

of

161Wednesday, November 14, 2007

of

161Wednesday, November 14, 2007

of

161Wednesday, November 14, 2007

5

MSI

MS-91A2 Rev0A

4

3

2

1

BB-P/V + ICH9 Schematics

Table of Contents

D D

Page

01
02
03
04
05
06
07
08

10
11
12

C C

14
15
16
17
18
19
20
21
22
23
24
25
26
27~28
29~31

B B

32~34
35~37
38
39
40
41
42
43
44
45
46
47
48~50
51
52
53

A A

54
55
56
57
58
59
60 Revision & History

5

Title

Cover / Table of Contents
Table of Contents
System Block Diagram
Power map
Power on diagram
CLOCK BLOCK DIAGRAM
SMBus rounting
GPIO Setting / PCI Routing
CPU_LGA775_Signal09
CPU_LGA775_Power
CPU_LGA775_GND
MCH_Bigby_PCIE & DMI
MCH_Bigby_FSB13
MCH_Bigby_DDR2
MCH_Bigby_Miscellaneous
MCH_Bigby_Power
MCH_Bigby_Ground
ICH9_PCIE & USB & DMI & PCI
ICH9_Host & SATA & MSIC
ICH9_Power, GND
DDR2 Channel A
DDR2 Channel B
DDR2_Termination&Decoupling
PLX_PEX8525AA STN0
PLX_PEX8525AA STN1
PLX_PEX8252AA PWR/STRAP
PEX8525AA_Power-1.0V
LAN_82575 I with Bypass Function
LAN_82575 II with Bypass Function
LAN_82575 III with SFP Function
LAN Power-1.8V/1.0V
BYPASS CONTROL
LAN_82566DM IV
GOLDEN_FINGER
Mini PCI
Clock generator_CY505YC64C
Super IO_Winbond 83627DHG
COM port & KBMS
USB&SATA
JMB368 to IDE/ CF
XGI Z7 VGA
Power Connector&Front Panel
Power Sequence&DUAL power
Power Reset & SMBus
VRD11_ISL6322
MCH Core Power & DDR2 Power
ICH Core Power & FSB_VTT
FAN
GPIO BUFFER
Manual & Option parts

Solder Mask

L1

L2

L3

L4

L5

L6

Solder Mask

Target Actual Line Space

50ohms

95ohms-diff

Target Actual Line Space

50ohms

95ohms-diff

4

3

Board Stack-up

62+8/-5mils

PREPREG 2.7mils

CORE 4mils

PREPREG 40mils

CORE 4mils

PREPREG 2.7mils

Outer Impedances

48.60

93.18

Inner Impedances

49.78

93.54

4.0

4.0

5.0 N/A

4.0

N/A

8.0

8.0

2

0.65mils Solder Mask

1.5 oz. (1.9mils) Cu plus plating

1 oz. (1.2mils) Cu GND Plane

1 oz. (1.2mils) Cu INT3 Plane

1 oz. (1.2mils) Cu Power Plane

1 oz. (1.2mils) Cu Power Plane

1.5 oz. (1.9mils) Cu plus plating

0.65mils Solder Mask

MICRO-START INT'L CO.,LTD.

MICRO-START INT'L CO.,LTD.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet of

Date: Sheet of

MICRO-START INT'L CO.,LTD.

Table of Contents

Table of Contents

Table of Contents

MS-91A2 0A

MS-91A2 0A

MS-91A2 0A

1

of

261Wednesday, November 14, 2007

261Wednesday, November 14, 2007

261Wednesday, November 14, 2007

5

4

3

2

1

MS-91A2 SYSTEM BLOCK DIAGRAM
