MSI MS-9169 Schematics

1

MSI

MS-9169 Rev0A

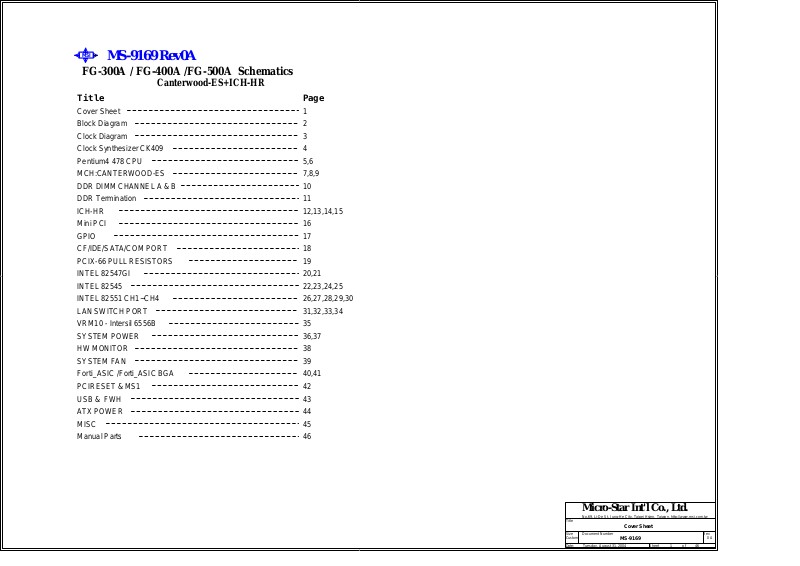

FG-300A / FG-400A /FG-500A Schematics

Canterwood-ES+ICH-HR

Title

Cover Sheet
Block Diagram

Clock Synthesizer CK409
Pentium4 478 CPU

DDR DIMM CHANNEL A & B
DDR Termination
ICH-HR
Mini PCI
GPIO
CF/IDE/SATA/COM PORT
PCIX-66 PULL RESISTORS

A A

INTEL 82547GI
INTEL 82545

LAN SWITCH PORT
VRM10 - Intersil 6556B
SYSTEM POWER
HW MONITOR
SYSTEM FAN
Forti_ASIC /Forti_ASIC BGA
PCIRESET & MS1
USB & FWH
ATX POWER
MISC
Manual Parts

Page

1
2
3Clock Diagram
4
5,6
7,8,9MCH:CANTERWOOD-ES
10
11
12,13,14,15
16
17
18
19
20,21
22,23,24,25
26,27,28,29,30INTEL 82551 CH1~CH4
31,32,33,34
35
36,37
38
39
40,41
42
43
44
45
46

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

1

Date: Sheet

Cover Sheet

MS-9169

146Tuesday, August 31, 2004

0ACustom

of

1

Preliminary Spec.:

* Intel Canterwood-ES / ICH-HR Chipset.

BLOCK DIAGRAM

VRM 10

PAGE 35

INTEL
82547GI LAN

PAGE 20,21

A A

CSA

uPGA478 Processor

PAGE 5,6

FSB

Canterwood-ES

MCH

Bus

PAGE 7,8,9

HUB-Link

DDR Channel A

DDR Channel B

CK409 Clk Gen.

DDR Terminator

2 DDR DIMM

Modules

PAGE 10

PAGE 4

PAGE 11

* Supports INTEL P4 Northwood/Prescott 478-pin
Processor with 400/533/800MHZ FSB.

* 4Layer board
* 2 DIMMs. Max. 2GB DDR 400/333/266 ECC Unbuffer

Supported. (Dual Channels)
* 1 Forti ASCI

* USB2.0(Internal*2),Serial Port(External,Internal)
* 1Mini-PCI Slot
* 2 SATA, 2 IDE(40 pins*1,44pins*1) 1CF connector
* 4 INTEL 82551 10/100 LAN

* 4 LAN SWITCH PORTS (F-500A Option)
* 1 INTEL 82544/82545 GB LAN

* 1 INTEL 82547 GB LAN

IDEConnect

CF Connect

USB2.0 Port 1/2

SATA1

SATA2

PAGE 18

PAGE 18

PAGE 43

PAGE 18

PAGE 18

Ultra DMA 66/100

USB 2.0

FWH

PAGE 43

ICH-HR
Hance Rapids

PAGE 12~15

External
Serial

PAGE 18

Internal
Serial

PAGE 18

82551QM

LAN

CH1~CH4

PAGE26~30

ATX

INTEL

System Power

PAGE 44

INTEL

82551QM

LAN CH5

(FG-500A)

PAGE 31

LAN

SWITCH

(FG-500A)

PAGE32,33 PAGE34

1

PAGE 36,37

Mini PCI

Slot

PAGE 16 PAGE

LAN PORT

A,B,C,D

(FG-500A)

22~25

PCI 64/66 Mode

INTEL 82545GM

GB LAN

PCI 32 Bus

PCI-X Bus

Forti ASIC(BGA)

CP4 or CP5

PAGE
40,41

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

Block Diagram

MS-9169

246Tuesday, August 31, 2004

of

0ACustom

5

4

3

2

1

D D

CK 409

33MHz
33MHz

3.3V Voltage

33MHz
33MHz
33MHz

14.318MHz

C C

3.3V Voltage

48MHz

66MHz
66MHz

Core

66MHz
66MHz

B B

SATA100
SATA100#
CPUCLK

Core

CPUCLK#
MCHCLK
MCHCLK#

Mini PCI

82551 10/100 LANx4

ICH-HR

FWH
MS1

ICH-HR

ICH-HR

Canterwood-ES

ICH-HR
ICH-HR

82547GB LAN

ICH-HR

CPU

Canterwood-ES

66MHz
66MHz

82545 GB LAN
Forti ASIC

A A

5

4

3

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

Micro-Star Int'l Co., Ltd.

Clock Diagram

MS-9169

346Tuesday, August 31, 2004

2

of

1

0AA

1

CLOCK GENERATOR STRAPP ING

Clock Generator - ICS952606

CPUCLK
CPUCLK#
MCHCLK

U12

39

VCC3

C0.1U25X

A A

FB1 80L3_70_0805

CB15

C10U10Y1206

3V_CLK

3V_CLK

+

CT18

SMBCLK10,13,38

SMBDATA10,13,38 VCC3

C433
X_C0.1U25X

C445
X_C0.1U25X

C436
C0.1U25X

C438
C0.1U25X

C439
C0.1U25X

C437
C0.1U25X

C435
C0.1U25X

C443
C0.1U25X

C442
C0.1U25X

C434
C0.1U25X

40 38

CPU_VDD CPU0#

43

CPU_GND

34

SRC_VDD

37

SRC_GND

28

3V66_GND

10

PCI_VDD

11

PCI_GND

16

PCI_VDD

17

PCI_GND

24

48_VDD

23

48_GND

3

REF_VDD

6

REF_GND

48

VDD

47

GND

31

SCLK

32

SDATA

CPU0
CPU1

CPU1#

CPU2

CPU2#

SRC

SRC#

3V66_03V66_VDD
3V66_1

MODE#/3V66_2

VCH/3V66_4

FS_C/PCI_F0
FS_D/PCI_F1
FS_E/PCI_F2

PCI0
PCI1
PCI2
PCI3
PCI4
PCI5

DOT_48M
USB_48M

FS_A/REF0
FS_B/REF1

VTT_GD#

RST#/PWR_DN#

IREF

ICS952606_SSOP48

42
41
45
44

36
35

3027
29
26
25

7
8
9
12
13
14
15
18
19

21
22

1
2

4

X1

5

X2

33
20
46

MCHCLK
MCHCLK#
CPUCLK
CPUCLK#
IITPCLK
IITPCLK#

SATA100
SATA100#

MCH66
PXPCI66
ICH66
CSA66

PCLK6
PCLK7
PCLK8
PCLK0
PCLK1
PCLK2
PCLK3
PCLK4
PCLK5

UART48
USB48

FS_SEL0
FS_SEL1

PLL_XI

PLL_XO

VID_GD#

IREF

MCHCLK#

R208 33R
R214 33R R522 10KR1%

RN42 8P4R-33R

1 2
3 4
5 6
7 8

RN36 8P4R-33R

7 8
5 6
3 4
1 2

R203 33R

7 8
5 6
3 4
1 2

RN39 8P4R-33R

R225 33R
R226 33R

R172 1KR1%
R171 33R
R168 1KR1%

Y1

14.318MHZ32P_D

R224 1KR1%
R174 475R1%

RN38

1 2
3 4
5 6
7 8

8P4R-33R

CPU_CLK
CPU_CLK#
MCH_CLK
MCH_CLK#

SATA_100 13
SATA_100# 13

MCH_66 7
PXPCI_66 13
ICH_66 14
CSA_66 20

UART_48
USB_48

FP_RESET#1 13,14,44

UART_48 14
USB_48 14

BSEL0 5
ICH_14 13
BSEL1 5

C22P50NC137

C22P50NC138

CPU_CLK 5
CPU_CLK# 5
MCH_CLK 7
MCH_CLK# 7

CLK_LAN4 29
CLK_MPCI 16
CLK_LAN1 26
CLK_LAN2 27
CLK_LAN5 31
CLK_LAN3 28
PCLK3ICH 12
PCLK4FWH 43
PCLK9MS1 42

MCH_BSEL07

R524 2.49KR1%
R527 2.49KR1%

MCH_BSEL17

R79 2KR1%
R529 2KR1%

Clock Generator VTT Power Down Block

VID_GD#

CPU_CLK
CPU_CLK#
MCH_CLK
MCH_CLK#
SATA_100
SATA_100#

C10P50NC143
C10P50NC148
X_C10P50NC176
X_C10P50NC187
X_C10P50NC181
X_C10P50NC191
C10P50NC161
X_C10P50NC193

VIDGD

R185 49.9R1%
R191 49.9R1%
R197 49.9R1%
R201 49.9R1%
R207 49.9R1%
R215 49.9R1%

N-MMBT3904_SOT23

IITPCLK
IITPCLK#
MCH_66
ICH_66
PXPCI_66
CSA_66
CLK_LAN5
USB_48

Q53

EMC HF filter capacitors, located close to PL L

R178 4.7KR

PCLK6
PCLK7

R177 4.7KR
R196 4.7KR

PCLK8

BSEL0
BSEL1

R523 4.7KR

CLK_LAN4
CLK_MPCI
CLK_LAN1
CLK_LAN2
CLK_LAN3
PCLK3ICH
PCLK4FWH
PCLK9MS1
UART_48

R80 1KR1%
R74 1KR1%

VCC3

VID_GD 5,6,35

X_C10P50NC146
X_C10P50NC151
X_C10P50NC155
X_C10P50NC158
X_C10P50NC166
X_C10P50NC170R222 X_0R
X_C10P50NC175
X_C10P50NC180
C10P50NC188

VCC3

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

1

Date: Sheet

CK-SKS

MS-9169

0ACustom

of

446Tuesday, August 31, 2004

1

TP35

VCC_SENSE 35

VID2

AE3

A25

HD#3

VID0

VID1

AE4

AE5

VID2#

VID1#

VID0#

D3#

D2#

D1#

A23

B22

HD#2

HD#1

VSS_SENSE 35
VID_GD 4,6,35
VID[0..5] 35

CPU1A

GTLREF0
GTLREF1
GTLREF2
GTLREF3

BPM5#
BPM4#
BPM3#
BPM2#
BPM1#
BPM0#

REQ4#
REQ3#
REQ2#
REQ1#
REQ0#

TESTHI12
TESTHI11
TESTHI10

TESTHI9
TESTHI8
TESTHI7
TESTHI6
TESTHI5
TESTHI4
TESTHI3
TESTHI2
TESTHI1
TESTHI0

BCLK1#
BCLK0#

RS2#
RS1#
RS0#

AP1#
AP0#
BR0#

COMP1
COMP0

DP3#
DP2#
DP1#
DP0#

ADSTB1#
ADSTB0#
DSTBP3#
DSTBP2#
DSTBP1#
DSTBP0#
DSTBN3#
DSTBN2#
DSTBN1#
DSTBN0#

LINT1/NMI

LINT0/INTR

D0#

XX

B21

HD#0

AA21
AA6
F20
F6

AB4
AA5
Y6
AC4
AB5
AC6

H3
J3
J4
K5
J1

AD25
A6
Y3
W4
U6
AB22
AA20
AC23
AC24
AC20
AC21
AA2
AD24

AF23
AF22

F4
G5
F1

V5
AC1
H6

P1
L24

L25
K26
K25
J26

R5
L5
W23
P23
J23
F21
W22
R22
K22
E22

E5
D1

BPM#5
BPM#4
BPM#3
BPM#2
BPM#1
BPM#0

HREQ#4
HREQ#3
HREQ#2
HREQ#1
HREQ#0

TESTHI12
TESTHI11
TESTHI10
TESTHI9
TESTHI8

TESTHI2
TESTHI1
TESTHI0

CPU_CLK#
CPU_CLK

HRS#2
HRS#1
HRS#0

HBR#0
COMP1

COMP0

TP27
TP31
TP29

HREQ#[0..4] 7

R117 62R
R70 62R
R33 62R
R29 62R
R30 62R

R110 62R
R35 62R
R118 62R

CPU_CLK# 4
CPU_CLK 4

HRS#[0..2] 7

TP25
TP24

R31 61.9R1%
R106 61.9R1%

TP42
TP36
TP43
TP37

HADSTB#1 7
HADSTB#0 7
HDSTBP#3 7
HDSTBP#2 7
HDSTBP#1 7
HDSTBP#0 7
HDSTBN#3 7
HDSTBN#2 7
HDSTBN#1 7
HDSTBN#0 7

NMI 13
INTR 13

H_GTLREF_CPU

C73 C220P16X

C77 C0.1U25X

H_GTLREF_CPU 7

<VOLTAGE>

CPU STRAPPING RESISTORS

R34 X_62R
R37 62R
R38 62R
R32 62R
R40 62R
R36 62R
R39 62R
R66 120R
R115 300R
R55 200R1%
R116 62R

R67 X_51R
R515 51R
R57 150R1%
R509 51R
R69 680R

VCCP

VCCP

HBR#0 7

BOOT
BPM#5
BPM#4
BPM#3
BPM#2
BPM#1
BPM#0
PROCHOT#
CPU_GD
HBR#0
CPURST#

TDO_CPU
TMS_CPU
TDI_CPU
TCK_CPU
TRST#_CPU

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

Pentium4-478-CPU(1)

MS-9169

of

546Tuesday, August 31, 2004

0ACustom

HDBI#[0..3]7

HD#[0..63]7

HA#[3..31]

TP19
TP28

FERR#13

STPCLK#13

HINIT#13,43

HDBSY#7

HDRDY#7

HTRDY#7

HADS#7

HLOCK#7

HBNR#7

HBPRI#7

HDEFER#7

THERMD1P#38
HW_GNDA38

TRMTRIP#13

PROCHOT#7

IGNNE#13

TP33
TP30
TP32
TP34
TP41

CPU_GD45

CPURST#7

TP21
TP22
TP18
TP23

HDBI#0
HDBI#1
HDBI#2
HDBI#3

TP17
TP20

HIT#7

HITM#7

TDI_CPU
TDO_CPU
TMS_CPU
TRST#_CPU
TCK_CPU

TP39

PROCHOT#

SMI#13

A20M#13

SLP#13

BOOT

BOOT35,36

OPTIMIZ

BSEL04
BSEL14

CPU_GD
CPURST#
HD#63

HD#62
HD#61
HD#60
HD#59
HD#58
HD#57
HD#56
HD#55
HD#54

E21

DBI0#

G25

DBI1#

P26

DBI2#

V21

DBI3#

AC3

IERR#

V6

MCERR#

B6

FERR#

Y4

STPCLK#

AA3

BINIT#

W5

INIT#

AB2

RSP#

H5

DBSY#

H2

DRDY#

J6

TRDY#

G1

ADS#

G4

LOCK#

G2

BNR#

F3

HIT#

E3

HITM#

D2

BPRI#

E2

DEFER#

C1

TDI

D5

TDO

F7

TMS

E6

TRST#

D4

TCK

B3

THERMDA

C4

THERMDC

A2

THERMTRIP#

AF26

GND/SKTOCC#

C3

PROCHOT#

B2

IGNNE#

B5

SMI#

C6

A20M#

AB26

SLP#

A22

RESERVED0

A7

RESERVED1

AE21

RESERVED2

AF24

RESERVED3

AF25

RESERVED4

AD1

BOOTSELECT

AE26

OPTIMIZED/COMPAT#

AD6

BSEL0

AD5

BSEL1

AB23

PWRGOOD

AB25

RESET#

AA24

D63#

AA22

D62#

AA25

D61#

Y21

D60#

Y24

D59#

Y23

D58#

W25

D57#

Y26

D56#

W26

D55#

V24

D54#

HD#53

V22

D53#

HD#52

D52#

U21

V25

HD#51

HA#30

HA#27

HA#29

HA#28

HA#31

AB1Y1W2V3U4T5W1R6V2T4U3P6U1T2R3P4P3R2T1N5N4N2M1N1M4M3L2M6L3K1L6K4K2

A35#

A34#

A33#

A32#

A31#

A30#

A29#

A28#

D51#

D50#

D49#

D48#

D47#

D46#

D45#

D44#

D43#

U23

U24

U26

T23

T22

T25

T26

R24

R25

HD#49

HD#50

HD#48

HD#47

HD#46

HD#45

HD#44

HD#43

HD#42

HA#26

A27#

D42#

P24

HD#41

HA#25

A26#

D41#

HD#40

R21

HA#24

A25#

D40#

N25

HD#39

HA#23

A24#

D39#

N26

HD#38

HA#22

A23#

D38#

M26

HD#37

HA#21

A22#

D37#

N23

HD#36

HA#20

A21#

D36#

HD#35

M24

HA#19

A20#

D35#

P21

HD#34

HA#18

A19#

D34#

N22

HD#33

HA#17

A18#

D33#

M23

HD#32

HA#16

A17#

D32#

H25

HD#31

HA#15

A16#

D31#

K23

HD#30

HA#14

A15#

D30#

J24

HD#29

HA#13

A14#

D29#

L22

HD#28

HA#12

A13#

D28#

M21

HD#27

HA#11

A12#

D27#

HD#26

H24

HA#10

A11#

D26#

G26

HD#25

HA#9

A10#

D25#

L21

HD#24

A9#

D24#

HA#8

HD#23

HA#7

HA#6

HA#5

A8#

A7#

A6#

A5#

D23#

D22#

D21#

D20#

D26

F26

E25

F24

HD#20

HD#22

HD#21

HA#4

HD#19

HA#3

AE25A5A4

A4#

A3#

DBR#

D19#

D18#

D17#

D16#

D15#

F23

G23

E24

H22

D25

HD#15

HD#17

HD#16

HD#18

1

HA#[3..31]7

A A

R109 X_0R

HD#14

TP40

TP38

VID4

VID3

VID5

AD26

AC26

AE1

AE2

AD2

AD3

VID4#

VID3#

VID5#

ITP_CLK1

ITP_CLK0

VIDPWRGD

VSS_SENSE

VCC_SENSE

D14#

D13#

D12#

D11#

D10#

D9#

D8#

D7#

D6#

D5#

D4#

J21

D23

C26

H21

G22

B25

C24

C23

B24

D22

C21

HD#9

HD#6

HD#8

HD#4

HD#5

HD#7

HD#10

HD#12

HD#13

HD#11

1

F15

F17

F19

VCC

VCC

VSS

VSS

G3H1H23

VCC

VSS

F9

VCC

VSS

VCC_VID

AF4

VCC-VID

VSS

VSS

H26H4J2

VSS

VCCP

A10

A12

A14

A16

A18

A20A8AA10

AA12

AA14

AA16

AA18

AA8

AB11

AB13

AB15

AB17

AB19

AB7

AB9

AC10

AC12

AC14

AC16

AC18

AC8

AD11

AD13

AD15

AD17

AD19

AD7

AD9

AE10

AE12

AE14

AE16

AE18

AE20

AE6

AE8

AF11

AF13

AF15

AF17

AF19

AF2

AF21

AF5

AF7

AF9

B11

B13

B15

B17

B19B7B9

C10

C12

C14

C16

C18

C20C8D11

D13

D15

D17

D19D7D9

E10

E12

E14

E16

E18

E20E8F11

F13

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VSS

VSS

F25F5F8

VSS

VSS

G21G6G24

VSS

VCC

VSS

D10

VSS

A11

VSS

A13

VSS

A15

VSS

A17

VSS

A19

VSS

A21

VSS

A24

VSS

A26

VSS

A3

VSS

A9

VSS

AA1

VSS

AA11

VSS

AA13

VSS

AA15

VSS

AA17

VSS

AA19

VSS

AA23

VSS

AA26

VSS

AA4

VSS

AA7

VSS

AA9

VSS

AB10

VSS

AB12

VSS

AB14

VSS

AB16

VSS

AB18

VSS

AB20

VSS

AB21

VSS

AB24

VSS

AB3

VSS

AB6

VSS

AB8

VSS

AC11

VSS

AC13
AC15
AC17
AC19

AC2
AC22
AC25

AC5

AC7

AC9

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

AD10

AD12

AD14

AD16

AD18

AD21

AD4

AD23

AD8

AE11

AE13

AE15

AE17

AE19

AE22

AE24

AE7

AE9

AF1

AF10

AF12

AF14

AF16

AF18

AF20

AF6

AF8

B10

B12

B14

B16

B18

B23

B20

B26B4B8

C11

C13

C15

C17C2C19

C22

C25C5C7C9D12

D14

D16

D18

D20

D21D3D24D6D8E1E11

E13

E15

E17

E19

E23

E26

E4

E7E9F10

VSS

F12

F14

F16

F18F2F22

A A

AF3

VCC-VIDPRG

VSS

J22

J25J5K21

VSS

AD20

VCC-IOPLL

VSS

CPU_IOPLL
VCCA

AE23

CPU1B

VCCA

VSSA

VSS

XX

<Priority>

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

C1U10X

AD22

Y5
Y25
Y22
Y2
W6
W3
W24
W21
V4
V26
V23
V1
U5
U25
U22
U2
T6
T3
T24
T21
R4
R26
R23
R1
P5
P25
P22
P2
N6
N3
N24
N21
M5
M25
M22
M2
L4
L26
L23
L1
K6
K3
K24

C72

EC37
22u-1206

VSSA

CB2
C0.1U25X

L4 10U100m_0805
L5 10U100m_0805

EC36
C10U6.3X51206

CPU_IOPLL

R100
0R

VCCA

VID GOOD

1

VIN

VOUT

3
2

GNDENPOK

SN105125_SOT23-5

VID_GD4,5,35

VCCP

VCC_VIDVCC3

U3

5
4

R48
680R

C17
C1U10X

C16
C0.1U25X

VCCP

+

EC17 C220U6.3POS-1

+

EC26 C220U6.3POS-1

2pcs

Place these caps within socket cavity

CPU DECOUPLING CAPACIT ORS

VCCP VCCPVCCP VCCPVCCP

EC9 X_C10U6.3X51206
EC32 X_C10U6.3X51206 EC27 X_C10U6.3X51206
EC29 X_C10U6.3X51206
EC31 X_C10U6.3X51206
EC15 C10U6.3X51206
EC7 X_C10U6.3X51206

EC18 C10U6.3X51206
EC21 C10U6.3X51206
EC23 C10U6.3X51206 EC11 X_C10U6.3X51206
EC12 X_C10U6.3X51206
EC8 X_C10U6.3X51206
EC34 X_C10U6.3X51206

EC24 C10U6.3X51206

EC20 C10U6.3X51206
EC10 X_C10U6.3X51206
EC5 X_C10U6.3X51206
EC28 X_C10U6.3X51206
EC35 X_C10U6.3X51206

EC19 X_C10U6.3X51206
EC30 X_C10U6.3X51206EC14 X_C10U6.3X51206
EC13 X_C10U6.3X51206
EC22 X_C10U6.3X51206
EC33 X_C10U6.3X51206

19pcs

Place these caps within north side of processor

1

Place these caps within south side of processor

EC25 X_C10U6.3X51206

EC16 X_C10U6.3X51206

9pcs

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

Pentium4-478-CPU(2)

MS-9169

646Tuesday, August 31, 2004

of

0ACustom

1

VTT_MCH

R218
X_1KR1%

EDGE_TEST

HRS#[0..2]

HRS#[0..2] 5

HDBI#[0..3]

HDBI#[0..3] 5HD#[0..63]5

AM31

AL32

AN9

RESERVED0

RESERVED1

RESERVED2

CISTRF

AK7

AC9

AG8

A5

RESERVED3

RESERVED4

RESERVED5

CISTRS

AJ8

EDGE_TEST

AG1

HD#0

HD#2

HD#1

HD#5

HD#3

HD#6

HD#8

HD#4

HD#7

HD#9

HD#10

HD#14

HD#11

HD#12

HD#18

HD#15

HD#16

HD#13

HD#20

HD#17

HD#19

C29

D28

A28

E27

E28

C27

C28

B29

A29

B27

D26

C26

B25

A27

A25

C25

J21

H23

H20

H24

HA#[3..31]5

HREQ#[0..4]

HREQ#[0..4]5

HADSTB#05
HADSTB#15

MCH_CLK4

MCH_CLK#4

A A

VCC_AGP

R530

60.4R1%

R532

39.2R1%

R533
100R1%

HDSTBP#05
HDSTBP#15
HDSTBP#25
HDSTBP#35

HDSTBN#05
HDSTBN#15
HDSTBN#25
HDSTBN#35

CPURST#5

PROCHOT#5

PWROK13,36,44

GSWING

X_C0.1U25X

AGP_REF

C0.1U25X

C461

C466

HA#3
HA#4
HA#5
HA#6
HA#7
HA#8
HA#9
HA#10
HA#11
HA#12
HA#13
HA#14
HA#15
HA#16
HA#17
HA#18
HA#19
HA#20
HA#21
HA#22
HA#23
HA#24
HA#25
HA#26
HA#27
HA#28
HA#29
HA#30
HA#31

HREQ#0
HREQ#1
HREQ#2
HREQ#3
HREQ#4

HADSTB#0
HADSTB#1

MCH_CLK
MCH_CLK#

HD_RCOMP
HD_SWING

HDSTBP#0
HDSTBP#1
HDSTBP#2
HDSTBP#3

HDSTBN#0
HDSTBN#1
HDSTBN#2
HDSTBN#3

H_GTLREF_MCH
H_GTLREF_CPU

C459

X_C0.01U50X

C464

C10000P25X

E13

HA3

G12

HD0

HD1

HD2

HD3

HD4

HD5

HD6

HD7

HD8

HA4

E10

HA5

H12

HA6

F11

HA7

E9

HA8

F9

HA9

J9

HA10

G8

HA11

H10

HA12

J11

HA13

J7

HA14

F7

HA15

H8

HA16

A17

HA17

C17

HA18

B17

HA19

B11

HA20

C9

HA21

C13

HA22

A14

HA23

A13

HA24

A15

HA25

D8

HA26

C8

HA27

B15

HA28

D14

HA29

C12

HA30

C7

HA31

E11

HREQ0

F13

HREQ1

G13

HREQ2

E12

HREQ3

G14

HREQ4

G9

HADSTB0

D16

HADSTB1

E8

HCLKP

E7

HCLKN

A12

HDRCOMP

A6

HDSWING

E26

HDSTBP0

F21

HDSTBP1

D22

HDSTBP2

G19

HDSTBP3

A26

HDSTBN0

E22

HDSTBN1

B23

HDSTBN2

F19

HDSTBN3

A7

HDVREF1

F15

HDVREF0

AE9

PWROK

H18

CPURST

C10

PROCHOT

HADS#

HADS#5

HTRDY#

HTRDY#5

HDRDY#

HDRDY#5

HDEFER#

HDEFER#5

HITM#

HITM#5

HIT#

HIT#5

HLOCK#

HLOCK#5

HBR#0

HBR#05

HBNR#

HBNR#5

HBPRI#

HBPRI#5

HDBSY#

HDBSY#5

MCH_BSEL1

MCH_BSEL14

MCH_BSEL0

MCH_BSEL04

PCIRST#4

PCIRST#442

AGP_REF
GSWING
GRCOMP

HD9

HD10

HD11

ADS

HTRDY

DRDY

DEFER

HITM

HIT

HLOCK

BREQ0

A9

BNR

J13

A11

D10A8B7

C11

H14

B13

C14

TP95
TP97

TP94
TP92
TP86
TP85
TP88

MCH_ BSEL1 MCH_BESL0 CORE Freq PSB Freq

0 0 100MHz 400MHz
0 1 133MHz 533MHz

1 1 200MHz 800MHz

HD12

BPRI

G26

HD13

HD14

HD15

HD16

HD17

HD18

HD19

HD20

BSEL0

BSEL1

DBSY

C15

C16

B9

HD#29

HD#32

HD#33

E21

A23

HD31

GCBE3

HD#39

HD#38

HD#34

HD#35

HD#37

HD#41

HD#36

HD#40

C23

C24

A21

D24

C22

C21

A22

D20

B21

HD32

HD33

HD34

HD35

HD36

HD37

HD38

HD39

HD40

HD41

GST0

GST1

GST2

GVREF

GSWING

GRCOMP

AD2

AC1

AC3G7AL4

HD#31

HD#30

HD#24

HD#28

HD#25

HD#26

HD#22

HD#23

HD#21

HD#27

H22

G23

G25

G21

E24

E25

G24

F23

G22

E23

HD21

HD22

HD23

HD24

HD25

HD26

HD27

HD28

HD29

HD30

EXTTS

RSTIN

ICH_SYNC

GCBE0

GCBE1

AF14

GCBE2

AE8

AC7

AG4

AC5

AA3V3U7U8W8

HD#50

HD#45

HD#42

HD#46

HD#48

HD#43

HD#47

HD#44

A19

B19

C18

C19

D18

A18

J19

HD42

HD43

HD44

HD45

HD46

HD47

GCLKIN

HI0

HI1

AK5

AM4

HD#56

HD#61

HD#53

HD#54

HD#49

HD#52

HD#51

G20

E20

E18

E19

G18

E17

HD48

HD49

HD50

HD51

HD52

HD53

HI2

HI3

HI4

HI5

HI6

HI7

AJ6

AN6

AL8

AM8

AN7

AL7

HD#62

HD#60

HD#57

HD#55

F17

HD54

HI8

AN4

HD#63

HD#58

HD#59

G16

E16

G15

J15

E14

HD55

HD56

HD57

HD58

HD59

HD60

HI9

HI10

HISTRF

AM6

AK6

HRS#1

HRS#0

HRS#2

HDBI#1

HDBI#2

HDBI#0

HDBI#3

H16

G17

E15

HD61

HD62

HD63

HISTRS

HI_VREF

HI_SWING

AL5

AF1

AD3

HI_RCOMP

AD1

B31

F25

C20

D12

G10

G11

RS0

RS1

J17

RS2

DBI_0

DBI_1

DBI_2

DBI_3

CI0

CI1

CI2

CI3

CI4

CI5

CI6

CI7

CI8

CI9

AG9

AK9

AL9

CI10

AH9

AF7

AF6

AG6

AH5

AH7

AE7

AH8

1 0 166MHz 667MHz

1

GAD0
GAD1
GAD2
GAD3
GAD4
GAD5
GAD6
GAD7
GAD8

GAD9
GAD10
GAD11
GAD12
GAD13
GAD14
GAD15
GAD16
GAD17
GAD18
GAD19
GAD20
GAD21
GAD22
GAD23
GAD24
GAD25
GAD26
GAD27
GAD28
GAD29
GAD30
GAD31

GADSTBF0
GADSTBS0

GADSTBF1
GADSTBS1

GSBA0
GSBA1
GSBA2
GSBA3
GSBA4
GSBA5
GSBA6
GSBA7

GSBSTBF
GSBSTBS

GFRAME

GDEVSEL

GIRDY

GTRDY
GSTOP

GPAR

GREQ

GGNT

GRBF
GWBF
DBI_HI

DBI_LO

CI_RCOMP

CI_SWING

CI__VREF

(INTEL-RGE7210-A2)

AF2

AE3

CI_RCOMP
CI_SWING
CI_VREF

CI_STRS
CI_STRF

CI10

CI9

CI8

CI7

CI6

CI5

CI4

CI3

CI2

CI1

CI0

HLRCOMP

HL_SWING

HL_VREF

U13A

HL_STRS
HL_STRF

HL10
HL9
HL8
HL7
HL6
HL5
HL4
HL3
HL2
HL1
HL0

MCH_66

TP73
TP67
TP98
TP91

AK1
AK2
AJ1
AK3
AJ3
AJ4
AH2
AH1
AF5
AE4
AE5
AD5
AD6
AD8
AC4
AC8
AA4
Y2
Y1
W1
Y3
W4
W3
U1
U3
U4
R1
T2
T3
R3
P1
R4

AF3
AG3

V1
V2

V5
V6
Y7
W7
AA8
Y5
AA5
AA7

Y6
W5

AB7
AB2
AB6
AB1
AB5
AB3
T5
T6
V7
U5
N1
P2

CI_STRS 20
CI_STRF 20

CI[0..10] 20

HL_STRS 14
HL_STRF 14

HL[0..10] 14
MCH_66 4

X_Value:NOPOP

VTT_MCH

C154

C162

X_C220P16X

C0.1U25X

VCC_AGP

R248
226R1%

R256
147R1%

R254
113R1%

VCC_AGP

R541
226R1%

CI_SWING

R536
147R1%

CI_VREF

R542
113R1%

CI_RCOMP
HLRCOMP
GRCOMP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

C185
X_C0.1U25X

R216
301R1%

HD_SWING

C178

R212

C10000P25X

102R1%

VTT_MCH

C173
C220P16X

VCCP

R189
200R1%

H_GTLREF_CPU

R192
187R1%

HL_SWING= 0.8V

HL_VREF= 0.35V

HL_SWING

C462
C0.1U25X

HL_VREF

C233
C0.1U25X

CI_SWING= 0.8V
CI_VREF= 0.35V

CI_SWING

R537 52.3R1%
R534 52.3R1%
R531 X_43.2R1%

R198 20R1%

MCH:Canterwood-ES(1)

MS-9169

R195
200R1%

H_GTLREF_MCH

R209
X_169R1%

C172
X_C220P16X

C227
C10000P25X

C231
C10000P25X

C460
C0.1U25X

CI_VREF

C473
C0.1U25X

HD_RCOMP

C182
X_C220P16X

H_GTLREF_CPU 5

HL_SWING 14

HL_VREF 14

C465
C10000P25X

C469
C10000P25X

VCC_AGP

of

746Tuesday, August 31, 2004

0AC

1

CB_A7

CB_A6

AC31

AB33

U13B

SECC_A5

SECC_A6

SECC_A7

SMAA_B0
SMAA_B1
SMAA_B2
SMAA_B3
SMAA_B4
SMAA_B5
SMAA_B6
SMAA_B7
SMAA_B8

SMAA_B9
SMAA_B10
SMAA_B11
SMAA_B12

SBA_B0
SBA_B1

SWE_B
SCAS_B
SRAS_B

SCS_B0

SCS_B1

SCS_B2

SCS_B3

SCKE_B0
SCKE_B1
SCKE_B2
SCKE_B3

SDQS_B0
SDQS_B1
SDQS_B2
SDQS_B3
SDQS_B4
SDQS_B5
SDQS_B6
SDQS_B7
SDQS_B8

SMYRCOMP

SMVREF_B

SECC_B6

SECC_B7

(INTEL-RGE7210-A2)

AB29

CB_B7

CB_A[0..7] 10,11

MA_B0

AB26

MA_B1

AH29

MA_B2

AG29

MA_B3

AH27

MA_B4

AF27

MA_B5

AF24

MA_B6

AG25

MA_B7

AG23

MA_B8

AE23

MA_B9

AJ22

MA_B10

AA25

MA_B11

AG22

MA_B12

AL20

BA_B0

V26

BA_B1

AB31

WE_B#

U29

CAS_B#

R25

RAS_B#

U28

CS_B#0

P26

CS_B#1

T29

CS_B#2

T27

CS_B#3

R27

CKE_B0

AE21

CKE_B1

AF21

CKE_B2

AG20

CKE_B3

AH19

AE29
AD29
AG18
AF18
M30
M29
AD27
AC27
AG17
AH17
M26
M27

DQS_B0

AL14

DQS_B1

AF16

DQS_B2

AJ21

DQS_B3

AG26

DQS_B4

W25

DQS_B5

R28

DQS_B6

L29

DQS_B7

K26

DQS_B8

AC28

YRCOMP

AD31

YCOMPH

N32

YCOMPL

N33

SMVREF

AN12

C111
C0.1U25X

MA_B[0..12] 10,11

BA_B0 10,11
BA_B1 10,11

WE_B# 10,11
CAS_B# 10,11
RAS_B# 10,11

CS_B#0 10,11
CS_B#1 10,11
CS_B#2 11
CS_B#3 11

CKE_B0 10,11
CKE_B1 10,11
CKE_B2 11
CKE_B3 11

CK_M_133M_P_DDR0_B 10
CK_M_133M_N_DDR0_B 10
CK_M_133M_P_DDR1_B 10
CK_M_133M_N_DDR1_B 10
CK_M_133M_P_DDR2_B 10
CK_M_133M_N_DDR2_B 10

TP59
TP61
TP87
TP89
TP50
TP51

DQS_B[0..8] 10,11

CB13
C2.2U6.3X5

CB10
C2.2U6.3X5

C136
X_C0.1U25X

C117
C0.1U25X

CB9
C2.2U6.3X5

C128
C0.1U25X

R202

42.2R1%

R193

42.2R1%

HS1

X5 X3

X_HS

DDRCAP3

YRCOMP

DDRCAP1

R169
10KR1%

YCOMPH

R180

30.1KR1%

DDRCAP1

R167

30.1KR1%

YCOMPL

R173
10KR1%

X4X6

C165
X_C0.1U25X

C140
C1U10X

C133
C1U10X

VCC_DDR

R259

42.2R1%

R255
10KR1%

R249

30.1KR1%

R262

30.1KR1%

R267
10KR1%

VCC_DDR

XCOMPL

XRCOMP

R258

42.2R1%

C224
C0.1U25X

C219
X_C0.1U25X

C239
C0.1U25X

R253
150R1%

SMVREF

R252
150R1%

XCOMPH

C229
X_C0.1U25X

C221
C1U10X

C236
C1U10X

C223
C0.1U25X

CB20
C2.2U6.3X5

VCC_DDR

CB17
C2.2U6.3X5

A A

VCC_DDR

CB21
C2.2U6.3X5

EC40

+

.CD1000U6.3EL11.5

MA_A[0..12]10,11

CAS_A#10,11
RAS_A#10,11

CS_A#010,11
CS_A#110,11
CS_A#211
CS_A#311

CKE_A010,11
CKE_A110,11
CKE_A211
CKE_A311

CK_M_133M_P_DDR0_A10
CK_M_133M_N_DDR0_A10
CK_M_133M_P_DDR1_A10
CK_M_133M_N_DDR1_A10
CK_M_133M_P_DDR2_A10
CK_M_133M_N_DDR2_A10

DQS_A[0..8]10,11

DQS_A[0..8]

DQ_A[0..63]10,11

G31

J29

DQ_A62

E33

SDQ_A61

SDQ_A62

SDQ_B60

SDQ_B61

J28

DQ_B61

DQ_A63

E32

J27

DQ_B62

SDQ_A63

SDQ_B62

G28

DQ_B63

SDQ_B63

SECC_B0

AE28

CB_B0

CB_A0

AG30

AF29

CB_B1

CB_A1

CB_A2

AF31

SECC_A0

SECC_A1

SECC_B1

SECC_B2

AB27

CB_B2

CB_B3

CB_A3

CB_A5

CB_A4

AE33

AC33

AJ33

AH33

SECC_A2

SECC_A3

SECC_A4

SCMDCLKP_B0
SCMDCLKN_B0
SCMDCLKP_B1
SCMDCLKN_B1
SCMDCLKP_B2
SCMDCLKN_B2
SCMDCLKP_B3
SCMDCLKN_B3
SCMDCLKP_B4
SCMDCLKN_B4
SCMDCLKP_B5
SCMDCLKN_B5

SMYRCOMPVOH
SMYRCOMPVOL

SECC_B3

SECC_B4

SECC_B5

AA27

AE27

AC25

AD32

CB_B6

CB_B5

CB_B4

DQ_A10

DQ_A5

DQ_A0

DQ_A4

DQ_A2

DQ_A3

DQ_A6

DQ_A1

AL15

AM15

AJ17

AM16

AN14

AK16

SDQ_A0

SDQ_A1

SDQ_A2

SDQ_A3

SDQ_A4

DQ_B0

SDQ_B0

AG14

AL13

DQ_B1

SDQ_B1

DQ_B2

SDQ_B2

AK14

SDQ_A5

SDQ_B3

SDQ_B4

AJ15

AJ13

DQ_B4

DQ_B5

DQ_B3

MA_A0

AC29
AH32

AG31

AJ29
AK30
AN28
AK28
AM27

AL27

AL26
AD30
AN26

AL24

W31

AB30

AM24

AL22

AL23
AN23

AE31
AE32
AN20
AM21

AG32
AG33
AM19

AL19

AN15

AJ19

AL25

AL30
AA30

AF33

AG13
AN13
AH13

U31
T33
V31

T31
P32
T30
R33

J32
J33

K30
K31

R31

J31
F30

C32

SMAA_A0
SMAA_A1
SMAA_A2
SMAA_A3
SMAA_A4
SMAA_A5
SMAA_A6
SMAA_A7
SMAA_A8
SMAA_A9
SMAA_A10
SMAA_A11
SMAA_A12

SBA_A0
SBA_A1

SWE_A
SCAS_A
SRAS_A

SCS_A0
SCS_A1
SCS_A2
SCS_A3

SCKE_A0
SCKE_A1
SCKE_A2
SCKE_A3

SCMDCLKP_A0
SCMDCLKN_A0
SCMDCLKP_A1
SCMDCLKN_A1
SCMDCLKP_A2
SCMDCLKN_A2
SCMDCLKP_A3
SCMDCLKN_A3
SCMDCLKP_A4
SCMDCLKN_A4
SCMDCLKP_A5
SCMDCLKN_A5

SDQS_A0
SDQS_A1
SDQS_A2
SDQS_A3
SDQS_A4
SDQS_A5
SDQS_A6
SDQS_A7
SDQS_A8

SMXRCOMP
SMXRCOMPVOH
SMXRCOMPVOL
SMVREF_A

MA_A1
MA_A2
MA_A3
MA_A4
MA_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12

BA_A010,11
BA_A110,11

WE_A#10,11

TP4
TP3
TP6
TP5
TP2
TP1

BA_A0
BA_A1

WE_A#
CAS_A#
RAS_A#

CS_A#0
CS_A#1
CS_A#2
CS_A#3

CKE_A0
CKE_A1
CKE_A2
CKE_A3

DQS_A0
DQS_A1
DQS_A2
DQS_A3
DQS_A4
DQS_A5
DQS_A6
DQS_A7
DQS_A8

XRCOMP
XCOMPH
XCOMPL
SMVREF

C226

C0.1U25X

DDRCAP1

DDRCAP19

DDRCAP3

DDRCAP39

AL16

AM13

SDQ_A6

SDQ_B5

DQ_A7

AN16

AJ14

DQ_B6

SDQ_A7

SDQ_B6

DQ_A8

AL17

AH15

DQ_B7

DQ_A9

SDQ_A8

SDQ_B7

DQ_B8

AN17

SDQ_A9

SDQ_B8

AG15

AL21

AG16

DQ_B9

DQ_A11

AM22

SDQ_A10

SDQ_B9

AK18

DQ_B10

DQ_A12

AL18

SDQ_A11

SDQ_B10

AE19

DQ_B11

DQ_A13

AN19

SDQ_A12

SDQ_B11

AJ16

DQ_B12

DQ_A14

AK20

SDQ_A13

SDQ_B12

AE17

DQ_B13

DQ_A15

AN21

SDQ_A14

SDQ_B13

AG19

DQ_B14

DQ_A16

AK24

SDQ_A15

SDQ_B14

AJ18

DQ_B15

DQ_A17

AN25

SDQ_A16

SDQ_B15

AG21

DQ_B16

DQ_A18

AK26

SDQ_A17

SDQ_A18

SDQ_B16

SDQ_B17

AH21

DQ_B17

DQ_A19

AM28

AH23

DQ_B18

DQ_A20

AN24

SDQ_A19

SDQ_B18

AG24

DQ_B19

DQ_A21

AM25

SDQ_A20

SDQ_B19

AJ20

DQ_B20

DQ_A22

AN27

SDQ_A21

SDQ_B20

AF22

DQ_B21

DQ_A23

AL28

SDQ_A22

SDQ_B21

AJ23

DQ_B22

DQ_A24

AN29

SDQ_A23

SDQ_B22

AJ24

DQ_B23

DQ_A25

AL29

SDQ_A24

SDQ_B23

AJ25

DQ_B24

DQ_A26

AJ31

SDQ_A25

SDQ_B24

AJ26

DQ_B25

DQ_A27

AH30

SDQ_A26

SDQ_A27

SDQ_B25

SDQ_B26

AG27

DQ_B26

DQ_A28

AJ27

AD26

DQ_B27

DQ_A29

AJ28

SDQ_A28

SDQ_B27

AF25

DQ_B28

DQ_A30

AK31

SDQ_A29

SDQ_B28

AE25

DQ_B29

DQ_A31

AH31

SDQ_A30

SDQ_B29

AE26

DQ_B30

DQ_A32

AA28

SDQ_A31

SDQ_B30

AG28

DQ_B31

DQ_A33

AA33

SDQ_A32

SDQ_B31

Y26

DQ_B32

DQ_A34

Y33

SDQ_A33

SDQ_A34

SDQ_B32

SDQ_B33

AA29

DQ_B33

DQ_A35

W32

W27

DQ_B34

DQ_A36

AA31

SDQ_A35

SDQ_A36

SDQ_B34

SDQ_B35

V27

DQ_B35

DQ_A37

AA32

Y27

DQ_B36

DQ_A38

Y31

SDQ_A37

SDQ_A38

SDQ_B36

SDQ_B37

Y29

DQ_B37

DQ_A39

W33

W28

DQ_B38

DQ_A40

V33

SDQ_A39

SDQ_B38

W29

DQ_B39

DQ_A41

U32

SDQ_A40

SDQ_B39

U27

DQ_B40

DQ_A42

P31

SDQ_A41

SDQ_B40

T26

DQ_B41

DQ_A43

N31

SDQ_A42

SDQ_A43

SDQ_B41

SDQ_B42

P27

DQ_B42

DQ_A44

V30

N25

DQ_B43

DQ_A45

U33

SDQ_A44

SDQ_B43

V29

DQ_B44

DQ_A46

M31

SDQ_A45

SDQ_A46

SDQ_B44

SDQ_B45

U25

DQ_B45

DQ_A47

M33

R29

DQ_B46

DQ_A48

L31

SDQ_A47

SDQ_B46

P30

DQ_B47

DQ_A49

L32

SDQ_A48

SDQ_B47

N29

DQ_B48

DQ_A50

H30

SDQ_A49

SDQ_B48

N27

DQ_B49

DQ_A51

G33

SDQ_A50

SDQ_B49

K29

DQ_B50

DQ_A52

L33

SDQ_A51

SDQ_B50

L25

DQ_B51

DQ_A53

K33

SDQ_A52

SDQ_B51

P29

DQ_B52

DQ_A54

H33

SDQ_A53

SDQ_B52

N28

DQ_B53

DQ_A55

H31

SDQ_A54

SDQ_B53

L28

DQ_B54

DQ_A56

F33

SDQ_A55

SDQ_B54

L27

DQ_B55

DQ_A57

F31

SDQ_A56

SDQ_B55

K27

DQ_B56

DQ_A58

D31

SDQ_A57

SDQ_A58

SDQ_B56

SDQ_B57

H29

DQ_B57

DQ_A59

E31

G29

DQ_B58

DQ_A60

G32

SDQ_A59

SDQ_B58

H27

DQ_B59

DQ_A61

SDQ_A60

SDQ_B59

DQ_B60

DQ_B[0..63]10,11

1

CB_B[0..7] 10,11

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

MCH:Canterwood-ES(2)

MS-9169

of

846Tuesday, August 31, 2004

0ACustom

1

AA10

AM29
AM26
AM23
AM20
AM17
AM14

AL31

AK27
AK25
AK19
AK17
AK15

AJ32
AJ30

AH28
AH22
AH18
AH14

AF32
AF30
AF26
AF23
AF20
AF17
AF15

AN8
AN5

W11
W10

AM9
AM7
AM5
AM3

AH6
AH4
AH3
AG7
AG5
AG2

AE1
AA1

N4
N3
M4
M3
M2

K4
K3
K2
K1

H3
H2
H1
G3
G2
G1

E1

Y11
Y10

W9

V10

V9

U10

U9

R9
R8
R7
R6
R5
P8
P7
P6
P5
N6
N5
M5

AL6
AL3
AL2

AK8
AK4

AJ9
AJ7
AJ5
AJ2

T1

L4
L3
L2
L1

J4
J3
J2
J1

F1
F2

Y9

T9
T8
T7

DDRCAP1
DDRCAP3

VCC_AGP0
VCC_AGP1
VCC_AGP2
VCC_AGP3
VCC_AGP4
VCC_AGP5
VCC_AGP6
VCC_AGP7
VCC_AGP8
VCC_AGP9
VCC_AGP10
VCC_AGP11
VCC_AGP12
VCC_AGP13
VCC_AGP14
VCC_AGP15
VCC_AGP16
VCC_AGP17
VCC_AGP18
VCC_AGP19
VCC_AGP20
VCC_AGP21
VCC_AGP22
VCC_AGP23
VCC_AGP24
VCC_AGP25
VCC_AGP26

VCCA_AGP0
VCCA_AGP1

VCC_HI0
VCC_HI1
VCC_HI2
VCC_HI3
VCC_HI4
VCC_HI5
VCC_HI6
VCC_HI7
VCC_HI8
VCC_HI9
VCC_HI10
VCC_HI11
VCC_HI12
VCC_HI13
VCC_HI14
VCC_HI15
VCC_HI16
VCC_HI17
VCC_HI18
VCC_HI19
VCC_HI20
VCC_HI21
VCC_HI22
VCC_HI23
VCC_HI24
VCC_HI25
VCC_HI26
VCC_HI27

VSS0
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43

VCC_AGP

C209 C0.22U16Y

C213 C0.1U25X

C196 C0.47U16Y

DDRCAP4

DDRCAP2

DDRCAP6

AN30

AN22

AN18

AN11

AN10

AM12

AM11

VCC_54

VCC_55

VCC_DDR0

VCC_DDR1

VCC_DDR2

VCC_DDR3

VCC_DDR4

VCC_DDR5

VCC_43

L11

VCC_44

VCC_45

L10L9L8L7L6

VCC_46

VCC_47

VCC_48

L5K6K5J6J5

VCC_49

VCC_50

VCC_51

VCC_52

VCC_53

Y20

Y18

Y16

Y14

W19

W17

W15

V20

V18

V16

V14

V11

U19

U17

U15

U11

T20

T18

T16

T14

T11

T10

R19

R17

R15

R11

R10

P20

P18

P16

P14

P11

P10P9N11

N10N9N8N7M11

M10M9M8M7M6

VCC_0

VCC_1

VCC_2

VCC_3

VCC_4

VCC_5

VCC_6

VCC_7

VCC_8

VCC_9

VCC10

VCC_11

VCC_12

VCC_13

VCC_14

VCC_15

VCC_16

VCC_17

VCC_18

VCC_19

VCC_20

VCC_21

VCC_22

VCC_23

VCC_24

VCC_25

VCC_26

VCC_27

VCC_28

VCC_29

VCC_30

VCC_31

VCC_32

VCC_33

VCC_34

VCC_35

VCC_36

VCC_37

VCC_38

VCC_39

VCC_40

VCC_41

VCC_42

VCC_DDR6

VCC_DDR

AM10

AL12

AL11

AL10

AK12

AK11

AK10

AJ12

AJ11

AJ10

AH12

AH11

AH10

AG12

AG11

AG10

AF12

VCC_DDR7

VCC_DDR8

VCC_DDR9

VCC_DDR10

VCC_DDR11

VCC_DDR12

VCC_DDR13

VCC_DDR14

VCC_DDR15

VCC_DDR16

VCC_DDR17

VCC_DDR18

VCC_DDR19

VCC_DDR20

VCC_DDR21

VCC_DDR22

C168 C0.47U16Y

DDRCAP3

AF11

AF10

AE15

AE12

AE11

AE10

AD33

AD24

VCC_DDR23

VCC_DDR24

VCC_DDR25

VCC_DDR26

VCC_DDR27

VCC_DDR28

VCC_DDR29

VCC_DDR30

(INTEL-RGE7210-A2)

VSS44

VSS45

VSS46

VSS47

VSS48

VSS49

VSS50

VSS51

VSS52

VSS53

VSS54

VSS55

VSS56

VSS57

VSS58

VSS59

VSS60

VSS61

VSS62

VSS63

VSS64

VSS65

VSS66

VSS67

VSS68

VSS69

VSS70

VSS71

VSS72

VSS73

VSS74

VSS75

VSS76

VSS77

VSS78

VSS79

VSS80

VSS81

VSS82

VSS83

VSS84

VSS85

VSS86

VSS87

VSS88

VSS89

VSS90

VSS91

VSS92

VSS93

VSS94

VSS95

VSS96

VSS97

VSS98

VSS99

VSS100

VSS101

VSS102

VSS103

VSS104

VSS105

VSS106

VSS107

VSS108

VSS109

VSS110

VSS111

VSS112

VSS113

VSS114

VSS115

VSS116

VSS117

VSS118

VSS119

VSS120

VSS121

VSS122

VSS123

VSS124

VSS125

VSS126

VSS127

VSS128

VSS129

VSS130

VSS131

VSS132

VSS133

VSS134

AF13

AF9

AF8

AF4

AE24

AE22

AE20

AE18

AE16

AE14

AE6

AE2

AD28

AD25

AD23

AD21

AD19

AD17

AD15

AD13

AD9

AD7

AD4

AC32

AC30

AC24

AC20

AC18

AC16

AC14

AC6

AC2

AB28

AB25

AB11

AB10

AB9

AB8

AB4

AA26

AA24

AA11

AA9

AA6

AA2

Y32

Y30

Y28

Y25

Y23

Y19

Y17

Y15Y8Y4

W26

W24

W20

W18

W16

W14W6W2

V32

V28

V25

V23

V19

V17

V15V8V4

U26

U24

U20

U18

U16

U14U6U2

T28

T25

T23

T19

VSS135

T17

T15T4R32

R30

R24

R20

R18

R16

DDRCAP18
DDRCAP38

C463 C0.47U16Y
C458 C0.1U25X
C457 C0.1U25X

VCC_AGP

C232 C0.1U25X
C467 C0.22U16Y

VCC_AGP

A A

AD22

VCC_DDR31

VCC_DDR32

VSS136

VSS137

R14R2P28

AD20

AD18

VCC_DDR33

VCC_DDR34

VSS138

VSS139

AD16

VCC_DDR35

VSS140

P25

AD14

VCC_DDR36

VSS141

P23

AD12

VCC_DDR37

VSS142

P19

AD11

VCC_DDR38

VSS143

P17

L_13
14
15
12
13

AD10

AC21

VCC_DDR39

VSS144

P15P4P3

VCC_DDR

AC19

VCC_DDR40

VCC_DDR41

VSS145

VSS146

AC17

VCC_DDR42

VSS147

N30

AC15

N24N2M32

AC13

VCC_DDR43

VCC_DDR44

VSS148

VSS149

TP52
TP55
TP54
TP83
TP81

AC12

AC11

VCC_DDR45

VSS150

M28

AC10

VCC_DDR46

VCC_DDR47

VSS151

VSS152

M25

AB24

M24

AA23

VCC_DDR48

VCC_DDR49

VSS153

VSS154

M23M1L26

Y24

VCC_DDR50

VSS155

W23

V24

VCC_DDR51

VCC_DDR52

VSS156

VSS157

L24

U23

VCC_DDR53

VSS158

L23

T24

VCC_DDR54

VSS159

L12

VCC_DDR

DDRCAP1

R23

P33

VCC_DDR55

VSS160

K32

K28

C127 C0.47U16Y

P24

VCC_DDR56

VCC_DDR57

VSS161

VSS162

K25

DDRCAP5

N23

D33

VCC_DDR58

VCC_DDR59

VSS163

VSS164

K24

K23

C114 C1U10X

VSS165

K22

VSS166

K21

AE13

TESTLOW_0

VSS167

K20

AM18

TESTLOW_1

VSS168

K19

AH20

TESTLOW_2

VSS169

K18

AH24

TESTLOW_3

VSS170

K17

AB32

K16

T32

TESTLOW_4

TESTLOW_5

VSS171

VSS172

K15

L30

TESTLOW_6

VSS173

K14

E29

TESTLOW_7

VSS174

K13K7J30

AK13

TESTLOW_8

VSS175

AH16

AH26

TESTLOW_9

VSS176

J26

AF28

TESTLOW_10

TESTLOW_11

VSS177

VSS178

J25

W30

J24

L_131415

U30

TESTLOW_12

TESTLOW_13

VSS179

VSS180

J23

TP93
TP84
TP79
TP56
TP49
TP48
TP47
TP96
TP90
TP74
TP58
TP53

R26

N26K9K8

TESTLOW_14

TESTLOW_15

VSS181

VSS182

J22

J20

J18

VSS183

VSS184

J16

TEST_0

VSS185

J14

TEST_1

VSS186

J12

K10

TEST_2

VSS187

J10J8H32

K11

AC26

TEST_3

VSS188

AK32

TEST_4

TEST_5

VSS189

VSS190

H28

AH25

H26

AK23

TEST_6

TEST_7

VSS191

VSS192

H25

AK21

TEST_8

VSS193

H21

AE30

TEST_9

VSS194

H19

AK29

AM30

TEST_10

TEST_11

VSS195

VSS196

H17

H15

12

AK22

TEST_12

VSS197

H13

TP69
TP76
TP66
TP64
TP60
TP62
TP78
TP80
TP82
TP57
TP71
TP75

VCC3

13

AF19

TEST_13

VSS198

VSS199

H11H9H7

VCCA_FSB

D2C2A30

VCC3_3

VCCA_FSB0

VSS201

VSS202

VSS200

H4

G30

G27

C112 C0.1U25X
C190 C0.1U25X

VCCA_DDR

AK33

AC23

AC22

AB23

U13C

NC0

VCCA_FSB1

VCCA_DDR0

VCCA_DDR1

VCCA_DDR2

VCCA_DDR3

NC1
NC2
NC3
NC4
NC5
NC6
NC7
NC8

NC9
NC10
NC11

VTT_0
VTT_1
VTT_2
VTT_3
VTT_4
VTT_5
VTT_6
VTT_7
VTT_8

VTT_9
VTT_10
VTT_11
VTT_12
VTT_13
VTT_14
VTT_15
VTT_16
VTT_17
VTT_18
VTT_19
VTT_20
VTT_21
VTT_22
VTT_23
VTT_24
VTT_25
VTT_26
VTT_27
VTT_28
VTT_29
VTT_30
VTT_31
VTT_32
VTT_33
VTT_34
VTT_35
VTT_36
VTT_37

VSS206
VSS207
VSS208
VSS209
VSS210
VSS211
VSS212
VSS213
VSS214
VSS215
VSS216
VSS217
VSS218
VSS219
VSS220
VSS221
VSS222
VSS223
VSS224
VSS225
VSS226
VSS227
VSS228
VSS229
VSS230
VSS231
VSS232
VSS233
VSS234
VSS235
VSS236
VSS237
VSS238
VSS239
VSS240
VSS241
VSS242
VSS243
VSS244
VSS245
VSS246
VSS247
VSS248
VSS249
VSS250
VSS251

VSS203

VSS204

VSS205

F32

F29

AN31
AN3
AM32
AM2
AL33
AL1
C33
C1
B32
B2
A31
A3

L22
L21
L20
L19
L18
L17
L16
L15
L14
L13
K12
H6
H5
G6
G5
G4
F5
F4
E6
E5
E4
E3
D6
D5
D4
D3
C6
C5
C4
C3
B5
B4
B3
A24
A20
A16
A10
A4

F28
F27
F26
F24
F22
F20
F18
F16
F14
F12
F10
F8
F6
F3
E30
E2
D32
D30
D29
D27
D25
D23
D21
D19
D17
D15
D13
D11
D9
D7
D1
C31
C30
B30
B28
B26
B24
B22
B20
B18
B16
B14
B12
B10
B8
B6

VTTCAP4
VTTCAP1
VTTCAP2
VTTCAP3

VTT_MCH

VTT_MCH

TP72
TP68
TP63
TP44

TP77
TP45
TP70
TP46
TP65

VCC_AGP VTT_MCH

C449 X_C0.1U25X
C454 X_C0.1U25X
C453 X_C0.1U25X
C446 X_C0.1U25X
C451 X_C0.1U25X

C456 X_C0.1U25X
C455 X_C0.1U25X
C448 X_C0.1U25X
C444 X_C0.1U25X
C440 X_C0.1U25X

VCC_DDR

C441 X_C0.1U25X
C450 X_C0.1U25X
C447 X_C0.1U25X
C189 X_C0.1U25X
C183 X_C0.1U25X

VCCA_FSB

C0.1U25X

C452

L12 0.82U35m-2

+

CT23
C100U6.3X51210

VCCA_DDR

C0.1U25X

1

C475

L6 1U1.5_1201

<Prority>

+

CT19
C100U6.3X51210

X_Value:NOPOP

VCC_AGPVCC_AGP

C139 C0.47U16Y
C152 C0.47U16Y
C164 C0.22U16Y
C126 C0.47U16Y

VTTCAP1
VTTCAP2
VTTCAP3
VTTCAP4

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

MCH:Canterwood-ES(3)

MS-9169

of

946Tuesday, August 31, 2004

0AC

1

VCC_DDR

15223054627796

MA_A0

48

130

125
122
141

118
115
103

113
157

158
163

107
119
129
149
159
169
177
140

154

111

137
138

181
182
183

184

101
102
173
167

43
41

37
32

29
27

59
52

71

97

63
65

21

16
17

76
75

5
14
25
36
56
67
78
86
47

91
92

1
82

9
10

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13

BA0
BA1
BA2

CS0
CS1
NC/CS2
NC/CS3

DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8

WE
CAS
RAS

CKE0
CKE1

CK0/DNU
CK0/DNU
CK1
CK1
CK2/DNU
CK2/DNU

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

SDA
SCL

SA0
SA1
SA2

VREF
VDDID
VDDSPD

NC
NC
NC
NC
NC
NC/FETEN

MA_A1
MA_A2
MA_A3
MA_A4
MA_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12

BA_A08,11
BA_A18,11

CKE_A08,11

CK_M_133M_P_DDR1_A8
CK_M_133M_N_DDR1_A8
CK_M_133M_P_DDR0_A8
CK_M_133M_N_DDR0_A8
CK_M_133M_P_DDR2_A8
CK_M_133M_N_DDR2_A8

A A

Place close DIMM1

CKE_A18,11

SMBDATA4,13,38

SMBCLK4,13,38

DDR_VREF1

C225
C0.1U25X

BA_A0
BA_A1

CS_A#0

CS_A#08,11

CS_A#1

CS_A#18,11

WE_A#
CAS_A#
RAS_A#

CKE_A0
CKE_A1

DQS_A0
DQS_A1
DQS_A2
DQS_A3
DQS_A4
DQS_A5
DQS_A6
DQS_A7
DQS_A8

VCC_DDR

104

112

128

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

GND

GND

GND

GND

GND

GND

3111826344250586674818993

RAS_A#8,11
CAS_A#8,11

WE_A#8,11

MA_A[0..12]8,11

DQS_A[0..8]8,11

136

VDDQ

GND

VDDQ

GND

143

156

VDDQ

VDDQ

GND

GND

RAS_A#
CAS_A#
WE_A#
MA_A[0..12]
DQS_A[0..8]

164

VDDQ

GND

172

180738467085108

VDD

VDD

VDD

VDDQ

VDDQ

GND

GND

GND

GND

GND

GND

100

116

124

132

120

148

168

DIMM1

VDD

VDD

VDD

VDD

VDD

VDD

DQ_A0

2

D0

DQ_A1

4

D1

DQ_A2

6

D2

DQ_A3

8

D3

DQ_A4

94

D4

DQ_A5

95

D5

DQ_A6

98

D6

DQ_A7

99

D7

DQ_A8

12

D8

DQ_A9

13

D9

DQ_A10

19

D10

DQ_A11

20

D11

DQ_A12

105

D12

DQ_A13

106

D13

DQ_A14

109

D14

DQ_A15

110

D15

DQ_A16

23

D16

DQ_A17

24

D17

DQ_A18

28

D18

DQ_A19

31

D19

DQ_A20

114

D20

DQ_A21

117

D21

DQ_A22

121

D22

DQ_A23

123

D23

DQ_A24

33

D24

DQ_A25

35

D25

DQ_A26

39

D26

DQ_A27

40

D27

DQ_A28

126

D28

DQ_A29

127

D29

DQ_A30

131

D30

DQ_A31

133

D31

DQ_A32

53

D32

DQ_A33

55

D33

DQ_A34

57

D34

DQ_A35

60

D35

DQ_A36

146

D36

DQ_A37

147

D37

DQ_A38

150

D38

DQ_A39

151

D39

DQ_A40

61

D40

DQ_A41

64

D41

DQ_A42

68

D42

DQ_A43

69

D43

DQ_A44

153

D44

DQ_A45

155

D45

DQ_A46

161

D46

DQ_A47

162

D47

DQ_A48

72

D48

DQ_A49

73

D49

DQ_A50

79

D50

DQ_A51

80

D51

DQ_A52

165

D52

DQ_A53

166

D53

DQ_A54

170

D54

DQ_A55

171

D55

DQ_A56

83

D56

DQ_A57

84

D57

DQ_A58

87

D58

DQ_A59

88

D59

DQ_A60

174

D60

DQ_A61

175

D61

DQ_A62

178

D62

DQ_A63

179

D63

CB_A0

44

CB0

CB_A1

45

CB1

CB_A2

49

CB2

CB_A3

51

CB3

CB_A4

134

CB4

CB_A5

135

CB5

CB_A6

142

CB6

CB_A7

144

CB7

WP

GND

GND

GND

GND

GND

DIMM-184

139

145

152

160

176

R65 4.7KR

WP1

90

Address = A0

CB_A[0..7] 8,11

VCC_DDR

VCC_DDR VCC_DDR

C615 C0.1U25X
C617 C0.1U25X
C619 C0.1U25X
C621 C0.1U25X
C623 C0.1U25X

CK_M_133M_P_DDR1_B8
CK_M_133M_N_DDR1_B8
CK_M_133M_P_DDR0_B8
CK_M_133M_N_DDR0_B8
CK_M_133M_P_DDR2_B8
CK_M_133M_N_DDR2_B8

VCC_DDR

Place close DIMM3

VCC_DDR

BA_B08,11
BA_B18,11

CS_B#08,11
CS_B#18,11

CKE_B08,11
CKE_B18,11

VCC_DDR

DDR_VREF2

C616 C0.1U25X
C618 C0.1U25X
C620 C0.1U25X
C622 C0.1U25X
C624 C0.1U25X

MA_B0
MA_B1
MA_B2
MA_B3
MA_B4
MA_B5
MA_B6
MA_B7
MA_B8
MA_B9
MA_B10
MA_B11
MA_B12

BA_B0
BA_B1

CS_B#0
CS_B#1

WE_B#
CAS_B#
RAS_B#

CKE_B0
CKE_B1

DQS_B0
DQS_B1
DQS_B2
DQS_B3
DQS_B4
DQS_B5
DQS_B6
DQS_B7
DQS_B8

SMBDATA
SMBCLK

C220
C0.1U25X

48
43
41

130

37
32

125

29

122

27
141
118
115
103

59

52
113

157
158

71
163

97
107
119
129
149
159
169
177
140

63

65
154

21
111

16

17
137
138

76

75

14

25

36

56

67

78

86

47

91

92
181

182
183

82
184

10
101
102
173
167

5

1

9

15223054627796

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13

BA0
BA1
BA2

CS0
CS1
NC/CS2
NC/CS3

DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8

WE
CAS
RAS

CKE0
CKE1

CK0/DNU
CK0/DNU
CK1
CK1
CK2/DNU
CK2/DNU

DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8

SDA
SCL

SA0
SA1
SA2

VREF
VDDID
VDDSPD

NC
NC
NC
NC
NC
NC/FETEN

MA_B[0..12]8,11

DQS_B[0..8]8,11

VDDQ

RAS_B#8,11
CAS_B#8,11

VDDQ

WE_B#8,11

VDDQ

104

112

128

136

143

156

164

172

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

3111826344250586674818993

RAS_B#
CAS_B#
WE_B#
MA_B[0..12]
DQS_B[0..8]

180738467085108

VDD

VDD

VDD

VDD

VDDQ

VDDQ

GND

GND

GND

GND

GND

GND

GND

100

116

124

132

139

DQ_B[0..63] 8,11DQ_A[0..63] 8,11

120

148

168

DIMM3

VDD

VDD

VDD

VDD

VDD

GND

GND

GND

GND

DIMM-184

145

152

160

176

2

D0

4

D1

6

D2

8

D3

94

D4

95

D5

98

D6

99

D7

12

D8

13

D9

19

D10

20

D11

105

D12

106

D13

109

D14

110

D15

23

D16

24

D17

28

D18

31

D19

114

D20

117

D21

121

D22

123

D23

33

D24

35

D25

39

D26

40

D27

126

D28

127

D29

131

D30

133

D31

53

D32

55

D33

57

D34

60

D35

146

D36

147

D37

150

D38

151

D39

61

D40

64

D41

68

D42

69

D43

153

D44

155

D45

161

D46

162

D47

72

D48

73

D49

79

D50

80

D51

165

D52

166

D53

170

D54

171

D55

83

D56

84

D57

87

D58

88

D59

174

D60

175

D61

178

D62

179

D63

44

CB0

45

CB1

49

CB2

51

CB3

134

CB4

135

CB5

142

CB6

144

CB7

WP2

90

WP

Address = A4

DQ_B0
DQ_B1
DQ_B2
DQ_B3
DQ_B4
DQ_B5
DQ_B6
DQ_B7
DQ_B8
DQ_B9
DQ_B10
DQ_B11
DQ_B12
DQ_B13
DQ_B14
DQ_B15
DQ_B16
DQ_B17
DQ_B18
DQ_B19
DQ_B20
DQ_B21
DQ_B22
DQ_B23
DQ_B24
DQ_B25
DQ_B26
DQ_B27
DQ_B28
DQ_B29
DQ_B30
DQ_B31
DQ_B32
DQ_B33
DQ_B34
DQ_B35
DQ_B36
DQ_B37
DQ_B38
DQ_B39
DQ_B40
DQ_B41
DQ_B42
DQ_B43
DQ_B44
DQ_B45
DQ_B46
DQ_B47
DQ_B48
DQ_B49
DQ_B50
DQ_B51
DQ_B52
DQ_B53
DQ_B54
DQ_B55
DQ_B56
DQ_B57
DQ_B58
DQ_B59
DQ_B60
DQ_B61
DQ_B62
DQ_B63

CB_B0
CB_B1
CB_B2
CB_B3
CB_B4
CB_B5
CB_B6
CB_B7

R56 4.7KR

CB_B[0..7]CB_A[0..7]

CB_B[0..7] 8,11

VCC_DDR

VCC_DDR

C230 22u-1206
C20 22u-1206
C30 C0.1U25X

C198 C0.1U25X

VCC_DDR

R250
75R1%

DDR_VREF1 DDR_VREF2

R246
75R1%

VCC_DDR

C14 22u-1206
C234 22u-1206
C238 C0.1U25X
C208 C0.1U25X
C44 C0.1U25X

VCC_DDR

C86 22u-1206
C235 22u-1206
C47 C0.1U25X
C199 C0.1U25X
C200 C0.1U25X

VCC_DDR

1

R261
75R1%

R257
75R1%

VCC_DDR

C85 22u-1206
C18 22u-1206
C207 C0.1U25X
C102 C0.1U25X
C46 C0.1U25X

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

DDR DIMM 1&2

MS-9169

of

10 46Tuesday, August 31, 2004

0ACustom

1

VTT_DDR VTT_DDR VTT_DDR

RN51 8P4R-56R0402

DQ_A1
DQ_A5
DQ_A4
DQ_A0
DQ_A3
DQ_A7
DQ_A6
DQ_A2
DQ_A13
DQ_A12
DQ_A9
DQ_A8
DQ_A11
DQ_A10
DQ_A15
DQ_A14
DQ_A21
DQ_A17
DQ_A16
DQ_A20
DQ_A19
DQ_A23
DQ_A22
DQ_A18
DQ_A29
DQ_A28
DQ_A25
DQ_A24
DQ_A31
DQ_A27
DQ_A26
DQ_A30
DQ_A37
DQ_A33
DQ_A36
DQ_A32
DQ_A35
DQ_A39
DQ_A38
DQ_A34
DQ_A47
DQ_A46
DQ_A43
DQ_A42
DQ_A41
DQ_A45
DQ_A40

A A

DQ_A44
DQ_A53
DQ_A52
DQ_A49
DQ_A48
DQ_A51
DQ_A50
DQ_A55
DQ_A54
DQ_A57
DQ_A56
DQ_A61
DQ_A60
DQ_A58
DQ_A59
DQ_A63
DQ_A62

DQ_A[0..63]

1 2
3 4
5 6
7 8

RN50 8P4R-56R0402

1 2
3 4
5 6
7 8

RN47 8P4R-56R0402

1 2
3 4
5 6
7 8

RN46 8P4R-56R0402

1 2
3 4
5 6
7 8

RN41 8P4R-56R0402

1 2
3 4
5 6
7 8

RN35 8P4R-56R0402

1 2
3 4
5 6
7 8

RN32 8P4R-56R0402

1 2
3 4
5 6
7 8

RN29 8P4R-56R0402

1 2
3 4
5 6
7 8

RN23 8P4R-56R0402

1 2
3 4
5 6
7 8

RN21 8P4R-56R0402

1 2
3 4
5 6
7 8

RN16 8P4R-56R0402

1 2
3 4
5 6
7 8

RN19 8P4R-56R0402

1 2
3 4
5 6
7 8

RN14 8P4R-56R0402

1 2
3 4
5 6
7 8

RN9 8P4R-56R0402

1 2
3 4
5 6
7 8

RN8 8P4R-56R0402

1 2
3 4
5 6
7 8

RN5 8P4R-56R0402

1 2
3 4
5 6
7 8

DQ_A[0..63] 8,10

C23 C100000P16Y0402
C71 C100000P16Y0402
C81 C100000P16Y0402
C98 C100000P16Y0402
C118 C100000P16Y0402
C141 C100000P16Y0402
C169 C100000P16Y0402
C218 C100000P16Y0402
C26 C100000P16Y0402
C43 C100000P16Y0402
C186 C100000P16Y0402
C202 C100000P16Y0402
C210 C100000P16Y0402
C197 C100000P16Y0402
C216 C100000P16Y0402
C214 C100000P16Y0402
C171 C100000P16Y0402
C33 C100000P16Y0402
C104 C100000P16Y0402
C32 C100000P16Y0402
C88 C100000P16Y0402
C103 C100000P16Y0402
C115 C100000P16Y0402
C132 C100000P16Y0402
C147 C100000P16Y0402

WE_A#8,10
CAS_A#8,10
RAS_A#8,10

CS_A#38
CS_A#18,10
CS_A#28
CS_A#08,10

CKE_A08,10
CKE_A28
CKE_A38
CKE_A18,10

MA_A0
MA_A1
MA_A2
MA_A3
MA_A4
MA_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12

BA_A08,10
BA_A18,10

VTT_DDR

R125 47R1%0402
R143 47R1%0402
R147 47R1%0402
R157 47R1%0402
R161 47R1%0402
R179 47R1%0402
R175 47R1%0402
R205 47R1%0402
R200 47R1%0402
R210 47R1%0402
R124 47R1%0402
R213 47R1%0402
R223 47R1%0402

BA_A0
BA_A1

WE_A#
CAS_A#
RAS_A#

CS_A#3
CS_A#1
CS_A#2
CS_A#0

CKE_A0
CKE_A2
CKE_A3
CKE_A1

C63 C100000P16Y0402
C75 C100000P16Y0402
C89 C100000P16Y0402
C105 C100000P16Y0402
C125 C100000P16Y0402
C145 C100000P16Y0402
C177 C100000P16Y0402

C215 C100000P16Y0402
C36

C100000P16Y0402

C51

C100000P16Y0402
C192 C100000P16Y0402
C211 C100000P16Y0402
C48 C100000P16Y0402
C205 C100000P16Y0402
C160 C100000P16Y0402
C54 C100000P16Y0402
C60 C100000P16Y0402
C74 C100000P16Y0402
C82 C100000P16Y0402
C42 C100000P16Y0402
C90 C100000P16Y0402
C109 C100000P16Y0402
C119 C100000P16Y0402
C135 C100000P16Y0402
C153 C100000P16Y0402

MA_A[0..12] 8,10

R107 47R1%0402
R122 47R1%0402

R99 47R1%0402
R97 47R1%0402
R102 47R1%0402

RN18 8P4R-47R0402

1 2
3 4
5 6
7 8

RN44 8P4R-47R0402

1 2
3 4
5 6
7 8

VTT_DDRVTT_DDR

VTT_DDR

VTT_DDR

VTT_DDR

C58 C100000P16Y0402
C66 C100000P16Y0402
C76 C100000P16Y0402
C93 C100000P16Y0402
C106 C100000P16Y0402
C130 C100000P16Y0402
C149 C100000P16Y0402
C179 C100000P16Y0402
C39 C100000P16Y0402
C38 C100000P16Y0402
C53 C100000P16Y0402
C195 C100000P16Y0402
C204 C100000P16Y0402
C49 C100000P16Y0402
C212 C100000P16Y0402
C50 C100000P16Y0402
C167 C100000P16Y0402
C174

C100000P16Y0402
C68 C100000P16Y0402
C64 C100000P16Y0402
C29 C100000P16Y0402
C97 C100000P16Y0402
C108 C100000P16Y0402
C124 C100000P16Y0402
C142 C100000P16Y0402

CB_A1
CB_A5
CB_A0
CB_A4
CB_A7
CB_A3
CB_A6
CB_A2

CB_A[0..7]

RN52 8P4R-56R0402

DQ_B1

C62 C100000P16Y0402
C67 C100000P16Y0402
C80 C100000P16Y0402
C96 C100000P16Y0402
C116 C100000P16Y0402
C134 C100000P16Y0402
C159 C100000P16Y0402
C163 C100000P16Y0402
C184 C100000P16Y0402
C41 C100000P16Y0402
C55 C100000P16Y0402
C201 C100000P16Y0402
C217 C100000P16Y0402
C194 C100000P16Y0402
C52

C100000P16Y0402
C157 C100000P16Y0402
C56 C100000P16Y0402
C79 C100000P16Y0402
C57 C100000P16Y0402
C45 C100000P16Y0402
C84 C100000P16Y0402
C101 C100000P16Y0402
C113 C100000P16Y0402
C129 C100000P16Y0402

RN28 8P4R-56R0402

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

RN25 8P4R-56R0402

CB_A[0..7] 8,10

R238 56-0402

DQS_A0

DQS_A08,10
DQS_A18,10
DQS_A28,10
DQS_A38,10
DQS_A48,10
DQS_A58,10
DQS_A68,10
DQS_A78,10
DQS_A88,10

DQS_A1
DQS_A2
DQS_A3
DQS_A4
DQS_A5
DQS_A6
DQS_A7
DQS_A8

1

R229 56-0402
R217 56-0402
R165 56-0402
R113 56-0402
R96 56-0402
R91 56-0402
R73 56-0402
R128 56-0402

VTT_DDR

VTT_DDR

DQ_B5
DQ_B4
DQ_B0
DQ_B3
DQ_B7
DQ_B6
DQ_B2
DQ_B13
DQ_B12
DQ_B9
DQ_B8
DQ_B11
DQ_B10
DQ_B14
DQ_B15
DQ_B21
DQ_B17
DQ_B16
DQ_B20
DQ_B19
DQ_B23
DQ_B22
DQ_B18
DQ_B31
DQ_B27
DQ_B26
DQ_B30
DQ_B29
DQ_B25
DQ_B28
DQ_B24
DQ_B37
DQ_B33
DQ_B36
DQ_B32
DQ_B35
DQ_B39
DQ_B38
DQ_B34
DQ_B41
DQ_B45
DQ_B40
DQ_B44
DQ_B47
DQ_B46
DQ_B43
DQ_B42
DQ_B53
DQ_B52
DQ_B49
DQ_B48
DQ_B51
DQ_B50
DQ_B55
DQ_B54
DQ_B59
DQ_B63
DQ_B58
DQ_B62
DQ_B57
DQ_B61
DQ_B56
DQ_B60

DQ_B[0..63]

VTT_DDR

VCC_DDR

1 2
3 4
5 6
7 8

RN49 8P4R-56R0402

1 2
3 4
5 6
7 8

RN48 8P4R-56R0402

1 2
3 4
5 6
7 8

RN45 8P4R-56R0402

1 2
3 4
5 6
7 8

RN40 8P4R-56R0402

1 2
3 4
5 6
7 8

RN37 8P4R-56R0402

1 2
3 4
5 6
7 8

RN30 8P4R-56R0402

1 2
3 4
5 6
7 8

RN33 8P4R-56R0402

1 2
3 4
5 6
7 8

RN24 8P4R-56R0402

1 2
3 4
5 6
7 8

RN22 8P4R-56R0402

1 2
3 4
5 6
7 8

RN20 8P4R-56R0402

1 2
3 4
5 6
7 8

RN15 8P4R-56R0402

1 2
3 4
5 6
7 8

RN13 8P4R-56R0402

1 2
3 4
5 6
7 8

RN7 8P4R-56R0402

1 2
3 4
5 6
7 8

RN4 8P4R-56R0402

1 2
3 4
5 6
7 8

RN6 8P4R-56R0402

1 2
3 4
5 6
7 8

DQ_B[0..63] 8,10

C11 C10U6.3X50805
C15 C10U6.3X51206
C24 C10U6.3X51206
C6 C10U6.3X51206

+

EC6 .CD1000U6.3EL11.5
C100 C100000P16Y0402
C156 C100000P16Y0402
C87 C100000P16Y0402
C110 C100000P16Y0402

CKE_B08,10
CKE_B18,10
CKE_B28
CKE_B38

VCC_DDR

EC38

.CD1000U6.3EL11.5

+

C27 C100000P16Y0402
C222 C100000P16Y0402
C31 C100000P16Y0402
C83 C100000P16Y0402

X_Value:NOPOP

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

MA_B0

R129 47R1%0402

MA_B1

R146 47R1%0402

MA_B2

R148 47R1%0402

MA_B3

R158 47R1%0402

MA_B4

R162 47R1%0402

MA_B5

R181 47R1%0402

MA_B6

R176 47R1%0402

MA_B7

R199 47R1%0402

MA_B8

R194 47R1%0402

MA_B9

R204 47R1%0402

MA_B10

R126 47R1%0402

MA_B11

R206 47R1%0402

MA_B12

R220 47R1%0402

MA_B[0..12] 8,10

BA_B0
BA_B1

WE_B#
CAS_B#
RAS_B#

CS_B#1
CS_B#0
CS_B#3
CS_B#2

CKE_B0
CKE_B1
CKE_B2
CKE_B3

DQS_B0
DQS_B1
DQS_B2
DQS_B3
DQS_B4
DQS_B5
DQS_B6
DQS_B7
DQS_B8

R112 47R1%0402
R121 47R1%0402

R101 47R1%0402
R98 47R1%0402
R103 47R1%0402

RN17 8P4R-47R0402

1 2
3 4
5 6
7 8

RN43 8P4R-47R0402

1 2
3 4
5 6
7 8

RN26 8P4R-56R0402

1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8

RN27 8P4R-56R0402

CB_B[0..7] 8,10

R239 56-0402
R228 56-0402
R211 56-0402
R166 56-0402
R119 56-0402
R95 56-0402
R88 56-0402
R72 56-0402
R133 56-0402

VTT_DDR

C69 C10U6.3X50805

C206 C10U6.3X51206

BA_B08,10
BA_B18,10

WE_B#8,10
CAS_B#8,10
RAS_B#8,10

CS_B#18,10
CS_B#08,10
CS_B#38
CS_B#28

CB_B7
CB_B3
CB_B6
CB_B2
CB_B1
CB_B0
CB_B5
CB_B4

CB_B[0..7]

DQS_B08,10
DQS_B18,10
DQS_B28,10
DQS_B38,10
DQS_B48,10
DQS_B58,10
DQS_B68,10
DQS_B78,10
DQS_B88,10

Micro-Star Int'l Co., Ltd.

DDR_Termination_A&B

MS-9169

VTT_DDR

VTT_DDR

VTT_DDR

VTT_DDR

VTT_DDR

0ACustom

of

11 46Tuesday, August 31, 2004

VCC3

R557 4.7KR0402

Internal Pull Up

PREQ#[0..3]16,26,27,28,42

PGNT#[0..3]26,27,28,42

1

U14A

AD0

DEVSEL#16,26,27,28,29,31

FRAME#16,26,27,28,29,31,42

IRDY#16,26,27,28,29,31

PAR16,26,27,28,29,31

PCLK3ICH4

PERR#16,26,27,28,29,31

TP9

SERR#16,26,27,28,29,31

STOP#16,26,27,28,29,31,42

TRDY#16,26,27,28,29,31

PIRQ#H

PIRQ#H16

PIRQ#G

PIRQ#G16

PIRQ#F

PIRQ#F16,31

PIRQ#E

PIRQ#E16,29

PIRQ#A16,26
PIRQ#B16,27

PIRQ#C16,28

PIRQ#D16

PREQ#0
PREQ#1
PREQ#2
PREQ#3

PGNT#0
PGNT#1
PGNT#2
PGNT#3

G10

AJ8

D10
A10
B10

E12

G12
B11
D12

E10
C11

G13

G5
E3

G9

J5

D2

J6

E4
B5
F9

A8

A6
A9
B8

D8

D9

DEVSEL#
FRAME#
IRDY#
PAR
PCICLK
PERR#
PLOCK#
PME#
SERR#
STOP#
TRDY#

GPIO5/PIRQH#
GPIO4/PIRQG#
GPIO3/PIRQF#
GPIO2/PIRQE#

PIRQA#
PIRQB#
PIRQC#
PIRQD#

REQ0#
REQ1#
REQ2#
REQ3#

GNT0#
GNT1#
GNT2#
GNT3#

PCI

H11

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8

AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

CBE#3
CBE#2
CBE#1
CBE#0

(INTEL-FW80001ESB-A3)

G8
C3
F5
F10
D4
D6
B3
H8
D5
E2
B4
G6
F6
D1
C7
A4
E1
B7
F2
A5
K8
B6
H7
E8
K7
E7
F1
H12
H4
G11
G2

H5
F4
G7
C2

AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C_BE#3
C_BE#2
C_BE#1
C_BE#0

AD[0..31] 16,26,27,28,29,31

C_BE#[0..3] 16,26,27,28,29,31

A A

PDD15

AH27

AE24
AJ26

AE23
AH25
AC22

AB20

AF23
AC20
AH24
AD21

AJ25
AD22
AH26
AG25

AF25

AB22

AF24

AB21

AB23

AF26

A14
A15
B15
C15

G14

F14
B14

AA23
AG27
AG28

AF27
AD25

AC23

PDD15
PDD14
PDD13
PDD12
PDD11
PDD10
PDD9
PDD8
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0

PDDACK#
PDDREQ
PDIOR#
PDIOW#
PIORDY

LAD3
LAD2
LAD1
LAD0

LDRQ1#
LDRQ0#
LFRAME#

PDA2
PDA1
PDA0

PDCS1#
PDCS3#

IRQ14

IDE

LPC

Internal Pull Up

PDD14
PDD13
PDD12
PDD11
PDD10
PDD9
PDD8
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0

PD_DACK#18

PD_DREQ18

PD_IOR#18

PD_IOW#18

PD_IORDY18

LPC_AD[0..3]43

TP108
TP109

LPC_FRAME#43

PD_A218
PD_A118
PD_A018

PD_CS#118
PD_CS#318

LPC_AD3
LPC_AD2
LPC_AD1
LPC_AD0

IRQ1418

U14B

AC28

SDD15

AD27

SDD14

AB25

SDD13

AE28

SDD12

AC26

SDD11

AB24

SDD10

AE26

SDD9

Y23

SDD8

AF28

SDD7

W22

SDD6

AF29

SDD5

AA24

SDD4

AD26

SDD3

AB27

SDD2

AE29

SDD1

AA26

SDD0

SDDACK#

SDDREQ

Y24
AD28
W25

SDIOR#

Y25

SDIOW#

W24

SIORDY

AC29

SDA2

AD29

SDA1

V24

SDA0

AB28

SDCS1#

AA27

SDCS3#

V23

IRQ15

(INTEL-FW80001ESB-A3)

SDD15
SDD14
SDD13
SDD12
SDD11
SDD10
SDD9
SDD8
SDD7
SDD6
SDD5
SDD4
SDD3
SDD2
SDD1
SDD0

1

SDD[0..15] 18PDD[0..15]18

SD_DACK# 18
SD_DREQ 18
SD_IOR# 18
SD_IOW# 18

SD_IORDY 18

SD_A2 18
SD_A1 18
SD_A0 18

SD_CS#1 18
SD_CS#3 18

IRQ15 18

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

ICH-HR(1)

MS-9169

of

12 46Tuesday, August 31, 2004

0ACustom

1

PX_AD[0..63]19,22,40,41

VCC3_SB

Resume Reset Circuitry

Using a 22msec delay

VCC3_SB

VCC3_SB

R156 22KR0402

_C1U6.3Y50402/80-20%

A A

C123

Close to R181

C18P50N0402C243

32.768KHZ12.5P_D
C18P50N0402C242

11 10

C483
C0.01U25X0402

SATA_RX#118

R263 24.9R1%0402

147

U11E

R155 4.7KR0402

_LVC14APWR_TSSOP14

VCC5_SB

A20M#5

SLP#5

FERR#5

IGNNE#5

HINIT#5,43

INTR5

NMI5

SMI#5

STPCLK#5

SATA_RX#018

SATA_RX018

SATA_TX#018

SATA_TX018

SATA_RX118
SATA_TX#118
SATA_TX118
SATA_100#4

SATA_1004

HD_LED#14,18

PWROK7,36,44

RSMRST#
RTC_RST#45

R271
10MR1%0402

RTC_XO

10MR1%0402

R163
10KR1%0402

R159

3.3KR1%0402

R270

VCC3_SB

B

E C

A20GATE

KBRST#
SERIRQ GPIO56

SATA_BIAS

FERR#

HD_LED#

AB29

AA29

AH19
AG18
AF18

AH21
AG20
AF20

AH17

AH23

AF22
AG22

AE21
AD20
AD19

C241
C0.047U16X0402

R141
1KR0402

Q34
N-MMBT3904_SOT23

B

E C

Turn off RSMRST# if 5VSB drop to 3.6V.

R160
1KR0402

Q35
N-MMBT3904_SOT23

A20GATE

W27

A20M#

V28

CPUSLP#
FERR#

U24

IGNNE#

W28

INIT#

Y28

INTR

Y29

NMI

V26

RCIN#

G17

SERIRQ

V29

SMI#

W29

STPCLK#

AJ19

SATA0RXN
SATA0RXP
SATA0TXN
SATA0TXP

AJ21

SATA1RXN
SATA1RXP
SATA1TXN
SATA1TXP

AJ17

SATACLKN
SATACLKP

J28

GPIO22/SATALED#

AJ23

SATARBIASN
SATARBIASP

PWROK

AJ24

RSMRST#
RTCRST#
RTCX1
RTCX2
VBIAS

VBAT

RSMRST#

Q36

B

N-MMBT3904_SOT23

E C

CPU I/O

SATA

CONTROL/MISC

CONTROL/MISC

RSMRST#

C107
C0.01U25X0402

GPIO11/SMBALERT#

SMBUS

R142
10KR1%0402

U14C

GPIO8
GPIO12
GPIO13
GPIO24
GPIO25
GPIO27
GPIO28
GPIO56
GPIO57

SMBCLK

SMBDATA

SMLINK0
SMLINK1

CLK14

INTRUDER#

PWRBTN#

RI#
SLP_S3#
SLP_S4#
SLP_S5#

SPKR

SUS_STAT#

SUSCLK

SYSRESET#

THRM#

THRMTRIP#

VRMPWRGD

(INTEL-FW80001ESB-A3)

AF15
AE12

AF11
AC14
AE14
AH9
AG10
AJ9
C22
D22

AH14
AJ13
AH13
AH12

L26
AG23
AJ10
AH10

AG14
AD14
AJ11
K27

AD15
AJ12
AH11
D14
AA28
Y26

RSMRST#

PX_PCLKI

SMBALERT#

GPIO8
GPIO12
GPIO13
GPIO24
GPIO25
GPIO27
GPIO28

GPIO57

SMBCLK
SMBDATA

R283 0R0402

R260 1MR0402

R284 X_0R0402
R278 X_0R0402
R287 0R0402

THERM#
TRMTRIP#

R561
X_56R

EMPTY

C514
X_C0.01U50X

POWER_BT

RING#

TP8
TP107
TP110

1

PX_AD0
PX_AD1
PX_AD2
PX_AD3
PX_AD4
PX_AD5
PX_AD6
PX_AD7
PX_AD8
PX_AD9
PX_AD10
PX_AD11
PX_AD12
PX_AD13
PX_AD14
PX_AD15
PX_AD16
PX_AD17
PX_AD18
PX_AD19
PX_AD20
PX_AD21
PX_AD22
PX_AD23
PX_AD24
PX_AD25
PX_AD26
PX_AD27
PX_AD28
PX_AD29
PX_AD30
PX_AD31
PX_AD32

PX_AD34
PX_AD35
PX_AD36
PX_AD37
PX_AD38
PX_AD39
PX_AD40
PX_AD41
PX_AD42
PX_AD43
PX_AD44
PX_AD45
PX_AD46
PX_AD47
PX_AD48
PX_AD49
PX_AD50
PX_AD51
PX_AD52
PX_AD53
PX_AD54
PX_AD55
PX_AD56
PX_AD57
PX_AD58
PX_AD59
PX_AD60
PX_AD61
PX_AD62
PX_AD63

PXPCI_664

R302 30.1R1%

SMBCLK 4,10,38
SMBDATA 4,10,38

ICH_14 4

VBAT

SLP_S5# 36,44

FP_RESET#1 4,14,44

VRM_GD 35,36,37

AD10
AE10
AC10

AC12

AF2

PXAD0

W7

PXAD1

V7

PXAD2

Y4

PXAD3

AA2

PXAD4

W8

PXAD5

Y2

PXAD6

AA6

PXAD7

W1

PXAD8

W2

PXAD9

AA4

PXAD10

V2

PXAD11

V1

PXAD12

V4

PXAD13

Y1

PXAD14

T7

PXAD15

R1

PXAD16

P1

PXAD17

P2

PXAD18

P5

PXAD19

N2

PXAD20

P7

PXAD21

N1

PXAD22

N3

PXAD23

N4

PXAD24

M1

PXAD25

M2

PXAD26

L1

PXAD27

L3

PXAD28

M7

PXAD29

M5

PXAD30

K2

PXAD31

AF1

PXAD32

AE4

PXAD33

AE3

PXAD34

AE2

PXAD35

AD7

PXAD36

AD6

PXAD37

AD4

PXAD38

AC6

PXAD39

AD2

PXAD40

AD1

PXAD41

AB3

PXAD42

Y6

PXAD43

AB7

PXAD44

AB2

PXAD45

AC1

PXAD46

AB1

PXAD47
PXAD48
PXAD49
PXAD50

AE9

PXAD51

AJ7

PXAD52

AF9

PXAD53

AB9

PXAD54

AH7

PXAD55

AJ6

PXAD56

AH6

PXAD57

AJ5

PXAD58

AH5

PXAD59

AG5

PXAD60

AJ4

PXAD61

AH4

PXAD62

AH3

PXAD63

AC5

PXPCICLK

PXRCOMP

PCI-X

TRMTRIP#5

PX_PAR64
A20GATE
KBRST#
SERIRQ

HD_LED#
SMBCLK
SMBDATA

TRMTRIP#
FERR#

X_Value:NOPOP

U14D

AF4

PXACK64#

PXM66EN

PXPCIXCAP

PXREQ64#

GPIO0/PXREQ2#

GPIO1/PXREQ3#
GPIO16/PXGNT2#
GPIO17/PXGNT3#

PXGNT0#

PXGNT1#
PXREQ0#
PXREQ1#

PXDEVSEL#

PXFRAME#

PXIRDY#

PXPAR

PXPAR64
PXPERR#
PXSERR#
PXSTOP#
PXTRDY#
RASERR#

PXC/BE0#
PXC/BE1#
PXC/BE2#
PXC/BE3#
PXC/BE4#
PXC/BE5#
PXC/BE6#
PXC/BE7#

PXPCLKI

PXPCLKO4

PXPCLKO3

PXPCLKO2

PXPCLKO1

PXPCLKO0

PXPCIRST#

PCIXSBRST#

GPIO33/PXIRQ0#
GPIO34/PXIRQ1#
GPIO35/PXIRQ2#
GPIO36/PXIRQ3#

PXPLOCK#

(INTEL-FW80001ESB-A3)

PX_M66EN

W4

PX_PCIXCAPPX_PCIXCAP

R7
AE5

J1
Y8

GPIO16

AC2

GPIO17

Y7
K1

AB5
L2
L6

T3
R6
R4
U4
AD8
U6
U1
T2
T5
AE1

PX_C_BE#0

AA1

PX_C_BE#1

U2

PX_C_BE#2

R2

PX_C_BE#3

N6

PX_C_BE#4

AE7

PX_C_BE#5

AG2

PX_C_BE#6PX_AD33

AF7

PX_C_BE#7

AF6

PX_PCLKI

AC4
L5

K4

K6

R549 33R

L8

R566 33R

R567 X_33R

J2

PCIRST_ICHS#

AH8

PCISBRST# PCISBRST#

AA7

G1
H1
H2
J3

T1

ICH-HR Pull-Up / Down Resistors

R560 8.2KR0402
R535 10KR1%0402
R538 10KR1%0402
R544 8.2KR0402

R540 750R1%0402
R555 750R1%
R551 750R1%

R242 62R0402
R241 62R0402

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

PX_ACK64# 19,22,40,41
PX_M66EN 19,22,40,41

PX_REQ64# 19,22,40,41
PX_REQ#2 19

PX_REQ#3 19

PX_GNT#0 22
PX_GNT#1 40,41
PX_REQ#0 19,22
PX_REQ#1 19,40,41

PX_DEVSEL# 19,22,40,41
PX_FRAME# 19,22,40,41
PX_IRDY# 19,22,40,41
PX_PAR 22,40,41
PX_PAR64 22,40,41
PX_PERR# 19,22,40,41
PX_SERR# 19,22,40,41
PX_STOP# 19,22,40,41
PX_TRDY# 19,22,40,41
PX_RASERR# 19

PX_C_BE#[0..7] 19,22,40,41

VCC3

R562

R563 33R0402

TP116

TP115

PX_PCLKO2

PX_PCLKO1

PCIRST_ICHS# 42
PCISBRST# 22,40,41

PX_IRQ#0 19,22
PX_IRQ#1 19,20,40,41
PX_IRQ#2 19
PX_IRQ#3 19

PX_PLOCK# 19,22

GPIO16

R318 8.2KR0402

GPIO17

R565 8.2KR0402

THERM#
RING#
GPIO56
GPIO57
FP_RESET#1
GPIO28
SMBALERT#
GPIO8
GPIO25
GPIO24
GPIO27
POWER_BT
GPIO12
GPIO13

R545 8.2KR0402

R289 8.2KR0402
R266 8.2KR0402
R265 8.2KR0402
R286 8.2KR0402R282 0R0402
R290 8.2KR0402
R276 8.2KR0402
R547 8.2KR0402
R298 8.2KR0402
R277 8.2KR0402
R299 8.2KR0402
R550 X_8.2KR0402
R548 8.2KR0402
R546 8.2KR0402Y2

VCC3 VCC3

VCC3
VCC3
VCC3

VCCP

X_10KR1%

C509
X_C0.01U50X

PX_PCLKO2 22
PX_PCLKO3 41
PX_PCLKO1 40

PX_PCIXCAP

VCC3_SB

Micro-Star Int'l Co., Ltd.

ICH-HR(2)

MS-9169

13 46Tuesday, August 31, 2004

of

R556
0R0402

VCC3

R564
X_330R1%

0ACustom

5

D D

4

3

2

1

GPIO43
GPIO42
GPIO41
GPIO40

TP104
TP7
TP102

TP100

GPIO21
GPIO20
GPIO19

OVT#_79138
SMI#_79138

HL[0..10]7

C C

HL_STRF7
HL_STRS7

ICH_664

HL_VREF7

HL_SWING7

B B

147

U7A

GPIO18

A A

GPIO19

LVC07A_SOIC14

1 2

VCC3 VCC3

147

U7C
LVC07A_SOIC14

5 6

HL11
HL10
HL9
HL8
HL7
HL6
HL5
HL4
HL3
HL2
HL1
HL0

H_COMP USB_BIAS

C0.01U25X0402C479

C0.01U25X0402C476

HL11

H_COMP

VCC_AGP

LED2

GPIO21 LED4

M28

HL11

N28

HL10

N25

HL9

N29

HL8

R24

HL7

T26

HL6

U28
U29
R28
R29
P28
P29

T29
T28

T24

T27
P24
P25

R244

60.4R1%0402

R539

52.3R1%0402

VCC3VCC3

147

GPIO20LED1

3 4

147

9 8

HL5
HL4
HL3
HL2
HL1
HL0

HI_STB#/HI_STBF
HI_STB/HI_STBS

HLCLK
HLCOMP
HIREF
HI_VSWING

U7B
LVC07A_SOIC14

U7D
LVC07A_SOIC14

HI

USB

LED3

U14H

USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P

OC#3
OC#2
OC#1
OC#0

USBRBIASP

USBRBIASN

CLK48

(INTEL-FW80001ESB-A3)

D27
C27
C25
D25
B26
A26
B24
A24

E24
G23
F23
F24

E28
D29

E29

USB0- 43
USB0+ 43
USB1- 43
USB1+ 43

OC#1 43

R245 22.6R1%0402

USB_48 4

FOOTPRINT ERROR

HD_LED#13,18
FP_RESET#14,13,44

RESET Button

LED1
LED2
LED3
LED4
GPIO40
GPIO41
GPIO42
GPIO43

VCC3

JFP1

2X10 2MM

R243
10KR

12
34
56
78

910
1112
1314
1516
1718
1920

RN31 8P4R-330R

RN34 8P4R-330R

GPIO18

SIU1_RXD#18
SIU1_TXD#18

TP106
TP99
TP105

TP103
TP101

78
56
34
12
78
56
34
12

K24

GPIO43

G29

GPIO42

H26

GPIO41

H29

GPIO40

E19

GPIO39

F29

GPIO38

D20

GPIO37

L22

GPIO23

K25

GPIO21

H28

GPIO20

L24

GPIO19

J27

GPIO18

B22

GPIO7

C21

GPIO6

M29

NC

M25

NC

L29

NC

L28

NC

K29

NC

K28

NC

J29

NC

J23

NC

H25

NC

H24

NC

G28

NC

G27

NC

G25

NC

G18

NC

F28

NC

F27

NC

F13

NC

E13

NC

D19

NC

B21

NC

B20

NC

B13

NC

B12

NC

AJ15

NC

AJ14

NC

AD13

NC

A22

NC

A21

NC

A13

NC

A12

NC

A11

NC

A20

SIU1_CTS#

A19

SIU1_DCD#

B19

SIU1_DSR#

B18

SIU1_DTR#

D17

SIU1_RI#

G16

SIU1_RTS#

D18

SIU1_RXD

C19

SIU1_TXD

G19

AC_BIT_CLK

E23

AC_RST#

E20

AC_SDOUT

E22 A18

AC_SDIN2 UART_CLK

E21

AC_SDIN1

F22

AC_SDIN0

F20

AC_SYNC

VCC3VCC3

R182
330R

GPIO32/WDT_TOUT#

I/O

SIU

AC' 97

U14E

M24

D16

SIU0_CTS#

B16

SIU0_DCD#

E17

SIU0_DSR#

E15

SIU0_DTR#

A16

SIU0_RI#

F16

SIU0_RTS#

B17

SIU0_RXD

A17

SIU0_TXD

(INTEL-FW80001ESB-A3)

FP_RESET#1 4,13,44

CONFIGURE JUMPER

1-2 NORMAL
2-3 CONFIGURE
OPEN RECOVERY

SIU0_CTS# 18
SIU0_DCD# 18
SIU0_DSR# 18
SIU0_DTR# 18
SIU0_RI# 18
SIU0_RTS# 18
SIU0_RXD# 18
SIU0_TXD# 18

UART_48 4

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

ICH-HR(3)

MS-9169

14 46Tuesday, August 31, 2004

1

0ACustom

of

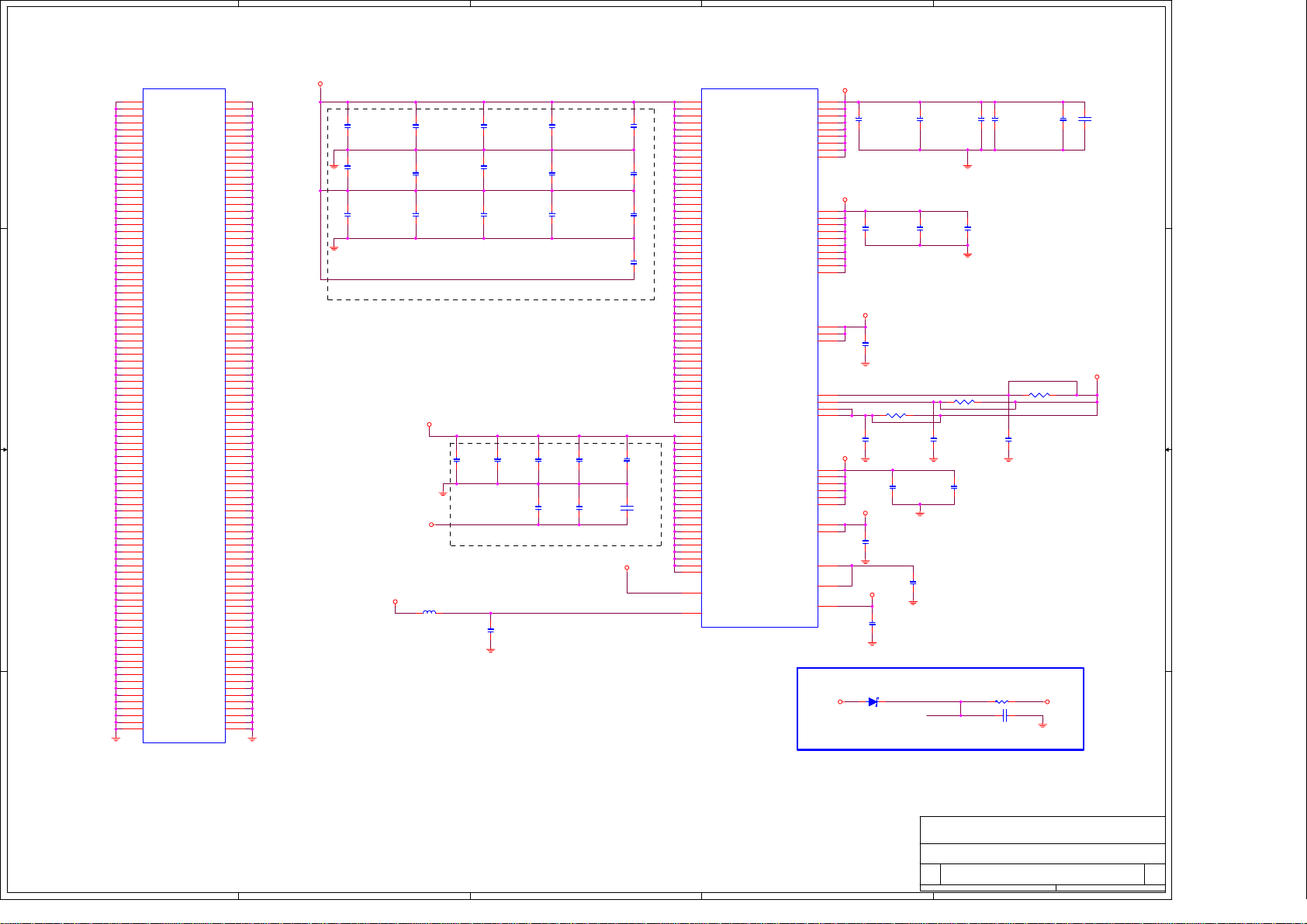

5

4

3

2

1

VCC3

C507
C100000P16Y0402

C511
C0.1U25X

C254
C100000P16Y0402

VCC_AGP

C504
C0.1U25X

C508
C100000P16Y0402

C512
C0.1U25X

VCC_AGP

VCC_AGP

L13 0R0805

C510
C100000P16Y0402

C494
C0.1U25X

C237
C100000P16Y0402

Place as close to ICH-HR as possible.

C474

C491

C0.1U25X

C0.1U25X

Place as close to ICH-HR as possible.

C487
C0.1U25X

Close AA22 of ICH-HR.

C484
C100000P16Y0402

C472
C0.1U25X

C505
C0.1U25X

C486
C0.1U25X

C499
C0.1U25X

C10000P25X

C10000P25X

C10000P25X

C10000P25X

C501
C0.1U25X

C490
C0.1U25X

C495

C503

C471

C498

VBAT

C502
C10000P25X

C500
C10000P25X

AB26

AD24

AB11

AC21
AC25

AE22
AE11

W23

AF21

AC13
AE20

AE17
AC16
AB10
AC17

AH18

AG16

AE18

AD18
AF16

AC19

AA22

AD3

VCC3_3

H9

VCC3_3

M4

VCC3_3
VCC3_3

AC9

VCC3_3

AE8

VCC3_3
VCC3_3

AA3

VCC3_3

AG3

VCC3_3

AG7

VCC3_3

C13

VCC3_3

C17

VCC3_3

C5

VCC3_3

C9

VCC3_3

D15

VCC3_3

D3

VCC3_3

W6

VCC3_3

E6

VCC3_3

AA5

VCC3_3
VCC3_3

H3

VCC3_3

AB6

VCC3_3
VCC3_3
VCC3_3

J26

VCC3_3

J7

VCC3_3

K23

VCC3_3

K3

VCC3_3

G15

VCC3_3

M23

VCC3_3
VCC3_3
VCC3_3

W3

VCC3_3

N5

VCC3_3

AF5

VCC3_3

R5

VCC3_3

R3

VCC3_3

P4

VCC3_3
VCC3_3

U5

VCC3_3

U7

VCC3_3

M8

VCC3_3

M27

VCC3_3

K5

VCC3_3
VCC3_3

W5

VCC3_3

E9

VCC3_3

G3

VCC3_3
VCC1_5

G20

VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5

F12

VCC1_5

AB8

VCC1_5

H21

VCC1_5
VCC1_5

V8

VCC1_5
VCC1_5

T23

VCC1_5

J8

VCC1_5
VCC1_5

N7

VCC1_5

H19

VCC1_5
VCC1_5

N23

VCC1_5
VCC1_5

VCCRTC

VCCA

VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3

VCCSUS1_5
VCCSUS1_5
VCCSUS1_5
VCCSUS1_5
VCCSUS1_5
VCCSUS1_5
VCCSUS1_5
VCCSUS1_5
VCCSUS1_5
VCCSUS1_5

V_CPU_IO_3
V_CPU_IO_2
V_CPU_IO_1

VSREF_SUS

U12

VSS

C24

VSS

C26

D D

C C

B B

VSS

C28

VSS

C29

VSS

C4

VSS

C6

VSS

C8

VSS

D11

VSS

D13

VSS

D26

VSS

D28

VSS

D7

VSS

E14

VSS

E16

VSS

E18

VSS

E25

VSS

E26

VSS

E27

VSS

E5

VSS

F11

VSS

F15

VSS

F17

VSS

F18

VSS

F19

VSS

F25

VSS

F26

VSS

F3

VSS

F7

VSS

F8

VSS

G26

VSS

G4

VSS

H10

VSS

H18

VSS

H27

VSS

H6

VSS

J24

VSS

T6

VSS

U13

VSS

AH2

VSS

AH20

VSS

AH22

VSS

AH28

VSS

AJ16

VSS

AJ18

VSS

AJ20

VSS

AJ22

VSS

AJ27

VSS

AJ3

VSS

B2

VSS

B25

VSS

B27

VSS

B28

VSS

B9

VSS

C1

VSS

V14

VSS

V15

VSS

V16

VSS

V17

VSS

V18

VSS

V22

VSS

V25

VSS

V27

VSS

Y3

VSS

U18

VSS

A25

VSS

A27

VSS

A3

VSS

A7

VSS

AA25

VSS

AB12

VSS

AB18

VSS

AB4

VSS

AC11

VSS

AC15

VSS

AC18

VSS

AC24

VSS

AC27

VSS

AC3

VSS

AC7

VSS

AD11

VSS

AD12

VSS

AD17

VSS

AD23

VSS

AD5

VSS

AD9

VSS

AE13

VSS

AE19

VSS

AE25

VSS

AE27

VSS

AE6

VSS

AF10

VSS

AF12 AF14

VSS VSS

(INTEL-FW80001ESB-A3)

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

U14G

J4
K22
K26
L23
L25
L27
L4
L7
M12
M13
M14
M15
M16
M17
M18
M22
M26
M3
M6
N12
N13
N14
N15
N16
N17
N18
N26
P12
P13
P14
P15
P16
P17
P18
P27
P3
P6
R12
R13
R14
R15
R16
R17
R18
R26
T12
T13
T14
T15
T16
T17
T18
T25
T4
U14
U15
U16
AG24
AG26
AG29
AG4
AG6
AG8
AG9
AH15
AH16
AG21
C10
C12
C14
C16
C18
C20
U17
U26
U3
V12
V13
V3
V5
Y22
Y27
Y5
AG19
AG17
AG13
AG11
AG1
AF8
AF3
AF19
AF17

VCC3_SB

U14F

AF13
A23
D24
B23
H20
C23
AG12
D23
G21

1_5VSB

D21
AE15
J25
N24
F21
H22
G24
H23
U23
AG15

W26
U27
U25

J22

VCCPLL

AE16

VCCPLL

AD16

VCCPLL

AA8

VCCPLL

VCC_AGP

R27

VCCHI

R25

VCCHI

N27

VCCHI

P23

VCCHI

R23

VCCHI

P26

VCCHI

V6

VCCREF

AC8

VCCREF

E11

VSREF

AB19

VSREF

G22

(INTEL-FW80001ESB-A3)

C478
C100000P16Y0402

C482
C0.1U25X

VCCP

C470
C100000P16Y0402

R275

C248
C100000P16Y0402

VCC3

C506
C0.1U25X

VCC5_SB

DZ1 S-1N5817_DO214AC

C477
C100000P16Y0402

X_0R0402

C492
C0.1U25X

5VREF

C497
C0.1U25X

Close E11 of ICH-HR.

C488
C100000P16Y0402

C485
C0.1U25X

5VREF

C489

C0.1U25X

C493
C100000P16Y0402

R273

X_0R0402

C246
C100000P16Y0402

C468
C0.1U25X

R274 1KR0402
C247 _C1U6.3Y50402/80-20%

C0.01U25X0402
C496
C0.1U25X

R543 X_0R0402

C481

C100000P16Y0402

C253

VCC5VCC3

C228

_C1U6.3Y50402/80-20%

VCC_AGP

A A

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

ICH-HR(4)

MS-9169

15 46Wednesday, September 01, 2004

1

0ACustom

of

5

4

3

2

1

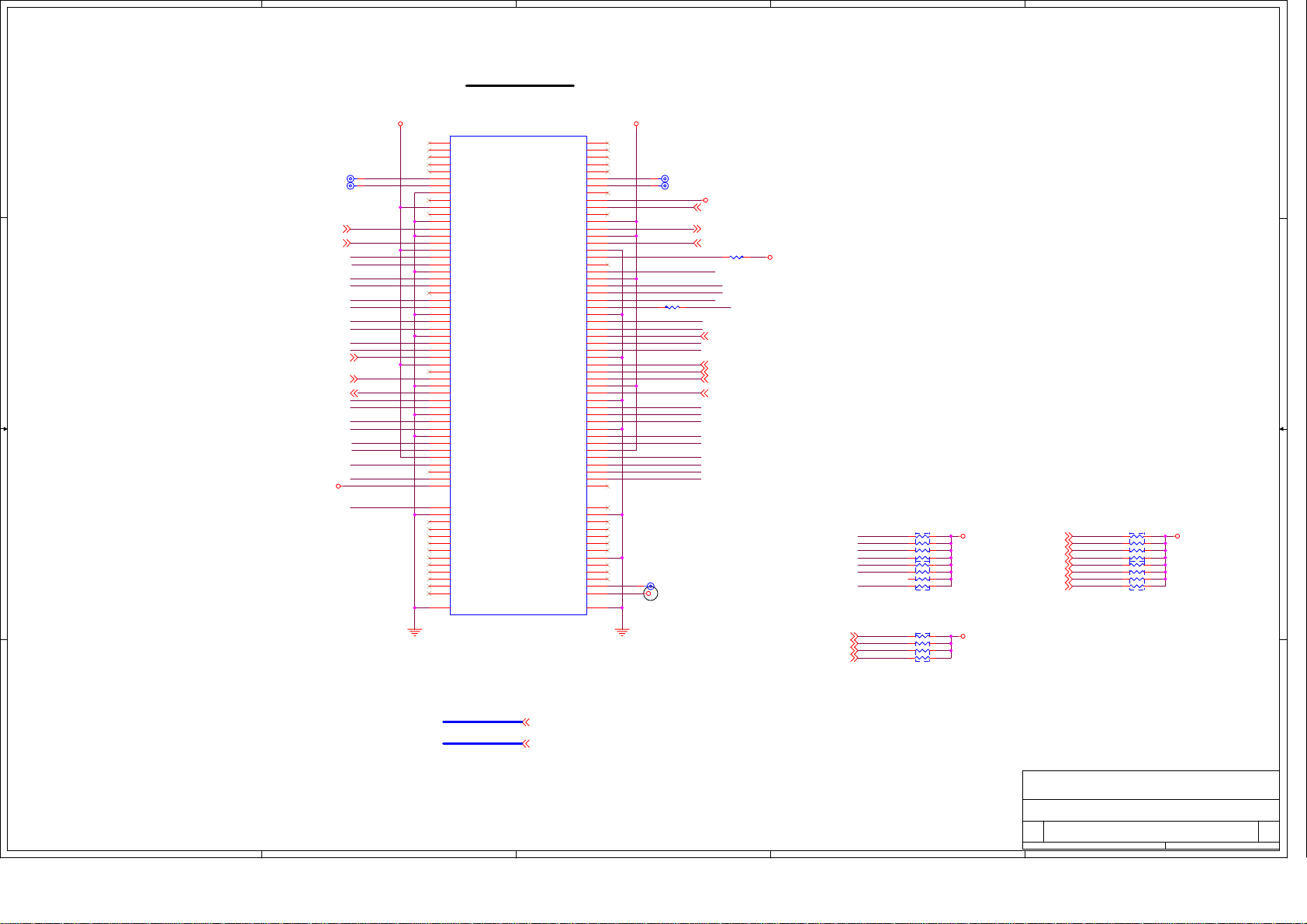

Mini PCI SOCKET

D D

MINIPCI1

1

TIP

3

8PMJ-3

5

8PMJ-6

7

8PMJ-7

9

TP112
TP114

CLK_MPCI4

MREQ#342

C C

VCC5

B B

AD31

AD29

AD27
AD25

C_BE#3

AD23
AD21

AD19
AD17

C_BE#2

IRDY#12,26,27,28,29,31

SERR#12,26,27,28,29,31
PERR#12,26,27,28,29,31

C_BE#1
AD14

AD12 AD11
AD10

AD8

AD7
AD5
AD3

AD1

8PMJ-8

11

Led1_GrnP

13

Led_GrnN

15

CHSGND

17

INTB#

19

3.3V#19

21

REV_1

23

GND#23

25

CLK

27

GND#27

29

REQ#

31

3.3V

33

AD31

35

AD29

37

GND#37

39

AD27

41

AD25

43

REV#43

45

C/BE3#

47

AD23

49

GND#49

51

AD21

53

AD19

55

GND#55

57

AD17

59

C/BE2#

61

IRDY#

63

3.3V#63

65

CLKRUN#

67

SERR#

69

GND#69

71

PERR#

73

C/BE1#

75

AD14

77

GND#77

79

AD12

81

AD10

83

GND#83

85

AD08

87

AD07

89

3.3V#89

91

AD05

93

REV#93

95

AD03

97

5V#97

99

AD01

101

GND#101

103

AC_SYNC

105

AC_SDATA_IN

107

AC_BIT_CLK

109

AC_CODE_ID1#

111

MOD_AUDIO_MON

113

AUDIO_GND#113

115

SYS_AUDIO_OUT

117

SYS_AUDIO_OGND

119

AUDIO_GND#119

121

REV#121

123

VCC5VA

127 128

GND#127 GND#128

_SLOT-MINIPCI_III_white

RING
8PMJ-1
8PMJ-2
8PMJ-4
8PMJ-5

LED2_YELP
LED2_YELN

REV#16

5V#18
INTA#

REV#22

3.3VAUX#24
RST#

3.3V#28
GNT#

GND#32

PME#

REV#36

AD30

3.3V#40

AD28
AD26
AD24

IDSEL

GND#50

AD22
AD20

PAR
AD18
AD16

GND#62
FRAME#

TRDY#
STOP#

3.3V#70

DEVSEL#

GND#74

AD15
AD13
AD11

GND#82

AD09

C/BE0#

3.3V#88
AD06
AD04
AD02
AD00

REV_WIP#98

REV_WIP#100

GND#102

M66EN

AC_SDATA_OUT

AC_CODEC_ID0#

AC_RESET#

REV#112

GND#114

SYS_AUDIO_IN

SYS_AUDIO_IGND

AUDIO_GND#120

MPCIACT#

3.3VAUX#124

IDSEL = AD18

MASTER = MREQ#3

VCC3VCC3

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98

100
102
104
106
108
110
112
114
116
118
120
122
124

TP111
TP113

AD30

AD28
AD26

AD24

R319 100R

AD22
AD20

PAR
AD18
AD16

FRAME#

TRDY#

DEVSEL#
AD15

AD13

AD9
C_BE#0

AD6
AD4
AD2
AD0

TP123

VCC3

VCC5

PIRQ#H 12

PCIRST#2 31,42

MGNT#3 42

AD18

12

VCC3

R5594.7KR

PAR 12,26,27,28,29,31

FRAME# 12,26,27,28,29,31,42

TRDY# 12,26,27,28,29,31

STOP# 12,26,27,28,29,31,42

DEVSEL# 12,26,27,28,29,31

PCI PULL-UP / DOWN RESISTORS

RN70 8P4R-2.7KR

DEVSEL#
TRDY#
IRDY#
FRAME#

STOP#

PREQ#112,27
PREQ#312,42
PREQ#212,28
PREQ#012,26

78
56
34
12
78
56
34
12

RN65 8P4R-2.7KR

RN53 8P4R-2.7KR

12
34
56
78

VCC5 VCC5

VCC5

PIRQ#D12

PIRQ#C12,28

PIRQ#B12,27

PIRQ#A12,26

PIRQ#E12,29

PIRQ#F12,31
PIRQ#G12
PIRQ#H12

PIRQ#D
PIRQ#C
PIRQ#B
PIRQ#A
PIRQ#ESERR#
PIRQ#FPERR#
PIRQ#G
PIRQ#H

RN54 8P4R-2.7KR

RN55 8P4R-2.7KR

78
56
34
12
12
34
56
78

PIRQ#H

AD[0..31]

A A

C_BE#[0..3]

AD[0..31] 12,26,27,28,29,31

C_BE#[0..3] 12,26,27,28,29,31

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

MINI PCI

MS-9169

1

16 46Tuesday, August 31, 2004

0ACustom

of

5

4

3

2

1

ICH-HR

Type

Function

GPIO 0
GPIO 1
GPIO 2

D D

GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 11
GPIO 12
GPIO 13
GPIO 16
GPIO 17
GPIO 18
GPIO 19
GPIO 20
GPIO 21
GPIO 22

C C

GPIO 23
GPIO 24
GPIO 25
GPIO 27
GPIO 28
GPIO 32
GPIO 33
GPIO 34
GPIO 35
GPIO 36
GPIO 37
GPIO 38
GPIO 39
GPIO 40
GPIO 41
GPIO 42

B B

GPIO 43
GPIO 56
GPIO 57

GPI0

I
I

Pull down
PIRQ#E

I
I

PIRQ#F

I

PIRQ#G

I

PIRQ#H
SMI#_791

I
I

OVT#_791
PULL UP

I

SMBALERT#

I

PULL UP

I

PULL UP

I
O

NC

O

NC

O

LED1
LED2

O

LED3

O

LED4

O

SATALED#

OD

NC

O
I/O

NC
NC

I/O
I/O

NC

I/O

NC

I/O

WDT
PX_IRQ#0

I/O

PX_IRQ#1

I/O

PX_IRQ#2

I/O

PX_IRQ#3

I/O Core. Unmuxed.

NC

I/O

NC

I/O

NC

I/O

LED5

I/O

LED6

I/O

LED7

I/O

LED8

I/O

NC

O

NC

O

Power wellGPIO Pin

Main
Main
Main
Main
Main
Main
Main
Main

Resume. Unmuxed.

Resume
Resume
Resume

Main
Main
Main
Main
Main
Main

Main. Unmuxed.

Main
Resume. Unmuxed.
Resume. Unmuxed.
Resume. Unmuxed.
Resume. Unmuxed.

Core

Core

Core

Core

Core. Unmuxed.
Core. Unmuxed.
Core. Unmuxed.

Core

Core

Core

Core

Resume and RTC. Unmuxed.
Resume and RTC. Unmuxed.

DDR DIMM Config.

DEVICE

DIMM 1

DIMM 2

ADDRESS

1010000X(A0)

1010001X(A2)

CLOCK

MCLK_A0/MCLK_A0#
MCLK_A1/MCLK_A1#
MCLK_A2/MCLK_A2#
MCLK_A3/MCLK_A3#
MCLK_A4/MCLK_A4#
MCLK_A5/MCLK_A5#

PCI Config.

DEVICE CLOCK

MINI PCI

INTEL
82551
CH1

INTEL
82551
CH2

INTEL
82551
CH3

INTEL
82551
CH4

INTEL
82551
CH5

MS1 PREQ#3

INTEL
82547
LAN

INT Pin

PIRQ#H

REQ#/GNT#

MREQ#3 AD18

IDSEL

CLK_MPCI

MGNT#3

PIRQ#A

PREQ#0

AD19

CLK_LAN1

PGNT#0

PIRQ#B CLK_LAN2

PREQ#1

AD20

PGNT#1

PIRQ#C

PREQ#2

AD21

CLK_LAN3

PGNT#2

PIRQ#E

MREQ#1

AD22

CLK_LAN4

MGNT#1

PIRQ#F

MREQ#2

AD23

CLK_LAN5

MGNT#2

PCLK9MS1

PGNT#3

PX_IRQ#1

CSA_66

INTEL
82545

FWH

GPIO Pin

GPI 0
GPI 1
GPI 2

A A

5

4

GPI 3
GPI 4

Type

Function

80CON_CBL_DET_PRI

I

80CON_CBL_DET_SEC

I

Pull down through 10K ohms (unused)

I
I

Pull down through 10K ohms (unused)

I

Pull down through 10K ohms (unused)

3

LAN

FORTI
ASIC

2

PX_GNT#0

PX_REQ#1
PX_GNT#1

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

PX_AD25

PX_AD24

GPIO

MS-9169

PX_PCLKO2PX_IRQ#0 PX_REQ#0

PX_PCLKO1PX_IRQ#1

17 46Tuesday, August 31, 2004

1

0ACustom

of

1

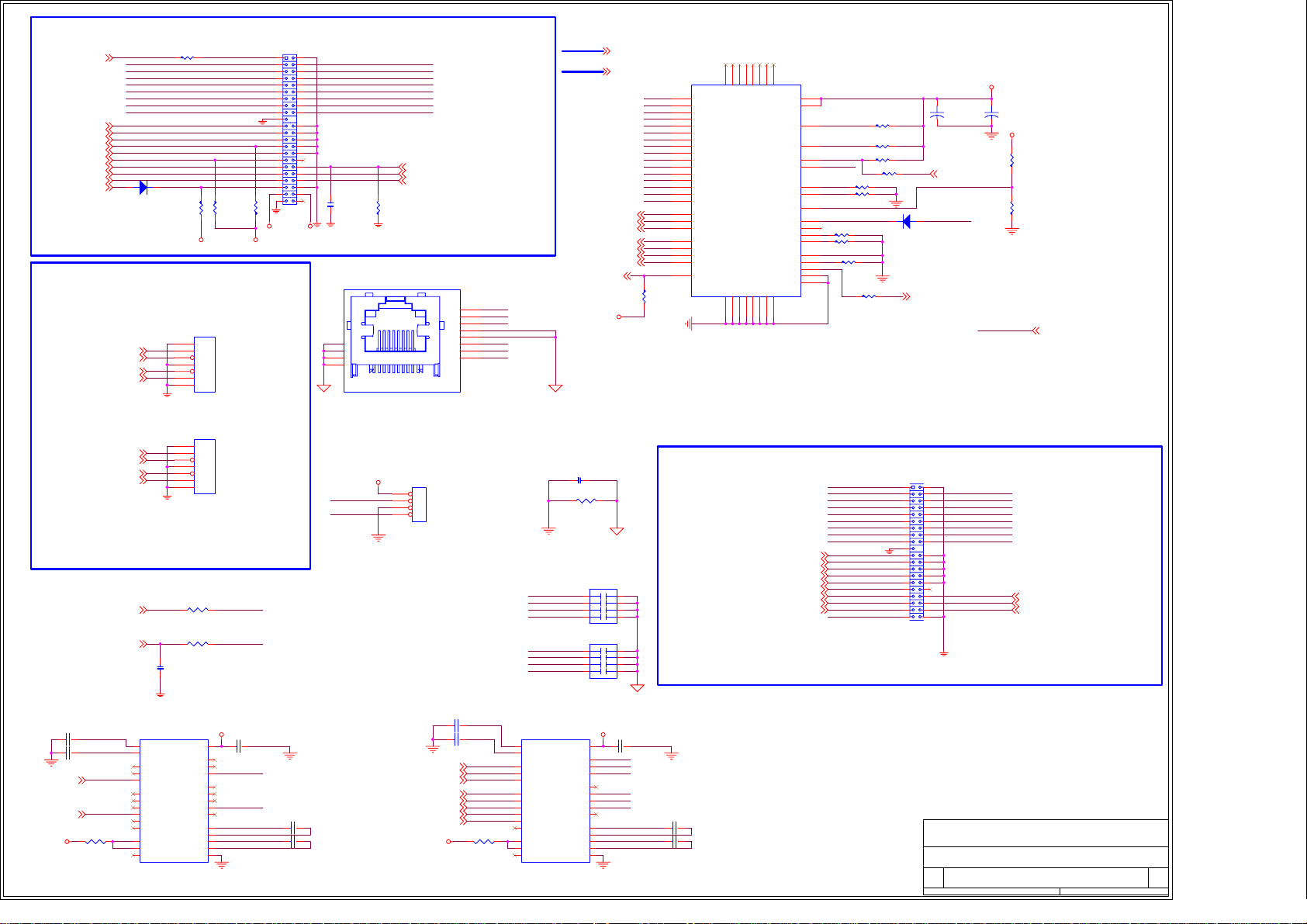

IDE1

IDE1

1
3 4
5 6
7 8
91110

13 14
17 18

19
21
23
25
27
29
31
33
35
37
39

43

VCC5 VCC5

VCC3VCC5

2

12
1615

22
24
26
28
30
32
34
36
38
40
4241
44

C306
X_C4700P50X

RJ45COM

9

9

10

10

11

11

12

12

PGND

COM2_SIN
COM2_SOUT

PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

ATADET1 43
PD_A2 12
PD_CS#3 12

R375
10KR1%

COM PORT A

CONN-RJ45_black

COM PORT B

VCC5

RTS

DTR

TXD

18

GND
GND
RXD
DSR

CTS

COM2

1
2
3
4

BH2X5(10)COM_white

NRTSA

1

NDTRA

2

NSOUTA

3
4
5

NSINA

6

NDSRA

7

NCTSA

8

PGND

NCTSA
NDSRA
NRTSA
NDTRA

COM2_SIN
COM2_SOUT
NSOUTA
NSINA

R359

8.2KR

HDRST#P

R353

4.7KR

IDE_RST#

IDE_RST#42

PD_DREQ12

PD_IOW#12

PD_IOR#12
PD_IORDY12
PD_DACK#12

IRQ1412
PD_A112

PD_A012
PD_CS#112
HD_LED#13,14

R305 33R

PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0

A C

D11 1N4148_SOD123

HD_LED#_C

20KR1%

R394

ICH-HR SATA CONNECTORS

SATA1

1

GND

SATA1

SATA_TX013

SATA_TX#013

SATA_RX#013

SATA_RX013

A A

SATA_TX113

SATA_TX#113

SATA_RX#113

SATA_RX113

SIU1_TXD#14

SIU1_RXD#14

2

HT+

3

HT-

4

GND

5

HR-

6

HR+

7

GND

CONN-SATA1_black

SATA2

1

GND

2

HT+

3

HT-

4

GND

5

HR-

6

HR+

7

GND

CONN-SATA1_black

R613 0R

R612 523RST

C600
1k

SATA2

COM2_SOUT

COM2_SIN

CF

PDD[0..15]

SDD[0..15]

C421 X_C0.01U50X

R493 0R

SD_IOR#12
SD_IOW#12
SD_CS#112
SD_CS#312

IRQ1512

VCC3

CN1

8P4C-180P50N

CN2

8P4C-180P50N

PDD[0..15] 12

SDD[0..15] 12

SD_A012
SD_A112
SD_A212

PGND

SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15

12
34
56
78

12
34
56
78

COMPACT FLASH DISK (Master)

CF1

21

D0

22

D1

23

D2

2

D3

3

D4

4

D5

5

D6

6

D7

47

D8

48

D9

49

D10

27

D11

28

D12

29

D13

30

D14

31

D15

20

A0

19

A1

18

A2

35

IOW-

7

CE1-

32

CE2-

37

RDY-/BSY-/REQ-

R231

8.2KR
__CFCARD-II50M-5u-in

M1M2M3M4M5M6M7

M1M2M3M4M5M6M7

WP/IOCS16-

A3A4A5A6A7A8A9

17161514121110

M8

M8

VCC1
VCC2

WE-

WAIT-

REG-

RESET

CSEL-

CSEL
BVD2

BVD1

CD1­CD2-IOR-

VS1­VS2-

INPACK-

GND1
GND2

A10

8

PD_DREQ12

PD_IOW#12

PD_IOR#12
PD_IORDY12
PD_DACK#12

IRQ1412
PD_A112
PD_A012

PD_CS#112

13
38

36

SD_IORDY

42
43

IDE_RST#

41

R247 470R

24
9

R_CBSEL1

39
45

R219 4.7KR

46

1 2

26

1 2

2534

R251 4.7KR

33

1 2

40

R234 10KR1%

44
1
50

HDRST#P
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0

HD_LED#_C

MASTER/SLAVE SELECT
(1-2): SLAVE
(2-3): MASTER

R230 51KR

1 2

R235 4.7KR

1 2

R236 51KR

1 2

R237 0R

1 2

1 2
1 2

R227 1KR

R240 0R

1 2

AC

D10
1N4148_SOD123

SD_DACK# 12

IDE1

IDE2

1

2
3 4
5 6
7 8
91110

12

13 14

1615

17 18
19

22

21

24

23

26

25

28

27

30

29

32

31

34

33

36

35

38

37
39

40

+

TC1

C10U10Y1206

SD_DREQ 12

R_CBSEL1

HD_LED#

VCC3

SD_IORDY

PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

12

R232
X_1KR

R233
1KR

BC18
C0.1U25X

VCC3

1 2

1 2

ATADET1 43
PD_A2 12
PD_CS#3 12

Master/Slave
Select

(2-3)
Master

(1-2)
Slave

SD_IORDY 12

PGND

SIU1_TXD#14

SIU1_RXD#14

VCC3

C631
X_0.1u
C633
X_0.1u

R624 X_10K

27

3

14
13
12

19
18
17
16
15
20

23
22
21

U56
X_MAX3243

V+
V-

T1IN
T2IN
T3IN

R1OUT
R2OUT
R3OUT
R4OUT
R5OUT
R20OUT

FORCEON
FORCEOFF#
INVALID#

VCC3

T1OUT
T2OUT
T3OUT

R1IN
R2IN
R3IN
R4IN
R5IN

GND

VCC3

C632

26

X_0.1u

9
10

COM2_SOUT

11
4

5
6

COM2_SIN

7
8

28

C1+

24

C1-

1

C2+

2

C2-

25

X_0.1u

X_0.1u

C637
C638

C634

0.1u
C636

0.1u

SIU0_RTS#14
SIU0_DTR#14

SIU0_TXD#14

SIU0_RI#14

SIU0_CTS#14
SIU0_DSR#14
SIU0_RXD#14
SIU0_DCD#14

R625 10K

VCC3

27

3

14
13
12

19
18
17
16
15
20

23
22
21

U57
MAX3243

V+
V-

T1IN
T2IN
T3IN

R1OUT
R2OUT
R3OUT
R4OUT
R5OUT
R20OUT

FORCEON
FORCEOFF#
INVALID#

VCC3

T1OUT
T2OUT
T3OUT

R1IN
R2IN
R3IN
R4IN
R5IN

GND

VCC3

C635

26

0.1u

NRTSA

9

NDTRA

10

NSOUTA

11
4

NCTSA

5

NDSRA

6

NSINA

7
8

28

C1+

24

C1-

1

C2+

2

C2-

25

1

C639

0.1u
C640

0.1u

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

IDE/ SATA/PARALLEL/COM PORT

MS-9169

18 46Tuesday, August 31, 2004

of

0ACustom

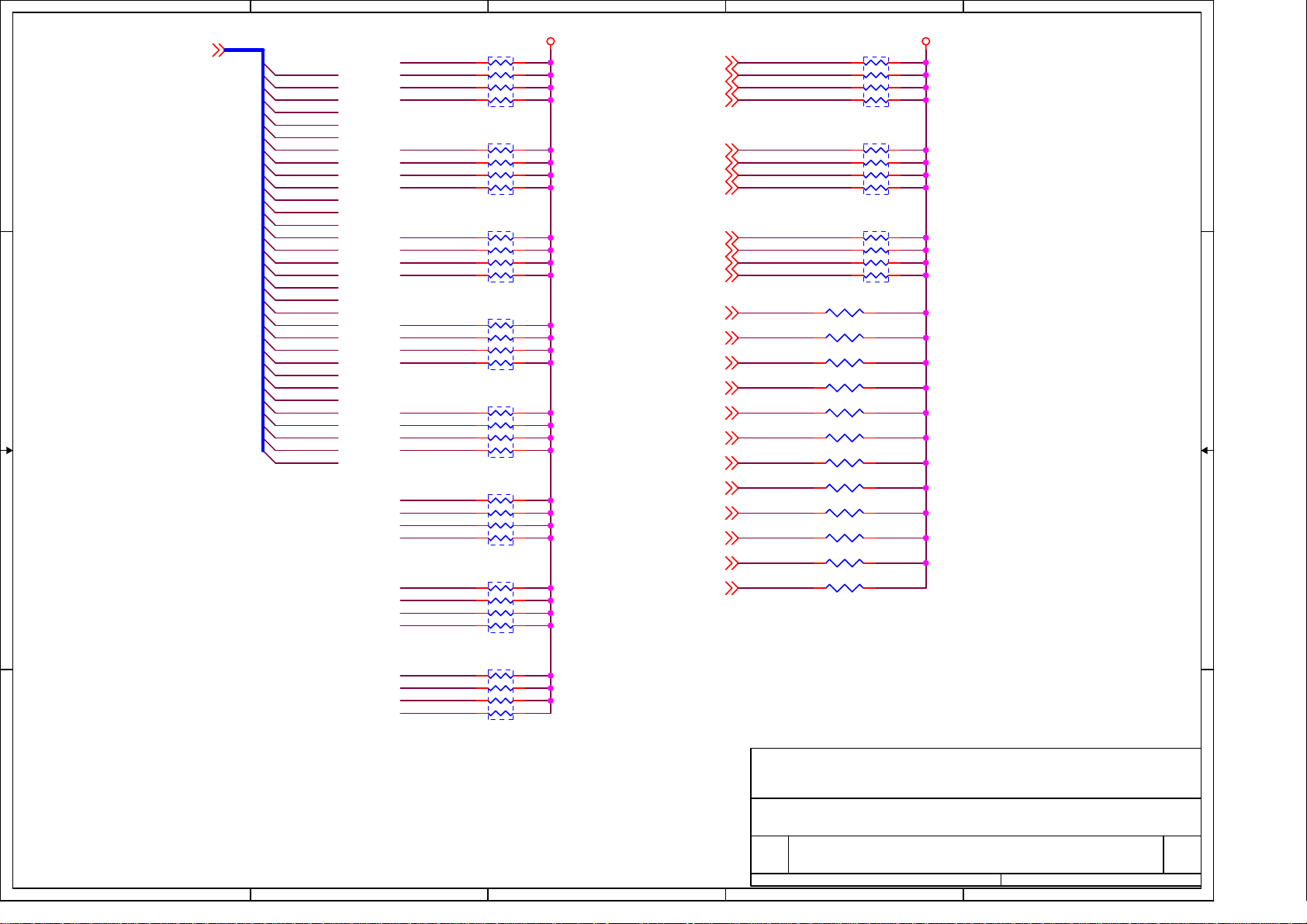

5

PX_AD[32..63]13,22,40,41

PX_AD32
PX_AD33
PX_AD34
PX_AD35

D D

C C

B B

PX_AD36
PX_AD37
PX_AD38
PX_AD39
PX_AD40
PX_AD41
PX_AD42
PX_AD43
PX_AD44
PX_AD45
PX_AD46
PX_AD47
PX_AD48
PX_AD49
PX_AD50
PX_AD51
PX_AD52
PX_AD53
PX_AD54
PX_AD55
PX_AD56
PX_AD57
PX_AD58
PX_AD59
PX_AD60
PX_AD61
PX_AD62
PX_AD63

4

PX_AD32
PX_AD33
PX_AD34
PX_AD35

PX_AD36
PX_AD37
PX_AD38
PX_AD39

PX_AD40
PX_AD41
PX_AD42
PX_AD43

PX_AD44
PX_AD46
PX_AD45
PX_AD47

PX_AD48
PX_AD49
PX_AD50
PX_AD51

PX_AD52
PX_AD53
PX_AD54
PX_AD55

PX_AD56
PX_AD57
PX_AD58
PX_AD59

PX_AD60
PX_AD61
PX_AD62
PX_AD63

RN68

78
56
34
12

8P4R-8.2KR

RN59

78
56
34
12

8P4R-8.2KR

RN62

78
56
34
12

8P4R-8.2KR

RN69

78
56
34
12

8P4R-8.2KR

78
56
34
12

8P4R-8.2KR

RN58

78
56
34
12

8P4R-8.2KR

RN57

78
56
34
12

8P4R-8.2KR

RN60

78
56
34
12

8P4R-8.2KR

3

VCC3 VCC3

PX_REQ#013,22
PX_REQ#113,40,41
PX_REQ#313

PX_REQ#213

PX_IRQ#113,20,40,41
PX_IRQ#213
PX_IRQ#313
PX_IRQ#013,22

PX_C_BE#613,22,40,41
PX_C_BE#713,22,40,41
PX_C_BE#413,22,40,41
PX_C_BE#513,22,40,41

PX_DEVSEL#13,22,40,41

PX_FRAME#13,22,40,41

PX_IRDY#13,22,40,41

PX_TRDY#13,22,40,41

PX_STOP#13,22,40,41
PX_PERR#13,22,40,41
PX_SERR#13,22,40,41

PX_PLOCK#13,22

PX_ACK64#13,22,40,41

PX_REQ64#13,22,40,41

PX_M66EN13,22,40,41

PX_RASERR#13

PX_REQ#0
PX_REQ#1
PX_REQ#3
PX_REQ#2

PX_IRQ#1
PX_IRQ#2
PX_IRQ#3
PX_IRQ#0

PX_C_BE#6
PX_C_BE#7

PX_C_BE#4
PX_C_BE#5

R328 8.2KR0402
R324 8.2KR0402
R327 8.2KR0402
R325 8.2KR0402RN56
R326 8.2KR0402
R330 8.2KR0402
R331 8.2KR0402
R329 8.2KR0402
R568 8.2KR
R558 8.2KR0402
R316 8.2KR0402
R317 8.2KR0402

2

RN64

78
56
34
12

8P4R-8.2KR

RN63

78
56
34
12

8P4R-8.2KR

RN61

78
56
34
12

8P4R-8.2KR

X_Value:NOPOP

1

A A

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Micro-Star Int'l Co., Ltd.

PCIX-66 PULL RESISTORS

Size Document Number Rev

MS-9169

5

4

3

Date: Sheet

2

19 46Tuesday, August 31, 2004

of

1

0AA

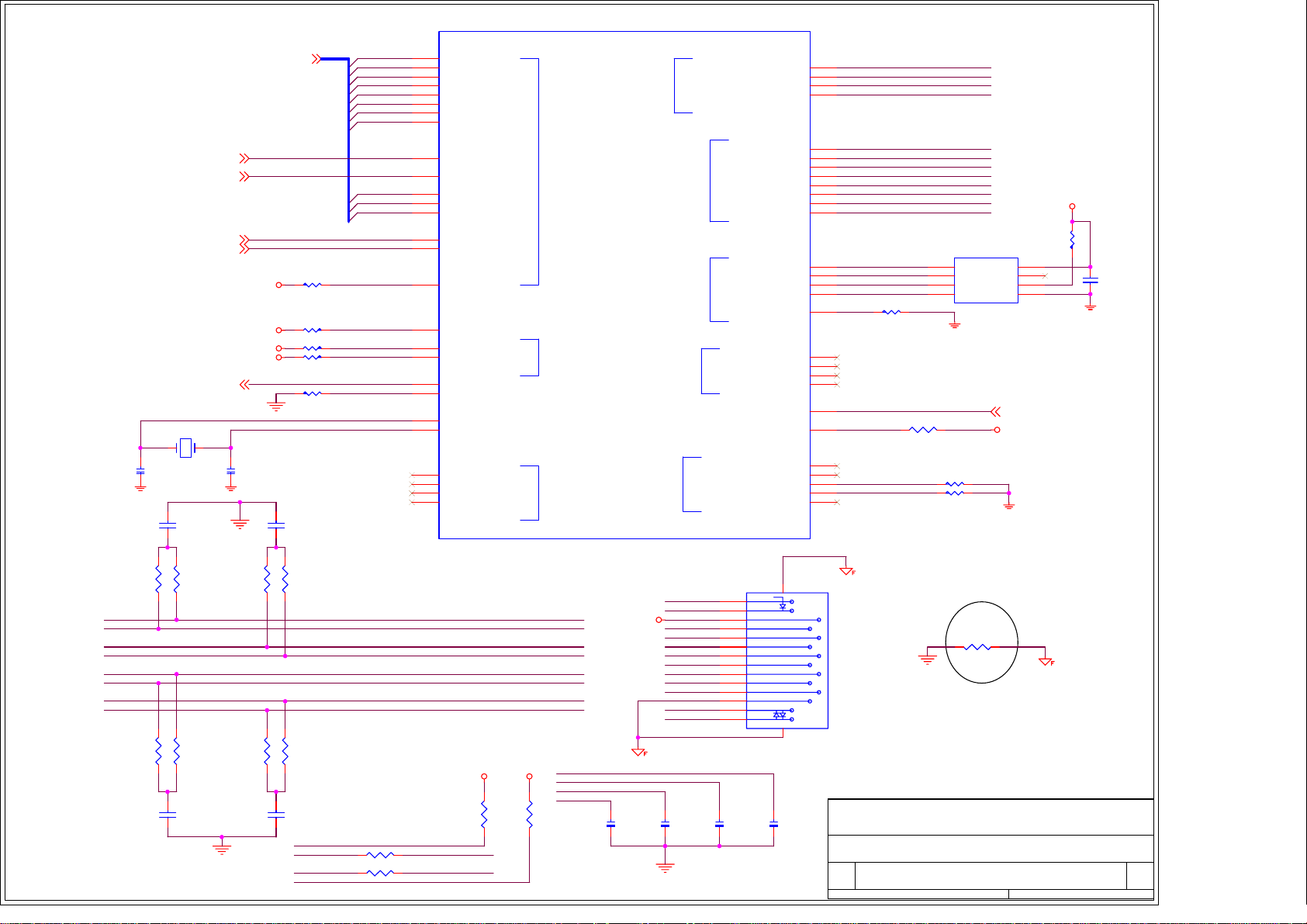

1

IDSEL = AD18
MASTER = MREQ#3
PIRQ#G

CSA_664

PCIRST#342

CI_STRS7
CI_STRF7

PWR_OK22,44,45

X1

A A

25MHZ18P_D-1
C332
C22P50N

C349
C10000P25X

VCCA1.2

VCC3
VCC3

VCC3

C333
C22P50N

CI[0..10]7

CI_STRS
CI_STRF

R347 33.2R1%

R387 4.7KR
R392 4.7KR

R384 4.7KR

R588 1KR1%

C353
C10000P25X

XTAL1
XTAL2

CI0
CI1
CI2
CI3
CI4
CI5
CI6
CI7

CI10
CI8

J1

CI[0]-NC

J2

CI[1]-NC

J3

CI[2]-NC

K1

CI[3]-NC

L3

CI[4]-NC

M2

CI[5]-NC

M1

CI[6]-NC

N2

CI[7]-NC

G1

CI_CLK-NC

B9

PCI_RST#-NC

H1

CI[10]-NC

G2

CI[9]-NC

H3

CI[8]-NC

L1

CI_STRS-NC

L2

CI_STRF-NC

N3

CI_RCOMP-NC

B10

SMBALRT/PCI_PWR_GOOD-NC

A10

SMB_CLK-NC

C9

SMB_DAT-NC

A9

LAN_PWRGD-NC

J12

AUX_PWR-NC

K14

XTAL1-XTAL1

J14

XTAL2-XTAL2

M12

SDP[3]-LAN_RXD2

N13

SDP[2]-LAN_RXD1

P13

SDP[1]-LAN_RXD0

N14

SDP[0]-LAN_CLK

CSA PortSMBUSSDP/Jordan I/F

LED_LINK_UP_N-LILED

LED_ACTIVITY_N-ACTLED

LED_LINK_100_N-SPEEDLED

LED_LINK_1000_N-TOUT

LEDS

MDI_PLUS[0]-TDP

MDI_MINUS[0]-TDN

MDI_PLUS[1]-RDP

MDI_MINUS[1]-RDN

MDI_MINUS[2]-NC
MDI_MINUS[3]-NC

Ethernet PortEEProm

Serial FLASH

JTAG_TDI-LAN_RSTSYNC

JTAG_TCK-LAN_TXD2

JTAG_TRST#-LAN_TXD1

JTAG_TDO-LAN_TXD0

JTAG/LCI

U24A

MDI_PLUS[2]-NC
MDI_PLUS[3]-NC

EE_CS-NC
EE_SK-NC

EE_DI-NC

EE_DO-NC

EE_MODE

FLSH_CE_N-NC

FLSH_SCK-NC

FLSH_SI-NC

FLSH_SO-NC

INTA#-NC

PME#-NC

JTAG_TMS-NC

(82547GI-B1)

A12
C11
B11
B12

C13
C14
E13
E14
F13
F14
H13
H14

P7
M10
P10
N10

C4

M9
N9
M11
P9

A2
A6

L12
M13
L14
L13
M14

EE_CS
EE_SK
EE_DI
EE_DO

R376 1KR1%

R380 8.2KR

CSA_TCK
CSA_TRST#

R431 1KR1%
R430 1KR1%

LAN_LINK_UP
LAN_ACTLED
LAN100
LAN1G

MDI_0+
MDI_0­MDI_1+
MDI_1­MDI_2+
MDI_2­MDI_3+CI9
MDI_3-

1
3

4

U35

CS

VCC

DI

ORG

DO

GND

AT93C66-10SI-2.7

Microwire, Stuff R697
SPI, Unconnected

VCC3

R604

4.7KR

8
72

NCSK

6
5

PX_IRQ#1 13,19,40,41

VCC3

C541
C10000P25X

R423

49.9R1%

MDI_0+
MDI_0-

MDI_1+
MDI_1-

MDI_2+
MDI_2-

MDI_3-

R427

49.9R1%

COMMON MODE FILTER
COMPONENT NEAR
CHIP

R422

49.9R1%

R426

49.9R1%

C358
C10000P25X

R424

49.9R1%

R428

49.9R1%

R425

49.9R1%

R429

49.9R1%

C357
C10000P25X

LAN_LINK_L
LAN100_L

R406 270R
R487 270R

LAN_ACTLED

LAN_LINK_UP
LAN100

LAN1G

VCC3 VCC3

R485
270R

MDI_0+
MDI_0-

MDI_1+
MDI_1-

MDI_2+
MDI_2-

MDI_3+MDI_3+
MDI_3-

LAN1G
LAN100
LAN_LINK_UP

LAN_ACTLED

R486
270R

1

VCCA1.8

C412

X_C1000P50X

LAN_ACTLED
LAN_LINK_L

MDI_0+
MDI_0­MDI_1+
MDI_1­MDI_2+
MDI_2­MDI_3+
MDI_3-

LAN100_L
LAN1G

C325

X_C1000P50X

YELLOW

14
13

5
1
2
3
4
7
8
9

10

6

11

GREEN

12

C323

X_C1000P50X

1516

JLAN1

LEFT

POWER

TD1+
TD1­TD2+
TD2­TD3+
TD3­TD4+
TD4-

GND

RIGHT

ORG

CONN-RJ45_LEDX2_black-1

X_Value:NOPOP

C413

X_C1000P50X

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

R492

0R

AGND

12

AGND

Micro-Star Int'l Co., Ltd.

INTEL 82547GI(1)

MS-9169

of

20 46Tuesday, August 31, 2004

0ACustom

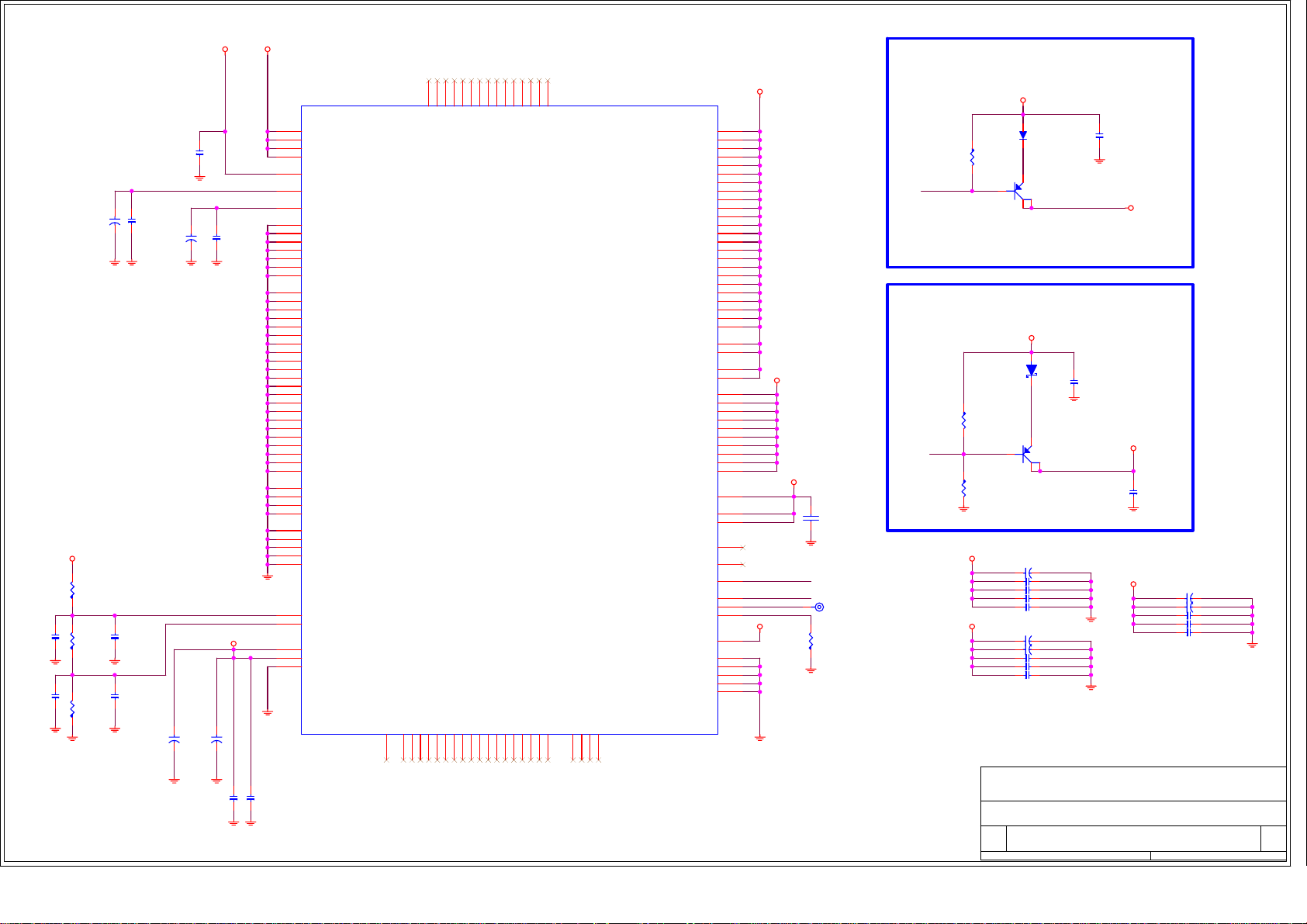

1

VCCA1.8

VCCA1.2

1.8V Voltage Regulation

A5A8B1B2B4B5B6B8C1C2C3C6C7D3G3

G4

CSA_1.2V-NC_G4

H4

CSA_1.2V-NC_H4

J4

C530
1000p

F12
H12

C10

N12

F10

G10
G11

H10

C12
D13
K12

G14

F11

J13

L11

M4

B3
B7

E2

M6

P8
D5

D7
D8
E5
E6
E7
E8
E9
F4
F6
F7
F8
F9

G7
G8
G9

H9

H2

M3

K2
N1

P3
N4

M5

N5
L6

CSA_1.2V-NC_J4
CSA_1.2V-NC_M4

XTAL1.8V-NC
CLKRCAP-NC_F12
XTALCAP-NC_H12
VSSPST-VSS_B3

VSSPST-VSS_B7
VSSPST-VSS_C10
VSSPST-VSS_E2
VSSPST-VSSA_M6
VSSPST-VSSP_N12
VSSPST-VSSA_P8

VSS-VSS_D5
VSS-VSS_D7
VSS-VSS_D8
VSS-VSS_E5
VSS-VSS_E6
VSS-VSS_E7
VSS-VSS_E8
VSS-VSS_E9
VSS-VSSR_F4
VSS-VSS_F6
VSS-VSS_F7
VSS-VSS_F8
VSS-VSS_F9
VSS-VSS_F10
VSS-VSS_G7
VSS-VSS_G8
VSS-VSS_G9
VSS-VSS_G10
VSS-VSS_G11
VSS-VSS_H9
VSS-VSS_H10
VSS-VSSP_L11

ANALOG_VSS-VSSA_C12
ANALOG_VSS-VSSA_D13
ANALOG_VSS-VSSP_K12
ANALOG_VSS-VSS_G14

GNDC-VSS_F11
CSA_VSS-NC_H2
CSA_VSS-NC_M3
CSA_VSS-VSS_K2
CSA_VSS-VSS_N1

CI_SWING-NC
CI_VREF-NC

PLL1.8V-NC
PLLCAP-NC
PLL_VSS-VSSA_L6

RESERVED_NC-NC_A5

RESERVED_NC-NC_A8

RESERVED_NC-NC_B1

RESERVED_NC-NC_B2

RESERVED_NC-NC_B4

RESERVED_NC-NC_B5

RESERVED_NC-NC_B6

RESERVED_NC-NC_B8

RESERVED_NC-NC_C1

RESERVED_NC-NC_C2

RESERVED_NC-ADV10

RESERVED_NC-NC_A4

RESERVED_NC-NC_C5

RESERVED_NC-NC_C8

RESERVED_NC-NC_D1

RESERVED_NC-NC_D2

RESERVED_NC-NC_D9

RESERVED_NC-NC_E3

RESERVED_NC-NC_F1

RESERVED_NC-NC_F2

RESERVED_NC-NC_F3

RESERVED_NC-NC_L8

RESERVED_NC-NC_M7

RESERVED_NC-NC_M8

L7A4C5C8D1D2D9E3F1F2F3L8M7M8N7

RESERVED_NC-NC_C3

RESERVED_NC-NC_C6

RESERVED_NC-NC_C7

RESERVED_NC-NC_D3

RESERVED_NC-NC_G3

RESERVED_NC-NC_N7

RESERVED_NC-NC_N11

RESERVED_NC-NC_P4

RESERVED_NC-NC_P5

RESERVED_NC-NC_P6

N11P4P5P6A1

NC-NC_A1

A14P1P14

C554

0.01U0603

+

EC58

10u-0805

A A

VCCA1.2

R572
604RST

800mV

C522

0.1U 0603

C532

0.1U 0603

R576
665RST

350mV

R580
523RST

C579
1000p

C521

0.01U0603

C531

0.01U0603

10u-0805

10u-0805

EC55

EC57

+

+

CSA_SWING

EC54

10u-0805

C580
1000p

CSA_VREF

VCCA1.2

+

C534
1000p

CORE_VDD-VCCR_G5

CORE_VDD-VCC3.3_G6

CORE_VDD-VCCR_H5
CORE_VDD-VCC3.3_H6
CORE_VDD-VCC3.3_H7
CORE_VDD-VCC3.3_H8

CORE_VDD-VCCR_J5
CORE_VDD-VCC3.3_J6
CORE_VDD-VCC3.3_J7
CORE_VDD-VCC3.3_J8
CORE_VDD-VCC3.3_J9

CORE_VDD-VCC3.3_J10
CORE_VDD-VCC3.3_J11

CORE_VDD-VCC3.3_K5
CORE_VDD-VCC3.3_K6
CORE_VDD-VCC3.3_K7
CORE_VDD-VCC3.3_K8

CORE_VDD-VCC3.3_K9
CORE_VDD-VCC3.3_K10
CORE_VDD-VCC3.3_K11

CORE_VDD-VCC3.3_L4

CORE_VDD-VCC3.3_L5

CORE_VDD-VCC3.3_L9
CORE_VDD-VCC3.3_L10

ANALOG_1.2V-VCCT_E11

ANALOG_1.2V-VCC3.3_H11

ANALOG_1.2V-VCCT_E12

ANALOG_1.2V-VCC3.3_G13

VDDPST-VCC3.3_A3
VDDPST-VCC3.3_A7

VDDPST-VCC3.3_E1
VDDPST-VCC3.3_K3

VDDPST-VCCP_K13

VDDPST-VCCA_N6
VDDPST-VCCA_N8

VDDPST-VCC3.3_P2

VDDPST-VCCP_P12

CLKR1.8V-ISOL_TI
VDDR1P8-NC_D11

VDDR1P8-NC_G12

IEEE_TEST+-RBIAS10

IEEE_TEST--ISOL_TCK

CTRL18-RBIAS100

RESERVED_NC-ISOL_EXEC

RESERVED_3.3V-VCC3.3

RESERVED_VSS-VSS_D6

RESERVED_VSS-VSS_E10

RESERVED_VSS-VSS_F5
RESERVED_VSS-VSS_D4
RESERVED_VSS-VSS_E4

NC-NC_A14

NC-NC_P1

NC-NC_P14

1

VDDPST-VCCT

CTRL12-NC

TEST-TESTEN

82547GI

U24B

G5
G6
H5
H6
H7
H8
J5
J6
J7
J8
J9
J10
J11
K5
K6
K7
K8
K9
K10
K11
L4
L5
L9
L10

E11
H11

E12
G13

A3
A7
A11
E1
K3
K13
N6
N8
P2
P12

D12
D11

G12

B14
D14
B13
P11

D10
A13

K4
D6

E10
F5
D4
E4

VCCA1.2

VCC3

VCC3

VCCA1.8

CTRL1.8
CTRL1.2

C557

0.01U0603

TP134

R412
0 0603

CTRL1.8

CTRL1.2

VCC3

VCCA1.2

VCC3

(5mA)

R416
X_5.1K

1

D13
0-1206

32

Q45
PNP-2SB1132

4

1A/0.5W

C575

0.1U 0603

VCCA1.8

(230 mA)

1.2V Voltage Regulation

VCC3

D14
0-1206

C307

0.1U 0603

R349
X_5.1K NOPOP

32

1

R348
X_100KST NOPOP

EC53 10u-0805

+

C529 0.1U 0603
C568 0.01U0603
C295 0.1U 0603

EC52 10u-0805

+

EC51 10u-0805

+

C553 0.1U 0603
C538 0.01U0603
C536 0.01U0603

Q46
PNP-BCP69-S-SOT223

4

1A/1.35W

VCCA1.2

(550 mA)

C292

0.1U 0603

VCCA1.8

EC50 10u-0805
EC56 10u-0805C296 0.01U0603
C578 0.1U 0603
C520 0.01U0603
C423 0.01U0603

+
+

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

INTEL 82547GI(2)

MS-9169

of

21 46Tuesday, August 31, 2004

0ACustom

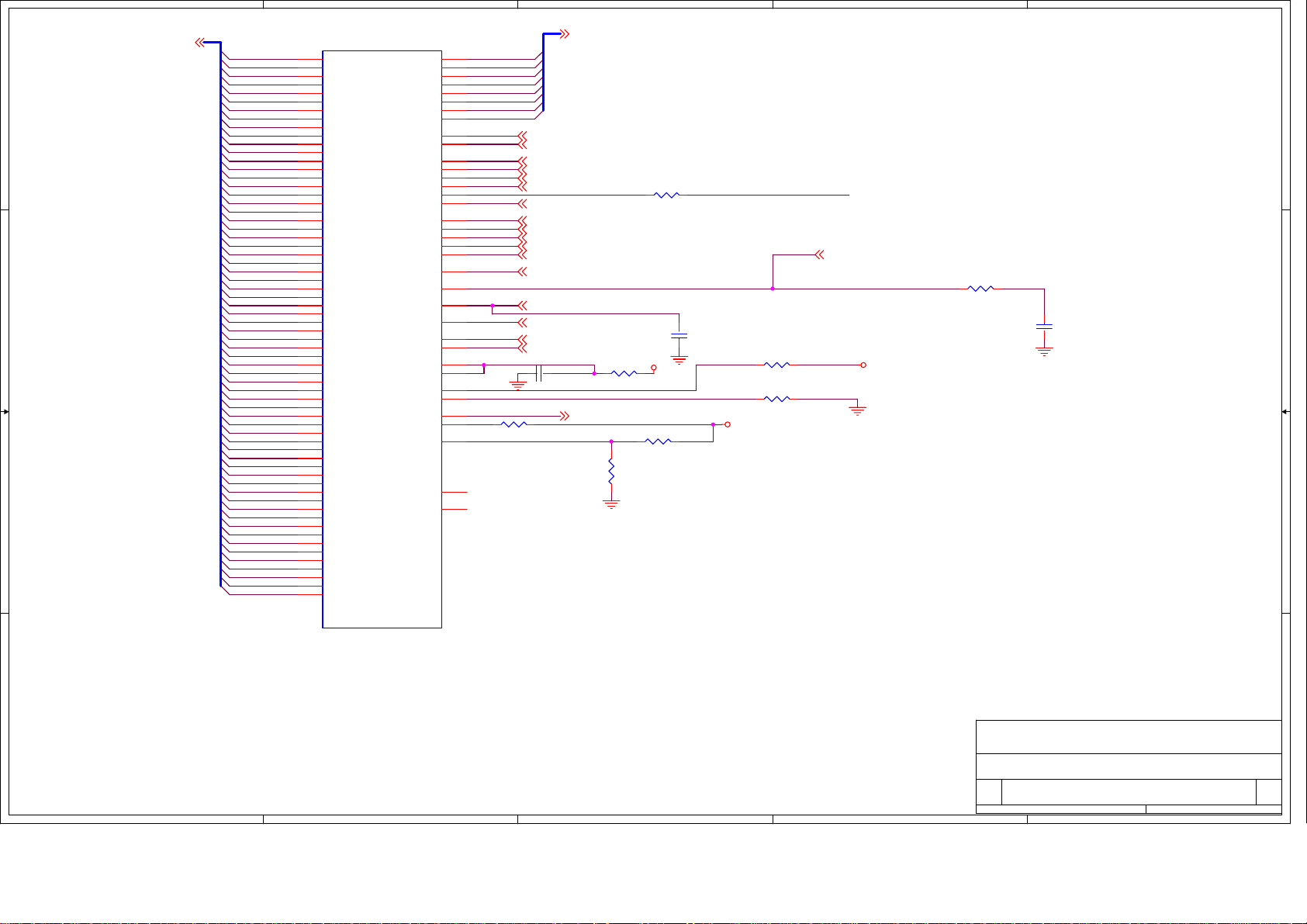

5

4

3

2

1

PX_AD[0..63]13,19,40,41

D D

C C

B B

PX_AD0
PX_AD1
PX_AD2
PX_AD3
PX_AD4
PX_AD5
PX_AD6
PX_AD7
PX_AD8
PX_AD9
PX_AD10
PX_AD11
PX_AD12
PX_AD13
PX_AD14
PX_AD15
PX_AD16
PX_AD17
PX_AD18
PX_AD19
PX_AD20
PX_AD21
PX_AD22
PX_AD23
PX_AD24
PX_AD25
PX_AD26
PX_AD27
PX_AD28
PX_AD29
PX_AD30
PX_AD31
PX_AD32
PX_AD33
PX_AD34
PX_AD35
PX_AD36
PX_AD37
PX_AD38
PX_AD39
PX_AD40
PX_AD41
PX_AD42
PX_AD43
PX_AD44
PX_AD45
PX_AD46
PX_AD47
PX_AD48
PX_AD49
PX_AD50
PX_AD51
PX_AD52
PX_AD53
PX_AD54
PX_AD55
PX_AD56
PX_AD57
PX_AD58
PX_AD59
PX_AD60
PX_AD61
PX_AD62
PX_AD63

T14
V14
Y15

W14

T13
V13
Y14
U12
V12
T12

W12

Y12
V11
T11
Y11

W10

L16
M20
M19
M16
M18
M17

N20

N16

P20

N18

P19

P16

R20

P18

P17

T20

R16

U20

R18

T19

V20

T18
W20

V19

T17

U18

V18

U16

V17
W18

Y19

T16

U23A

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15

U8

AD16

Y7

AD17

Y6

AD18

V7

AD19

T7

AD20

W6

AD21

Y5

AD22

V6

AD23

U6

AD24

V5

AD25

W4

AD26

V4

AD27

Y3

AD28

U4

AD29

V3

AD30

V1

AD31
AD32
AD33
AD34
AD35
AD36
AD37
AD38
AD39
AD40
AD41
AD42
AD43
AD44
AD45
AD46
AD47
AD48
AD49
AD50
AD51
AD52
AD53
AD54
AD55
AD56
AD57
AD58
AD59
AD60
AD61
AD62
AD63

CBE0#
CBE1#
CBE2#
CBE3#
CBE4#
CBE5#
CBE6#
CBE7#

PAR

PAR64

FRAME#

IRDY#
TRDY#
STOP#

IDSEL#

DEVSEL#

REQ#

GNT#

REQ64#

ACK64#

LOCK#

INTA#

CLK

M66EN

RST#

SERR#
PERR#

VIO
VIO

ZN_COMP
ZP_COMP

LAN_PWR_GOOD

PME#

AUX_PWR

TEST#

CLK_VIEW

Y13
V10
T8
Y4
V16
Y18
Y17
T15

U10
V15

V8
W8
Y8
V9
T6
T9

W2
T3
U14
W16
Y9

Y2
U2
Y16
T5
T10

Y10
Y1

Y20
T2

R5
A17

T4
R3

A8
P3

PX_C_BE#0
PX_C_BE#1
PX_C_BE#2
PX_C_BE#3
PX_C_BE#4
PX_C_BE#5
PX_C_BE#6
PX_C_BE#7

R582 1KR

C293 C10000P25X

PX_C_BE#[0..7] 13,19,40,41

PX_PAR 13,40,41
PX_PAR64 13,40,41

PX_FRAME# 13,19,40,41
PX_IRDY# 13,19,40,41
PX_TRDY# 13,19,40,41
PX_STOP# 13,19,40,41

PX_DEVSEL# 13,19,40,41
PX_REQ#0 13,19

PX_GNT#0 13
PX_REQ64# 13,19,40,41
PX_ACK64# 13,19,40,41
PX_PLOCK# 13,19

PX_IRQ#0 13,19

PX_M66EN 13,19,40,41
PCISBRST# 13,40,41
PX_SERR# 13,19,40,41

PX_PERR# 13,19,40,41

R351 100KR

PWR_OK 20,44,45

R575 100R

VCC3

Power Good?

R369 X_10KR

No AUX_PWR

R377
10KR

C515

C10000P25X

R358 22R

R573 35.7KR1%

VCC3

PX_AD25

PX_PCLKO2 13

VCC3

R355 X_56R

Intel
ZN_COMP 35.7ohm 1%
ZP_COMP 22.6ohm 1%

C294
X_C0.1U16X

_RC82545-A1

A A

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

INTEL 82544/82545#1

MS-9169

1

0AB

22 46Tuesday, August 31, 2004

of

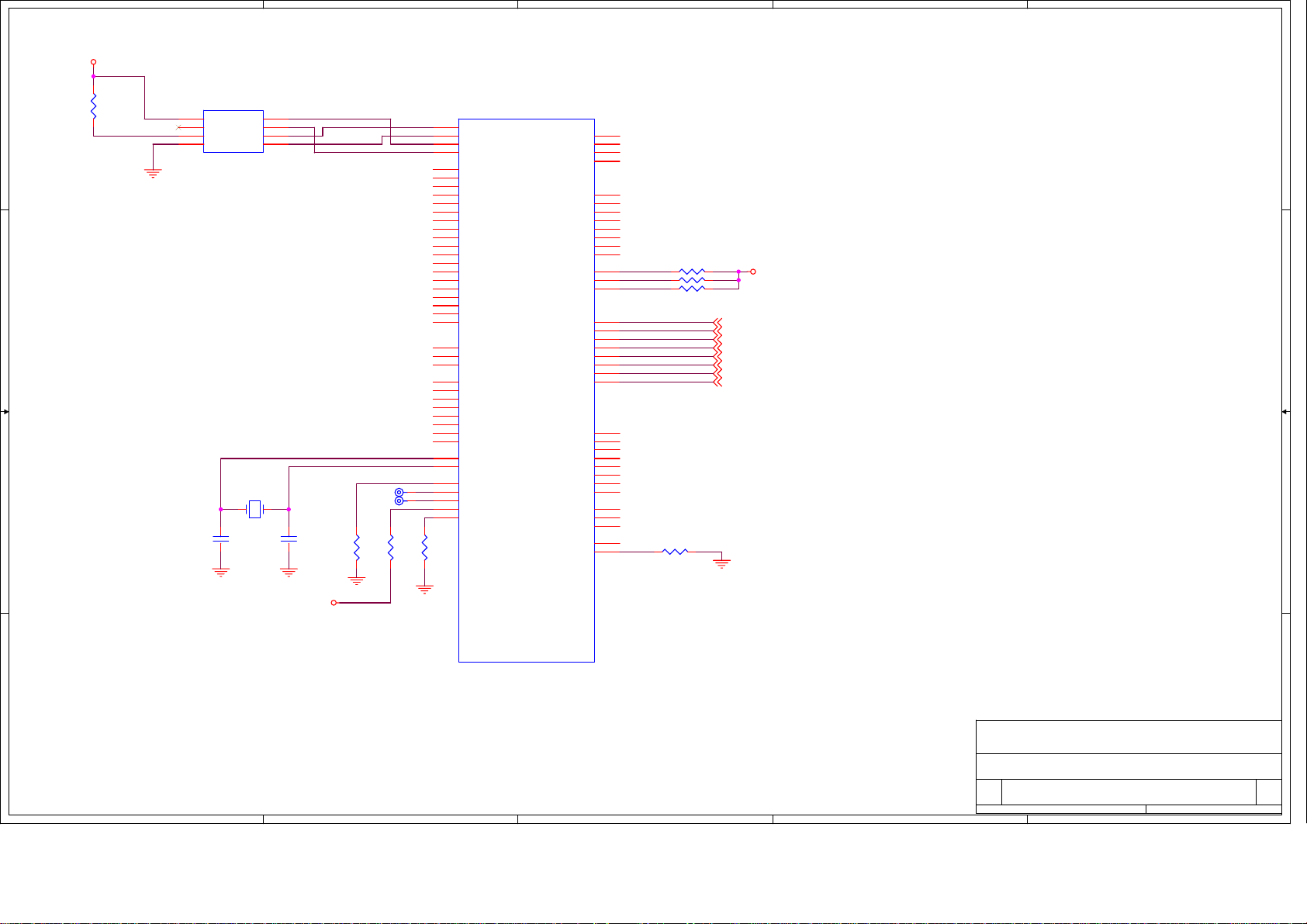

VCC3

5

4

3

2

1

R609

D D

C C

B B

4.7KR

U38

8

VCC

7

NC

6

NC

5

GND

AT93C66-10SC-2.7

1 2

25MHZ18P_D-1
C346

C22P50N

1

CS

2

SK

3

DI

4

DO

Y9

C345
C22P50N

R374
1KR

TP125
TP126

R574
1KR

C19
B20
C20
D20

E18
E16
E15
E14
E13
D15
B16

G17
G16
B15
D19
D18
C15
D16
C18
D17

H20
K18
C17

H16
G18

H18

K17
K16

R581
1KR

F16

F17
F18

J16
J17

J18

A3
A4

P1
P4
P2
P5
N5

U23B

EE_DI
EE_DO
EE_CS
EE_SK

FL_ADDR0
FL_ADDR1
FL_ADDR2
FL_ADDR3
FL_ADDR4
FL_ADDR5
FL_ADDR6
FL_ADDR7
FL_ADDR8
FL_ADDR9
FL_ADDR10
FL_ADDR11
FL_ADDR12
FL_ADDR13
FL_ADDR14
FL_ADDR15
FL_ADDR16
FL_ADDR17
FL_ADDR18

FL_CS#
FL_OE#
FL_WE#

FL_DATA0
FL_DATA1
FL_DATA2
FL_DATA3
FL_DATA4
FL_DATA5
FL_DATA6
FL_DATA7

XTAL1
XTAL2

JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TRST#

TX+

RX+

SDP0
SDP1
SDP6
SDP7

SMB_ALERT#

SMBDAT
SMBCLK

MDI[0]-

MDI[0]+

MDI[1]-

MDI[1]+

MDI[2]-

MDI[2]+

MDI[3]-

MDI[3]+

REF

TX­RX-

F19
F20
G19
G20

G4
G5
E12
E11
D13

NC

B12

NC

C12

NC

D12

NC

A16
A15
A14

B1
B2
C1
C2
D1
D2
E1
E2

L3

NC

K3

NC

L1

NC

K1

NC

J2

NC

J1

NC

H3

NC

J3

NC

A13

NC

C14

NC

C13

NC

L4

NC

E3

R606 4.7KR
R589 4.7KR
R603 4.7KR

R420 2.49KR1%

VCC3

GA_LAN_MDI0N 25
GA_LAN_MDI0P 25
GA_LAN_MDI1N 25
GA_LAN_MDI1P 25
GA_LAN_MDI2N 25
GA_LAN_MDI2P 25
GA_LAN_MDI3N 25
GA_LAN_MDI3P 25

VCC3

Pull Down 1Kohm at P1 and N5

_RC82545-A1

A A

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

INTEL 82544/82545#2

MS-9169

1

0AB

23 46Tuesday, August 31, 2004

of

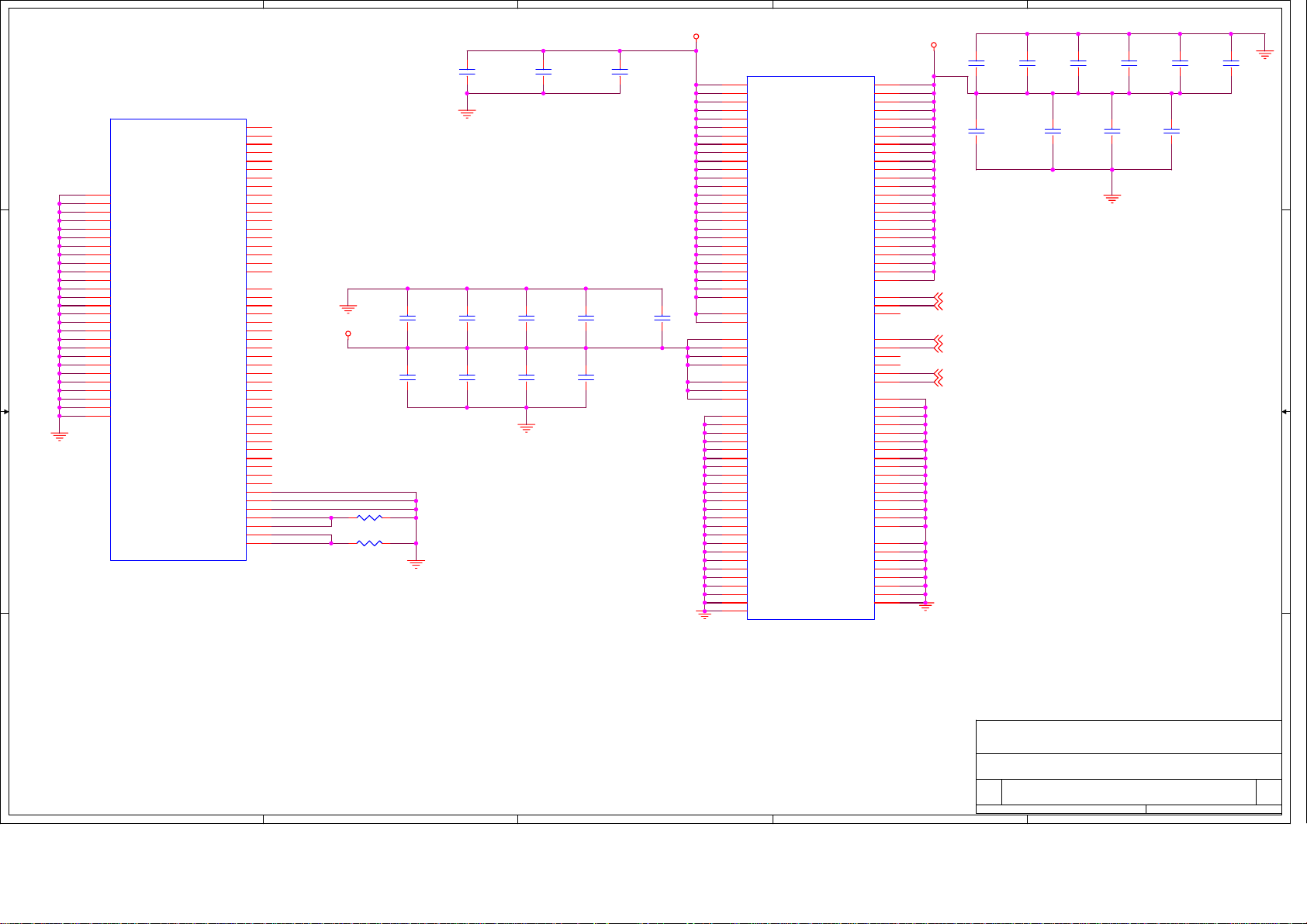

5

4

3

VCC3

2

VCCB1.5

1

B14
B19
C10
C16

D11
E17

H19

N19
R17

U11
U15
U19

W13
W17

A19

A10

B11
B17

D14
E19
E20

G10
G11

H10
H11
H12
H17

L17

W1
W5
W9

L18

B8

D6

H4

M2
R4
U1

U3
U7

B4
F1

G1
G2
G3

L2
L5

A1
A2
A5

B3
B6

C3
D3
D8

F3

H2
H9

J8

U23C

VDD3.3-1
VDD3.3-2
VDD3.3-3
VDD3.3-4
VDD3.3-5
VDD3.3-6
VDD3.3-7
VDD3.3-8
VDD3.3-9
VDD3.3-10
VDD3.3-11
VDD3.3-12
VDD3.3-13
VDD3.3-14
VDD3.3-15
VDD3.3-16
VDD3.3-17
VDD3.3-18
VDD3.3-19
VDD3.3-20
VDD3.3-21
VDD3.3-22
VDD3.3-23
VDD3.3-24
VDD3.3-25
VDD3.3-26

AVDDH3.3-1
AVDDH3.3-2

AVDDL2.5-1
AVDDL2.5-2
AVDDL2.5-3
AVDDL2.5-4

AVDDL2.5-5
AVDDL2.5-6
AVDDL2.5-7

GND-1
GND-2
GND-3
GND-4
GND-4
GND-5
GND-6
GND-7
GND-8
GND-9
GND-10
GND-11
GND-12
SIG_DETECT
GND-13
GND-14
GND-15
GND-16
GND-17
GND-18
GND-19
GND-20
GND-21
GND-22

_RC82545-A1

DVDDH1.5-1
DVDDH1.5-2
DVDDH1.5-3
DVDDH1.5-4
DVDDH1.5-5
DVDDH1.5-6
DVDDH1.5-7
DVDDH1.5-8

DVDDH1.5-9
DVDDH1.5-10
DVDDH1.5-11
DVDDH1.5-12
DVDDH1.5-13
DVDDH1.5-14
DVDDH1.5-15
DVDDH1.5-16
DVDDH1.5-17
DVDDH1.5-18
DVDDH1.5-19
DVDDH1.5-20
DVDDH1.5-21
DVDDH1.5-22
DVDDH1.5-23
DVDDH1.5-24

CTRL_1.5

CTRL_25

LINK#

ACT#

LINK100#

LINK1000#

GND-23
GND-24
GND-25
GND-26
GND-27
GND-29
GND-29
GND-29
GND-30
GND-31
GND-32
GND-33
GND-34
GND-35
GND-36
GND-37

GND-39
GND-40
GND-41
GND-42
GND-43
GND-44
GND-45
GND-45

C543

G7
G8
G9
G12
G13
G14
H7
H8
H13
H14
J7
J14
M7
M14
N7
N8
N13
N14
P7
P8
P9
P12
P13
P14

A18
F2
H5

NC

M1
N1
N2

NC

M3

NC

N4
N3

J9
J10
J11
J12
J13
K2
K4
K5
K7
K8
K9
K10
K11
K12
K13
K14

L7
L8
L9
L10
L11
L12
L13
L14

C10000P25X

C562
C10U10Y0805

CTRLB_1.5 25
CTRLB_2.5 25

GIGA_LAN_LINK_J 25
GIGA_LAN_ACTIVE 25

GIGA_LAN_LINK100_J 25
GIGA_LAN_LINK1000_J 25

C546
C10000P25X

C544
X_C0.01U50X

C564
C10U10Y0805

C547

X_C0.01U50X

C566
C10U10Y0805

C523
X_C0.01U50X

C565
C10U10Y0805

C545
X_C0.01U50X

C585
C10U10Y0805

M10
M11
M12
M13

W11
W15
W19

L19

N10
N11
N12
N17
P10
P11

R19

U13
U17

M4
M8
M9

N9

R2
U5

U9

V2
W3
W7

U23D

GND-47
GND-48
GND-50
GND-51
GND-52
GND-53
GND-54
GND-55
GND-56
GND-57
GND-58
GND-59
GND-60
GND-61
GND-62
GND-63
GND-64
GND-65
GND-66
GND-67
GND-68
GND-69
GND-70
GND-71
GND-72
GND-73
GND-74

_RC82545-A1

NO_CONNECT_1
NO_CONNECT_2
NO_CONNECT_3
NO_CONNECT_4
NO_CONNECT_5
NO_CONNECT_6
NO_CONNECT_7
NO_CONNECT_8

NO_CONNECT_9
NO_CONNECT_10
NO_CONNECT_11
NO_CONNECT_12
NO_CONNECT_13
NO_CONNECT_14
NO_CONNECT_15
NO_CONNECT_16
NO_CONNECT_17
NO_CONNECT_18

RESERVED0
RESERVED1
RESERVED2
RESERVED3
RESERVED4
RESERVED5
RESERVED6
RESERVED7
RESERVED8

RESERVED9
RESERVED10
RESERVED11
RESERVED12
RESERVED13
RESERVED14
RESERVED15
RESERVED16
RESERVED17
RESERVED18
RESERVED19
RESERVED20
RESERVED21
RESERVED22
RESERVED23
RESERVED24
RESERVED25
RESERVED26
RESERVED27
RESERVED28
RESERVED29
RESERVED30

A11
A12
F4
F5
F19
F20
G19
G20
H1
J4
J5
J19
J20
K19
K20
L4
M3
N2

D4
D5
C4
E4
C5
E5
B5
E6
D7
C7
E10
B7
A7
C8
E8
E9
D9
C9
B9
D10
A9
C11
B10
C6
A20
B18
M5
E7
A6
R1
L20

VCCB2.5

R600 1KR

R368 1KR

C422
C10000P25X

C583
C10U10Y0805

C549
C10000P25X

C315
C10U10Y0805

D D

C C

B B

C288
C10U10Y0805

C537
C10000P25X

C596
C10U10Y0805

C10000P25X

C550
C10000P25X

C319
C10U10Y0805

C285
C10U10Y0805

C321

A A

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

INTEL 82544/82545#3

MS-9169

1

0AB

24 46Tuesday, August 31, 2004

of

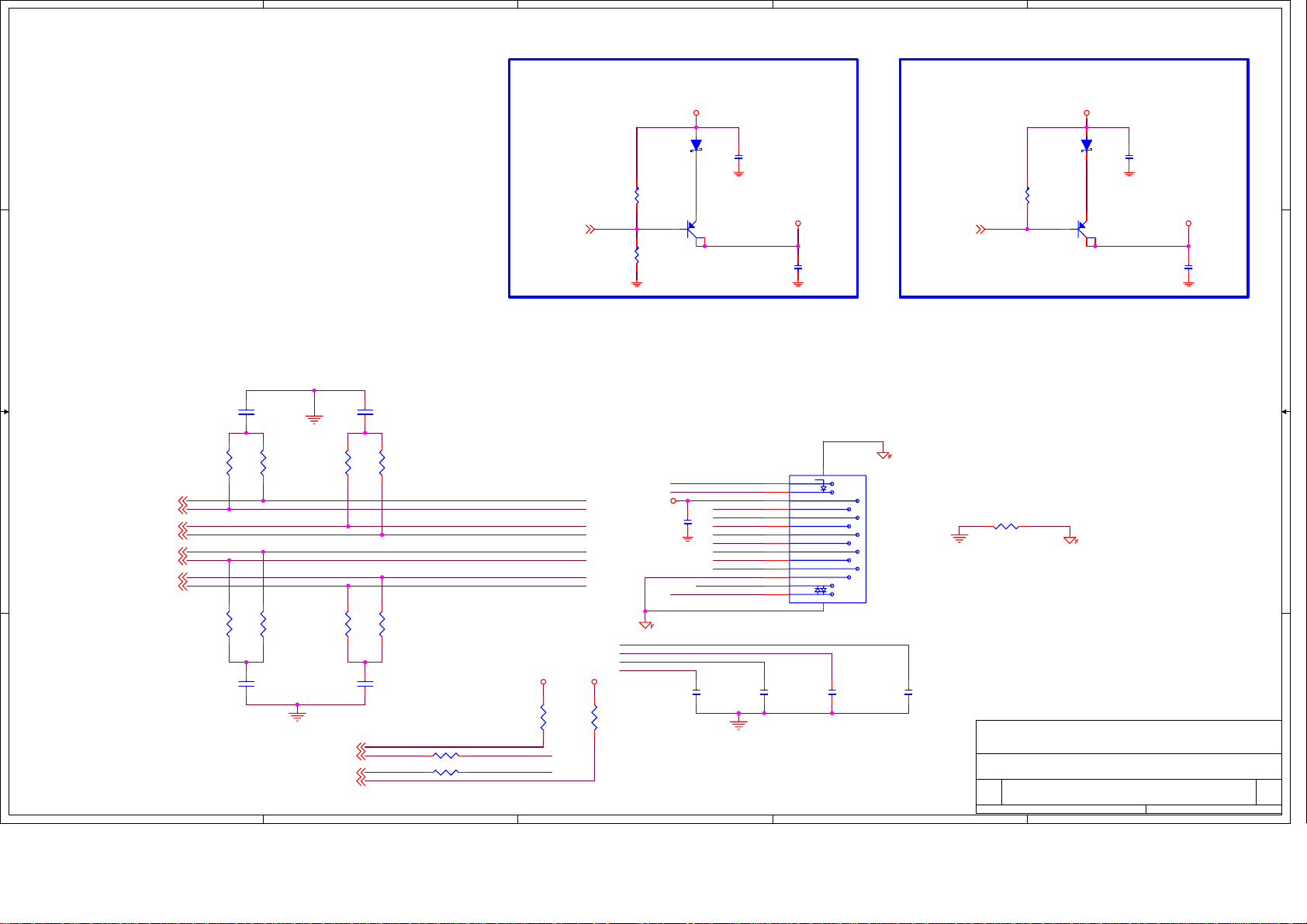

5

4

3

2

1

1.5V Voltage Regulation

D D

CTRLB_1.524 CTRLB_2.524

C C

C328
C10000P25X

R415

49.9R1%

GA_LAN_MDI0P23

B B

GA_LAN_MDI0N23
GA_LAN_MDI1P23

GA_LAN_MDI1N23
GA_LAN_MDI2P23

GA_LAN_MDI2N23
GA_LAN_MDI3P23

GA_LAN_MDI3N23

R590

49.9R1%

R419

49.9R1%

R599

49.9R1%

R409

49.9R1%

R586

49.9R1%

COMMON MODE FILTER
COMPONENT NEAR
CHIP

A A

5

C594
C10000P25X

GIGA_LAN_ACTIVE24
GIGA_LAN_LINK_J24

GIGA_LAN_LINK100_J24
GIGA_LAN_LINK1000_J24

C327
C10000P25X

R403

49.9R1%

R587

49.9R1%

C570
C10000P25X

4

R379 270R
R579 270R

VCC3 VCC3

GIGA_LAN_LINK
LAN100_2

R484
330R1%

VCCB2.5

GIGA_LAN_ACTIVE
GIGA_LAN_LINK
LAN100_2
GIGA_LAN_LINK1000_J

R477
330R1%

VCC3

R598

5.1KR

1

R443
X_100KR1%

GIGA_LAN_ACTIVE
GIGA_LAN_LINK

C592

C0.1U25X

GIGA_LAN_LINK1000_J

3

D17
0R1206

32

Q50
P-BCP69_SOT223

4

1A/1.35W

GA_LAN_MDI0P
GA_LAN_MDI0N
GA_LAN_MDI1P
GA_LAN_MDI1N
GA_LAN_MDI2P
GA_LAN_MDI2N
GA_LAN_MDI3P
GA_LAN_MDI3N

LAN100_2

C410
X_C1000P50X

C576
C0.1U25X

VCCB1.5

(550 mA)

C344
C0.1U25X

YELLOW

14
13

5
1
2
3
4
7
8
9

10

6

11

GREEN

12

C411
X_C1000P50X

1516

JLAN2

LEFT

POWER

TD1+
TD1­TD2+
TD2­TD3+
TD3­TD4+
TD4-

GND

RIGHT

ORG

CONN-RJ45_LEDX2_black-1

C420
X_C1000P50X

C409
X_C1000P50X

2

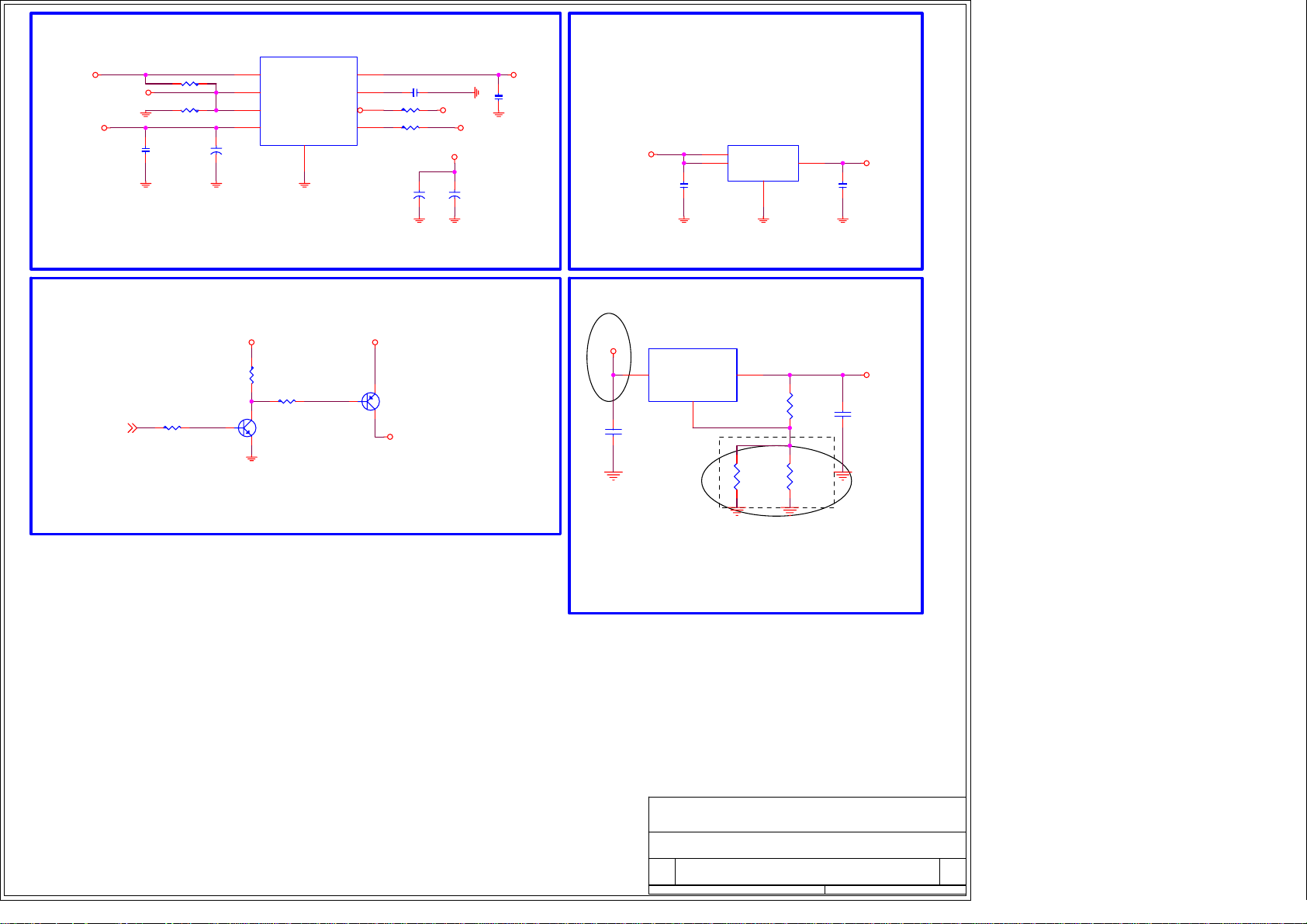

2.5V Voltage Regulation

VCC3

D15
0R1206

C540
C0.1U25X

R383

R490 0R

5.1KR

AGND

1

AGND

32

Q48
P-BCP69_SOT223

4

1A/1.35W

VCCB2.5

(550 mA)

C539
C0.1U25X

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

INTEL 82544/82545#4

MS-9169

1

25 46Tuesday, August 31, 2004

of

0AB

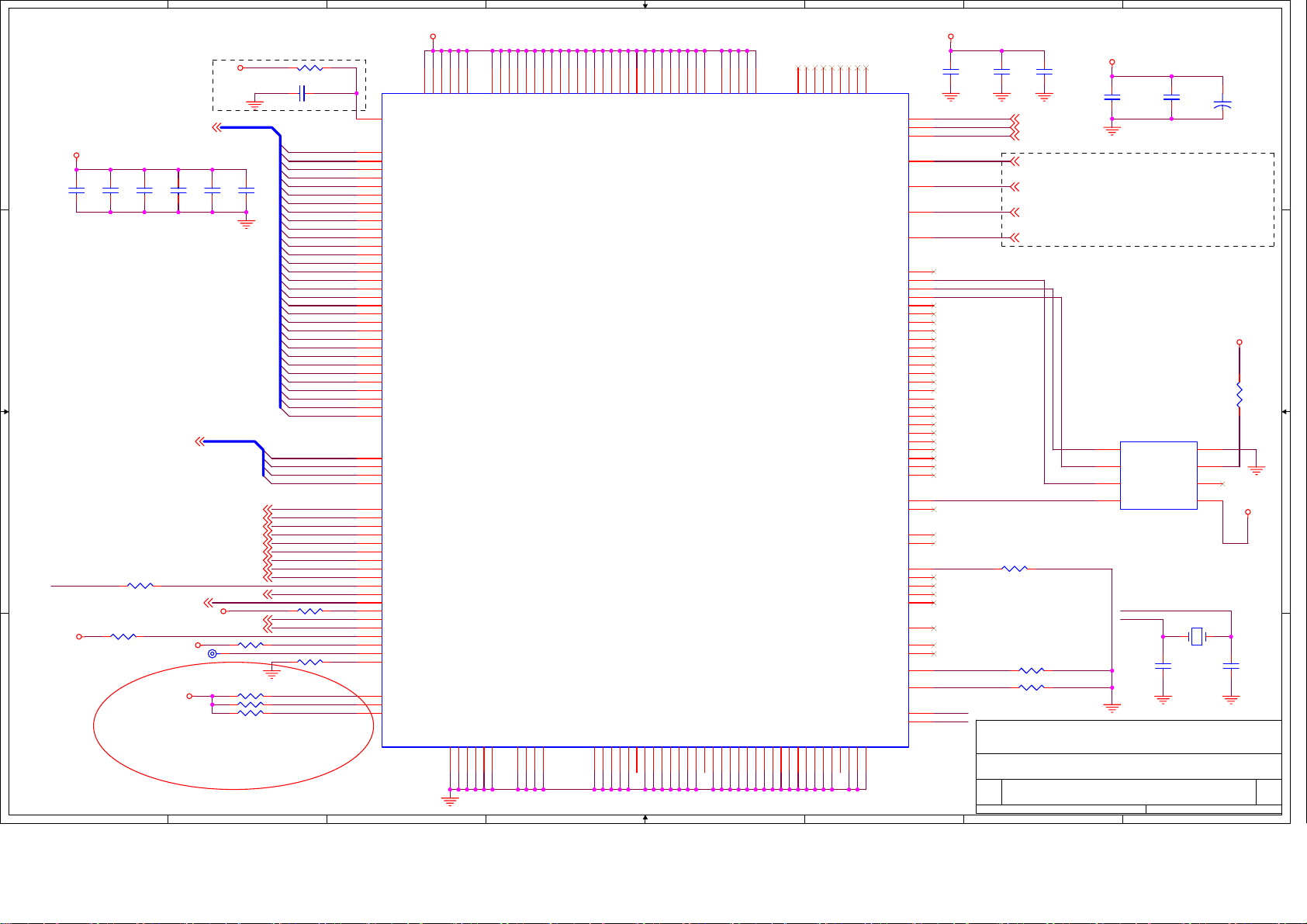

8

D D

AD[0..31]12,16,27,28,29,31

VCC3

C320

C316

C317

C331

C1U10Y

C1U10Y

C1U10Y

C1U10Y

C C

C_BE#[0..3]12,16,27,28,29,31

B B

AD19

VCC3

A A

R401 8.2KR

8

R370100R

PGNT#012

VCC3

PCIRST#127,28,29,32,42,43

VCC3

TP127

VCC3

Remove SMBus Line 2004.4.15

7

VCC5

C302
C1U10Y

CLK_LAN14

R391 8.2KR

R410 8.2KR
R405 8.2KR
R433 8.2KR

AD[0..31]

FRAME#12,16,27,28,29,31,42

IRDY#12,16,27,28,29,31

TRDY#12,16,27,28,29,31

DEVSEL#12,16,27,28,29,31

STOP#12,16,27,28,29,31,42

PIRQ#A12,16

PERR#12,16,27,28,29,31
SERR#12,16,27,28,29,31

PREQ#012,16

C567
C1U10Y

PAR12,16,27,28,29,31

7

R362 62KR

C303 C0.1U25Y

R363 62KR

20mil

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C_BE#0
C_BE#1
C_BE#2
C_BE#3

R432 5.6KR

B10
A10

G2

N7

M7

P6
P5
N5

M5

P4
N4
P3
N3

N2
M1
M2
M3

L1

L2

K1

E3

D1

D2

D3

C1

B1

B2

B4

A5

B5

B6

C6

C7

A8

B8

M4

L3

F3

C4

F2

F1

G3

H3

H1

J1

H2

J2
A2
A4
C3

J3
C2
G1
B9
A9
A6
C5
C8

C9

6

VCC3

A3A7E1K3N6P2G5G6H5H6H7H8J5J6J7J8J9

U26

VIO

VCCPP1

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C/BE#0
C/BE#1
C/BE#2
C/BE#3

FRAME#
IRDY#
TRDY#
DEVSEL#
STOP#
PAR
INTA#
PERR#
SERR#
IDSEL
REQ#
GNT#
RST#
CLK
ISOLATE#
ALRST#
PME#
CSTSCHG/WOL
CLKRUN#

SMBALRT#
SMBCLK
SMBDATA

6

VCCPP2

VCCPP3

VCCPP4

VCCPP5

VSSPP1

VSSPP2

B3E2M6

VCCPP6

VSSPP3

VSSPP4

VSSPP5

N1

B7K2G14

VCC1

VSSPP6

VCC2

VCC3

VCC4

VCC5

VSSPL1

VSSPL2

K12

N12

VCC6

VCC7

VSSPL3

VSSPL4

P8

VCC8

VCC9

5

J10

VCC10

VCC11

5

J11K4K5K6K7K8K9

VCC12

VCC13

VCC14

VCC15

VCC16

VCC17

VSS1

VSS2

VSS3

VSS4

VSS5NCVSS7

D4D5D6D7D8

K10

K11L4L5L9L10

VCC18

VCC19

VCC20

VCC21

VCC22

VCC23

VSS8

VSS9

VSS10

VSS11

D11E4E5E6E7E8E9

A11

E12

VCC24

VCC25

VCC26

VSS12

VSS13NCVSS15

E10

E11F4F5F6F7F8F9

4

K13N8P12

VCCPT

VCCPL1

VSS16

VSS17

4

VCCPL2

VCCPL3

VSS18

VSS19

G13

VCCPL4

VSS20

VSS21

F10

F11G7G8G9G10

VSS22

VSS23

P14

NC9

VSS24

VSS25

NC7

NC8

VSS26

VSS27

G11H9H10

NC6

VSS28

A1

A14D9D10G4H4J4P1

NC1

NC2

NC3

NC4

NC5

LINKLED

ACTLED

SPEEDLED

FLA16/CLK25

FLA15/EESK

FLA14/EEDO

FLA13/EEDI

FLA12/MCNTSM#

FLA11/MINT

FLA10/MRING#

FLA9/MRST

FLA8/IOCHRDY

FLA7/CLKEN

FLA1/AUXPWR

FLA0/PCIMODE#

FLCS#/AEN

FLOE#
FLWE#

TEXEC

MDMCS/CFCS

NC/CFCLK

RBIAS10

RBIAS100

VSS29NCVSS31

VSS32

VSS33

H11L6L11

C10

3

TDP

TDN

RDP

RDN

FLA6
FLA5
FLA4
FLA3
FLA2

FLD7
FLD6
FLD5
FLD4
FLD3
FLD2
FLD1
FLD0

EECS

TEST

TCK

TI

TO

VREF

X1
X2

82551QM

3

A12
C11
B11

C13

C14

E13

E14

P9
M10
N10
P10
M11
M12
N13
P13
N14
M13
M14
L12
L13
L14
K14
J12
J13
J14
H12
H13
H14
G12
F12
F13
F14

P7
N9

M8
M9

A13
D13
D14
D12
B12

C12
L7

L8
B14
B13

N11
P11

2

VCC3

VCC3

LAN1_X1
LAN1_X2

CB40
C1U10Y

CB43

CB41

C1U10Y

C1U10Y

1LINKLED 30
1ACTLED 30
1SPEEDLED 30

1TDP 30

1TDN 30

1RDP 30

1RDN 30

R457 150R

R611 549R1%
R610 619R1%

X_Value:NOPOP

C300
C1U10Y

1.trace/space
8/8/8 mil

2.Only TOP or
BOTTOM

等長並對稱

3.

4.

兩對之間距

U30

4 5

DO GND

3

DI

2

SK

1

CS

AT93C46-10SI-2.7

LAN1_X1
LAN1_X2

25MHZ18P_D-1
C334

C22P50N

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

INTEL 82551 CH1#1

MS-9169

2

C581
C1U10Y

ORG

NC

VCC

Y5

26 46Tuesday, August 31, 2004

1

+

C10U16X51206

30mil

6
7
8

12

of

1

EC46

VCC3

VCC3

C335
C22P50N

R404

4.7KR

0AB

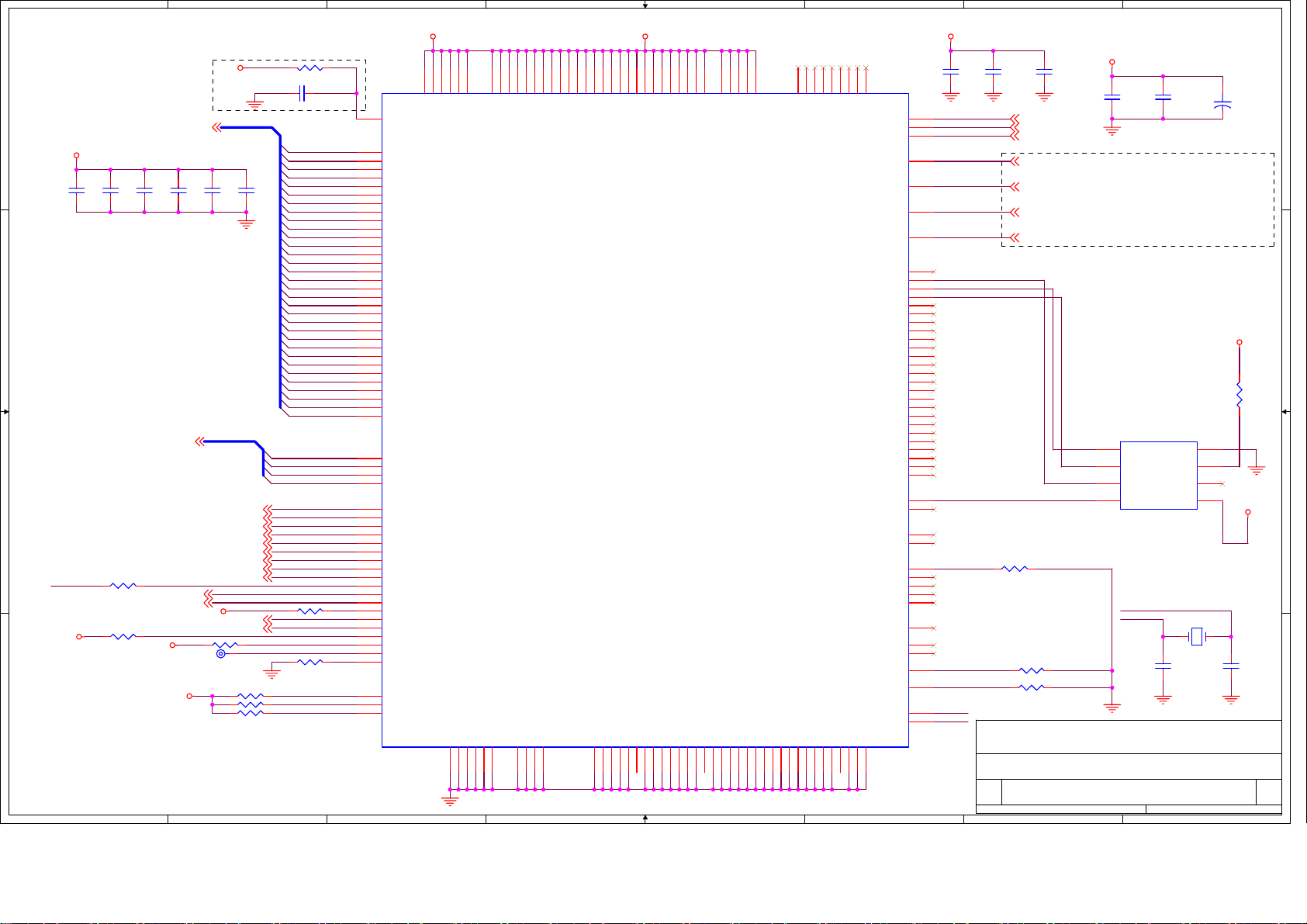

8

D D

AD[0..31]12,16,26,28,29,31

VCC3

C573

C556

VCC3

C1U10Y

C_BE#[0..3]12,16,26,28,29,31

R378100R

VCC3

PREQ#112,16
PGNT#112

C304
C1U10Y

VCC3

PCIRST#126,28,29,32,42,43

R386 8.2KR

C577

C1U10Y

C1U10Y

C C

B B

AD20

VCC3

A A

R400 8.2KR

8

VCC5

AD[0..31]

C268

C339

C1U10Y

C1U10Y

FRAME#12,16,26,28,29,31,42

IRDY#12,16,26,28,29,31

TRDY#12,16,26,28,29,31

DEVSEL#12,16,26,28,29,31

STOP#12,16,26,28,29,31,42

PAR12,16,26,28,29,31

PIRQ#B12,16

PERR#12,16,26,28,29,31
SERR#12,16,26,28,29,31

CLK_LAN24

TP131

R414 8.2KR
R407 8.2KR
R417 8.2KR

7

R356 62KR

C297 C0.1U25Y

R364 62KR

R390 5.6KR

7

20mil

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C_BE#0
C_BE#1
C_BE#2
C_BE#3

B10
A10

G2

N7

M7

P6
P5
N5

M5

P4
N4
P3
N3
N2

M1
M2
M3

L1
L2
K1
E3
D1
D2
D3
C1
B1
B2
B4
A5
B5
B6
C6
C7
A8
B8

M4

L3
F3
C4

F2
F1
G3
H3
H1

J1
H2

J2
A2
A4
C3

J3
C2
G1
B9
A9
A6
C5
C8

C9

6

VCC3

A3A7E1K3N6P2G5G6H5H6H7H8J5J6J7J8J9

U27

VIO

VCCPP1

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C/BE#0
C/BE#1
C/BE#2
C/BE#3

FRAME#
IRDY#
TRDY#
DEVSEL#
STOP#
PAR
INTA#
PERR#
SERR#
IDSEL
REQ#
GNT#
RST#
CLK
ISOLATE#
ALRST#
PME#
CSTSCHG/WOL
CLKRUN#

SMBALRT#
SMBCLK
SMBDATA

6

VCCPP2

VCCPP3

VCCPP4

VCCPP5

VSSPP1

VSSPP2

B3E2M6

VCCPP6

VSSPP3

VSSPP4

VSSPP5

N1

B7K2G14

VCC1

VSSPP6

VCC2

VCC3

VCC4

VCC5

VSSPL1

VSSPL2

K12

N12

VCC6

VCC7

VSSPL3

VSSPL4

P8

VCC8

VCC9

5

J10

VCC10

VCC11

5

J11K4K5K6K7K8K9

VCC12

VCC13

VCC14

VCC15

VCC16

VCC17

VSS1

VSS2

VSS3

VSS4

VSS5NCVSS7

D4D5D6D7D8

VCC3

K10

K11L4L5L9L10

VCC18

VCC19

VCC20

VCC21

VCC22

VSS8

VSS9

VSS10

D11E4E5E6E7E8E9

VCC23

VCC24

VSS11

VSS12

VCC25

VSS13NCVSS15

E10

4

A11

K13N8P12

E12

VCC26

VCCPT

VCCPL1

VCCPL2

VCCPL3

VSS16

VSS17

VSS18

VSS19

E11F4F5F6F7F8F9

4

G13

VCCPL4

VSS20

VSS21

F10

F11G7G8G9G10

VSS22

VSS23

P14

NC9

VSS24

VSS25

NC7

NC8

VSS26

VSS27

G11H9H10

NC6

VSS28

A1

A14D9D10G4H4J4P1

NC1

NC2

NC3

NC4

NC5

LINKLED

ACTLED

SPEEDLED

FLA16/CLK25

FLA15/EESK

FLA14/EEDO

FLA13/EEDI

FLA12/MCNTSM#

FLA11/MINT

FLA10/MRING#

FLA9/MRST

FLA8/IOCHRDY

FLA7/CLKEN

FLA1/AUXPWR

FLA0/PCIMODE#

FLCS#/AEN

FLOE#
FLWE#

TEXEC

MDMCS/CFCS

NC/CFCLK

RBIAS10

RBIAS100

VSS29NCVSS31

VSS32

VSS33

H11L6L11

C10

3

TDP

TDN

RDP

RDN

FLA6
FLA5
FLA4
FLA3
FLA2

FLD7
FLD6
FLD5
FLD4
FLD3
FLD2
FLD1
FLD0

EECS

TEST

TCK

TI

TO

VREF

X1
X2

82551QM

3

A12
C11
B11

C13

C14

E13

E14

P9
M10
N10
P10
M11
M12
N13
P13
N14
M13
M14
L12
L13
L14
K14
J12
J13
J14
H12
H13
H14
G12
F12
F13
F14

P7
N9

M8
M9

A13
D13
D14
D12
B12

C12
L7

L8
B14
B13

N11
P11

2

VCC3

VCC3

CB33
C1U10Y

2TDP

2TDN

2RDP

2RDN

R421 150R

LAN2_X1

X_Value:NOPOP

LAN2_X2

CB27
C1U10Y

R449 549R1%
R450 619R1%

CB32
C1U10Y

2LINKLED 30
2ACTLED 30
2SPEEDLED 30

2TDP 30

2TDN 30

2RDP 30

2RDN 30

C314
C1U10Y

C582
C1U10Y

1.trace/space
8/8/8 mil

2.Only TOP or
BOTTOM

等長並對稱

3.

4.

兩對之間距

U36

4 5

DO GND

3

DI

2

SK

1

CS

AT93C46-10SI-2.7

LAN2_X1
LAN2_X2

25MHZ18P_D-1
C337

C22P50N

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

INTEL 82551 CH2#1

MS-9169

2

ORG

NC

VCC

Y6

27 46Tuesday, August 31, 2004

1

+

C10U16X51206

30mil

6
7
8

12

of

1

EC47

VCC3

VCC3

C338
C22P50N

R456

4.7KR

0AB

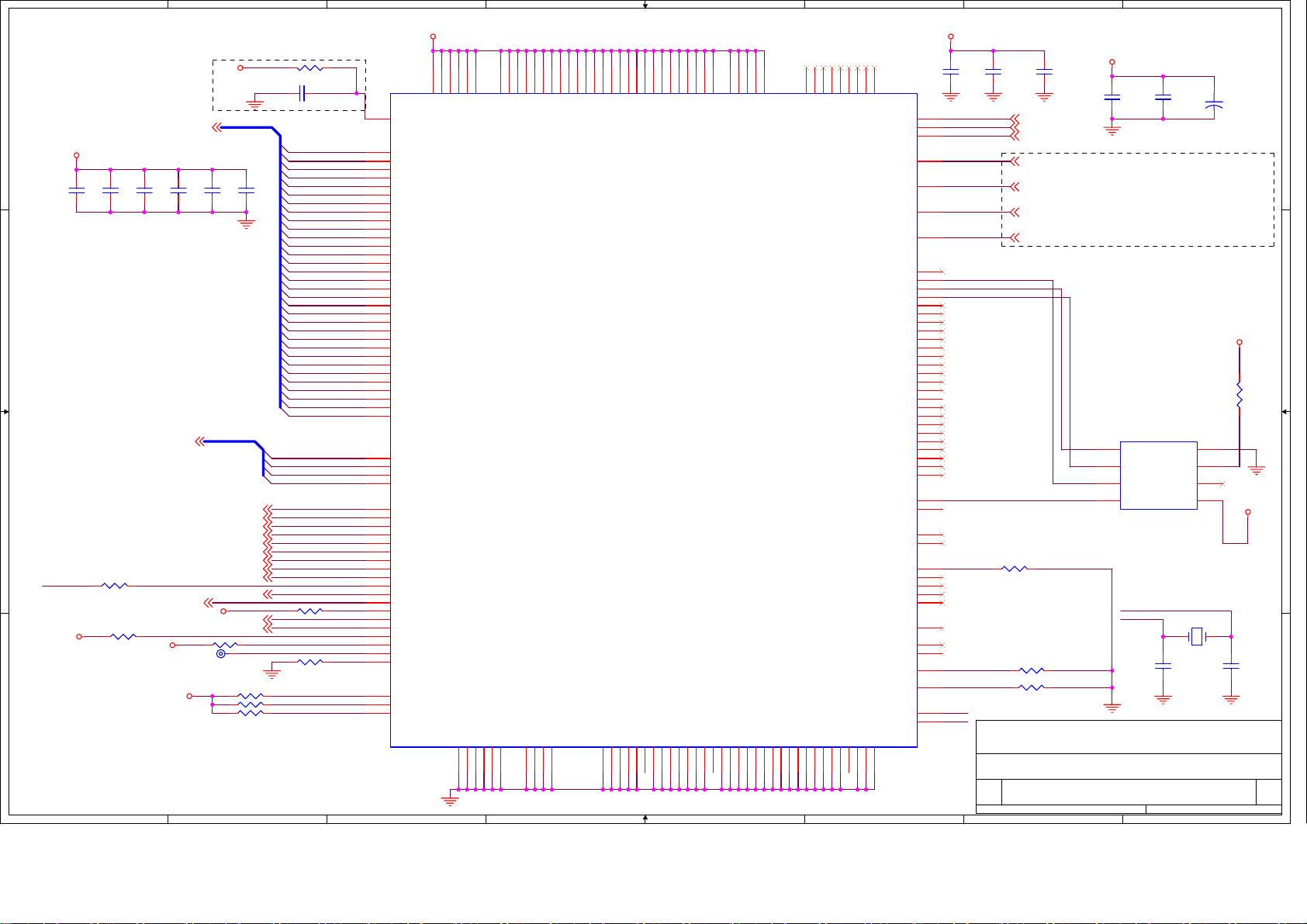

8

D D

AD[0..31]12,16,26,27,29,31

VCC3

C309
C1U10Y

R381100R

VCC3

C571
C1U10Y

C_BE#[0..3]12,16,26,27,29,31

VCC3

C604
C1U10Y

PGNT#212

VCC3

PCIRST#126,27,29,32,42,43

R385 8.2KRR395 8.2KR

C548
C1U10Y

C C

B B

AD21

VCC3

A A

8

VCC5

AD[0..31]

C324
C1U10Y

FRAME#12,16,26,27,29,31,42

IRDY#12,16,26,27,29,31

TRDY#12,16,26,27,29,31

DEVSEL#12,16,26,27,29,31

STOP#12,16,26,27,29,31,42

PIRQ#C12,16

PERR#12,16,26,27,29,31
SERR#12,16,26,27,29,31

PREQ#212,16

CLK_LAN34

TP130

R454 8.2KR
R399 8.2KR
R388 8.2KR

7

R361 62KR

C299 C0.1U25Y

C404
C1U10Y

PAR12,16,26,27,29,31

R365 62KR

R398 5.6KR

7

20mil

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C_BE#0
C_BE#1
C_BE#2
C_BE#3

B10
A10

G2

N7
M7
P6
P5
N5
M5
P4
N4
P3
N3
N2
M1
M2
M3
L1
L2
K1
E3
D1
D2
D3
C1
B1
B2
B4
A5
B5
B6
C6
C7
A8
B8

M4
L3
F3
C4

F2
F1
G3
H3
H1

J1

H2

J2
A2
A4
C3

J3
C2
G1
B9
A9
A6
C5
C8

C9

6

VCC3

A3A7E1K3N6P2G5G6H5H6H7H8J5J6J7J8J9

U28

VIO

VCCPP1

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C/BE#0
C/BE#1
C/BE#2
C/BE#3

FRAME#
IRDY#
TRDY#
DEVSEL#
STOP#
PAR
INTA#
PERR#
SERR#
IDSEL
REQ#
GNT#
RST#
CLK
ISOLATE#
ALRST#
PME#
CSTSCHG/WOL
CLKRUN#

SMBALRT#
SMBCLK
SMBDATA

6

VCCPP2

VCCPP3

VCCPP4

VCCPP5

VSSPP1

VSSPP2

B3E2M6

VCCPP6

VSSPP3

VSSPP4

VSSPP5

N1

B7K2G14

VCC1

VSSPP6

VCC2

VCC3

VCC4

VSSPL1

VCC5

VCC6

VSSPL2

VSSPL3

K12

N12

VCC7

VCC8

VSSPL4

P8

5

VCC9

5

J10

J11K4K5K6K7K8K9

VCC10

VCC11

VCC12

VCC13

VSS1

D4D5D6D7D8

VCC14

VSS2

VCC15

VSS3

K10

VCC16

VCC17

VCC18

VCC19

VCC20

VSS4

VSS5NCVSS7

VSS8

D11E4E5E6E7E8E9

K11L4L5L9L10

VCC21

VCC22

VCC23

VCC24

VSS9

VSS10

VSS11

VSS12

E10

4

A11

K13N8P12

E12

VCC25

VCC26

VCCPT

VCCPL1

VSS13NCVSS15

VSS16

VSS17

E11F4F5F6F7F8F9

4

VCCPL2

VCCPL3

VSS18

VSS19

G13

VCCPL4

VSS20

VSS21

F10

F11G7G8G9G10

VSS22

VSS23

P14

NC9

VSS24

VSS25

NC7

NC8

VSS26

VSS27

G11H9H10

NC6

VSS28

3

A1

A14D9D10G4H4J4P1

NC1

NC2

NC3

NC4

NC5

LINKLED

ACTLED

SPEEDLED

FLA16/CLK25

FLA15/EESK

FLA14/EEDO

FLA13/EEDI

FLA12/MCNTSM#

FLA11/MINT

FLA10/MRING#

FLA9/MRST

FLA8/IOCHRDY

FLA7/CLKEN

FLA1/AUXPWR

FLA0/PCIMODE#

FLCS#/AEN

FLOE#
FLWE#

TEXEC

MDMCS/CFCS

NC/CFCLK

RBIAS10

RBIAS100

VSS29NCVSS31

VSS32

VSS33

H11L6L11

C10

3

TDP

TDN

RDP

RDN

FLA6
FLA5
FLA4
FLA3
FLA2

FLD7
FLD6
FLD5
FLD4
FLD3
FLD2
FLD1
FLD0

EECS

TEST

TCK

TI

TO

VREF

X1
X2

82551QM

A12
C11
B11

C13

C14

E13

E14

P9
M10
N10
P10
M11
M12
N13
P13
N14
M13
M14
L12
L13
L14
K14
J12
J13
J14
H12
H13
H14
G12
F12
F13
F14

P7
N9

M8
M9

A13
D13
D14
D12
B12

C12
L7

L8
B14
B13

N11
P11

2

VCC3

VCC3

CB29

CB28

C1U10Y

C1U10Y

R442 150R

R608 549R1%
R607 619R1%

LAN3_X1

X_Value:NOPOP

LAN3_X2

CB42
C1U10Y

3LINKLED 30
3ACTLED 30
3SPEEDLED 30

3TDP 30

3TDN 30

3RDP 30

3RDN 30

C517
C1U10Y

C588
C1U10Y

1.trace/space
8/8/8 mil

2.Only TOP or
BOTTOM

等長並對稱

3.

4.

兩對之間距

U37

4 5

DO GND

3

DI

2

SK

1

CS

AT93C46-10SI-2.7

LAN3_X1
LAN3_X2

ORG

NC

VCC

Y8

25MHZ18P_D-1
C342

C22P50N

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

2

INTEL 82551 CH3#1

MS-9169

28 46Tuesday, August 31, 2004

1

+

EC45
C10U16X51206

30mil

6
7
8

12

of

1

VCC3

VCC3

C343
C22P50N

R444

4.7KR

0AB

8

D D

AD[0..31]12,16,26,27,28,31

VCC3

C329

C595

C524

C313

C1U10Y

C1U10Y

C1U10Y

C1U10Y

C C

C_BE#[0..3]12,16,26,27,28,31

B B

AD22

VCC3

A A

R396 8.2KR

8

R367100R

MGNT#142

VCC3

PCIRST#126,27,28,32,42,43

VCC3

TP128

VCC3

7

VCC5

C552
C1U10Y

CLK_LAN44

R389 8.2KR

R413 8.2KR
R408 8.2KR
R402 8.2KR

R360 62KR

C301 C0.1U25Y C284

AD[0..31]

C400
C1U10Y

FRAME#12,16,26,27,28,31,42

IRDY#12,16,26,27,28,31

TRDY#12,16,26,27,28,31

DEVSEL#12,16,26,27,28,31

STOP#12,16,26,27,28,31,42

PAR12,16,26,27,28,31

PIRQ#E12,16

PERR#12,16,26,27,28,31
SERR#12,16,26,27,28,31

MREQ#142

R366 62KR

7

20mil

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C_BE#0
C_BE#1
C_BE#2
C_BE#3

R393 5.6KR

B10
A10

G2

N7

M7

P6
P5
N5

M5

P4
N4
P3
N3

N2
M1
M2
M3

L1

L2

K1

E3

D1

D2

D3

C1

B1

B2

B4

A5

B5

B6

C6

C7

A8

B8

M4

L3

F3

C4

F2

F1

G3

H3

H1

J1

H2

J2
A2
A4
C3

J3
C2
G1
B9
A9
A6
C5
C8

C9

6

VCC3

A3A7E1K3N6P2G5G6H5H6H7H8J5J6J7J8J9

U25

VIO

VCCPP1

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C/BE#0
C/BE#1
C/BE#2
C/BE#3

FRAME#
IRDY#
TRDY#
DEVSEL#
STOP#
PAR
INTA#
PERR#
SERR#
IDSEL
REQ#
GNT#
RST#
CLK
ISOLATE#
ALRST#
PME#
CSTSCHG/WOL
CLKRUN#

SMBALRT#
SMBCLK
SMBDATA

6

VCCPP2

VCCPP3

VCCPP4

VCCPP5

VSSPP1

VSSPP2

B3E2M6

VCCPP6

VSSPP3

VSSPP4

VSSPP5

N1

B7K2G14

VCC1

VSSPP6

VCC2

VCC3

VCC4

VCC5

VSSPL1

VSSPL2

K12

N12

VCC6

VCC7

VSSPL3

VSSPL4

P8

VCC8

VCC9

5

J10

VCC10

VCC11

5

J11K4K5K6K7K8K9

VCC12

VCC13

VCC14

VCC15

VCC16

VCC17

VSS1

VSS2

VSS3

VSS4

VSS5NCVSS7

D4D5D6D7D8

K10

K11L4L5L9L10

VCC18

VCC19

VCC20

VCC21

VCC22

VCC23

VSS8

VSS9

VSS10

VSS11

D11E4E5E6E7E8E9

A11

E12

VCC24

VCC25

VCC26

VSS12

VSS13NCVSS15

E10

E11F4F5F6F7F8F9

4

K13N8P12

VCCPT

VCCPL1

VSS16

VSS17

4

VCCPL2

VCCPL3

VSS18

VSS19

G13

VCCPL4

VSS20

VSS21

F10

F11G7G8G9G10

VSS22

VSS23

P14

NC9

VSS24

VSS25

A14D9D10G4H4J4P1

NC2

NC3

NC4

NC5

NC6

NC7

NC8

SPEEDLED

FLA16/CLK25

FLA15/EESK

FLA14/EEDO

FLA13/EEDI

FLA12/MCNTSM#

FLA11/MINT

FLA10/MRING#

FLA9/MRST

FLA8/IOCHRDY

FLA7/CLKEN

FLA1/AUXPWR

FLA0/PCIMODE#

FLCS#/AEN

MDMCS/CFCS

VSS26

VSS27

VSS28

VSS29NCVSS31

VSS32

G11H9H10

H11L6L11

X_Value:NOPOP

3

A1

NC1

LINKLED

ACTLED

TDP

TDN

RDP

RDN

FLA6
FLA5
FLA4
FLA3
FLA2

FLD7
FLD6
FLD5
FLD4
FLD3
FLD2
FLD1
FLD0

EECS

FLOE#
FLWE#

TEST

TEXEC

TCK

VREF

NC/CFCLK

RBIAS10

RBIAS100

VSS33

82551QM

C10

3

2

VCC3

VCC3

CB30

CB31

C1U10Y

C1U10Y

A12
C11
B11

C13

C14

E13

E14

P9
M10
N10
P10
M11
M12
N13
P13
N14
M13
M14
L12
L13
L14
K14
J12
J13
J14
H12
H13
H14
G12
F12
F13
F14

P7
N9

M8
M9

A13
D13
D14
D12

TI

B12

TO

C12
L7

L8
B14
B13

LAN4_X1

N11

X1
X2

P11

LAN4_X2

R418 150R

R605 549R1%
R597 619R1%

CB39
C1U10Y

4LINKLED 30
4ACTLED 30
4SPEEDLED 30

4TDP 30

4TDN 30

4RDP 30

4RDN 30

C1U10Y

1.trace/space
8/8/8 mil

2.Only TOP or
BOTTOM

等長並對稱

3.

4.

兩對之間距

U39

4 5

DO GND

3

DI

2

SK

1

CS

AT93C46-10SI-2.7

LAN4_X1
LAN4_X2

1

C586
C1U10Y

30mil

6

ORG

7

NC

8

VCC

Y7

12

25MHZ18P_D-1
C341

C22P50N

+

EC48

C10U16X51206

VCC3

R474

4.7KR

VCC3

C340
C22P50N

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

2

INTEL 82551 CH4#1

MS-9169

0AB

29 46Tuesday, August 31, 2004

of

1

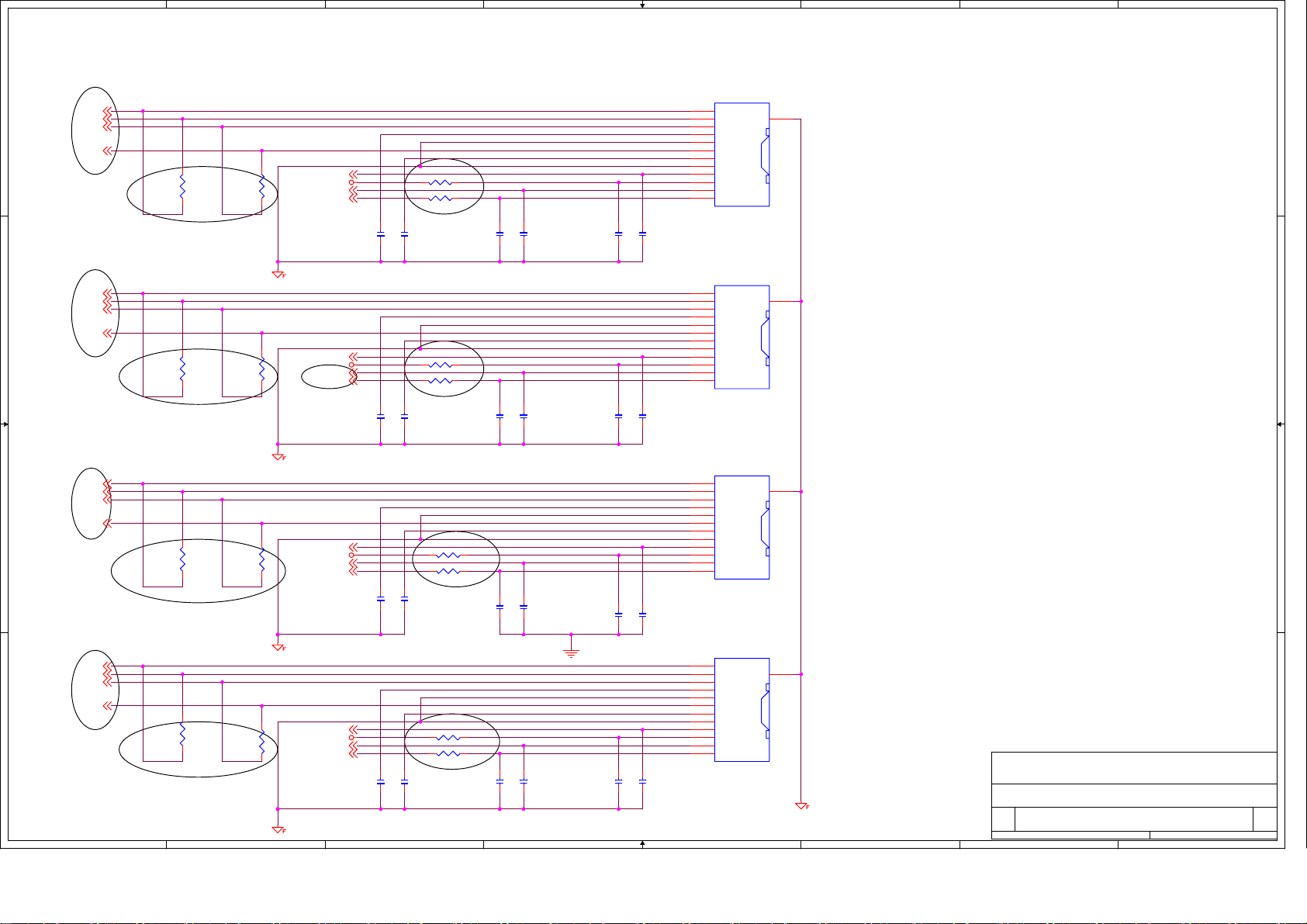

8

7

6

5

4

3

2

1

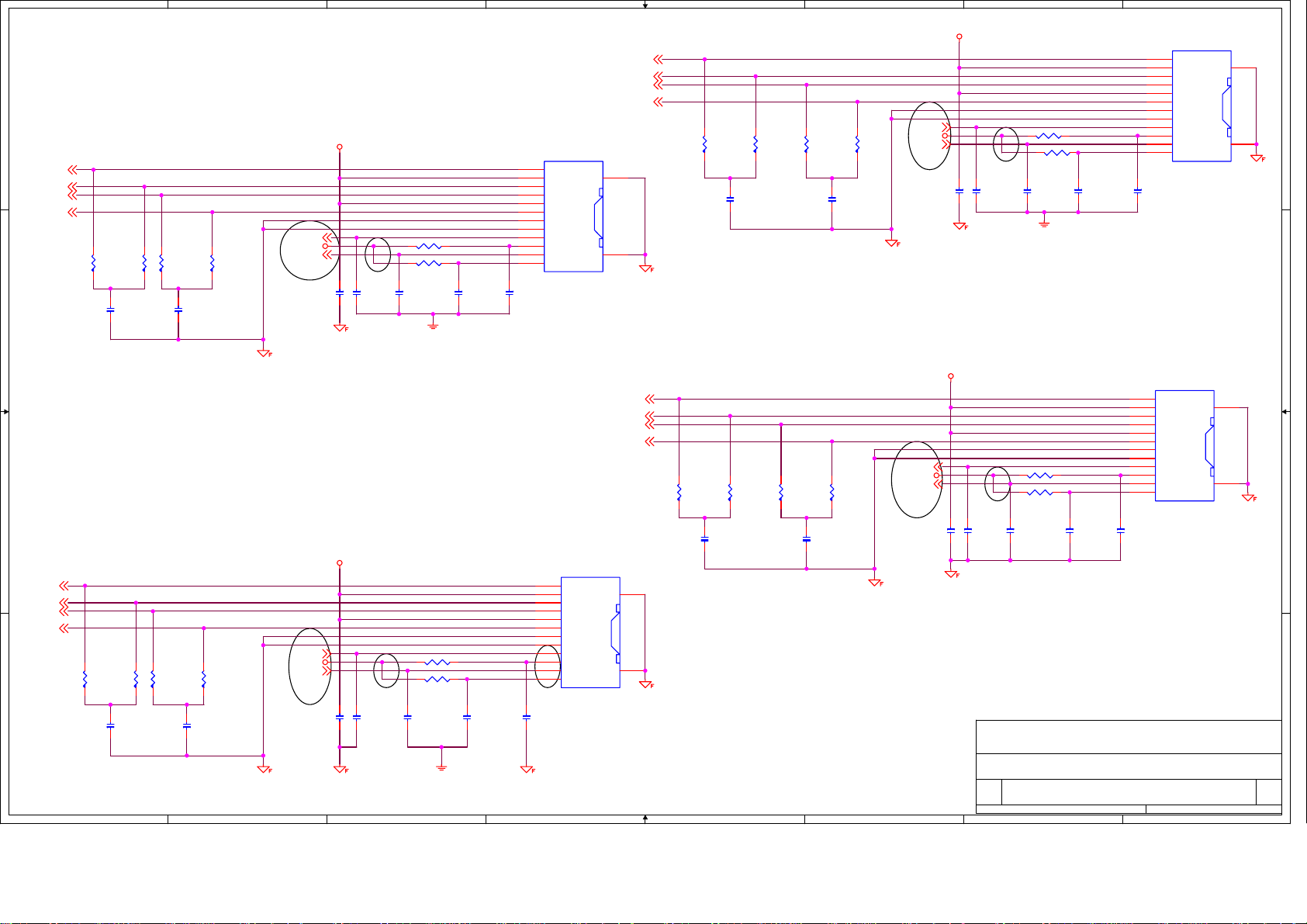

U54B

D D

1TDP26
1TDN26

1RDP26

1RDN26

R452

100R1%

2TDP27
2TDN27

C C

2RDP27

2RDN27

R435

100R1%

R451

120R1%

R437

120R1%

1SPEEDLED26

VCC3

1LINKLED26

1ACTLED26

C387
C10P50N

2SPEEDLED27

VCC3

2LINKLED27

2ACTLED27

C389
C10P50N

R614 330R
R615 330R

C394
C10P50N

R616 330R
R617 330R

C388
C10P50N

C395
C0.1U25Y

C406
C0.1U25Y

C396
C0.1U25Y

C418
C0.1U25Y

C373
C0.1U25Y

C364
C0.1U25Y

C405
C0.1U25Y

C397
C0.1U25Y

13

TD+

14

TD-

15

RD+

16

TCT

17

NC1

18

RD-

19

RCT

20

CGND

21

RLED-

22

RLED+

23

LLED-

24

LLED+

_

U54A

1

TD+

2

TD-

3

RD+

4

TCT

5

NC1

6

RD-

7

RCT

8

CGND

9

RLED-

10

RLED+

11

LLED-

12

LLED+

_

NC2

NC2

26

25

U55B

3TDP28
3TDN28

3RDP28

B B

3RDN28

R445

100R1%

R447

120R1%

3SPEEDLED28

VCC3

3LINKLED28

3ACTLED28

C611
C10P50N

R618 330R
R619 330R

C419
C10P50N

C407
C0.1U25Y

C408
C0.1U25Y

C351

C0.1U25Y

C399
C0.1U25Y

13

TD+

14

TD-

15

RD+

16

TCT

17

NC1

18

RD-

19

RCT

20

CGND

21

RLED-

22

RLED+

23

LLED-

24

LLED+

_

NC2

26

U55A

4TDP29
4TDN29

4RDP29

4RDN29

A A

8

R434

100R1%

R440

120R1%

7

4SPEEDLED29

VCC3

4LINKLED29

4ACTLED29

C610
C10P50N

C391
C10P50N

6

R620 330R
R621 330R

C390
C0.1U25Y

C392
C0.1U25Y

5

C378
C0.1U25Y

C401
C0.1U25Y

1

TD+

2

TD-

3

RD+

4

TCT

5

NC1

6

RD-

7

RCT

8

CGND

9

RLED-

10

RLED+

11

LLED-

12

LLED+

_

4

NC2

25

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

3

Date: Sheet

2

4 PORT CONNECTORS

MS-9169

0ACustom

of

30 46Tuesday, August 31, 2004

1

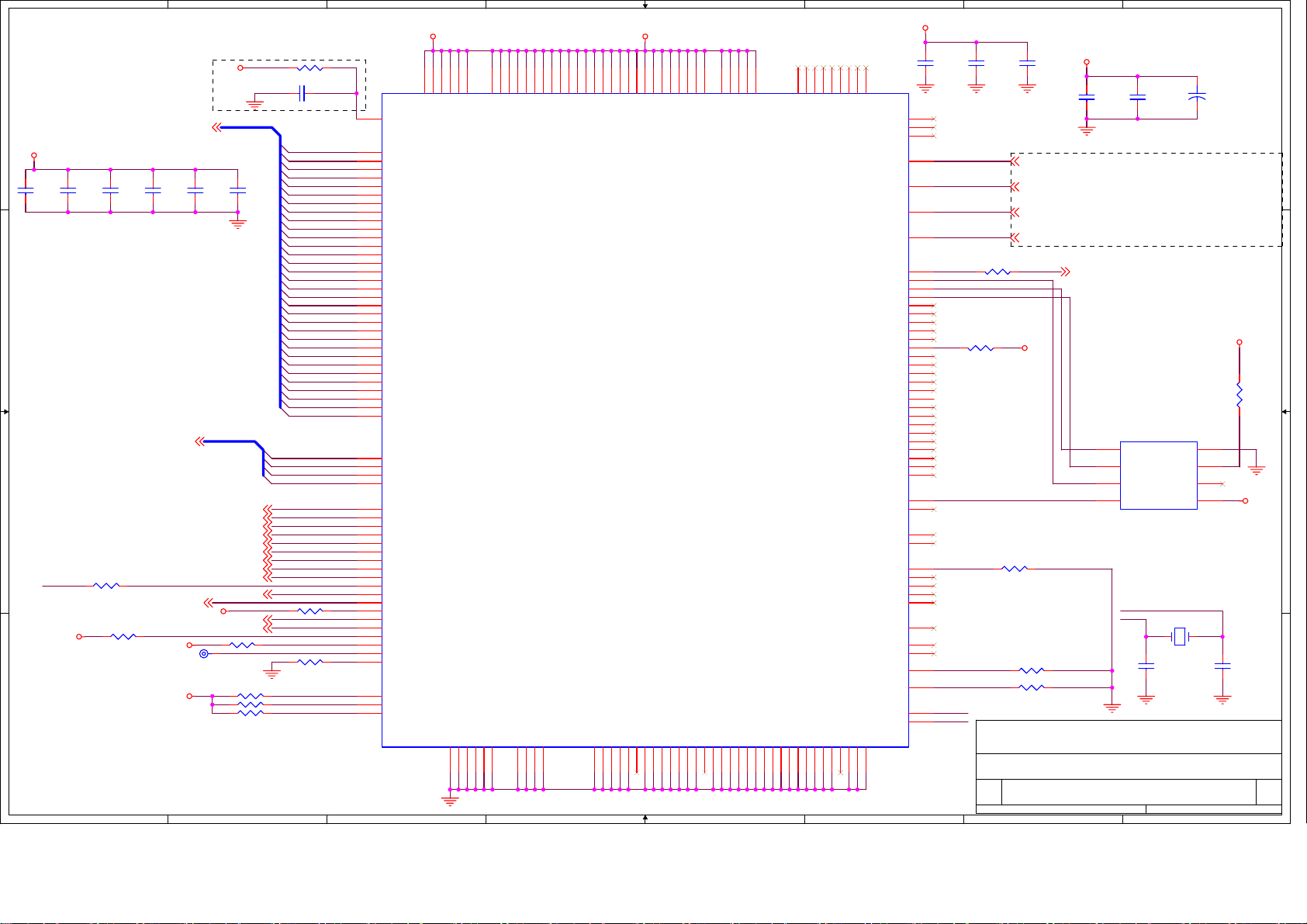

8

7

6

VCC3

5

VCC3

4

3

VCC3

2

1

20mil

VCC5

D D

AD[0..31]12,16,26,27,28,29

VCC3

C283

C278

C279
A_C1U10Y

MGNT#242

VCC3

VCC3

C519
A_C1U10Y

VCC3

CLK_LAN54

PCIRST#216,42

R346 A_8.2KR

TP122

R357 A_8.2KR
R354 A_8.2KR
R352 A_8.2KR

C276

A_C1U10Y

A_C1U10Y

C C

B B

AD23

VCC3

A A

A_C1U10Y

C_BE#[0..3]12,16,26,27,28,29

R345A_100R

R350 A_8.2KR

8

AD[0..31]

C518
A_C1U10Y

FRAME#12,16,26,27,28,29,42

IRDY#12,16,26,27,28,29

TRDY#12,16,26,27,28,29

DEVSEL#12,16,26,27,28,29

STOP#12,16,26,27,28,29,42

PIRQ#F12,16

PERR#12,16,26,27,28,29
SERR#12,16,26,27,28,29

MREQ#242

PAR12,16,26,27,28,29

7

R336 A_62KR

C275 A_C0.1U25Y

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C_BE#0
C_BE#1
C_BE#2
C_BE#3

R340 A_62KR

R570 A_5.6KR

B10
A10

G2

N7

M7

P6
P5
N5

M5

P4
N4
P3
N3
N2

M1
M2
M3

L1
L2
K1
E3
D1
D2
D3
C1
B1
B2
B4
A5
B5
B6
C6
C7
A8
B8

M4

L3
F3
C4

F2
F1
G3
H3
H1

J1
H2

J2
A2
A4
C3

J3
C2
G1
B9
A9
A6
C5
C8

C9

A3A7E1K3N6P2G5G6H5H6H7H8J5J6J7J8J9

U22

VIO

VCCPP1

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

C/BE#0
C/BE#1
C/BE#2
C/BE#3

FRAME#
IRDY#
TRDY#
DEVSEL#
STOP#
PAR
INTA#
PERR#
SERR#
IDSEL
REQ#
GNT#
RST#
CLK
ISOLATE#
ALRST#
PME#
CSTSCHG/WOL
CLKRUN#

SMBALRT#
SMBCLK
SMBDATA

6

VCCPP2

VCCPP3

VCCPP4

VCCPP5

VSSPP1

VSSPP2

B3E2M6

VCCPP6

VSSPP3

VSSPP4

VSSPP5

N1

B7K2G14

VCC1

VSSPP6

VCC2

VCC3

VCC4

VCC5

VSSPL1

VSSPL2

K12

N12

VCC6

VCC7

VSSPL3

VSSPL4

P8

VCC8

VCC9

J10

VCC10

VCC11

5

J11K4K5K6K7K8K9

VCC12

VCC13

VCC14

VCC15

VCC16

VCC17

VSS1

VSS2

VSS3

VSS4

VSS5NCVSS7

D4D5D6D7D8

K10

K11L4L5L9L10

VCC18

VCC19

VCC20

VCC21

VCC22

VCC23

VSS8

VSS9

VSS10

VSS11

D11E4E5E6E7E8E9

A11

E12

VCC24

VCC25

VCC26

VSS12

VSS13NCVSS15

E10

E11F4F5F6F7F8F9

K13N8P12

VCCPT

VCCPL1

VSS16

VSS17

4

VCCPL2

VCCPL3

VSS18

VSS19

G13

VCCPL4

VSS20

VSS21

F10

F11G7G8G9G10

VSS22

VSS23

P14

NC9

VSS24

VSS25

NC7

NC8

VSS26

VSS27

G11H9H10

NC6

VSS28

A1

A14D9D10G4H4J4P1

NC1

NC2

NC3

NC4

NC5

LINKLED

ACTLED

SPEEDLED

FLA16/CLK25

FLA15/EESK

FLA14/EEDO

FLA13/EEDI

FLA12/MCNTSM#

FLA11/MINT

FLA10/MRING#

FLA9/MRST

FLA8/IOCHRDY

FLA7/CLKEN

FLA1/AUXPWR

FLA0/PCIMODE#

FLCS#/AEN

FLOE#
FLWE#

TEXEC

MDMCS/CFCS

NC/CFCLK

RBIAS10

RBIAS100

VSS29NCVSS31

VSS32

VSS33

H11L6L11

C10

FLA6
FLA5
FLA4
FLA3
FLA2

FLD7
FLD6
FLD5
FLD4
FLD3
FLD2
FLD1
FLD0

EECS

TEST

VREF

A_82551QM

3

TDP

TDN

RDP

RDN

TCK

CB37
A_C1U10Y

A12
C11
B11

C13

C14

E13

E14

P9
M10
N10
P10
M11
M12
N13
P13
N14
M13
M14
L12
L13
L14
K14
J12
J13
J14
H12
H13
H14
G12
F12
F13
F14

P7
N9

M8
M9

A13
D13
D14
D12

TI

B12

TO

C12
L7

L8
B14
B13

N11

X1

P11

X2

CB26
A_C1U10Y

R569 A_15R

Enable clock to switch
port

R571 A_3.3KR

R373 A_150R

LAN5_X1

X_Value:NOPOP

LAN5_X2

CB25
A_C1U10Y

5TDP 32

5TDN 32

5RDP 32

5RDN 32

VCC3

R372 A_549R1%
R371 A_619R1%

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

XTAL_IN 32

2

VCC3

C322
A_C1U10Y

C533
A_C1U10Y

1.trace/space
8/8/8 mil

2.Only TOP or
BOTTOM

等長並對稱

3.

4.

兩對之間距

U33

4 5

DO GND

3

DI

2

SK

1

CS

A_AT93C46-10SI-2.7

LAN5_X1
LAN5_X2

INTEL 82551 CH5#1

MS-9169

ORG

VCC

Y3

A_25MHZ18P_D-1
C290

A_C22P50N

+

EC49
A_C10U16X51206

30mil

6
7

NC

8

12

31 46Tuesday, August 31, 2004

1

of

VCC3

R578
A_4.7KR

VCC3

C289
A_C22P50N

0AB

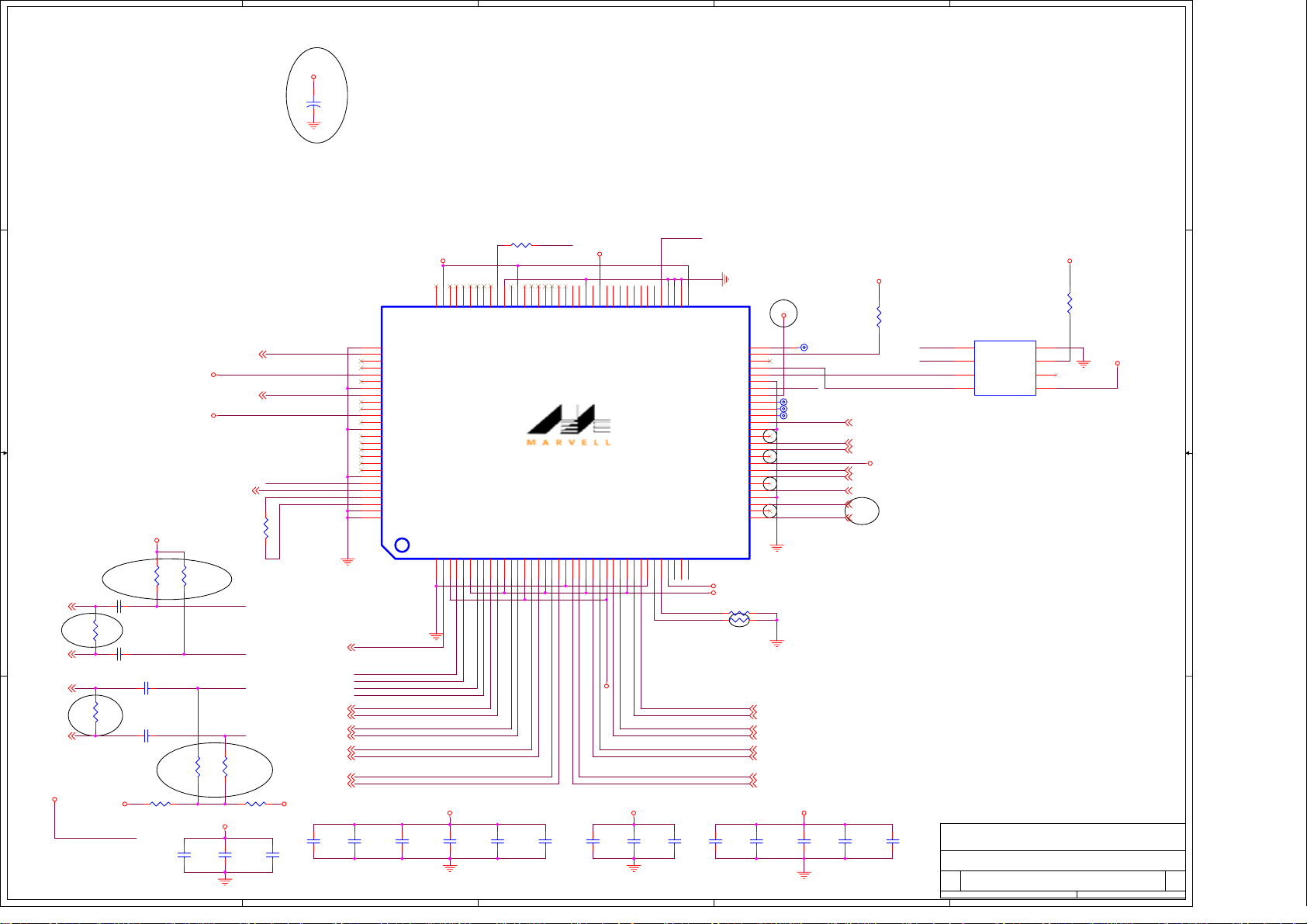

5

VCC3

Place crystal close to

D D

pin 104 & 105 of the
switch

+

EC60

1500uF 6.3V DIP

_
_

4

3

2

1

**Note: In general a 25Mhz
fundamental with 18pf loading,
ESR~30 ohm, and a ppm of 50
preferred

Marvell Class A mode

VDD1.5

R577 A_0R

P1_LED0

U29

9998979695949392919089888786858483828180797877767574737271706968676665

102

101

100

NC

VDD

P4_INCLK

C C

R16 is to set the internal
bias reference current

VDDAH2.5

B B

5TDP31

R584

A_100R1%

5TDN31

5RDP31

5RDN31

VCC3

A A

VDDAH2.5

Default state when port 0
is in auto-negotiation

R591

A_49.9R1%

C561 A_C0.1U25X

C560 A_C0.1U25X

C559 A_C0.1U25X

R583
A_120R1%

C558 A_C0.1U25X

R596 X_0R

SDETN

R594

A_40.2R1%

XTAL_IN31

VCC3

PCIRST#126,27,28,29,42,43

VDD1.5

CONTROL_1533

R595
A_49.9R1%

RXP0

RXN0

C569

A_C0.1U25X

Px_SDET is not used
because 10/100BASE-T.
Tie to GND.

TXP0

TXN0

R593
A_40.2R1%

R592 A_0R

VCC3

C281

A_C0.1U25X

R411

A_2KR1%

XTAL_IN

SDETN
RSETN

VCC3

C535

A_C0.1U25X

RSETP

CONTROL_2533

A_C0.1U25X

C526

103

VSS

104

XTAL_IN

105

XTAL_OUT

106

CONFIG_A

107

VDDO

108

P1_CONFIG

109

VSS

110

RESETn

111

P0_CONFIG

112

P4_IND3

113

VDD

114

P4_IND2

115

VSS

116

P4_IND1

117

P4_IND0

118

P4_INDV

119

NC

120

NC

121

NC

122

P0_SDET

123

VDDO

124

CONTROL_15

125

RSET-

126

RSET+

127

P1_SDET

128

VSS

RXP0
RXN0
TXP0
TXN0

TXN134
TXP134

RXN134
RXP134

RXP234
RXN234

TXP234
TXN234

C555

A_C10000P25X

P4_OUTDV

P4_OUTCLK

VSS

CONTROL_25

VDDAH

P0_RX+

1234567891011121314151617181921222324252627282930

VDD1.5 VDDAL1.5VDDAH2.5

C528
A_C0.1U25X

C527

A_C10000P25X

Place all caps close to the power pins if possible

5

4

VSS

VDD

P4_COL

P4_CRS

P5_IND0

P5_IND1

P5_IND2

P5_IND3

P5_INDV

CONFIG_B

DISABLE_MIIP4

P4_OUTD0_P4_MODE0

P4_OUTD1_P4_MODE1

P4_OUTD2_P4_MODE2

P4_OUTD3_P4_MODE3

P5_INCLK

P5_OUTDV_WD_DIS

A_88E6060

P0_RX-

VDDAL

P0_TX+

P0_TX-

P1_TX-

P1_TX+

VDDAL

P1_RX-

P1_RX+

VDDAH

P2_RX+

P2_RX-

VDDAL

P2_TX+

P2_TX-

P3_TX-

P3_TX+

VSS

TXP3

RXN2

RXP1

RXP2

A_C10000P25X

TXP2

C584

TXN2

TXN3

TXP1

TXN1

C525

A_C0.1U25X

RXN1

pin66 ENABLE_MII5 low disable port5 MII

MDC

MDIO

P5_COL

P5_CRS

CLK_SEL

EE_DIN_HD_FLOW_DIS

P4_TX+

P4_TX-

VSS

SW_MODE0

SW_MODE1

VDD

312032333435363738

TXN4

C590

A_C0.1U25X

EE_DIN

VSS

LEDSER

C593

VCC3

VSS

VDDO

P5_OUTCLK

VDDAL

P3_RX-

P3_RX+

RXP3

RXN3

C591

A_C0.1U25X

3

P5_OUTD0_P5_MODE0

P5_OUTD1_P5_MODE1

P5_OUTD2_P5_MODE2

P5_OUTD3_P5_MODE3

VDDAH

P4_RX+

P4_RX-

VDDAL

RXP4

RXN4

TXP4

VDDAH2.5

A_C0.1U25X

VDD

FD_FLOW_DIS

ENABLE_MIIP5

EE_CS_EE_1K

EE_CLK_ADDR4

LEDCLK

LEDENA

Full Duplex Flow Control ??
High - disable
Low - enable

64
63

INTn

62

NC

61
60
59

VSS

58

EE_DOUT

57

VDD

56

P0_LED0

55

P0_LED1

54

P0_LED2

53

P1_LED0

52

VSS

51

P1_LED1

50

P1_LED2

49

P2_LED0

48

P2_LED1

47

VDDO

46

P2_LED2

45

P3_LED0

44

P3_LED1

43

P3_LED2

42

VSS

41

P4_LED0

40

P4_LED1

39

P4_LED2

VDD1.5
VDDAL1.5

R601 X_0R
R602 A_0R

TXN4 34
TXP4 34

RXN4 34
RXP4 34

RXP3 34
RXN3 34

TXP3 34
TXN3 34

C602

C598

A_C0.1U25X

A_C10000P25X

VCC3

VDD1.5

TP16

EE_DOUT

TP129
TP132
TP133

P1_LED0

Switch Mode
0 0 CPU attached mode - ports come up disabled
0 1 Reserved
1 0 Stand alone mode - ignore EEPROM
1 1 EEPROM attached mode

C601

A_C0.1U25X

2

100TX1 34

LINK1 34
100TX2 34

VCC3

LINK2 34
100TX3 34

LINK3 34
100TX4 34
LINK4 34

C603

A_C10000P25X

R382
A_4.7KR

C599

A_C0.1U25X

VCC3

R585
A_4.7KR

EE_DOUT
EE_DIN

U34

4 5

DO GND

3

DI

2
1

ORG

SK

NC

CS

VCC

X_AT93C46-10SI-2.7

6
7
8

VCC3

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

LAN SWITCH#1

MS-9169

1

of

32 46Tuesday, August 31, 2004

0ACustom

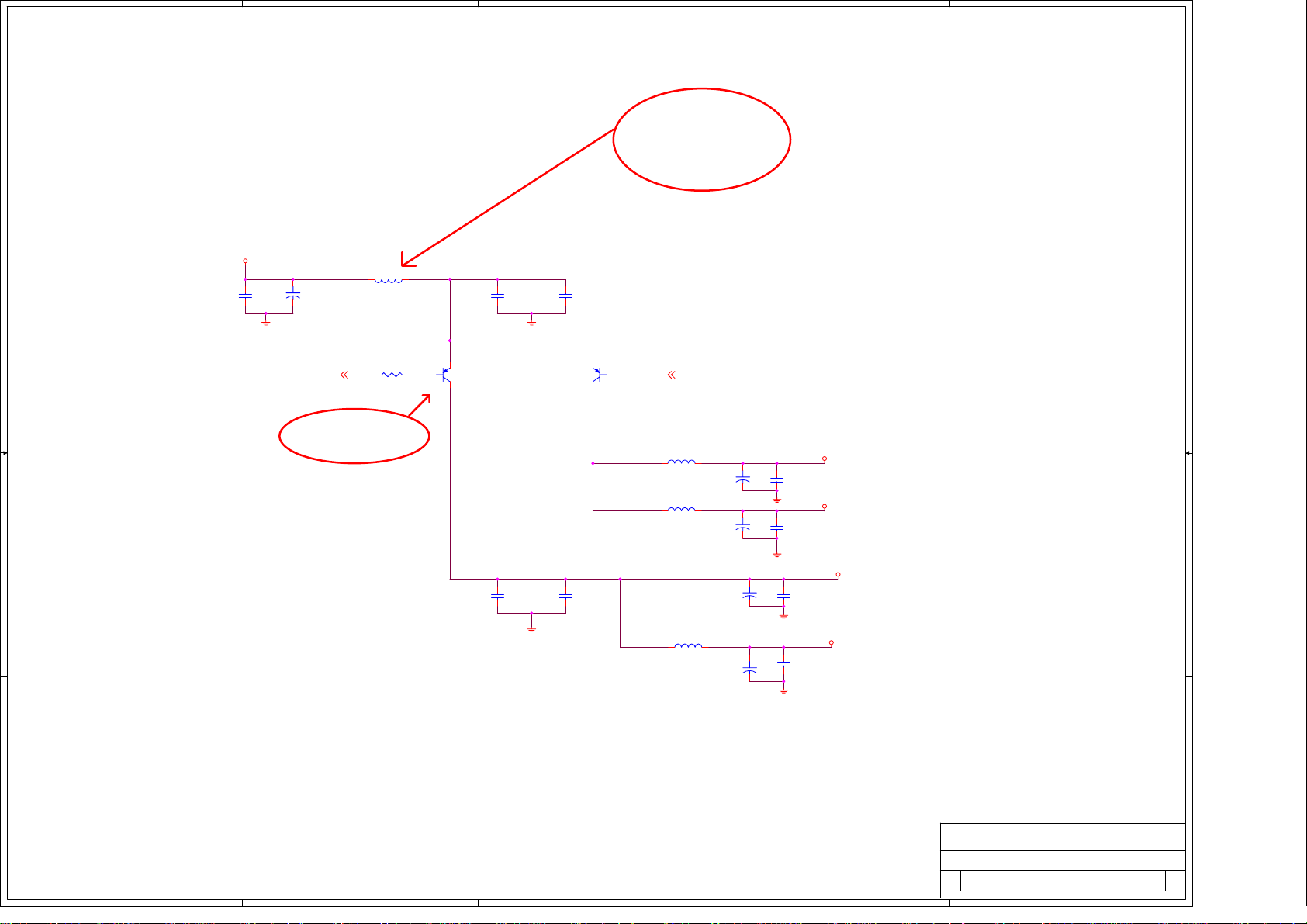

5

4

3

2

1

D D

VCC3

+

C269
A_C0.1U25X

C C

B B

C563
A_C10U6.3X51206

CONTROL_1532

Place PNP close to
the device

L15 A_80L3_100_0805

R397 A_0R

1

C574
A_C2.2U16Y0805

32

Q47

A_P-BCP69_SOT223

C551
A_C2.2U16Y0805

C587
A_C0.1U25X

32

C589
A_C0.1U25X

**Note: Spec. for the
ferrite bead is >38ohms at
100Mhz. SMB20 from
Allied International used.

Q49

A_P-BCP69_SOT223

1

L9 A_80L3_100_0805

L8 A_80L3_100_0805

CONTROL_25 32

A_C10U6.3X51206

A-C10U6.3X51206

A_C10U6.3X51206

C347

C348

C308

VDDAL2.5

+

C359
A_C0.1U25X

VDDAH2.5

+

C330
A_C0.1U25X

VDD1.5

+

C305
A_C0.1U25X

C605
A_C0.1U25X

VDDAL1.5

L16 A_80L3_100_0805

+

C597

A_C10U10Y1206

A A

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

LAN SWITCH#2

MS-9169

1

0ACustom

of

33 46Tuesday, August 31, 2004

8

7

6

5

4

3

2

1

VDDAL2.5

J67B

TXP232
TXN232

RXP232

NC1

NC2

RXN232

100TX232

A_49.9R1%

1 2

R468

R460

A_49.9R1%

49

R458

A_49.9R1%

1 2

C368
A_C10000P25X

A_49.9R1%

1 2

R459

1 2

C367

A_C10000P25X

VCC3

LINK232

C607

A_C0.1U25X

A_C0.1U25Y

C380

R479 A_330R

R475 A_330R

C377

A_C0.1U25Y

C379
A_C0.1U25Y

50

D D

VDDAL2.5

J67A

TXP132
TXN132

RXP132
RXN132

100TX132

VCC3

LINK132

C609

A_C0.1U25X

A_C0.1U25Y

1 2

R467
A_49.9R1%

1 2

R466
A_49.9R1%

1 2

C366
A_C10000P25X

R465

A_49.9R1%

R464

A_49.9R1%

1 2

C C

C365
A_C10000P25X

C416

R489 A_330R
R488 A_330R

C414
A_C0.1U25Y

C415

A_C0.1U25Y

1

TD+

2

TCT

3

TD-

4

RD+

5

RCT

6

RD-

7

NC

8

CGND

9

RLED-

10

RLED+

11

LLED-

12

LLED+

A_CONN-RJ45X4_LEDX8-30u-in

C417
A_C0.1U25Y

13

TD+

14

TCT
TD­RD+
RCT
RD­NC
CGND
RLED­RLED+
LLED­LLED+

NC1

NC2

15
16
17
18
19
20
21
22
23
24

A_CONN-RJ45X4_LEDX8-30u-in

C381
A_C0.1U25Y

49

50

VDDAL2.5

J67D

TXP432
TXN432

RXP432
RXN432

100TX432

VCC3

R462

A_49.9R1%

B B

A_49.9R1%

1 2

R463

VDDAL2.5

A_49.9R1%

1 2

C372
A_C10000P25X

R473

A_49.9R1%

1 2

R472

1 2

C371
A_C10000P25X

LINK432

C606

A_C0.1U25X

A_C0.1U25Y

C402

R483 A_330R
R481 A_330R

C385
A_C0.1U25Y

C386

A_C0.1U25Y

37

TD+

38

TCT

39

TD-

40

RD+

41

RCT

42

RD-

43

NC

44

CGND

45

RLED-

46

RLED+

47

LLED-

48

LLED+

A_CONN-RJ45X4_LEDX8-30u-in

C403
A_C0.1U25Y

NC1

NC2

49

50

J67C

TXP332
TXN332

RXP332
RXN332

100TX332

VCC3

LINK332

C608

A_C0.1U25X

C384

A_C0.1U25Y

1 2

1 2

C369
A_C10000P25X

R471
A_49.9R1%

R461

A_49.9R1%

R469

A_49.9R1%

1 2

A A

8

R470
A_49.9R1%

1 2

C370
A_C10000P25X

7

R480 A_330R
R482 A_330R

C393

A_C0.1U25Y

6

C382
A_C0.1U25Y

25

TD+

26

TCT

27

TD-

28

RD+

29

RCT

30

RD-

31

NC

32

CGND

33

RLED-

34

RLED+

35

LLED-

36

LLED+

A_CONN-RJ45X4_LEDX8-30u-in

C383
A_C0.1U25Y

5

NC1

NC2

49

50

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

4

3

Date: Sheet

LAN 4 PORT SWITCH

MS-9169

2

0AB

34 46Tuesday, August 31, 2004

of

1

1

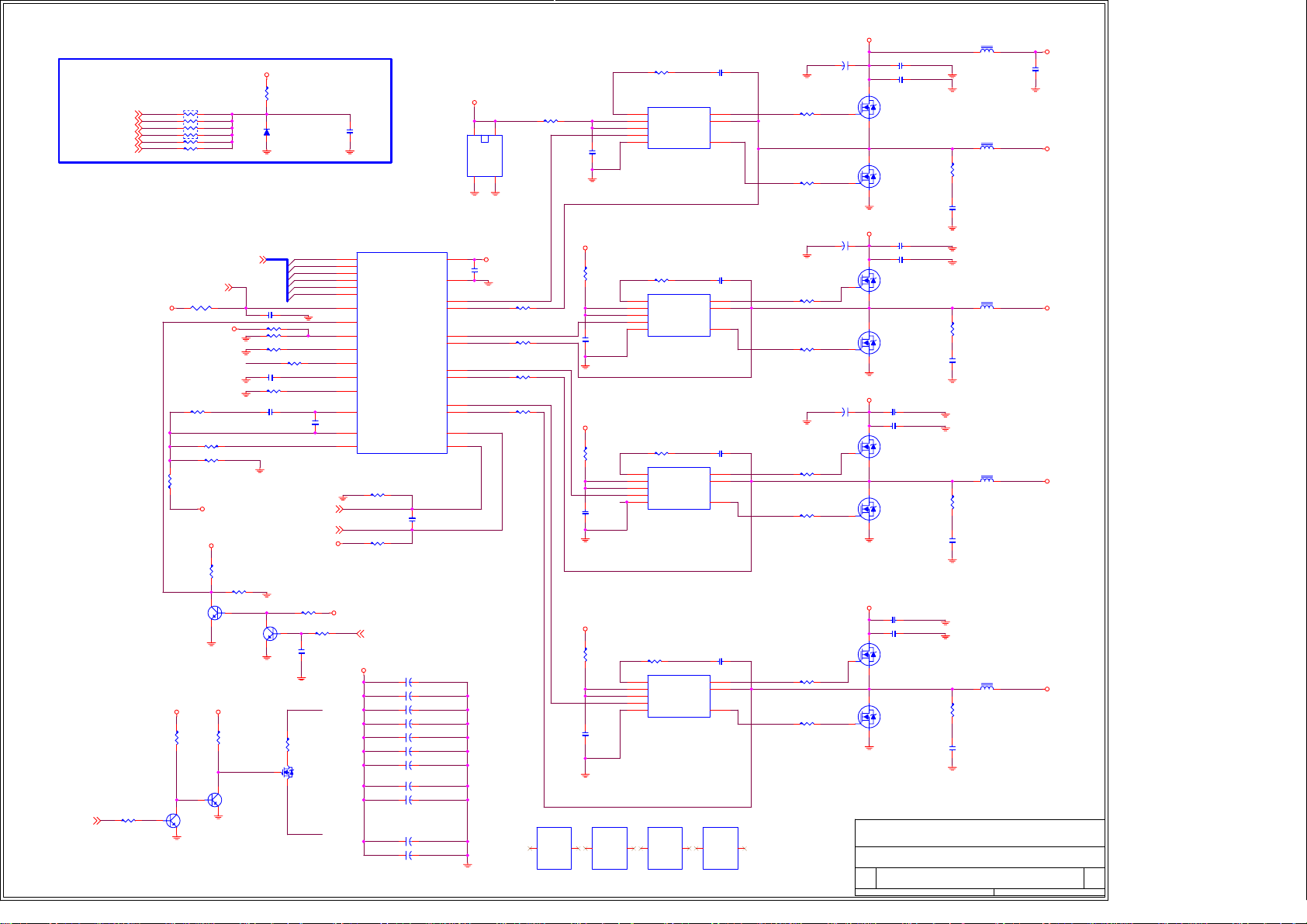

+12VP_FET

VID Pull-Up Resistor

RN1

8P4R-1KR

VID1

1

VID15

VID2

VID25

VID3

VID35

VID4

VID45

VID0

VID05

VID5

VID55

VCC3

A A

N-MMBT3904_SOT23

R44 10KR1%

BOOT5,36

2

3

4

5

6

7

8

R52 1KR1%
R43 1KR1%

VRM_GD13,36,37

R517 1KR1%

VCC5

R497 15KR1%

R495 3.3KR1%
R496 X_100KR1%

R498
X_2KR1%

VCCP

+12VP

Q52

N-MMBT3904_SOT23

VCC5_SB +12VP

R25

4.7KR

Q10
N-MMBT3904_SOT23

+12VP

VID[0..5]5

C430 C0.1U25X
R502 470KR1%
R501 X_24.9KR1%

R84 127KR1%

VDIFF

C427 C1U16X0805
R500 2KR1%

COP

C425 C5600P50X

FB

R511

5.6KR1%
R512 1KR1%

Q51

R27

4.7KR

Q9
N-MMBT3904_SOT23

R42
330R1206

D9
Z-TZMC3V3_SOD80C

VID0
VID1
VID2
VID3
VID4
VID5

DIS
OFS

C426

X_C0.1U25X

VSS_SENSE5

VCC_SENSE5

R513 1KR1%

R504 4.7KR

C428
X_C0.1U25X

FB

R41
20KR1%

Q11
N-2N7002E_SOT23

VDIFF

FS

DAC

COMP

VDIFF

VCCP

R516 X_0R

7
6
5
4
3
8

2

27

9

28

1
11
10

13

12
14

VCC3_SB

C9
C0.1U25X

U4

VID0
VID1
VID2
VID3
VID4
VID12.5

PGOOD
EN
OFS
FS
OVP
REF
DAC

COMP

FB
VDIFF

R47 100R

R46 100R

VCCP

ISL6556BCB_SOIC28

VID_GD 4,5,6

26

VCC

17

GND

22

PWM1

23

ISEN1

21

PWM2

20

ISEN2

18

PWM3

19

ISEN3

25

PWM4

24

ISEN4

15

VSEN

16

RGND

VCORE_SENSE-

C13
X_C0.1U25X

VCORE_SENSE+

BULK CAPACITOR

CT12 CD820U2.5FP
CT11 CD820U2.5FP
CT9 CD820U2.5FP
CT7 CD820U2.5FP
CT6 CD820U2.5FP
CT5 CD820U2.5FP

CT3 X_CD820U2.5FP
CT4 X_CD820U2.5FP

CT15 X_CD820U2.5FP
CT1 CD820U2.5FP

+12VP

PWM1

PWM2

3

4

12V

GND

1

2

VCC5

CB34
C1U16X0805

ISEN1

ISEN2

PWM3
ISEN3REF

PWM4
ISEN4

R28 4.7R0805

JPWR1

12V

GND

PWR-2X2M

R508 3.3KR1%

R503 3.3KR1%

R499 3.3KR1%

R510 3.3KR1%

_E31-0500270

C0.1U25X

C120

C1U16X0805

PH2

12

1

C8

+12VP

R26

4.7R0805

C10

C1U16X0805

+12VP

R164

4.7R0805

C131

C1U16X0805

+12VP

R153

4.7R0805

12

_E31-0500270

12VP1

12VP2

12VP3

12VP4

R151 4.7R0805

PH1

12

12

R23 4.7R0805

2

BOOT

7

PVCC

6

VCC

3

PWM

R22 4.7R0805

2

BOOT

7

PVCC

6

VCC

3

PWM

R152 4.7R0805

2

BOOT

7

PVCC

6

VCC

3

PWM

2

BOOT

7

PVCC

6

VCC

3

PWM

PH3

12

_E31-0500270

C3 C0.1U25X

U2

1

UGATE

8

PHASE

54

LGATEGND

HIP6601B_SOIC8

C5 C0.1U25X
U1

1

UGATE

8

PHASE

54

LGATEGND

HIP6601B_SOIC8

C122 C0.1U25X
U9

1

UGATE

8

PHASE

54

LGATEGND

HIP6601B_SOIC8

C121 C0.1U25X

U8

1

UGATE

8

PHASE

54

LGATEGND

HIP6601B_SOIC8

12

_E31-0500270

R77 3.3R0805

R51 0R0805

R93 3.3R0805

R85 0R0805

R120 3.3R0805

R104 0R0805

R149 3.3R0805CT14 CD820U2.5FP

R123 0R0805

PH4

12

12

CT8

CD270U16OS

CT10
CD270U16OS

CT13
CD270U16OS

C21 X_C4.7U35Y1206
C70 C1U16X0805

Q17
N-IPD06N03LA_TO252

<Priority>

Q18
N-IPD06N03LA_TO252

<Priority>

+12VP_FET

C78 X_C4.7U35Y1206
C92 C1U16X0805
Q20

N-IPD06N03LA_TO252

<Priority>

Q21
N-IPD06N03LA_TO252

<Priority>

+12VP_FET

C91 X_C4.7U35Y1206
C34 C1U16X0805

Q22
N-IPD06N03LA_TO252

<Priority>

Q23
N-IPD06N03LA_TO252

<Priority>

+12VP_FET

C35 X_C4.7U35Y1206
C12 C1U16X0805

Q26
N-IPD06N03LA_TO252

<Priority>

Q25
N-IPD06N03LA_TO252

<Priority>

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

COIL3 CH-1.1U25A-2

COIL1 CH-0.9U25A

R78

2.2R0805

C28
C1000P50X

COIL2 CH-0.9U25A

R94

2.2R0805

C59
C1000P50X

COIL4 CH-0.9U25A

R105

2.2R0805

C65
C1000P50X

COIL5 CH-0.9U25A

R127

2.2R0805

C95
C1000P50X

X_Value:NOPOP

VRM10 - Intersil 6556B

MS-9169

CB1
C4.7U35Y1206

35 46Tuesday, August 31, 2004

+12VP

VCCP

VCCP

VCCP

VCCP

0ACustom

of

5

4

3

2

1

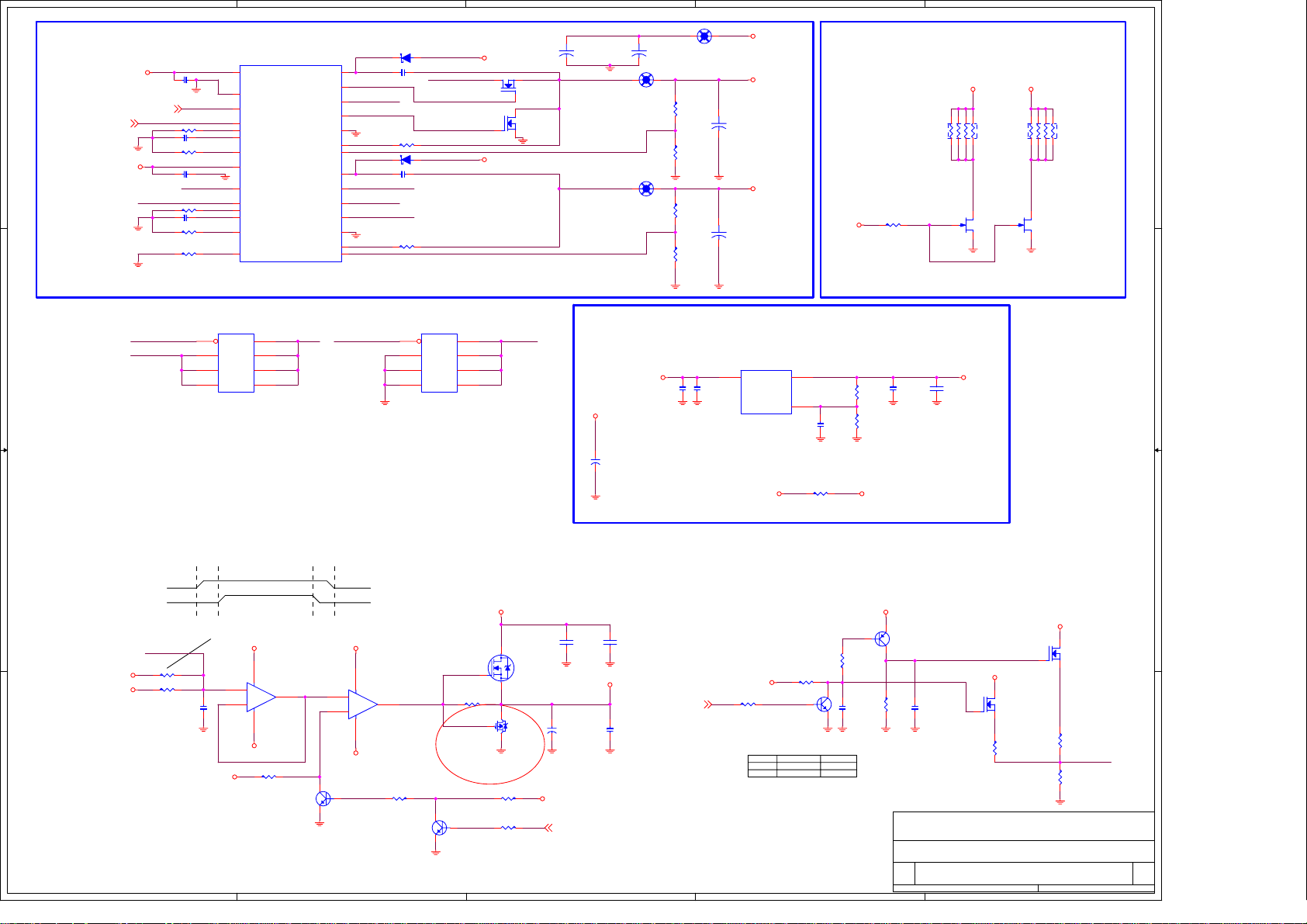

VCC5STR

Q41

PHASE_1V5

+

EC43
.CD470U16EL11.5

PHASE_2V5

VSENSE_2V5

SENSE_1V5

VCC3_SB

+

CT16
CD100U25EL11

CHOCK1 CH-3U20A

<Priority>

CHOCK3 CH-1.2U8A

<Priority>

BO1

VCC5

CB23 C0.1U25X

PWROK7,13,44

VCC5

SLP_S5#

R292 56.2KR1%
C251 C10000P25X

R294 1KR1%

CB22 C0.1U25X

SLP_S5#

R311 56.2KR1%
C266 C0.1U25X

R310 1KR1%

R297 1KR1%

PHASE_1V5

D D

C C

SLP_S5#13,44

28

VCC

1

PWROK

PWROK

AGND

15

PG1

8

EN1

11

ILIM1

12

SS1

9 10

FPWM1# VSEN1

14

VIN

16

PG2/REF2OUT

21

EN2

18

ILIM2/REF2

17

SS2

20

FPWM2#

13

DDR

Q43

4 5

GD1

3

S3

D2

2

S2

D3

1

S1

D4

N-FDS4410_SO8

6
7
8

U17

BOOT1
HDRV1

SW1

LDRV1

PGND1

ISNS1

BOOT2
HDRV2

SW2

LDRV2

PGND2

ISNS2

VSEN2

FAN5236MTC_TSSOP28

VCC5STRHDRV2 LDRV2

DZ2 S-1N5817_DO214AC
C250 C10000P25X

6

HDRV1

5

PHASE_2V5

4

LDRV1

2
3

R296 2.15KR1%

1SNS1

7

BO2

DZ3 S-1N5817_DO214AC
C267 C10000P25X

23

HDRV2

24

PHASE_1V5

25

LDRV2

27
26

1SNS2

R313 1.69KR1%

22
19

VCC5STR

Q44

4 5

GD1

3

S3

2

S2

1

S1

N-FDS4410_SO8

VCC5

D S

Q42

N-IPD06N03LA_TO252

N-IPD06N03LA_TO252

G

VCC5

6

D2

7

D3

8

D4

G
DS

PHASE_1V5

+

VCC5_SB

EC42
.CD470U16EL11.5

X_C0.1U25X

CHOCK2 CH-1.2U18A

R293

3.4KR1%

+

R295

1.74KR1%

R314

2.2KR1%

+

R312

3.3KR1%

3.3V Dual Power Supplier

CB12

CB5

C0.1U25X

VCC5

VCC_DDR

EC44
.CD1000U6.3EL11.5

VCC_AGP

EC41
.CD1000U6.3EL11.5

VR1
APL1084UC_TO252

S D

VIN VOUT

3VDUAL_ADJ

G

ADJ

AMS

C150

X_C0.1U25X

R190 X_0R

VCC3 VCC3_SB

Reserved

VCC5 & VCC3 Discharge Residual Voltage

VCC3VCC5

123456

-12V

R54 4.7KR

R183
200R1%

R184
332R1%

N-MMBFJ108_SOT23

CB11
C0.1U25X

Q16

CT24
22u-1206

78

RN2
8P4R-120R

VCC3_SB

123456

78

RN3
8P4R-120R

Q19
N-MMBFJ108_SOT23

MCH VTT Generator

B B

TBD

TBD

CPU_VTT
GMCH_VTT

Reserved for GMCH VCCP volatge step up.

REF_1V25

R130 X_1KR1%

VCC3

R131 X_0R

VCCP

C99

C0.1U25X

A A

5

VTT_MCH

+12V_OP

U6A
LM358MX_SOIC8

3

+

1

2

-

4 8

-12V

VTT_FB

R150 1KR1%

X_N-MMBT3904_SOT23

VTT_R

Q33

+12V_OP

5

+

6

-

U6B
LM358MX_SOIC8

4 8

-12V

VTT_M2

X_N-MMBT3904_SOT23

4

VTT_CTL

7

R139 X_2.2KR1%

Q29

P-IRFR9024N_TO252

G

R154 1KR1%

Q39

Modify

2003.08.14

VTT_M3

R132 X_1.5KR

VTT_M1

R136 X_2.2KR1%

VCC3

DS

Q37
N-IPD09N03LA_TO252

C4
C0.1U25X

VTT_MCH

+

CT17
CD100U25EL11

VCC3

VRM_GD 13,35,37

3

C203
22u-1206

CB14
C0.1U25X

VCC5_SB

R24 12KR

BOOT5,35

R14 1KR1%

BOOT_B

N-MMBT3904_SOT23

LOW

Northwood
Prescott

HIGH

Intel reference MCH VTT power cirucit

VCC5_SB

Q3
P-MMBT3906LT1_SOT23

R13

1KR1%

CPU_PSC_HI

CPU_NW_HI

C1
C0.1U25X

R17
1KR1%

Q6

CPUBOOT

Voltage

1.45V

1.225V

C2

C0.1U25X

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

2

Date: Sheet

VCC3_SB

DS

Q8
N-2N7002E_SOT23

G

R20
634R1%

SYSTEM POWER(1)

MS-9169

VCC3_SB

G

1

DS

Q7
N-2N7002E_SOT23

R18
866R1%

REF_1V25

R21
634R1%

of

36 46Tuesday, August 31, 2004

0ACustom

VCC_DDR

VTT_DDR

VTT_DDR VOLTAGE SUPPLIER

VR3

1

R268 1KR1%

R272 1KR1%

EC39
C10U6.3X51206

VDD

2

VTTFORCE

3

VTTFORCE

4 5

+

VDD VTTSENSE

CT21
CD100U25EL11

VDDQ

VREFOUT

SHDN

GND

FAN1655MP_MLP8

9

.CD1000U6.3EL11.5

8

C244 C0.1U25X

7

R269 10KR1%

6

R264 0R1206

CT2

+

VCC_DDR

VTT_DDRVCC_DDR

VTT_DDR

+

CT20
.CD1000U6.3EL11.5

1

VCC_DDR

C245
C0.1U25X

VCC3_SB

CB18

C100000P16Y0402

ICH-HR VCCSUS1_5 VOLTAGE

VR2
AME8800LEFT_SOT89

<Priority>

2

VIN

4

VIN

1

GND

VOUT

3

CB16
C100000P16Y0402

1_5VSB

MCH_VTT ON/OFF CIRCUIT

1.8V/2.5V Regulator
FortiASIC CP4=2.5V, CP4=1.8V

+12V+12V

R138

4.7KR
R134 1KR1%

VRM_GD13,35,36

A A

R144 2.2KR1%

Q32
N-MMBT3904_SOT23

Q30
P-MMBT3906LT1_SOT23

+12V_OP

VCC3 U16

3 2

VIN VOUT

ADJ

LT1087S_SOT89

1

C256
C1U10X

Modify this for 1.8V/2.5V
VCC1.8_2.5 = 1.8 ( CP5 ) --> mountR291 =

44.2R1%
VCC1.8_2.5 = 2.5 ( CP4 ) --> mountR? =
100R1%

FortiASIC ?A

R301
100R1%

R291

44.2R1%

R622
X_100R1%

VCC1.8_2.5

C252
C10U6.3X51206

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

1

Date: Sheet

SYSTEM POWER(2)

MS-9169

0ACustom

of

37 46Tuesday, August 31, 2004

5

4

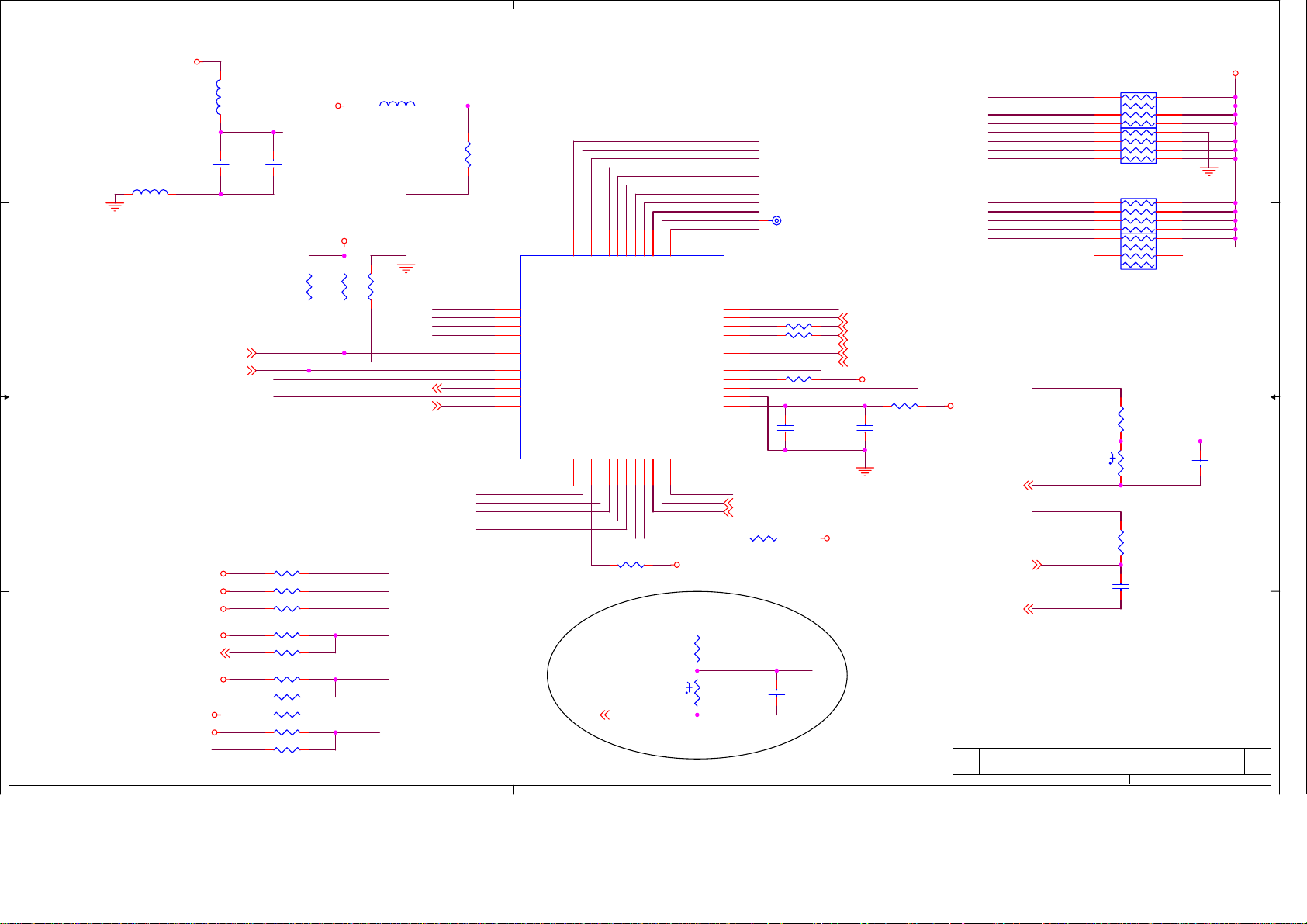

Winbond W791D Hardware Monitor

VCC5

3

2

1

VCC5

DATA_791
CLKOUT_791
ADDR_791
EOP_791
SLOTOC_791
FAN5_791
MODE_791
CTRL_791

GPIO5_791
HVID4
HVID3
HVID2
HVID1
HVID0

VREF782

HW_GNDA5

VREF782

HW_GNDA5

RN10 8P4R-10KR

1 2
3 4
5 6
7 8

RN11 8P4R-10KR

1 2
3 4
5 6
7 8

RN12 8P4R-10KR

1 2
3 4
5 6
7 8

RN72 8P4R-10KR

1 2
3 4
5 6
7 8

R75
10KR1%

RT1
10KRT1%0805

R514
30KR1%

C429
C3300P50X

Micro-Star Int'l Co., Ltd.

HW MONITOR

MS-9169

38 46Wednesday, September 01, 2004

1

T1

C25
C1000P50X

of

0ACustom

C22
C0.1U25X

R87

4.7KR

GPIO5_791
FAN5_791

VCC5

R82

4.7KR

VCC3

VCCPD

VCC1_25D
VCC3D

VCC12D

VCC_12VD

VBATD

SYS_FAN4_IN39

SYS_FAN4_PWM39

VCC_5VD

W781D_P

L2
80L3_100_0805

HW_GNDAHW_GNDA

R86

4.7KR

4

VREF782
T2
T1
THERMD1P#

HVID0
PCB_ID

R58

7.5KR1%

37
38
39
40
41
42
43
44
45
46
47
48

EOP_791
ADDR_791
CLKOUT_791
DATA_791
CTRL_791

MODE_791

(+3.6V)

VREF
VTIN3/PIITD3
VTIN2/PIITD2
VTIN1/PIITD1
VID0
OVT#
IRQ/GPIO10
SMI#/LED
GPIO5
FAN4/GPIO6
FAN5
PWMOUT4

HW_GNDA5

36

5VSB

-5VIN

VBAT

+5VIN

VINR0

+3.3VIN

VCOREA

PWMOUT5/GPIO9

EOP

REXT

ADDR/GPIO0

1234567891011

R90 220KR

VREF782

-12VIN

+12VIN

CLKOUT/GPIO1

DATA/GPIO2

CTRL/GPIO3

MODE/GPIO4

SPEAKER/LED

3

GNDA

PWMOUT1/A0

SPEAKER_791

2526272829303132333435

VID3

BBEP

PWMOUT3

CASEOPEN

SLOTOC#

PWMOUT2/A1

VID1

12

VCC5_SB

VCCPD
VCC1_25D
VCC3D
VCC12D
VCC_12VD
VBATD
5VSBD
VCC_5VD
HW_GNDA

HVID3

U5

I2C Address 5EWr,5FRd

HVID2

24

VID2

23

R76 0R

22

SDA

SCL
FAN1
FAN2
FAN3

VID4

GNDD

VCC

W83791D-C

HVID1

R623
10KR1%

RT2
10KRT1%0805

R81 0R

21
20
19
18

HVID4

17
16

R83 1MR

15
14
13

ADDRESS=2C

SYS_FAN2_PWM 39
SYS_FAN1_PWM 39

R518 220KR

TP26

C37
C10U6.3X50805

T2

C630
C1000P50X

SYS_FAN3_PWM 39
SMBDATA 4,10,13
SMBCLK 4,10,13
SYS_FAN1_IN 39
SYS_FAN2_IN 39
SYS_FAN3_IN 39

VBAT

SLOTOC_791

R89 0R

C40
C0.1U25X

VCC5_SB

VCC5

THERMD1P#5

X_Value:NOPOP

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

2

Date: Sheet

L1

VCCP

VCC3

VBAT

-12V

+12V

-12V

VREF782

80L3_100_0805

5VSBD

C19
C0.1U25X

VREF782

R68 10KR
R64 10KR
R63 10KR

R60 28KR1%
R507 10KR

R59 232KR1%
R506 56KR1%
R61 10KR
R62 232KR1%
R505 56KR1%

D D

L3

80L3_100_0805

C C

OVT#_79114
SMI#_79114

B B

VTT_DDR

HW_GNDA5

A A

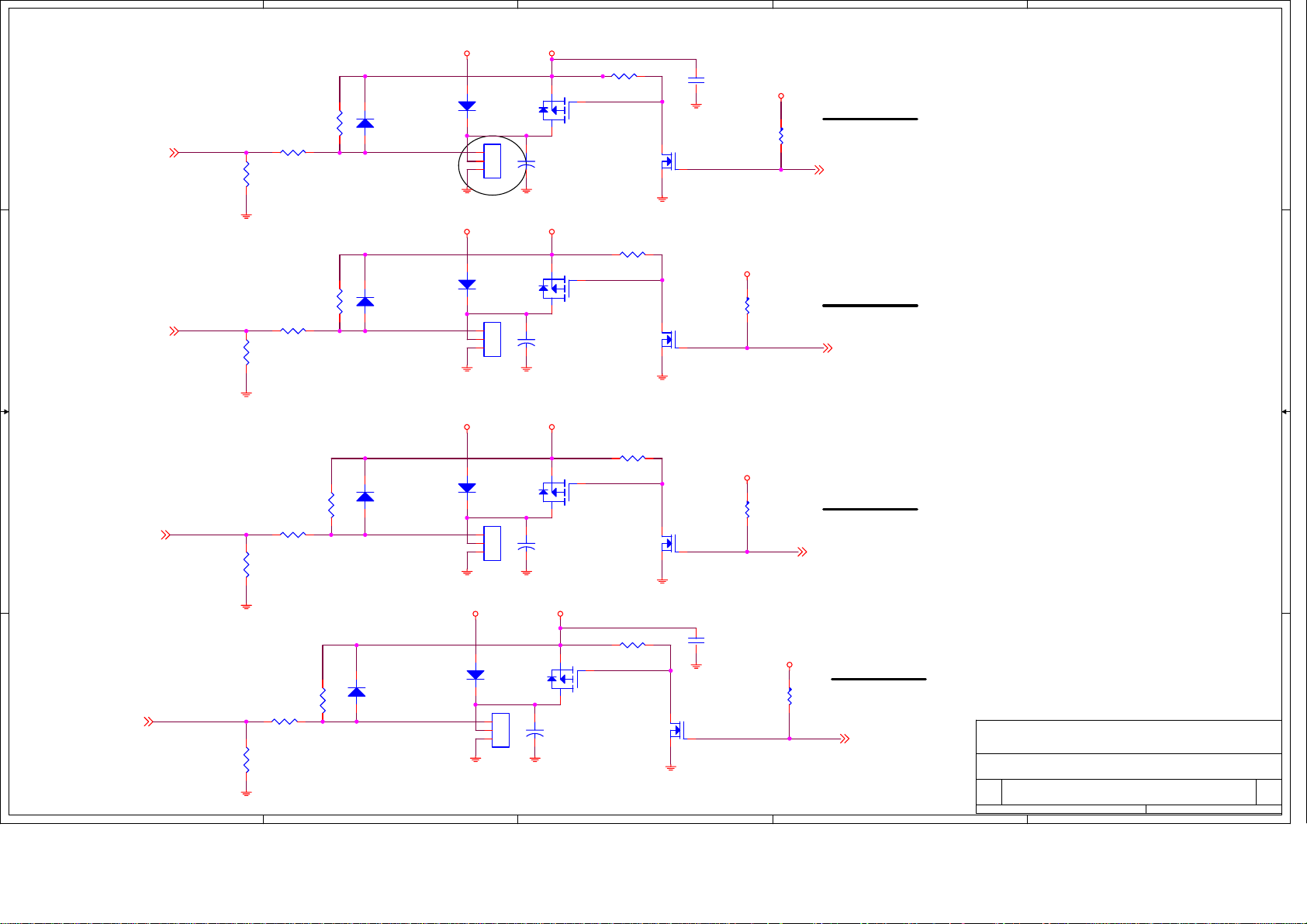

5

5

4

3

2

1

VCC5

AC

D D

SYS_FAN1_IN38

C C

SYS_FAN2_IN38

B B

SYS_FAN3_IN38

R8 27KR

R15
10KR1%

R4 27KR

R2
10KR1%

R6 27KR

R12
10KR1%

4.7KR

R7

4.7KR

R5

4.7KR

R1

S-1N5817_DO214AC

D1

1N4148_SOD123

A C

S-1N5817_DO214AC

D3
1N4148_SOD123

A C

S-1N5817_DO214AC
D6
1N4148_SOD123

A C

D8

CPUFAN1

3
2
1

BH1X3B_red

VCC5

AC

D2

SYSFAN1

3
2
1

BH1X3B_red

VCC5

AC

D5

SYSFAN2

3
2
1

BH1X3B_red

+12V

+

EC4
CD100U25EL11

+12V

+

EC2
CD100U25EL11

+12V

+

EC1
CD100U25EL11

S

G

Q13
P-SI2303DS_SOT23

D

S

G

Q1
P-SI2303DS_SOT23

D

S

G

Q5
P-SI2303DS_SOT23

D

R53 2KR1%

R10 2KR1%

R19 2KR1%

C326
C22U16Y1210

DS

G

Q12
N-2N7002E_SOT23

DS

G

Q2
N-2N7002E_SOT23

DS

G

Q4
N-2N7002E_SOT23

VCC5_SB

R11
10KR1%

VCC5_SB

R71
10KR1%

VCC5_SB

R49
10KR1%

CPU FAN

SYS_FAN1_PWM 38

SYSTEM FAN1

SYS_FAN2_PWM 38

SYSTEM FAN2

SYS_FAN3_PWM 38

VCC5

AC

S-1N5817_DO214AC

R3

4.7KR

A A

SYS_FAN4_IN38

5

R9 27KR

R16

10KR1%

D4
1N4148_SOD123

A C

4

D7

SYSFAN3

3
2
1

BH1X3B_red

+12V

+

EC3
CD100U25EL11

S

G

Q15
P-SI2303DS_SOT23

D

R45 2KR1%

3

C7
C22U16Y1210

DS

G

Q14
N-2N7002E_SOT23

VCC5_SB

R50
10KR1%

SYSTEM FAN3

SYS_FAN4_PWM 38

2

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

SYSTEM FAN

MS-9169

39 46Tuesday, August 31, 2004

1

of

0AB

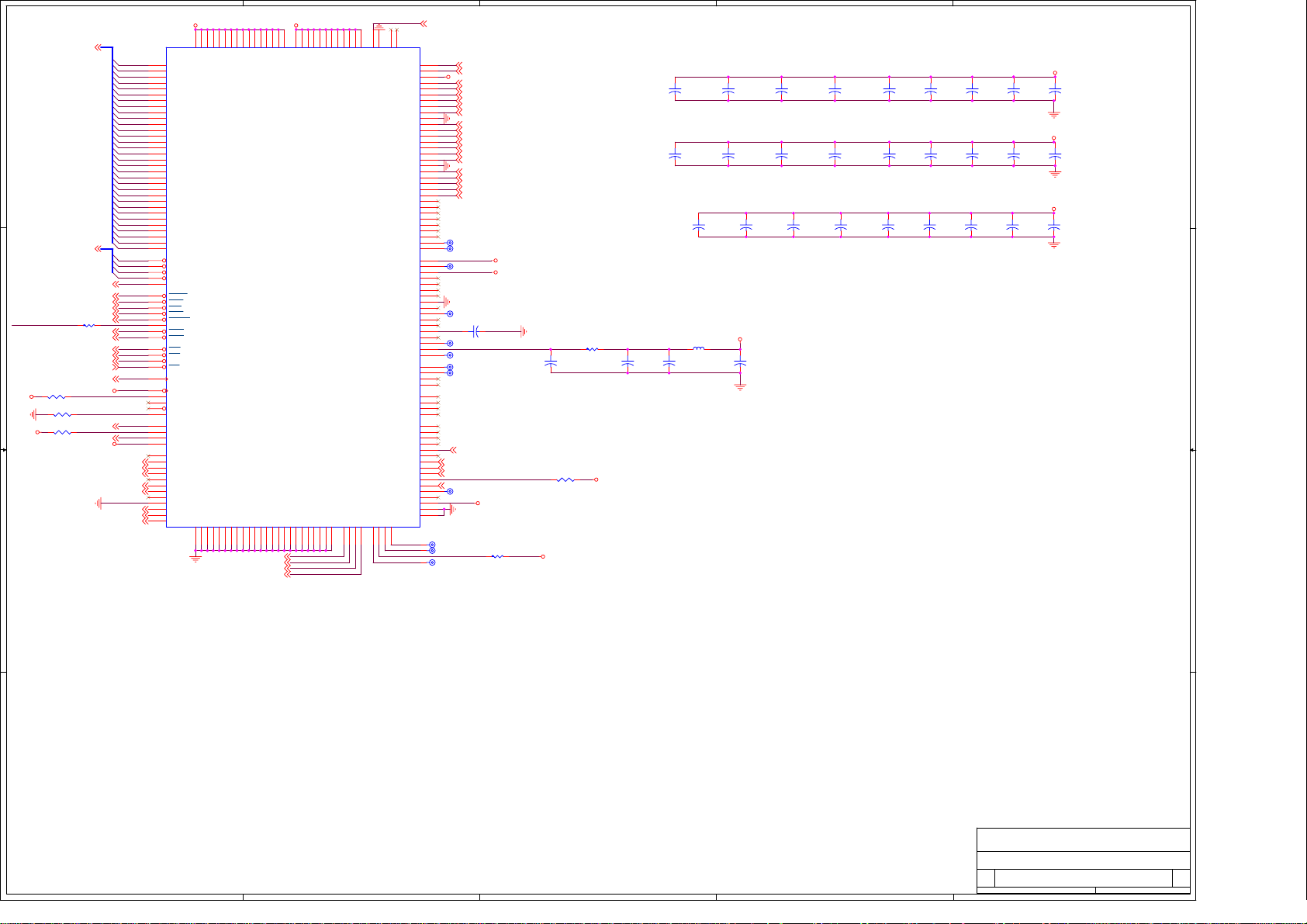

5

VCC3 VCC1.8_2.5

12263953657892

105

117

130

144

156

170

184

197

PX_AD[0..31]13,22,41

D D

PX_C_BE#[0..3]13,22,41

PX_PAR13,22,41

PX_FRAME#13,19,22,41
PX_TRDY#13,19,22,41

PX_IRDY#13,19,22,41
PX_STOP#13,19,22,41

PX_DEVSEL#13,19,22,41

R306 X_4.7KR

VCC3

R321 X_33R

1 2

PCISBRST#13,22,41

PX_PCLKO113

R308 X_1KR

R344 X_4.7KR

PX_ACK64#13,19,22,41
PX_REQ64#13,19,22,41

PX_PERR#13,19,22,41
PX_SERR#13,19,22,41

PX_REQ#113,19,41
PX_GNT#113,41
PX_IRQ#113,19,20,41

VCC1.8_2.5

VCC1.8_2.5

PX_AD5313,19,22,41
PX_AD5113,19,22,41
PX_AD5213,19,22,41

PX_AD5913,19,22,41
PX_AD6013,19,22,41

PX_C_BE#513,19,22,41
PX_C_BE#613,19,22,41
PX_C_BE#713,19,22,41

PX_AD24

C C

VCC3

B B

PX_AD31
PX_AD30
PX_AD29
PX_AD28
PX_AD27
PX_AD26
PX_AD25
PX_AD24
PX_AD23
PX_AD22
PX_AD21
PX_AD20
PX_AD19
PX_AD18
PX_AD17
PX_AD16
PX_AD15
PX_AD14
PX_AD13
PX_AD12
PX_AD11
PX_AD10
PX_AD9
PX_AD8
PX_AD7
PX_AD6
PX_AD5
PX_AD4
PX_AD3
PX_AD2
PX_AD1
PX_AD0

PX_C_BE#3
PX_C_BE#2
PX_C_BE#1
PX_C_BE#0

203
204
205
206

201
200
195
199

185
207

159
157
146

153
107
104
106
155
115
119
142
202

3
4
5

6
10
14
15
16
17
18
20
21
36
37
41
42
43
45
46
47
49
57
58
59
61
62
63
67

8
22
35
48
34

23
27
24
30
29

9
31
33

2
54

50
52
55

70
69
68

U20

AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

C/BE3#
C/BE2#
C/BE1#
C/BE0#
PAR

FRAME
TRDY
IRDY
STOP
DEVSEL
IDSEL
PERR
SERR

REQ
GNT
INTA_N
RST

PCLK
TCK

TDI
TDO
TRST
TMS

ACK64_N
PLLBYPASS
REQ64_N
VCC2.5

NC
AD53
AD51
AD52
NC
AD59
AD60
NC
GND
CBE_N[5]
CBE_N[6]
CBE_N[7]

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

X_B07-00CP404-FY0

GND

GND

GND

GND

GND

GND

GND

72111192532405164798593103

VCC3

GND

VCC3

GND

VCC3

GND

VCC3

GND

PX_AD3813,19,22,41
PX_AD3513,19,22,41
PX_AD3613,19,22,41
PX_AD3713,19,22,41

VCC3

GND

VCC3

GND

VCC3

GND

116

208132838667691

VCC3

VCC3

VCC2.5

VCC2.5

GND

GND

GND

GND

GND

124

131

137

145

158

VCC2.5

VPD_IN

169

177

VCC2.5

VCC2.5

PLL_GND

GND

183

118

128

143

VCC2.5

VCC2.5

VCC2.5

GND

GND

190

19884818283

VCC2.5

AD38

171

VCC2.5

AD35

4

186

1965660

VCC2.5

AD36

VCC2.5

AD37

GND

PAR64

RAMSCANIN2

SCANOUT1

RAMSCANIN1

126

135

154

188

189

AD39
AD40

VCC2.5

AD41

RAMSCANOUT1

RAMSCANOUT2

AD42
AD43
AD44
AD45
AD46

AD47
AD48
AD49
AD50
AD54
AD55
AD56

AD57
AD58
AD61
AD62
AD63

SCANIN2

VCC2.5

SCANOUT4

VCC2.5

PLLX

PLLRSTN

PLLTESTL

PLL_VDD25

PLLTESTA

SCANIN3
SCANIN4

M66EN

CBE_N[4]

AD32
AD33

AD34

SCANIN1

VCC2.5

SCANOUT2

SCANOUT3

161

PX_PAR64 13,22,41

86
87
88
89
90
94
95
96
97
98

GND

99
100
101
102
109
110
111
112

GND

113
114
120
121
122
123

NC

125

NC

127

NC

129

NC

132

NC

133

NC

134

NC

136
138

152
162
163
164

NC

165

NC

166

NC

167

NC

168

GND

172

NC

173
174

NC

175

NC

176
178

NC

179
180
181

139
140
141

NC

147

NC

149

NC

148

NC

187

NC

150

NC

151

NC

191

NC

192

NC

193

NC

194
71

NC

73
74
75
182

TCK

77
80
160

NC

108
7

GND

44

GND

PX_AD39 13,19,22,41
PX_AD40 13,19,22,41

VCC1.8_2.5

PX_AD41 13,19,22,41
PX_AD42 13,19,22,41
PX_AD43 13,19,22,41
PX_AD44 13,19,22,41
PX_AD45 13,19,22,41
PX_AD46 13,19,22,41

PX_AD47 13,19,22,41
PX_AD48 13,19,22,41
PX_AD49 13,19,22,41
PX_AD50 13,19,22,41
PX_AD54 13,19,22,41
PX_AD55 13,19,22,41
PX_AD56 13,19,22,41

PX_AD57 13,19,22,41
PX_AD58 13,19,22,41
PX_AD61 13,19,22,41
PX_AD62 13,19,22,41
PX_AD63 13,19,22,41

TP14
TP13

TP117

TP118

1 2

C259 X_C0.22U16Y
TP121
TP119
TP12

TP11

PX_M66EN 13,19,22,41

PX_C_BE#4 13,19,22,41
PX_AD32 13,19,22,41
PX_AD33 13,19,22,41

PX_AD34 13,19,22,41

TP124

VCC1.8_2.5

TP120
TP10

1 2

R333 X_0R

TP15

VCC1.8_2.5
VCC1.8_2.5

1 2

12

R307 X_49.9R1%

C260

X_C0.1U25X

R304 X_4.7KR

VCC1.8_2.5

3

VCC3

12

C258
X_C0.1U25X

12

C336
X_C10000P25X

12

C513
X_C10000P25X

L7 X_1uH-bead

12

C257
X_C0.1U25X

12

C398
X_C10000P25X

12

C287
X_C10000P25X

12

C263
X_C10000P25X

VCC1.8_2.5

12

12

C273
X_C10000P25X

C261
X_C10U6.3X50805

12

C431
X_C10000P25X

12

C274
X_C10000P25X

12

C94
X-C10000P25X

2

12

C277
X_C10000P25X

12

C264
X_C10000P25X

12

C271
X_C10000P25X

12

C249
X_C0.1U25X

12

C516
X_C0.1U25X

12

C272
X_C0.1U25X

12

C310
X_C0.1U25X

12

C280
X_C0.1U25X

12

C286
X_C0.1U25X

12

C312
X_C0.1U25X

12

C265
X_C0.1U25X

12

C291
C0.1U25X

12

C282
X_C0.1U25X

12

C262
X_C0.1U25X

12

C542
X_C0.1U25X

VCC3

+

VCC1.8_2.5

+

VCC3

+

1

C298
X_C10U10Y1206

C255
X_C10U10Y1206

C350
X_C10U10Y1206

A A

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

FORTI_ASIC

MS-9169

1

0AC

of

40 46Tuesday, August 31, 2004

5

VCC1.8_2.5

4

VCC3

3

VCC1.8_2.5

2

1

TGND24

BC27
C0.1U25X

TGND25

TGND26

BC28
C0.1U25X

TGND27

TGND28

K11

TGND29

K12

BC25

BC6

C0.1U25X

C0.1U25X

BC19

BC4

C0.1U25X

C0.1U25X

(MT58L128L36P1T-7.5)

TGND40
TGND41
TGND42
TGND43
TGND44
TGND45
TGND46
TGND47
TGND48
TGND49
TGND50
TGND51TGND52

TGND30

TGND31

TGND32

TGND33

TGND34

TGND35

TGND36

TGND37

TGND38

K13

K14L7L8L9L10

TGND39

L11

L12

L13

L14

M7
M8
M9
M10
M11
M12
M13
M14
N7
N8
N9
N10N11

BC8
C0.1U25X

BC7
C0.1U25X

BC10
C0.1U25X

BC2
C10U16X51206

37
36
35
34
33
32

100

99
82
81
44
45
46
47
48
49
50
43

89
93

94
95
96
98
92
97
86
83
84
85
64
87
88
31

16
66

P14
P13
P12
P11
P10

P9
P8

P7
N14
N13
N12

BC1
C10U16X51206

TGND63
TGND62
TGND61
TGND60
TGND59
TGND58
TGND57
TGND56
TGND55
TGND54
TGND53

G7G8G9

BC5
C0.1U25X

VCC3

U21 X_CY7C1347B-133AC

4111415202754616570774191

A0

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VSS3

VSS4

VSS2

VSS1

17212655606771

10

5

VSS5

VDD7

VSS6

40

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15/NC
A16/NC
A17/DNU

CLK
BW1_

BW2_
BW3_
BW4_
CE_
CE2_
CE2
OE_
ADV_
ADSP_
ADSC_
ZZ
BWE_
GW_
MODE

NC1
NC2

FORTIASIC-CP5

TGND0

TGND1

TGND2

TGND3

TGND4

TGND5

TGND6

TGND7

TGND8

TGND9

TGND10

G10

TGND11

G11

G12

G13

G14H7H8H9H10

H11

BC17
C10U16X51206

R323

4.7KR

R339
470R

SADDR0
SADDR1
SADDR2
SADDR3
SADDR4
SADDR5
SADDR6
SADDR7
SADDR8
SADDR9
SADDR10
SADDR11
SADDR12
SADDR13
SADDR14
SADDR15
SADDR16
SADDR17

SCLK

SCE#

SOE#

SWE#

linear

BC9
C10U16X51206

VCC3

BC16
C10U16X51206

SCLK

12

BC22
C0.1U25X

1uH-bead

VCC3

BC11
C10U16X51206

L14

12

BC21
C1000P50X

R1Y9Y19A8G2

PX_AD[0..63]13,19,22,40

PX_AD63
PX_AD62
PX_AD61
PX_AD60
PX_AD59
PX_AD58

D D

C C

PX_C_BE#[0..7]13,19,22,40

PX_AD2413,22,40
PX_FRAME#13,19,22,40
PX_IRDY#13,19,22,40
PX_TRDY#13,19,22,40
PX_DEVSEL#13,19,22,40
PX_STOP#13,19,22,40
PX_PERR#13,19,22,40

B B

PX_SERR#13,19,22,40
PX_PAR13,22,40

PX_PCLKO313

PX_REQ#113,19,40

PX_GNT#113,40

PCISBRST#13,22,40

PX_IRQ#113,19,20,40

PX_M66EN13,19,22,40
PX_PAR6413,22,40
PX_ACK64#13,19,22,40
PX_REQ64#13,19,22,40

PX_AD57
PX_AD56
PX_AD55
PX_AD54
PX_AD53
PX_AD52
PX_AD51
PX_AD50
PX_AD49
PX_AD48
PX_AD47
PX_AD46
PX_AD45
PX_AD44
PX_AD43
PX_AD42
PX_AD41
PX_AD40
PX_AD39
PX_AD38
PX_AD37
PX_AD36
PX_AD35
PX_AD34
PX_AD33
PX_AD32
PX_AD31
PX_AD30
PX_AD29
PX_AD28
PX_AD27
PX_AD26
PX_AD25
PX_AD24
PX_AD23
PX_AD22
PX_AD21
PX_AD20
PX_AD19
PX_AD18
PX_AD17
PX_AD16
PX_AD15
PX_AD14
PX_AD13
PX_AD12
PX_AD11
PX_AD10
PX_AD9
PX_AD8
PX_AD7
PX_AD6
PX_AD5
PX_AD4
PX_AD3
PX_AD2
PX_AD1
PX_AD0

PX_C_BE#7
PX_C_BE#6
PX_C_BE#5
PX_C_BE#4
PX_C_BE#3
PX_C_BE#2
PX_C_BE#1
PX_C_BE#0

R309 100R1%

PX_M66EN
PX_ACK64#

PX_REQ64#

D1Y2V20

V3

AD63

VCC1_8_1

VCC1_8_0

Y3

AD62

U4

AD61

V4

AD60

W4

AD59

U5

AD58

V5

AD57

W5

AD56

Y5

AD55

Y6

AD54

U7

AD53

V7

AD52

W7

AD51

U8

AD50

V8

AD49

Y8

AD48

U9

AD47

V9

AD46

W9

AD45

U10

AD44

W10

AD43

Y10

AD42

W11

AD41

Y11

AD40

U12

AD39

W12

AD38

Y12

AD37

U13

AD36

V13

AD35

W13

AD34

W14

AD33

Y15

AD32

A6

AD31

C6

AD30

A5

AD29

B5

AD28

C5

AD27

D5

AD26

A4

AD25

C4

AD24

A3

AD23

B3

AD22

A2

AD21

C1

AD20

D4

AD19

D2

AD18

E2

AD17

E1

AD16

F4

AD15

F2

AD14

G4

AD13

H4

AD12

J4

AD11

M3

AD10

M2

AD9

M1

AD8

P4

AD7

P3

AD6

R4

AD5

T4

AD4

T2

AD3

U2

AD2

U1

AD1

V1

AD0

W2

CBE#7

W1

CBE#6

V2

CBE#5

U3

CBE4#

D3

CBE3#

F1

CBE2#

L3

CBE1#

N4

CBE0#

G3

IDSEL

H1

FRAME#

H3

IRDY#

J3

TRDY#

J2

DEVSEL#

J1

STOP#

K1

PERR#

K4

SERR#

K2

PAR

B7

PCICLK

C3

REQ#

B1

GNT#

D8

RST#

D9

INTA#

C8

M66EN

P1

PAR64

N1

ACK64#

N2

REQ64#

VCC1_8_2

VCC1_8_3

VCC1_8_4

A18

A14

VCC1_8_8

VCC1_8_9

VCC1_8_5

VCC1_8_6

VCC1_8_7

GND0

GND1

GND2

GND3

GND4

A1G1L1Y1Y20

Y14

D19

B11B4R3

VCC1_8_10

GND5

T20

VCC1_8_11

GND6

R20

VCC1_8_12

GND7

A20

V11

VCC1_8_13

GND8

A16

V15

N18

C17C9L4U6U17T1Y4

H18

VCC1_8_14

VCC1_8_15

VCC1_8_16

VCC1_8_18

VCC1_8_19

VCC1_8_17

FORTIASIC-CP5

GND9

GND10

GND11

GND12

GND13

GND14

A12B2P2R2W3W8W19

H17

VCC1_8_20

VCC1_8_21

VCC1_8_22

VCC1_8_23

U18A

GND15

GND16

GND17

GND18

GND19

L19

J19

F19B9B8B6K3V6C14E4U11

VCC3_1

GND20

GND21

N20

K20A7C2W6P19

Y7

Y13H2L2

VCC3_2

VCC3_5

VCC3_3

VCC3_4

GND22

GND24

GND25

GND23

E3

B19

B14F3N3T3V10

V12

C12C7M4D7D6

T18

T17

D16

D15

G17

VCC3_6

VCC3_7

VCC3_8

VCC3_9

VCC3_11

VCC3_12

VCC3_13

VCC3_14

VCC3_15

VCC3_16

VCC3_17

VCC3_18

VCC3_19

VCC3_21

VCC3_22

VCC3_23

VCC3_27

VCC3_10

GND26

GND28

GND29

GND30

GND31

GND27

GND32

U14

N17

C13

K17

VCC3_28

VCC3_20

VCC3_24

VCC3_25

VCC3_26

VCC3_29

SADDR0

M18

SRAM_ADDR0
SRAM_ADDR1
SRAM_ADDR2
SRAM_ADDR3
SRAM_ADDR4
SRAM_ADDR5
SRAM_ADDR6
SRAM_ADDR7
SRAM_ADDR8

SRAM_ADDR9
SRAM_ADDR10
SRAM_ADDR11
SRAM_ADDR12
SRAM_ADDR13
SRAM_ADDR14
SRAM_ADDR15
SRAM_ADDR16
SRAM_ADDR17

SRAM_DQ0
SRAM_DQ1
SRAM_DQ2
SRAM_DQ3
SRAM_DQ4
SRAM_DQ5
SRAM_DQ6
SRAM_DQ7
SRAM_DQ8

SRAM_DQ9
SRAM_DQ10
SRAM_DQ11
SRAM_DQ12
SRAM_DQ13
SRAM_DQ14
SRAM_DQ15
SRAM_DQ16
SRAM_DQ17
SRAM_DQ18
SRAM_DQ19
SRAM_DQ20
SRAM_DQ21
SRAM_DQ22
SRAM_DQ23
SRAM_DQ24
SRAM_DQ25
SRAM_DQ26
SRAM_DQ27
SRAM_DQ28
SRAM_DQ29
SRAM_DQ30
SRAM_DQ31

SRAM_DP1
SRAM_DP2
SRAM_DP3
SRAM_DP4

SRAM_CE#
SRAM_CLK
SRAM_OE#

SRAM_WE#

PLLTESTA

PLLVDD1_8

SCANOUT1
SCANOUT2
SCANOUT3
SCANOUT4

PLLTESTL

PLLRST#

PLLX

VPD_IN

PLL_GND

SCANIN1
SCANIN2
SCANIN3
SCANIN4

TRST#

TURBO

SADDR1

N19

SADDR2

P20

SADDR3

R19

SADDR4

U20

SADDR5

U19

SADDR6

B17

SADDR7

C15

SADDR8

D14

SADDR9

D13

SADDR10

M17

SADDR11

P18

SADDR12

P17

SADDR13

R18

SADDR14

U18

SADDR15

V19

SADDR16

V18

SADDR17

W20

SDQ0

L20

SDQ1

K19

SDQ2

J18

SDQ3

J20

SDQ4

H20

SDQ5

G20

SDQ6

F18

SDQ7

F20

SDQ8

E19

SDQ9

E20

SDQ10

D20

SDQ11

C20

SDQ12

B20

SDQ13

A17

SDQ14

B16

SDQ15

A15

SDQ16

B15

SDQ17

C16

SDQ18

B18

SDQ19

C19

SDQ20

D18

SDQ21

D17

SDQ22

E18

SDQ23

E17

SDQ24

F17

SDQ25

G19

SDQ26

G18

SDQ27

H19

SDQ28

J17

SDQ29

K18

SDQ30

L18

SDQ31

L17

SDP1

M20

SDP2

A13

SDP3

C11

SDP4

M19

SCE#

D12

SCLKS

R322 33R

A19

SOE#

C18

SWE#

B13
C10

D11
B10
D10

R17
A10

A9
V14

V16
Y17
U15

W18
W15
W16
T19

Y16
Y18

TCK

W17

TMS

U16

TDO

V17

TDI

A11
B12

NC0

VCC1.8_2.5

BC20 C0.22U16Y

1 2

R554 51R

12

BC23
C100P50N

R343 4.7KR
R341 4.7KR

R342 4.7KR

R552 X_4.7KR

Not Turbo Mode for PCI
64/66

R553
0R

1 2

BC12

C10U16X51206

VCC1.8_2.5

BC13

C10U16X51206

VCC3

BC3
C10U16X51206

BC26

BC24

C0.1U25X

C0.1U25X

BC15

BC14

C0.1U25X

C0.1U25X

52

D0

VDD8

VSS7

VDD9

VSS8

VDD10

VSS9

VDD11

VSS10

76

VDD12

VDD13

NC/PAR0
NC/PAR1
NC/PAR2
NC/PAR3

VSS11

VSS12

90

DNU1
DNU2

53

D1

56

D2

57

D3

58

D4

59

D5

62

D6

63

D7

68

D8

69

D9

72

D10

73

D11

74

D12

75

D13

78

D14

79

D15

2

D16

3

D17

6

D18

7

D19

8

D20

9

D21

12

D22

13

D23

18

D24

19

D25

22

D26

23

D27

24

D28

25

D29

28

D30

29

D31

51
80
1
30

38
39
42

NF

Thermal Grounds

U18B

TGND12

TGND13

TGND14

TGND15

TGND16

TGND17

TGND18

TGND19

TGND20

TGND21

TGND22

J11

J12

J13

TGND23

J14K7K8K9K10

H12

H13

H14J7J8J9J10

SDQ0
SDQ1
SDQ2
SDQ3
SDQ4
SDQ5
SDQ6
SDQ7
SDQ8
SDQ9
SDQ10
SDQ11
SDQ12
SDQ13
SDQ14
SDQ15
SDQ16
SDQ17
SDQ18
SDQ19
SDQ20
SDQ21
SDQ22
SDQ23
SDQ24
SDQ25
SDQ26
SDQ27
SDQ28
SDQ29
SDQ30
SDQ31
SDP1
SDP2
SDP3
SDP4

Note: TDI/TMS/TCK to be pulled up
when not used, whille TRST# to be
left unconnected

A A

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

5

4

3

2

Date: Sheet

Forti ASIC BGA

MS-9169

1

0AC

of

41 46Tuesday, August 31, 2004

PCIRESET

VCC5 VCC3

VCC3

147

U15A

PCIRST_ICHS#13

PCIRST#4

A A

PCIRST_ICHS#

7

_LVC14APWR_TSSOP14

1 2

_LVC14APWR_TSSOP14

VCC3

147

U15E

1110

for MCH

VCC3

for ATA

147

U15F

13 12

_LVC14APWR_TSSOP14

R279
X_330R1%

PCIRST

1

IDE_RST# 18

147

U15B

3 4

_LVC14APWR_TSSOP14

VCC3

147

U15C

5 6

_LVC14APWR_TSSOP14

VCC3

147

U15D

9 8

_LVC14APWR_TSSOP14

VCC3

R303
X_330R1%

VCC3

for 82551CH1~CH4

R300
X_330R1%

PCIRST#2

VCC3

R288
X_330R1%

for 82547 LAN

VCC3

+

EC59

1500uF 6.3V DIP

_
_

PCIRST#1 26,27,28,29,32,43

PCIRST#2 16,31

for MS1 , FWH, 82551
SW,MINI-PCI,

PCIRST#3 20

VCC3_3

FRAME#12,16,26,27,28,29,31

STOP#12,16,26,27,28,29,31
PREQ#312,16
PGNT#312

MREQ#129
MGNT#129

MREQ#231
MGNT#231

MREQ#316
MGNT#316

PCI Master Bus 82551QM LAN CH4

1

FRAME#

2

STOP#

3

SYSREQ#

4

SYSGNT#

5

PCIREQ1#

6

VSS

7

PCIGNT1#

8

PCIREQ2#

9

VCC

10

PCIGNT2#

11

PCIREQ3#

12

PCIGNT3#

13

VC3A

14 15

VC5A VC5B

PREQ#312,16
PGNT#312

Reserved if un-pop Mini-PCI and LAN Switch port. Then direct
connect to PCI bus

U19

AVCC
PCICLKI
RESET#

AVSS

VSS

PCLCLK0

PCICLK1

VCC
PCICLK2
PCICLK3
PCICLK4

VSS

VC3B

MS1

R281 X_0R
R280 X_0R

28
27
26
25
24
23
22
21
20
19
18
17
16

C270 C0.1U25X

PCIRST#2

R335

8.2KR

MREQ#3 16
MGNT#3 16

R334

8.2KR

PCLK9MS1 4

123456

78

RN67

8P4R-8.2KR

1

FB2 80L3_70_0805

VCC3

Pull up MGNT#?

MREQ#3
MREQ#2
MREQ#1

RN66

8P4R-2.7KR

VCC3_3

VCC5

78
56
34
12

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

Date: Sheet

PCIRESET & MS1

MS-9169

0ACustom

42 46Tuesday, August 31, 2004

of

1

USB CONNECTOR

L10

SBD0+
SBD0­SBD1+
SBD1-

C628
X_C0.1U25X

12

L11
80L400m_300_0805

VCC5

OC#1<14>

1
3
5
7

11
12

RN71

8P4R-0R

1
2
3
4

2
4
6
8

USB0+<14>

USB0-<14>

USB1+<14>

USB1-<14>

SBD1+
SBD1­SVCC1

10

9

SVCC1

A A

SBD0­SBD0+

8
7
6
5

X_CMC-L02-9007010-E28

JUSB1

567

8

CONN-USBX2-8P_black

123

4

POWER CIRCUIT FOR USB PORT

FS1

F-MINISMDC200

OC#1

C374

C0.1U25X

NC1 X COOPER

SVCC1_FB

R476
0R

R478
560KR

2 1

C625 X_C0.1U25X C626 X_C0.1U25X

PGND

VCC3

C629
X_C0.1U25X

FB3 80L3_40_0805

C424

C1000P50X

NEAR USB CONNECTOR

AGND

SVCC1

+

CT22
.CD1000U6.3EL11.5

NC2 X COOPER

2 1

R491
1KR1%

NC3 X COOPER

C627 X_C0.1U25X

21

VCC3

LPC_AD[0..3]<12>

PCIRST#1<26,27,28,29,32,42>

ATADET1<18>

ID_3
ID_2
ID_1
ID_0

RN73

1 2
3 4
5 6
7 8

8P4R-10KR

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3

FGPI3
FGPI2
FGPI1

R521 4.7KR
R526 4.7KR

LPC_AD0
LPC_AD1
LPC_AD2

FGPI4
FGPI3
FGPI2
FGPI1

VCC3

CB35 C1U10X

1

VPP

2

RST#

3

FGPI3

4

FGPI2

5

FGPI1

6

FGPI0

7

WP#

8

TBL#

9

ID3

10

ID2

11

ID1

12

ID0

13

FWH0

14

FWH1

15

FWH2

16 17

GND FWH3

Firware Hub (FWH)

XU1

32

VCC

31

CLK

30

FGPI4

29

IC(VIL)

28

GNDA

27

VCCA

26

GND

25

VCC

24

INIT#

23

FWH4

22

RFU

21

RFU

20

RFU

19

RFU

18

RFU

SST49LF004A

VCC3

R520 8.2KR

INIT#

LPC_AD3

FGPI4

PCLK4FWH <4>

LPC_FRAME# <12>

VCC3

VCC3

R221

B

330R1%

Q38
N-MMBT3904_SOT23

E C

INIT#

X_Value:NOPOP

R525

2.2KR1%

Q40

HINIT#<5,13>

R528 330R1%

B

N-MMBT3904_SOT23

E C

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

1

Date: Sheet

USB & FWH

MS-9169

0ACustom

of

43 46Tuesday, August 31, 2004

1

ATX Connector

JPWR2

13

+12VP

R186
330R1%

3.3V

14

-12V

15

GND

16

PSON

17

GND

18

GND

19

GND

20

5V

21

5V

22

5V

23

12V

24

12V

VCC3_SB

147

5 6

VCC3

SLP_S5#13,36

R285 X_0R

Connect PSON# to
SLP_S5#

VCC5_SB

R111 X_4.7KR

R108 X_4.7KR

X_N-MMBT3904_SOT23

PSON#_ATX

PSON

B

Q24

E C

R114
0R

-12V

CB6

C0.1U25X

VCC5

Change to 2*12 Connect

2004.4.19

VCC5_SB

R170

VCC5

10KR1%

147

U11A

1 2

_LVC14APWR_TSSOP14

VCC3_SB VCC3_SB

R519

8.2KR

C432
C0.1U25X

147

U11C

5 6

_LVC14APWR_TSSOP14

VCC3_SBVCC3_SB

147

U11B

3 4

_LVC14APWR_TSSOP14

147

U11D

9 8

_LVC14APWR_TSSOP14

VCC3_SB

147

U10A

1 2

LVC07A_SOIC14

VCC3_SB

147

U10B

3 4

LVC07A_SOIC14

A A

C144

C10000P25X

FP_RESET#14,13,14

PWR_OK

CB38

C0.1U25X

VCC3_SB

1

3.3V

2

3.3V

3

GND

4

5V

5

GND

6

5V

7

GND

8

POK

9

5VSB

10

12V

11

GND

12

GND

POWER

XX

U10C

LVC07A_SOIC14

VCC3_SB

CB7
C0.1U25X

CB4
C0.1U25X

C613
X_C0.1U25X

R188
330R1%

R187
X_330R1%

VCC3

CB8
C0.1U25X

VCC5

CB19
C0.1U25X

CB3
C0.1U25X

R92

X_0R0805

PWROK 7,13,36

CB36
C0.1U25X

PWR_OK

VCC5_SB
+12V

VCC5

C614
X_C0.1U25X

_LED-G#_D2.9(H)-1

12

LED1

C61
C10000P25X

1 2

R494 330R

C612
X_C0.1U25X

VCC3

12

PWR_OK 20,22,45

C572
C0.1U25X

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

1

Date: Sheet

ATX & Front Panel

MS-9169

0ACustom

of

44 46Tuesday, August 31, 2004

VBAT

CPU POWER GOOD CIRCUIT

VCC5 VCC3_SB VCC3_SB VCC3_SB

R140
680R

Q27

PWR_OK20,22,44

VTT_MCH

R137 8.2KR

R145 1KR1%

B

B

N-MMBT3904_SOT23

E C

Q31
N-MMBT3904_SOT23

E C

BATTERY

B

E C

1

R135 0R

Q28
N-MMBT3904_SOT23

CPU_GD 5

147

U10D

9 8

LVC07A_SOIC14

VCC3_SB

147

U11F

13 12

_LVC14APWR_TSSOP14

147

U10E

11 10

LVC07A_SOIC14

147

U10F

13 12

LVC07A_SOIC14

C A

DZ4 S-BAT43W_SOD123

A A

D12 1N4148_SOD123

R332 300KR

C480
C1U10X

VBAT_DZ VBAT_DET

R315 1.5KR

R320 4.7KR R338 1KR1%

C240
C10000P25X

VCC5

BAT1R337 1KR1%

JBAT1

231

YJ103

_

default is 1-2

RTC_RST# 13

X_Value:NOPOP

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Title

Size Document Number Rev

1

Date: Sheet

MSIC

MS-9169

0ACustom

45 46Tuesday, August 31, 2004

of

5

4

3

2

1

PCB1
9169-00A

D D

PCB

U11_X1
MCH Heatsink

CPUA1
X_CPUA_NOPOP

RM

U11_X2
HS_HOOK

MCH

Heatsink

C C

CPU1_X1
X_CPU Supporter

CPU

Heatsink

BS2

1

H1

2

H2

B B

BS8

BAT1_X1
BAT-BCR2032P

+

BATTERY

-

1

H1

2

H2

BS1

H1
H2

U11_X3
HS_HOOK

BIOS1
PLCC-32

BIOS

1
2

CF CARD
64MB

BS3

RM

H1
H2

FM2
X_FM

LP10

X_D1x2

VCC5

H1
H2

12

1
2

12

LP1

1

X_D1x2

TL1

1
2

X_D1x2

TL2

1
2

X_D1x2

1
2

BS5

12

FM1
X_FM

1

FM4
X_FM

LP7

1

X_D1x2

Top Layer--5 mil

Solder side--5 mil

BS6

12

FM3
X_FM

LP8

1

X_D1x2

60 ohm

60 ohm

H1
H2

12

1
2

FM5
X_FM

LP9

1

X_D1x2

12

FM6
X_FM

LP2

X_D1x2

12

1

FM7
X_FM

LP5

X_D1x2

LP4

X_D1x2

12

1

1

FM8
X_FM

LP3

1

X_D1x2

LP6

1

X_D1x2

X_MH

X_MH

BS7

X_MH

H1
H2

X_MH

1
2

X_MH

X_MH

X_Value:NOPOP

A A

X_MH

5

BS4

Title

Size Document Number Rev

4

3

Date: Sheet

Micro-Star Int'l Co., Ltd.

No.69, Li-De St, Jung-He City, Taipei Hsien, Taiwan. http://www.msi.com.tw

Manual Parts

MS-9169

of

2

46 46Tuesday, August 31, 2004

1

0ACustom
