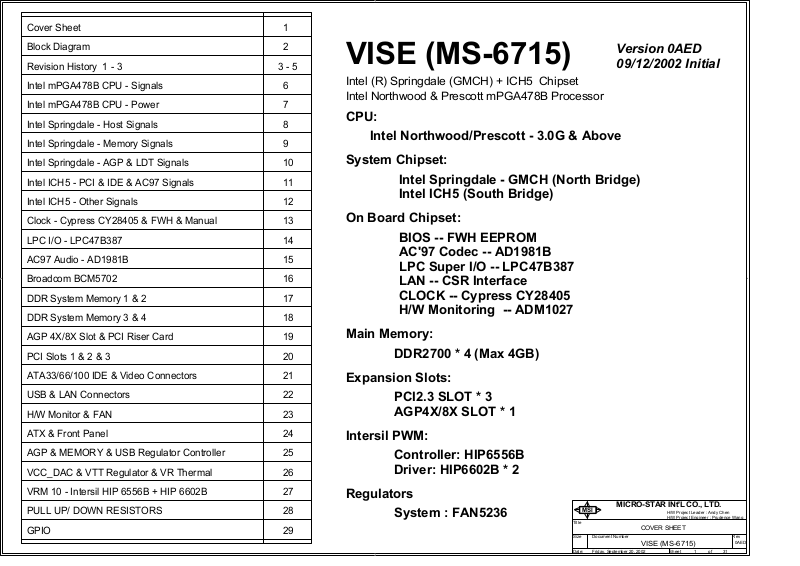

Page 1
1
Cover Sheet
Block Diagram
Revision History 1 - 3
Intel mPGA478B CPU - Signals
1
2
3 - 5
6
VISE (MS-6715)
Intel (R) Springdale (GMCH) + ICH5 Chipset
Version 0AED
09/12/2002 Initial
Intel Northwood & Prescott mPGA478B Processor
Intel mPGA478B CPU - Power
Intel Springdale - Host Signals
Intel Springdale - Memory Signals
Intel Springdale - AGP & LDT Signals

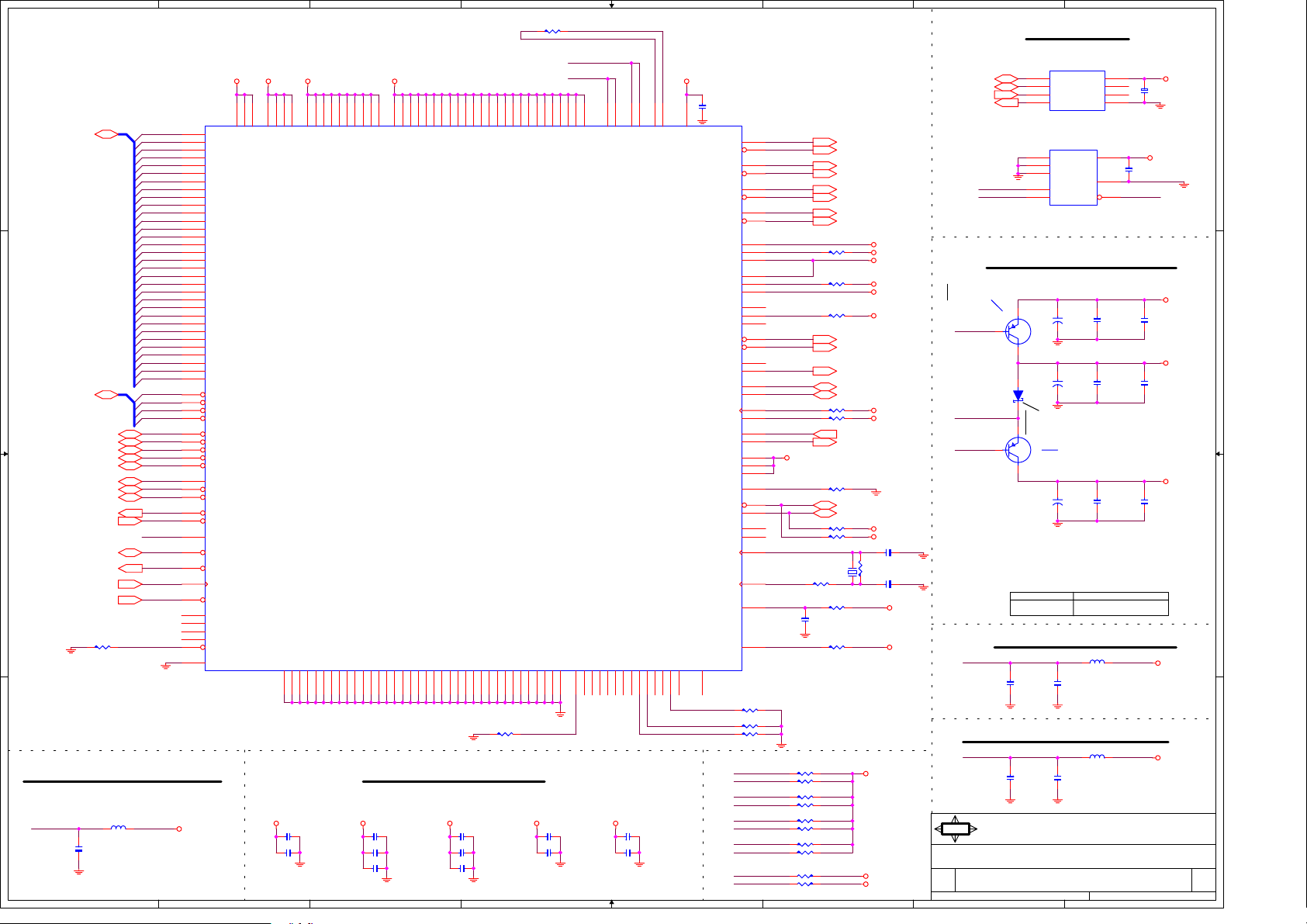

Intel ICH5 - PCI & IDE & AC97 Signals
Intel ICH5 - Other Signals
Clock - Cypress CY28405 & FWH & Manual

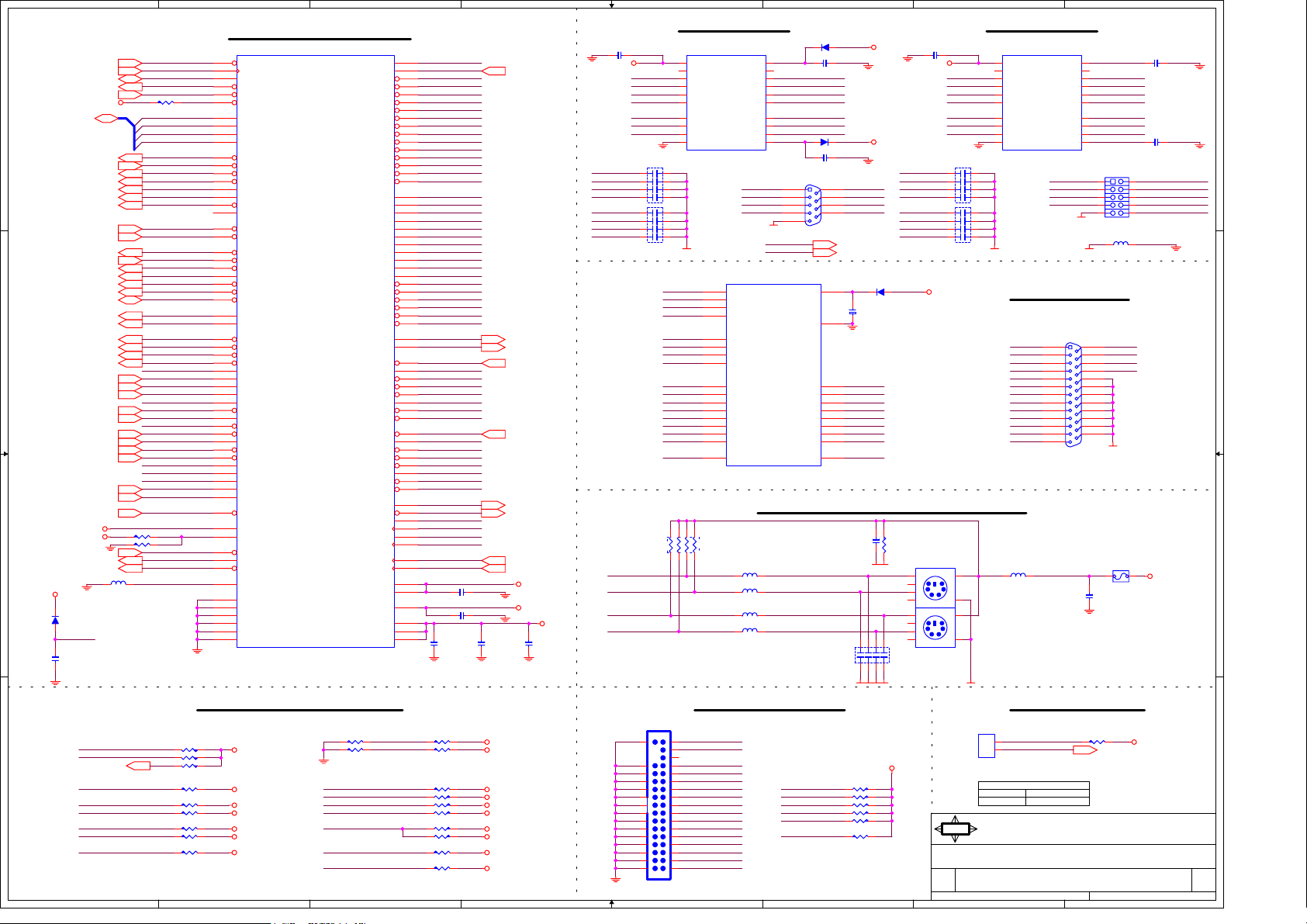

LPC I/O - LPC47B387

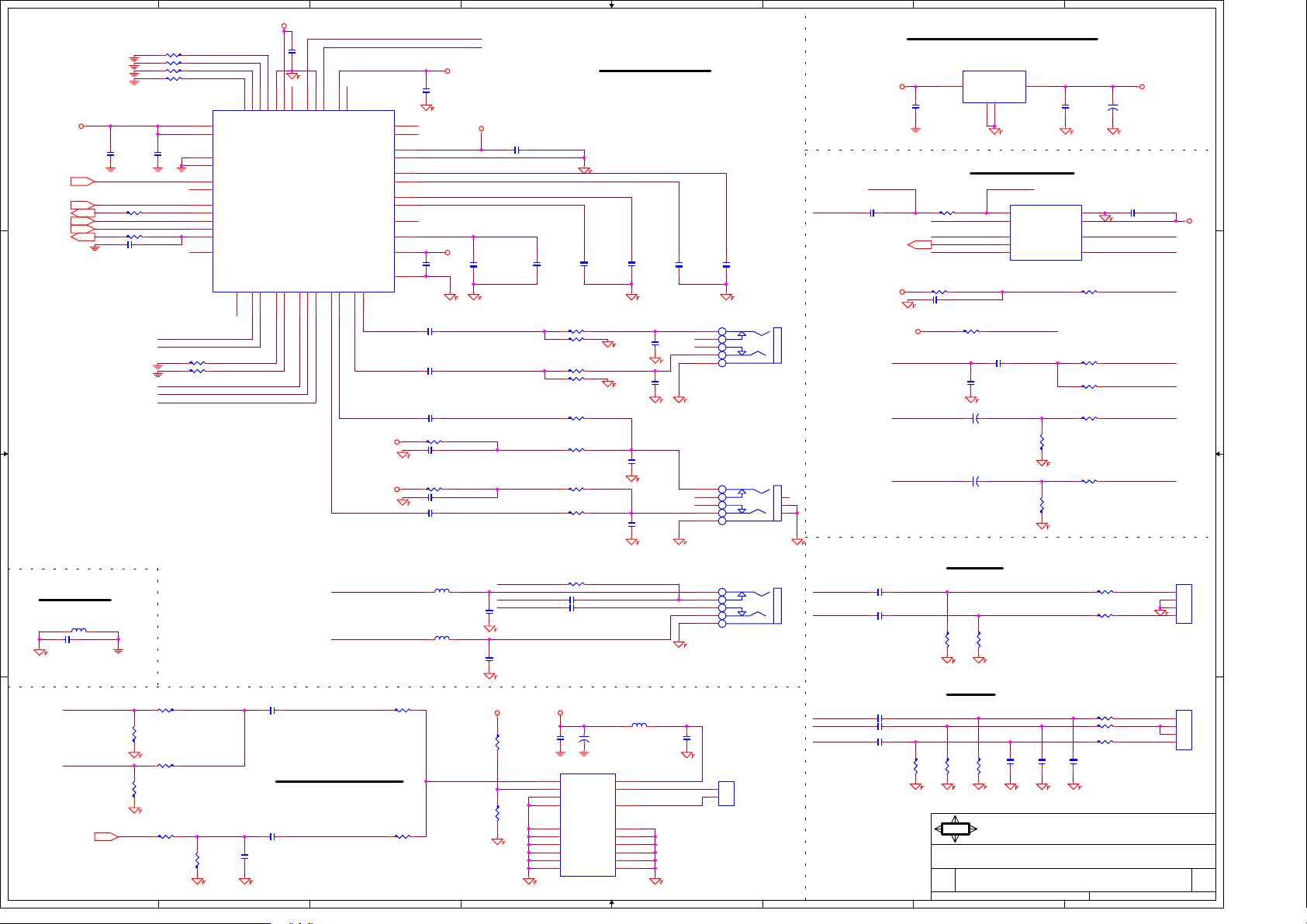

AC97 Audio - AD1981B
7
8
9
10
11
12
13
14
15
CPU:
Intel Northwood/Prescott - 3.0G & Above
System Chipset:
Intel Springdale - GMCH (North Bridge)
Intel ICH5 (South Bridge)
On Board Chipset:
BIOS -- FWH EEPROM
AC'97 Codec -- AD1981B
LPC Super I/O -- LPC47B387
A A
Broadcom BCM5702

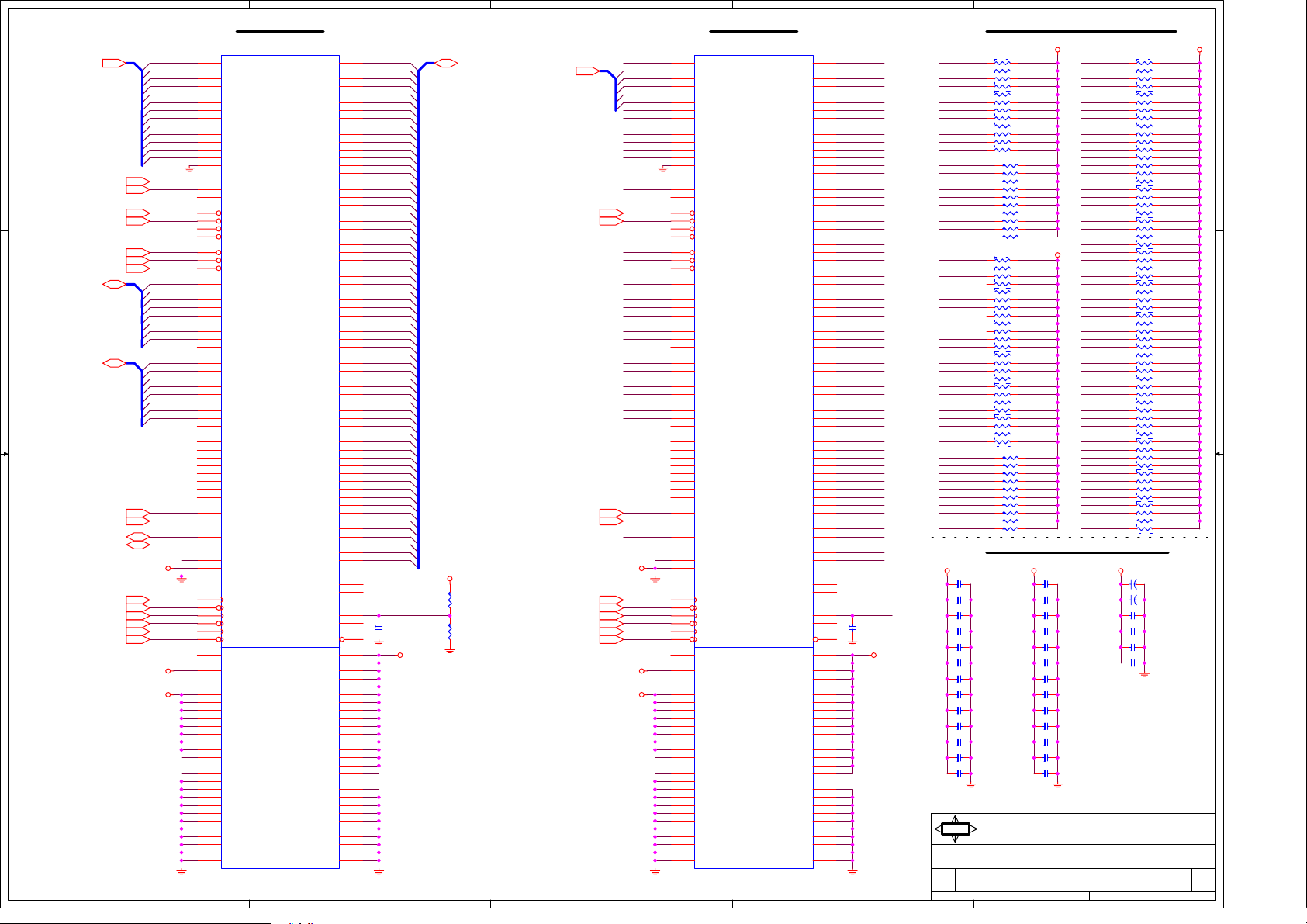

DDR System Memory 1 & 2

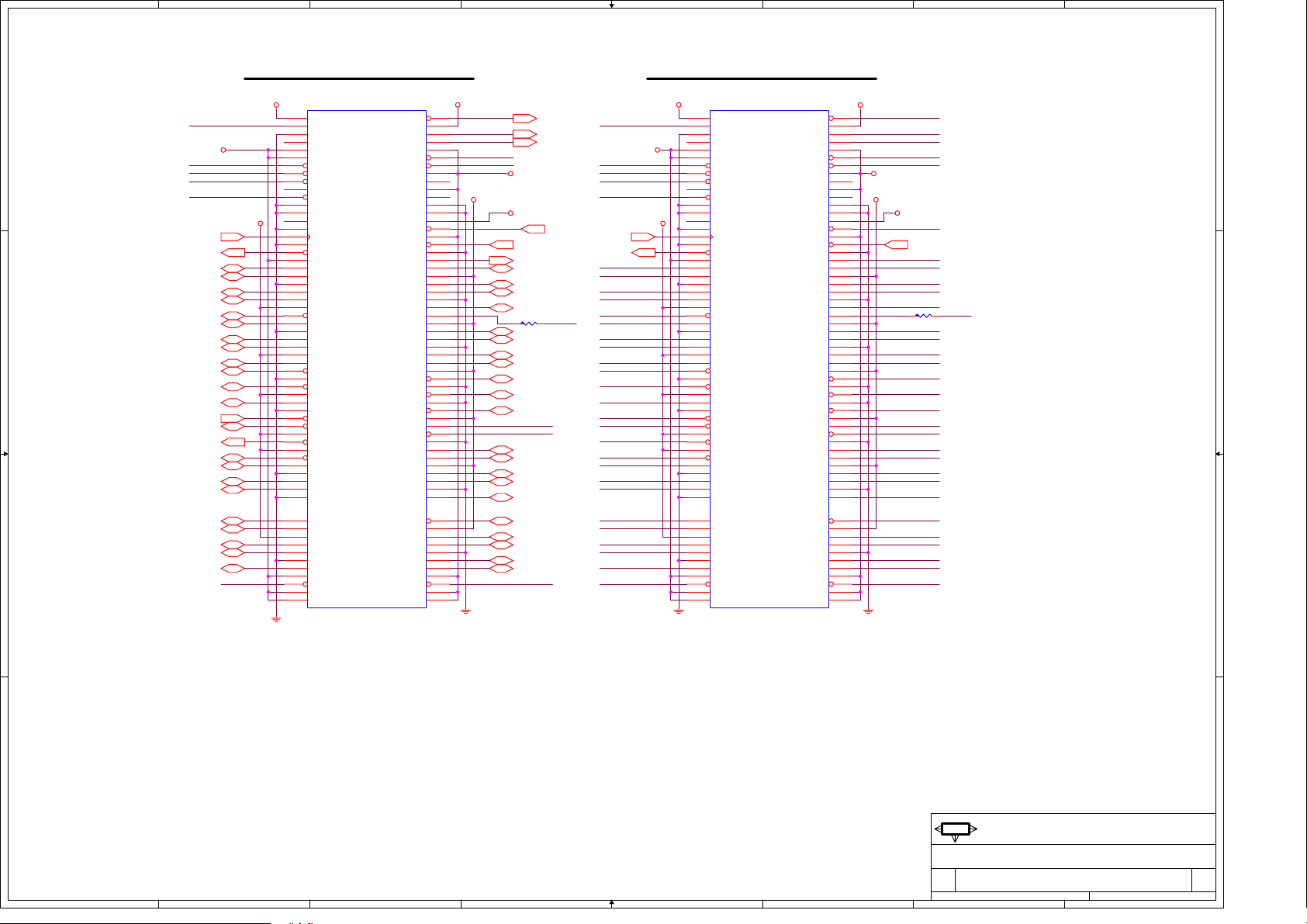

DDR System Memory 3 & 4
16
17
18
LAN -- CSR Interface
CLOCK -- Cypress CY28405
H/W Monitoring -- ADM1027
AGP 4X/8X Slot & PCI Riser Card
PCI Slots 1 & 2 & 3
ATA33/66/100 IDE & Video Connectors
USB & LAN Connectors
H/W Monitor & FAN
ATX & Front Panel

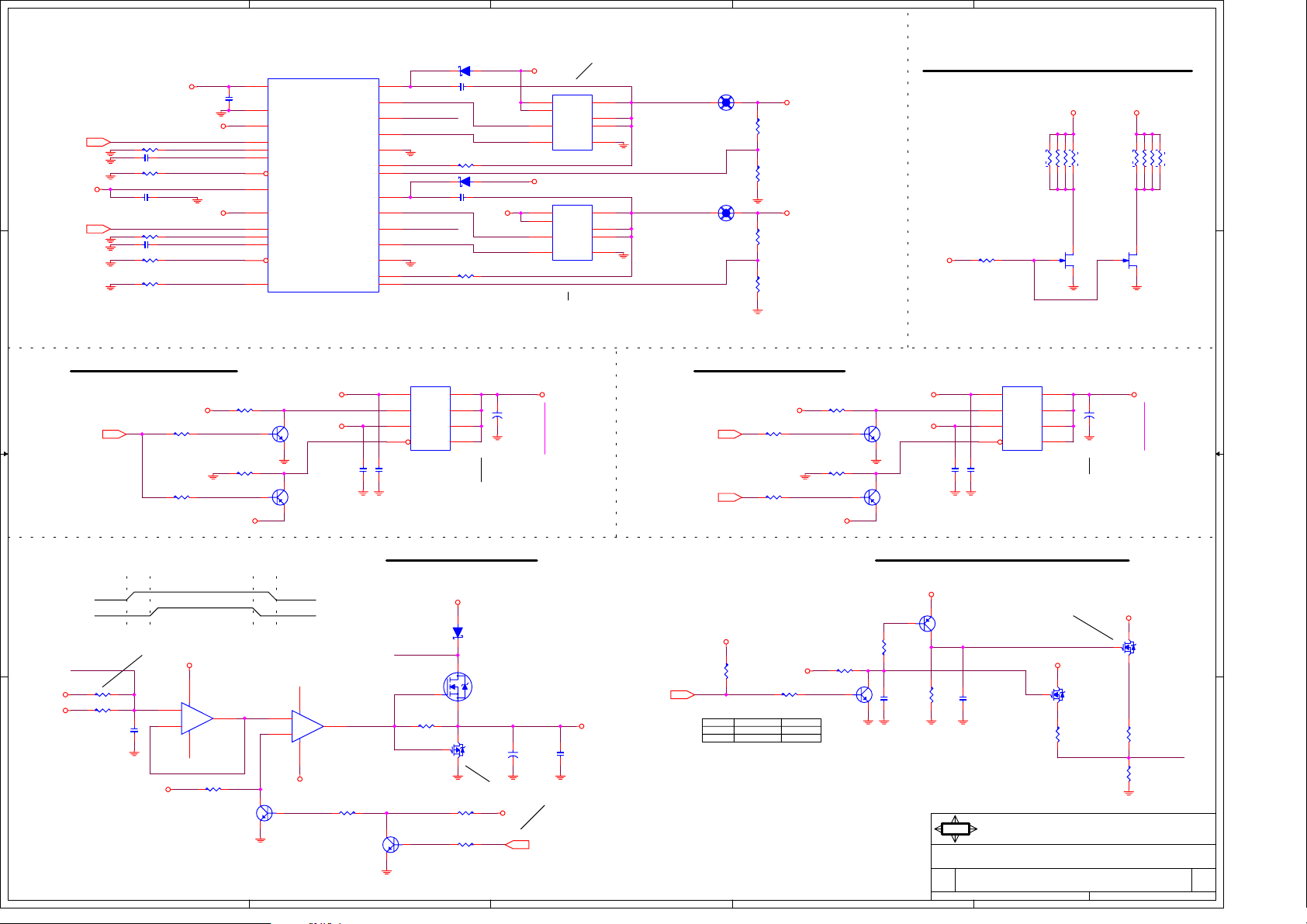

AGP & MEMORY & USB Regulator Controller

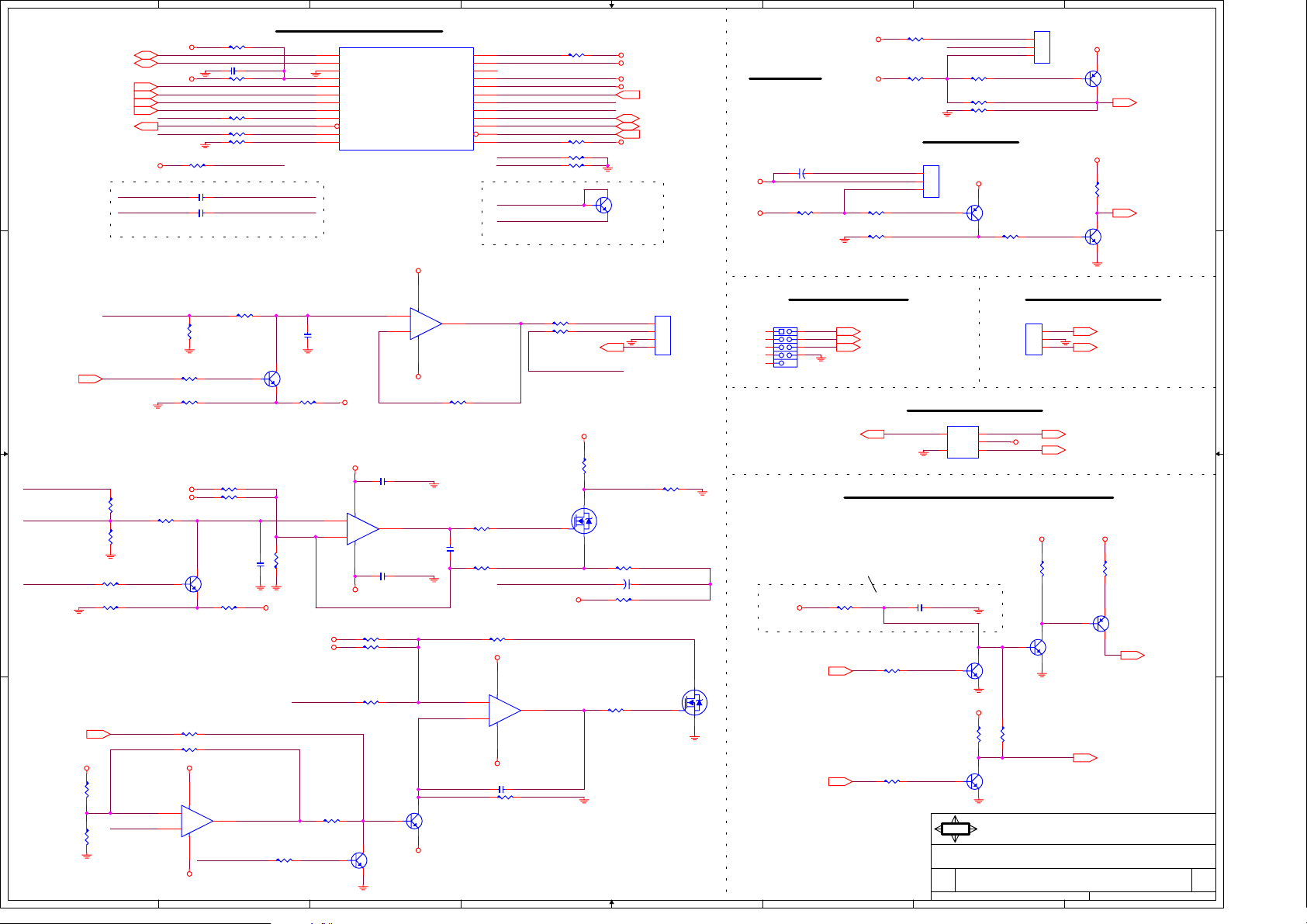

VCC_DAC & VTT Regulator & VR Thermal

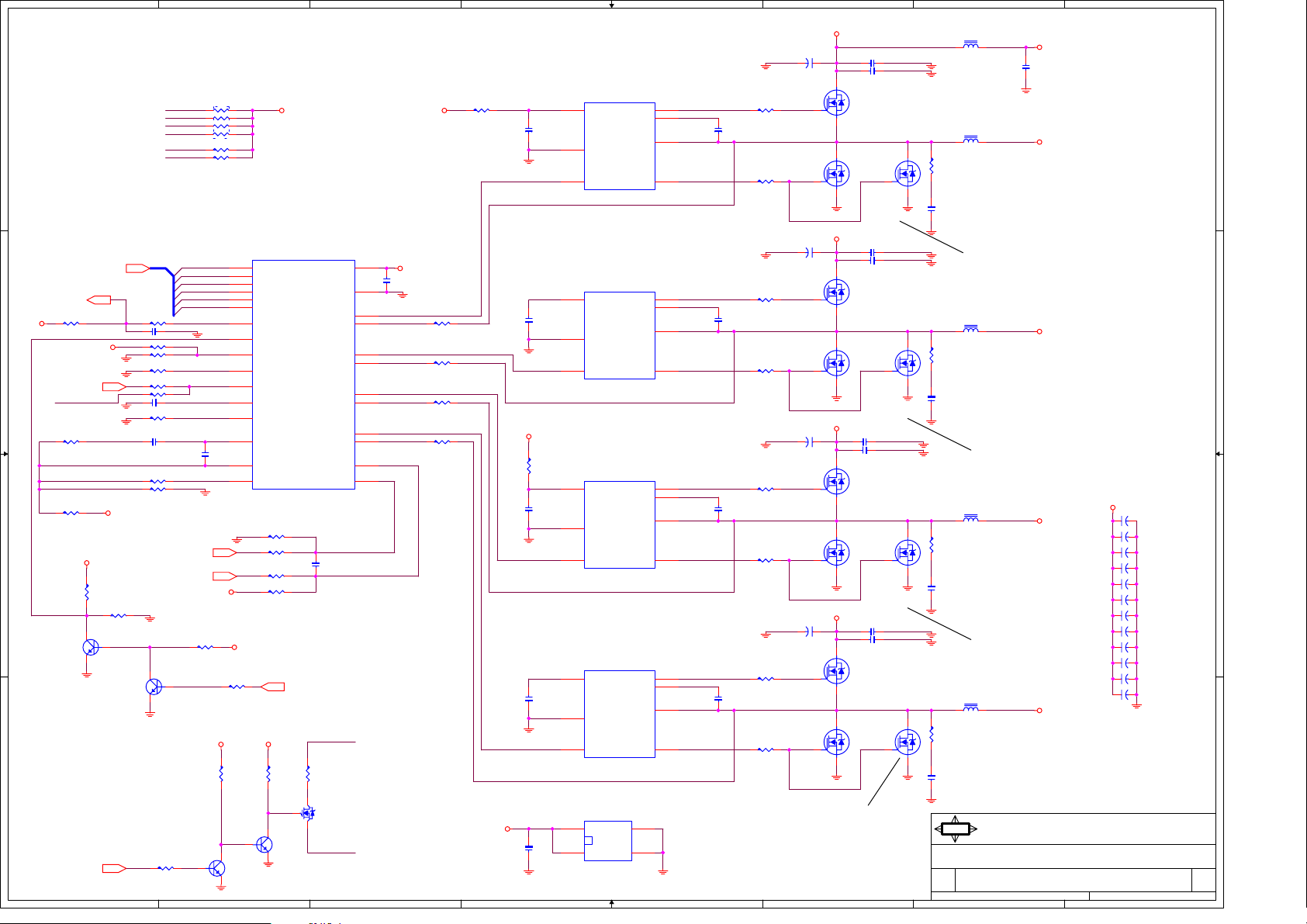

VRM 10 - Intersil HIP 6556B + HIP 6602B
PULL UP/ DOWN RESISTORS
GPIO
19
20
21
22
23
24
25
26
27
28
29
Main Memory:
DDR2700 * 4 (Max 4GB)
Expansion Slots:
PCI2.3 SLOT * 3
AGP4X/8X SLOT * 1
Intersil PWM:
Controller: HIP6556B
Driver: HIP6602B * 2
Regulators
System : FAN5236
1
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
COVER SHEET
VISE (MS-6715)
of
131Friday, September 20, 2002
0AED
Page 2
1
VRM 10
Intersil 6556
Intel mPAG478B Processor
Block Diagram
4-Phase PWM
FSB
64bit DDR
133/[email protected]/2.7GB/s
4 DDR
DIMM
Modules
AGP 1.5V
Connector
Analog
133/[email protected]/4.5GB/s
4X/8X w/Fast Write
Springdale
Video
Out
HCT
ICH5
Link
PCI CNTRL
PCI ADDR/DATA
33MHz@133MB/s
PCI Slot 1
PCI Slot 2
PCI Slot 3
66MHz@266MB/s
UltraDMA
IDE Primary
IDE Secondary
A A
USB Port 0
33/66/100/133
44.44MHz(W)/50MHz(R)@88.9/100MB/s
USB Port 1
USB Port 2
USB Port 3
USB Port 4
USB
240MHz@60MB/s
LPC Bus
LPC SIO
USB Port 5
SMSC
LPC47B387
USB Port 6
USB Port 7
AD1981B
AC'97 Codec
GIGA LAN
BCM5702
AC'97 Link
PCI
33MHz@133MB/s
Flash
Keyboard
Mouse
1
Floopy Parallel Serial
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
BLOCK DIAGRAM
VISE (MS-6715)
231Friday, September 20, 2002
of
0AED
Page 3
5
Revision Initial ver: 0AE0 on 07/31/2002
Schematic Initial on July 31.
Revision change list from ver: 0AE0 to ver: 0AE1 on 08/01/2002
Sheet 1: Modify some txts.
Sheet 2: Modify some txts.
Sheet 16: Move Lan connector to page 26.
D D
Sheet 25: Modify some block for customer request, detail list on below:
(1) Modify 5v USB power supplier.
(2) Modify 5V main power circuit.
(3) Modify GMCH VTT voltage supplier.
(4) Add GMCH VTT reference voltage circuit.
Sheet 26: Modify some block for customer request, detail list on below:
(1) Modify 3V standby power supplier.
(2) Change VTT_DDR to LP2995.
(3) Add lan magnetic circuit.
(4) Modify Lan connector.
(5) Add 1.5V standby voltage.
Revision change list from ver: 0AE1 to ver: 0AE2 on 08/09/2002
Sheet 8: Change VTT_FSB to capacitors termination on pin A15 and A21.
Sheet 9: Change VCC_DDR to capacitors termination on pin
C C
E35,E35,AA35,AR21 and AR15.
Sheet 27: Change some bulk caps from 2200uF to 560uF.
Revision change list from ver: 0AE2 to ver: 0AE3 on 08/13/2002
Sheet 12: Modify some block for customer request, detail list on below:
(1) Delete GP14 and GP15 on pin U21 and pin T20 on ICH5.
(2) Add CHASIS_ID2 on pin V3 on ICH5.
(3) Delete USB6+, USB6-, USB7+, and USB7-.
(4) Change FRONT_USB_DET# from pin C13 to pin D13 on ICH5.
Sheet 13: Modify some block for customer request, detail list on below:
(1) Modify clock generator library.
(2) Change PCI clock label.
(3) Add strapping resistors.
Sheet 17: Delete some caps on VCC_DDR.
Sheet 18: Delete some caps on VCC_DDR.
B B
Sheet 19: Delete some AGP termination resistors.
Sheet 20: Change PCI clock label.
Sheet 22: Modify some block for customer request, detail list on below:
(1) Delete 2 ports USB, and one USB power.
(2) Removed LAN connector to here.
Sheet 24: Modify some block for customer request, detail list on below:
(1) Change from GP14 to NC on pin 10 of F_P1.
(2) Change from NC to CHASIS_ID2 on pin 15 of F_P1.
(3) Change from GP15 to CHASIS_ID0 on pin 17 of F_P1.
(4) Change from GND to CHASIS_ID1 on pin 18 of F_P1.
(5) Pull VCC3_SB to pin C13 on ICH5.
Sheet 27: Modify some block for customer request, detail list on below:
(1) Change R473 from 1Kohm to NC.
A A
(2) Change R475 from 0 ohm to NC.
(3) Change some bulk caps from 2200uF to 560uF.
Sheet 28: Delete R89,R90,R91, and R92.
5
4
3
Revision change list from ver: 0AE3 to ver: 0AE4 on 8/14/2002
Sheet 13: Modify clock generator library.
Sheet 14: Modify some block for customer request, detail list on below:
(1) Change SERIAL PORT 2 connector to 10 pin center-keyed shrouded header.
(2) Add TI GD75232.
(3) Change label PS_ON to PS_ON#.
Sheet 15: Modify some block for customer request, detail list on below:
(1) Delete Q7,Q8,Q10,Q11,Q12,Q34.
(2) Modify this page same as reference schematic.
Sheet 17: Exchange pin 103 and pin 167 on DIMM1 and DIMM2.
Sheet 18: Exchange pin 103 and pin 167 on DIMM3 and DIMM4.
Sheet 21: Modify some block for customer request, detail list on below:
(1) Add 33 ohm series resistors on Data 15:0 on Primary IDE.
(2) Add 33 ohm series resistors on Data 15:0 on Secondary IDE.
(3) Delete U12, NC7WZ08.
Sheet 24: Modify some block for customer request, detail list on below:
(1) Delete Q31, R376, R377,and R378.
(2) Change label PS_ON to PS_ON#.
(3) Delete U12, NC7WZ08.
Sheet 25: Change Q25 from 2N3904 to 2N7002.
Revision change list from ver: 0AE4 to ver: 0AE5 on 08/16/2002
Sheet 6: Modify some block for customer request, detail list on below:
(1) All TESTHI pull up resistors change from 51ohm to 62ohm.
(2) Delete OPTIMZ label.
Sheet 7: Modify some block for customer request, detail list on below:
(1) Delete EC1 and EC2.
(2) Change L1 and L2 from 4.7uH to 10uH.
Sheet 8: Modify some block for customer request, detail list on below:
(1) Separate from VCCA_FSB and add 0.1uF cap to GND on pin A31.
(2) Change C225 from 0.22uF to 0.47uF.
Sheet 10: Modify some block for customer request, detail list on below:
(1) Add 2pins header to pin T20.
(2) Change pin D14 and C14 to OC#2 signal.
(3) Change label OC#2 to OC#3.
(4) Change label OC#3 to OC#7.
(5) Add label CI_VREF and CI_SWING to pin AF4 and AF2.
(6) Delete R65 on pin AG10.
Sheet 11: Modify some block for customer request, detail list on below:
(1) Add 0.1uF cap to pin F19.
(2) Add 0.1uF cap to pin Y5, AA4 and AB4.
(3) Add 0.1uF cap to pin F7 and F8.
Sheet 12: Modify some block for customer request, detail list on below:
(1) Change R102 from 0ohm to 10Kohm.
Sheet 13: Modify some block for customer request, detail list on below:
(1) Change R154 and R152 from 300ohm to 330ohm.
(1) Change R151 from 2Kohm to 2.2Kohm.
Sheet 15: Modify some block for customer request, detail list on below:
(1) Add 47ohm resistor to AC_SDIN0.
(2) Change R199 from 10ohm to 47ohm and add 47pF cap.
(3) Change R219 and R209 from 4.7Kohm to 100ohm.
(4) Change R202, R203, R207, R208 from 6.8Kohm to 4.7Kohm.
(5) Add divide 1Kohm pull down resistor to OUT_R and OUT_L signals.
(6) Delete C71.
4
3
2
1
Revision change list from ver: 0AE4 to ver: 0AE5 on 08/16/2002
Sheet 17: Modify some block for customer request, detail list on below:
(1) Add two 75 ohm divide resistors in DDR_VREF.
(2) Change 110ohm to 56ohm on Rterm array resistors.
(3) Add two divide 75ohm resistors pin 1.
Sheet 18: Modify some block for customer request, detail list on below:
(1) Add two 75 ohm divide resistors in DDR_VREF.
(2) Change 110ohm to 56ohm on Rterm array resistors.
(3) Add two divide 75ohm resistors pin 1.
Sheet 20: Modify some block for customer request, detail list on below:
(1) Add 2pins header for support Prochot latch.
Sheet 21: Modify some block for customer request, detail list on below:
(1) Change R299 and R295 from 4.7Kohm to 8.2Kohm.
Sheet 22: Modify some block for customer request, detail list on below:
(1) Add one usb power circuit to seperate port 0,1 and 2,3.
(2) Change R315 and R313 from 21Kohm to 470Kohm.
(3) Change R320 and R319 from 51Kohm to 560Kohm.
(4) Change C134 from 470pF to 1000pF.
Sheet 24: Modify some block for customer request, detail list on below:
(1) Change R380 from 330ohm to 68ohm.
Sheet 27: Modify some block for customer request, detail list on below:
(1) Change CT41-CT44 from 2200uF to 560uF.
Sheet 28: Modify some block for customer request, detail list on below:
(1) Change label OC#3 to OC#7.
(2) Add some divide resistors to CI_VREF and CI_SWING signals.
(3) Change R1 from 100ohm to 200ohm and add a 200ohm resistor pull to VTT voltage.
(4) Delete R14. and ITP_VCC direct connect to Vccp.
(5) Change BPM# from 51ohm to 62ohm.
(6) Change R30 from 220ohm to 200ohm.
(7) Add two 0ohm resistors to support ITP or USB_ITP port.
(6) Change R17 from 27ohm to 47ohm.
Revision change list from ver: 0AE5 to ver: 0AE6 on 08/19/2002
Sheet 25: Modify some block for customer request, detail list on below:
(1) Add 300 ohm resistor from BOOT to VCC_VID and change R423 to 10Kohms.
(2) Change R411 and R415 to 3V_SW_CTRL# signal.
Sheet 27: Modify some block for customer request, detail list on below:
(1) Add Northwood FB network and Prescott FB network to VRM controlled by BOOT.
(2) Change 110ohm to 56ohm on Rterm array resistors.
(3) Change R460,R464,R467,and R470 from 2.83Kohm to 3.3Kohm.
Sheet 28: Add teo 10Kohm pull down resistors to RSMRST# and ICH_GD signals.
Revision change list from ver: 0AE6 to ver: 0AE7 on 08/20/2002
Sheet 13: Modify some block for customer request, detail list on below:
(1) Change R495 from ICHPCLK to LANPCLK signal.
(2) Change R496 from FWHPCLK to PCICLK0 signal.
(3) Change R497 from LANPCLK to PCICLK1 signal.
Sheet 16: Delete CB89,CB90,CB88,CB114, CB117, and CB118.
Sheet 17: Change all component from 0603 to 0402.
Sheet 18: Change all component from 0603 to 0402.
MSI
Title
Size Document Number Rev
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
REVISION HISTORY - 1
VISE (MS-6715)
1
331Friday, September 20, 2002
0AED
of
Page 4
5
Revision change list from ver: 0AE7 to ver: 0AE8 on 08/21/2002
Sheet 7: Change some caps of north side to not install.
Sheet 12: Modify some block for customer request, detail list on below:
(1) Add LPC_DRQ#1 label on pin R2 on ICH5.
(2) Change pin Y12 from INTRUDER# to HOOD_SENSE#.
Sheet 13: Modify some block for customer request, detail list on below:
D D
(1) Remove R143 and R142. Connect FWH RST# signal directly to PCIRST#.
(2) Delete R154,Q5,Q3, and R151.
(3) Change R152 from 330 ohm to 8.2K ohm.
(4) Add one resistor to SEC_PCLK signal and share with SIO_PCLK.
(5) Delete INIT# BLOCK.
Sheet 14: Modify some block for customer request, detail list on below:
(1) Change pin 44 to BRD_V1.
(2) Change pin 45 to MB_ADPT_DET#.
(3) Change pin 47 to SEC_TPM_PRES.
(4) Change pin 49 to MB_ADPT_DET#.
(5) Change pin 54 to FDD_2M.
(6) Add pin 104 to 5V_IN.
Sheet 18: Change all component from 0603 to 0402.
Sheet 20: Modify some block for customer request, detail list on below:
C C
(1) Change TAP resistors from 4.7Kohm to 2.2Kohm.
(2) Add a 2.2Kohm pull down resistor to PCIRST#1.
Sheet 24: Add Security header.
Sheet 25: Change VCC5 & VCC3 Discharge Residual Voltage same as reference schematic.
Revision change list from ver: 0AE8 to ver: 0AE9 on 08/23/2002
Sheet 16: Support BCM4401.
Sheet 20: Modify some block for customer request, detail list on below:
(1) Delete CT17.
(2) Change CT16 from intall to not install.
Sheet 23: Delete CB284 and R324.
Sheet 27: Change R456,R466,R479, and R489 from 1 ohm/1206 to 4.7ohm/0805.
Revision change list from ver: 0AE9 to ver: 0AEA on 08/26/2002
Sheet 11: Change Label from VCC3_SB to 3VSB.
Sheet 13: Modify some block for customer request, detail list on below:
B B
(1) Change Label from PCIRST# to PCIRST_ICH5#.
(2) Change all pull high resistors of clock generator from VCC3V to VCC3.
Sheet 14: Modify some block for customer request, detail list on below:
(1) Change Label from VCC3_SB to 3VSB.
(2) Change pin 45 to GP25 and add a 4.7Kohm resistor to VCC3 on GP25.
(3) Add a label SYSMAG_INT on pin 61.
(4) Change pin 44 to MB_ADPT_DET#.
(5) Change pin 49 to SEC_TPM_PRES.
Sheet 15: Modify some block for customer request, detail list on below:
(1) Delete R514, R515, C81, C86, C88, C89.
(2) Change R211 & R216 to 0 ohm.
(3) Change C82 & C84 to 4.7uF.
(4) Change R209 & R219 to 4.7K.
A A
(5) Add 0.22uF and 4.12K in series to pin1 of Front Audio Header.
(6) Add label bias circuit to pin 3 of Front Audio Header.
(7) Add X_330 ohm from OUT_L to junction of C218 & R504.
Sheet 16: Change Label from VCC3_SB to 3VSB.
Sheet 21: Change Label from VCC3_SB to 3VSB.
Sheet 22: Change Label from VCC3_SB to 3VSB.
5
4
Revision change list from ver: 0AE9 to ver: 0AEA on 08/26/2002
Sheet 23: Modify some block for customer request, detail list on below:
(1) Change H/W monitoring circuit.
(2) Change Fan circuit.
Sheet 24: Change Label from VCC3_SB to 3VSB.
Sheet 25: Change Label from VCC3_SB to 3VSB.
Sheet 26: Change Label from VCC3_SB to 3VSB.
Sheet 27: Change Label from VCC3_SB to 3VSB.
Sheet 28: Change Label from VCC3_SB to 3VSB.
Revision change list from ver: 0AEA to ver: 0AEB on 09/03/2002
Sheet 6: Change CPU Symbol - pin F6=GTLREF3, pin F20=GTLREF2, pin
AA6=GTLREF1, pin AA21=GTLREF0.
Sheet 9: Modify some block for customer request, detail list on below:
(1) Disconnect U28 pin E34 (GMCH) directly to VREF.
(2) Add a 2.2uF cap to this pin E34.
Sheet 13: Modify some block for customer request, detail list on below:
(1) Change R135 & R139 from 1K to 10K.
(2) Add pullup resistor from BSEL0 to VCC3.
(3) Add pullup resistor from BSEL1 to VCC3.
Sheet 21: Change FB16, FB18 & FB20 to be the same as FB17, FB19 & FB21.
Sheet 25: Modify some block for customer request, detail list on below:
(1) Change Q40 & Q41 to Depletion Mode JFETs.
(2) Connect R400 to -12V.
(3) Change R399 to a 39 ohm RNET and connect in parallel to VCC5.
(4) Change R405 to a 39 ohm RNET and connect in parallel to VCC3.
(5) Move R417 from Drain of Q51 to Source.
(6) Change R417 from 150 to 866 ohms.
(7) Change R425 from 150 to 634ohms.
(8) Change R426 from 150 to 499 ohms.
Sheet 28: Change R46 & R50 to 150 ohms 1%.
Revision change list from ver: 0AEB to ver: 0AEC on 09/09/2002
Sheet 7: Delete 0.1uF caps on CPU side.
Sheet 8: Change R41 from 24.9ohm to 20ohm.
Sheet 9: Modify some block for customer request, detail list on below:
(1) Disconnect U2 pin AR31 (GMCH).
(2) Disconnect U2 pin AL35 (GMCH) and add single cap to it.
Sheet 17: Delete decoupling caps between VCC_DDR and VTT_DDR.
3
2
1
Revision change list from ver: 0AEC to ver: 0AED on 09/12/2002
Sheet 14: Modify some block for customer request, detail list on below:
(3) Swap net BRD_V1 and FAN_CLAMP.
(2) Delete R551, and change net 5V_IN to COMM_B_DET#.
Sheet 15: Modify some block for customer request, detail list on below:
(1) Change R196 to 3.3Kohm.
(2) Add a 270pF cap to GND and AGND, not install.
(3) Add a 1uF caps to MONO_L and MONO_L_R.
(4) Add a 1uF caps to MONO_R and MONO_R_R.
(5) Change R501 and R555 to 130ohm.
(6) Change C218 from 4700pF to 0.01uF.
Sheet 17: Change net DDR_VREF to DDR_VREF1.
Sheet 18: Change net DDR_VREF to DDR_VREF2, and add two resistors.
Sheet 23: Modify some block for customer request, detail list on below:
(1) Modify H/W monitoring and FAN controller.
(2) Change U13 pin 22 from VCC_DDR to No Connect.
Sheet 24: Add PROCHOT# LED.
Sheet 25: Modify some block for customer request, detail list on below:
(1) Delete R394 and R401.
(2) Change C166 to 0.01uF.
(3) Change Q38 pin 5 and pin 6 to VCC5_STR.
(4) Change Q39 pin 5 and pin 6 to VCC3.
(5) Change Q38 pin 3 to PHASE_2V5.
(6) Change Q39 pin 3 to PHASE_1V5.
(7) Change DZ5 to VCC5.
(8) Change U15 pin 15 and 16 to VCC5_STR.
Sheet 26: Modify some block for customer request, detail list on below:
(1) Add VR THERMAL BLOCK.
(2) Add ICH5 VCCSUS1_5A, B, and C voltage regulatot to support this version fail
chipset.
Sheet 28: Modify some block for customer request, detail list on below:
(1) Delete R35, IERR#.
(2) Change net GPI12 to PS_DETECT.
(3) Change net GPI7 to PROC_HOT#.
(4) Add Thermtrip Translation Block.
(5) Change RN3 pin 2 to No Connect.
(6) Delete C36, C37, and R100.
(7) Delete net RTC_XI.
Sheet 18: Delete decoupling caps between VCC_DDR and VTT_DDR.
Sheet 21: Change all arrary resistors from 0603 to 0402 on all IDE.
Sheet 22: Add secondary transformer to support 10M and 100M NIC.
Revision change list from ver: 0AEC to ver: 0AED on 09/12/2002
Sheet 6: Modify some block for customer request, detail list on below:
(1) Disconnect CPU1 pin AC3, IERR# signal.
(2) Add a pull down resistor to CPU1 pin AE26, OPTIMIZ signal, and not install.
Sheet 7: Change R36 from 1Kohm to 2.43Kohm.
Sheet 11: Add RN91 to support VCCSUS1_5A,B,C voltage for ICH5.
Sheet 12: Modify some block for customer request, detail list on below:
(1) Change net GPI12 to PS_DETECT.
(2) Add net FAN_CMD to pin U20.
(3) Change net GPI7 to PROC_HOT#.
(4) Change R102 to 390Kohm, not install ,and a resistor to GND.
(5) Delete net RTC_XI.
Sheet 14: Modify some block for customer request, detail list on below:
(1) Change net TRMTRIP# to SIO_TRMTRIP#.
(2) Delete R551, and change net 5V_IN to COMM_B_DET#.
4
3
2
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
REVISION HISTORY - 2
VISE (MS-6715)
431Friday, September 20, 2002
1
of
0AED
Page 5
5
D D
C C
4
3
2
1
B B
A A
MSI
Title
Size Document Number Rev
5
4
3
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
REVISION HISTORY - 3
VISE (MS-6715)
531Friday, September 20, 2002
1
of
0AED
Page 6
8
7
6
5
4
3
2
1
CPU SIGNAL BLOCK
HA#[3..31]8
D D
HA#10
HA#14
A15#
D30#
J24
A14#
D29#
HA#13
HA#12
A13#
D28#
L22
M21
A12#
D27#
HA#11
A11#
D26#
H24
G26
A10#
D25#
HA#9
A9#
D24#
L21
HA#8
A8#
D23#
D26
HA#7
A7#
D22#
F26
HA#6
A6#
D21#
E25
HA#5
A5#
D20#
F24
HA#4
A4#
D19#
F23
HA#3
A3#
D18#
G23
D17#
E24
AE25A5A4
DBR#
D16#
D15#
H22
D25
VCC_SENSE
D14#
D13#
J21
D23
C26
AD26
AC26
ITP_CLK1
ITP_CLK0
VSS_SENSE
D12#
D11#
D10#
D9#
H21
G22
B25
C24
VID5
AD2
AD3
VID5#
VIDPWRGD
D8#
D7#
D6#
C23
B24
VID4
AE1
VID4#
D5#
D22
VID3
AE2
VID3#
D4#
C21
VID2
AE3
VID2#
D3#
A25
VID1
AE4
A23
HA#17
HA#20
HA#22
A30#
D45#
HA#29
HA#28
A29#
D44#
T26
R24
A28#
D43#
HA#26
HA#27
A27#
D42#
R25
P24
A26#
D41#
HA#24
HA#25
A25#
D40#
R21
N25
A24#
D39#
HA#23
A23#
D38#
N26
M26
HA#30
HA#31
CPU1A
HDBI#[0..3]8
FERR#12
STPCLK#12
HDBI#0
HDBI#1
HDBI#2
HDBI#3
HINIT#12
HDBSY#8
HDRDY#8
HTRDY#8
HADS#8
HDEFER#8
ITP_TRST#29
THERMDP#24
THERMDN#24
TRMTRIP#24,29
SKTOCC#14
PROCHOT#8,24,25
HLOCK#8
HBNR#8
HIT#8
HITM#8
HBPRI#8
ITP_TDI29
ITP_TDO29
ITP_TMS29
ITP_TCK29
IGNNE#12
SMI#12
A20M#12
SLP#12
BOOT26,28
R627 X_0
BSEL08,13
BSEL18,13
OPTIMIZ
C C
B B
CPU_GD12,29
CPURST#8,29
HD#[0..63]8
HD#63
HD#62
HD#61
HD#60
HD#59
HD#58
HD#57
HD#56
HD#55
HD#54
E21
DBI0#
G25
DBI1#
P26
DBI2#
V21
DBI3#
AC3
IERR#
V6
MCERR#
B6
FERR#
Y4
STPCLK#
AA3
BINIT#
W5
INIT#
AB2
RSP#
H5
DBSY#
H2
DRDY#
J6
TRDY#
G1
ADS#
G4
LOCK#
G2
BNR#
F3
HIT#
E3
HITM#
D2
BPRI#
E2
DEFER#
C1
TDI
D5
TDO
F7
TMS
E6
TRST#
D4
TCK
B3
THERMDA
C4
THERMDC
A2
THERMTRIP#
AF26
GND/SKTOCC#
C3
PROCHOT#
B2
IGNNE#
B5
SMI#
C6
A20M#
AB26
SLP#
A22
RESERVED0
A7
RESERVED1
AE21
RESERVED2
AF24
RESERVED3
AF25
RESERVED4
AD1
BOOTSELECT
AE26
OPTIMIZED/COMPAT#
AD6
BSEL0
AD5
BSEL1
AB23
PWRGOOD
AB25
RESET#
AA24
D63#
AA22
D62#
AA25
D61#
Y21
D60#
Y24
D59#
Y23
D58#
W25
D57#
Y26
D56#
W26
D55#
V24
D54#
AB1Y1W2V3U4T5W1R6V2T4U3P6U1T2R3P4P3R2T1N5N4N2M1N1M4M3L2M6L3K1L6K4K2
A35#
A34#
A33#
A32#
A31#
D53#
D52#
D51#
D50#
D49#
D48#
D47#
D46#
V22
U21
V25
U23
U24
U26
T23
T22
T25
A22#
D37#
HA#21
A21#
D36#
N23
M24
HA#19
A20#
D35#
P21
A19#
D34#
HA#18
A18#
D33#
N22
M23
A17#
D32#
HA#16
HA#15
A16#
D31#
H25
K23
ITP_DBR# 29
VCC_SENSE 28
VSS_SENSE 28
VID_GD 7
VID[0..5] 24,28
VID0
AE5
VID1#
VID0#
GTLREF0
GTLREF1
GTLREF2
GTLREF3
BPM5#
BPM4#
BPM3#
BPM2#
BPM1#
BPM0#
REQ4#
REQ3#
REQ2#
REQ1#
REQ0#
TESTHI12
TESTHI11
TESTHI10
TESTHI9
TESTHI8
TESTHI7
TESTHI6
TESTHI5
TESTHI4
TESTHI3
TESTHI2
TESTHI1
TESTHI0
BCLK1#
BCLK0#
RS2#
RS1#
RS0#
AP1#
AP0#
BR0#
COMP1
COMP0
DP3#
DP2#
DP1#
DP0#
ADSTB1#
ADSTB0#
DSTBP3#
DSTBP2#
DSTBP1#
DSTBP0#
DSTBN3#
DSTBN2#
DSTBN1#
DSTBN0#
LINT1/NMI
LINT0/INTR
D2#
D1#
D0#
NORTHWOOD/PRESCOTT
B22
B21
{Priority}
AA21
AA6
F20
F6
AB4
AA5
Y6
AC4
AB5
AC6
H3
J3
J4
K5
J1
AD25
A6
Y3
W4
U6
AB22
AA20
AC23
AC24
AC20
AC21
AA2
AD24
AF23
AF22
F4
G5
F1
V5
AC1
H6
P1
L24
L25
K26
K25
J26
R5
L5
W23
P23
J23
F21
W22
R22
K22
E22
E5
D1
GTLREF
BPM#5
BPM#4
BPM#3
BPM#2
BPM#1
BPM#0
HREQ#4
HREQ#3
HREQ#2
HREQ#1
HREQ#0
TESTHI12
TESTHI11
TESTHI10
TESTHI9
TESTHI8
TESTHI2
TESTHI1
TESTHI0
HRS#2
HRS#1
HRS#0
COMP1
COMP0
GTLREF 8,29
C2 220p_X7R
{VOLTAGE}
BPM#5 29
BPM#4 29
BPM#3 29
BPM#2 29
BPM#1 29
BPM#0 29
R3 62
R4 62
R5 62
R6 62
R7 62
R9 62
R624 62
R10 62
CPU_CLK# 13
CPU_CLK 13
HBR#0 8,29
R13 61.9RST
R15 61.9RST
HADSTB#1 8
HADSTB#0 8
HDSTBP#3 8
HDSTBP#2 8
HDSTBP#1 8
HDSTBP#0 8
HDSTBN#3 8
HDSTBN#2 8
HDSTBN#1 8
HDSTBN#0 8
NMI 12
INTR 12
HREQ#[0..4] 8
VCCP
HRS#[0..2] 8
HD#49
HD#48
HD#46
HD#47
HD#44
HD#45
6
HD#43
HD#42
HD#41
HD#38
HD#39
HD#37
HD#36
HD#34
HD#35
HD#32
HD#33
HD#53
HD#50
HD#51
A A
8
7
HD#52
HD#40
HD#30
HD#31
HD#29
HD#28
HD#26
HD#27
HD#24
HD#25
5
HD#22
HD#23
HD#21
HD#20
HD#18
HD#19
HD#16
HD#17
HD#15
HD#14
HD#13
HD#12
HD#10
HD#11
HD#9
HD#8
HD#7
HD#6
4
HD#5
HD#4
HD#3
HD#2
HD#1
HD#0
MSI
Title
Size Document Number Rev
3
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
Intel mPGA478B - Signals
VISE (MS-6715)
2
631Friday, September 20, 2002
1
0AED
of
Page 7
8
7
6
5
4
3
2
1
U1
AF7
D14
VID_GD6,13
VCC
VSS
AF9
D16
VIDGD rising time is 150ns.VID to VIDGD deassertion time is 1ms for max.
B11
VCC
VSS
D18
1
3
2
B13
B15
B17
B19B7B9
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
D20
D21D3D24D6D8E1E11
VIN
GNDENPOK
SN105125-150mA-N
{Priority}
VCC
VCC
VSS
VSS
VCC3
AE6
VCC
VSS
C15
VCC
VSS
AE8
AF11
VCC
VSS
C17C2C19
CB336 0.1u_Y5V
AF13
AF15
AF17
AF19
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
C22
C25C5C7C9D12
VCC
VSS
AF2
VCC
VSS
AF21
VCC
VSS
AF5
VCC
VSS
CPU VOLTAGE BLOCK
VID Voltage is from 1.14V to 1.32V.
It is derived from 3.3V.
D D
VCCP
A10
A12
A14
A16
A18
A20A8AA10
AA12
AA14
AA16
AA18
AA8
AB11
AB13
AB15
AB17
AB19
AB7
AB9
AC10
AC12
VCC
VSS
AE9
VCC
VSS
AF1
VCC
VSS
VCC
VSS
AF10
VCC
VSS
AF12
VCC
VSS
AF14
AC14
AF16
CPU1B
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
AE13
VSS
AE15
VSS
AE17
VSS
AE19
VSS
AE22
VCC
VSS
AE24
AE7
D10
VSS
A11
VSS
A13
VSS
A15
VSS
A17
VSS
A19
VSS
A21
VSS
A24
VSS
A26
VSS
A3
VSS
A9
VSS
AA1
VSS
AA11
VSS
AA13
VSS
AA15
VSS
AA17
VSS
C C
B B
AA19
AA23
AA26
AA4
AA7
AA9
AB10
AB12
AB14
AB16
AB18
AB20
AB21
AB24
AB3
AB6
AB8
AC11
AC13
AC15
AC17
AC19
AC2
AC22
AC25
AC5
AC7
AC9
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AD10
VSS
AD12
VSS
AD14
VSS
AD16
VSS
AD18
VSS
AD21
VSS
AD23
AD4
VSS
AD8
VSS
VSS
AE11
It should be able to source 150mA.
It drives the power logic of BSEL[1:0] and VID[5:0]. It must rout to the enable pin of PWM and CK-409.
VID to VIDGD delay time is from 1ms to 10ms. VIDGD to Vccp delay time is from 1ms to 10ms.
AC16
AC18
AC8
AD11
AD13
AD15
AD17
AD19
AD7
AD9
AE10
AE12
AE14
AE16
AE18
AE20
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AF18
AF20
AF6
AF8
B10
B12
B14
B16
B18
B23
B20
B26B4B8
C11
C13
C10
VCC
VSS
C12
VCC
VSS
VOUT
C14
VCC
VSS
E13
C16
E15
C18
VCC
VSS
E17
5
4
C20C8D11
VCC
VCC
VSS
VSS
E19
E23
VCC
VSS
D13
D15
VCC
VCC
VSS
VSS
E7E9F10
E4
E26
R36
2.43KST
D17
VCC
VCC
VSS
VSS
D19D7D9
VCC
VCC
VSS
VSS
F12
E10
VCC
VCC
VSS
VSS
F14
F16
VCC_VID
C4
1u-0805_Y5V
E12
E14
E16
E18
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
F18F2F22
F25F5F8
E20E8F11
VCC
VCC
VSS
VSS
F13
VCC
VSS
G21G6G24
Near processorNear regulator
F15
F17
VCC
VCC
VCC
VSS
VSS
VSS
G3H1H23
C5
0.1u_Y5V
F19
F9
VCC
VCC
VSS
VSS
H26H4J2
AF4
VCC-VID
VSS
VSS
1.2V 150mA
VCC_VID
AE23
AD20
AF3
VCCA
VCC-IOPLL
VCC-VIDPRG
VSS
VSS
VSS
VSS
VSS
J22
J25J5K21
NORTHWOOD/PRESCOTT
{Priority}
CPU_IOPLL
VSSA
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AD22
Y5
Y25
Y22
Y2
W6
W3
W24
W21
V4
V26
V23
V1
U5
U25
U22
U2
T6
T3
T24
T21
R4
R26
R23
R1
P5
P25
P22
P2
N6
N3
N24
N21
M5
M25
M22
M2
L4
L26
L23
L1
K6
K3
K24
EC3
22u-1206_Y5V
{VOLTAGE}
VSSA
It must close bulk caps.
It support DC current if 100mA.
L1 4.7uH-1206
L2 4.7uH-1206
EC4
10u-1206_Y5V
{VOLTAGE}
DC voltage drop should
be less than 70mV.
VCCP
CPU DECOUPLING CAPACITORS
VCCP
EC5
22u-1206_Y5V
EC13
22u-1206_Y5V
EC21
22u-1206_Y5V
EC28
22u-1206_Y5V
EC35
A A
22u-1206_Y5V
EC42
22u-1206_Y5V
Place these caps within socket cavity Place these caps within south side of processor
8
VCCP VCCP VCCP VCCP VCCP VCCPVCCP
EC6
22u-1206_Y5V
EC14
22u-1206_Y5V
EC22
22u-1206_Y5V
EC29
22u-1206_Y5V
EC36
22u-1206_Y5V
EC43
22u-1206_Y5V
7
EC37
22u-1206_Y5V
EC15
22u-1206_Y5V
EC23
22u-1206_Y5V
EC30
X_22u-1206_X5R-N
EC7
X_22u-1206_X5R-N
EC44
X_22u-1206_X5R-N
Place these caps within north side of processor
6
EC8
22u-1206_Y5V
EC32
22u-1206_Y5V
EC39
22u-1206_Y5V
EC31
22u-1206_Y5V
EC17
22u-1206_Y5V
EC45
22u-1206_Y5V
5
EC9
X_22u-1206_X5R-N
EC38
X_22u-1206_X5R-N
EC25
X_22u-1206_X5R-N
EC16
X_22u-1206_X5R-N
EC24
X_22u-1206_X5R-N
EC46
X_22u-1206_X5R-N
EC10
22u-1206_Y5V
EC18
22u-1206_Y5V
EC26
22u-1206_Y5V
EC33
22u-1206_Y5V
EC40
22u-1206_Y5V
4
EC11
22u-1206_Y5V
EC19
22u-1206_Y5V
EC27
22u-1206_Y5V
EC34
22u-1206_Y5V
EC41
22u-1206_Y5V
3
820u/2.5V properly in further
+
EC12
150u-2.5V
{Priority}
+
EC20
150u-2.5V
MSI
{Priority}
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
Intel mPGA478B - Power
VISE (MS-6715)
2
731Friday, September 20, 2002
of
1
Solder side
Title
Size Document Number Rev
Date: Sheet
0AED
Page 8
8
VCCA_FSB29
VCCA_DPLL29
HA#3
HA#[3..31]6
D D
C C
HADSTB#06
HADSTB#16
HBR#06,29
HBPRI#6
HBNR#6
HLOCK#6
HADS#6
HREQ#[0..4]6
HIT#6
HITM#6
HDEFER#6
HTRDY#6
HDBSY#6
HDRDY#6
HRS#[0..2]6
B B
MCH_CLK13
MCH_CLK#13
PWRGDA14
CPURST#6,29
PCIRST_ICH5#11
PROCHOT#6,27,29
R37 2.49KST
BSEL0
BSEL1
R38 2KST
R39 2KST
R40 2.49KST
R41 20RST
HSWING29
GTLREF6,29
220p_X7R
HA#4
HA#5
HA#6
HA#7
HA#8
HA#9
HA#10
HA#11
HA#12
HA#13
HA#14
HA#15
HA#16
HA#17
HA#18
HA#19
HA#20
HA#21
HA#22
HA#23
HA#24
HA#25
HA#26
HA#27
HA#28
HA#29
HA#30
HA#31
HREQ#0
HREQ#1
HREQ#2
HREQ#3
HREQ#4
HRS#0
HRS#1
HRS#2
ICH_SYNC#
SEL0
SEL1
HRCOMP
C6
AE14
D26
D30
E29
B32
K23
C30
C31
B31
E30
B33
F25
D34
C32
F28
C34
G27
F29
E28
H27
K24
E32
F31
G30
G26
B30
D28
B24
B26
B28
E25
F27
B29
C29
K21
E23
D24
E27
G24
G22
C27
B27
AK4
AJ8
E24
C25
F23
VCCA_FSB
C224 0.1u_Y5V
VCCA_DPLL
U2A
HA3#
HA4#
L23
HA5#
HA6#
HA7#
HA8#
HA9#
HA10#
J25
HA11#
HA12#
HA13#
HA14#
J24
HA15#
HA16#
HA17#
HA18#
HA19#
HA20#
J27
HA21#
HA22#
HA23#
HA24#
HA25#
HA26#
HA27#
HA28#
HA29#
J26
HA30#
HA31#
HAD_STB0#
HAD_STB1#
BREQ0#
BPRI#
BNR#
HLOCK#
ADS#
HREQ0#
J23
HREQ1#
L22
HREQ2#
HREQ3#
J21
HREQ4#
HIT#
HITM#
L21
DEFER#
HTRDY#
DBSY#
DRDY#
RS0#
RS1#
RS2#
B7
HCLKP
C7
HCLKN
PWROK
E8
CPURST#
RSTIN#
ICH_SYNC#
L20
PROCHOT#
L13
BSEL0
L12
BSEL1
HDRCOMP
HDSWING
HDVREF
7
B3
VCCA_DPLL
A31
B4
J6J7J8J9K6K7K8K9L6L7L9
VCC
VCCA_FSB
VCCA_FSB
VSS
VSS
VSS
VSS
VSS
C12
C14
C16
C18
C10
C8
VCC
VSS
C20
VCC
VSS
C22
VCC
VSS
C24
VCC
VSS
C26
VCC
VCC
VCC
VSS
VSS
VSS
C28D1D11
6
VCC_AGP VTT
N11N9P10
P11
R11
T16
T17
T18
VCC
VSS
D35
VCC
VSS
T19
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
F3F5F8
E3
F1
E1
N10
M10
M11M8M9
L10
L11
VCC
VCC
D19
VCC
VSS
D21
VCC
VSS
D23
VCC
VSS
D25
VCC
VSS
D27
VSS
D29
VCC
VSS
D31
VSS
D33
VCC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
D13
D15
D17
D9
VCC
VSS
5
U16
U17
U20
V16
V18
V20
W16
W19
W20
Y16
Y17
Y18
Y19
VCC
VSS
Y20
A3
A33
A35B2B25
VCC
VCC
VSS
VSS
F26
G28
NCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNC
VCC
VCC
VCC
VCC
VSS
VSS
VSS
VSS
VSS
VSS
VSS
G31
G35
H12
H14
H5
H8
H9
T20
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VSS
VSS
F10
VCC
VSS
VSS
VSS
VSS
VSS
VSS
F18
F20
F22
F24
F14
F16
F12
VSS
VSS
H16H2H20
H18
B34C1C23
VSS
VSS
H22
VSS
H24
VSS
4
C35
H26
VSS
E26
H30
VSS
M31
H33
VSS
R25
J10
NC
VSS
AF13
VSS
J12
AF23
VSS
J14
AJ12
VSS
J16
AN1
J18
VSS
AP2
J20
VSS
AR3
J22
VSS
AR33
VSS
J28
AR35
VSS
J32
A7A9A11
VSS
J35
K11
VSS
VSS
3
D5D6D7E6E7
F7
VTT
VSS
VTT
VSS
L31
VTT
VSS
M3M6M26
L35
VTT
VSS
A4A5A6B5B6C5C6
VTT
VTT
VSS
VSS
M27
A13
A16
A20
A23
A25
A27
A29
A32
C4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
K12
K14
K16
K18
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
K33
K20
K22
K25
K27
K29
L24
L25
L26
VTT
VSS
VTT
VSS
M28
VTT
VSS
M30
VTT
VSS
M33N1N4
2
A15
VTT
VTT
VTT
HD_STBP0#
HD_STBN0#
HD_STBP1#
HD_STBN1#
HD_STBP2#
HD_STBN2#
HD_STBP3#
HD_STBN3#
VSS
VSS
Intel Springdale-N
{Priority}
VTT_FSB1
VTT_FSB2
A21
HD0#
HD1#
HD2#
HD3#
VTT_FSB
VTT_FSB
HD4#
HD5#
HD6#
HD7#
HD8#
HD9#
HD10#
HD11#
HD12#
HD13#
HD14#
HD15#
HD16#
HD17#
HD18#
HD19#
HD20#
HD21#
HD22#
HD23#
HD24#
HD25#
HD26#
HD27#
HD28#
HD29#
HD30#
HD31#
HD32#
HD33#
HD34#
HD35#
HD36#
HD37#
HD38#
HD39#
HD40#
HD41#
HD42#
HD43#
HD44#
HD45#
HD46#
HD47#
HD48#
HD49#
HD50#
HD51#
HD52#
HD53#
HD54#
HD55#
HD56#
HD57#
HD58#
HD59#
HD60#
HD61#
HD62#
HD63#
DINV_0#
DINV_1#
DINV_2#
DINV_3#
B23
E22
B21
D20
B22
D22
B20
C21
E18
E20
B16
D16
B18
B17
E16
D18
G20
F17
E19
F19
J17
L18
G16
G18
F21
F15
E15
E21
J19
G14
E17
K17
J15
L16
J13
F13
F11
E13
K15
G12
G10
L15
E11
K13
J11
H10
G8
E9
B13
E14
B14
B12
B15
D14
C13
B11
D10
C11
E10
B10
C9
B9
D8
B8
C17
L17
L14
C15
B19
C19
L19
K19
G9
F9
D12
E12
C225 0.47u_Y5V
C226 0.47u_Y5V
HD#0
HD#1
HD#2
HD#3
HD#4
HD#5
HD#6
HD#7
HD#8
HD#9
HD#10
HD#11
HD#12
HD#13
HD#14
HD#15
HD#16
HD#17
HD#18
HD#19
HD#20
HD#21
HD#22
HD#23
HD#24
HD#25
HD#26
HD#27
HD#28
HD#29
HD#30
HD#31
HD#32
HD#33
HD#34
HD#35
HD#36
HD#37
HD#38
HD#39
HD#40
HD#41
HD#42
HD#43
HD#44
HD#45
HD#46
HD#47
HD#48
HD#49
HD#50
HD#51
HD#52
HD#53
HD#54
HD#55
HD#56
HD#57
HD#58
HD#59
HD#60
HD#61
HD#62
HD#63
HDBI#0
HDBI#1
HDBI#2
HDBI#3
1
{VOLTAGE}
HD#[0..63] 6
HDBI#[0..3] 6
HDSTBP#0 6
HDSTBN#0 6
HDSTBP#1 6
HDSTBN#1 6
HDSTBP#2 6
HDSTBN#2 6
HDSTBP#3 6
HDSTBN#3 6
A A
PWRGDA14
8
PWRGDA
ICH_SYNC#
VCC3
53
1
4
2
U28
X_NC7WZ08
7
ICH_GD 12
6
PWRGDA ICH_GD
R526 0
5
4
3
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
Intel Springdale - CPU Signals
VISE (MS-6715)
2
831Friday, September 20, 2002
1
0AED
of
Page 9
8
MCS_A#017
MCS_A#117
D D
MCS_A#217
MCS_A#317
MRAS_A#17
MCAS_A#17
MWE_A#17
MA_A[0..12]17
MAB_A[1..5]17
C C
MBA_A017
MBA_A117
MDQM_A[0..7]17
MDQS_A[0..7]17
MCLK_A017
MCLK_A#017
MCLK_A117
B B
MCLK_A#117
MCLK_A217
MCLK_A#217
MCLK_A317
MCLK_A#317
MCLK_A417
MCLK_A#417
MCLK_A517
MCLK_A#517
0.01u_X7RC12
0.01u_X7RC15
0.01u_X7RC16
0.01u_X7RC18
C256 2.2u_Y5V
{VOLTAGE}
C227 0.47u_Y5V
C228 0.22u_Y5V
C229 0.1u_Y5V
8
C230 0.22u_Y5V
C231 0.1u_Y5V
A A
MDQ_A[0..63]17 MCKE_A[0..3] 17
AA34
Y31
Y32
W34
AC33
Y34
AB34
MA_A0
AJ34
MA_A1
AL33
MA_A2
AK29
MA_A3
AN31
MA_A4
AL30
MA_A5
AL26
MA_A6
AL28
MA_A7
AN25
MA_A8
AP26
MA_A9
AP24
MA_A10
AJ33
MA_A11
AN23
MA_A12
AN21
MAB_A1
AL34
MAB_A2
AM34
MAB_A3
AP32
MAB_A4
AP31
MAB_A5
AM26
AE33
AH34
MDQM_A0
AP12
MDQM_A1
AP16
MDQM_A2
AM24
MDQM_A3
AP30
MDQM_A4
AF31
MDQM_A5
W33
MDQM_A6
M34
MDQM_A7
H32
MDQS_A0
AN11
MDQS_A1
AP15
MDQS_A2
AP23
MDQS_A3
AM30
MDQS_A4
AF34
MDQS_A5
V34
MDQS_A6
M32
MDQS_A7
H31
AK32
AK31
AP17
AN17
N33
N34
AK33
AK34
AM16
AL16
P31
P32
XRCOMP
AK9
XCOMPH
AN9
XCOMPL
AL9
SMVREF
E34
XRCOMP29
XCOMPH29
XCOMPL29
VREF29
VCC_DDR_C229
VCC_DDR_C329
U2B
SCS_A0#
SCS_A1#
SCS_A2#
SCS_A3#
SRAS_A#
SCAS_A#
SWE_A#
SMAA_A0
SMAA_A1
SMAA_A2
SMAA_A3
SMAA_A4
SMAA_A5
SMAA_A6
SMAA_A7
SMAA_A8
SMAA_A9
SMAA_A10
SMAA_A11
SMAA_A12
SMAB_A1
SMAB_A2
SMAB_A3
SMAB_A4
SMAB_A5
SBA_A0
SBA_A1
SDM_A0
SDM_A1
SDM_A2
SDM_A3
SDM_A4
SDM_A5
SDM_A6
SDM_A7
SDQS_A0
SDQS_A1
SDQS_A2
SDQS_A3
SDQS_A4
SDQS_A5
SDQS_A6
SDQS_A7
SMDCLK_A0
SMDCLK_A0#
SMDCLK_A1
SMDCLK_A1#
SMDCLK_A2
SMDCLK_A2#
SMDCLK_A3
SMDCLK_A3#
SMDCLK_A4
SMDCLK_A4#
SMDCLK_A5
SMDCLK_A5#
SMXRCOMP
SMXCOMPVOH
SMXCOMPVOL
SMVREF_A
VCC_DDR_C1
VCC_DDR_C2
VCC_DDR_C3
VCC_DDR_C4
VCC_DDR_C5
7
MDQ_A3
MDQ_A4
MDQ_A2
AM12
AN13
AM10
SDQ_A1
SDQ_A2
SDQ_A3
VCC_DDR
VCC_DDR
VCC_DDR
AA35
R35
AR21
MDQ_A7
MDQ_A5
MDQ_A6
AL10
AL12
AP13
SDQ_A4
SDQ_A5
SDQ_A6
VCC_DDR
VCC_DDR
VCC_DDR
AL7
AR15
AL6
MDQ_A9
MDQ_A8
AP14
AM14
SDQ_A7
SDQ_A8
SDQ_A9
VCC_DDR
VCC_DDR
VCC_DDR
AM1
AM2
MDQ_A0
MDQ_A1
AP10
AP11
SDQ_A0
E35
VCC_DDR
MDQ_B[0..63]18
7
MDQ_A12
MDQ_A10
MDQ_A11
AL18
AP19
AL14
SDQ_A10
SDQ_A11
SDQ_A12
VCC_DDR
VCC_DDR
VCC_DDR
AN8
AP3
AP4
MDQ_A13
MDQ_A14
MDQ_A15
AN15
AP18
AM18
SDQ_A13
SDQ_A14
SDQ_A15
VCC_DDR
VCC_DDR
VCC_DDR
AP5
AP6
AP7
6
MDQ_A16
MDQ_A17
MDQ_A18
AP22
AM22
AL24
SDQ_A16
SDQ_A17
VCC_DDR
VCC_DDR
AR4
AR5
AR7
6
MDQ_A19
MDQ_A21
MDQ_A20
AN27
AP21
AL22
SDQ_A18
SDQ_A19
SDQ_A20
VCC_DDR
VCC_DDR
AR31
AJ10
MDQ_B0
MDQ_A23
MDQ_A22
AP25
AP27
SDQ_A21
SDQ_A22
SDQ_A23
SDQ_B0
SDQ_B1
SDQ_B2
AE15
AL11
MDQ_B2
MDQ_B1
MDQ_A25
MDQ_A24
MDQ_A26
AP28
AP29
AP33
SDQ_A24
SDQ_A25
SDQ_A26
SDQ_B3
SDQ_B4
SDQ_B5
AE16
AL8
AF12
MDQ_B3
MDQ_B5
MDQ_B4
MDQ_A28
MDQ_A29
MDQ_A27
AM33
AM28
AN29
SDQ_A27
SDQ_A28
SDQ_A29
SDQ_B6
SDQ_B7
SDQ_B8
AK11
AG12
AE17
MDQ_B6
MDQ_B8
MDQ_B7
MDQ_A32
MDQ_A30
MDQ_A31
AM31
AN34
AH32
SDQ_A30
SDQ_A31
SDQ_A32
SDQ_B9
SDQ_B10
SDQ_B11
AL13
AK17
AL17
MDQ_B11
MDQ_B10
MDQ_B9
5
MDQ_A35
MDQ_A34
MDQ_A33
AG34
AF32
AD32
SDQ_A33
SDQ_A34
SDQ_A35
SDQ_B12
SDQ_B13
SDQ_B14
AK13
AJ14
AJ16
MDQ_B12
MDQ_B14
MDQ_B13
5
MDQ_A38
MDQ_A36
MDQ_A37
AH31
AG33
AE34
SDQ_A36
SDQ_A37
SDQ_A38
SDQ_B15
SDQ_B16
SDQ_B17
AJ18
AE19
AE20
MDQ_B15
MDQ_B17
MDQ_B16
MDQ_A41
MDQ_A40
MDQ_A39
AD34
AC34
AB31
SDQ_A39
SDQ_A40
SDQ_A41
SDQ_B18
SDQ_B19
SDQ_B20
AG23
AK23
AL19
MDQ_B18
MDQ_B20
MDQ_B19
MDQ_A42
MDQ_A44
MDQ_A43
V32
V31
AD31
SDQ_A42
SDQ_A43
SDQ_A44
SDQ_B21
SDQ_B22
SDQ_B23
AK21
AJ24
AE22
MDQ_B22
MDQ_B23
MDQ_B21
MDQ_A45
MDQ_A47
MDQ_A46
AB32
U34
U33
SDQ_A45
SDQ_A46
SDQ_A47
SDQ_B24
SDQ_B25
SDQ_B26
AK25
AH26
AG27
MDQ_B24
MDQ_B26
MDQ_B25
MDQ_A50
MDQ_A48
MDQ_A49
T34
T32
K34
SDQ_A48
SDQ_A49
SDQ_A50
SDQ_B27
SDQ_B28
SDQ_B29
AF27
AJ26
AJ27
MDQ_B27
MDQ_B28
MDQ_B29
MDQ_A51
MDQ_A53
MDQ_A52
K32
T31
P34
SDQ_A51
SDQ_A52
SDQ_A53
SDQ_B30
SDQ_B31
SDQ_B32
AD25
AF28
AE30
MDQ_B30
MDQ_B32
MDQ_B31
4
MDQ_A55
MDQ_A56
MDQ_A54
L34
L33
J33
SDQ_A54
SDQ_A55
SDQ_A56
SDQ_B33
SDQ_B34
SDQ_B35
AC27
AC30
Y29
MDQ_B35
MDQ_B33
MDQ_B34
4
MDQ_A59
MDQ_A57
MDQ_A58
H34
E33
F33
SDQ_A57
SDQ_A58
SDQ_A59
SDQ_B36
SDQ_B37
SDQ_B38
AE31
AB29
AA26
MDQ_B37
MDQ_B36
MDQ_B38
MDQ_A61
MDQ_A60
MDQ_A62
K31
J34
G34
SDQ_A60
SDQ_A61
SDQ_A62
SDQ_B39
SDQ_B40
SDQ_B41
AA27
AA30
W30
MDQ_B40
MDQ_B41
MDQ_B39
MCKE_A0
MDQ_A63
F34
AL20
SDQ_A63
SCKE_A0
SDQ_B42
SDQ_B43
SDQ_B44
U27
T25
AA31
MDQ_B43
MDQ_B44
MDQ_B42
MCKE_A2
MCKE_A1
MCKE_A3
AN19
AM20
AP20
SCKE_A1
SCKE_A2
SCKE_A3
SDQ_B45
SDQ_B46
SDQ_B47
V29
U25
R27
MDQ_B47
MDQ_B46
MDQ_B45
AB25
AC25
VCCA_DDR
VCCA_DDR
SDQ_B48
SDQ_B49
SDQ_B50
P29
R30
K28
MDQ_B49
MDQ_B48
MDQ_B50
3
VCCA_DDR
C20 0.1u_Y5V
VCCADDR
AC26
AN4
AM3
AL35
VCC_DDR
VCCA_DDR
VCCA_DDR
SDQ_B51
SDQ_B52
SDQ_B53
SDQ_B54
L30
R31
R26
P25
L32
MDQ_B53
MDQ_B55
MDQ_B51
MDQ_B52
MDQ_B54
3
AN5
AM5
AM6
VCC_DDR
VCC_DDR
VCC_DDR
SDQ_B55
SDQ_B56
SDQ_B57
K30
H29
F32
MDQ_B58
MDQ_B56
MDQ_B57
2
VCCA_DDR 29
VCC_DDR
Its current is 5.1A.
AM7
AM8
AN2
AN6
AN7
P3P6P8
N35
VCC_DDR
VCC_DDR
VCC_DDR
SDQ_B58
SDQ_B59
SDQ_B60
G33
N25
M25
MDQ_B61
MDQ_B60
MDQ_B59
VCC_DDR
VCC_DDR
VCC_DDR
SDQ_B61
SDQ_B62
SDQ_B63
J29
G32
MDQ_B62
MDQ_B63
N32
VSS
VSS
SCKE_B0
SCKE_B1
AK19
AF19
AG19
MCKE_B2
MCKE_B0
MCKE_B1
VSS
VSS
VSS
SCMDCLK_B0
SCMDCLK_B0#
SCMDCLK_B1
SCMDCLK_B1#
SCMDCLK_B2
SCMDCLK_B2#
SCMDCLK_B3
SCMDCLK_B3#
SCMDCLK_B4
SCMDCLK_B4#
SCMDCLK_B5
SCMDCLK_B5#
SMYRCOMP
SMYCOMPVOH
SMYCOMPVOL
SMVREF_B
SCKE_B2
SCKE_B3
Intel Springdale-N
AE18
{Priority}
MCKE_B3
SCS_B0#
SCS_B1#
SCS_B2#
SCS_B3#
SRAS_B#
SCAS_B#
SWE_B#
SMAA_B0
SMAA_B1
SMAA_B2
SMAA_B3
SMAA_B4
SMAA_B5
SMAA_B6
SMAA_B7
SMAA_B8
SMAA_B9
SMAA_B10
SMAA_B11
SMAA_B12
SMAB_B1
SMAB_B2
SMAB_B3
SMAB_B4
SMAB_B5
SBA_B0
SBA_B1
SDM_B0
SDM_B1
SDM_B2
SDM_B3
SDM_B4
SDM_B5
SDM_B6
SDM_B7
SDQS_B0
SDQS_B1
SDQS_B2
SDQS_B3
SDQS_B4
SDQS_B5
SDQS_B6
SDQS_B7
U26
T29
V25
W25
W26
W31
W27
AG31
AJ31
AD27
AE24
AK27
AG25
AL25
AF21
AL23
AJ22
AF29
AL21
AJ20
AE27
AD26
AL29
AL27
AE23
Y25
AA25
AG11
AG15
AE21
AJ28
AC31
U31
M29
J31
AF15
AG13
AG21
AH27
AD29
U30
L27
J30
AG29
AG30
AF17
AG17
N27
N26
AJ30
AH29
AK15
AL15
N31
N30
AA33
R34
R33
AP9
MA_B0
MA_B1
MA_B2
MA_B3
MA_B4
MA_B5
MA_B6
MA_B7
MA_B8
MA_B9
MA_B10
MA_B11
MA_B12
MAB_B1
MAB_B2
MAB_B3
MAB_B4
MAB_B5
MDQM_B0
MDQM_B1
MDQM_B2
MDQM_B3
MDQM_B4
MDQM_B5
MDQM_B6
MDQM_B7
MDQS_B0
MDQS_B1
MDQS_B2
MDQS_B3
MDQS_B4
MDQS_B5
MDQS_B6
MDQS_B7
YRCOMP
YCOMPH
YCOMPL
VREF
MCKE_B[0..3] 18
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
Intel Springdale - Memory Signals
VISE (MS-6715)
2
1
MCS_B#0 18
MCS_B#1 18
MCS_B#2 18
MCS_B#3 18
MRAS_B# 18
MCAS_B# 18
MWE_B# 18
MA_B[0..12] 18
MAB_B[1..5] 18
MBA_B0 18
MBA_B1 18
MDQM_B[0..7] 18
MDQS_B[0..7] 18
MCLK_B0 18
MCLK_B#0 18
MCLK_B1 18
MCLK_B#1 18
MCLK_B2 18
MCLK_B#2 18
MCLK_B3 18
MCLK_B#3 18
MCLK_B4 18
MCLK_B#4 18
MCLK_B5 18
MCLK_B#5 18
0.01u_X7RC11
0.01u_X7RC13
0.01u_X7RC14
0.01u_X7RC17
YRCOMP 29
YCOMPH 29
YCOMPL 29
931Friday, September 20, 2002
1
0AED
of
Page 10
8
7
6
5
4
3
2
1
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VSS
VSS
VSS
AN20
AN22
AN24
VCC_AGP
VCC_AGP
VCC_AGP
VSS
VSS
VSS
AN26
AN28
VCCA_AGP_C
VCC_AGP
VCC_AGP
VSS
VSS
AN30
AN32
VCC_AGP_C
P26
P27
P28
P30
P33R1R4
R32T1T3
VSS
VSS
VSS
VSS
AE35
AF3
VSS
VSS
AF6
VSS
VSS
AF9
VSS
VSS
VSS
VSS
AF11
T6T8T9
VSS
VSS
AF16
AF14
VSS
VSS
AD33
VSS
AD28
AE1
VSS
AE4
VSS
VSS
AE10
P9
VSS
VSS
AE11
VSS
VSS
AE12
VSS
VSS
AE13
VSS
VSS
AE25
VSS
VSS
AE26
AE32
GAD[0..31]19
D D
C C
GC_BE#[0..3]19
AD_STB019
AD_STB#019
AD_STB119
AD_STB#119
GREQ#19
GGNT#19
ST[0..2]19
RBF#19
WBF#19
GFRAME#19
GIRDY#19
GTRDY#19
GDEVSEL#19
B B
GSTOP#19
GPAR19
MCH_6613
SBA[0..7]19
SB_STB19
SB_STB#19
PIPE#19
VCC_AGP
DBI_LO19
R66 43.2RST
0.01u_X7RC28
GSWING19
AGP_REF19
0.01u_X7RC29
GAD0
GAD1
GAD2
GAD3
GAD4
GAD5
GAD6
GAD7
GAD9
GAD10
GAD11
GAD12
GAD13
GAD14
GAD15
GAD16
GAD17
GAD18
GAD19
GAD20
GAD21
GAD22
GAD23
GAD24
GAD25
GAD26
GAD27
GAD28
GAD29
GAD30
GAD31
GC_BE#0
GC_BE#1
GC_BE#2
GC_BE#3
ST0
ST1
ST2
RBF#
WBF#
SBA0
SBA1
SBA2
SBA3
SBA4
SBA5
SBA6
SBA7
GRCOMP
GSWING
U2C
AE6
GAD0/DVOB_HSYNC
AC11
GAD1/DVOB_VSYNC
AD5
GAD2/DVOB_D1
AE5
GAD3/DVOB_D0
AA10
GAD4/DVOB_D3
AC9
GAD5/DVOB_D2
AB11
GAD6/DVOB_D5
AB7
GAD7/DVOB_D4
AA9
GAD8/DVOB_D6
AA6
GAD9/DVOB_D9
AA5
GAD10/DVOB_D8
W10
GAD11/DVOB_D11
AA11
GAD12/DVOB_D10
W6
GAD13/DVOBC_CLKINT
W9
GAD14/DVOB_FLDSTL
V7
GAD15/MDDC_DATA
AA2
GAD16/DVOC_VSYNC
Y4
GAD17/DVOC_HSYNC
Y2
GAD18/DVOC_BLANK#
W2
GAD19/DVOC_D0
Y5
GAD20/DVOC_D1
V2
GAD21/DVOC_D2
W3
GAD22/DVOC_D3
U3
GAD23/DVOC_D4
T2
GAD24/DVOC_D7
T4
GAD25/DVOC_D6
T5
GAD26/DVOC_D9
R2
GAD27/DVOC_D8
P2
GAD28/DVOC_D11
P5
GAD29/DVOC_D10
P4
GAD30/DVOBC_INTR#
M2
GAD31/DVOC_FLDSTL
Y7
GCBE0/DVOB_D7
W5
GCBE1/DVOB_BLANK#
AA3
GCBE2
U2
GCBE3/DVOC_D5
AC6
GADSTBF0/DVOB_CLK
AC5
GADSTBS0/DVOB_CLK#
V4
GADSTBF1/DVOC_CLK
V5
GADSTBS1/DVOC_CLK#
N6
GREQ
M7
GGNT
N3
GST0
N5
GST1
N2
GST2
R10
GRBF
R9
GWBF
U6
GFRAME/MDVI_DATA
V11
GIRDY/MI2CCLK
AB5
GTRDY/MDVI_CLK
AB4
GDEVSEL/MI2CDATA
W11
GSTOP/MDDC_CLK
AB2
GPAR/ADD_DETECT
H4
GCLKIN
R6
GSBA0#/ADD_ID0
P7
GSBA1#/ADD_ID1
R3
GSBA2#/ADD_ID2
R5
GSBA3#/ADD_ID3
U9
GSBA4#/ADD_ID4
U10
GSBA5#/ADD_ID5
U5
GSBA6#/ADD_ID6
T7
GSBA7#/ADD_ID7
U11
GSBSTBF
T11
GSBSTBS
M4
DBI_HI
M5
DBI_LO
AC2
GRCOMP/DVOBC_RCOMP
AC3
GVSWING
AD2
GVREF
AD30
A A
VSS
VSS
VSS
VSS
AF18
T10
VSS
VSS
AF20
T26
VSS
VSS
AF22
T27
VSS
VSS
AF24
T28
VSS
VSS
AF25
T30
VSS
VSS
AF30
T33
VSS
VSS
AF33
T35
AG4
VSS
VSS
U4
VSS
VSS
AG8
U18
U19
U32V3V8V9V10
VSS
VSS
VSS
VSS
VSS
VSS
AG14
AG16
AG18
AG20
VSS
VSS
V6
VSS
VSS
AG22
VSS
VSS
AG24
VSS
VSS
AG26
VSS
VSS
AG28
V17
VSS
VSS
AG32
V19
VSS
VSS
AG35
V26
AH3
V27
VSS
VSS
AH6
V28
V30W4W17
VSS
VSS
VSS
VSS
AH12
AH10
VSS
VSS
V33
VSS
VSS
AH14
VSS
VSS
AH16
VSS
VSS
AH18
W18
VSS
VSS
AH20
Y3
W32Y6Y8Y9Y26
Y10
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AJ1
AJ4
AH22
AH24
AH30
AH33
Y28
Y30
Y33
Y35
Y27
AA1
AA4
AA32
AB10
AB26
AC1
AC4
AC32
VSS
VSS
AB30
VSS
VSS
AM9
AB33
VSS
VSS
AM11
VSS
VSS
AM13
VSS
VSS
AM15
VSS
VSS
AM17
AC35
VSS
VSS
AM19
AD3
VSS
VSS
AM21
AD6
VSS
VSS
AM23
AD8
AM25
AB27
VSS
VSS
AB8
VSS
VSS
AK22
AB9
VSS
VSS
AK24
VSS
VSS
AK26
VSS
VSS
AK28
AB28
VSS
VSS
AL1
AL32
AB3
AB6
VSS
VSS
VSS
VSS
VSS
AK8
VSS
VSS
VSS
VSS
AK10
VSS
AK12
VSS
AK14
VSS
AK16
VSS
VSS
AK18
AK20
VSS
VSS
VSS
VSS
VSS
VSS
AK3
AJ9
AJ32
AJ35
C23 0.1u_Y5VC215 0.1u_Y5V
L1L5Y1J1J2J3K2K3K4K5J4J5L4L2L3
AD9
AD10
VSS
VSS
VSS
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AM27
AM29
AM35
AN10
AN12
AN14
AN16
AN18
VCC_AGP
VCC_AGP
VSS
VSS
AR9
AR11
AR13
VCCA_AGP
AG1
Y11
VCC_AGP
VCCA_AGP
VCCA_AGP
HI_STRF
HI_STRS
HI_RCOMP
HI_SWING
HI_VREF
CISTRF
CISTRS
CI_RCOMP
CI_SWING
CI_VREF
DREFCLK
DDCA_CLK
DDCA_DATA
VSYNC
HSYNC
GREEN
GREEN#
REFSET
VCC_DAC
VCC_DAC
VCCA_DAC
VSSA_DAC
EXTTS#
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
VSS
VSS
VSS
VSS
AR23
AR16
AR20
AF5
HI0
AG3
HI1
AK2
HI2
AG5
HI3
AK5
HI4
AL3
HI5
AL2
HI6
AL4
HI7
AJ2
HI8
AH2
HI9
AJ3
HI10
AH5
AH4
AD4
AE3
AE2
AK7
CI0
AH7
CI1
AD11
CI2
AF7
CI3
AD7
CI4
AC10
CI5
AF8
CI6
AG7
CI7
AE9
CI8
AH9
CI9
AG6
CI10
AJ6
AJ5
AG2
AF2
AF4
G4
F2
H3
E2
G3
H7
BLUE
G6
BLUE#
H6
G5
F4
RED
E4
RED#
D2
G1
G2
C2
D3
AP8
AG9
AG10
AN35
AP34
AR1
AR25
VSS
AR27
VSS
AR29
VSS
AR32
VSS
Intel Springdale-N
{Priority}
C24
0.1u_Y5V
HL0
HL1
HL2
HL3
HL4
HL5
HL6
HL7GAD8
HL8
HL9
HL10
HL_COMP
CI_RCOMP
C232 0.1u_Y5V
C233 0.1u_Y5V
GSET
CB24
0.1u_Y5V
VCCA_DAC
C27
0.1u_Y5V
VCC_DAC
VCC_AGP
HL_STRF 12
HL_STRS 12
R62 52.3RST-N
HL_SWING 29
HL_VREF 29
R63 52.3RST-N
CI_SWING 29
CI_VREF 29
DOT_48 13
3VDDCCL
3VDDCDA
CRT_VSYNC
CRT_HSYNC
CRT_B
CRT_G
CRT_R
R64 137RST
CB25
0.01u_X7R
CB26
0.01u_X7R
L6 100nH-300mA
1.7V@250mA
0.01u_X7RC25
0.01u_X7RC26
VCC3
HL[0..10] 12
VCC_AGP
VCC_AGP
+
CT27
470u-16V
MSI
Title
Size Document Number Rev
8
7
6
5
4
3
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
Intel Springdale - AGP & HLink & LAN Signals
VISE (MS-6715)
2
10 31Friday, September 20, 2002
of
1
0AED
Page 11

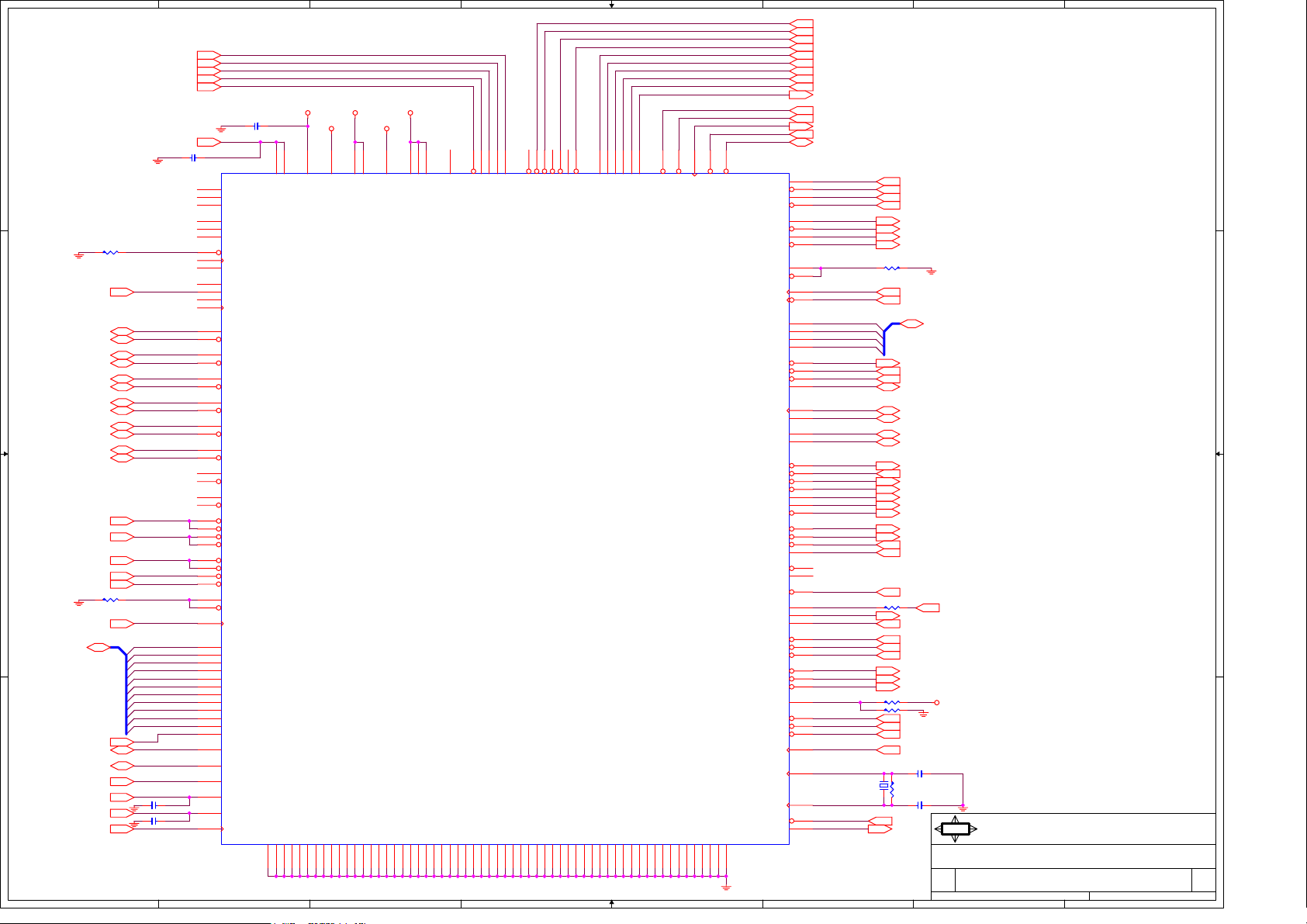

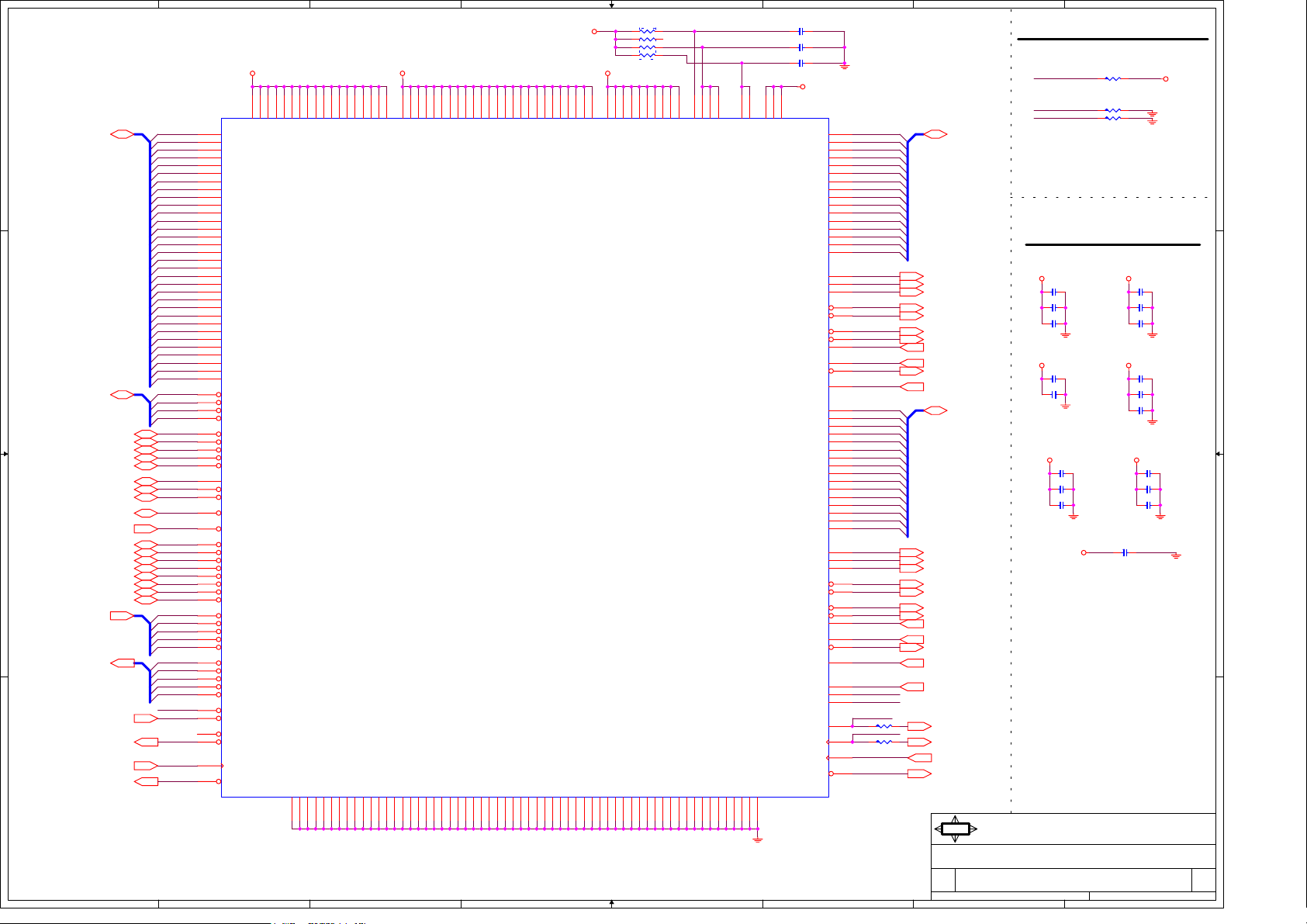

8
D D
C C
AD[0..31]16,20,21
C_BE#[0..3]16,20,21
FRAME#16,20,21
IRDY#16,20,21
TRDY#16,20,21
DEVSEL#16,20,21
STOP#16,20,21
PAR16,20,21
PERR#16,20,21
SERR#16,20,21
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
C_BE#0
C_BE#1
C_BE#2
C_BE#3
LOCK#20,21
SIO_PME#14
PIRQ#A19,20
PIRQ#B19,20
B B
PIRQ#C20
PIRQ#D20
PIRQ#E20
PIRQ#F20
PIRQ#G20
PIRQ#H16,20
PREQ#[0..4]20,21
PGNT#[0..4]20,21
PREQ#520
PGNT#516
PREQ#0
PREQ#1
PREQ#2
PREQ#3
PREQ#4
PGNT#0
PGNT#1
PGNT#2
PGNT#3
PGNT#4
PREQ#A
PREQ#5
PGNT#5
ICH_PCLK13
A A
PCIRST_ICH5#8,13,14,25
8
7
VCC3 VCC_AGP
U3A
J4
AD0
J5
AD1
G3
AD2
K4
AD3
H5
AD4
H2
AD5
J3
AD6
J2
AD7
K5
AD8
F2
AD9
M4
AD10
H4
AD11
L5
AD12
G2
AD13
K1
AD14
G5
AD15
G4
AD16
L1
AD17
B2
AD18
P5
AD19
H3
AD20
N5
AD21
C4
AD22
N4
AD23
E6
AD24
P3
AD25
D3
AD26
N2
AD27
F5
AD28
P4
AD29
F4
AD30
P2
AD31
E3
C/BE0#
J1
C/BE1#
N3
C/BE2#
M2
C/BE3#
D2
FRAME#
M3
IRDY#
E4
TRDY#
L3
DEVSEL#
E5
STOP#
F1
PAR
K2
PERR#
L4
SERR#
L2
PLOCK#
V2
PME#
B3
PIRQA#
E1
PIRQB#
A2
PIRQC#
C2
PIRQD#
D7
PIRQE#/GPI2
A6
PIRQF#/GPI3
E2
PIRQG#/GPI4
B1
PIRQH#/GPI5
D5
REQ0#
C1
REQ1#
C5
REQ2#
B6
REQ3#
C6
REQ4#/GPI40
D4
GNT0#
A3
GNT1#
B7
GNT2#
C7
GNT3#
A4
GNT4#/GPO48
A5
REQA#/GPI0
E7
REQB#REQ5#/GPI1
E8
GNTA#/GPO16
B4
GNTB#/GNT5#/GPO17
N1
PCICLK
V4
PCIRST#
Intel ICH5-N
{Priority}
7
B5F6G1H6K6L6M10
G19
VCC3_3
VCC3_3
VCC3_3
G21
VCC3_3
VCC3_3
A1A7A10
VCC3_3
VCC3_3
GND
GND
N10P6R13
VCC3_3
VCC3_3
GND
GND
A15
A17
VCC3_3
GND
A19
V19
VCC3_3
VCC3_3
GND
GND
A21
A23
W15
W17
VCC3_3
VCC3_3
GND
GND
AA5
AA7
W24
AD13
VCC3_3
VCC3_3
GND
GND
AA9
AA11
6
AD20
VCC3_3
VCC3_3
GND
GND
AA13
AA21
6
K10
GND
AA24
K12
K13
VCC1_5
VCC1_5
GND
GND
AB5
AB7
L19
P19
VCC1_5
VCC1_5
GND
GND
AB9
AB11
R10R6H24
VCC1_5
VCC1_5
GND
GND
AB15
AB18
J19
VCC1_5
VCC1_5
GND
GND
AC2
AC4
K19
M15
VCC1_5
VCC1_5
GND
GND
AC6
AC8
N15
N23
VCC1_5
VCC1_5
GND
GND
AC10
AC13
VCC1_5
GND
5
E15
F15
F14
R12W6W7
VCC1_5
VCC1_5S
VCC1_5S
VCC1_5S
VCC1_5S
GND
GND
GND
GND
GND
AC23
AD4
AD6
AD8
AD17
5
W8
VCC1_5S
VCC1_5S
GND
GND
AD21
AD12
1_5VSB
W9
W10
VCC1_5S
VCC1_5S
GND
GND
B13
B17
RN91
0
W19
W11
VCC1_5S
VCC1_5S
GND
GND
B19
B21
3VSB
E22
VCC1_5S
GND
GND
B23C3C8
B15
E13
E14
E18
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
GND
GND
GND
C16
C18
C20
12
34
56
78
F16
F17
F18
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
GND
GND
GND
GND
C22D1D6
4
K15U6V6
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
GND
GND
GND
D11
D16
D18
D20
4
F19Y5AA4
VCCSUS1_5A
VCCSUS1_5B
VCCSUS1_5B
GND
GND
GND
GND
D22
D24
E17
SUS_A
SUS_B
SUS_C
AB4F7F8
E11
VCCSUS1_5B
VCCLAN1_5/VCCSUS1_5C
VCCLAN1_5/VCCSUS1_5C
GND
GND
GND
GND
GND
GND
E19
E20
E21
E23F3F9
3
C238 0.1u_Y5V
C239 0.1u_Y5V
C240 0.1u_Y5V
Solder
3VSB
F10
F11
AB16
PDD0
Y13
PDD1
Y14
PDD2
AC14
PDD3
AA14
PDD4
AC15
PDD5
AD14
PDD6
AB14
PDD7
AD15
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
PDA0
PDA1
PDA2
PDCS1#
PDCS3#
PDIOR#
PDIOW#
PIORDY
PDDREQ
PDDACK#
IRQ14
SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
SDA0
SDA1
SDA2
SDCS1#
SDCS3#
SDIOR#
SDIOW#
SIORDY
SDDREQ
SDDACK#
IRQ15
AC_SDIN0
AC_SDIN1
AC_SDIN2
AC_SYNC
AC_RST#
Y15
AD16
AA15
AC16
Y16
AA16
AB17
AA19
AD19
AC19
AB19
Y18
AD18
AA17
AA18
AC17
AC18
Y17
AA22
AB23
AD23
AD24
AB21
AC21
AB20
AC20
Y19
AD22
AC22
AA20
AB22
AC24
AB24
AA23
W22
W23
W21
V22
V20
Y23
Y22
Y21
Y20
W20
Y24
E12
D12
A13
A9
B8
D8
C12
3
VCCLAN3_3/VCCSUS3_3
VCCLAN3_3/VCCSUS3_3
VCCLAN3_3/VCCSUS3_3
AC_SDOUT
AC_BIT_CLK
PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
SDD0
SDD1
SDD2
SDD3
SDD4
SDD5
SDD6
SDD7
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
AC_SDIN1
AC_SDIN2
SDOUT
R77 33
SYNC
R78 33
2
1
ICH5 Pull-Up / Down Resistors
R72 2.7K
PREQ#A
AC_SDIN1
AC_SDIN2
R75 10K
R76 10K
VCC3
PDD[0..15] 22
ICH5 Decoupling Capacitors
All caps be placed less than 100mils.
PD_A0 22
PD_A1 22
PD_A2 22
PD_CS#1 22
PD_CS#3 22
PD_IOR# 22
PD_IOW# 22
PD_IORDY 22
PD_DREQ 22
PD_DACK# 22
IRQ14 22
SDD[0..15] 22
SD_A0 22
SD_A1 22
SD_A2 22
SD_CS#1 22
SD_CS#3 22
SD_IOR# 22
SD_IOW# 22
SD_IORDY 22
SD_DREQ 22
SD_DACK# 22
IRQ15 22
AC_SDIN0 15
AC_SDOUT 15
AC_SYNC 15
AC_BITCLK 15
AC_RST# 15
MSI
Title
Size Document Number Rev
Date: Sheet
VCC3 VCC3
CB41
0.1u_Y5V
CB43
0.1u_Y5V
CB45
0.1u_Y5V
3VSB 3VSB
CB47
0.1u_Y5V
CB48
1u-0805_X7R
VCC_AGPVCC_AGP
CB53
0.1u_Y5V
CB55
0.1u_Y5V
CB57
0.1u_Y5V
VCC_AGP
MICRO-STAR INt'L CO., LTD.
CB59 0.01u_X7R
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
Intel ICH5 - PCI & IDE & AC97 Signals
VISE (MS-6715)
2
11 31Friday, September 20, 2002
1
CB42
0.1u_Y5V
CB44
0.1u_Y5V
CB46
0.1u_Y5V
CB49
0.1u_Y5V
CB50
0.01u_X7R
CB52
0.22u_Y5V
{VOLTAGE}
CB54
0.1u_Y5V
CB56
0.1u_Y5V
CB58
0.1u_Y5V
of
Solder
Solder
0AED
Page 12
8
SIO_SMI#14,29
PS_DETECT24,29
CSA_PME#29
PROC_HOT#25
FAUD_DET#15
D D
5VREF29
C34 0.1u_Y5V
Close A8 of ICH5.
R83 300
EE_DO16,29
USB0+23
C C
USB0-23
USB1+23
USB1-23
USB2+23
USB2-23
USB3+23
USB3-23
LAN_RST#
EE_DO
USB4+23
USB5+23
USB5-23
OC#123
OC#223
B B
FRONT_USB_DET#23,29
OC#323
OC#729
R98 22.6RST
USB_BIAS
USB_4813
HL[0..10]10
HL1129
HL_STRF10
HL_STRS10
A A
H_COMP29
H_SWING29
H_VREF29
ICH_6613
8
HL0
HL1
HL2
HL3
HL4
HL5
HL6
HL7
HL8
HL9
HL10
1.5V
800mV
0.01u_X7RC32 18p-NPOC41
0.01u_X7RC33
C10
C9
C11
D9
E9
B12
AA1
E10
D10
B11
B9
B10
A12
C23
D23
A22
B22
C21
D21
A20
B20
C19
D19
A18
B18
C17
D17
A16
B16
C15
D15
D14
C14
B14
A14
D13
C13
A24
B24
F24
H20
H21
J20
H23
M23
M21
N21
M20
L22
J22
K21
G22
K23
J24
N24
L20
L24
N22
Intel ICH5-N
{Priority}
U3B
LAN_RXD0
LAN_RXD1
LAN_RXD2
LAN_TXD0
LAN_TXD1
LAN_TXD2
LAN_RST#
LAN_CLK
LAN_RSTSYNC
EE_DIN
EE_DOUT
EE_CS
EE_SHCLK
USBP0P
USBP0N
USBP1P
USBP1N
USBP2P
USBP2N
USBP3P
USBP3N
USBP4P
USBP4N
USBP5P
USBP5N
USBP6P
USBP6N
USBP7P
USBP7N
OC0#
OC1#
OC2#
OC3#
OC4#/GPI9
OC5#/GPI10
OC6#/GPI14
OC7#/GPI15
USBRBIAS
USBRBIAS#
CLK48
HI0
HI1
HI2
HI3
HI4
HI5
HI6
HI7
HI8
HI9
HI10
HI11
HI_STBF
HI_STBS
HIRCOMP
HI_VSWING
HIREF
CLK66
7
CB63 0.1u_Y5V
A8
GND
G6
G20
7
W14
V5REF
V5REF
GND
GND
G24H1H19
VCC5_SB
E16
V5REF_SUS
GND
GND
GND
H22J6J21
VCC_AGP VCCP
VCC_AGPVBAT
AD11
AA6
AB6
VCCRTC
VCCSATAPLL
VCCSATAPLL
GND
GND
GND
GND
GND
GND
GND
J23K3K11
K14
K20
K22
GND
6
C24
GND
K24
L10
6
R15
R19
V_CPU_IO
VCCUSBPLL
GND
GND
GND
GND
L11
L12
L13
L14
T19
A11R5U3Y2W4W5U21
NC
V_CPU_IO
V_CPU_IO
GND
GND
GND
GND
GND
GND
GND
L15
L21
L23M1M5
M11
GPI7
GPI8
GPI12
GPI13
AGPBUSY#/GPI6
GND
GND
GND
GND
GND
M12
M13
M14
M22
M24
N11
5
T20
U22R1U20
SLP_S1#/GPO19
STP_PCI#/GPO18
GND
GND
GND
GND
N12
N13
N14
N20P1P10
5
F22
AC1W3V3W2T1
CLKRUN#/GPIO24
C3_STAT#/GPO21
STP_CPU#/GPO20
CPUPERF#/GPO22
SSMUXSEL/GPO23
GND
GND
GND
GND
GND
GND
GND
P11
P12
P13
P14
GPIO25
GND
P15
P21
GPIO27
GPIO28
GND
GND
R11
R14
G23
F21
GPIO32
GPIO33
GND
GND
T23T3T6
GPIO34
GND
GND
U19V1V21
AB1
SUS_STAT#
GND
GND
GND
4
AB2Y1T2
SUSCLK
BATLOW#
GND
GND
GND
GND
W16
W18Y3Y6Y7Y8
4
T21
SATA0RXP
SATA0RXN
SATA1RXP
THRM#
SATA1RXN
THRMTRIP#
SATA0TXP
SATA0TXN
SATA1TXP
SATA1TXN
SATARBIASP
SATARBIASN
CLK100P
CLK100N
LFRAME#
LDRQ0#
LRDQ1#/GPI41
SERIRQ
SMBCLK
SMBDATA
SMLINK1
SMLINK0
A20M#
FERR#
IGNNE#
CPU_SLP#
STPCLK#
RCIN#
A20GATE
DPSLP#
DPRSLPVR
PWRBTN#
PWROK
CPUPWRGD/GPO49
VGATE/VRMPWRGD
SYS_RESET#
RTCRST#
RSMRST#
SLP_S3#
SLP_S4#
SLP_S5#
INTERVEN
INTRUDER#
LINKALERT#
SMBALERT#/GPI11
CLK14
RTCX1
RTCX2
GND
GND
SPKR
GND
Y10
AC7
AD7
AC9
AD9
AA8
AB8
AA10
AB10
Y11
Y9
AC5
AD5
T5
LAD0
R4
LAD1
R3
LAD2
U4
LAD3
T4
U5
R2
F23
AD2
AD1
AA2
AD3
V23
U24
R21
R23
INIT#
U23
INTR
R22
NMI
V24
SMI#
P22
T24
P23
T22
R24
P20
Y4
AC12
P24
R20
U1
AA12
AB13
W1
U2
AA3
AD10
Y12
V5
AC3
F20
AC11
32.768KHz-12.5pF-20PPM
AB12
AB3
RI#
E24
3
PROCHOT_LTCHD 25
RISER#2 29
FAN_CMD 29
CHASIS_ID0 25
CHASIS_ID1 25
CHASIS_ID2 25
PSWRD 14,29
BRD_ID0 29
BRD_ID1 29
CH_FAN_OVRD
SUS_STAT# 29
BATTLOW# 29
SUSCLK 14,25
THERM# 29
ICH_TRMTRIP# 29
SATA_BIAS
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
PWROK
INTERVEN
R84 24.9RST
R99 22
R102 X_390K
R628 10K
Y1
RTC_XO
3
2
SATA_RX0 25
SATA_RX#0 25
SATA_RX1 25
SATA_RX#1 25
SATA_TX0 25
SATA_TX#0 25
SATA_TX1 25
SATA_TX#1 25
SATA_100 13
SATA_100# 13
LPC_AD[0..3] 13,14,25
LPC_FRAME# 13,14,25
LPC_DRQ#0 14
LPC_DRQ#1 25
SERIRQ 14,25,29
SMBCLK 13,16,17,18,24,29
SMBDATA 13,16,17,18,24,29
SM_LINK1 20,29USB4-23
SM_LINK0 20,29
A20M# 6
FERR# 6,29
IGNNE# 6
HINIT# 6
INTR 6
NMI 6
SMI# 6
SLP# 6
STPCLK# 6
KBRST# 14,29
A20GATE 14,29
PWRBTN# 14
ICH_GD 8,29
CPU_GD 6
VRM_GD 28
RSTBTN# 25
RTC_RST# 29
RSMRST# 14,29
SLP_S3# 14,26
SLP_S4# 14,26
SLP_S5# 14
HOOD_SENSE# 14,24
LNK_ALERT# 29
SMB_ALERT# 29
Support Internal VCCSUS1_5 regulator install R102.
VBAT
ICH_14 13
18p-NPOC38
{VOLTAGE}
R105
10M
RI# 29
SPKR 15
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
Intel ICH5 - Other Signals
VISE (MS-6715)
2
1
12 31Friday, September 20, 2002
1
0AED
of
Page 13

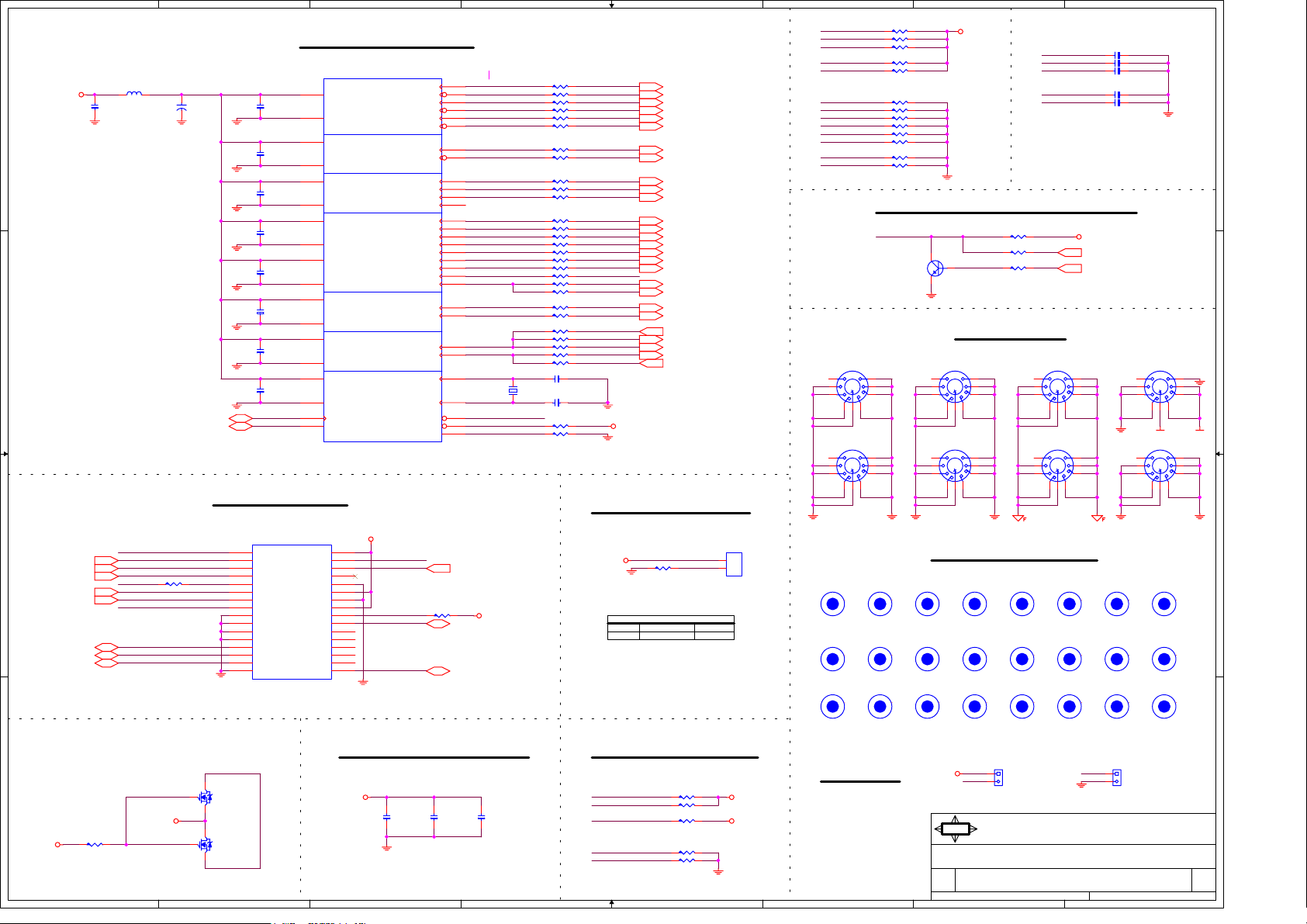

8
VCC3
D D
C C
PCIRST_ICH5#11
B B
RISER_DET#
RISER#1
BIOS_WP#14
LPC_AD012,14,25
LPC_AD112,14,25
LPC_AD212,14,25
FB2 80-0805-3A
CB64
0.1u_Y5V
FWH_VPP
TBL#
R144 8.2K
RISER#1
BIOS_WP#
TBL#
+
7
VCC3V
CT3
10u-16V
ALE
SMBCLK12,16,17,18,24,29
SMBDATA12,16,17,18,24,29
Firware Hub (FWH)
BIOS1
1
VPP
2
RST#
3
FGPI3
4
FGPI1
FGPI2
5
FGPI1
6
FGPI0
7
WP#
8
TBL#
9
ID3
10
ID2
11
ID1
12
ID0
13
FWH0
14
FWH1
15
FWH2
16 17
GND FWH3
BIOS_4Mbit
{Priority}
Clock Generator - CY28405
U4
40 38
C47
0.1u_Y5V
C48
0.1u_Y5V
C49
0.1u_Y5V
C50
0.1u_Y5V
C51
0.1u_Y5V
C52
0.1u_Y5V
C53
0.1u_Y5V
C55
0.1u_Y5V
CPU_VDD CPU0#
43
CPU_GND
34
SRC_VDD
37
SRC_GND
28
3V66_GND
10
PCI_VDD
11
PCI_GND
16
PCI_VDD
17
PCI_GND
24
48_VDD
23
48_GND
3
REF_VDD
6
REF_GND
48
VDD
47
GND
31
SCLK
32
SDATA
CYPRESS CY28405-N
{Priority}
VCC3
32
VCC
31
CLK
30
FGPI4
29
IC(VIL)
28
GNDA
27
VCCA
26
GND
25
VCC
24
INIT#
23
FWH4
22
RFU
21
RFU
20
RFU
19
RFU
18
RFU
6
CPU0
CPU1
CPU1#
CPU2
CPU2#
SRC
SRC#
3V66_03V66_VDD
3V66_1
MODE#/3V66_2
VCH/3V66_4
FS_C/PCI_F0
FS_D/PCI_F1
FS_E/PCI_F2
PCI0
PCI1
PCI2
PCI3
PCI4
PCI5
DOT_48M
USB_48M
FS_A/REF0
FS_B/REF1
VTT_GD#
RST#/PWR_DN#
IREF
Trace length less than 0.5inchs
MCHCLK
39
MCHCLK#
CPUCLK
42
CPUCLK#
41
ITPCLK
45
ITPCLK#
44
SATA100 SATA_100
36
SATA100#
35
MCH66
3027
AGPCLK
29
ICH66
26
25
LANPCLK
7
PCICLK0
8
PCICLK1
9
PCICLK2
12
PCICLK3
13
PCICLK4
14
ICHPCLK
15
FWHPCLK
18
SIOPCLK
19
DOT48 DOT_48
21
22
FS_SEL0
1
FS_SEL1
2
PLL_XI
4
X1
PLL_XO
5
X2
VID_GD#
33
PWR_DN#
20
IREF
46
5
22p_NPOC54
22p_NPOC56
MCH_CLK
MCH_CLK#
CPU_CLK
CPU_CLK#
ITP_CLK
ITP_CLK#
SATA_100#
MCH_66
AGP_CLK
ICH_66
FWH_PCLK
USB_48USB48
VCC3
R114 33
R115 33
R110 33
R112 33
R117 33
R119 33
R120 33
R121 33 R116 49.9RST
R122 33
R123 33
R124 33
R128 33
R491 33
R492 33
R493 33
R494 33
R132 33
R125 33
R127 33
R130 33
R548 33
R133 33
R134 33
R135 10K
R136 33
R137 33
R138 33
R139 10K
Y2
14M-32pf-HC49S-D
R140 1K
R503 475RST
4
MCH_CLK 8
MCH_CLK# 8
CPU_CLK 6
CPU_CLK# 6
ITP_CLK 29
ITP_CLK# 29
SATA_100 12
SATA_100# 12
MCH_66 10
AGP_CLK 19
ICH_66 12
LAN_PCLK 16
PCI_CLK0 20
PCI_CLK1 20
PCI_CLK2 20
PCI_CLK3 21
PCI_CLK4 21
ICH_PCLK 11
SIO_PCLK 14
SEC_PCLK 25
DOT_48 10
USB_48 12
BSEL0 6
SIO_14 14
AC_14 15
ICH_14 12
BSEL1 6
BIOS PROTECT BLOCK
FWH_PCLK
COIL_CONN TBL#
INIT#
COIL_CONN 24HOOD_SW_DET24
R152 8.2K
LPC_FRAME# 12,14,25
LPC_AD3 12,14,25
VCC3
VCC3
HIGH
LOW
R141 8.2K
BIOS Update Config.
Un_protected
Protected
Default
JBIOS1
1
2
YJ102
3
LANPCLK
PCICLK0
PCICLK1
BSEL0
BSEL1
CPU_CLK
CPU_CLK#
MCH_CLK
MCH_CLK#
ITP_CLK
ITP_CLK#
SATA_100
SATA_100#
R495 4.7K
R496 4.7K
R497 4.7K
R625 4.7K
R626 4.7K
R106 49.9RST
R107 49.9RST
R108 49.9RST
R109 49.9RST
R111 49.9RST
R113 49.9RST
R118 49.9RST
VCC3
Clock Generator VTT Power Down Block
VID_GD#
Q1
2N3904S
VIDGD
Mounting Holes
MH1
1
5
2
6
(NPTH)
3
7
4
8
9
MH5
1
5
2
6
(NPTH)
3
7
4
8
9
MH2
1
2
(NPTH)
3
4
8
9
MH6
1
2
(NPTH)
3
4
8
9
Optics Orientation Holes
FM1
FM9 FM10 FM11 FM13 FM15 FM16FM12
FM17
FM19FM18
FM4FM2 FM6FM3 FM7 FM8FM5
FM20 FM21 FM24FM23FM22
2
5
6
7
5
6
7
MCH_66
ICH_66
AGP_CLK
DOT_48
USB_48
EMC HF filter capacitors, located close to PLL
R126 1K
R129 X_1K
R131 4.7K
1
2
3
1
2
3
MH3
MH7
(NPTH)
4
(NPTH)
4
9
9
FM14
8
8
VCC3
GD_30MS 24
VID_GD 7
5
6
7
5
6
7
1
X_10p_NPOC42
X_10p_NPOC43
X_10p_NPOC44
X_10p_NPOC45
X_10p_NPOC46
MH4
1
5
2
6
(NPTH)
3
7
4
8
9
MH8
1
5
2
6
(NPTH)
3
7
4
8
9
FWH Decoupling Capacitors
FWH_VPP
A A
VCC3
+12V
R153 4.7K
8
FWH_VPP_EN
Q2
NDS7002AS
Q4
NDS7002AS
7
VCC3
CB65
0.1u_Y5V
Place Cap. as Close to every pin of FWH< 250 mil.
6
CB66
0.1u_Y5V
CB67
0.1u_Y5V
5
FWH Strapping Resistors
HOOD_SW_DET
BIOS_WP#
RISER#1
COIL_CONN
FGPI1
R145 8.2K
R146 8.2K
R147 8.2K
R149 2.7K
R150 1K
4
VCC3
VCC3
Simulation
3
VCC5
MSI
Title
Size Document Number Rev
Date: Sheet
J1 J2
SIM1
MICRO-STAR INt'L CO., LTD.
2
SIM2
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
CY28405 & FWH
VISE (MS-6715)
13 31Friday, September 20, 2002
of
1
0AED
Page 14
8
PCIRST_ICH5#11
SIO_PCLK13
SERIRQ12,25,29
LPC_DRQ#012
LPC_FRAME#12,13
LPC_AD[0..3]12,13,25
D D
RSMRST#12
PWBTIN#25
PWRBTN#12
PS_ON#25
PWRGDA8
GD_10MS28
GD_30MS#24
SLP_S3#12
SLP_S4#12
SIO_SMI#12
PCI_PME#16,19,20,21
SIO_PME#11
3V_SW_AUX27
3V_SW_MAIN#27
3V_SW_CTRL#26
SIO_TRMTRIP#29
SUSLED25
+12VP
MB_POWER_ON#24
MB_ADPT_DET#24
MB_DEV_DET#24
SEC_TPM_PRES25
HOOD_LOCK#24
HOOD_UNLOCK#24
5V_USB_AUX26
5V_USB_MAIN#26
D12
1N4148S
12VIN
C262
0.01u_X7R
PCIRST#116,20,21
PCIRST#219
IDEA_RST#22
IDEB_RST#22
ATADET022
ATADET122
SKTOCC#6
SYS_FAN24
CPU_FAN24
VCC5
+12V
SLP_S5#12
FB6 120-600mA
C C
B B
VCC3
PLED25
MR#29
R161 13KST
R163 1.78KST
R155 4.7K
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
PWRBTN#
PS_ON#
PWRGDA
GD_10MS
GD_30MS#
SIO_TRMTRIP#
COMM_B_DET#
MB_POWER_ON#
BRD_V1
MB_ADPT_DET#
MB_DEV_DET#
GP25
SKTOCC#
SEC_TPM_PRES
HOOD_LOCK#
HOOD_UNLOCK#
FDD_2M
COMM_B_DET#
BRD_V0
MR#
7
LPC SUPER I/O LPC47B387
U6
27
LRESET#
30
LCLK
31
SERIRQ
26
LDRQ#
25
LFRAME#
PD#
28
LPC_PD#
21
LAD0
22
LAD1
23
LAD2
24
LAD3
5
RSMRST#
1
PWRBTN_IN#/GP62
10
PWRBTN_OUT#/GP66
11
PS_ON#/GP67
4
PWRGOODA
105
PWRGD_10M/IRQ9/GP75
106
PWRGD_30M#/IRQ10/GP76
7
PDS_EN/FAN_TACH1/GP85
2
SLP_S3#/GP63
3
SLP_S5#/GP64
111
IO_SMI#/GP46
36
PME_IN#/GP13
14
IO_PME#/GP42
37
3V_SW_AUX/WOL#/GP14
38
3V_SW_MAIN#/EVENT5#/GP15
39
S3_3V_CTRL#/EVENT6#/GP16
53
THERMTRIP#/GP32
8
COLOR/GP30
13
BLINK_GR/GP31
17
GPRST1#/GP60
18
GPRST2#/GP61
33
GPRST3#/GP10
34
GPRST4#/GP11
29
DDRC/GP43
40
GP17
41
GP20/P17
42
GP21/P16
43
GP22/P12
44
RING#/GP23
45
SYSOPT/GP24
47
INTRUDER#/GP25
48
CPUOCC1#/GP26
49
CPUOCC2#/GP27
50
HDLOCK#/GP44
51
HDUNLCK#/GP45
54
WDO/GP33
104
IRQ7/GP74
35
FAN_TACH2/GP12
103
FAN_TACH3/IRQ6/GP73
110
FAN_TACH4
108
MR#
107
12VIN
AVS
5VIN
109
12VIN
100
USB_PWR#/ROFF/IRQ3/GP70
101
5V_USB_AUX/IRQ4/GP71
102 16
5V_USB_MAIN#/IRQ5/GP72 SUSCLK
52
AVSS
12
VSS6
99
VSS5
87
VSS4
57
VSS3
32
VSS2
6
VSS1
SMSC LPC47B387-N
DRVDEN1/IOCHCK#/GP41
RXD2/GP52/IRRX
TXD2/GP53/IRTX
DRVDEN0/GP40
INDEX#
MTR#0
DS1#/GP37
DS#0
MTR1#/GP36
DIR#
STEP#
WDATA#
WGATE#
TRACK0#
WP#
RDATA#
HEAD#
DSKCHG#
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
SLCT
BUSY
ACK#
SLIN#
INIT#
ERR#
AFD#
STB#
IRRX2/GP34
IRTX2/GP35
RI#1
RXD1
CTS#1
DCD#1
DSR#1
TXD1
RTS#1
DTR#1
RI2#/GP50
CTS#2/GP56
DCD#2/GP51
DSR#2/GP54
RTS#2/GP55
DTR2#/GP57
GA20/GP37
KBRST#/GP36
KBDATA
KBCLK
MSDATA
MSCLK
CLK_14M
VTR1
VTR2
VBAT
VCC3_3
VCC3_2
VCC3_1
6
DRVDEN0
60
61
INDEX#
70
MOA#
62
DSB#
59
DSA#
64
MOB#
58
DIR#
65
STEP#
66
WRDATA#
67
WE#
68
TRACK0#
71
WP#
72
RDDATA#
73
HEAD#
69
DSKCHG#
63
PRD0
83
PRD1
84
PRD2
85
PRD3
86
PRD4
88
PRD5
89
PRD6
90
PRD7
91
RSLCT
92
RPE
93
PE
BUSY
94
ACK#
95
SLIN#
82
PINIT#
81
ERR#
96
AFD#
97
RSTB#
98
55
56
RIA#
118
SINA
112
CTSA#
116
DCDA#
119
DSRA#
114
SOUTA
113
RTSA#
115
DTRA#
117
RIB#
120
SINB
123
CTSB#
127
DCDB#
122
DSRB#
125
SOUTB
124
RTSB#
126
DTRB#
128
Bit0 of 0xF0 of Device A setup 0.
79
78
KBDAT#
74
KBCLK#
75
MSDAT#
76
MSCLK#
77
20
15
CB70 1u-0805_Y5V
9
46
CB71 0.1u_Y5V
19
80
121
CB72
0.1u_Y5V
SYSMAG_INT 24
BIOS_WP# 13
FAN_CLAMP 24
RIA# 22
RIB# 22
A20GATE 12
KBRST# 12
SIO_14 13
SUSCLK 12
CB73
0.1u_Y5V
3VSB
VBAT
5
VCC3
CB74
0.1u_Y5V
4
3
SERIAL PORT 1
CB68 0.1u_Y5V
VCC5 VCC5
NCTSA#
NDSRA#
NSINA
NDCDA#
RTSA#
DTRA#
SOUTA
NRTSA
1
NDSRA#
3
NCTSA#
5
NRIA#
7
NDCDA#
1
NSOUTA
3
NSINA
5
NDTRA
7
MSDAT#
MSCLK#
KBCLK#
U5
20
VCC
2
RIN1
3
RIN2
4
RIN3
7
RIN4
9
RIN5
16
DIN1
15
DIN2
13
DIN3
11
GND
75232S-SSOP20
2
CN1
4
180p_NPO
6
8
2
CN2
4
180p_NPO
6
8
ACK#
BUSY
PE
SLCT
AFD#
ERR#
PINIT# PRND0
SLIN#
PRD0
PRD1
PRD2
PRD3
PRD4
PRD5
PRD6
PRD7
RSTB#
RN12
4.7K
1 2
3 4
5 6
7 8
V+
ROUT1
ROUT2
ROUT3
ROUT4
ROUT5
DOUT1
DOUT2
DOUT3
V-
NDCDA#
NSINA NRTSA
NSOUTA
NDTRA
U29
1
RCD1
2
RCD2
8
RCD3
10
RCD4
12
RCD5
15
RCD6
27
RCD7
28
RCD8
3
RRCD1P
4
RRCD2P
6
RRCD3P
7
RRCD4P
9
RRCD5P
11
RRCD6P
13
RRCD7P
14
RRCD8P
5
RRCD9P
PAC SZ1284
{Priority}
L1
FB4 120-600mA
FB7 120-600mA
FB8 120-600mA
FB9 120-600mA
D2 1N4148S
C57 0.1u_Y5V
U5_1
1
19
CTSA#
18
DSRA#
17
SINA
14
DCDA#
12
NRTSA
5
NDTRA
6
NSOUTA
8
D3 1N4148S
U5_10
10
C58 0.1u_Y5V
COM1
1
6
2
7
3
8
4
9
5
COM
20
VCC
22
GND
26
RRCD1N
25
RRCD2N
23
RRCD3N
21
RRCD4N
19
RRCD5N
18
RRCD6N
17
RRCD7N
16
RRCD8N
24
RRCD9N
PS2 KEYBOARD & MOUSE CONNECTOR
MS_DT
MS_CK
KB_DTKBDAT#
KB_CK
180p_NPO
NDSRA#
NCTSA#
NRIA#
NRIA# 22
NRIB# 22
D5 1N4148S
C60
0.1u_Y5V
PRND0
PRND1
PRND2
PRND3
PRND4
PRND5
PRND6
PRND7
STB#
C62
0.1u_Y5V
135
CN7
246
+12V
-12V
R162
1K
7
8
CB335 0.1u_Y5V
NRTSB
NDSRB#
NCTSB#
NRIB#
NDCDB#
NSOUTB
NSINB
NDTRB
7
8
11
12
1
2
5
6
VCC5
JKBMS1
YMD12P-1
MS
KB
1
3
5
7
1
3
5
7
2
SERIAL PORT 1
20
2
NCTSB#
3
NDSRB#
4
NSINB
7
NDCDB#
9
RTSB#
16
DTRB#
15
SOUTB
13
11
2
4
6
8
2
4
6
8
FB5 80-0805-3A
10
9
4
3
U22
VCC
RIN1
RIN2
RIN3
RIN4
RIN5
DIN1
DIN2
DIN3
GND
75232S-SSOP20
CN11
180p_NPO
CN12
180p_NPO
V+
ROUT1
ROUT2
ROUT3
ROUT4
ROUT5
DOUT1
DOUT2
DOUT3
V-
NDCDB# NDSRB#
NSINB
NSOUTB
NDTRB# NRIB#
PARALLAL PORT
STB#
PRND1
PRND2
PRND3
PRND4
PRND5
PRND6
PRND7
ACK#
BUSY
PE
SLCT
LPT1A
1
2
3
4
5
6
7
8
9
10
11
12
13
YCN25F-001-1
C63
0.1u_Y5V
U5_1
1
19
CTSB#
18
DSRB#
17
SINB
14
DCDB#
12
NRTSB
5
NDTRB
6
NSOUTB
8
U5_10
10
COM2
1 2
3 4
5
7 8
9
PIN2*5
FB3 120-600mA
AFD#
14
ERR#
15
PINIT#
16
SLIN#
17
18
19
20
21
22
23
24
25
F1
FS1
1.1A-microSMD110
POLY SWITCH
1
C216 0.1u_Y5V
C217 0.1u_Y5V
NRTSB#
NCTSB#
6
COMM_B_DET#
10
USB_STR
FLOPPY CONNECTORLPC I/O STRAPPING RESISTOR PASSWORD CLEAR
FDD1
R165 1K
R169 1K
BRD_V0, BRD_V1 PULLDOWN FOR INITIAL VERSION.
PWRBTN#
GD_10MS
GD_30MS#
PWRGDA
MR#
SIO_TRMTRIP#
GP25
7
VBAT
VCC3
VCC3
VCC3
VCC3
VCC3
3VSB
SEC_TPM_PRES
HOOD_SENSE#12
A A
COMM_B_DET#
HOOD_LOCK#
HOOD_UNLOCK#
MB_ADPT_DET#
MB_POWER_ON#
MB_DEV_DET#
8
R553 10M
R172 1M
R174 4.7K
R179 2.7K R183 4.7K
R182 2.7K
R186 4.7K
R188 4.7K
R191 4.7K
BRD_V0
R166 X_4.7K
R170 X_4.7KR168 10M
BRD_V1SKTOCC# FDD_2M
R177 4.7K
R180 4.7K
R185 4.7K
R189 8.2K
R190 X_8.2K
R192 4.7K
R583 4.7K
6
VCC3
VCC3
3VSB
3VSB
3VSB
3VSB
3VSB
VCC3
VCC3
VCC3
5
1 2
7 8
9 10
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
CN-BH-D2x17-2:3.5-BK
4
6
20
DRVDEN0
INDEX#
MOA#
DSB#
DSA#
MOB#
DIR#
STEP#
WRDATA#
WE#
TRACK0#
WP#
RDDATA#
HEAD#
DSKCHG#
4
INDEX#
TRACK0#
WP#
RDDATA#
DSKCHG#
FDD_2M
R173 150
R176 150
R178 150
R181 150
R184 150
R187 1K
3
VCC5
Title
Size Document Number Rev
Date: Sheet
PSWD1
1
2
YJ102
PASSWORD CLEAR Function
MSI
2
NORMAL
R167 330
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
PSWRD 12
VCC3
WORD
ON
OFF CLEAR
MICRO-STAR INt'L CO., LTD.
LPC SUPER I/O & CONNECTORS
VISE (MS-6715)
14 31Friday, September 20, 2002
0AED
of
1
Page 15
8
R193 1K
R194 1K
R195 X_1K
R196 3.3K
D D
C C
B B
VCC3
C65
0.1u_Y5V
AC_1413
AC_RST#11
AC_SDIN011
AC_SDOUT11
AC_SYNC11
AC_BITCLK11
C66
0.1u_Y5V
R513 47
R199 47
X_47p_Y5V-NC234
U19_6
AUX_L
AUX_R
R205 X_4.7K
R206 4.7K
CD_L
CD_GND
CD_R
COPPER
FB10 0-0805
270p_X7RC258
7
+5VR
CB75
0.1u_Y5V
ID0#
ID1#
JS0
S_PDIF
4847464544424140394338
U7
NC
1
9
4
7
2
3
11
8
5
10
6
12
NC
DVDD1
DVDD2
DVSS1
DVSS2
XTL_IN
XTL_OUT
RESET#
SDATA_IN
SDATA_OUT
SYNC
BIT_CLK
PC_BEEP
TEST6
TEST5
AD1981A/B
PHONE
AUXL
AUXR
1314151617181920212223
JS1
VIDEO_R
TEST4
TEST1
VIDEOL
VIDEOR
AVSS2
CDL
TEST2
DACOUTL
DACOUTR
CDGND
CDR
MIC1
37
MONO
AVDD2
MIC2
LOUTR
LOUTL
VRDA
VRAD
AFILT2
AFILT1
VREF
AVDD1
AVSS1
LINL
LINR
24
ADI-AD1981B
{Priority}
IN_R
IN_L
MIC_IN2
+5VR
+5VR
MIC_IN
OUT_R
OUT_L
6
36
35
34
NC
33
NC
32
31
30
29
28
NC
27
25
26
C76 1u-0805_Y5V
C78 1u-0805_Y5V
C80 0.1u_Y5V
R211 0
C82 4.7u-0805_Y5V
R556 0
C84 4.7u-0805_Y5V
C85 0.1u_Y5V
HP_ROUT
HP_LOUT
+5VR
CB76
0.1u_Y5V
U19_34
U19_33
U19_32
U19_31
U19_30
U19_29
AC_VREF
+5VR
C68
0.1u_Y5V
FB39 600-0805
C90
470p_X7R
FB40 600-0805
C92
470p_X7R
5
+5VR
0.01u_X7RC64
C69
1u-0805_Y5V
C70
0.1u_Y5V
R371
R374
MICIN2
MIC_PWR2
MIC_PWR1
MICIN MIC1
JS1
MONO_R
MONO_L
R202 4.7K
R203 4.7K
R207 4.7K
R208 4.7K
R209 4.7K
R212 2.2K
R217 2.2K
R219 4.7K
R505 2.2K
C259 1u-0805_Y5V
C260 1u-0805_Y5V
CODEC AD1981A
C72
270p_X7R
270p_X7R
270p_X7R
470p_X7R
470p_X7R
C83
C87
C73
270p_X7R
INR
C77
INL
C79
MIC2
HP_RO
MONO_R_R
MONO_L_R
HP_LO
4
C74
270p_X7R
10
11
12
13
18
J3B
PHONE_JACK
1
2
4
5
3
J3C
PHONE_JACK
6
7
8
9
17
J3A
PHONE_JACK
C75
270p_X7R
LINE_IN
MIC_IN
LINE_OUT
3
2
AUDIO CODE REGULATORS
VR1
LM78L05-SOT89
+12V
CB77
0.1u_Y5V
3
OUT
GNDINGND
214
CB78
0.1u_Y5V
FRONT AUDIO
MIC_IN_RMIC_IN_L
MIC_IN
FAUD_DET#12
14
15
16
R586 4.02KSTC255 0.22u_Y5V
MIC_BIAS
HP_R
FAUD_DET#
HP_L
+5VR
C250 4.7u-0805_Y5V
VCC3
S_PDIF HP_L
HP_LOUT HP_L
HP_ROUT
R210 8.2K
C223
470p_X7R
CT5 100u-16V
CT6 100u-16V
AUDIO1
1 2
MIC GNDA
3 4
MIC_VCC VCCA
5 6
FPOUT_R RET_R
7 8
DET# KEY
9 10
FPOUT_L RET_L
FRONT_AUDIO
MIC_PWR3
FAUD_DET#
0.01u_X7RC218
+
+
R204
470
R213
470
R268 2.2KR554 1.5K
R504 130RST
R555 X_130RST
R201 75
R218 75
AUX IN
C91 1u-0805_Y5V
AUX_R AUXR
C93 1u-0805_Y5V
AUX_L
R530
R531
R222
4.7K
R223
4.7K
+
C67 0.1u_Y5V
R220 4.7K
R221 4.7K
CT4
10u-16V
1
+5VR
OUT_R
OUT_L
MIC_BIAS
OUT_L
HP_R
AUXL
AUX1
4
3
2
1
YJ104-BY
(White)
2.54mm
+5VR
CD IN
MONO_R
R227
10K
MONO_L
A A
SPKR12
8
R231 20K
R235
10K
MONO_RL MONO_O
Internal Speaker
7
C101
0.01u_X7R
R239
10K
R225 20KC94 1u-0805_Y5VR224 20K
SPKR_OUTR_SPKR
R238 20KR237 100K 0.01u_X7RC100
6
+5VR +12V
R229
13KST
VOL_CTRL
R236
3.4KST
CB79
0.1u_Y5V
5
U8
5
VI
7
VC
6
S_GND
15
P_GND
1
NC1
2
NC2
3
NC3
8
NC4
9
NC5
10
NC6
TDA7056AT(3W)
+
CT7
X_100u-25V
VCC
OUT+
OUT-
NC7
NC8
NC9
NC10
NC11
NC12
FB11 0-0805
0.1u_Y5V
AMP_VCCMONO_OUT
4
MONO_OUT+
14
MONO_OUT-
17
11
12
13
18
19
20
C97
C95 1u-0805_Y5V
CD_R
CD_GND
C96 1u-0805_Y5V
CD_L
C98 1u-0805_Y5V
INTL_SPK1
2
1
SIP2B
4
3
C_R
C_G
C_L
MSI
R233
2.7K
R234
C219
4.7K
270p_X7R
270p_X7R
MICRO-STAR INt'L CO., LTD.
AC97 AUDIO - AD1981A/B
2
R232
4.7K
Title
Size Document Number Rev
Date: Sheet
R226 4.7K
R228 2.7K
R230 4.7K
C221
C220
270p_X7R
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
VISE (MS-6715)
15 31Friday, September 20, 2002
CDR
CDG
CDL
CD1
4
3
2
1
YJ104-B
(Black)
2.54mm
0AED
of
1
Page 16
8
D D
C C
B B
AD[0..31]11,20,21
C_BE#[0..3]11,20,21
FRAME#11,20,21
IRDY#11,20,21
TRDY#11,20,21
DEVSEL#11,20,21
STOP#11,20,21
PAR11,20,21
PERR#11,20,21
SERR#11,20,21
PGNT#511
PREQ#520
PIRQ#H11,20
PCI_PME#14,19,20,21
LAN_PCLK13
PCIRST#114
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
C_BE#0
C_BE#1
C_BE#2
C_BE#3
AD18
LAN_TRST#
D12
B12
A12
C12
D11
LAN AVDD VOLTAGE BLOCK
A A
AVDD
FB14 80-0805-3A
C110
2.2u_Y5V
8
LAN2_5
U9
N7
AD0
M7
AD1
P6
AD2
P5
AD3
N5
AD4
M5
AD5
P4
AD6
N4
AD7
P3
AD8
N3
AD9
N2
AD10
M1
AD11
M2
AD12
M3
AD13
L1
AD14
L2
AD15
K1
AD16
E3
AD17
D1
AD18
D2
AD19
D3
AD20
C1
AD21
B1
AD22
B2
AD23
B4
AD24
A5
AD25
B5
AD26
B6
AD27
C6
AD28
C7
AD29
A8
AD30
B8
AD31
M4
C_BE#0
L3
C_BE#1
F3
C_BE#2
C4
C_BE#3
F2
FRAME#
F1
IRDY#
G3
TRDY#
H3
DEVSEL#
H1
STOP#
J1
PAR
J2
PERR#
A2
SERR#
C3
REQ#
J3
GNT#
A4
IDSEL
H2
INTA#
A6
PME#
A3
PCICLK
C2
PCI_RST#
TDI
TDO
TMS
TCK
TRST#
F4
M66EN
Broadcom BCM5705-N
{Priority}
7
7
K14
VDDP
6
VCC3LAN2_5 LAN1_2
3VSB
L13
P11
A11
F11
K12
L12A7B3C5E1E4G1K3L4N6P2
VDDP
VDDP
VDD_IO
VDD_IO
VDD_IO
VDD_IO
VDD_PCI
VDD_PCI
VDD_PCI
VDD_PCI
VDD_PCI
VDD_PCI
VDD_PCI
VDD_PCI
VDD_PCI
VDD_PCI
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
B7D4D5D6D7D8D9E2E5E6E7E8E9F5F6F7F8F9F10G4G5G6G7G8G9
LAN Decoupling Capacitors
Close chipset, and trace length is less than 20mils.
CB91
0.1u_Y5V
CB116
0.01u_X7R
VCC3
6
3VSB
E12H5H6H7H8J5J6J7J8J9J10K5K6K7K8K9K10
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
G10K2H9
M12
M13M6L6L9N1
R561 X_300
CB92
0.1u_Y5V
CB109
0.01u_X7R
CB110
0.01u_X7R
CB96
0.1u_Y5V
CB104
0.1u_Y5V
CB122
0.01u_X7R
5
R557 0
M14L5L10
VDDC
GND
PLL_VDD3
PLL_VDD2
AVDDL
AVDD
N14P8P12
P13
P14
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
GND
GND
GND
GND
GNDNCNCNCNCNCNCNCNCNCNCNCNCNCNC
N12
N13H4H10J4J11K4K11L7L8
CLKRUN#
CB97
0.1u_Y5V
CB105
0.1u_Y5V
5
4
3
2
1
LAN EEPROM
LAN2_5
PAM-5
code
CB80
VDD_PLL3
VDD_XTAL
SPD100LEDB#
SPD10000LEDB#
TRAFFICLEDB
VAUX/PRSNT
M11
N8
LOW_PWR
NC1
NC2
4
0.1u_Y5V
TR_D0+
TR_D0-
TR_D1+
TR_D1-
TR_D2+
TR_D2-
TR_D3+
TR_D3-
REG_SUP25
REG_CTL25
REG_SEN25
REG_SUP12
REG_CTL12
REG_SEN12
GPIO0
GPIO1
GPIO2
LINKLEDB
SMB_CLK
SMB_DATA
EECLK
EEDATA
NC/EEDIN
NC/EEDOUT
VESD1
VESD2
VESD3
RDAC
CS#
SCLK
BIASVDD
DC
C8
B13
B14
C13
C14
D13
D14
E13
E14
B11
C11
C10
B9
B10
A9
H12
K13
J13
H13
G12
G13
G14
A10
C9
M10
P10
N9
P9
P1
G2
A1
D10
H11
E11
E10
SI
G11
SO
N11
XI
25M-18pF-30ppm-HC49S
N10
XO
A14
J12
R560 X_300
R260 X_0
R261 X_0
TR_D0+
TR_D0-
TR_D1+
TR_D1-
TR_D2+
TR_D2-
TR_D3+
TR_D3-
100_LED#
1G_LED#
TR_D0+
TR_D0-
TR_D1+
TR_D1-
TR_D2+
TR_D2-
TR_D3+
TR_D3-
CTL25
CTL12
BWP#
100_LED#
1G_LED#
TR_LED
EE_CLK
EE_DATA
VCC5
RDAC
L_XI
R255 0
VDD_BIAS
VAUX
R240 49.9RST
R241 49.9RST
R242 49.9RST
R243 49.9RST
R244 49.9RST
R245 49.9RST
R246 49.9RST
R247 49.9RST
R248 330
R249 330
TR_D0+ 23
TR_D0- 23
TR_D1+ 23
TR_D1- 23
TR_D2+ 23
TR_D2- 23
TR_D3+ 23
TR_D3- 23
R558 X_330
R559 X_470
R250 1K
100_LED# 23
1G_LED# 23
TR_LED 23
SMBCLK 12,13,17,18,24,29
SMBDATA 12,13,17,18,24,29
R251 1K
R252 1K
EE_DI
EE_DO 12,29
R253 1.24KST
EE_CS#
EE_SCLK
R629 X_10K
R630 X_10K
R254
Y3
330K
XOL_XO
R256 4.7RST-N
C104
0.1u_Y5V
R258 4.7KR257 4.7K
LAN2_5
3VSB
3VSB
3
3VSB
LAN2_5
LAN2_5
LAN1_2
LAN1_2
3VSB
3VSB
3VSB
3VSB
3VSB
18p_NPOC102
18p_NPOC103
LAN2_5
3VSB
A13
F14
F13
F12
H14P7J14
AVDD
AVDD
AVDDL
AVDDL
VDD_PLL2
L11
L14M8M9
LAN2_5LAN1_2 LAN1_2
CB106
0.1u_Y5V
CB115
0.01u_X7R
EE_CS#
EE_SCLK
EE_DO29
EE_DI
EE_CLK
EE_DATA BWP#
LAN VOLTAGE REGULATION
If use Motorola MJD45H11
0.7inch square to dissipate the heat.
CTL25
Q14
MJD45H11-TO252-N
{Priority}
Vf=650mV when
Id=650mA
{CURRENT}
SS22-S210-DO214AA-N
{Priority}
MJD45H11-TO252-N
{Priority}
DZ3
LAN2_5_DZ
CTL12
Q15
These transistors must away from the BCM7052 with 1.5inch.
LAN PLL VOLTAGE BLOCK
PLL_VDD2
LAN AVDDL VOLTAGE BLOCK
AVDDL
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
2
U31
1
CS
2
SK
3
DI
4
DO
X_AT93C46
{Priority}
U10
1
A0
2
A1
3
A2
6
SCL
5
SDA
AT24C512-N
{Priority}
+
+
Voltage drop to prevent heat generate from BCP69
within 1.3V Vce. Demo board measure over
90degreeC within normal NWTEST in one client.
+
NOT INSTALL
C105
0.1u_Y5V
C107
0.1u_Y5V
8
VCC
7
NC
ORG
GND
8
VCC
4
VSS
7
WP#
CB82
CT8
0.1u_Y5V
10u-16V
CB84
CT9
0.1u_Y5V
10u-16V
If use Motorola MJD45H11
1.5inch square to dissipate the heat.
CB86
CT10
0.1u_Y5V
10u-16V
BCM4401
U10,Q14,Q15,DZ3
R244,R245,R246,R247
FB12 80-0805-3A
C106
2.2u_Y5V
FB13 80-0805-3A
C108
2.2u_Y5V
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
6
5
CB339
0.1u_Y5V
3VSB
CB81
0.1u_Y5V
CB83
0.01u_X7R
88mA@ 0.564W
CB85
0.01u_X7R
700mA@ 0.840W
CB87
0.01u_X7R
Broadcom BCM5702
VISE (MS-6715)
16 31Friday, September 20, 2002
of
1
3VSB
3VSB
LAN2_5
LAN1_2
LAN1_2
LAN1_2
0AED
Page 17
5
DDR DIMM1 DDR DIMM2
DIMM1
48
SIGNALS
43
41
130
37
32
125
29
122
27
141
118
115
167
59
52
113
157
158
71
163
154
65
63
5
14
25
36
56
67
78
86
47
97
107
119
129
149
159
169
177
140
44
45
49
51
134
135
142
144
21
111
92
91
181
182
183
16
17
137
138
76
75
82
184
7
38
46
70
85
108
120
148
168
81
89
93
100
116
124
132
139
145
152
160
176
DIMM-D184-BK
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/NC
A13/NC
BA0
BA1
NC/BA2
CS0#
CS1#
NC/CS2#
NC/CS3#
RAS#
CAS#
WE#
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQM0/DQS9
DQM1/DQS10
DQM2/DQS11
DQM3/DQS12
DQM4/DQS13
DQM5/DQS14
DQM6/DQS15
DQM7/DQS16
DQM8/DQS17
MECC0
MECC1
MECC2
MECC3
MECC4
MECC5
MECC6
MECC7
CKE0
CKE1
SCL
SDA
SA0
SA1
SA2
CK0/NC
CK0#/NC
CK1/CK0
CK1#/CK0#
CK2/NC
CK2#/NC
ID_VDD
SPD_VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
POWER
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VREF
FETEN/NC
NC/RESET#
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
NC
NC
NC
NC
WP
ADDR.=1010000B ADDR.=1010001B
VCC_DDR
VCC_DDR
5
MA_A0
MA_A1
MA_A2
MA_A3
MA_A4
MA_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12
MBA_A0
MBA_A1
MRAS_A#
MCAS_A#
MWE_A#
MDQS_A0
MDQS_A1
MDQS_A2
MDQS_A3
MDQS_A4
MDQS_A5
MDQS_A6
MDQS_A7
MDQM_A0
MDQM_A1
MDQM_A2
MDQM_A3
MDQM_A4
MDQM_A5
MDQM_A6
MDQM_A7
SMBCLK
SMBDATA
MA_A[0..12]9
D D
MBA_A09
MBA_A19
MCS_A#09
MCS_A#19
MRAS_A#9
MCAS_A#9
MWE_A#9
MDQS_A[0..7]9
C C
MDQM_A[0..7]9
MCKE_A09
MCKE_A19
SMBCLK12,13,16,18,24,29
SMBDATA12,13,16,18,24,29
B B
MCLK_A19
MCLK_A#19
MCLK_A09
MCLK_A#09
MCLK_A29
MCLK_A#29
A A
4
3
2
1
DDR Terminational Resisitors
DIMM2
48
43
41
130
37
32
125
29
122
27
141
118
115
167
59
52
113
157
158
71
163
154
65
63
5
14
25
36
56
67
78
86
47
97
107
119
129
149
159
169
177
140
44
45
49
51
134
135
142
144
21
111
92
91
181
182
183
16
17
137
138
76
75
82
184
7
38
46
70
85
108
120
148
168
81
89
93
100
116
124
132
139
145
152
160
176
DIMM-D184-BK
SIGNALS
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/NC
A13/NC
BA0
BA1
NC/BA2
CS0#
CS1#
NC/CS2#
NC/CS3#
RAS#
CAS#
WE#
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQM0/DQS9
DQM1/DQS10
DQM2/DQS11
DQM3/DQS12
DQM4/DQS13
DQM5/DQS14
DQM6/DQS15
DQM7/DQS16
DQM8/DQS17
MECC0
MECC1
MECC2
MECC3
MECC4
MECC5
MECC6
MECC7
CKE0
CKE1
SCL
SDA
SA0
SA1
SA2
CK0/NC
CK0#/NC
CK1/CK0
CK1#/CK0#
CK2/NC
CK2#/NC
ID_VDD
SPD_VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
POWER
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VREF
FETEN/NC
NC/RESET#
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
MDQ_A0
2
MDQ_A1
4
MDQ_A2
6
MDQ_A3
8
MDQ_A4
94
MDQ_A5
95
MDQ_A6
98
MDQ_A7
99
MDQ_A8
12
MDQ_A9
13
MDQ_A10
19
MDQ_A11
20
MDQ_A12
105
MDQ_A13
106
MDQ_A14
109
MDQ_A15
110
MDQ_A16
23
MDQ_A17
24
MDQ_A18
28
MDQ_A19
31
MDQ_A20
114
MDQ_A21
117
MDQ_A22
121
MDQ_A23
123
MDQ_A24
33
MDQ_A25
35
MDQ_A26
39
MDQ_A27
40
MDQ_A28
126
MDQ_A29
127
MDQ_A30
131
MDQ_A31
133
MDQ_A32
53
MDQ_A33
55
MDQ_A34
57
MDQ_A35
60
MDQ_A36
146
MDQ_A37
147
MDQ_A38
150
MDQ_A39
151
MDQ_A40
61
MDQ_A41
64
MDQ_A42
68
MDQ_A43
69
MDQ_A44
153
MDQ_A45
155
MDQ_A46
161
MDQ_A47
162
MDQ_A48
72
MDQ_A49
73
MDQ_A50
79
MDQ_A51
80
MDQ_A52
165
MDQ_A53
166
MDQ_A54
170
MDQ_A55
171
MDQ_A56
83
MDQ_A57
84
MDQ_A58
87
MDQ_A59
88
MDQ_A60
174
MDQ_A61
175
MDQ_A62
178
MDQ_A63
179
9
NC
101
NC
102
NC
173
NC
DDR_VREF1DDR_VREF1
1
90
WP
C112
103
0.1u_Y5V-0402
10
15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180
3
11
18
26
34
42
50
58
66
74
VCC_DDR
2
VCC_DDR
VCC_DDR
VCC_DDR
3
MA_A0
MAB_A1
MAB_A2
MAB_A3
MAB_A4
MAB_A5
MA_A6
MA_A7
MA_A8
MA_A9
MA_A10
MA_A11
MA_A12
MBA_A0
MBA_A1
MRAS_A#
MCAS_A#
MWE_A#
MDQS_A0
MDQS_A1
MDQS_A2
MDQS_A3
MDQS_A4
MDQS_A5
MDQS_A6
MDQS_A7
MDQM_A0
MDQM_A1
MDQM_A2
MDQM_A3
MDQM_A4
MDQM_A5
MDQM_A6
MDQM_A7
SMBCLK
SMBDATA
MDQ_A0
2
MDQ_A1
4
MDQ_A2
6
MDQ_A3
8
MDQ_A4
94
MDQ_A5
95
MDQ_A6
98
MDQ_A7
99
MDQ_A8
12
MDQ_A9
13
MDQ_A10
19
MDQ_A11
20
MDQ_A12
105
MDQ_A13
106
MDQ_A14
109
MDQ_A15
110
MDQ_A16
23
MDQ_A17
24
MDQ_A18
28
MDQ_A19
31
MDQ_A20
114
MDQ_A21
117
MDQ_A22
121
MDQ_A23
123
MDQ_A24
33
MDQ_A25
35
MDQ_A26
39
MDQ_A27
40
MDQ_A28
126
MDQ_A29
127
MDQ_A30
131
MDQ_A31
133
MDQ_A32
53
MDQ_A33
55
MDQ_A34
57
MDQ_A35
60
MDQ_A36
146
MDQ_A37
147
MDQ_A38
150
MDQ_A39
151
MDQ_A40
61
MDQ_A41
64
MDQ_A42
68
MDQ_A43
69
MDQ_A44
153
MDQ_A45
155
MDQ_A46
161
MDQ_A47
162
MDQ_A48
72
MDQ_A49
73
MDQ_A50
79
MDQ_A51
80
MDQ_A52
165
MDQ_A53
166
MDQ_A54
170
MDQ_A55
171
MDQ_A56
83
MDQ_A57
84
MDQ_A58
87
MDQ_A59
88
MDQ_A60
174
MDQ_A61
175
MDQ_A62
178
MDQ_A63
179
9
101
102
173
1
90
C111
103
0.1u_Y5V-0402
10
15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180
3
11
18
26
34
42
50
58
66
74
VCC_DDR
4
VCC_DDR
MDQ_A[0..63] 9
R516
75RST
R517
75RST
MAB_A[1..5]9
MCS_A#29
MCS_A#39
MCKE_A29
MCKE_A39
MCLK_A49
MCLK_A#49
MCLK_A39
MCLK_A#39
MCLK_A59
MCLK_A#59
MDQS_A7
1 2
MDQM_A7
3 4
MDQ_A57
5 6
MDQ_A56
7 8
MDQ_A37
1 2
MDQ_A33
3 4
MDQ_A36
5 6
MDQ_A32
7 8
MDQ_A53
1 2
MDQ_A52
3 4
MDQ_A49
5 6
MDQ_A48
7 8
MDQ_A11
1 2
MDQ_A10
3 4
MDQ_A15
5 6
MDQ_A14
7 8
R587 56-0402
MDQS_A5
R588 56-0402
MDQM_A5
R589 56-0402
MDQ_A41
R590 56-0402
MDQ_A45
R591 56-0402
MDQ_A23
R592 56-0402
MDQ_A20
MA_A1
1 2
MAB_A1
3 4
MA_A2
5 6
MAB_A2
7 8
MAB_A5
1 2
MA_A8
3 4
MA_A7
5 6
7 8
MAB_A3
1 2
MA_A3
3 4
MAB_A4
5 6
MA_A4
7 8
MBA_A1
1 2
MA_A10
3 4
MA_A0
5 6
7 8
MCS_A#3
1 2
MCS_A#1
3 4
MCS_A#2
5 6
MCAS_A#
7 8
MCKE_A0
1 2
MCKE_A2
3 4
MCKE_A3
5 6
MCKE_A1
7 8
R593 47-0402
MA_A5
R594 47-0402
MA_A6
R595 47-0402
MA_A9
R596 47-0402
MA_A11
R597 47-0402
MA_A12
R598 47-0402
MBA_A0
R599 47-0402
MRAS_A#
R600 47-0402
MWE_A#
R601 47-0402
MCS_A#0
VTT_DDR VTT_DDR VCC_DDR
CB124
0.1u_Y5V-0402
CB126
0.1u_Y5V-0402
CB129
0.1u_Y5V-0402
CB132
0.1u_Y5V-0402
CB135
0.1u_Y5V-0402
CB138
0.1u_Y5V-0402
CB143
0.1u_Y5V-0402
CB148
0.1u_Y5V-0402
CB153
0.1u_Y5V-0402
CB158
0.1u_Y5V-0402
CB163
0.1u_Y5V-0402
CB168
0.1u_Y5V-0402
CB173
0.1u_Y5V-0402
Place these decoupling capacitors close to VTT_DDR termination resistors.
One decoupling capacitor for each R-pack.
MSI
Title
Size Document Number Rev
Date: Sheet
VTT_DDR
MDQ_A9
1 2
RN13
56-0402
RN15
56-0402
RN17
56-0402
RN19
56-0402
RN24
47-0402
RN28
47-0402
RN30
47-0402
RN32
47-0402
RN34
47-0402
RN38
47-0402
VTT_DDR
MDQ_A8
MDQ_A3
MDQ_A7
MDQ_A6
MDQ_A2
MDQM_A0
MDQS_A0
MDQM_A1
MDQ_A13
MDQS_A1
MDQ_A12
MDQS_A2
MDQ_A21
MDQ_A17
MDQ_A16
MDQ_A22
MDQ_A18
MDQM_A2
MDQM_A3
MDQS_A3
MDQ_A29
MDQ_A25
MDQ_A31
MDQ_A27
MDQ_A26
MDQ_A30
MDQ_A38
MDQM_A4
MDQ_A34
MDQS_A4
MDQ_A40
MDQ_A44
MDQ_A35
MDQ_A39
MDQ_A28
MDQ_A24
MDQ_A19
MDQ_A1
MDQ_A5
MDQ_A4
MDQ_A0
MDQ_A47
MDQ_A46
MDQ_A43
MDQ_A42
MDQ_A61
MDQ_A60
MDQ_A51
MDQ_A50
MDQ_A58
MDQ_A59
MDQ_A63
MDQ_A62
MDQ_A55
MDQ_A54
MDQS_A6
MDQM_A6
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
DECOUPLING CAPACITORS
CB125
0.1u_Y5V-0402
CB127
0.1u_Y5V-0402
CB130
0.1u_Y5V-0402
CB133
0.1u_Y5V-0402
CB136
0.1u_Y5V-0402
CB139
0.1u_Y5V-0402
CB144
0.1u_Y5V-0402
CB149
0.1u_Y5V-0402
CB154
0.1u_Y5V-0402
CB159
0.1u_Y5V-0402
CB164
0.1u_Y5V-0402
CB169
0.1u_Y5V-0402
CB174
0.1u_Y5V-0402
MICRO-STAR INt'L CO., LTD.
DDR DIMM 1 & 2
VISE (MS-6715)
+
+
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
17 31Friday, September 20, 2002
1
VTT_DDR
RN14
56-0402
RN16
56-0402
RN18
56-0402
RN20
56-0402
RN23
56-0402
RN25
56-0402
RN27
56-0402
RN29
56-0402
RN31
56-0402
RN33
56-0402
RN35
56-0402
RN37
56-0402
RN39
56-0402
RN40
56-0402
RN21
56-0402
CT11
1000u-6.3V
CT51
1000u-6.3V
CB207
0.1u_Y5V-0402
CB165
0.1u_Y5V-0402
CB170
0.1u_Y5V-0402
CB175
0.1u_Y5V-0402
of
0AED
Page 18
5
DDR DIMM3 DDR DIMM4
DIMM3
48
SIGNALS
43
41
130
37
32
125
29
122
27
141
118
115
167
59
52
113
157
158
71
163
154
65
63
5
14
25
36
56
67
78
86
47
97
107
119
129
149
159
169
177
140
44
45
49
51
134
135
142
144
21
111
92
91
181
182
183
16
17
137
138
76
75
82
184
7
38
46
70
85
108
120
148
168
81
89
93
100
116
124
132
139
145
152
160
176
DIMM-D184-BK
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/NC
A13/NC
BA0
BA1
NC/BA2
CS0#
CS1#
NC/CS2#
NC/CS3#
RAS#
CAS#
WE#
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQM0/DQS9
DQM1/DQS10
DQM2/DQS11
DQM3/DQS12
DQM4/DQS13
DQM5/DQS14
DQM6/DQS15
DQM7/DQS16
DQM8/DQS17
MECC0
MECC1
MECC2
MECC3
MECC4
MECC5
MECC6
MECC7
CKE0
CKE1
SCL
SDA
SA0
SA1
SA2
CK0/NC
CK0#/NC
CK1/CK0
CK1#/CK0#
CK2/NC
CK2#/NC
ID_VDD
SPD_VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
POWER
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VREF
FETEN/NC
NC/RESET#
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
ADDR.=1010010B ADDR.=1010011B
VCC_DDR
VCC_DDR
5
MA_B0
MA_B1
MA_B2
MA_B3
MA_B4
MA_B5
MA_B6
MA_B7
MA_B8
MA_B9
MA_B11
MA_B12
MBA_B0
MBA_B1
MRAS_B#
MCAS_B#
MWE_B#
MDQS_B0
MDQS_B1
MDQS_B2
MDQS_B3
MDQS_B4
MDQS_B5
MDQS_B6
MDQS_B7
MDQM_B0
MDQM_B1
MDQM_B2
MDQM_B3
MDQM_B4
MDQM_B5
MDQM_B6
MDQM_B7
SMBCLK
SMBDATA
MA_B[0..12]9
D D
MBA_B09
MBA_B19
MCS_B#09
MCS_B#19
MRAS_B#9
MCAS_B#9
MWE_B#9
MDQS_B[0..7]9
C C
MDQM_B[0..7]9
MCKE_B09
MCKE_B19
SMBCLK12,13,16,17,24,29
SMBDATA12,13,16,17,24,29
B B
MCLK_B19
MCLK_B#19
MCLK_B09
MCLK_B#09
MCLK_B29
MCLK_B#29
A A
4
3
2
1
DDR Terminational Resisitors
MDQ_B0
2
MDQ_B1
4
MDQ_B2
6
MDQ_B3
8
MDQ_B4
94
MDQ_B5
95
MDQ_B6
98
MDQ_B7
99
MDQ_B8
12
MDQ_B9
13
MDQ_B10MA_B10
19
MDQ_B11
20
MDQ_B12
105
MDQ_B13
106
MDQ_B14
109
MDQ_B15
110
MDQ_B16
23
MDQ_B17
24
MDQ_B18
28
MDQ_B19
31
MDQ_B20
114
MDQ_B21
117
MDQ_B22
121
MDQ_B23
123
MDQ_B24
33
MDQ_B25
35
MDQ_B26
39
MDQ_B27
40
MDQ_B28
126
MDQ_B29
127
MDQ_B30
131
MDQ_B31
133
MDQ_B32
53
MDQ_B33
55
MDQ_B34
57
MDQ_B35
60
MDQ_B36
146
MDQ_B37
147
MDQ_B38
150
MDQ_B39
151
MDQ_B40
61
MDQ_B41
64
MDQ_B42
68
MDQ_B43
69
MDQ_B44
153
MDQ_B45
155
MDQ_B46
161
MDQ_B47
162
MDQ_B48
72
MDQ_B49
73
MDQ_B50
79
MDQ_B51
80
MDQ_B52
165
MDQ_B53
166
MDQ_B54
170
MDQ_B55
171
MDQ_B56
83
MDQ_B57
84
MDQ_B58
87
MDQ_B59
88
MDQ_B60
174
MDQ_B61
175
MDQ_B62
178
MDQ_B63
179
9
NC
101
NC
102
NC
173
NC
WP
DDR_VREF2
1
90
C113
103
0.1u_Y5V-0402
10
15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180
3
11
18
26
34
42
50
58
66
74
VCC_DDR VCC_DDR
4
VCC_DDR
MDQ_B[0..63] 9
R646
75RST
R647
75RST
MAB_B[1..5]9
MCS_B#29
MCS_B#39
MCKE_B29
MCKE_B39
MCLK_B49
MCLK_B#49
MCLK_B39
MCLK_B#39
MCLK_B59
MCLK_B#59
VCC_DDR
VCC_DDRVCC_DDR
VCC_DDR
3
MA_B0
MAB_B1
MAB_B2
MAB_B3
MAB_B4
MAB_B5
MA_B6
MA_B7
MA_B8
MA_B9
MA_B10
MA_B11
MA_B12
MBA_B0
MBA_B1
MRAS_B#
MCAS_B#
MWE_B#
MDQS_B0
MDQS_B1
MDQS_B2
MDQS_B3
MDQS_B4
MDQS_B5
MDQS_B6
MDQS_B7
MDQM_B0
MDQM_B1
MDQM_B2
MDQM_B3
MDQM_B4
MDQM_B5
MDQM_B6
MDQM_B7
SMBCLK
SMBDATA
DIMM4
48
43
41
130
37
32
125
29
122
27
141
118
115
167
59
52
113
157
158
71
163
154
65
63
5
14
25
36
56
67
78
86
47
97
107
119
129
149
159
169
177
140
44
45
49
51
134
135
142
144
21
111
92
91
181
182
183
16
17
137
138
76
75
82
184
7
38
46
70
85
108
120
148
168
81
89
93
100
116
124
132
139
145
152
160
176
DIMM-D184-BK
SIGNALS
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/NC
A13/NC
BA0
BA1
NC/BA2
CS0#
CS1#
NC/CS2#
NC/CS3#
RAS#
CAS#
WE#
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQM0/DQS9
DQM1/DQS10
DQM2/DQS11
DQM3/DQS12
DQM4/DQS13
DQM5/DQS14
DQM6/DQS15
DQM7/DQS16
DQM8/DQS17
MECC0
MECC1
MECC2
MECC3
MECC4
MECC5
MECC6
MECC7
CKE0
CKE1
SCL
SDA
SA0
SA1
SA2
CK0/NC
CK0#/NC
CK1/CK0
CK1#/CK0#
CK2/NC
CK2#/NC
ID_VDD
SPD_VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
POWER
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VREF
FETEN/NC
NC/RESET#
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
WP
MDQ_B0
2
MDQ_B1
4
MDQ_B2
6
MDQ_B3
8
MDQ_B4
94
MDQ_B5
95
MDQ_B6
98
MDQ_B7
99
MDQ_B8
12
MDQ_B9
13
MDQ_B10
19
MDQ_B11
20
MDQ_B12
105
MDQ_B13
106
MDQ_B14
109
MDQ_B15
110
MDQ_B16
23
MDQ_B17
24
MDQ_B18
28
MDQ_B19
31
MDQ_B20
114
MDQ_B21
117
MDQ_B22
121
MDQ_B23
123
MDQ_B24
33
MDQ_B25
35
MDQ_B26
39
MDQ_B27
40
MDQ_B28
126
MDQ_B29
127
MDQ_B30
131
MDQ_B31
133
MDQ_B32
53
MDQ_B33
55
MDQ_B34
57
MDQ_B35
60
MDQ_B36
146
MDQ_B37
147
MDQ_B38
150
MDQ_B39
151
MDQ_B40
61
MDQ_B41
64
MDQ_B42
68
MDQ_B43
69
MDQ_B44
153
MDQ_B45
155
MDQ_B46
161
MDQ_B47
162
MDQ_B48
72
MDQ_B49
73
MDQ_B50
79
MDQ_B51
80
MDQ_B52
165
MDQ_B53
166
MDQ_B54
170
MDQ_B55
171
MDQ_B56
83
MDQ_B57
84
MDQ_B58
87
MDQ_B59
88
MDQ_B60
174
MDQ_B61
175
MDQ_B62
178
MDQ_B63
179
9
NC
101
NC
102
NC
173
NC
DDR_VREF2
1
90
C114
103
0.1u_Y5V-0402
10
15
22
30
54
62
77
96
104
112
128
136
143
156
164
172
180
3
11
18
26
34
42
50
58
66
74
2
MDQ_B6
1 2
MDQ_B2
3 4
MDQM_B0
5 6
MDQS_B0
7 8
MDQ_B47
1 2
MDQ_B43
3 4
MDQ_B46
5 6
MDQ_B42
7 8
MDQM_B1
1 2
MDQ_B13
3 4
MDQS_B1
5 6
MDQ_B12
7 8
R604 56-0402
MDQ_B20
MDQ_B19
R605 56-0402
MDQ_B23
R606 56-0402
R621 56-0402
MDQM_B3
R608 56-0402
MDQ_B24
R609 56-0402
MDQ_B32
R610 56-0402
MDQ_B45
R611 56-0402
MDQ_B41
R612 56-0402
MDQM_B5
R613 56-0402
MDQS_B5
MA_B1
1 2
MAB_B2
3 4
MA_B2
5 6
7 8
MA_B7
1 2
MA_B9
3 4
MA_B11
5 6
7 8
MA_B6
1 2
3 4
MA_B5
5 6
MAB_B5
7 8
MBA_B1
1 2
MA_B10
3 4
MA_B0
5 6
MAB_B1
7 8
MCS_B#1
1 2
MCS_B#0
3 4
MCS_B#3
5 6
MCS_B#2
7 8
MCKE_B0
1 2
MCKE_B2
3 4
MCKE_B1
5 6
MCKE_B3
7 8
R614 47-0402
MCAS_B#
R615 47-0402
MRAS_B#
R616 47-0402
MWE_B#
R617 47-0402
MBA_B0
R618 47-0402
MAB_B3
R619 47-0402
MA_B3
R620 47-0402
MA_B4
R607 47-0402
MAB_B4
R622 47-0402
MA_B8
R623 47-0402
MA_B12
VTT_DDR VTT_DDR VCC_DDR
CB176
0.1u_Y5V-0402
CB178
0.1u_Y5V-0402
CB181
0.1u_Y5V-0402
CB184
0.1u_Y5V-0402
CB187
0.1u_Y5V-0402
CB190
0.1u_Y5V-0402
CB195
0.1u_Y5V-0402
CB200
0.1u_Y5V-0402
CB205
0.1u_Y5V-0402
CB210
0.1u_Y5V-0402
CB215
0.1u_Y5V-0402
CB220
0.1u_Y5V-0402
CB225
0.1u_Y5V-0402
Place these decoupling capacitors close to VTT_DDR termination resistors.
One decoupling capacitor for each R-pack.
MSI
Title
Size Document Number Rev
Date: Sheet
VTT_DDR
MDQ_B63
RN43
56-0402
RN45
56-0402
RN47
56-0402
RN52
47-0402
RN54
47-0402
RN56
47-0402
RN60
47-0402
RN64
47-0402
RN66
47-0402
VTT_DDR
MDQ_B59
MDQ_B58
MDQ_B62
MDQ_B1
MDQ_B5
MDQ_B4
MDQ_B0
MDQ_B11
MDQ_B10
MDQ_B15
MDQ_B14
MDQ_B9
MDQ_B8
MDQ_B3
MDQ_B7
MDQ_B22
MDQ_B18
MDQM_B2
MDQ_B21
MDQS_B2
MDQ_B17
MDQ_B16
MDQS_B3
MDQ_B29
MDQ_B25
MDQ_B28
MDQ_B31
MDQ_B27
MDQ_B30
MDQ_B26
MDQ_B39
MDQ_B38
MDQM_B4
MDQ_B34
MDQ_B37
MDQS_B4
MDQ_B33
MDQ_B36
MDQ_B40
MDQ_B44
MDQ_B35
MDQ_B53
MDQ_B49
MDQ_B48
MDQ_B52
MDQ_B56
MDQ_B60
MDQ_B51
MDQ_B55
MDQ_B50
MDQ_B54
MDQS_B6
MDQM_B6
MDQS_B7
MDQM_B7
MDQ_B57
MDQ_B61
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
DECOUPLING CAPACITORS
CB177
0.1u_Y5V-0402
CB179
0.1u_Y5V-0402
CB182
0.1u_Y5V-0402
CB185
0.1u_Y5V-0402
CB188
0.1u_Y5V-0402
CB191
0.1u_Y5V-0402
CB196
0.1u_Y5V-0402
CB201
0.1u_Y5V-0402
CB206
0.1u_Y5V-0402
CB211
0.1u_Y5V-0402
CB216
0.1u_Y5V-0402
CB221
0.1u_Y5V-0402
CB226
0.1u_Y5V-0402
MICRO-STAR INt'L CO., LTD.
DDR DIMM 3 & 4
VISE (MS-6715)
+
+
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
18 31Friday, September 20, 2002
1
VTT_DDR
RN41
56-0402
RN42
56-0402
RN46
56-0402
RN48
56-0402
RN50
56-0402
RN51
56-0402
RN53
56-0402
RN55
56-0402
RN57
56-0402
RN59
56-0402
RN61
56-0402
RN63
56-0402
RN65
56-0402
RN67
56-0402
RN68
56-0402
CT12
1000u-6.3V
CT52
1000u-6.3V
CB212
0.1u_Y5V-0402
CB217
0.1u_Y5V-0402
CB222
0.1u_Y5V-0402
CB227
0.1u_Y5V-0402
of
0AED

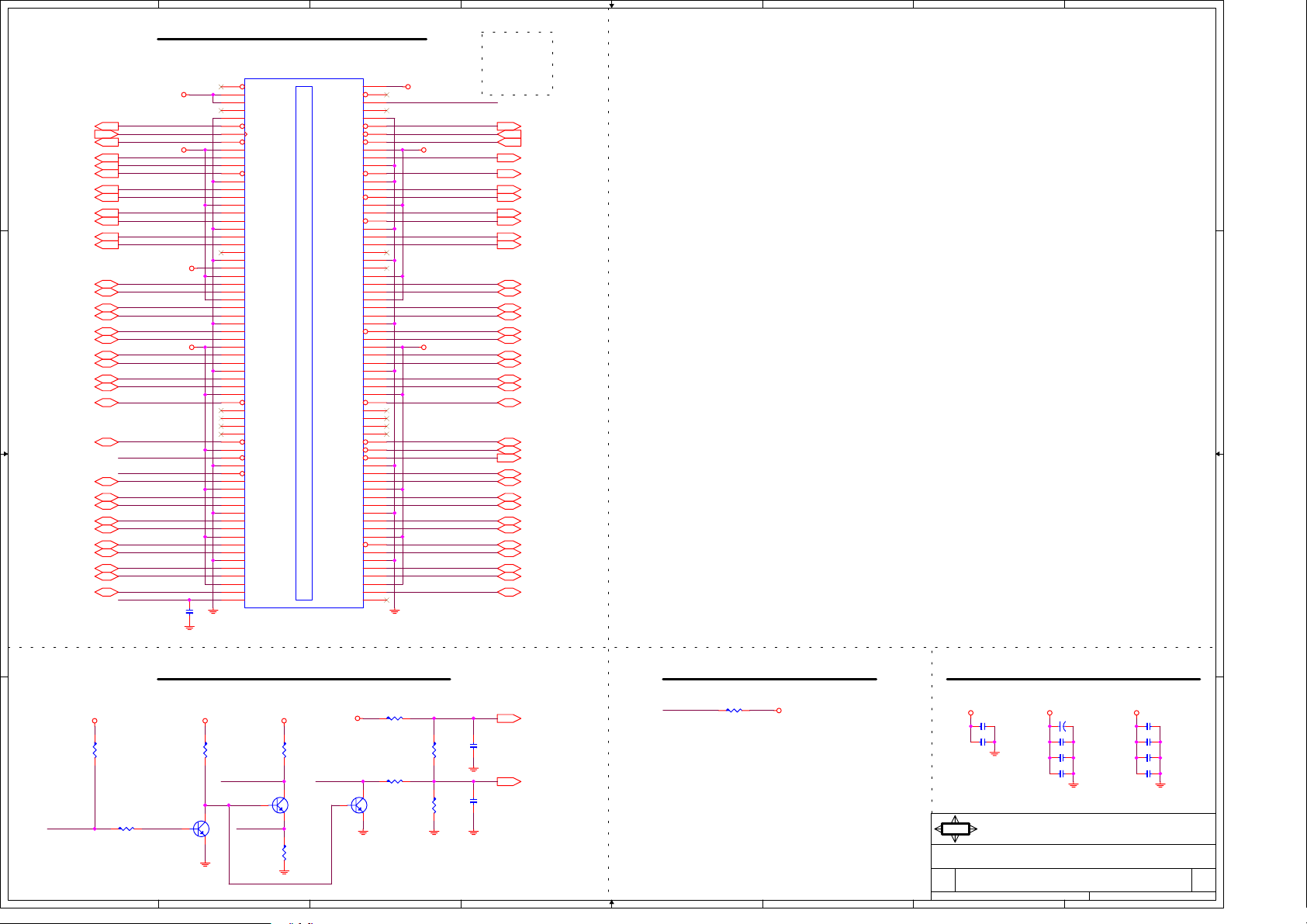

Page 19
8
7
6
5
4
3
2
1
AGP 1.5V 1X/2X/4X/8X SLOT(AGP VER:3.0)
VCC5 = 60mils trace / 15 mils space
AGP1
B1
-OVRCNT
B2
VCC5
D D
C C
B B
PIRQ#B11,20
AGP_CLK13
GREQ#10
ST010
ST210
RBF#10
DBI_LO10
SBA010
SBA210
SB_STB10
SBA410
SBA610
GAD3110
GAD2910
GAD2710
GAD2510
AD_STB110
GAD2310
GAD2110
GAD1910
GAD1710
GC_BE#210
GIRDY#10
GDEVSEL#10
GC_BE#110
GAD1410
GAD1210
GAD1010
GAD810
AD_STB010
GAD710
GAD510
GAD310
GAD110
GPERR#
GSERR#
AGP_REF
VCC3
VCC3_SB
VCC_AGP
C115
0.1u_Y5V
5V
B3
5V
B4
USB+
B5
GND
B6
-INTB
B7
CLK
B8
-REQ
B9
3.3V
B10
ST0
B11
ST2
B12
-RBF
B13
GND
B14
RESERVED
B15
SBA0
B16
3.3V
B17
SBA2
B18
SB_STB
B19
GND
B20
SBA4
B21
SBA6
B22
RSVD/KEY
B23
GND/KEY
B24
AUX3V/KEY
B25
3.3V/KEY
B26
AD31
B27
AD29
B28
3.3V
B29
AD27
B30
AD25
B31
GND
B32
AD_STB1
B33
AD23
B34
VDDQ
B35
AD21
B36
AD19
B37
GND
B38
AD17
B39
C/-BE2
B40
VDDQ
B41
-IRDY
B42
AUX3V/KEY
B43
GND/KEY
B44
RSVD/KEY
B45
3.3V/KEY
B46
-DEVSEL
B47
VDDQ
B48
-PERR
B49
GND
B50
-SERR
B51
C/-BE1
B52
VDDQ
B53
AD14
B54
AD12
B55
GND
B56
AD10
B57
AD8
B58
VDDQ
B59
AD_STB0
B60
AD7
B61
GND
B62
AD5
B63
AD3
B64
VDDQ
B65
AD1
B66
VREF_CG
AGP Slot-D124 _1.5V
RESERVED
RESERVED
-TYPEDET
USBÂGND
-INTA
-RST
-GNT
3.3V
ST1
-PIPE
GND
-WBF
SBA1
3.3V
SBA3
-SB_STB
GND
SBA5
SBA7
RSVD/KEY
GND/KEY
RSVD/KEY
3.3V/KEY
AD30
AD28
3.3V
AD26
AD24
GND
-AD_STB1
C/-BE3
VDDQ
AD22
AD20
GND
AD18
AD16
VDDQ
-FRAME
RSVD/KEY
GND/KEY
RSVD/KEY
3.3V/KEY
-TRDY
-STOP
-PME
GND
PAR
AD15
VDDQ
AD13
AD11
GND
AD9
C/-BE0
VDDQ
-AD_STB0
AD6
GND
AD4
AD2
VDDQ
AD0
VREF_GC
A1
12V
+12V
A2
G_DET#
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
VCC3
VCC_AGP
AGP Slot Imax
VCCq 8.0A
VCC3 6.0A
VCC12 1.0A
VCC5 2.0A
VCC3_SB ?A
PIRQ#A 11,20
PCIRST#2 14
GGNT# 10
ST1 10
PIPE# 10
WBF# 10
SBA1 10
SBA3 10
SB_STB# 10
SBA5 10
SBA7 10
GAD30 10
GAD28 10
GAD26 10
GAD24 10
AD_STB#1 10
GC_BE#3 10
GAD22 10
GAD20 10
GAD18 10
GAD16 10
GFRAME# 10
GTRDY# 10
GSTOP# 10
PCI_PME# 14,16,20,21
GPAR 10
GAD15 10
GAD13 10
GAD11 10
GAD9 10
GC_BE#0 10
AD_STB#0 10
GAD6 10
GAD4 10
GAD2 10
GAD0 10
PIRQ#A / PIRQ#B
Springdale Reference & Swing Voltage Circuit AGP TERMINATION RESISTORS AGP SLOT DECOUPLING CAPACITORS
R267 X_8.2K
GSERR#
LESS 10MILS STUB TRACE LENGTH MUST BE FOLLOWING.
Place these resistors between PCI and AGP slot
4
DET#_B
Q18
2N3904S
+12V VCC_AGP
R264
8.2K
GPERR#
DET#_C
7
R265
8.2K
Q16
2N3904S
R277
100
VCC_AGP
AGPREF
R262 60.4RST
R270 33.2RST
Q17
2N3904S
6
R266
39.2RST
R272
100RST
C116
0.1u_Y5V
C117
0.1u_Y5V
GSWING 10
AGP_REF 10
5
VCC_AGP
R263
8.2K
A A
G_DET# DET#_E
R276 300
8
VCC_AGP
3
VCC3_SB
MSI
Title
Size Document Number Rev
Date: Sheet
VCC_AGP
CB243
0.1u_Y5V
CB245
0.1u_Y5V
+
MICRO-STAR INt'L CO., LTD.
VCC3
CT13
1000u-6.3V
CB246
0.1u_Y5V
CB248
0.1u_Y5V
CB250
0.1u_Y5V
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
AGP 1.5V SLOT & PCI RISER
VISE (MS-6715)
2
CB244
0.1u_Y5V
CB247
0.1u_Y5V
CB249
0.1u_Y5V
CB251
0.1u_Y5V
19 31Friday, September 20, 2002
1
0AED
of
Page 20
8
7
6
5
4
3
2
1

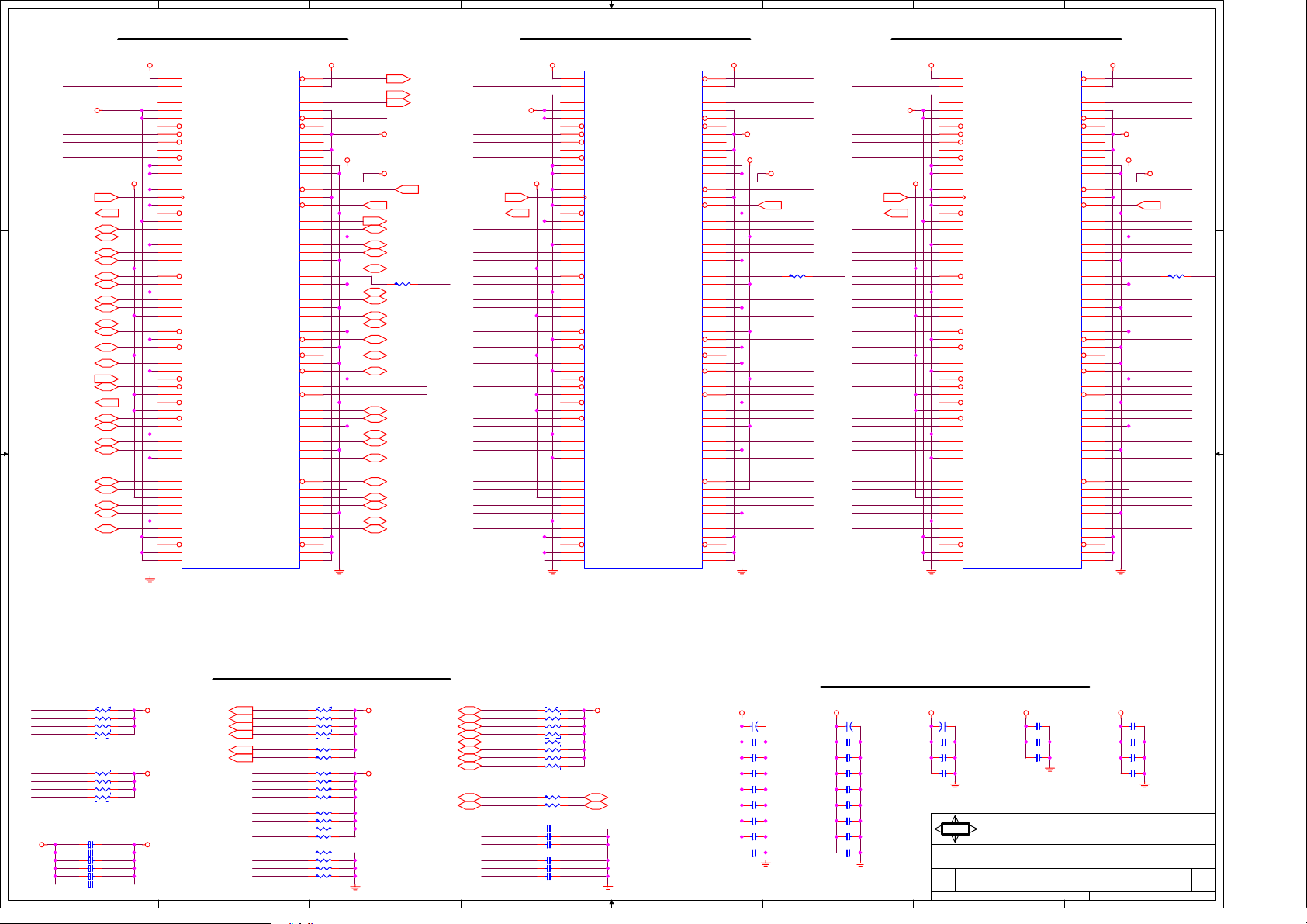

PCI SLOT 1 (PCI VER: 2.2 COMPLY) PCI SLOT 2 (PCI VER: 2.2 COMPLY)
-12V
PCI1
B1
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B2
B3
B4
B5
B6
B7
B8
B9
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
YSLOT120
TCK1
PCI_CLK013
PREQ#011
C_BE#311,16,21
C_BE#211,16,21
DEVSEL#11,16,21
C_BE#111,16,21
VCC5
PIRQ#C
PIRQ#G
PRSNT1_1
PRSNT2_1
AD3111,16,21
AD2911,16,21
AD2711,16,21
AD2511,16,21
AD2311,16,21
AD2111,16,21
AD1911,16,21
AD1711,16,21
IRDY#11,16,21
LOCK#11,21
PERR#11,16,21
SERR#11,16,21
AD1411,16,21
AD1211,16,21
AD1011,16,21
AD811,16,21
AD711,16,21
AD511,16,21
AD311,16,21
AD111,16,21
VCC3 VCC3
ACK#64
D D
C C
B B
TRST#
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
RESERVED
+5V(I/O)
GNT#
RESERVED
IDSEL
FRAME#
TRDY#
STOP#
SDONE
SBO#
C/BE#0
+5V(I/O)
REQ64#
+12V
TMS
GND
GND
RST#
GND
AD30
+3.3V
AD28
AD26
GND
AD24
+3.3
AD22
AD20
GND
AD18
AD16
+3.3V
GND
GND
+3.3V
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
+3.3V
AD6
AD4
GND
AD2
AD0
TDI
+5V
+5V
+5V
+5V
+12V
VCC3
TRST#1
TMS1
TDI1
PIRQ#A
PIRQ#F
PCIRST#1
ID1
R280 22
SDONE
SBO#
REQ#64_1
TRST#1 21
TMS1 21
TDI1 21
VCC5
PCIRST#1 14
PGNT#0 11
PCI_PME# 14,16,19,21
AD30 11,16,21
AD28 11,16,21
AD26 11,16,21
AD24 11,16,21
AD20
AD22 11,16,21
AD20 11,16,21
AD18 11,16,21
AD16 11,16,21
FRAME# 11,16,21
TRDY# 11,16,21
STOP# 11,16,21
PAR 11,16,21
AD15 11,16,21
AD13 11,16,21
AD11 11,16,21
AD9 11,16,21
C_BE#0 11,16,21
AD6 11,16,21
AD4 11,16,21
AD2 11,16,21
AD0 11,16,21
PCI_CLK113
PREQ#111
TCK
PIRQ#F
PIRQ#A
PRSNT1_2
PRSNT2_2
AD31
AD29
AD27
AD25
C_BE#3
AD23
AD21
AD19
AD17
C_BE#2
IRDY#
DEVSEL#
LOCK#
PERR#
SERR#
C_BE#1
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
ACK#64
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
-12V
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
PCI2
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
YSLOT120
TRST#
+12V
TMS
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
RESERVED
RST#
+5V(I/O)
GNT#
GND
RESERVED
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SDONE
SBO#
GND
PAR
AD15
+3.3V
AD13
AD11
GND
C/BE#0
+3.3V
GND
+5V(I/O)
REQ64#
+5V
+5V
+3.3
AD9
AD6
AD4
AD2
AD0
+5V
+5V
+12V
VCC3
VCC5
ID2
TRST#
TMS
TDI
PIRQ#C
PIRQ#G
PCIRST#1
PGNT#1 11
PCI_PME#
AD30
AD28
AD26
AD24
R278 22
AD22
AD20
AD18
AD16
FRAME#
TRDY#
STOP#
SDONE
SBO#
PAR
AD15
AD13
AD11
AD9
C_BE#0
AD6
AD4
AD2
AD0
REQ#64_2
PCI_CLK213
AD25
A1
A2
A3
A4
TDI
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
PCI SLOT 3 (PCI VER: 2.2 COMPLY)
-12V
PCI3
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
YSLOT120
PREQ#211
TCK
VCC5VCC5
PIRQ#G
PIRQ#C
PRSNT1_3
PRSNT2_3
AD31
AD29
AD27
AD25
C_BE#3
AD23
AD21
AD19
AD17
C_BE#2
IRDY#
DEVSEL#
LOCK#
PERR#
SERR#
C_BE#1
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
ACK#64
VCC3
TRST#
+12V
TMS
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
RESERVED
RST#
+5V(I/O)
GNT#
GND
RESERVED
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SDONE
SBO#
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
C/BE#0
+3.3V
AD6
AD4
GND
AD2
AD0
+5V(I/O)
REQ64#
TDI
+5V
+5V
+5V
+5V
+12V
VCC3
VCC5
ID3
TRST#
TMS
TDI
PIRQ#F
PIRQ#A
VCC3_SBVCC3_SBVCC3_SB
PCIRST#1
PGNT#2 11
PCI_PME#
AD30
AD28
AD26
AD24
R279 22
AD22
AD20
AD18
AD16
FRAME#
TRDY#
STOP#
SDONE
SBO#
PAR
AD15
AD13
AD11
AD9
C_BE#0
AD6
AD4
AD2
AD0
REQ#64_3
AD26
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
IDSEL = AD20 IDSEL = AD25
IDSEL = AD26
MASTER = PREQ#2MASTER = PREQ#1MASTER = PREQ#0
PIRQ#A PIRQ#C PIRQ#F
PCI PULL-UP / DOWN RESISTORS
DEVSEL#
TRDY#
IRDY#
FRAME#
SERR#
PERR#
LOCK#
A A
STOP#
CB276 0.1u_Y5V
VCC5
CB277 0.1u_Y5V
CB280 0.1u_Y5V
CB281 0.1u_Y5V
CB282 0.1u_Y5V
CB283 0.1u_Y5V
12
VCC5 VCC5 VCC3
VCC5
PREQ#111
PREQ#011
PREQ#211
PREQ#311,21
PREQ#411
PREQ#511,16
34
RN73
56
2.7K
78
12
34
RN77
56
2.7K
78
VCC3
8
PREQ#1
PREQ#0
PREQ#2
REQ#64_1
REQ#64_2
REQ#64_3
ACK#64
TMS
TDI
TMS1
TDI1
TCK1
TRST#1
TCK
7
R281 2.7K
R73 2.7K
R282 4.7K
R283 4.7K
R284 4.7K
R285 4.7K
R286 2.2K
R287 2.2K
R535 2.2K
R536 2.2K
R537 2.2K
R538 2.2K
R288 2.2K
R552 2.2K
12
34
RN74
56
2.7K
78
VCC5
PIRQ#B11,19
PIRQ#D11
PIRQ#A11,19
PIRQ#C11
PIRQ#F11
PIRQ#G11
PIRQ#E11
PIRQ#H11,16
SDONE
SBO#
6
PIRQ#A
PIRQ#C
PIRQ#F
PIRQ#G
SDONE
SBO#
PRSNT1_1
PRSNT1_2
PRSNT1_3
PRSNT2_1
PRSNT2_2
PRSNT2_3PCIRST#1
78
56
34
12
78
56
34
12
R289 X_0
R291 X_0
C243 0.01u_X7R
C244 0.01u_X7R
C245 0.01u_X7R
C246 0.01u_X7R
C247 0.01u_X7R
C248 0.01u_X7R
5
RN75
8.2K
RN76
8.2K
SM_LINK0 12,29
SM_LINK1 12,29
4
VCC5
+
CT14
470u-16V
CB253
0.1u_Y5V
CB258
0.1u_Y5V
CB263
0.1u_Y5V
CB268
0.1u_Y5V
CB270
0.1u_Y5V
CB272
0.1u_Y5V
CB274
0.1u_Y5V
CB278
0.1u_Y5V
PCI SLOT DECOUPLING CAPACITORS
VCC3
-12V
+
CT15
1000u-6.3V
CB254
0.1u_Y5V
CB259
0.1u_Y5V
CB264
0.1u_Y5V
CB269
0.1u_Y5V
CB271
0.1u_Y5V
CB273
0.1u_Y5V
CB275
0.1u_Y5V
CB279
0.1u_Y5V
3
+
CT16
X_10u-25V
CB255
0.1u_Y5V
CB260
0.1u_Y5V
CB265
0.1u_Y5V
MSI
Title
Size Document Number Rev
Date: Sheet
+12V
MICRO-STAR INt'L CO., LTD.
2
VCC3_SB
CB256
0.1u_Y5V
CB261
0.1u_Y5V
CB266
0.1u_Y5V
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
PCI 1& 2 & 3 Slots
VISE (MS-6715)
CB252
0.1u_Y5V
CB257
0.1u_Y5V
CB262
0.1u_Y5V
CB267
0.1u_Y5V
20 31Friday, September 20, 2002
1
0AED
of
Page 21
8
7
6
5
4
3
2
1
PCI SLOT 4 (PCI VER: 2.2 COMPLY) PCI SLOT 5 (PCI VER: 2.2 COMPLY)
VCC5
-12V
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
J24
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
YSLOT120
TRST#
+12V
TMS
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
GND
GND
RESERVED
RST#
+5V(I/O)
GNT#
GND
RESERVED
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME#
GND
TRDY#
GND
STOP#
+3.3V
SDONE
SBO#
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
C/BE#0
+3.3V
AD6
AD4
GND
AD2
AD0
+5V(I/O)
REQ64#
TDI
+5V
+5V
+5V
+5V
+12V
VCC3
VCC5
ID2
TRST#
TMS
TDI
PIRQ#A
PIRQ#F
VCC3_SBVCC3_SB
PCIRST#1
PGNT#4 11
PCI_PME#
AD30
AD28
AD26
AD24
R631 22
AD22
AD20
AD18
AD16
FRAME#
TRDY#
STOP#
SDONE
SBO#
PAR
AD15
AD13
AD11
AD9
C_BE#0
AD6
AD4
AD2
AD0
REQ#64_5
AD28
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
-12V
J23
B1
D D
C C
B B
PCI_CLK313
PREQ#311,20
C_BE#311,16,20
C_BE#211,16,20
DEVSEL#11,16,20
C_BE#111,16,20
TCK1
VCC5
PIRQ#A
PIRQ#F
PRSNT1_1
PRSNT2_1
AD3111,16,20
AD2911,16,20
AD2711,16,20
AD2511,16,20
AD2311,16,20
AD2111,16,20
AD1911,16,20
AD1711,16,20
IRDY#11,16,20
LOCK#11,20
PERR#11,16,20
SERR#11,16,20
AD1411,16,20
AD1211,16,20
AD1011,16,20
AD811,16,20
AD711,16,20
AD511,16,20
AD311,16,20
AD111,16,20
VCC3 VCC3
ACK#64
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V
YSLOT120
TRST#
INTA#
INTC#
RESERVED
+5V(I/O)
RESERVED
RESERVED
+5V(I/O)
GNT#
RESERVED
IDSEL
FRAME#
TRDY#
STOP#
SDONE
SBO#
C/BE#0
+5V(I/O)
REQ64#
+12V
TMS
GND
GND
RST#
GND
AD30
+3.3V
AD28
AD26
GND
AD24
+3.3
AD22
AD20
GND
AD18
AD16
+3.3V
GND
GND
+3.3V
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
+3.3V
AD6
AD4
GND
AD2
AD0
TDI
+5V
+5V
+5V
+5V
+12V
VCC3
TRST#1
TMS1
TDI1
PIRQ#G
PIRQ#C
PCIRST#1
ID1
R632 22
TRST#1 20
TMS1 20
TDI1 20
VCC5
PCIRST#1 14
PGNT#3 11
PCI_PME# 14,16,19,20
AD30 11,16,20
AD28 11,16,20
AD26 11,16,20
AD24 11,16,20
AD27
AD22 11,16,20
AD20 11,16,20
AD18 11,16,20
AD16 11,16,20
FRAME# 11,16,20
TRDY# 11,16,20
STOP# 11,16,20
SDONE
SBO#
PAR 11,16,20
AD15 11,16,20
AD13 11,16,20
AD11 11,16,20
AD9 11,16,20
C_BE#0 11,16,20
AD6 11,16,20
AD4 11,16,20
AD2 11,16,20
AD0 11,16,20
REQ#64_4
PCI_CLK413
PREQ#411
TCK
PIRQ#C
PIRQ#G
PRSNT1_2
PRSNT2_2
AD31
AD29
AD27
AD25
C_BE#3
AD23
AD21
AD19
AD17
C_BE#2
IRDY#
DEVSEL#
LOCK#
PERR#
SERR#
C_BE#1
AD14
AD12
AD10
AD8
AD7
AD5
AD3
AD1
ACK#64
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
IDSEL = AD27 IDSEL = AD28
MASTER = PREQ#4MASTER = PREQ#3
PIRQ#G PIRQ#A
A A
MSI
Title
Size Document Number Rev
8
7
6
5
4
3
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
PCI Slot 4 & 5
VISE (MS-6715)
2
21 31Friday, September 20, 2002
1
0AED
of
Page 22
8
7
6
5
4
3
2
1

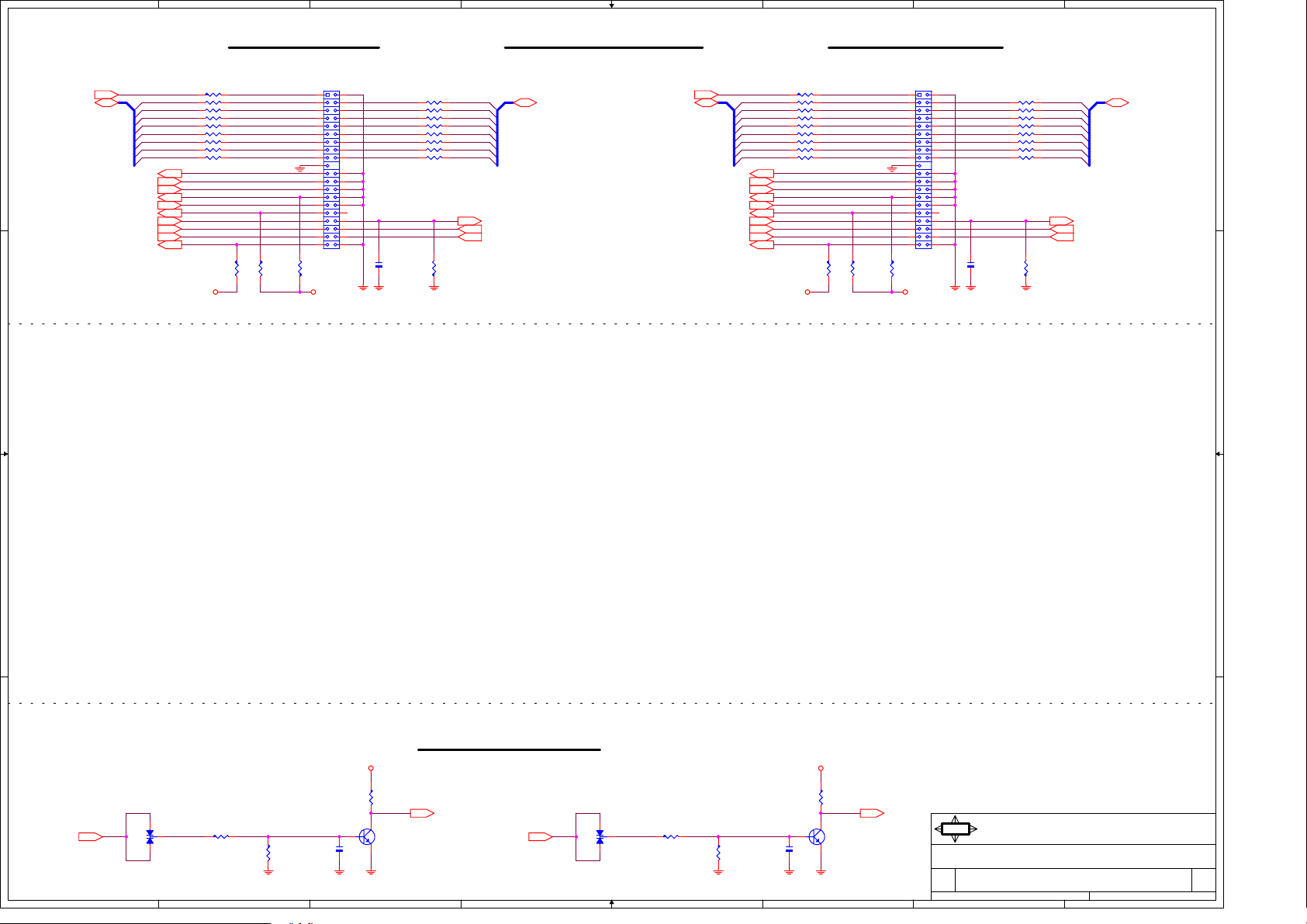

ATA 33/66/100 IDE ConnectorsPRIMARY IDE BLOCK SECONDARY IDE BLOCK
IDE2
IDEA_RST#14 IDEB_RST#14
PDD[0..7]11
D D
PD_DREQ11
PD_IOW#11
PD_IOR#11
PD_IORDY11
PD_DACK#11
IRQ1411
PD_A111
PD_A011
PD_CS#111
IDEACTP#25
R293 33
PDD7
5 6
PDD6
1 2
PDD5
5 6
PDD4
3 4
PDD3
5 6
PDD2
1 2
PDD1
5 6
PDD0 PD15
1 2
R298
20KST
HDRST#P HDRST#S
PD7
RN80
PD6
RN80
PD5
RN81
PD4
RN81
PD3
RN86
PD2
RN86
PD1
RN87
RN87
PD0 SDD0
33-0402
R299
8.2K
YJ220-CB-1
1
3 4
5 6
7 8
91110
13 14
17 18
19
21
23
25
27
29
31
33
35
37
R300
4.7K
2
12
1615
22
24
26
28
30
32
34
36
38
4039
PD8
PD9
PD10
PD11
PD12
PD13
PD14
RN80
RN80
RN81
RN81
RN86
RN86
RN87
RN87
33-0402
C119
X_4700p_X7R
R301
15K
PDD8
78
PDD9
34
PDD10
78
PDD11
12
PDD12
78
PDD13
34
PDD14
78
PDD15
34
ATADET0 14
PD_A2 11
PD_CS#3 11
PDD[8..15] 11 SDD[8..15] 11
SDD[0..7]11
SD_DREQ11
SD_IOW#11
SD_IOR#11
SD_IORDY11
SD_DACK#11
IRQ1511
SD_A111
SD_A011
SD_CS#111
IDEACTS#25
R292 33
SDD7
SDD6
SDD5 SD5
SDD4
SDD3
SDD2
SDD1
1 2
5 6
1 2
7 8
3 4
7 8
3 4
7 8
R294
20KST
RN83
RN83
RN82
RN82
RN84
RN84
RN85
RN85
33-0402
SD7
SD6
SD4
SD3
SD2
SD1
SD0
R295
8.2K
IDE1
YJ220-CW-1
1
3 4
5 6
7 8
91110
13 14
17 18
19
21
23
25
27
29
31
33
35
37
R296
4.7K
2
12
1615
22
24
26
28
30
32
34
36
38
4039
SD8
SD9
SD10
SD11
SD12
SD13
SD14
SD15
C118
X_4700p_X7R
RN83
RN83
RN82
RN82
RN84
RN84
RN85
RN85
33-0402
R297
15K
SDD8
34
SDD9
78
SDD10
34
SDD11
56
SDD12
12
SDD13
56
SDD14
12
SDD15
56
ATADET1 14
SD_A2 11
SD_CS#3 11
VCC3VCC5 VCC5 VCC3
C C
B B
Internal Ring Wake Up Block
3VSB3VSB
A A
R157 4.7K
NRIA#14 NRIB#14
8
NRIA RIBNRIB
D4
BAV70
RIA
R158
2.2K
7
C59
1000p_X7R
R156
1K
RIA#
Q6
2N3904S
6
R509
1K
R510 4.7K
D11
BAV70
5
R511
2.2K
4
C222
1000p_X7R
Q77
2N3904S
3
RIB# 14RIA# 14
MSI
Title
Size Document Number Rev
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
ATA33/66/100 IDE & VIDEO Connectors
VISE (MS-6715)
2
22 31Friday, September 20, 2002
0AED
of
1
Page 23
E
D
C
B
A

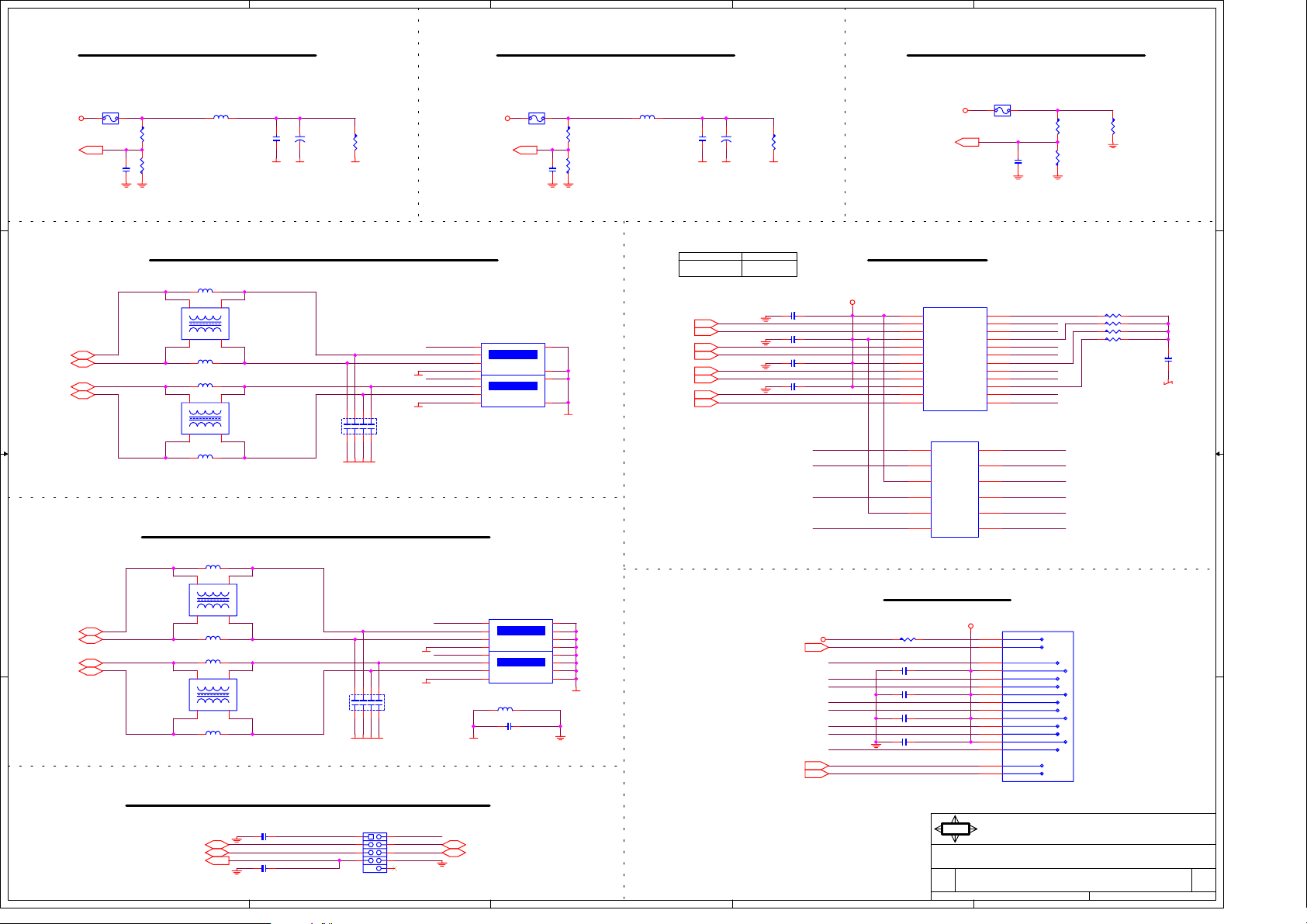

POWER CIRCUIT FOR USB PORT 0,1 POWER CIRCUIT FOR USB PORT 4,5
FS4
2A-miniSMDC200
USB_STR USB_STR
4 4
OC#112
C139
0.1u_Y5V
SVCC1_FB SVCC1
R315
470K
R320
560K
FB22 80-0805-3A
C134
1000p_X7R
NEAR USB CONNECTOR
+
CT18
470u-16V
R317
1K
REAR PANEL USB CONNECTOR FOR USB PORT 0,1
FB24 0
L7
X_CMC_90ohm_0603
3 3
USB1-12
USB1+12
USB0-12
USB0+12
1 2
FB25 0
FB26 0
1 2
FB27 0
{Priority}
4 3
L8
X_CMC_90ohm_0603
{Priority}
4 3
NEAR USB CONNECTOR
246
8
CN8
X_47p_Y5V-N
135
7
SVCC1
SBD1ÂSBD1+
SVCC1
SBD0ÂSBD0+
REAR PANEL USB CONNECTOR FOR USB PORT 2,3
2 2
USB3-12
USB3+12
USB2-12
USB2+12
1 1
FRONT PANEL USB CONNECTOR FOR USB PORT 4,5
FRONT_USB_DET#12
E
FB29 0
4 3
1 2
FB31 0
FB33 0
4 3
1 2
FB35 0
NEAR USB CONNECTOR
USB4-12
USB4+12
L10
X_CMC_90ohm_0603
{Priority}
L12
X_CMC_90ohm_0603
{Priority}
1000p_X7RC141
1000p_X7RC142
246
8
CN10
X_47p_Y5V-N
135
7
1 2
3 4
5
7 8
USB2
CN-BH-D10--K9-BK
D
SVCC2
SBD3ÂSBD3+
SVCC2
SBD2ÂSBD2+
SVCC3SVCC3
6
10
POWER CIRCUIT FOR USB PORT 2,3
FS5
OC#212
5
6
7
8
UP
1
2
3
4
DOWN
USB1
USBx2-D8-BK
LAN_USB1A
5
6
7
8
1
2
3
4
DOWN
USB_RJ45-N
{Priority}
FB36 120-600mA
C143 0.1u_Y5V
USB5- 12
USB5+ 12
2A-miniSMDC200
C237
0.1u_Y5V
11
12
9
10
UP
SVCC2_FB SVCC2
R518
470K
R520
560K
27
28
29
30
25
26
31
32
FB41 80-0805-3A
C
C236
1000p_X7R
NEAR USB CONNECTOR
NOT INSTALL C175,C178
TR_D0+16
TR_D0-16
TR_D1+16
TR_D1-16
TR_D2+16
TR_D2-16
TR_D3+16
TR_D3-16
+
CT46
470u-16V
TR_D0+
TR_D0-
TR_D1+
TR_D1-
TR_D2+
TR_D2-
TR_D3+
TR_D3-
BCM4401
R500,R501
100_LED#16
1G_LED#16
R519
1K
C173 0.01u_X7R
C174 0.01u_X7R
C175 0.01u_X7R
C178 0.01u_X7R
3VSB
TR_LED16
TR_D0+
TR_D0-
TR_D1-
TR_D1+
LAN MAGNETICS
LAN2_5
R447 330
TRD3+
TRD3ÂTRD2+
TRD2ÂTRD1+
TRD1ÂTRD0+
TRD0-
These caps is improved EMI.
B
FS3
OC#312
RD+
RD-
RDC
TD-
TDC
TD+
2A-miniSMDC200
0.1u_Y5V
MCT1
MX1+
MX1-
MCT2
MX2+
MX2-
MCT3
MX3+
MX3-
MCT4
MX4+
11
RX+
10
RXC
9
RX-
14
TX-
15
CMT
16
TX+
USB_STR
U17
1
TCT1
2
TD1+
3
TD1-
4
TCT2
5
TD2+
6
TD2-
7
TCT3
8
TD3+
9
TD3-
10
TCT4
11
TD4+
12 13
TD4- MX4-
H5007
U32
6
8
7
3
2
1
X_TS6121C
C138
24
23
22
21
20
19
18
17
16
15
14
MCT1
TRD0+
TRD0ÂMCT2
TRD1+
TRD1ÂMCT3
TRD2+
TRD2ÂMCT4
TRD3+
TRD3-
TRD0+
MCT1
TRD0-
TRD1-
MCT2
TRD1+
SVCC3
R313
470K
R319
560K
R498 75
R499 75
R500 75
R501 75
1500p-2KV/DIP
LAN CONNECTOR
LAN2_5
PWR
0.01u_X7RC180
0.01u_X7RC181
0.01u_X7RC182
0.01u_X7RC183
MSI
Title
Size Document Number Rev
Date: Sheet
LAN_USB1B
YELLOW+
22
YELLOW-
21
TRD3+
16
TRCT3
15
TRD3-
17
TRD2+
11
TRCT2
9
TRD2-
10
TRD1+
12
TRCT1
14
TRD1-
13
TRD0+
19
TRCT0
20
TRD0-
18
G+/O-
24
G-/O+
23
USB_RJ45-N
{Priority}
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
USB & LAN Connectors
VISE (MS-6715)
A
R314
1K
23 31Friday, September 20, 2002
MCT_G
C176
0AED
of
Page 24
8
SMBDATA12,13,16,17,18,29
SMBCLK12,13,16,17,18,29
VID06
VID16
VID26
D D
VID36
SYSMAG_INT14
3VSB
VCC3
SYS_FAN
SYSMAG_INT
CPU_FAN TACH1
R326 8.2K
VCC3
THERMDP# THERMDN#
THERMD1P# THERMD1N#
Place close to U13
7
R324 X_0
C144 0.1u_Y5V
R322 22
R325 X_0
R327 X_0
R329 10K
SYSMAG_INT
X_1000p_Y5V-NC251
X_1000p_Y5V-NC252
6
H/W MONITOR - ADM1027
U13
1
SDA
2
SCL
3
4
5
6
7
8
9
11
12
GND
VCC
VID0
VID1
VID2
VID3
TACH3
TACH1
TACH2
ADM1027
U6_6
TACH3 THERMDP#
PWM1/XTO
TACH4/PROCHOT#
PWM3/ADDRESS_EN#
+12V
VCCP
2.5V
VID4
24
23
22
21
12V
20
5V
19
THERMD1P#
18
D1+
D2+
D1-
D2-PWM2/SMBALERT#
17
16
1510
14
13
THERMD1N#
THERMDN#
CH_PWMTACH2
TACH1
TACH3
THERMD1P#
THERMD1N#
Use Thru-Hole part. Place close to ATX1
5
R323 4.02KST
R330 10K
R332 10K
R333 10K
VCC3
VCCP
+12V
VCC5
VID4 6
THERMDP# 6
THERMDN# 6
PROCHOT# 6,27,29
VCC3
Q82
2N3904S
4
CPU FAN
3
R562 0
-12V
R369 15K R371 15K
VCC3
2
CPU_FAN_SINK
CPU_FAN_PWR
CPU_FAN_HDR3CPU_PWM
R372 X_0
R373 10K
CPUFAN1
D1x3-WH-SN
1
2
3
Q30_B
VCC3
Q30
2N2907AS-SOT23
1
CPU_FAN 14
SYSTEM FAN
VCC3
R363
10K
Q87
2N3904S
SYS_FAN 14
+12V
+12V
CT53 10u-16V
+
CH_FAN_SINK
CH_FAN_PWR
CH_FAN_HDR3
R362 15KR365 15K
R367 10K
SYSFAN1
D1x3-WH-SN
1
+12V
2
3
Q28_B
Q28_C Q87_B
Q28
2N2907AS-SOT23
R364 10K
Multi Bay Circuit Hood Sense Circuit
CH_PWM
C C
FAN_CLAMP14
CH_PWM CPUFAN6
R571
R355 10K
R568 51
VCC3
8
X_0
R572
13KST
AVG2_FDBK
PWM_AVG2
CPU_PWM
B B
FAN_CLAMP
FAN_CMD29
8.06KST
3.09KST
R577
R579
A A
R339 10K Q21
R341 51
-12V
VCC5
R343 100K
Q88_B
Q88_E
R354 1K
R359 56.2KST
12
13
R335
13KST
R342 X_0
R344 12.1KST
10u-0805_Y5V
Q88
2N3904S
R639 300
+12V
+
-
U14D
NS-LM324-SOIC14
11 4
FAN_CLAMP
-12V
R334 100K
Q21_BFAN_CLAMP
CPU_CLAMP_E
EC48
14
R574 4.7K
7
PS_AVG
EC47
10u-0805_Y5V
2N3904S
R340 300
CPU_AVG
CPUFAN2
R348
15.8KST
VCC3
PWM_AVG2
VCC3
+12V
5
+
6
-
-12V
R584 30.1KST
-12V
R585 X_0
VCC5
R358 422KST
R578 10K Q85
Q84_B
U14_2
0.01u_X7RC150
7
U14B
NS-LM324-SOIC14
11 4
0.01u_X7RC151
Q85_BFAN_CMD_PS_R
Q84
2N3904S
6
3
2
VCC3
+
-
-12V
CPUFAN4
1
U14A
NS-LM324-SOIC14
11 4
R337 0
CH_AVG
CFAN2
2N3904S
PWM_AVG2 PS_FAN_CMD
R347 1K
C147
0.01u_X7R
R575 20K
R351 20K
+12V
10
9
-12V
R353 6.49KST
CPUFAN5
CPU_FAN_PWR_R
CPU_FAN_SINK
+
-
U14C
NS-LM324-SOIC14
11 4
0.01u_X7RC253
R566 X_0
R637 X_0
PS_DETECT12
CPU_FAN_SINK
VCC5
8
5
VCC3
PS_SINK
R567
0
CH_FAN_SINK
R573 1K
Q22
FDD6035AL-T0252-N
{Priority}
R576 0
CT54 10u-16V
R638 X_0
J4
1
2
3
4
HF08040-N
R569 X_0
CPU_FAN_PWR
+
Q83
FDD6035AL-T0252-N
{Priority}
CFAN5CFAN4
MBAY1
1 2
3 4
5
7 8
9
PIN2*5
MB_ADPT_DET# 14
6
MB_DEV_DET# 14
MB_POWER_ON# 14
HOOKS1
1
2
3
D1X3-90D
HOOD_SW_DET 13
HOOD_SENSE# 12
Hood Lock Circuit
HOOD_LOCK#14
HOOKL1
12
56
CON6-D3
4
+12V
COIL_CONN 13
HOOD_UNLOCK# 14
PWM OVER VOLTAGE PROTECT CIRCUIT
Block function to force VCC_CORE volatge drop to zero within 0.5s after Thermaltrip active.
VCC3 VCC3
Optional delay cirucit T=RC > TRMTRIP# ready to VCCP voltage level
R350 47K
VCC3
TRMTRIP#6,29
GD_30MS#14
4
3
C148 1u-0805_Y5V
R352 1K
R360 1K
TRIP#_B
Q25
2N3904S
VCC3
GD_30MS_A
R356
1K
30MS#_B
Title
Size Document Number Rev
Date: Sheet
Q26
2N3904S
MSI
MICRO-STAR INt'L CO., LTD.
H/W MONITORING & FAN & THERMAL TRIP
2
R345
1K
OVP_B
Q24
2N3904S
R357
X_1K
VISE (MS-6715)
R346
1K
OVP_C
Q23
2N3906LT1-SOT23
OVP_TRIG 28
To PWM control OVP input
GD_30MS 13
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
24 31Friday, September 20, 2002
of
1
0AED
Page 25
8
7
6
5
4
3
2
1

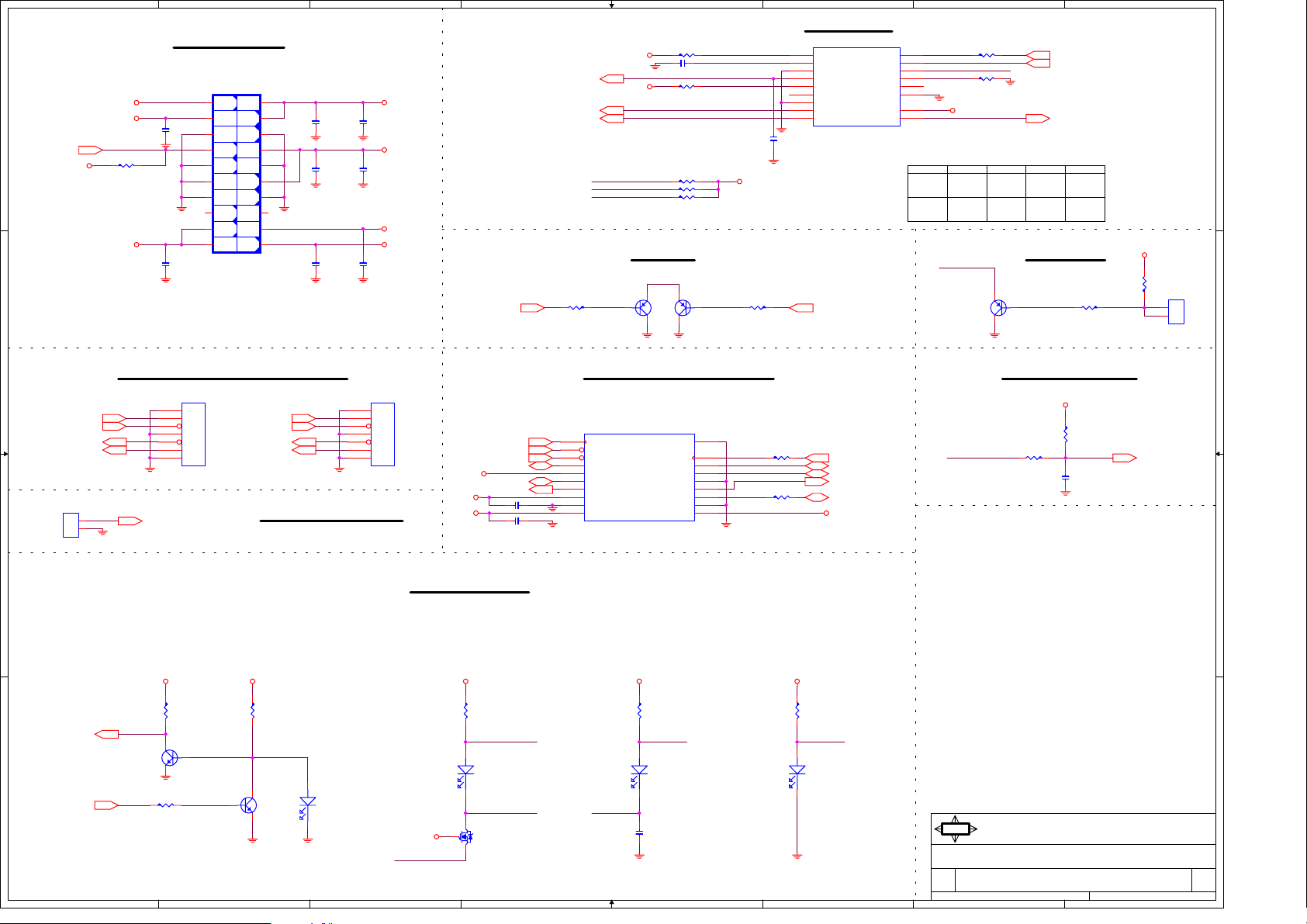

Front Panel
ATX Connector
ATX1
11
VCC3
D D
PS_ON#14
VCC5_SB
C C
-12V
CB287
0.1u_Y5V
R376 4.7K
VCC5
CB290
0.1u_Y5V
12
13
14
15
16
17
18
19
20
3.3V
-12V
GND
PSON
GND
GND
GND
-5V
5V
5V
POWER
YPC20
3.3V
3.3V
GND
GND
GND
POK
5VSB
1
2
3
4
5V
5
6
5V
7
8
9
10
12V
CB285
0.1u_Y5V
CB288
0.1u_Y5V
CB291
0.1u_Y5V
CB286
0.1u_Y5V
CB289
0.1u_Y5V
CB292
0.1u_Y5V
VCC3
VCC5
VCC5_SB
+12V
IDEACTP#22
RSTBTN#12
CHASIS_ID212
CHASIS_ID012
R386 330
2N3906LT1-SOT23
CHASIS_ID0
CHASIS_ID1
CHASIS_ID2
Q66_B Q67_B
Q34
VCC5
VCC5
IDE LED
HDDLED
R379 330
180p_NPOC160
R382 0
R527 10K
R528 10K
R529 10K
IDE_PWR
HDDLED
F_VCC
C163
X_2.2u_Y5V
VCC3
R387 330
Q35
2N3906LT1-SOT23
F_P1
1
3
5
7
9
11
13
15
17
GP24 :CHASIS_ID0
GP25 :CHASIS_ID1 DARK
GP27 :CHASIS_ID2
GP24-27: Default is High
IDE_LED+
IDE_LEDÂGND
RESET#
+5V
NC
GND
CHA_ID2
CHA_ID0
PIN2X9-17
IDEACTS# 22
PWR_LED+
PWR_LEDÂPWR_BTN#
GND
GND
KEY
CHA_ID1
+5V
2
4
6
8
10
NC
12
14
16
18
P_LED
(Yellow)
P_LED
PWRSW
R541
HDDLED
R380 68
R381 0
VCC5
S0
Green
DARK BRIGHTS_LED
S1STATE
Yellow Yellow
BRIGHT
SCSI LED
Q36
2N3906LT1-SOT23
PLED 14
SUSLED 14
CHASIS_ID1 12
S3
S4/S5
DARK
R392 330
R391
20K
SCSIQ69_B
VCC5
SCSI1
1
2
YJ102
SERIAL ATA CONNECTOR BLOCK
SATA1
1
GND
SATA_TX012 SATA_TX112
SATA_RX#012 SATA_RX#112
SATA_RX012
PROT1
1
2
YJ102
B B
2
HT+
3
HT-
4
GND
5
HR-
6
HR+
7
GND
SATA
PROCHOT_LTCHD 12
SATA_TX#112SATA_TX#012
SATA_RX112
Prochot Latch Button
1
2
3
4
5
6
7
SATA2
GND
HT+
HTÂGND
HRÂHR+
GND
SATA
3VSB
VCC3
VCC3
LPC_FRAME#12,13
PCIRST_ICH5#11
SEC_PCLK13
LPC_AD312,13,14
LPC_AD012,13,14
LPC_DRQ#112
CB337 X_0.01u_Y5V-N
CB338 X_0.01u_Y5V-N
SECURITY1
1 2
PCICLK GND
3 4
LPC_FRAME# KEY
5 6
PCIRST# SUSCLK
7 8
LPC_AD3 LPC_AD2
9 10
VCC3 LPC_AD1
11 12
LPC_AD0 GND
13 14
LPC_DRQ1 SEC_TPM_PRES
15 16
VCC3_SB SERIRQ
17 18
GND GND
19 20
VCC3 VBAT
SECURITY HEADER-N
SCLK
SIRQ
R549 0
R550 0
SUSCLK 12
LPC_AD2 12,13,14
LPC_AD1 12,13,14
SEC_TPM_PRES 14
SERIRQ 12,14,29
VBAT
PWRSW
Power Button BlockSECURITY HEADER BLOCK
R375 22
3VSB
R374
4.7K
C157
X_0.1u_Y5V
PWBTIN# 14
PCA LEDs Block
PROCHOT LED
VCC3 VCC3
R640
8.2K
PROC_HOT#12
Q89
2N3904S
A A
PROCHOT#6,27,29
8
R642 4.7K
HOT_B
R641
300
PROC_HOT
Q90
2N3904S
7
LED4
RED LED-NN
3VSB
PS_ON#
6
R388
1K
LED1
GREEN LED
LED_PS_ON_C
Q37
NDS7002AS
5
3VSBVCC5_SB 3VSB
R389
300
LED2
GREEN LED
PWRSW
C164
0.01u_X7R
4
AUXILIARY POWER LEDPower Button Press LEDPS_ON DIAGNOSTIC LED
R390
300
LED_AUXLED_PBLED_PS_ON_A
LED3
GREEN LED
MSI
Title
Size Document Number Rev
3
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
ATX Connector & Front Panel
VISE (MS-6715)
2
25 31Friday, September 20, 2002
1
0AED
of
Page 26
5
U15
VCC5_STR
D D
SLP_S4#12
VCC5_STR
SLP_S3#12
C C
R395 56.2KST
C166 0.01u_X7R
R397 1K
CB294 0.1u_Y5V
R402 56.2KST
C168 0.01u_X7R
R404 1K
R407 1K
CB293
0.1u_Y5V
VCC5_STR
28
VCC
1
AGND
15
PG1
8
ILIM1
SS1
FPWM1#
ILIM2
SS2
FPWM2#
DDR
EN1
11
ILIM1
12
SS1
9 10
FPWM1# VSEN1
14
VIN
16
PG2/REF2OUT
21
EN2
18
ILIM2/REF2
17
SS2
20
FPWM2#
13
DDR
FAN5236-TSSOP-N
{Priority}
BOOT1
HDRV1
SW1
LDRV1
PGND1
ISNS1
BOOT2
HDRV2
SW2
LDRV2
PGND2
ISNS2
VSEN2
4
BO1
DZ4 1N5817
6
5
4
2
3
7
23
24
25
27
26
22
19
C165 0.01u_X7R
HDRV1
PHASE_2V5
LDRV1
R396 2.15KST-N
1SNS1
DZ5 1N5817
BO2
C167 0.01u_X7R
HDRV2
PHASE_1V5
LDRV2
1SNS2
Phigh-gate = Vin/Vout * Iout * Rds(on) = (1.5V / 5V) * 5.9A * 0.017 = 0.045W
Plow-gate = (1-D) * Iout2 * Rds(on) = (1- 1.5V / 5V) * 5.9A * 0.017 = 0.07W
Ptotal = Phigh-gate + Plow-gate = 0.115W
1inch square thermal copper required
VCC3VCC5_STR
R406 1.69KST
VCC5_STR
Q38
5
D1
6
D1
4
G1
FDS6984S-SO8-N
{Priority}
VCC5
Q39
5
D1
6
D1
4
G1
FDS6984S-SO8-N
{Priority}
3
Phigh-gate = Vin/Vout * Iout * Rds(on) = (2.5V / 5V) * 7A * 0.017 = 0.06W
Plow-gate = (1-D) * Iout2 * Rds(on) = (1- 2.5V / 5V) * 7A * 0.017 = 0.06W
Ptotal = Phigh-gate + Plow-gate = 0.12W
1inch square thermal copper required
Continuous current 7A,
PHASE_2V5
3
S1
7
D2
8
D2
12
S2G2
VSENSE_2V5
PHASE_1V5
3
S1
7
D2
8
D2
12
S2G2
SENSE_1V5
CHOCK1 3.3uH
{Priority}
CHOCK2 3.3uH
{Priority}
peak up to 10A.
VCC_DDR
R393
10KST
R398
5.6KST
Continuous current
5.9A, peak up to 8A.
VCC_AGP
R403
2.2KST
R408
3.3KST
2
1
VCC5 & VCC3 Discharge Residual Voltage
-12V
R400 4.7K
RN89
39
MMBFJ108-N
Q40_G
Q40
123456
VCC5
78
Q40_D
VCC3
123456
Q41_D
78
RN90
39
Q41
MMBFJ108-N
5V Dual power switching 5V USB Power Supplier
Trace Width is 180mils.
R409 1.5K
+12V
3V_SW_CTRL#14 5V_USB_MAIN#14
R411 2.2K
R415 2.2K
3V_MAIN#
Q45
2N3904S
R413 1K CB295
3V_AUX
VCC5_SB
VCC5
VCC5_SB
3V_GB
0.1u_Y5V
Q47
2N3906LT1-SOT23
Q43
1
S1
2
G1
3
S2
4 5
G2 D
FDS4501H
{Priority}
CB296
0.1u_Y5V
8
D
D
D
+
7
6
CT49
100u-25V
It contain USB @ 1 port and DDR, 9A.
Trace Width is 360mils.
Add copper for Thermal issue.
VCC5_STR
R410 1.5K
+12V
R412 2.2K
5V_USB_AUX14
R416 2.2K
5V_MAIN#
R414 1K
5V_AUX
VCC5_SB
Q46
2N3904S
VCC5
5V_G13V_GA
VCC5_SB
5V_G2
CB297
0.1u_Y5V
Q48
2N3906LT1-SOT23
Q44
1
S1
2
G1
3
S2
4 5
G2 D
FDS4501H
{Priority}
CB298
0.1u_Y5V
8
D
7
D
6
D
It contain USB, 3A@2ports + PS/2.
Trace Width is 120mils.
+
CT50
100u-25V
USB_STR
B B
TBD
CPU_VTT
GMCH_VTT
Reserved for GMCH VCCP volatge step up.
REF_1V25
R420 X_1K
VCC3
R421 X_0
VCCP
C169
0.1u_Y5V
A A
+12V_OP
U16A
NS-LM358MX-SOIC8
{Priority}
3
+
2
-
4 8
VTT_FB
R427 1K
VTT
5
1
VTT_R
X_2N3904S
TBD
5
+
6
-
U16B
NS-LM358MX-SOIC8
4 8
{Priority}
-12V
VTT_M2
7
R428 X_2.2KQ55
X_2N3904S
{CURRENT}
SS22-S210-DO214AA-N
{Priority}
VTT_DZ
VTT_CTL
R422 1K
Q56
4
VTT_M3
VTT_M1
VCC3
DZ6
DS
Q50
P3056LS
{Priority}
G
+
VCC3
CT22
100u-25V
Q54
NDS352AP
Power deplete cirucit when VCCP trun it off
R429 X_1.5K
R430 X_2.2K
1.6A@600mA
VRM_GD 28
VTT
CB299
0.1u_Y5V
VCC5_SB
Q49
VCC_VID
Voltage
1.225V
R418 1K
BOOT_B
2N3904S
Q52
R545
VCC5_SB
300
BOOT6
BOOT CPU
LOW
HIGH Prescott
Bootstrip pin are input rather then output on Intel Prescott processor, either it's
internal weak pull-up but still need to identify it can be sufficient driving
capability for out side ciruit. And the bootstrip pin power by core voltage so the
outside cirucit need to adjust the turn off voltage.
3
R423 10K
Northwood 1.45V
R419
1K
C170
0.1u_Y5V
2
2N3906LT1-SOT23
R424
1K
Title
Size Document Number Rev
Date: Sheet
Change R417 connected from Q51
source to drain to eliminate a floating
connection when Q51 turn it off.
MSI
CPU_PSC_HI
CPU_NW_HI
C171
0.1u_Y5V
3VSB
Q53
FDV301N-SOT23
R425
634RST
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
AGP & MEMORY & USB Regulator Controller
VISE (MS-6715)
1
3VSB
Q51
FDV301N-SOT23
R417
866RST
REF_1V25
R426
499RST
26 31Friday, September 20, 2002
0AED
of
GMCH VTT Generator Intel reference GMCH VTT power cirucit
Page 27
5
4
3
2
1

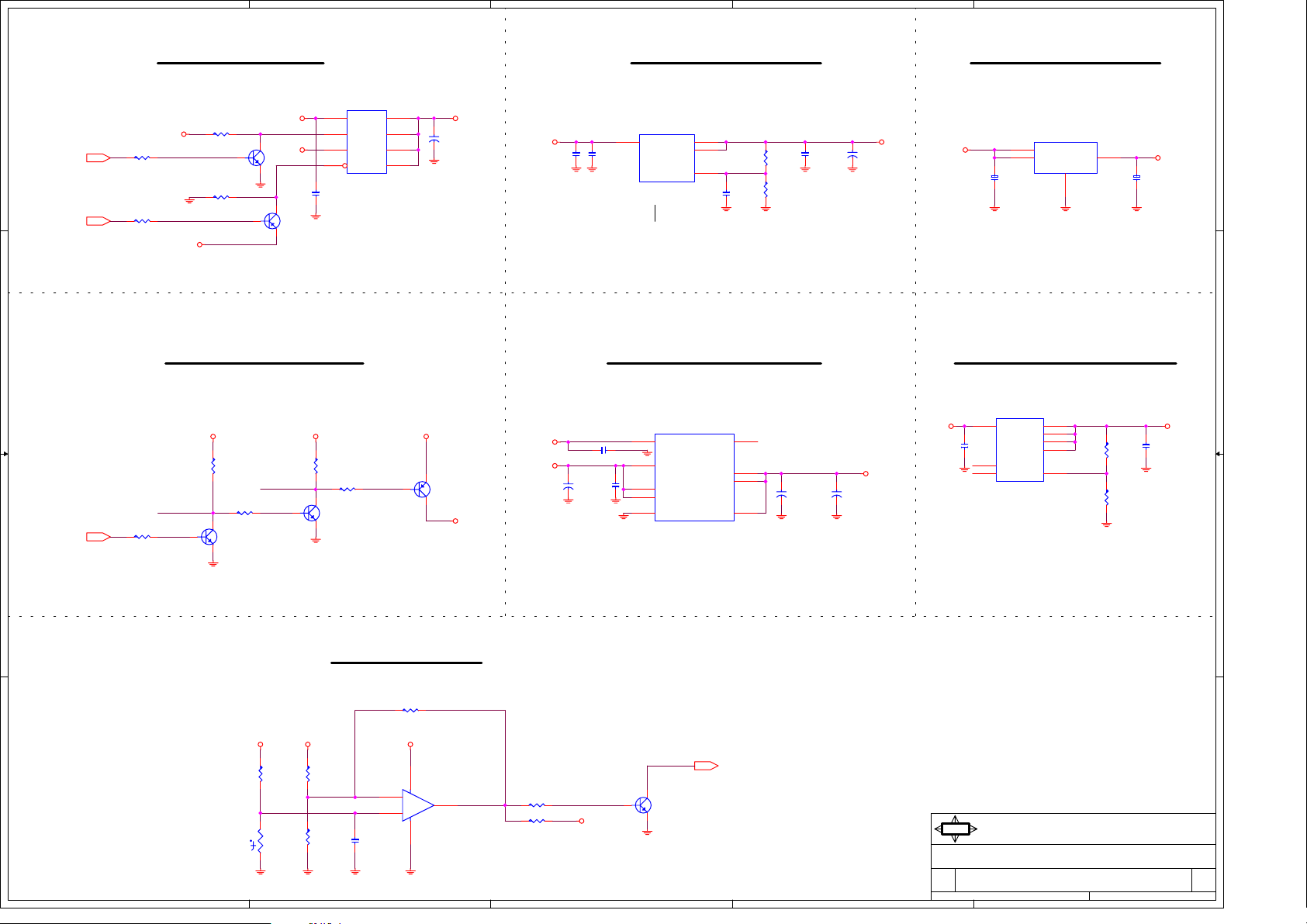

3.3V Standby Power Supplier3.3V Dual Power Supplier
Q57
D D
3V_SW_MAIN#14
3V_SW_AUX14
C C
3V_SW_MAIN#14
R432 2.2K
R436 2.2K
R450 2.2K
R431 1.5K
+12V
3VSB_DUAL_SWA
R435 1K
3VSB_DUAL_SWB
3VSB
QON_C
QON
Q58
2N3904S
R445
1.5K
R449 2.2K
Q62
2N3904S
3V_G1A
3VSB
3V_G2A
Q59
2N3906LT1-SOT23
VTT_C
VTT_B
1
2
3
4 5
CB303
0.1u_Y5V
R446
1.5K
R448 1K
Q61
2N3904S
S1
G1
S2
G2 D
FDS4501H
{Priority}
8
D
7
D
6
D
VTT_OP_B
+
CT23
100u-25V
+12V+12V+12V
Q60
2N3906LT1-SOT23
VCC3_SBVCC3
+12V_OP
VR2
AMS1084CM-TO263-5A
3 2
VIN VOUT
CB300
X_0.1u_Y5V
1inch thermal copper required, maximum current need to supply three of Microsoft
Foxfire add-on cards within LDO case temperature under 80degreeC.
VCC_DDR
VCC3
CT25
10u-16V
CB301
0.1u_Y5V
CB21 2.2u_Y5V
+
C179
0.1u_Y5V
AMS
{Priority}
10
11
12
2 5
4
VOUT
1
ADJ
C172
X_0.1u_Y5V
VR3
NC:1,3,4,6
9,13,16
AVIN
PVIN
PVIN
GND VSENSE
LP2995-LLP16-N
{Priority}
VREFVDDQ
VTT
VTT
3VSB_ADJ
78
14
15
R433
200RST
R434
332RST
+
CT26
1000u-6.3V
Maximum 1.2A sustain load
+
+
CT45
1000u-6.3V
CT24
22u-10V
ALE
VTT_DDR
CB302
0.1u_Y5V
3VSBVCC5_SB
VCC3
0.1u_Y5V
ICH5 VCCSUS1_5 VOLTAGE
VR4
AME8800LEFT-SOT89-300mA-N
{Priority}
CB340
0.1u_Y5V
2
VIN
4
VIN
3VSB
GMCH VCC_DAC Voltage SupplierVTT_DDR VOLTAGE SUPPLIERGMCH_VTT ON/OFF CIRCUIT
U18
1 2
C184
VIN VOUT
5
NC
8
NC
LM317L-SO8-N
{Priority}
VOUT
VOUT
VOUT
ADJ
3
6
7
4
VOUT
GND
1
DAC_ADJ
3
R451
100RST
R452
28RST
1_5VSB
CB341
0.1u_Y5V
1.7V@250mA
CB304
0.1u_Y5V
VCC_DAC
B B
VR THERMAL BLOCK
R631 7.5K
VCC5VCC5 VCC5
R632
A A
5
1KST
RT1
6.8KST
{Priority}
R633
1KST
THERMP
THERMN
R636
1KST
C261
0.1u_Y5V
4
U33A
NS-LM358MX-SOIC8
{Priority}
3
+
2
-
4 8
THERMO
1
R635 130RST Q86
R634 680
THERM_B
VCC5
2N3904S
3
PROCHOT# 8,24,25
MSI
Title
Size Document Number Rev
2
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
VCC3_SB & VCC_DAC & VTT Regulator Controller
VISE (MS-6715)
27 31Friday, September 20, 2002
1
of
0AED
Page 28
8
7
6
5
4
3
2
1
+12VP_FET
CT28
820u-25V
VID0
D D
VID1
VID2
VID3
VID4
VID5
VID[0..5]6
VRM_GD12,26
VCC5
R459 0
C196 0.1u_Y5V
R461 2KST
R462 X_??
R465 150KST
{Prioirty}
R530 0
R531 X_0
C198 1u-0805_Y5V
R458 1K
VCC3
C C
OVP_TRIG24
VDIFF
R468 2KST
R469 15KST
R475 X_2KST
C200 5600p-Y5V-N
COP
FB
R472 2KST
R473 X_100KST
VCCP
C203
X_??
CONNECT TO BULK CAPACITOR
B B
+12VP
R482
5.6K
VSS_SENSE6
VCC_SENSE6
R581 1K
R582 1K
VID0
VID1
VID2
VID3
VID4
VID5
VRMPG
VCCP
DIS
OFS
FS
OVP
REF
DAC
COMP
VDIFF
12
34
56
78
U20
7
6
5
4
3
8
2
27
9
28
1
11
10
13
12
14
Intersil 6556B-N
{Priority}
R476 100
R478 0
R480 0
R481 100
RN88
10K
VID0
VID1
VID2
VID3
VID4
VID12.5
PGOOD
EN
OFS
FS
OVP
REF
DAC
COMP
FB
VDIFF
VCC3
26
VCC
17
GND
22
PWM1
23
ISEN1
21
PWM2
20
ISEN2
18
PWM3
19
ISEN3
25
PWM4
24
ISEN4
15
VSEN
16
RGND
VCORE_SENSE-
C207
X_0.1u_Y5V
VCORE_SENSE+
VCC5
CB321
1u-0805_Y5V
PWM1
ISEN1
PWM2
ISEN2
PWM3
ISEN3
PWM4
ISEN4
R453 4.7-0805
+12VP
R460 3.3KST
R464 3.3KST
R467 3.3KST
R470 3.3KST
+12VP
12VP1
C188
0.1u_Y5V
12VP1
C194
1u-0805_Y5V
R471
4.7-0805
12VP2
C205
0.1u_Y5V
R483 1K
Q73
2N3904S
A A
Q31_G
Q74
2N3904S
R485 1K
R487 4.7K
Q36_G
VCC5_SB +12VP
R541
4.7K
3VSB
GD_10MS 14
R542
4.7K
FB
R543
20K
Q81
NDS7002AS
12VP2
C212
1u-0805_Y5V
+12VP
BOOT6
8
R544 10K
Q80
2N3904S
Q79
2N3904S
7
VDIFF
6
CB311
0.01u_X7R
5
U19A
14
VCC
U_G1
BOOT1
3
1
5 9
6
2
14
3
1
5 9
6
2
3
4
PHASE1
GND
PWM1
HIP6602B
U19B
PVCC U_G2
BOOT2
PHASE2
PGND
PWM2
HIP6602B
U21A
VCC
BOOT1
PHASE1
GND
PWM1
HIP6602B
U21B
PVCC U_G2
BOOT2
PHASE2
PGND
PWM2
HIP6602B
JPW1
GND
12V
GND
12V
D2x2
L_G1
L_G2
U_G1
L_G1
L_G2
1
2
U_G1 UG1
12
BOOT1
11
C189
0.1u_Y5V
PHASE1
13
L_G1
4
U_G2
BOOT2
10
C195
0.1u_Y5V
PHASE2
8
L_G2
7
U_G3
12
BOOT3
11
C204
0.1u_Y5V
PHASE3
13
L_G3
4
U_G4
BOOT4
10
C211
0.1u_Y5V
PHASE4
8
L_G4
7
4
R454
3.3-0805
FDB6670-T0263
{Priority}
R456
4.7-0805
R457
3.3-0805
R466
4.7-0805
R474
3.3-0805
R479
4.7-0805
R486
3.3-0805
R489
4.7-0805
LG1
CT30
820u-25V
UG2
FDB6670-T0263
{Priority}
LG2
CT31
820u-25V
UG3
FDB6670-T0263
{Priority}
LG3
CT34
820u-25V
UG4
FDB6670-T0263
{Priority}
LG4
Decide package on placement stage
Q64
FDB6670-T0263
{Priority}
+12VP_FET
Q67
FDB6670-T0263
{Priority}
+12VP_FET
C201 X_4.7u-1206_Y5V
C202 1u-0805_Y5V
Q70
FDB6670-T0263
{Priority}
+12VP_FET
Q75
FDB6670-T0263
{Priority}
3
C185 X_4.7u-1206_Y5V
C186 1u-0805_Y5V
Q63
FDD6035AL-T0252-N
{Priority}
Q65
C192 X_4.7u-1206_Y5V
C193 1u-0805_Y5V
Q66
FDD6035AL-T0252-N
{Priority}
Q68
Q69
FDD6035AL-T0252-N
{Priority}
Q71
C209 X_4.7u-1206_Y5V
C210 1u-0805_Y5V
Q72
FDD6035AL-T0252-N
{Priority}
Q76
COIL1 1.1uH-25A
CB306
4.7u-1206_Y5V
COIL2 0.86uH-18A
R455
1-1206_0.5W
R617
C191
0.01u_X7R
Decide package on placement stage
COIL3 0.86uH-18A
R463
1-1206_0.5W
R618
C199
0.01u_X7R
Decide package on placement stage
COIL4 0.86uH-18A
R477
1-1206_0.5W
R619
C208
0.01u_X7R
Decide package on placement stage
COIL5 0.86uH-18A
R488
1-1206_0.5W
R620
C214
0.01u_X7R
MSI
Title
Size Document Number Rev
Date: Sheet
2
+12VP
VCCP
VCCP
VCCP
VCCP
VCCP
0.8375~1.6V / 90A
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
CT32
560u-4V
CT33
560u-4V
CT35
560u-4V
CT36
560u-4V
CT37
560u-4V
CT38
560u-4V
CT39
560u-4V
CT40
560u-4V
CT41
560u-4V
CT42
560u-4V
CT43
560u-4V
CT44
560u-4V
VRM 10 - Intersil 6556A
VISE (MS-6715)
28 31Friday, September 20, 2002
of
1
0AED
Page 29
8
7
6
5
4
3
2
1

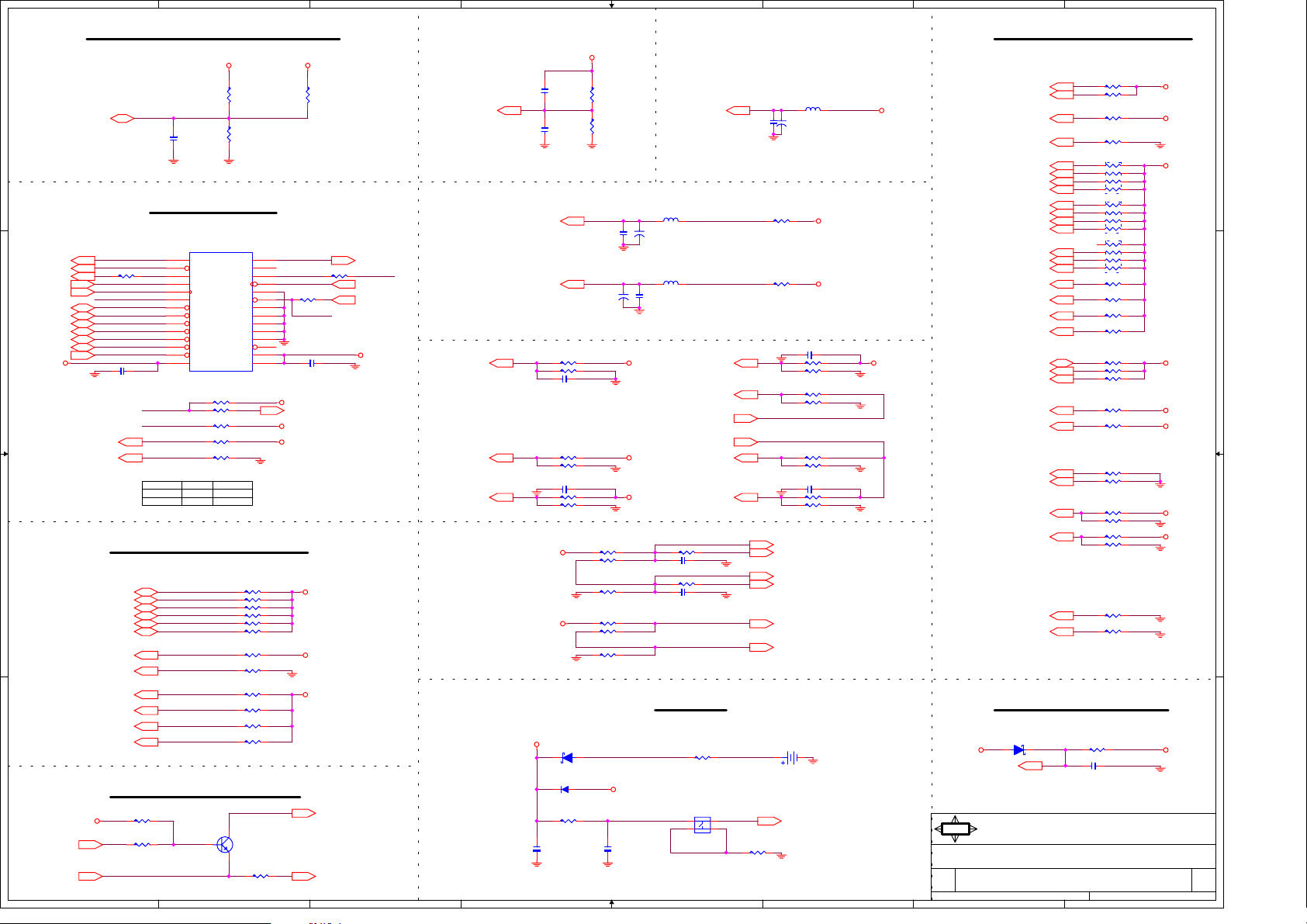

CPU GTL REFERNCE VOLTAGE BLOCK
VCCP
R1
200RST
D D
GTLREF6,8
0.63*Vccp
C1
0.1u_Y5V
R2
169RST
Close CPU
VTT
R532
200RST
Close GMCH
HSWING8
CPU ITP BLOCK
ALL COMPONENTS CLOSE TO ITP
JTAG1
ITP_TDI6
ITP_TRST#6
ITP_TCK6
ITP_TDO6
ITP_CLK13
BPM#56
BPM#46
BPM#36
BPM#26
BPM#16
C C
BPM#06
ITP_DBR#6
VCCP
R533 0 R534 X_0
ITP_TDO
ITP_TCK
ITP_DBR#
CB1 0.1u_Y5V
ITP_TMS6
ITP_TCK6
1 2
3
5
7
9
11
13
15
17
19
21
23
25
27
JTAG-N
{Priority}
ITP_DBR#
ITP_TDO
R16 R18
ITP 39ohm
27ohm
TDI TMS
TRST#
TCK
BCLK#
TDO
GND
BCLK
RESET#
FBO
BPM#5
GND
BPM#4
GND
BPM#3
GND
GND
BPM#2
BPM#1
GND
DBA#
BPM#0
DBR#
VTAP
VCC
VCC
R11 X_150
R12 0
R17 75
R16 39
R18 27
47ohm
47ohmUSB_ITP
4
NC
UTCK ITP_TCKCTCK
6
NC
8
10
R8 150
12
14
ITP_RST#
16
18
20
22
24
26
CB2 0.1u_Y5V
28
VCC3
MR# 14
VCCP
VCCP
ITP_TMS 6
ITP_CLK# 13
CPURST# 8
VCCP
VREF9
XCOMPL9
XCOMPH9
CPU STRAPPING RESISTORS
B B
ITP_TRST#6
PROCHOT#8,24,25
CPU_GD6
CPURST#6
A A
VCCP
CPURST#8
TRMTRIP#6
8
ALL COMPONENTS CLOSE TO CPU
BPM#46
BPM#56
BPM#26
BPM#36
BPM#16
BPM#06
ITP_TDI6
HBR#06,8
R23 62
R26 62
R28 62
R31 62
R33 62
R34 62
R24 150
R29 680
R25 120
R27 300
R30 200RST
R32 62
THERMTRIP TRANSLATION
R643 X_15K
R644 15K
Q91_B
Q91
2N3904S
R645 X_0
7
VCCP
VCCP
VCCP
SIO_TRMTRIP# 14
ICH_TRMTRIP# 12
6
VCCA_FSB8
VCCA_DPLL8
VCC_AGP
VCC_AGP
VBAT
Close AD11 of ICH5.
VCCP
C7
0.01u_X7R
1/4*Vccp
C10
0.01u_X7R
{VOLTAGE}
I=30mA
I=35mA
ESR is 0.1mohm to GMCH
R46 150RST
R50 150RST
C19 2.2u_Y5V
{VOLTAGE}
R48 30.1KST
R52 10KST
CB22 2.2u_Y5V
R56 10KST
R60 30.1KST
D1 1N4148S
R103 180K
C39
1u-0805_Y5V
{VOLTAGE}
5
R42
301RST
R45
100RST
C8
0.1u_Y5V
+
CT2
100u-10V
ALU
VCC_DDR VCC_DDR
VCC_DDR
VCC_DDR
R67 226RST R68 0
R69 147RST
R71 113RST
R521 226RST
R522 147RST
R523 113RST
VCCA_DDR9
L3 0.82uH-30mA R43 1RST
+
CT1
22u-16V
ALE
C9
0.1u_Y5V
VCC_DDR_C39
VCC_DDR_C29
C30 0.1u_Y5V
R70 0
C31 0.1u_Y5V
BATTERY 5VREF Sequencing Circuit
3VSB
RST_SW
C40
0.01u_X7R
1 2
3 4
XRCOMP9
YRCOMP9
YCOMPL9
YCOMPH9
CMOS1
SWITCH 4P
{Priority}
RST_G
4
C257
0.1u_Y5V
FSB
R44 1RSTL4 100nH-300mA
DPLL
BAT1VBAT_DZ
R104 1K
L5 1uH-1206-1A-N
+
CT48
22u-16V
CB20 2.2u_Y5V
R47 42.2RST
R51 42.2RST
R55 42.2RST
R59 42.2RST
R49 30.1KST
R53 10KST
CB23 2.2u_Y5V
R57 10KST
R61 30.1KST
HL_SWING 10
H_SWING 12
800mV
HL_VREF 10
H_VREF 12
350mV
CI_SWING 10
800mV
CI_VREF 10
350mV
BAT1R101 1KDZ2 1N5817
RTC_RST# 12
{Prority}
VCC_AGP
VCC_AGP
3
VCC_AGP
MSI
Title
CPU & GMCH & ICH5 PULL UP / DOWN RESISTORS
Size Document Number Rev
Date: Sheet
ICH5 STRAPPING RESISTORS
ALL COMPONENTS CLOSE TO ICH5
Trace length is less than 3inchs to ICH5.
FERR#12
TRMTRIP#6,24
H_COMP12
HL1112
PS_DETECT12
SMBCLK12,13,16,17,18,24
SMB_ALERT#12
SM_LINK012,20
SM_LINK112,20
SUS_STAT#12
BATTLOW#12
SMBDATA12,13,16,17,18,24
LNK_ALERT#12
SIO_SMI#12
CSA_PME#12
FRONT_USB_DET#12
FAN_CMD12,24
RI#12
OC#712
SERIRQ12,14,25
KBRST#12
A20GATE12
RISER#212
THERM#12
PSWRD12
EE_DO12,16
BRD_ID012
BRD_ID112
RSMRST#12
ICH_GD12
DZ1 1N5817
5VREF12
MICRO-STAR INt'L CO., LTD.
R79 62
R80 62
R81 52.3RST-N
Impedance is equal 60ohm.
R82 61.9RST
R502 10K
R490 10K
R85 8.2K
R512 10K
R506 10K
R507 10K
R508 10K
R148 8.2K
R86 4.7K
R87 8.2K
R88 X_10K
R93 X_10K
R94 1K
R95 X_10K
R96 1K
GP33 :BRD_ID0
GP37 :BRD_ID1
R546 10K
R547 10K
R97 1K
C35 1u-0805_Y5V
{VOLTAGE}
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
VISE (MS-6715)
2
VCCP
VCC_AGP
12
3VSB
34
RN1
56
10K
78
12
RN2
34
10K
56
78
12
RN3
34
10K
56
78
VCC3
VCC3
VCC3
VCC3
VCC3
VCC5VCC3
29 31Friday, September 20, 2002
1
0AED
of
Page 30
1
ICH5
FunctionTypeGPIO Pin
GPIO 0
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
GPIO 16
GPIO 18
GPIO 19
GPIO 20
GPIO 21
GPIO 22
GPIO 24 RI# (multifuntion pin)
GPIO 25
GPIO 26 O SUSCLK (multifunction pin)
GPIO 27 I AGP_PME# (multifunction pin)
GPIO 28
GPIO 29
A A
GPIO 30
GPIO 31
GPIO 32 EE_SEL (multifunction pin)
GPIO 33 EE_CLK (multifunction pin)
GPIO 34
GPIO 35
GPIO 36
GPIO 37
GPIO 38
GPIO 39
GPIO 40
GPIO 41
GPIO 42
GPIO 43
GPIO 44
GPIO 45
GPIO 46
GPIO 47
GPIO 48
GPIO 49
I
PCI_REQ#4 (multifunction pin)
O PCI_GNT#4 (multifunction pin)
I/O PCI_PERR# (multifunction pin)
I
PCI_IRQ#E (multifunction pin)
O
PWM_GPIO4 (multifunction pin)
O
Unused (multifunction pin)
I
USB_OC2# (multifunction pin)
I
USB_OC2# (multifunction pin)
I
USB_OC2# (multifunction pin)
I
USB_OC3# (multifunction pin)
I
USB_OC3# (multifunction pin)
AC_SDIN1 (multifuntion pin)
I
I
A20GATE (multifuntion pin)
I
Unused (multifunction pin)
I AUD_DET# (multifunction pin)
O
Unused (multifunction pin)
O
Unused (multifunction pin)
O
Unused (multifunction pin)
I SIO_PME# (multifunction pin)
O
Unused (multifunction pin)
I
SIO_SMI# (multifunction pin)
I THERM# (multifuntion pin)
I
I
KBRST# (multifuntion pin)
O Unused (multifunction pin)
O Unused (multifunction pin)
O Unused (multifunction pin)
O Unused (multifunction pin)
O
O
O
EE_DO (multifuntion pin)
I EE_DI (multifuntion pin)
I
SOS# (multifuntion pin)
I
SOS# (multifuntion pin)
SOS# (multifuntion pin)
I
O Unused (multifunction pin)
SMBCLK (multifuntion pin)
I/O
I/O SMBDATA (multifuntion pin)
I/O SMBCLK1 (multifuntion pin)
I/O SMBDATA1 (multifuntion pin)
DDC_CLK (multifuntion pin)
I/O
DDC_DATA (multifuntion pin)
I/O
Unused (multifunction pin)
O
CH_FAN_OVRD (multifunction pin)
O
O
LPC_CS# (multifunction pin)
O
FAN_CLAMP (multifunction pin)
PCI Config.
DEVICE
INTA#
INTC#
PCI_REQ#0PCI Slot 1
PCI_GNT#0
INTF#
INTG#
PCI Slot 2
INTC#
INTF#
PCI_REQ#1 AD25 PCICLK1
PCI_GNT#1
INTG#
INTA#
PCI Slot 3 PCI_REQ#2 AD26
INTF#
INTG#
PCI_GNT#2
INTA#
INTC#
PCI Slot 4
INTG#
INTA#
PCI_REQ#3
PCI_GNT#3
INTC#
INTF#
PCI Slot 5
INTA#
INTC#
PCI_REQ#4
PCI_GNT#4
INTF#
INTG#
IDSEL
AD20
AD27
AD28
LPC Super I/O
GPIO Pin
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
Type
I
I
I
I
I
I
I/O
GPIO 17
I/O
I/OGPIO 20
GPIO 21
GPIO 22
GPIO 23
GPIO 24
GPIO 25
GPIO 26
GPIO 27
GPIO 30
I/O
I/O
I
I/O
I/O
I
I
O
OGPIO 31
GPIO 32
I/O
GPIO 33 I/O
GPIO 34
GPIO 35
GPIO 36
GPIO 37
GPIO 40
GPIO 41
GPIO 42
GPIO 43
O
I/O
O
O
O GD_10MS
I/O
O
I
Function
VERSION_ID0
VERSION_ID1
CPU_FAN
PCI_PME#
CHASSIS_ID0
CHASSIS_ID1
UnusedGPIO 16
Unused
ATADET0
ATADET1
Unused
BOARD_ID0
SIO_ADDR
Unused
CPUOCC#
BOARD_ID1
PLED
SUSLED
TRMTRIP#
FDD_DET I/O
BIOS Protect
Unused
MOB#
DSB#
DRVDEN0
Unused
SIO_PME#
HM_INIT#
GPIO Pin
GPIO 44
GPIO 50
GPIO 51
GPIO 52
GPIO 53
GPIO 54 Unused
GPIO 55
GPIO 56
GPIO 57
GPIO 60
GPIO 61
GPIO 62
GPIO 64
GPIO 65
GPIO 66
GPIO 67
GPIO 70
GPIO 71
GPIO 72
GPIO 73
GPIO 74
GPIO 75
GPIO 76
GPIO 85
GPIO 86
CLOCKREQ#/GNT#
PCICLK0
PCICLK2
PCICLK3
PCICLK4
Function
Type
I/O
Unused
Unused
I/OGPIO 45
O
SIO_SMI#GPIO 46
Unused
I/O
I/O
Unused
I/O
Unused
I/O
Unused
I/O
Unused
I/O
Unused
I/O
Unused
I/O
Unused
I/O
I/O
Unused
I
PWBTIN#
I
DLY_S3#GPIO 63
SLP_S5#
I
I USB_SENS
PWRBTN#O
PS_ON
O
Unused
I
RISER#1
I
RISER#2
PHY_DIS
I
PHY Disable
I/O
O
GD_30MS
O
I/O
Unused
Unused
I/O
CLK GEN PIN OUTMCP1 INT Pin
MCP/8 (PCI_CLK0)
MCP/9 (PCI_CLK1)
MCP/12 (PCI_CLK2)
MCP/13 (PCI_CLK3)
MCP/14 (PCI_CLK4)
DDR DIMM Config.
DEVICE
DIMM 2
DIMM 1
PCI RESET DEVICE
Signals
PCIRST#1
PCIRST#0
PCIRST#2
HDDRST#
BIOS Protect Config.
BIOS Un_Protected
BIOS Protected
CLOCKADDRESS
1010010B
MCLK_A0/MCLK_A0#
MCLK_A1/MCLK_A1#
MCLK_A2/MCLK_A2#
1010001B
MCLK_B0/MCLK_B0#
MCLK_B1/MCLK_B1#
MCLK_B2/MCLK_B2#
Target
Northbridge
FWH, Super I/O,AGP slot
PCI slot 1-3, PCI Riser
Primary, Scondary IDE
1
0
Flash ROM
GPIO Pin
GPI 0
GPI 1
GPI 2
GPI 3
GPI 4
Type Function
I
Pull down through 1K ohms (unused)
I
Pull down through 1K ohms (unused)
I
Pull down through 1K ohms (unused)
I
Pull down through 1K ohms (unused)
I
Pull down through 1K ohms (unused)
MSI
Title
Size Document Number Rev
1
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
General Purpose Spec
VISE (MS-6715)
30 31Friday, September 20, 2002
of
0AED
Page 31
8
7
6
5
4
3
2
1
Auto-BOM Manual Parts
D D
BIOS_X1
PCB1
JCMOS1(1-2)SW1(2-3) U2_X1
PCB
BAT1_X1
U2_X3
FAN_SEL1(2-3) FAN_SEL2(2-3)
U2_X2
+
C C
B B
A A
MSI
Title
Size Document Number Rev
8
7
6
5
4
3
Date: Sheet
MICRO-STAR INt'L CO., LTD.
H/W Project Leader : Andy Chen
H/W Project Engineer : Prudence Wang
MSI AUTO BOM
VISE (MS-6715)
2
31 31Friday, September 20, 2002
0AED
of
1
Loading...
